The Path to Robust

Automotive Networking

www.infineon.com/automotive-networking

Introduction 4

Products Overview 7

Automotive Transceivers 8

System Basis Chips (SBCs) 12

Infineon® Embedded Power ICs 18

Microcontrollers 25

Support Tools 28

System Basis Chips (SBCs) 28

Infineon® Embedded Power ICs 29

Microcontrollers 30

Packages Overview 32

Content

Introduction

Automotive Networking

Automotive networking technology is evolving fast, driven

by a number of key trends. With an ever-increasing num-

ber of cars on the road and rising fuel costs, demands

for energy efficiency are growing. Worldwide legislation

is establishing ever-stricter caps on CO2 emissions. The

spotlight is also on functional safety. With the ISO 26262

automotive standard increasingly moving into applications

that were not typically safety-relevant, the bar is moving

upwards and we are seeing increasingly granular system

safety concepts. At the same time, complexity is on the

increase. Growing consumer expectations are fuelling new

comfort and safety features also in low-end segments, and

this, in turn, is placing pressure on semiconductor manu-

facturers to reduce complexity through hardware/software

compatibility and design-in support.

Last but not least, standardized, high-performance com-

munication interfaces and protocols are needed to support

the growing volume of data shared across automotive

networks. CAN & LIN are the most commonly used inter-

faces. High-speed infotainment tends, however, to rely on

Ethernet and MOST, but these involve high implementa-

tion costs. Partial networking and flexible data rates (e.g.

CAN FD) can help to balance cost/performance here.

World leader in automotive electronics for over 40 years,

we actively engage with many industry, standardization

and research organizations to drive in-vehicle network-

ing innovations capable of meeting today’s demands for

energy efficiency, safety, smooth interfacing and complex-

ity management. Our broad portfolio extends from stand-

alone transceivers through system basis chips to embed-

ded power solutions for CAN, LIN and FlexRay protocols.

We also offer microcontrollers with enhanced communica-

tion capabilities to support multiple protocols. All of our

products are designed to deliver the exceptional levels of

ESD and EMC performance required in automotive environ-

ments. And to ease and accelerate your design-in process,

we offer a range of demo boards, configuration tools, tool

chains and development platforms.

(“N P" CED” ﬁlm”

Automotive Standards

Infineon is actively participating as a member in several standardization groups and is also funding some research

projects with major OEM’s in terms of networking:

Local Interconnect Network (LIN) is used to interconnect sensors and actuators

where the high bandwidth and fast reaction time is not required.

High-Speed Controlled Area Network (HS-CAN) is the most used

communication interface in automotive and allows communication speed up to

1Mbps, frame up to 8 data bytes and a high level of data integrity.

CAN Partial Networking (PN) or Selective Wake has been introduced as a

solution to reduce the current consumption in active mode allowing to set

selectively an ECU in low power or active mode.

CAN with Flexible Data-Rate (CAN FD) extends the performance of HS-CAN with

a very low system effort. Up to 5Mbps communication speed and up to 64 data

bytes per frame can be reached using the same physical layer.

FlexRay provides up to 10Mbps communication speed per channel for advanced

in-vehicle control applications. It provides a fault-tolerant network for safety

critical applications.

Ethernet – Ethernet technology rolls out the path to the next level of

connectivity and provides not only improved bandwidth for e.g. ADAS

application, but also lower latencies for control applications based on proved

and well-known standards.

Your Partner of Trust for

Automotive Network Solutions

World leader in automotive electronics for 40 years, Infineon focuses on the

in-vehicle networking, a major driver today for innovation in the automotive

field, meeting the ever-increasing demands of consumers for energy efficiency,

mobility and security.

With over fifteen years’ experience developing communication interfaces,

Infineon offers a broad product portfolio of standalone transceivers, system

basis chips, embedded power solutions for CAN, LIN and FlexRay protocols.

AURIX™ microcontrollers with enhanced communication capabilities to support

flexible communication protocols such as LIN, SPI, I²C, CAN, CAN FD, FlexRay™,

Ethernet, DigRF/LVDS complement the offering.

Continuously improving its SPT chip technology, Infineon provides solutions

for the challenges faced by the automotive industry, featuring outstanding ESD

robustness and EMC performance to fulfill the latest OEM requirements.

In this brochure Infineon introduces its standalone transceiver, system basis

chip, embedded power & AURIX™ microcontroller portfolio, with a detailed

description of their distinctive key features and benefits.

For more detailed information please visit the Infineon website

at www.infineon.com/Automotive-Networking or contact your sales or

distribution partners www.infineon.com/WhereToBuy.

Infineon Automotive Networking Products

 Comprehensive product portfolio of standalone transceivers, system basis chips and embedded power solutions

 Microcontrollers with enhanced communication capabilities to support flexible communication protocols

Protocol/Product Type LIN High-Speed CAN High-Speed CAN + LIN FlexRay

Standalone Transceivers TLE7257SJ/LE

TLE7258SJ/LE

TLE7259-3GE/-3LE

TLE7269G

TLE6250G/GV33

TLE7250G/GVIO

TLE8250G/GVIO

TLE6251D/DS

TLE6251-2G/-3G

TLE9221SX

TLE9222PX 1)

System Basis Chips TLE826x

TLE926x

TLE826x

TLE926x

Infineon® Embedded Power TLE983x 2)

TLE986x 2)

TLE987X 2)

1) In development

2) In development, samples available

SPT: Smart Power Technology

SBC: System Basis Chip

EMC: Electro Magnetic Compatibility

CAN: Controller Area Network

ESD: Electro Static Discharge

OEM: Original Equipment Manufacturer

LIN: Local Interconnect Network

ePower: Infineon® Embedded Power

CAN PN: CAN Partial Networking

CAN FD: CAN with Flexible Data-rate

Products Overview

@OEM 0'" A” O» {A :ﬁws

www.infineon.com/transceiver

Because of the ever-increasing demand for data exchange

in modern vehicles, the automotive industry implemented

networks like CAN (Controller Area Network), LIN (Local

Interconnect Network) and FlexRay protocol-based bus

systems.

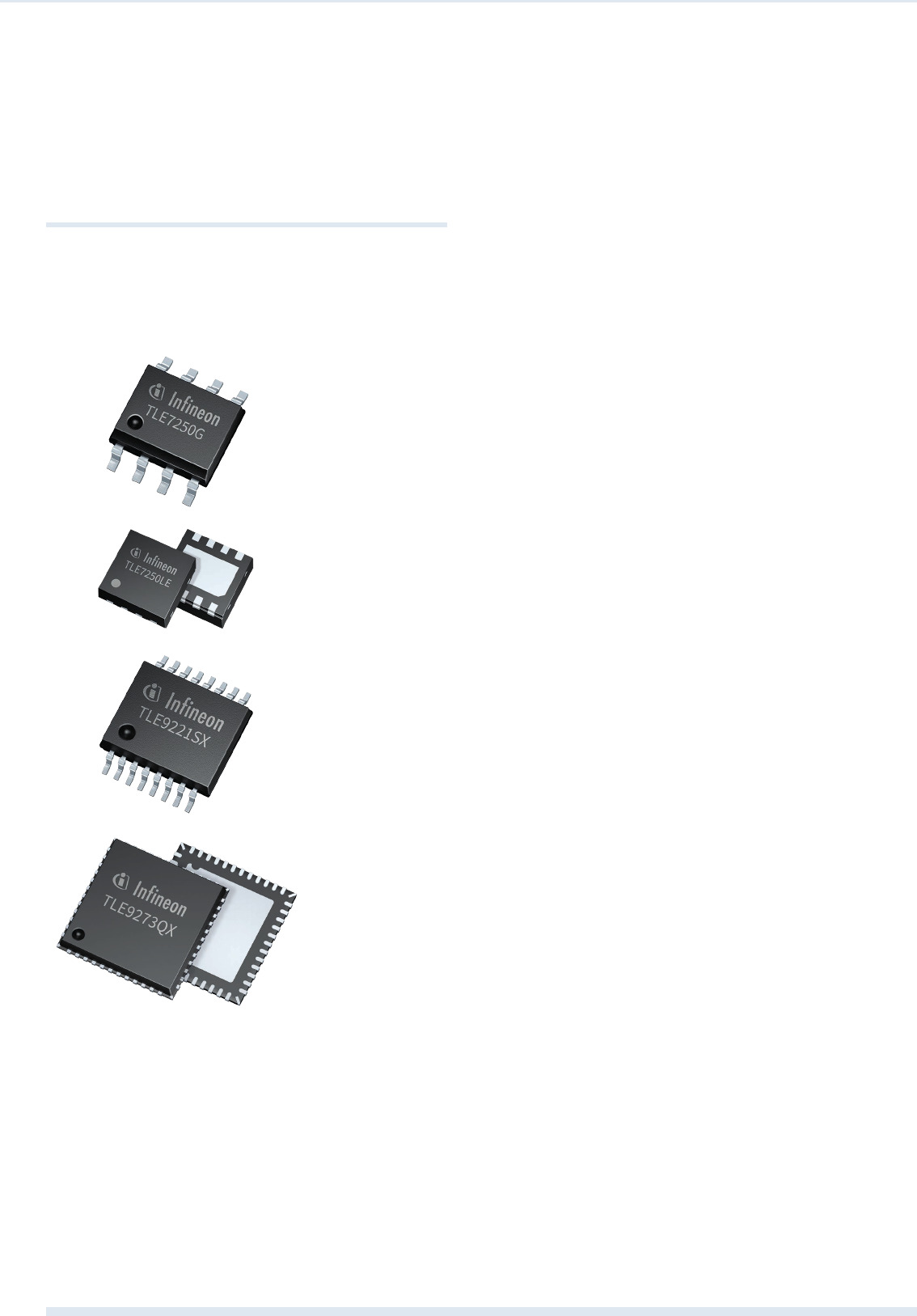

Infineon is offering a broad product portfolio of automotive

transceivers for these different automotive bus segments,

that are perfectly suited and designed to withstand the

harsh automotive environment.

Dependent on the respective vehicle network architecture

and the related ECU supply path, different transceiver

types are used. Infineon transceivers ensure reliable

communication and help minimize the current consump-

tion and the related CO2-emissions at the vehicle level.

The Infineon transceiver products provide the best value

through high performance, ruggedness and reliable

communication.

Automotive Transceivers

Key Features and Benefits

 Broad product portfolio

 Outstanding ESD robustness

 Excellent EMC performance

 Low quiescent currents

 Worldwide OEM approval

 Highest quality

 Transceiver family concept

|_l|_l |_ISI_I

www.infineon.com/transceiver

Up to 1Mbit/s

Up to 10Mbit

1) In development

Up to 20kbit/sUp to 125kbit/s

Automotive Transceivers

Wake

TLE6251D

TLE6251DS

TLE6251-2G

TLE6251-3G

No Wake

TLE6250G

TLE6250GV33

TLE7250G

TLE7250GVIO

TLE8250G

TLE8250GVIO

Single LIN

TLE7257SJ

TLE7257LE

TLE7258SJ

TLE7258LE

TLE7258D

TLE7259-3GE

TLE7259-3LE

Dual

TLE7269G

LIN LDO

TLE8458G

TLE8458GV33

Fault Tolerant LS CAN

(ISO 11898-3)

LIN

(LIN 1.3/2.1/2.2/2.2A;

SAE-J2602)

High-Speed CAN

(ISO 11898-2/-5)

TLE6254-3G

FlexRay

(EPL 3.0.1)

TLE9221SX

TLE9222PX1)

Selection Tree Automotive Transceivers

Automotive Transceivers

www.infineon.com/transceiver

VCC

TxD

RxD

NEN

CANH

CANL

GND

VIO

Output

Stage Temp.-

Protection

Mode

Control

Timeout

Driver

Comparator

Receiver

Transmitter

VCC/2

INH

TxD

RxD

Bus

RTD

REN

RBus

GND

Output

Stage Temp.-

Protection

Current

Limit

Mode Control

Supply

Filter

Timeout

TxD Input

Driver

Wake and Bus

Comparator

Filter

Receiver

Block Diagram Example High-Speed CAN: TLE7250GVIO

Block Diagram Example LIN: TLE7259-3GE

Product Table

Product Type Transmission

Rate (max)

[µA]

Bus Wake-up

Capability

Wake-up

Inputs

Number

of Channel

Bus Failure

Management

Package

High-Speed CAN ISO 11898-2

TLE6250G 1Mbit/s < 10

@ 5V stand-by 1 PG-DSO-8

TLE6250GV33 1Mbit/s < 10

@ 5V stand-by 1 PG-DSO-8

TLE7250G 1Mbit/s < 10

@ 5V stand-by 1 PG-DSO-8

TLE7250GVIO 1Mbit/s < 10

@ 5V stand-by 1 PG-DSO-8

TLE8250G 1Mbit/s < 10

@ 5V stand-by 1 PG-DSO-8

TLE8250GVIO 1Mbit/s < 10

@ 5V stand-by 1 PG-DSO-8

High-Speed CAN ISO 11898-5

TLE6251-2G 1Mbit/s < 30

sleep mode l l 1lPG-DSO-14

TLE6251-3G 1Mbit/s < 30

sleep mode l l 1lPG-DSO-14

TLE6251DS 1Mbit/s < 30

@ 5V stand-by l1 PG-DSO-8

TLE6251D 1Mbit/s < 30

@5V stand-by l1 PG-DSO-8

Fault-tolerant CAN ISO 11898-3

TLE6254-3G 125kbit/s < 65

sleep mode ll1lPG-DSO-14

LIN/SAE J2602/k-line

TLE6258-2G 20kbit/s < 40

stand-by mode 1 PG-DSO-8

TLE7257SJ

TLE7257LE

NEW!

20kbit/s < 10

sleep mode l1lPG-DSO-8

TSON-8

TLE7258SJ

TLE7258LE

NEW!

20kbit/s < 10

sleep mode l1lPG-DSO-8

TSON-8

TLE7259-3GE

TLE7259-3LE

NEW!

20kbit/s < 10

sleep mode l l 1lPG-DSO-8

TSON-8

TLE7269G 20kbit/s < 10

sleep mode l l 2lPG-DSO-14

TLE8458 20kbit/s < 10

sleep mode l l 1lPG-DSO-8

FLexRay

TLE9221SX NEW!

10Mbit/s < 45

sleep mode l l 1lPG-SSOP-16

TLE9222PX1) 10Mbit/s < 40

stand-by mode l1lPG-TSSOP-14

1) In development

www.infineon.com/transceiver

@OEM (6'3, 50%. :ﬂeoHs Qualmed

System Basis Chips (SBCs)

www.infineon.com/sbc

The Driver SBCs Family

The Driver SBC is the first family of the new generation of

Infineon SBC in an exposed pad PG-VQFN-48 (7mmx7mm)

power package. The family offers several variants to

meet the different application requirements. The devices

are designed for various CAN-LIN automotive body

applications as a main supply for the microcontroller

and as an interface for a CAN and LIN bus network (optional

CAN partial networking). To support these applications,

the Driver SBC provides the main functions, such as a 5V

low-dropout voltage regulator (LDO) for microcontroller

supply, a 5V low-dropout voltage regulator with short

circuit protection against supply voltage VS for e.g. sensor

supply, HS-CAN transceiver and LIN transceiver for data

transmission, fully protected low- and high-side switches,

and a 16-bit Serial Peripheral Interface (SPI) to control

and monitor the device. Also implemented are a Window

Watchdog circuit with a reset feature, a fail output and

an under voltage reset feature. The device offers low-power

modes in order to support applications that are connected

permanently to the battery. A wake up from the low-power

mode is possible via a message on the buses, via the

bi-level sensitive monitoring/wake-up inputs as well as via

cyclic wake. The device is designed to withstand the

severe conditions of automotive applications.

Features

 Low-drop voltage regulator 5V, 250mA

 Low-drop voltage regulator 5V, 100mA, robust

against short to VS

 High-speed CAN transceiver ISO 11898-2/5

 LIN transceiver LIN 2.2, J2602-2

 Fully compliant to “Hardware Requirements for LIN,

CAN and FlexRay Interfaces in Automotive Applications”

Revision 1.3, 2012-05-04

 Two low-side outputs and six high-side outputs

 Four wake inputs, reset output and fail output

 Overtemperature and short circuit

protection feature

Applications

 Door control units

 Central body computer

 Low-cost bodycontrol

 HVAC control module

 Trunk control module

 Seat control

 Roof module

::H a j a TLE9266(-2)QX

Block Diagram

TLE9266(-2)QX

TxD

LDO2

LDO1

Wake

Input WD

HS-SWT

RxD

SPI

GND

CAN

HS 3…6

INT

WK 1…4

VSVCC1

VCC2

HS 1…2

TxD

RxD

LIN

SPI

PWM4

PWM3

Timer 2

Timer 1

PWM2

PWM1

State

Machine

LS-SWT

www.infineon.com/sbc

Application Diagram

HS LED SPI

HS LED

SYNC

3 Wake

Input

State

Machine

Frame

Compare

Logic

CAN

Protocol

Handler

High

Precision

Clock

LDO1

LDO2

LS-SWT

LIN

HS-CANCAN Bus

LIN Bus

Switches

LED

Battery Fail Safe

Window Lift Motor Hall

Sensor

SPI

RxDTxD

INT

Driver SBC

Microcontroller

XC2000

Power IC

Output

Drivers

5V/250mA

@OEM @ % :WS can”

www.infineon.com/sbc

System Basis Chips (SBCs)

The Mid-Range SBCs Family

Mid-Range SBC family offers a high level of integration,

performance and scalability. Up to three low-drop voltage

regulators with 5V or 3.3V output voltage, one HS CAN

(including partial networking and flexible data-rate) and

up to two LIN transceivers complying with the latest

automotive standards and OEM requirements.

The devices include fail-safe features to support ECU

functional safety concept like under-voltage monitoring,

window watchdog with reset, fail-safe operating mode,

fail-safe outputs. There are also available four high-side

switches to drive external loads, wake-inputs and general

purpose input-outputs (GPIOs) to monitor inputs or

activate loads. Mid-Range SBCs offer low-power modes

in order to support applications that are connected

permanently to the battery. All devices feature an exposed

pad PG-VQFN-48 (7mm x 7mm) power package (support-

ing Automatic Optical Inspection). The entire family is

pin-to–pin and software compatible and is designed to

withstand the severe conditions of automotive applications.

Features

 Low-drop voltage regulator (5V or 3.3V up to 250mA)

 Low-drop voltage regulator (5V up to 100mA), robust

against short to VS

 Voltage regulator (5V, 3.3V or 1.8V) with external PNP

transistor, robust against short to VS

 High-speed CAN transceiver ISO 11898-2/-5/-6: suitable

for chokeless operation up to 500kbit/s

 High-speed CAN transceiver supporting CAN FD

communication up to 2Mbit/s featuring CAN Partial

Networking FD Tolerant mode1)

 Two LIN transceivers LIN2.2/J2602

 Four high-side outputs 7Ω typ., two HV GPIOs and three

HV wake inputs

 Watchdog, cyclic sensing, interrupt and reset output

 Integrated fail-safe functions: 3 fail-safe outputs,

Watchdog, fail-safe operating modes

 Voltage, current and temperature protection and

monitoring

 Fully compliant to “Hardware Requirements for LIN,

CAN and FlexRay Interfaces in Automotive Applications”

Revision 1.3, 2012-05-04

Applications

 Body control modules

 Gateway

 Climate control

 Seat control

 Door control and closures

 Light control modules

 Engine management systems

1) The CAN FD requirements for Transceiver are not finalized. All statements regarding CAN FD

are therefore based on Infineon’s today’s knowledge and expectation on the future CAN FD

standard currently being worked out.

nzgzanmmxwzs) YLElelHNXh/JS) YLEleZHNXWJS) YLEleSHNXWJS) i HUT M II --‘ ' H-- -- -- a H a 3 - -- -- ﬂ-- - --ﬂ ﬁ-- -- -- a R R —a H— — —a a— — “IN S .—.‘—' “IN (“N

www.infineon.com/sbc

Application Diagram

Fail Safe

Sensor

PNP

SPI

TxD, RxD

INT

Microcontroller

Power IC

Output

Drivers

5V/3.3V

5V/3.3V/1.8V

Frame

Compare

Logic

CAN

Protocol

Handler

High

Precison

Clock

SPI

3 FO

LDO1

LDO2

State

Machine

HS SWT

Sensor

HS SWT

3 Wake

Input

2 HV GPIO

LDO3

Mid-Range SBC

CAN Bus

LIN Bus

Switches

LED

Battery

BAT

The Mid-Range SBCs Family

TLE9261(-3)QX(V33)TLE9260(-3)QX(V33)

TxD

LDO2

LDO1

State

Machine

GPIO

Wake

Input

Frame

Compare

Logic

High

Precision

Clock

CAN

Protocol

Handler

Fail-Safe

State

Machine

GPIO

Fail-Safe

RxD

SPI

GND

CAN

INT

VCC3

VSVCC1

VCC2

LDO3

TxD

LDO2

LDO1

Wake

Input

Frame

Compare

Logic

High

Precision

Clock

CAN

Protocol

Handler

RxD

SPI

GND

CAN

INT

VSVCC1

VCC2

TLE9262(-3)QX(V33)

VCC3

LDO3

TxD

LDO2

LDO1

Wake

Input

Frame

Compare

Logic

High

Precision

Clock

CAN

Protocol

Handler

RxD

SPI

GND

CAN

INT

VSVCC1

VCC2

TxD

RxD

LIN

TLE9263(-3)QX(V33)

VCC3

LDO3

TxD

LDO2

LDO1

Wake

Input

Frame

Compare

Logic

High

Precision

Clock

CAN

Protocol

Handler

RxD

SPI

GND

CAN

INT

VSVS

VCC1

VCC2

TxD

RxD

LIN

TxD

RxD

LIN

State

Machine

GPIO

Fail-Safe

State

Machine

GPIO

Fail-Safe

www.infineon.com/sbc

System Basis Chips (SBCs)

Body System ICs – System Basis Chips Product Overview

Product Type Family Name Transmission Rate (max) Iq

[µA]

Vreg 1

[V]

Vreg 2

[V]

Vreg 3

[V]

CAN LIN Wake-up Inputs Watchdog Output Drivers Package

High-Speed CAN ISO 11898-5 / LIN 2.x and SAE J2602

TLE9266QX Driver SBC

1Mbit/s (CAN)

20kbit/s

10.4kbit/s (LIN)

25 (typ)

Sleep Mode

(Vreg 1 off)

53 (typ)

Stop Mode

(Vreg 1 on)

250mA @ 5V 100mA @ 5V –

High-Speed CAN

ISO 11898-5

LIN 2.x and

SAE J2602

3 High-Voltage and

1 Low-Voltage Wake Inputs

(cyclic sense)

2x Low-Side Switch 250mA,

2x High-Side Switch 250mA,

4x High-Side Switch 150mA

PG-VQFN-48

TLE9266-2QX Driver SBC

1Mbit/s (CAN)

20kbit/s

10.4kbit/s (LIN)

25 (typ)

Sleep Mode

(Vreg 1 off)

53 (typ)

Stop Mode

(Vreg 1 on)

250mA @ 5V 100mA @ 5V –

High-Speed CAN

ISO 11898-5

LIN 2.x and

SAE J2602

3 High-Voltage and

1 Low-Voltage Wake Inputs

(cyclic sense)

2x Low-Side Switch 250mA

with inverted logic,

2x High-Side Switch 250mA,

4x High-Side Switch 150mA

PG-VQFN-48

TLE9260QX(V33)1) Mid-Range SBC

2Mbit/s (CAN)

20kbit/s

10.4kbit/s (LIN)

30 (typ)

Sleep Mode

(Vreg 1 off)

50 (typ)

Stop Mode

(Vreg 1 on)

250mA @ 5V

(3.3V on V33 variant) 100mA @ 5V –

High-Speed CAN 2)

ISO 11898-5

–3 High-Voltage

(cyclic sense) l4x High-Side Switch 150mA,

3 Fail-Safe Outputs PG-VQFN-48

TLE9261QX(V33)1) Mid-Range SBC

2Mbit/s (CAN)

20kbit/s

10.4kbit/s (LIN)

30 (typ)

Sleep Mode

(Vreg 1 off)

50 (typ)

Stop Mode

(Vreg 1 on)

250mA @ 5V

(3.3V on V33 variant) 100mA @ 5V

400mA @ 5V/3.3V

(3.3V/1.8V avail. on V33

variant)

High-Speed CAN 2)

ISO 11898-5

–3 High-Voltage

(cyclic sense) l4x High-Side Switch 150mA,

3 Fail-Safe Outputs PG-VQFN-48

TLE9262QX(V33)1) Mid-Range SBC

2Mbit/s (CAN)

20kbit/s

10.4kbit/s (LIN)

30 (typ)

Sleep Mode

(Vreg 1 off)

50 (typ)

Stop Mode

(Vreg 1 on)

250mA @ 5V

(3.3V on V33 variant) 100mA @ 5V

400mA @ 5V/3.3V

(3.3V/1.8V avail. on V33

variant)

High-Speed CAN 2)

ISO 11898-5

LIN 2.x and

SAE J2602

3 High-Voltage

(cyclic sense) l4x High-Side Switch 150mA,

3 Fail-Safe Outputs PG-VQFN-48

TLE9263QX(V33)1) Mid-Range SBC

2Mbit/s (CAN)

20kbit/s

10.4kbit/s (LIN)

30 (typ)

Sleep Mode

(Vreg 1 off)

50 (typ)

Stop Mode

(Vreg 1 on)

250mA @ 5V

(3.3V on V33 variant) 100mA @ 5V

400mA @ 5V/3.3V

(3.3V/1.8V avail. on V33

variant)

High-Speed CAN 2)

ISO 11898-5

LIN 2.x and

SAE J2602

3 High-Voltage

(cyclic sense) l4x High-Side Switch 150mA,

3 Fail-Safe Outputs PG-VQFN-48

High-Speed CAN ISO 11898-6 / LIN 2.x and SAE J2602

TLE9260-3QX(V33)1) Mid-Range SBC

2Mbit/s (CAN)

20kbit/s

10.4kbit/s (LIN)

30 (typ)

Sleep Mode

(Vreg 1 off)

50 (typ)

Stop Mode

(Vreg 1 on)

250mA @ 5V

(3.3V on V33 variant) 100mA @ 5V –

High-Speed CAN 2) 3)

ISO 11898-6

–3 High-Voltage

(cyclic sense) l4x High-Side Switch 150mA,

3 Fail-Safe Outputs PG-VQFN-48

TLE9261-3QX(V33)1) Mid-Range SBC

2Mbit/s (CAN)

20kbit/s

10.4kbit/s (LIN)

30 (typ)

Sleep Mode

(Vreg 1 off)

50 (typ)

Stop Mode

(Vreg 1 on)

250mA @ 5V

(3.3V on V33 variant) 100mA @ 5V

400mA @ 5V/3.3V

(3.3V/1.8V avail. on V33

variant)

High-Speed CAN 2) 3)

ISO 11898-6

–3 High-Voltage

(cyclic sense) l4x High-Side Switch 150mA,

3 Fail-Safe Outputs PG-VQFN-48

TLE9262-3QX(V33)1) Mid-Range SBC

2Mbit/s (CAN)

20kbit/s

10.4kbit/s (LIN)

30 (typ)

Sleep Mode

(Vreg 1 off)

50 (typ)

Stop Mode

(Vreg 1 on)

250mA @ 5V

(3.3V on V33 variant) 100mA @ 5V

400mA @ 5V/3.3V

(3.3V/1.8V avail. on V33

variant)

High-Speed CAN 2) 3)

ISO 11898-6

LIN 2.x and

SAE J2602

3 High-Voltage

(cyclic sense) l4x High-Side Switch 150mA,

3 Fail-Safe Outputs PG-VQFN-48

TLE9263-3QX(V33)1) Mid-Range SBC

2Mbit/s (CAN)

20kbit/s

10.4kbit/s (LIN)

30 (typ)

Sleep Mode

(Vreg 1 off)

50 (typ)

Stop Mode

(Vreg 1 on)

250mA @ 5V

(3.3V on V33 variant) 100mA @ 5V

400mA @ 5V/3.3V

(3.3V/1.8V avail. on V33

variant)

High-Speed CAN 2) 3)

ISO 11898-6

LIN 2.x and

SAE J2602

3 High-Voltage

(cyclic sense) l4x High-Side Switch 150mA,

3 Fail-Safe Outputs PG-VQFN-48

1) Available in Q4/2014

2) CAN FD up to 2Mbit/s

3) CAN PN FD tolerant

www.infineon.com/sbc

Body System ICs – System Basis Chips Product Overview

Product Type Family Name Transmission Rate (max) Iq

[µA]

Vreg 1

[V]

Vreg 2

[V]

Vreg 3

[V]

CAN LIN Wake-up Inputs Watchdog Output Drivers Package

High-Speed CAN ISO 11898-5 / LIN 2.x and SAE J2602

TLE9266QX Driver SBC

1Mbit/s (CAN)

20kbit/s

10.4kbit/s (LIN)

25 (typ)

Sleep Mode

(Vreg 1 off)

53 (typ)

Stop Mode

(Vreg 1 on)

250mA @ 5V 100mA @ 5V –

High-Speed CAN

ISO 11898-5

LIN 2.x and

SAE J2602

3 High-Voltage and

1 Low-Voltage Wake Inputs

(cyclic sense)

2x Low-Side Switch 250mA,

2x High-Side Switch 250mA,

4x High-Side Switch 150mA

PG-VQFN-48

TLE9266-2QX Driver SBC

1Mbit/s (CAN)

20kbit/s

10.4kbit/s (LIN)

25 (typ)

Sleep Mode

(Vreg 1 off)

53 (typ)

Stop Mode

(Vreg 1 on)

250mA @ 5V 100mA @ 5V –

High-Speed CAN

ISO 11898-5

LIN 2.x and

SAE J2602

3 High-Voltage and

1 Low-Voltage Wake Inputs

(cyclic sense)

2x Low-Side Switch 250mA

with inverted logic,

2x High-Side Switch 250mA,

4x High-Side Switch 150mA

PG-VQFN-48

TLE9260QX(V33)1) Mid-Range SBC

2Mbit/s (CAN)

20kbit/s

10.4kbit/s (LIN)

30 (typ)

Sleep Mode

(Vreg 1 off)

50 (typ)

Stop Mode

(Vreg 1 on)

250mA @ 5V

(3.3V on V33 variant) 100mA @ 5V –

High-Speed CAN 2)

ISO 11898-5

–3 High-Voltage

(cyclic sense) l4x High-Side Switch 150mA,

3 Fail-Safe Outputs PG-VQFN-48

TLE9261QX(V33)1) Mid-Range SBC

2Mbit/s (CAN)

20kbit/s

10.4kbit/s (LIN)

30 (typ)

Sleep Mode

(Vreg 1 off)

50 (typ)

Stop Mode

(Vreg 1 on)

250mA @ 5V

(3.3V on V33 variant) 100mA @ 5V

400mA @ 5V/3.3V

(3.3V/1.8V avail. on V33

variant)

High-Speed CAN 2)

ISO 11898-5

–3 High-Voltage

(cyclic sense) l4x High-Side Switch 150mA,

3 Fail-Safe Outputs PG-VQFN-48

TLE9262QX(V33)1) Mid-Range SBC

2Mbit/s (CAN)

20kbit/s

10.4kbit/s (LIN)

30 (typ)

Sleep Mode

(Vreg 1 off)

50 (typ)

Stop Mode

(Vreg 1 on)

250mA @ 5V

(3.3V on V33 variant) 100mA @ 5V

400mA @ 5V/3.3V

(3.3V/1.8V avail. on V33

variant)

High-Speed CAN 2)

ISO 11898-5

LIN 2.x and

SAE J2602

3 High-Voltage

(cyclic sense) l4x High-Side Switch 150mA,

3 Fail-Safe Outputs PG-VQFN-48

TLE9263QX(V33)1) Mid-Range SBC

2Mbit/s (CAN)

20kbit/s

10.4kbit/s (LIN)

30 (typ)

Sleep Mode

(Vreg 1 off)

50 (typ)

Stop Mode

(Vreg 1 on)

250mA @ 5V

(3.3V on V33 variant) 100mA @ 5V

400mA @ 5V/3.3V

(3.3V/1.8V avail. on V33

variant)

High-Speed CAN 2)

ISO 11898-5

LIN 2.x and

SAE J2602

3 High-Voltage

(cyclic sense) l4x High-Side Switch 150mA,

3 Fail-Safe Outputs PG-VQFN-48

High-Speed CAN ISO 11898-6 / LIN 2.x and SAE J2602

TLE9260-3QX(V33)1) Mid-Range SBC

2Mbit/s (CAN)

20kbit/s

10.4kbit/s (LIN)

30 (typ)

Sleep Mode

(Vreg 1 off)

50 (typ)

Stop Mode

(Vreg 1 on)

250mA @ 5V

(3.3V on V33 variant) 100mA @ 5V –

High-Speed CAN 2) 3)

ISO 11898-6

–3 High-Voltage

(cyclic sense) l4x High-Side Switch 150mA,

3 Fail-Safe Outputs PG-VQFN-48

TLE9261-3QX(V33)1) Mid-Range SBC

2Mbit/s (CAN)

20kbit/s

10.4kbit/s (LIN)

30 (typ)

Sleep Mode

(Vreg 1 off)

50 (typ)

Stop Mode

(Vreg 1 on)

250mA @ 5V

(3.3V on V33 variant) 100mA @ 5V

400mA @ 5V/3.3V

(3.3V/1.8V avail. on V33

variant)

High-Speed CAN 2) 3)

ISO 11898-6

–3 High-Voltage

(cyclic sense) l4x High-Side Switch 150mA,

3 Fail-Safe Outputs PG-VQFN-48

TLE9262-3QX(V33)1) Mid-Range SBC

2Mbit/s (CAN)

20kbit/s

10.4kbit/s (LIN)

30 (typ)

Sleep Mode

(Vreg 1 off)

50 (typ)

Stop Mode

(Vreg 1 on)

250mA @ 5V

(3.3V on V33 variant) 100mA @ 5V

400mA @ 5V/3.3V

(3.3V/1.8V avail. on V33

variant)

High-Speed CAN 2) 3)

ISO 11898-6

LIN 2.x and

SAE J2602

3 High-Voltage

(cyclic sense) l4x High-Side Switch 150mA,

3 Fail-Safe Outputs PG-VQFN-48

TLE9263-3QX(V33)1) Mid-Range SBC

2Mbit/s (CAN)

20kbit/s

10.4kbit/s (LIN)

30 (typ)

Sleep Mode

(Vreg 1 off)

50 (typ)

Stop Mode

(Vreg 1 on)

250mA @ 5V

(3.3V on V33 variant) 100mA @ 5V

400mA @ 5V/3.3V

(3.3V/1.8V avail. on V33

variant)

High-Speed CAN 2) 3)

ISO 11898-6

LIN 2.x and

SAE J2602

3 High-Voltage

(cyclic sense) l4x High-Side Switch 150mA,

3 Fail-Safe Outputs PG-VQFN-48

1) Available in Q4/2014

2) CAN FD up to 2Mbit/s

3) CAN PN FD tolerant

hhhh

www.infineon.com/embeddedpower

Infineon® embedded power ICs are specifically designed

to enable mechatronic motor control solutions for a range

of motor control applications, where a small package form

factor and a minimum number of external components

are essential. Examples applications include window lift,

sunroof, wiper, fuel pump, HVAC fans, engine cooling fan,

water pumps to name a few.

Produced on Infineon’s automotive qualified smart power

technologies, the Infineon embedded power System-on-

chip solutions offer an unmatched level of integration of all

functions required to sense, control and actuate a motor.

The Infineon® embedded power IC integrate on single

die the microcontroller, the non volatile memory, the

analog and mixed signal peripherals, the communication

interfaces along with the driving stages needed for either

relay, or half-bridge or full-bridge DC and BLDC motor

applications.

Infineon® Embedded Power ICs

System on a Chip Motor Control

Selection Tree for Infineon Embedded Power IC Motor Control

TLE9832QX

TLE9832-2QX

TLE9833QX

TLE9834QX

TLE9835QX

Infineon® Embedded Power IC

PN-Half Bridge

Motor Control

TLE9861QXA201)

TLE9867QXA201)

TLE9867QXA401)

TLE9869QXA201)

H-Bridge

Motor Control

TLE9871QXA201)

TLE9877QXA201)

TLE9877QXA401)

TLE9879QXA201)

TLE9879QXA401)

3-Phase Bridge

Motor Control

Relay

Motor Control

1) In developmen

t, samples available

www.infineon.com/embeddedpower

The 2nd generation of Infineon® embedded power ICs

integrates on a single die all the necessary functions to

sense, control and actuate motor a via a relay or via a PN

MOSFET half-bridge. The TLE983x product family integrates

a high performance 8-bit microcontroller derived from the

established XC800 microcontroller family with application

specific power drivers, control and communication on

Infineon’s first-in-industry automotive qualified 130nm

smart power technology. TLE983x product family improves

the microcontroller performance and the product feature

set over the first generation (TLE78xx) product offering.

The TLE983x product family is offered in a space saving

PG-VQFN-48 package, while the first product generation

is realized as a Multi-Chip-Module (MCM) in a PG-DSO-28

package.

The devices are designed for LIN based motor control

applications such as window lifts, wipers, sun roofs, power

seats, fan/blower control.

2nd Generation: Relay Driver IC with Integrated Microcontroller

General Characteristics

 Operating voltage VBat: 3.0V to 27V, maximum rating 40V

 Stop mode 85µA & sleep mode 25µA

 ESD performance:

– up to 2kV / handling on all pins

– 4kV @ HV inputs

– 6kV @ LIN pin

– ECU/car handling ruggedness (gun model for pins

directly connected to ECU plug/socket)

 Overvoltage device clamp (load dump ruggedness): ≥ 40V

 Wide operating temperature range:

Tj:-40°C up to 150°C

Features of 8-bit Microcontroller, XC8xx

 8051 compatible, up 40MHz Frequency

 256byte RAM and 3072byte XRAM

 36KB to 64KB flash memory for code and data

 10-bit ADC (5V max.), 8 channels including battery and

supply supervision

 Five 16-bit timers

 Capture/compare unit for PWM signal generation (CCU6)

with 2 x 16-bits timers

TLE983x Product Family Offers

 LIN transceiver (single wire), compliant with

LIN Spec. 2.1, 2.0/SAE J2602 and compatible with LIN 1.3

 Two protected low-side switches (250mA)

 Up to two protected high-side switches (150mA)

 Five high-voltage inputs with wake up functionality

 Full duplex serial interface (UART) with LIN support

 Synchronous serial channel (SSC)

 Two watchdog timers

 Programmable window watchdog

 Measurement unit with 10 channels,

8-bit A/D Converter and data post processing

 Voltage regulator with undervoltage reset

 Power saving modes

– MCU slow-down mode

– Stop mode

– Sleep mode

– Cyclic wake-up and cyclic sense during stop mode and

sleep mode

Applications

 Window lift

 Sun roof

 Fan control

 Seat control

 Key pad interface

 Switch panel interface

www.infineon.com/embeddedpower

Product Name Core Flash

[KB]

Freq

[MHz]

High-Side

Switch

High-Voltage

Monitor Input

16-bit

Timer

GPIO OP-AMP PN MOS

Driver

Package

TLE983x Product Family

TLE9835QX XC800 64 40 2 5 5 11 Yes Yes PG-VQFN-48

TLE9834QX XC800 64 40 2 5 5 11 No No PG-VQFN-48

TLE9833QX XC800 48 40 2 5 5 11 No No PG-VQFN-48

TLE9832-2QX XC800 36 40 2 5 5 11 No No PG-VQFN-48

TLE9832QX XC800 36 40 1 5 5 11 No No PG-VQFN-48

TLE9832QV XC800 36 40 1 5 5 11 No No PG-VQFN-48

Infineon® Embedded Power ICs

Smart LIN-based Relay Driver IC & Switch Panel Interface with Integrated 8-bit Microcontroller

Power Driver

HV Mon Inputs

8-Bit MCU

8051 Core

MDU Coprocessor

40MHz

36K-64K Flash

Watchdogs

Timer

CAPCOM

SSC

GPIO

ADCs

VREG

LS Driver

HS Driver

HS LED

MONx

+12V

General Purpose I/O

Position Sensor

TLE4966

TLE4946

TLE496x

Power Window

LIN Bus

+12V from Battery

TLE983x

Switch

Illumination

Switch

Panel

Wetting Current

www.infineon.com/embeddedpower

Infineon has combined its wealth of experience in

motor control drivers for automotive applications with

an industry-standard core. The unique result, our 3rd

generation embedded power IC based on ARM® Cortex™-M

cores, addresses a wide range of smart 2-phase DC motor

control applications like, sunroof, power window lift,

electrical pumps, electrical fans.

Produced on Infineon’s first-in-industry automotive

qualified 130nm smart power technology, the Infineon

embedded power system-on-chip solutions offer

an unmatched level integration and system cost to

performance to optimization for the target application

segments.

The TLE986x family offers scalability in terms of flash

memory sizes and MCU system clock frequency supporting

a wide range of motor control algorithms. It uses the same

MCU and peripherals as the TLE987x family, 3-phase driver,

enabling design synergies between DC and BLDC motor

control applications

3rd Generation: 2-Phase Bridge Driver IC with Integrated ARM® Cortex™-M3 Core

TLE986x Family Offers

 Four current programmable drivers with charge pump for

N-Channel MOSFET

 Integrated LIN transceiver compatible with LIN 2.2 and

SAEJ2602

 Two full duplex serial interface (UART) with LIN support

 Two Synchronous Serial Channel (SSC)

 On-chip OSC and PLL for clock generation

 One high-voltage monitoring input with wake-up

functionality

 High-speed operational amplifier for motor current

sensing via shunt

 Measurement unit:

– 8-bit ADC module with 10 multiplexed inputs

– 10-bit ADC module with 8 multiplexed inputs,

5 external analog inputs

– On chip temperature and battery voltage

measurement unit

 Independent programmable window watchdog

 5V/1.5V Internal supplies

 External supply (VDDEXT): 5V ±2% @ 20mA

 Power saving modes

– MCU slow-down mode

– Sleep mode

– Stop mode

– Cyclic wake-up sleep mode

Features of the Microcontroller

 32-bit ARM® Cortex™-M3 Core, up to 40MHz clock

frequency

 36KB to 128KB flash memory

 Up to 6KB RAM memory

 Harvard architecture

 Thumb®-2 Instruction Set and hardware divide and

multiplication unit

 Four 16-bit timers

 Capture/compare unit for PWM signal generation

(CCU6) with 2x 16-bits timers

General Characteristics

 Operating supply voltage Vs = 5.5 to 28V,

maximum rating 40V

 Extended operating range Vs = 3.0 to 28V,

MCU / Flash fully functional

 ESD performance :

– up to 2kV / handling on all pins

– 4kV @ HV inputs

– 6kV @ LIN pin

 Overvoltage device clamp (load dump ruggedness)

up to 40V

 Wide operating temperature range:

Tj: -40°C up to 150°C

414.

www.infineon.com/embeddedpower

Block Diagram

+12V

Smart Sunroof Module

Power Sunroof

LIN

H-Bridge

MOSFET

Driver

Internal

Supply

5V, 1.5V

UART1

(LIN)

LIN

Transceiver

Oscillator

UART2

(LIN)

Flash

up to 128K

SSC1

(SPI)

SSC2

(SPI)

Timer

T2, T21, T3

Timer

GPT12

10-bit

ADC

Low Voltage

RAM

up to 6K

ROM

CAPCOM6

Diagnosis

8-bit ADC

Watchdog

MON

HV Analog

Analog/

Digital

Inputs

GPIO

External

Supply

32-bit

ARM® Cortex™-M3

2 Stage

Charge

Pump

Current

Sense

Position

Sensor

Infineon® Embedded Power ICs

Product Summary

TLE986x 32-bit µC with 2-Phase MOSFET Gate Driver for DC Motors

Product Name Frequency

[MHz]

Interface RAM

[KB]

Flash

[KB]

EEPROM

Emulation

[KB]

OP-AMP Low-Side

MOSFET Drivers

High-Side

MOSFET Drivers

Package

TLE9861QXA201) 24 PWM 3 36 4 y 2 2 PG-VQFN-48

TLE9867QXA201) 24 PWM + LIN 6 64 4 y 2 2 PG-VQFN-48

TLE9867QXA401) 40 PWM + LIN 6 64 4 y 2 2 PG-VQFN-48

TLE9869QXA201) 24 PWM + LIN 6 128 4 y 2 2 PG-VQFN-48

1) In development, samples available

www.infineon.com/embeddedpower

Infineon has combined its wealth of experience in motor

control drivers for automotive applications with all

the benefits of an industry-standard core. The unique

result, our 3rd generation embedded power IC based on

ARM® Cortex™-M cores, addresses a wide range of smart

3-phase brushless DC motor control applications like,

fuel pumps, HVAC fans, engine cooling fans, electrical

water pumps. Produced on Infineon’s first-in-industry

automotive qualified 130nm smart power technology,

the Infineon embedded power system-on-chip solutions

offer an unmatched level integration and system cost to

performance to optimization for the target application

segments.

The TLE987x family offers scalability in terms of flash

memory sizes and MCU system clock frequency supporting

a wide range of motor control algorithms, either

sensor-based or sensor-less. It uses the same MCU and

peripherals as the TLE986x family, 2-phase driver, enabling

design synergies between DC and BLDC motor control

applications.

3rd Generation: 3-Phase Bridge Driver IC with Integrated ARM® Cortex™-M3 Core

TLE987x Family Offers

 Six current programmable drivers with charge pump for

N-channel MOSFET

 Integrated LIN transceiver compatible with LIN 2.2 and

SAEJ2602

 Two full duplex serial interface (UART) with LIN support

 Two Synchronous Serial Channel (SSC)

 On-chip OSC and PLL for clock generation

 One high-voltage monitoring input with wake-up

functionality

 High-speed operational amplifier for motor current

sensing via shunt

 Measurement unit:

– 8-bit ADC module with 10 multiplexed inputs

– 10-bit ADC module with 8 multiplexed inputs,

5 external Analog inputs

– On chip temperature and battery voltage

measurement unit

 Independent programmable window watchdog

 5V/1.5V Internal supplies

 External supply (VDDEXT): 5V ±2% @ 20mA

 Power saving modes

– MCU slow-down mode

– Sleep mode

– Stop mode

– Cyclic wake-up sleep mode

Features of the Microcontroller

 32-bit ARM® Cortex™-M3 Core, up to 40MHz clock

frequency

 36KB to 128KB flash memory

 Up to 6KB RAM memory

 Harvard architecture

 Thumb®-2 Instruction Set and hardware divide and

multiplication unit

 Four 16-bit timers

 Capture/compare unit for PWM signal generation

(CCU6) with 2x 16-bits timers

General Characteristics

 Operating supply voltage Vs = 5.5 to 28V,

maximum rating 40V

 Extended operating range Vs = 3.0 to 28V,

MCU / Flash fully functional

 ESD performance :

– up to 2kV / handling on all pins

– 4kV @ HV inputs

– 6kV @ LIN pin

 Overvoltage device clamp (load dump ruggedness)

up to 40V

 Wide operating temperature range:

Tj: -40°C up to 150°C

1 4} wig .wl .|_ Em? # a A III- -- === -- -==_ 414.

www.infineon.com/embeddedpower

Block Diagram

+12V

Smart BLDC Module

BLDC Motor

LIN

3-Phase

MOSFET

Driver

Internal

Supply

5V, 1.5V

UART1

(LIN)

LIN

Transceiver

Oscillator

UART2

(LIN)

Flash

up to 128K

SSC1

(SPI)

SSC2

(SPI)

Timer

T2, T21, T3

Timer

GPT12

10-bit

ADC

Low Voltage

RAM

up to 6K

ROM

CAPCOM6

Diagnosis

8-bit ADC

Watchdog

MON

HV Analog

Analog/

Digital

Inputs

GPIO

External

Supply

32-bit

ARM® Cortex™-M3

2 Stage

Charge

Pump

Current

Sense

Infineon® Embedded Power ICs

Product Summary

TLE987x 32-bit µC with 3-Phase MOSFET Gate Driver for BLDC Motors

Product Name Frequency

[MHz]

Interface RAM

[KB]

Flash

[KB]

EEPROM

Emulation

[KB]

OP-AMP Low-Side

MOSFET Drivers

High-Side

MOSFET Drivers

Package

TLE9871QXA201) 24 PWM 3 36 4 y 3 3 PG-VQFN-48

TLE9877QXA201) 24 PWM + LIN 6 64 4 y 3 3 PG-VQFN-48

TLE9877QXA401) 40 PWM + LIN 6 64 4 y 3 3 PG-VQFN-48

TLE9879QXA201) 24 PWM + LIN 6 128 4 y 3 3 PG-VQFN-48

TLE9879QXA401) 40 PWM + LIN 6 128 4 y 3 3 PG-VQFN-48

1) In development, samples available

AURIX™ Family Package Scalability

9x Series

up to 8MB

Max. SRAM 2.75MB

Triple-Core

TQFP-80 LQFP-144

TQFP-144

TQFP-100 LQFP-176 LFBGA-292 BGA-416 LFBGA-516

TC297 TC298 TC299

7x Series

up to 4MB

Max. SRAM 472KB

Triple-Core

TC275 TC277

TC267

TC237

6x Series

up to 2.5MB

Max. SRAM 752KB

Dual-Core

TC264 TC265

3x Series

up to 2MB

Max. SRAM 452KB

Lockstep-Core

TC233 TC234

2x Series

up to 1MB

Max. SRAM 96KB

Lockstep-Core

TC223 TC224

TC214

1x Series

up to 512KB

Max. SRAM 56KB

Lockstep-Core

TC213

TC222

TC212

Upgrade/Downgrade with pin-compatible packages

 Advanced package technologies deliver the best price/performance ratio

 Customers can choose between different devices in the same pin-compatible package

Microcontrollers

AURIX™ is Infineon’s family of microcontrollers serving exactly the needs of automotive applications in terms of perfor-

mance and safety. Its innovative multicore architecture, based on up to three independent 32-bit TriCore™ CPUs @300MHz,

has been designed to meet the highest safety standards while increasing the performance at the same time. The key

strengths of the scalable AURIX™ family is to combine multiple worlds in one family supporting safety and security as well

as high-performance computing and latest connectivity while supporting innovative power supply concepts.

AURIX™ – 32-bit Automotive Microcontrollers

FPU PMU

PMI DMI

Overlay Data Flash

BROM

Key Flash

Progr.

Flash

Progr.

Flash

LMU

Ethernet

GTM

EVR

5V or 3.3V

Single Supply

FlexRay

MultiCAN+

MSCx

ASCLINx

QSPIx

SENT

PSI5

I2C

FCE

IOMHSSL

PLL &

PLL ERAY

Ports

HSM

DS-ADCx

ADCx

CCU6x

GPT12x

STM

SCU

BCU

SDMABridge OCDS

RAM

SRI Cross Bar

System Peripheral Bus

TriCore™

1.6P

FPU

Diverse

Lockstep Core

Diverse

Lockstep Core

PMI DMI

Overlay

TriCore™

1.6P

FPU

PMI

DMI

Standby

Overlay

TriCore™

1.6E

AURIX™ Family System Architecture

Microcontrollers

AURIX™

ISO 11898-6 Transceiver

Support

MCU Core

Internal Bus

Automotive Ethernet Module (1588 MAC)

IEEE 802.3 “Standard” ETH Module

1588 Real-Time Extension

MII / RMII Interface

ETH PHY (transceiver) or

Multiport Switch

As cars incorporate an increasing amount of electronics the central domain or gateway module‘s responsibilities increase

to handle the additional components and message traffic. Additional the size of the data stream is increasing. To cover

those new requirements the AURIX™ family has enhanced communication capabilities to support flexible communication

protocols such as LIN, SPI, I²C, CAN, CAN FD, FlexRay™, Ethernet, DigRF/LVDS.

AURIX™ MultiCAN

 Up to 6 CAN nodes with FD support available

 CAN standard V2.0 B active

 ISO 11898-1 FDIS 2014 CAN-FD

 Resonator ready with asynchronous operation and

choice of clock source

 Frequency scaling without baud rate change

 Energy saving: pretended networking and partial

networking (ISO 11898-6 transceiver support) support

(also in CAN FD mode)

 Safety support: total amount of bus errors countable

 Message objects can be freely assigned among the nodes

 Configurable FIFO length, automatic gateway

mode support

 Acceptance mask filtering for each message object

Highlights

 MAC integrated in µC

 IEEE 802.3-2002 for Ethernet with support of

IP, TCP/IP, UDP …

 Real-time stamping support (IEEE 1588-2008) for clock

synchronization

 Standard MII and RMII interfaces to PHY

 Fast Ethernet w/ 100Mbit

 AUTOSAR V4 features supported

 Automatic CRC checksum and padding support

 AVB support

AURIX™ – Enhanced Communication

AURIX™ Family Communication Innovation

Ethernet

Support Tools System Basis Chips (SBCs)

Driver SBC Demoboard TLE9266QX

The Driver SBC evaluation board is intended to provide

a simple, easy-to-use tool for getting familiar with the

device and for first application tests. The evaluation board

contains a Driver SBC application board, which is equipped

with a 96-pin connector to interface to the power easy kit

(microcontroller board).

Midrange SBC Demoboard TLE9263QX

The Mid-Range SBC evaluation board enables the device

evaluation and accelerates the design-in phase. The

evaluation board can be connected to the “XC2000 power

easy kit” and controlled, via USB, using a powerful and

intuitive Graphical User Interface (GUI) installed on your

computer.

User manuals with software & hardware recommendation,

FAQs, data sheets along with development tools can be

found at www.infineon.com/sbc

: “Wu .

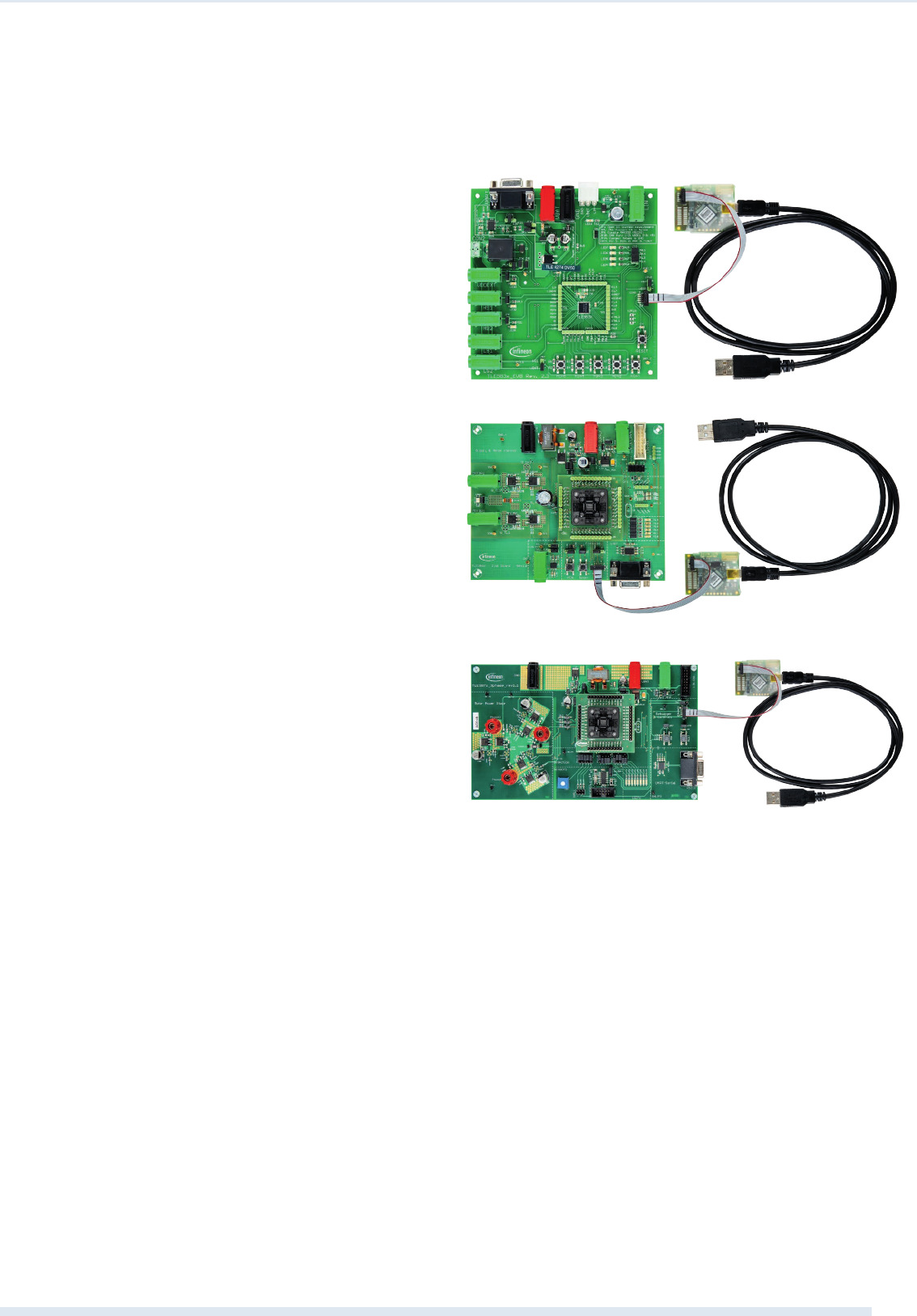

Support Tools Embedded Power

Relay Driver IC with Integrated Microcontroller

Evaluation KIT TLE983x

The TLE983X EVALBOARD offers complete evaluation of all

functions and peripherals of the TLE983x product family.

In the heart of the Evaluation KIT is the TLE9834QX device

and it includes: a relay for direct DC motor drive, a UART

and LIN connection for communication, direct access to all

device I/Os.

H-Bridge Driver IC with Integrated Microcontroller

Evaluation KIT TLE986x

The TLE986X EVALB_JLINK offers complete evaluation of

all functions and peripherals of the TLE986x product family

and allows direct connection to a DC motor via MOSFETS in

H-Bridge configuration, it includes: H-Bridge for DC motor

drive, UART and LIN for communication, direct access to all

device I/Os and a J-Link debugger.

B6-Bridge Driver IC with Integrated Microcontroller

Evaluation KIT TLE987x

The TLE987X EVALB_JLINK offers complete evaluation of

all functions and peripherals of the TLE987x product family

and allows direct connection to a BLDC motor via MOSFETS

in B6- Bridge configuration, it includes: B6-Bridge for BLDC

motor drive, UART and LIN for communication, direct

access to all device I/Os and a J-Link debugger.

Infineon® Embedded Power ICs are supported by a

complete development tool chain provided by Infineon

and third party vendors. The tool chain includes compilers,

debuggers, evaluation boards, LIN low-level drivers and

configuration tools as well as variety of example software

code.

User manuals with software & hardware recommendation,

FAQs, data sheets along with development tools can be

found at www.infineon.com/embeddedpower

GUI

Pinning Data

Driver Config. Data

OS Config. Data

Generation of Configuration

Files

Selected Drivers Source Files

Various Configuration .c and .h Files

Driver

Files +

OS Source Files

ACT is a powerful tool that helps engineers to jump-start

programming of Infineon microcontrollers.

Key Features

 Altium TASKING VX TriCore™ Lite Version

including build-in

– AURIX™ Pin Mapping incl. interactive package view

– AURIX™ iLLD (Low-Level Driver)

– AURIX™ OSEK

ACT– AURIX™ Configuration Tool

Support Tools Microcontrollers

Infineon Tricore™ family starter kits are powerful evaluation

systems that enable evaluation and development well

before the target hardware is available. They offer a solid

platform for both hardware and software engineers to

evaluate and prototype designs that are closely aligned

with their final applications.

Our Kits Include

 Full-featured evaluation board

 USB cable

 Easy connectivity to all peripheral modules

 Extension board

 Development tools for evaluation such as compilers,

debuggers and DAVE™

 Technical documentation – user manuals,

architecture manuals, application notes, data sheets,

board documentation

Further information on TriCore™ Starter Kits:

http://ehitex.com/starter-kits/for-tricore

Expert Kits

This free of charge tooling entry tool chain provides all

required features to develop and test software for TriCore™

and AURIX™. The tool can be used with all available

TriCore™ and AURIX™ starter kit and application boards.

Key Features

 Eclipse based IDE

 Project wizard to easy define the project properties for

device and board support

 High performance GNU C compiler

 Integrated source level debugger

 On-chip Flash programming support

Free TriCore™ Entry Tool Chain

To simplify the development of your own application,

the kit is supplied with a variety of on-board components

including a highly-integrated software development

environment that gives you everything you need to

compile, debug, and Flash your AURIX™ multicore

application.

Including

 AURIX™ application board

 3V lithium battery

 Link to the free TriCore™ entry tool chain including

getting started, first 3 steps to

– install the tools

– set up your hardware

– write, compile and debug your first program

Order Number: KIT_AURIX_TC275_TFT

MSRP: 149€

Low-cost and Flexible Application Development Platform with TFT-Screen

for the 32-bit AURIX™ Multicore TriCore™ Family

Packages Overview

PG-BGA-416 PG-DSO-8 PG-DSO-14 PG-DSO-28

PG-DSO-36 PG-LFBGA-292 PG-LFBGA-516 PG-LQFP-144

PG-LQFP-176 PG-SSOP-16 PG-TQFP-80 PG-TQFP-100

PG-TQFP-144 PG-TSON-8 PG-TSSOP-14 PG-VQFN-48

ﬂﬂu‘u

Ask Infineon. Get connected with the answers.

Infineon offers its toll-free 0800/4001 service hotline as one central number,

available 24/7 in English, Mandarin and German.

Our global connection service goes way beyond standard switchboard

services by offering qualified support on the phone. Call us!

Germany .................. 0800 951 951 951 (German/English)

China, mainland ...... 4001 200 951 (Mandarin/English)

India ......................... 000 800 4402 951 (English)

USA ........................... 1-866 951 9519 (English/German)

Other countries ........ 00* 800 951 951 951 (English/German)

Direct access ............ +49 89 234-0 (interconnection fee, German/English)

* Please note: Some countries may require you to dial a code other than “00” to access this international number,

please visit www.infineon.com/service for your country!

Where to Buy

Infineon Distribution Partners and

Sales Offices:

www.infineon.com/WhereToBuy

Mobile Product Catalog

Mobile app for iOS and Android.

Published by

Infineon Technologies AG

85579 Neubiberg, Germany

Visit us:

www.infineon.com

Order Number: B124-I0064-V1-7600-EU-EC

Date: 11 / 2014

Attention please!

The information given in this document shall in no event

be regarded as a guarantee of conditions or characteristics

(“Beschaffenheitsgarantie”). With respect to any examples

or hints given herein, any typical values stated herein and/

or any information regarding the application of the device,

Infineon Technologies hereby disclaims any and all warran-

ties and liabilities of any kind, including without limitation

warranties of non-infringement of intellectual property

rights of any third party.

Information

For further information on technology, delivery terms and

conditions and prices please contact your nearest Infineon

Technologies Office (www.infineon.com).

Warnings

Due to technical requirements components may contain

dangerous substances. For information on the types in

question please contact your nearest Infineon Technologies

Office. Infineon Technologies Components may only be

used in life-support devices or systems with the express

written approval of Infineon Technologies, if a failure of

such components can reasonably be expected to cause

the failure of that life-support device or system, or to affect

the safety or effectiveness of that device or system. Life

support devices or systems are intended to be implant-

ed in the human body, or to support and/or maintain and

sustain and/or protect human life. If they fail, it is reasonable

to assume that the health of the user or other persons may

be endangered.

Stay connected

www.facebook.com/infineon

www.google.com/+infineon

www.twitter.com/infineon

www.infineon.com/linkedin

www.infineon.com/xing

www.youtube.com/infineon

Products related to this Datasheet

IC INTERFACE SPECIALIZED 48VQFN

TLE92603QXXUMA1
