ASMB-822I User Manual Datasheet by Advantech Corp

AD\-\NTECH Enaounganlmwymmm

User Manual

ASMB-822I

Intel E5-2600(v2) Series Single

Processor ATX Server Board

ASMB-822I User Manual ii

The documentation and the software included with this product are copyrighted 2012

by Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd. reserves the right

to make improvements in the products described in this manual at any time without

notice. No part of this manual may be reproduced, copied, translated or transmitted

in any form or by any means without the prior written permission of Advantech Co.,

Ltd. Information provided in this manual is intended to be accurate and reliable. How-

ever, Advantech Co., Ltd. assumes no responsibility for its use, nor for any infringe-

ments of the rights of third parties, which may result from its use.

Acknowledgements

Intel and Pentium are trademarks of Intel Corporation.

Microsoft Windows and MS-DOS are registered trademarks of Microsoft Corp.

All other product names or trademarks are properties of their respective owners.

Product Warranty (2 years)

Advantech warrants to you, the original purchaser, that each of its products will be

free from defects in materials and workmanship for two years from the date of pur-

chase.

This warranty does not apply to any products which have been repaired or altered by

persons other than repair personnel authorized by Advantech, or which have been

subject to misuse, abuse, accident or improper installation. Advantech assumes no

liability under the terms of this warranty as a consequence of such events.

Because of Advantech’s high quality-control standards and rigorous testing, most of

our customers never need to use our repair service. If an Advantech product is defec-

tive, it will be repaired or replaced at no charge during the warranty period. For out-

of-warranty repairs, you will be billed according to the cost of replacement materials,

service time and freight. Please consult your dealer for more details.

If you think you have a defective product, follow these steps:

1. Collect all the information about the problem encountered. (For example, CPU

speed, Advantech products used, other hardware and software used, etc.) Note

anything abnormal and list any onscreen messages you get when the problem

occurs.

2. Call your dealer and describe the problem. Please have your manual, product,

and any helpful information readily available.

3. If your product is diagnosed as defective, obtain an RMA (return merchandise

authorization) number from your dealer. This allows us to process your return

more quickly.

4. Carefully pack the defective product, a fully-completed Repair and Replacement

Order Card and a photocopy proof of purchase date (such as your sales receipt)

in a shippable container. A product returned without proof of the purchase date

is not eligible for warranty service.

5. Write the RMA number visibly on the outside of the package and ship it prepaid

to your dealer.

Part No. 2002822I00 Edition 1

Printed in Taiwan November 2012

iii ASMB-822I User Manual

A Message to the Customer

Advantech Customer Services

Each and every Advantech product is built to the most exacting specifications to

ensure reliable performance in the harsh and demanding conditions typical of indus-

trial environments. Whether your new Advantech equipment is destined for the labo-

ratory or the factory floor, you can be assured that your product will provide the

reliability and ease of operation for which the name Advantech has come to be

known.

Your satisfaction is our primary concern. Here is a guide to Advantech’s customer

services. To ensure you get the full benefit of our services, please follow the instruc-

tions below carefully.

Technical Support

We want you to get the maximum performance from your products. So if you run into

technical difficulties, we are here to help. For the most frequently asked questions,

you can easily find answers in your product documentation. These answers are

normally a lot more detailed than the ones we can give over the phone.

So please consult this manual first. If you still cannot find the answer, gather all the

information or questions that apply to your problem, and with the product close at

hand, call your dealer. Our dealers are well trained and ready to give you the support

you need to get the most from your Advantech products. In fact, most problems

reported are minor and are easily solved over the phone.

In addition, free technical support is available from Advantech engineers every

business day. We are always ready to give advice on application requirements or

specific information on the installation and operation of any of our products.

ASMB-822I User Manual iv

Declaration of Conformity

FCC

This device complies with the requirements in part 15 of the FCC rules:

Operation is subject to the following two conditions:

This device may not cause harmful interference

This device must accept any interference received, including interference that

may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

pro-vide reasonable protection against harmful interference when the equipment is

operated in a commercial environment. This equipment generates, uses, and can

radiate radio frequency energy and, if not installed and used in accordance with the

instruction manual, may cause harmful interference to radio communications. Opera-

tion of this device in a residential area is likely to cause harmful interference in which

case the user will be required to correct the interference at his/her own expense. The

user is advised that any equipment changes or modifications not expressly approved

by the party responsible for compliance would void the compliance to FCC regula-

tions and therefore, the user's authority to operate the equipment.

Caution! There is a danger of a new battery exploding if it is incorrectly installed.

Do not attempt to recharge, force open, or heat the battery. Replace the

battery only with the same or equivalent type recommended by the man-

ufacturer. Discard used batteries according to the manufacturer's

instructions.

v ASMB-822I User Manual

Peripheral Compatibility

Category Advantech PN Vendor Part Description Remarks

MB ASMB-822I-00A1E Advantech Support BMC module

ASMB-822-00A1E Advantech Basic sku

CPU

96MPXE-2.1-

20M20T Intel Xeon E5-2658/2.1GHz/8cores 95W

96MPXE-2.0-

15M20T Intel Xeon E5-2620/2.0GHz/6cores 95W

96MPXE-1.8-

20M20T Intel Xeon E5-2648L/1.8GHz/8cores 70W

SATA3

HDD

96HD500G-ST-

SG7K12 SEAGATE 500G 3.5" SATA 7KRPM 16M ST500DM002

96HD1000G-ST-

SG7K6 SEAGATE 1T 3.5" SATA 7KRPM 64M ST1000DM003

96HD2000G-ST-

SG7K2 SEAGATE 2T 3.5" SATA 7KRPM 64M ST2000DM001

Memory /

REG

96D3-1G1333ER-

AP Apacer 1G DDR3-1333 240PIN REG 128X8 ELP(G) 78.01GCC.AF0

96D3-2G1333ER-

AP Apacer 2G DDR3-1333 240PIN REG 128X8 ELP(G) 78.A1GDR.4200C

96D3-4G1333ER-

AP1 Apacer 4G DDR3-1333 240PIN REG 256X8 HYX(G) 78.B1GDR.4201C

TBD Transcend 1G DDR3-1333 240PIN ECC REG TS128MKR72V3U

TBD Transcend 2G DDR3-1333 240PIN ECC REG TS256MKR72V3U

TBD Transcend 4G DDR3-1333 240PIN ECC REG TS512MKR72V3N

TBD ADATA 4G DDR3-1333 240PIN ECC REG EL93I1C18

TBD Transcend 16G DDR3-1600 240PIN ECC REG TS2GKR72V6Z

TBD ADATA 8G DDR3-1333 240PIN ECC REG EL93I1D18

TBD InnoDisk 4G DDR3-1333 240PIN ECC REG ACT4GHR72P8H1

333H

TBD InnoDisk 8G DDR3-1333 240PIN ECC REG ACT8GHR72Q4H

1333S

TBD InnoDisk 16G DDR3-1066 240PIN ECC REG ACT16GHR72Q4J

1333S

Memory /

ECC

TBD Transcend 1G DDR3-1333 240PIN ECC TS128MLK72V3U

TBD Transcend 2G DDR3-1333 240PIN ECC TS256MLK72V3U

TBD Transcend 4G DDR3-1333 240PIN ECC TS512MLK72V3N

TBD InnoDisk 4G DDR3-1333 240PIN ECC M3CN-4GHJ3C09

TBD ADATA 4G DDR3-1333 240PIN ECC EL03I1C18

Memory /

UNB

TBD ADATA 4G DDR3-1600 240PIN EL64C1C16

96D3-4G1333NN-

TR Transcend 4G DDR3-1333 240PIN TS512MLK64V3N

Cooler 1960058073N001 CoolJag Cooler I-LGA2011 S-95W 102×71.2×62-SS

12V4B VGC6R01A-1-000

Option

Card

PCA-AUDIO-

HDA1E Advantech Audio card

Riser

Card

ASMB-RF348-

21A1E Advantech ASMB-RF348 (2U riser card) 2*PCIe x4 +

1*PCIe x8

ASMB-RF3X8-

21A1E Advantech ASMB-RF3X8 (2U riser card) 1*PCIex4 + 2*PCI-

ASMB-822I User Manual vi

Initial Inspection

Before installing motherboard, please make sure that the following

materials have been shipped:

1 x ASMB-822I ATX motherboard

1 x ASMB-822I Startup Manual

1 x Driver CD (user manual is included)

2 x Serial ATA HDD data cables

1 x I/O port bracket

2 x SATA power cable

1 x Warranty card

If any of these items are missing or damaged, contact distributor or sales representa-

tive immediately. We have carefully inspected the ASMB-822I mechanically and elec-

trically before shipment. It should be free of marks and scratches and in perfect

working order upon receipt. When unpacking the ASMB-822I, check it for signs of

shipping damage. (For example, damaged box, scratches, dents, etc.) If it is dam-

aged or it fails to meet the specifications, notify our service department or local sales

representative immediately. Also notify the carrier. Retain the shipping carton and

packing material for inspection by the carrier. After inspection, we will make arrange-

ments to repair or replace the unit.

Order Information

Part Number HDD Expansion Slot IPMI

ASMB-822I-00A1E 2*SATA3 + 4* SATA2 5*PCIe x8 + 1* PCIe x4 + 1* PCI Yes

ASMB-822-00A1E 2*SATA3 + 4* SATA2 5*PCIe x8 + 1* PCIe x4 + 1* PCI -

vii ASMB-822I User Manual

Contents

Chapter 1 Overview...............................................1

1.1 Introduction ............................................................................................... 2

1.2 Features .................................................................................................... 2

1.3 Specifications ............................................................................................ 3

Table 1.1: Specifications ............................................................. 3

1.4 Board Layout, Jumpers and Connectors................................................... 5

Figure 1.1 Board Layout .............................................................. 5

Figure 1.2 Rear I/O ...................................................................... 6

Table 1.2: Onboard LAN LED Color Definition ............................ 6

Table 1.3: Jumpers...................................................................... 6

Table 1.4: Connectors ................................................................. 7

Table 1.5: Onboard LED.............................................................. 8

1.5 Block Diagram........................................................................................... 8

Figure 1.3 Block Diagram ............................................................ 8

1.6 System Memory ........................................................................................ 9

1.7 Memory Installation Procedures................................................................ 9

1.8 Processor Installation.............................................................................. 11

Chapter 2 Connections.......................................15

2.1 Introduction ............................................................................................. 16

2.2 USB Ports and LAN Ports (USB0~USB11/LAN1/LAN2/IPMI_LAN1) ..... 16

2.3 VGA Connector ....................................................................................... 17

2.4 Serial Ports (COM1/COM2) .................................................................... 17

2.5 PS2 Keyboard and Mouse Connectors (KBMS1/KBMS2) ...................... 18

2.6 CPU Fan Connector (CPU FAN0)........................................................... 18

Table 2.1: CPU FAN0 Pin Definition.......................................... 18

2.7 System Fan Connector (SYS FAN0/FAN1) ............................................ 19

Table 2.2: SYS FAN0 Pin Definition .......................................... 19

2.8 Front Panel Connector (JFP1) ................................................................ 19

2.8.1 Power LED (JFP1) ...................................................................... 20

Table 2.3: ATX Power Supply LED Status ................................ 20

2.8.2 External Speaker (JFP1 pins 10, 12, 14, 16) .............................. 20

2.8.3 HDD LED Connector (JFP1 Pins 5 & 7) ..................................... 20

2.8.4 Reset Connector (JFP1 Pins 2 & 4)............................................ 20

2.8.5 Case Open (JFP1 Pins 6 & 8)..................................................... 20

2.9 SATA SGPIO (SATA_SGPIO1) .............................................................. 21

2.10 Front Panel LAN Indicator Connector (LANLED1).................................. 21

2.11 Serial ATA Interface (SATA0 ~ 5) ........................................................... 22

2.12 PCIe & PCI Expansion Slots ................................................................... 22

2.13 Auxiliary Power Connector (ATX24P_P1/ATX8P_P1)............................ 23

2.14 HD Audio Interface Connector (AUDIO1) ............................................... 24

2.15 LPC Connector (LPC1) for Optional TPM Module .................................. 24

2.16 Clear CMOS Connector (JCMOS1) ........................................................ 25

2.17 PMBUS Connector (PMBUS1)................................................................ 25

2.18 Front Panel SMBUS Connector (SMBUS1) ............................................ 26

2.19 IPMI Module Connector (IPMI1).............................................................. 26

2.20 VOLT1 Connector ................................................................................... 28

2.21 GPIO Connector...................................................................................... 29

2.22 SNMP Connector .................................................................................... 29

Chapter 3 AMI BIOS ............................................31

ASMB-822I User Manual viii

3.1 Introduction ............................................................................................. 32

3.2 BIOS Setup ............................................................................................. 33

3.2.1 Main Menu .................................................................................. 33

3.2.2 Advanced BIOS Features Setup................................................. 33

3.2.3 Chipset........................................................................................ 51

3.2.4 Server Management ................................................................... 57

3.2.5 Boot ............................................................................................ 59

3.2.6 Security....................................................................................... 60

3.2.7 Save & Exit ................................................................................. 60

Chapter 4 Chipset Software Installation Utility 63

4.1 Before Beginning .................................................................................... 64

4.2 Introduction ............................................................................................. 64

4.2.1 Main Menu .................................................................................. 64

4.3 Windows XP / Windows 2003 / Windows 2008 / Windows 7 Driver Setup.

Chapter 5 VGA Setup ......................................... 67

5.1 Introduction ............................................................................................. 68

5.2 Windows Series Driver Setup ................................................................. 68

Chapter 6 LAN Configuration & USB 3.0.......... 69

6.1 LAN Configuration................................................................................... 70

6.1.1 Introduction ................................................................................. 70

6.1.2 Features...................................................................................... 70

6.1.3 Installation................................................................................... 70

6.1.4 Windows Series Driver Setup (LAN)........................................... 70

6.2 USB 3.0................................................................................................... 71

6.2.1 Introduction ................................................................................. 71

6.2.2 Windows series driver setup....................................................... 71

Appendix A Programming the Watchdog Timer .73

A.1 Watchdog Timer Overview...................................................................... 74

A.2 Programming the Watchdog Timer ......................................................... 74

Table A.1: Watchdog Timer Registers....................................... 76

A.2.1 Example Programs ..................................................................... 76

Appendix B I/O Pin Assignments ......................... 81

B.1 USB Header (USB45, USB67, USB89) .................................................. 82

Table B.1: USB Header (USB45,USB67,USB89,USB1011) ..... 82

B.2 VGA Connector (VGA1).......................................................................... 82

Table B.2: VGA Connector (VGA1) ........................................... 82

B.3 RS-232 Interface (COM2) ....................................................................... 83

Table B.3: RS-232 Interface (COM2) ........................................ 83

B.4 PS/2 Keyboard and Mouse Connector (KBMS1).................................... 83

Table B.4: Keyboard and Mouse Connector (KBMS1) .............. 83

B.5 External Keyboard Connector (KBMS2) ................................................. 84

Table B.5: External Keyboard Connector (KBMS2)................... 84

B.6 System Fan Power Connector (SYSFAN0~2) ........................................ 84

Table B.6: Fan Power Connector (SYSFAN0/SYSFAN1/

SYSFAN2)................................................................ 84

ix ASMB-822I User Manual

B.7 Power LED (JFP1) .................................................................................. 84

Table B.7: Power LED (JFP1).................................................... 84

B.8 External Speaker Connector (JFP1) ....................................................... 85

Table B.8: External Speaker Connector (JFP1)......................... 85

B.9 Reset Connector (JFP1) ......................................................................... 85

Table B.9: Reset Connector (JFP1)........................................... 85

B.10 HDD LED Connector (JFP1) ................................................................... 85

Table B.10:HDD LED Connector (JFP1) .................................... 85

B.11 ATX Soft Power Switch (JFP1) ............................................................... 86

Table B.11:ATX Soft Power Switch (JFP1)................................. 86

B.12 Front panel SMBus Connector (SMBUS1).............................................. 86

B.13 USB/LAN Ports (LAN1_USB01 and LAN2_USB23) ............................... 86

Table B.12:USB Port................................................................... 86

Table B.13:Giga LAN 10/100/1000 Base-T RJ-45 Port .............. 87

B.14 Audio Connector (AUDIO1)..................................................................... 87

Table B.14:Front Panel Audio Connector (FPAUD1).................. 87

B.15 8-pin Alarm Board Connector (VOLT1)................................................... 87

Table B.15:8-pin Alarm Board Connector (VOLT1) .................... 87

B.16 Case Open Connector (JFP1)................................................................. 88

Table B.16:Case Open Connector (JFP1) .................................. 88

B.17 Front Panel LAN LED Connector (LANLED1)......................................... 88

Table B.17:LAN LED Connector (LANLED1).............................. 88

ASMB-822I User Manual x

Chapter 1

1Overview

ASMB-822I User Manual 2

1.1 Introduction

The ASMB-822I serverboard is the most advanced Intel Xeon E5-2600 (V2) series

board for server-grade IPC applications that require high-performance computing

power & multi-expansion slots. This serverboard supports Intel Xeon E5-2600(v2)

series processor and DDR3 1066/1333/1600 MHz memory up to 96 GB.

ASMB-822I provides 5 x PCIe x16 slot (x8 link) & 1 x PCIe x8 slot (x4 link) & 1 x PCI

slot which can support up to five high performance graphic cards and still keep 1 PCI

slot on board for legacy PCI device use.

In addition, the ASMB-822I has dual Gigabit Ethernet LAN ports via a dedicated PCIe

x1 bus, which offer bandwidth up to 500 MB/s, eliminating network bottlenecks.

The ASMB-822I has a third RJ-45 LAN connector which is dedicated for IPMI func-

tion allowing remote control

High reliability and outstanding performance makes ASMB-822I the ideal platform for

industrial server/networking applications.

By using the Intel C602J chipset, the ASMB-822I offers a variety of features such as

4 onboard SATA II, and 2 onboard SATA III interfaces; it supports IRST (Intel Rapid

Storage Technology) and provides RAID 0, 1, 10 and 5 (Windows only*); and it has

12 x USB 2.0 & 2 x USB 3.0 connectors.

These powerful I/O capabilities ensure even more reliable data storage capabilities

and high-speed I/O peripheral connectivity.

1.2 Features

General

Intel E5-2600(v2) processor support: ASMB-822I supports one Intel E5-

2600(v2) series Quad/Six/Eight/Ten core processors.

High performance I/O capability: Dual Gigabit LAN, five PCIe x16 (x8 link)

slots, 6 SATA connectors and 12 USB 2.0 ports.

Standard ATX form factor with industrial features: ASMB-822I provides

industrial features like long product lifecycle, reliable operation under wide tem-

perature range, watchdog timer, etc.

IPMI 2.0 support: ASMB-822I equipped with Aspeed 2300 BMC chip supports

IPMI 2.0 (Intelligent Platform Management Interface 2.0) via dedicated LAN

port.

KVM over IP: ASMB-822I KVM over IP function allows remote control of system

through your own computer.

Note! 1. IPMI module will be included in ASMB-822I sku.

2. 6 rear USB connectors(2*USB3.0 & 4*USB2.0); 3 USB pin headers

onboard (2 ports from one header); 2 type-A USB connector

onboard.

3. Please refer to the release note of each Linux OS for Intel's C602J

chipset SATA RAID function support.

3 ASMB-822I User Manual

Chapter 1 Overview

1.3 Specifications

Table 1.1: Specifications

Processor

CPU

Single Intel LGA2011 XEON processor sockets

Supports Intel XEON E5-2600(v2) series processor with

Quad/Six/E5-2600/E5-2600 V2 cores

Supports the TDP of processor up to 95 W

System Memory

Memory Capacity

Xeon processor supports DDR3 memory bus

Total 6 memory slots provided

Supports up to 96 GB memory

Memory Type Supports DDR3 1066/1333/1600 MHz ECC Registered / ECC

Unbuffered / Non-ECC Unbuffered Modules.

DIMM Sizes Each memory slot supports 1GB, 2GB, 4GB, 8GB and 16GB mem-

ory modules

Memory Voltage 1.35V & 1.5 V

Error Detection Corrects single-bit errors

Detects double-bit errors (using ECC memory)

On-Board Devices

Chipsets Intel C602J PCH provide 8xPCIe Gen2 lanes

Network Controllers

1 x Intel I210 Gigabit Ethernet Controller connected to C602J

through PCIe Gen2 Lane.

1x Intel 82579LM Gigabit PHY connected to C602J MAC.

Above network Supports 10BASE-T, 100BASE-TX, and

1000BASE-T, RJ-45 output.

VGA ASPEED AST2300/1300 controller with 64 MB VGA memory pro-

vides basic 2D VGA function.

Super I/O Nuvoton NCT6776F chip provide motherboard keyboard mouse,

RS-232, parallel port and hardware monitor functions.

BMC (822I SKU Only) 1 x 10/100BASE RealTek 8201EL-VB PHY connected to

AST2300 for dedicated IPMI/IKVM.

Input / Output

Serial ATA

Total 6 x SATA ports, 2 ports provide 6 Gb/s bandwidth, 4

ports provide 3 Gb/s bandwidth.

RAID 0, 1, 5, 10 support (Windows only,for Linux support

please refer to the note item 3 of chapter 1.1).

LAN

2 x RJ-45 LAN ports (10/100/1000 Base-T LAN).

1 x RJ-45 Dedicated IPMI LAN port(10/100 Base-T) for IPMI

only, there is no regular LAN function (ASMB-822I SKU

Only).

USB

2 x USB3.0 + 4 x USB 2.0 ports at rear window.

3 x USB internal headers (6 ports).

2 x internal Type-A USB port.

VGA 1 x VGA port.

Keyboard / Mouse PS/2 keyboard and mouse connector at rear window.

Serial Port / Header 1 x internal header (2 x 5 2.5 mm pitch) for UART port.

1 x external DB9 UART at rear window.

Parallel Port / Header 1 x internal header.

Power Connector

ASMB-822I User Manual 4

System Power 1 x 24-pin SSI EPS 12 V power connector (Input 12 V, 5 V, 3.3 V, 5

V standby)

CPU Power 1 x 8 pin SSI EPS 12 V power connector for CPU & Memory power

(12V)

Expansion Slots

PCIexpress

5 x PCIe x16 slot (Gen3 x8 Link)

1 x PCIe x8 slot (Gen2 x4 link)

1 x PCI

System BIOS

BIOS Type 64 Mb SPI Flash EEPROM with AMI BIOS

PC Health Monitoring

Voltage Monitors for CPU Cores, +3.3 V, +5 V, +12 V, +5 V Standby, VBAT

FAN

One 4-pin heads for CPU cooler and four 4-pin headers for

system fan.

All fans with tachometer status monitoring

Thermal control for all fan connectors

Temperature Monitoring for CPU (PECI)

Monitoring for System (SIO)

Other Features

( Case Open )

Chassis intrusion detection

Chassis Intrusion header

Operating Environment / Compliance

RoHS RoHS Compliant 6/6 Pb Free

Environmental Spec.

Operating Temperature: 0 to 60°C

Non-operating Temperature: -10 to 70°C

Operating Relative Humidity: 0% to 90% (non-condensing)

Non-operating Relative Humidity: 5% to 95% (non-condens-

ing)

Table 1.1: Specifications

5 ASMB-822I User Manual

Chapter 1 Overview

1.4 Board Layout, Jumpers and Connectors

Connectors on the ASMB-822I are linked to external devices such as hard disk

drives. In addition, ASMB-822I has a number of jumpers that are used to configure

system for specific applications.

The tables below list the functions of each jumper and connector. Later sections in

this chapter give instructions for setting jumpers. Chapter 2 gives instructions for con-

necting external devices to ASMB-822I.

Figure 1.1 Board Layout

IPMI_LA

N1_USB

30_1

LAN1_

USB0_1

LAN2 _

USB2_3

VGA_

COM1

KBMS1

KBMS 2

ATX8P_P1

PM BU S1

ATX 24P_P1

CPU0

DIMM D0

DIMM C0

CPU

FAN0

SYS

FAN0

SYS

FAN2

2 SATA III

4 SATA II

USB11

JFP1

SATA

_SGPIO1

LPC1

IPMI1

COM2

AU DIO 1

DIMM C1

DIMM A0

DIMM A1

DIMM B0

SYS

FAN1

PCIEx16_

SLOT2

PC I1

USB10

USB45

USB67

LANLED1

JCMOS1

SMBUS1

VOL T1

USB89

C602J

PCH

PC IE x1 6_

SLOT3

PCIEx16_

SL O T4

PCIEx16_

SLOT5

PC IE x1 6_

SLOT6

PC IE x8 _

SLO T7

SYS

FAN3

LPT1

PSON1

GPIO 1

SN MP1

SYSFAN

SEL1

JUSB_1;JUSB_2

Lil i E 1 ,,#_____ Right Leﬂ

ASMB-822I User Manual 6

Figure 1.2 Rear I/O

Table 1.2: Onboard LAN LED Color Definition

10/100/1000 Mbps LAN Link/Activity LED Scheme

LAN1 & LAN2 IPMI LAN1

Left LED Right LED Left LED Right LED

10 Mbps Link

Active

Off

Green

Blinking green

Amber

Blinking green

100 Mbps Link

Active

Amber

Green

Blinking green

Amber

Blinking green

1000 Mbps Link

Active

Green

Blinking green --

No Link Off Off Off Off

Table 1.3: Jumpers

Label Function Default

JCMOS1 CMOS Clear 1-2

JME1 ME update 1-2

SYSFAN_SEL1 PWM/DC mode for system fan 1-2

PSON1 ATX/AT mode for system 2-3

JUSB_1 Rear USB port 5V from standby power or normal power 1-2

JUSB_2 Onboard/front USB port 5V from standby power or normal power 1-2

PS2 Mouse

PS2 Keyboard VGA

COM1 LAN1

USB01

LAN2

USB23

IPMI

LAN1

USB3_01

PS2 Keyboard VGA USB01 USB23 USB3_01

PS2 Mouse COM1 LAN1 LAN2

ASMB-822I-00A1E

ASMB-822-00A1E

7 ASMB-822I User Manual

Chapter 1 Overview

Keep CMOS data/

Disable ME update/

PWM mode for SYS FAN/

AT mode/

Rear USB port 5V from standby power/

Onboard/front USB port 5V from standby power

Clear CMOS data/

Enable ME update/

DC mode for SYS FAN/

ATX mode/

Rear USB port 5V from normal power/

Onboard/front USB port 5V from normal power

Table 1.4: Connectors

Label Function

ATX_8P_P0 SSI EPS 12 V auxiliary power connector (for CPU0) and memory

ATX_24P_P1 SSI EPS 24-pin main power connector (for system)

COM2 Serial port: RS-232

CPU0 Intel LGA2011 CPU0 socket

CPUFAN0 CPU0 fan connector (4-pin)

DIMMA0 Channel A DIMM0 of CPU0

DIMMA1 Channel A DIMM1 of CPU0

DIMMB0 Channel B DIMM0 of CPU0

DIMMC0 Channel C DIMM0 of CPU0

DIMMC1 Channel C DIMM1 of CPU0

DIMMD0 Channel D DIMM0 of CPU0

JFP1 Front panel pin header connector

AUDIO1 HD audio Interface connector

IPMI1 IPMI connector

LANLED1 LAN1/2 LED extension connector

LPC1 LPC port for debug & TPM module

PCIEX8_SLOT7 PCIe x8 slot (x4 link)

PCIEX16_SLOT6 PCIe x16 slot (x8 or x16 link)

PCIEX16_SLOT5 PCIe x16 slot (x8 link)

PCIEX16_SLOT4 PCIe x16 slot (x8 or x16 link)

PCIEX16_SLOT3 PCIe x16 slot (x8 link)

PCIEX16_SLOT2 PCIe x16 slot (x8 link)

PCI1 PCI slot

SATA0 Serial ATA0 hard drive connector (SATA III)

SATA1 Serial ATA1 hard drive connector (SATA III)

SATA2 Serial ATA2 hard drive connector (SATA II)

SATA3 Serial ATA3 hard drive connector (SATA II)

SATA4 Serial ATA4 hard drive connector (SATA II)

SATA5 Serial ATA5 hard drive connector (SATA II)

SYS FAN0 System fan connector (4-pin)

SYS FAN1 System fan connector (4-pin)

SYS FAN2 System fan connector (4-pin)

SYS FAN3 System fan connector (4 pin)

USB45 USB port 4, 5

USB67 USB port 6, 7

123

f POE xIamuxIai-um {—1—} m lmuylmxl Panama Ims 4m- rm u mumumma uxlsmmlsm QT. megmmu" ‘ W anew-ﬁlm: Qua" mu} mumummn anemia»: Wm —: Gum —<)l(> ”II —<}: www"="" uxumwn="" (um="" “quantum”=""><: —|="" nusnzn="" u="" ”,1="" mm="" h="" mm="" "="" "="" m="" im="" gig="" mm“="" mm="" 511="" v0="" s‘fan="" t="" used?“="" n="" am;="" rcom="" pom="" miel="" hm="" lpt="" l="" dun:="" lose/uyllmxl="" ii="" hm!="" lanai="">

ASMB-822I User Manual 8

1.5 Block Diagram

Figure 1.3 Block Diagram

USB89 USB port 8, 9

USB1011 USB port 10, 11 (Type-A)

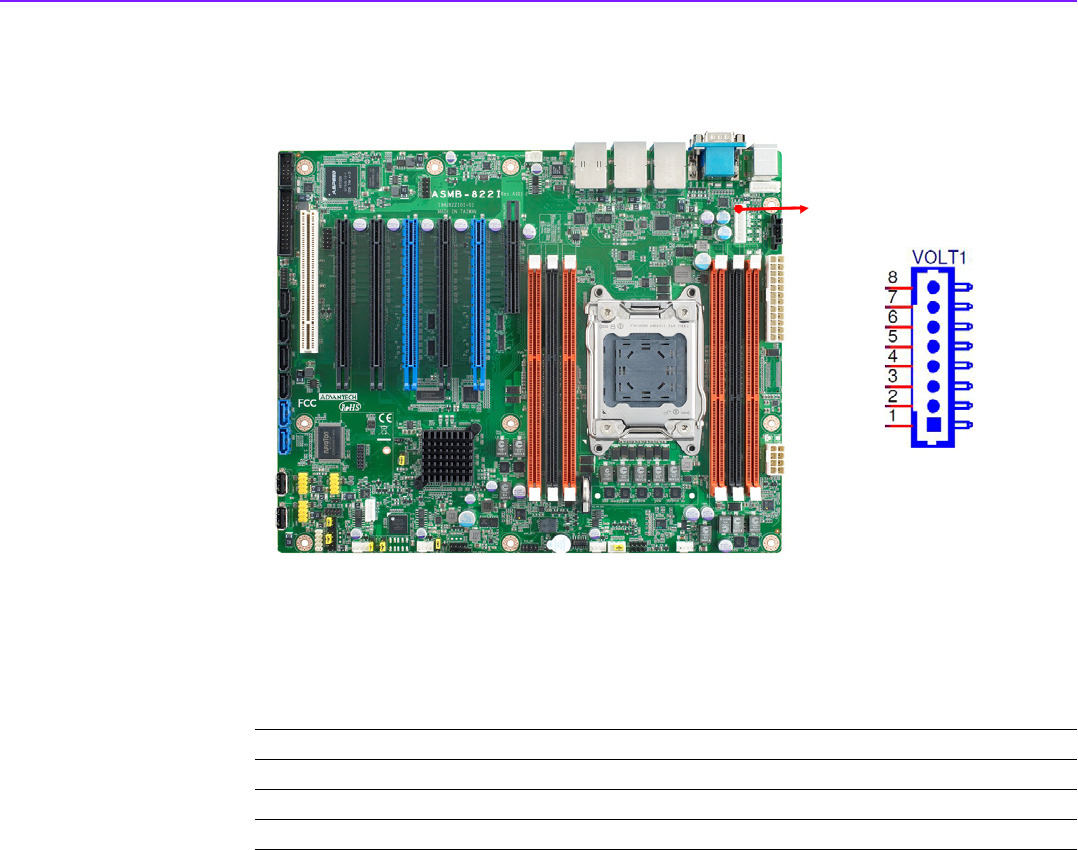

VOLT1 For Advantech alarm board usage

PMBUS1 Power supply SMBbus I2C Header

SATA_SGPIO_1 Support Serial_Link interface for onboard SATA connections

GPIO1 GPIO function for customize usage

SMBUS1 For Advantech chassis usage

KBMS2 For additional keyboard/mouse

SNMP1 For Advantech chassis usage

Table 1.5: Onboard LED

LED Description LED Definition

5V_LED1 Power on LED Off:

Power off

On (Green):

System is On

5VSB_LED1 Standby LED Off:

No input AC Power

On (Green):

System is ON, in sleep mode,

or in soft-off mode

LED1 BMC heartbeat LED

(ASMB-822I SKU Only)

Blinking (Green) :

Controller is working normally

Table 1.4: Connectors

9 ASMB-822I User Manual

Chapter 1 Overview

1.6 System Memory

ASMB-822I has six 240-pin memory slots for DDR3 1066/1333/1600 MHz memory

modules with maximum capacity of 96 GB (Maximum 16 GB for each DIMM).

ASMB-822I supports registered DIMMs or unbuffered DIMM with ECC / Non-ECC

memory module.

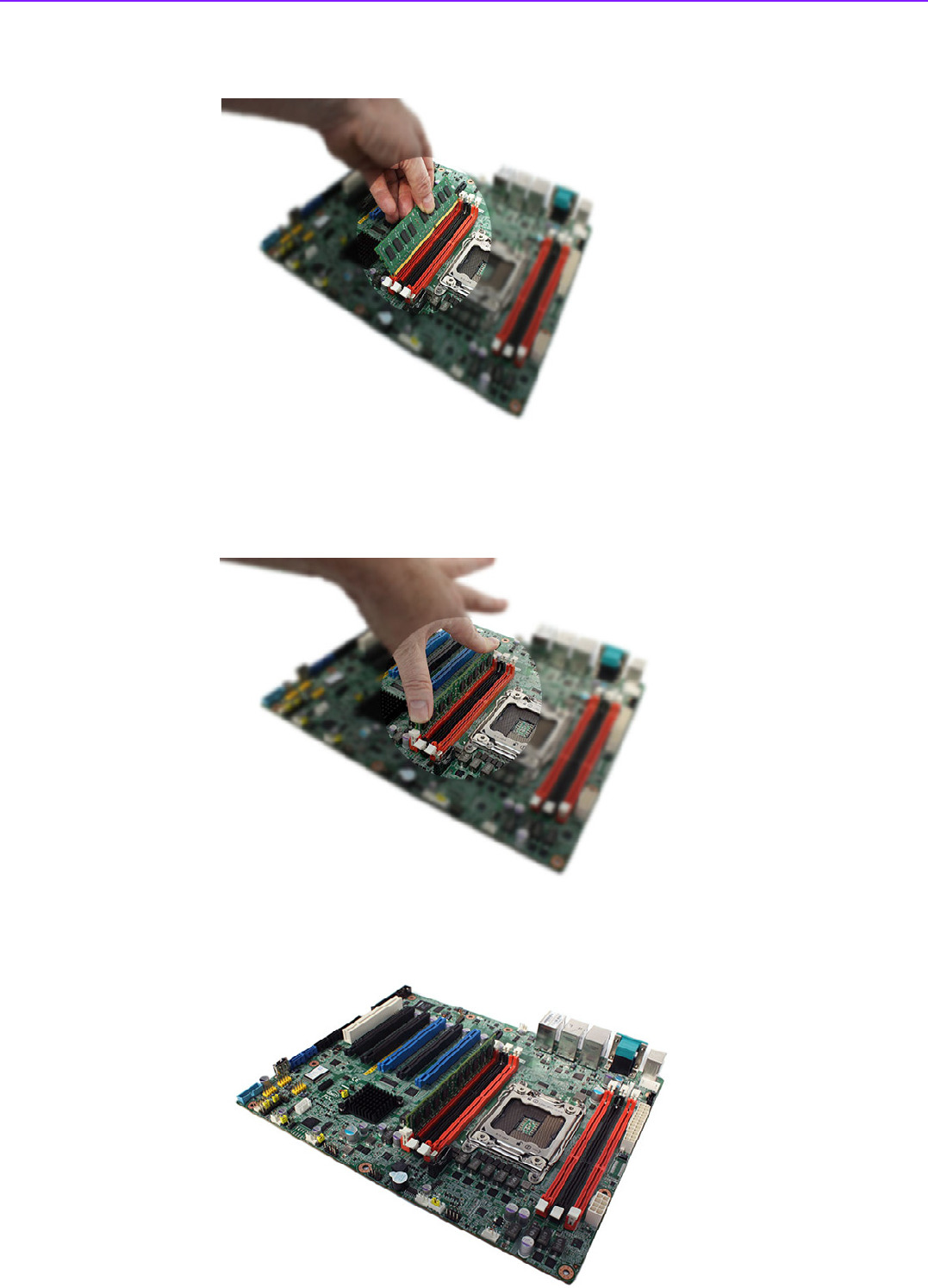

1.7 Memory Installation Procedures

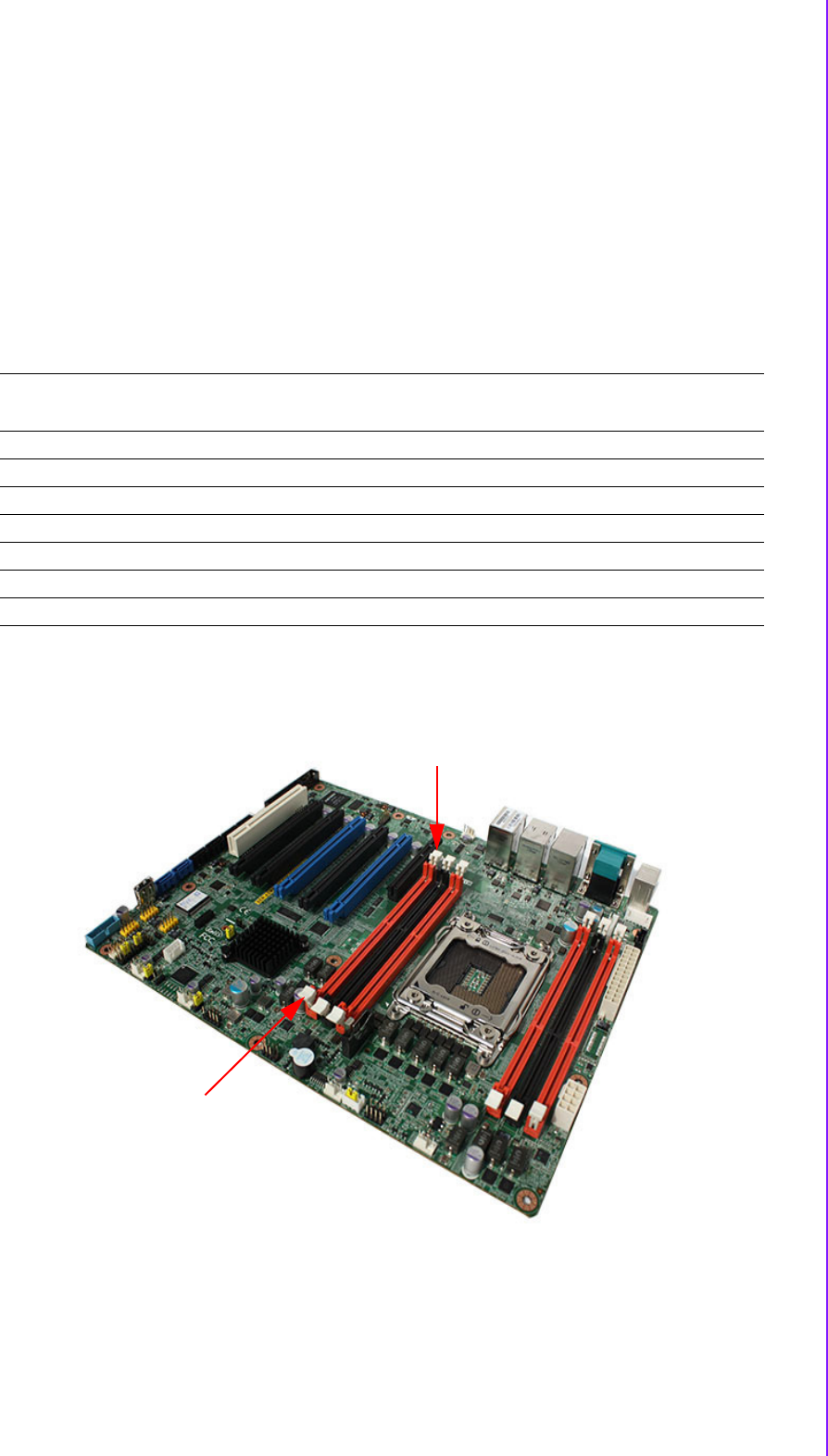

Step 1

To install DIMMs, first make sure the two handles of the DIMM socket are in the

“open” position. i.e. The handles lean outward.

Quantity of memory installed

1 2 4 6

Socket / Color

DIMM A-0 (Orange) V V V V

AIMM A-1 (Black) V

DIMM B-0 (Orange) V V V

DIMM C-0(Orange) V V

DIMM C-1 (Black) V

DIMM D-0 (Orange) V V

ASMB-822I User Manual 10

Step 2

Slowly slide the DIMM module along the plastic guides on both ends of the socket,

Step 3

Press the DIMM module right down into the socket, until you hear a click. This is

when the two handles have automatically locked the memory module into the correct

position of the DIMM socket.

Step 4

Finished.

11 ASMB-822I User Manual

Chapter 1 Overview

1.8 Processor Installation

The ASMB-822I is designed for single LGA2011, Intel E5-2600 series Xeon

processor.

Step 1

Press the first lever and move it sideways slightly until it is released from the reten-

tion tab.

Step 2

Press the other lever and move it sideways slightly until it is also released from the

retention tab.

ASMB-822I User Manual 12

Step 3

Lift the load plate.

Step 4

Position the CPU over the socket ensuring that the triangle mark on the CPU lines up

with the triangle mark on the motherboard.

Step 5

Remove protective plastic cover.

Triangle mark

CPU

13 ASMB-822I User Manual

Chapter 1 Overview

Step 6

Close the load plate over the CPU.

Step 7

Push down both levers and insert them under the retention tabs ensuring the edge of

the load plate is fixed securely by both levers.

Step 8

Finished.

ASMB-822I User Manual 14

Chapter 2

2Connections

E magnum 00000 0000:) D000 D000 A1345 mam 00000 D000 ‘ mm mam) +5V_USB4_5 U884 USB4+

ASMB-822I User Manual 16

2.1 Introduction

You can access most of the connectors from the top of the board as it is being

installed in the chassis. If you have a number of cards installed, you may need to par-

tially remove a card to make all the connections.

2.2 USB Ports and LAN Ports (USB0~USB11/LAN1/

LAN2/IPMI_LAN1)

The USB ports comply with USB 2.0 & 3.0. Transmission rates could be up to 480

Mbps (USB 2.0) / 5Gbps (USB 3.0) and fuse protection are supported. The USB

interface can be disabled in the system BIOS setup.

The ASMB-822I is equipped with two high-performance 1000 Mbps Ethernet LANs.

They are supported by all major network operating systems. The RJ-45 jacks on the

rear plate provide convenient 1000Base-T operation.

ASMB-822I is also equipped with the additional 100 Mbps Ethernet LAN (IPMI_LAN1

Port) which is shared with IPMI for system management.

Example: Set USB45 (pin definitions are the same as USB67 & USB89)

IPMI_LA

N1_USB

30_1

LAN1_

USB0_1

LAN2 _

USB2_3

USB11

USB10

USB45

USB67

USB89

”Wm; ‘n’n; COM1 \‘°\“\“‘\“\‘ ﬂﬂﬂﬂﬁ @ﬂﬂﬁ

17 ASMB-822I User Manual

Chapter 2 Connections

2.3 VGA Connector

The ASMB-822I includes a VGA interface that can drive conventional CRT and LCD

displays.

2.4 Serial Ports (COM1/COM2)

The ASMB-822I offers 2 serial ports (One on the rear panel and one onboard).

VGA_

COM1

VGA _

COM1

COM2

Amazu 1 2 3 4 5 6

ASMB-822I User Manual 18

2.5 PS2 Keyboard and Mouse Connectors (KBMS1/

KBMS2)

Two 6-pin mini-DIN connectors (KBMS1) on the rear panel of the motherboard pro-

vide PS/2 keyboard and mouse connections.

KBMS2 connector is for additional keyboard & mouse device usage.

2.6 CPU Fan Connector (CPU FAN0)

If a fan is used, this connector supports cooling fans that draw up to 500 mA (6 W).

KBMS1

KBMS2

Table 2.1: CPU FAN0 Pin Definition

1 GND

2 +12V

3 CPU0_TACH

4 CPU0_PWM

CPU

FAN0

—m —Imml

19 ASMB-822I User Manual

Chapter 2 Connections

2.7 System Fan Connector (SYS FAN0/FAN1)

2.8 Front Panel Connector (JFP1)

There are several external switches and LEDs to monitor and control the ASMB-822I.

Table 2.2: SYS FAN0 Pin Definition

SYS FAN0 SYS FAN1

1 GND GND

2 +12V +12V

3 FAN0_TACH FAN1_TACH

4 FAN0_PWM FAN1_PWM

SYS

FAN0

SYS

FAN2

SYS

FAN1

SYS

FAN3

JFP1

00 OO 00

ASMB-822I User Manual 20

2.8.1 Power LED (JFP1)

JFP1 pin 9 and pin 13 are for the power LED. Refer to Appendix B for detailed infor-

mation on the pin assignments. If an ATX power supply is used, the system’s power

LED status will be as indicated as follows.

2.8.2 External Speaker (JFP1 pins 10, 12, 14, 16)

JFP1 pins 10, 12, 14, 16 connect to an external speaker. The ASMB-822I provides

an onboard buzzer as an alternative. To enable the buzzer, set pins 14-16 closed.

2.8.3 HDD LED Connector (JFP1 Pins 5 & 7)

You can connect an LED to connector JFP1 to indicate when the HDD is active.

2.8.4 Reset Connector (JFP1 Pins 2 & 4)

Many computer cases offer the convenience of a reset button.

2.8.5 Case Open (JFP1 Pins 6 & 8)

A Chassis Intrusion header is located at JFP1 on the motherboard. Attach the appro-

priate cable from the chassis to be informed of a chassis intrusion when the chassis

is opened.

The defaults function is disabled and Pin 6-8 are shorted by jumper cap.

Table 2.3: ATX Power Supply LED Status

ACPI Power Mode LED (ATX power)

System On (S0) On

System Standby (S1) Fast flashes

System Hibernation(S4) Slow flashes

System Off (S5) Off

10 12 14 16

+ -

SATA_SGPIO_I SCLOCK PCH 1 M SDATAOUT! PCH 5 PH_5xI V_2‘54mln a * I ASKS -nzzx LANLED1 lﬂﬂﬁﬂ‘

21 ASMB-822I User Manual

Chapter 2 Connections

2.9 SATA SGPIO (SATA_SGPIO1)

2.10 Front Panel LAN Indicator Connector

(LANLED1)

SATA

_SGPIO1

1 LAN1_LED0_ACT 2 LAN2_LED1_ACT

3 VCC3_LAN1LED 4 VCC3_LAN2LED

5 LAN1_LED1_1000M 6 LAN2_LED2_1000

7 LAN1_LED2_100M 8 LAN2_LED0_100

9VCC3 10NC

LANL ED 1

2 SATA m T2

ASMB-822I User Manual 22

2.11 Serial ATA Interface (SATA0 ~ 5)

ASMB-822I features two serial ATA III (SATA 0 & SATA 1) interfaces (up to 600 MB/s)

and four serial ATA II (SATA 2 ~ SATA 5) interfaces (up to 300 MB/s) which ease

cabling to hard drives with thin and long cables.

2.12 PCIe & PCI Expansion Slots

The ASMB-822I provides five PCIe and one PCI slots.

2 SATA III

4 SATA II

Slot Length Link PCIe Generation Auto switch Support

SLOT7 PCIe x8 PCIe x4 2 -

SLOT6 PCIe x16 PCIe x16 or x8 3 Y*

SLOT5 PCIe x16 PCIe x8 3 -

SLOT4 PCIe x16 PCIe x16 or x8 3 Y*

PCIEx16_

SLOT2

PCI1

PCIEx16_

SLOT3

PC IEx1 6_

SLOT4

PCIEx16_

SLOT5

PCIEx16_

SLOT6

PCIEx8_

SLOT7

e ‘4‘ nun—m:

23 ASMB-822I User Manual

Chapter 2 Connections

2.13 Auxiliary Power Connector (ATX24P_P1/

ATX8P_P1)

SLOT3 PCIe x16 PCIe x8 3 -

SLOT2 PCIe x16 PCIe x8 3 -

SLOT1 PCI - - -

Note! 1. If you plug one expansion card in slot 6, the signal links will be

PCIe x16.

2. If you plug two expansion cards both in slot 6 & 5, the signal links of

slot 6 & 5 will be both PCIe x8, the x8 links of slot 5 is provided by

slot 6.

3. Slot 4 has the same “Auto switch” function as slot 6.

Note! 1. Please use a power supply which is of SSI type; minimum output

should be at least 650 W.

2. ATX 8P_P1 & ATX 24P_P1 sockets should be connected with

power supply, otherwise ASMB-822I will not boot up normally.

ATX8P_P1

ATX 24P_P1

AUD|O1 1 2 I _3 L G 7 8 T T I PH_$x2V_2.00mm ﬁﬂﬂﬂﬂﬂﬂ @ﬂﬂﬂﬂﬂﬂ 3T

ASMB-822I User Manual 24

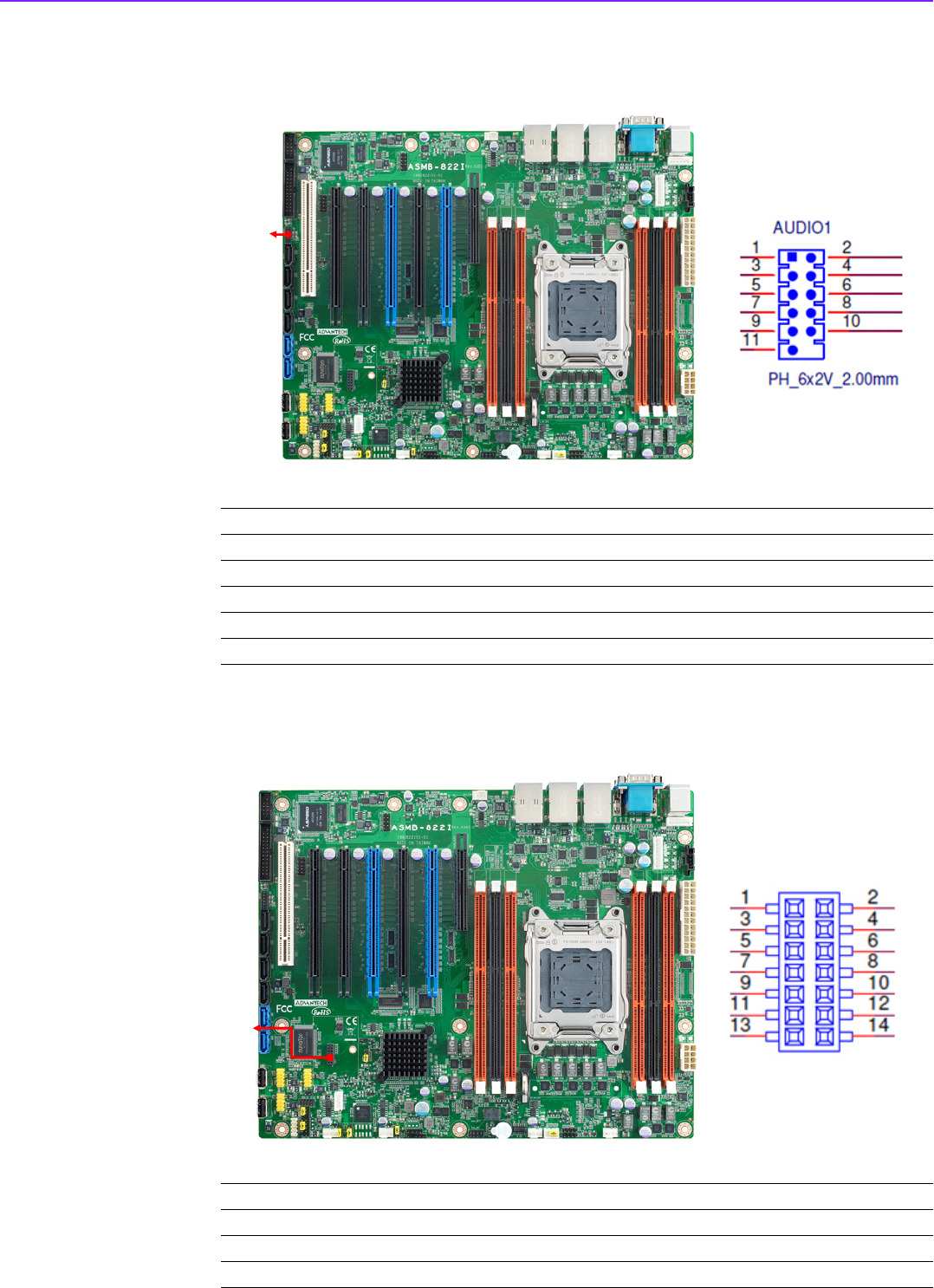

2.14 HD Audio Interface Connector (AUDIO1)

2.15 LPC Connector (LPC1) for Optional TPM Module

1 +5 V_AUD 2 GND

3 ACZ_SYNC 4 ACZ_BITCLK

5 ACZ_SDOUT 6 ACZ_SDIN0

7 ACZ_SDIN1 8 ACZ_RST#

9 +AC_12V 10 GND

11 GND 12 NC

AU DIO 1

1 CLK_33M_TPM 2 LPC_AD1

3PLTRST_LPC 4 LPC_AD0

5 LPC_FRAME 6 +3.3 V

7 LPC_AD3 8 GND

LPC1

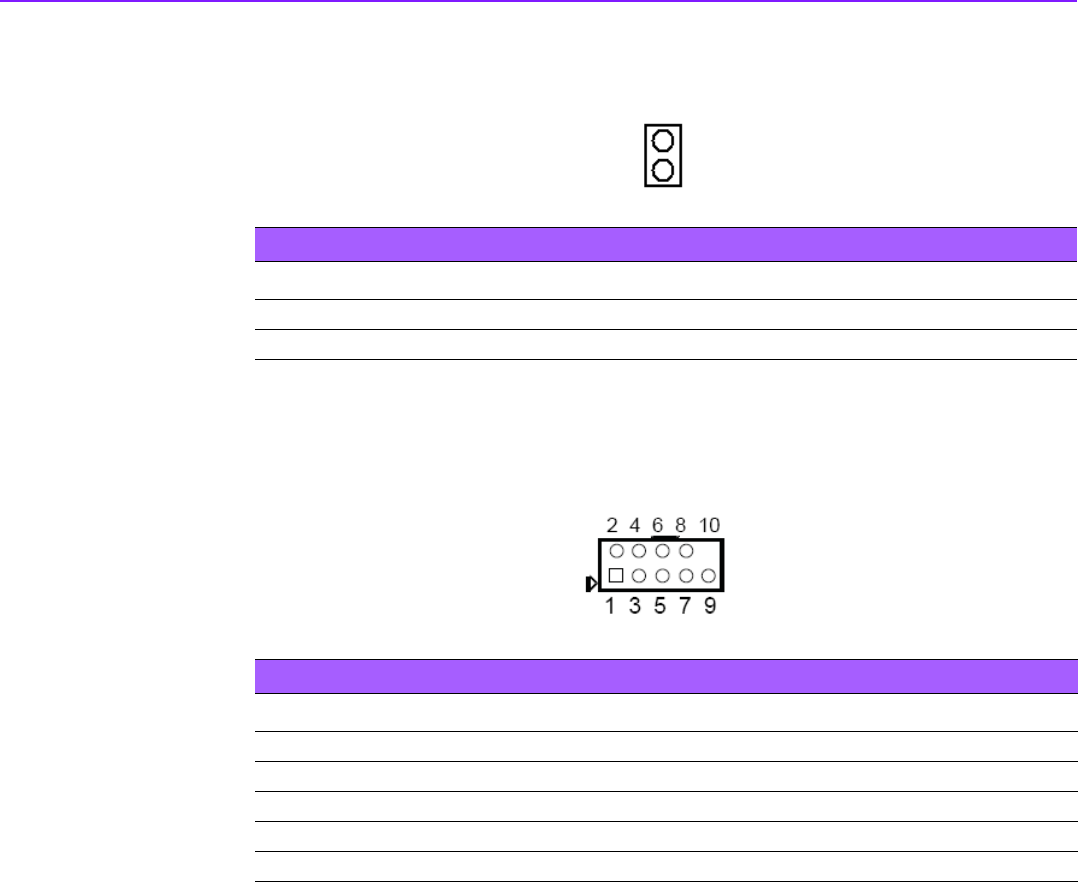

JCMOS1 PH_3x1V_2.54mm

25 ASMB-822I User Manual

Chapter 2 Connections

2.16 Clear CMOS Connector (JCMOS1)

Setting jumper from pin 1_2 to pin 2_3,then back to pin 1_2 to reset CMOS data.

2.17 PMBUS Connector (PMBUS1)

9 LPC_AD2 10 SMB_SCL_LPC

11 SERIRQ_PCH 12 SMB_SDA_LPC

13 +5V_AUX 14 +5V

1 SRTC_RST_PCH

2RTC_RST_PCH

3GND

JCMOS1

1SMB_SCL_PM

PMBUS1

SMBUS1 #uma |°|“|‘”|“’|‘ kN az-

ASMB-822I User Manual 26

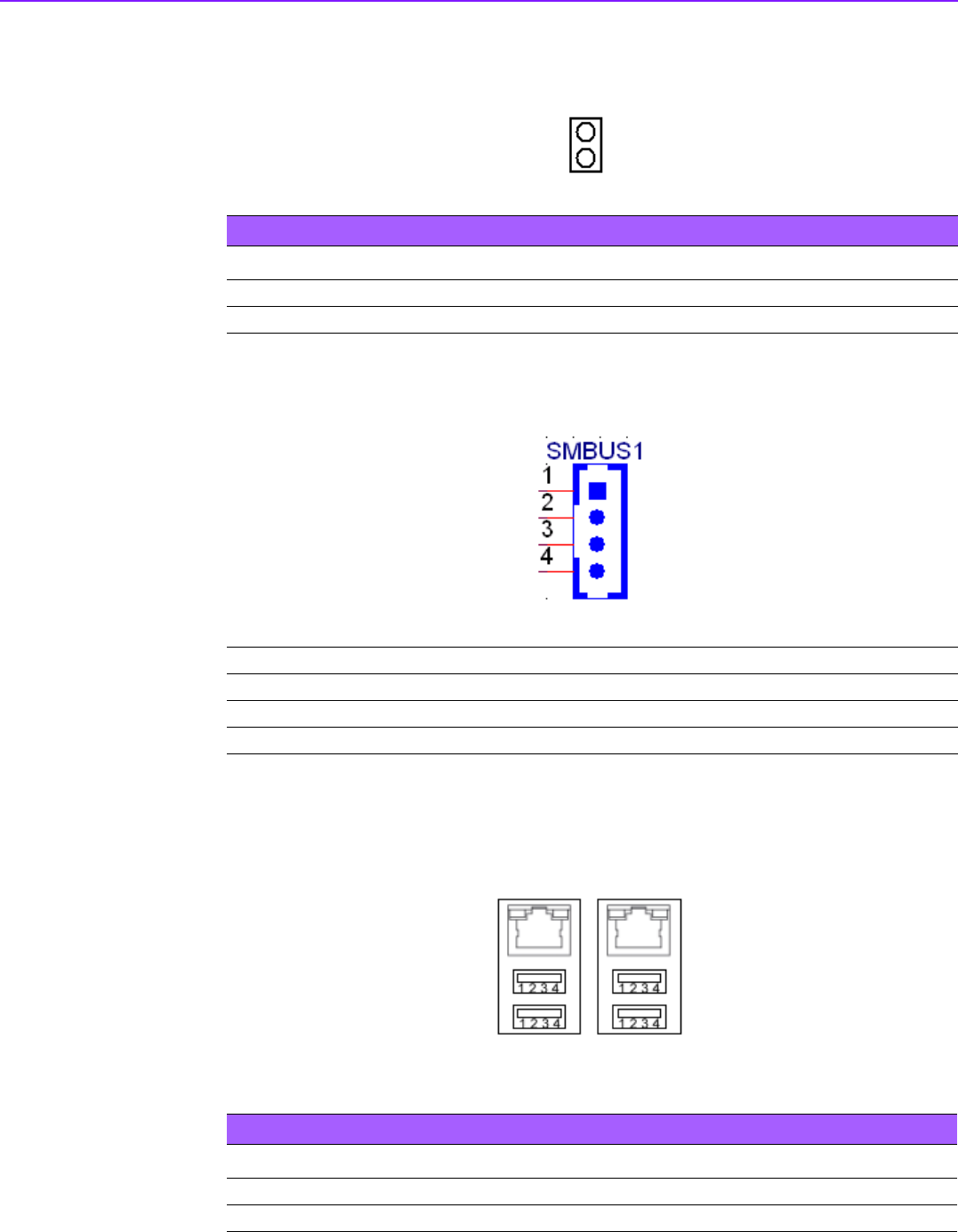

2.18 Front Panel SMBUS Connector (SMBUS1)

2.19 IPMI Module Connector (IPMI1)

2 SMB_SDA_PM

3 SMB_ALT_PM

4GND

5+3.3V

1 +3.3V_AUX

2 SMB_SCL_FRU

3 SMB_SDA_FRU

4GND

SMBUS1

IPMI1

27 ASMB-822I User Manual

Chapter 2 Connections

This connector only fit to ASMB-BMC-00A1E and only exist in ASMB-822I sku.

ASMB-822I User Manual 28

2.20 VOLT1 Connector

VOLT1 connects to the alarm board of Advantech chassis. These alarm boards give

warnings if a power supply or fan fails, if the chassis overheats, or if the backplane

malfunctions.

15VSB 5+5V

2GND 6+3.3V

3GND 7-12V

4-5V 8+12V

VOLT1

GPI01 lﬁiﬁﬁ‘ |a|°=|+|~

29 ASMB-822I User Manual

Chapter 2 Connections

2.21 GPIO Connector

2.22 SNMP Connector

SNMP connector could apply with “SAB-2000”remote control board to monitor the sit-

uation of ASMB-822I through super IO chip.

1 SIO_GPIO0 2 SIO_GPIO4

3 SIO_GPIO1 4 SIO_GPIO5

5 SIO_GPIO2 6 SIO_GPIO6

7 SIO_GPIO3 8 SIO_GPIO7

9 VCC_GPIO0 10 GND

GPI O1

1 SNMP_SDA 2 SNMP_SCL

SN MP 1

ASMB-822I User Manual 30

Chapter 3

3AMI BIOS

u; mum 7

ASMB-822I User Manual 32

3.1 Introduction

AMI BIOS has been integrated into many motherboards for over a decade. In the

past, people often referred to the AMI BIOS setup menu as BIOS, BIOS setup or

CMOS setup. With the AMI BIOS Setup program, you can modify BIOS settings and

control the special features of your computer. The Setup program uses a number of

menus for making changes and turning the special features on or off. This chapter

describes the basic navigation of the ASMB-822I setup screens.

AMI's BIOS ROM has a built-in Setup program that allows users to modify the basic

system configuration. This type of information is stored in battery-backed up CMOS

so it retains the Setup information when the power is turned off.

Note! The BIOS setup screens shown in this chapter are just for reference

only, it may not exactly match what you see on your display devices.

33 ASMB-822I User Manual

Chapter 3 AMI BIOS

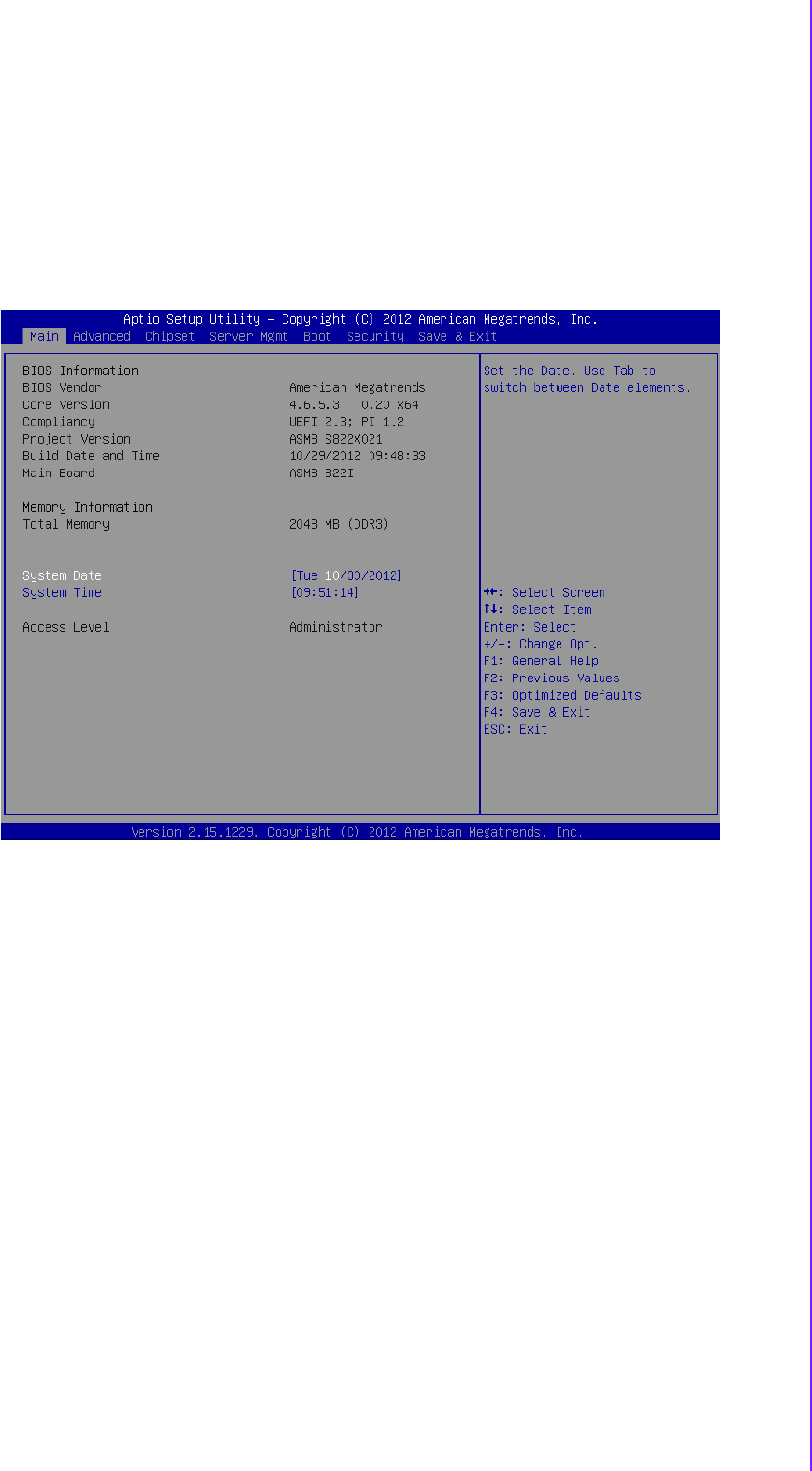

3.2 BIOS Setup

3.2.1 Main Menu

Press <Del> to enter AMI BIOS CMOS Setup Utility, the Main Menu will appear on

the screen. Use arrow keys to select among the items and press <Enter> to accept or

enter the sub-menu.

The Main BIOS setup screen has two main frames. The left frame displays all the

options that can be configured. Grayed-out options cannot be configured; options in

blue can be. The right frame displays the key legend. Above the key legend is an

area reserved for a text message. When an option is selected in the left frame, it is

highlighted in white. Often a text message will accompany it.

3.2.1.1 System Time / System Date

Use this option to change the system time and date. Highlight System Time or Sys-

tem Date using the <Arrow> keys. Enter new values through the keyboard. Press the

<Tab> key or the <Arrow> keys to move between fields. The date must be entered in

MM/DD/YY format. The time must be entered in HH:MM:SS format.

3.2.2 Advanced BIOS Features Setup

Select the Advanced tab from the ASMB-822I setup screen to enter the Advanced

BIOS setup screen. You can select any of the items in the left frame of the screen,

such as CPU configuration, to go to the sub menu for that item. You can display an

Advanced BIOS Setup option by highlighting it using the <Arrow> keys. All Advanced

BIOS Setup options are described in this section. The Advanced BIOS Setup

screens are shown below. The sub menus are described on the following pages.

Aptm Sewn mum 7 Eurgmgm (E 2(12 Ameucan Negetr‘ewds‘ Inc. > PEI suhsgstem semngs Aptm Sewn mum 7 Eurgmgm (E 2(12 Ameucan Negetr‘ewds‘ Inc. Abuve as necudmg [Ulsabled]

ASMB-822I User Manual 34

3.2.2.1 PCI Subsystem Settings

mum 7

35 ASMB-822I User Manual

Chapter 3 AMI BIOS

Above 4G Decoding

Enables or disables 64-bit capability. Devices to be decoded in above 4G

address space (Only if system supports 64bit PCI decoding).

PCI Latency Timer

Value in units of PCI clocks for PCI device latency timer register.

VGA Palette Snoop

Enables or disables VGA palette registers snooping.

3.2.2.2 ACPI Settings

Enable Hibernation

"Enable or disable" Hibernation.

ACPI Sleep State

Specifies the ACPI sleep state when the system enters standby.

Lock Legacy Resources

"Enabled" or "Disabled" Lock Legacy Resources.

Aptm Sewn mum 7 Eurgmgm (E 2(12 Ameucan Negetr‘ewds‘ Inc. secuntg Deuce Suppur‘t [Enable]

ASMB-822I User Manual 36

3.2.2.3 Trusted Computing

Security Device Support

Enables or disables BIOS support for security device.

Purchase Advantech LPC TPM module to enable TPM function. P/N: PCA-

TPM-00A1E.

mu mum 7

37 ASMB-822I User Manual

Chapter 3 AMI BIOS

3.2.2.4 WHEA Support

WHEA Support

“Enable or disable” Windows Hardware Error Architecture.

Aptm Sewn mum 7 Eurgmgm (E 2(12 Ameucan Negetr‘ewds‘ Inc. > Sucket a CPU Infur‘matmn Aptm Sewn mum 7 Eurgmgm (E 2(12 Ameucan Negetr‘ewds‘ Inc.

ASMB-822I User Manual 38

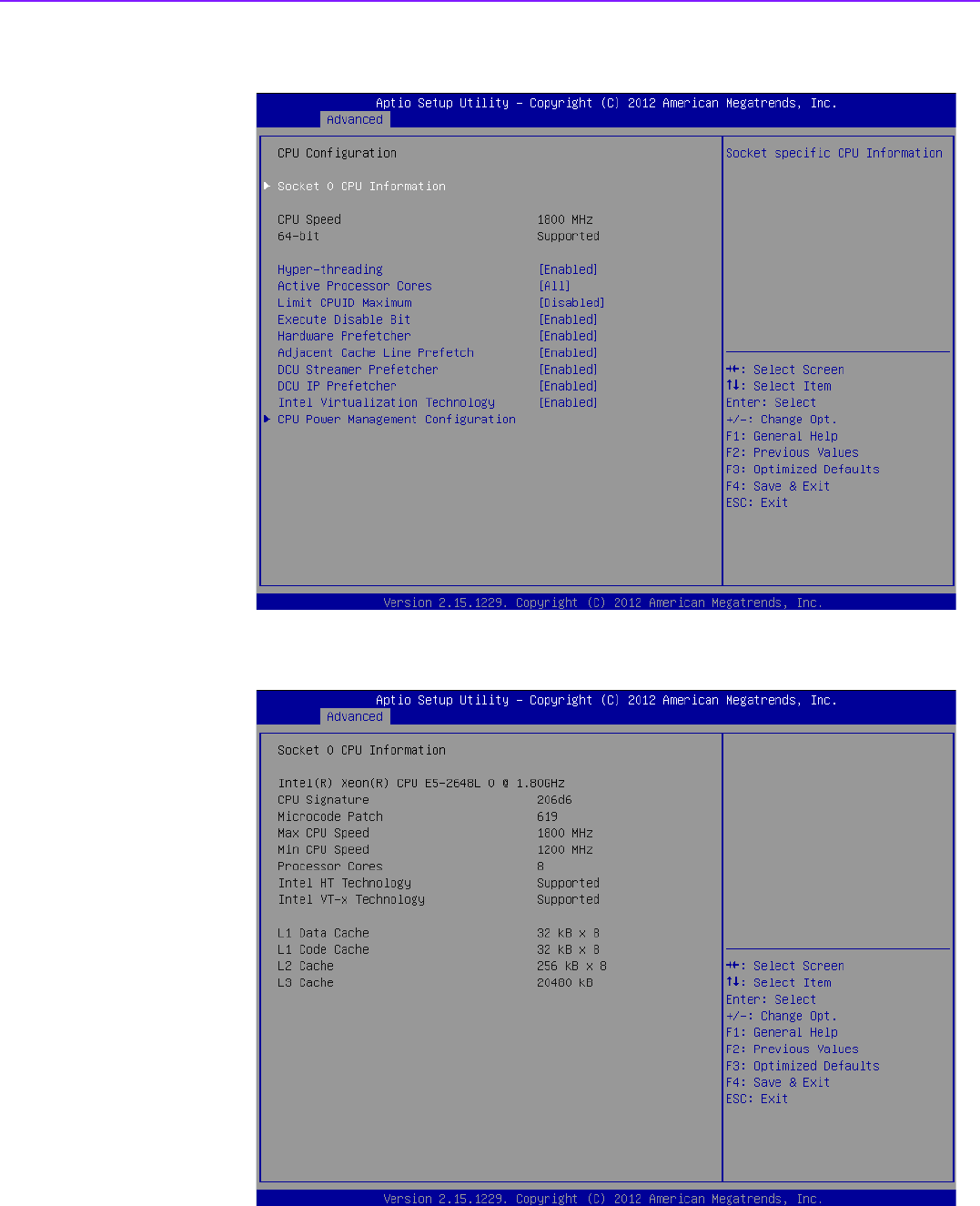

3.2.2.5 CPU Configuration

Socket 0 CPU Information

39 ASMB-822I User Manual

Chapter 3 AMI BIOS

Hyper-threading

Enable or disable Intel Hyper Threading technology.

Active Processor Core

Select how many processor cores to activate when using a dual or quad core

processor.

Limit CPUID Maximum

Set this item to [Enable] allows legacy operating systems to boot even without

support for CPUs with extended CPUID functions.

Execute Disable Bit

This item specifies the Execute Disable Bit Feature. The settings are Enabled

and Disabled. The Optimal and Fail-Safe default setting is Enabled. If Disabled

is selected, the BIOS forces the XD feature flag to always return to 0.

Hardware Prefetcher

Hardware Prefetcher is a technique that fetches instructions and/or data from

memory into the CPU cache memory well before the CPU needs it, so that it can

improve the load-to-use latency. Set to enable or disable.

Adjacent Cache Line Prefetch

The Adjacent Cache-Line Prefetch mechanism, like automatic hardware

prefetch, operates without programmer intervention. When enabled through the

BIOS, two 64- byte cache lines are fetched into a 128-byte sector, regardless of

whether the additional cache line has been requested or not. Set to enable or

disable.

DCU Streamer Prefetch

Enable prefetch of next L1 data line based upon multiple loads in same cache

line.

DCU IP Prefetcher

Enable prefetch of next L1 line based upon sequential load history.

Intel Virtualization Technology

This feature is used to enable or disable the Intel Virtualization Technology (IVT)

extension. It allows multiple operating systems to run simultaneously on the

same system. It does this by creating virtual machines, each running its own

x86 operating system.

Aptm Sewn mum 7 Eurgmgm (E 2(12 Ameucan Negetr‘ewds‘ Inc. anzr‘ Technnlngy [Energy Efﬂuent] Aptm Sewn mum 7 Bummgm (E 2(12 Ameucan Pegatr‘ewds‘ Inc. Paw Technulugg [Eustum]

ASMB-822I User Manual 40

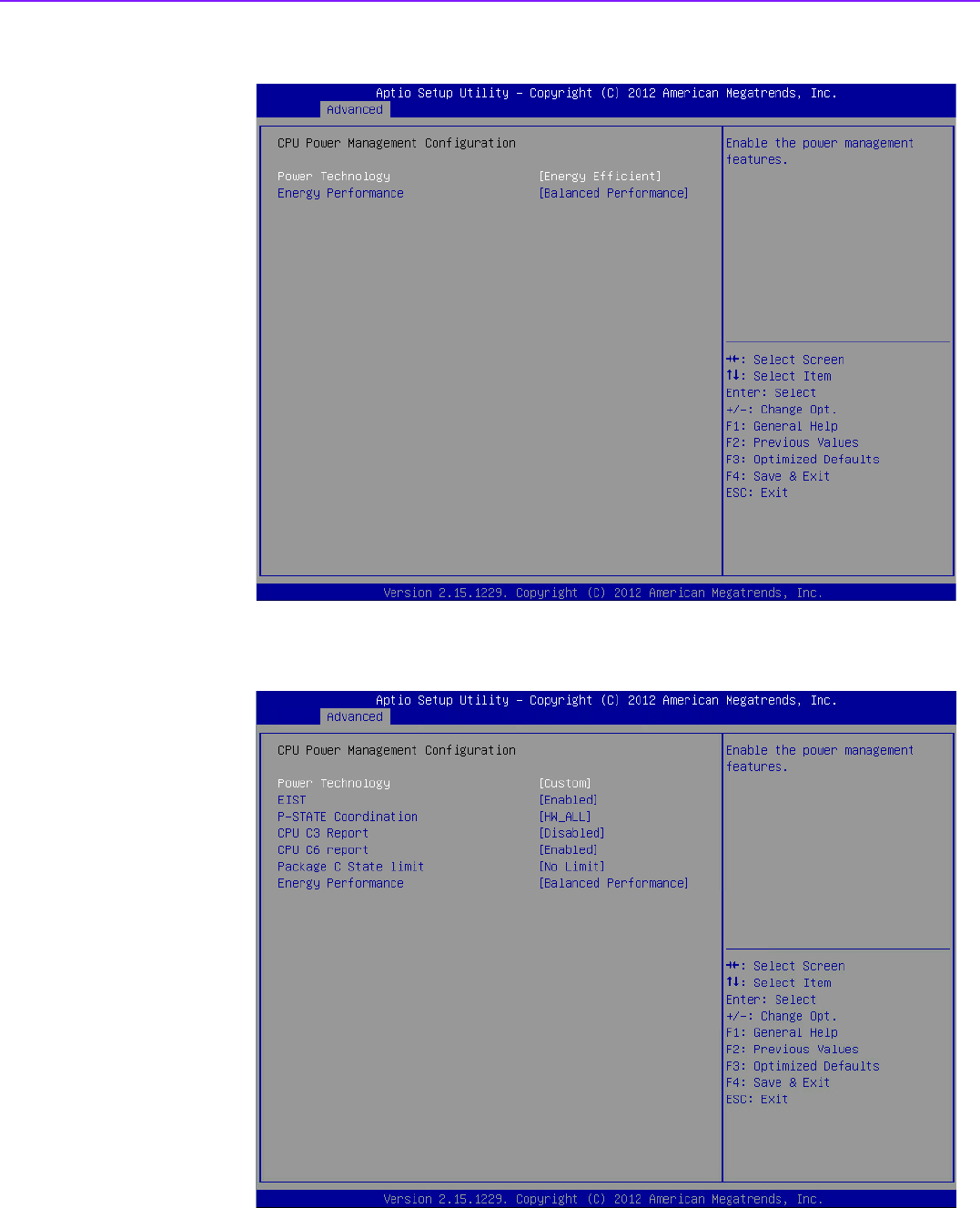

CPU Power Management Configuration

Power technology default is “Energy Efficient”.

User can set “EIST”, “P-STATE”, “C3”, “C6”, “Package C State limit” under “Custom”

Mode.

mam: ' wuw n m m1: mew: '

41 ASMB-822I User Manual

Chapter 3 AMI BIOS

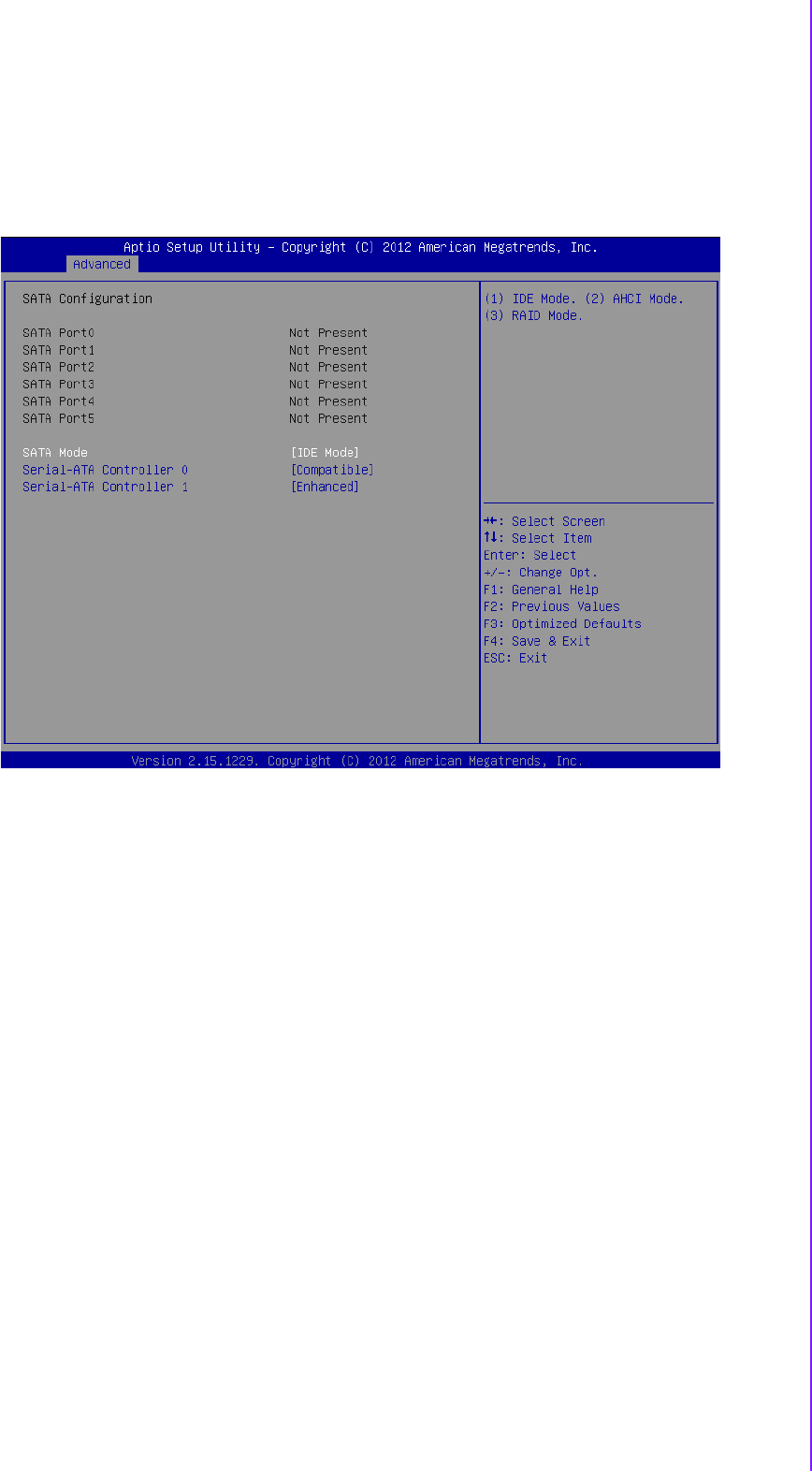

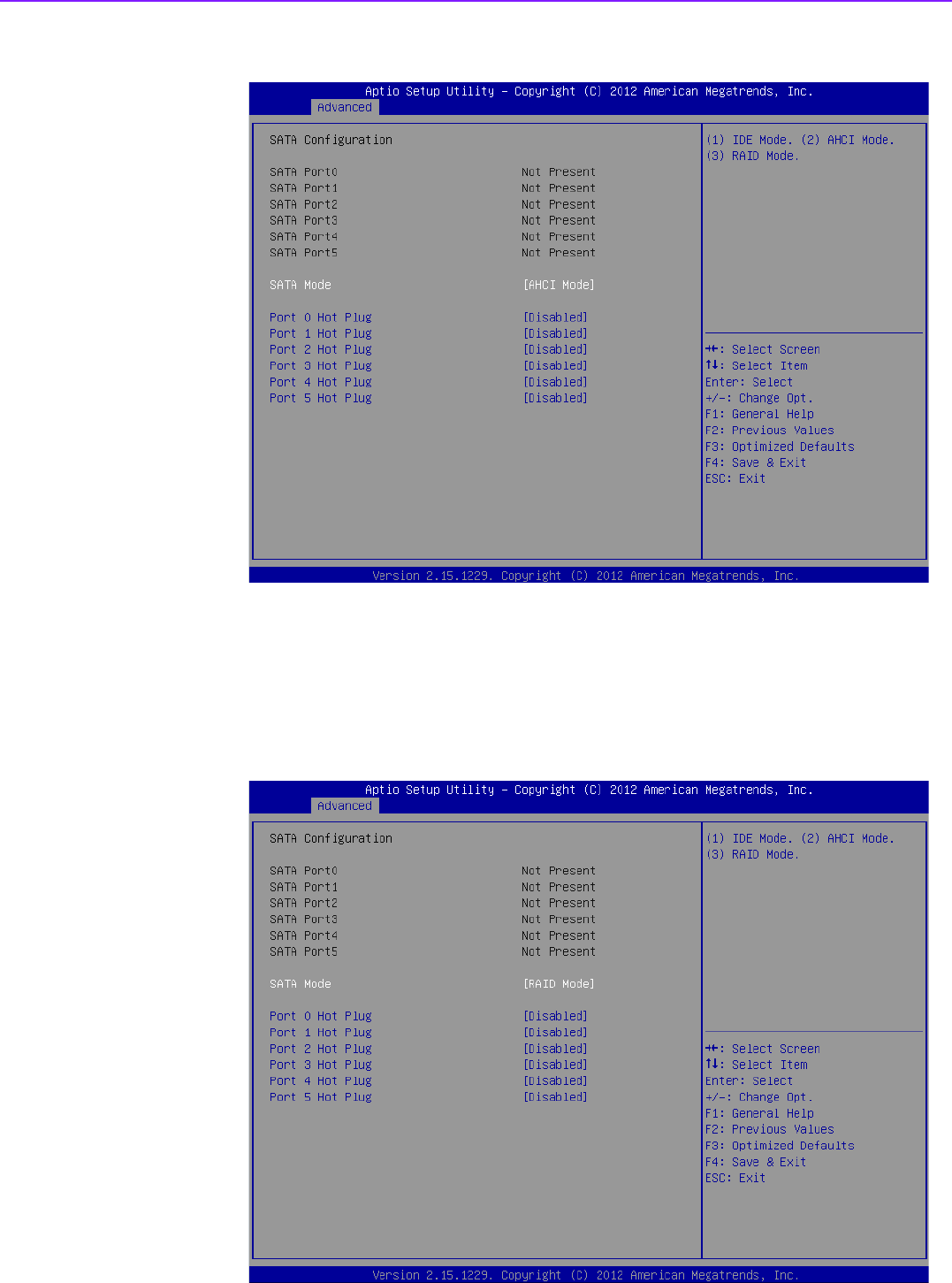

3.2.2.6 SATA Configuration

SATA Mode

Configured as IDE/RAID/AHCI or Disabled.

IDE Mode

–Serial-ATA Controller 0

This item appears only when SATA Mode item set to [IDE Mode]. Set to

[Enhanced] to support two SATA 6.0 Gb/s and four SATA 3.0 Gb/s devices.

Set to [Compatible] when using Windows 98/NT/2000/MS-DOS. Up to four

SATA devices are supported by controller 0 and two SATA devices are sup-

ported by controller 1 when under these operating systems.

–Serial-ATA Controller 1

This item appears only when SATA Mode item to [IDE Mode] is set. Set to

[Enhanced] to support two SATA 3.0 Gb/s devices.

Aptm Sewn mum 7 Eurgmgm (E 2(12 Ameucan Negetr‘ewds‘ Inc. SATR Made [RHEI Maria] Anna Sewn mum 7 Eurgmgm (E 2(12 Ameucan Negetr‘ewds‘ Inc. SATR Made [mm Made]

ASMB-822I User Manual 42

AHCI Mode

Set to [AHCI Mode] to have the SATA hard disk drives use the AHCI (Advanced

Host Controller Interface). The AHCI allows the onboard storage driver to

enable advanced Serial ATA features that increases storage performance on

random workloads by allowing the drive to internally optimize the order of com-

mands.

RAID Mode

Set to [RAID Mode] to create a RAID configuration from the SATA hard disk drives.

Hm mum 7 n m: 2‘ 1: me u: ' '

43 ASMB-822I User Manual

Chapter 3 AMI BIOS

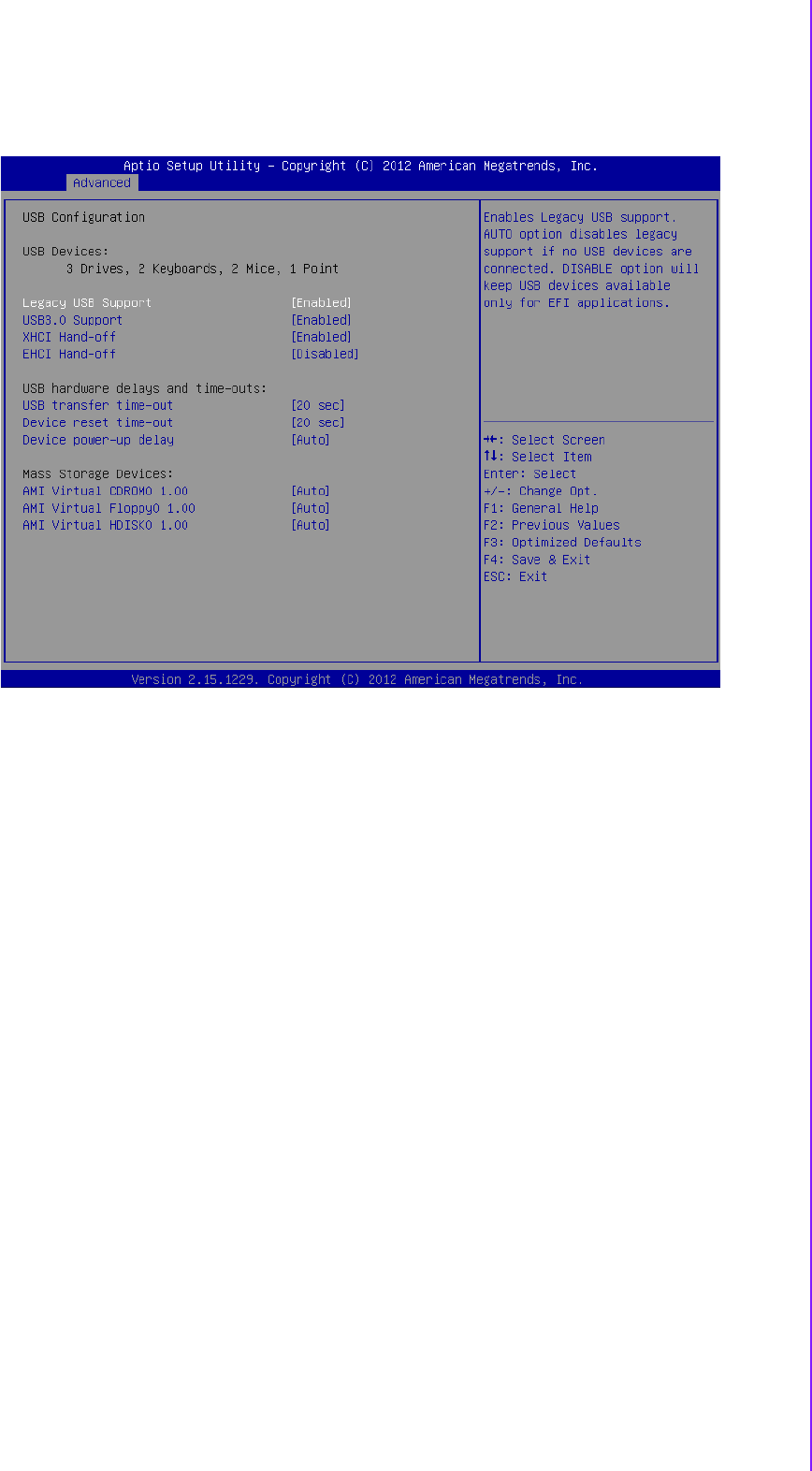

3.2.2.7 USB Configuration

Legacy USB Support

This is for supporting USB device under a legacy OS such as DOS. When

choosing "AUTO", the system will automatically detect if any USB device is

plugged into the computer and enable USB legacy mode when a USB device is

plugged and disable USB legacy mode when no USB device is plugged.

USB3.0 support

Enable/disable USB3.0(XHCI) controller support.

XHCI Hand-off

This is a workaround for OS without XHCI hand-off support.

The XHCI ownership change should be claimed by XHCI driver.

EHCI Hand-off

This is a workaround for OS without EHCI hand-off support.

The EHCI ownership change should be claimed by EHCI driver.

USB Transfer Time-out

Selects the USB transfer time-out value. [1,5,10,20sec]

Device Reset Time-out

Selects the USB device reset time-out value. [10,20,30,40 sec]

Device Power-up Delay

This item appears only when Device power-up delay item is set to [manual].

Mass Storage Devices

This item appears only when plugging in a USB flash device. User can choose

“Auto”, “Floppy”, “Forced FDD”, “Hard Disk” and “CD-ROM” to simulate USB

flash device.

Aptm Sewn mum 7 Eurgmgm (E 2(12 Ameucan Negetr‘ewds‘ Inc. > same) Part a cunnguraunn Aptm Sewn mum 7 Eurgmgm (E 2(12 Ameucan Negetr‘ewds‘ Inc. same) Part [Enabled]

ASMB-822I User Manual 44

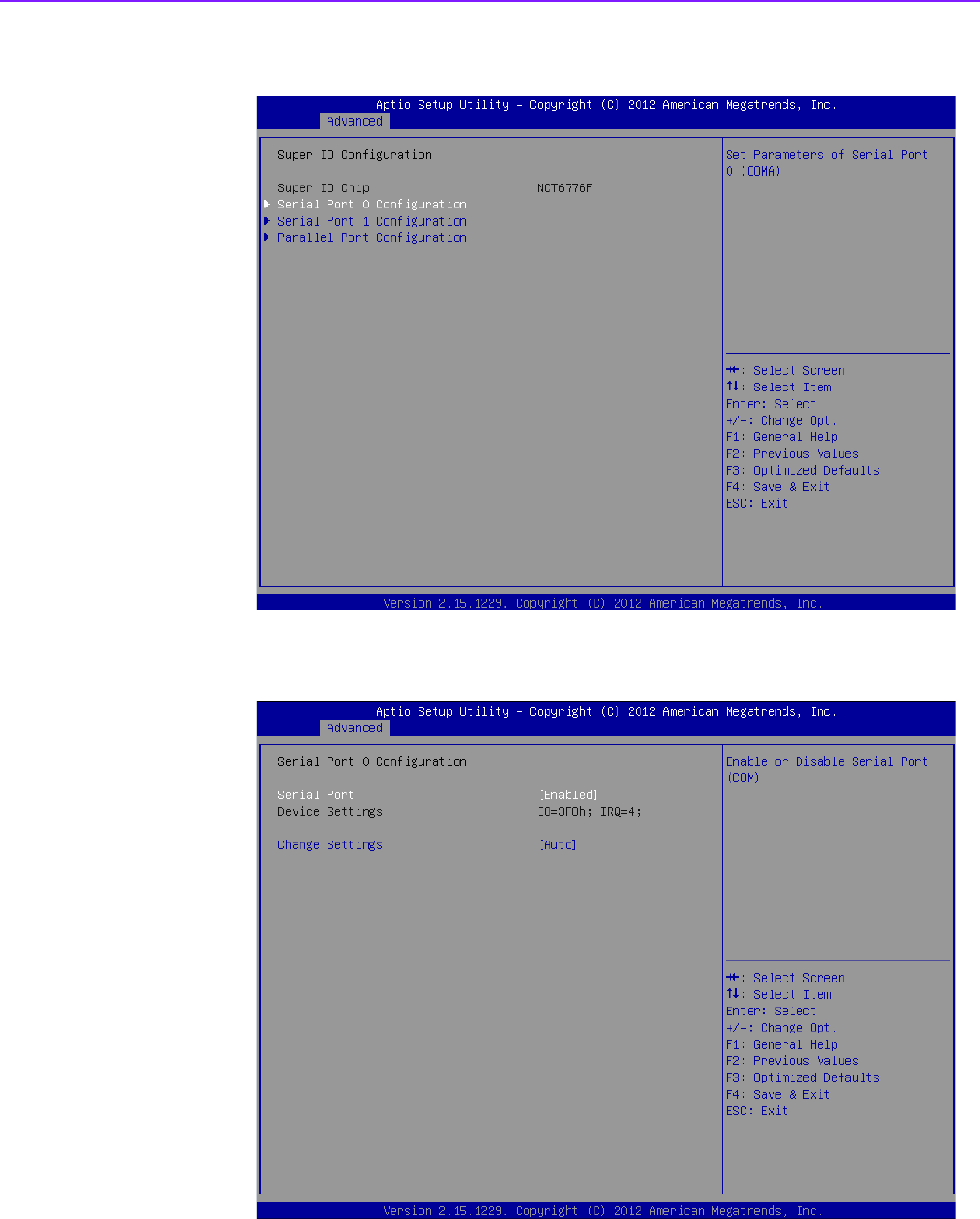

3.2.2.8 Super I/O Configuration

Serial Port 0 Configuration

Serial Port

To “enable” or “disable” Serial Port 0.

Change Settings

To select an optimal setting for serial port 0.

Hum: , mum 7

45 ASMB-822I User Manual

Chapter 3 AMI BIOS

Serial Port 1 Configuration

Serial Port

To “enable” or “disable” Serial Port 1.

Change Settings

To select an optimal setting for serial port 1.

Aptm Sewn mum 7 Bummgm (E 2(12 Ameucan Pegatr‘ewds‘ Inc. Parallel Part [Enabled]

ASMB-822I User Manual 46

3.2.2.9 Parallel Port Configuration

Parallel port

Enable or disable parallel port (LPT/LPTE).

Change Settings

Select an optimal setting for super IO device.

Device Mode

Change the printer port mode.

m mum 7

47 ASMB-822I User Manual

Chapter 3 AMI BIOS

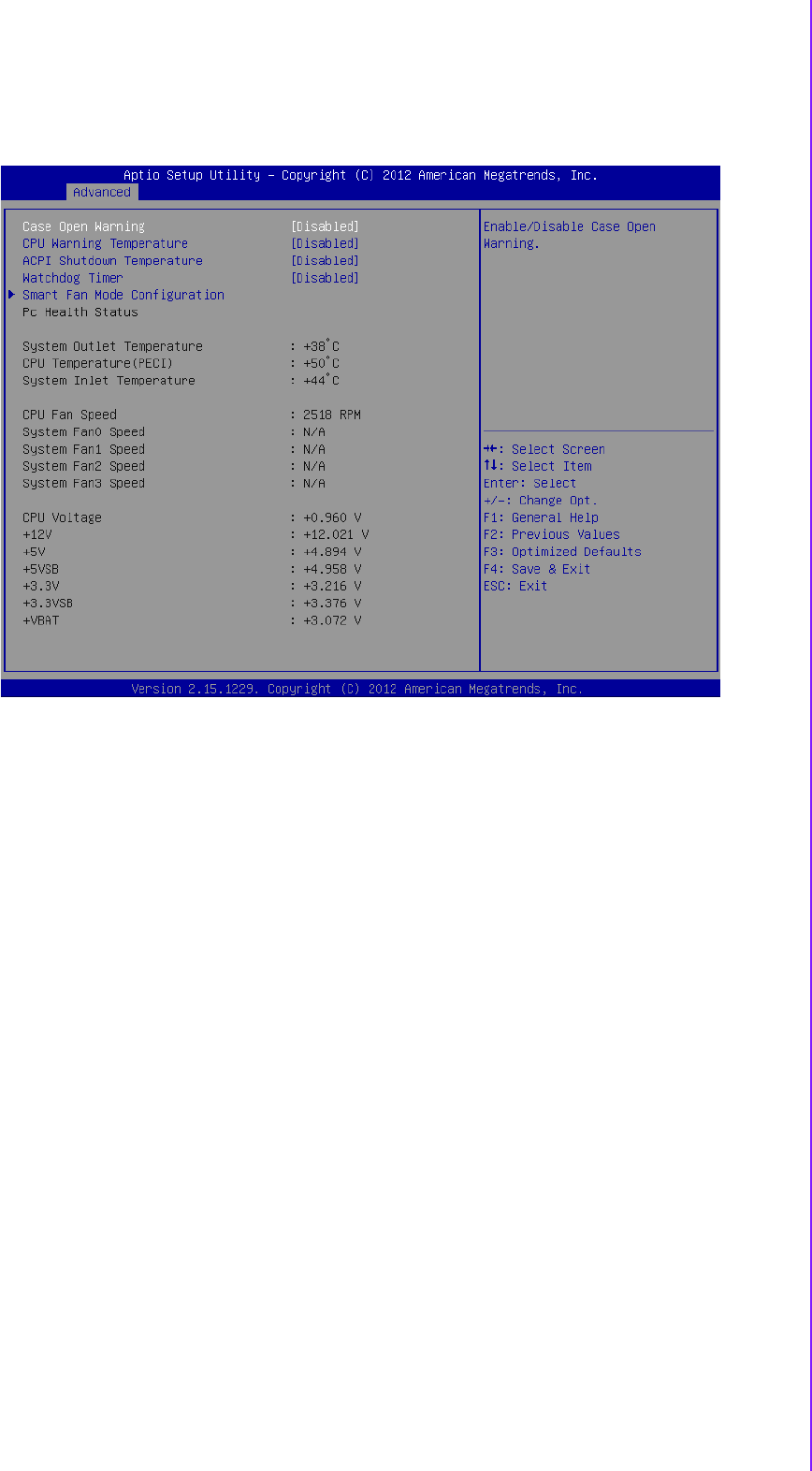

3.2.2.10 H/W Monitor

Case Open Warning

Enable/Disable the Chassis Intrusion monitoring function. When enabled and

the case is opened, the warning message will show in post screen.

CPU Warning Temperature

Set the CPU warning temperature threshold. When the system reaches the

warning temperature, the speaker will beep.

ACPI Shutdown Temperature

Set the ACPI shutdown temperature threshold. When the system reaches the

shutdown temperature, it will be automatically shut down by ACPI OS to protect

the system from overheat damage.

Watchdog Timer

Enable and Disable the watchdog timer function.

Smart Fan Mode Configuration

When set to manual mode, fan duty setting can be changed; the range is from

0~255, default setting is 127.

Aptm Sewn mum 7 Bummgm (E 2(12 Ameucan Pegatr‘ewds‘ Inc. CPU Fan Made [smart Fan Nude] Aptm Sewn mum 7 Eurgmgm (E 2(12 Ameucan Negetr‘ewds‘ Inc. Ennsnle delr‘ectmn [msameu]

ASMB-822I User Manual 48

3.2.2.11 Serial Port Console Redirection

Console Redirection

To “Enable or disable” console redirection feature.

mm m, gm; H mm) Tu

49 ASMB-822I User Manual

Chapter 3 AMI BIOS

Console Redirection Settings

Terminal Type

Select a terminal type to be used for console redirection.

Options available: VT100/VT100+/ANSI /VT-UTF8.

Bits Per Second

Select the baud rate for console redirection.

Options available: 9600/19200/57600/115200.

Parity

A parity bit can be sent with the data bits to detect some transmission errors.

Even: parity bit is 0 if the num of 1's in the data bits is even.

Odd: parity bit is 0 if num of 1's the data bits is odd.

Mark: parity bit is always 1. Space: Parity bit is always 0.

Mark and Space Parity do not allow for error detection.

Options available: None/Even/Odd/Mark/Space.

Stop Bits

Stop bits indicate the end of a serial data packet. (A start bit indicates the begin-

ning).

The standard setting is 1 stop bit. Communication with slow devices may require

more than 1 stop bit.

Options available: 1/2.

Flow Control

Flow control can prevent data loss from buffer overflow. When sending data, if

the receiving buffers are full, a 'stop' signal can be sent to stop the data flow.

Once the buffers are empty, a 'start' signal can be sent to re-start the flow. Hard-

ware flow control uses two wires to send start/stop signals.

Options available: None/Hardware RTS/CTS.

mm 3 mum 7 , m m: 2‘ 1: Hme'l

ASMB-822I User Manual 50

Recorder Mode

When this mode enabled, only text will be send. This is to capture Terminal data.

Options available: Enabled/Disabled.

Legacy OS Redirection Resolution

On Legacy OS, the number of Rows and Columns supported redirection.

Options available: 80x24/80X25.

Putty Keypad

Select function key and keypad on putty.

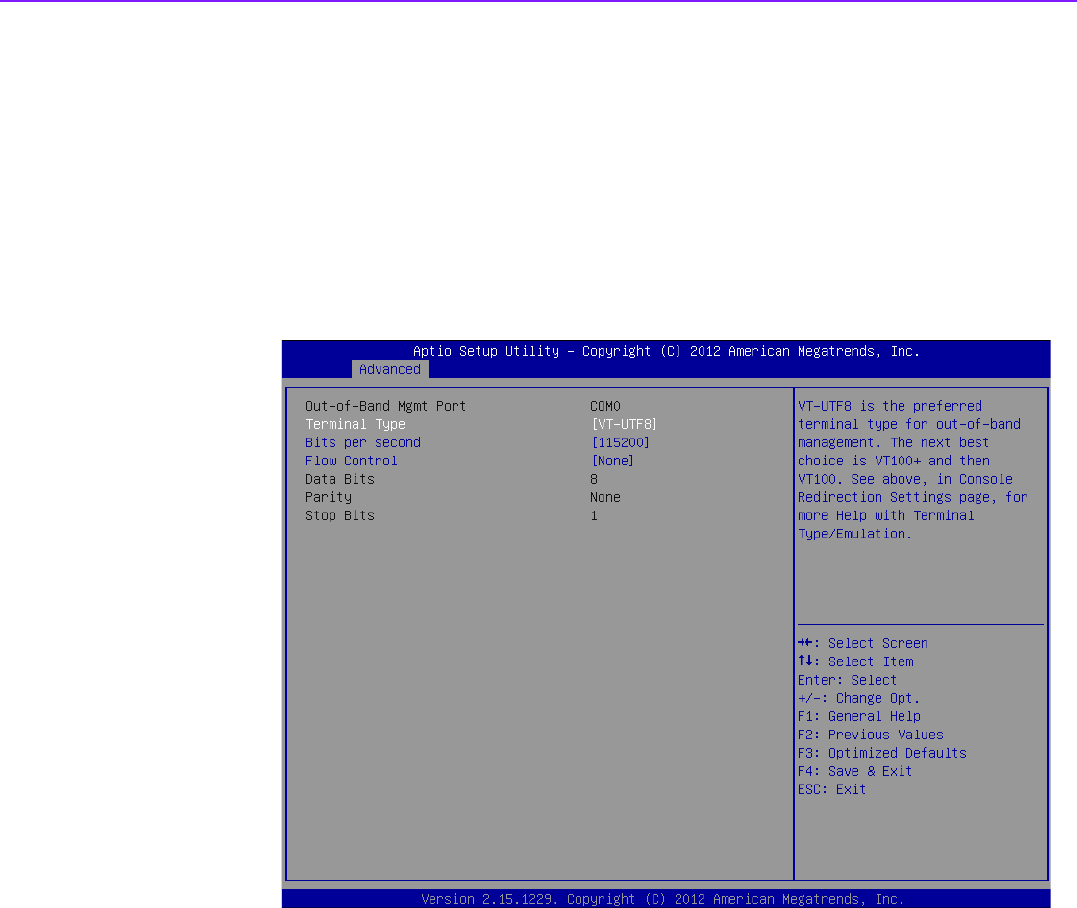

Console Redirection Setting

Out-of-Band Mgmt Port

To select the com port user would like to set for having console redirection fea-

ture.

Terminal Type

Set as "VT100", "VT100+", "VT-UTF8", or "ANSI". "VT-UTF8" is the default set-

ting.

Bits Per Second

To select serial port transmission. Speed must be matched on the other side. It

can be set as "9600", "19200", "57600", or "115200". "115200" is the default set-

ting.

Flow Control

Flow control can prevent data loss from buffer overflow. It can be set as "None",

"Hardware RTS/CTS", or "Software Xon/Xoff". "None" is the default setting.

Aptm Sewn mum 7 Eurgmgm (E 2(12 Ameucan Negetr‘ewds‘ Inc. > Nurth Budge Aptm Sewn mum 7 Eurgmgm (E 2(12 Ameucan Negetr‘ewds‘ Inc. > IEIH Eunflgur‘atmn

51 ASMB-822I User Manual

Chapter 3 AMI BIOS

3.2.3 Chipset

3.2.3.1 North Bridge

Patrol Scrub

Enable/Disable patrol scrub feature.

Demand Scrub

Enable/Disable demand scrub feature.

u; mum 7 r Imeww T

ASMB-822I User Manual 52

Data Scrambling

Enable/Disable data scrambling.

Device Tagging

Enable/Disable device tagging.

IOH Configuration

Intel I/OAT

Enable/Disable Intel I/O Acceleration Technology function.

DCA Support

Enable/Disable Direct Cache Access Support

VGA Priority

Determines priority between onboard and 1st off-board video device found.

MMCFG Base

Memory reservation for PCI/PCI-X/PCIe device of 32-bit operating system.

IOU 0 PCIe port Bifurcation control

IOU 1- PCIe Port(PCIEX16_SLOT2)

PORT 1A Link Speed

Select target link speed as Gen1, Gen2, Gen3

IOU2 - PCIe Port(PCIEX16_SLOT3 and SLOT4)

1.If plug only one expansion card in SLOT4, the PCIe link of SLOT4 will be x16.

2.If plug expansion cards both in SLOT3 & SLOT4, the PCIe link will switch to

two x8 for SLOT3 and SLOT4.

3.If plug only one expansion card in SLOT3, the PCIe link of SLOT3 will be x8.

PORT 2A Link Speed

Select target link speed as Gen1, Gen2, Gen3.

mu mum 7

53 ASMB-822I User Manual

Chapter 3 AMI BIOS

IOU3 - PCIe Port(PCIEX16_SLOT5 & SLOT6)

1.If plug only one expansion card in SLOT6, the PCIe link of SLOT6 will be x16.

2.If plug expansion cards both in SLOT5 and SLOT6, the PCIe link will switch to

two x8 for SLOT5 and SLOT6.

3.If plug only one expansion card in SLOT5, the PCIe link of SLOT5 will be x8.

4.To set as x4x4x8 is for riser card "ASMB-RF348".

5.To set as x8x4x4 is for riser card "ASMB-RF3X8".

PORT 3A Link Speed

Select Target Link Speed as Gen1, Gen2, Gen3.

Intel® VT for Directed I/O Configuration

Intel VT-d

Enable/Disable Intel Virtualization Technology for Directed I/O.

Aptm Sewn mum 7 Bummgm (E 2(12 Ameucan Pegatr‘ewds‘ Inc. Aptm Sewn mum 7 Bummgm (E 2(12 Ameucan Negetr‘ewds‘ Inc. PEH Eumuaubllltu RID [Dlsabled]

ASMB-822I User Manual 54

Compatibility RID

Support for Compatibility Revision ID (CRID). Functionality mentioned in BIOS spec.

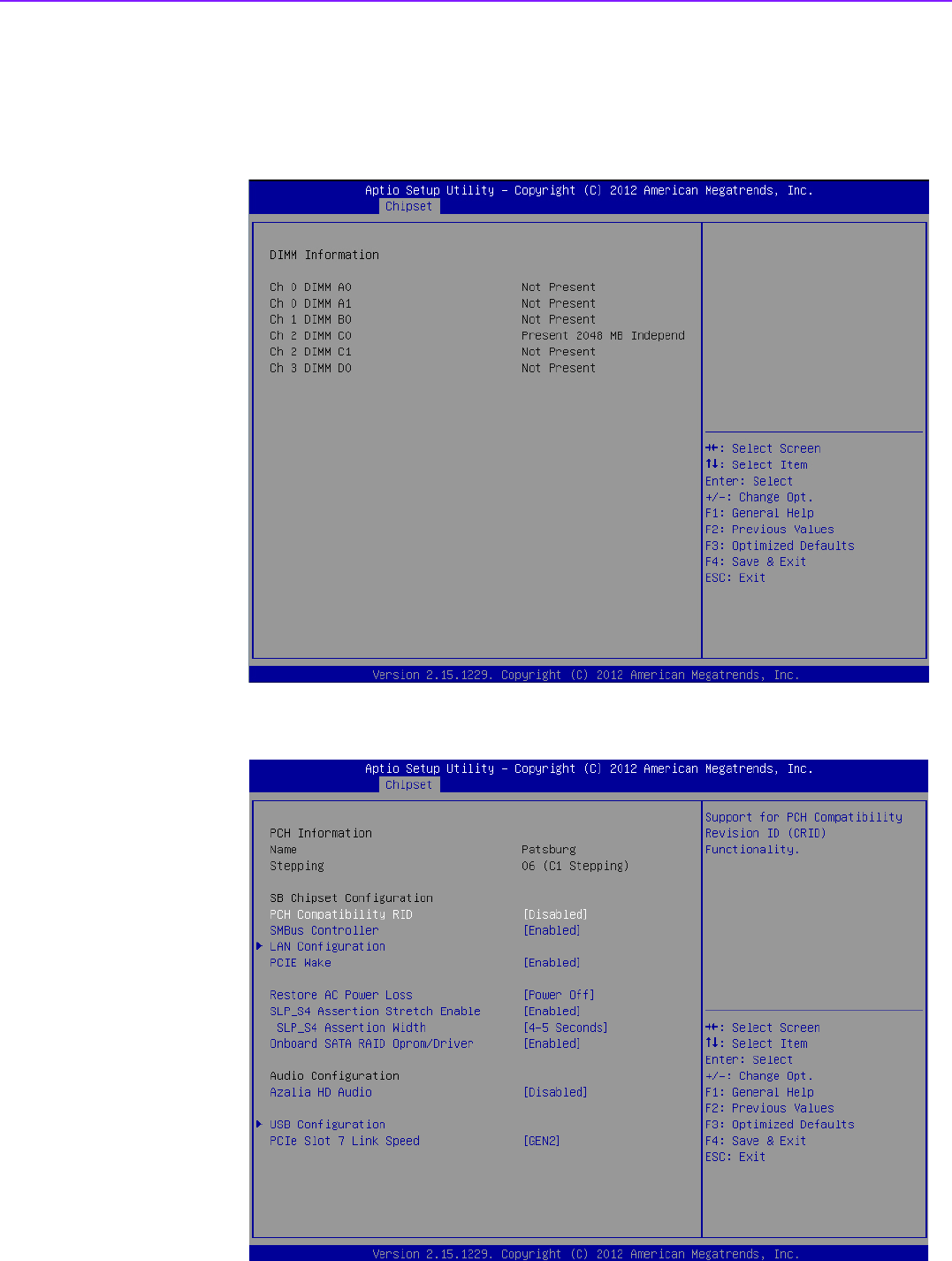

DIMM Information

3.2.3.2 South Bridge

mum 7 LHHI E

55 ASMB-822I User Manual

Chapter 3 AMI BIOS

PCH Compatibility RID

Enable/Disable PCH Compatibility Revision ID (CRID) Functionality.

SMBus Controller

Enable/Disable SMBus controller.

PCIE Wake

Enable or disable PCIE to wake the system from S5.

Restore AC Power Loss

Specify what state to go to when power is re-applied after a power failure (G3

state).

SLP_S4 Assertion Stretch Enable

Enable/Disable SLP_S4 Assertion Stretch function.

Onboard SATA RAID Oprom

Enable/Disable onboard SATA RAID option rom if Launch Storage Oprom is

enabled.

Azalia HD Audio

Enable/Disable Azalia HD audio function.

PCIe Slot 7 Link Speed

Select target link speed as Gen1, Gen2.

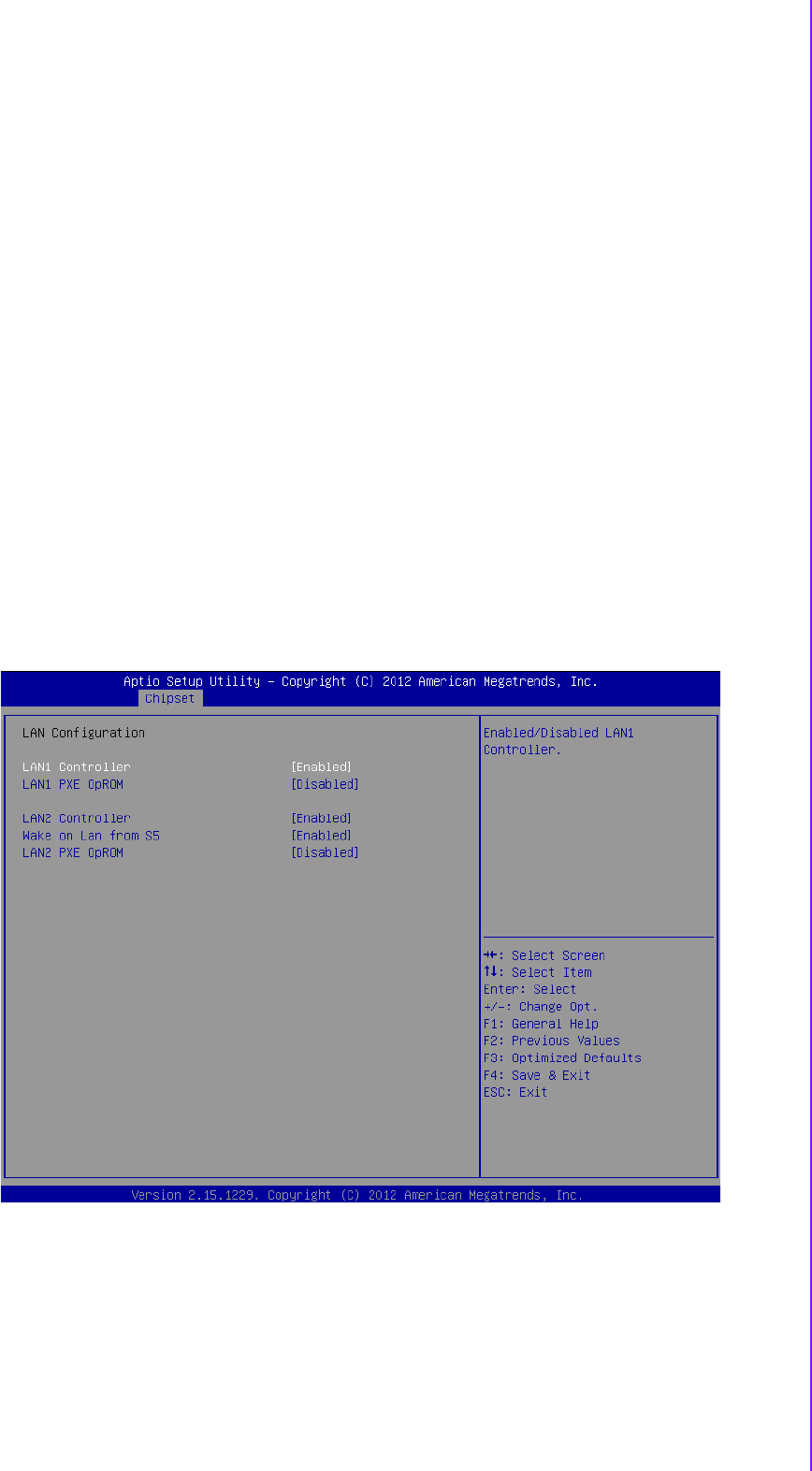

LAN Configuration

LAN1 Controller

Enable/Disable Intel I210 Controller support.

LAN1 PXE Oprom

Enable/Disable Boot option for Intel I210 controller.

LAN2 Controller

Enable/Disable Intel 82579LM Controller support.

LAN2 PXE Oprom

Enable/Disable Boot option for Intel 82579LM controller.

Aptm Sewn mum 7 Eurgmgm (E 2(12 Ameucan Negetr‘ewds‘ Inc. an usa Devices [Enabled]

ASMB-822I User Manual 56

Wake on LAN From S5

Enable/Disable Intel 82579LM controller wake up from S5 support.

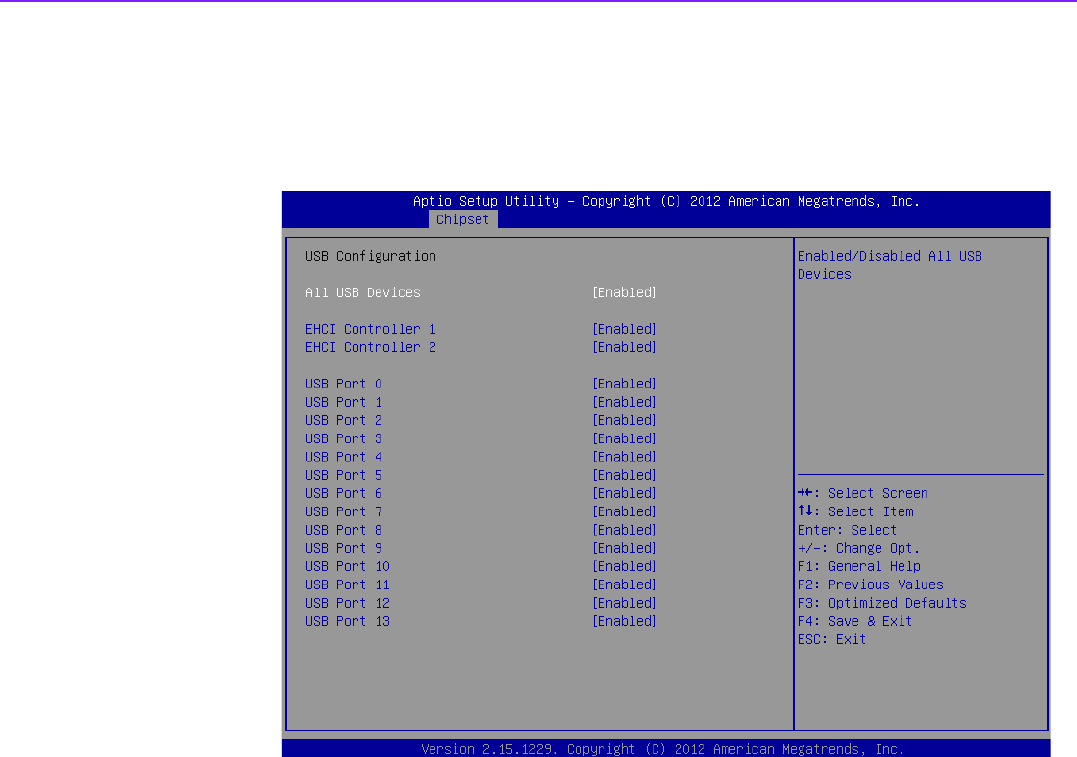

USB Configuration

All USB Devices

Enable/Disable all USB devices.

EHCI Controller 1

Enable/Disable USB 2.0 (EHCI) support.

EHCI Controller 2

Enable/Disable USB 2.0 (EHCI) support.

USB Port 0 ~ 13

Enable/Disable USB 0 ~ 13 port.

Aptm Sewn mum 7 Eurgmgm (E 2(12 Ameucan Negetr‘ewds‘ Inc. ME Subsystem [Enabled] Aptm Sewn mum 7 Eurgmgm (E 2(12 Ameucan Negetr‘ewds‘ Inc. BM: suppurt [Enabled]

57 ASMB-822I User Manual

Chapter 3 AMI BIOS

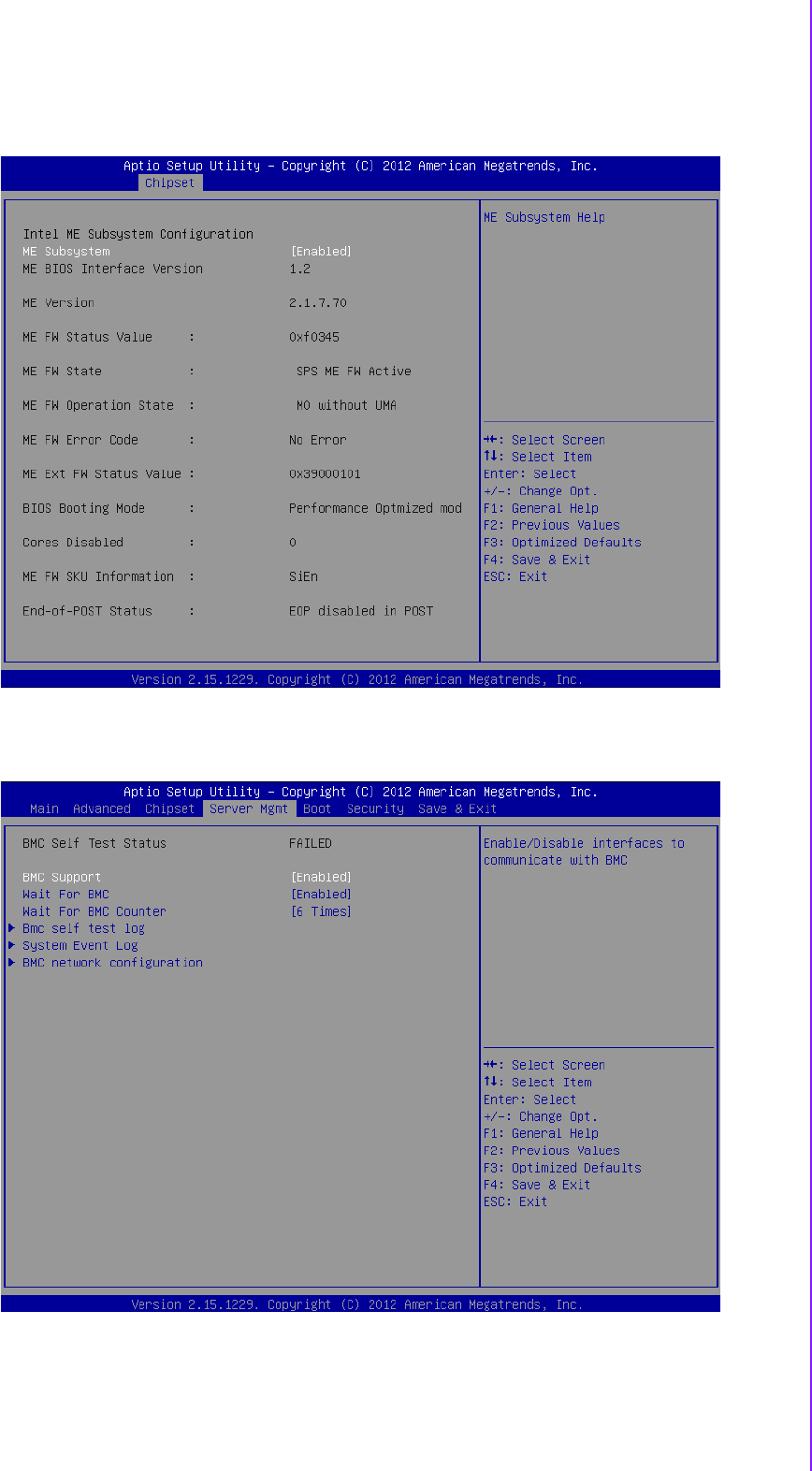

3.2.3.3 ME Subsystem

3.2.4 Server Management

ASMB-822I User Manual 58

BMC Support

Enable/Disable interfaces to communicate with BMC

Wait for BMC

If enabled, motherboard will wait 30 ~ 60 seconds until BMC module boots up

completely. After that, the normal BIOS post screen will be displayed.

If disabled, motherboard will not wait for BMC module's response.

Wait for BMC counter

Wait for BMC counter for initialize host to BMC interfaces.

The MB beep per 5 seconds to check it.

3.2.4.1 BMC Self Test Log

Erase Log

Erase log options.

When Log is Full

Select the action to be taken when log is full.

3.2.4.2 System Event Log

SEL Components

Enable/Disable all features of system event logging during boot.

Erase SEL

Choose options for erasing SEL.

When SEL is Full

Choose options for reactions to a full SEL.

Log EFI Status Codes

Disable the logging of EFI status codes or log only error code or only progress

code or both.

3.2.4.3 BMC Network Configuration

Configuration Address Source

Select to configure LAN channel parameters statically or dynamically (by BMC).

Unspecified option will not modify any BMC network parameters during BIOS

phase.

mum 7 ,mm Tlmamr

59 ASMB-822I User Manual

Chapter 3 AMI BIOS

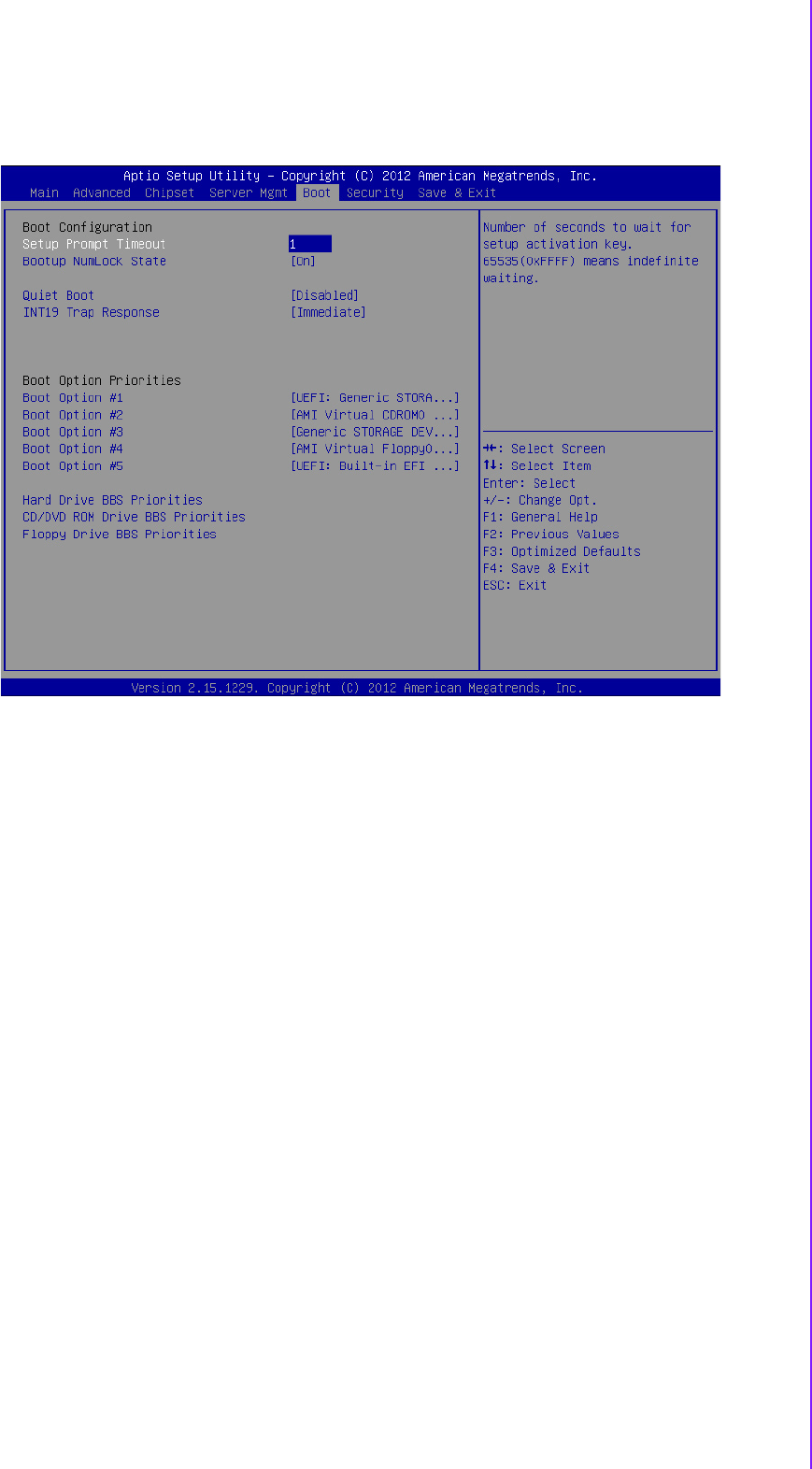

3.2.5 Boot

Setup Prompt Timeout

Number of seconds to wait for setup activation key. 16 (0x10) means indefinite

waiting.

Bootup NumLock State

Select the keyboard NumLock state.

Quiet Boot

Enable/Disable quiet boot option.

INT19 Trap Response

BIOS reaction on INT19 trapping by option ROM:

–Immediate - execute the trap right away.

–Postponed - execute the trap during legacy boot.

Boot Option

Sets the system boot priorities.

Aptm Sewn mum 7 Eurgmgm (E 2(12 Ameucan Negetr‘ewds‘ Inc. Administratur‘ Fassmur‘d Aptm Sewn mum 7 Eurgmgm (E 2(12 Ameucan Negetr‘ewds‘ Inc. save Ehaﬂges and but

ASMB-822I User Manual 60

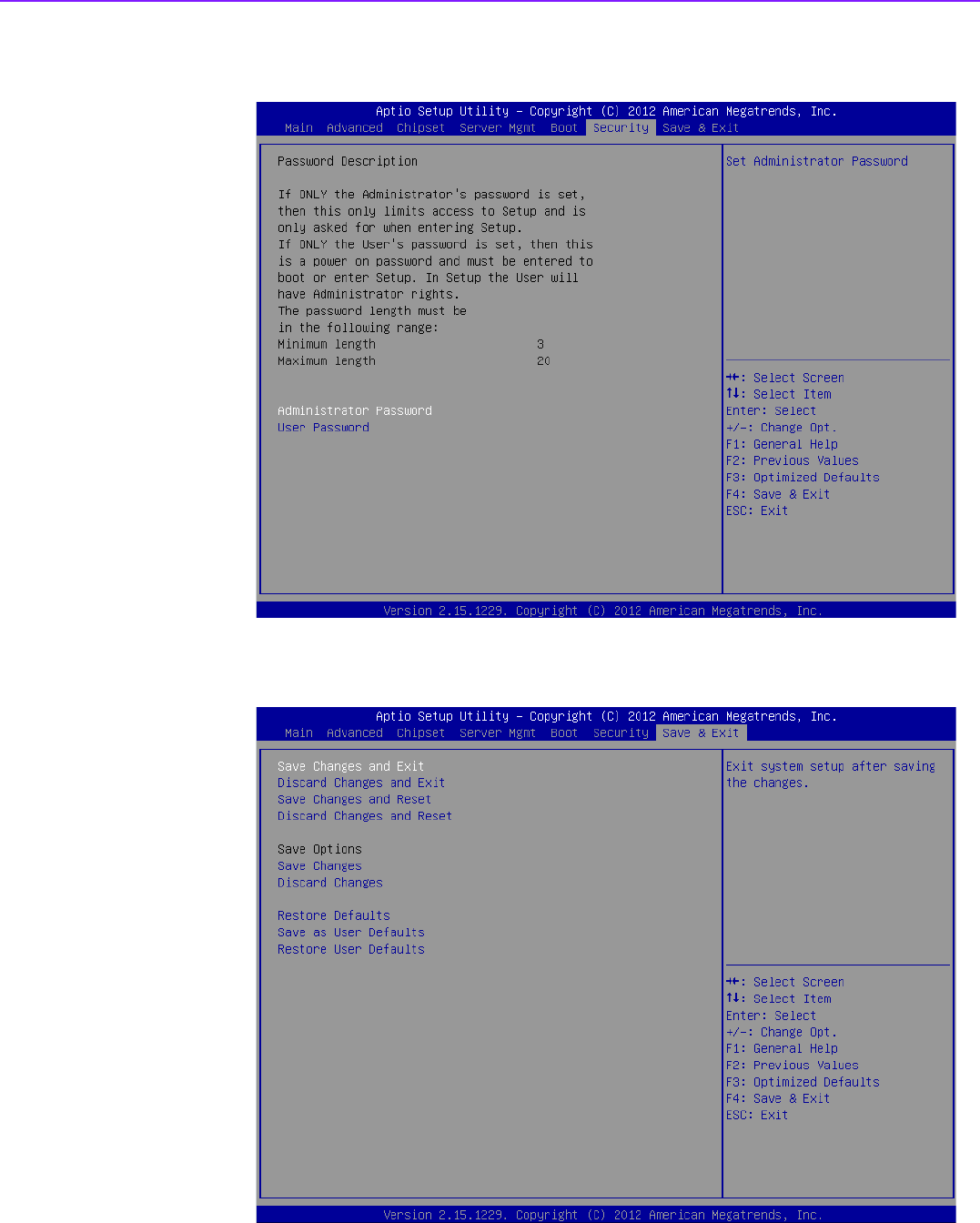

3.2.6 Security

3.2.7 Save & Exit

61 ASMB-822I User Manual

Chapter 3 AMI BIOS

Save Changes and Exit

Exit system setup after saving the changes

Discard Changes and Exit

Exit system setup without saving any changes

Save Changes and Reset

Reset the system after saving changes

Discard Changes and Reset

Reset system setup without saving any changes

Save Changes

Save changes done so far to any of the setup options

Discard Changes

Discard changes done so far to any of the setup options

Restore Defaults

Restore/Load default values for all the setup options

Save as User Defaults

Save the changes done so far as user defaults

Restore User Defaults

Restore the user default to all the setup options

ASMB-822I User Manual 62

Chapter 4

4Chipset Software

Installation Utility

ASMB-822I User Manual 64

4.1 Before Beginning

To facilitate the installation of the enhanced display drivers and utility software, read

the instructions in this chapter carefully. The drivers for the ASMB-822I are located

on the software installation CD.

Before beginning, it is important to note that most display drivers need to have the

relevant software application already installed on the system prior to installing the

enhanced display drivers. In addition, many of the installation procedures assume

that you are familiar with both the relevant software applications and operating sys-

tem commands. Review the relevant operating system commands and the pertinent

sections of your application software’s user manual before performing the installa-

tion.

4.2 Introduction

4.2.1 Main Menu

The Intel Chipset Software Installation (CSI) utility installs the Windows INF files that

outline to the operating system how the chipset components will be configured. This

is needed for the proper functioning of the following features:

Core PCI PnP services

Serial ATA interface support

USB 1.1/2.0 support (USB 2.0 driver needs to be installed separately for Win-

dows 98)

Identification of Intel chipset components in the Device Manager

Note! The files on the software installation CD are compressed. Do not

attempt to install the drivers by copying the files manually. You must use

the supplied SETUP program to install the drivers.

Note! The chipset driver is used for the following versions of Windows, and it

has to be installed before installing all the other drivers:

Windows 8(RTM revision)

Windows Server 2008 Enterprise Edition R2

Windows Server 2008 Enterprise Edition

Windows Server 2003 Enterprise Edition SP2

Windows 7(Ultimate SP1)

Windows Vista SP2

Windows XP SP3 Professional*

Windows XP Embedded SP3 (WES2009)

x86 & x64

x64

x86 & x64

x86

Note! It is necessary to update all the latest Microsoft hot fix files when using

this OS.

Mummy [7:sz ab m m Fauantes Ms W 0““ Q) g pm an...“ Agﬂms Emmsmnazzmvmv HI: and may Iasks W .m Usevmanua‘ y Mimavw» may . mummy m the w... E may». mu 3 in: m may ommhm) a mmm a ﬂsjudmmadﬂe g and mm; 3 Myer-mm lg MyiﬂwnlkPlates ﬁ mm, W W... W Wm numELmr EH: gr! 1w rguams [was a 0m. g) 3 pm 55...... l~ Agdrus a mammal memgmu If , W a... rummmﬁks hit .mmm...m.ﬁm U Wm B w my I" Inle‘ (upmamn WW...” .. me . Wm B Shara “may g ram 521 my a My Wm; g a“: Dmuments 5 MM, .3 mum»...

65 ASMB-822I User Manual

Chapter 4 Chipset Software Installation Utility

4.3 Windows XP / Windows 2003 / Windows 2008 /

Windows 7 Driver Setup

1. Insert the driver CD into your system's CD-ROM drive. When the folder is dis-

played, move the mouse cursor over the folder "01_Intel INF". Find the execut-

able in this folder, click to install the driver.

2. Click setup to execute program.

ASMB-822I User Manual 66

Chapter 5

5VGA Setup

E“: m Mew ngantes wmmz: Drwenﬂzﬁvivmc cmD Ian‘s dew 9m . e) g pm am“ Agdvsss a D \Asmarazzx owemmﬁnpmt mp nl: and mag tasks 9 Makes new man . mm mm, m in Web a shavetmsmmev Ether Plizgs a AsMBSzzmwev 3 MV mm; a Shaved mm; a Mvtnmvuhev :3 w Nztwnvkmamg mulls ﬂﬂﬁﬂﬂﬂ FveeBSD Unux FED sum uzmvaxos Wmﬂaws worm xom xmuey \‘Eﬂﬁﬁﬂﬂ m m RPM um vaios Wmdaw: mm m rm mm 3 ya

ASMB-822I User Manual 68

5.1 Introduction

Install the ASPEED VGA driver to enable this function, which includes the following

features:

32-bit 2D graphics engine on board for normal use.

64-MB Ram for this chip, the highest resolution is 1920x1200.

5.2 Windows Series Driver Setup

Insert the driver CD into your system's CD-ROM drive. When the folder is displayed,

navigate to the "02_Graphic chip" folder and click the executable file to complete the

installation of the drivers for OS that you need.

Note! 1. If ASMB-822I plug a additional graphic card for VGA output,

please set this additional graphic card as "major output" under the

"Display properties" of OS.

2. Please use the driver file from "Windows WDDM" folder as first

choice.

Chapter 6

6LAN Configuration &

USB 3.0

'7’ nuuucmp EH: gut Mew Fg/antes [W‘s new am. a a pm 57mm Agdrzss i u \Aidﬁrazzx DINENJLLAN :hv FllzananlderYasks W “up; u Makes new nuuen Puhhxh km: mun tu he . Web Preomn a Shavethxsfmdev Ether Plxes a ASMHZZI Dvwzv Q My outuntnts a Shaved Dmuments Autumn nnr :ttup Infm mmun 1 KB I W WW“ , nnuex MN :3 Mv NEIWmKP‘azes ~th uuuunent 4 uu neuune txt mun; YEX! ouuunent as KB wnbnst ntm HVML Dxument x L PLAYFORM Autumn 2x2 mm 1‘ nnn nn Apphraﬂnn untex Autumn n. :unmun atom :cttmgs 3 KB htense van «t» tne 155 KB

ASMB-822I User Manual 70

6.1 LAN Configuration

6.1.1 Introduction

The ASMB-822I has two Gigabit Ethernet LAN connections via dedicated PCI

Express x1 lanes: GbE LAN1 - Intel I210; GbE LAN2 - Intel 82579LM. They offer

bandwidth of up to 500 MB/sec, eliminating the bottleneck of network data flow and

incorporating Gigabit Ethernet at 1000 Mbps.

6.1.2 Features

10/100/1000Base-T Ethernet controller

10/100/1000Base-T triple-speed MAC

Full duplex at 10, 100, or 1000 Mbps and half duplex at 10 or 100 Mbps

Wake-on-LAN (WOL) support

PCIe x1 host interface

6.1.3 Installation

The integrated Intel gigabit Ethernet controller supports all major network operating

systems. However, the installation procedure varies with different operating systems.

In the following sections, refer to the one that provides the driver setup procedure for

the operating system you are using.

6.1.4 Windows Series Driver Setup (LAN)

1. Insert the driver CD into your system's CD-ROM drive. Select folder "03_Lan

chip" then click the proper Lan driver for the OS.

EH: gum Mew Fgmntes [news new am. e) g 9523“» am; I agar”: i o \Amarazzx memwsaa um‘ptxz nstausmem mm m nl: and Folder tasks mam, , ,m w 972 m y Makes new may mm m: fa‘dev m lhe . Web a shammm saw \ss 15; Fﬂe mum pm; a muss: n (MD Q My Datum“ a Shaved Dmuments g MVCanLlev «3 MV NetwmkP‘azes um"; RENEASVUSaaﬂaswvwara 52m: may Rznesas Eemmm) (Dwmauan

71 ASMB-822I User Manual

Chapter 6 LAN Configuration & USB 3.0

6.2 USB 3.0

6.2.1 Introduction

ASMB-822I offers two USB 3.0 ports in rear side. The USB 3.0 could provide the

bandwidth up to 500MB/s to shorter the time for data transmission.

6.2.2 Windows series driver setup

Insert the driver CD into your system's CD-ROM drive. Select folder "04_USB3.0

chip" then click the proper ".exe" driver file for the installation.

ASMB-822I User Manual 72

Appendix A

AProgramming the

Watchdog Timer

ASMB-822I User Manual 74

The ASMB-822I’s watchdog timer can be used to monitor system software operation

and take corrective action if the software fails to function within the programmed

period. This section describes the operation of the watchdog timer and how to pro-

gram it.

A.1 Watchdog Timer Overview

The watchdog timer is built in to the super I/O controller NCT6776F. It provides the

following functions for user programming:

Can be enabled and disabled by user program

Timer can be set from 1 to 255 seconds or 1 to 255 minutes

Generates an interrupt or resets signal if the software fails to reset the timer

before time-out

A.2 Programming the Watchdog Timer

The I/O port address of the watchdog timer is 2E (hex) and 2F (hex). 2E (hex) is the

address port. 2F (hex) is the data port. You must first write an address value into

address port 2E (hex), and then write/read data to/from the assigned register through

data port 2F (hex).

@9993

75 ASMB-822I User Manual

Appendix A Programming the Watchdog Timer

Unlock NCT6776F

Select watchdog

timer register

Enable the watchdog

timer function

Use the watchdog

Lock NCT6776F

timer function

ASMB-822I User Manual 76

A.2.1 Example Programs

Enable watchdog timer and set 10 seconds as the timeout interval

;-----------------------------------------------------------

Mov dx,2eh ; Unlock NCT6776F

Mov al,87h

Out dx,al

;-----------------------------------------------------------

Mov al,07h ; Select registers of watchdog timer

Out dx,al

Inc dx

in al,dx

Or al,08h

Out dx,al

;-----------------------------------------------------------

Dec dx; Enable the function of watchdog timer

Mov al,30h

Out dx,al

Inc dx

Mov al,01h

Out dx,al

;-----------------------------------------------------------

Table A.1: Watchdog Timer Registers

Address of

Read/

Write Value (2F) & description

87 (hex) - Write this address to I/O address port 2E (hex) twice to unlock the

NCT6776F

07 (hex) write Write 08 (hex) to select register of watchdog timer.

30 (hex) write Write 01 (hex) to enable the function of the watchdog timer. Dis-

abled is set as default.

F5 (hex) write

Set seconds or minutes as units for the timer. Write 0 to bit 3: set

seconds as counting unit. [default]. Write 1 to bit 3: set minutes as

counting unit.

Write 1 to bit 4: Watchdog timer count mode is 1000 times faster.

If bit 3 is 0, the count mode is 1/1000 seconds mode. If bit 3 is 1, the

count mode is 1/1000 minutes mode.

F6 (hex) write

0: stop timer [default]

01 ~ FF (hex): The amount of the count, in seconds or minutes,

depends on the value set in register F5 (hex). This number decides

how long the watchdog timer waits for strobe before generating an

interrupt or reset signal. Writing a new value to this register can

reset the timer to count with the new value.

F7 (hex) read/

write

Bit 6: Write 1 to enable keyboard to reset the timer, 0 to dis-

able.[default]

Bit 5: Write 1 to generate a timeout signal immediately and auto-

matically return to 0. [default=0]

Bit 4: Read status of watchdog timer, 1 means timer is “timeout”.

AA (hex) - Write this address to I/O port 2E (hex) to lock NCT6776F.

77 ASMB-822I User Manual

Appendix A Programming the Watchdog Timer

Dec dx ; Set second as counting unit

Mov al,0f5h

Out dx,al

Inc dx

In al,dx

And al,not 08h

Out dx,al

;-----------------------------------------------------------

Dec dx ; Set timeout interval as 10 seconds and start counting

Mov al,0f6h

Out dx,al

Inc dx

Mov al,10; 10 minutes

Out dx,al

;-----------------------------------------------------------

Dec dx ; lock NCT6776F

Mov al,0aah

Out dx,al

Enable watchdog timer and set 5 minutes as the timeout interval

;-----------------------------------------------------------

Mov dx,2eh ; unlock NCT6776F

Mov al,87h

Out dx,al

;-----------------------------------------------------------

Mov al,07h ; Select registers of watchdog timer

Out dx,al

Inc dx

In al,dx

Or al,08h

Out dx,al

;-----------------------------------------------------------

Dec dx ; Enable the function of watchdog timer

Mov al,30h

Out dx,al

Inc dx

Mov al,01h

Out dx,al

;-----------------------------------------------------------

Dec dx ; Set minute as counting unit

Mov al,0f5h

Out dx, al

Inc dx

In al,dx

Or al, 08h

ASMB-822I User Manual 78

Out dx,al

;-----------------------------------------------------------

Dec dx ; Set timeout interval as 5 minutes and start counting

Mov al,0f6h

Out dx,al

Inc dx

Mov al,5; 5 minutes

Out dx,al

;-----------------------------------------------------------

Dec dx ; lock NCT6776F

Mov al,0aah

Out dx,al

Enable watchdog timer to be reset by mouse

;-----------------------------------------------------------

Mov dx,2eh ; unlock NCT6776F

Mov al,87h

Out dx,al

;-----------------------------------------------------------

Mov al,07h ; Select registers of watchdog timer

Out dx,al

Inc dx

Mov al,08h

Out dx,al

;-----------------------------------------------------------

Dec dx ; Enable the function of watchdog timer

Mov al,30h

Out dx,al

Inc dx

In al,dx

Or al,01h

Out dx,al

;-----------------------------------------------------------

Dec dx ; Enable watchdog timer to be reset by mouse

Mov al,0f7h

Out dx,al

Inc dx

In al,dx

Or al,80h

Out dx,al

;-----------------------------------------------------------

Dec dx ; lock NCT6776F

Mov al,0aah

Out dx,al

Enable watchdog timer to be reset by keyboard

79 ASMB-822I User Manual

Appendix A Programming the Watchdog Timer

;-----------------------------------------------------------

Mov dx,2eh ; unlock NCT6776F

Mov al,87h

Out dx,al

;-----------------------------------------------------------

Mov al,07h ; Select registers of watchdog timer

Out dx,al

Inc dx

Mov al,08h

Out dx,al

;-----------------------------------------------------------

Dec dx ; Enable the function of watchdog timer

Mov al,30h

Out dx,al

Inc dx

Mov al,01h

Out dx,al

;-----------------------------------------------------------

Dec dx ; Enable watchdog timer to be strobed reset by keyboard

Mov al,0f7h

Out dx,al

Inc dx

In al,dx

Or al,40h

Out dx,al

;-----------------------------------------------------------

Dec dx ; lock NCT6776F

Mov al,0aah

Out dx,al

Generate a time-out signal without timer counting

;-----------------------------------------------------------

Mov dx,2eh ; unlock NCT6776F

Mov al,87h

Out dx,al

;-----------------------------------------------------------

Mov al,07h ; Select registers of watchdog timer

Out dx,al

Inc dx

Mov al,08h

Out dx,al

;-----------------------------------------------------------

Dec dx ; Enable the function of watchdog timer

Mov al,30h

ASMB-822I User Manual 80

Out dx,al

Inc dx

In al,dx

Or al,01h

Out dx,al

;-----------------------------------------------------------

Dec dx ; Generate a time-out signal

Mov al,0f7h

Out dx,al ;Write 1 to bit 5 of F7 register

Inc dx

In al,dx

Or al,20h

Out dx,al

;-----------------------------------------------------------

Dec dx ; lock NCT6776F

Mov al,0aah

Out dx,al

Appendix B

BI/O Pin Assignments

00000 00000 uooo uooo 00000 00000 D000 D000

ASMB-822I User Manual 82

B.1 USB Header (USB45, USB67, USB89)

B.2 VGA Connector (VGA1)

Table B.1: USB Header (USB45,USB67,USB89,USB1011)

Pin Signal Pin Signal

1 USB_VCC5 2 USB_VCC5

3 USB_D- 4 USB_D-

5 USB_D+ 6 USB_D+

7 GND 8 GND

9 Key 10 N/C

210

USB67

USB45

USB89 USB1011

Table B.2: VGA Connector (VGA1)

Pin Signal Pin Signal

1RED 9VCC

2 GREEN 10 GND

3BLUE 11N/C

4N/C 12SDT

5 GND 13 H-SYNC

6 GND 14 V-SYNC

7GND 15SCK

8GND

10 6

DO 000 D00

83 ASMB-822I User Manual

Appendix B I/O Pin Assignments

B.3 RS-232 Interface (COM2)

B.4 PS/2 Keyboard and Mouse Connector (KBMS1)

Table B.3: RS-232 Interface (COM2)

Pin Signal

1 DCD

2RXD

3TXD

4DTR

5GND

6DSR

7RTS

8CTS

9RI

1 2

6 9

Table B.4: Keyboard and Mouse Connector (KBMS1)

Pin Signal

1 KB DATA

2N/C

3GND

4 KB VCC

5 KB CLK

6 N/C

7 M_DATA

8 N/C

9 GND

10 M_VCC

11 M_CLK

12 N/C

OOOOOU | 000 looom |

ASMB-822I User Manual 84

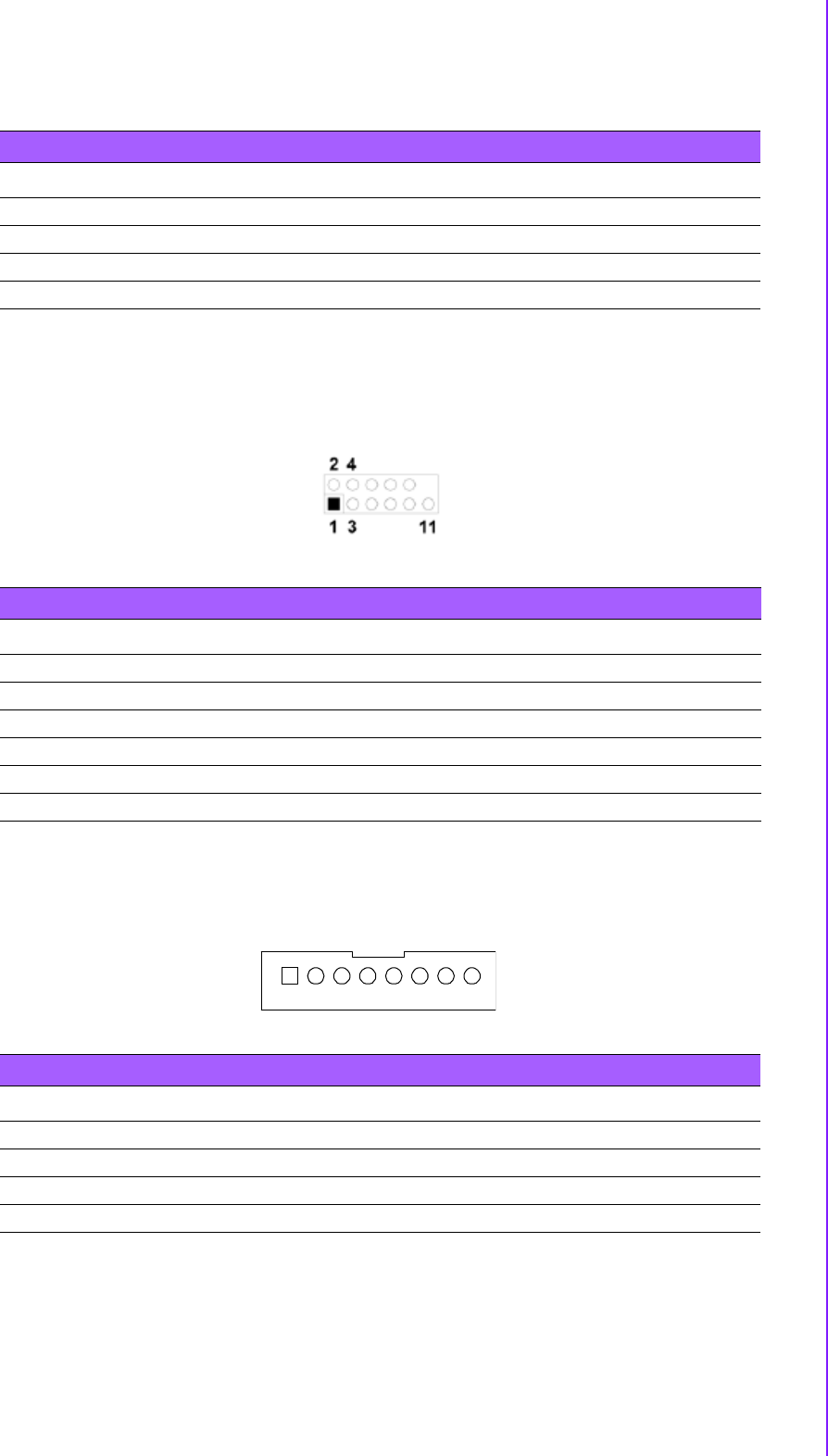

B.5 External Keyboard Connector (KBMS2)

B.6 System Fan Power Connector (SYSFAN0~2)

B.7 Power LED (JFP1)

Table B.5: External Keyboard Connector (KBMS2)

Pin Signal

1 KB CLK

2 KB DATA

3MS DATA

4GND

5VCC

6 MS CLK

Table B.6: Fan Power Connector (SYSFAN0/SYSFAN1/SYSFAN2)

Pin Signal

1GND

2 +12 V

3 DETECT

4PWM

Table B.7: Power LED (JFP1)

Pin Function

9 LED power (3.3 V)

11 NC

13 Ground

OOOO OO OO

85 ASMB-822I User Manual

Appendix B I/O Pin Assignments

B.8 External Speaker Connector (JFP1)

B.9 Reset Connector (JFP1)

B.10 HDD LED Connector (JFP1)

Table B.8: External Speaker Connector (JFP1)

Pin Function

10 SPK_VCC

12 SPK_OBS

14 SPK_BUZ

16 SPK_OUT

Table B.9: Reset Connector (JFP1)

Pin Signal

2 RESET

4GND

Table B.10: HDD LED Connector (JFP1)

Pin Signal

5 HDD_LED+

7 HDD_LED-

OO SMBUS1

ASMB-822I User Manual 86

B.11 ATX Soft Power Switch (JFP1)

B.12 Front panel SMBus Connector (SMBUS1)

B.13 USB/LAN Ports (LAN1_USB01 and

LAN2_USB23)

Table B.11: ATX Soft Power Switch (JFP1)

Pin Signal

1PWR-BTN

3GND

1 +3.3V_AUX

2 SMB_SCL_FRU

3 SMB_SDA_FRU

4GND

Table B.12: USB Port

Pin Signal Pin Signal

1 VCC_DUAL 3 Data0+

2Data0- 4 GND

LAN1_USB01 LAN2_USB23

13 11 DOOOOOOO

87 ASMB-822I User Manual

Appendix B I/O Pin Assignments

B.14 Audio Connector (AUDIO1)

B.15 8-pin Alarm Board Connector (VOLT1)

Table B.13: Giga LAN 10/100/1000 Base-T RJ-45 Port

Pin Signal Pin Signal

1 MID0+ 5 MID2+

2 MID0- 6 MID2+

3 MID1+ 7 MID3+

4 MID1- 8 MID3+

Table B.14: Front Panel Audio Connector (FPAUD1)

Pin Signal Pin Signal

1ACZ_VCC 2 GND

3 ACZ_SYNC 4 ACZ_BITCLK

5 ACZ_SDOUT 6 ACZ_SDIN0

7 ACZ_SDIN1 8 ACZ_RST

9 ACZ_12V 10 GND

11 GND 12 N/C

Table B.15: 8-pin Alarm Board Connector (VOLT1)

Pin Signal Pin Signal

1 5VSB 5 +5V

2GND 6+3.3V

3GND 7-12V

4 -5V 8 +12V

1 8

o o — 24§§m oooo ,Doooo 13579

ASMB-822I User Manual 88

B.16 Case Open Connector (JFP1)

B.17 Front Panel LAN LED Connector (LANLED1)

Table B.16: Case Open Connector (JFP1)

Pin Signal

6 CASEOP

8GND

Table B.17: LAN LED Connector (LANLED1)

Pin Signal Pin Signal

1 LAN1/3_LED0_ACT 2 LAN2/4_LED1_ACT

3 VCC3_LAN1LED 4 VCC3_LAN2LED

5 LAN1/3_LED1_1000M 6 LAN2/4_LED2_1000

7 LAN1/3_LED2_100M 8 LAN2/4_LED0_100

9 VCC3 10 N/C

89 ASMB-822I User Manual

Appendix B I/O Pin Assignments

AD\-\NTECH Enabling an handgun ”and

www.advantech.com

Please verify specifications before quoting. This guide is intended for reference

purpOS only.

All product specifications are subject to change without notice.

No part of this publication may be reproduced in any form or by any means,

electronic, photocopying, recording or otherwise, without prior written permis-

sion of the publisher.

All brand and product names are trademarks or registered trademarks of their

respective companies.

Products related to this Datasheet

ATX SOCKET 2011 SERVER BOARD

ASMB-822I-00A2E
