BCM43242
Not Recommended for New Designs
Single-Chip IEEE 802.11 a/b/g/n 2x2 MAC/
Baseband/Radio with Integrated Bluetooth 4.0 + HS

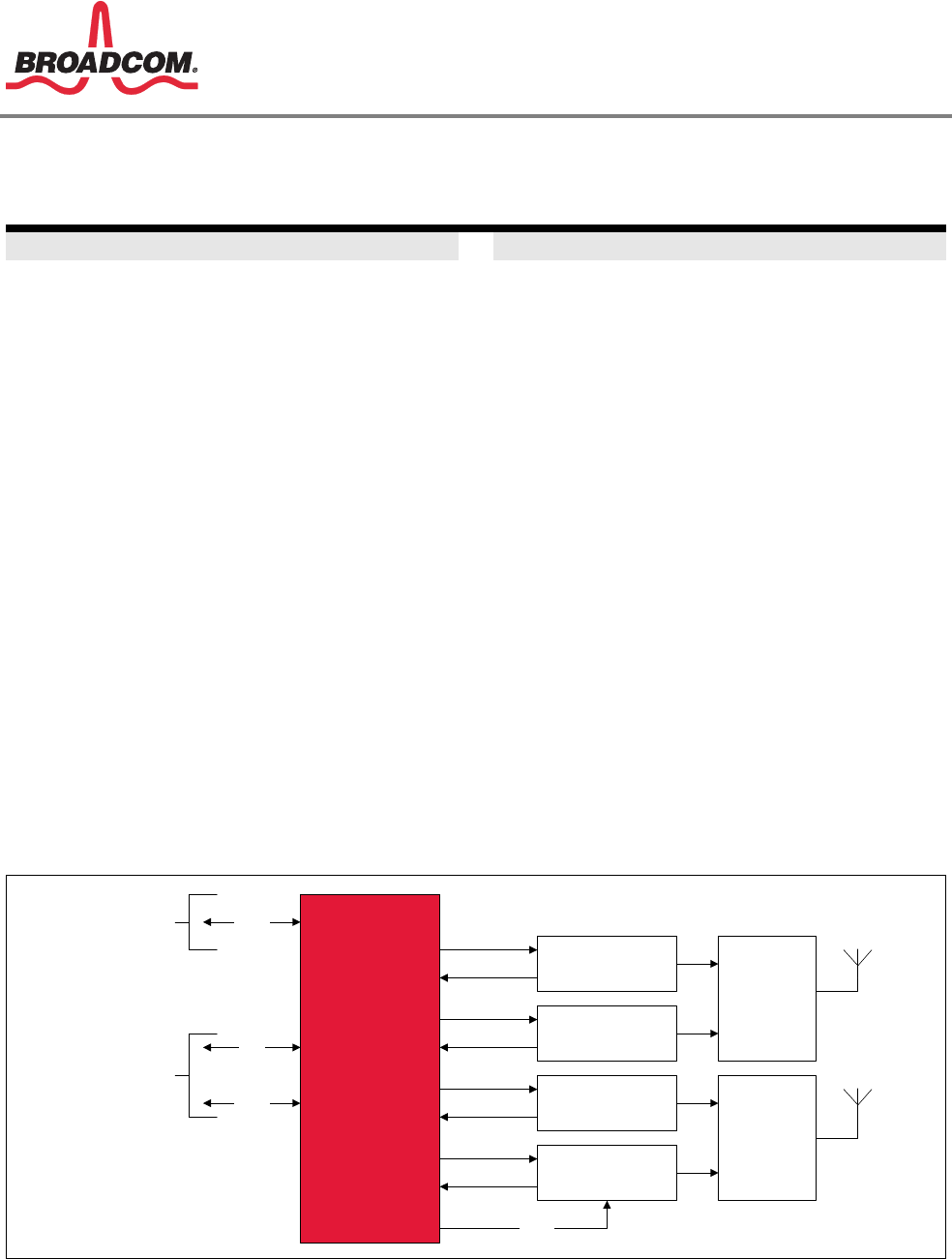

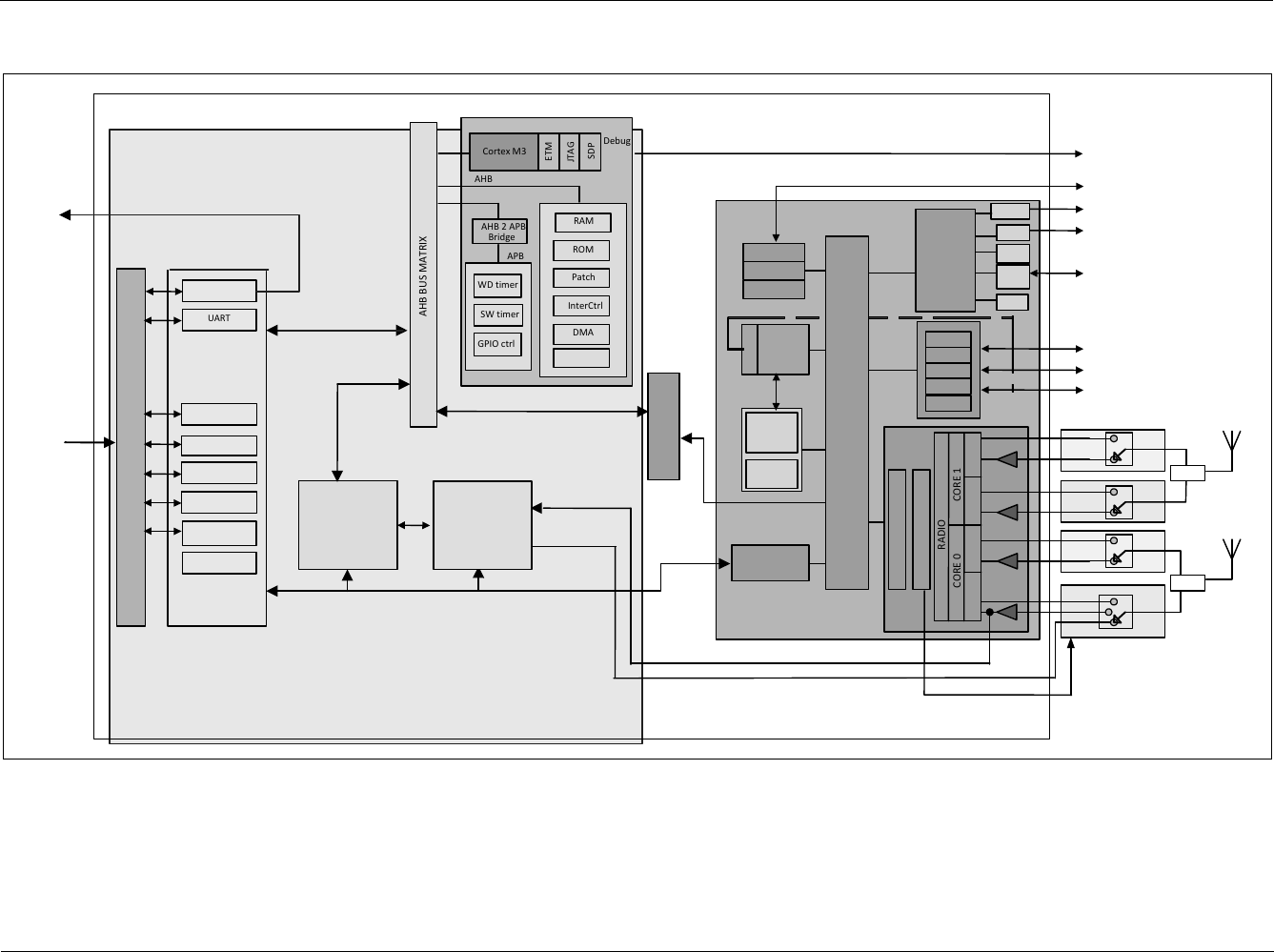

Figure 1: Functional Block Diagram
GENERAL DESCRIPTION
FEATURES
The Broadcom® BCM43242 is a single-chip device for
wireless media systems. It integrates the MAC,
baseband, and radio of IEEE 802.11 a/b/g and
2×2 IEEE 802.11n with Bluetooth 4.0 + HS.
The BCM43242 takes advantage of the high
throughput and extended range of the Broadcom
second-generation MIMO solution. With MIMO, the
information is sent and received over two or more
antennas, simultaneously using the same frequency
band, thus providing greater range and higher
throughput, while maintaining compatibility with
legacy IEEE 802.11a/b/g devices. This is
accomplished through a combination of enhanced
MAC and PHY implementations including spatial
multiplexing modes in the transmitter and receiver,
and advanced digital signal processing techniques to
improve receive sensitivity. The BCM43242
architecture, with its fully integrated dual-band radio
transceiver, supports 2 × 2 antennas. It also supports
20 and 40 MHz channels, allowing for PHY Layer
throughput up to 300 Mbps.
Using advanced design techniques and process
technology to reduce active and idle power, the
BCM43242 is designed to address the needs of
media-embedded applications that require minimal
power consumption and compact size.
It includes a power management unit that simplifies
the system power topology and allows for operation
directly from a 3.3V or 5V supply, which provides
flexibility. The BCM43242 includes power saving
schemes such as single-core listen (OCL), single-
core demodulation of SISO/STBC packets, and
dynamic maximum likelihood (ML) demapping (which
is based on channel conditions).
The BCM43242 implements the highly sophisticated
Enhanced Collaborative Coexistence radio
coexistence algorithms and hardware mechanisms.
As a result, enhanced overall quality for simultaneous
audio, video, and data transmission for home
entertainment devices is achieved.
The WLAN host interface is USB 2.0. The Bluetooth
host interface options include full-speed USB 1.1 and
a high-speed UART.
T/RSWT5GWLAN
T/RSWT2GWLAN
T/RSWT
2GWLAN/BT SP3T
5GWLAN
BTTX
Diplexer
Diplexer
Ant0
Ant1
BCM43242
USB2.0
UART
USB1.1
BTHostI/F
WLANHostI/F
Broadcom Corporation
5300 California Avenue
Irvine, CA 92617
© 2015 by Broadcom Corporation
All rights reserved
Printed in the U.S.A.
Broadcom®, the pulse logo, Connecting everything®, and the Connecting everything logo are among the
trademarks of Broadcom Corporation and/or its affiliates in the United States, certain other countries and/or
the EU. Any other trademarks or trade names mentioned are the property of their respective owners.
This data sheet (including, without limitation, the Broadcom component(s) identified herein) is not designed,
intended, or certified for use in any military, nuclear, medical, mass transportation, aviation, navigations,
pollution control, hazardous substances management, or other high-risk application. BROADCOM
PROVIDES THIS DATA SHEET “AS-IS,” WITHOUT WARRANTY OF ANY KIND. BROADCOM DISCLAIMS
ALL WARRANTIES, EXPRESSED AND IMPLIED, INCLUDING, WITHOUT LIMITATION, THE IMPLIED
WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, AND NON-
INFRINGEMENT.
Not Recommended for New Designs
Revision History
Revision Date Change Description
002-14920 *D 09/21/16 Parts in this datasheets are not recommended for new designs
43242-DS103-R 05/18/15 Updated:
•“Power Supply Topology” on page 16
•“BCM43242 PMU Features” on page 16
•Figure 3: “Typical Power Topology,” on page 17
•Table 15: “FCFBGA Signal Descriptions,” on page 75
•Table 19: “Absolute Maximum Ratings,” on page 84
•Table 21: “ESD Specifications,” on page 85
•Table 22: “Recommended Operating Conditions and DC
Characteristics,” on page 86
• Section 16: “WLAN RF Specifications, “Introduction” on page 94
•Table 33: “Core Buck Switching Regulator (CBUCK) Specifications,” on
page 104
•Table 34: “CLDO Specifications,” on page 106
•Table 36: “LNLDO1 Specifications,” on page 108
•“WLAN Current Consumption” on page 109 (added)
•Figure 28: “WLAN = ON, Bluetooth = ON,” on page 114
•Figure 29: “WLAN = OFF, Bluetooth = OFF,” on page 114
43242-DS102-R 10/29/13 Updated:
• By changing this from a preliminary data sheet to a data sheet.
Revision HistoryBCM43242 Data Sheet
Broadcom®
May 18, 2015 • 43242-DS103-R Page 3
Not Recommended for New Designs
43242-DS101-R 10/25/13 Updated:
• The Features section just prior to the “Revision History” on page 4.
• “BCM43242 PMU Features” on page 17.
• “WLAN Power Management” on page 19.
• “GPIO Interface” on page 51.
• Section 10: “USB Interfaces,” on page 52.
• “PHY Features” on page 58.
• Table 13: “Pin List By Pin Number,” on page 66.
• Table 15: “FCFBGA Signal Descriptions,” on page 74.
• “Environmental Ratings” on page 84.
• Table 28: “WLAN 2.4 GHz Receiver Performance Specifications,” on
page 94.
• Table 29: “WLAN 2.4 GHz Transmitter Performance Specifications,” on
page 98.
• Table 31: “WLAN 5 GHz Transmitter Performance Specifications,” on
page 102.
• Table 33: “Core Buck Switching Regulator (CBUCK) Specifications,” on
page 104.
• “Package Thermal Characteristics” on page 114.
• Section 23: “Ordering Information,” on page 116.
43242-DS100-R 04/12/12 Initial release
Revision Date Change Description
Table of ContentsBCM43242 Data Sheet
Broadcom®
May 18, 2015 • 43242-DS103-R Page 4
Not Recommended for New Designs
Table of Contents
