ADS1x7xEVM-PDK

User's Guide

SBAU197A–February 2012–Revised January 2016

ADS1x7xEVM-PDK

This user's guide describes the characteristics, operation, and use of the ADS1x7xEVM-PDK. These

evaluation module kits (EVM-PDK) are an evaluation system for the ADS1278, a 24-bit, 8 channel, delta-

sigma analog-to-digital converter (ADC), the ADS1178, a 16-bit version of the ADS1278 and the ADS1274

and ADS1174, which are 4 channel versions of the ADS1278 and ADS1178, respectively. The EVM-PDK

allows evaluation of all aspects of the ADS1x7x devices.

This document includes an EVM QuickStart, hardware and software details, bill of materials, and

schematic.

The following related documents are available through the Texas Instruments web site at

http://www.ti.com.

Table 1. EVM-Compatible Device Data Sheets

Device Literature Number Device Literature Number

ADS1278 SBAS367 OPA1632 SBOS286

ADS1274 SBAS367 SN74LVC2G157 SCES207

ADS1178 SBAS373 TPS73018 SBVS054

ADS1174 SBAS373 TPS65131 SLVS493

REF5025 SBOS410 PCA9535 SCPS129

OPA2350 SBOS099

l TEXAS INSTRUMENTS

www.ti.com

2SBAU197A–February 2012–Revised January 2016

Submit Documentation Feedback

ADS1x7xEVM-PDK

Contents

1 EVM Overview ............................................................................................................... 3

2 Quick Start.................................................................................................................... 4

3 Quick Reference ............................................................................................................. 6

4 Using the ADS1178EVM-PDK/ADS1278EVM-PDK Plug-in ADCPro................................................. 7

5 ADS1278EVM Hardware Details......................................................................................... 11

6 Schematic and Bill of Materials........................................................................................... 16

List of Figures

1 ADS1x7xEVM Default Jumper Locations................................................................................. 4

2 Channel Enable.............................................................................................................. 8

3 Clock Settings and Mode ................................................................................................... 9

List of Tables

1 EVM-Compatible Device Data Sheets .................................................................................... 1

2 Default Jumper/Switch Configuration ..................................................................................... 4

3 Critical Connections ......................................................................................................... 6

4 Operating Modes: Clock Frequency ..................................................................................... 10

5 Jumper and Switch Descriptions......................................................................................... 11

6 J3: Primary Analog Interface Pinout ..................................................................................... 13

7 J1: Secondary Analog Interface Pinout ................................................................................. 13

8 J4, Serial Interface Header ............................................................................................... 14

9 J2, DOUTx Header......................................................................................................... 15

10 J5 Configuration: Power-Supply Input................................................................................... 15

11 ADS1x7xEVM Bill of Materials ........................................................................................... 16

Trademarks

ADCPro is a trademark of Texas Instruments.

I2C is a trademark of NXP Semiconductors, Inc.

l TEXAS INSTRUMENTS

www.ti.com

EVM Overview

SBAU197A–February 2012–Revised January 2016

ADS1x7xEVM-PDK

1 EVM Overview

The ADS1x7xEVM-PDK is an evaluation module kit that includes an EVM, MMB0 motherboard and

software. As a standalone PCB, the ADS1x7xEVM is useful for prototyping designs and firmware. It can

be connected to any modular EVM system interface card.

1.1 Features

ADS1x7xEVM Features:

• Contains all support circuitry needed for the ADS1178/ADS1278/ADS1174/ADS1274

• Voltage reference options: external or onboard

• Clock options: External clock source (PLL or DSP supplied) or 27MHz onboard crystal oscillator

• GPIO access

• Compatible with the TI Modular EVM System

ADS1x7xEVM-PDK includes the ADS1x7xEVM board with the DSP-based MMB0 motherboard, that can

be used with ADCPro™ to quickly evaluate the device.

This manual covers the operation of the ADS1x7xEVM-PDK. Throughout this document, the abbreviation

EVM and the term evaluation module are synonymous with the

ADS1178EVM/ADS1278EVM/ADS1174EVM/ADS1274EVM. For clarity of reading, this manual will refer

only to the ADS1278EVM or ADS1x7xEVM-PDK, but operation of the EVM and kit for the

ADS1178/ADS1274/ASD1174 is identical, unless otherwise noted.

l TEXAS INSTRUMENTS 43. u - -- - -- - -- --un ': : mugs JF"I'm-- -- .sa M-FSR-- -- “Wm FWD -- -- "RB -- -- -- —- m-m_m 05 - -— ADS1x7xEVM Rev F F" R" M Human. {i’mmmsms O Ill'l : JW' I 4&0me 2012 J5 JFS

Quick Start

www.ti.com

4SBAU197A–February 2012–Revised January 2016

Submit Documentation Feedback

ADS1x7xEVM-PDK

2 Quick Start

This section provides a QuickStart guide to quickly begin evaluating the ADS1x7xEVM with ADCPro.

2.1 Default Jumper/Switch Configuration

Figure 1 shows the jumpers found on the EVM and the respective factory default conditions for each.

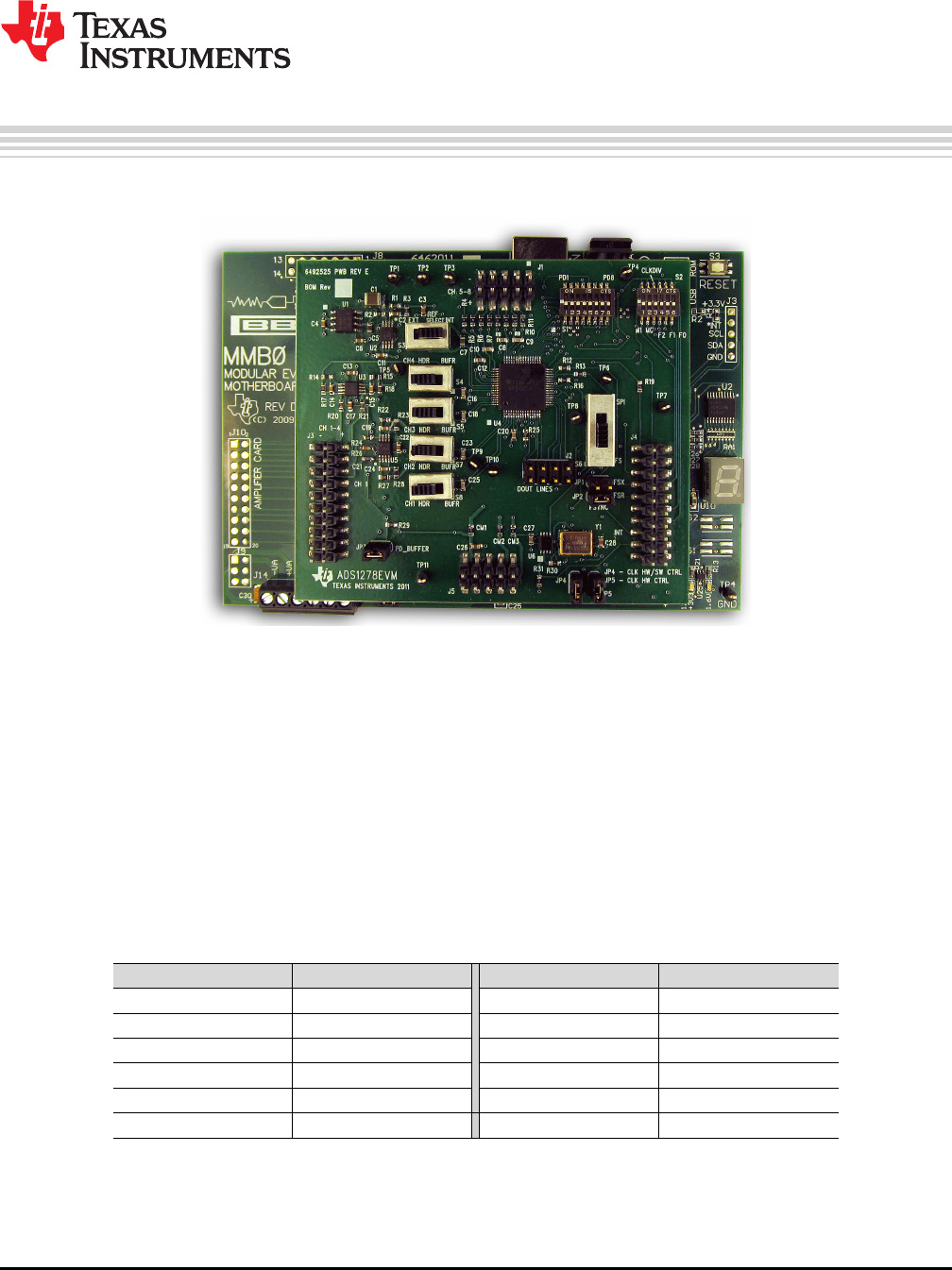

Figure 1. ADS1x7xEVM Default Jumper Locations

Table 2 lists the jumpers and switches and the factory default conditions.

Table 2. Default Jumper/Switch Configuration

Switch Default Position Switch Description

S1 All OFF (Down) Power-down channel DIP switches (Hardware control)

S2 All OFF (Down) Mode, Format, and CLKDIV DIP switches (Hardware

control)

S3 INT (Right) On-board voltage reference selected

S4 Header connected to converter (Left) Channel 4 header connected to converter (not

buffered)

S5 Header connected to converter (Left) Channel 3 header connected to converter (not

buffered)

S6 [1-2], [4-5], [7-8], [10-11] Jumpers installed to select FS serial interface format

S7 Header connected to converter (Left) Channel 2 header connected to converter (not

buffered)

l TEXAS INSTRUMENTS

www.ti.com

Quick Start

SBAU197A–February 2012–Revised January 2016

ADS1x7xEVM-PDK

Table 2. Default Jumper/Switch Configuration (continued)

Switch Default Position Switch Description

S8 Header connected to converter (Left) Channel 1 header connected to converter (not

buffered)

Jumper

JP1 Open FSX NOT connected to SYNC/DRDY

JP2 Short FSR connected to SYNC/DRDY

JP3 Short Input buffer op-amps are powered-down

JP4 Short Clock source selection using software control

JP5 Short External clock source selected (invalid since using

software control)

2.2 ADS1x7xEVM-PDK Operation

To prepare to evaluate the ADS1278 with the ADS1x7xEVM-PDK, complete the following steps:

1. Verify the jumpers on the ADS1x7xEVM are as shown in Figure 1 (note that these settings are the

factory-configured settings for the EVM).

2. Using ADCPro HW/SW Installation Manual, verify the MMB0 jumpers are in the default position and

install ADCPro and ADS1278EVM plug-in software. Complete hardware connection and driver

installation as part of ADCPro HW/SW Installation Manual using the below settings.

• MMB0 J13A →Open

• MMB0 J13B →Short

• No additional power connections are required

3. Plug the ADS1278EVM onto the MMB0 (if not already connected). The female portion of J3, J4 and J5

on the EVM align with male connectors J10, J4, and J5 respectively on the MMB0.

4. Connect power to the MMB0 board. If power is supplied from an AC adapter (not included), ensure that

it satisfies the following requirements:

• Output voltage: 5.5 VDC to 15 VDC

• Maximum output current: ≥500 mA

• Output connector: barrel plug (positive center), 2.5-mm I.D. x 5.5-mm O.D. (9-mm insertion depth)

• Complies with applicable regional safety standards

CAUTION

Do not misalign the pins when plugging the ADS1278EVM into the MMB0.

Check the pin alignment of J3, J4, and J5 carefully before applying power to

the PDK.

l TEXAS INSTRUMENTS

Quick Reference

www.ti.com

6SBAU197A–February 2012–Revised January 2016

Submit Documentation Feedback

ADS1x7xEVM-PDK

3 Quick Reference

Table 3 provides a quick summary of the connections required for operation of the EVM as a standalone

Table 3. Critical Connections

Function Header/Pin Pin Name Description

Interface

SCLK J4.3 CLKX SCLK

DIN J4.11 DX Data In

DOUT J4.13 DR Data Out

Interrupt J4.15 INT DRDY/FSYNC

Power

1.8V J5.7 +1.8VD Digital supply

3.3V J5.9 +3.3VD Digital supply

5.0V J5.3 +5VA Analog supply

Analog Inputs

Channels 1-4 J3.1-8 Analog Inputs

Channels 5-8 J1.3-10 Analog Inputs (ADS1178 and

ADS1278 only)

CAUTION

When using the EVM as part of the ADS1278EVM-PDK, the DIP switches S1

and S2 must all be switched so that they are down, toward the center of the

board. Failure to do so may damage the EVM.

3.1 Analog Inputs

The analog inputs for the ADS1278EVM are connected to J1 and J3. Channels 1-4 connect to J3 and

provisions are provided to buffer these signals before being connected to the converter. Switches S4, S5,

S7, and S8 control whether the buffered or unbuffered signal is connected to the ADS1278. Channels 5-8

connect to J1 and have an RC filter available to filter the input before connecting to the converter.

Channels 5-8 do not have provisions for buffering the signal.

3.2 Digital Control

The digital control signals can be applied directly to J4 (top or bottom side).

3.3 Power Supply

The ADS1278EVM requires power rails as follows:

• 5.0V analog supply - supplied by MMB0 motherboard via J13B

• 3.3V digital supply - supplied by MMB0 motherboard

• 1.8V digital supply - supplied by MMB0 motherboard

3.4 Voltage Reference

The ADS1278EVM has two options for the reference voltage. Switch S3 selects the reference voltage

from either the buffered REF5025 or a external reference voltage that is connected to the reference pins

of J3 (J3.18 = REFN and J3.20 = REFP).

l TEXAS INSTRUMENTS

www.ti.com

Using the ADS1178EVM-PDK/ADS1278EVM-PDK Plug-in ADCPro

SBAU197A–February 2012–Revised January 2016

ADS1x7xEVM-PDK

4 Using the ADS1178EVM-PDK/ADS1278EVM-PDK Plug-in ADCPro

The ADS1278EVM-PDK plug-in for ADCPro provides complete control over all settings of the ADS1278. It

consists of a tabbed interface (see Figure 2) with different functions available on different tabs. The tabs

are:

• Channel Enable

• Settings

• About

The user can adjust the ADS1178EVM/ADS1278EVM settings when not acquiring data. During

acquisition, all controls are disabled and settings may not be changed. When a setting is changed on the

ADS1178EVM/ADS1278EVM plug-in, the setting immediately updates on the board.

Settings on the ADS1178EVM/ADS1278EVM correspond to settings described in the ADS1278 product

data sheet product data sheet.

4.1 Top Level Controls

You can adjust the ADS1278EVM settings when you are not acquiring data. During acquisition, all

controls are disabled and settings may not be changed.

The effective data rate of the ADS1278 depends upon settings of the Clock Freq and Operating Mode.

The Data Rate indicator in the upper right corner of the plug-in interface (see Figure 2) is always visible

and updates whenever a setting changes that affects the data rate.

4.2 Channel Enable Tab

The ADS1278 can acquire data from one to eight channels simultaneously. The Channel Enable tab (as

shown in Figure 2) provides the control to power on or off each channel.

125.DDU

Using the ADS1178EVM-PDK/ADS1278EVM-PDK Plug-in ADCPro

www.ti.com

8SBAU197A–February 2012–Revised January 2016

Submit Documentation Feedback

ADS1x7xEVM-PDK

Figure 2. Channel Enable

The Master (All) Enable control allows for the selection of channels to convert. Manual Control allows

channel enable control via CH1 through CH8 selector switches. All Channels Enabled and All Channels

Disabled turn all the selector switches either ON or OFF.

4.3 Settings Tab

The Settings tab allows for the selection of the various clock frequencies, operating mode, data format,

and other settings.

INSTRUMENTS WM r-m

www.ti.com

Using the ADS1178EVM-PDK/ADS1278EVM-PDK Plug-in ADCPro

SBAU197A–February 2012–Revised January 2016

ADS1x7xEVM-PDK

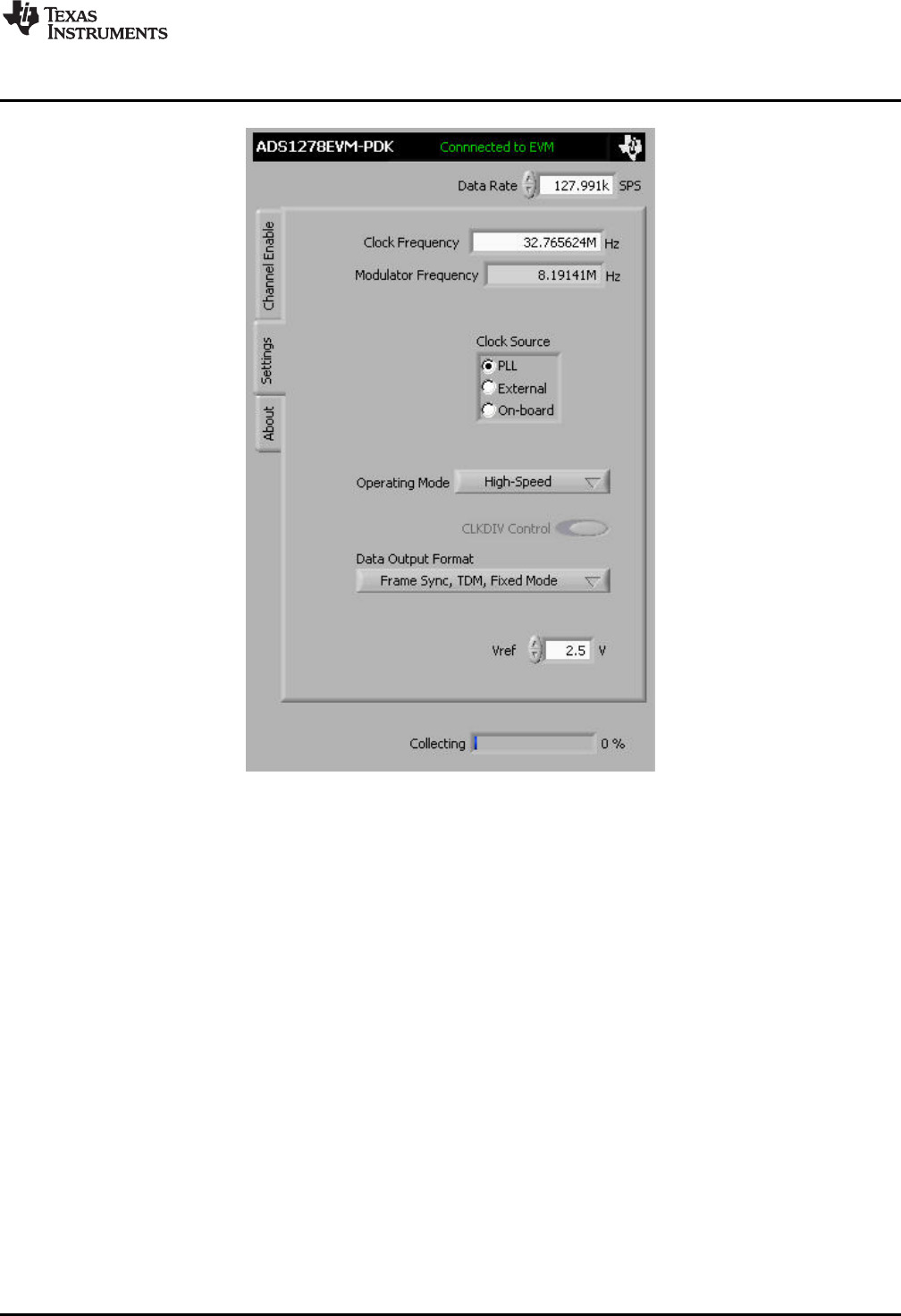

Figure 3. Clock Settings and Mode

The Clock Source control selects the input clock source for the ADS1278. The clock can be selected

from the MMB0 PLL, an External source, or use the On-board oscillator.

The Modulator Frequency indicator shows the ADS1278 modulator frequency based on the clock

source.

The Clock Frequency control allows the user to input the desired clock frequency when the PLL clock

source is selected. Once the frequency is entered, the software finds the closest frequency for the PLL to

synthesize (and which is within the maximum allowable frequency for the mode selected). This clock

frequency is configured in the PLL and overwrites the user entered value in the Clock Frequency

indicator.

The Operating Mode control allows selection of the converter operating mode: High-Speed,High-

Resolution,Low-Power, or Low-Speed.

The CLKDIV control can be set to 0or 1.

The Data Output Format allows selection of the data output formats. For the ADS1278EVM software, the

formats are limited to the Frame-Sync, TDM Format. The available options select whether the software

collects data for all channels Fixed Mode or only channels that are powered up Dynamic Mode.

The Vref control allows the user to input the current Vref value being used by the data converter. This

control does not change the actual reference voltage, but is required for the software to process the data

correctly for display.

The maximum clock frequency is shown for the different converter options in Table 4.

l TEXAS INSTRUMENTS

Using the ADS1178EVM-PDK/ADS1278EVM-PDK Plug-in ADCPro

www.ti.com

10 SBAU197A–February 2012–Revised January 2016

Submit Documentation Feedback

ADS1x7xEVM-PDK

Table 4. Operating Modes: Clock Frequency

Operating Mode CLKDIV Frequency (MHz)

High-Speed 1 32.768

High-Resolution 1 27

Low-Power 1 27

Low-Power 0 13.5

Low-Speed 1 27

Low-Speed 0 5.4

4.4 About Tab

The About tab provides information on the EVM hardware and software versions.

Plug-in Version is software version of ADCPro plug-in.

Firmware Version is firmware version loaded and running on the processor.

l TEXAS INSTRUMENTS

www.ti.com

ADS1278EVM Hardware Details

SBAU197A–February 2012–Revised January 2016

Submit Documentation Feedback

ADS1x7xEVM-PDK

5 ADS1278EVM Hardware Details

The ADS1278EVM is designed to easily interface with multiple control platforms. Dual-row, header/socket

combinations at J3, J4, and J5 allow connection to external circuitry for evaluation and debug.

5.1 Jumpers and Switches

Jumpers and Switches function shown in table below

(1) Only one of FSYNC/DRDY signals should be connected at a time (JP1 or JP2).

(2) Channels 4-8 only available for ADS1278 and ADS1178.

Table 5. Jumper and Switch Descriptions

Jumper/Switch Functions Descriptions

JP1 FSYNC/DRDY Source Short to select FSR as the source(1)

JP2 FSYNC/DRDY Source Short to select FSX as the source(1)

JP3 Analog Input Buffers Power-down Short - input buffers powered-down

Open - input buffers powered-up

JP4 Hardware/Software Control of Clock Source Short - Software control

Open - Hardware control

JP5 Internal/External Clock Select (Hardware

control) Short - External clock source selected

Open - Internal clock source selected

Power down Channel 1 Hardware control for PWDN1 (set to OFF position for use with

software)

Power down Channel 2 Hardware control for PWDN2 (set to OFF position for use with

software)

Power down Channel 3 Hardware control for PWDN3 (set to OFF position for use with

software)

Power down Channel 4 Hardware control for PWDN4 (set to OFF position for use with

software)

Power down Channel 5(2) Hardware control for PWDN5 (set to OFF position for use with

software)

Power down Channel 6(2) Hardware control for PWDN6 (set to OFF position for use with

software)

Power down Channel 7(2) Hardware control for PWDN7 (set to OFF position for use with

software)

Power down Channel 8(2) Hardware control for PWDN8 (set to OFF position for use with

software)

GPIO2 Hardware control for GPIO2 (set to OFF position for use with

software)

GPIO3 Hardware control for GPIO3 (set to OFF position for use with

software)

GPIO4 Hardware control for GPIO4 (set to OFF position for use with

software)

CLKDIV Hardware control for CLKDIV (set to OFF position for use with

software)

GPIO0 Hardware control for GPIO0 (set to OFF position for use with

software)

GPIO1 Hardware control for GPIO1 (set to OFF position for use with

software)

S3 Converter voltage reference source selector Selects source for reference voltage - buffered on-board

reference or header (external)

S4 Channel 4 input source selector Selects Channel 4 input source - header or input buffer

Left - header

Right - input buffer

S5 Channel 3 input source selector Selects Channel 3 input source - header or input buffer

Left - header

Right - input buffer

l TEXAS INSTRUMENTS

ADS1278EVM Hardware Details

www.ti.com

12 SBAU197A–February 2012–Revised January 2016

Submit Documentation Feedback

ADS1x7xEVM-PDK

Table 5. Jumper and Switch Descriptions (continued)

Jumper/Switch Functions Descriptions

(3) Refer to Section 5.5.1 for more details.

S6 Serial Interface format FS - Frame Sync format. [1-2], [4-5], [7-8], [10-11] installed. (3)

SPI - SPI-compatible mode. [2-3], [5-6], [8-9], [11-12] installed.(3)

S7 Channel 2 input source selector Selects Channel 2 input source - header or input buffer

Left - header

Right - input buffer

S8 Channel 1 input source selector Selects Channel 1 input source - header or input buffer

Left - header

Right - input buffer

5.2 Power-Down, MODE, and FORMAT Control

The ADS1278 has several pins to control the power-down of individual channels, and select the mode and

format for the digital interface.

For users of the ADS1278EVM as a standalone module, these pins may be pulled high or low through DIP

switches S1 and S2 (see Table 5). Refer to the ADS1278 product data sheet for complete details on these

pins and which state sets which options.

For use in the ADS1x7xEVM-PDK, the state of these pins is controlled by software, using the I2C port

expanders (U7 and U8) on the EVM. When using the EVM with the EVM-PDK, the DIP switches S1 and

S2 must all be switched down (toward the center of the board). The ADS1278EVM-PDK software checks

at startup to verify that these switches are set correctly, and generates an error message for incorrect

settings. The software cannot detect if the switches are changed after startup.

CAUTION

When using the ADS1x7xEVM-PDK, the DIP switches S1 and S2 must all be

switched down (toward the center of the board). Failure to do so may damage

the EVM.

5.3 Clock Source

The ADS1278 clock can come from one of several sources: the onboard 27MHz crystal oscillator, a clock

supplied by a processor on the TOUT pin (J4.17), or an external clock source connected between J4.17

(TOUT) and J4.18 (DGND).

If the onboard 27MHz oscillator is selected, the device can be run in high-speed mode, high-resolution

mode, low-power mode, or low-speed modes with CLKDIV set to 1.

If the performance of the device must be explored with CLKDIV set to 0 in the low-power and low-speed

modes, an external clock must be provided to the board, either using the TOUT connection or having an

external clock source connected to J4.17. The same condition is true if frequencies other than the 27MHz

provided by the onboard oscillator must be investigated.

5.4 Analog Headers, J1 and J3

For maximum flexibility, the ADS1278EVM is designed for easy interfacing to multiple analog sources.

These headers/socket provide access to the analog input pins of the ADS1278.

Four of the analog input sources (Channels 1–4) connect directly to J3 (top or bottom side) or through

signal-conditioning modules available for the modular EVM system. These inputs have provisions to buffer

the inputs using THS4521 before connecting to the converter. Switches S4, S5, S7, and S8 provide the

capability to connect either the header directly or through a buffer. When the buffers are not selected, the

op-amps used for buffering can be powered down by shorting JP3.

l TEXAS INSTRUMENTS

www.ti.com

ADS1278EVM Hardware Details

SBAU197A–February 2012–Revised January 2016

ADS1x7xEVM-PDK

Analog input sources (Channels 5-8) are connected directly to J1. These inputs can be filtered by

installing passive components in the option filter circuitry. By default, the resistors are populated with 0-Ω

resistors and the capacitors are not installed. No circuitry is provided to buffer these signals before

connecting to the converter.

(1) Pin 1 is top left-hand corner, located next to reference designator.

Table 6. J3: Primary Analog Interface Pinout

Description Signal Pin Number Signal Description

Analog Input Channel 4 Negative AINN4 J3.1(1) J3.2 AINP4 Analog Input Channel

4 Positive

Analog Input Channel 3 Negative AINN3 J3.3 J3.4 AINP3 Analog Input Channel

3 Positive

Analog Input Channel 2 Negative AINN2 J3.5 J3.6 AINP2 Analog Input Channel

2 Positive

Analog Input Channel 1 Negative AINN1 J3.7 J3.8 AINP1 Analog Input Channel

1 Positive

Analog Ground AGND J3.9 J3.10 Not Connected Not used for this

design

Analog Ground AGND J3.11 J3.12 Analog Ground AGND

Analog Ground AGND J3.13 J3.14 Not Connected Not used for this

design

Not used for this design Not Connected J3.15 J3.16 Not Connected Not used for this

design

Analog Ground AGND J3.17 J3.18 EXTREFN External Reference

negative input

Analog Ground AGND J3.19 J3.20 EXTREFP External Reference

positive input

(1) Pin 1 is top right-hand corner, located next to reference designator.

Table 7. J1: Secondary Analog Interface Pinout

Description Signal Pin Number Signal Description

Not used for this design Not Connected J1.1(1) J1.2 Not Connected Not used for this

design

Analog Input Channel 8 Negative AINN8 J1.3 J1.4 AINP8 Analog Input Channel

8 Positive

Analog Input Channel 7 Negative AINN7 J1.5 J1.6 AINP7 Analog Input Channel

7 Positive

Analog Input Channel 6 Negative AINN6 J1.7 J1.8 AINP6 Analog Input Channel

6 Positive

Analog Input Channel 5 Negative AINN5 J1.9 J1.10 AINP5 Analog Input Channel

5 Positive

5.5 Digital Interface

The digital signals are controlled via DSP interface or I2C ICs on the EVM. Some of the digital control pins

allow control via hardware or software methods. See Section 5.2 for details on these pins and their

operation. The digital control signals can be applied directly to the EVM or by connecting the EVM to a

DSP or micro controller interface board, such as the MMB0 if purchased as part of the ADS1278EVM-

PDK, the 5-6K Interface or HPA-MCUInterface boards which are available from Texas Instruments. For a

list of compatible interface and/or accessory boards for the EVM or the ADS1278, see the relevant product

folder on the TI web site.

5.5.1 Digital Format Control

The ADS1278 allows the serial interface to be used in two different formats: an SPI-compatible mode and

a frame-sync format. Switch S6 is populated with jumpers to select between these two formats:

•SPI format configures the signals as follows:

l TEXAS INSTRUMENTS

ADS1278EVM Hardware Details

www.ti.com

14 SBAU197A–February 2012–Revised January 2016

Submit Documentation Feedback

ADS1x7xEVM-PDK

– The SCLK input of the converter is driven by the serial port signal CLKX, pin J4.3.

– The signal from the selected source for the clock (see Section 5.3,Clock Source) is connected to

the CLKR pin (J4.5) allowing the serial port of a processor to be synchronized to the converters

master clock.

– The signal from the selected clock source is routed to the CLK input of the converter.

– Port P10 of the I2C port expander U8 is connected to a logic high level, so that the position of

switch S12 can be read back by software.

•FS format configures the signals as follows:

– The SCLK input of the converter is driven by the serial port signal CLKR, pin J4.5.

– The signal from the selected clock source is connected to the CLKX pin (J4.3), allowing the serial

port of a processor to be synchronized to the converter's master clock.

– The CLK input of the converter is driven by the CLKR signal (J4.5). This ensures that the CLK and

SCLK signals have the same phase and the correct ratio as outlined in the data sheet of the

device.

– Port P10 of the I2C port expander U8 is connected to a logic low level, so that the position of S6

can be read back by software.

For use in the ADS1278EVM-PDK, the jumpers on S6 must be installed in the FS positions, which is the

factory default setting. See Figure 1.

Switching to SPI format will allow users to connect the EVM to any SPI-compatible processor not

supporting the frame-sync mode. If this format is selected, keep in mind that the high-speed mode will not

operate at full speed (32.768MHz) because of the limitations outlined in the device product data sheet.

5.5.2 Serial Data Interface, J4

This header/socket provides access to the digital control and serial data pins of the ADC.

All logic levels on J4 are 3.3V CMOS, except for the I2C™ pins. These pins conform to 3.3V I2C rules.

Table 8 describes the J4 serial interface pins.

(1) Pin 1 is top left-hand corner, located next to reference designator.

(2) DOUT1 buffered through a D flip-flop. See Section 5.5.3.1 below.

Table 8. J4, Serial Interface Header

Signal Name

Number

(J4) Signal Name Function

Synchronize channels input SYNC 1(1) 2 MODE0 Select bit 0 of converter

MODE

SPI clock SCLK 3 4 DGND Digital ground

SCLK clock CLKR 5 6 MODE1 Select bit 1 of converter

MODE

DRDY/FSYNC source 1 DRDY/FSYNC 7 8 FORMAT0 Select bit 0 of FORMAT

to select Frame-Sync/SPI

Protocol

DRDY/FSYNC source 2 DRDY/FSYNC 9 10 DGND Digital ground

ADS1278 SPI data in DIN 11 12 FORMAT1 Select bit 1 of FORMAT

to select Frame-Sync/SPI

Protocol

ADS1278 data out DOUT1(2) 13 14 FORMAT2 Select bit 2 of FORMAT

to select Frame-Sync/SPI

Protocol

DRDY/FSYNC to DSP

(interrupt) DRDY/FSYNC 15 16 SCL I2C clock

Can be used to provide a clock

from a processor CLK 17 18 DGND Digital ground

Clock source select (SW

mode) CLK Select 19 20 SDA I2C data

l TEXAS INSTRUMENTS

www.ti.com

ADS1278EVM Hardware Details

SBAU197A–February 2012–Revised January 2016

ADS1x7xEVM-PDK

Some pins on J5 have weak pull-up/down resistors. These resistors provide default settings for many of

the control pins. Many pins on J5 correspond directly to ADS1278 pins. See the ADS1278 product data

sheet for complete details on these pins.

5.5.3 Data Output Signals

5.5.3.1 DOUT on Digital Interface J4

In TDM mode, the data from all eight channels can be observed on the DOUT1 pin of the converter. The

DOUT1 signal is used by the ADS1x7xEVM-PDK to read back and display all the channels. The digital

data output pin on the digital interface header J4 is connected to DOUT1 signal via a D flip-flop. The D

flip-flop provides a half cycle delay in order to align the data correctly to reach the higher speeds of the

device. Otherwise, the propagation delay from the MSB in Frame Sync mode may result in missing the

MSB out of the data word.

5.5.3.2 DOUTx Header, J2

All the data output signals (DOUT1 to DOUT8) can be monitored on J2. Table 9 illustrates the pinout for

J2.

(1) Pin 1 is top right-hand corner, located next to reference designator.

Table 9. J2, DOUTx Header

Data Out Line Pin Number Data Out Line

DOUT1 1(1) 2 DOUT2

DOUT3 3 4 DOUT4

DOUT5 5 6 DOUT6

DOUT7 7 8 DOUT8

5.6 Power Supply Header, J5

J5 is the power-supply input connector. Table 10 lists the configuration details for J5. Supplies of 1.8V,

3.3V, and 5.0V are required for operation of the EVM. When using the EVM as part of the EVM-PDK,

these voltages are generated by the MMB0 and no external supplies are required. For operation as a

stand-alone EVM, the power supplies should be connected as shown below.

(1) Pin 1 is bottom left-hand corner, located next to reference designator.

Table 10. J5 Configuration: Power-Supply Input

Function Pin Name Pin Number

(J5) Pin Name Function

Not used for this design Not used 1(1) 2 Not used Not used for this design

+5V analog supply +5VA 3 4 Not used Not used for this design

Digital ground DGND 5 6 AGND Analog ground input

1.8V digital supply +1.8VD 7 8 Not used Not used for this design

3.3V digital supply +3.3VD 9 10 N/A Do not use

NOTE: For monitoring the current from each supply, CM1, CM2, and CM3 (0Ωresistors) can be

removed and replaced with sense resistors or ammeters.

The ADS1278 digital supplies are connected as follows:

• IOVDD supply is connected to the +1.8VD pin of the J3 header.

• DVDD supply is connected to the +3.3VD pin of the J3 header.

The ADS1278 analog supply, AVDD, is connected to the +5VA pin of the J5 header.

l TEXAS INSTRUMENTS

Schematic and Bill of Materials

www.ti.com

16 SBAU197A–February 2012–Revised January 2016

Submit Documentation Feedback

ADS1x7xEVM-PDK

6 Schematic and Bill of Materials

A complete schematic for the ADS1x7xEVM is appended to this user's guide. The bill of materials is

provided in Table 11. Gerber files are available on request. Please e-mail support@ti.com or E2E

Community Forums and ask for details on how to receive the files.

6.1 Bill of Materials

NOTE: All components should be compliant with the European Union Restriction on Use of

Hazardous Substances (RoHS) Directive. Some part numbers may be either leaded or

RoHS. Verify that purchased components are RoHS-compliant. (For more information about

TI's position on RoHS compliance, see the http://www.ti.com.)

(1) These parts are not installed for ADS1274 and ADS1174

Table 11. ADS1x7xEVM Bill of Materials

Item No. Qty Value Ref Des Description Manufacturer Part Number

1 1 100u C1 Capacitor, Ceramic, X5R, 10V Taiyo Yuden LMK325BJ107MM-T

2 1 150n C2 Capacitor, Ceramic, X7R, 25V TDK C1608X7R1E154K

3 25 0.1u C3, C11, C13,

C17, C20, C21,

C22, C27, C28,

C29, C38, C39,

C40, C41, C42,

C44, C45, C46,

C49, C50, C51,

C54, C55, C56,

C58

Capacitor, Ceramic, X7R, 25V TDK C1608X7R1E104K

4 3 1.0u C4, C6, C43 Capacitor, Ceramic, X7R, 25V TDK C1608X7R1E105K

5 4 10u C5 C7 C26 C57 Capacitor, Ceramic, X5R, 10V TDK C1608X5R1A106M

6 4(1) 2.2n C8-10 C12 Capacitor, Ceramic, C0G, 50V TDK C1608COG1H222/*J

4 2.2n C16 C18 C23 C25

7 8 1.5n C14-15 C19 C24

C47-48 C52-53 Capacitor, Ceramic, X7R, 25V TDK C1608X7R1E152M

8(1) 1.5n C30-37

8 3 0 CM1-3 Resistor, Chip, 1/4W Vishay Dale CRCW06030000Z0EAHP

9 1(1) J1 (Top) Header, SMT Vert. 5x2 pin, 100mil spacing Samtec TSM-105-01-T-DV-P

10 1 J5 (Top) Header, SMT Vert. 5x2 pin, 100mil spacing Samtec TSM-105-01-T-DV-P

11 1 J5 (Bottom) Header, SMT Vert. 5x2 pin, 100mil spacing Samtec SSW-105-22-F-D-VS-K

12 1 J2 Header, SMT Vert. 4x2 pin, 100mil spacing Samtec TSW-104-07-L-S

13 2 J3 J4 Header, SMT Vert. 10x2 pin, 100mil spacing Samtec TSM-110-01-T-DV-P

14 2 J3 J4 (Bottom) Header, SMT Vert. 10x2 pin, 100mil spacing Samtec SSW-110-22-F-D-VS-K

15 5 JP1-JP5 Header, Male 2-pin, 100mil spacing Samtec TSW-102-07-L-S

16 1 2k R1 Resistor, Chip, 1/10W, 5% Rohm MCR03EZPJ202

17 18 1k R2 R17-18 R20-22

R24 R26-27 R38-

40 R42-43 R45-48

Resistor, Chip, 1/10W, 5% Rohm MCR03EZPJ102

18 6 47 R3 R12-13 R16

R25 R41 Resistor, Chip, 1/10W, 5% Rohm MCR03EZPJ470

19 8(1) 0 R4-11 Resistor, Chip, 1/10W Rohm MCR03EZPJ000

20 8 49.9 R14-15 R23 R28

R36-37 R49-50 Resistor, Chip, 1/10W, 1% Rohm MCR03EZPJ49R9

21 3 100k R19 R29 R44 Resistor, Chip, 1/10W, 5% Rohm MCR03EZPJ104

22 2 470k R30-31 Resistor, Chip, 1/10W, 5% Rohm MCR03EZPJ474

23 2 100k R32-33 Resistor Pack, 8x Panasonic EXB-2HV104JV

24 1 10k R34 Resistor, Chip, 1/10W, 5% Rohm MCR03EZPJ103

25 1 4.3k R35 Resistor, Chip, 1/10W, 5% Rohm MCR03EZP432

26 2 47k R51-52 Resistor, Chip, 1/10W, 5% Rohm MCR03EZPJ473

27 1 S1 Switch, SMD Low Profile 08 Position CTS 218-8LPST

l TEXAS INSTRUMENTS

www.ti.com

Schematic and Bill of Materials

SBAU197A–February 2012–Revised January 2016

ADS1x7xEVM-PDK

Table 11. ADS1x7xEVM Bill of Materials (continued)

Item No. Qty Value Ref Des Description Manufacturer Part Number

(2) Installed for ADS1278EVM-PDK. For other EVM-PDKs, the appropriate device will be installed.

28 1 S2 Switch, 6 POS, SPST, Low Profile, SMT,

0.50 centers CTS 218-8LPST

29 5 S3-5 S7-8 Switch, Slide DPDT, Low Profile TE Connectivity SSB22

30 1 S6 CONN HEADER 12POS DUAL 2MM T/H Samtec TMM-106-01-T-D

31 4 TP1 TP4 TP7

TP11 Test Point, Black, Thru Hole Color Keyed Keystone 5001

32 2 TP6 TP8 Test Point, White, Thru Hole Color Keyed Keystone 5002

33 5 TP2 TP3 TP5 TP9

TP10 Test Point, Red, Thru Hole Color Keyed Keystone 5000

34 1 U1 IC, Precision Voltage Reference, 2.5V TI REF5025AID

35 1 U2 IC, Op Amp, High-Speed, Single-Supply, R-

RTI OPA2350DGK

36 4 U3 U5 U9 U11 IC, Negative R-R Input, R-R Output, Fully

Differntial Amplifier TI THS4521DGK

37 1(2) U4 IC, Quad/Octal, Simultaneous Sampling, 24-

Bit A-D Converter TI ADS1278PAP

38 1 U6 Single 2 line To 1Line Data

Selector/Multiplexer TI SN74LVC2G157DCT

39 1 U10 IC, Single Inverter TI SN74LVC1G04DBV

40 1 U12 IC, single Positive-Edge-Triggered D-Type

Flip-Flop With Clear And Reset TI SN74LVC2G74DCU

41 1 U13 IC, Configurable Multiple-Function Gate TI SN74LVC1G97DCK

42 1 U14 IC, 256K CMOS Serial EEPROM Microchip 24AA256-I/ST

43 2 U7-8 IC, Low Voltage 16-BIT I2C and SMBus

Low-Power I/O Expander With Interrupt

Output and Configuration Registers

TI TCA9535RTW

44 1 Y1 Clock Oscillator, 27MHz CTS CB3LV-3I-27M0000

45 1 PCB, 3.31 In x 2.88 In x 0.062 In Any 6492525

46 4 Shunt, 100-mil, Black 3M 929950-00

47 4 SHUNT JUMPER Samtec 2SN-BK-G

l TEXAS INSTRUMENTS

Revision History

www.ti.com

18 SBAU197A–February 2012–Revised January 2016

Submit Documentation Feedback

Revision History

NOTE: Page numbers for previous revisions may differ from page numbers in the current version.

Changes from Original (February 2012) to A Revision .................................................................................................. Page

• Changed step 4 of Section 2.2 .......................................................................................................... 5

mun mum m ,mLmJN l 2 z mm (See page 71) REPJ-I‘DR ,1qu km szu mam-m [\GND m “5“?” «mm mam-n «INF: mam-n AINN‘ rsmc, AGVD AVDD 5ch mun CLK "mung: : m / 1mm) 1mm) U273 A\'DD : DGVD .lu INT/EXT CLK SOURCE C44 JP HW/SW C’ngHJv/W) 0.11. Amp 1mm 1mm: JPS _ HW StL (INT/19m (see Lab]: below) / ,me ANALOGJV Y M, 112:1 PS 1 vcc GN «mu m / [V3 IN! 1P4 J DCNb C20 0. 1n Mm an CLKDIV HI AVDDJ H] I DVDDjfv [I] \KJYDD, H| “’7 “’4 “’11 'l'l’l . {J H ”’4 1P5 Selling Texas Instmmenm £57 mm are amiable my current mmimﬁng :WD 4m ow 0N mm” 1mm ‘ ‘ T111: “‘“ on: OFF Hardwam 1mm ADS1278EVM 0N x Suliware Cmtml (GPlOS)

07APR11



Texas Instruments



G Hupp



ads1278evm.sch





G Hupp



Rev



Engineer



Drawn by



Filename



Number



Size



Title



Sheet



Date



ADS1278EVM



2/9/2012



JP5 = HW SEL (INT/EXT)



JP4 = HW/SW CTRL (HW/SW)



INT/EXT CLK SOURCE



CM1-3 are available for current monitoring



(See page -1)



(see table below)



JP4 JP5 Setting



OFF ON Hardware External



OFF OFF Hardware Internal



ON x Software Control (GPIO5)



C51



0.1u



C27



0.1u



GND



B_A



VCC



R30



470k



C11



.1u



C45



0.1u



C42



0.1u



C46



0.1u



C20



0.1u



R25



R41



R16



R13



R12



R51



47k



R31



470k



C43



R40



C57



10u



C26



10u



JP4



R19



100k



U10



CLK



PRE



CLR



GND



VCC



U12



R44



100k



AINP2



AINN2



AINP1



AINN1



AVDD



AGND



DGND



TEST0



TEST1



CLKDIV



SYNC



DIN



DOUT8



DOUT7



DOUT6



DOUT5



DOUT4



DOUT3



DOUT2



DOUT1



DGND



IOVDD



IOVDD



DGND



DGND



DVDD



CLK



SCLK



FSYNC_DRDY



FORMAT2



FORMAT1



FORMAT0



MODE1



MODE0



/PWDN8



/PWDN7



/PWDN6



/PWDN5



/PWDN4



/PWDN3



/PWDN2



/PWDN1



AGND



AVDD



AINP8



AINN8



AINP7



AINN7



AINP6



AINN6



AINP5



AINN5



AVDD



AGND



VCOM



VREFP



VREFN



AGND



AGND



AVDD



AINP4



AINN4



AINP3



AINN3



PWPD



REFP_HDR



REFN_HDR



REFP



REFN



AGND



AVDD



REF_CKT



SW_SSB42



OUTB



U2-B



C54



0.1u



CM1



CM3



CM2



C44



0.1u



C41



0.1u



JP1



JP2



EOH



OUT



GND



VCC



C28



0.1u



IN1



GND



IN0



VCC



IN2



U13



R52



47k



JP5



C56



0.1u



TP1



TP8



TP6



TP11



TP4



TP7



TP5



TP2



TP3



SYNC



DIGITAL



[3]



[2]



ANALOG_IN



[1,2,3]



REFP_HDR



[2]



REFN_HDR



[2]



GPIO0



GPIO1



GPIO2



GPIO3



GPIO4



SCL



SDA



AGND



AVDD



IOVDD



ANALOG_IN



[1,2,3]



CHAN-N1



CHAN-P1



CHAN-N2



CHAN-P2



CHAN-N3



CHAN-P3



CHAN-N4



CHAN-P4



AVDD



CHAN-N5



CHAN-P5



CHAN-N6



CHAN-P6



CHAN-N7



CHAN-P7



CHAN-N8



CHAN-P8



PWDN1



PWDN2



PWDN3



PWDN4



PWDN5



PWDN6



PWDN7



PWDN8



SW_IND



AGND



AGND



AGND



AGND



AGND



DGND



AGND



DGND



IOVDD



IOVDD



IOVDD



DGND



DGND



DGND



GPIO2



GPIO3



GPIO4



AVDD_1



[1]



AVDD_1



[1]



AVDD_1



[1]



AVDD_1



[1]



DVDD_26



[1]



IOVDD_22_23



[1]



IOVDD_22_23



[1]



DVDD_26



[1]



AGND



AVDD



AGND



DGND



IOVDD



GPIO0



GPIO1



DGND



IOVDD



DGND



DGND



DGND



IOVDD



IOVDD



IOVDD



IOVDD



IOVDD



IOVDD



DGND



CLKDIV



[3]



DGND



DGND



DGND



DGND



DGND



DGND



AGND



SCLK



M 2k “(‘2 ‘ ‘ 15mm U1 1. D.\‘(‘ D.\‘(‘ J 7 “V .\‘r‘—1 L mm mm ° 1 CM) mm ‘ mm U}A R; x x W * +/> (MM 44 WW? D—iLoJ—l—<_' mm}="" !_="">— _i_ C3 Ulu J;

2/9/2012



ADS1278EVM



Date



Sheet



Title



Size



Number



Filename



Drawn by



Engineer



Rev



-1



G Hupp





ads1278evm.sch



G Hupp



Texas Instruments



07APR11



150n



0.1u



10u



100u



DNC



VIN



TEMP



GND



TRIM



VOUT



DNC



10u



OUTA



V-



V+



U2-A



AVDD



[1,2]



AGND



[1,2,3]



REFN



[1]



REFP



[1]



REFP_HDR



[1,2]



REFN_HDR



[1,2]



m mum: m warm JP] PWRDN BUH’ERS C l 3 GND 0, I u ,ann / \ mm: m mum: mum: m Rawmm H voL-r m A9 a m5 499 rum m



07APR11



Texas Instruments



G Hupp



ads1278evm.sch





G Hupp



Rev



Engineer



Drawn by



Filename



Number



Size



Title



Sheet



Date



ADS1278EVM



2/9/2012



PWRDN BUFFERS



C50



0.1u



C25



2.2n



C23



2.2n



VIN+



VOCM



VIN-



VS-



VS+



VOUT+



VOUT-



U11



R49



49.9



R50



49.9



R47



C52



1.5n



R45



R46



C53



1.5n



R48



VIN+



VOCM



VIN-



VS-



VS+



VOUT+



VOUT-



R23



49.9



R28



49.9



R22



C19



1.5n



R24



R26



C24



1.5n



R27



C21



0.1u



C17



0.1u



C18



2.2n



C16



2.2n



VIN+



VOCM



VIN-



VS-



VS+



VOUT+



VOUT-



R37



49.9



R36



49.9



R39



C48



1.5n



R43



R42



C47



1.5n



R38



VIN+



VOCM



VIN-



VS-



VS+



VOUT+



VOUT-



R14



49.9



R15



49.9



R17



C14



1.5n



R20



R21



C15



1.5n



R18



C49



0.1u



R29



100k



JP3



C55



0.1u



C13



0.1u



C39



0.1u



C22



0.1u



TP10



TP9



ANP1



ANP2



ANN1



ANN2



CHAN-P2



CHAN-P1



ANN2



REFN_HDR



[1]



REFP_HDR



[1]



ANN1



ANALOG_IN



[1,3]



CHAN-N1



CHAN-N2



CHAN-N3



ANN3



ANP3



BRD_ANLG_IN



ANP1



ANP2



CHAN-P3



CHAN-P4



CHAN-N4



AVDD



AVDD



AVDD



AVDD



ANP4



ANN4



ANN3



ANP3



ANP4



ANN4



AGND



AGND



AVDD



AGND



AGND



AGND



AGND



AGND



AGND



AGND



AGND



BUF_PDN



[2]



BUF_PDN



[2]



BUF_PDN



[2]



BUF_PDN



[2]



ANN4



ANP4



AVDD



AGND



AVDD



AGND



AVDD



AGND



AGND



AVDD



r: m r: CJI C10 (. 1.5“ 1.5" 1511 1qu 15“ 1 35 C37 C36 » » 1.5“ 1.5“ mm) AGVD MIND AGND MIND AGND “GNU MIND O/Logic Connections

2/9/2012



ADS1278EVM



Date



Sheet



Title



Size



Number



Filename



Drawn by



Engineer



Rev



G Hupp





ads1278evm.sch



G Hupp



Texas Instruments



07APR11



Channels 5-8 Analog Connections



GPIO/Logic Connections



P00



P01



P02



P03



P04



P05



P06



P07



GND



P10



P11



P12



P13



P14



P15



P16



P17



SCL



SDA



VCC



INT



PWPD



R34



10k



R35



4.3k



C40



0.1u



P00



P01



P02



P03



P04



P05



P06



P07



GND



P10



P11



P12



P13



P14



P15



P16



P17



SCL



SDA



VCC



INT



PWPD



C38



0.1u



VSS



SDA



SCL



VCC



U14



R32-A



100k



R33-A



100k



C58



0.1u



2.2n



C31



1.5n



C30



1.5n



R11



R10



C33



1.5n



C32



1.5n



C35



1.5n



C34



1.5n



C37



1.5n



C36



1.5n



2.2n



C10



2.2n



C12



2.2n



C29



0.1u



IOVDD



DIGITAL



[1]



SCL



SDA



IOVDD



IOVDD



SCL



SDA



GPIO1



SCL



SDA



IOVDD



PWDN5



PWDN6



PWDN2



PWDN3



PWDN4



PWDN1



PWDN7



PWDN8



SW_IND



GPIO0



GPIO4



GPIO3



GPIO2



DGND



DGND



DGND



IOVDD



DGND



DGND



DGND



DGND



DGND



PWDN1



PWDN2



PWDN3



PWDN4



PWDN5



PWDN6



PWDN7



PWDN8



GPIO2



GPIO3



GPIO4



GPIO0



GPIO1



IOVDD



DGND



CLKDIV



[1,3]



CLKDIV



CLKDIV



ANALOG_IN



[1,2]



CHAN-N7



CHAN-N8



CHAN-P8



CHAN-P7



CHAN-N6



CHAN-P6



AGND



AGND



CHAN-P5



CHAN-N5



AGND



AGND



AGND



AGND



AGND



AGND



IOVDD



DGND



DGND



IOVDD



DGND



DGND



STANDARD TERMS FOR EVALUATION MODULES

1. Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, and/or

documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance

with the terms set forth herein. User's acceptance of the EVM is expressly subject to the following terms.

1.1 EVMs are intended solely for product or software developers for use in a research and development setting to facilitate feasibility

evaluation, experimentation, or scientific analysis of TI semiconductors products. EVMs have no direct function and are not

finished products. EVMs shall not be directly or indirectly assembled as a part or subassembly in any finished product. For

clarification, any software or software tools provided with the EVM (“Software”) shall not be subject to the terms and conditions

set forth herein but rather shall be subject to the applicable terms that accompany such Software

1.2 EVMs are not intended for consumer or household use. EVMs may not be sold, sublicensed, leased, rented, loaned, assigned,

or otherwise distributed for commercial purposes by Users, in whole or in part, or used in any finished product or production

system.

2Limited Warranty and Related Remedies/Disclaimers:

2.1 These terms do not apply to Software. The warranty, if any, for Software is covered in the applicable Software License

Agreement.

2.2 TI warrants that the TI EVM will conform to TI's published specifications for ninety (90) days after the date TI delivers such EVM

to User. Notwithstanding the foregoing, TI shall not be liable for a nonconforming EVM if (a) the nonconformity was caused by

neglect, misuse or mistreatment by an entity other than TI, including improper installation or testing, or for any EVMs that have

been altered or modified in any way by an entity other than TI, (b) the nonconformity resulted from User's design, specifications

or instructions for such EVMs or improper system design, or (c) User has not paid on time. Testing and other quality control

techniques are used to the extent TI deems necessary. TI does not test all parameters of each EVM.

User's claims against TI under this Section 2 are void if User fails to notify TI of any apparent defects in the EVMs within ten (10)

business days after delivery, or of any hidden defects with ten (10) business days after the defect has been detected.

2.3 TI's sole liability shall be at its option to repair or replace EVMs that fail to conform to the warranty set forth above, or credit

User's account for such EVM. TI's liability under this warranty shall be limited to EVMs that are returned during the warranty

period to the address designated by TI and that are determined by TI not to conform to such warranty. If TI elects to repair or

replace such EVM, TI shall have a reasonable time to repair such EVM or provide replacements. Repaired EVMs shall be

warranted for the remainder of the original warranty period. Replaced EVMs shall be warranted for a new full ninety (90) day

warranty period.

3Regulatory Notices:

3.1 United States

3.1.1 Notice applicable to EVMs not FCC-Approved:

FCC NOTICE: This kit is designed to allow product developers to evaluate electronic components, circuitry, or software

associated with the kit to determine whether to incorporate such items in a finished product and software developers to write

software applications for use with the end product. This kit is not a finished product and when assembled may not be resold or

otherwise marketed unless all required FCC equipment authorizations are first obtained. Operation is subject to the condition

that this product not cause harmful interference to licensed radio stations and that this product accept harmful interference.

Unless the assembled kit is designed to operate under part 15, part 18 or part 95 of this chapter, the operator of the kit must

operate under the authority of an FCC license holder or must secure an experimental authorization under part 5 of this chapter.

3.1.2 For EVMs annotated as FCC – FEDERAL COMMUNICATIONS COMMISSION Part 15 Compliant:

CAUTION

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not

cause harmful interference, and (2) this device must accept any interference received, including interference that may cause

undesired operation.

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to

operate the equipment.

FCC Interference Statement for Class A EVM devices

NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of

the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is

operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to

correct the interference at his own expense.

FCC Interference Statement for Class B EVM devices

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of

the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential

installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance

with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference

will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which

can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more

of the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

•Consult the dealer or an experienced radio/TV technician for help.

3.2 Canada

3.2.1 For EVMs issued with an Industry Canada Certificate of Conformance to RSS-210 or RSS-247

Concerning EVMs Including Radio Transmitters:

This device complies with Industry Canada license-exempt RSSs. Operation is subject to the following two conditions:

(1) this device may not cause interference, and (2) this device must accept any interference, including interference that may

cause undesired operation of the device.

Concernant les EVMs avec appareils radio:

Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation

est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit

accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.

Concerning EVMs Including Detachable Antennas:

Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser)

gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type

and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for

successful communication. This radio transmitter has been approved by Industry Canada to operate with the antenna types

listed in the user guide with the maximum permissible gain and required antenna impedance for each antenna type indicated.

Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited

for use with this device.

Concernant les EVMs avec antennes détachables

Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et

d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage

radioélectrique à l'intention des autres utilisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope

rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une communication satisfaisante. Le

présent émetteur radio a été approuvé par Industrie Canada pour fonctionner avec les types d'antenne énumérés dans le

manuel d’usage et ayant un gain admissible maximal et l'impédance requise pour chaque type d'antenne. Les types d'antenne

non inclus dans cette liste, ou dont le gain est supérieur au gain maximal indiqué, sont strictement interdits pour l'exploitation de

l'émetteur

3.3 Japan

3.3.1 Notice for EVMs delivered in Japan: Please see http://www.tij.co.jp/lsds/ti_ja/general/eStore/notice_01.page 日本国内に

輸入される評価用キット、ボードについては、次のところをご覧ください。

http://www.tij.co.jp/lsds/ti_ja/general/eStore/notice_01.page

3.3.2 Notice for Users of EVMs Considered “Radio Frequency Products” in Japan: EVMs entering Japan may not be certified

by TI as conforming to Technical Regulations of Radio Law of Japan.

If User uses EVMs in Japan, not certified to Technical Regulations of Radio Law of Japan, User is required to follow the

instructions set forth by Radio Law of Japan, which includes, but is not limited to, the instructions below with respect to EVMs

(which for the avoidance of doubt are stated strictly for convenience and should be verified by User):

1. Use EVMs in a shielded room or any other test facility as defined in the notification #173 issued by Ministry of Internal

Affairs and Communications on March 28, 2006, based on Sub-section 1.1 of Article 6 of the Ministry’s Rule for

Enforcement of Radio Law of Japan,

2. Use EVMs only after User obtains the license of Test Radio Station as provided in Radio Law of Japan with respect to

EVMs, or

3. Use of EVMs only after User obtains the Technical Regulations Conformity Certification as provided in Radio Law of Japan

with respect to EVMs. Also, do not transfer EVMs, unless User gives the same notice above to the transferee. Please note

that if User does not follow the instructions above, User will be subject to penalties of Radio Law of Japan.

【無線電波を送信する製品の開発キットをお使いになる際の注意事項】開発キットの中には技術基準適合証明を受けて

いないものがあります。技術適合証明を受けていないもののご使用に際しては、電波法遵守のため、以下のいずれかの

措置を取っていただく必要がありますのでご注意ください。

1. 電波法施行規則第6条第1項第1号に基づく平成18年3月28日総務省告示第173号で定められた電波暗室等の試験設備でご使用

いただく。

2. 実験局の免許を取得後ご使用いただく。

3. 技術基準適合証明を取得後ご使用いただく。

なお、本製品は、上記の「ご使用にあたっての注意」を譲渡先、移転先に通知しない限り、譲渡、移転できないものとします。

上記を遵守頂けない場合は、電波法の罰則が適用される可能性があることをご留意ください。日本テキサス・イ

ンスツルメンツ株式会社

東京都新宿区西新宿６丁目２４番１号

西新宿三井ビル

3.3.3 Notice for EVMs for Power Line Communication: Please see http://www.tij.co.jp/lsds/ti_ja/general/eStore/notice_02.page

電力線搬送波通信についての開発キットをお使いになる際の注意事項については、次のところをご覧ください。http:/

/www.tij.co.jp/lsds/ti_ja/general/eStore/notice_02.page

3.4 European Union

3.4.1 For EVMs subject to EU Directive 2014/30/EU (Electromagnetic Compatibility Directive):

This is a class A product intended for use in environments other than domestic environments that are connected to a

low-voltage power-supply network that supplies buildings used for domestic purposes. In a domestic environment this

product may cause radio interference in which case the user may be required to take adequate measures.

4EVM Use Restrictions and Warnings:

4.1 EVMS ARE NOT FOR USE IN FUNCTIONAL SAFETY AND/OR SAFETY CRITICAL EVALUATIONS, INCLUDING BUT NOT

LIMITED TO EVALUATIONS OF LIFE SUPPORT APPLICATIONS.

4.2 User must read and apply the user guide and other available documentation provided by TI regarding the EVM prior to handling

or using the EVM, including without limitation any warning or restriction notices. The notices contain important safety information

related to, for example, temperatures and voltages.

4.3 Safety-Related Warnings and Restrictions:

4.3.1 User shall operate the EVM within TI’s recommended specifications and environmental considerations stated in the user

guide, other available documentation provided by TI, and any other applicable requirements and employ reasonable and

customary safeguards. Exceeding the specified performance ratings and specifications (including but not limited to input

and output voltage, current, power, and environmental ranges) for the EVM may cause personal injury or death, or

property damage. If there are questions concerning performance ratings and specifications, User should contact a TI

field representative prior to connecting interface electronics including input power and intended loads. Any loads applied

outside of the specified output range may also result in unintended and/or inaccurate operation and/or possible

permanent damage to the EVM and/or interface electronics. Please consult the EVM user guide prior to connecting any

load to the EVM output. If there is uncertainty as to the load specification, please contact a TI field representative.

During normal operation, even with the inputs and outputs kept within the specified allowable ranges, some circuit

components may have elevated case temperatures. These components include but are not limited to linear regulators,

switching transistors, pass transistors, current sense resistors, and heat sinks, which can be identified using the

information in the associated documentation. When working with the EVM, please be aware that the EVM may become

very warm.

4.3.2 EVMs are intended solely for use by technically qualified, professional electronics experts who are familiar with the

dangers and application risks associated with handling electrical mechanical components, systems, and subsystems.

User assumes all responsibility and liability for proper and safe handling and use of the EVM by User or its employees,

affiliates, contractors or designees. User assumes all responsibility and liability to ensure that any interfaces (electronic

and/or mechanical) between the EVM and any human body are designed with suitable isolation and means to safely

limit accessible leakage currents to minimize the risk of electrical shock hazard. User assumes all responsibility and

liability for any improper or unsafe handling or use of the EVM by User or its employees, affiliates, contractors or

designees.

4.4 User assumes all responsibility and liability to determine whether the EVM is subject to any applicable international, federal,

state, or local laws and regulations related to User’s handling and use of the EVM and, if applicable, User assumes all

responsibility and liability for compliance in all respects with such laws and regulations. User assumes all responsibility and

liability for proper disposal and recycling of the EVM consistent with all applicable international, federal, state, and local

requirements.

5. Accuracy of Information: To the extent TI provides information on the availability and function of EVMs, TI attempts to be as accurate

as possible. However, TI does not warrant the accuracy of EVM descriptions, EVM availability or other information on its websites as

accurate, complete, reliable, current, or error-free.

6. Disclaimers:

6.1 EXCEPT AS SET FORTH ABOVE, EVMS AND ANY MATERIALS PROVIDED WITH THE EVM (INCLUDING, BUT NOT

LIMITED TO, REFERENCE DESIGNS AND THE DESIGN OF THE EVM ITSELF) ARE PROVIDED "AS IS" AND "WITH ALL

FAULTS." TI DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, REGARDING SUCH ITEMS, INCLUDING BUT

NOT LIMITED TO ANY EPIDEMIC FAILURE WARRANTY OR IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS

FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT OF ANY THIRD PARTY PATENTS, COPYRIGHTS, TRADE

SECRETS OR OTHER INTELLECTUAL PROPERTY RIGHTS.

6.2 EXCEPT FOR THE LIMITED RIGHT TO USE THE EVM SET FORTH HEREIN, NOTHING IN THESE TERMS SHALL BE

CONSTRUED AS GRANTING OR CONFERRING ANY RIGHTS BY LICENSE, PATENT, OR ANY OTHER INDUSTRIAL OR

INTELLECTUAL PROPERTY RIGHT OF TI, ITS SUPPLIERS/LICENSORS OR ANY OTHER THIRD PARTY, TO USE THE

EVM IN ANY FINISHED END-USER OR READY-TO-USE FINAL PRODUCT, OR FOR ANY INVENTION, DISCOVERY OR

IMPROVEMENT, REGARDLESS OF WHEN MADE, CONCEIVED OR ACQUIRED.

7. USER'S INDEMNITY OBLIGATIONS AND REPRESENTATIONS. USER WILL DEFEND, INDEMNIFY AND HOLD TI, ITS

LICENSORS AND THEIR REPRESENTATIVES HARMLESS FROM AND AGAINST ANY AND ALL CLAIMS, DAMAGES, LOSSES,

EXPENSES, COSTS AND LIABILITIES (COLLECTIVELY, "CLAIMS") ARISING OUT OF OR IN CONNECTION WITH ANY

HANDLING OR USE OF THE EVM THAT IS NOT IN ACCORDANCE WITH THESE TERMS. THIS OBLIGATION SHALL APPLY

WHETHER CLAIMS ARISE UNDER STATUTE, REGULATION, OR THE LAW OF TORT, CONTRACT OR ANY OTHER LEGAL

THEORY, AND EVEN IF THE EVM FAILS TO PERFORM AS DESCRIBED OR EXPECTED.

8. Limitations on Damages and Liability:

8.1 General Limitations. IN NO EVENT SHALL TI BE LIABLE FOR ANY SPECIAL, COLLATERAL, INDIRECT, PUNITIVE,

INCIDENTAL, CONSEQUENTIAL, OR EXEMPLARY DAMAGES IN CONNECTION WITH OR ARISING OUT OF THESE

TERMS OR THE USE OF THE EVMS , REGARDLESS OF WHETHER TI HAS BEEN ADVISED OF THE POSSIBILITY OF

SUCH DAMAGES. EXCLUDED DAMAGES INCLUDE, BUT ARE NOT LIMITED TO, COST OF REMOVAL OR

REINSTALLATION, ANCILLARY COSTS TO THE PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES, RETESTING,

OUTSIDE COMPUTER TIME, LABOR COSTS, LOSS OF GOODWILL, LOSS OF PROFITS, LOSS OF SAVINGS, LOSS OF

USE, LOSS OF DATA, OR BUSINESS INTERRUPTION. NO CLAIM, SUIT OR ACTION SHALL BE BROUGHT AGAINST TI

MORE THAN TWELVE (12) MONTHS AFTER THE EVENT THAT GAVE RISE TO THE CAUSE OF ACTION HAS

OCCURRED.

8.2 Specific Limitations. IN NO EVENT SHALL TI'S AGGREGATE LIABILITY FROM ANY USE OF AN EVM PROVIDED

HEREUNDER, INCLUDING FROM ANY WARRANTY, INDEMITY OR OTHER OBLIGATION ARISING OUT OF OR IN

CONNECTION WITH THESE TERMS, , EXCEED THE TOTAL AMOUNT PAID TO TI BY USER FOR THE PARTICULAR

EVM(S) AT ISSUE DURING THE PRIOR TWELVE (12) MONTHS WITH RESPECT TO WHICH LOSSES OR DAMAGES ARE

CLAIMED. THE EXISTENCE OF MORE THAN ONE CLAIM SHALL NOT ENLARGE OR EXTEND THIS LIMIT.

9. Return Policy. Except as otherwise provided, TI does not offer any refunds, returns, or exchanges. Furthermore, no return of EVM(s)

will be accepted if the package has been opened and no return of the EVM(s) will be accepted if they are damaged or otherwise not in

a resalable condition. If User feels it has been incorrectly charged for the EVM(s) it ordered or that delivery violates the applicable

order, User should contact TI. All refunds will be made in full within thirty (30) working days from the return of the components(s),

excluding any postage or packaging costs.

10. Governing Law: These terms and conditions shall be governed by and interpreted in accordance with the laws of the State of Texas,

without reference to conflict-of-laws principles. User agrees that non-exclusive jurisdiction for any dispute arising out of or relating to

these terms and conditions lies within courts located in the State of Texas and consents to venue in Dallas County, Texas.

Notwithstanding the foregoing, any judgment may be enforced in any United States or foreign court, and TI may seek injunctive relief

in any United States or foreign court.

Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265

IMPORTANT NOTICE FOR TI DESIGN INFORMATION AND RESOURCES

Texas Instruments Incorporated (‘TI”) technical, application or other design advice, services or information, including, but not limited to,

reference designs and materials relating to evaluation modules, (collectively, “TI Resources”) are intended to assist designers who are

developing applications that incorporate TI products; by downloading, accessing or using any particular TI Resource in any way, you

(individually or, if you are acting on behalf of a company, your company) agree to use it solely for this purpose and subject to the terms of

this Notice.

TI’s provision of TI Resources does not expand or otherwise alter TI’s applicable published warranties or warranty disclaimers for TI

products, and no additional obligations or liabilities arise from TI providing such TI Resources. TI reserves the right to make corrections,

enhancements, improvements and other changes to its TI Resources.

You understand and agree that you remain responsible for using your independent analysis, evaluation and judgment in designing your

applications and that you have full and exclusive responsibility to assure the safety of your applications and compliance of your applications

(and of all TI products used in or for your applications) with all applicable regulations, laws and other applicable requirements. You

represent that, with respect to your applications, you have all the necessary expertise to create and implement safeguards that (1)

anticipate dangerous consequences of failures, (2) monitor failures and their consequences, and (3) lessen the likelihood of failures that

might cause harm and take appropriate actions. You agree that prior to using or distributing any applications that include TI products, you

will thoroughly test such applications and the functionality of such TI products as used in such applications. TI has not conducted any

testing other than that specifically described in the published documentation for a particular TI Resource.

You are authorized to use, copy and modify any individual TI Resource only in connection with the development of applications that include

the TI product(s) identified in such TI Resource. NO OTHER LICENSE, EXPRESS OR IMPLIED, BY ESTOPPEL OR OTHERWISE TO

ANY OTHER TI INTELLECTUAL PROPERTY RIGHT, AND NO LICENSE TO ANY TECHNOLOGY OR INTELLECTUAL PROPERTY

RIGHT OF TI OR ANY THIRD PARTY IS GRANTED HEREIN, including but not limited to any patent right, copyright, mask work right, or

other intellectual property right relating to any combination, machine, or process in which TI products or services are used. Information

regarding or referencing third-party products or services does not constitute a license to use such products or services, or a warranty or

endorsement thereof. Use of TI Resources may require a license from a third party under the patents or other intellectual property of the

third party, or a license from TI under the patents or other intellectual property of TI.

TI RESOURCES ARE PROVIDED “AS IS” AND WITH ALL FAULTS. TI DISCLAIMS ALL OTHER WARRANTIES OR

REPRESENTATIONS, EXPRESS OR IMPLIED, REGARDING TI RESOURCES OR USE THEREOF, INCLUDING BUT NOT LIMITED TO

ACCURACY OR COMPLETENESS, TITLE, ANY EPIDEMIC FAILURE WARRANTY AND ANY IMPLIED WARRANTIES OF

MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, AND NON-INFRINGEMENT OF ANY THIRD PARTY INTELLECTUAL

PROPERTY RIGHTS.

TI SHALL NOT BE LIABLE FOR AND SHALL NOT DEFEND OR INDEMNIFY YOU AGAINST ANY CLAIM, INCLUDING BUT NOT

LIMITED TO ANY INFRINGEMENT CLAIM THAT RELATES TO OR IS BASED ON ANY COMBINATION OF PRODUCTS EVEN IF

DESCRIBED IN TI RESOURCES OR OTHERWISE. IN NO EVENT SHALL TI BE LIABLE FOR ANY ACTUAL, DIRECT, SPECIAL,

COLLATERAL, INDIRECT, PUNITIVE, INCIDENTAL, CONSEQUENTIAL OR EXEMPLARY DAMAGES IN CONNECTION WITH OR

ARISING OUT OF TI RESOURCES OR USE THEREOF, AND REGARDLESS OF WHETHER TI HAS BEEN ADVISED OF THE

POSSIBILITY OF SUCH DAMAGES.

You agree to fully indemnify TI and its representatives against any damages, costs, losses, and/or liabilities arising out of your non-

compliance with the terms and provisions of this Notice.

This Notice applies to TI Resources. Additional terms apply to the use and purchase of certain types of materials, TI products and services.

These include; without limitation, TI’s standard terms for semiconductor products http://www.ti.com/sc/docs/stdterms.htm), evaluation

modules, and samples (http://www.ti.com/sc/docs/sampterms.htm).

Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265

Products related to this Datasheet

KIT EVAL/DEMO FOR ADS1278

ADS1278EVM-PDK

ADS1278EVM

EVALUATION MODULE FOR ADS1178

ADS1178EVM
