TS3DDR4000
SCDS356C –NOVEMBER 2014–REVISED MARCH 2019
TS3DDR4000 12-bits 1:2 high speed DDR2/DDR3/DDR4 switch/multiplexer
1
1 Features
1• Wide VDD Range: 2.375 V – 3.6 V
• High Bandwidth: 5.6 GHz Typical (single-ended);
6.0 GHz Typical (differential)
• Low Switch On-Resistance (RON): 8 ΩTypical
• Low Bit-to-Bit Skew: 3ps Typical; 6ps Max across
All Channels
• Low Crosstalk: –34 dB Typical at 1067 MHz
• Low Operating Current: 40 µA Typical
• Low-Power Mode with Low Current Consumption:
2 µA Typical
• IOFF Protection Prevents Current Leakage in
Powered Down State (VDD = 0 V)
• Supports POD_12, SSTL_12, SSTL_15 and
SSTL_18 Signaling
• ESD Performance:
– 3-kV Human Body Model (A114B, Class II)
– 1-kV Charged Device Model (C101)
• 8 mm x 3 mm 48-balls 0.65-mm Pitch ZBA
Package
2 Applications
• NVDIMM Modules
• Enterprise Data Systems and Servers
• Notebook/Desktop PCs
• General DDR3/DDR4 Signal Switching
• General High-Speed Signal Switching
3 Description
The TS3DDR4000 is 1:2 or 2:1 high speed
DDR2/DDR3/DDR4 switch that offers 12-bit wide bus
switching. The A port can be switched to the B or C
port for all bits simultaneously. Designed for operation
in DDR2, DDR3 and DDR4 memory bus systems, the
TS3DDR4000 uses a proprietary architecture that
delivers high bandwidth (single-ended –3dB
bandwidth at 5.6 GHz), low insertion loss at low
frequency, and very low propagation delay. The
TS3DDR4000 is 1.8 V logic compatible, and all
switches are bi-directional for added design flexibility.
The TS3DDR4000 also offers a low-power mode, in
which all channels become high-Z and the device
consumes minimal power.
Device Information(1)
PART NUMBER PACKAGE BODY SIZE (NOM)
TS3DDR4000 NFBGA (48) 8.00 mm x 3.00 mm
(1) For all available packages, see the orderable addendum at
the end of the datasheet.
Application Diagram
l TEXAS INSTRUMENTS
2
TS3DDR4000
SCDS356C –NOVEMBER 2014–REVISED MARCH 2019
www.ti.com
Product Folder Links: TS3DDR4000
Submit Documentation Feedback Copyright © 2014–2019, Texas Instruments Incorporated
Table of Contents
1 Features.................................................................. 1
2 Applications ........................................................... 1
3 Description ............................................................. 1
4 Revision History..................................................... 2
5 Pin Configuration and Functions......................... 3
6 Specifications......................................................... 4
6.1 Absolute Maximum Ratings ...................................... 4
6.2 ESD Ratings.............................................................. 4
6.3 Recommended Operating Conditions....................... 4
6.4 Thermal Information.................................................. 4
6.5 Static Electrical Characteristics................................. 5
6.6 Dynamic Electrical Characteristics............................ 6
6.7 Typical Characteristics.............................................. 7
7 Parameter Measurement Information .................. 9
8 Detailed Description............................................ 11
8.1 Overview ................................................................. 11
8.2 Functional Block Diagram....................................... 11
8.3 Feature Description................................................. 12
8.4 Device Functional Modes........................................ 12
9 Application and Implementation ........................ 13
9.1 Application Information............................................ 13
9.2 Typical Application ................................................. 13
10 Power Supply Recommendations ..................... 14
11 Layout................................................................... 15
11.1 Layout Guidelines ................................................. 15
11.2 Layout Example .................................................... 16
12 Device and Documentation Support ................. 17
12.1 Receiving Notification of Documentation Updates 17
12.2 Community Resources.......................................... 17
12.3 Trademarks........................................................... 17
12.4 Electrostatic Discharge Caution............................ 17
12.5 Glossary................................................................ 17
13 Mechanical, Packaging, and Orderable
Information ........................................................... 17
4 Revision History
Changes from Revision B (May 2017) to Revision C Page
• Changed the Pin Configuration image.................................................................................................................................... 3
• Changed VIH From: SEL1m and SEL2 To: SEL0 and SEL1 with a MIN value of 1 V in the Recommended Operating
Conditions............................................................................................................................................................................... 4
• Changed SEL1 To: SEL0 and SLE2 To: SEL1 in Figure 18................................................................................................ 11
• Changed text 'Standard layout technique for 0.5 mm pitch BGA package" To: "Standard layout technique for 0.65
mm pitch BGA package..." in the Layout Guidelines............................................................................................................ 15
Changes from Revision A (March 2015) to Revision B Page
• Changed VDD Max value From: 5.5 V toTo: 4.8 V in the Absolute Maximum Ratings........................................................... 4
• Added the Note to the Application and Implementation section........................................................................................... 13
Changes from Original (November 2014) to Revision A Page
• Updated document to full version. ......................................................................................................................................... 1
*5; TEXAS INSTRUMENTS \/ \l \l \/ \l \l \/ \/ \l \l \/ \l x /\ /\ 1x /\ /\ 1x /\ /\ /\ 1x /\ 1 1 1 1 1 1 1 1 1 1 1 1 /\ /\ /\ /\ /\ /\ /\ /\ /\ /\ /\ /\ \/ \l \l \l \/ \/ \l \/ \l \l \l \/ \ /\ /\ 1x /\ /\ 1x /\ /\ /\ 1x /\ 1 1 1 1 1 1 1 1 1 1 1 1 /\ /\ /\ /\ /\ /\ /\ /\ /\ /\ /\ /\ \/ \l \l \/ \/ \/ \/ \l \/ \ /\ 1 x /\ /\ 1 \ /\ 1 \ /\ , > \ , > > \ , , > \ , > /\ /\ /\ /\ /\ /\ /\ /\ /\ \/ \/ \/ \/ \/ \/ \/ \/ \/ \/ \/ \/ x < 1x="" 1x="" 1x="">< 1="" 1="" 1="" 1="" 1="" 1="" 1="" 1="" 1="" 1="" 1="" 1="" nu:="" m="" 543‘.="">
A0 SEL0 B0 C0
A1 GND B1 C1
A2 VDD B2 C2
A3 GND B3 C3
A4 GND B4 C4
A5 GND B5 C5
A6 VDD B6 C6
A7 EN B7 C7
A8 GND B8 C8
A9 VDD B9 C9
A10 GND B10 C10
A11 SEL1 B11 C11
1 2 3 4
A
B
C
D
E
F
G
H
J
K
L
M
Not to scale
3
TS3DDR4000
www.ti.com
SCDS356C –NOVEMBER 2014–REVISED MARCH 2019
Product Folder Links: TS3DDR4000
Submit Documentation FeedbackCopyright © 2014–2019, Texas Instruments Incorporated

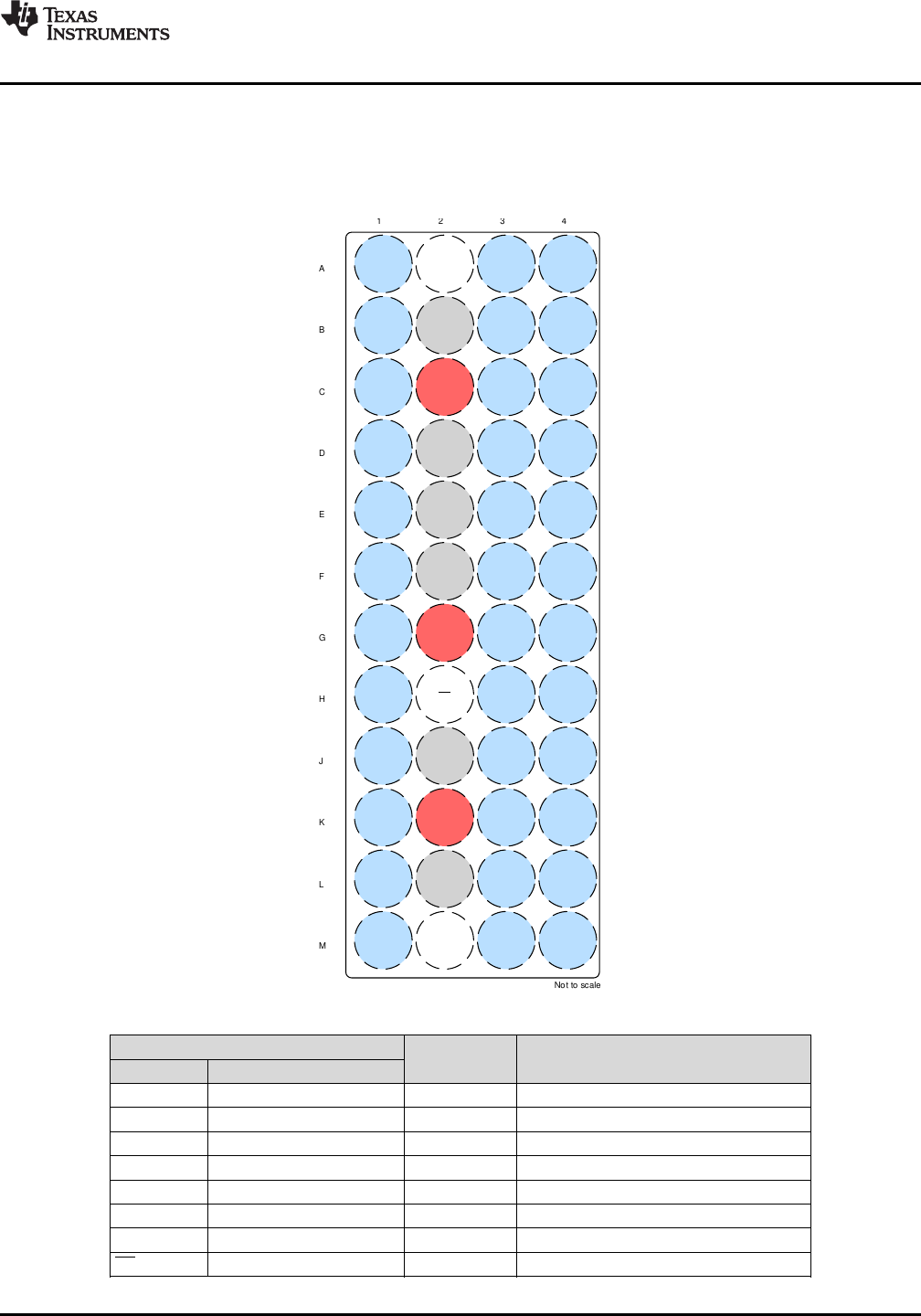

5 Pin Configuration and Functions
ZBA Package
48-Balls (NFBGA)
Top View
Pin Functions
PINS TYPE DESCRIPTION
NAME NO.
VDD C2, G2, K2 Power Power supply
GND B2, D2, E2, F2, J2, L2 Ground Ground
A0-A11 A1-M1 I/O Port A, signal 0-11
B0-B11 A3-M3 I/O Port B, signal 0-11
C0-C11 A4-M4 I/O Port C, signal 0-11
SEL0 A2 I Select control 0
SEL1 M2 I Select control 1
EN H2 I Enable
l TEXAS INSTRUMENTS
4
TS3DDR4000
SCDS356C –NOVEMBER 2014–REVISED MARCH 2019
www.ti.com
Product Folder Links: TS3DDR4000
Submit Documentation Feedback Copyright © 2014–2019, Texas Instruments Incorporated
(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings
only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended
Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
6 Specifications
6.1 Absolute Maximum Ratings
over operating free-air temperature range (unless otherwise noted) (1)
MIN MAX UNIT
VDD Voltage range on VDD -0.3 4.8 V
VIN Control input voltage range: SEL0, SEL1, and /EN -0.3 5.5 V
VI/O Analog voltage range: A0-A11, B0-B11, and C0-C11 -0.3 3.6 V
TAOperating ambient temperature range -40 85 °C
Tstg Storage temperature range -65 125 °C
(1) Tested in accordance with JEDEC Standard 22, Test Method C101
(2) Tested in accordance with JEDEC Standard 22, Test Method A114
6.2 ESD Ratings
VALUE UNIT
V(ESD) Electrostatic
discharge
Charge device model (CDM)(1) ±1000 V
Human body model (HBM) on all pins(2) ±3000 V
6.3 Recommended Operating Conditions
over operating free-air temperature range (unless otherwise noted)
MIN MAX UNIT
VDD Voltage range on VDD 2.375 3.6 V
VI/O Analog voltage range: A0-A11, B0-B11, and C0-C11 0 3.3 V
VIH High-level control input voltage threshold (EN) 1.4 VDD V
High-level control input voltage threshold (SEL0 and SEL1) 1 VDD V
VIL Low-level control input voltage threshold (EN, SEL0 and SEL1) 0 0.5 V
TAOperating ambient temperature range -40 85 °C
(1) For more information about traditional and new thermal metrics, see the IC Package Thermal Metrics application report .
6.4 Thermal Information
THERMAL METRIC(1) TS3DDR4000 UNIT
BGA (48)
RθJA Junction-to-ambient thermal resistance 92.6
°C/W
RθJC(top) Junction-to-case (top) thermal resistance 33.4
RθJB Junction-to-board thermal resistance 56.2
ψJT Junction-to-top characterization parameter 1.3
ψJB Junction-to-board characterization parameter 54.9
l TEXAS INSTRUMENTS
5
TS3DDR4000
www.ti.com
SCDS356C –NOVEMBER 2014–REVISED MARCH 2019
Product Folder Links: TS3DDR4000
Submit Documentation FeedbackCopyright © 2014–2019, Texas Instruments Incorporated
6.5 Static Electrical Characteristics
Unless otherwise noted the specification applies over the VDD range and operation junction temp of –40°C ≤TJ≤85°C.
Typical values are for VDD = 3.3 V and TJ= 25°C.
PARAMETER TEST CONDITION MIN TYP MAX UNIT
RON On-state resistance Port A to B VDD = 2.375 V, VI/O = 1.2 V,
II/O = 10 mA
– 8.3 11.2 Ω
Port A to C – 8.3 11.2 Ω
RON
(FLAT)
On-state resistance flatness for all
I/Os
Port A to B VDD = 2.375 V, VI/O = 1.2 V, II/O = 10 mA – 0.6 – Ω
Port A to C – 0.6 – Ω
∆RON On-state resistance match between
channels
Port A to B VDD = 2.375 V, VI/O = 1.2 V, II/O = 10 mA – 0.2 1.0 Ω
Port A to C – 0.2 1.0 Ω
IIH Control input high leakage current
EN VDD = 3.6 V, V/EN = 1.4 V – – ±1 µA
VDD = 2.375 V, V/EN = 3.3 V – – ±1 µA
SEL1 VDD = 3.6 V, VSEL1 = 1.4 V – – ±1 µA
VDD = 2.375 V, VSEL1 = 3.3 V – – ±1 µA
SEL2 VDD = 3.6 V, VSEL2 = 1.4 V – – ±1 µA
VDD = 2.375 V, VSEL2 = 3.3 V – – ±1 µA
IIL Control input low leakage current
EN VDD = 3.6 V, V/EN = 0 V – – ±0.5 µA
SEL1 VDD = 3.6 V, VSEL1 = 0 V – – ±0.5 µA
SEL2 VDD = 3.6 V, VSEL2 = 0 V – – ±0.5 µA
IOFF Leakage under power off condition for
all I/Os
EN VDD = 0 V, V/EN = 0 V, VI/O = 0 V to 3.3 V – – ±5 µA
VDD = 0 V, V//EN = 3.6 V, VI/O = 0 V to 3.3 V – – ±5 µA
SEL1 VDD = 0 V, VSEL1 = 0 V, VI/O = 0 V to 3.3 V – – ±5 µA
VDD = 0 V, VSEL1 = 3.6 V, VI/O = 0 V to 3.3 V – – ±5 µA
SEL2 VDD = 0 V, VSEL2 = 0 V, VI/O = 0 V to 3.3 V – – ±5 µA
VDD = 0 V, VSEL2 = 3.6 V, VI/O = 0 V to 3.3 V – – ±5 µA
IDD VDD supply current
VDD = 3.6 V, II/O = 0 A, /EN = 0 V, VSEL1 = VSEL2= 0
V– 28 35 µA
VDD = 3.6 V, II/O = 0 A, /EN = 0 V, VSEL1 = VSEL2=
1.8 V – 40 48 µA
VDD = 3.6 V, II/O = 0 A, /EN = 0 V, VSEL1 = 0 V,
VSEL2= 1.8 V – 40 44 µA
VDD = 3.6 V,II/O = 0 A, /EN = 0 V, VSEL1 = 1.8 V,
VSEL2= 0 V – 40 44 µA
IDD, PD VDD supply current in power-down mode VDD = 3.6 V, II/O = 0 A, /EN = 1.8 V – 2 5 µA
l TEXAS INSTRUMENTS
6
TS3DDR4000
SCDS356C –NOVEMBER 2014–REVISED MARCH 2019
www.ti.com
Product Folder Links: TS3DDR4000
Submit Documentation Feedback Copyright © 2014–2019, Texas Instruments Incorporated
(1) Verified by design.
6.6 Dynamic Electrical Characteristics
over operating free-air temperature range (unless otherwise noted)
PARAMETER TEST CONDITION MIN TYP MAX UNIT
tON Switch turn-on time
EN to B VDD = 2.375 V, RL= 50 Ω, VAn = 3.3 V, V/EN
= 1.8 V→0 V, VSEL1 = VSEL2 = 0 V
(See Figure 12)– 65 140 µs
EN to C VDD = 2.375 V, RL= 50 Ω, VAn = 3.3 V, V/EN
= 1.8 V→0 V, VSEL1 = VSEL2 = 1.8 V
(See Figure 12)– 65 140 µs
tSWITCH Switching time between channels for
all I/Os SEL to B VDD = 2.375 V, V/EN = 0 V, RL= 50 Ω, VAn =
3.3 V,
(See Figure 13)– 65 – ns
SEL to C VDD = 2.375 V, V/EN = 0 V, RL= 50 Ω, VAn =
3.3 V,
(See Figure 13)– 50 – ns
tPD Propagation delay
Port A to B VDD = 2.375 V,
(See Figure 14)– 85 – ps
Port A to C VDD = 2.375 V,
(See Figure 14)– 85 – ps
tSKEW(1) Singe-ended skew between channels B0 to B11 VDD = 2.375 V, from any output to any other
output
– 3 8 ps
C0 to C11 – 3 6 ps
CIN Control input capacitance EN f = 1 MHz, VIN= 0 V – 6 – pF
SEL1 f = 1 MHz, VIN= 0 V – 6 – pF
SEL2 f = 1 MHz, VIN= 0 V – 6 – pF
COFF Switch off capacitance Port A to B f = 1067 MHz, VI/O = 0 V, VSEL1 = VSEL2 =
1.8V – 0.5 – pF
Port A to C f = 1067 MHz, VI/O = 0 V, VSEL1 = VSEL2 = 0
V– 0.5 – pF
CON Switch on capacitance Port A to B f = 1067 MHz, VI/O = 1.2 V, VSEL1 = VSEL2=
0V – 1.0 – pF
Port A to C f = 1067 MHz, VI/O= 1.2 V, VSEL1 = VSEL2 =
1.8V – 1.0 – pF
XTALK Crosstalk between channels B0 to B11 f = 1067 MHz, VSEL1 = VSEL2 = 0 V, RL= 50
Ω– -34 – dB
C0 to C11 f = 1067 MHz, VSEL1 = VSEL2 = 1.8 V, RL= 50
Ω– -31 – dB
OISO Off-isolation Port A to B f = 1067 MHz, VSEL1 = VSEL2 = 1.8 V, RL= 50
Ω– -21 – dB
Port A to C f = 1067 MHz, VSEL1 = VSEL2 = 0 V, RL= 50
Ω– -21 – dB
ILInsertion loss (channel on) Port A to B f = DC, RL= 50 Ω– -0.75 -1 dB
Port A to C f = DC, RL= 50 Ω– -0.75 -1 dB
BWSE -3 dB bandwidth (Single-ended) Port A to B RL= 50 Ω– 5.6 – GHz
Port A to C – 5.6 –
BWDIFF -3 dB bandwidth (Differential) Port A to B RL= 100 Ω–6–GHz
Port A to C – 6 –
l TEXAS INSTRUMENTS
Frequency (Hz)
Gain (dB)
-90
-80
-70
-60
-50
-40
-30
-20
-10
0
1M 10M 100M 1G 10G
D005
Frequency (Hz)
Gain (dB)
-90
-80
-70
-60
-50
-40
-30
-20
-10
0
1M 10M 100M 1G 10G
D006
Frequency (Hz)
Gain (dB)
-10
-9
-8
-7
-6
-5
-4
-3
-2
-1
0
1M 10M 100M 1G 10G
D003
Frequency (Hz)
Gain (dB)
-10
-9
-8
-7
-6
-5
-4
-3
-2
-1
0
1M 10M 100M 1G 10G
D004
Frequency (Hz)
Gain (dB)
-10
-9
-8
-7
-6
-5
-4
-3
-2
-1
0
1M 10M 100M 1G 10G
D002
7
TS3DDR4000
www.ti.com
SCDS356C –NOVEMBER 2014–REVISED MARCH 2019
Product Folder Links: TS3DDR4000
Submit Documentation FeedbackCopyright © 2014–2019, Texas Instruments Incorporated
6.7 Typical Characteristics
Figure 1. Single-Ended S21 vs Frequency for Port B Figure 2. Single-Ended S21 vs Frequency for Port C
Figure 3. Differential S21 vs Frequence for Port B Figure 4. Differential S21 vs Frequence for Port C
Figure 5. Crosstalk vs Frequency for Port B Figure 6. Crosstalk vs Frequency for Port C
l TEXAS INSTRUMENTS u M mm 210%» on man”
Frequency (Hz)
Gain (dB)
-100
-90
-80
-70
-60
-50
-40
-30
-20
-10
0
1M 10M 100M 1G 10G
D007
Frequency (Hz)
Gain (dB)
-100
-90
-80
-70
-60
-50
-40
-30
-20
-10
0
1M 10M 100M 1G 10G
D008
8
TS3DDR4000
SCDS356C –NOVEMBER 2014–REVISED MARCH 2019
www.ti.com
Product Folder Links: TS3DDR4000
Submit Documentation Feedback Copyright © 2014–2019, Texas Instruments Incorporated
Typical Characteristics (continued)
Figure 7. Off-Isolation vs Frequency for Port B Figure 8. Off-Isolation vs Frequency for Port C
Figure 9. Eye Diagram (6 Gbps Data Rate): Through Path
Without Device Figure 10. Eye Diagram (6 Gbps Data Rate): Port A to Port B
Through TS3DDR4000
Figure 11. Eye Diagram (6 Gbps Data Rate): Port A to Port C Through TS3DDR4000
l TEXAS INSTRUMENTS T _ W: Rf“: m gJ— :: +4 F J tPD tFLH IPLH
VDD
GND
Network Analyzer
VS
RS
RT
VOUT
RT
RT
RT
NC
Control
Input
SEL
Channel ON
SEL = H or L
RS=RT=50Ÿ
VS= -10dBm (200mV at 50Ÿ/RDG)
VDC_BIAS = 0.6V
tPLH
Input
Output
tPLH
50% 50%
50% 50%
VOH
VOL
3V
0
tPD= (tPLH+tPLH)/2
+
Port B
Port C
Port A
CLRL
CLRL
VDD
SEL1/
SEL2
Control
Input
tON
SEL1/
SEL2
Switch
Output
VOH
VOL
VDD
0
50%
50%
RL= 50Ÿ
VPORTA= VDD
+
Port B
Port C
Port A
CLRL
CLRL
VDD
/EN
Control
Input
tON
/EN
Switch
Output
VOH
VOL
VDD
0
50%
50%
RL= 50Ÿ
VPORTA= VDD
9
TS3DDR4000
www.ti.com
SCDS356C –NOVEMBER 2014–REVISED MARCH 2019
Product Folder Links: TS3DDR4000
Submit Documentation FeedbackCopyright © 2014–2019, Texas Instruments Incorporated
7 Parameter Measurement Information
Figure 12. Switch Turn-on Time (tON) Measurement Figure 13. Switch Switching Time (tSWITCH)
Measurement
Figure 14. Propagation Delay (tPD) Measurement Figure 15. Crosstalk Measurement
*9 TEXAS INSTRUMENTS aaaaaaa uuuuuuu
VOUT
VDD
GND
Network Analyzer
VS
RS
RT
RT
SEL
Control
Input Channel OFF
SEL = H or L
RS=RT=50Ÿ
VS= -10dBm (200mV at 50Ÿ/RDG)
VDC_BIAS = 0.6V
VOUT+
VDD
GND
Network Analyzer
VS
RS
RT
RT
Control
Input Channel ON
SEL = H or L
RS=RT=50Ÿ
VS= -10dBm (200mV at 50Ÿ/RDG)
VDC_BIAS = 0.6V
SEL
10
TS3DDR4000
SCDS356C –NOVEMBER 2014–REVISED MARCH 2019
www.ti.com
Product Folder Links: TS3DDR4000
Submit Documentation Feedback Copyright © 2014–2019, Texas Instruments Incorporated
Parameter Measurement Information (continued)
Figure 16. Off Isolation Measurement Figure 17. Bandwidth Measurement
‘5‘ TEXAS INSTRUMENTS 0 EEE: :25;
A0
SEL0
Control Logic
SEL1
A1
A2
A3
A4
A5
A6
A7
B0
B1
B2
B3
B4
B5
B6
B7
C0
C1
C2
C3
C4
C5
C6
C7
EN
B8
B9
B10
B11
C8
C9
C10
C11
A8
A9
A10
A11
11
TS3DDR4000
www.ti.com
SCDS356C –NOVEMBER 2014–REVISED MARCH 2019
Product Folder Links: TS3DDR4000
Submit Documentation FeedbackCopyright © 2014–2019, Texas Instruments Incorporated
8 Detailed Description
8.1 Overview
The TS3DDR4000 is 1:2 or 2:1 high speed DDR2/DDR3/DDR4 switch that offers 12-bit wide bus switching. The
A port can be routed to the B or C port for all bits simultaneously. Designed for operation in DDR2, DDR3 and
DDR4 memory bus systems that support POD_12, SSTL_12, SSTL_135, SSTL_15, or SSTL_18 signaling, the
TS3DDR4000 uses a proprietary architecture that delivers high bandwidth (differential -3dB bandwidth of up to 6
GHz), and very low propagation delay and skew across all channels. The TS3DDR4000 is 1.8 V logic
compatible, and all switches are bi-directional for added design flexibility. The TS3DDR4000 also offers a low-
power mode, in which all channels become high-Z and the device operates with minimal power.
8.2 Functional Block Diagram
The following diagram (Figure 18) represents the switch function block diagram of the TS3DDR4000. Port A (A0-
A11) can be routed to either port B (B0-B11) or port C (C0-C11) by configuring the SEL0 and SEL1 pins. The EN
pin can be toggled high to put the device into the low-power mode with minimal power consumption.
Figure 18. TS3DDR4000 Switch Function Block Diagram
l TEXAS INSTRUMENTS
12
TS3DDR4000
SCDS356C –NOVEMBER 2014–REVISED MARCH 2019
www.ti.com
Product Folder Links: TS3DDR4000
Submit Documentation Feedback Copyright © 2014–2019, Texas Instruments Incorporated
8.3 Feature Description
• IOFF Protection: When no power is provided to the device (VCC = 0 V), the TS3DDR4000 prevents any I/O
signals from back-powering the device. The leakage current is tightly controlled under such condition (refer to
the IOFF in the Specifications section) so it does not cause any system issues.
• Low-power mode: The EN pin can be driven high to make the TS3DDR4000 enter the low-power mode.
When in low power mode, all channels are isolated and the device consumes less than 5 µA of current.
8.4 Device Functional Modes
When EN pin is driven high, the TS3DDR4000 enters into the power-down mode, in which all channels are
isolated and the device consumes less than 5 µA of current. When EN pin is driven low, the A port is routed to
either B port or C port depending on the configuration of SEL0 and SEL1 signals. The B and C port can also be
partially turned on when SEL0 and SEL1 are not both high or both low. Refer to Table 1 for the control logic
details.
Table 1. Logic Control Table
CONTROL PINS FUNCTION
EN SEL0 SEL1
H X X Power –down mode. All channels off (isolated)
LLLPort A to port B ON
Port A to port C OFF (isolated)
L L H
A [0,1,4,5,8,9] ↔B [0,1,4,5,8,9]
A [2,3,6,7,10,11] ↔C [2,3,6,7,10,11]
All other channels OFF (isolated)
L H L
A [2,3,6,7,10,11] ↔B [2,3,6,7,10,11]
A [0,1,4,5,8,9] ↔C [0,1,4,5,8,9]
All other channels OFF (isolated)
L H H Port A to port B OFF (isolated)
Port A to port C ON
‘5‘ TEXAS INSTRUMENTS
TS3DDR4000
NVDIMM Controller
NAND Flash
DRAM
Battery/
Supercapacitor
Termination
Resistor
NVDIMM Module
Register
& PLL
DDR bus
during power
failure
Memory
Controller
JEDEC standard DIMM Socket
Power-good signal
DDR bus
Control
13
TS3DDR4000
www.ti.com
SCDS356C –NOVEMBER 2014–REVISED MARCH 2019
Product Folder Links: TS3DDR4000
Submit Documentation FeedbackCopyright © 2014–2019, Texas Instruments Incorporated
9 Application and Implementation
NOTE
Information in the following applications sections is not part of the TI component
specification, and TI does not warrant its accuracy or completeness. TI’s customers are
responsible for determining suitability of components for their purposes. Customers should
validate and test their design implementation to confirm system functionality.
9.1 Application Information
The TS3DDR4000 is a high-speed switch targeted for DDR memory applications that require 1:2 or 2:1
switching. The following sections describe two application scenarios that are widely used. In addition to memory
applications, the TS3DDR4000 can also be used for generic high-speed switching that requires high bandwidth
and minimal signal degradation.
9.2 Typical Application
9.2.1 Non-Volatile Dual In-line Memory Module (NVDIMM) application
Figure 19. TS3DDR4000 Used In NVDIMM Application
9.2.1.1 Design Requirements
The TS3DDR4000 can be used in the NVDIMM application to provide server systems reliable data backups
when the system encounters power-failure conditions. Figure 19 depicts a typical NVDIMM design utilizing the
TS3DDR4000.
In normal system operation, the TS3DDR4000 routes the DDR signals between the system and the DRAM for
normal data access. When the system encounters power failure, the charge stored in the battery or the super
capacitor is used to power the NVDIMM controller, which configures the TS3DDR4000 to save the data from
DRAM into the NAND Flash. The NAND Flash is non-volatile in nature, so the data stored internally stays intact
even when the power goes away eventually. When the system power comes back on, the NVDIMM controller
can re-route the data from the NAND Flash through the TS3DDR4000 back into the DRAM and can
subsequently re-start the normal system operation.
l TEXAS INSTRUMENTS
TS3DDR4000
PCIe, Fiber
Channel, or iSCSI
Flash Memory
Bank #1
Flash Memory
Bank #2
Flash
Controller
SSD Controller
SSTL
signaling
SSTL
signaling
SSTL
signaling
Processor
Buffer
Control
14
TS3DDR4000
SCDS356C –NOVEMBER 2014–REVISED MARCH 2019
www.ti.com
Product Folder Links: TS3DDR4000
Submit Documentation Feedback Copyright © 2014–2019, Texas Instruments Incorporated
Typical Application (continued)
9.2.1.2 Detailed Design Procedure
The battery or the super capacitor needs to be designed to have enough capacity to maintain the power long
enough for the backup procedure to be completed. At a backup speed of 128 MB/sec, it takes about 10 seconds
per 1 GB to either backup or restore the data. Typically a super capacitor is preferred for its longer life of
operation. The super capacitor is usually a separate module and is connected to the NVDIMM via a cable.
NVDIMMs require support from the system motherboard. When plugged in, the BIOS must recognize the
NVDIMMs. Manufacturers who control the BIOS and MRC (memory reference code) can make the necessary
code changes to implement NVDIMMs into their servers.
9.2.2 Load Isolation Application
Figure 20. TS3DDR4000 Used In Load Isolation Application
9.2.2.1 Design Requirements
In recent years, the size of Solid-State-Drives (SSDs) has increased rapidly, making it necessary to increase the
number of flash memory devices in each drive. The flash memory devices sometimes share the same control
and data channel to communicate with the controller. This causes increased loading to each communication
channel as the number of flash memory devices increases. To meet the performance requirement of an SSD, the
ability to isolate the loading becomes necessary.
9.2.2.2 Detailed Design Procedure
As depicted in Figure 20, the TS3DDR4000 can be used for load isolation purpose. Flash memory bank #1 and
#2 can share the same communication channel to the flash controller without increasing the loading to each
other. While the TS3DDR4000 is enabled for one channel, the other channel is fully isolated. The off-isolation
specification is about –21 dB at 1067 MHz, as described in the Specifications section.
10 Power Supply Recommendations
VDD should be in the range of 2.375 V to 3.6 V. A 0.1 µF or higher decoupling capacitors placed as closed to the
BGA pad as possible is recommended. There are no power sequence requirements for the TS3DDR4000.
l TEXAS INSTRUMENTS
Solder mask Copper pad Solder mask
PCB PCB
Solder Mask Defined
(SMD) Pads
Non-Solder Mask Defined
(NSMD) Pads
15
TS3DDR4000
www.ti.com
SCDS356C –NOVEMBER 2014–REVISED MARCH 2019
Product Folder Links: TS3DDR4000
Submit Documentation FeedbackCopyright © 2014–2019, Texas Instruments Incorporated
11 Layout
11.1 Layout Guidelines
Standard layout technique for 0.65 mm pitch BGA package shall be employed. The following commonly-used
printed-circuit-board (PCB) layout guidelines are recommended:
• Use Non-Solder-Mask-Defined (NSMD), rather than Solder-Mask-Defined (SMD) pads for the BGA solder
balls to adhere if possible. For most applications, the NSMD pads provide more flexibility, fewer stress.

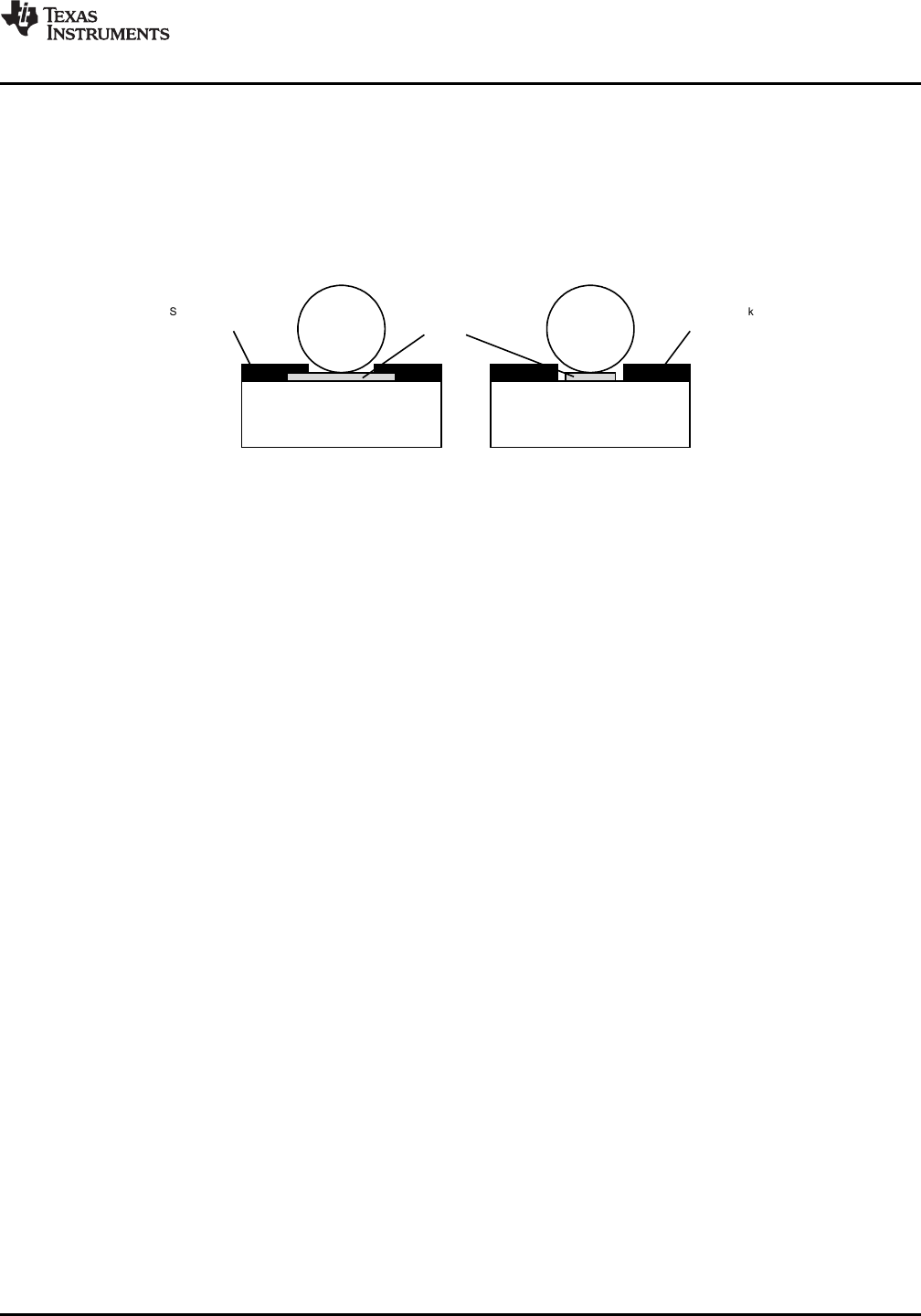

Figure 21. Solder-Mask-Defined (SMD) and Non-Solder-Mask-Defined (NSMD) Pads
• One trace can generally be routed between two solder pads of a 0.65 mm pitch BGA. This allows the outer
two rows of solder pads to be routed on the same top/bottom layer. The TS3DDR4000 has 4 rows, and thus
no VIAs is generally required to route all the inner balls out.
• Generally high-speed signal layout guidelines:
– To minimize the effects of crosstalk on adjacent traces, keep the traces at least two times the trace width
apart.
– Separate high-speed signals from low-speed signals and digital from analog signals.
– Avoid right-angle bends in a trace and try to route them at least with two 45° corners.
– The high-speed differential signal traces should be routed parallel to each other as much as possible. The
traces are recommended to be symmetrical.
– A solid ground plane should be placed next to the high-speed signal layer. This also provides an excellent
low-inductance path for the return current flow.
l TEXAS INSTRUMENTS
A0
A1
A2
A3
A4
A5
A6
A7
A8
A9
A10
A11
SEL0
GND
VDD
GND
GND
GND
VDD
EN
GND
VDD
GND
SEL1
B0
B1
B2
B3
B4
B5
B6
B7
B8
B9
B10
B11
C0
C1
C2
C3
C4
C5
C6
C7
C8
C9
C10
C11
Port A
Port C
Port B
To VDD Plane
To GND Plane
Controller
To VDD Plane
To GND Plane
Top Layer
Bottom Layer
Decoupling
capacitor
Decoupling
capacitor
16
TS3DDR4000
SCDS356C –NOVEMBER 2014–REVISED MARCH 2019
www.ti.com
Product Folder Links: TS3DDR4000
Submit Documentation Feedback Copyright © 2014–2019, Texas Instruments Incorporated
11.2 Layout Example
Figure 22. TS3DDR4000 Layout Example
l TEXAS INSTRUMENTS
17
TS3DDR4000
www.ti.com
SCDS356C –NOVEMBER 2014–REVISED MARCH 2019
Product Folder Links: TS3DDR4000
Submit Documentation FeedbackCopyright © 2014–2019, Texas Instruments Incorporated
12 Device and Documentation Support
12.1 Receiving Notification of Documentation Updates
To receive notification of documentation updates, navigate to the device product folder on ti.com. In the upper
right corner, click on Alert me to register and receive a weekly digest of any product information that has
changed. For change details, review the revision history included in any revised document.
12.2 Community Resources
The following links connect to TI community resources. Linked contents are provided "AS IS" by the respective
contributors. They do not constitute TI specifications and do not necessarily reflect TI's views; see TI's Terms of
Use.
TI E2E™ Online Community TI's Engineer-to-Engineer (E2E) Community. Created to foster collaboration
among engineers. At e2e.ti.com, you can ask questions, share knowledge, explore ideas and help
solve problems with fellow engineers.
Design Support TI's Design Support Quickly find helpful E2E forums along with design support tools and
contact information for technical support.
12.3 Trademarks
E2E is a trademark of Texas Instruments.
All other trademarks are the property of their respective owners.
12.4 Electrostatic Discharge Caution
These devices have limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam
during storage or handling to prevent electrostatic damage to the MOS gates.
12.5 Glossary
SLYZ022 —TI Glossary.
This glossary lists and explains terms, acronyms, and definitions.
13 Mechanical, Packaging, and Orderable Information
The following pages include mechanical, packaging, and orderable information. This information is the most
current data available for the designated devices. This data is subject to change without notice and revision of
this document. For browser-based versions of this data sheet, refer to the left-hand navigation.
I TEXAS INSTRUMENTS Samples
PACKAGE OPTION ADDENDUM
www.ti.com 10-Dec-2020
Addendum-Page 1
PACKAGING INFORMATION
Orderable Device Status
(1)
Package Type Package
Drawing Pins Package
Qty Eco Plan
(2)
Lead finish/
Ball material
(6)
MSL Peak Temp
(3)
Op Temp (°C) Device Marking
(4/5)
Samples
TS3DDR4000ZBAR ACTIVE NFBGA ZBA 48 3000 RoHS & Green SNAGCU Level-3-260C-168 HR -40 to 85 DDR4000
(1) The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
(2) RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance
do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may
reference these types of products as "Pb-Free".
RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption.
Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of <=1000ppm threshold. Antimony trioxide based
flame retardants must also meet the <=1000ppm threshold requirement.
(3) MSL, Peak Temp. - The Moisture Sensitivity Level rating according to the JEDEC industry standard classifications, and peak solder temperature.
(4) There may be additional marking, which relates to the logo, the lot trace code information, or the environmental category on the device.
(5) Multiple Device Markings will be inside parentheses. Only one Device Marking contained in parentheses and separated by a "~" will appear on a device. If a line is indented then it is a continuation
of the previous line and the two combined represent the entire Device Marking for that device.
(6) Lead finish/Ball material - Orderable Devices may have multiple material finish options. Finish options are separated by a vertical ruled line. Lead finish/Ball material values may wrap to two
lines if the finish value exceeds the maximum column width.
Important Information and Disclaimer:The information provided on this page represents TI's knowledge and belief as of the date that it is provided. TI bases its knowledge and belief on information
provided by third parties, and makes no representation or warranty as to the accuracy of such information. Efforts are underway to better integrate information from third parties. TI has taken and
continues to take reasonable steps to provide representative and accurate information but may not have conducted destructive testing or chemical analysis on incoming materials and chemicals.
TI and TI suppliers consider certain information to be proprietary, and thus CAS numbers and other limited information may not be available for release.
In no event shall TI's liability arising out of such information exceed the total purchase price of the TI part(s) at issue in this document sold by TI to Customer on an annual basis.
I TEXAS INSTRUMENTS REEL DIMENSIONS TAPE DIMENSIONS 7 “KO '«PT» Reel Diame|er AD Dimension des‘gned to accommodate the componem wwdlh E0 Dimension damned to eccemmodam the component \ength KO Dimenslun desgned to accommodate the componem thickness 7 w Overen with loe earner cape i p1 Pitch between successwe cavuy eemers f T Reel Width (W1) QUADRANT ASSIGNMENTS FOR PIN 1 ORIENTATION IN TAPE O O O D O O D O Sprockemoles ,,,,,,,,,,, ‘ User Direcllon 0' Feed Pocket Quadrams
TAPE AND REEL INFORMATION
*All dimensions are nominal
Device Package
Type Package
Drawing Pins SPQ Reel
Diameter
(mm)
Reel
Width
W1 (mm)
A0
(mm) B0
(mm) K0
(mm) P1
(mm) W
(mm) Pin1
Quadrant
TS3DDR4000ZBAR NFBGA ZBA 48 3000 330.0 16.4 3.4 8.4 1.65 8.0 16.0 Q1
PACKAGE MATERIALS INFORMATION
www.ti.com 4-Feb-2019
Pack Materials-Page 1
I TEXAS INSTRUMENTS TAPE AND REEL BOX DIMENSIONS
*All dimensions are nominal
Device Package Type Package Drawing Pins SPQ Length (mm) Width (mm) Height (mm)
TS3DDR4000ZBAR NFBGA ZBA 48 3000 336.6 336.6 31.8
PACKAGE MATERIALS INFORMATION
www.ti.com 4-Feb-2019
Pack Materials-Page 2
A 8 4 0 0 A B Z 4.1+) 74 a QTY
www.ti.com

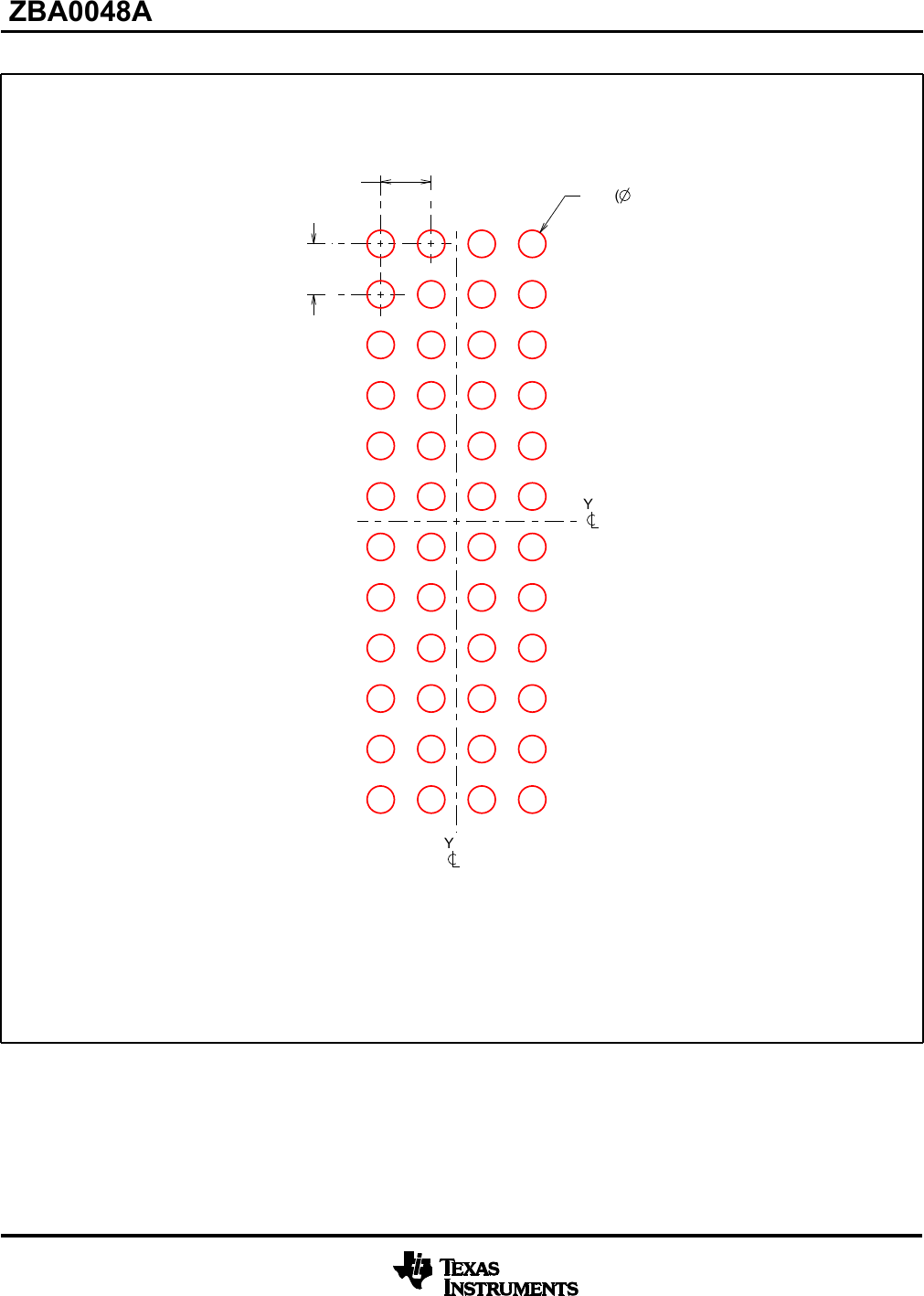

PACKAGE OUTLINE
C
1.2 MAX
TYP
0.24
0.19
7.15
TYP
1.95 TYP
0.65 TYP
0.65 TYP
48X 0.4
0.3
A3.1
2.9 B
8.1
7.9
(0.53) TYP
(0.43) TYP
NFBGA - 1.2 mm max heightZBA0048A
BALL GRID ARRAY
4221524/A 07/2014
NOTES:
1. All linear dimensions are in millimeters. Any dimensions in parenthesis are for reference only. Dimensioning and tolerancing
per ASME Y14.5M.
2. This drawing is subject to change without notice.
3. Dimension is measured at the maximum solder ball diameter, parallel to primary datum C.
4. Primary datum C and seating plane are defined by the spherical crowns of the solder balls.
BALL A1
CORNER
SEATING PLANE
BALL TYP 0.1
NOTE 4
A
B
C
D
E
F
G
H
J
K
L
M
1
2
3
0.15 C A B
0.08 C
SYMM
SYMM
4
NOTE 3
SCALE 2.200
ZBA0048A i 000000600000 000000600000 ' F
www.ti.com
EXAMPLE BOARD LAYOUT
48X ( )0.35 (0.65) TYP
(0.65) TYP
()
METAL
0.35 0.05 MAX
SOLDER MASK
OPENING
METAL
UNDER MASK
()
SOLDER MASK
OPENING
0.35
0.05 MIN
NFBGA - 1.2 mm max heightZBA0048A
BALL GRID ARRAY
4221524/A 07/2014
NOTES: (continued)
5. Final dimensions may vary due to manufacturing tolerance considerations and also routing constraints.
For more information, see Texas Instruments Literature number SPRAA99 (www.ti.com/lit/spraa99).
SYMM
SYMM
LAND PATTERN EXAMPLE
SCALE:10X
1234
M
L
K
J
H
G
F
E
D
C
B
A
NON-SOLDER MASK
DEFINED
(PREFERRED)
SOLDER MASK DETAILS
NOT TO SCALE
SOLDER MASK
DEFINED
ZBA0048A ,,,,,+7,7,7,
www.ti.com
EXAMPLE STENCIL DESIGN
(0.65)
TYP
(0.65) TYP
48X ( )0.35
NFBGA - 1.2 mm max heightZBA0048A
BALL GRID ARRAY
4221524/A 07/2014
NOTES: (continued)
6. Laser cutting apertures with trapezoidal walls and rounded corners may offer better paste release.
SYMM
SYMM
SOLDER PASTE EXAMPLE
BASED ON 0.125 mm THICK STENCIL
SCALE:15X
1234
M
L
K
J
H
G
F
E
D
C
B
A
IMPORTANT NOTICE AND DISCLAIMER
TI PROVIDES TECHNICAL AND RELIABILITY DATA (INCLUDING DATASHEETS), DESIGN RESOURCES (INCLUDING REFERENCE
DESIGNS), APPLICATION OR OTHER DESIGN ADVICE, WEB TOOLS, SAFETY INFORMATION, AND OTHER RESOURCES “AS IS”
AND WITH ALL FAULTS, AND DISCLAIMS ALL WARRANTIES, EXPRESS AND IMPLIED, INCLUDING WITHOUT LIMITATION ANY
IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT OF THIRD
PARTY INTELLECTUAL PROPERTY RIGHTS.
These resources are intended for skilled developers designing with TI products. You are solely responsible for (1) selecting the appropriate
TI products for your application, (2) designing, validating and testing your application, and (3) ensuring your application meets applicable
standards, and any other safety, security, or other requirements. These resources are subject to change without notice. TI grants you
permission to use these resources only for development of an application that uses the TI products described in the resource. Other
reproduction and display of these resources is prohibited. No license is granted to any other TI intellectual property right or to any third
party intellectual property right. TI disclaims responsibility for, and you will fully indemnify TI and its representatives against, any claims,
damages, costs, losses, and liabilities arising out of your use of these resources.
TI’s products are provided subject to TI’s Terms of Sale (www.ti.com/legal/termsofsale.html) or other applicable terms available either on
ti.com or provided in conjunction with such TI products. TI’s provision of these resources does not expand or otherwise alter TI’s applicable
warranties or warranty disclaimers for TI products.
Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265
Copyright © 2020, Texas Instruments Incorporated
