Memory FRAM
64 K (8 K × 8) Bit I2C
MB85RC64A
■DESCRIPTION
The MB85RC64A is an FRAM (Ferroelectric Random Access Memory) chip in a configuration of 8,192
words × 8 bits, using the ferroelectric process and silicon gate CMOS process technologies for forming the
nonvolatile memory cells.
Unlike SRAM, the MB85RC64A is able to retain data without using a data backup battery.
The read/write endurance of the nonvolatile memory cells used for the MB85RC64A has improved to be at
least 1012 cycles, significantly outperforming Flash memory and E2PROM in the number.
The MB85RC64A does not need a polling sequence after writing to the memory such as the case of Flash
memory or E2PROM.
■FEATURES
• Bit configuration : 8,192 words × 8 bits
• Two-wire serial interface : Fully controllable by two ports: serial clock (SCL) and serial data (SDA).
• Operating frequency : 1 MHz (Max)
• Read/write endurance : 1012 times / byte
• Data retention : 10 years ( + 85 °C), 95 years ( + 55 °C), over 200 years ( + 35 °C)
• Operating power supply voltage : 2.7 V to 3.6 V
• Low power consumption : Operating power supply current 250 μA (Typ @1 MHz)
Standby current 5 μA (Typ)
• Operation ambient temperature range : − 40 °C to + 85 °C
• Package : 8-pin plastic SOP (FPT-8P-M02)
RoHS compliant
DS501-00019-2v0-E
_H__H__H__H_ _|__I__I__I_ FUJITSU
MB85RC64A
2DS501-00019-2v0-E
■PIN ASSIGNMENT
■PIN FUNCTIONAL DESCRIPTIONS
Pin
Number Pin Name Functional Description
1 to 3 A0 to A2
Device Address pins
The MB85RC64A can be connected to the same data bus up to 8 devices.
Device addresses are used in order to identify each of these devices. Connect
these pins to VDD pin or VSS pin externally. Only if the combination of VDD and
VSS pins matches a Device Address Code inputted from the SDA pin, the
device operates. In the open pin state, A0, A1, and A2 pins are internally pulled-
down and recognized as the “L” level.
4 VSS Ground pin
5SDA
Serial Data I/O pin
This is an I/O pin which performs bidirectional communication for both memory
address and writing/reading data. It is possible to connect multiple devices. It is
an open drain output, so a pull-up resistor is required to be connected to the ex-
ternal circuit.
6SCL
Serial Clock pin
This is a clock input pin for input/output timing serial data. Data is sampled on
the rising edge of the clock and output on the falling edge.
7WP
Write Protect pin
When the Write Protect pin is the “H” level, the writing operation is disabled.
When the Write Protect pin is the “L” level, the entire memory region can be
overwritten. The reading operation is always enabled regardless of the Write
Protect pin input level. The write protect pin is internally pulled down to VSS pin,
and that is recognized as the “L” level (write enabled) when the pin is the open
state.
8 VDD Supply Voltage pin
VSS SDA
A1
VDD
SCL
A2
A0
WP
8
7
6
54
3
2
1
(TOP VIEW)
(FPT-8P-M02)
MB85RC64A
DS501-00019-2v0-E 3
■BLOCK DIAGRAM
■I2C (Inter-Integrated Circuit)
The MB85RC64A has the two-wire serial interface; the I2C bus,and operates as a slave device.
The I2C bus defines communication roles of “master” and “slave” devices, with the master side holding the
authority to initiate control. Furthermore, an I2C bus connection is possible where a single master device is
connected to multiple slave devices in a party-line configuration. In this case, it is necessary to assign a
unique device address to the slave device, the master side starts communication after specifying the slave
to communicate by addresses.
• I2C Interface System Configuration Example
WP
A0, A1, A2
SDA
SCL
Row Decoder
Address Counter
FRAM Array
8,192 × 8
Serial/Parallel Converter
Column Decoder/Sense Amp/
Write Amp
Control Logic
SCL
SDA
A2 A1 A0
000
A2 A1 A0
001
A2 A1 A0
010
...
I2C Bus
Master I2C Bus
MB85RC64A I2C Bus
MB85RC64A I2C Bus
MB85RC64A
Pull-up
Resistors
Device address
VDD
FUJITSU
MB85RC64A
4DS501-00019-2v0-E
■I2C COMMUNICATION PROTOCOL
The I2C bus is a two wire serial interface that uses a bidirectional data bus (SDA) and serial clock (SCL). A
data transfer can only be initiated by the master, which will also provide the serial clock for synchronization.
The SDA signal should change while SCL is the “L” level. However, as an exception, when starting and
stopping communication sequence, SDA is allowed to change while SCL is the “H” level.
• Start Condition
To start read or write operations by the I2C bus, change the SDA input from the “H” level to the “L” level while
the SCL input is in the “H” level.
• Stop Condition
To stop the I2C bus communication, change the SDA input from the “L” level to the “H” level while the SCL
input is in the “H” level. In the reading operation, inputting the stop condition finishes reading and enters the
standby state. In the writing operation, inputting the stop condition finishes inputting the rewrite data and
enters the standby state.
• Start Condition, Stop Condition
Note : At the write operation, the FRAM device does not need the programming wait time (tWC) after issuing the
Stop Condition.
SCL
SDA
Start Stop
“H” or “L”
§\/\/\/’ /\/\/ a FUJITSU
MB85RC64A
DS501-00019-2v0-E 5
■ACKNOWLEDGE (ACK)
In the I2C bus, serial data including address or memory information is sent in units of 8 bits. The acknowledge
signal indicates that every 8 bits of the data is successfully sent and received. The receiver side usually
outputs the “L” level every time on the 9th SCL clock after each 8 bits are successfully transmitted and
received. On the transmitter side, the bus is temporarily released to Hi-Z every time on this 9th clock to allow
the acknowledge signal to be received and checked. During this Hi-Z-released period, the receiver side pulls
the SDA line down to indicate the “L” level that the previous 8 bits communication is successfully received.
In case the slave side receives Stop condition before sending or receiving the ACK “L” level, the slave side
stops the operation and enters to the standby state. On the other hand, the slave side releases the bus state
after sending or receiving the NACK “H” level. The master side generates Stop condition or Start condition
in this released bus state.
• Acknowledge timing overview diagram
SCL 123 89
SDA
Start
ACK
The transmitter side should always release SDA on the
9th bit. At this time, the receiver side outputs a pull-down if
the previous 8 bits data are received correctly (ACK re-
sponse).
MUHHXM IZIIZI |:l|:l 5) FUJITSU
MB85RC64A
6DS501-00019-2v0-E
■DEVICE ADDRESS WORD (Slave address)
Following the start condition, the master sends the 8 bits device address word to start I2C communication.
The device address word (8 bits) consists of a device Type code (4 bits), device address code (3 bits), and
a read/write code (1 bit).
• Device Type Code (4 bits)
The upper 4 bits of the device address word are a device type code that identifies the device type, and are
fixed at “1010” for the MB85RC64A.
• Device Address Code (3 bits)
Following the device type code, the 3 bits of the device address code are input in order of A2, A1, and A0.
The device address code identifies one device from up to eight devices connected to the bus.
Each MB85RC64A is given a unique 3 bits code on the device address pin (external hardware pin A2, A1,
and A0). The slave only responds if the received device address code is equal to this unique 3 bits code.
• Read/Write Code (1 bit)
The 8th bit of the device address word is the R/W (read/write) code. When the R/W code is “0”, a write
operation is enabled, and the R/W code is “1”, a read operation is enabled for the MB85RC64A.
It turns to a stand-by state if the device code is not “1010” or device address code does not equal to pins
A2, A1, and A0.
• Device Address Word
..
..
Start
ACK (SDA is the "L" level)
12345678912
SCL
SDA ACK
Start Condition
Device Code Device Address Code Read/Write Code
A
S
S1010
A2 A1 A0 R/WA
Access from master
Access from slave
Fu'j‘l’Tsu
MB85RC64A
DS501-00019-2v0-E 7
■DATA STRUCTURE
In the I2C bus, the acknowledge “L” level is output on the 9th bit by a slave, after the 8 bits of the device
address word following the start condition are input by a master. After confirming the acknowledge response
by the master, the master outputs 8bits × 2 memory address to the slave. When the each memory address
input ends, the slave again outputs the acknowledge “L” level. After this operation, the I/O data follows in
units of 8 bits, with the acknowledge “L” level output after every 8 bits.
It is determined by the R/W code whether the data line is driven by the master or the slave. However, the
clock line shall be driven by the master. For a write operation, the slave will accept 8 bits from the master,
then send an acknowledge. If the master detects the acknowledge, the master will transfer the next 8 bits.
For a read operation, the slave will place 8 bits on the data line, then wait for an acknowledge from the master.
■FRAM ACKNOWLEDGE -- POLLING NOT REQUIRED
The MB85RC64A performs write operations at the same speed as read operations, so any waiting time for
an ACK polling* does not occur. The write cycle takes no additional time.
*: In E2PROM, the Acknowledge Polling is performed as a progress check whether rewriting is executed or not.
It is normal to judge by the 9th bit of Acknowledge whether rewriting is performed or not after inputting the
start condition and then the device address word (8 bits) during rewriting.
■WRITE PROTECT (WP)
The entire memory array can be write protected using the Write Protect pin. When the Write Protect pin is
set to the “H” level, the entire memory array will be write protected. When the Write Protect pin is the “L”
level, entire memory array will be rewritten. Reading is allowed regardless of the WP pin's “H” level or “L” level.
Note : The Write Protect pin is pulled down internally to VSS pin, therefore if the Write Protect pin is open, the
pin status is detected as the “L” level (write enabled).
_l11111|11111111 EDD |:||:l X\ EDD |:||:l 5) FUJITSU
MB85RC64A
8DS501-00019-2v0-E
■COMMAND
• Byte Write
If the device address word (R/W “0” input ) is sent following the start condition, the slave responds with an
ACK. After this ACK, write addresses and data are sent in the same way, and the write ends by generating
a stop condition at the end.
Note : In the MB85RC64A, input “000” as the upper 3 bits of the MSB.
• Page Write
If additional 8 bits are continuously sent after the same command (except stop condition) as Byte Write, a
page write is performed. The memory address rolls over to first memory address (0000H) at the end of the
address. Therefore, if more than 8 Kbytes are sent, the data is overwritten in order starting from the start of
the memory address that was written first. Because FRAM performs the high-speed write operations, the
data will be written to FRAM right after the ACK response finished.
Note : It is not necessary to take a period for internal write operation cycles from the buffer to the memory after
the stop condition is generated.
LSB
Start Condition
Stop Condition
ACK (SDA is the "L" level)A
S
P
MSB
000XXXXX XXXXXXXX
SA2 A1 A0 A A A A P
Address
High 8bits Address
Low 8bits Write
Data 8bits
01010
Access from master
Access from slave
Start Condition
Stop Condition
ACK (SDA is the "L" level)A
S
P
SA2 A1 A0 A A A A A P
Address
High 8bits Address
Low 8bits Write
Data 8bits Write
Data
...
01010
Access from master
Access from slave
_H__H_ DEED DDDDDD FUJITSU
MB85RC64A
DS501-00019-2v0-E 9
• Current Address Read
When the previous write or read operation finishes successfully up to the stop condition and assumes the
last accessed address is “n”, then the address at “n+1” is read by sending the following command unless
turning the power off. If the memory address is last address, the address counter will roll over to 0000H. The
current address in memory address buffer is undefined immediately after the power is turned on.
• Random Read
The one byte of data from the memory address saved in the memory address buffer can be read out
synchronously to SCL by specifying the address in the same way as for a write, and then issuing another
start condition and sending the Device Address Word (R/W “1” input).
The final NACK is issued by the receiver that receives the data. In this case, this bit is issued by the master
side.
Start Condition
Stop Condition
ACK(SDA is the "L" level)A
S
P
NACK (SDA is the "H" level)
N
SA2 A1 A0 A NP
Read
Data 8bits
(n+1) address
11010
Access from master
Access from slave
Start Condition
Stop Condition
ACK (SDA is the "L" level)A
S
P
NACK (SDA is the "H" level)
N
SA2 A1 A0 A A A P
Address
High 8bits Address
Low 8bits
01010 SA2 A1 A0 A11010 Read
Data 8bits N
Access from master
Access from slave
DD EDD FUJITSU
MB85RC64A
10 DS501-00019-2v0-E
• Sequential Read
Data can be received continuously following the Device address word (R/W “1” input) after specifying the
address in the same way as for Random Read. If the read reaches the end of address, the internal read
address automatically rolls over to first memory address 0000H and keeps reading.
■SOFTWARE RESET SEQUENCE OR COMMAND RETRY
In case the malfunction has occurred after power on, the master side stopped the I2C communication during
processing, or unexpected malfunction has occurred, execute the following (1) software recovery sequence
just before each command, or (2) retry command just after failure of each command.
(1) Software Reset Sequence
Since the slave side may be outputting “L” level, do not force to drive “H” level, when the master side drives
the SDA port. This is for preventing a bus conflict. The additional hardware is not necessary for this software
reset sequence.
(2) Command Retry
Command retry is useful to recover from failure response during I2C communication.
Stop Condition
ACK (SDA is the "L" level)A
P
NACK (SDA is the "H" level)
N
AA ANP
Read
Data 8bits Read
Data 8bits
Read
Data
......
Access from master
Access from slave
SCL
SDA

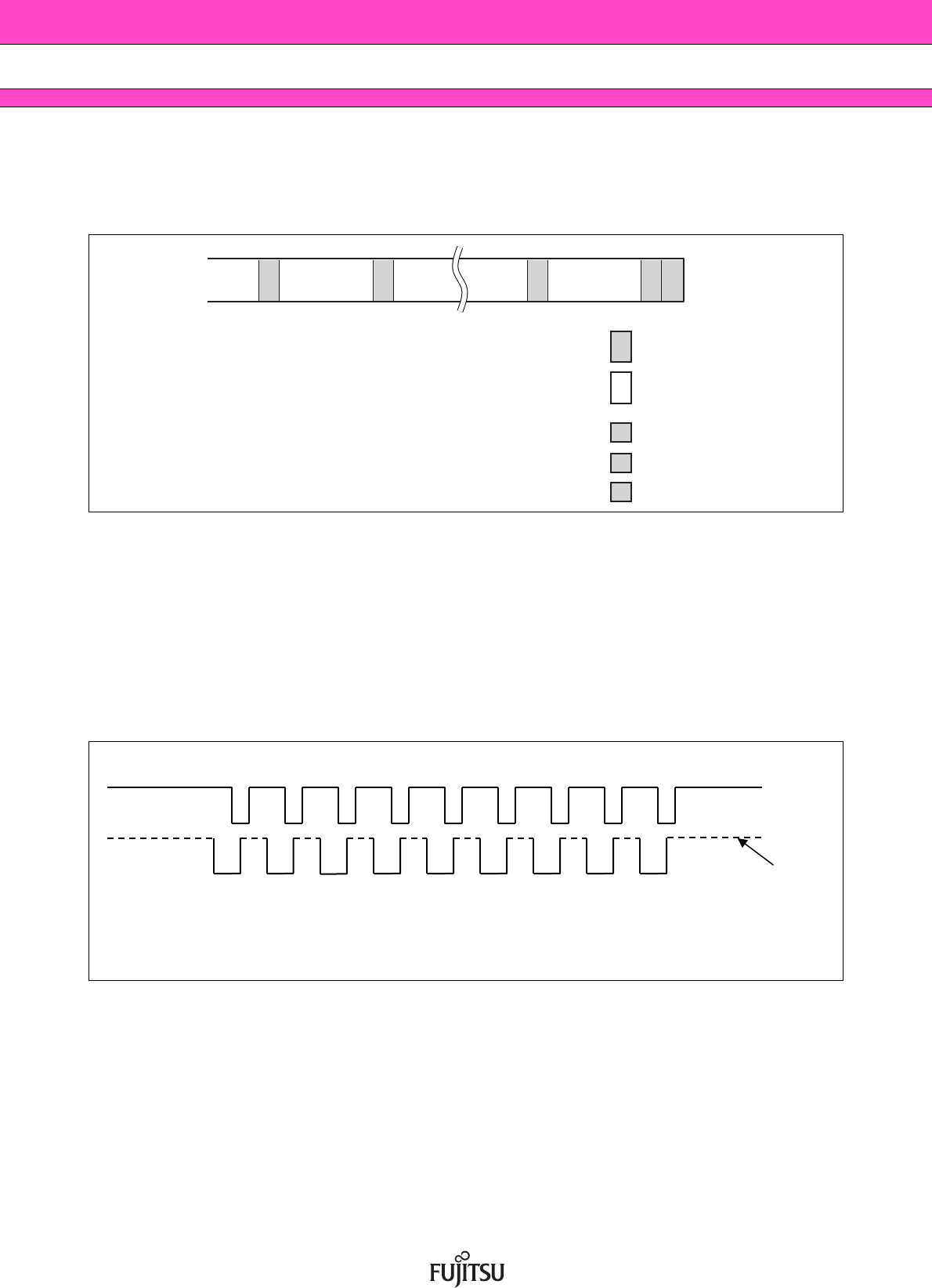

9 set of “Start Conditions and one “1” data”
Send “Start Condition and one data “1”” .
Repeat these 9 times just before Write or Read command.
Hi-Z state by pull up Resistor
5) FUJITSU
MB85RC64A
DS501-00019-2v0-E 11
■ABSOLUTE MAXIMUM RATINGS
*: These parameters are based on the condition that VSS is 0 V.
WARNING: Semiconductor devices can be permanently damaged by application of stress (voltage, current,
temperature, etc.) in excess of absolute maximum ratings. Do not exceed these ratings.
■RECOMMENDED OPERATING CONDITIONS
*: These parameters are based on the condition that VSS is 0 V.
WARNING: The recommended operating conditions are required in order to ensure the normal operation of
the semiconductor device. All of the device's electrical characteristics are warranted when the
device is operated within these ranges.
Always use semiconductor devices within their recommended operating condition ranges.
Operation outside these ranges may adversely affect reliability and could result in device failure.
No warranty is made with respect to uses, operating conditions, or combinations not represented
on the data sheet. Users considering application outside the listed conditions are advised to contact
their representatives beforehand.
Parameter Symbol Rating Unit
Min Max
Power supply voltage* VDD − 0.5 +4.0 V
Input voltage* VIN − 0.5 VDD + 0.5 ( ≤ 4.0) V
Output voltage* VOUT − 0.5 VDD + 0.5 ( ≤ 4.0) V
Operation ambient temperature TA − 40 + 85 °C
Storage temperature Tstg − 55 + 125 °C
Parameter Symbol Value Unit
Min Typ Max
Power supply voltage* VDD 2.7 3.3 3.6 V
“H” level input voltage* VIH VDD × 0.8 ⎯VDD + 0.5
( ≤ 4.0) V
“L” level input voltage* VIL − 0.5 ⎯ + 0.6 V
Operation ambient temperature TA − 40 ⎯ + 85 °C
5) FUJITSU
MB85RC64A
12 DS501-00019-2v0-E
■ELECTRICAL CHARACTERISTICS
1. DC Characteristics (within recommended operating conditions)
2. AC Characteristics
AC characteristics were measured under the following measurement conditions.
Power supply voltage : 2.7 V to 3.6 V
Operation ambient temperature : − 40 °C to + 85 °C
Input voltage magnitude : 0.3 V to 2.7 V
Input rising time : 5 ns
Input falling time : 5 ns
Input judge level : VDD/2
Output judge level : VDD/2
Parameter Symbol Condition Value Unit
Min Typ Max
Input leakage current |ILI|SCL, SDA = 0 V to VDD ⎯⎯ 1μA
Output leakage current |ILO|SDA = 0 V to VDD ⎯⎯ 1μA
Operating power supply current IDD SCL = 1 MHz ⎯250 375 μA
Standby current ISB SCL, SDA = VDD
A0, A1, A2, WP = 0 V or VDD ⎯520μA
“L” level output voltage VOL IOL = 3 mA ⎯⎯0.4 V
Input resistance for
WP, A0, A1 and A2 RIN VIN = VIL (Max) 50 ⎯⎯kΩ
VIN = VIH (Min) 1 ⎯⎯MΩ
Parameter Symbol
Value
UnitStandard Mode Fast Mode Fast Mode Plus
MinMaxMinMaxMinMax
SCL clock frequency FSCL 0 100 0 400 0 1000 kHz
Clock high time THIGH 4000 ⎯600 ⎯400 ⎯ns
Clock low time TLOW 4700 ⎯1300 ⎯600 ⎯ns
SCL/SDA rising time Tr⎯1000 ⎯300 ⎯300 ns
SCL/SDA falling time Tf⎯300 ⎯300 ⎯100 ns
Start condition hold THD:STA 4000 ⎯600 ⎯250 ⎯ns
Start condition setup TSU:STA 4700 ⎯600 ⎯250 ⎯ns
SDA input hold THD:DAT 0⎯0⎯0⎯ns
SDA input setup TSU:DAT 250 ⎯100 ⎯100 ⎯ns
SDA output hold TDH:DAT 0⎯0⎯0⎯ns
Stop condition setup TSU:STO 4000 ⎯600 ⎯250 ⎯ns
SDA output access after SCL falling TAA ⎯3000 ⎯900 ⎯550 ns
Pre-charge time TBUF 4700 - 1300 - 500 ⎯ns
Noise suppression time
(SCL and SDA) TSP ⎯50 ⎯50 ⎯50 ns
XMW} { W W“? X % X
MB85RC64A
DS501-00019-2v0-E 13
3. AC Timing Definitions
4. Pin Capacitance
5. AC Test Load Circuit
Parameter Symbol Conditions Value Unit
Min Typ Min
I/O capacitance CI/O VDD = VIN = VOUT = 0 V,
f = 1 MHz, TA = + 25 °C
⎯⎯15 pF
Input capacitance CIN ⎯⎯15 pF
Start
Start
Stop
Stop
Valid
SCL
SDA
SCL
SDA
SCL
SDA
VIH
VIL
VIH
VIL
VIH
VIL
VIH
VIL
VIH
VIL
VIH
VIL
VIH
VIL
VIH
VIL
VIH
VIL
VIH
VIL
VIH
VIL
VIH
VIL
VIH
VIL
VIH
VIL
VIH
VIH VIH
TSU:DAT
TSU:STA THD:STA
THIGH TLOW
TDH:DAT
1/FSCL
TSU:STO
THD:DAT
VIH
VIH
VIH
VIL
VIL
VIL
VIL
VIL
VIL
VIL VIL
TBUF
Tf
Tr
Tf
Tr
TAA Tsp
3.3 V
100 pF
Output
1.1 kΩ
5) FUJITSU
MB85RC64A
14 DS501-00019-2v0-E
■POWER ON/OFF SEQUENCE
If VDD falls down below 2.0V, VDD is required to be started from 0V to prevent malfunctions when the power
is turned on again.
If the device does not operate within the specified conditions of read cycle, write cycle or power on/off
sequence, memory data can not be guaranteed.
■FRAM CHARACTERISTICS
*1 : Total number of reading and writing defines the minimum value of endurance, as an FRAM memory operates
with destructive readout mechanism.
*2 : Minimun values define retention time of the first reading/writing data right after shipment, and these values
are calculated by qualification results.
■NOTE ON USE
• Data written before performing IR reflow is not guaranteed after IR reflow.
• During the access period from the start condition to the stop condition, keep the level of WP, A0, A1, and
A2 pins to the “H” level or the “L” level.
Parameter Symbol Value Unit
Min Max
SDA, SCL level hold time during power down tpd 85 ⎯ ns
SDA, SCL level hold time during power up tpu 85 ⎯ ns
Power supply rising time tr 10 ⎯μs
Item Min Max Unit Parameter
Read/Write Endurance*11012 ⎯Times/byte Operation Ambient Temperature TA = + 85 °C
Data Retention*2
10 ⎯
Years
Operation Ambient Temperature TA = + 85 °C
95 ⎯Operation Ambient Temperature TA = + 55 °C
≥ 200 ⎯Operation Ambient Temperature TA = + 35 °C
0 V
SDA, SCL >VDD × 0.8 *SDA, SCL >VDD × 0.8 *
tpd tputr
VIL (Max)
1.0 V
VIH (Min)
2.7 V
VDD
SDA, SCL : Don't care
SDA, SCL SDA, SCL
0 V
VIL (Max)
1.0 V
VIH (Min)
2.7 V
VDD
* : SDA, SCL (Max) < VDD + 0.5 V
5) FUJITSU
MB85RC64A
DS501-00019-2v0-E 15
■ESD AND LATCH-UP
• Current method of Latch-Up Resistance Test
Note : The voltage VIN is increased gradually and the current IIN of 300 mA at maximum shall flow. Confirm the
latch up does not occur under IIN = ± 300 mA.
In case the specific requirement is specified for I/O and IIN cannot be 300 mA, the voltage shall be
increased to the level that meets the specific requirement.
Test DUT Value
ESD HBM (Human Body Model)
JESD22-A114 compliant
MB85RC64APNF-G-JNE1
≥ |2000 V|
ESD MM (Machine Model)
JESD22-A115 compliant ≥ |200 V|
ESD CDM (Charged Device Model)
JESD22-C101 compliant ⎯
Latch-Up (I-test)
JESD78 compliant ⎯
Latch-Up (Vsupply overvoltage test)
JESD78 compliant ⎯
Latch-Up (Current Method)
Proprietary method ⎯
Latch-Up (C-V Method)
Proprietary method ⎯
A
VDD
VSS
DUT
V
I
IN
V
IN
+
-
Test terminal
Protection Resistance
VDD
(Max.Rating)
Reference
terminal
law 5) FUJITSU
MB85RC64A
16 DS501-00019-2v0-E
• C-V method of Latch-Up Resistance Test
Note Charge voltage alternately switching 1 and 2 approximately 2 sec interval. This switching process is
considered as one cycle.
Repeat this process 5 times. However, if the latch-up condition occurs before completing 5 times, this
test must be stopped immediately.
VDD
VSS
DUT
V
IN
+
-
SW
12
C
200pF
V
A
Test
terminal
Protection Resistance
VDD
(Max.Rating)
Reference
terminal
5) FUJITSU
MB85RC64A
DS501-00019-2v0-E 17
■REFLOW CONDITIONS AND FLOOR LIFE

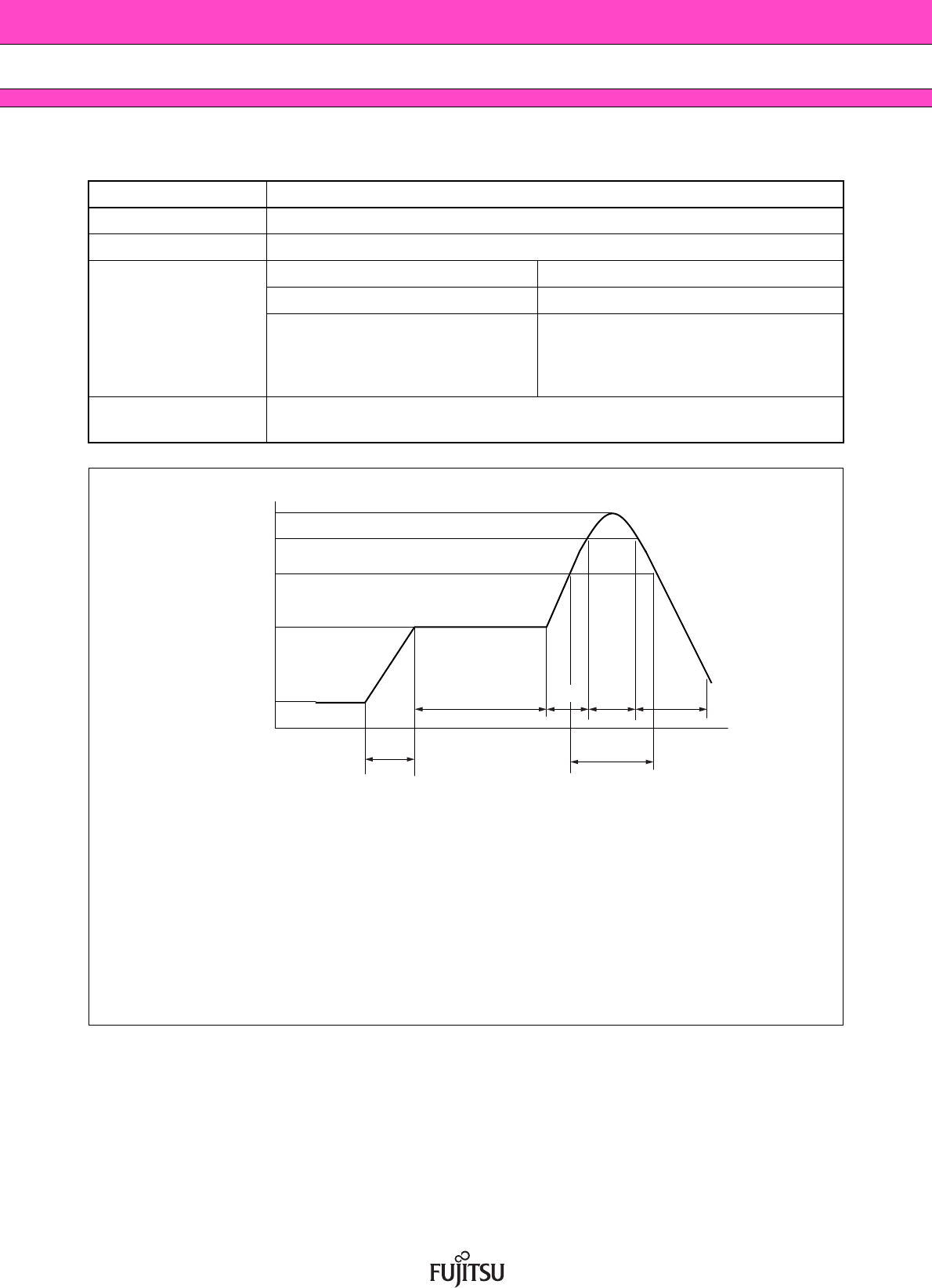

Reflow Profile
Item Condition
Method IR (infrared reflow) , Convection
Times 2
Floor life
Before unpacking Please use within 2 years after production.
From unpacking to 2nd reflow Within 8 days
In case over period of floor life
Baking with 125 °C+/-3 °C for
24hrs+2hrs/-0hrs is required.
Then please use within 8 days.
(Please remember baking is up to 2 times)
Floor life condition Between 5 °C and 30 °C and also below 70%RH required.
(It is preferred lower humidity in the required temp range.)
260°C
(e)
(d')
(d)
255°C
170 °C
190 °C
RT (b)
(a)
(c)
to
Note : Temperature on the top of the package body is measured.
(a) Average ramp-up rate : 1 °C/s to 4 °C/s
(b) Preheat & Soak : 170 °C to 190 °C, 60 s to 180 s
(c) Average ramp-up rate : 1 °C/s to 4 °C/s
(d) Peak temperature : Temperature 260 °C Max; 255 °C within 10 s
(d’) Liquidous temperature : Up to 230 °C within 40 s or
Up to 225 °C within 60 s or
Up to 220 °C within 80 s
(e) Cooling : Natural cooling or forced cooling
Liquidous
Temperature
\Uj‘ffi U; myws Méflfiwf 5) FUJITSU
MB85RC64A
18 DS501-00019-2v0-E
■RESTRICTED SUBSTANCES
This product complies with the regulations below (Based on current knowledge as of November 2011).
• EU RoHS Directive (2002/95/EC)
• China RoHS (Administration on the Control of Pollution Caused by Electronic Information Products
( ))
• Vietnam RoHS (30/2011/TT-BCT)
Restricted substances in each regulation are as follows.
* : The mark of “❍” shows below a threshold value.
Substances Threshold Contain status*
Lead and its compounds 1,000 ppm ❍
Mercury and its compounds 1,000 ppm ❍
Cadmium and its compounds 100 ppm ❍
Hexavalent chromium compound 1,000 ppm ❍
Polybrominated biphenyls (PBB) 1,000 ppm ❍
Polybrominated diphenyl ethers (PBDE) 1,000 ppm ❍
5) FUJITSU
MB85RC64A
DS501-00019-2v0-E 19
■ORDERING INFORMATION
Part number Package Shipping form Minimum shipping
quantity
MB85RC64APNF-G-JNE1 8-pin, plastic SOP
(FPT-8P-M02) Tube 1
MB85RC64APNF-G-JNERE1 8-pin, plastic SOP
(FPT-8P-M02) Embossed Carrier tape 1500
‘99 1 MR? FUJITSU
MB85RC64A
20 DS501-00019-2v0-E
■PACKAGE DIMENSION
Please check the latest package dimension at the following URL.
http://edevice.fujitsu.com/package/en-search/
8-pin plastic SOP Lead pitch 1.27 mm
Package width ×
package length 3.9 mm × 5.05 mm
Lead shape Gullwing
Sealing method Plastic mold
Mounting height 1.75 mm MAX
Weight 0.06 g
8-pin plastic SOP
(FPT-8P-M02)
(
FPT-8P-M02
)
C
1.27(.050)
3.90±0.30 6.00±0.20
.199 –.008
+.010
–0.20
+0.25
5.05
0.13(.005)
M
(.154±.012) (.236±.008)
0.10(.004)
14
58
0.44±0.08
(.017±.003)
–0.07
+0.03
0.22
.009 +.001
–.003
45
°
0.40(.016)
"A" 0~8
°
0.25(.010)
(Mounting height)
Details of "A" part
1.55±0.20
(.061±.008)
0.50±0.20
(.020±.008)
0.60±0.15
(.024±.006)
0.15±0.10
(.006±.004)
(Stand off)
0.10(.004)
*
1
*
2
2002-2012 FUJITSU SEMICONDUCTOR LIMITED F08004S-c-5-10
Dimensions in mm (inches).
Note: The values in parentheses are reference values.
Note 1) 1 : These dimensions include resin protrusion.
Note 2) 2 : These dimensions do not include resin protrusion.
Note 3) Pins width and pins thickness include plating thickness.
Note 4) Pins width do not include tie bar cutting remainder.
*
*
5) FUJITSU
MB85RC64A
DS501-00019-2v0-E 21
■MARKING
RC64A
E11000
300
[MB85RC64APNF-G-JNE1]
[MB85RC64APNF-G-JNERE1]
[FPT-8P-M02]
5) FUJITSU
MB85RC64A
22 DS501-00019-2v0-E
■PACKING INFORMATION
1. Tube
1.1 Tube Dimensions
• Tube/stopper shape
Tube cross-sections and Maximum quantity
Package form Package code
Maximum quantity
pcs/
tube pcs/inner
box pcs/outer
box
SOP, 8, plastic (2)
t = 0.5
Transparent polyethylene terephthalate
FPT-8P-M02 95 7600 30400
(Dimensions in mm)
(treated to antistatic)
Tube length: 520 mm
(treated to antistatic)
Stopper
Tube
Transparent polyethylene terephthalate
4.4
6.4
7.4
1.8
C2006 FUJITSU LIMITED F08008-SET1-PET:FJ99L-0022-E0008-1-K-1
2.6
©2006-2010 FUJITSU SEMICONDUCTOR LIMITED
F08008-SET1-PET:FJ99L-0022-E0008-1-K-3
5) FUJITSU
MB85RC64A
DS501-00019-2v0-E 23
1.2 Tube Dry pack packing specifications
*1: For a product of witch part number is suffixed with “E1”, a “ ” marks is display to the moisture barrier
bag and the inner boxes.
*2: The space in the outer box will be filled with empty inner boxes, or cushions, etc.
*3: Please refer to an attached sheet about the indication label.
Note: The packing specifications may not be applied when the product is delivered via a distributer.
Tube
Dry pack
Inner box
Outer box
For SOP
Stopper
Aluminum Iaminated bag
Index mark
Desiccant
Label I
*1*3
Heat seal
Aluminum Iaminated bag
(tubes inside)
Cushioning material
Inner box
Label I
*1*3
Cushioning material
Humidity indicater
Outer box
*2
Label II-A
*3
Label II-B
*3
IC
Use adhesive tapes.
GPb
® 4* \IIH HI‘ INIHIHI IHIIHHIHI \IIH HI‘ INIHIHI IHIIHHIHI \IIH HI‘ INIHIHI IHIIHHIHI .7 ‘7 \IIH HI‘ IHIHI X ‘7 9,11% i" 6’ (VHHJUK) ‘/ ¥7 5 *WSMN 5‘ fin H 7‘ Alk/M/x’flv‘fi WI elyMMHfiW, ML’IEW» HII \ W | |\|\||\|| IIHH IHIHIHI \ | W | HIHI HII \ w I Hull HII \ \||\ | WIHII IIHH IHIHI 5 M m (IA! '+ (H 5) FUJITSU
MB85RC64A
24 DS501-00019-2v0-E
1.3 Product label indicators
Label I: Label on Inner box/Moisture Barrier Bag/ (It sticks it on the reel for the emboss taping)
[C-3 Label (50mm × 100mm) Supplemental Label (20mm × 100mm)]
Label II-A: Label on Outer box [D Label] (100mm × 100mm)
Label II-B: Outer boxes product indicate
Note: Depending on shipment state, “Label II-A” and “Label II-B” on the external boxes might not be printed.
(Customer part number or FJ part number)
(Customer part number or FJ part number)
(FJ control number bar code)
XX/XX XXXX-XXX XXX
XXXX-XXX XXX
(Lot Number and quantity)
(Package count)
(Customer part number or FJ part number
bar code)
(Part number and quantity)
(FJ control number)
QC PASS
XXXXXXXXXXXXXX
XXXX/XX/XX (Packed years/month/day) ASSEMBLED IN xxxx
(3N)1 XXXXXXXXXXXXXX XXX
(Quantity)
(3N)2 XXXXXXXXXX
XXX pcs
XXXXXX
XXXXXXXXXXXXXX
(Customer part number or FJ part number)
XXXXXXXXXXXXXX
(Comment)
XXXXXXXXXXXXXX
(FJ control number )
XXXXXXXXXX
(LEAD FREE mark)
C-3 Label
Supplemental Label
Perforated line
D Label
XXXXXXXXXXXXXX (Part number)
(Lot Number)
XXXX-XXX
XXXX-XXX
(Count) (Quantity)
X XXX
X XXX
XXX
mm) 5) FUJITSU
MB85RC64A
DS501-00019-2v0-E 25
1.4 Dimensions for Containers
(1) Dimensions for inner box
(2) Dimensions for outer box
LWH
540 125 75
(Dimensions in mm)
LWH
565 270 180
(Dimensions in mm)
LW
H
L
W
H
O 5) FUJITSU
MB85RC64A
26 DS501-00019-2v0-E
2. Emboss Tape
2.1 Tape Dimensions
PKG code Reel No Maximum storage capacity
pcs/reel pcs/inner box pcs/outer box
FPT-8P-M02 3 1500 1500 10500
(Dimensions in mm)
Material : Conductive polystyrene
Heat proof temperature : No heat resistance.
Package should not be baked
by using tape and reel.
C2012 FUJITSU SEMICONDUCTOR LIMITED SOL8-EMBOSSTAPE9 : NFME-EMB-X0084-1-P-1
8±0.1
6.4±0.1
3.9±0.2
4±0.1
5.5±0.05
5.5±0.1
2.1±0.1
0.4
1.75±0.1
0.3±0.05
2±0.05
+0.1
–0
ø1.5
+0.1
–0
ø1.5
+0.3
–0.1
12
B
BA A
SEC.A-A
SEC.B-B
U “mam-"g Tape wmm Symbo‘ 5) FUJITSU
MB85RC64A
DS501-00019-2v0-E 27
2.2 IC orientation
2.3 Reel dimensions
Dimensions in mm
Reel No123456789101112131415
Tape width
Symbol 8121624324456121624
A 254 ± 2 254 ± 2 330 ± 2 254 ± 2 330 ± 2 254 ± 2 330 ± 2 330 ± 2
B100 100 150 100 150 100 100 ± 2
C 13 ± 0.2 13
D 21 ± 0.8 20.5
E 2 ± 0.5
W1 8.4 12.4 16.4 24.4 32.4 44.4 56.4 12.4 16.4 24.4
W2
less than
14.4
less than 18.4 less than 22.4 less than 30.4 less than 38.4 less than 50.4
less than
62.4 less than
18.4 less than
22.4 less than
30.4
W3
7.9 ~ 10.9 11.9 ~ 15.4 15.9 ~ 19.4 23.9 ~ 27.4 31.9 ~ 35.4 43.9 ~ 47.4 55.9 ~
59.4 12.4 ~
14.4 16.4 ~
18.4 24.4 ~
26.4
r1.0
(User Direction of Feed) (User Direction of Feed)
• ER type Index mark
(Reel side)
∗
∗
: Hub unit width dimensions
Reel cutout dimensions
W1
W2 r
E
W3
B
A
C
D
+2
-0
+2
-0
+2
-0
+2
-0
+2
-0
+2
-0
+0.5
-0.2
+1
-0.2
+2
-0
+2
-0
+2
-0
+2
-0
+2
-0
+2
-0
+2
-0
+1
-0
+1
-0
+0.1
-0
\nnerbox Labe‘ \ 0 0 0 (©>‘ % @¥ \ \7 E|® 5) FUJITSU
MB85RC64A
28 DS501-00019-2v0-E
2.4 Taping (φ330mm Reel) Dry Pack Packing Specifications
*1: For a product of witch part number is suffixed with “E1”, a “ ” marks is display to the moisture barrier
bag and the inner boxes.
*2: The size of the outer box may be changed depending on the quantity of inner boxes.
*3: The space in the outer box will be filled with empty inner boxes, or cushions, etc.
*4: Please refer to an attached sheet about the indication label.
Note: The packing specifications may not be applied when the product is delivered via a distributer.
Embossed
tapes
Dry pack
Inner box
Outer box
Outside diameter: 330mm reel
Heat seal
Label I
*1, *4
Label II-B
*4
Label II-A
*4
Label I
*1, *4
Label I
*1, *4
Taping
Use adhesive tapes.
Outer box
*2, *3
φ
Inner box
Label I
*1, *4
Desiccant
Humidity indicator
Aluminum laminated bag
GPb
® 4* \IIH HI‘ INIHIHI IHIIHHIHI \IIH HI‘ INIHIHI IHIIHHIHI \IIH HI‘ INIHIHI IHIIHHIHI .7 ‘7 \IIH HI‘ IHIHI X ‘7 9,11% i" 6’ (VHHJUK) ‘/ ¥7 5 *WSMN 5‘ fin H 7‘ Alk/M/x’flv‘fi WI elyMMHfiW, ML’IEW» HII \ W | |\|\||\|| IIHH IHIHIHI \ | W | HIHI HII \ w I Hull HII \ \||\ | WIHII IIHH IHIHI 5 M m (IA! '+ (H 5) FUJITSU
MB85RC64A
DS501-00019-2v0-E 29
2.5 Product label indicators
Label I: Label on Inner box/Moisture Barrier Bag/ (It sticks it on the reel for the emboss taping)
[C-3 Label (50mm × 100mm) Supplemental Label (20mm × 100mm)]
Label II-A: Label on Outer box [D Label] (100mm × 100mm)
Label II-B: Outer boxes product indicate
Note: Depending on shipment state, “Label II-A” and “Label II-B” on the external boxes might not be printed.
(Customer part number or FJ part number)
(Customer part number or FJ part number)
(FJ control number bar code)
XX/XX XXXX-XXX XXX
XXXX-XXX XXX
(Lot Number and quantity)
(Package count)
(Customer part number or FJ part number
bar code)
(Part number and quantity)
(FJ control number)
QC PASS
XXXXXXXXXXXXXX
XXXX/XX/XX (Packed years/month/day) ASSEMBLED IN xxxx
(3N)1 XXXXXXXXXXXXXX XXX
(Quantity)
(3N)2 XXXXXXXXXX
XXX pcs
XXXXXX
XXXXXXXXXXXXXX
(Customer part number or FJ part number)
XXXXXXXXXXXXXX
(Comment)
XXXXXXXXXXXXXX
(FJ control number )
XXXXXXXXXX
(LEAD FREE mark)
C-3 Label
Supplemental Label
Perforated line
D Label
XXXXXXXXXXXXXX (Part number)
(Lot Number)
XXXX-XXX
XXXX-XXX
(Count) (Quantity)
X XXX
X XXX
XXX
5) FUJITSU
MB85RC64A
30 DS501-00019-2v0-E
2.6 Dimensions for Containers
(1) Dimensions for inner box
(2) Dimensions for outer box
Tape width L W H
12, 16
365 345
40
24, 32 50
44 65
56 75
(Dimensions in mm)
LWH
415 400 315
(Dimensions in mm)
L
W
H
L
W
H
5) FUJITSU
MB85RC64A
DS501-00019-2v0-E 31
■MAJOR CHANGES IN THIS EDITION
A change on a page is indicated by a vertical line drawn on the left side of that page.
Page Section Change Results
1
■ FEATURES Revised the Data retention
10 years ( + 85 °C)
→10 years ( + 85 °C), 95 years ( + 55 °C),
over 200 years ( + 35 °C)
14
■ POWER ON/OFF SEQUENCE Revised the following description:
“POWER ON SEQUENCE” → “POWER ON/OFF SEQUENCE”
Added the following description:
“If the device does not operate within the specified conditions of
read cycle, write cycle or power on/off sequence, memory data
can not be guaranteed.”
Revised the following description:
“VDD pin is required to be rising from 0 V because turning the pow-
er on from an intermediate level may cause malfunctions, when
the power is turned on”
→“If VDD falls down below 2.0V, VDD is required to be started from
0V to prevent malfunctions when the power is turned on again.”
■ FRAM CHARACTERISTICS Revised the table and Note
MB85RC64A
FUJITSU SEMICONDUCTOR LIMITED
Nomura Fudosan Shin-yokohama Bldg. 10-23, Shin-yokohama 2-Chome,
Kohoku-ku Yokohama Kanagawa 222-0033, Japan
Tel: +81-45-415-5858
http://jp.fujitsu.com/fsl/en/
For further information please contact:
North and South America
FUJITSU SEMICONDUCTOR AMERICA, INC.
1250 E. Arques Avenue, M/S 333
Sunnyvale, CA 94085-5401, U.S.A.
Tel: +1-408-737-5600 Fax: +1-408-737-5999
http://us.fujitsu.com/micro/
Europe
FUJITSU SEMICONDUCTOR EUROPE GmbH
Pittlerstrasse 47, 63225 Langen, Germany
Tel: +49-6103-690-0 Fax: +49-6103-690-122
http://emea.fujitsu.com/semiconductor/
Korea
FUJITSU SEMICONDUCTOR KOREA LTD.
902 Kosmo Tower Building, 1002 Daechi-Dong,
Gangnam-Gu, Seoul 135-280, Republic of Korea
Tel: +82-2-3484-7100 Fax: +82-2-3484-7111
http://kr.fujitsu.com/fsk/
Asia Pacific
FUJITSU SEMICONDUCTOR ASIA PTE. LTD.
151 Lorong Chuan,
#05-08 New Tech Park 556741 Singapore
Tel : +65-6281-0770 Fax : +65-6281-0220
http://sg.fujitsu.com/semiconductor/
FUJITSU SEMICONDUCTOR SHANGHAI CO., LTD.
30F, Kerry Parkside, 1155 Fang Dian Road, Pudong District,
Shanghai 201204, China
Tel : +86-21-6146-3688 Fax : +86-21-6146-3660
http://cn.fujitsu.com/fss/
FUJITSU SEMICONDUCTOR PACIFIC ASIA LTD.
2/F, Green 18 Building, Hong Kong Science Park,
Shatin, N.T., Hong Kong
Tel : +852-2736-3232 Fax : +852-2314-4207
http://cn.fujitsu.com/fsp/
Specifications are subject to change without notice. For further information please contact each office.
All Rights Reserved.
The contents of this document are subject to change without notice.
Customers are advised to consult with sales representatives before ordering.
The information, such as descriptions of function and application circuit examples, in this document are presented solely for the purpose
of reference to show examples of operations and uses of FUJITSU SEMICONDUCTOR device; FUJITSU SEMICONDUCTOR does
not warrant proper operation of the device with respect to use based on such information. When you develop equipment incorporating
the device based on such information, you must assume any responsibility arising out of such use of the information.
FUJITSU SEMICONDUCTOR assumes no liability for any damages whatsoever arising out of the use of the information.
Any information in this document, including descriptions of function and schematic diagrams, shall not be construed as license of the use
or exercise of any intellectual property right, such as patent right or copyright, or any other right of FUJITSU SEMICONDUCTOR or any
third party or does FUJITSU SEMICONDUCTOR warrant non-infringement of any third-party's intellectual property right or other right
by using such information. FUJITSU SEMICONDUCTOR assumes no liability for any infringement of the intellectual property rights or
other rights of third parties which would result from the use of information contained herein.
The products described in this document are designed, developed and manufactured as contemplated for general use, including without
limitation, ordinary industrial use, general office use, personal use, and household use, but are not designed, developed and manufactured
as contemplated (1) for use accompanying fatal risks or dangers that, unless extremely high safety is secured, could have a serious effect
to the public, and could lead directly to death, personal injury, severe physical damage or other loss (i.e., nuclear reaction control in
nuclear facility, aircraft flight control, air traffic control, mass transport control, medical life support system, missile launch control in
weapon system), or (2) for use requiring extremely high reliability (i.e., submersible repeater and artificial satellite).
Please note that FUJITSU SEMICONDUCTOR will not be liable against you and/or any third party for any claims or damages aris-
ing in connection with above-mentioned uses of the products.
Any semiconductor devices have an inherent chance of failure. You must protect against injury, damage or loss from such failures
by incorporating safety design measures into your facility and equipment such as redundancy, fire protection, and prevention of over-
current levels and other abnormal operating conditions.
Exportation/release of any products described in this document may require necessary procedures in accordance with the regulations
of the Foreign Exchange and Foreign Trade Control Law of Japan and/or US export control laws.
The company names and brand names herein are the trademarks or registered trademarks of their respective owners.
Edited: Sales Promotion Department
