IXYH40N65C3D1
IXYQ40N65C3D1
VCES = 650V
IC110 = 40A
VCE(sat) 


2.35V
tfi(typ) = 20ns
DS100625A(11/18)
Extreme Light Punch Through
IGBT for 20-60 kHz Switching
Features
Optimized for 20-60kHz Switching
Square RBSOA
Anti-Parallel Fast Diode
Avalanche Rated
Short Circuit Capability
Advantages
High Power Density
Extremely Rugged
Low Gate Drive Requirement
Applications
Power Inverters
UPS
Motor Drives
SMPS
PFC Circuits
Battery Chargers
Welding Machines
Lamp Ballasts
High Frequency Power Inverters
Symbol Test Conditions Characteristic Values
(TJ = 25C, Unless Otherwise Specified) Min. Typ. Max.
BVCES IC = 250A, VGE = 0V 650 V
VGE(th) IC= 250A, VCE = VGE 3.5 6.0 V
ICES VCE = VCES, VGE = 0V 10 A
TJ = 150C 1.5 mA
IGES VCE = 0V, VGE = 20V 100 nA
VCE(sat) IC= 40A, VGE = 15V, Note 1 2.0 2.35 V
TJ = 150C 2.4 V
Symbol Test Conditions Maximum Ratings
VCES TJ= 25°C to 175°C 650 V
VCGR TJ= 25°C to 175°C, RGE = 1M 650 V
VGES Continuous ±20 V
VGEM Transient ±30 V
IC25 TC= 25°C 80 A
IC110 TC= 110°C 40 A
IF110 TC= 110°C 50 A
ICM TC= 25°C, 1ms 180 A
IATC= 25°C 20 A
EAS TC= 25°C 300 mJ
SSOA VGE = 15V, TVJ = 150°C, RG = 10 ICM = 80 A
(RBSOA) Clamped Inductive Load @VCE VCES
tsc VGE = 15V, VCE = 360V, TJ = 150°C 5 μs
(SCSOA) RG = 82, Non Repetitive
PCTC= 25°C 300 W
TJ-55 ... +175 °C
TJM 175 °C
Tstg -55 ... +175 °C
TLMaximum Lead Temperature for Soldering 300 °C
TSOLD 1.6 mm (0.062in.) from Case for 10s 260 °C
MdMounting Torque 1.13/10 Nm/lb.in
Weight TO-247 6.0 g
TO-3P 5.5 g
XPTTM 650V IGBT
GenX3TM w/ Diode
G = Gate C = Collector
E = Emitter Tab = Collector
Tab
G
C
E
TO-247
(IXYH)
GCE Tab
Preliminary Technical Information
TO-3P
(IXYQ)
INCHES MILJVE'ERS Mm MA) WN VVKX 190 205 4 a: 521 093 If“) 229 254 5va WWWW a—za> 07: ms 1 <21 2="" 1:.="" 0:5="" 255="" 11o="" 1="" on="" m:="" :u/="" m}="" dan="" m="" us="" 125="" 292="" 32c="" r="" w="" on="" a="" m="" u="" m="" e="" sue="" m="" ausn="" a="" [3‘="" 65c="" sgn="" 551="" v7="" 53="" e2="">< jen="" ms="" ‘27="" e="" 62:="" 535="" is="" 75="" \513="" h="" 545="" 555="" i381="" m="" 35="" e="" 215="" sc="" 5="" :5="" sc="" «i="" 77="" um="" 77="" m;-="" k="" 225="" am="" l="" m="" am="" is="" 51="" am="" u="" 150="" 170="" 3="" 81="" 4="" 32="" w="" 140="" lu="" 355="" 355="" 0d!="" m="" can="" sq:="" m="" 0="" 22:="" 24;="" 55s="" sen="" n="" \70="" .7:="" 4="" 3:="" 4="" a:="" 3="" p4?="" m="" 515="" am="" g:="" :="" 150°c="" 1.2="" a;="" w="" a="" an»="">
IXYS Reserves the Right to Change Limits, Test Conditions, and Dimensions.
IXYH40N65C3D1
IXYQ40N65C3D1
IXYS MOSFETs and IGBTs are covered 4,835,592 4,931,844 5,049,961 5,237,481 6,162,665 6,404,065 B1 6,683,344 6,727,585 7,005,734 B2 7,157,338B2
by one or more of the following U.S. patents: 4,860,072 5,017,508 5,063,307 5,381,025 6,259,123 B1 6,534,343 6,710,405 B2 6,759,692 7,063,975 B2
4,881,106 5,034,796 5,187,117 5,486,715 6,306,728 B1 6,583,505 6,710,463 6,771,478 B2 7,071,537
Notes:
1. Pulse test, t 300μs, duty cycle, d 2%.
2. Switching times & energy losses may increase for higher VCE(clamp), TJ or RG.
Reverse Fast Recovery Diode (FRED)
Symbol Test Conditions Characteristic Values
(TJ = 25°C Unless Otherwise Specified) Min. Typ. Max.
VF IF = 30A, VGE = 0V, Note 1 2.5 V
TJ = 150°C 1.2 V
Irr TJ = 150°C 23 A
trr TJ = 150°C 120 ns
RthJC 0.60 °C/W
IF = 30A, VGE = 0V,
-diF/dt = 500A/μs, VR = 400V
Symbol Test Conditions Characteristic Values
(TJ = 25°C Unless Otherwise Specified) Min. Typ. Max.
gfs IC = 40A, VCE = 10V, Note 1 16 26 S
Cies 1950 pF
Coes VCE = 25V, VGE = 0V, f = 1MHz 205 pF
Cres 40 pF
Qg(on) 66 nC
Qge IC = 40A, VGE = 15V, VCE = 0.5 • VCES 13 nC
Qgc 32 nC
td(on) 23 ns
tri 40 ns
Eon 0.83 mJ
td(off) 110 ns
tfi 20 ns
Eoff 0.36 0.65 mJ
td(on) 24 ns
tri 40 ns
Eon 1.60 mJ
td(off) 130 ns
tfi 30 ns
Eoff 0.53 mJ
RthJC 0.50 °C/W
RthCS 0.25 °C/W
Inductive load, TJ = 25°C
IC = 30A, VGE = 15V
VCE = 400V, RG = 10
Note 2
Inductive load, TJ = 150°C
IC = 30A, VGE = 15V
VCE = 400V, RG = 10
Note 2
PRELIMINARY TECHNICAL INFORMATION
The product presented herein is under development. The Technical Specifications offered are
derived from a subjective evaluation of the design, based upon prior knowledge and experi-
ence, and constitute a "considered reflection" of the anticipated result. IXYS reserves the right
to change limits, test conditions, and dimensions without notice.
TO-3P Outline
Pins: 1 - Gate 2 - Collector
3 - Emitter 4 - Collector
TO-247 Outline
R
L1
A2
Q
E
A
D
c
B
A
b
C
L
D
S D2
E1
A2 A2 A2
e
0P1
ixys option
A1
b4
b2
D1
0P O 0K M D B M
+
O J M C A M
+
12 3
4
+
+
PINS: 1 - Gate
2, 4 - Collector
3 - Emitter
IcW VCE (V) E a a E a z ch (W / // / a 9 m H 12 Veg-(Vt <3 ©="" 2015="" ixys="" corporation,="" au="" hiqms="" reserved="">
© 2018 IXYS CORPORATION, All Rights Reserved
IXYH40N65C3D1
IXYQ40N65C3D1

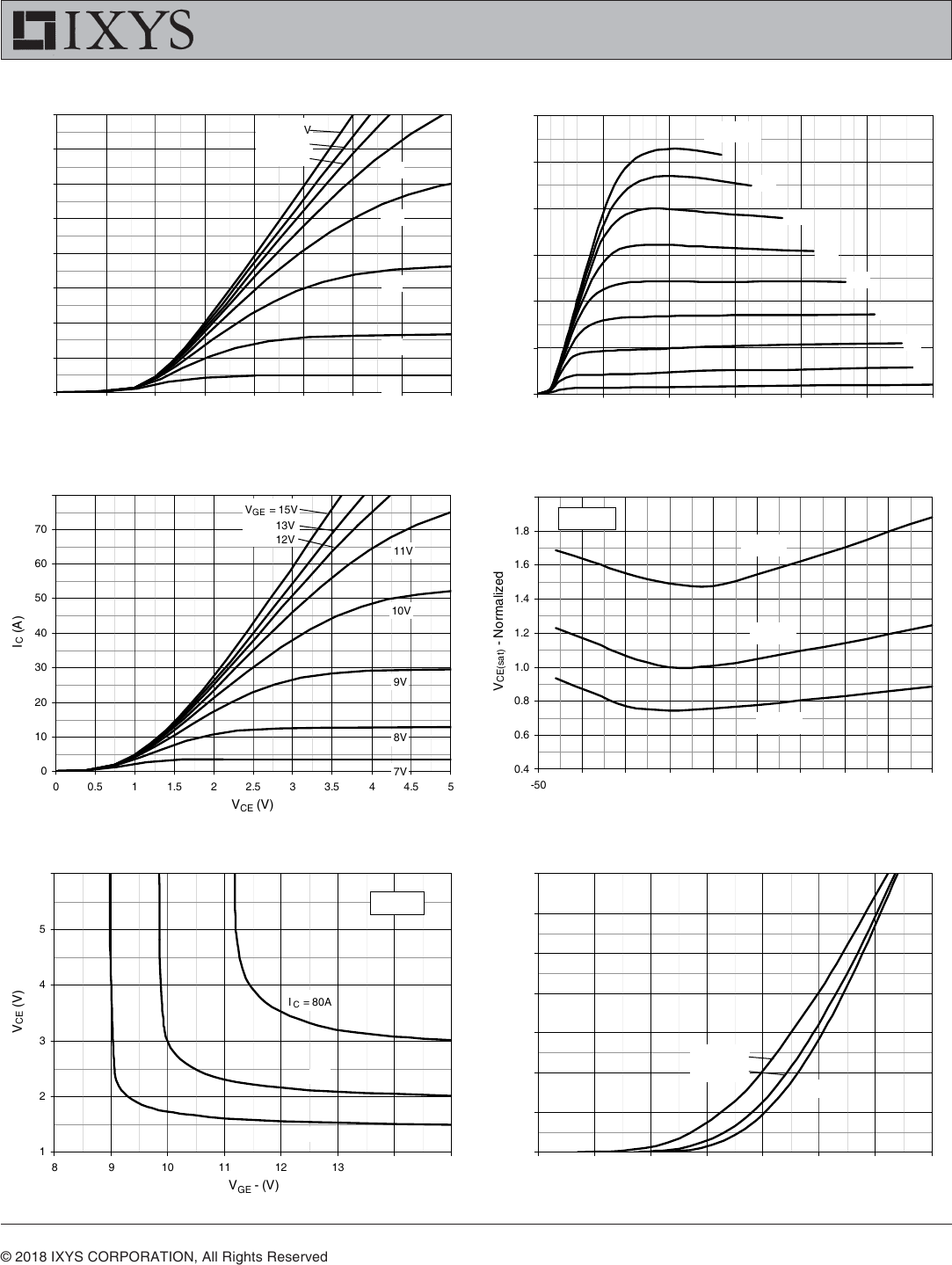

Fig. 1. Output Characteristics @ T
