nexpeﬂa

74CB3Q3253

Dual 1-of-4 FET multiplexer/demultiplexer with charge pump

Rev. 2 — 28 June 2021 Product data sheet

1. General description

The 74CB3Q3253 is a dual high-bandwidth single-pole, quad-throw FET bus switch. Each switch

features a select input (Sn) and an output enable input (nOE). The switch is disabled when the

nOE input is HIGH. An internal charge-pump increases the gate voltage of the NMOS pass

transistor. The result is improved RON and RON(flat) performance and the ability to switch 5 V signals

when VCC = 3.3 V.

2. Features and benefits

•Wide supply voltage range from 2.3 V to 3.6 V

•Overvoltage switching on switch ports:

•0 V to 5 V switching with VCC = 2.5 V

•0 V to 5 V switching with VCC = 3.3 V

•Switch voltage accepts signals up to 5.5 V

•4 Ω (typical) ON resistance

•3.5 pF (typical) OFF-state capacitance

•High bandwidth 0.5 GHz (maximum)

•Low input/output capacitance minimizes loading and signal distortion

•Fast switching frequency fmax = 20 MHz (maximum)

•Low power consumption ICC = 0.4 mA (typical)

•Control inputs can be driven by TTL or 5 V/3.3 V CMOS outputs

•IOFF supports partial power-down mode operation

•Latch-up performance exceeds 100 mA per JESD 78E Class II Level A

•ESD protection:

•HBM ANSI/ESDA/JEDEC JS-001-2012 Class 2 exceeds 2 kV

•CDM JESD22-C101F exceeds 1000 V

•Specified from -40 °C to +85 °C

3. Applications

•Communication infrastructure

•Bus isolation

•Memory interleaving

•Sensor multiplexing

74CB3Q3253 Table 1. Ordering information 151 152 153 154 251 252 r g: ﬁﬁgmgmgmﬁ D “3.027223 —an51 LL 7 2 LL 3 LL 4 sag-027224

Nexperia 74CB3Q3253

Dual 1-of-4 FET multiplexer/demultiplexer with charge pump

4. Ordering information

Table 1. Ordering information

PackageType number

Temperature

range

Name Description Version

74CB3Q3253PW -40 °C to +85 °C TSSOP16 plastic thin shrink small outline package; 16 leads;

body width 4.4 mm

SOT403-1

74CB3Q3253BQ -40 °C to +85 °C DHVQFN16 plastic dual in-line compatible thermal enhanced

very thin quad flat package; no leads; 16 terminals;

body 2.5 × 3.5 × 0.85 mm

SOT763-1

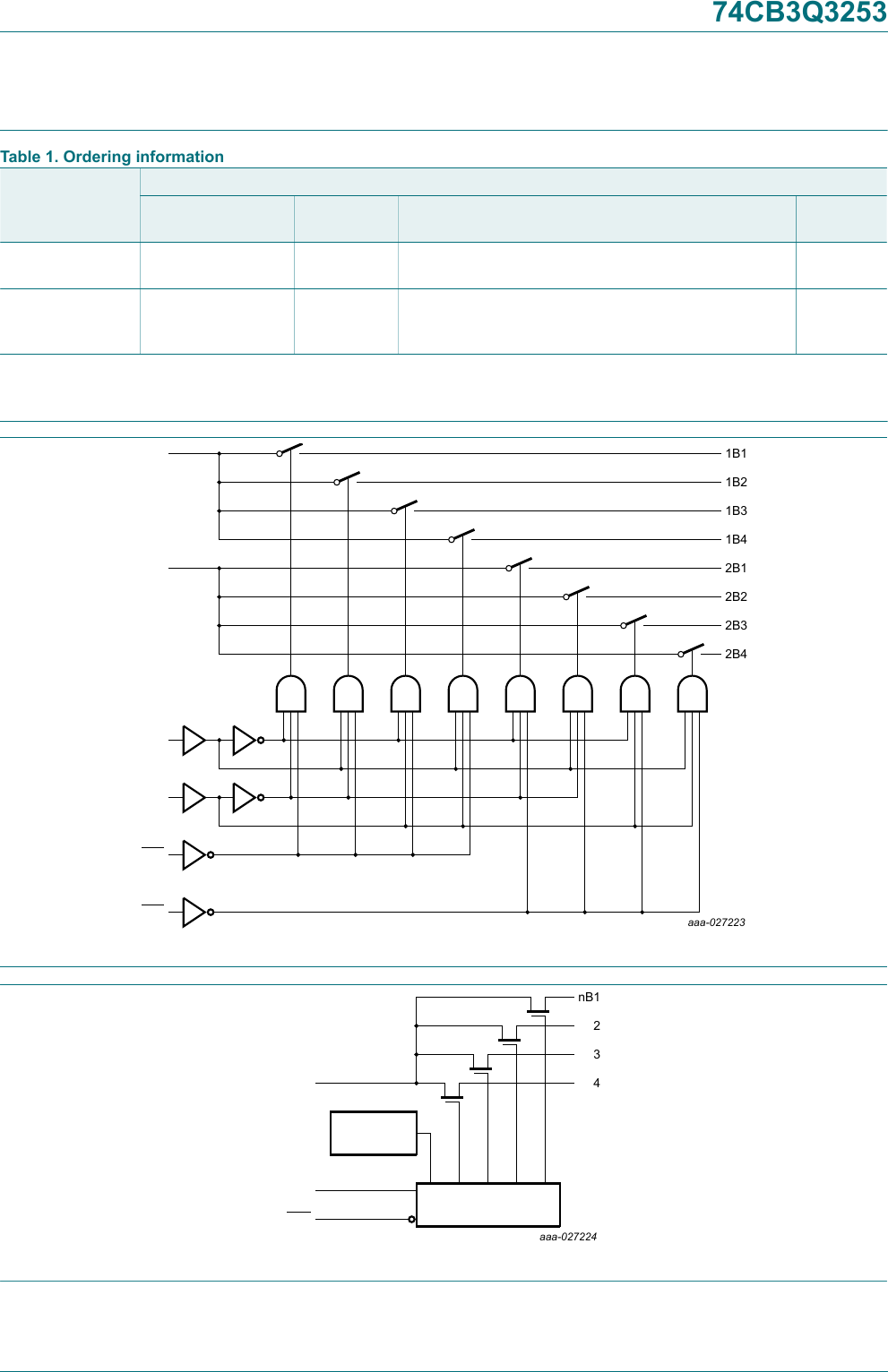

5. Functional diagram

aaa-027223

1A 1B1

1B2

1B3

1B4

2B1

2B2

2B3

2B4

1OE

2OE

Fig. 1. Logic symbol

aaa-027224

CHARGE

PUMP

nB1

nB2

nB3

nB4nA

nOE

CONTROLLOGIC

Fig. 2. Logic diagram (one switch)

Product data sheet Rev. 2 — 28 June 2021 2 / 15

74CB3Q3253 74::5303253 I5 2 La LeJ E ﬂ 3 E 3 E "camazsa E) E i E E 1 E I: :I GND E 0 3m 3 .0 a, E I: :I E % Transparem top View I: :I I: :I ssa-nznzs Table 2. Pin description TOE

Nexperia 74CB3Q3253

Dual 1-of-4 FET multiplexer/demultiplexer with charge pump

6. Pinning information

6.1. Pinning

74CB3Q3253

1OE VCC

S1 2OE

1B4 S0

1B3 2B4

1B2 2B3

1B1 2B2

1A 2B1

GND 2A

aaa-027225

Fig. 3. Pin configuration TSSOP16 (SOT403-1)

aaa-027226

74CB3Q3253

GND(1)

2B1

1B1 2B2

1B2 2B3

1B3 2B4

1B4 S0

S1 2OE

GND

Transparent top view

7 10

6 11

5 12

4 13

3 14

2 15

terminal 1

index area

(1) This is not a ground pin. There is no electrical or

mechanical requirement to solder the pad. In case

soldered, the solder land should remain floating or

connected to GND.

Fig. 4. Pin configuration for DHVQFN16 (SOT763-1)

6.2. Pin description

Table 2. Pin description

Symbol Pin Description

1OE 1 output enable input (active-LOW)

S1 2 select input

1B4 3 independent input or output

1B3 4 independent input or output

1B2 5 independent input or output

1B1 6 independent input or output

1A 7 common output or input

GND 8 ground (0 V)

2A 9 common output or input

2B1 10 independent input or output

2B2 11 independent input or output

2B3 12 independent input or output

2B4 13 independent input or output

S0 14 select input

2OE 15 output enable input (active-LOW)

VCC 16 supply voltage

Product data sheet Rev. 2 — 28 June 2021 3 / 15

74CB3Q3253 Table 5. Recommended operating conditions

Nexperia 74CB3Q3253

Dual 1-of-4 FET multiplexer/demultiplexer with charge pump

7. Functional description

Table 3. Function table

H = HIGH voltage level; L = LOW voltage level; X = don’t care; Z = high-impedance OFF-state.

Input

S1 S0 nOE

Channel on

L L L nA = nB1

L H L nA = nB2

H L L nA = nB3

H H L nA = nB4

X X H Z (switch off)

8. Limiting values

Table 4. Limiting values

In accordance with the Absolute Maximum Rating System (IEC 60134). Voltages are referenced to GND (ground = 0 V).

Symbol Parameter Conditions Min Max Unit

VCC supply voltage -0.5 +4.6 V

VIinput voltage Sn, nOE input [1] -0.5 +7.0 V

VSW switch voltage [2] -0.5 +7.0 V

IIK input clamping current VI < -0.5 V -50 - mA

ISK switch clamping current VI < -0.5 V -50 - mA

ISW switch current - ±120 mA

ICC supply current - +100 mA

IGND ground current -100 - mA

Tstg storage temperature -65 +150 °C

Ptot total power dissipation Tamb = -40 °C to +85 °C [3] - 500 mW

[1] The minimum input voltage rating may be exceeded if the input current rating is observed.

[2] The minimum and maximum switch voltage ratings may be exceeded if the switch clamping current rating is observed.

[3] For SOT403-1 (TSSOP16) package: Ptot derates linearly with 8.5 mW/K above 91 °C.

For SOT763-1 (DHVQFN16) package: Ptot derates linearly with 11.2 mW/K above 106 °C.

9. Recommended operating conditions

Table 5. Recommended operating conditions

Symbol Parameter Conditions Min Max Unit

VCC supply voltage 2.3 3.6 V

VIinput voltage Sn, nOE input 0 5.5 V

VSW switch voltage 0 5.5 V

Tamb ambient temperature -40 +85 °C

Sn, nOE input

VCC = 2.3 V to 2.7 V 0 20 ns/V

Δt/ΔV input transition rise and fall rate

VCC = 2.7 V to 3.6 V 0 10 ns/V

Product data sheet Rev. 2 — 28 June 2021 4 / 15

74CB3Q3253

Nexperia 74CB3Q3253

Dual 1-of-4 FET multiplexer/demultiplexer with charge pump

10. Static characteristics

Table 6. Static characteristics

At recommended operating conditions; voltages are referenced to GND (ground 0 V).

Tamb = 25 °C Tamb =-40 °C to +85 °CSymbol Parameter Conditions

Min Typ[1] Max Min Max

Unit

VCC = 2.3 V to 2.7 V - - - 1.7 - VVIH HIGH-level

input voltage VCC = 2.7 V to 3.6 V - - - 2 - V

VCC = 2.3 V to 2.7 V - - - - 0.7 VVIL LOW-level

input voltage VCC = 2.7 V to 3.6 V - - - - 0.8 V

VIK input clamping

voltage

nA; nBn; VCC = 3.6 V; II = -18 mA - - - - -1.8 V

IIinput leakage

current

Sn, nOE; VCC = 3.6 V;

VI = GND to 5.5 V

- - - - ±1 μA

IOFF power-off

leakage current

per pin; VCC = 0 V;

VSW or VI = 0 V to 5.5 V

- - - - ±1 μA

IS(OFF) OFF-state

leakage current

nA; nBn; VCC = 3.6 V; see Fig. 5 - - - - ±1 μA

ICC supply current VI = GND or VCC; IO = 0 A;

VSW = GND or VCC; VCC = 3.6 V

- 0.4 - - 0.6 mA

ΔICC additional

supply current

Sn, nOE; VCC = 3.6 V; one input at 3 V,

other inputs at GND or VCC

- - - - 30 μA

VCC = 3.3 V; VSW = GND or VCC;

VI = 0 V, 3.3 V, 5.5 V

CIinput

capacitance

Sn, nOE - 2.5 - - 3.5 pF

VCC = 3.3 V; VSW = 0 V, 3.3 V, 5.5 V

nA - 8 - - 11 pF

CS(OFF) OFF-state

capacitance

nBn - 3.5 - - 4.5 pF

VCC = 3.3 V; VSW = 0 V, 3.3 V, 5.5 VCS(ON) ON-state

capacitance nA, nBn - 13 - - 17 pF

[1] Typical values are measured at VCC = 3.3 V unless otherwise specified.

Product data sheet Rev. 2 — 28 June 2021 5 / 15

74CB3Q3253 ass-027227 ass-027228

Nexperia 74CB3Q3253

Dual 1-of-4 FET multiplexer/demultiplexer with charge pump

10.1. Test circuit and graph

aaa-027227

GND

nA nBn

nOE

VIL or VIH

VIH

VCC

VIVO

VI = 5.5 V or GND and VO = GND or 5.5 V.

Fig. 5. Test circuit for measuring OFF-state leakage

current (one channel)

fi (MHz)

0 20168 124

aaa-027228

ICC

(mA)

(1)

(2)

Tamb = 25 °C; VCC = 3.3 V; nA and nBn not

connected.

(1) Sn input switching (50% duty cycle)

(2) nOE input switching (50% duty cycle)

Fig. 6. Typical supply current as function of (Sn, nOE)

input frequency

Product data sheet Rev. 2 — 28 June 2021 6 / 15

74CB3Q3253 “5.027230 ?‘ . m 3554127229

Nexperia 74CB3Q3253

Dual 1-of-4 FET multiplexer/demultiplexer with charge pump

10.2. ON resistance

Table 7. ON resistance

At recommended operating conditions; voltages are referenced to GND (ground = 0 V); for test circuit see Fig. 7.

Tamb = 25 °C Tamb = -40 °C to +85 °CSymbol Parameter Conditions

Min Typ Max Min Max

Unit

VCC = 2.3 V; see Fig. 8

VI = 0 V; ISW = 30 mA [1] - 4 - - 10 Ω

VI = 1.7 V; ISW = -15 mA [1] - 4.5 - - 11 Ω

VCC = 3.0 V; see Fig. 8

VI = 0 V; ISW = 30 mA [2] - 4 - - 8 Ω

RON ON resistance

VI = 2.4 V; ISW = -15 mA [2] - 4.8 - - 10 Ω

[1] Typical values are measured at VCC = 2.5 V.

[2] Typical values are measured at VCC = 3.3 V.

10.3. ON resistance test circuit and graph

aaa-027229

GND

nA nBn

nOE

VIL or VIH

VIL

VCC

VSW

ISW

RON = VSW / ISW

Fig. 7. Test circuit for measuring ON resistance

(one channel)

VI (V)

0 542 31

aaa-027230

RON

(Ω)

(1)

(2)

Tamb = 25 °C

(1) VCC = 2.5 V

(2) VCC = 3.3 V

Fig. 8. Typical ON resistance as a function of input

voltage

Product data sheet Rev. 2 — 28 June 2021 7 / 15

74CB3Q3253

Nexperia 74CB3Q3253

Dual 1-of-4 FET multiplexer/demultiplexer with charge pump

11. Dynamic characteristics

Table 8. Dynamic characteristics

At recommended operating conditions; voltages are referenced to GND (ground = 0 V); for test circuit, see Fig. 11.

Tamb = -40 °C to +85 °CSymbol Parameter Conditions

Min Max

Unit

nA to nBn or nBn to nA; see Fig. 9 [1] [2]

VCC = 2.3 V to 2.7 V - 0.12 ns

VCC = 3.0 V to 3.6 V - 0.2 ns

Sn to nA; see Fig. 9 [1]

VCC = 2.3 V to 2.7 V 1.5 6.7 ns

tpd propagation

delay

VCC = 3.0 V to 3.6 V 1.5 5.9 ns

nOE to nA, nBn; see Fig. 10 [1]

VCC = 2.3 V to 2.7 V 1.5 6.7 ns

VCC = 3.0 V to 3.6 V 1.5 5.9 ns

Sn to nBn; see Fig. 10 [1]

VCC = 2.3 V to 2.7 V 1.5 6.7 ns

ten enable time

VCC = 3.0 V to 3.6 V 1.5 5.9 ns

nOE to nA, nBn; see Fig. 10 [1]

VCC = 2.3 V to 2.7 V 1.0 6.1 ns

VCC = 3.0 V to 3.6 V 1.0 6.1 ns

Sn to nBn; see Fig. 10 [1]

VCC = 2.3 V to 2.7 V 1.0 6.1 ns

tdis disable time

VCC = 3.0 V to 3.6 V 1.0 6.1 ns

Sn, nOE; VO > VCC; VI = 5 V; RL ≥ 1 MΩ; CL = 0 pF

VCC = 2.3 V to 2.7 V - 10 MHz

fmax maximum

frequency

VCC = 3.0 V to 3.6 V - 20 MHz

[1] tpd is the same as tPLH and tPHL.

ten is the same as tPZL and tPZH.

tdis is the same as tPLZ and tPHZ.

[2] The propagation delay is the calculated RC time constant of the typical ON resistance of the switch and the specified load capacitance,

when driven by an ideal voltage source (zero output impedance).

Product data sheet Rev. 2 — 28 June 2021 8 / 15

74CB3Q3253 0L Table 9 001851367 noE ’ v Table 9 Table 9. Measurement points

Nexperia 74CB3Q3253

Dual 1-of-4 FET multiplexer/demultiplexer with charge pump

11.1. Waveforms and test circuit

001aai367

VMVM

input

0 V

VOH

output

VOL

tPHL tPLH

Measurement points are given in Table 9.

Logic levels: VOL and VOH are typical output voltage levels that occur with the output load.

Fig. 9. The data input (nA or nBn) to output (nBn or nA) propagation delays

aaa-027231

switch

disabled

switch

enabled

switch

enabled

GND

VCC

VOL

VOH

Sn, nOE input

output

LOW-to-OFF

OFF-to-LOW

output

HIGH-to-OFF

OFF-to-HIGH

GND

tPZL

tPLZ

tPHZ tPZH

Measurement points are given in Table 9.

Logic levels: VOL and VOH are typical output voltage levels that occur with the output load.

Fig. 10. Enable and disable times

Table 9. Measurement points

Supply voltage Input Output

VCC VMVMVXVY

2.3 V to 2.7 V 0.5 × VCC 0.5 × VCC VOL + 0.15 V VOH - 0.15 V

3.0 V to 3.6 V 0.5 × VCC 0.5 × VCC VOL + 0.3 V VOH - 0.3 V

Product data sheet Rev. 2 — 28 June 2021 9 / 15

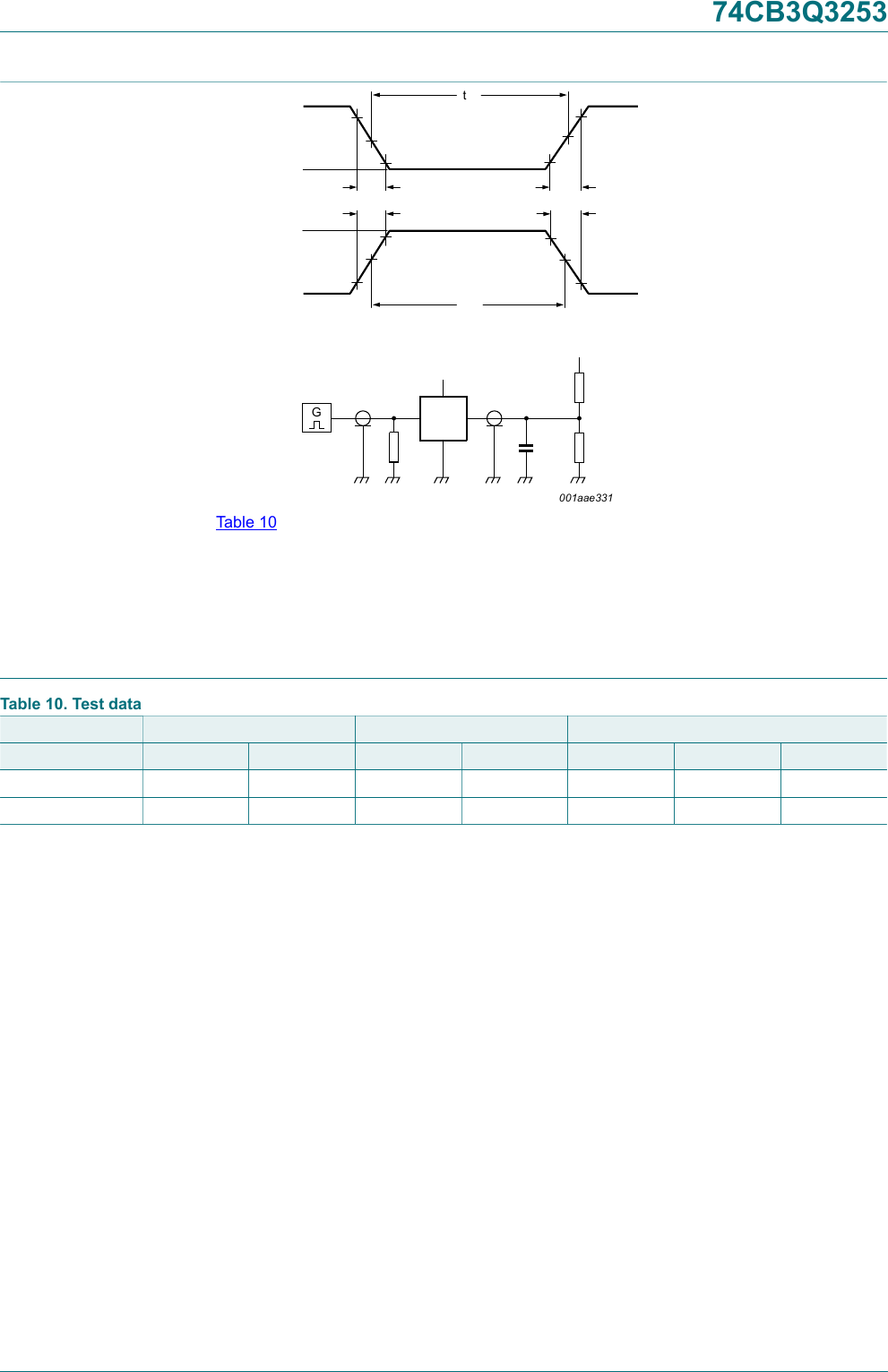

74CB3Q3253 00:33:33: Table 10 Table 10. Test data

Nexperia 74CB3Q3253

Dual 1-of-4 FET multiplexer/demultiplexer with charge pump

VMVM

10 %

90 %

0 V

negative

pulse

positive

pulse

0 V

VMVM

90 %

10 %

001aae331

VEXT

VCC

VIVO

DUT

Test data is given in Table 10.

Definitions for test circuit:

RL = Load resistance.

CL = Load capacitance including jig and probe capacitance.

RT = Termination resistance should be equal to the output impedance Zo of the pulse generator.

VEXT = External voltage for measuring switching times.

Fig. 11. Test circuit for measuring switching times

Table 10. Test data

Supply voltage Input Load VEXT

VCC VItr, tfCLRLtPLH, tPHL tPLZ, tPZL tPZH, tPHZ

2.3 V to 2.7 V VCC ≤ 2.5 ns 30 pF 500 Ω open 2 × VCC GND

3.0 V to 3.6 V VCC ≤ 2.5 ns 50 pF 500 Ω open 2 × VCC GND

Product data sheet Rev. 2 — 28 June 2021 10 / 15

74CB3Q3253 TSSOP16: plastic lhin shrink small outline package; 16 leads; body width 44 mm SOT403-1 mm 2f ‘ l ll «7 ‘ '/ an]. ‘G‘HHHlHHHF l E©W

Nexperia 74CB3Q3253

Dual 1-of-4 FET multiplexer/demultiplexer with charge pump

12. Package outline

UNIT A

1 A

2 A

3 b

p c D

(1) E (2) (1)

e H

E L L

p Q Z y w v θ

REFERENCES

OUTLINE

VERSION

EUROPEAN

PROJECTION ISSUE DATE

IEC JEDEC JEITA

mm 0.15

0.05

0.95

0.80

0.30

0.19

0.2

0.1

5.1

4.9

4.5

4.3 0.65 6.6

6.2

0.4

0.3

0.40

0.06

0.13 0.1 0.2 1

DIMENSIONS (mm are the original dimensions)

Notes

1. Plastic or metal protrusions of 0.15 mm maximum per side are not included.

2. Plastic interlead protrusions of 0.25 mm maximum per side are not included.

0.75

0.50

SOT403-1 MO-153 99-12-27

03-02-18

w M

0.25

1 8

16 9

detail X

(A )

v M A

0 2.5 5 mm

scale

TSSOP16: plastic thin shrink small outline package; 16 leads; body width 4.4 mm SOT403-1

max.

1.1

pin 1 index

Fig. 12. Package outline SOT403-1 (TSSOP16)

Product data sheet Rev. 2 — 28 June 2021 11 / 15

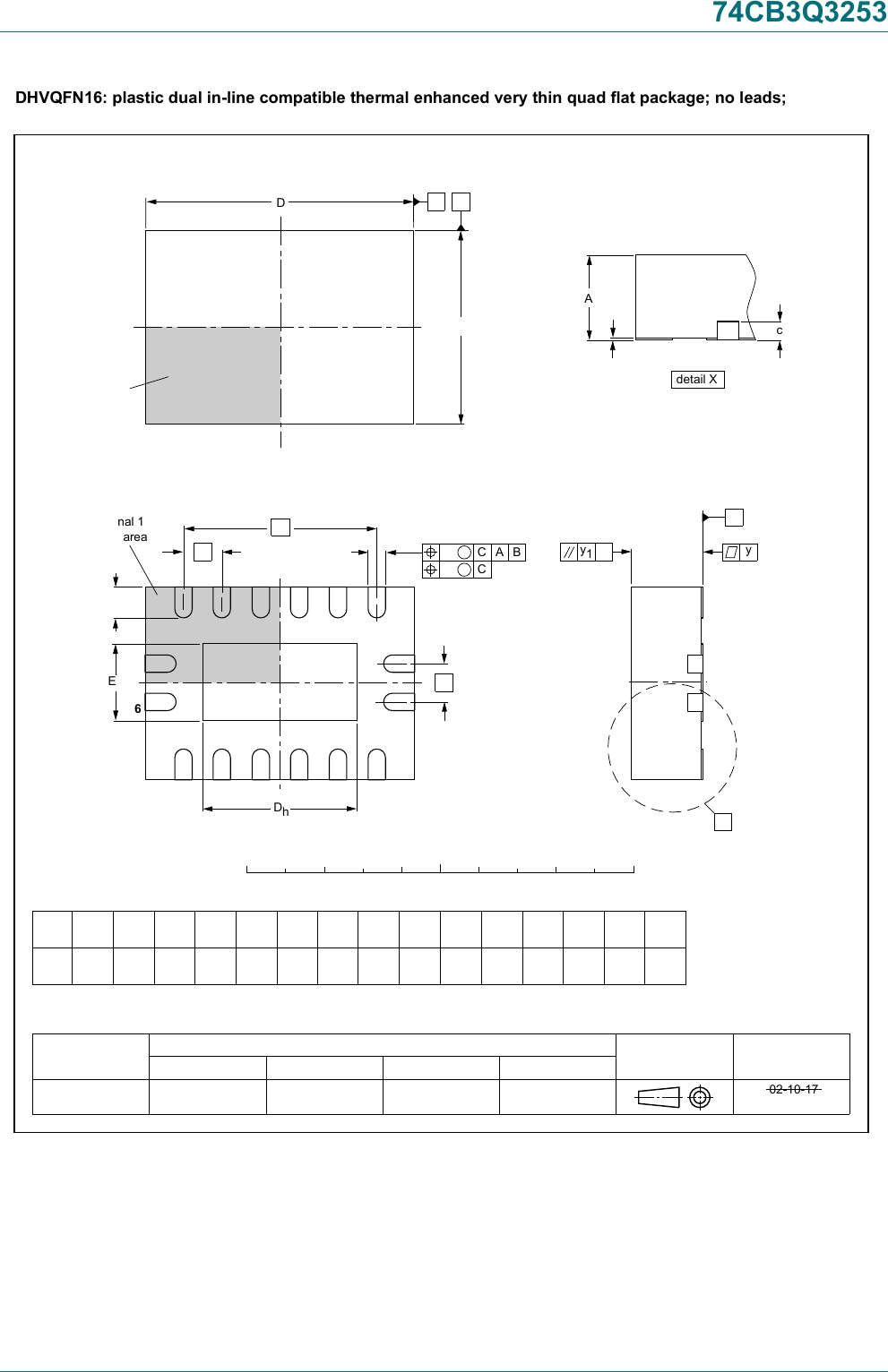

74CB3Q3253 DHVQFN16: plastic dual in-line compatible thermal enhanced very thin quad llal package; no leads; T4755 1 A ,/ ,, 77777 4 ddddd ,, L m‘H ‘ l j / ‘ l mall \:| HE *D E$ Cow WM +— «mm a r l m e» ﬁwwupum 1 EJ Deeemg 7% l 53 1 Ej / \\ ﬂﬂmﬂﬂﬂ \ /

Nexperia 74CB3Q3253

Dual 1-of-4 FET multiplexer/demultiplexer with charge pump

terminal 1

index area

0.5 1

A1 Eh

UNIT y e

0.2

REFERENCES

OUTLINE

VERSION

EUROPEAN

PROJECTION ISSUE DATE

IEC JEDEC JEITA

mm 3.6

3.4

2.15

1.85

2.6

2.4

1.15

0.85

2.5

0.30

0.18

0.05

0.00 0.05 0.1

DIMENSIONS (mm are the original dimensions)

SOT763-1 MO-241 - - - - - -

0.5

0.3

0.1

0.05

0 2.5 5 mm

scale

SOT763-1

DHVQFN16: plastic dual in-line compatible thermal enhanced very thin quad flat package; no leads;

16 terminals; body 2.5 x 3.5 x 0.85 mm

A(1)

max.

detail X

y1 C

2 7

15 10

B A

terminal 1

index area

A C

v M

w M

(1)

Note

1. Plastic or metal protrusions of 0.075 mm maximum per side are not included.

(1)

02-10-17

03-01-27

Fig. 13. Package outline SOT763-1 (DHVQFN16)

Product data sheet Rev. 2 — 28 June 2021 12 / 15

74CB3Q3253 Table 11. Abbreviations Table 12. Revision history Fig. 1 Seciion a

Nexperia 74CB3Q3253

Dual 1-of-4 FET multiplexer/demultiplexer with charge pump

13. Abbreviations

Table 11. Abbreviations

Acronym Description

CDM Charged Device Model

CMOS Complementary Metal Oxide Semiconductor

DUT Device Under Test

ESD ElectroStatic Discharge

FET Field-Effect Transistor

HBM Human Body Model

NMOS N-channel Metal-Oxide Semiconductor

14. Revision history

Table 12. Revision history

Document ID Release date Data sheet status Change notice Supersedes

74CB3Q3253 v.2 20210628 Product data sheet - 74CB3Q3253 v.1

Modifications: •Fig. 1: Logic symbol corrected.

•Section 8: Derating values for Ptot total power dissipation updated.

74CB3Q3253 v.1 20170814 Product data sheet - -

Product data sheet Rev. 2 — 28 June 2021 13 / 15

74CB303253 same In a deswgn on new sheet’ .5 exp‘amed in status er den/ms) described 2 «ms documenl was publish es. The latest produd slam hugs waw nexg mm sale 7 Max us or eon ns Mcomme m me genera‘ ierm and can m llwww nex er

Nexperia 74CB3Q3253

Dual 1-of-4 FET multiplexer/demultiplexer with charge pump

15. Legal information

Data sheet status

Document status

[1][2]

Product

status [3]

Definition

Objective [short]

data sheet

Development This document contains data from

the objective specification for

product development.

Preliminary [short]

data sheet

Qualification This document contains data from

the preliminary specification.

Product [short]

data sheet

Production This document contains the product

specification.

[1] Please consult the most recently issued document before initiating or

completing a design.

[2] The term 'short data sheet' is explained in section "Definitions".

[3] The product status of device(s) described in this document may have

changed since this document was published and may differ in case of

multiple devices. The latest product status information is available on

the internet at https://www.nexperia.com.

Definitions

Draft — The document is a draft version only. The content is still under

internal review and subject to formal approval, which may result in

modifications or additions. Nexperia does not give any representations or

warranties as to the accuracy or completeness of information included herein

and shall have no liability for the consequences of use of such information.

Short data sheet — A short data sheet is an extract from a full data sheet

with the same product type number(s) and title. A short data sheet is

intended for quick reference only and should not be relied upon to contain

detailed and full information. For detailed and full information see the relevant

full data sheet, which is available on request via the local Nexperia sales

office. In case of any inconsistency or conflict with the short data sheet, the

full data sheet shall prevail.

Product specification — The information and data provided in a Product

data sheet shall define the specification of the product as agreed between

Nexperia and its customer, unless Nexperia and customer have explicitly

agreed otherwise in writing. In no event however, shall an agreement be

valid in which the Nexperia product is deemed to offer functions and qualities

beyond those described in the Product data sheet.

Disclaimers

Limited warranty and liability — Information in this document is believed

to be accurate and reliable. However, Nexperia does not give any

representations or warranties, expressed or implied, as to the accuracy

or completeness of such information and shall have no liability for the

consequences of use of such information. Nexperia takes no responsibility

for the content in this document if provided by an information source outside

of Nexperia.

In no event shall Nexperia be liable for any indirect, incidental, punitive,

special or consequential damages (including - without limitation - lost

profits, lost savings, business interruption, costs related to the removal

or replacement of any products or rework charges) whether or not such

damages are based on tort (including negligence), warranty, breach of

contract or any other legal theory.

Notwithstanding any damages that customer might incur for any reason

whatsoever, Nexperia’s aggregate and cumulative liability towards customer

for the products described herein shall be limited in accordance with the

Terms and conditions of commercial sale of Nexperia.

Right to make changes — Nexperia reserves the right to make changes

to information published in this document, including without limitation

specifications and product descriptions, at any time and without notice. This

document supersedes and replaces all information supplied prior to the

publication hereof.

Suitability for use — Nexperia products are not designed, authorized or

warranted to be suitable for use in life support, life-critical or safety-critical

systems or equipment, nor in applications where failure or malfunction

of an Nexperia product can reasonably be expected to result in personal

injury, death or severe property or environmental damage. Nexperia and its

suppliers accept no liability for inclusion and/or use of Nexperia products in

such equipment or applications and therefore such inclusion and/or use is at

the customer’s own risk.

Quick reference data — The Quick reference data is an extract of the

product data given in the Limiting values and Characteristics sections of this

document, and as such is not complete, exhaustive or legally binding.

Applications — Applications that are described herein for any of these

products are for illustrative purposes only. Nexperia makes no representation

or warranty that such applications will be suitable for the specified use

without further testing or modification.

Customers are responsible for the design and operation of their applications

and products using Nexperia products, and Nexperia accepts no liability for

any assistance with applications or customer product design. It is customer’s

sole responsibility to determine whether the Nexperia product is suitable

and fit for the customer’s applications and products planned, as well as

for the planned application and use of customer’s third party customer(s).

Customers should provide appropriate design and operating safeguards to

minimize the risks associated with their applications and products.

Nexperia does not accept any liability related to any default, damage, costs

or problem which is based on any weakness or default in the customer’s

applications or products, or the application or use by customer’s third party

customer(s). Customer is responsible for doing all necessary testing for the

customer’s applications and products using Nexperia products in order to

avoid a default of the applications and the products or of the application or

use by customer’s third party customer(s). Nexperia does not accept any

liability in this respect.

Limiting values — Stress above one or more limiting values (as defined in

the Absolute Maximum Ratings System of IEC 60134) will cause permanent

damage to the device. Limiting values are stress ratings only and (proper)

operation of the device at these or any other conditions above those

given in the Recommended operating conditions section (if present) or the

Characteristics sections of this document is not warranted. Constant or

repeated exposure to limiting values will permanently and irreversibly affect

the quality and reliability of the device.

Terms and conditions of commercial sale — Nexperia products are

sold subject to the general terms and conditions of commercial sale, as

published at http://www.nexperia.com/profile/terms, unless otherwise agreed

in a valid written individual agreement. In case an individual agreement is

concluded only the terms and conditions of the respective agreement shall

apply. Nexperia hereby expressly objects to applying the customer’s general

terms and conditions with regard to the purchase of Nexperia products by

customer.

No offer to sell or license — Nothing in this document may be interpreted

or construed as an offer to sell products that is open for acceptance or the

grant, conveyance or implication of any license under any copyrights, patents

or other industrial or intellectual property rights.

Export control — This document as well as the item(s) described herein

may be subject to export control regulations. Export might require a prior

authorization from competent authorities.

Non-automotive qualified products — Unless this data sheet expressly

states that this specific Nexperia product is automotive qualified, the

product is not suitable for automotive use. It is neither qualified nor tested in

accordance with automotive testing or application requirements. Nexperia

accepts no liability for inclusion and/or use of non-automotive qualified

products in automotive equipment or applications.

In the event that customer uses the product for design-in and use in

automotive applications to automotive specifications and standards,

customer (a) shall use the product without Nexperia’s warranty of the

product for such automotive applications, use and specifications, and (b)

whenever customer uses the product for automotive applications beyond

Nexperia’s specifications such use shall be solely at customer’s own risk,

and (c) customer fully indemnifies Nexperia for any liability, damages or failed

product claims resulting from customer design and use of the product for

automotive applications beyond Nexperia’s standard warranty and Nexperia’s

product specifications.

Translations — A non-English (translated) version of a document is for

reference only. The English version shall prevail in case of any discrepancy

between the translated and English versions.

Trademarks

Notice: All referenced brands, product names, service names and

trademarks are the property of their respective owners.

Product data sheet Rev. 2 — 28 June 2021 14 / 15

74CB3Q3253

Nexperia 74CB3Q3253

Dual 1-of-4 FET multiplexer/demultiplexer with charge pump

Contents

1. General description......................................................1

2. Features and benefits.................................................. 1

3. Applications.................................................................. 1

4. Ordering information....................................................2

5. Functional diagram.......................................................2

6. Pinning information......................................................3

6.1. Pinning.........................................................................3

6.2. Pin description............................................................. 3

7. Functional description................................................. 4

8. Limiting values............................................................. 4

9. Recommended operating conditions..........................4

10. Static characteristics..................................................5

10.1. Test circuit and graph................................................ 6

10.2. ON resistance............................................................7

10.3. ON resistance test circuit and graph......................... 7

11. Dynamic characteristics.............................................8

11.1. Waveforms and test circuit........................................ 9

12. Package outline........................................................ 11

13. Abbreviations............................................................ 13

14. Revision history........................................................13

15. Legal information......................................................14

For more information, please visit: http://www.nexperia.com

For sales office addresses, please send an email to: salesaddresses@nexperia.com

Date of release: 28 June 2021

Product data sheet Rev. 2 — 28 June 2021 15 / 15

Fiche technique pour 74CB3Q3253BQx de Nexperia USA Inc.

INFORMATIONS

AIDE

NOUS CONTACTER

NOUS SUIVRE
