Part Number: 0780658001
Status: Active
Description: 1.00mm Pitch DDR2 DIMM Socket, Very Low Profile, Vertical, Press-fit, 1.8V Center
Keys, 3.30mm Tail Length, Black Latches, 240 Circuits, 0.76µm Gold (Au) Plating,
Lead-Free
Documents:
3D Model Application Specification AS-87746-001-001 (PDF)
Drawing (PDF) RoHS Certificate of Compliance (PDF)
Product Specification PS-78065-001-001 (PDF)
Agency Certification
CSA LR19980
UL E29179
General
Product Family Memory Module Sockets
Series 78065
Component Type Socket
Electrical Model Yes
JEDEC Outline MO-237
Product Name DDR2 DIMM
UPC 822350742115
Physical
Circuits (Loaded) 240
Durability (mating cycles max) 25
Entry Angle Vertical (Top Entry)
Flammability 94V-0
Housing Color Black
Keying to Mating Part Yes
Latch Color Black
Material - Metal Phosphor Bronze
Material - Plating Mating Gold
Material - Plating Termination Tin
Material - Resin High Temperature Thermoplastic
Net Weight 9.940/g
PC Tail Length 3.30mm
PCB Locator No
PCB Retention Yes
PCB Thickness - Recommended 3.60mm
Packaging Type Tray
Pitch - Mating Interface 1.00mm
Plating min - Mating 0.762µm
Plating min - Termination 0.381µm
Temperature Range - Operating -55° to +85°C
Termination Interface: Style Through Hole - Compliant Pin
Electrical
Current - Maximum per Contact 0.5A
Voltage - Maximum 30V
Voltage Key 1.8V, Center
Solder Process Data
Lead-freeProcess Capability N/A
Material Info

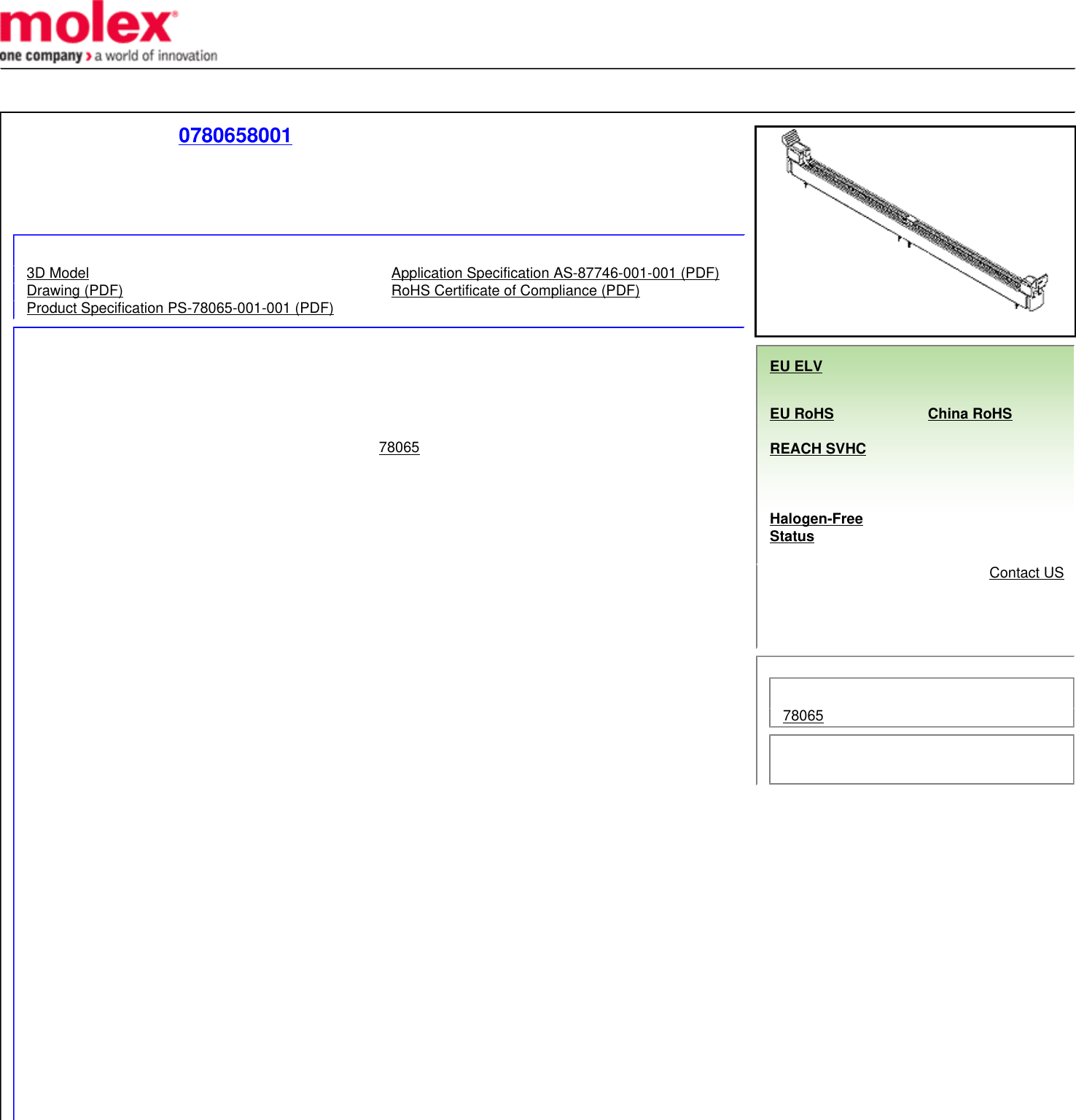

Series image - Reference only
EU ELV
Not Relevant
EU RoHS China RoHS
Compliant
REACH SVHC
Not Contained Per -
ED/71/2019 (16 July
2019)
Halogen-Free
Status
Not Low-Halogen
For more information, please visit Contact US
China ROHS Green Image
ELV Not Relevant
RoHS Phthalates Not Contained
Search Parts in this Series
78065 Series
Mates With
JEDEC MO-237 Modules
Reference - Drawing Numbers
Application Specification AS-87746-001-001
Electrical Model Document EE-78065-002
Product Specification PS-78065-001-001
S-Parameter Model SP-78065-002
Sales Drawing SD-78065-001
