RICOH —

R2061x SERIES

3 Wire Interface Real-Time Clock ICs with Battery Backup Switch-Over Function

NO.EA-112-160701

1

* R2061K (FFP12) is the discontinued product as of July, 2016.

OUTLINE

The R2061x is a CMOS real-time clock IC connected to the CPU by three signal lines, CE, SCLK, and SIO, and

configured to perform serial transmission of time and calendar data to the CPU. Further, battery backup

switchover circuit and a voltage detector. The periodic interrupt circuit is configured to generate interrupt signals

with six selectable interrupts ranging from 0.5 seconds to 1 month. The 2 alarm interrupt circuits generate interrupt

signals at preset times. As the oscillation circuit is driven under constant voltage, fluctuation of the oscillator

frequency due to supply voltage is small, and the time keeping current is small (TYP. 0.4A at 3V). The oscillation

halt sensing circuit can be used to judge the validity of internal data in such events as power-on; The supply

voltage monitoring circuit is configured to record a drop in supply voltage below two selectable supply voltage

monitoring threshold settings. The oscillation adjustment circuit is intended to adjust time counts with high

precision by correcting deviations in the oscillation frequency of the quartz crystal unit. Battery backup switchover

function is the automatic switchover circuit between a main power supply and a backup battery of primary or

secondary battery. Switchover is executed by monitoring the voltage of a main power supply, therefore the voltage

of a backup battery voltage is not relevant. Since the package for these ICs is SSOP16 (5.0x6.4x1.25: R2061Sxx)

and QFN023023-16(2.3×2.3×0.4:R2061Lxx), high density mounting of ICs on boards is possible.

FEATURES

 Minimum Timekeeping supply voltage Typ. 0.75V (Max. 1.00V); VDD pin

 Low power consumption Typ. 0.4A (Max. 1.0A) at VDD=3V

 Built-in Backup switchover circuit (can be used for a primary battery, a secondary battery, or an electric

double layer capacitor)

 Three signal lines (CE, SCLK, and SIO) required for connection to the CPU.

(Maximum clock frequency of 1MHz (with VCC = 3V) )

 Time counters (counting hours, minutes, and seconds) and calendar counters (counting years, months, days,

and weeks) (in BCD format)

 Interrupt circuit configured to generate interrupt signals (with interrupts ranging from 0.5 seconds to 1 month)

to the CPU and provided with an interrupt flag and an interrupt halt

 2 alarm interrupt circuits (Alarm_W for week, hour, and minute alarm settings and Alarm_D for hour and

minute alarm settings)

 Built-in voltage detector with delay

 With Power-on flag to prove that the power supply starts from 0V

 Supply voltage monitoring circuit with two supply voltage monitoring threshold settings

 Automatic identification of leap years up to the year 2099

 Selectable 12-hour and 24-hour mode settings

 Built-in oscillation stabilization capacitors (CG and CD)

 High precision oscillation adjustment circuit

 CMOS process

 Package SSOP16 (5.0mm x 6.4mm x 1.25mm : R2061Sxx)

FFP12(2.0mm x 2.0mm x 1.0mm :R2061Kxx)

QFN023023-16(2.3mm x 2.3mm x 0.4mm :R2061Lxx)

I: :I I: . :I m I: 3 14 :| NC SCLK I: 4 13 :lOSCIN SlOl: 5 12 :lOSCOUT Mel: B 11 :IN0 CE I: 7 m j ﬁn vss: a 9:ICIN TOP VIEW VDD V00 V88 SIO mmwm RICOH

R2061x

NO.EA-112-160701

2

* R2061K (FFP12) is the discontinued product as of July, 2016.

PIN CONFIGURATION

VDCC

SCLK

VCC

NC

1

2

3

4

5

6

7

9

TOP VIEW

R2061Sxx (SSOP16)

VSB

13

15

SIO

NC

CE

NC

VDD

INT

R

10

11

12

14

OSCIN

CIN

8

16

VSS

OSCOUT

VDD

VCC

SIO

VSS

10

11

12

1

2

3

4

TOP VIEW

R2061Kxx (FFP12)

7

VSB

CE

SCLK

VDCC

CIN

5

6

9

8

OSCIN

OSCOUT

INTR

TOP VIEW

R2061Lxx (QFN023023-16)

VCC

N.C.

SIO

CIN

14

15

16

1

2

3

5

9

VSB

VSS

SCLK

VDCC

INTR

6

7

11

10

VDD

OSCIN

N.C.

8 13

N.C. OSCOUT

CE

4

12

N.C.

BLOCK DIAGRAM

OSCOUT

VSS

VDD

INTR

CPU power

supply

OSCIN

VCC

VSB

CPU

REAL

TIME

CLOCK

SCLK

CE

C3

BATTERY

VOLTAGE

MONITOR VDCC

VOLTAGE

DETECTOR

SW1

SW2

SIO

C2

R1

LEVEL

SHIFTER

DELAY

CIN VOLTAGE

REFERENCE

C1

RICOH

R2061x

NO.EA-112-160701

3

* R2061K (FFP12) is the discontinued product as of July, 2016.

SELECTION GUIDE

In the R2061xxx Series, the package and the output voltage can be designated.

Part Number is designated as follows:

R2061 L 01 - E2 - F Part Number

   

R2061 a bb - cc – d

Code Description

a

Designation of the package.

K: FFP12

S: SSOP16

L: QFN023023-16

bb Serial number of Voltage detector setting etc.

cc Designation of the taping type. Only E2 is available.

d Designation of the lead plating (SSOP16 only).

F: Lead free plating

Part Number Package -VDET1

(switch-over threshold)

R2061K01-E2 FFP12 1.70(Typ.)

R2061K03-E2 FFP12 2.80(Typ.)

R2061L01-E2 QFN023023-16 1.70(Typ.)

R2061L03-E2 QFN023023-16 2.80(Typ.)

R2061S02-E2-F SSOP16 2.40(Typ.)

RICOH

R2061x

NO.EA-112-160701

4

* R2061K (FFP12) is the discontinued product as of July, 2016.

PIN DESCRIPTION

Symbol Item Description

CE Chip enable

Input The CE pin is used for interfacing with the CPU. Should be held high to

allow access to the CPU. Incorporates a pull-down resistor. Should be

held low or open when the CPU is powered off. Allows a maximum input

voltage of 5.5 volts regardless of supply voltage.

SCLK Serial

Clock Input The SCLK pin is used to input clock pulses synchronizing the input and

output of data to and from the SIO pin. Allows a maximum input voltage of

5.5 volts regardless of supply voltage.

SIO Serial

Input / Output The SIO pin is used to input or output data intended for writing or reading in

synchronization with the SCLK pin.

INT

R

Interrupt

Output The INTR pin is used to output alarm interrupt (Alarm_W) and alarm

interrupt (Alarm_D) and output periodic interrupt signals to the CPU signals.

Disabled at power-on from 0V. Nch. open drain output.

VCC Main Battery

input Supply power to the IC.

VSB Power Supply

Input for Backup

Battery

Connect a primary battery for backup. Normally, power is supplied from

VCC to the IC. If VCC level is equal or less than –VDET1, power is supplied

from this pin.

OSCIN

OSCOUT Oscillation

Circuit

Input / Output

The OSCIN and OSCOUT pins are used to connect the 32.768-kHz quartz

crystal unit (with all other oscillation circuit components built into the

R2061x).

VDD

Positive Power

Supply Input The VDD pin is connected to the power supply. Connect a capacitor as

much as 0.1F between VDD and VSS. In the case of using a secondary

battery, connecting the secondary battery to this pin is possible.

VDCC VCC Power

Supply Monitoring

Result Output

While monitoring VCC Power supply, if the voltage is equal or lower than

–VDET1, this output level is “L”. When VDCC becomes “L”, SW1 turns off

and SW2 turns on. As a result, power is supplied from VSB pin to the

internal real time clock. When VCC is equal to +VDET1 or more, SW1 turns on

and SW2 turns off. After t DELAY passed, VDCC output becomes off, or

“H”.

Nch Open-drain output.

CIN Noise Bypass Pin To stabilize the internal reference, connect a capacitor as much as 0.1uF

between this pin and VSS.

VSS Negative Power

Sup Supply Input The VSS pin is grounded.

N.C. No Connection

RICOH

R2061x

NO.EA-112-160701

5

* R2061K (FFP12) is the discontinued product as of July, 2016.

ABSOLUTE MAXIMUM RATINGS

(VSS=0V)

Symbol Item Pin Name Description Unit

VCC Supply Voltage 1 VCC -0.3 to +6.5 V

VDD Supply Voltage 2 VDD -0.3 to +6.5 V

VSB Supply Voltage 3 VSB -0.3 to +6.5 V

VI Input Voltage 1 CE, SCLK -0.3 to +6.5 V

Input Voltage 2 SIO -0.3 to VCC+0.3 V

Input Voltage 3 CIN -0.3 to VDD+0.3 V

VO Output Voltage 1 INT

R

, VDCC -0.3 to +6.5 V

Output Voltage 2 SIO -0.3 to VCC+0.3 V

IOUT Maximum Output Current VDD 10 mA

PD Power Dissipation Topt = 25C 300 mW

Topt Operating Temperature -40 to +85 C

Tstg Storage Temperature -55 to +125 C

RECOMMENDED OPERATING CONDITIONS

(VSS=0V, Topt=-40 to +85C)

Symbol Item Pin Name Min, Typ. Max. Unit

Vaccess Supply Voltage VCC power supply

voltage for interfacing

with CPU

-VDET1

*1) 5.5 V

VCLK Minimum Timekeeping

Voltage

CGout,CDout=0pF

*2), *3)

0.75 1.00 V

fXT Oscillation Frequency 32.768 kHz

VPUP Pull-up Voltage INTR , VDCC 5.5 V

*1) -VDET1 in Vaccess specification is guaranteed by design.

*2) CGout is connected between OSCIN and VSS, CDout is connected between OSCOUT and VSS.

R2061x incorporates the capacitors between OSCIN and VSS, between OSCOUT and VSS.

Then normally, CGout and CDout are not necessary.

*3) Quartz crystal unit: CL=6-8pF, R1=30K

_. JJ £2 INTR VDCC AVDET H RICOH

R2061x

NO.EA-112-160701

6

* R2061K (FFP12) is the discontinued product as of July, 2016.

DC ELECTRICAL CHARACTERISTICS

 R2061K01, R2061L01

(Unless otherwise specified: VSS=0V, VSB=3.0V, VCC=2.0V, 0.1uF between VDD and VSS, CIN and VSS,

Topt=-40 to +85C)

Symbol Item Pin Name Conditions Min. Typ. Max. Unit

VIH1 “H” Input Voltage 1 CE, SCLK 0.8xVCC 5.5

V

VIH2 “H” Input Voltage 2 SIO 0.8xVCC VCC+0.3

VIL “L” Input Voltage CE, SIO

SCLK -0.3 0.2xVCC

IOH “H” Output

Current SIO VOH=VCC-0.5V -0.5 mA

IOL1 “L” Output Current 1 SIO VOL=0.4V 0.5

mA

IOL2 “L” Output Current 2 INTR 2.0

IOL3 “L” Output Current 3 INTR VDD,VSB,VCC=1.4V

VOL=0.4V 0.2

IIL Input Leakage

Current SCLK VI=5.5V or VSS -1.0 1.0



A

RDNCE Pull-down Input

register CE 40 120 400

k



IOZ1 Output Off-state

Current 1 SIO VO=5.5V or VSS -1.0 1.0



A

IOZ2 Output Off-state

Current 2 INT

R

,

VDCC

VO=5.5V or VSS

-1.0 1.0



A

ISB Time Keeping Current

at Backup mode VSB VCC=0V, VSB=3.0V,

VDD, Output=OPEN 0.4 1.0



A

ISBL Leakage Current of

Backup pin at

VCC_on

VSB VCC=3.0V,

VSB=5.5V or 0V,

VDD, Output=OPEN

-1.0 1.0

A

VDETH Supply Voltage

Monitoring Voltage “H” VSB

Topt=25C 1.90 2.10 2.30 V

VDETL Supply Voltage

Monitoring Voltage “L” VDD

Topt=25C 1.20 1.35 1.50 V

-VDET1 Detector Threshold

Voltage

(falling edge of VCC)

VCC Topt=25C 1.657 1.700 1.743 V

+VDET1 Detector Released

Voltage (rising edge of

VCC)

VCC Topt=25C 1.731 1.785 1.839 V

VDET

Topt Detector Threshold

and Released Voltage

Temperature coefficient

VCC, VSB Topt=-40 to 85C

*1) 100 ppm

/C

VDDOUT1 VDD Output

Voltage 1 VDD Topt=25C, VCC=2.0V,

Iout=0.5mA VCC-

0.12 VCC-

0.04 V

VDDOUT2 VDD Output

Voltage 2 VDD Topt=25C, VCC=1.4V,

VSB=3.0V, Iout=0.1mA VSB-

0.08 VSB-

0.02 V

CG Internal Oscillation

Capacitance 1 OSCIN 10 pF

CD Internal Oscillation

Capacitance 2 OSCOUT 10

*1) Guaranteed by design.

INTFl INTH VDCC AVDET RICOH

R2061x

NO.EA-112-160701

7

* R2061K (FFP12) is the discontinued product as of July, 2016.

 R2061S02

(Unless otherwise specified: VSS=0V,VSB=VCC=3.0V, 0.1uF between VDD and VSS, CIN and VSS,

Topt=-40 to +85C)

Symbol Item Pin Name Conditions Min. Typ. Max. Unit

VIH1 “H” Input Voltage 1 CE, SCLK 0.8xVCC 5.5

V

VIH2 “H” Input Voltage 2 SIO 0.8xVCC VCC+0.3

VIL “L” Input Voltage CE, SCLK

SIO -0.3 0.2xVCC

IOH “H” Output

Current SIO VOH=VCC-0.5V -0.5 mA

IOL1 “L” Output Current 1 SIO VOL=0.4V 0.5

mA

IOL2 “L” Output Current 2 INT

R

2.0

IOL3 “L” Output Current 3 VDCC VDD,VSB,VCC=2.0V

VOL=0.4V 0.5

IIL Input Leakage

Current SCLK VI=5.5V or VSS -1.0 1.0



A

RDNCE Pull-down Input

register CE 40 120 400

k



IOZ1 Output Off-state

Current 1 SIO VO=5.5V or VSS -1.0 1.0



A

IOZ2 Output Off-state

Current 2 INT

R

,

VDC

C

VO=5.5V or VSS

-1.0 1.0



A

ISB Time Keeping Current

at Backup mode VSB VCC=0V, VSB=3.0V,

VDD, Output=OPEN 0.4 1.0



A

ISBL Leakage Current of

Backup pin at

VCC_on

VSB VCC=3.0V,

VSB=5.5V or 0V,

VDD, Output=OPEN

-1.0 1.0

A

VDETH Supply Voltage

Monitoring Voltage “H” VSB

Topt=25C 1.90 2.10 2.30 V

VDETL Supply Voltage

Monitoring Voltage “L” VDD

Topt=25C 1.20 1.35 1.50 V

-VDET1 Detector Threshold

Voltage

(falling edge of VCC)

VCC Topt=25C 2.34 2.40 2.46 V

+VDET1 Detector Released

Voltage (rising edge of

VCC)

VCC Topt=25C 2.44 2.52 2.60 V

VDET

Topt Detector Threshold

and Released Voltage

Temperature coefficient

VCC, VSB Topt=-40 to 85C

*1) 100 ppm

/C

VDDOUT1 VDD Output

Voltage 1 VDD Topt=25C, VCC=3.0V,

Iout=1.0mA VCC-

0.12 VCC-

0.04 V

VDDOUT2 VDD Output

Voltage 2 VDD Topt=25C, VCC=2.0V,

VSB=3.0V, Iout=0.1mA VSB-

0.08 VSB-

0.02 V

CG Internal Oscillation

Capacitance 1 OSCIN 10 pF

CD Internal Oscillation

Capacitance 2 OSCOUT 10

*1) Guaranteed by design.

EE‘ §|| AVDET RICOH

R2061x

NO.EA-112-160701

8

* R2061K (FFP12) is the discontinued product as of July, 2016.

 R2061K03, R2061L03

(Unless otherwise specified: VSS=0V, VSB=3.0V, VCC=3.3V, 0.1uF between VDD and VSS, CIN and VSS,

Topt=-40 to +85C)

Symbol Item Pin Name Conditions Min. Typ. Max. Unit

VIH1 “H” Input Voltage 1 CE, SCLK 0.8x

VCC 5.5

V

VIH2 “H” Input Voltage 2 SIO 0.8x

VCC V

CC+0.3

VIL “L” Input Voltage CE, SCLK

SIO -0.3 0.2xVCC

IOH “H” Output

Current SIO VOH=VCC-0.5V -0.5 mA

IOL1 “L” Output Current 1 SIO VOL=0.4V 0.5

mA

IOL2 “L” Output Current 2 INTR 2.0

IOL3 “L” Output Current 3 VDC

C

VDD,VSB,VCC=2.0V

VOL=0.4V 0.5

IIL Input Leakage

Current SCLK VI=5.5V or VSS -1.0 1.0



A

RDNCE Pull-down Input

register CE 40 120 400

k



IOZ1 Output Off-state

Current 1 SIO VO=5.5V or VSS -1.0 1.0



A

IOZ2 Output Off-state

Current 2 INTR ,

VDC

C

VO=5.5V or VSS

-1.0 1.0



A

ISB Time Keeping Current

at Backup mode VSB VCC=0V, VSB=3.0V,

VDD, Output=OPEN 0.4 1.0



A

ISBL Leakage Current of

Backup pin at

VCC_on

VSB VCC=3.3V,

VSB=5.5V or 0V,

VDD, Output=OPEN

-1.0 1.0



A

VDETH Supply Voltage

Monitoring Voltage

“H”

VSB

Topt=25C 1.90 2.10 2.30 V

VDETL Supply Voltage

Monitoring Voltage “L” VDD

Topt=25C 1.20 1.35 1.50 V

-VDET1 Detector Threshold

Voltage

(falling edge of VCC)

VCC Topt=25C 2.73 2.80 2.87 V

+VDET1 Detector Released

Voltage (rising edge

of VCC)

VCC Topt=25C 2.85 2.94 3.03 V

VDET

Topt Detector Threshold

and Released Voltage

Temperature

coefficient

VCC,

VSB Topt=-40 to 85C

*1) 100 ppm

/C

VDDOUT1 VDD Output

Voltage 1 VDD Topt=25C, VCC=3.3V,

Iout=1.0mA VCC-

0.12 VCC-

0.04 V

VDDOUT2 VDD Output

Voltage 2 VDD Topt=25C, VCC=2.0V,

VSB=3.0V, Iout=0.1mA VSB-

0.08 VSB-

0.02 V

CG Internal Oscillation

Capacitance 1 OSCIN 10 pF

CD Internal Oscillation

Capacitance 2 OSCOUT 10

*1) Guaranteed by design.

R2061x

NO.EA-112-160701

9

* R2061K (FFP12) is the discontinued product as of July, 2016.

AC ELECTRICAL CHARACTERISTICS

Unless otherwise specified: VSS=0V,Topt=-40 to +85C

Input and Output Conditions: VIH=0.8VCC,VIL=0.2VCC,VOH=0.8VCC,VOL=0.2VCC,CL=50pF

Sym

-bol Item Condi-

Tions VDD1.7V *1) Unit

Min. Typ. Max.

tCES CE Set-up Time 400 ns

tCEH CE Hold Time 400 ns

tCR CE Recovery Time 62



s

fSCLK SCLK Clock Frequency 1.0 MHz

tCKH SCLK Clock ”H” Time 400 ns

tCKL SCLK Clock ”L” Time 400 ns

tCKS SCLK Set-up Time 200 ns

tRD Data Output Delay Time 300 ns

tRZ Data Output Floating Time 300 ns

tCEZ Data Output Delay Time After

Falling of CE 300 ns

tDS Input Data Set-up Time 200 ns

tDH Input Data Hold Time 200 ns

tDELAY Output Delay Time of Voltage

Detector

Time

Keeping 100 105 110 ms

*1) VCC voltage interfacing with CPU is defined by Vaccess (P.5 RECOMMENDED OPERATING

CONDITIONS)

*) For reading/writing timing, see “P.31 Interfacing with the CPU Considerations in Reading and Writing

Time Data under special condition”.

SCLK

tCES

SIO(read cycle)

SIO(write cycle)

CE

tRD

tCKL

tCEZ

tDS tDH

tRD

tCEH

tCKH

tCKS tCR

tRZ

VDCC

VCC tDELAY

+VDET1

W 1P|N INDEX WIN—NW 1.0Max . 0.103 ﬁftiw 3:0.154 4 ll 0210.15 ,174 $1 mi? RICOH

R2061x

NO.EA-112-160701

10

* R2061K (FFP12) is the discontinued product as of July, 2016.

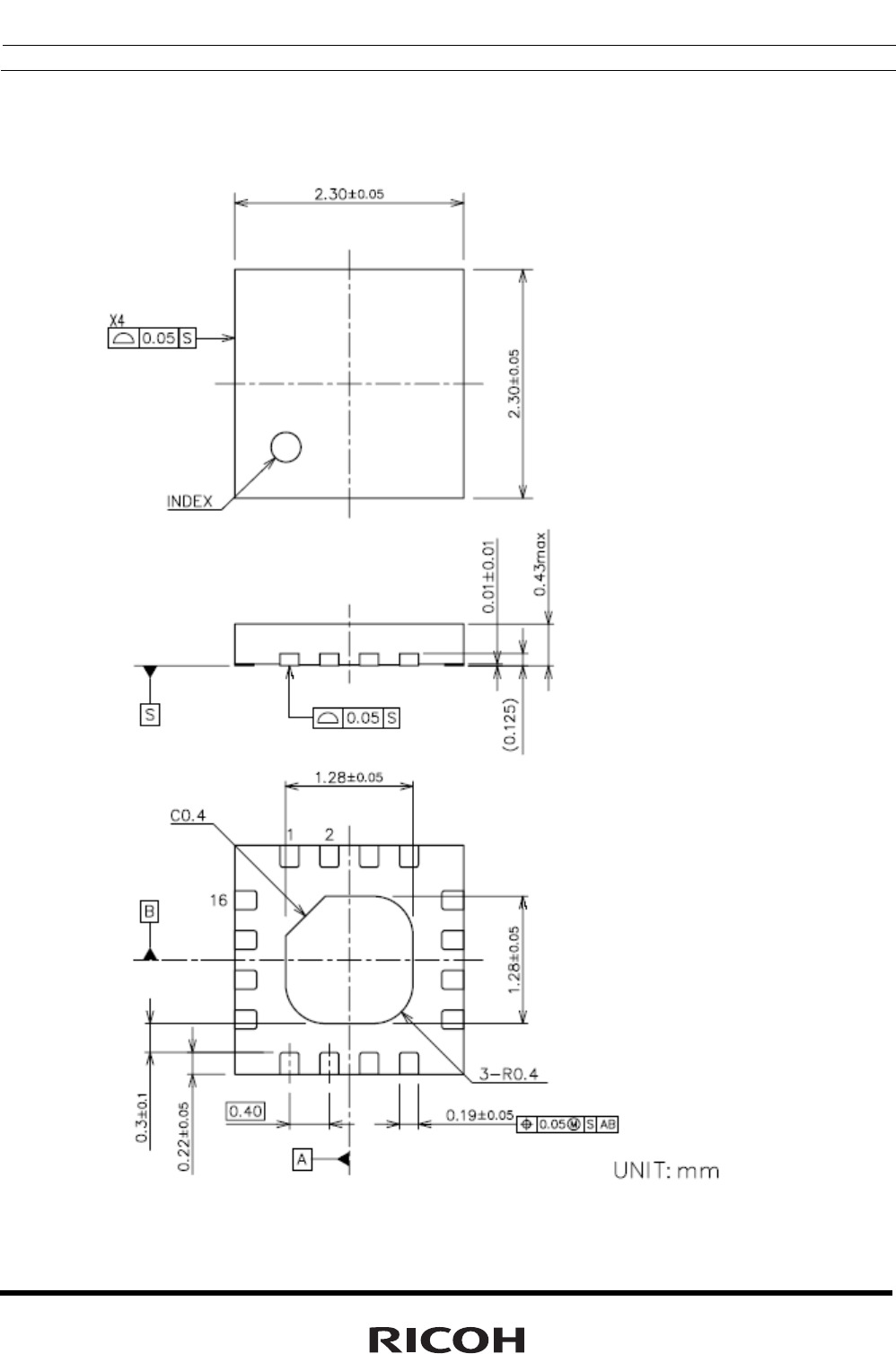

PACKAGE DIMENSIONS

 R2061Kxx (Discontinued)

9 7

6

4

3 1

10

12

1PIN INDEX

2.00.1

0.20.15

0.35

2.00.1

2PIN INDEX

0.5

0.30.15

0.103

0.25

0.35

1.0Max

0.270.15

(BOTTOM VIEW)

0.5

0.05

0.170.1

unit: mm

ﬁHHHHHHé j RICOH

R2061x

NO.EA-112-160701

11

* R2061K (FFP12) is the discontinued product as of July, 2016.

 R2061Sxx

16 9

1

M

8

4.40.2

6.40.3

0.50.3

0.225typ

0.65

0 to 10

0.10.1

0.10

0.15

0.22

0.15 +0.1

-

0

.

05

5.00.3

1.150.1

+0.1

-

0

.

05

unit: mm

7 :50”) 05 KDEHVQ w 8655“ .odwad INIMX / E005] A 305?. V UN T: mm ‘5— RC 4 :1 19mm ama- I 25:0 31) (11.0 _m LA. 86.3 o Bun o RICOH

R2061x

NO.EA-112-160701

12

* R2061K (FFP12) is the discontinued product as of July, 2016.

 R2061Lxx

* Tab is VSS level. (They are connected to the

reverse side of this IC.)

The tab is better to be connected to the VSS.

*

※ The side of the all terminals have no plating treatment.

Therefore, it may not be able to form solder fillet on the side of the terminals.

VCC VDD VSS RICOH

R2061x

NO.EA-112-160701

13

* R2061K (FFP12) is the discontinued product as of July, 2016.

GENERAL DESCRIPTION

 Battery Backup Switchover Function

The R2061x have two power supply input, or VCC and VSB. With monitoring VCC pin input voltage, which voltage

between the two is supplied to the internal power supply is decided.

Refer to the next table to see the state of the backup battery and internal power supply’s state of the IC by each

condition. VCCVDET1 VCCVDET1

VCCRTC, VDD

VDC

C

=OFF(H)

VSBRTC, VDD

VDCC=L

As a backup battery, not only a primary battery such as CR2025, LR44, or a secondary battery such as ML614,

TC616, but also an electric double layered capacitor or an aluminum capacitor can be used. Switchover point is

judged with the voltage of the main power (VCC), therefore, if the backup voltage is higher than main supply

voltage, switchover can be realized without extra load to the backup power supply.

VDD

VSB

VCC

VSS

0.1F

CPU Power

Supply

The case of back-up b

y

primary battery

CR2025

etc.

VSB

VDD

VCC

VSS

0.1F

CPU power

supply

ML614

etc.

The case of back-up by

capacitor or secondary battery

(Charging voltage is equal to CPU

power supply voltage)

VSB

VDD

VCC

VSS

0.1F

CPU power

supply

(3V)

5V

Double layer

capacitor

etc.

The case of back-up by

capacitor or secondary battery

(Charging voltage is not equal to

CPU power supply voltage)

 Interface with CPU

The R2061x is connected to the CPU by three signal lines CE (Chip Enable), SCLK (Serial Clock), and SIO

(Serial Input / Output), through which it reads and writes data from and to the CPU. The CPU can be accessed

when the CE pin is held high. Access clock pulses have a maximum frequency of 1 MHz, allowing high-speed

data transfer to the CPU. VCC falls down under -VDET1, the R2061x stops accessing with CPU.

INTR RICOH

R2061x

NO.EA-112-160701

14

* R2061K (FFP12) is the discontinued product as of July, 2016.

 Clock and Calendar Function

The R2061x reads and writes time data from and to the CPU in units ranging from seconds to the last two digits

of the calendar year. The calendar year will automatically be identified as a leap year when its last two digits are

a multiple of 4. Consequently, leap years up to the year 2099 can automatically be identified as such.

*) The year 2000 is a leap year while the year 2100 is not a leap year.

 Alarm Function

The R2061x incorporates the alarm interrupt circuit configured to generate interrupt signals to the CPU at preset

times. The alarm interrupt circuit allows two types of alarm settings specified by the Alarm_W registers and the

Alarm_D registers. The Alarm_W registers allow week, hour, and minute alarm settings including combinations

of multiple day-of-week settings such as "Monday, Wednesday, and Friday" and "Saturday and Sunday". The

Alarm_D registers allow hour and minute alarm settings. The Alarm_W outputs from INT

R

pin, and the Alarm_D

outputs also from INTR pin. Each alarm function can be checked from the CPU by using a polling function.

 High-precision Oscillation Adjustment Function

The R2061x has built-in oscillation stabilization capacitors (CG and CD), that can be connected to an external

quartz crystal unit to configure an oscillation circuit. Two kinds of accuracy for this function are alternatives. To

correct deviations in the oscillator frequency of the crystal, the oscillation adjustment circuit is configured to allow

correction of a time count gain or loss (up to 1.5ppm or 0.5ppm at 25C) from the CPU. The maximum range

is approximately 189ppm (or 63ppm) in increments of approximately 3ppm (or 1ppm). Such oscillation

frequency adjustment in each system has the following advantages:

* Allows timekeeping with much higher precision than conventional RTCs while using a quartz crystal unit with

a wide range of precision variations.

* Corrects seasonal frequency deviations through seasonal oscillation adjustment.

* Allows timekeeping with higher precision particularly with a temperature sensing function out of RTC, through

oscillation adjustment in tune with temperature fluctuations.

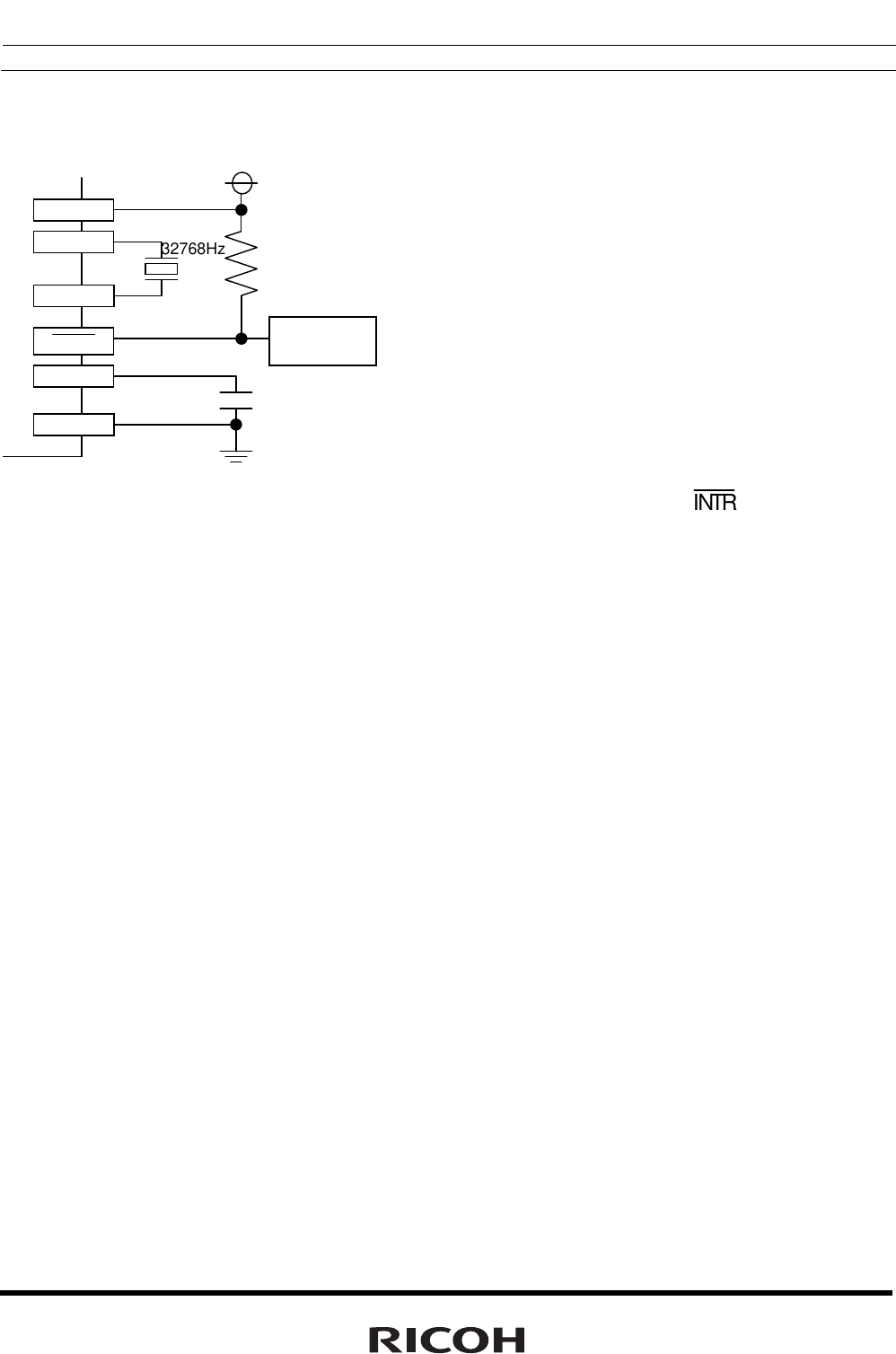

 Power-on Reset, Oscillation Halt Sensing Function and Supply Voltage Monitoring Function

The R2061x has 3 power supply pins (VCC, VSB, VDD), among them, VCC pin and VDD pin have monitoring

function of supply voltage. VCC power supply monitoring circuit makes VDC

C

pin “L” when VCC power supply

pin becomes equal or lower than –VDET1. At the power-on of VCC, this circuit makes VDC

C

pin turn off, or “H”

after the delay time, tDELAY from when the VCC power supply pin becomes equal or more than +VDET1.

The R2061x incorporates an oscillation halt sensing circuit equipped with internal registers configured to record

any past oscillation halt, the oscillation halt sensing circuit, VDD monitoring flag, and power-on reset flag are

useful for judging the validity of time data.

Power on reset function reset the control resisters when the system is powered on from 0V. At the same time, the

fact is memorized to the resister as a flag, thereby identifying whether they are powered on from 0V or battery

backed-up.

The R2061x also incorporates a supply voltage monitoring circuit equipped with internal registers configured to

record any drop in supply voltage below a certain threshold value. Supply voltage monitoring threshold settings

can be selected between 2.1V and 1.35V through internal register settings. The sampling rate is normally 1s.

The oscillation halt sensing circuit is configured to confirm the established invalidation of time data in contrast to

the supply voltage monitoring circuit intended to confirm the potential invalidation of time data. Further, the supply

voltage monitoring circuit can be applied to battery supply voltage monitoring.

RICOH

R2061x

NO.EA-112-160701

15

* R2061K (FFP12) is the discontinued product as of July, 2016.

 Periodic Interrupt Function

The R2061x incorporates the periodic interrupt circuit configured to generate periodic interrupt signals aside from

interrupt signals generated by the periodic interrupt circuit for output from the INTR pin. Periodic interrupt signals

have five selectable frequency settings of 2 Hz (once per 0.5 seconds), 1 Hz (once per 1 second), 1/60 Hz (once

per 1 minute), 1/3600 Hz (once per 1 hour), and monthly (the first day of every month). Further, periodic interrupt

signals also have two selectable waveforms, a normal pulse form (with a frequency of 2 Hz or 1 Hz) and special

form adapted to interruption from the CPU in the level mode (with second, minute, hour, and month interrupts).

The condition of periodic interrupt signals can be monitored with using a polling function.

\DE‘DS‘D4‘D3‘D2‘D1l id RICOH

R2061x

NO.EA-112-160701

16

* R2061K (FFP12) is the discontinued product as of July, 2016.

Address Mapping

Address Register Name D a t a

A3A2A1A0 D7 D6 D5 D4 D3 D2 D1 D0

0 0 0 0 0 Second Counter -

*2)

S40 S20 S10 S8 S4 S2 S1

1 0 0 0 1 Minute Counter - M40 M20 M10 M8 M4 M2 M1

2 0 0 1 0 Hour Counter - - H20

P/

A

H10 H8 H4 H2 H1

3 0 0 1 1 Day-of-week Counter - - - - - W4 W2 W1

4 0 1 0 0 Day-of-month Counter - - D20 D10 D8 D4 D2 D1

5 0 1 0 1 Month Counter and

Century Bit 19 /20 - - MO10 MO8 MO4 MO2 MO1

6 0 1 1 0 Year Counter Y80 Y40 Y20 Y10 Y8 Y4 Y2 Y1

7 0 1 1 1 Oscillation Adjustment

Register *3) DEV

*4)

F6 F5 F4 F3 F2 F1 F0

8 1 0 0 0 Alarm_W

(Minute Register) - WM40 WM20 WM10 WM8 WM4 WM2 WM1

9 1 0 0 1 Alarm_W

(Hour Register) - - WH20

WP/

A

WH10 WH8 WH4 WH2 WH1

A 1 0 1 0 Alarm_W

(Day-of-week Register) - WW6 WW5 WW4 WW3 WW2 WW1 WW0

B 1 0 1 1 Alarm_D

(Minute Register) - DM40 DM20 DM10 DM8 DM4 DM2 DM1

C 1 1 0 0 Alarm_D

(Hour Register) - - DH20

DP/

A

DH10 DH8 DH4 DH2 DH1

D 1 1 0 1 - - - - - - - -

E 1 1 1 0 Control Register 1 *3) WALE DALE 12 /24 SCRA-

TCH2

TEST CT2 CT1 CT0

F 1 1 1 1 Control Register 2 *3) VDSL VDET XST PON

*5)

SCRA-

TCH1

CTFG WAFG DAFG

Notes:

* 1) All the data listed above accept both reading and writing.

* 2) The data marked with "-" is invalid for writing and reset to 0 for reading.

* 3) When the PON bit is set to 1 in Control Register 2, all the bits are reset to 0 in Oscillation Adjustment

Register, Control Register 1 and Control Register 2 excluding the XS

T

bit.

* 4) When DEV=0, the oscillation adjustment circuit is configured to allow correction of a time count gain

or loss up to 1.5ppm.

When DEV=1, the oscillation adjustment circuit is configured to allow correction of a time count gain

or loss up to or 0.5ppm.

* 5) PON is a power-on-reset flag.

registers and the AlarmiD registers). at the Near RICOH

R2061x

NO.EA-112-160701

17

* R2061K (FFP12) is the discontinued product as of July, 2016.

Register Settings

 Control Register 1 (ADDRESS Eh)

D7 D6 D5 D4 D3 D2 D1 D0

WALE DALE 12 /24 SCRA

TCH2 TEST CT2 CT1 CT0 (For Writing)

WALE DALE 12 /24 SCRA

TCH2 TEST CT2 CT1 CT0 (For Reading)

0 0 0 0 0 0 0 0 Default Settings *)

*) Default settings: Default value means read / written values when the PON bit is set to “1” due to VDD

power-on from 0 volts.

(1) WALE, DALE Alarm_W Enable Bit, Alarm_D Enable Bit

WALE,DALE Description

0 Disabling the alarm interrupt circuit (under the control of the settings

of the Alarm_W registers and the Alarm_D registers). (Default)

1 Enabling the alarm interrupt circuit (under the control of the settings

of the Alarm_W registers and the Alarm_D registers)

(2) 12 /24 12 /24-hour Mode Selection Bit

12 /24 Description

0 Selecting the 12-hour mode with a.m. and p.m. indications. (Default)

1 Selecting the 24-hour mode

Setting the 1

2

/24 bit to 0 and 1 specifies the 12-hour mode and the 24-hour mode, respectively.

24-hour mode 12-hour mode 24-hour mode 12-hour mode

00 12 (AM12) 12 32 (PM12)

01 01 (AM 1) 13 21 (PM 1)

02 02 (AM 2) 14 22 (PM 2)

03 03 (AM 3) 15 23 (PM 3)

04 04 (AM 4) 16 24 (PM 4)

05 05 (AM 5) 17 25 (PM 5)

06 06 (AM 6) 18 26 (PM 6)

07 07 (AM 7) 19 27 (PM 7)

08 08 (AM 8) 20 28 (PM 8)

09 09 (AM 9) 21 29 (PM 9)

10 10 (AM10) 22 30 (PM10)

11 11 (AM11) 23 31 (PM11)

Setting the 1

2

/24 bit should precede writing time data

(3) SCRATCH2 Scratch Bit 2

SCRATCH2 Description

0 (Default)

1

The SCRATCH2 bit is intended for scratching and accepts the reading and writing of 0 and 1.

The SCRATCH2 bit will be set to 0 when the PON bit is set to 1 in the Control Register 1.

Normal operanon mode. RICOH

R2061x

NO.EA-112-160701

18

* R2061K (FFP12) is the discontinued product as of July, 2016.

(4) TEST Test Bit

TEST Description

0 Normal operation mode. (Default)

1 Test mode.

The TEST bit is used only for testing in the factory and should normally be set to 0.

(5) CT2,CT1, and CT0 Periodic Interrupt Selection Bits

CT2 CT1 CT0 Description

Wave form

mode Interrupt Cycle and Falling Timing

0 0 0 - OFF(H) (Default)

0 0 1 - Fixed at “L”

0 1 0 Pulse Mode

*1) 2Hz(Duty50%)

0 1 1 Pulse Mode

*1) 1Hz(Duty50%)

1 0 0 Level Mode

*2) Once per 1 second (Synchronized with

second counter increment)

1 0 1 Level Mode

*2) Once per 1 minute (at 00 seconds of

every minute)

1 1 0 Level Mode

*2) Once per hour (at 00 minutes and 00

seconds of every hour)

1 1 1 Level Mode

*2) Once per month (at 00 hours, 00

minutes,

and 00 seconds of first day of every

month)

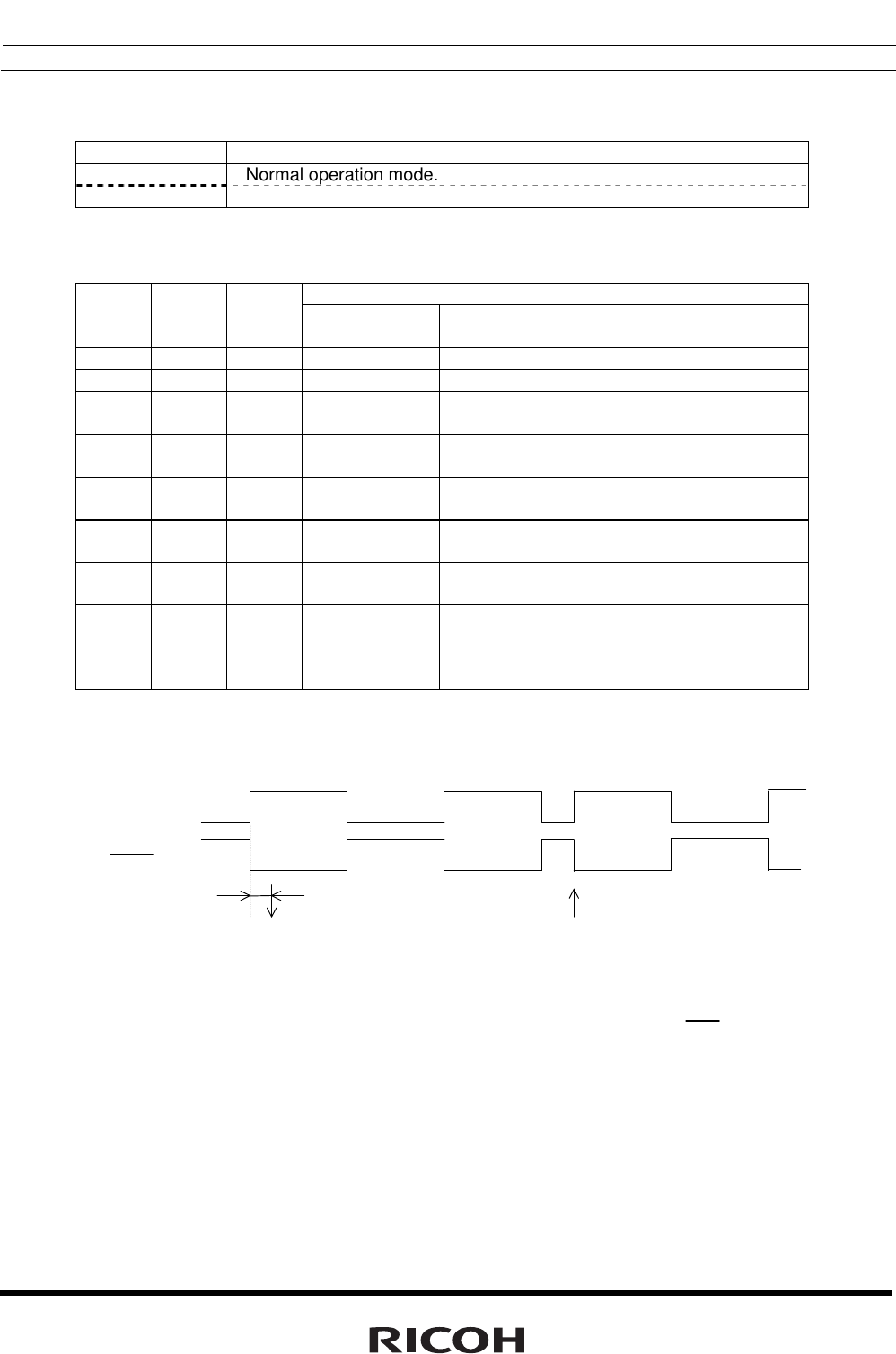

* 1) Pulse Mode: 2-Hz and 1-Hz clock pulses are output in synchronization with the increment of the

second counter as illustrated in the timing chart below.

INTR Pin

Rewriting of the second counter

CTFG Bit

A

pprox. 92s

(Increment of second counter)

In the pulse mode, the increment of the second counter is delayed by approximately 92 s from the falling

edge of clock pulses. Consequently, time readings immediately after the falling edge of clock pulses may

appear to lag behind the time counts of the real-time clocks by approximately 1 second. Rewriting the

second counter will reset the other time counters of less than 1 second, driving the INTR pin low.

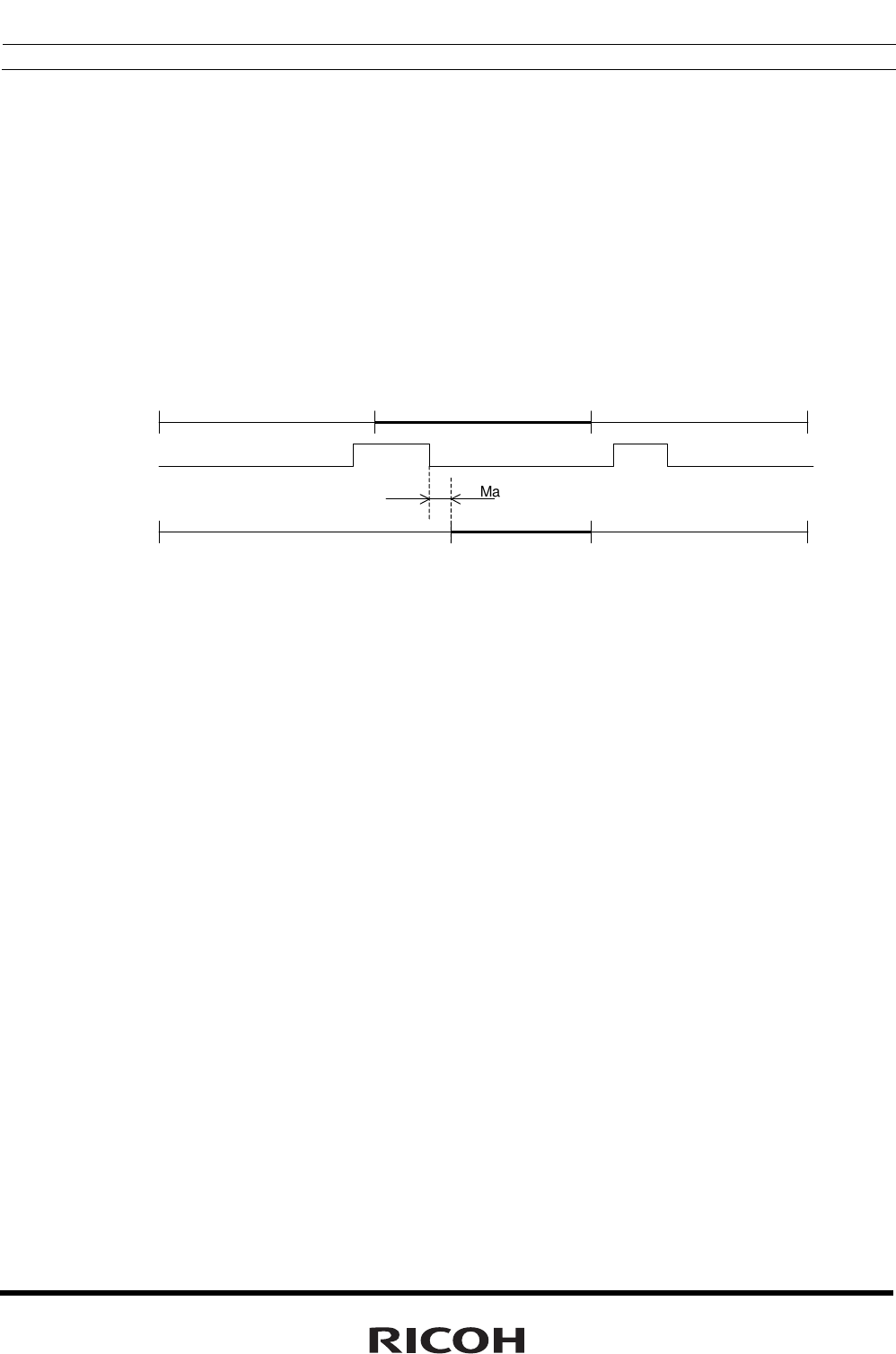

* 2) Level Mode: Periodic interrupt signals are output with selectable interrupt cycle settings of 1 second,

1 minute, 1 hour, and 1 month. The increment of the second counter is synchronized with the falling edge

of periodic interrupt signals. For example, periodic interrupt signals with an interrupt cycle setting of 1

second are output in synchronization with the increment of the second counter as illustrated in the timing

chart below.

RICOH

R2061x

NO.EA-112-160701

19

* R2061K (FFP12) is the discontinued product as of July, 2016.

(Increment of

second counter)

Setting CTFG bit to 0 Setting CTFG bit to 0

(Increment of

second counter) (Increment of

second counter)

CTFG Bit

INTR Pin

At the level mode, the moment right after writing CT2-CT0, INTR pin becomes "L" in very

short moment. In such a case, ignore it or confirm it by CTFG bit.

*1), *2) When the oscillation adjustment circuit is used, the interrupt cycle will fluctuate once per 20sec. or

60sec. as follows:

Pulse Mode: The “L” period of output pulses will increment or decrement by a maximum of 3.784 ms. For

example, 1-Hz clock pulses will have a duty cycle of 50 0.3784%.

Level Mode: A periodic interrupt cycle of 1 second will increment or decrement by a maximum of

3.784 ms.

threshold settings. Er __ Sensing a hat of oscillation 5 ET ET EH INTFl RICOH

R2061x

NO.EA-112-160701

20

* R2061K (FFP12) is the discontinued product as of July, 2016.

 Control Register 2 (Address Fh)

D7 D6 D5 D4 D3 D2 D1 D0

VDSL VDET

XS

T

PON SCRA

TCH1 CTFG WAFG DAFG (For Writing)

VDSL VDET

XST PON SCRA

TCH1 CTFG WAFG DAFG (For Reading)

0 0

Indefinite 1 0 0 0 0 Default Settings *)

*) Default settings: Default value means read / written values when the PON bit is set to “1” due to VDD

power-on from 0 volts.

(1) VDSL VDD Supply Voltage Monitoring Threshold Selection Bit

VDSL Description

0 Selecting the VDD supply voltage monitoring threshold setting of

2.1v. (Default)

1 Selecting the VDD supply voltage monitoring threshold setting of

1.35v.

The VDSL bit is intended to select the VDD supply voltage monitoring threshold settings.

(2) VDET Supply Voltage Monitoring Result Indication Bit

VDET Description

0 Indicating supply voltage above the supply voltage monitoring

threshold settings. (Default)

1 Indicating supply voltage below the supply voltage monitoring

threshold settings.

Once the VDET bit is set to 1, the supply voltage monitoring circuit will be disabled while the VDET bit will

hold the setting of 1. The VDET bit accepts only the writing of 0, which restarts the supply voltage

monitoring circuit. Conversely, setting the VDET bit to 1 causes no event.

(3) XST Oscillation Halt Sensing Monitor Bit

XS

T

Description

0 Sensing a halt of oscillation

1 Sensing a normal condition of oscillation

The XS

T

accepts the reading and writing of 0 and 1. The XS

T

bit will be set to 0 when the oscillation halt

sensing. The XS

T

bit will hold 0 even after the restart of oscillation.

(4) PON Power-on-reset Flag Bit

PON Description

0 Normal condition

1 Detecting VDD power-on -reset (Default)

The PON bit is for sensing power-on reset condition.

* The PON bit will be set to 1 when VDD power-on from 0 volts. The PON bit will hold the setting of 1 even

after power-on.

* When the PON bit is set to 1, all bits will be reset to 0, in the Oscillation Adjustment Register, Control

Register 1, and Control Register 2, except XS

T

and PON. As a result, INT

R

pin stops outputting.

* The PON bit accepts only the writing of 0. Conversely, setting the PON bit to 1 causes no event.

Periodic interrupt outpu Indicating a mismatch between current time and preset ararm time WI'R m A‘ A RICOH

R2061x

NO.EA-112-160701

21

* R2061K (FFP12) is the discontinued product as of July, 2016.

(5) SCRATCH1 Scratch Bit 1

SCRATCH1 Description

0 (Default)

1

The SCRATCH1 bit is intended for scratching and accepts the reading and writing of 0 and 1. The

SCRATCH1 bit will be set to 0 when the PON bit is set to 1 in the Control Register 2.

(6) CTFG Periodic Interrupt Flag Bit

CTFG Description

0 Periodic interrupt output = “H” (Default)

1 Periodic interrupt output = “L”

The CTFG bit is set to 1 when the periodic interrupt signals are output from the INTR pin (“L”). The CTFG

bit accepts only the writing of 0 in the level mode, which disables (“H”) the INTR pin until it is enabled (“L”)

again in the next interrupt cycle. Conversely, setting the CTFG bit to 1 causes no event.

(7) WAFG,DAFG Alarm_W Flag Bit and Alarm_D Flag Bit

WAFG,DAFG Description

0 Indicating a mismatch between current time and preset alarm time (Default)

1 Indicating a match between current time and preset alarm time

The WAFG and DAFG bits are valid only when the WALE and DALE have the setting of 1, which is caused

approximately 31s after any match between current time and preset alarm time specified by the Alarm_W

registers and the Alarm_D registers. The WAFG (DAFG) bit accepts only the writing of 0. INT

R

outputs off (“H”) when this bit is set to 0. And INT

R

pin outputs “L” again at the next preset alarm time.

Conversely, setting the WAFG and DAFG bits to 1 causes no event. The WAFG and DAFG bits will have

the reading of 0 when the alarm interrupt circuit is disabled with the WALE and DALE bits set to 0. The

settings of the WAFG and DAFG bits are synchronized with the output of the INTR pin as shown in the

timing chart below.

INTR

Writing of 0 to

WAFG(DAFG) bit

WAFG(DAFG) Bit

(Match between

current time and

preset alarm time)

A

pprox. 31s

A

pprox. 31s

Writing of 0 to

WAFG(DAFG) bit

(Match between

current time and

preset alarm time)

(Match between

current time and

preset alarm time)

RICOH

R2061x

NO.EA-112-160701

22

* R2061K (FFP12) is the discontinued product as of July, 2016.

 Time Counter (Address 0-2h)

Second Counter (Address 0h)

D7 D6 D5 D4 D3 D2 D1 D0

- S40 S20 S10 S8 S4 S2 S1 (For Writing)

0 S40 S20 S10 S8 S4 S2 S1 (For Reading)

0 Indefinite Indefinite Indefinite Indefinite Indefinite Indefinite Indefinite Default Settings *)

Minute Counter (Address 1h)

D7 D6 D5 D4 D3 D2 D1 D0

- M40 M20 M10 M8 M4 M2 M1 (For Writing)

0 M40 M20 M10 M8 M4 M2 M1 (For Reading)

0 Indefinite Indefinite Indefinite Indefinite Indefinite Indefinite Indefinite Default Settings *)

Hour Counter (Address 2h)

D7 D6 D5 D4 D3 D2 D1 D0

- - P/

A

or H20

H10 H8 H4 H2 H1 (For Writing)

0 0 P/

A

or H20

H10 H8 H4 H2 H1 (For Reading)

0 0 Indefinite Indefinite Indefinite Indefinite Indefinite Indefinite Default Settings *)

*) Default settings: Default value means read / written values when the PON bit is set to “1” due to VDD

power-on from 0 volts.

* Time digit display (BCD format) as follows:

The second digits range from 00 to 59 and are carried to the minute digit in transition from 59 to 00.

The minute digits range from 00 to 59 and are carried to the hour digits in transition from 59 to 00.

The hour digits range as shown in "P17  Control Register 1 (ADDRESS Eh) (2) 12 /24: 1

2

/24-hour Mode

Selection Bit" and are carried to the day-of-month and day-of-week digits in transition from PM11 to AM12

or from 23 to 00.

* Any writing to the second counter resets divider units of less than 1 second.

* Any carry from lower digits with the writing of non-existent time may cause the time counters to malfunction.

Therefore, such incorrect writing should be replaced with the writing of existent time data.

RICOH

R2061x

NO.EA-112-160701

23

* R2061K (FFP12) is the discontinued product as of July, 2016.

 Day-of-week Counter (Address 3h)

D7 D6 D5 D4 D3 D2 D1 D0

- - - - - W4 W2 W1 (For Writing)

0 0 0 0 0 W4 W2 W1 (For Reading)

0 0 0 0 0 Indefinite Indefinite Indefinite Default Settings *)

*) Default settings: Default value means read / written values when the PON bit is set to “1” due to VDD

power-on from 0 volts.

* The day-of-week counter is incremented by 1 when the day-of-week digits are carried to the day-of-month

digits.

* Day-of-week display (incremented in septimal notation):

(W4, W2, W1) = (0, 0, 0)  (0, 0, 1)…(1, 1, 0)  (0, 0, 0)

* Correspondences between days of the week and the day-of-week digits are user-definable

(e.g. Sunday = 0, 0, 0)

* The writing of (1, 1, 1) to (W4, W2, W1) is prohibited except when days of the week are unused.

 Calendar Counter (Address 4-6h)

Day-of-month Counter (Address 4h)

D7 D6 D5 D4 D3 D2 D1 D0

- - D20 D10 D8 D4 D2 D1 (For Writing)

0 0 D20 D10 D8 D4 D2 D1 (For Reading)

0 0 Indefinite Indefinite Indefinite Indefinite Indefinite Indefinite Default Settings *)

Month Counter + Century Bit (Address 5h)

D7 D6 D5 D4 D3 D2 D1 D0

1

9

/20 - -

MO10 MO8 MO4 MO2 MO1 (For Writing)

19 /20 0 0

MO10 MO8 MO4 MO2 MO1 (For Reading)

Indefinite 0 0 Indefinite Indefinite Indefinite Indefinite Indefinite Default Settings *)

Year Counter (Address 6h)

D7 D6 D5 D4 D3 D2 D1 D0

Y80 Y40 Y20 Y10 Y8 Y4 Y2 Y1 (For Writing)

Y80 Y40 Y20 Y10 Y8 Y4 Y2 Y1 (For Reading)

Indefinite Indefinite Indefinite Indefinite Indefinite Indefinite Indefinite Indefinite Default Settings *)

*) Default settings: Default value means read / written values when the PON bit is set to “1” due to VDD

power-on from 0 volts.

* The calendar counters are configured to display the calendar digits in BCD format by using the automatic

calendar function as follows:

The day-of-month digits (D20 to D1) range from 1 to 31 for January, March, May, July, August, October,

and December; from 1 to 30 for April, June, September, and November; from 1 to 29 for February in leap

years; from 1 to 28 for February in ordinary years. The day-of-month digits are carried to the month digits

in reversion from the last day of the month to 1. The month digits (MO10 to MO1) range from 1 to 12 and

are carried to the year digits in reversion from 12 to 1.

The year digits (Y80 to Y1) range from 00 to 99 (00, 04, 08, , 92, and 96 in leap years) and are carried

F5.F4.F3,F2.FL RICOH

R2061x

NO.EA-112-160701

24

* R2061K (FFP12) is the discontinued product as of July, 2016.

to the 19 /20 digits in reversion from 99 to 00.

The 19 /20 digits cycle between 0 and 1 in reversion from 99 to 00 in the year digits.

* Any carry from lower digits with the writing of non-existent calendar data may cause the calendar counters

to malfunction. Therefore, such incorrect writing should be replaced with the writing of existent calendar

data.

 Oscillation Adjustment Register (Address 7h)

D7 D6 D5 D4 D3 D2 D1 D0

DEV F6 F5 F4 F3 F2 F1 F0 (For Writing)

DEV F6 F5 F4 F3 F2 F1 F0 (For Reading)

0 0 0 0 0 0 0 0 Default Settings *)

*) Default settings: Default value means read / written values when the PON bit is set to “1” due to VDD

power-on from 0 volts.

DEV bit

When DEV is set to 0, the Oscillation Adjustment Circuit operates 00, 20, 40 seconds.

When DEV is set to 1, the Oscillation Adjustment Circuit operates 00 seconds.

F6 to F0 bits

The Oscillation Adjustment Circuit is configured to change time counts of 1 second on the basis of

the settings of the Oscillation Adjustment Register at the timing set by DEV.

* The Oscillation Adjustment Circuit will not operate with the same timing (00, 20, or 40 seconds)

as the timing of writing to the Oscillation Adjustment Register.

* The F6 bit setting of 0 causes an increment of time counts by ((F5, F4, F3, F2, F1, F0) - 1) x 2.

The F6 bit setting of 1 causes a decrement of time counts by ((

F

5

,

F4

,

F

3

,

F

2

,

F1

,

F0 ) + 1) x 2.

The settings of "*, 0, 0, 0, 0, 0, *" ("*" representing either "0" or "1") in the F6, F5, F4, F3, F2, F1, and

F0 bits cause neither an increment nor decrement of time counts.

Example:

If (DEV, F6, F5, F4, F3, F2, F1, F0) is set to (0, 0, 0, 0, 0, 1, 1, 1), when the second digits read 00, 20,

or

40, an increment of the current time counts of 32768 + (7 - 1) x 2 to 32780 (a current time count loss).

If (DEV, F6, F5, F4, F3, F2, F1, F0) is set to (0, 0, 0, 0, 0, 0, 0, 1), when the second digits read 00, 20,

40, neither an increment nor a decrement of the current time counts of 32768.

If (DEV, F6, F5, F4, F3, F2, F1, F0) is set to (1, 1, 1, 1, 1, 1, 1, 0), when the second digits read 00, a

decrement of the current time counts of 32768 + (- 2) x 2 to 32764 (a current time count gain).

An increase of two clock pulses once per 20 seconds causes a time count loss of approximately 3 ppm (2

/ (32768 x 20 = 3.051 ppm). Conversely, a decrease of two clock pulses once per 20 seconds causes a

time count gain of 3 ppm. Consequently, when DEV is set to “0”, deviations in time counts can be

corrected with a precision of 1.5 ppm. In the same way, when DEV is set to “1”, deviations in time counts

can be corrected with a precision of 0.5 ppm. Note that the oscillation adjustment circuit is configured

to correct deviations in time counts and not the oscillation frequency of the 32.768-kHz clock pulses. For

further details, see "P36 Configuration of Oscillation Circuit and Correction of Time Count Deviations

 Oscillation Adjustment Circuit".

K T2 T2 RICOH

R2061x

NO.EA-112-160701

25

* R2061K (FFP12) is the discontinued product as of July, 2016.

 Alarm_W Registers (Address 8-Ah)

Alarm_W Minute Register (Address 8h)

D7 D6 D5 D4 D3 D2 D1 D0

- WM40 WM20 WM10 WM8 WM4 WM2 WM1 (For Writing)

0 WM40 WM20 WM10 WM8 WM4 WM2 WM1 (For Reading)

0 Indefinite Indefinite Indefinite Indefinite Indefinite Indefinite Indefinite Default Settings *)

Alarm_W Hour Register (Address 9h)

D7 D6 D5 D4 D3 D2 D1 D0

- - WH20

WP/

A

WH10 WH8 WH4 WH2 WH1 (For Writing)

0 0 WH20

WP/

A

WH10 WH8 WH4 WH2 WH1 (For Reading)

0 0 Indefinite Indefinite Indefinite Indefinite Indefinite Indefinite Default Settings *)

Alarm_W Day-of-week Register (Address Ah)

D7 D6 D5 D4 D3 D2 D1 D0

- WW6 WW5 WW4 WW3 WW2 WW1 WW0 (For Writing)

0 WW6 WW5 WW4 WW3 WW2 WW1 WW0 (For Reading)

0 Indefinite Indefinite Indefinite Indefinite Indefinite Indefinite Indefinite Default Settings *)

*) Default settings: Default value means read / written values when the PON bit is set to “1” due to VDD

power-on from 0 volts.

* The D5 bit of the Alarm_W Hour Register represents WP/

A

when the 12-hour mode is selected (0 for

a.m. and 1 for p.m.) and WH20 when the 24-hour mode is selected (tens in the hour digits).

* The Alarm_W Registers should not have any non-existent alarm time settings.

(Note that any mismatch between current time and preset alarm time specified by the Alarm_W registers

may disable the alarm interrupt circuit.)

* When the 12-hour mode is selected, the hour digits read 12 and 32 for 0 a.m. and 0 p.m., respectively.

(See "P17 Control Register 1 (ADDRESS Eh) (2) 1

2

/24: 1

2

/24-hour Mode Selection Bit")

* WW0 to WW6 correspond to W4, W2, and W1 of the day-of-week counter with settings ranging from (0, 0,

0) to (1, 1, 0).

* WW0 to WW6 with respective settings of 0 disable the outputs of the Alarm_W Registers.

k e e m 1m a D : Fri :Wed. :Th. :Tue. :Mon RICOH

R2061x

NO.EA-112-160701

26

* R2061K (FFP12) is the discontinued product as of July, 2016.

Example of Alarm Time Setting

Alarm Day-of-week 12-hour mode 24-hour mode

Preset alarm time Sun. Mon. Tue. Wed. Th. Fri. Sat. 10

hr. 1

hr. 10

min. 1

min. 10

hr. 1

hr. 10

min. 1

min.

WW0 WW1 WW2 WW3 WW4 WW5 WW6

00:00 a.m. on all days 1 1 1 1 1 1 1 1 2 0 0 0 0 0 0

01:30 a.m. on all days 1 1 1 1 1 1 1 0 1 3 0 0 1 3 0

11:59 a.m. on all days 1 1 1 1 1 1 1 1 1 5 9 1 1 5 9

00:00 p.m. on Mon. to

Fri. 0 1 1 1 1 1 0 3 2 0 0 1 2 0 0

01:30 p.m. on Sun. 1 0 0 0 0 0 0 2 1 3 0 1 3 3 0

11:59 p.m.

on Mon. ,Wed., and Fri. 0 1 0 1 0 1 0 3 1 5 9 2 3 5 9

Note that the correspondence between WW0 to WW6 and the days of the week shown in the above table

is only an example and not mandatory.

 Alarm_D Register (Address B-Ch)

Alarm_D Minute Register (Address Bh)

D7 D6 D5 D4 D3 D2 D1 D0

- DM40 DM20 DM10 DM8 DM4 DM2 DM1 (For Writing)

0 DM40 DM20 DM10 DM8 DM4 DM2 DM1 (For Reading)

0 Indefinite Indefinite Indefinite Indefinite Indefinite Indefinite Indefinite Default Settings *)

Alarm_D Hour Register (Address Ch)

D7 D6 D5 D4 D3 D2 D1 D0

- - DH20

DP/

A

DH10 DH8 DH4 DH2 DH1 (For Writing)

0 0 DH20

DP/

A

DH10 DH8 DH4 DH2 DH1 (For Reading)

0 0 Indefinite Indefinite Indefinite Indefinite Indefinite Indefinite Default Settings *)

*) Default settings: Default value means read / written values when the PON bit is set to “1” due to VDD

power-on from 0 volts.

* The D5 bit represents DP/

A

when the 12-hour mode is selected (0 for a.m. and 1 for p.m.) and DH20

when the 24-hour mode is selected (tens in the hour digits).

* The Alarm_D registers should not have any non-existent alarm time settings.

(Note that any mismatch between current time and preset alarm time specified by the Alarm_D registers

may disable the alarm interrupt circuit.)

* When the 12-hour mode is selected, the hour digits read 12 and 32 for 0a.m. and 0p.m., respectively.

(See "P17 Control Register 1 (ADDRESS Eh) (2) 12 /24: 12 /24-hour Mode Selection Bit")

1 \ \ RICOH

R2061x

NO.EA-112-160701

27

* R2061K (FFP12) is the discontinued product as of July, 2016.

Interfacing with the CPU

 DATA TRANSFER FORMATS

(1) Timing between CE Pin Transition and Data Input / Output

The R2061x adopts a 3-wire serial interface by which they use the CE (Chip Enable), SCLK (Serial Clock), and

SIO (Serial Input/Output) pins to receive and send data to and from the CPU. The 3-wire serial interface provides

two types of input/output timings with which the SIO pin output and input are synchronized with the rising or falling

edges of the SCLK pin input, respectively, and vice versa. The R2061x is configured to select either one of two

different input/output timings depending on the level of the SCLK pin in the low to high transition of the CE pin.

Namely, when the SCLK pin is held low in the low to high transition of the CE pin, the models will select the timing

with which the SIO pin output is synchronized with the rising edge of the SCLK pin input, and the input is

synchronized with the falling edge of the SCLK pin input, as illustrated in the timing chart below.

SCLK

SIO (for reading)

tDS

SIO (for writing)

CE tCES

tDH

tRD

Conversely, when the SCLK pin is held high in the low to high transition of the CE pin, the models will select the

timing with which the SIO pin output is synchronized with the falling edge of the SCLK pin input, and the input is

synchronized with the rising edge of the SCLK pin input, as illustrated in the timing chart below.

SCLK

SIO (for reading)

tDS

SIO (for writing)

CE tCES

tDH

tRD

SCLKW,,,,W H x x x x :3 ‘ . is ': E f 1 ‘ f D I RICOH

R2061x

NO.EA-112-160701

28

* R2061K (FFP12) is the discontinued product as of July, 2016.

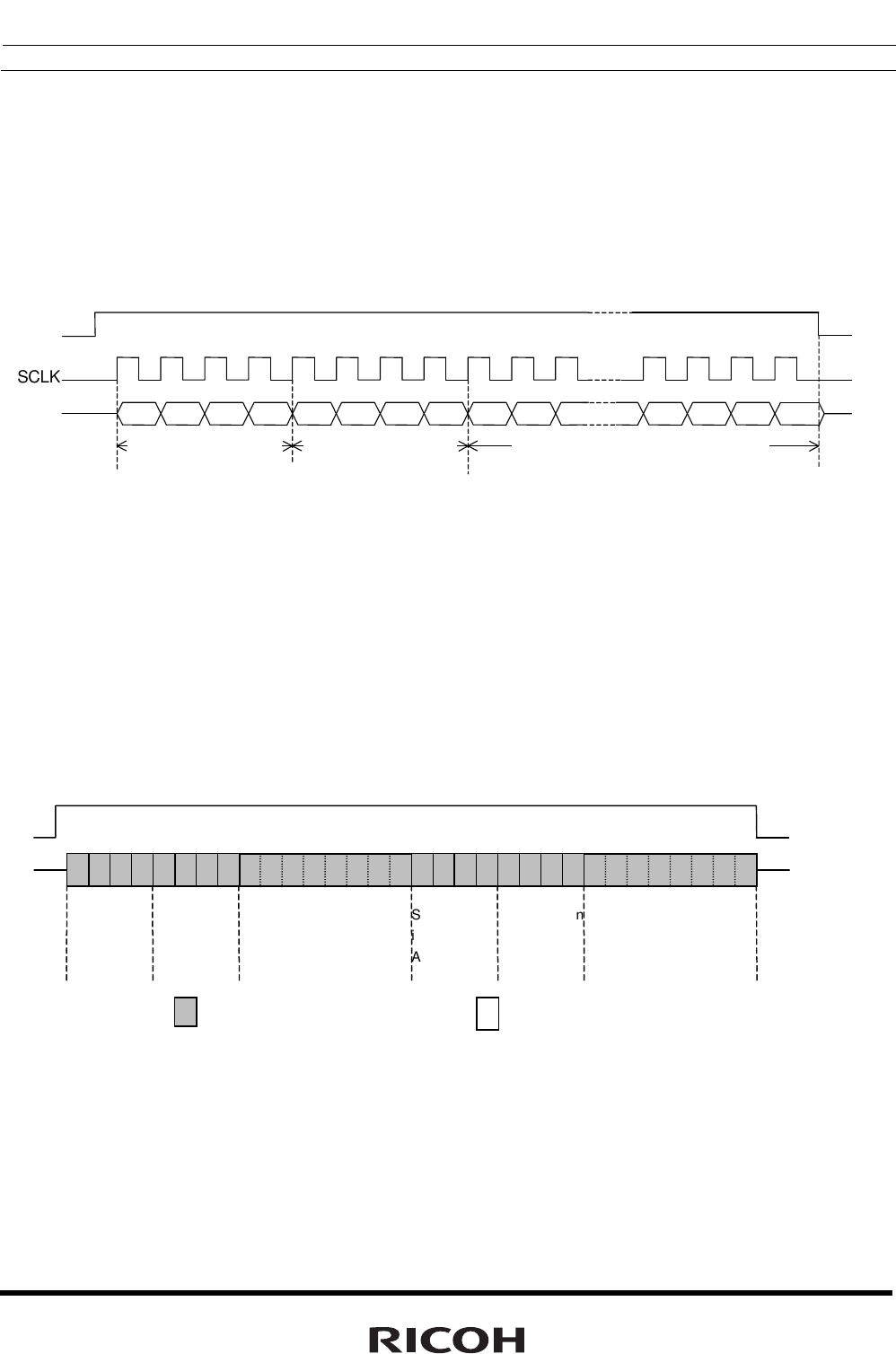

(2) Data Transfer Formats

Data transfer is commenced in the low to high transition of the CE pin input and completed in its high to low

transition. Data transfer is conducted serially in multiple units of 1 byte (8 bits). The former 4 bits are used to

specify in the Address Pointer a head address with which data transfer is to be commenced from the host. The

latter 4 bits are used to select either reading data transfer or writing data transfer, and to set the Transfer Format

Register to specify an appropriate data transfer format. All data transfer formats are designed to transfer the

most significant bit (MSB) first.

A2

CE

SCL

K

6

A1 A0 C3 C2 C1 C0

A3

7582312314

D7 D6 D3 D2 D1 D0

Setting

the Address Pointer Writing or Reading data transferSetting the Transfer

Format Register

SIO

Two types of data transfer formats are available for reading data transfer and writing data transfer each.

 Writing Data Transfer Formats

(1) 1-byte Writing Data Transfer Format

The first type of writing data transfer format is designed to transfer 1-byte data at a time and can be selected by

specifying in the address pointer a head address with which writing data transfer is to be commenced and then

writing the setting of 8h to the transfer format register. This 1-byte writing data transfer can be completed by

driving the CE pin low or continued by specifying a new head address in the address pointer and setting the data

transfer format.

1 1 Data Data

Example of 1-byte Writing Data Transfer (For Writing Data to Addresses Fh and 7h)

Data transfer from the host

CE

Data transfer from the RTCs

Specifying 7h

in the

A

ddress

Pointer

01 0 01 1

Setting 8h in

the Transfer

Format

Register

Writing data to

address Fh

Writing data to

address 7h

0 11 0 0 01 1

Specifying Fh

in the

A

ddress

Pointer

Setting 8h in

the Transfer

Format

Register

SIO

RICOH

R2061x

NO.EA-112-160701

29

* R2061K (FFP12) is the discontinued product as of July, 2016.

(2) Burst Writing Data Transfer Format

The second type of writing data transfer format is designed to transfer a sequence of data serially and can be

selected by specifying in the address pointer a head address with which writing data transfer is to be commenced

and then writing the setting of 0h to the transfer format register. The address pointer is incremented for each

transfer of 1-byte data and cycled from Fh to 0h. This burst writing data transfer can be completed by driving the

CE pin low.

1 0 Data Data

Example of Burst Writing Data Transfer (For Writing Data to Addresses Eh, Fh, and 0h)

CE

00 0 01 1

SIO Data

Data transfer from the host Data transfer from the RTCs

Writing data to

address Eh

Specifying Eh

in the

A

ddress

Pointer

Setting 0h in

the Transfer

Format

Register

Writing data to

address Fh

Writing data to

address 0h

 Reading Data Transfer Formats

(1) 1-byte Reading Data Transfer Format

The first type of reading data transfer format is designed to transfer 1-byte data at a time and can be selected by

specifying in the Address Pointer a head address with which reading data transfer is to be commenced and then

the setting of writing Ch to the Transfer Format Register. This 1-byte reading data transfer can be completed by

driving the CE pin low or continued by specifying a new head address in the Address Pointer and selecting this

type of reading data Transfer Format.

1 0 Data Data

Example of 1-byte Reading Data Transfer (For Reading Data from Addresses Eh and 2h)

CE

11 0 01 1 0 10 1 0 00 1

SIO

Data transfer from the host Data transfer from the RTCs

Specifying 2h

in the

A

ddress

Pointer

Setting Ch in

the Transfer

Format

Register

Reading data from

address Eh

Reading data from

address 2h

Specifying Eh

in the

A

ddress

Pointer

Setting Ch in

the Transfer

Format

Register

\_ D RICOH

R2061x

NO.EA-112-160701

30

* R2061K (FFP12) is the discontinued product as of July, 2016.

(2) Burst Reading Data Transfer Format

The second type of reading data transfer format is designed to transfer a sequence of data serially and can be

selected by specifying in the address pointer a head address with which reading data transfer is to be commenced

and then writing the setting of 4h to the transfer format register. The address pointer is incremented for each

transfer of 1-byte data and cycled from Fh to 0h. This burst reading data transfer can be completed by driving the

CE pin low.

1 1 DATA DATA

Example of Burst Reading Data Transfer (For Reading Data from Addresses Fh, 0h, and 1h)

CE

10 0 01 1 DATASIO

Data transfer from the host Data transfer from the RTCs

Reading data from

address Fh

Specifying Fh

in the

A

ddress

Pointer

Setting 4h in

the Transfer

Format

Register

Reading data from

address 0h

Reading data from

address 1h

(3) Combination of 1-byte Reading and writing Data Transfer Formats

The 1-byte reading and writing data transfer formats can be combined together and further followed by any other

data transfer format.

1 1 DATA

Example of Reading Modify Writing Data Transfer

(For Reading and Writing Data from and to Address Fh)

CE

11 0 01 1 1 11 0 0 01 1 DATASIO

Data transfer from the host Data transfer from the RTCs

Writing data to

address Fh

Specifying Fh

in the

A

ddress

Pointer

Setting 8h in

the Transfer

Format

Register

Specifying Fh

in the

A

ddress

Pointer

Setting Ch in

the Transfer

Format

Register

Reading data from

address Fh

The reading and writing data transfer formats correspond to the settings in the transfer format register as shown

in the table below.

1 Byte Burst

Writing data

transfer 8h

(1,0,0,0) 0h

(0,0,0,0)

Reading data

transfer Ch

(1,1,0,0) 4h

(0,1,0,0)

RICOH

R2061x

NO.EA-112-160701

31

* R2061K (FFP12) is the discontinued product as of July, 2016.

 Considerations in Reading and Writing Time Data under special condition

Any carry to the second digits in the process of reading or writing time data may cause reading or writing

erroneous time data. For example, suppose a carry out of 13:59:59 into 14:00:00 occurs in the process of

reading time data in the middle of shifting from the minute digits to the hour digits. At this moment, the second

digits, the minute digits, and the hour digits read 59 seconds, 59 minutes, and 14 hours, respectively (indicating

14:59:59) to cause the reading of time data deviating from actual time virtually 1 hour. A similar error also occurs

in writing time data. To prevent such errors in reading and writing time data, the R2061x has the function of

temporarily locking any carry to the second digits during the high interval of the CE pin and unlocking such a carry

in its high to low transition. Note that a carry to the second digits can be locked for only 1 second, during which

time the CE pin should be driven low.

CE

Time counts

within RTC

14:00:01

A

ctual time

13:59:59

Max.62s

14:00:00

13:59:59 14:00:00 14:00:01

The effective use of this function requires the following considerations in reading and writing time data:

(1) Hold the CE pin high in each session of reading or writing time data.

(2) Ensure that the high interval of the CE pin lasts within 1 second. Should there be any possibility of the host

going down in the process of reading or writing time data, make arrangements in the peripheral circuitry as to

drive the CE pin low or open at the moment that the host actually goes down.

(3) Leave a time span of 31s or more from the low to high transition of the CE pin to the start of access to

addresses 0h to 6h in order that any ongoing carry of the time digits may be completed within this time span.

For further details, see the next page.

(4) Leave a time span of 62s or more from the high to low transition of the CE pin to its low to high transition in

order that any ongoing carry of the time digits during the high interval of the CE pin may be adjusted within

this time span.

The considerations listed in (1), (3), and (4) above are not required when the process of reading or writing time

data is obviously free from any carry of the time digits.

(e.g. reading or writing time data in synchronization with the periodic interrupt function in the level mode or the

alarm interrupt function).

Bad examples of reading and writing time data are illustrated on the next page.

|_ A he hig Mme man Is Data _—-ﬂ_ la (a RICOH

R2061x

NO.EA-112-160701

32

* R2061K (FFP12) is the discontinued product as of July, 2016.

0Ch Data

Data

Bad Example (1)

Where the CE pin is once driven low in the process of reading time data

Less than 62s

Writing to

A

ddress 0h (sec.)

CE

Bad Example (4)

(Where a time span of less than 61s is left between the adjacent processes of reading time data)

A

ddress Pointer

= 1h

Transfer Format

Register = 4h

0Ch Data Data

Reading from

A

ddress 1h

(min.)

Data

14h

CE

0Ch

Bad Example (3)

Where a time span of less than 31s is left until the start of the process of writing or reading time data

SIO

Reading from

A

ddress 0h

(sec.)

Reading from

A

ddress 2h

(hr.)

A

ddress Pointer

= 0h

Transfer Format

Register = Ch

Writing to

A

ddress 1h (min.)

Writing to

A

ddress Fh (contorl2)

A

ddress Pointer

= 0h

Transfer Format

Register = Ch

Reading from

A

ddress 0h

(sec.)

Reading from

A

ddress 0h

(sec.)

A

ddress Pointer

= 0h

Transfer Format

Register = Ch

Bad Example (2)

The hi

g

h interval of the CE

p

in is more than 1sec.

SIO 0Ch Data

Data

CE

Data

More than 1s

A

ddress Pointer

= 0h

Transfer Format

Register = Ch

Reading from

A

ddress 0h

(sec.)

Reading from

A

ddress 1h

(min)

Reading from

A

ddress 2h

(hr.)

CE

SIO

Time span of less than 31us for reading time data

1 1 Time Data

1 00 0 1 1 D0D1D2D7 D6 D5 D4 D3

CE

SIO 1 1 0 00 0 1 1 D6 D4 D2D3 D1 D0D7 D5 Time Data

Time Data

（READ）

（WRTIE）

Time Data

A

ddress Pointer = Fh

Format Register = 4h

Reading from

A

ddress Fh

Reading from

A

ddress 0h (sec.)

Reading from

A

ddress 1h (min)

Time span of less than 31us for writing time data

A

ddress Pointer = Fh

Format Register = 0h

M t: RICOH

R2061x

NO.EA-112-160701

33

* R2061K (FFP12) is the discontinued product as of July, 2016.

Configuration of Oscillation Circuit and Correction of Time Count

Deviations

 Configuration of Oscillation Circuit

32kHz

CG

CD

A

OSCIN

OSCOUT

Oscillator

Circuit

The oscillation circuit is driven at a constant voltage of approximately 1.2 volts relative to the level of the VSS pin

input. As such, it is configured to generate an oscillating waveform with a peak-to-peak voltage on the order of

1.2 volts on the positive side of the VSS pin input.

< Considerations in Handling Quartz Crystal Units >

Generally, quartz crystal units have basic characteristics including an equivalent series resistance (R1) indicating

the ease of their oscillation and a load capacitance (CL) indicating the degree of their center frequency.

Particularly, quartz crystal units intended for use in the R2061x are recommended to have a typical R1 value of

30k and a typical CL value of 6 to 8pF. To confirm these recommended values, contact the manufacturers of

quartz crystal units intended for use in these particular models.

< Considerations in Installing Components around the Oscillation Circuit >

1) Install the quartz crystal unit in the closest possible vicinity to the real-time clock ICs.

2) Avoid laying any signal lines or power lines in the vicinity of the oscillation circuit (particularly in the area

marked "A" in the above figure).

3) Apply the highest possible insulation resistance between the OSCIN and OSCOUT pins and the printed circuit

board.

4) Avoid using any long parallel lines to wire the OSCIN and OSCOUT pins.

5) Take extreme care not to cause condensation, which leads to various problems such as oscillation halt.

< Other Relevant Considerations >

1) We cannot recommend connecting the external input of 32.768-kHz clock pulses to the OSCIN pin.

2) To maintain stable characteristics of the quartz crystal unit, avoid driving any other IC through 32.768-kHz

clock pulses output from the OSCOUT pin.

Typical externally-equipped element

X’tal : 32.768kHz

(R1=30k typ)

(CL=6pF to 8pF)

Standard values of internal elements

CG,CD 10pF typ

2768 HZ INTR RICOH

R2061x

NO.EA-112-160701

34

* R2061K (FFP12) is the discontinued product as of July, 2016.

 Measurement of Oscillation Frequency

Frequency

Counter

32768Hz

VCC

OSCIN

OSCOUT

VDD

INTR

VSS

* 1) The R2061x is configured to generate 1Hz clock pulses for output from the INT

R

pin by setting

(00XX0011) at address Eh.

* 2) A frequency counter with 6 (more preferably 7) or more digits on the order of 1ppm is recommended for

use in the measurement of the oscillation frequency of the oscillation circuit.

 Adjustment of Oscillation frequency

The oscillation frequency of the oscillation circuit can be adjusted by varying procedures depending on the usage

of Model R2061x in the system into which they are to be built and on the allowable degree of time count errors.

Course (A)

When the time count precision of each RTC is not to be adjusted, the quartz crystal unit intended for use in that

RTC may have any CL value requiring no presetting. The quartz crystal unit may be subject to frequency

variations which are selectable within the allowable range of time count precision. Several quartz crystal units

and RTCs should be used to find the center frequency of the quartz crystal units by the method described in "P34

 Measurement of Oscillation Frequency" and then calculate an appropriate oscillation adjustment value by the

method described in "P36  Oscillation Adjustment Circuit" for writing this value to the R206x1.

Course (B)

When the time count precision of each RTC is to be adjusted within the oscillation frequency variations of the

quartz crystal unit plus the frequency variations of the real-time clock ICs, it becomes necessary to correct

deviations in the time count of each RTC by the method described in " P36  Oscillation Adjustment Circuit".

Such oscillation adjustment provides quartz crystal units with a wider range of allowable settings of their oscillation

frequency variations and their CL values. The real-time clock IC and the quartz crystal unit intended for use in

that real-time clock IC should be used to find the center frequency of the quartz crystal unit by the method

described in " P34  Measurement of Oscillation Frequency" and then confirm the center frequency thus found

to fall within the range adjustable by the oscillation adjustment circuit before adjusting the oscillation frequency

of the oscillation circuit. At normal temperature, the oscillation frequency of the oscillator circuit can be adjusted

by up to approximately 0.5ppm.

RICOH

R2061x

NO.EA-112-160701

35

* R2061K (FFP12) is the discontinued product as of July, 2016.

* 1) Generally, quartz crystal units for commercial use are classified in terms of their center frequency

depending on their load capacitance (CL) and further divided into ranks on the order of 10, 20, and

50ppm depending on the degree of their oscillation frequency variations.

* 2) Basically, Model R2061x is configured to cause frequency variations on the order of 5 to 10ppm at

25C.

* 3) Time count precision as referred to in the above flow chart is applicable to normal temperature and

actually affected by the temperature characteristics and other properties of quartz crystal units.

The R2061x, which incorporate the CG and the CD, require adjusting the oscillation frequency of the quartz

crystal unit through its CL value.

Generally, the relationship between the CL value and the CG and CD values can be represented by the following

equation:

CL = (CG  CD)/(CG + CD) + CS where "CS" represents the floating capacity of the printed circuit board.

The quartz crystal unit intended for use in the R2061x is recommended to have the CL value on the order of 6 to

8pF. Its oscillation frequency should be measured by the method described in " P34  Measurement of

Oscillation Frequency". Any quartz crystal unit found to have an excessively high or low oscillation frequency

(causing a time count gain or loss, respectively) should be replaced with another one having a smaller and greater

CL value, respectively until another one having an optimum CL value is selected. In this case, the bit settings

disabling the oscillation adjustment circuit (see " P36  Oscillation Adjustment Circuit ") should be written to the

oscillation adjustment register.

Incidentally, the high oscillation frequency of the quartz crystal unit can also be adjusted by adding an external

oscillation stabilization capacitor CGOUT as illustrated in the diagram below.

32kHz

RD

CG

CD

OSCIN

OSCOUT CGOUT

*1)

Oscillator

Circuit

*1) The CGOUT should have a capacitance

ranging from 0 to 15 pF.

Osci‘latiun freguency , Target Freguency + 0.1 Osci‘latiun freguency , Target Freguency + 0.0333 RICOH

R2061x

NO.EA-112-160701

36

* R2061K (FFP12) is the discontinued product as of July, 2016.

 Oscillation Adjustment Circuit

The oscillation adjustment circuit can be used to correct a time count gain or loss with high precision by varying

the number of 1-second clock pulses once per 20 seconds or 60 seconds. When DEV bit in the Oscillation

Adjustment Register is set to 0, R2061x varies number of 1-second clock pulses once per 20 seconds. When

DEV bit is set to 1, R2061x varies number of 1-second clock pulses once per 60 seconds. The oscillation

adjustment circuit can be disabled by writing the settings of "*, 0, 0, 0, 0, 0, *" ("*" representing "0" or "1") to the

F6, F5, F4, F3, F2, F1, and F0 bits in the oscillation adjustment circuit. Conversely, when such oscillation

adjustment is to be made, an appropriate oscillation adjustment value can be calculated by the equation below

for writing to the oscillation adjustment circuit.

(1) When Oscillation Frequency (* 1) Is Higher Than Target Frequency (* 2) (Causing Time Count Gain)

When DEV=0:

Oscillation adjustment value (*3) = (Oscillation frequency - Target Frequency + 0.1)

Oscillation frequency  3.051  10-6

 (Oscillation Frequency – Target Frequency)  10 + 1

When DEV=1:

Oscillation adjustment value (*3) = (Oscillation frequency - Target Frequency + 0.0333)

Oscillation frequency  1.017  10-6

 (Oscillation Frequency – Target Frequency)  30 + 1

* 1) Oscillation frequency:

32768 times the frequency of 1Hz clock pulse output from the INTR pin at normal temperature in the

manner described in " P34  Measurement of Oscillation Frequency".

* 2) Target frequency:

Desired frequency to be set. Generally, a 32.768-kHz quartz crystal unit has such temperature

characteristics as to have the highest oscillation frequency at normal temperature. Consequently, the

quartz crystal unit is recommended to have target frequency settings on the order of 32.768 to 32.76810

kHz (+3.05ppm relative to 32.768 kHz). Note that the target frequency differs depending on the

environment or location where the equipment incorporating the RTC is expected to be operated.

* 3) Oscillation adjustment value:

Value that is to be finally written to the F0 to F6 bits in the Oscillation Adjustment Register and is

represented in 7-bit coded decimal notation.

(2) When Oscillation Frequency Is Equal To Target Frequency (Causing Time Count neither Gain nor Loss)

Oscillation adjustment value = 0, +1, -64, or –63

OsciHation adjustment value : Oscillation freguency , Target Frequency OsciHation adjustment value : Oscillation freguency , Target Frequency RICOH

R2061x

NO.EA-112-160701

37

* R2061K (FFP12) is the discontinued product as of July, 2016.

(3) When Oscillation Frequency Is Lower Than Target Frequency (Causing Time Count Loss)

When DEV=0:

Oscillation adjustment value = (Oscillation frequency - Target Frequency)

Oscillation frequency  3.051  10-6

 (Oscillation Frequency – Target Frequency)  10

When DEV=1:

Oscillation adjustment value = (Oscillation frequency - Target Frequency)

Oscillation frequency  1.017  10-6

 (Oscillation Frequency – Target Frequency)  30

Oscillation adjustment value calculations are exemplified below

(A) For an oscillation frequency = 32768.85Hz and a target frequency = 32768.05Hz

When setting DEV bit to 0:

Oscillation adjustment value = (32768.85 - 32768.05 + 0.1) / (32768.85  3.051  10-6)

 (32768.85 - 32768.05)  10 + 1

= 9.001  9

In this instance, write the settings (DEV,F6,F5,F4,F3,F2,F1,F0)=(0,0,0,0,1,0,0,1) in the oscillation adjustment

register. Thus, an appropriate oscillation adjustment value in the presence of any time count gain represents a

distance from 01h.

When setting DEV bit to 1:

Oscillation adjustment value = (32768.85 - 32768.05 + 0.0333) / (32768.85  1.017  10-6)

 (32768.85 - 32768.05)  30 + 1

= 25.00  25

In this instance, write the settings (DEV,F6,F5,F4,F3,F2,F1,F0)=(1,0,0,1,1,0,0,1) in the oscillation adjustment

register.

(B) For an oscillation frequency = 32762.22Hz and a target frequency = 32768.05Hz

When setting DEV bit to 0:

Oscillation adjustment value = (32762.22 - 32768.05) / (32762.22  3.051  10-6)

 (32762.22 - 32768.05)  10

= -58.325  -58

To represent an oscillation adjustment value of - 58 in 7-bit coded decimal notation, subtract 58 (3Ah) from 128

(80h) to obtain 46h. In this instance, write the settings of (DEV,F6,F5,F4,F3,F2,F1,F0) = (0,1,0,0,0,1,1,0) in the

oscillation adjustment register. Thus, an appropriate oscillation adjustment value in the presence of any time

count loss represents a distance from 80h.

When setting DEV bit to 1:

Oscillation adjustment value = (32762.22 - 32768.05) / (32762.22  1.017  10-6)

 (32762.22 - 32768.05)  30

= -174.97  -175

Oscillation adjustment value can be set from -62 to 63. Then, in this case, Oscillation adjustment value is out of

range.

1 [me RICOH

R2061x

NO.EA-112-160701

38

* R2061K (FFP12) is the discontinued product as of July, 2016.

(4) Difference between DEV=0 and DEV=1

Difference between DEV=0 and DEV=1 is following,

DEV=0 DEV=1

Maximum value range -189.2ppm to 189.2ppm -62ppm to 63ppm

Minimum resolution 3ppm 1ppm

Notes:

If following 3 conditions are completed, actual clock adjustment value could be different from target

adjustment value that set by oscillator adjustment function.

1. Using oscillator adjustment function

2. Access to R2061x at random, or synchronized with external clock that has no relation to R2061x, or

synchronized with periodic interrupt in pulse mode.

3. Access to R2061x more than 2 times per each second on average.

For more details, please contact to Ricoh.

 How to evaluate the clock gain or loss

The oscillator adjustment circuit is configured to change time counts of 1 second on the basis of the settings of

the oscillation adjustment register once in 20 seconds or 60 seconds. The way to measure the clock error as

follows:

(1) Output a 1Hz clock pulse of Pulse Mode with interrupt pin

Set (0,0,x,x,0,0,1,1) to Control Register 1 at address Eh.

(2) After setting the oscillation adjustment register, 1Hz clock period changes every 20seconds ( or every 60

seconds) like next page figure.

1Hz clock pulse

T0 T0 T0 T1

1 time 19 times or 59 times

Measure the interval of T0 and T1 with frequency counter. A frequency counter with 7 or more digits is

recommended for the measurement.

(3) Calculate the typical period from T0 and T1

When DEV=0:

T = (19T0+1T1)/20

When DEV=1:

T = (59T0+1T1)/60

Calculate the time error from T.

Er RICOH

R2061x

NO.EA-112-160701

39

* R2061K (FFP12) is the discontinued product as of July, 2016.

Power-on Reset, Oscillation Halt Sensing, and Supply Voltage

Monitoring

 PON, XS

T

, and VDET

The power-on reset circuit is configured to reset control register1, 2, and clock adjustment register when VDD

power up from 0v. The oscillation halt sensing circuit is configured to record a halt on oscillation by 32.768-kHz

clock pulses. The supply voltage monitoring circuit is configured to record a drop in supply voltage below a

threshold voltage of 2.1 or 1.35v.

Each function has a monitor bit. I.e. the PON bit is for the power-on reset circuit, and XS

T

bit is for the oscillation

halt sensing circuit, and VDET is for the supply voltage monitoring circuit. PON and VDET bits are activated to

“H”. However, XS

T

bit is activated to “L”. The PON and VDET accept only the writing of 0, but XS

T

accepts

the writing of 0 and 1. The PON bit is set to 1, when VDD power-up from 0V, but VDET is set to 0, and XST is

indefinite.

The functions of these three monitor bits are shown in the table below.

PON

X

S

T

VDET

Function Monitoring for the power-

on reset function Monitoring for the

oscillation halt sensing

function

a drop in supply voltage

below a threshold

voltage of 2.1 or 1.35v

Address D4 in Address Fh D5 in Address Fh D6 in Address Fh

Activated High Low High

When VDD power

up from 0v 1 indefinite 0

accept the writing 0 only Both 0 and 1 0 only

The relationship between the PON, XST , and VDET is shown in the table below.

PON XST VDET Conditions of supply voltage

and oscillation Condition of oscillator, and back-

up status

0 0 0 Halt on oscillation, but no drop in

VDD supply voltage below

threshold voltage

Halt on oscillation cause of

condensation etc.

0 0 1 Halt on oscillation and drop in VDD

supply voltage below threshold

voltage, but no drop to 0V

Halt on oscillation cause of drop in

back-up battery voltage

0 1 0 No drop in VDD supply voltage

below threshold voltage and no

halt in oscillation

Normal condition

0 1 1 Drop in VDD supply voltage below

threshold voltage and no halt on

oscillation

No halt on oscillation, but drop in

back-up battery voltage

1 0 * Drop in supply voltage to 0v Power-up from 0v,

1 1 * Instantaneous power-down Time data is unreliable.

RICOH

R2061x

NO.EA-112-160701

40

* R2061K (FFP12) is the discontinued product as of July, 2016.

32768Hz Oscillation

Power-on reset flag

(PON)

Oscillation halt

sensin

g

fla

g

(

XST

)

Threshold voltage (2.1V or 1.35V)

VDD

VDD supply voltage

monitor flag (VDET)

Internal initialization

period (1 to 2 sec.)

VDET0

XST 1

PON0

VDET0

XST 1

PON1

VDET0

XST 1

PON0

Internal initialization

period (1 to 2 sec.)

When the PON bit is set to 1 in the control register 2, the DEV, F6 to F0, WALE, DALE, 1

2

/24, SCRATCH2,

TEST, CT2, CT1, CT0, VDSL, VDET, SCRATCH1, CTFG, WAFG, and DAFG bits are reset to 0 in the oscillation

adjustment register, the control register 1, and the control register 2. The PON bit is also set to 1 at power-on

from 0 volts.

< Considerations in Using Oscillation Halt Sensing Circuit >

Be sure to prevent the oscillation halt sensing circuit from malfunctioning by preventing the following:

1) Instantaneous power-down on the VDD

2) Condensation on the quartz crystal unit

3) On-board noise to the quartz crystal unit

4) Applying to individual pins voltage exceeding their respective maximum ratings

In particular, note that the XS

T

bit may fail to be set to 0 in the presence of any applied supply voltage as

illustrated below in such events as backup battery installation. Further, give special considerations to prevent

excessive chattering in the oscillation halt sensing circuit.

VDD

VDCC VDCC y: 1 P H‘ (1 to 255s) RICOH

R2061x

NO.EA-112-160701

41

* R2061K (FFP12) is the discontinued product as of July, 2016.

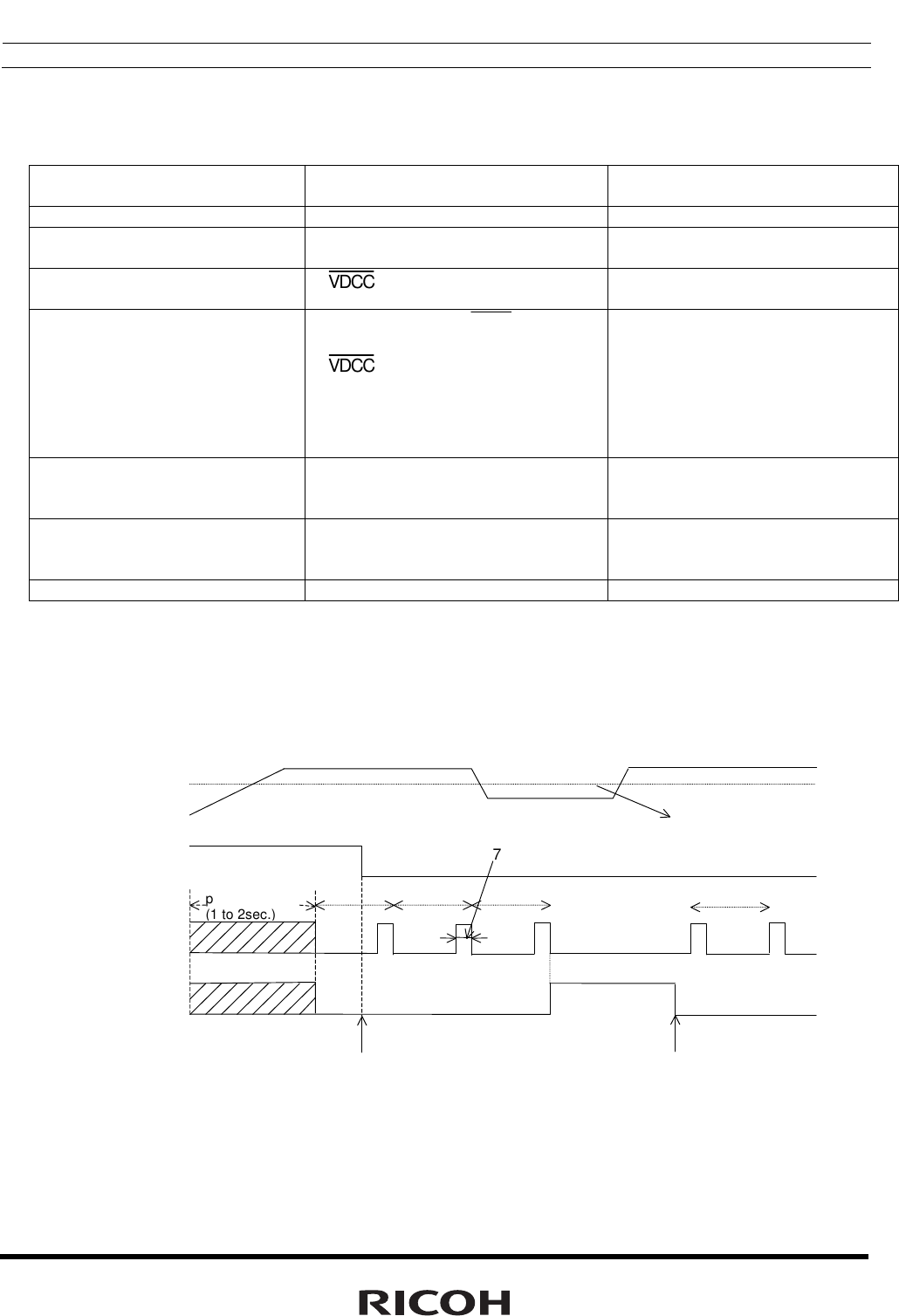

 Voltage Monitoring Circuit

R2061x incorporates two kinds of voltage monitoring function. These are shown in the table below.

VCC Voltage Monitoring

Circuit VDD Voltage Monitoring

Circuit (VDET)

Purpose CPU reset output Back-up battery checker

Monitoring supply voltage VCC pin VDD pin (supply voltage for the

internal RTC circuit)

Output for result VDC

C

pin Store in the Control Register 2

(D6 in Address Fh)

Function After falling VCC, VDCC outputs

“L”. tDEALY after rising VCC,

VDC

C

outputs “H” (OFF)

Below the threshold voltage, SW1

turns off and SW2 turns on.

Over the threshold voltage, SW1

turns on and SW2 turns off.

Detector Threshold (falling

edge of power supply voltage) -VDET1 Selecting from VDETH or VDETL by

writing to the register

(D7 in Address Fh)

Detector Released

Voltage (rising edge of power

supply voltage)

+VDET1 Same as falling edge

( No hysteresis)

The way to monitor Always One time every second

The VDD supply voltage monitoring circuit is configured to conduct a sampling operation during an interval of

7.8ms per second to check for a drop in supply voltage below a threshold voltage of 2.1 or 1.35v for the VDSL bit

setting of 0 (the default setting) or 1, respectively, in the Control Register 2, thus minimizing supply current

requirements as illustrated in the timing chart below. This circuit suspends a sampling operation once the VDET

bit is set to 1 in the Control Register 2. The VDD supply voltage monitor is useful for back-up battery checking.

VDET

(

D6 in Address Fh

)

PON

VDD 2.1v or 1.35v

1s

VDET0

7.8ms

Sampling timing for VDD

supply voltage monitor

Internal

initialization

period

(

1 to 2sec.

)

PON0

VDET0

After writing to the second counter, reset a VDET flag (writing 0) once for defining a value of VDET flag.

Oscilla -Vn VDEn (DELAV RICOH

R2061x

NO.EA-112-160701

42

* R2061K (FFP12) is the discontinued product as of July, 2016.

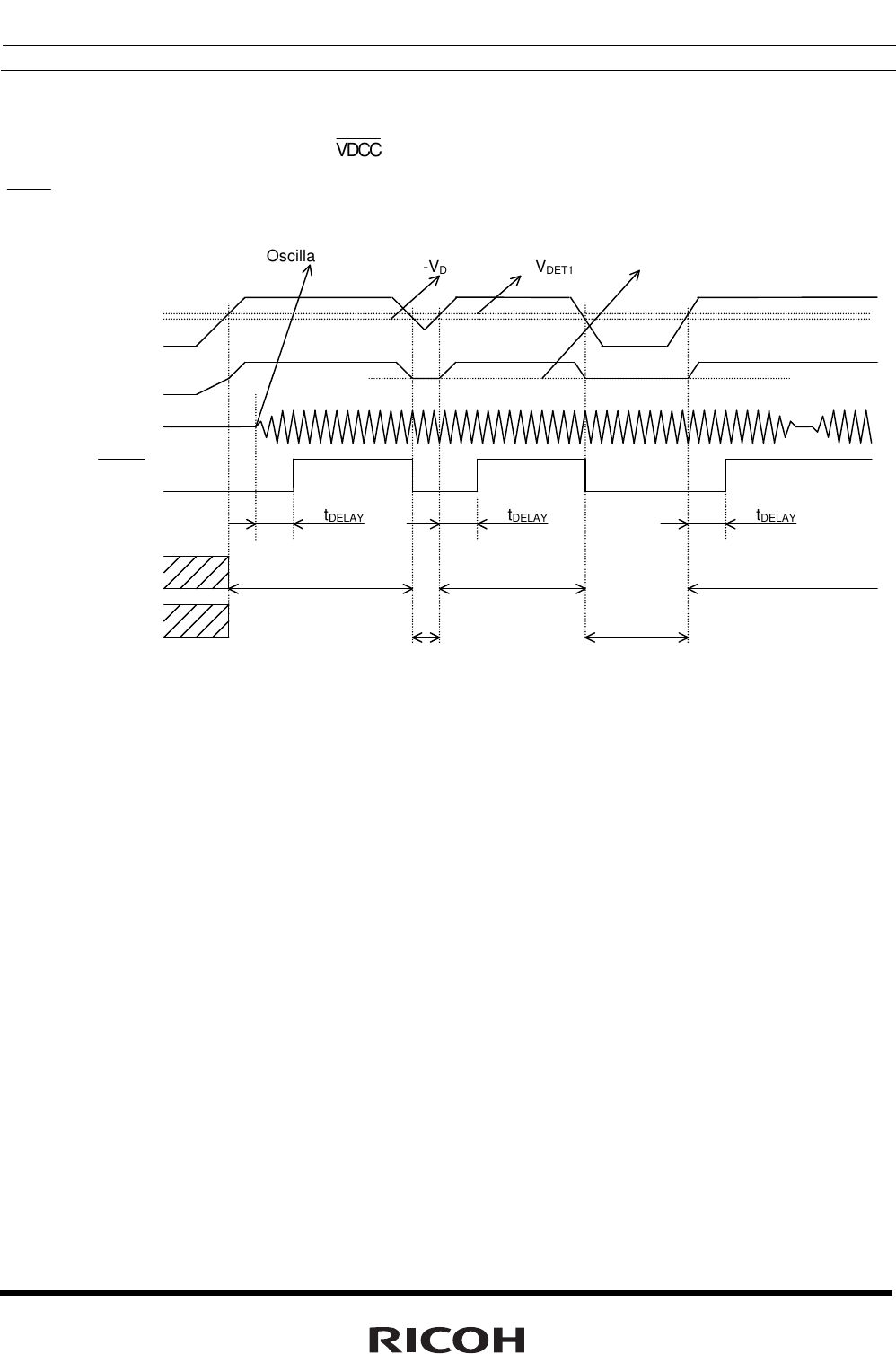

The VCC supply voltage monitor circuit operates always. When VCC rising over +VDET1, SW1 turns on, and SW2

turns off. And tDELAY after rising VCC, VDC

C

outputs OFF(H). But when oscillation is halt, VCC outputs

OFF(H) tDELAY after oscillation starting. When VCC falling beyond -VDET1, SW1 turns off, and SW2 turns on. And

VDCC outputs “L”.

VDD

32768Hz Oscillation

VDCC

+VDET1

VCC

SW1

SW2

tDELAY tDELAY tDELAY

ON ON ON

ON ON

Same voltage level as VSB

Oscillation starting -VDET1

RICOH

R2061x

NO.EA-112-160701

43

* R2061K (FFP12) is the discontinued product as of July, 2016.

Battery Switch over Circuit

R2061x incorporates three power supply pins, VDD, VCC, and VSB. VDD pin is the power supply pin for internal

real time clock circuit. When VCC voltage is lower than VDET1, VSB supplies the power to VDD, and when

higher than VDET1, VCC supplies the power to VDD. The timing chart for VCC, VDD, and VSB is shown following.

VDD

+VDET1

VCC

VSB

(1) (2) (3) (3)(2)

-VDET1

(1) When VSB is 0v and VCC is rising from 0v, VDD follows half of VCC voltage level. After VCC rising over

+V

DET1, VDD follows VCC voltage level.

(2) When VCC is higher than +VDET1, VDD level is equal to VCC.

(3) After VCC falling beyond –VDET1, VDD level is equal to VSB.

To initialize the internal circuit, supply power (+VDET1 or more) to the VCC pin while the VSB pin is connected to

the power source (Battery). If this initialization is not performed, leakage current may flow into the VSB pin.

INTR INTR INTR INTR RICOH

R2061x

NO.EA-112-160701

44

* R2061K (FFP12) is the discontinued product as of July, 2016.

Alarm and Periodic Interrupt

The R2061x incorporates the alarm interrupt circuit and the periodic interrupt circuit that are configured to

generate alarm signals and periodic interrupt signals for output from the INTR pin as described below.

(1) Alarm Interrupt Circuit

The alarm interrupt circuit is configured to generate alarm signals for output from the INT

R

, which is driven low

(enabled) upon the occurrence of a match between current time read by the time counters (the day-of-week, hour,

and minute counters) and alarm time preset by the alarm registers (the Alarm_W registers intended for the day-

of-week, hour, and minute digit settings and the Alarm_D registers intended for the hour and minute digit settings).

(2) Periodic Interrupt Circuit

The periodic interrupt circuit is configured to generate either clock pulses in the pulse mode or interrupt signals

in the level mode for output from the INTR pin depending on the CT2, CT1, and CT0 bit settings in the control

register 1.

The above two types of interrupt signals are monitored by the flag bits (i.e. the WAFG, DAFG, and CTFG bits in

the Control Register 2) and enabled or disabled by the enable bits (i.e. the WALE, DALE, CT2, CT1, and CT0

bits in the Control Register 1) as listed in the table below.

Flag bits Enable bits

Alarm_W WAFG

(D1 at Address Fh) WALE

(D7 at Address Eh)

Alarm_D DAFG

(D0 at Address Fh) DALE

(D6 at Address Eh)

Peridic interrupt CTFG

(D2 at Address Fh) CT2=CT1=CT0=0

(These bit setting of “0” disable the Periodic Interrupt)

(D2 to D0 at Address Eh)

* At power-on, when the WALE, DALE, CT2, CT1, and CT0 bits are set to 0 in the Control Register 1,

the INT

R

pin is driven high (disabled).

* When two types of interrupt signals are output simultaneously from the INT

R

pin, the output from the

INT

R

pin becomes an OR waveform of their negative logic.

Example: Combined Output to INTR Pin Under Control of

Alarm_D and Periodic Interrupt

Periodic Interrupt

INTR

Alarm_D

In this event, which type of interrupt signal is output from the INTR pin can be confirmed by reading the

DAFG, and CTFG bit settings in the Control Register 2.

RICOH

R2061x

NO.EA-112-160701

45

* R2061K (FFP12) is the discontinued product as of July, 2016.

 Alarm Interrupt

The alarm interrupt circuit is controlled by the enable bits (i.e. the WALE and DALE bits in the Control Register

1) and the flag bits (i.e. the WAFG and DAFG bits in the Control Register 2). The enable bits can be used to

enable this circuit when set to 1 and to disable it when set to 0. When intended for reading, the flag bits can be

used to monitor alarm interrupt signals. When intended for writing, the flag bits will cause no event when set to

1 and will drive high (disable) the alarm interrupt circuit when set to 0.

The enable bits will not be affected even when the flag bits are set to 0. In this event, therefore, the alarm

interrupt circuit will continue to function until it is driven low (enabled) upon the next occurrence of a match

between current time and preset alarm time.

The alarm function can be set by presetting desired alarm time in the alarm registers (the Alarm_W Registers for

the day-of-week digit settings and both the Alarm_W Registers and the Alarm_D Registers for the hour and

minute digit settings) with the WALE and DALE bits once set to 0 and then to 1 in the Control Register 1. Note

that the WALE and DALE bits should be once set to 0 in order to disable the alarm interrupt circuit upon the

coincidental occurrence of a match between current time and preset alarm time in the process of setting the alarm

function.

current time =

preset alarm time

WALE1

(DALE)

Interval (1min.) during which a match

between current time and preset alarm time

occurs

current time =

preset alarm time WAFG



0

(DAFG)

INTR

WALE



1

(DALE)

WALE1

(DALE) current time =

preset alarm time WALE0

(DALE) current time =

preset alarm time

INTR

After setting WALE(DALW) to 0, Alarm registers is set to current time, and WALE(DALE) is set to 1, INTR will

be not driven to “L” immediately, INTR will be driven to “L” at next alarm setting time.

RICOH

R2061x

NO.EA-112-160701

46

* R2061K (FFP12) is the discontinued product as of July, 2016.

 Periodic Interrupt

Setting of the periodic selection bits (CT2 to CT0) enables periodic interrupt to the CPU. There are two waveform

modes: pulse mode and level mode. In the pulse mode, the output has a waveform duty cycle of around 50%.

In the level mode, the output is cyclically driven low and, when the CTFG bit is set to 0, the output is return to

High (OFF).

CT2 CT1 CT0 Description

Wave form

mode Interrupt Cycle and Falling Timing

0 0 0 - OFF(H) (Default)

0 0 1 - Fixed at “L”

0 1 0 Pulse Mode *1) 2Hz(Duty50%)

0 1 1 Pulse Mode *1) 1Hz(Duty50%)

1 0 0 Level Mode *2) Once per 1 second (Synchronized with

Second counter increment)

1 0 1 Level Mode *2) Once per 1 minute (at 00 seconds of every

Minute)

1 1 0 Level Mode *2) Once per hour (at 00 minutes and 00

Seconds of every hour)

1 1 1 Level Mode *2) Once per month (at 00 hours, 00 minutes,

and 00 seconds of first day of every month)

*1) Pulse Mode:

2-Hz and 1-Hz clock pulses are output in synchronization with the increment of the second counter as

illustrated in the timing chart below.

INTR Pin

Rewriting of the second counter

CTFG Bit

A

pprox. 92s

(Increment of second counter)

In the pulse mode, the increment of the second counter is delayed by approximately 92 s from the falling

edge of clock pulses. Consequently, time readings immediately after the falling edge of clock pulses may

appear to lag behind the time counts of the real-time clocks by approximately 1 second. Rewriting the

second counter will reset the other time counters of less than 1 second, driving the INTR pin low.

*2) Level Mode:

Periodic interrupt signals are output with selectable interrupt cycle settings of 1 second, 1 minute, 1 hour,

and 1 month. The increment of the second counter is synchronized with the falling edge of periodic

interrupt signals. For example, periodic interrupt signals with an interrupt cycle setting of 1 second are

output in synchronization with the increment of the second counter as illustrated in the timing chart below.

RICOH

R2061x

NO.EA-112-160701

47

* R2061K (FFP12) is the discontinued product as of July, 2016.

INTR Pin

(Increment of

second counter)

CTFG Bit

Setting CTFG bit to 0 Setting CTFG bit to 0

(Increment of

second counter) (Increment of

second counter)

*1), *2) When the oscillation adjustment circuit is used, the interrupt cycle will fluctuate once per 20sec. as

follows:

Pulse Mode: The “L” period of output pulses will increment or decrement by a maximum of 3.784ms. For

example, 1-Hz clock pulses will have a duty cycle of 50 0.3784%.

Level Mode: A periodic interrupt cycle of 1 second will increment or decrement by a maximum of 3.784ms.

i RICOH

R2061x

NO.EA-112-160701

48

* R2061K (FFP12) is the discontinued product as of July, 2016.

Typical Applications

 Typical Power Circuit Configurations

VDD

VSB

VCC

VSS

0.1F

CPU Power

Supply

The case of back-up b

y

primary battery

CR2025

etc.

VSB

VDD

VCC

VSS

0.1F

CPU power

supply

ML614

etc.

The case of back-up by

capacitor or secondary battery

(Charging voltage is equal to CPU

power supply voltage)

VSB

VDD

VCC

VSS

0.1F

CPU power

supply

(3V)

5V

Double layer

capacitor

etc.

The case of back-up by

capacitor or secondary battery

(Charging voltage is not equal to

CPU power supply voltage)

VDD pin cannot be connected to any additional heavy load components such as SRAM. And VDD pin must be

connected C2, and C2 should be over 0.1F.

VDD

CPU power supply

VCC

VSB

C3

VOLTAGE

DETECTOR

SW1

SW2

C2 R1

CPU

Vbat

-VDET1 Rcpu

R2061 Series

When secondary battery or double layer capacitor connects to VDD pin, after CPU power supply turning off,

secondary battery discharges through the root above figure. If R1 is much smaller than CPU impedance (Rcpu),

VCC voltage keeps higher than -VDET1, and SW1 keeps on. Therefore R1 must be specified by following formula.

R1 > Rcpu x (Vbat - (-VDET1)) / (-VDET1)

R1 is specified by back-up battery or double layer capacitor, too. Please check the data sheet for back-up

devices.

INTR VDCC VDCC INTR RICOH

R2061x

NO.EA-112-160701

49

* R2061K (FFP12) is the discontinued product as of July, 2016.

 Connection of CIN pin

Please connect capacitor over 0.1F between CIN and VSS pin.

 Connection of INT

R

and VDC

C

The INTR and VDC

C

pins follow the N-channel open drain output logic and contains no protective diode on

the power supply side. As such, it can be connected to a pull-up resistor of up to 5.5 volts regardless of supply

voltage.

VSB

OSCIN

OSCOUT

INTR or VDCC *1)

32768Hz

B

A

Backup power supply

CPU power supply

VSS

*1) Depending on whether the INT

R

and

VDCC pins are to be used during battery

backup, it should be connected to a pull-

up resistor at the following different

positions:

(1) Position A in the left diagram when it is

not to be used during battery backup.

(2) Position B in the left diagram when it is to

be used during battery backup.

RICOH

R2061x

NO.EA-112-160701

50

* R2061K (FFP12) is the discontinued product as of July, 2016.

Typical Characteristics

 Time keeping current (ISB) vs. Supply voltage (VSB)

(Topt=25C) Test Circuit

VCC

VSB

VDD

CIN

VSS

OSCIN

OSCOUT

INTR

VDCC

CE

SCLK

SIO

0.1F

A

 Stand-by current (ICC) vs. Supply voltage (VCC)

(Topt=25C) Test circuit

VCC

VSB

VDD

CIN

VSS

OSCIN

OSCOUT

CE

SCLK

SIO

0.1F

AINTR

VDCC

 Time keeping current (ISB) vs. Operating Temperature (Topt)

(VSB=3V) Test circuit

VCC

VSB

VDD

CIN

VSS

OSCIN

OSCOUT

CE

SCLK

SIO

0.1F

A

INTR

VDCC

0

0.1

0.2

0.3

0.4

0.5

0123456

Time keeping current (uA)

VSB(v)

0

0.5

1

1.5

2

0123456

Stand-by Current (uA)

VCC(v)

0

0.1

0.2

0.3

0.4

0.5

0.6

0.7

-50-250 255075100

Time keeping current (uA)

Operating Temperature (Celsius)

HUM VS VDD VS RICOH

R2061x

NO.EA-112-160701

51

* R2061K (FFP12) is the discontinued product as of July, 2016.

 Stand-by current (ICC) vs. Operating Temperature (Topt)

(VCC=3V) Test circuit

VCC

VSB

VDD

CIN

VSS

OSCIN

OSCOUT

CE

SCLK

SIO

0.1F

AINTR

VDCC

 CPU access current vs. SCLK clock frequency (kHz)

(Topt=25C)

 Oscillation frequency deviation (f/f0) vs. Operating temperature (Topt)

(VCC=3V Topt=25C as standard) Test circuit

VCC

VSB

VDD

CIN

VSS

OSCIN

OSCOUT

CE

SCLK

SIO

0.1F

Frequency

counter INTR

VDCC

0

0.5

1

1.5

2

-50 -25 0 25 50 75 100

Stand-by current(uA)

Operating temperature (Celsius)

0

20

40

60

80

0 200 400 600 800 1000

CPU access current (uA)

SCL clock frequency (KHz)

-160

-140

-120

-100

-80

-60

-40

-20

0

20

-50 -25 0 25 50 75 100

Oscillation frequency deviation

df/f0(ppm)

Operating temperature Topt(Celsius)

VCC=5v

VCC=3v

HUM J OSC‘N VS VDD VS OSCI - VS VDDj -- 0' E1 vs T

R2061x

NO.EA-112-160701

52

* R2061K (FFP12) is the discontinued product as of July, 2016.

 Frequency deviation (f/f0) vs. Supply voltage (VSB/VCC)

(Topt=25C) VCC/VSB=3V as standard Test circuit

0.1F

Frequency

counter

VCC

VSB

VDD

CIN

VSS

OSCIN

OSCOUT

INTR

VDCC

CE

SCLK

SIO

 Frequency deviation (f/f0) vs. CGOUT

(Topt=25C, VCC=3V)CGOUT=0pF as standard Test circuit

VCC

VSB

VDD

CIN

VSS

OSCIN

OSCOUT

CE

SCLK

SIO

0.1F

Frequency

counter INTR

VDCC

 Detector threshold voltage (+VDET1/-VDET1) vs. Operating temperature (Topt) (R2061K01,

R2061L01)

(VSB=3V) Test circuit

VCC

VSB

VDD

CIN

VSS

OSCIN

OSCOUT

CE

SCLK

SIO

0.1F

INTR

VDCC

-4

-3

-2

-1

0

1

2

0123456

Frequency deviation df/f0(ppm)

VCC/VSB(v)

-40

-30

-20

-10

0

10

0 5 10 15 20

Frequency deviation df/f0(ppm)

CGOUT(pF)

1.6

1.7

1.8

1.9

-50-250 255075100

Detector threshold voltage

±VDET1(V)

Operating Temperature Topt(Celsius)

+VDET1

-VDET1

N 1 \\ 7 TE 7 S 73‘ D “1—— ? S T __|_ |:| 7 T: D 73L 177 T VDCC W / RICOH

R2061x

NO.EA-112-160701

53

* R2061K (FFP12) is the discontinued product as of July, 2016.

 VCC-VDD(VDDOUT1) vs. Output load current (IOUT1) (R2061K01,R2061L01)

(Topt=25C) Test circuit

VCC

VSB

VDD

CIN

VSS

OSCIN

OSCOUT

CE

SCLK

SIO

0.1F

0.1FA

INTR

VDCC

 VSB-VDD(VDDOUT2) vs. Output load current (IOUT2) (R2061K01,R2061L01)

(Topt=25C) Test circuit

VCC

VSB

VDD

CIN

VSS

OSCIN

OSCOUT

CE

SCLK

SIO

0.1F

0.1FA

INTR

VDCC

 VOL vs. IOL ( VDC

C

pin)  VOL vs. IOL ( INT

R

pin)

(Topt=25C, VSB=VCC=1.5v) (Topt=25C)

-0.5

-0.4

-0.3

-0.2

-0.1

0

0246810

VCC-VDD(V)

Output load current IOUT1(mA)

-0.8

-0.7

-0.6

-0.5

-0.4

-0.3

-0.2

-0.1

0

00.511.522.53

VSB-VDD(V)

Output load current IOUT2(mA)

0

0.1

0.2

0.3

0.4

012345

VOL(V)

IOL(mA)

0

0.1

0.2

0.3

0.4

0246810

VOL(v)

IOL(mA)

VCC=3V

VCC=5V

VSB=3V

VSB=2V

VSB=1V

VCC=5V

VCC=3V

VCC=2.5V

VCC=2.0V

FON: 7 RICOH

R2061x

NO.EA-112-160701

54

* R2061K (FFP12) is the discontinued product as of July, 2016.

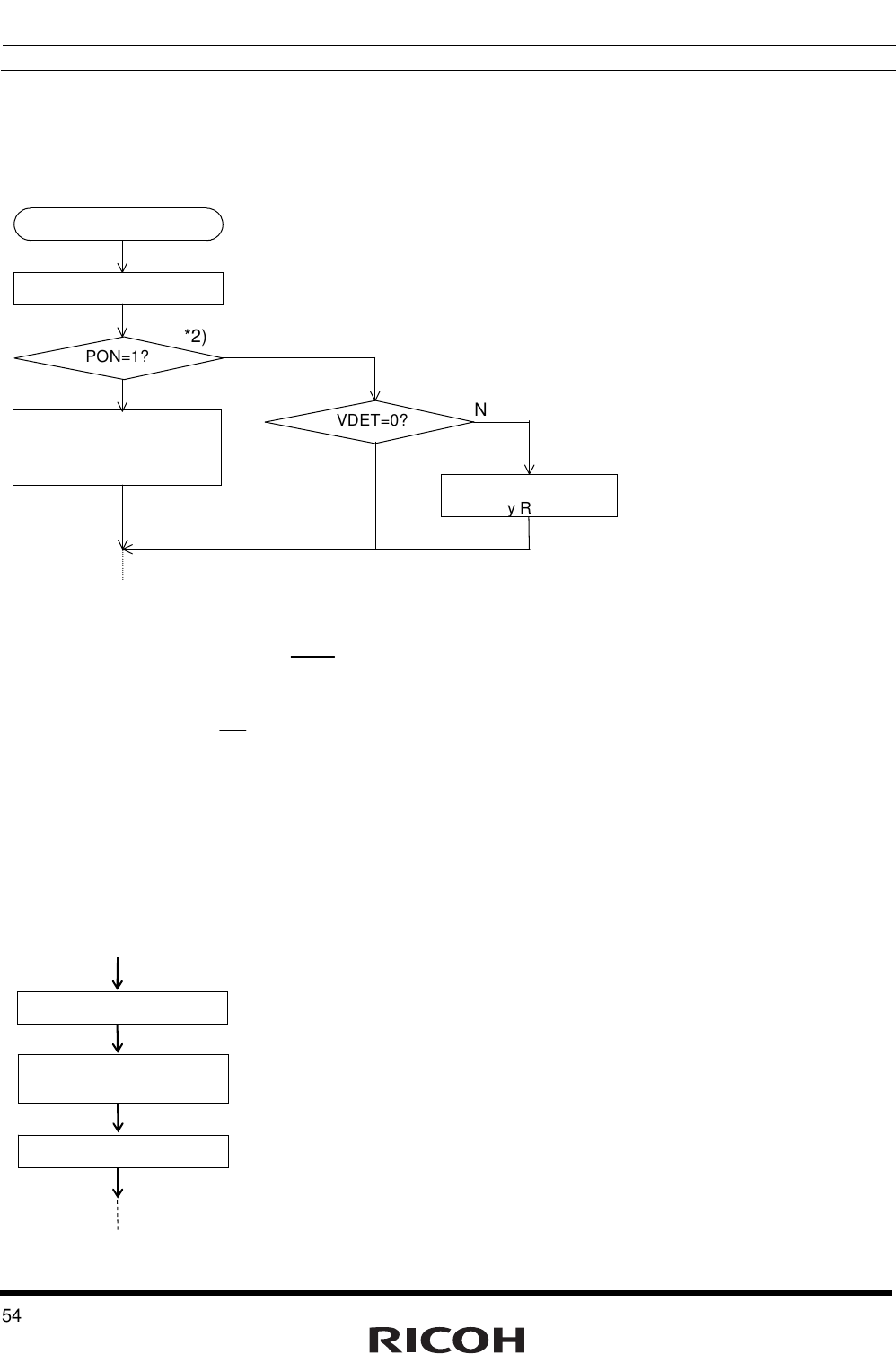

Typical Software-based Operations

 Initialization at Power-on

Start

*1)

Yes

No

VDET=0?

Warning Back-up

Batter

y

Run-down

Set Oscillation Adjustment

Register and Control

Register 1 and 2, etc.

Power-on

*2)

*4) *3)

PON=1?

Yes

No

*1) After power-on from 0 volt, the process of internal initialization require a time span on 1sec, so that

access should be done after VDCC turning to OFF(H).

*2) The PON bit setting of 0 in the Control Register 1 indicates power-on from backup battery and not from

0v. For further details, see "P.39 Power-on Reset, Oscillation Halt Sensing, and Supply Voltage

Monitoring PON, XST , and VDET ".

*3) This step is not required when the supply voltage monitoring circuit is not used.

When using this circuit, note as follows.

After writing to the second counter, reset a VDET flag (writing 0) once for defining a value of VDET flag.

*4) This step involves ordinary initialization including the Oscillation Adjustment Register and interrupt cycle

settings, etc.

 Writing of Time and Calendar Data

Write to Time Counter and

Calendar Counter

*2)

CEL

CEH

*1)

*1) When writing to clock and calendar counters, do not insert CE=L

until all times from second to year have been written to prevent

error in writing time. (Detailed in "P.31 Considerations in

Reading and Writing Time Data under special condition".

*2) Any writing to the second counter will reset divider units lower

than the second digits.

After writing to the second counter, reset a VDET flag (writing 0)

once for defining a value of VDET flag.

The R2061x may also be initialized not at power-on but in the

process of writing time and calendar data.

CTFG=17 end RICOH

R2061x

NO.EA-112-160701

55

* R2061K (FFP12) is the discontinued product as of July, 2016.

 Reading Time and Calendar Data

(1) Ordinary Process of Reading Time and Calendar Data

Read from Time Counter

and Calendar Counter

*1)

CEL

CEH *1)

(2) Basic Process of Reading Time and Calendar Data with Periodic Interrupt Function

*2)

Other Interrupt

Processes

Set Periodic Interrupt

Cycle Selection Bits

CTFG=1?

Read from Time Counter

and Calendar Counte

r

Yes

No

Control Register 2

(X1X1X011)

Generate Interrupt in CPU

*1)

*3)

*1) This step is intended to select the level mode

as a waveform mode for the periodic interrupt

function.

*2) This step must be completed within 0.5

second.

*3) This step is intended to set the CTFG bit to 0

in the Control Register 2 to cancel an interrupt

to the CPU.

*1) When reading to clock and calendar counters, do not insert

CE=L until all times from second to year have been read to

prevent error in reading time. (Detailed in "P.31

Considerations in Reading and Writing Time Data under

special condition".

RICOH

R2061x

NO.EA-112-160701

56

* R2061K (FFP12) is the discontinued product as of July, 2016.

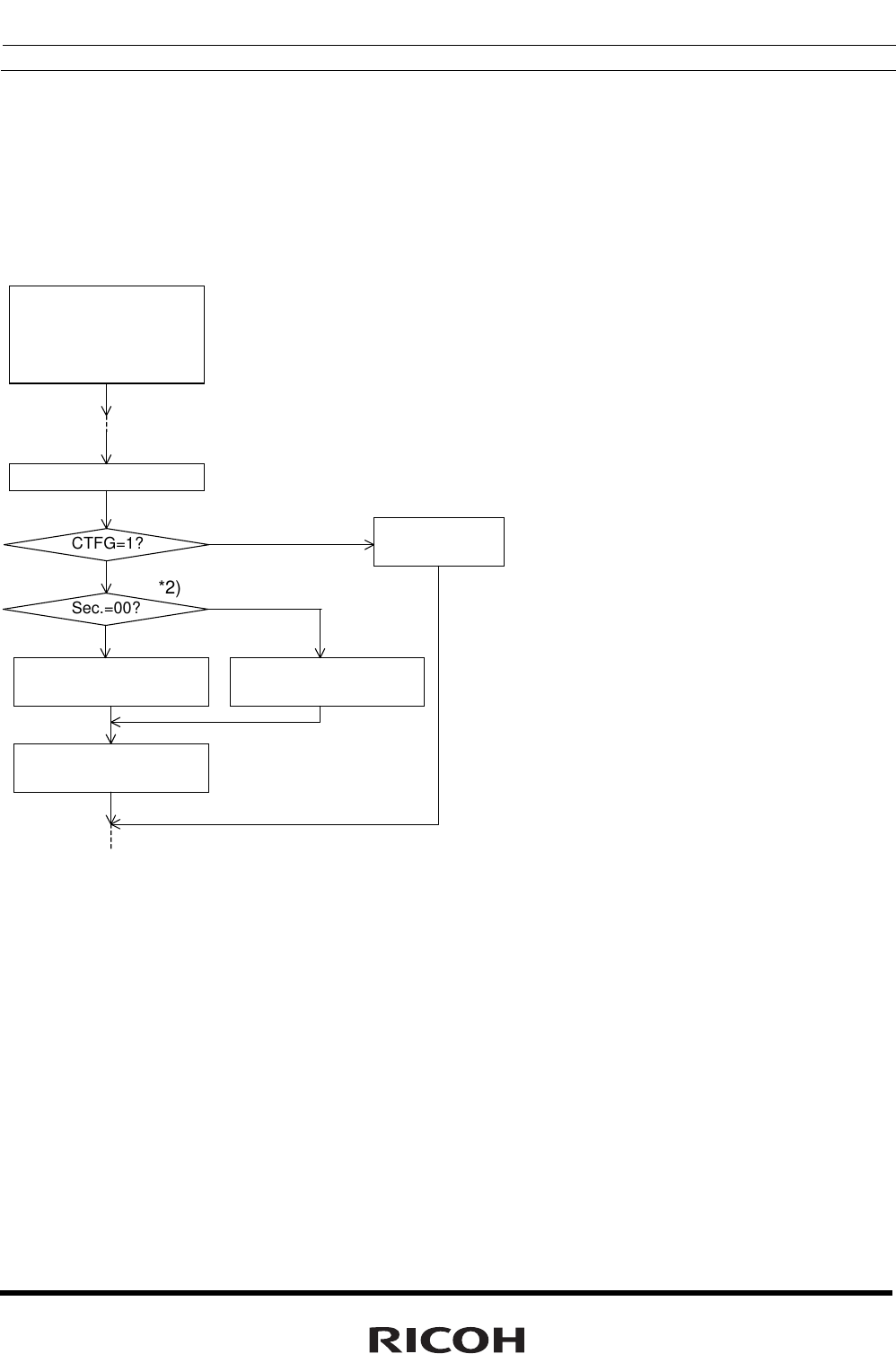

(3) Applied Process of Reading Time and Calendar Data with Periodic Interrupt Function

Time data need not be read from all the time counters when used for such ordinary purposes as time count

indication. This applied process can be used to read time and calendar data with substantial reductions in the

load involved in such reading.

For Time Indication in "Day-of-Month, Day-of-week, Hour, Minute, and Second" Format:

*2)

Other interrupts

Processes

Control Register 1

(XXXX0100)

Control Register 2

(X1X1X011)

Sec.=00?

Yes

No

Use Previous Min.,Hr.,

Day,and Day-of-week data

Generate interrupt to CPU

*1)

*3)

CTFG=1?

Control Register 2

(X1X1X011)

Yes

Read Min.,Hr.,Day,

and Day-of-week

*4)

No

*1) This step is intended to select the

level mode as a waveform mode for

the periodic interrupt function.

*2) This step must be completed within

0.5 sec.

*3) This step is intended to read time

data from all the time counters only

in the first session of reading time

data after writing time data.

*4) This step is intended to set the

CTFG bit to 0 in the Control Register

2 to cancel an interrupt to the CPU.

E CTFG:1 .7 : RICOH

R2061x

NO.EA-112-160701

57

* R2061K (FFP12) is the discontinued product as of July, 2016.

 Interrupt Process

(1) Periodic Interrupt

*2)

Other Interrupt

Processes

Set Periodic Interrupt

Cycle Selection Bits

CTFG=1?

Conduct

Periodic Interru

p

t

Yes

No

Control Register 2

(X1X1X011)

Generate Interrupt to CPU

*1)

*1) This step is intended to select the level mode

as a waveform mode for the periodic interrupt

function.

*2) This step is intended to set the CTFG bit to 0

in the Control Register 2 to cancel an interrupt

to the CPU.

‘ :;; ;G or DA FG: ;: RICOH

R2061x

NO.EA-112-160701

58

* R2061K (FFP12) is the discontinued product as of July, 2016.

(2) Alarm Interrupt

*3)

Other Interrupt

Processes

Set Alarm Min., Hr., and

Day-of-week Registers

WAFG or DAFG=1?

Conduct Alarm Interrupt

Yes

No

Control Register 2 

(X1X1X101)

Generate Interrupt to CPU

*1)

WALE or DALE0

*2) WALE or DALE1

*1) This step is intended to once disable the alarm

interrupt circuit by setting the WALE or DALE bits

to 0 in anticipation of the coincidental occurrence

of a match between current time and preset alarm

time in the process of setting the alarm interrupt

function.

*2) This step is intended to enable the alarm interrupt

function after completion of all alarm interrupt

settings.

*3) This step is intended to once cancel the alarm

interrupt function by writing the settings of "X,1,X,

1,X,1,0,1" and "X,1,X,1,X,1,1,0" to the Alarm_W

Registers and the Alarm_D Registers,

respectively.

@ ROHS Comp‘ cm RICOH RICOH ELECTRONIC DEVICES co., LTD.

Ricoh is committed to reducing the environmental loading materials in electrical devices

with a view to contributing to the protection of human health and the environment.

Ricoh has been providing RoHS compliant products since April 1, 2006 and Halogen-free products since

April 1, 2012.

Halogen Free

https://www.e-devices.ricoh.co.jp/en/

Sales & Support Oﬃces

Ricoh Electronic Devices Co., Ltd.

Shin-Yokohama Oﬃce (International Sales)

2-3, Shin-Yokohama 3-chome, Kohoku-ku, Yokohama-shi, Kanagawa, 222-8530, Japan

Phone: +81-50-3814-7687 Fax: +81-45-474-0074

Ricoh Americas Holdings, Inc.

675 Campbell Technology Parkway, Suite 200 Campbell, CA 95008, U.S.A.

Phone: +1-408-610-3105

Ricoh Europe (Netherlands) B.V.

Semiconductor Support Centre

Prof. W.H. Keesomlaan 1, 1183 DJ Amstelveen, The Netherlands

Phone: +31-20-5474-309

Ricoh International B.V. - German Branch

Semiconductor Sales and Support Centre

Oberrather Strasse 6, 40472 Düsseldorf, Germany

Phone: +49-211-6546-0

Ricoh Electronic Devices Korea Co., Ltd.

3F, Haesung Bldg, 504, Teheran-ro, Gangnam-gu, Seoul, 135-725, Korea

Phone: +82-2-2135-5700 Fax: +82-2-2051-5713

Ricoh Electronic Devices Shanghai Co., Ltd.

Room 403, No.2 Building, No.690 Bibo Road, Pu Dong New District, Shanghai 201203,

People's Republic of China

Phone: +86-21-5027-3200 Fax: +86-21-5027-3299

Ricoh Electronic Devices Shanghai Co., Ltd.

Shenzhen Branch

1205, Block D(Jinlong Building), Kingkey 100, Hongbao Road, Luohu District,

Shenzhen, China

Phone: +86-755-8348-7600 Ext 225

Ricoh Electronic Devices Co., Ltd.

Taipei oﬃce

Room 109, 10F-1, No.51, Hengyang Rd., Taipei City, Taiwan (R.O.C.)

Phone: +886-2-2313-1621/1622 Fax: +886-2-2313-1623

1. The products and the product speciﬁcations described in this document are subject to change or discontinuation of

production without notice for reasons

such as improvement. Therefore, before deciding to use the products, please

refer to Ricoh sales representatives for the latest information thereon.

2. The materials in this document may not be copied or otherwise reproduced in whole or in part without prior written

consent of Ricoh.

3. Please be sure to take any necessary formalities under relevant laws or regulations before exporting or otherwise

taking out of your country the products or the technical information described herein.

4. The technical information described in this document shows typical characteristics of and example application circuits

for the products. The release of such information is not to be construed as a warranty of or a grant of license under

Ricoh's or any third party's intellectual property rights or any other rights.

5. The products listed in this document are intended and designed for use as general electronic components in standard

applications (oﬃce equipment, telecommunication equipment, measuring instruments, consumer electronic products,

amusement equipment etc.). Those customers intending to use a product in an application requiring extreme quality

and reliability, for example, in a highly speciﬁc application where the failure or misoperation of the product could result

in human injury or death (aircraft, spacevehicle, nuclear reactor control system, traﬃc control system, automotive and

transportation equipment, combustion equipment, safety devices, life support system etc.) should ﬁrst contact us.

6. We are making our continuous eﬀort to improve the quality and reliability of our products, but semiconductor products

are likely to fail with certain probability. In order to prevent any injury to persons or damages to property resulting from

such failure, customers should be careful enough to incorporate safety measures in their design, such as redundancy

feature, ﬁre containment feature and fail-safe feature. We do not assume any liability

or responsibility for any loss or

damage arising from misuse or inappropriate use of the products.

7. Anti-radiation design is not implemented in the products described in this document.

8. The X-ray exposure can inﬂuence functions and characteristics of the products. Conﬁrm the product functions and

characteristics in the evaluation stage.

9. WLCSP products should be used in light shielded environments. The light exposure can inﬂuence functions and

characteristics of the products under operation or storage.

10. There can be variation in the marking when diﬀerent AOI (Automated Optical Inspection) equipment is used. In the

case of recognizing the marking characteristic with AOI, please contact Ricoh sales or our distributor before attempting

to use AOI.

11.

Please contact Ricoh sales representatives should you have any questions or comments concerning the products or

the technical information.

Fiche technique pour R2061x de Nisshinbo Micro Devices Inc.

INFORMATIONS

AIDE

NOUS CONTACTER

NOUS SUIVRE
