TUSB8042A

SLLSF93 –JUNE 2019

TUSB8042A Four-port USB 3.2 x1 Gen1 Hub

1 Features

1• Four port USB 3.2 x1 Gen1 (5 Gbps) hub

• USB 2.0 hub features

– Multi transaction translator (MTT) hub: four

transaction translators

– Two asynchronous endpoint buffers per

transaction translator

• Supports battery charging:

– Supports D+/D- divider charging port (ACP1,

ACP2, and ACP3) when the upstream port is

unconnected or not configured

– Supports automatic mode for transition

between DCP or ACP modes when the

upstream port is unconnected

– Supports galaxy charging

– CDP mode (upstream port connected)

– DCP mode (upstream port unconnected)

– DCP mode complies with chinese

telecommunications industry standard YD/T

1591-2009

• Supports Operation as a USB 3.2 x1 Gen1 or

USB 2.0 Compound Device

• Per port or ganged power switching and over-

current notification inputs

• Supports four external downstream ports

• Supports vendor requests to read and write I2C

and EEPROM read at 100 k

• I2C master supports clock stretching

• OTP ROM, Serial EEPROM or I2C/SMBus slave

interface for custom configurations:

– VID and PID

– Port customizations

– Manufacturer and product strings (not by OTP

ROM)

– Serial number (not by OTP ROM)

• Application Feature selection using pin selection

or EEPROM or I2C/SMBus slave interface

• Provides 128-Bit Universally Unique Identifier

(UUID)

• Single clock input, 24-MHz crystal or oscillator

• Downstream ports configurable to USB2.0 only

• 64-Pin QFN package (RGC)

2 Applications

Computer systems, docking stations, monitors,

set-top boxes

3 Description

The TUSB8042A is a four-port USB 3.2 x1 Gen1 (5

Gbps) hub. It provides simultaneous SuperSpeed

USB and high-speed/full-speed connections on the

upstream port and provides SuperSpeed USB, high-

speed, full-speed, or low-speed connections on the

downstream ports. When the upstream port is

connected to an electrical environment that only

supports high-speed or full-speed/low-speed

connections, SuperSpeed USB connectivity is

disabled on the downstream ports.

Device Information(1)

PART NUMBER PACKAGE BODY SIZE (NOM)

TUSB8042A VQFN (64) 9.00 mm × 9.00 mm

TUSB8042AI VQFN (64) 9.00 mm × 9.00 mm

(1) For all available packages, see the orderable addendum at

the end of the datasheet.

Diagram

l TEXAS INSTRUMENTS

TUSB8042A

SLLSF93 –JUNE 2019

www.ti.com

Product Folder Links: TUSB8042A

Table of Contents

1 Features.................................................................. 1

2 Applications ........................................................... 1

3 Description ............................................................. 1

4 Revision History..................................................... 2

5 Description (continued)......................................... 3

6 Pin Configuration and Functions......................... 4

7 Specifications......................................................... 9

7.1 Absolute Maximum Ratings ...................................... 9

7.2 ESD Ratings.............................................................. 9

7.3 Recommended Operating Conditions....................... 9

7.4 Thermal Information.................................................. 9

7.5 Electrical Characteristics......................................... 10

7.6 Timing Requirements.............................................. 12

8 Detailed Description............................................ 14

8.1 Overview ................................................................. 14

8.2 Functional Block Diagram....................................... 14

8.3 Feature Description................................................. 15

8.4 Device Functional Modes........................................ 21

8.5 Register Maps......................................................... 24

9 Application and Implementation ........................ 39

9.1 Application Information............................................ 39

9.2 Typical Application .................................................. 39

10 Power Supply Recommendations ..................... 48

10.1 TUSB8042A Power Supply................................... 48

10.2 Downstream Port Power ....................................... 48

10.3 Ground .................................................................. 48

11 Layout................................................................... 49

11.1 Layout Guidelines ................................................. 49

11.2 Layout Examples................................................... 50

12 Device and Documentation Support ................. 52

12.1 Receiving Notification of Documentation Updates 52

12.2 Community Resources.......................................... 52

12.3 Trademarks........................................................... 52

12.4 Electrostatic Discharge Caution............................ 52

12.5 Glossary................................................................ 52

13 Mechanical, Packaging, and Orderable

Information ........................................................... 52

4 Revision History

NOTE: Page numbers for previous revisions may differ from page numbers in the current version.

DATE REVISION NOTES

June 2019 * Initial release.

l TEXAS INSTRUMENTS

TUSB8042A

www.ti.com

SLLSF93 –JUNE 2019

Product Folder Links: TUSB8042A

5 Description (continued)

When the upstream port is connected to an electrical environment that only supports full-speed/low-speed

connections, SuperSpeed USB and high-speed connectivity are disabled on the downstream ports.

The TUSB8042A supports per port or ganged power switching and over-current protection, and supports battery

charging applications.

An individually port power controlled hub switches power on or off to each downstream port as requested by the

USB host. Also when an individually port power controlled hub senses an over-current event, only power to the

affected downstream port is switched off.

A ganged hub switches on power to all its downstream ports when power is required to be on for any port. The

power to the downstream ports is not switched off unless all ports are in a state that allows power to be removed.

Also when a ganged hub senses an over-current event, power to all downstream ports is switched off.

The TUSB8042A downstream ports provide support for battery charging applications by providing Battery

Charging Downstream Port (CDP) handshaking support. It also supports a Dedicated Charging Port (DCP) mode

when the upstream port is not connected. The DCP mode supports USB devices which support with the USB

Battery Charging, Galaxy Charging, and Chinese Telecommunications Industry Standard YD/T 1591-2009. In

addition when upstream port is unconnected, the TUSB8042A supports the divider charging port modes (ACPx

modes) and an automatic transition through all modes, starting with ACP3 and ending in DCP.

The TUSB8042A provides pin strap configuration for some features including battery charging support, and also

provides customization though OTP ROM, I2C EEPROM, or via an I2C/SMBus slave interface for PID, VID, and

custom port and phy configurations. Custom string support is also available when using an I2C EEPROM or the

I2C/SMBus slave interface.

The device is available in a 64-pin RGC package and is offered in a commercial version (TUSB8042A) for

operation over the temperature range of 0°C to 70°C, and in an industrial version (TUSB8042AI) for operation

over the temperature range of –40°C to 85°C.

‘5‘ TEXAS INSTRUMENTS

64 USB_R117USB_DP_DN3

1USB_DP_DN1 48 USB_VBUS

63 VDD3318USB_DM_DN3

2USB_DM_DN1 47 OVERCUR2z

62 XI19USB_SSTXP_DN3

3USB_SSTXP_DN1 46 OVERCUR1z

61 XO20USB_SSTXM_DN3

4USB_SSTXM_DN1 45 AUTOENz/HS_SUSPEND

60 NC21VDD

5VDD 44 OVERCUR3z

59 USB_SSRXM_UP22USB_SSRXP_DN3

6USB_SSRXP_DN1 43 OVERCUR4z

58 USB_SSRXP_UP23USB_SSRXM_DN3

7USB_SSRXM_DN1 42 GANGED/SMBA2/HS_UP

57 VDD24USB_DP_DN4

8VDD 41 PWRCTL_POL

56 USB_SSTXM_UP25USB_DM_DN4

9USB_DP_DN2 40 FULLPWRMGMTz/SMBA1/SS_UP

55 USB_SSTXP_UP26USB_SSTXP_DN4

10USB_DM_DN2 39 SMBUSz/SS_SUSPEND

54 USB_DM_UP27USB_SSTXM_DN4

11USB_SSTXP_DN2 38 SCL/SMBCLK

53 USB_DP_UP28VDD

12USB_SSTXM_DN2 37 SDA/SMBDAT

52 VDD3329USB_SSRXP_DN4

13VDD 36 PWRCTL1/BATEN1

51 VDD30USB_SSRXM_DN4

14USB_SSRXP_DN2 35 PWRCTL2/BATEN2

50 GRSTz31VDD

15USB_SSRXM_DN2 34 VDD33

49 TEST32PWRCTL4/BATEN4

16VDD33 33 PWRCTL3/BATEN3

Not to scale

Thermal

Pad

TUSB8042A

SLLSF93 –JUNE 2019

www.ti.com

Product Folder Links: TUSB8042A

6 Pin Configuration and Functions

RGC Package

64 Pin (VQFN)

(Top View)

Pin Functions

PIN I/O DESCRIPTION

NAME NO.

Clock and Reset Signals

GRSTz 50 I, PU Global power reset. This reset brings all of the TUSB8042A internal registers to their default

states. When GRSTz is asserted, the device is completely nonfunctional.

XI 62 I Crystal input. This pin is the crystal input for the internal oscillator. The input may alternately

be driven by the output of an external oscillator. When using a crystal a 1-MΩfeedback

resistor is required between XI and XO.

l TEXAS INSTRUMENTS

TUSB8042A

www.ti.com

SLLSF93 –JUNE 2019

Product Folder Links: TUSB8042A

Pin Functions (continued)

PIN I/O DESCRIPTION

NAME NO.

XO 61 O Crystal output. This pin is the crystal output for the internal oscillator. If XI is driven by an

external oscillator this pin may be left unconnected. When using a crystal a 1-MΩfeedback

resistor is required between XI and XO.

USB Upstream Signals

USB_SSTXP_UP 55 O USB SuperSpeed transmitter differential pair (positive)

USB_SSTXM_UP 56 O USB SuperSpeed transmitter differential pair (negative)

USB_SSRXP_UP 58 I USB SuperSpeed receiver differential pair (positive)

USB_SSRXM_UP 59 I USB SuperSpeed receiver differential pair (negative)

USB_DP_UP 53 I/O USB High-speed differential transceiver (positive)

USB_DM_UP 54 I/O USB High-speed differential transceiver (negative)

USB_R1 64 I Precision resistor reference. A 9.53-kΩ±1% resistor should be connected between USB_R1

and GND.

USB_VBUS 48 I USB upstream port power monitor. The VBUS detection requires a voltage divider. The signal

USB_VBUS must be connected to VBUS through a 90.9-KΩ±1% resistor, and to ground

through a 10-kΩ±1% resistor from the signal to ground.

USB Downstream Signals

USB_SSTXP_DN1 3 O USB SuperSpeed transmitter differential pair (positive)

USB_SSTXM_DN1 4 O USB SuperSpeed transmitter differential pair (negative)

USB_SSRXP_DN1 6 I USB SuperSpeed receiver differential pair (positive)

USB_SSRXM_DN1 7 I USB SuperSpeed receiver differential pair (negative)

USB_DP_DN1 1 I/O USB High-speed differential transceiver (positive)

USB_DM_DN1 2 I/O USB High-speed differential transceiver (negative)

PWRCTL1/BATEN1 36 I/O, PD

USB Port 1 Power On Control for Downstream Power/Battery Charging Enable. The pin is

used for control of the downstream power switch for Port 1. This pin be left unconnected if

power management is not implemented.

In addition, the value of the pin is sampled at the de-assertion of reset to determine the value

of the battery charging support for Port 1 as indicated in the Battery Charging Support

0 = Battery charging not supported

1 = Battery charging supported

OVERCUR1z 46 I, PU

USB Port 1 Over-Current Detection. This pin is typically connected to the over current output

of the downstream port power switch for Port 1.

0 = An over current event has occurred

1 = An over current event has not occurred

When GANGED power management is enabled, this pin or one of the other OVERCURz pins

must be connected to the over current output of the power switch or circuit which detects the

over current conditions. For the case when another OVERCURz pin is used, this pin can be

left unconnected.

USB_SSTXP_DN2 11 O USB SuperSpeed transmitter differential pair (positive)

USB_SSTXM_DN2 12 O USB SuperSpeed transmitter differential pair (negative)

USB_SSRXP_DN2 14 I USB SuperSpeed receiver differential pair (positive)

USB_SSRXM_DN2 15 I USB SuperSpeed receiver differential pair (negative)

USB_DP_DN2 9 I/O USB High-speed differential transceiver (positive)

USB_DM_DN2 10 I/O USB High-speed differential transceiver (negative)

PWRCTL2/BATEN2 35 I/O, PD

USB Port 2 Power On Control for Downstream Power/Battery Charging Enable. The pin is

used for control of the downstream power switch for Port 2. This pin be left unconnected if

power management is not implemented.

In addition, the value of the pin is sampled at the de-assertion of reset to determine the value

of the battery charging support for Port 2 as indicated in the Battery Charging Support

0 = Battery charging not supported

1 = Battery charging supported

l TEXAS INSTRUMENTS

TUSB8042A

SLLSF93 –JUNE 2019

www.ti.com

Product Folder Links: TUSB8042A

Pin Functions (continued)

PIN I/O DESCRIPTION

NAME NO.

OVERCUR2z 47 I, PU

USB Port 2 Over-Current Detection. This pin is typically connected to the over current output

of the downstream port power switch for Port 2.

0 = An over current event has occurred

1 = An over current event has not occurred

When GANGED power management is enabled, this pin or one of the other OVERCURz pins

must be connected to the over current output of the power switch or circuit which detects the

over current conditions. For the case when another OVERCURz pin is used, this pin can be

left unconnected.

USB_SSTXP_DN3 19 O USB SuperSpeed transmitter differential pair (positive)

USB_SSTXM_DN3 20 O USB SuperSpeed transmitter differential pair (negative)

USB_SSRXP_DN3 22 I USB SuperSpeed receiver differential pair (positive)

USB_SSRXM_DN3 23 I USB SuperSpeed receiver differential pair (negative)

USB_DP_DN3 17 I/O USB High-speed differential transceiver (positive)

USB_DM_DN3 18 I/O USB High-speed differential transceiver (negative)

PWRCTL3/BATEN3 33 I/O, PD

USB Port 3 Power On Control for Downstream Power/Battery Charging Enable. The pin is

used for control of the downstream power switch for Port 3. This pin be left unconnected if

power management is not implemented.

In addition, the value of the pin is sampled at the de-assertion of reset to determine the value

of the battery charging support for Port 3 as indicated in the Battery Charging Support

0 = Battery charging not supported

1 = Battery charging supported

OVERCUR3z 44 I, PU

USB Port 3 Over-Current Detection. This pin is typically connected to the over current output

of the downstream port power switch for Port 3.

0 = An over current event has occurred

1 = An over current event has not occurred

When GANGED power management is enabled, this pin or one of the other OVERCURz pins

must be connected to the over current output of the power switch or circuit which detects the

over current conditions. For the case when another OVERCURz pin is used, this pin can be

left unconnected.

USB_SSTXP_DN4 26 O USB SuperSpeed transmitter differential pair (positive)

USB_SSTXM_DN4 27 O USB SuperSpeed transmitter differential pair (negative)

USB_SSRXP_DN4 29 I USB SuperSpeed receiver differential pair (positive)

USB_SSRXM_DN4 30 I USB SuperSpeed receiver differential pair (negative)

USB_DP_DN4 24 I/O USB High-speed differential transceiver (positive)

USB_DM_DN4 25 I/O USB High-speed differential transceiver (negative)

PWRCTL4/BATEN4 32 I/O, PD

USB Port 4 Power On Control for Downstream Power/Battery Charging Enable. The pin is

used for control of the downstream power switch for Port 4. This pin be left unconnected if

power management is not implemented.

In addition, the value of the pin is sampled at the de-assertion of reset to determine the value

of the battery charging support for Port 4 as indicated in the Battery Charging Support

0 = Battery charging not supported

1 = Battery charging supported

OVERCUR4z 43 I, PU

USB Port 4 Over-Current Detection. This pin is typically connected to the over current output

of the downstream port power switch for Port 4.

0 = An over current event has occurred

1 = An over current event has not occurred

When GANGED power management is enabled, this pin or one of the other OVERCURz pins

must be connected to the over current output of the power switch or circuit which detects the

over current conditions. For the case when another OVERCURz pin is used, this pin can be

left unconnected.

I2C/SMBUS I2C Signals

l TEXAS INSTRUMENTS

TUSB8042A

www.ti.com

SLLSF93 –JUNE 2019

Product Folder Links: TUSB8042A

Pin Functions (continued)

PIN I/O DESCRIPTION

NAME NO.

SCL/SMBCLK 38 I/O, PD

I2C clock/SMBus clock. Function of pin depends on the setting of the SMBUSz input.

When SMBUSz = 1, this pin acts as the serial clock interface for an I2C EEPROM.

When SMBUSz = 0, this pin acts as the serial clock interface for an SMBus host.

Can be left unconnected if external interface not implemented.

SDA/SMBDAT 37 I/O, PD

I2C data/SMBus data. Function of pin depends on the setting of the SMBUSz input.

When SMBUSz = 1, this pin acts as the serial data interface for an I2C EEPROM.

When SMBUSz = 0, this pin acts as the serial data interface for an SMBus host.

Can be left unconnected if external interface not implemented.

SMBUSz/SS_SUSPEND 39 I/O, PU

I2C/SMBus mode select/SuperSpeed USB Suspend Status. The value of the pin is sampled

at the de-assertion of reset set I2C or SMBus mode as follows:

1 = I2C Mode Selected

0 = SMBus Mode Selected

Can be left unconnected if external interface not implemented.

After reset, this signal indicates the SuperSpeed USB Suspend status of the upstream port if

enabled through the stsOutputEn bit in the Additional Feature Configuration register. When

enabled, a value of 1 indicates the connection is suspended.

Test and Miscellaneous Signals

FULLPWRMGMTz/FULL

AUTOz/SMBA1/SS_UP 40 I/O, PD

Full power management enable/SMBus address bit 1/SuperSpeed USB Connection Status

Upstream port.

The value of the pin is sampled at the de-assertion of reset to set the power switch control

follows:

0 = Power switching and over current inputs supported

1 = Power switching and over current inputs not supported

Full power management is the ability to control power to the downstream ports of the

TUSB8042A using PWRCTL[4:1]/BATEN[4:1].

If BATENx = 1 on any port, full power management must be enabled so the value of the

terminal is sampled at the de-assertion to initialize the value of the FULLAUTOz bit.

When AUTOENz = 0 and FULLAUTOz = 0: all ACP modes are supported.

When AUTOENz = 0 and FULLAUTOz = 1:only highest current ACP mode is used in auto

mode.

When SMBus mode is enabled, this pin sets the value of the SMBus slave address bit 1.

Can be left unconnected if full power management and SMBus are not implemented.

After reset, this signal indicates the SuperSpeed USB connection status of the upstream port

if enabled through the stsOutputEn bit in the Additional Feature Configuration register. When

enabled a value of 1 indicates the upstream port is connected to a SuperSpeed USB capable

port.

Note: Power switching must be supported for battery charging applications.

PWRCTL_POL 41 I/O, PU

Power Control Polarity.

The value of the pin is sampled at the de-assertion of reset to set the polarity of

PWRCTL[4:1].

0 = PWRCTL polarity is active low

1 = PWRCTL polarity is active high

l TEXAS INSTRUMENTS

TUSB8042A

SLLSF93 –JUNE 2019

www.ti.com

Product Folder Links: TUSB8042A

Pin Functions (continued)

PIN I/O DESCRIPTION

NAME NO.

GANGED/SMBA2/HS_U

P42 I/O, PD

Ganged operation enable/SMBus Address bit 2/HS Connection Status Upstream Port.

The value of the pin is sampled at the de-assertion of reset to set the power switch and over

current detection mode as follows:

0 = Individual power control supported when power switching is enabled

1 = Power control gangs supported when power switching is enabled

When SMBus mode is enabled using SMBUSz, this pin sets the value of the SMBus slave

address bit 2.

After reset, this signal indicates the High-speed USB connection status of the upstream port if

enabled through the stsOutputEn bit in Additional Feature Configuration register. When

enabled, a value of 1 indicates the upstream port is connected to a High-speed USB capable

port.

Note: Individual power control must be enabled for battery charging applications.

AUTOENz/HS_SUSPEN

D45 I/O, PU

Automatic Charge Mode Enable/HS Suspend Status.

The value of the pin is sampled at the de-assertion of reset to determine if automatic mode is

enabled as follows:

0 = Automatic Mode is enabled on ports that are enabled for battery charging when the

hub is unconnected. Please note that CDP is not supported on Port 1 when operating in

Automatic mode.

1 = Automatic Mode is disabled

This value is also used to set the autoEnz bit in the Battery Charging Support Register.

After reset, this signal indicates the High-speed USB Suspend status of the upstream port if

enabled through the stsOutputEn bit in Additional Feature Configuration register. When

enabled, a value of 1 indicates the connection is suspended.

TEST 49 I This pin is reserved for factory test. For normal operation, this pin requires an external pull

down resistor to ground on PCB. Recommend 10k or stronger resistor.

Power and Ground Signals

VDD

5, 8,

13, 21,

28, 31,

51, 57

PWR 1.1-V power rail

VDD33 16, 34,

52, 63 PWR 3.3-V power rail

VSS (Thermal Pad) PWR Ground. Thermal pad must be connected to ground.

NC 60 — No connect, leave floating

l TEXAS INSTRUMENTS

TUSB8042A

www.ti.com

SLLSF93 –JUNE 2019

Product Folder Links: TUSB8042A

(1) Stresses beyond those listed under Absolute Maximum Rating may cause permanent damage to the device. These are stress ratings

only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended

Operating Condition. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

7 Specifications

7.1 Absolute Maximum Ratings

over operating free-air temperature range (unless otherwise noted)(1)

MIN MAX UNIT

Supply Voltage

Range

VDD Supply voltage range -0.3 1.4 V

VDD33 Supply voltage range -0.3 3.8 V

Voltager Range

USB_SSRXP_UP, USB_SSRXN_UP, SSRXP_DN[4:1],

USB_RXN_DP[4:1] and USB_VBUS terminals -0.3 1,4 V

XI terminal -0.3 2.45 V

All other terminals -0.3 3.8 V

Tstg Storage temperature -65 150 °C

(1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.

(2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.

7.2 ESD Ratings

VALUE UNIT

V(ESD) Electrostatic discharge

Human body model (HBM), per

ANSI/ESDA/JEDEC JS-001, all pins(1) ±2000

Charged device model (CDM), per JEDEC

specification JESD22-C101, all pins(2) ±500

7.3 Recommended Operating Conditions

over operating free-air temperature range (unless otherwise noted)

MIN NOM MAX UNIT

VDD 1.1V Supply voltage 0.99 1.1 1.26 V

VDD33 3.3V Supply voltage 3.0 3.3 3.6 V

USB_VBU

SVoltage at USB_VBUS terminal. 0 1.155 V

TATUSB8042A Ambient temperature 0 70 °C

TATUSB8042AI Ambient temperature -40 85 °C

TJJunction temperature -40 105 °C

(1) For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application

report.

7.4 Thermal Information

THERMAL METRIC(1)

TUSB8042A

UNITRGC

64 PINS

RθJA Junction-to-ambient thermal resistance 26 °C/W

RθJC(top) Junction-to-case (top) thermal resistance 11.5 °C/W

RθJB Junction-to-board thermal resistance 5.3 °C/W

ΨJT Junction-to-top characterization parameter 0.2 °C/W

ΨJB Junction-to-board characterization parameter 5.2 °C/W

RθJC(bot) Junction-to-case (bottom) thermal resistance 1.0 °C/W

l TEXAS INSTRUMENTS

TUSB8042A

SLLSF93 –JUNE 2019

www.ti.com

Product Folder Links: TUSB8042A

7.5 Electrical Characteristics

over operating free-air temperature and voltage range (unless otherwise noted)

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

Low Power Modes

IDD_PWRO

NVDD current after Power On (after reset) VDD = 1.1V; VDD33 = 3.3V; TA= 25 °C; 18 mA

IDD33_PW

RON

VDD33 current after Power On (after

reset) VDD = 1.1V; VDD33 = 3.3V; TA= 25 °C; 2 mA

IDD_UPDIS

VDD current when upstream port is

disconnected VDD = 1.1V; VDD33 = 3.3V; TA= 25 °C; 21 mA

IDD33_UP

DISC

VDD33 current when upstream port is

disconnected VDD = 1.1V; VDD33 = 3.3V; TA= 25 °C; 2 mA

IDD_SUSP

END VDD current in Suspend VDD = 1.1V; VDD33 = 3.3V; TA= 25 °C; 20 mA

IDD33_SUS

PEND VDD33 current in Suspend VDD = 1.1V; VDD33 = 3.3V; TA= 25 °C; 2 mA

Active Power Modes (US State / DS State)

IDD_SMBU

SVDD current during SMbus programming. VDD = 1.1V; VDD33 = 3.3V; TA= 25 °C; 275 mA

IDD33_SM

BUS

VDD33 current during SMbus

programming VDD = 1.1V; VDD33 = 3.3V; TA= 25 °C; 75 mA

IDD_3H_1S

S_0HS_U12

VDD current upstream port connected to

USB 3.0 Host, downstream port(s)

connected to 1 SS device, and 0 HS

device. Links in U1/U2.

VDD = 1.1V; VDD33 = 3.3V; TA= 25 °C; 215 mA

IDD33_3H_

1SS_0HS_

U12

VDD33 current upstream port connected

to USB 3.0 Host, downstream port(s)

connected to 1 SS device, and 0 HS

device. Links in U1/U2.

VDD = 1.1V; VDD33 = 3.3V; TA= 25 °C; 45 mA

IDD_3H_1S

S_0HS_U0

VDD current upstream port connected to

USB 3.0 Host, downstream port(s)

connected to 1 SS device, and 0 HS

device. Links in U0.

VDD = 1.1V; VDD33 = 3.3V; TA= 25 °C; 330 mA

IDD33_3H_

1SS_0HS_

VDD33 current upstream port connected

to USB 3.0 Host, downstream port(s)

connected to 1 SS device, and 0 HS

device. Links in U0.

VDD = 1.1V; VDD33 = 3.3V; TA= 25 °C; 45 mA

IDD_3H_2S

S_0HS_U12

VDD current upstream port connected to

USB 3.0 Host, downstream port(s)

connected to 2 SS devices, and 0 HS

device. Links in U1/U2

VDD = 1.1V; VDD33 = 3.3V; TA= 25 °C; 301 mA

IDD33_3H_

2SS_0HS_

U12

VDD33 current upstream port connected

to USB 3.0 Host, downstream port(s)

connected to 2 SS devices, and 0 HS

device. Links in U1/U2

VDD = 1.1V; VDD33 = 3.3V; TA= 25 °C; 45 mA

IDD_3H_2S

S_0HS_U0

VDD current upstream port connected to

USB 3.0 Host, downstream port(s)

connected to 2 SS devices, and 0 HS

device. Links in U0.

VDD = 1.1V; VDD33 = 3.3V; TA= 25 °C; 440 mA

IDD33_3H_

2SS_0HS_

VDD33 current upstream port connected

to USB 3.0 Host, downstream port(s)

connected to 2 SS devices, and 0 HS

device. Links in U0.

VDD = 1.1V; VDD33 = 3.3V; TA= 25 °C; 45 mA

IDD_3H_3S

S_0HS_U12

VDD current upstream port connected to

USB 3.0 Host, downstream port(s)

connected to 3 SS devices, and 0 HS

device. Links in U1/U2

VDD = 1.1V; VDD33 = 3.3V; TA= 25 °C; 360 mA

IDD33_3H_

3SS_0HS_

U12

VDD33 current upstream port connected

to USB 3.0 Host, downstream port(s)

connected to 3 SS devices, and 0 HS

device. Links in U1/U2

VDD = 1.1V; VDD33 = 3.3V; TA= 25 °C; 45 mA

l TEXAS INSTRUMENTS

TUSB8042A

www.ti.com

SLLSF93 –JUNE 2019

Product Folder Links: TUSB8042A

Electrical Characteristics (continued)

over operating free-air temperature and voltage range (unless otherwise noted)

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

(1) Applies to external inputs and bi-directional buffers

IDD_3H_3S

S_0HS_U0

VDD current upstream port connected to

USB 3.0 Host, downstream port(s)

connected to 3 SS devices, and 0 HS

device. Links in U0.

VDD = 1.1V; VDD33 = 3.3V; TA= 25 °C; 560 mA

IDD33_3H_

3SS_0HS_

VDD33 current upstream port connected

to USB 3.0 Host, downstream port(s)

connected to 3 SS devices, and 0 HS

device. Links in U0.

VDD = 1.1V; VDD33 = 3.3V; TA= 25 °C; 45 mA

IDD_3H_4S

S_0HS_U12

VDD current upstream port connected to

USB 3.0 Host, downstream port(s)

connected to 4 SS devices, and 0 HS

device. Links in U1/U2

VDD = 1.1V; VDD33 = 3.3V; TA= 25 °C; 467 mA

IDD33_3H_

4SS_0HS_

U12

VDD33 current upstream port connected

to USB 3.0 Host, downstream port(s)

connected to 4 SS devices, and 0 HS

device. Links in U1/U2

VDD = 1.1V; VDD33 = 3.3V; TA= 25 °C; 45 mA

IDD_3H_4S

S_0HS_U0

VDD current upstream port connected to

USB 3.0 Host, downstream port(s)

connected to 4 SS devices, and 0 HS

device. Links in U0.

VDD = 1.1V; VDD33 = 3.3V; TA= 25 °C; 650 mA

IDD33_3H_

4SS_0HS_

VDD33 current upstream port connected

to USB 3.0 Host, downstream port(s)

connected to 4 SS devices, and 0 HS

device. Links in U0.

VDD = 1.1V; VDD33 = 3.3V; TA= 25 °C; 45 mA

IDD_3H_1S

S_1HS_U0

VDD current upstream port connected to

USB 3.0 Host, downstream port(s)

connected to 1 SS device, and 1 HS

device. Links in U0.

VDD = 1.1V; VDD33 = 3.3V; TA= 25 °C; 372 mA

IDD33_3H_

1SS_1HS_

VDD33 current upstream port connected

to USB 3.0 Host, downstream port(s)

connected to 1 SS devices, and 1 HS

device. Links in U0.

VDD = 1.1V; VDD33 = 3.3V; TA= 25 °C; 84 mA

IDD_3H_1S

S_2HS_U0

VDD current upstream port connected to

USB 3.0 Host, downstream port(s)

connected to 2 SS device, and 2 HS

device. Links in U0.

VDD = 1.1V; VDD33 = 3.3V; TA= 25 °C; 480 mA

IDD33_3H_

1SS_2HS_

VDD33 current upstream port connected

to USB 3.0 Host, downstream port(s)

connected to 2 SS devices, and 2 HS

device. Links in U0.

VDD = 1.1V; VDD33 = 3.3V; TA= 25 °C; 95 mA

IDD_2H_0S

S_1HS

VDD current upstream port connected to

USB 2.0 Host, downstream port(s)

connected to 0 SS device, and 1 HS

device.

VDD = 1.1V; VDD33 = 3.3V; TA= 25 °C; 45 mA

IDD33_2H_

0SS_1HS

VDD33 current upstream port connected

to USB 2.0 Host, downstream port(s)

connected to 0 SS devices, and 1 HS

device.

VDD = 1.1V; VDD33 = 3.3V; TA= 25 °C; 45 mA

IDD_2H_0S

S_4HS

VDD current upstream port connected to

USB 2.0 Host, downstream port(s)

connected to 0 SS device, and 4 HS

device.

VDD = 1.1V; VDD33 = 3.3V; TA= 25 °C; 74 mA

IDD33_2H_

0SS_4HS

VDD33 current upstream port connected

to USB 2.0 Host, downstream port(s)

connected to 0 SS devices, and 4 HS

device.

VDD = 1.1V; VDD33 = 3.3V; TA= 25 °C; 76 mA

3.3V I/O

VIH High-level input voltage(1) 2 3.6 V

l TEXAS INSTRUMENTS

TUSB8042A

SLLSF93 –JUNE 2019

www.ti.com

Product Folder Links: TUSB8042A

Electrical Characteristics (continued)

over operating free-air temperature and voltage range (unless otherwise noted)

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

(2) Applies to external outputs and bi-directional buffers

(3) Applies to GRSTZ

(4) Applies to pins with internal pullups/pulldowns.

(5) Applies to external input buffers

VIL Low-level input voltage(1) 0 0.8 V

VIInput voltage 0 3.6 V

VOOutput voltage(2) 0 3.6 V

ttInput transition time (tRISE and tFALL) 25 ns

VHYS Input hysteresis(3) 1.3 x

VDD33 V

VOH High-level output voltage IOH = -4 mA 2.4 V

VOL Low-level output voltage IOH = 4 mA 0.4 V

IOZP High-impedance output current with

internal pullup or pulldown resistor.(4) VI= 0 to VDD33; -250 250 µA

IIInput current(5) VI= 0 to VDD33; -15 15 µA

RPD Internal pull-down resistance 13.5 19 27.5 kΩ

RPU Internal pull-up resistance 14.5 19 25 kΩ

(1) As long as GRSTz is de-asserted after both supplies are stable, there is no power-on relationship between VDD33 and VDD. If GRSTz is

only connected to a capacitor to GND, then VDD must be stable minimum of 10 µs before VDD33.

(2) An active reset is required if the VDD33 supply is stable before VDD supply. This active reset shall meet the 3 ms power-up delay

counting from both power supplies stable to de-assertion of GRSTz.

(3) MISC pins sampled at de-assertion of GRSTz: BATEN[4:1], AUTOENz, FULLPWRMGMTz, GANGED, SMBUSz, and PWRCTL_POL.

7.6 Timing Requirements

MIN NOM MAX UNIT

Power-on timings. Refer to Figure 1

td1 VDD stable before VDD33 stable. (1) (2) 0 ms

td2 VDD and VDD33 before de-assertion of GRSTz. 3 ms

tsu_io Setup for MISC inputs. (3) 0.1 µs

thd_io Hold for MISC inputs. (3) 0.1 µs

tVDD33_RAM

PVDD33 supply ramp requirement. 0.2 100 ms

tVDD_RAMP VDD supply ramp requirement. 0.2 100 ms

‘5‘ TEXAS INSTRUMENTS

td1

VDD33

VDD

GRSTz

MISC_IO

ttd2

tSU_IO tHD_IO

TUSB8042A

www.ti.com

SLLSF93 –JUNE 2019

Product Folder Links: TUSB8042A

Figure 1. Power-Up Timing Requirements

l TEXAS INSTRUMENTS H M NH H++ HM H+v H++ H++

VBUS

Detect

SuperSpeed HubUSB 2.0 Hub

USB_DP_UP

USB_SSRXP_UP

USB_SSRXM_UP

USB_SSTXP_UP

USB_SSTXM_UP

USB_DM_UP

USB_SSRXP_DN1

USB_SSRXM_DN1

USB_SSTXP_DN1

USB_SSTXM_DN1

USB_SSRXP_DN2

USB_SSRXM_DN2

USB_SSTXP_DN2

USB_SSTXM_DN2

USB_DP_DN1

USB_DM_DN1

USB_DP_DN2

USB_DM_DN2

Oscilator

USB_R1

USB_VBUS

Clock

and

Reset

Distribution

Control

Registers

GPIO

I2C

SMBUS

Power

Distribution

VDD33

VSS

GRSTz

SCL/SMBCLK

SDA/SMBDAT

SMBUSz/SS_SUSPEND

PWRCTL1/BATEN1

OVERCUR1z

PWRCTL2/BATEN2

OVERCUR2z

PWRCTL_POL

GANGED/SMBA2/HS_UP

FULLPWRMGMTz/SMBA1/SS_UP

VDD

TEST

USB_DP_DN3

USB_DM_DN3

USB_DP_DN4

USB_DM_DN4

USB_SSRXP_DN3

USB_SSRXM_DN3

USB_SSTXP_DN3

USB_SSTXM_DN3

USB_SSRXP_DN4

USB_SSRXM_DN4

USB_SSTXP_DN4

USB_SSTXM_DN4

OTP

ROM

PWRCTL3/BATEN3

OVERCUR3z

PWRCTL4/BATEN4

OVERCUR4z

AUTOENz/HS_SUSPEND

TUSB8042A

SLLSF93 –JUNE 2019

www.ti.com

Product Folder Links: TUSB8042A

8 Detailed Description

8.1 Overview

The TUSB8042A is a four-port USB 3.2 x1 Gen1 compliant hub. It provides simultaneous SuperSpeed USB and

high-speed/full-speed connections on the upstream port and provides SuperSpeed USB, high-speed, full-speed,

or low-speed connections on the downstream ports. When the upstream port is connected to an electrical

environment that only supports high-speed or full-speed/low-speed connections, SuperSpeed USB connectivity is

disabled on the downstream ports. When the upstream port is connected to an electrical environment that only

supports full-speed/low-speed connections, SuperSpeed USB and high-speed connectivity are disabled on the

downstream ports.

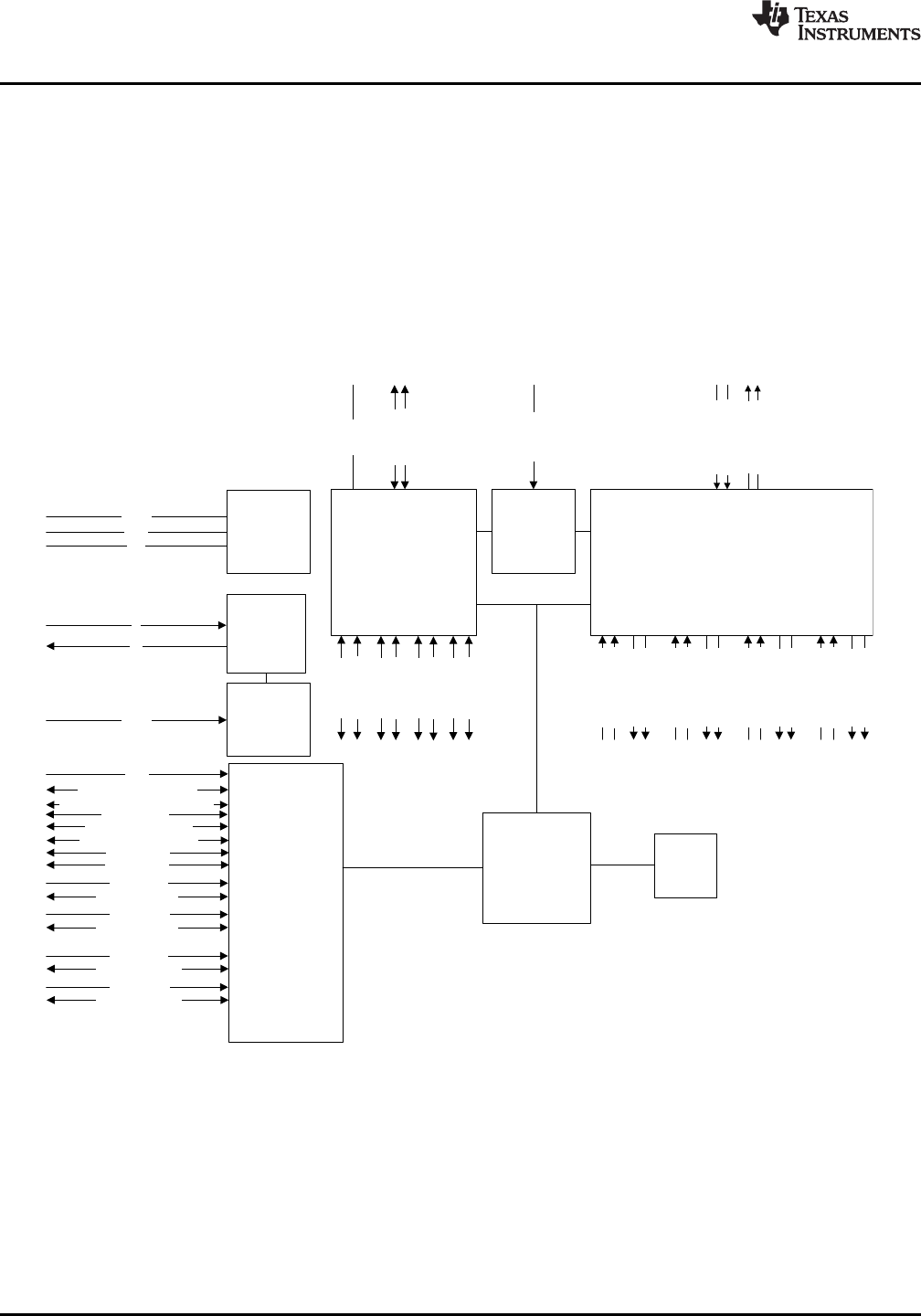

8.2 Functional Block Diagram

l TEXAS INSTRUMENTS

TUSB8042A

www.ti.com

SLLSF93 –JUNE 2019

Product Folder Links: TUSB8042A

8.3 Feature Description

8.3.1 Battery Charging Features

The TUSB8042A provides support for USB Battery Charging (BC1.2) and custom charging. Battery charging

support may be enabled on a per port basis through the REG_6h(batEn[3:0]) or the BATEN[4:1] pins.

USB Battery charging support includes both Charging Downstream Port (CDP) and Dedicated Charging Port

(DCP) modes. The DCP mode is compliant with the Chinese Telecommunications Industry Standard YD/T 1591-

2009. CDP is enabled when the upstream port has detected valid VBUS, configured, and host sets port power.

When the upstream port is not connected and battery charging support is enabled, the TUSB8042A enables

DCP mode once all other battery modes such as ACPx have failed or are disabled.

In addition to USB Battery charging (BC1.2), the TUSB8042A supports custom charging indications: Divider

Charging (ACP3, ACP2, ACP1 modes), and Galaxy compatible charging. These custom charging modes are

only supported when upstream port is unconnected and AUTOMODE is enabled. AUTOMODE can be enabled

either thru AUTOENz pin or from Reg_0Ah bit 1 (autoModeEnz) . When in AUTOMODE and upstream port is

disconnected, the port automatically transitions from ACP mode to the DCP mode depending on the portable

device connected. The divided mode places a fixed DC voltage on the ports DP and DM signals which allows

some devices to identify the capabilities of the charger. The default divider mode indicates support for up to 10W

(ACP3). The divider mode can be configured to report a lower-current setting (up to 5 W) through REG_0Ah

(HiCurAcpModeEn).

When the upstream port is not connected and battery charging support is enabled for a port, the TUSB8042A

drives the port power enable active. If AUTOMODE is disabled, then DCP mode is used. If AUTOMODE is

enabled and fully automatic mode is disabled (FullAutoEn bit is cleared (Reg_25h Bit 0) or FULLAUTOz pin = 0),

then TUSB8042A starts with highest enabled divider current mode (ACPx). The TUSB8042A remains in highest

current mode as long as a pull-up is not detected on DP pin. If an pull-up is detected on DP pin, then

TUSB8042A drives the port power enable inactive and switch to Galaxy mode, if enabled, or to DCP mode if

Galaxy mode is disabled. The TUSB8042A again drives the port power enable active. The TUSB8042A remains

in Galaxy mode as long as no pull-up is detected on DP pin. If an pull-up is detected on DP pin, then

TUSB8042A drives the port power enable inactive and transition to DCP mode. The TUSB8042A again drives

the port power enable active. In DCP mode, the TUSB8042A looks for a pull-up detected on DP pin or RxVdat. If

a pull-up or RxVdat is detected on DP, the TUSB8042A remains in DCP mode. If no pull-up or RxVdat is

detected on DP pin after 2 seconds, the TUSB8042A drives the port power enable inactive and transition back to

ACPx mode. This sequence repeats until upstream port is connected.

When Automatic mode is enabled and full automatic mode is enabled (FullAutoEn Reg_25h bit 0 is set or

FULLAUTOz pin = 1), TUSB8042A performs same sequence described in previous paragraph with the addition

of attempting all supported ACPx modes before sequencing to Galaxy Mode (if enabled) or DCP mode.

The supported battery charging modes when TUSB8042A configured for SMBus or external EEPROM is detailed

in Battery Charging Modes with SMBus/EEPROM Table.

The supported battery charging modes when TUSB8042A configured for I2C but without an external EEPROM is

determined by the sampled state of the pins. These modes are detailed in Battery Charging Modes without

EEPROM Table.

l TEXAS INSTRUMENTS

TUSB8042A

SLLSF93 –JUNE 2019

www.ti.com

Product Folder Links: TUSB8042A

Feature Description (continued)

Table 1. TUSB8042A Battery Charging Modes with SMBus or I2C EEPROM

batEn[n] Reg_06h Bits 3:0

Upstream VBUS

HiCurAcpMode En Reg_0Ah Bit 4

autoModeEnz Reg_0Ah Bit 1

FullAutoEn Reg_25h Bit 0

Galaxy_Enz Reg_25h Bit 1

Battery Charging Mode Port x

(x = n + 1)

0 Don’t Care Don't Care Don’t Care Don't Care Don't Care No Charging support

1 > 4V Don't Care Don't Care Don't Care Don't Care CDP

1 < 4V Don't Care 1 Don't Care Don't Care DCP

1 < 4V Don't Care 0 1 1 AUTOMODE enabled. Sequences through all ACPx modes and DCP

Alternate ACP3, ACP2, ACP1, DCP

1 < 4 V 0 0 0 1 AUTOMODE enabled. Sequences between ACP2 and DCP.

Alternate ACP2, DCP

1 < 4V 1 0 0 1 AUTOMODE enabled. Sequences between ACP3 and DCP.

Alternate ACP3, DCP

1 < 4V Don't Care 0 1 0 AUTOMODE enabled with Galaxy compatible charging support.

Alternate ACP3, ACP2, ACP1, Galaxy, DCP

1 < 4V 0 0 0 0 AUTOMODE enabled with Galaxy compatible charging support.

Alternate ACP2, Galaxy, DCP

1 < 4V 1 0 0 0 AUTOMODE enabled with Galaxy compatible charging support.

Alternate ACP3, Galaxy, DCP

Table 2. TUSB8042A Battery Charging Modes without EEPROM

BATEN[3:0] pins

Upstream VBUS

AUTOENz pin

FULLAUTOz pin

Battery Charging Mode Port x

(x = n + 1)

0 Don’t Care Don’t Care Don't Care No Charging support

1 > 4V Don't Care Don't Care CDP

1 < 4V 1 0 DCP

1 < 4V 0 0 AUTOMODE enabled with Galaxy compatible charging support. Sequences

through all ACPx modes.

Alternate ACP3, ACP2, ACP1, Galaxy, DCP.

1 < 4V 0 1 AUTOMODE enabled with Galaxy compatible charging support.

Alternate ACP3, Galaxy, DCP

1 < 4V 1 1 AUTOMODE enabled. Sequences through all ACPx modes.

Alternate ACP3, ACP2, ACP1, DCP.

l TEXAS INSTRUMENTS

TUSB8042A

www.ti.com

SLLSF93 –JUNE 2019

Product Folder Links: TUSB8042A

8.3.2 USB Power Management

The TUSB8042A can be configured for power switched applications using either per-port (Full power managed)

or ganged power-enable controls and over-current status inputs. When battery charge is enabled, the

TUSB8042A always functions in full power managed.

Power switch support is enabled by REG_5h (fullPwrMgmtz) and the per-port or ganged mode is configured by

REG_5h(ganged).

The TUSB8042A supports both active high and active low power-enable controls. The PWRCTL[4:1] polarity is

configured by REG_Ah(pwrctlPol). The power control polarity can also be selected by the PWRCTL_POL pin.

l TEXAS INSTRUMENTS

TUSB8042A

SLLSF93 –JUNE 2019

www.ti.com

Product Folder Links: TUSB8042A

8.3.3 One Time Programmable (OTP) Configuration

The TUSB8042A allows device configuration through one time programmable non-volatile memory (OTP). The

programming of the OTP is supported using vendor-defined USB device requests. For details using the OTP

features please contact your TI representative.

Table 3 provides a list features which may be configured using the OTP.

Table 3. OTP Configurable Features

CONFIGURATION REGISTER

OFFSET BIT FIELD DESCRIPTION

REG_01h [7:0] Vendor ID LSB

REG_02h [7:0] Vendor ID MSB

REG_03h [7:0] Product ID LSB

REG_04h [7:0] Product ID MSB

REG_07h [0] Port removable configuration for downstream ports 1. OTP

configuration is inverse of rmbl[3:0], i.e. 1 = not removable, 0 =

removable.

REG_07h [1] Port removable configuration for downstream ports 2. OTP

configuration is inverse of rmbl[3:0], i.e. 1 = not removable, 0 =

removable.

REG_07h [2] Port removable configuration for downstream ports 3. OTP

configuration is inverse of rmbl[3:0], i.e. 1 = not removable, 0 =

removable.

REG_07h [3] Port removable configuration for downstream ports 4. OTP

configuration is inverse of rmbl[3:0], i.e. 1 = not removable, 0 =

removable.

REG_08h [3:0] Port used Configured register.

REG_0Ah [1] Battery Charger Automatic Mode enable.

REG_0Ah [4] High-current divider mode enable.

REG_0Bh [0] USB 2.0 port polarity configuration for upstream port.

REG_0Bh [1] USB 2.0 port polarity configuration for downstream ports 1.

REG_0Bh [2] USB 2.0 port polarity configuration for downstream ports 2.

REG_0Bh [3] USB 2.0 port polarity configuration for downstream ports 3.

REG_0Bh [4] USB 2.0 port polarity configuration for downstream ports 4.

REG_25h [4:0] Device Configuration Register 3

REG_26h [3:0] USB2.0 Only Port Register

REG_F0h [3:1] USB BC power switch power off duration during automode.

i TEXAS INSTRUMENTS 44

CLOCK

R1 1M

24 MHz

CL1 CL2

TUSB8042A

www.ti.com

SLLSF93 –JUNE 2019

Product Folder Links: TUSB8042A

8.3.4 Clock Generation

The TUSB8042A accepts a crystal input to drive an internal oscillator or an external clock source. If a clock is

provided to XI instead of a crystal, XO is left open. Otherwise, if a crystal is used, the connection needs to follow

the guidelines below. Since XI and XO are coupled to other leads and supplies on the PCB, it is important to

keep them as short as possible and away from any switching leads. It is also recommended to minimize the

capacitance between XI and XO. This can be accomplished by shielding C1 and C2 with the clean ground lines.

Figure 2. TUSB8042A Clock

l TEXAS INSTRUMENTS

TUSB8042A

SLLSF93 –JUNE 2019

www.ti.com

Product Folder Links: TUSB8042A

8.3.5 Crystal Requirements

The crystal must be fundamental mode with load capacitance of 12 pF - 24 pF and frequency stability rating of

±100 PPM or better. To ensure proper startup oscillation condition, a maximum crystal equivalent series

resistance (ESR) of 50 Ωis recommended. A parallel load capacitor should be used if a crystal source is used.

The exact load capacitance value used depends on the crystal vendor. Refer to application note Selection and

Specification for Crystals for Texas Instruments USB2.0 devices (SLLA122) for details on how to determine the

load capacitance value.

8.3.6 Input Clock Requirements

When using an external clock source such as an oscillator, the reference clock should have a ±100 PPM or

better frequency stability and have less than 50-ps absolute peak to peak jitter or less than 25-ps peak to peak

jitter after applying the USB 3.2 Gen1 jitter transfer function. XI should be tied to the 1.8-V clock source and XO

should be left floating.

8.3.7 Power-Up and Reset

The TUSB8042A does not have specific power sequencing requirements with respect to the core power (VDD)

or I/O and analog power (VDD33) as long as GRSTz is held in an asserted state while supplies ramp. The core

power (VDD) or I/O power (VDD33) may be powered up for an indefinite period of time while the other is not

powered up if all of these constraints are met:

• All maximum ratings and recommended operating conditions are observed.

• All warnings about exposure to maximum rated and recommended conditions are observed, particularly

junction temperature. These apply to power transitions as well as normal operation.

• Bus contention while VDD33 is powered up must be limited to 100 hours over the projected life-time of the

device.

• Bus contention while VDD33 is powered down may violate the absolute maximum ratings.

A supply bus is powered up when the voltage is within the recommended operating range. It is powered down

when it is below that range, either stable or in transition.

A minimum reset duration of 3 ms is required. This is defined as the time when the power supplies are in the

recommended operating range to the de-assertion of GRSTz. This can be generated using programmable-delay

supervisory device or using an RC circuit. When a RC circuit is used, the external capacitor size chosen must be

large enough to meet the 3ms minimum duration requirement. The R of the RC circuit is the internal RPU.

l TEXAS INSTRUMENTS

TUSB8042A

www.ti.com

SLLSF93 –JUNE 2019

Product Folder Links: TUSB8042A

8.4 Device Functional Modes

8.4.1 External Configuration Interface

The TUSB8042A supports a serial interface for configuration register access. The device may be configured by

an attached I2C EEPROM or accessed as a slave by an external SMBus master. The external interface is

enabled when both the SCL/SMBCLK and SDA/SMBDAT pins are pulled up to 3.3 V at the de-assertion of reset.

The mode, I2C master or SMBus slave, is determined by the state of SMBUSz/SS_SUSPEND pin at reset.

8.4.2 I2C EEPROM Operation

The TUSB8042A supports a single-master, standard mode (100 KHz) or fast mode (400KHz) connection to a

dedicated I2C EEPROM when the I2C interface mode is enabled. In I2C mode, the TUSB8042A reads the

contents of the EEPROM at bus address 1010000b using 7-bit addressing starting at address 0. The

TUSB8042A reads the entire EEPROM contents using a single burst read transaction. The burst read transaction

ends when the address reaches FFh.

If the value of the EEPROM contents at address byte 00h equals 55h, the TUSB8042A loads the configuration

registers according to the EEPROM map. If the first byte is not 55h, the TUSB8042A exits the I2C mode and

continues execution with the default values in the configuration registers. The hub is not connect on the upstream

port until the configuration is completed.

NOTE

The bytes located above offset Ah are optional. The requirement for data in those

addresses is dependent on the options configured in the Device Configuration, and Device

Configuration 2 registers.

The minimum size I2C EEPROM required is 2Kbit.

For details on I2C operation refer to the UM10204 I2C-bus Specification and User Manual.

8.4.3 Port Configuration

The TUSB8042A port configurations can be selected by registers or efuse. The Port Used Configuration register

(USED[3:0]) define how many ports can possibly be reported by the hub. The device removable configuration

or not. The USB 2.0 Only Port register (USB2_ONLY[3:0]) define whether or not a used port is reported as part

of the USB 2.0 hub or both the USB2.0 and SS hubs. The USB2_ONLY field enables the USB2.0 port even if the

corresponding USED bit is low. Table 4 shows examples of the possible combinations.

l TEXAS INSTRUMENTS

TUSB8042A

SLLSF93 –JUNE 2019

www.ti.com

Product Folder Links: TUSB8042A

Device Functional Modes (continued)

Table 4. TUSB8042A Downstream Port Configuration Examples

USED[3:0] RMBL[3:0] USB2_ONLY

[3:0] Reported Port Configuration Physical to Logical Port mapping

1111 1111 0000 4 Port USB 3.2 Hub

4 Port USB2.0 Hub

Physical1 => Logical Port1 for USB 3.2 and USB2.0.

Physical2 => Logical Port2 for USB 3.2 and USB2.0.

Physical3 => Logical Port3 for USB 3.2 and USB2.0.

Physical4 => Logical Port4 for USB 3.2 and USB2.0.

1110 1111 0000 3 Port USB 3.2 Hub

3 Port USB2.0 Hub

Physical1 Not used.

Physical2 => Logical Port1 for USB 3.2 and USB2.0.

Physical3 => Logical Port2 for USB 3.2 and USB2.0.

Physical4 => Logical Port3 for USB 3.2 and USB2.0.

1100 0111 0000 2 Port USB 3.2 Hub

2 Port USB2.0 hub with permanently attached

device on Port 2

Physical1 Not used.

Physical2 Not used.

Physical3 => Logical Port1 for USB 3.2 and USB2.0.

Physical4 => Logical Port2 for USB 3.2 and USB2.0.

0011 1111 0010 1 Port USB 3.2 Hub

2 Port USB 2.0 Hub

Physical1 => Logical Port1 for USB 3.2 and USB2.0.

Physical2 => Logical Port2 for USB2.0.

Physical3 Not Used.

Physical4 Not used.

1000 1111 0010 1 Port USB 3.2 Hub

2 Port USB 2.0 Hub

Physical1 Not used.

Physical2 => Logical Port2 for USB2.0.

Physical3 Not used

Physical4 => Logical Port1 for USB 3.2 and USB2.0.

1111 1111 1110 1 Port USB 3.2 Hub

4 Port USB 2.0 Hub

Physical1 => Logical Port1 for USB 3.2 and USB2.0.

Physical2 => Logical Port2 for USB2.0.

Physical3 => Logical Port3 for USB2.0.

Physical4 => Logical Port4 for USB2.0.

l TEXAS INSTRUMENTS

TUSB8042A

www.ti.com

SLLSF93 –JUNE 2019

Product Folder Links: TUSB8042A

8.4.4 SMBus Slave Operation

When the SMBus interface mode is enabled, the TUSB8042A supports read block and write block protocols as a

slave-only SMBus device.

The TUSB8042A slave address is 1000 1xyz, where:

• x is the state of GANGED/SMBA2/HS_UP pin at reset,

• y is the state of FULLPWRMGMTz/SMBA1/SS_UP pin at reset, and

• z is the read/write bit; 1 = read access, 0 = write access.

For details on SMBus requirements, refer to the System Management Bus Specification.

NOTE

If the TUSB8042A is addressed by a host using an unsupported protocol it does not

respond. The TUSB8042A waits indefinitely for configuration by the SMBus host and

doesnot connect on the upstream port until the SMBus host indicates configuration is

complete by clearing the CFG_ACTIVE bit.

l TEXAS INSTRUMENTS

TUSB8042A

SLLSF93 –JUNE 2019

www.ti.com

Product Folder Links: TUSB8042A

8.5 Register Maps

8.5.1 Configuration Registers

The internal configuration registers are accessed on byte boundaries. The configuration register values are

loaded with defaults but can be over-written when the TUSB8042A is in I2C or SMBus mode. Refer to Table 3 for

registers configurable from OTP.

Table 5. TUSB8042A Register Map

BYTE

ADDRESS CONTENTS EEPROM CONFIGURABLE

00h ROM Signature Register Yes

01h Vendor ID LSB Yes

02h Vendor ID MSB Yes

03h Product ID LSB Yes

04h Product ID MSB Yes

05h Device Configuration Register Yes

06h Battery Charging Support Register Yes

07h Device Removable Configuration Register Yes

08h Port Used Configuration Register Yes

09h Reserved. Must default to 00h. Yes

0Ah Device Configuration Register 2 Yes

0Bh USB 2.0 Port Polarity Control Register Yes

0Ch-0Fh Reserved No

10h-1Fh UUID Byte [15:0] No

20h-21h LangID Byte [1:0] Yes

22h Serial Number Length Yes

23h Manufacturer String Length Yes

24h Product String Length Yes

25h Device Configuration Register 3 Yes

26h USB 2.0 Only Port Register Yes

27h-2Eh Reserved Yes

2Fh Reserved No

30h-4Fh Serial Number String Byte [31:0] Yes

50h-8Fh Manufacturer String Byte [63:0] Yes

90h-CFh Product String Byte [63:0] Yes

D0h-D4h Reserved Yes, but do not change default.

D5h-D7h Reserved No

D8h-DCh Reserved Yes, but do not change default.

DDh-EFh Reserved No

F0h Additional Features Configuration Register Yes

F1h-F7h Reserved No

F8h SMBus Device Status and Command Register No

F9h - FFh Reserved No

% TEXAS INSTRUMENTS

TUSB8042A

www.ti.com

SLLSF93 –JUNE 2019

Product Folder Links: TUSB8042A

8.5.2 ROM Signature Register

Figure 3. Register Offset 0h

Bit No. 7 6 5 4 3 2 1 0

Reset State 0 0 0 0 0 0 0 0

Table 6. Bit Descriptions – ROM Signature Register

Bit Field Type Description

7:0 romSignature RW

ROM Signature Register. This register is used by the TUSB8042A in

I2C mode to validate the attached EEPROM has been programmed.

The first byte of the EEPROM is compared to the mask 55h and if not

a match, the TUSB8042A aborts the EEPROM load and executes with

the register defaults.

8.5.3 Vendor ID LSB Register

Figure 4. Register Offset 1h

Bit No. 7 6 5 4 3 2 1 0

Reset State 0 1 0 1 0 0 0 1

Table 7. Bit Descriptions – Vendor ID LSB Register

Bit Field Type Description

7:0 vendorIdLsb RO/RW

Vendor ID LSB. Least significant byte of the unique vendor ID

assigned by the USB-IF; the default value of this register is 51h

representing the LSB of the TI Vendor ID 0451h. The value may be

over-written to indicate a customer Vendor ID.

Value used for this field is the non-zero value written by

EEPROM/SMBus to both PID and VID. If a zero value is written by

EEPROM/SMbus to both PID and VID, then value used for this field is

the non-zero value from OTP. If a zero value is written by OTP, then

value used for this field is 51h.

8.5.4 Vendor ID MSB Register

Figure 5. Register Offset 2h

Bit No. 7 6 5 4 3 2 1 0

Reset State 0 0 0 0 0 1 0 0

Table 8. Bit Descriptions – Vendor ID MSB Register

Bit Field Type Description

7:0 vendorIdMsb RO/RW

Vendor ID MSB. Most significant byte of the unique vendor ID

assigned by the USB-IF; the default value of this register is 04h

representing the MSB of the TI Vendor ID 0451h. The value may be

over-written to indicate a customer Vendor ID.

Value used for this field is the non-zero value written by

EEPROM/SMBus to both PID and VID. If a zero value is written by

EEPROM/SMbus to both PID and VID, then value used for this field is

the non-zero value from OTP. If a zero value is written by OTP, then

value used for this field is 04h.

I TEXAS INSTRUMENTS _

TUSB8042A

SLLSF93 –JUNE 2019

www.ti.com

Product Folder Links: TUSB8042A

8.5.5 Product ID LSB Register

Figure 6. Register Offset 3h

Bit No. 7 6 5 4 3 2 1 0

Reset State 0 1 0 0 0 0 0 0

Table 9. Bit Descriptions – Product ID LSB Register

Bit Field Type Description

7:0 productIdLsb RO/RW

Product ID LSB. Least significant byte of the product ID assigned by

Texas Instruments and reported in the SuperSpeed Device descriptor.

the default value of this register is 40h representing the LSB of the

SuperSpeed product ID assigned by Texas Instruments The value

reported in the USB 2.0 Device descriptor is the value of this register

bit wise XORed with 00000010b. The value may be over-written to

indicate a customer product ID.

Value used for this field is the non-zero value written by

EEPROM/SMBus to both PID and VID. If a zero value is written by

EEPROM/SMbus to both PID and VID, then value used for this field is

the non-zero value from OTP. If a zero value is written by OTP, then

value used for this field is 40h .

8.5.6 Product ID MSB Register

Figure 7. Register Offset 4h

Bit No. 7 6 5 4 3 2 1 0

Reset State 1 0 0 0 0 0 0 1

Table 10. Bit Descriptions – Product ID MSB Register

Bit Field Type Description

7:0 productIdMsb RO/RW

Product ID MSB. Most significant byte of the product ID assigned by

Texas Instruments; the default value of this register is 82h representing

the MSB of the product ID assigned by Texas Instruments. The value

may be over-written to indicate a customer product ID.

Value used for this field is the non-zero value written by

EEPROM/SMBus to both PID and VID. If a zero value is written by

EEPROM/SMbus to both PID and VID, then value used for this field is

the non-zero value from OTP. If a zero value is written by OTP, then

value used for this field is 82h.

l TEXAS INSTRUMENTS

TUSB8042A

www.ti.com

SLLSF93 –JUNE 2019

Product Folder Links: TUSB8042A

8.5.7 Device Configuration Register

Figure 8. Register Offset 5h

Bit No. 7 6 5 4 3 2 1 0

Reset State 0 0 0 1 X X 0 0

Table 11. Bit Descriptions – Device Configuration Register

Bit Field Type Description

7 customStrings RW

Custom strings enable. This bit controls the ability to write to the

Manufacturer String Length, Manufacturer String, Product String

Length, Product String, and Language ID registers

0 = The Manufacturer String Length, Manufacturer String, Product

String Length, Product String, and Language ID registers are read only

1 = The Manufacturer String Length, Manufacturer String, Product

String Length, Product String, and Language ID registers may be

loaded by EEPROM or written by SMBus

The default value of this bit is 0.

6 customSernum RW

Custom serial number enable. This bit controls the ability to write to the

serial number registers.

0 = The Serial Number String Length and Serial Number String

registers are read only

1 = Serial Number String Length and Serial Number String registers

may be loaded by EEPROM or written by SMBus

The default value of this bit is 0.

5 u1u2Disable RW

U1 U2 Disable. This bit controls the U1/U2 support.

0 = U1/U2 support is enabled

1 = U1/U2 support is disabled, the TUSB8042A will not initiate or

accept any U1 or U2 requests on any port, upstream or downstream,

unless it receives or sends a Force_LinkPM_Accept LMP. After

receiving or sending an FLPMA LMP, it continues to enable U1 and U2

according to USB 3.2 protocol until it gets a power-on reset or is

disconnected on its upstream port.

When the TUSB8042A is in I2C mode, the TUSB8042A loads this bit

from the contents of the EEPROM.

When the TUSB8042A is in SMBUS mode, the value may be over-

written by an SMBus host.

4 RSVD RO Reserved. This bit is reserved and returns 1 when read.

3 ganged RW

Ganged. This bit is loaded at the de-assertion of reset with the value of

the GANGED/SMBA2/HS_UP pin.

0 = When fullPwrMgmtz = 0, each port is individually power switched

and enabled by the PWRCTL[4:1]/BATEN[4:1] pins

1 = When fullPwrMgmtz = 0, the power switch control for all ports is

ganged and enabled by the PWRCTL[4:1]/BATEN1 pin

When the TUSB8042A is in I2C mode, the TUSB8042A loads this bit

from the contents of the EEPROM.

When the TUSB8042A is in SMBUS mode, the value may be over-

written by an SMBus host.

2 fullPwrMgmtz RW

Full Power Management. This bit is loaded at the de-assertion of reset

with the value of the FULLPWRMGMTz/SMBA1/SS_UP pin.

0 = Port power switching status reporting is enabled

1 = Port power switching status reporting is disabled

When the TUSB8042A is in I2C mode, the TUSB8042A loads this bit

from the contents of the EEPROM.

When the TUSB8042A is in SMBUS mode, the value may be over-

written by an SMBus host.

1 u1u2TimerOvr RW

U1 U2 Timer Override. When this field is set, the TUSB8042A

overrides the downstream ports U1/U2 timeout values set by USB 3.2

Host software. If software sets value in the range of 1h - FFh, the

TUSB8042A uses the value of FFh. If software sets value to 0, then

TUSB8042A uses value of 0. REG_09h [6] must be set to enable this

feature.

0 RSVD RO Reserved. This field is reserved and returns 0 when read.

% TEXAS INSTRUMENTS _

TUSB8042A

SLLSF93 –JUNE 2019

www.ti.com

Product Folder Links: TUSB8042A

8.5.8 Battery Charging Support Register

Figure 9. Register Offset 6h

Bit No. 7 6 5 4 3 2 1 0

Reset State 0 0 0 0 X X X X

Table 12. Bit Descriptions – Battery Charging Support Register

Bit Field Type Description

7:4 RSVD RO Reserved. Read only, returns 0 when read.

3:0 batEn[3:0] RW

Battery Charger Support. The bits in this field indicate whether the

downstream port implements the charging port features.

0 = The port is not enabled for battery charging support features

1 = The port is enabled for battery charging support features

Each bit corresponds directly to a downstream port, i.e. batEn0

corresponds to downstream port 1, and batEN1 corresponds to

downstream port 2.

The default value for these bits are loaded at the de-assertion of reset

with the value of PWRCTL/BATEN[3:0].

When in I2C/SMBus mode the bits in this field may be over-written by

EEPROM contents or by an SMBus host.

8.5.9 Device Removable Configuration Register

Figure 10. Register Offset 7h

Bit No. 7 6 5 4 3 2 1 0

Reset State 0 0 0 0 X X X X

Table 13. Bit Descriptions – Device Removable Configuration Register

Bit Field Type Description

7 customRmbl RW

Custom Removable. This bit controls selection of port removable bits,

port used bits, and USB2_ONLY bits.

0 = rmbl[3:0], used[3:0], and USB2_ONLY[3:0] are read only and the

values are loaded from the OTP ROM

1 = rmbl[3:0], used[3:0], and USB2_ONLY[3:0] are read/write and can

be loaded by EEPROM or written by SMBus

This bit may be written simultaneously with rmbl[3:0].

6:4 RSVD RO Reserved. Read only, returns 0 when read.

3:0 rmbl[3:0] RO/RW

Removable. The bits in this field indicate whether a device attached to

downstream ports 4 through 1 are removable or permanently attached.

0 = The device attached to the port is not removable

1 = The device attached to the port is removable

Each bit corresponds directly to a downstream port n + 1, i.e. rmbl0

corresponds to downstream port 1, rmbl1 corresponds to downstream

port 2, etc.

This field is read only unless the customRmbl bit is set to 1. Otherwise

the value of this filed reflects the inverted values of the OTP ROM

non_rmb[3:0] field.

8.5.10 Port Used Configuration Register

Figure 11. Register Offset 8h

Bit No. 7 6 5 4 3 2 1 0

Reset State 0 0 0 0 1 1 1 1

l TEXAS INSTRUMENTS

TUSB8042A

www.ti.com

SLLSF93 –JUNE 2019

Product Folder Links: TUSB8042A

Table 14. Bit Descriptions – Port Used Configuration Register

Bit Field Type Description

7:4 RSVD RO Reserved. Read only.

3:0 used[3:0] RO/RW

Used. The bits in this field indicate whether a port is enabled.

0 = The port is not used or disabled

1 = The port is used or enabled

Each bit corresponds directly to a downstream port, i.e. used0

corresponds to downstream port 1, used1 corresponds to downstream

port 2, etc. This field is read only unless the customRmbl bit is set to 1.

When the corresponding USB2_ONLY bit is set, the USB2 port is used

and enabled regardless of the bit programmed into this field.

l TEXAS INSTRUMENTS

TUSB8042A

SLLSF93 –JUNE 2019

www.ti.com

Product Folder Links: TUSB8042A

8.5.11 Device Configuration Register 2

Figure 12. Register Offset Ah

Bit No. 7 6 5 4 3 2 1 0

Reset State 0 0 X 0 0 0 0 0

Table 15. Bit Descriptions – Device Configuration Register 2

Bit Field Type Description

7 Reserved RO Reserved. Read-only, returns 0 when read.

6 customBCfeatures RW

Custom Battery Charging Feature Enable. This bit controls the ability

to write to the battery charging feature configuration controls.

0 = The HiCurAcpModeEn is read only and the values are loaded from

the OTP ROM.

1 = The HiCurAcpModeEn bit is read/write and can be loaded by

EEPROM or written by SMBus.

This bit may be written simultaneously with HiCurAcpModeEn.

5 pwrctlPol RW

Power enable polarity. This bit is loaded at the de-assertion of reset

with the value of the PWRCTL_POL pin.

0 = PWRCTL polarity is active low

1 = PWRCTL polarity is active high

When the TUSB8042A is in I2C mode, the TUSB8042A loads this bit

from the contents of the EEPROM.

When the TUSB8042A is in SMBUS mode, the value may be over-

written by an SMBus host.

4 HiCurAcpModeEn RO/RW

High-current ACP mode enable. This bit enables the high-current tablet

charging mode when the automatic battery charging mode is enabled

for downstream ports.

0 = High current divider mode disabled . High current is ACP2(default)

1 = High current divider mode enabled. High current mode is ACP3

This bit is read only unless the customBCfeatures bit is set to 1. If

customBCfeatures is 0, the value of this bit reflects the value of the

OTP ROM HiCurAcpModeEn bit.

3:2 Reserved RW Reserved. These registers are unused and returns whatever value was

written.

1 autoModeEnz RW

Automatic Mode Enable. This bit is loaded at the de-assertion of reset

with the value of the AUTOENz/HS_SUSPEND pin.

The automatic mode only applies to downstream ports with battery

charging enabled when the upstream port is not connected. Under

these conditions:

0 = Automatic mode battery charging features are enabled.

1 = Automatic mode is disabled; only Battery Charging DCP and CDP

mode is supported.

NOTE: When the upstream port is connected, Battery Charging CDP

mode is supported on all ports that are enabled for battery charging

support regardless of the value of this bit.

0 RSVD RO Reserved. Read only, returns 0 when read.

l TEXAS INSTRUMENTS

TUSB8042A

www.ti.com

SLLSF93 –JUNE 2019

Product Folder Links: TUSB8042A

8.5.12 USB 2.0 Port Polarity Control Register

Figure 13. Register Offset Bh

Bit No. 7 6 5 4 3 2 1 0

Reset State 0 0 0 0 0 0 0 0

Table 16. Bit Descriptions – USB 2.0 Port Polarity Control Register

Bit Field Type Description

7 customPolarity RW

Custom USB 2.0 Polarity. This bit controls the ability to write the

p[4:0]_usb2pol bits.

0 = The p[4:0]_usb2pol bits are read only and the values are loaded

from the OTP ROM.

1 = The p[4:0]_usb2pol bits are read/write and can be loaded by

EEPROM or written by SMBus.

This bit may be written simultaneously with the p[4:0]_usb2pol bits

6:5 RSVD RO Reserved. Read only, returns 0 when read.

4 p4_usb2pol RO/RW

Downstream Port 4 DM/DP Polarity. This controls the polarity of the

port.

0 = USB 2.0 port polarity is as documented by the pin out

1 = USB 2.0 port polarity is swapped from that documented in the pin

out, i.e. DM becomes DP, and DP becomes DM.

This bit is read only unless the customPolarity bit is set to 1. If

customPolarity is 0 the value of this bit reflects the value of the OTP

ROM p4_usb2pol bit.

3 p3_usb2pol RO/RW

Downstream Port 3 DM/DP Polarity. This controls the polarity of the

port.

0 = USB 2.0 port polarity is as documented by the pin out

1 = USB 2.0 port polarity is swapped from that documented in the pin

out, i.e. DM becomes DP, and DP becomes DM.

This bit is read only unless the customPolarity bit is set to 1. If

customPolarity is 0 the value of this bit reflects the value of the OTP

ROM p3_usb2pol bit.

2 p2_usb2pol RO/RW

Downstream Port 2 DM/DP Polarity. This controls the polarity of the

port.

0 = USB 2.0 port polarity is as documented by the pin out

1 = USB 2.0 port polarity is swapped from that documented in the pin

out, i.e. DM becomes DP, and DP becomes DM.

This bit is read only unless the customPolarity bit is set to 1. If

customPolarity is 0 the value of this bit reflects the value of the OTP

ROM p2_usb2pol bit.

1 p1_usb2pol RORW

Downstream Port 1 DM/DP Polarity. This controls the polarity of the

port.

0 = USB 2.0 port polarity is as documented by the pin out

1 = USB 2.0 port polarity is swapped from that documented in the pin

out, i.e. DM becomes DP, and DP becomes DM.

This bit is read only unless the customPolarity bit is set to 1. If

customPolarity is 0 the value of this bit reflects the value of the OTP

ROM p1_usb2pol bit.

0 p0_usb2pol RO/RW

Upstream Port DM/DP Polarity. This controls the polarity of the port.

0 = USB 2.0 port polarity is as documented by the pin out

1 = USB 2.0 port polarity is swapped from that documented in the pin

out, i.e. DM becomes DP, and DP becomes DM.

This bit is read only unless the customPolarity bit is set to 1. If

customPolarity is 0 the value of this bit reflects the value of the OTP

ROM p0_usb2pol bit.

% TEXAS INSTRUMENTS

TUSB8042A

SLLSF93 –JUNE 2019

www.ti.com

Product Folder Links: TUSB8042A

8.5.13 UUID Registers

Figure 14. Register Offset 10h-1Fh

Bit No. 7 6 5 4 3 2 1 0

Reset State X X X X X X X X

Table 17. Bit Descriptions – UUID Byte N Register

Bit Field Type Description

7:0 uuidByte[n] RO

UUID byte N. The UUID returned in the Container ID descriptor. The

value of this register is provided by the device and is meets the UUID

requirements of Internet Engineering Task Force (IETF) RFC 4122 A

UUID URN Namespace.

8.5.14 Language ID LSB Register

Figure 15. Register Offset 20h

Bit No. 7 6 5 4 3 2 1 0

Reset State 0 0 0 0 1 0 0 1

Table 18. Bit Descriptions – Language ID LSB Register

Bit Field Type Description

7:0 langIdLsb RO/RW

Language ID least significant byte. This register contains the value

returned in the LSB of the LANGID code in string index 0. The

TUSB8042A only supports one language ID. The default value of this

English United States.

When customStrings is 1, this field may be over-written by the contents

of an attached EEPROM or by an SMBus host.

8.5.15 Language ID MSB Register

Figure 16. Register Offset 21h

Bit No. 7 6 5 4 3 2 1 0

Reset State 0 0 0 0 0 0 0 0

Table 19. Bit Descriptions – Language ID MSB Register

Bit Field Type Description

7:0 langIdMsb RO/RW

Language ID most significant byte. This register contains the value

returned in the MSB of the LANGID code in string index 0. The

TUSB8042A only supports one language ID. The default value of this

English United States.

When customStrings is 1, this field may be over-written by the contents

of an attached EEPROM or by an SMBus host.

% TEXAS INSTRUMENTS _

TUSB8042A

www.ti.com

SLLSF93 –JUNE 2019

Product Folder Links: TUSB8042A

8.5.16 Serial Number String Length Register

Figure 17. Register Offset 22h

Bit No. 7 6 5 4 3 2 1 0

Reset State 0 0 0 1 1 0 0 0

Table 20. Bit Descriptions – Serial Number String Length Register

Bit Field Type Description

7:6 RSVD RO Reserved. Read only, returns 0 when read.

5:0 serNumStringLen RO/RW

Serial number string length. The string length in bytes for the serial

number string. The default value is 18h indicating that a 24 byte serial

number string is supported. The maximum string length is 32 bytes.

When customSernum is 1, this field may be over-written by the

contents of an attached EEPROM or by an SMBus host.

When the field is non-zero, a serial number string of

serNumbStringLen bytes is returned at string index 1 from the data

contained in the Serial Number String registers.

8.5.17 Manufacturer String Length Register

Figure 18. Register Offset 23h

Bit No. 7 6 5 4 3 2 1 0

Reset State 0 0 0 0 0 0 0 0

Table 21. Bit Descriptions – Manufacturer String Length Register

Bit Field Type Description

7 RSVD RO Reserved. Read only, returns 0 when read.

6:0 mfgStringLen RO/RW

Manufacturer string length. The string length in bytes for the

manufacturer string. The default value is 0, indicating that a

manufacturer string is not provided. The maximum string length is 64

bytes.

When customStrings is 1, this field may be over-written by the contents

of an attached EEPROM or by an SMBus host.

When the field is non-zero, a manufacturer string of mfgStringLen

bytes is returned at string index 3 from the data contained in the

Manufacturer String registers.

8.5.18 Product String Length Register

Figure 19. Register Offset 24h

Bit No. 7 6 5 4 3 2 1 0

Reset State 0 0 0 0 0 0 0 0

Table 22. Bit Descriptions – Product String Length Register

Bit Field Type Description

7 RSVD RO Reserved. Read only, returns 0 when read.

6:0 prodStringLen RO/RW

Product string length. The string length in bytes for the product string.

The default value is 0, indicating that a product string is not provided.

The maximum string length is 64 bytes.

When customStrings is 1, this field may be over-written by the contents

of an attached EEPROM or by an SMBus host.

When the field is non-zero, a product string of prodStringLen bytes is

returned at string index 3 from the data contained in the Product String

registers.

l TEXAS INSTRUMENTS _

TUSB8042A

SLLSF93 –JUNE 2019

www.ti.com

Product Folder Links: TUSB8042A

8.5.19 Device Configuration Register 3

Figure 20. Register Offset 25h

Bit No. 7 6 5 4 3 2 1 0

Reset State 0 0 0 0 0 0 0 0

Table 23. Bit Descriptions – Device Configuration Register 3

Bit Field Type Description

7:6 RSVD RO Reserved. Read only, returns 0 when read.

5 bcdUSB30 RW This field when set forces SS hub to report bcdUSB = 3.0 instead of

3.2.

4 USB2.0_only RW

USB 2.0 hub reports as 2.0 only. This bit disables the USB 2.0 hub

from reporting 5Gbps support in the wSpeedsSupported field of the

USB SS BOS SS device capability descriptor. This bit also disables

the USB3.0 hub.

This bit is read/write but the read value returned is the Boolean OR of

this bit and the corresponding eFuse bit. If either bit is set, this feature

is enabled.

3 USB2_DFP_UNCONF RW This field when set enables USB 2.0-defined Unconfigured state on

DFPs.

2 I2C_100k R/W

I2C 100kHz. This bit controls the clock rate of the I2C master for both

USB to I2C requests . The EEPROM reads occurs at 400K unless

eFuse is used to set the rate to 100k.

This bit is read/write but the read value returned is the Boolean OR of

this bit and the corresponding eFuse bit. If either bit is set, this feature

is enabled.

1 Galaxy_Enz R/W

Disable Galaxy compatible modes. When this field is high, Galaxy

charging compatible mode does not included in AUTOMODE charger

sequence.

This bit is read/write but the read value returned is the Boolean OR of

this bit and the corresponding eFuse bit. If either bit is set, this feature

is disabled.

0 FullAutoEn R/W

Enable all divider battery charging modes. When automode is enabled

and this bit is set, any DS port enabled for battery charging attempts

all divider battery charging modes before DCP, starting with the

highest current option.

The bit is writable, but the value read back is the Boolean OR of this

bit and the corresponding eFuse control.

If either bit is set, eFuse or this register, this feature is enabled.

8.5.20 USB 2.0 Only Port Register

Figure 21. Register Offset 26h

Bit No. 7 6 5 4 3 2 1 0

Reset State 0 0 0 0 0 0 0 0

Table 24. Bit Descriptions – USB 2.0 Only Port Register

Bit Field Type Description

7:4 RSVD RO Reserved. Read only.

3:0 USB2_ONLY[3:0] RO/RW

USB 2.0 Only Ports. The bits in this field primarily indicate whether a

port is enabled only for USB 2.0 operation. This field is read-only

unless customRmbl bit is set. Also, these bits overrides the

corresponding USED bit.

A value of 0 indicates the hub port is enabled for both USB 3.2 and

USB 2.0.

A value of 1 indicates the hub port is enabled only for USB 2.0

operation.

l TEXAS INSTRUMENTS _

TUSB8042A

www.ti.com

SLLSF93 –JUNE 2019

Product Folder Links: TUSB8042A

8.5.21 Serial Number String Registers

Figure 22. Register Offset 30h-4Fh

Bit No. 7 6 5 4 3 2 1 0

Reset State X X x x x x x x

Table 25. Bit Descriptions – Serial Number Registers

Bit Field Type Description

7:0 serialNumber[n] RO/RW

Serial Number byte N. The serial number returned in the Serial

Number string descriptor at string index 1. The default value of these

registers is assigned by TI. When customSernum is 1, these registers

may be over-written by EEPROM contents or by an SMBus host.

I TEXAS INSTRUMENTS _

TUSB8042A

SLLSF93 –JUNE 2019

www.ti.com

Product Folder Links: TUSB8042A

8.5.22 Manufacturer String Registers

Figure 23. Register Offset 50h-8Fh

Bit No. 7 6 5 4 3 2 1 0

Reset State 0 0 0 0 0 0 0 0

Table 26. Bit Descriptions – Manufacturer String Registers

Bit Field Type Description

7:0 mfgStringByte[n] RW

Manufacturer string byte N. These registers provide the string values

returned for string index 3 when mfgStringLen is greater than 0. The

number of bytes returned in the string is equal to mfgStringLen.

The programmed data should be in UNICODE UTF-16LE encodings

as defined by The Unicode Standard, Worldwide Character Encoding,

Version 5.0.

8.5.23 Product String Registers

Figure 24. Register Offset 90h-CFh

Bit No. 7 6 5 4 3 2 1 0

Reset State 0 0 0 0 0 0 0 0

Table 27. Bit Descriptions – Product String Byte N Register

Bit Field Type Description

7:0 prodStringByte[n] RO/RW

Product string byte N. These registers provide the string values

returned for string index 2 when prodStringLen is greater than 0. The

number of bytes returned in the string is equal to prodStringLen.

The programmed data should be in UNICODE UTF-16LE encodings

as defined by The Unicode Standard, Worldwide Character Encoding,

Version 5.0.

l TEXAS INSTRUMENTS _

TUSB8042A

www.ti.com

SLLSF93 –JUNE 2019

Product Folder Links: TUSB8042A

8.5.24 Additional Feature Configuration Register

Figure 25. Register Offset F0h

Bit No. 7 6 5 4 3 2 1 0

Reset State 0 0 0 0 0 0 0 0

Table 28. Bit Descriptions – Additional Feature Configuration Register

Bit Field Type Description

7:5 Reserved RW Reserved. This field defaults to 3'b000 and must not be changed.

4 stsOutputEn RW

Status output enable. This field when set enables of the Status output

signals, HS_UP, HS_SUSPEND, SS_UP, SS_SUSPEND.

0 = STS outputs are disabled.

1 = STS outputs are enabled.

This bit may be loaded by EEPROM or over-written by a SMBUS host.

3:1 pwronTime RW

Power On Delay Time. When the efuse_pwronTime field is all 0s, this

field sets the delay time from the removal disable of PWRCTL to the

enable of PWRCTL when transitioning battery charging modes. For

example, when disabling the power on a transition from ACP to DCP

Mode. The nominal timing is defined as follows:

TPWRON_EN = (pwronTime x 1) x 200 ms (1)

This field may be over-written by EEPROM contents or by an SMBus

host.

0 usb3spreadDis RW

USB3 Spread Spectrum Disable. This bit allows firmware to disable the

spread spectrum function of the USB3 phy PLL.

0 = Spread spectrum function is enabled

1= Spread spectrum function is disabled

This bit may be loaded by EEPROM or over-written by a SMBUS host.

l TEXAS INSTRUMENTS _

TUSB8042A

SLLSF93 –JUNE 2019

www.ti.com

Product Folder Links: TUSB8042A

8.5.25 SMBus Device Status and Command Register

Figure 26. Register Offset F8h

Bit No. 7 6 5 4 3 2 1 0

Reset State 0 0 0 0 0 0 0 0

Table 29. Bit Descriptions – SMBus Device Status and Command Register

Bit Field Type Description

7:2 RSVD RO Reserved. Read only, returns 0 when read.

1 smbusRst RSU

SMBus interface reset. This bit loads the registers back to their GRSTz

values. Note, that since this bit can only be set when in SMBus mode

the cfgActive bit is also reset to 1. When software sets this bit it must

reconfigure the registers as necessary.

This bit is set by writing a 1 and is cleared by hardware on completion

of the reset. A write of 0 has no effect.

0 cfgActive RCU

Configuration active. This bit indicates that configuration of the

TUSB8042A is currently active. The bit is set by hardware when the

device enters the I2C or SMBus mode. The TUSB8042A shall not

connect on the upstream port while this bit is 1.

When in I2C mode, the bit is cleared by hardware when the

TUSB8042A exits the I2C mode.

When in the SMBus mode, this bit must be cleared by the SMBus host

in order to exit the configuration mode and allow the upstream port to

connect.

The bit is cleared by a writing 1. A write of 0 has no effect.

I TEXAS INSTRUMENTS

PWR

TUSB8042A

USB

Type B

Connector

USB Type A

Connector

USB

PWR

SWITCH

US Port

DS Port 1 DS Port 2

USB Type A

Connector

USB Type A

Connector

USB Type A

Connector

DS Port 3 DS Port 4

USB

PWR

SWITCH

TUSB8042A

www.ti.com

SLLSF93 –JUNE 2019

Product Folder Links: TUSB8042A

9 Application and Implementation

NOTE

Information in the following applications sections is not part of the TI component

specification, and TI does not warrant its accuracy or completeness. TI’s customers are

responsible for determining suitability of components for their purposes. Customers should

validate and test their design implementation to confirm system functionality.

9.1 Application Information

The TUSB8042A is a four-port USB 3.2 x1 Gen1 compliant hub. It provides simultaneous SuperSpeed USB and

high-speed/full-speed connections on the upstream port and provides SuperSpeed USB, high-speed, full-speed,

or low speed connections on the downstream port. The TUSB8042A can be used in any application that needs

additional USB compliant ports. For example, a specific notebook may only have two downstream USB ports. By

using the TUSB8042A, the notebook can increase the downstream port count to five.

9.2 Typical Application

9.2.1 Discrete USB Hub Product

A common application for the TUSB8042A is as a self powered standalone USB hub product. The product is

is plugged into a USB Host controller. The downstream ports of the TUSB8042A are exposed to users for

connecting USB hard drives, cameras, flash drives, and so forth.

Figure 27. Discrete USB Hub Product

l TEXAS INSTRUMENTS

USB_SSTXP_UP

USB_SSTXM_UP

VBUS

CAP_UP_TXM

CAP_UP_TXP

USB_SSRXP_UP

USB_SSRXM_UP

USB_DP_UP

USB_DM_UP

TUSB8042A

U1A

USB_VBUS

USB_DP_UP

53 USB_DM_UP

USB_SSTXP_UP

55 USB_SSTXM_UP

USB_SSRXP_UP

58 USB_SSRXM_UP

FULLPWRMGMTZ/SMBA1/SS_UP 40

GANGED/SMBA2/HS_UP 42

10uF

C3 0.1uF 0201

0.1uF

4.7K

0402

USB3_TYPEB_CONNECTOR

VBUS 1

DM 2

DP 3

GND 4

SSTXN 5

SSTXP 6

GND 7

SSRXN 8

SSRXP 9

SHIELD0 10

SHIELD1 11

0402

4.7K

0402

0.001uF

10K 1%

0402

R1 90.9K

0402

C2 0.1uF 0201

TUSB8042A

SLLSF93 –JUNE 2019

www.ti.com

Product Folder Links: TUSB8042A

Typical Application (continued)

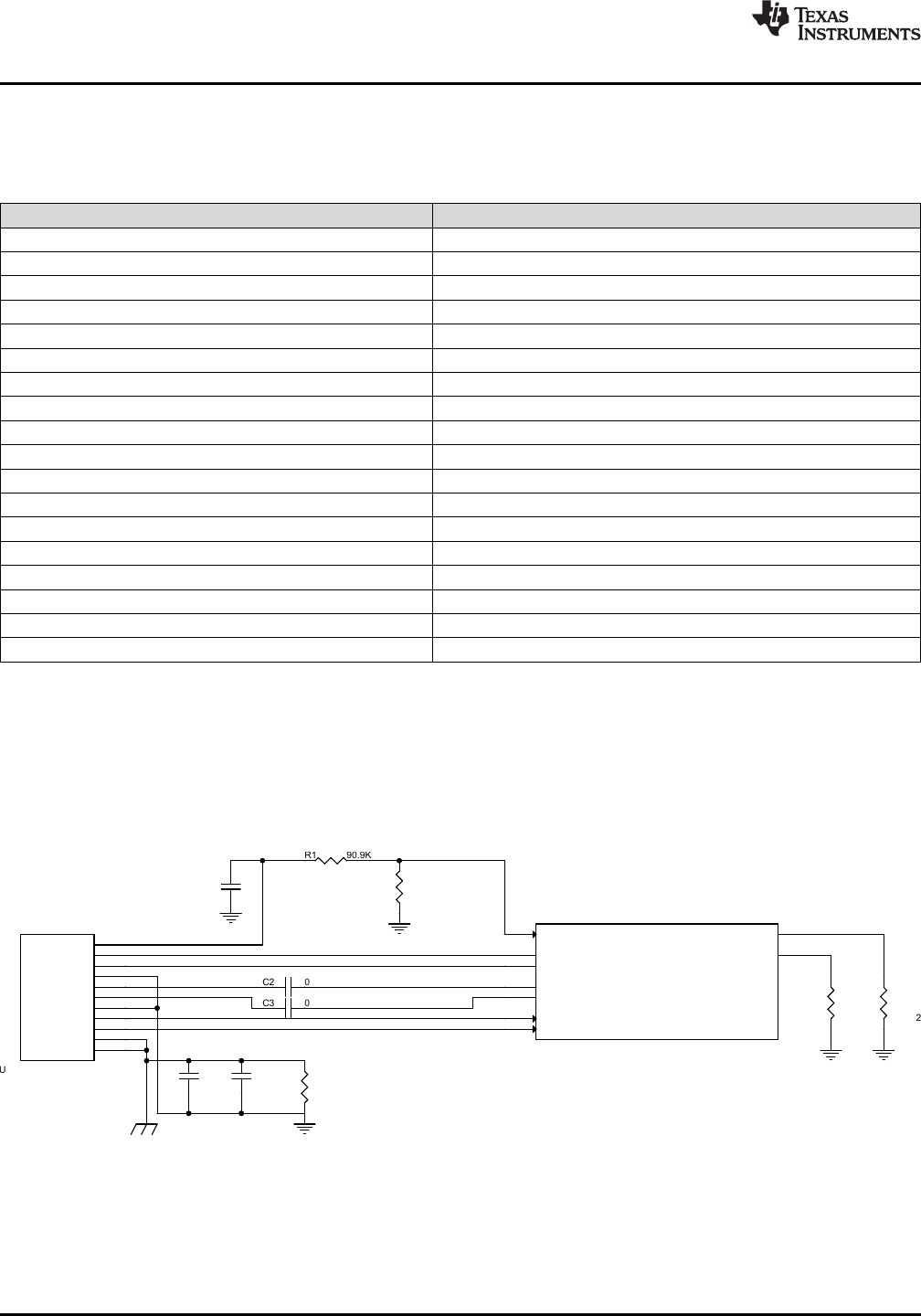

9.2.1.1 Design Requirements

Table 30. Design Parameters

DESIGN PARAMETER EXAMPLE VALUE

VDD Supply 1.1 V

VDD33 Supply 3.3 V

Upstream Port USB Support (SS, HS, FS) SS, HS, FS

Downstream Port 1 USB Support (SS, HS, FS, LS) SS, HS, FS, LS

Downstream Port 2 USB Support (SS, HS, FS, LS) SS, HS, FS, LS

Downstream Port 3 USB Support (SS, HS, FS, LS) SS, HS, FS, LS

Downstream Port 4 USB Support (SS, HS, FS, LS) SS, HS, FS, LS

Number of Removable external exposed Downstream Ports 4

Number of Non-Removable external exposed Downstream Ports 0

Full Power Management of Downstream Ports Yes. (FULLPWRMGMTZ = 0)

Individual Control of Downstream Port Power Switch Yes. (GANGED = 0)

Power Switch Enable Polarity Active High. (PWRCTL_POL = 1)

Battery Charge Support for Downstream Port 1 Yes

Battery Charge Support for Downstream Port 2 Yes

Battery Charge Support for Downstream Port 3 Yes

Battery Charge Support for Downstream Port 4 Yes

I2C EEPROM Support No

24MHz Clock Source Crystal

9.2.1.2 Detailed Design Procedure

9.2.1.2.1 Upstream Port Implementation

The upstream of the TUSB8042A is connected to a USB3 Type B connector. This particular example has

GANGED pin and FULLPWRMGMTZ pin pulled low which results in individual power support each downstream

port. The VBUS signal from the USB3 Type B connector is feed through a voltage divider. The purpose of the

voltage divider is to make sure the level meets USB_VBUS input requirements

Figure 28. Upstream Port Implementation

l TEXAS INSTRUMENTS sown 3P3v sown 3P3v

POPULATE

FOR BC SUPPORT

USB_SSRXP_DN2

USB_SSRXM_DN2

CAP_DN2_TXP

CAP_DN2_TXM

VBUS_DS2

USB_DP_DN2

USB_DM_DN2

USB_SSTXM_DN2

USB_SSTXP_DN2

DN2_VBUS

BOARD_3P3V

DN2_VBUS

OVERCUR2Z

PWRCTRL2_BATEN2

USB3_TYPEA_CONNECTOR

VBUS

GND

SSRXN

SSRXP

GND

SSTXN

SSTXP

SHIELD0

SHIELD1

C11

0.1uF

C14

0.1uF

C15

0.001uF

FB2

220 at 100MHZ

0402

C13 0.1uF 0201

C12 0.1uF 0201

4.7K

0402

TUSB8042A

U1C

PWRCTL2/BATEN2 35

OVERCUR2 47

USB_DP_DN2 9

USB_DM_DN2 10

USB_SSTXP_DN2 11

USB_SSTXM_DN2 12

USB_SSRXP_DN2 14

USB_SSRXM_DN2 15

POPULATE

FOR BC SUPPORT

DN1_VBUS VBUS_DS1

USB_SSTXP_DN1

USB_SSRXM_DN1

CAP_DN_TXM1

USB_SSRXP_DN1

CAP_DN_TXP1

USB_DM_DN1

USB_DP_DN1

USB_SSTXM_DN1

BOARD_3P3V

DN1_VBUS

PWRCTRL1_BATEN1

OVERCUR1Z

0.1uF

0.001uF

C70.1uF 0201

C80.1uF 0201

USB3_TYPEA_CONNECTOR

VBUS

GND

SSRXN

SSRXP

GND

SSTXN

SSTXP

SHIELD0

SHIELD1

TUSB8042A

U1B

PWRCTL1/BATEN1 36

OVERCUR1 46

USB_DP_DN1 1

USB_DM_DN1 2

USB_SSTXP_DN1 3

USB_SSTXM_DN1 4

USB_SSRXP_DN1 6

USB_SSRXM_DN1 7

C10

0.1uF

4.7K

0402

FB1

220 at 100MHZ

0402

TUSB8042A

www.ti.com

SLLSF93 –JUNE 2019

Product Folder Links: TUSB8042A

9.2.1.2.2 Downstream Port 1 Implementation

The downstream port 1 of the TUSB8042A is connected to a USB3 Type A connector. With BATEN1 pin pulled

up, Battery Charge support is enabled for Port 1. If Battery Charge support is not needed, then pull-up resistor on

BATEN1 should be uninstalled.

Figure 29. Downstream Port 1 Implementation

9.2.1.2.3 Downstream Port 2 Implementation

The downstream port 2 of the TUSB8042A is connected to a USB3 Type A connector. With BATEN2 pin pulled

up, Battery Charge support is enabled for Port 2. If Battery Charge support is not needed, then pull-up resistor on

BATEN2 should be uninstalled. For ferrite bead used on the VBUS connection, a lower resistance is

recommended due to noticeable IR drop during high current charging modes. The isolation between the Type-A

connectors shield ground and signal ground pins is not required. Some applications may have better ESD/EMI

performance when the grounds are shorted together.

Figure 30. Downstream Port 2 Implementation

l TEXAS INSTRUMENTS sown 3P3v Bow: 3an

POPULATE

FOR BC SUPPORT

CAP_DN4_TXM

CAP_DN4_TXP

USB_SSRXM_DN4

USB_SSRXP_DN4

USB_DM_DN4

USB_DP_DN4

VBUS_DS4

USB_SSTXM_DN4

USB_SSTXP_DN4

BOARD_3P3V

PWRCTRL4_BATEN4

OVERCUR4Z

DN4_VBUS

C24

0.1uF

R12

4.7K

0402

TUSB8042A

U1E

OVERCUR4 43

USB_DP_DN4 24

USB_DM_DN4 25

USB_SSTXP_DN4 26

USB_SSTXM_DN4 27

USB_SSRXP_DN4 29

USB_SSRXM_DN4 30

PWRCTL4/BATEN4 32

R13

0402

C25

0.001uF

C23 0.1uF 0201

C22 0.1uF 0201

C21

0.1uF

FB4

220 at 100MHZ

USB3_TYPEA_CONNECTOR

VBUS

GND

SSRXN

SSRXP

GND

SSTXN

SSTXP

SHIELD0

SHIELD1

POPULATE

FOR BC SUPPORT

USB_SSRXP_DN3

USB_SSRXM_DN3

CAP_DN3_TXP

CAP_DN3_TXM

VBUS_DS3

USB_DP_DN3

USB_DM_DN3

USB_SSTXM_DN3

USB_SSTXP_DN3

BOARD_3P3V

OVERCUR3Z

PWRCTRL3_BATEN3

DN3_VBUS

R10

4.7K

0402

C20

0.1uF

C19

0.001uF

R11

0402

C18 0.1uF 0201

C17 0.1uF 0201

TUSB8042A

U1D

PWRCTL3/BATEN3 33

OVERCUR3 44

USB_DP_DN3 17

USB_DM_DN3 18

USB_SSTXP_DN3 19

USB_SSTXM_DN3 20

USB_SSRXP_DN3 22

USB_SSRXM_DN3 23

C16

0.1uF

FB3

220 at 100MHZ

USB3_TYPEA_CONNECTOR

VBUS

GND

SSRXN

SSRXP

GND

SSTXN

SSTXP

SHIELD0

SHIELD1

TUSB8042A

SLLSF93 –JUNE 2019

www.ti.com

Product Folder Links: TUSB8042A

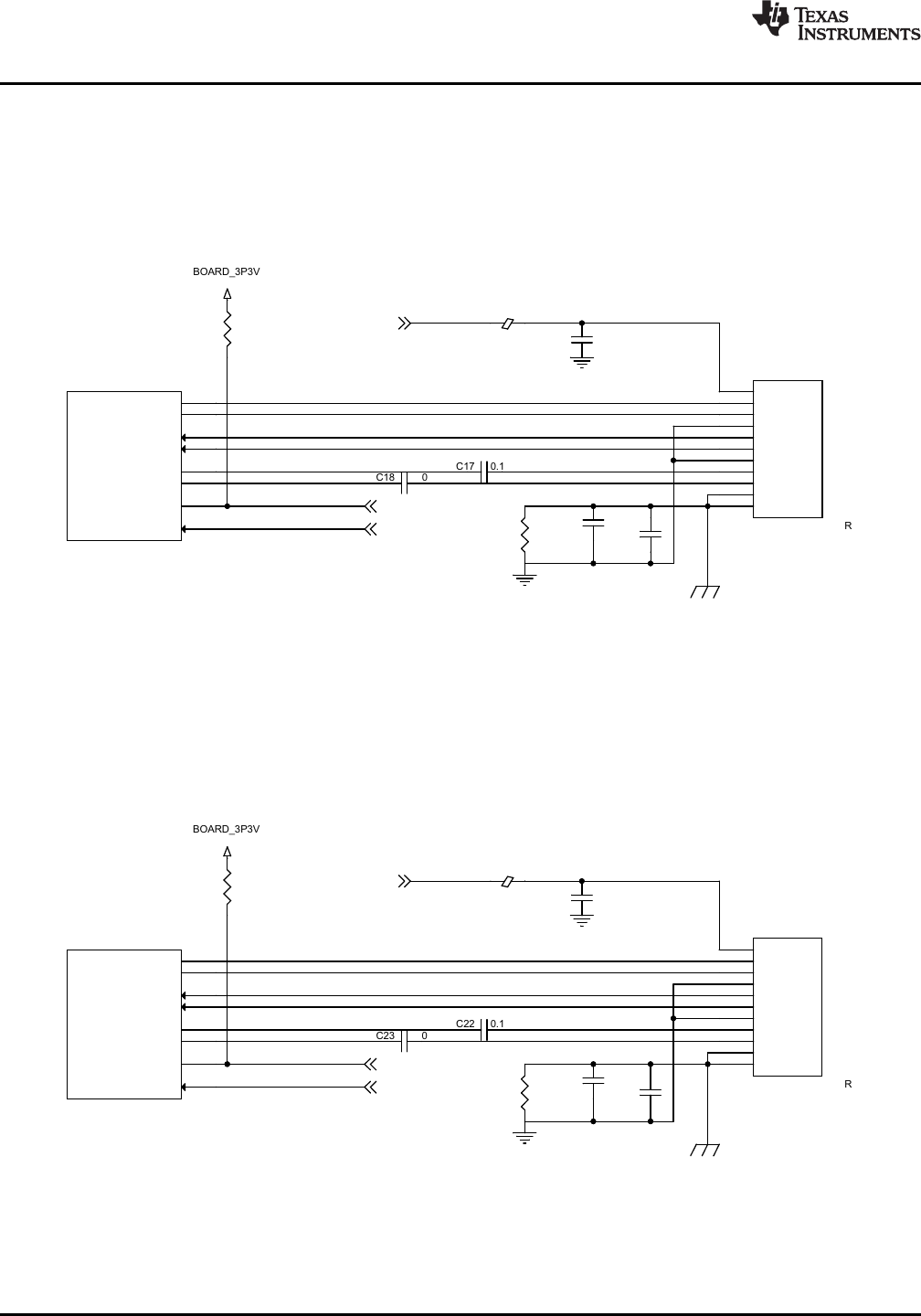

9.2.1.2.4 Downstream Port 3 Implementation

The downstream port3 of the TUSB8042A is connected to a USB3 Type A connector. With BATEN3 pin pulled

up, Battery Charge support is enabled for Port 3. If Battery Charge support is not needed, then pull-up resistor on

BATEN3 should be uninstalled. For ferrite bead used on the VBUS connection, a lower resistance is

recommended due to noticeable IR drop during high current charging modes. The isolation between the Type-A

connectors shield ground and signal ground pins is not required. Some applications may have better ESD/EMI

performance when the grounds are shorted together.

Figure 31. Downstream Port 3 Implementation

9.2.1.2.5 Downstream Port 4 Implementation

The downstream port 4 of the TUSB8042A is connected to a USB3 Type A connector. With BATEN4 pin pulled

up, Battery Charge support is enabled for Port 4. If Battery Charge support is not needed, then pull-up resistor on

BATEN4 should be uninstalled. For ferrite bead used on the VBUS connection, a lower resistance is

recommended due to noticeable IR drop during high current charging modes. The isolation between the Type-A

connectors shield ground and signal ground pins is not required. Some applications may have better ESD/EMI

performance when the grounds are shorted together.

Figure 32. Downstream Port 4 Implementation

l TEXAS INSTRUMENTS <>< vercumz=""><>< vercurzz="">

Limiting DS Port VBUS current to 2.2A per port.

PWRCTRL1_BATEN1

PWRCTRL2_BATEN2

ILIM1

DN1_VBUS

DN2_VBUS

BOARD_3P3V

BOARD_5V

BOARD_3P3V

PWRCTRL2_BATEN2

DN2_VBUS

DN1_VBUS

PWRCTRL1_BATEN1

OVERCUR2Z

OVERCUR1Z

C42

0.1uF

R19

10K

0402

C44

150uF

TPS2561

GND

EN1

EN2

FAULT2Z 6

ILIM 7

OUT2 8

OUT1 9

FAULT1Z 10

PAD

11 C43

0.1uF

R21

25.5K

0402

C46

150uF

C45

0.1uF

R20

10K

0402

Limiting DS Port VBUS current to 2.2A per port.

ILIM2

DN3_VBUS

DN4_VBUS

BOARD_3P3V

BOARD_5V

BOARD_3P3V

PWRCTRL4_BATEN4

DN4_VBUS

DN3_VBUS

PWRCTRL3_BATEN3

OVERCUR4Z

OVERCUR3Z

C49

150uF

TPS2561

GND

EN1

EN2

FAULT2Z 6

ILIM 7

OUT2 8

OUT1 9

FAULT1Z 10

PAD

11 C48

0.1uF

R24

25.5K

0402

C50

0.1uF

C51

150uF

R23

10K

0402

C47

0.1uF

R22

10K

0402

TUSB8042A

www.ti.com

SLLSF93 –JUNE 2019

Product Folder Links: TUSB8042A

9.2.1.2.6 VBUS Power Switch Implementation

This particular example uses the Texas Instruments TPS2561 Dual Channel Precision Adjustable Current-

Limited power switch. For details on this power switch or other power switches available from Texas Instruments,

refer to the Texas Instruments website.

Figure 33. VBUS Power Switch Implementation

9.2.1.2.7 Clock, Reset, and Misc

The PWRCTL_POL is left unconnected which results in active high power enable (PWRCTL1, PWRCTL2,

PWRCTL3, and PWRCTL4) for a USB VBUS power switch. SMBUSz pin is also left unconnected which selects

I2C mode. Both PWRCTL_POL and SMBUSz pins have internal pull-ups. The 1 µF capacitor on the GRSTN pin

can only be used if the VDD11 supply is stable before the VDD33 supply. The depending on the supply ramp of

the two supplies the capacitor size may have to be adjusted.

l TEXAS INSTRUMENTS

C39

1uF

C41

18pF

TUSB8042A

U1F

GRSTN

SDA/SMBDAT 37

SCL/SMBCLK 38

SMBUSZ/SS_SUSPEND 39

PWRCTL_POL 41

AUTOENZ/HS_SUSPEND 45

TEST 49

USB_R1 64

C40

18pF

24MHz

R18

4.7K

0402

R14 1M

R15

9.53K

0402

R16

4.7K

TUSB8042A

SLLSF93 –JUNE 2019

www.ti.com

Product Folder Links: TUSB8042A

Figure 34. Clock, Reset, and Misc

l TEXAS INSTRUMENTS

VDD11

VDD33 BOARD_3P3V

BOARD_1P1V

C36

0.1uF

TUSB8042A

U1G

VDD 8

VDD33 34

VDD33 52

VDD33 63

VDD33 16

VDD 51

VDD 57

VDD 5

VDD 13

VDD 21

VDD 28

VDD 31

TPAD

C26

0.1uF

C35

0.1uF

C32

0.1uF

C30

0.1uF

C27

0.1uF

C31

0.1uF

FB6

220 at 100MHZ

C34

0.1uF

C33

10uF

C38

10uF

C37

0.1uF

C29

0.1uF

C28

0.1uF

FB5

220 at 100MHZ

TUSB8042A

www.ti.com

SLLSF93 –JUNE 2019

Product Folder Links: TUSB8042A

9.2.1.2.8 TUSB8042A Power Implementation

Figure 35. TUSB8042A Power Implementation

l TEXAS INSTRUMENTS f'ma rung: -v New? New? -H ammueua“ .,..‘ _ m

TUSB8042A

SLLSF93 –JUNE 2019

www.ti.com

Product Folder Links: TUSB8042A

9.2.1.3 Application Curves

Figure 36. Upstream Port Figure 37. Downstream Port 1

Figure 38. Downstream Port 2 Figure 39. Downstream Port 3

Figure 40. Downstream Port 4 Figure 41. High-Speed Upstream Port

I TEXAS INSTRUMENTS mm mm v mm mm v a: m m; na1‘71n uzmueuaw‘zm mueusw‘zm

TUSB8042A

www.ti.com

SLLSF93 –JUNE 2019

Product Folder Links: TUSB8042A

Figure 42. High-Speed Downstream Port 1 Figure 43. High-Speed Downstream Port 2

Figure 44. High-Speed Downstream Port 3 Figure 45. High-Speed Downstream Port 4

l TEXAS INSTRUMENTS

TUSB8042A

SLLSF93 –JUNE 2019

www.ti.com

Product Folder Links: TUSB8042A

10 Power Supply Recommendations

10.1 TUSB8042A Power Supply

VDD should be implemented as a single power plane, as should VDD33.

• The VDD pins of the TUSB8042A supply 1.1 V (nominal) power to the core of the TUSB8042A. This power rail

can be isolated from all other power rails by a ferrite bead to reduce noise.

• The DC resistance of the ferrite bead on the core power rail can affect the voltage provided to the device due

to the high current draw on the power rail. The output of the core voltage regulator may need to be adjusted

to account for this or a ferrite bead with low DC resistance (less than 0.05 Ω) can be selected.

• The VDD33 pins of the TUSB8042A supply 3.3 V power rail to the I/O of the TUSB8042A. This power rail can

be isolated from all other power rails by a ferrite bead to reduce noise.

• All power rails require a 10 µF capacitor or 1 µF capacitors for stability and noise immunity. These bulk

capacitors can be placed anywhere on the power rail. The smaller decoupling capacitors should be placed as

close to the TUSB8042A power pins as possible with an optimal grouping of two of differing values per pin.

10.2 Downstream Port Power

• The downstream port power, VBUS, must be supplied by a source capable of supplying 5V and up to 900 mA

per port. Downstream port power switches can be controlled by the TUSB8042A signals. It is also possible to

leave the downstream port power always enabled.

• A large bulk low-ESR capacitor of 22 µF or larger is required on each downstream port’s VBUS to limit in-rush

current.

• The ferrite beads on the VBUS pins of the downstream USB port connections are recommended for both

ESD and EMI reasons. A 0.1µF capacitor on the USB connector side of the ferrite provides a low impedance

path to ground for fast rise time ESD current that might have coupled onto the VBUS trace from the cable.

10.3 Ground

It is recommended that only one board ground plane be used in the design. This provides the best image plane

for signal traces running above the plane. The thermal pad of the TUSB8042A and any of the voltage regulators

should be connected to this plane with vias. An earth or chassis ground is implemented only near the USB port

connectors on a different plane for EMI and ESD purposes.

l TEXAS INSTRUMENTS

TUSB8042A

www.ti.com

SLLSF93 –JUNE 2019

Product Folder Links: TUSB8042A

11 Layout

11.1 Layout Guidelines

11.1.1 Placement

1. 9.53K +/-1% resistor connected to pin USB_R1 should be placed as close as possible to the TUSB8042A.

2. A 0.1 µF should be placed as close as possible on each VDD and VDD33 power pin.

3. The 100 nF capacitors on the SSTXP and SSTXM nets should be placed close to the USB connector (Type

A, Type B, and so forth).

4. The ESD and EMI protection devices (if used) should also be placed as close as possible to the USB

connector.

5. If a crystal is used, it must be placed as close as possible to the TUSB8042A XI and XO pins.

6. Place voltage regulators as far away as possible from the TUSB8042A, the crystal, and the differential pairs.

7. In general, the large bulk capacitors associated with each power rail should be placed as close as possible to

the voltage regulators.

11.1.2 Package Specific

1. The TUSB8042A package has a 0.5-mm pin pitch.

2. The TUSB8042A package has a 6.0-mm x 6.0-mm thermal pad. This thermal pad must be connected to

ground through a system of vias.

3. All vias under device, except for those connected to thermal pad, should be solder masked to avoid any

potential issues with thermal pad layouts.

11.1.3 Differential Pairs

This section describes the layout recommendations for all the TUSB8042A differential pairs: USB_DP_XX,

USB_DM_XX, USB_SSTXP_XX, USB_SSTXM_XX, USB_SSRXP_XX, and USB_SSRXM_XX.

1. Must be designed with a differential impedance of 90 Ω±10%.

2. In order to minimize cross talk, it is recommended to keep high speed signals away from each other. Each

pair should be separated by at least 5 times the signal trace width. Separating with ground as depicted in the

layout example also helps minimize cross talk.

3. Route all differential pairs on the same layer adjacent to a solid ground plane.

4. Do not route differential pairs over any plane split.

5. Adding test points causes impedance discontinuity; and therefore, negative impacts signal performance. If

test points are used, they should be placed in series and symmetrically. They must not be placed in a

manner that causes stub on the differential pair.

6. Avoid 90 degree turns in trace. The use of bends in differential traces should be kept to a minimum. When

bends are used, the number of left and right bends should be as equal as possible and the angle of the bend

should be ≥135 degrees. This minimizes any length mismatch causes by the bends and therefore minimize

the impact bends have on EMI.

7. Minimize the trace lengths of the differential pair traces. The maximum recommended trace length for SS

differential pair signals and USB 2.0 differential pair signals is eight inches. Longer trace lengths require very

careful routing to assure proper signal integrity.

8. Match the etch lengths of the differential pair traces (i.e. DP and DM or SSRXP and SSRXM or SSTXP and

SSTXM). There should be less than 5 mils difference between a SS differential pair signal and its

complement. The USB 2.0 differential pairs should not exceed 50 mils relative trace length difference.

9. The etch lengths of the differential pair groups do not need to match (i.e. the length of the SSRX pair to that

of the SSTX pair), but all trace lengths should be minimized.

10. Minimize the use of vias in the differential pair paths as much as possible. If this is not practical, make sure

that the same via type and placement are used for both signals in a pair. Any vias used should be placed as

close as possible to the TUSB8042A device.

11. To ease routing, the polarity of the SS differential pairs can be swapped. This means that SSTXP can be

routed to SSTXM or SSRXM can be routed to SSRXP.

l TEXAS INSTRUMENTS c> U533 RXP/RXM ::> N: )3 U 1 30‘ L91 U583 TYPE B CONNECTOR

TUSB8042A

SLLSF93 –JUNE 2019

www.ti.com

Product Folder Links: TUSB8042A

Layout Guidelines (continued)

12. To ease routing of the USB2 DP and DM pair, the polarity of these pins can be swapped. If this is done, the

appropriate Px_usb2pol register, where x = 0, 1, 2, 3, or 4, must be set.

13. Do not place power fuses across the differential pair traces.

11.2 Layout Examples

11.2.1 Upstream Port

Figure 46. Example Routing of Upstream Port

l TEXAS INSTRUMENTS ussz DF/DM USE; YxP/I'XM use; TVFE A coNNzcvow i} usaa er/RXM

TUSB8042A

www.ti.com

SLLSF93 –JUNE 2019

Product Folder Links: TUSB8042A

Layout Examples (continued)

11.2.2 Downstream Port

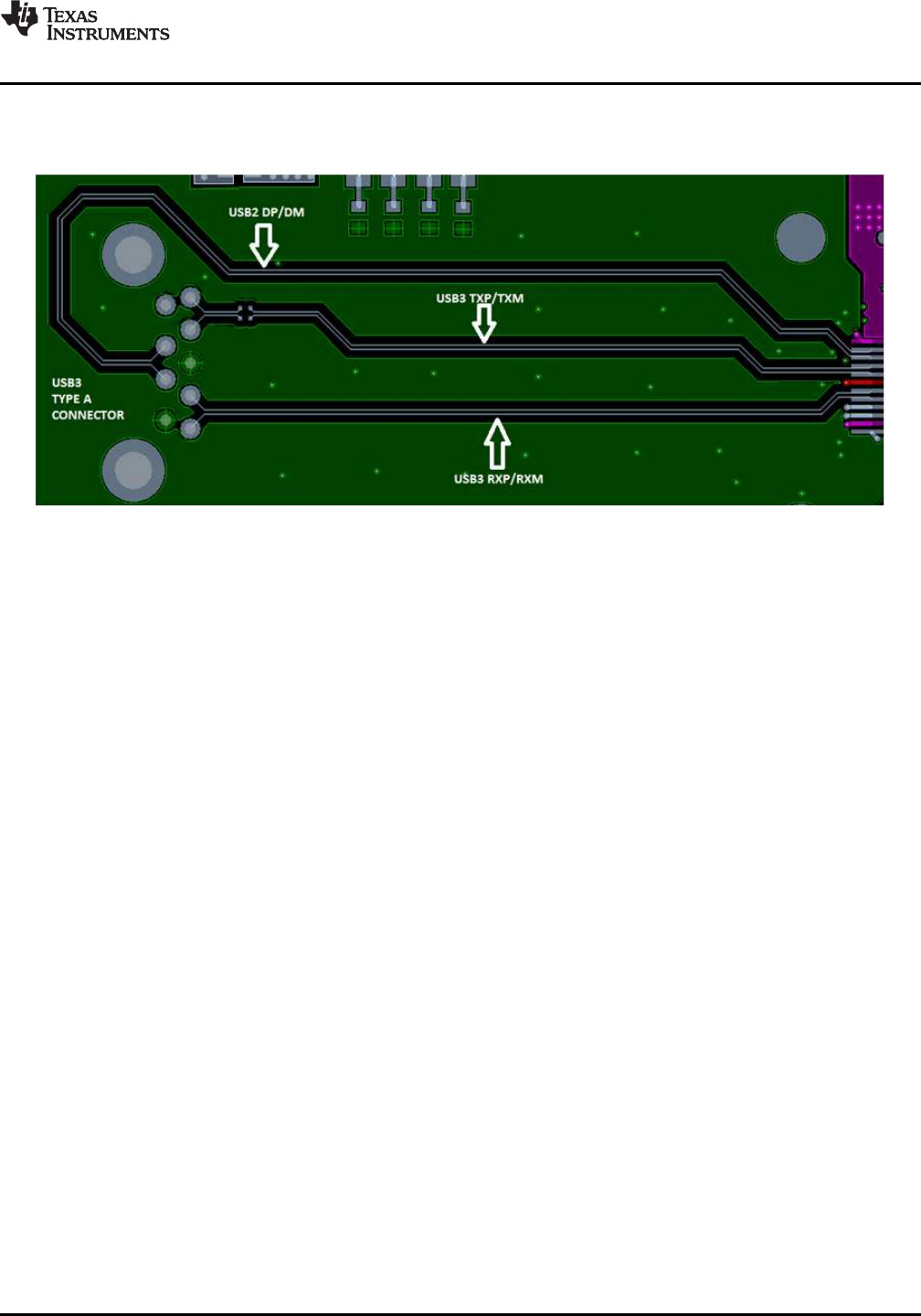

Figure 47. Example Routing of Downstream Port

The remaining three downstream ports routing can be similar to the example provided.

l TEXAS INSTRUMENTS

TUSB8042A

SLLSF93 –JUNE 2019

www.ti.com

Product Folder Links: TUSB8042A

12 Device and Documentation Support

12.1 Receiving Notification of Documentation Updates

To receive notification of documentation updates, navigate to the device product folder on ti.com. In the upper

right corner, click on Alert me to register and receive a weekly digest of any product information that has

changed. For change details, review the revision history included in any revised document.

12.2 Community Resources

The following links connect to TI community resources. Linked contents are provided "AS IS" by the respective

contributors. They do not constitute TI specifications and do not necessarily reflect TI's views; see TI's Terms of

Use.

TI E2E™ Online Community TI's Engineer-to-Engineer (E2E) Community. Created to foster collaboration

among engineers. At e2e.ti.com, you can ask questions, share knowledge, explore ideas and help

solve problems with fellow engineers.

Design Support TI's Design Support Quickly find helpful E2E forums along with design support tools and

contact information for technical support.

12.3 Trademarks

E2E is a trademark of Texas Instruments.

All other trademarks are the property of their respective owners.

12.4 Electrostatic Discharge Caution

These devices have limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam

during storage or handling to prevent electrostatic damage to the MOS gates.

12.5 Glossary

SLYZ022 —TI Glossary.

This glossary lists and explains terms, acronyms, and definitions.

13 Mechanical, Packaging, and Orderable Information

The following pages include mechanical packaging and orderable information. This information is the most

current data available for the designated devices. This data is subject to change without notice and revision of

this document. For browser-based versions of this data sheet, refer to the left-hand navigation.

I TEXAS INSTRUMENTS

PACKAGE OPTION ADDENDUM

www.ti.com 10-Dec-2020

Addendum-Page 1

PACKAGING INFORMATION

Orderable Device Status

(1)

Package Type Package

Drawing Pins Package

Qty Eco Plan

(2)

Lead finish/

Ball material

(6)

MSL Peak Temp

(3)

Op Temp (°C) Device Marking

(4/5)

Samples

TUSB8042AIRGCR ACTIVE VQFN RGC 64 2000 RoHS & Green NIPDAU Level-3-260C-168 HR -40 to 85 TUSB8042A

TUSB8042AIRGCT ACTIVE VQFN RGC 64 250 RoHS & Green NIPDAU Level-3-260C-168 HR -40 to 85 TUSB8042A

TUSB8042ARGCR ACTIVE VQFN RGC 64 2000 RoHS & Green NIPDAU Level-3-260C-168 HR 0 to 70 TUSB8042A

TUSB8042ARGCT ACTIVE VQFN RGC 64 250 RoHS & Green NIPDAU Level-3-260C-168 HR 0 to 70 TUSB8042A

(1) The marketing status values are defined as follows:

ACTIVE: Product device recommended for new designs.

LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.

NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.

PREVIEW: Device has been announced but is not in production. Samples may or may not be available.

OBSOLETE: TI has discontinued the production of the device.

(2) RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance

do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may

reference these types of products as "Pb-Free".

RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption.

Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of <=1000ppm threshold. Antimony trioxide based

flame retardants must also meet the <=1000ppm threshold requirement.

(3) MSL, Peak Temp. - The Moisture Sensitivity Level rating according to the JEDEC industry standard classifications, and peak solder temperature.

(4) There may be additional marking, which relates to the logo, the lot trace code information, or the environmental category on the device.

(5) Multiple Device Markings will be inside parentheses. Only one Device Marking contained in parentheses and separated by a "~" will appear on a device. If a line is indented then it is a continuation

of the previous line and the two combined represent the entire Device Marking for that device.

(6) Lead finish/Ball material - Orderable Devices may have multiple material finish options. Finish options are separated by a vertical ruled line. Lead finish/Ball material values may wrap to two

lines if the finish value exceeds the maximum column width.

Important Information and Disclaimer:The information provided on this page represents TI's knowledge and belief as of the date that it is provided. TI bases its knowledge and belief on information

provided by third parties, and makes no representation or warranty as to the accuracy of such information. Efforts are underway to better integrate information from third parties. TI has taken and

I TEXAS INSTRUMENTS

PACKAGE OPTION ADDENDUM

www.ti.com 10-Dec-2020

Addendum-Page 2

continues to take reasonable steps to provide representative and accurate information but may not have conducted destructive testing or chemical analysis on incoming materials and chemicals.

TI and TI suppliers consider certain information to be proprietary, and thus CAS numbers and other limited information may not be available for release.

In no event shall TI's liability arising out of such information exceed the total purchase price of the TI part(s) at issue in this document sold by TI to Customer on an annual basis.

I TEXAS INSTRUMENTS REEL DIMENSIONS TAPE DIMENSIONS 7 “KO '«m» Reel Diameter AD Dimension destgned to accommodate the component with ED Dimension destgned to accommodate the component \engm K0 Dimenslun destgneo to accommodate the component thickness , w OveraH wtdm loe earner tape i p1 Pitch between successwe cavuy cemers f T Reel Width (W1) QUADRANT ASSIGNMENTS FOR PIN 1 ORIENTATION IN TAPE O O O D O O D D SprocketHules ,,,,,,,,,,, ‘ User Direcllon 0' Feed Pockel Quadrams

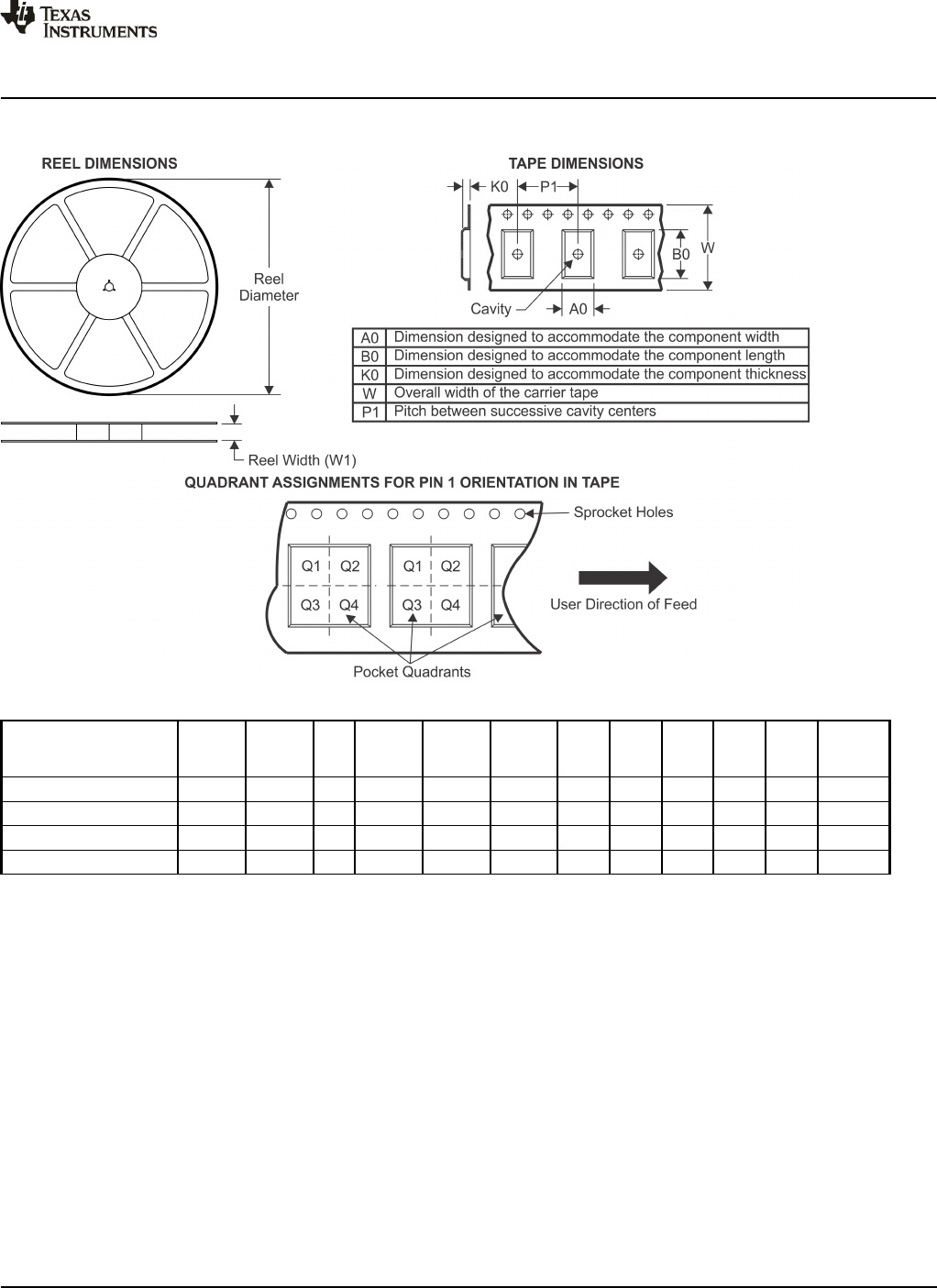

TAPE AND REEL INFORMATION

*All dimensions are nominal

Device Package

Type Package

Drawing Pins SPQ Reel

Diameter

(mm)

Reel

Width

W1 (mm)

(mm) B0

(mm) K0

(mm) P1

(mm) W

(mm) Pin1

Quadrant

TUSB8042AIRGCR VQFN RGC 64 2000 330.0 16.4 9.3 9.3 1.1 12.0 16.0 Q2

TUSB8042AIRGCT VQFN RGC 64 250 180.0 16.4 9.3 9.3 1.1 12.0 16.0 Q2

TUSB8042ARGCR VQFN RGC 64 2000 330.0 16.4 9.3 9.3 1.1 12.0 16.0 Q2

TUSB8042ARGCT VQFN RGC 64 250 180.0 16.4 9.3 9.3 1.1 12.0 16.0 Q2

PACKAGE MATERIALS INFORMATION

www.ti.com 6-Sep-2019

Pack Materials-Page 1

I TEXAS INSTRUMENTS TAPE AND REEL BOX DIMENSIONS

*All dimensions are nominal

Device Package Type Package Drawing Pins SPQ Length (mm) Width (mm) Height (mm)

TUSB8042AIRGCR VQFN RGC 64 2000 367.0 367.0 38.0

TUSB8042AIRGCT VQFN RGC 64 250 210.0 185.0 35.0

TUSB8042ARGCR VQFN RGC 64 2000 367.0 367.0 38.0

TUSB8042ARGCT VQFN RGC 64 250 210.0 185.0 35.0

PACKAGE MATERIALS INFORMATION

www.ti.com 6-Sep-2019

Pack Materials-Page 2

www.ti.com

GENERIC PACKAGE VIEW

Images above are just a representation of the package family, actual package may vary.

Refer to the product data sheet for package details.

VQFN - 1 mm max heightRGC 64

PLASTIC QUAD FLATPACK - NO LEAD

9 x 9, 0.5 mm pitch

4224597/A

Q RGC0064G H 47* CCCCCCGCECCCCCCC , UUUUUUUU

www.ti.com

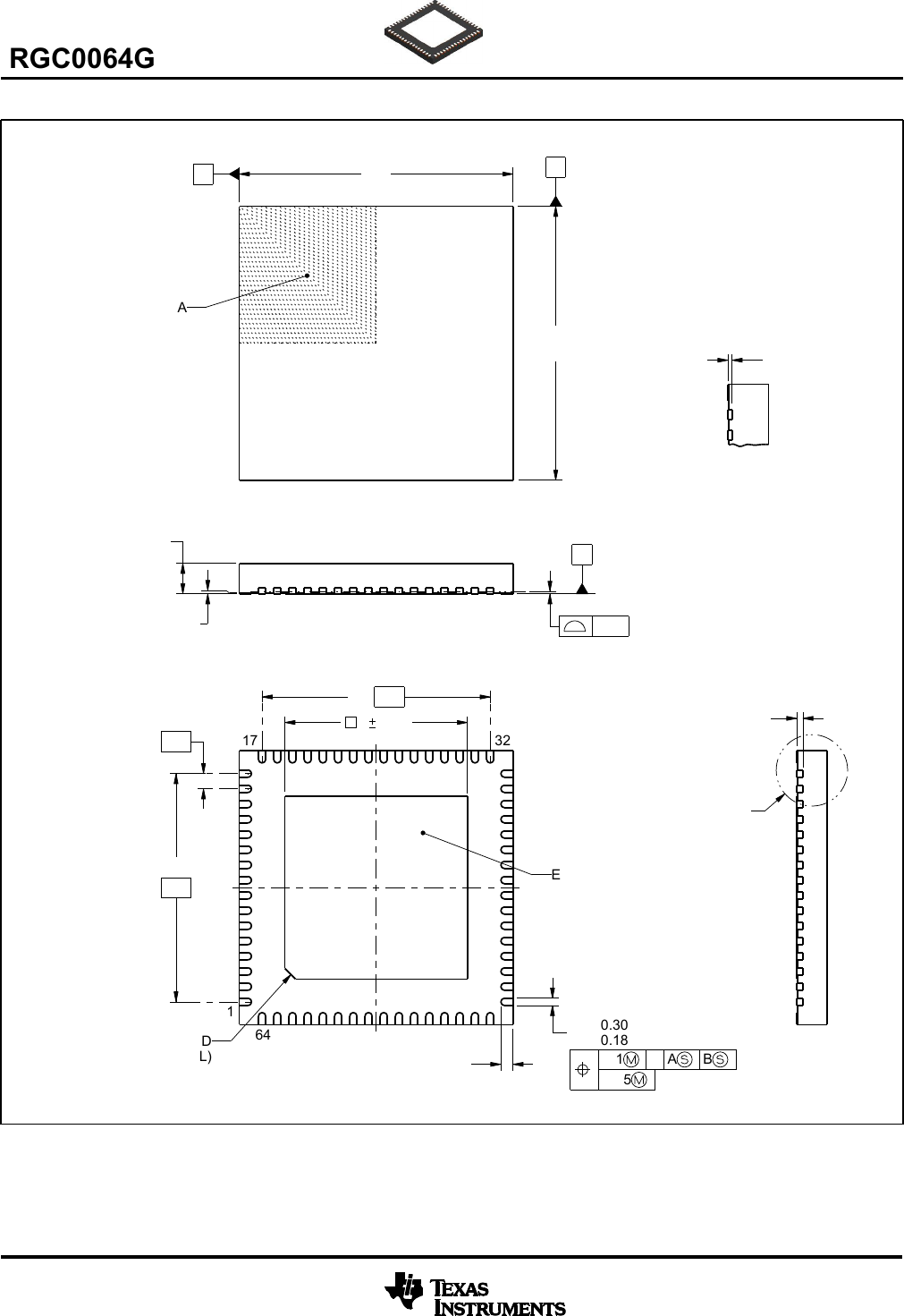

PACKAGE OUTLINE

SEE DETAIL

64X 0.30

0.18

6 0.05

64X 0.5

0.3

1 MAX

(0.2) TYP

0.05

0.00

60X 0.5

7.5

2X 7.5

A9.1

8.9

9.1

8.9 (0.1) TYP

VQFN - 1 mm max heightRGC0064G

PLASTIC QUAD FLATPACK - NO LEAD

4222053/B 06/2015

PIN 1 INDEX AREA

0.08

SEATING PLANE

16 33

17 32

64 49

(OPTIONAL)

PIN 1 ID

0.1 C A B

0.05

EXPOSED

THERMAL PAD

NOTES:

1. All linear dimensions are in millimeters. Any dimensions in parenthesis are for reference only. Dimensioning and tolerancing

per ASME Y14.5M.

2. This drawing is subject to change without notice.

3. The package thermal pad must be soldered to the printed circuit board for thermal and mechanical performance.

SCALE 1.500

SCALE 8.000

LEADFRAME PROFILE

OPTION

RGCOOB4G ﬁ| J , , m 3 i W T Emimﬁmﬁmﬁmfxx wild , , W , mu Flt , , , W M a“ W % NV 0 o; o ,M m a 3:qu 111$ ‘‘‘‘‘‘ w, #W B O O O O O O mu m, o o o 7 o o o % nu " 8 NW 0 o W 0 ﬂ %1 Wmﬁmﬁmﬁmﬁyﬁma/ LT L f /

www.ti.com

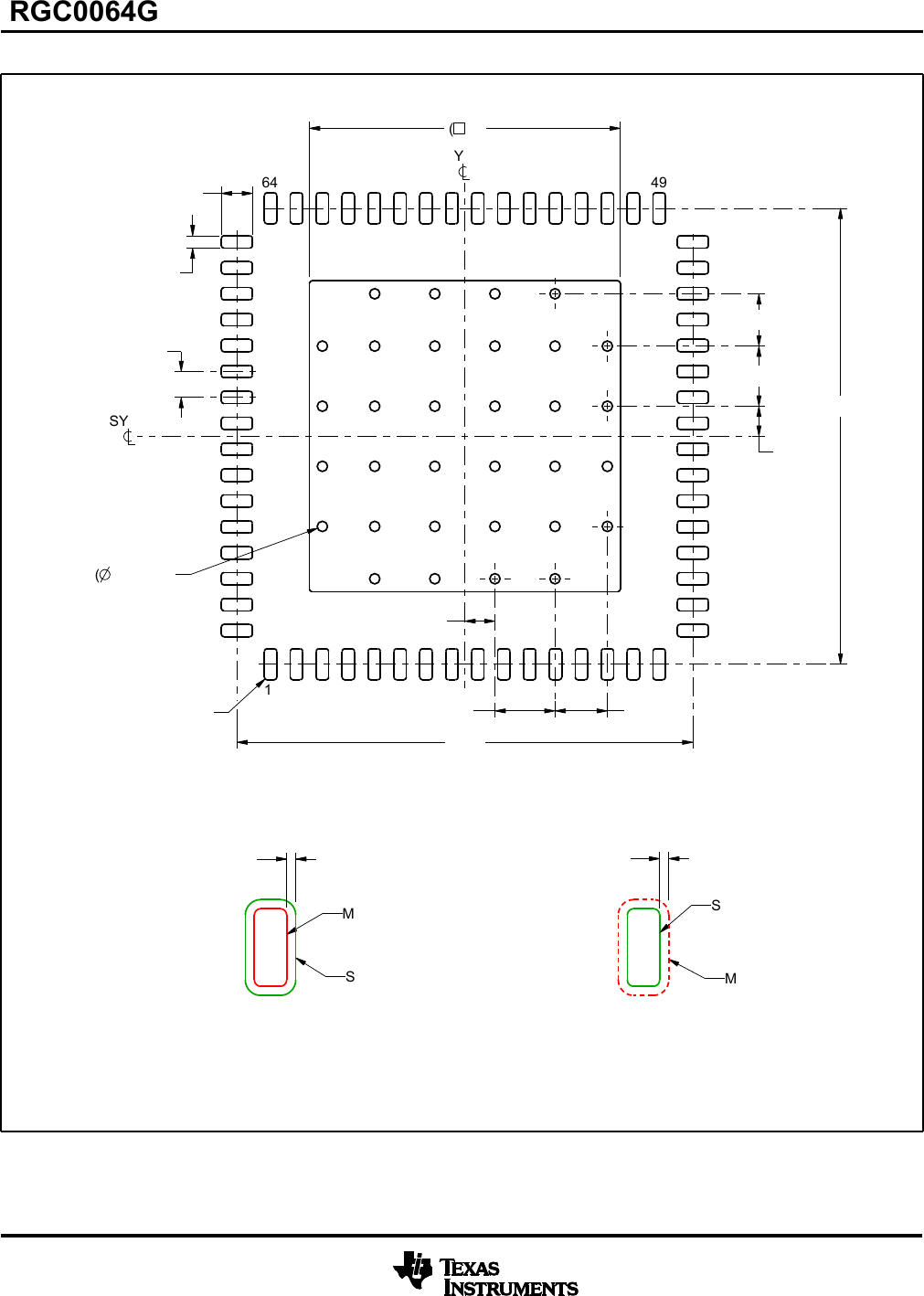

EXAMPLE BOARD LAYOUT

0.07 MIN

ALL SIDES

0.07 MAX

ALL AROUND

64X (0.24)

64X (0.6)

( ) TYP

VIA

0.2

60X (0.5)

(8.8)

( 6)

(R )

ALL PAD CORNERS

0.05

18X (1.16)

8X (1.01)

18X (1.16) 8X (1.01)

(0.58)

TYP

(0.58) TYP

VQFN - 1 mm max heightRGC0064G

PLASTIC QUAD FLATPACK - NO LEAD

4222053/B 06/2015

SYMM

17 32

SYMM

LAND PATTERN EXAMPLE

SCALE:10X

NOTES: (continued)

4. This package is designed to be soldered to a thermal pad on the board. For more information, see Texas Instruments literature

number SLUA271 (www.ti.com/lit/slua271).

SOLDER MASK

OPENING

METAL UNDER

SOLDER MASK

DEFINED

METAL

SOLDER MASK

OPENING

SOLDER MASK DETAILS

NON SOLDER MASK

DEFINED

(PREFERRED)

RGCOOB4G 7 7 7 17 7 1 Mrm‘mmﬁwﬂ‘mgﬂﬁm‘uﬁﬁ‘mw‘ \ B 7 7 7 p ﬂu ‘W‘LL‘ 7 w 7.3.; s E J 7 O O 7 0 JJ 7 4‘ ““““ o lulwlwiiiiﬂm‘é mm % % m. ( mﬁm rg % 77¢; ) “ES {—1 % 7

www.ti.com

EXAMPLE STENCIL DESIGN

64X (0.6)

64X (0.24)

60X (0.5)

(8.8)

25X ( 0.96)

(1.16)

TYP

(1.16) TYP (R ) TYP0.05

(R ) TYP0.05

VQFN - 1 mm max heightRGC0064G

PLASTIC QUAD FLATPACK - NO LEAD

4222053/B 06/2015

NOTES: (continued)

5. Laser cutting apertures with trapezoidal walls and rounded corners may offer better paste release. IPC-7525 may have alternate

design recommendations.

SYMM

METAL

TYP

SOLDER PASTE EXAMPLE

BASED ON 0.125 mm THICK STENCIL

EXPOSED PAD

64% PRINTED SOLDER COVERAGE BY AREA

SCALE:12X

SYMM

17 32

IMPORTANT NOTICE AND DISCLAIMER

TI PROVIDES TECHNICAL AND RELIABILITY DATA (INCLUDING DATASHEETS), DESIGN RESOURCES (INCLUDING REFERENCE

DESIGNS), APPLICATION OR OTHER DESIGN ADVICE, WEB TOOLS, SAFETY INFORMATION, AND OTHER RESOURCES “AS IS”

AND WITH ALL FAULTS, AND DISCLAIMS ALL WARRANTIES, EXPRESS AND IMPLIED, INCLUDING WITHOUT LIMITATION ANY

IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT OF THIRD

PARTY INTELLECTUAL PROPERTY RIGHTS.

These resources are intended for skilled developers designing with TI products. You are solely responsible for (1) selecting the appropriate

TI products for your application, (2) designing, validating and testing your application, and (3) ensuring your application meets applicable

standards, and any other safety, security, or other requirements. These resources are subject to change without notice. TI grants you

permission to use these resources only for development of an application that uses the TI products described in the resource. Other

reproduction and display of these resources is prohibited. No license is granted to any other TI intellectual property right or to any third

party intellectual property right. TI disclaims responsibility for, and you will fully indemnify TI and its representatives against, any claims,

damages, costs, losses, and liabilities arising out of your use of these resources.

TI’s products are provided subject to TI’s Terms of Sale (www.ti.com/legal/termsofsale.html) or other applicable terms available either on

ti.com or provided in conjunction with such TI products. TI’s provision of these resources does not expand or otherwise alter TI’s applicable

warranties or warranty disclaimers for TI products.

Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265

Fiche technique pour TUSB8042A de Texas Instruments

INFORMATIONS

AIDE

NOUS CONTACTER

NOUS SUIVRE
