1www.diodes.com September 2019

Diodes Incorporated

PI6C49CB02Q

Document Number DS42252 Rev 1-2

A product Line of

Diodes Incorporated

PI6C49CB02Q

Automotive AEC-Q100 Qualified Low Skew, 1-To-2 LVCMOS / LVTTL Fanout Buffer

Lead-free Green

Block Diagram

Description

The PI6C49CB02Q is an automotive qualified low skew, 1-to-

2 LVCMOS/LVTTL High Performance Fanout Buffer. The

PI6C49CB02Q has a single ended clock input. The single ended

clock input accepts LVCMOS or LVTTL input levels. The

PI6C49CB02Q features a pair of LVCMOS/LVTTL outputs.

Guaranteed output and part-to-part skew characteristics make

the PI6C49CB02Q ideal for clock distribution applications

demanding well defined performance and repeatability.

Features

 2 LVCMOS / LVTTL outputs

 LVCMOS / LVTTL clock input accepts LVCMOS or LVTTL

input levels

 Maximum output frequency: 250MHz

 Output skew: 25ps (typical)

 Part-to-part skew: 250ps (typical)

 Small 8 lead SOIC package saves board space

 Full 3.3V, 2.5V operation modes

 AEC-Q100 Qualified

 Automotive Grade 2 temperature range (-40 to 105 °C)

 Automotive Grade 3 temperature range (-40 to 85 °C)

 Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

 Halogen and Antimony Free “Green” Device (Note 3)

 The PI6C49CB02Q is suitable for automotive applications

requiring specific change control and is AEC-Q100 qualified,

has a grade 2, -40 to 105 °C temperature rating and grade

3, -40 to 85 °C temperature rating, is PPAP capable, and is

manufactured in IATF16949:2016 certified facilities.

 Package: 8-Pin, SOIC (W)

CLK

Pin Assignment

1VDDO

VDDO

GND

CLK

VDD

Notes:

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant.

2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm

antimony compounds.

mDES. \(DPER/CUM“

2www.diodes.com September 2019

Diodes Incorporated

PI6C49CB02Q

Document Number DS42252 Rev 1-2

A product Line of

Diodes Incorporated

PI6C49CB02Q

Pin# Pin Name Pin Type Pin Description

1, 6 VDDO Power Output supply pins.

2VDD Power Core supply pin.

3CLK Input Pull-down LVCMOS / LVTTL clock input.

4, 7 GND Power Power supply ground.

5Q1 Output Single clock output. LVCMOS / LVTTL interface levels.

8Q0 Output Single clock output. LVCMOS / LVTTL interface levels.

Note: Pulldown refer to internal input resistors, typical values in Pin Characteristics table.

Pin Descriptions

Symbol Parameter Test Conditions Min. Ty p. Max. Units

Capacitance 4pF

PULLDOWN

Input Pull-down Resistor 51 kΩ

OUT

Output Impedance 5 7 12 Ω

Pin Characteristics

Recommended Operation Conditions \ (D PER/CUM“ Power Su ply DC Characteristics

3www.diodes.com September 2019

Diodes Incorporated

PI6C49CB02Q

Document Number DS42252 Rev 1-2

A product Line of

Diodes Incorporated

PI6C49CB02Q

Maximum Ratings

(Above which useful life may be impaired. For user guidelines, not tested.)

Maximum Supply Voltage, VDD, VDDO ..................4.6V

Inputs, VI................................–0.5V to VDD +0.5V

Output, VO.............................–0.5V to VDDO +0.5V

Storage Temperature ...........................-65°C to 150°C

ESD Protection (HBM) ..............................2000V

Junction Temperature.......................... 125°C (Max)

Note:

Stresses beyond those listed under Absolute Maximum

Ratings may cause permanent damage to the device.

These ratings are stress specifications only. Functional

operation of product at these conditions or any condi-

tions beyond those listed in the DC Characteristics or AC

Characteristics

is not implied. Exposure to absolute maximum rating condi-

tions for extended periods may affect product reliability.

Power Supply DC Characteristics

Symbol Parameter Conditions Min. Typ. Max. Units

VDD Core Supply Voltage 3.3V Operation 3.135 3.3 3.465 V

2.5V Operation 2.375 2.5 2.625

VDDO Output Power Supply Voltage 3.3V Supply 3.135 3.3 3.465 V

2.5V Supply 2.375 2.5 2.625

IDD Power Supply Current T

= -40°C to 85°C 5 mA

IDDO Output Supply Current Unloaded, 25 MHz, TA = -40°C to

85°C 6.5 mA

IDD Power Supply Current T

= -40°C to 105°C 5 mA

IDDO Output Supply Current Unloaded, 25 MHz, TA = -40°C to

105°C 6.5 mA

Note: Parameters measured up to fmax unless otherwise noted.

Recommended Operation Conditions

Parameter Min. Ty p. Max. Units

Ambient Operating Temperature (Automotive Grade 2) -40 +105 °C

Ambient Operating Temperature (Automotive Grade 3) -40 +85 °C

Power Supply Voltage (measured in respect to GND) +2.375 +3.465 V

mDES. \(DPER/CUM“ LVCMOS / LVTI'L DC Characteristics, LVCMOS / LVTI'L DC Characteristics,

4www.diodes.com September 2019

Diodes Incorporated

PI6C49CB02Q

Document Number DS42252 Rev 1-2

A product Line of

Diodes Incorporated

PI6C49CB02Q

LVCMOS / LVTTL DC Characteristics, TA = -40°C to 85°C

Symbol Parameter Conditions Min. Typ. Max. Units

VIH Input High Voltage VDD = 3.3V 2 VDD+0.3 V

VDD = 2.5V 1.7 VDD+0.3

VIL Input Low Voltage VDD = 3.3V -0.3 0.8 V

VDD = 2.5V -0.3 0.8

IIH Input High Current VDD = V

= 3.465V 100 μA

VDD = V

= 2.625V 80

IIL Input Low Current VDD = 3.465V, V

= 0V -5 μA

VDD = 2.625V, V

= 0V -5

VOH Output High Voltage VDDO = 3.3V I

= -100μA 2.9 V

VDDO = 2.5V I

= -100μA 2.2 V

VOL Output Low Voltage VDDO = 3.3V I

= 100μA 0.2 V

VDDO = 2.5V I

= 100μA 0.2 V

LVCMOS / LVTTL DC Characteristics, TA = -40°C to 105°C

Symbol Parameter Conditions Min. Typ. Max. Units

VIH Input High Voltage VDD = 3.3V 2 VDD+0.3 V

VDD = 2.5V 1.7 VDD+0.3

VIL Input Low Voltage VDD = 3.3V -0.3 0.8 V

VDD = 2.5V -0.3 0.8

IIH Input High Current VDD = V

= 3.465V 100 μA

VDD = V

= 2.625V 80

IIL Input Low Current VDD = 3.465V, V

= 0V -5 μA

VDD = 2.625V, V

= 0V -5

VOH Output High Voltage VDDO = 3.3V I

= -100μA 2.9 V

VDDO = 2.5V I

= -100μA 2.2 V

VOL Output Low Voltage VDDO = 3.3V I

= 100μA 0.2 V

VDDO = 2.5V I

= 100μA 0.2 V

mDES. \(DPER/CUM“ AC Characteristics, TA

5www.diodes.com September 2019

Diodes Incorporated

PI6C49CB02Q

Document Number DS42252 Rev 1-2

A product Line of

Diodes Incorporated

PI6C49CB02Q

AC Characteristics, VDD = 3.3V ± 5%, TA = -40°C to 85°C

Symbol Parameter Conditions Min. Typ. Max. Units

fMAX Output Frequency VDDO = 3.3V 4250 MHz

VDDO = 2.5V 4250

tpLH

Propagation Delay, Low-to-

High(1)

VDDO = 3.3V, ƒ≤ 250MHz 1.4 2.2 ns

VDDO = 2.5V, ƒ≤ 250MHz 1.5 3.0

tsk(o) Output Skew(2) 25 80 ps

tsk(pp) Part-to-Part Skew(3) 250 800 ps

tROutput Rise Time(4) VDDO = 3.3V 100 300 400 ps

VDDO = 2.5V 100 350 500

tFOutput Fall Time(4) VDDO = 3.3V 100 300 400 ps

VDDO = 2.5V 100 350 500

odc Output Duty Cycle(5)

ƒ≤ 133MHz 48 52 %

133MHz < ƒ≤ 200MHz 47 53 %

200MHz < ƒ≤ 250MHz 47 53 %

tjit Additive RMS Jitter 156.25MHz (@12kHz to 20MHz) 0.1 ps

125MHz (@12kHz to 20MHz) 0.07 ps

Note:

Parameters measured at f MAX unless otherwise noted.

1. Measured from VDD /2 of the input to VDDO /2 of the output.

2. Defined as skew between outputs at the same supply voltage and with equal load conditions. Measured at VDDO /2.

3. Defined as skew between outputs on different devices operating at the same supply voltages and with equal load conditions. Using the same type of inputs on

each device, the outputs are measured at VDDO /2.

4. Defined from 20% to 80%

5. Measured at VDDO /2

mDES. \(DPER/CUM“ AC Characteristics,

6www.diodes.com September 2019

Diodes Incorporated

PI6C49CB02Q

Document Number DS42252 Rev 1-2

A product Line of

Diodes Incorporated

PI6C49CB02Q

AC Characteristics, VDD = 3.3V ± 5%, TA = -40°C to 105°C

Symbol Parameter Conditions Min. Typ. Max. Units

fMAX Output Frequency VDDO = 3.3V 4250 MHz

VDDO = 2.5V 4250

tpLH Propagation Delay, Low-to-High(1) VDDO = 3.3V, ƒ≤ 250MHz 1.4 2.2 ns

VDDO = 2.5V, ƒ≤ 250MHz 1.5 3.0

tsk(o) Output Skew(2) 25 80 ps

tsk(pp) Part-to-Part Skew(3) 250 800 ps

tROutput Rise Time(4) VDDO = 3.3V 100 300 400 ps

VDDO = 2.5V 100 350 500

tFOutput Fall Time(4) VDDO = 3.3V 100 300 400 ps

VDDO = 2.5V 100 350 500

odc Output Duty Cycle(5)

ƒ≤ 133MHz 48 52 %

133MHz < ƒ≤ 200MHz 47 53 %

200MHz < ƒ≤ 250MHz 47 53 %

tjit Additive RMS Jitter

156.25MHz (@12kHz to

20MHz) 0.1 ps

125MHz (@12kHz to 20MHz) 0.07 ps

Note:

Parameters measured at f MAX unless otherwise noted.

1. Measured from VDD /2 of the input to VDDO /2 of the output.

2. Defined as skew between outputs at the same supply voltage and with equal load conditions. Measured at VDDO /2.

3. Defined as skew between outputs on different devices operating at the same supply voltages and with equal load conditions. Using the same type of inputs on

each device, the outputs are measured at VDDO /2.

4. Defined from 20% to 80%

5. Measured at VDDO /2

mDES. \(DPER/CUM“ AC Characteristics, VDD : 2.5V : 5%, T

7www.diodes.com September 2019

Diodes Incorporated

PI6C49CB02Q

Document Number DS42252 Rev 1-2

A product Line of

Diodes Incorporated

PI6C49CB02Q

Z = 50-Ohm

Scope

50-

Ohm

VDDO

GND

VDD

[+VDDO/2]

[-VDDO/2]

[VDD - VDDO/2]

AC Test Circuit Load

AC Characteristics, VDD = 2.5V ± 5%, TA = -40°C to 85°C

Symbol Parameter Conditions Min. Typ. Max. Units

fMAX Output Frequency VDDO = 2.5V 4250 MHz

tpLH Propagation Delay, Low-to-High(1) VDDO = 2.5V, ƒ≤ 250MHz 1.5 2.8 ns

tsk(o) Output Skew(2) 25 75 ps

tsk(pp) Part-to-Part Skew(3) 250 800 ps

Output Rise Time(4) VDDO = 2.5V 100 350 500 ps

Output Fall Time(4) VDDO = 2.5V 100 350 500 ps

odc Output Duty Cycle(5)

ƒ≤ 133MHz 48 52 %

133MHz < ƒ≤ 200MHz 47 53 %

200MHz < ƒ≤ 250MHz 42 58 %

tjit Additive RMS Jitter 156.25MHz (@12kHz to 20MHz) 0.1 ps

125MHz (@12kHz to 20MHz) 0.07 ps

Note:

Parameters measured at f MAX unless otherwise noted.

1. Measured from VDD /2 of the input to VDDO /2 of the output.

2. Defined as skew between outputs at the same supply voltage and with equal load conditions. Measured at VDDO /2.

3. Defined as skew between outputs on different devices operating at the same supply voltages and with equal load conditions. Using the same type of inputs on

each device, the outputs are measured at VDDO /2.

4. Defined from 20% to 80%

5. Measured at VDDO /2

mDES. \(DPER/CUM“ AC Characteristics, n C49C *WE XX

8www.diodes.com September 2019

Diodes Incorporated

PI6C49CB02Q

Document Number DS42252 Rev 1-2

A product Line of

Diodes Incorporated

PI6C49CB02Q

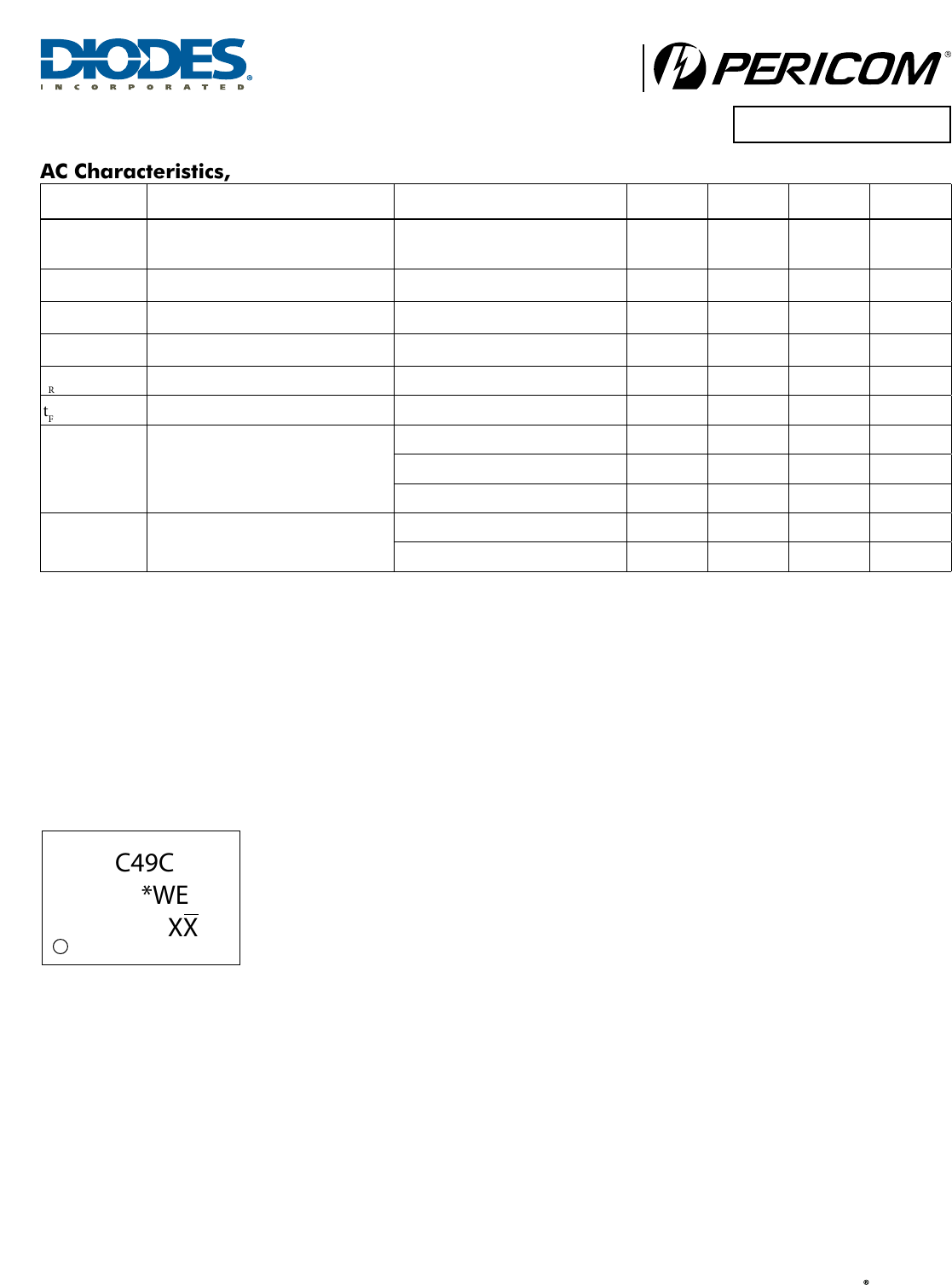

Part Marking

PI6C49C

B02Q*WE

*YYWWXX

*: Die Rev (2 or 3)

YY: Year

WW: Workweek

1st X: Assembly Site Code

2nd X: Wafer Site Code

AC Characteristics, VDD = 2.5V ± 5%, TA = -40°C to 105°C

Symbol Parameter Conditions Min. Typ. Max. Units

fMAX Output Frequency VDDO = 2.5V 4250 MHz

tpLH Propagation Delay, Low-to-High(1) VDDO = 2.5V, ƒ≤ 250MHz 1.5 2.8 ns

tsk(o) Output Skew(2) 25 75 ps

tsk(pp) Part-to-Part Skew(3) 250 800 ps

Output Rise Time(4) VDDO = 2.5V 100 350 500 ps

Output Fall Time(4) VDDO = 2.5V 100 350 500 ps

odc Output Duty Cycle(5)

ƒ≤ 133MHz 48 52 %

133MHz < ƒ≤ 200MHz 47 53 %

200MHz < ƒ≤ 250MHz 42 58 %

tjit Additive RMS Jitter 156.25MHz (@12kHz to 20MHz) 0.1 ps

125MHz (@12kHz to 20MHz) 0.07 ps

Note:

Parameters measured at f MAX unless otherwise noted.

1. Measured from VDD /2 of the input to VDDO /2 of the output.

2. Defined as skew between outputs at the same supply voltage and with equal load conditions. Measured at VDDO /2.

3. Defined as skew between outputs on different devices operating at the same supply voltages and with equal load conditions. Using the same type of inputs on

each device, the outputs are measured at VDDO /2.

4. Defined from 20% to 80%

5. Measured at VDDO /2

(DPER/CUM‘ 5mm PLANE 5mm mu: Nova- 1 AllD‘MENSIDNSAREwmm AMELESIN mamas 2. mMENsIDNs EXELUDE auRRs Mum msx napaamusms 1 man mm M: m 5x45 swam WN NOM max. A 7 7 ‘ 75 m on 7 o 25 AZ L25 7 7 n om 7 055‘ c o m 7 n 25 n 4 an 4 so 5 no E 5 ED 5 DD 5 20 7 E‘ 3 EU 3 SD 4 DD 9 ‘ 27 SEC C L 0.40 ’ ‘ 17 h 0.25 ’ 0,50 9” 0 7 e mm mm 0.25 MUEEPUNE ( r" 5mm mnz7 (I 9' (DPER/caM ”am-mwm DATE' nzmm DESCRIPYION: I-Pill‘ ‘Sﬂmil-Wwde, SDIC PACKAGE coDE- w (Wu) DocuMEm coumm x: PEI-1001 REV‘SIOM: z; Ordering Information

9www.diodes.com September 2019

Diodes Incorporated

PI6C49CB02Q

Document Number DS42252 Rev 1-2

A product Line of

Diodes Incorporated

PI6C49CB02Q

Ordering Information

Ordering Code Package Code Operating Temperature Package Description

PI6C49CB02Q2WEX W -40 to 105°C 8-pin, 150mil-Wide (SOIC)

PI6C49CB02Q3WEX W -40 to 85°C 8-pin, 150mil-Wide (SOIC)

15-0103

For latest package info.

please check: http://www.diodes.com/design/support/packaging/pericom-packaging/packaging-mechanicals-and-thermal-characteristics/

Packaging Mechanical: 8-SOIC (W)

Notes:

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant.

2. See https://www.diodes.com/quality/lead-free/ for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm

antimony compounds.

4. Q = Automotive Compliant

5. 2 and 3 = AEC-Q100 Grade Level

6. E = Pb-free and Green

7. X suffix = Tape/Reel

mDES. \(DPER/CUM“

10 www.diodes.com September 2019

Diodes Incorporated

PI6C49CB02Q

Document Number DS42252 Rev 1-2

A product Line of

Diodes Incorporated

PI6C49CB02Q

IMPORTANT NOTICE

DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT, INCLUDING, BUT NOT

LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER

THE LAWS OF ANY JURISDICTION).

Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes without further no-

tice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the application or use of this document or

any product described herein; neither does Diodes Incorporated convey any license under its patent or trademark rights, nor the rights of others. Any Customer

or user of this document or products described herein in such applications shall assume all risks of such use and will agree to hold Diodes Incorporated and all

the companies whose products are represented on Diodes Incorporated website, harmless against all damages.

Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.

Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and hold Diodes

Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or indirectly, any claim of personal

injury or death associated with such unintended or unauthorized application.

Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings noted herein

may also be covered by one or more United States, international or foreign trademarks.

This document is written in English but may be translated into multiple languages for reference. Only the English version of this document is the final and determi-

native format released by Diodes Incorporated.

LIFE SUPPORT

Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express written approval

of the Chief Executive Officer of Diodes Incorporated. As used herein:

A. Life support devices or systems are devices or systems which:

1. are intended to implant into the body, or

2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the labeling can be reasonably

expected to result in significant injury to the user.

B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the

failure of the life support device or to affect its safety or effectiveness.

Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and acknowledge

and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any use of Diodes Incorporated

products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related information or support that may be provided by

Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its representatives against any damages arising out of the use of Diodes

Incorporated products in such safety-critical, life support devices or systems.

Fiche technique pour PI6C49CB02Q

INFORMATIONS

AIDE

NOUS CONTACTER

NOUS SUIVRE
