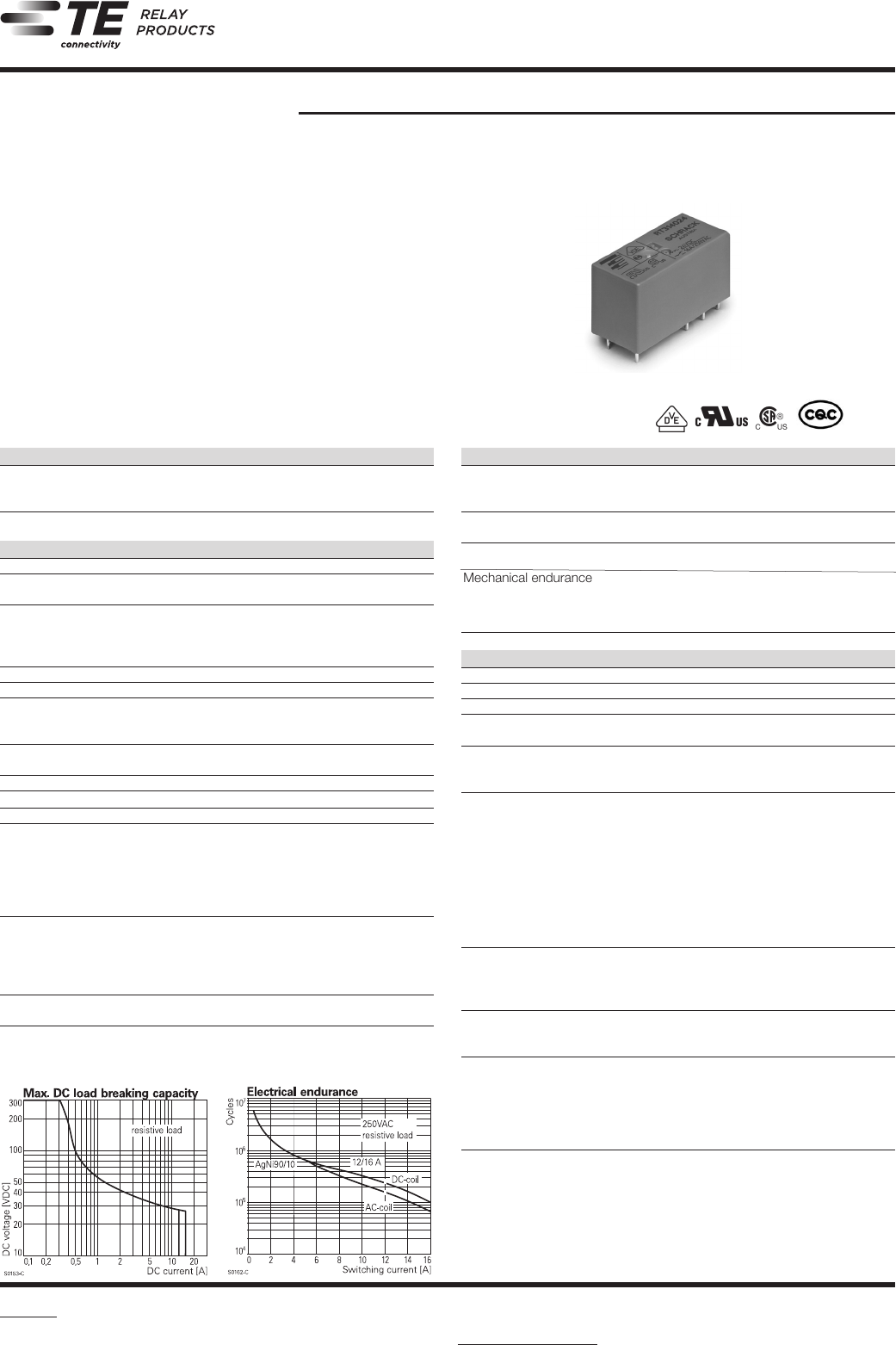

Fiche technique pour RT1 Relay Series de TE Connectivity Potter & Brumfield Relays

-- TE RELAY — PRouucrs mnnerllvlly “Us EQ; Mechamca‘ endurance Max. Dc load Im um um J m z» m. x ur'cm [A EIemicnl endurance macs «r A: am w a zen mm 'c w u u» wl'.hv;.r.umv‘lA
06-2022, Rev. 2
www.te.com
© 2014 Tyco Electronics Corporation,
a TE Connectivity Ltd. company
Datasheets and product specification
according to IEC 61810-1 and to be used
only together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
1
SCHRACK
General Purpose Relays
PCB Relays
n 1 pole 12A/16A, 1 form C (CO) or 1 form A (NO) contact
n DC or AC coil
n 5kV/10mm coil-contact, reinforced insulation
n Ambient temperature 85°C (DC coil)
n WG version: product in accordance to IEC 60335-1
n Reflow version: for THR (Through-Hole Reflow) soldering process
Typical applications
Boiler control, timers, garage door control, POS automation, interface
modules
Approvals
VDE Cert. No. 40007571, cULus E214025, cCSAus 1142018
CQC 20002275223 (China production), CQC 08001027262 (China
production), CQC 18002197247 (monostable)
Technical data of approved types on request
Contact Data 12A 16A
Contact arrangement 1 form C (CO) or 1 form A (NO)
Rated voltage 250VAC
Max. switching voltage 400VAC
Rated current 12A 16A
Limiting continuous current 12A 16A, UL: 20A
Limiting making current
max. 4s, duty factor 10% 25A 30A
Breaking capacity max. 3000VA 4000VA
Contact material AgNi 90/10, AgNi 90/10 gold plated
Frequency of operation, with/without load
DC coil 360/72000h-1
AC coil 360/36000h-1
Operate/release time max., DC coil 8/6ms
Bounce time max., DC coil, form A/form B 4/6ms
Electrical endurance see electrical endurance graph1)
Contact ratings
Type Contact Load Cycles
IEC 61810
RT314 DC-coil A (NO) 16A, 250VAC, cosφ=1, 85°C 30x103
RT314 DC-coil C (CO) 16A, 250VAC, cosφ=1, 85°C 10x103
RT314 DC-coil A (NO) 10A, 400VAC, cosφ=1, 85°C 150x103
RT114 DC-coil A (NO) 12A, 250VAC, cosφ=1, 85°C 50x103
RT114 AC-coil A (NO) 12A, 250VAC, cosφ=1, 70°C 100x103
UL 61810-1 (former UL 508)
RT314 A/B (NO/NC)
20A, 250VAC, general purpose, 85°C
6x103
RT334 A (NO)
16A, 250VAC, gen. purpose, 85°C
50x103
RT314 A (NO) 1hp, 240VAC, 40°C 1x103
RT314 A (NO)
FLA/LRA, 4.5/13.1A, 480VAC, 70°C
100x
103
EN60947-4-1
RT314 A (NO) 250V/2A, AC-3 6.050
Contact Data (continued)
EN60947-5-1
RT314 DC-coil A/B (NO/NC) 2A, 24VDC, DC13 6.050
RT314 A (NO) 250/3A, AC-15 6.050
EN60730-1
RT314 DC-coil A (NO) 12(2)A, 250VAC, 85°C 100x103
1) For reflow solderable versions: actual contact performance may be influenced by the
reflow soldering process.
Mechanical endurance
DC coil >30x106 operations
AC coil >10x106 operations
AC coil, reflow version >5x106 operations
Coil Data
Coil voltage range, DC coil/ AC coil 5 to 110VDC / 24 to 230VAC
Operative range, IEC 61810 2
Coil insulation system according UL class F
Coil versions, DC coil
Coil Rated Operate Release Coil Rated coil
code voltage voltage voltage resistance power
VDC VDC VDC Ω±10%2) mW
005 5 3.5 0.5 62 403
006 6 4.2 0.6 90 400
009 9 6.3 0.9 200 400
012 12 8.4 1.2 360 400
018 18 12.6 1.8 770 420
020 20 14.0 2.0 952 420
024 24 16.8 2.4 1440 400
048 48 33.6 4.8 5520 417
060 60 42.0 6.0 85702) 420
110 110 77.0 11.0 288002) 420
2) Coil resistance ±12%.
All figures are given for coil without pre-energization, at ambient temperature +23°C.
Other coil voltages on request.
Coil versions, AC coil 50/60 Hz
Coil Rated Operate Release Coil Rated coil
code voltage voltage voltage resistance power
VAC VAC VAC Ω±15%3) VA
524 24 18.0 3.6 3503) 0.76
548 48 36.0 7.2 1420 0.74
615 115 86.3 17.3 8100 0.76
620 120 90.0 18.0 8800 0.75
700 200 150.0 30.0 24350 0.76
730 230 172.5 34.5 32500 0.74
3) Coil resistance ±10%.
All figures are given for coil without pre-energization, at ambient temperature +23°C, 50 Hz.
Other coil voltages on request.
Power PCB Relay RT1
F0144-C
Z
b
- - TE RELAY — PRouucrs mnnerllvlly I! ran an m A MW m a aecammm mmmcracd vm'agc w n 77w mu .sn m3 Mus m Av'vmdwl m; H mw v: mu .sn _ Hun Av'vmdwl m, um. v: 22 5sz
06-2022, Rev. 2
www.te.com
© 2014 Tyco Electronics Corporation,
a TE Connectivity Ltd. company
Datasheets and product specification
according to IEC 61810-1 and to be used
only together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
2
SCHRACK
General Purpose Relays
PCB Relays
Power PCB Relay RT1 (Continued)
Other Data (continued)
Terminal type
standard version PCB-THT, plug-in
reflow version PCB-THR
Mounting distance AC coil: ≥2.5mm
Weight 14g
Resistance to soldering heat THT, IEC 60068-2-20
RTII 270°C/10s
RTIII 260°C/5s
Resistance to soldering heat THR
reflow soldering (for reflow version) forced gas convection 4) or
vapour phase 5)
temperature profile according EN61730
Packaging/unit tube/20 pcs., box/500 pcs.
4) infrared heating not allowed
5) recommended fluid LS/230
Accessories
For details see datasheet
Accessories Industrial Power Relay RT
NOTE: indicated contact ratings and electrical endurance data for direct
wiring of relays (according IEC 61810-1); for relays mounted on sockets
deratings may apply.
Insulation Data
Initial dielectric strength
between open contacts 1000Vrms
between contact and coil 5000Vrms
Clearance/creepage
between contact and coil ≥10/10mm
Material group of insulation parts IIIa
Tracking index of relay base PTI 250V
reflow version PTI 175V
Other Data
Material compliance: EU RoHS/ELV, China RoHS, REACH, Halogen content
refer to the Product Compliance Support Center at
www.te.com/customersupport/rohssupportcenter
Resistance to heat and fire
WG version or Reflow version according EN60335, par30
Ambient temperature
DC coil -40 to 85°C
AC coil -40 to 70°C
Category of environmental protection, IEC 61810
standard version RTII - flux proof, RTIII - wash tight
reflow version RTII - flux proof
Vibration resistance (functional)
form A/form B contact, 30 to 500Hz 20g/5g
Shock resistance (destructive) 100g
PCB layout / terminal assignment
Bottom view on solder pins
12 A, pinning 3.5 mm
1 form C (CO) contact
1 form A (NO) contact
12 A, pinning 5 mm
1 form C (CO) contact
1 form A (NO) contact
16 A, pinning 5 mm
1 form C (CO) contact
1 form A (NO) contact
S0418-CB S0418-CN S0418-CA
S0163-BES0163-BCS0163-BG
S0163-BH S0163-BD S0163-BF
*) With the recommended PCB hole sizes a grid
pattern from 2.5 mm to 2.54 mm can be used.
- - TE RELAY — PRouucrs mnnertlvlly 29,3 w I 29,0 max 17‘: max my Reflow temperature profile Rellow temperature profile gm mm mm SnAgCu Wm, {mm mm gas common 5mm so‘dcr ‘ ‘ 9 mm/r'rax DrnNe \ «3 tymca‘ wows ‘ 575m 2” 40 375;, 75c L w Em 33,135“ EN“ ,2 ‘11! e g I /, ran ‘ ‘au cuohng me «an x n m «an heatng me \ t 3 w: an TEE: w \ 5n 1 n ‘ ‘ n/ ‘nu‘ mrm‘ed‘heau‘ng ‘arrovm‘m u mu rsu mm 250 u an we an 200 232 3m) 2m aau we r: A Trme is]
06-2022, Rev. 2
www.te.com
© 2014 Tyco Electronics Corporation,
a TE Connectivity Ltd. company
Datasheets and product specification
according to IEC 61810-1 and to be used
only together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
3
SCHRACK
General Purpose Relays
PCB Relays
Power PCB Relay RT1 (Continued)
Product code structure Typical product code RT 3 1 4 024
Type
RT Power PCB Relay RT1
Version
1 12A, pinning 3.5mm, flux proof
2 12A, pinning 5mm, flux proof
3 16A, pinning 5mm, flux proof
B 12A, pinning 3.5mm, wash tight
C 12A, pinning 5mm, wash tight
D 16A, pinning 5mm, wash tight
Contact arrangement
1 1 form C (CO) contact
3 1 form A (NO) contact
Contact material
4 AgNi 90/10
5 AgNi 90/10 gold plated (for type RT31.)
Coil
Coil code: please refer to coil versions table
Version
Blank Standard version
WG Product in accordance with IEC 60335-1 (domestic appliances)
R Reflow solderable
Dimensions
S0272-BB
Process conditions for Reflow soldering
according to EN61760-1
THT version THR version (reflow solderable)
S0272-BRB
- - TE RELAY - PRODUCTS cannetllvlly
06-2022, Rev. 2
www.te.com
© 2014 Tyco Electronics Corporation,
a TE Connectivity Ltd. company
Datasheets and product specification
according to IEC 61810-1 and to be used
only together with the ‘Definitions’ section.
Datasheets and product data is subject to the
terms of the disclaimer and all chapters of
the ‘Definitions’ section, available at
http://relays.te.com/definitions
Datasheets, product data, ‘Definitions’ sec-
tion, application notes and all specifications
are subject to change.
4
SCHRACK
General Purpose Relays
PCB Relays
Power PCB Relay RT1 (Continued)
Product code Version Contacts Contact material Coil Version Part Number
Austria China
RT114009 12A, 1 form C (CO) AgNi 90/10 9VDC Standard 1393239-9 1-1649326-2
RT114012 pinning 3.5mm, contact 12VDC 1419108-1 1-1649326-3
RT114012WG flux proof 12VDC IEC60335-1 compliant 7-1415538-6
RT114024 24VDC Standard 1-1393239-3 1-1649326-5
RT114024WG 24VDC IEC60335-1 compliant 1415539-4
RT114730 230VAC Standard 1-1393239-9
RT115024 AgNi 90/10 gold pl. 24VDC 2-1393239-1 3-1833000-9
RT134012 1 form A (NO) AgNi 90/10 12VDC 2-1393239-6 3-1649326-1
RT134024 contact 24VDC 3-1393239-0 3-1649326-3
RT214012 12A, 1 form C (CO) 12VDC 5-1393239-4 1-1649327-3
RT214024 pinning 5mm, contact 24VDC 5-1393239-5 1-1649327-5
RT214524 flux proof 24VAC 5-1393239-9
RT214730 230VAC 1419108-6
RT314005 16A, 5VDC 9-1393239-1 1-1649328-0
RT314006 pinning 5mm, 6VDC 9-1393239-3 1-1649328-1
RT314009 flux proof 9VDC 9-1393239-4
RT314012 12VDC 9-1393239-5 1-1649328-3
RT314012R 12VDC Reflow solderable 4-1415543-6
RT314012WG 12VDC IEC60335-1 compliant 8-1415535-6 5-1833002-0
RT314018 18VDC Standard 9-1393239-7 1-1649328-4
RT314024 24VDC 9-1393239-8 1-1649328-5
RT314024WG 24VDC IEC60335-1 compliant 1415538-7 5-1833002-1
RT314048 48VDC Standard 1393240-1 1-1649328-6
RT314060 60VDC 1-1649328-7 1-1649328-7
RT314110 110VDC 1393240-3
RT314524 24VAC 1393240-4
RT314548 48VAC 1393240-5
RT314615 115VAC 1393240-6
RT314730 230VAC 1393240-7
RT314730WG 230VAC IEC60335-1 compliant 4-1415538-0
RT315024 AgNi 90/10 gold pl. 24VDC Standard 1-1393240-4 3-1833002-7
RT334009WG 1 form A (NO) AgNi 90/10 9VDC IEC60335-1 compliant 3-1415538-1
RT334012 contact 12VDC Standard 4-1393240-5 3-1649328-1
RT334012WG 12VDC IEC60335-1 compliant 1-1415527-1 5-1833002-2
RT334024 24VDC Standard 4-1393240-8 3-1649328-3
RT334048 48VDC 5-1393240-0 3-1649328-4
RTB14005 12A, 1 form C (CO) 5VDC 1-1393238-2 1649326-1
RTB14012 pinning 3.5mm, contact 12VDC 1-1393238-5 1649326-4
RTB14024 wash tight 24VDC 1-1393238-9 1649326-6
RTB14524 24VAC 2-1393238-4
RTB34012 1 form A (NO) 12VDC 3-1393238-0 2-1649326-2
RTC14024 12A, 5mm, wash 1 form C (CO) 24VDC 5-1393238-0 1649327-6
RTD14005 16A, contact 5VDC 5-1393238-9 1649328-1
RTD14012 pinning 5mm, 12VDC 6-1393238-2 1649328-4
RTD14024 wash tight 24VDC 6-1393238-8 1649328-6
RTD14048 48VDC 6-1393238-9 1649328-7
RT114048 12A, pinning 3.5mm, 48VDC 1-1649326-6
flux proof
RT214005 12A, pinning 5mm, 5VDC 1-1649327-0
RT234012 flux proof 12VDC 1-1649327-3
RT234024 12A, pinning 3.5mm, 24VDC IEC 60335-1 compliant 1-1649327-5
RTB14048 wash tight 48VDC standard 1649326-7
RTB34005 16A, pinning 5mm, 5VDC 1-1649326-9
RTD14060 wash tight 60VDC 1649328-8
RTD34012 1 form A (NO) 12VDC 2-1649328-2
RTD34024WG contact 24VDC 3-1649328-7
RTD34015 15VDC 4-1833002-0
RTD34024 24VDC 2-1649328-4
This list represents the most common types and does not show all variants covered by this datasheet.
Other types on request
