SGLS228C –DECEMBER 2003–REVISED SEPTEMBER 2015
TPS380x-Q1 Voltage Detectors
The TPS3803G15-Q1 device has a fixed-sense
1 Features threshold voltage VIT set by an internal voltage
1• Qualified for Automotive Applications divider, whereas the TPS3803-01-Q1 has an
• Single Voltage Detector (TPS3803): Adjustable adjustable SENSE input that can be configured by
and 1.5 V two external resistors. In addition to the fixed sense
threshold monitored at VDD, the TPS3805-Q1 devices
• Dual Voltage Detector (TPS3805): Adjustable and provide a second adjustable SENSE input. RESET is
3.3 V asserted in case either of the two voltages drops
• High ±1.5% Threshold Voltage Accuracy below VIT.
• Supply Current: 3 μA Typical at VDD = 3.3 V During power on, RESET is asserted when supply
• Push/Pull Reset Output (TPS3805), voltage VDD becomes higher than 0.8 V. Thereafter,
Open-Drain Reset Output (TPS3803) the supervisory circuit monitors VDD (and/or SENSE)
and keeps RESET active as long as VDD or SENSE
• Temperature Range: –40°C to 125°C remains below the threshold voltage VIT. As soon as
• 5-Pin SC-70 Package VDD (SENSE) rises above the threshold voltage VIT,
RESET is deasserted again. The product spectrum is
2 Applications designed for 1.5-V, 3.3-V, and adjustable supply
• Applications Using DSPs, Microcontrollers, or voltages.
Microprocessors The devices are available in a 5-pin SC-70 package.
• Advanced Driver Assistance Systems The TPS3803-Q1 and TPS3805-Q1 devices are
characterized for operation over a temperature range
• Automotive Infotainment of –40°C to 125°C.
• Automotive Cluster
Device Information(1)
3 Description PART NUMBER PACKAGE BODY SIZE (NOM)
The TPS3803-Q1 and TPS3805-Q1 families of TPS3803-01-Q1
supervisory circuits provide circuit initialization and TPS3803G15-Q1 SC-70 (5) 2.00 mm × 1.25 mm
timing supervision, primarily for DSPs and processor-
based systems. TPS3805H33-Q1
(1) For all available packages, see the orderable addendum at
the end of the data sheet.
Typical Application Schematic
1
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
l TEXAS INSTRUMENTS
TPS3803-01-Q1
TPS3803G15-Q1
,
TPS3805H33-Q1
SGLS228C –DECEMBER 2003–REVISED SEPTEMBER 2015
www.ti.com
Table of Contents
8.2 Functional Block Diagrams ....................................... 9
1 Features.................................................................. 18.3 Feature Description................................................... 9
2 Applications ........................................................... 18.4 Device Functional Modes........................................ 11
3 Description ............................................................. 19 Application and Implementation ........................ 12
4 Revision History..................................................... 29.1 Application Information............................................ 12
5 Device Comparison Table..................................... 39.2 Typical Applications ............................................... 12
6 Pin Configuration and Functions......................... 310 Power Supply Recommendations ..................... 14
7 Specifications......................................................... 411 Layout................................................................... 15
7.1 Absolute Maximum Ratings ...................................... 411.1 Layout Guidelines ................................................. 15
7.2 ESD Ratings ............................................................ 411.2 Layout Examples................................................... 15
7.3 Recommended Operating Conditions....................... 412 Device and Documentation Support ................. 17
7.4 Thermal Information.................................................. 412.1 Device Support .................................................... 17
7.5 Electrical Characteristics........................................... 512.2 Related Links ........................................................ 17
7.6 Timing Requirements................................................ 512.3 Community Resources.......................................... 17
7.7 Switching Characteristics.......................................... 512.4 Trademarks........................................................... 17
7.8 Dissipation Ratings ................................................... 512.5 Electrostatic Discharge Caution............................ 17
7.9 Typical Characteristics.............................................. 712.6 Glossary................................................................ 17
8 Detailed Description.............................................. 913 Mechanical, Packaging, and Orderable
8.1 Overview ................................................................... 9Information ........................................................... 18
4 Revision History
NOTE: Page numbers for previous revisions may differ from page numbers in the current version.
Changes from Revision B (January 2008) to Revision C Page
• Added Pin Configuration and Functions section, ESD Ratings table, Feature Description section, Device Functional
Modes,Application and Implementation section, Power Supply Recommendations section, Layout section, Device
and Documentation Support section, and Mechanical, Packaging, and Orderable Information section ............................... 1
Changes from Revision A (June 2007) to Revision B Page
• Updated Features section ..................................................................................................................................................... 1
Changes from Original (December 2003) to Revision A Page
• Updated front page................................................................................................................................................................. 1
• Changed Functional Block Diagram ...................................................................................................................................... 9
2Submit Documentation Feedback Copyright © 2003–2015, Texas Instruments Incorporated
Product Folder Links: TPS3803-01-Q1 TPS3803G15-Q1 TPS3805H33-Q1
TEXAS INSTRUMENTS D: 3:! D: D: 3:! ( 3 NC on TP83803615
GND
VDD
RESET
SENSE
NC (1)
NC
2
34
15
NC – No connection
(1) SENSE on TPS3803-01, TPS3805H33
NC on TPS3803G15
TPS3803-01-Q1
TPS3803G15-Q1
,
TPS3805H33-Q1
www.ti.com
SGLS228C –DECEMBER 2003–REVISED SEPTEMBER 2015
5 Device Comparison Table
THRESHOLD VOLTAGE
DEVICE RESET OUTPUT TYPE
VDD SENSE
TPS3803-01-Q1 NA 1.226 V Open-Drain
TPS3803G15-Q1 1.4 V NA Open-Drain
TPS3805H33-Q1 3.05 V 1.226 V Push-Pull
6 Pin Configuration and Functions
DCK Package
5-Pin SC-70
Top View
Pin Functions
PIN I/O DESCRIPTION
NAME NO.
GND 2 I Ground
RESET 3 O Active-low reset output (TPS3803-Q1: open drain, TPS3805-Q1: push/pull)
SENSE 5 I Adjustable sense input
NC 1 — No internal connection
NC 5 — No internal connection
(TPS3803G15-Q1)
VDD 4 I Input supply voltage, fixed sense input for TPS3803G15-Q1 and TPS3805-Q1
Copyright © 2003–2015, Texas Instruments Incorporated Submit Documentation Feedback 3
Product Folder Links: TPS3803-01-Q1 TPS3803G15-Q1 TPS3805H33-Q1
l TEXAS INSTRUMENTS
TPS3803-01-Q1
TPS3803G15-Q1
,
TPS3805H33-Q1
SGLS228C –DECEMBER 2003–REVISED SEPTEMBER 2015
www.ti.com
7 Specifications
7.1 Absolute Maximum Ratings
over operating free-air temperature range (unless otherwise noted)(1)
MIN MAX UNIT
VDD Supply voltage(2) 7 7 V
Voltage applied to all other pins(2) –0.3 7 V
IOL Maximum low-level output current 5 mA
IOH Maximum high-level output current –5 mA
IIK Input clamp current VI< 0 or VI> VDD ±10 mA
IOK Output clamp current VO< 0 or VO> VDD ±10 mA
PDContinuous total power dissipation See Dissipation Ratings
TAOperating free-air temperature –40 125 °C
Tsolder Soldering temperature 260 °C
Tstg Storage temperature –65 150 °C
(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings
only, and functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating
Conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
(2) All voltage values are with respect to GND. For reliable operation, the device should not be continuously operated at 7 V for more than
t = 1000 h.
7.2 ESD Ratings
VALUE UNIT
Human body model (HBM), per AEC Q100-002(1) ±2000
Electrostatic
V(ESD) V
discharge Charged-device model (CDM), per AEC Q100-011 ±1000
(1) AEC Q100-002 indicates that HBM stressing shall be in accordance with the ANSI/ESDA/JEDEC JS-001 specification.
7.3 Recommended Operating Conditions
MIN MAX UNIT
VDD Supply voltage 1.3 6 V
VIInput voltage 0 VDD + 0.3 V
TAOperating free-air temperature –40 125 °C
7.4 Thermal Information
TPS3803x-Q1
TPS3805x-Q1
THERMAL METRIC(1) UNIT
DCK (SC-70)
5 PINS
RθJA Junction-to-ambient thermal resistance 246.6 °C/W
RθJC(top) Junction-to-case (top) thermal resistance 68.2 °C/W
RθJB Junction-to-board thermal resistance 78.4 °C/W
ψJT Junction-to-top characterization parameter 0.9 °C/W
ψJB Junction-to-board characterization parameter 77.7 °C/W
RθJC(bot) Junction-to-case (bottom) thermal resistance N/A °C/W
(1) For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application
report, SPRA953.
4Submit Documentation Feedback Copyright © 2003–2015, Texas Instruments Incorporated
Product Folder Links: TPS3803-01-Q1 TPS3803G15-Q1 TPS3805H33-Q1
l TEXAS INSTRUMENTS
TPS3803-01-Q1
TPS3803G15-Q1
,
TPS3805H33-Q1
www.ti.com
SGLS228C –DECEMBER 2003–REVISED SEPTEMBER 2015
7.5 Electrical Characteristics
over operating free-air temperature range (unless otherwise noted)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
VDD = 1.5 V, IOH = –0.5 mA
VOH High-level output voltage (TPS3805 only) VDD = 3.3 V, IOH = –1 mA 0.8 × VDD V
VDD = 6 V, IOH = –1.5 mA
VDD = 1.5 V, IOL = 1 mA
VOL Low-level output voltage VDD = 3.3 V, IOL = 2 mA 0.3 V
VDD = 6 V, IOL = 3 mA
VIT > 1.5 V, TA= 25°C 0.8
Power-up reset voltage(1) V
VIT ≤1.5 V, TA= 25°C 1
SENSE 1.2 1.226 1.244
Negative-going input
VIT TPS3803G15 1.379 1.4 1.421 V
threshold voltage(2)
TPS3805H33 3.004 3.05 3.096
1.2 V < VIT < 2.5 V 15
Vhys Hysteresis mV
2.5 V < VIT < 3.5 V 30
IIInput current SENSE –25 25 nA
High-level output
IOH Open drain only VDD = VIT + 0.2 V, VOH = VDD 300 nA
current at RESET
TPS3803-01 2 4
VDD = 3.3 V, Output unconnected
TPS3805, TPS3803G15 3 5
IDD Supply current μA
TPS3803-01 2 4
VDD = 6 V, Output unconnected
TPS3805, TPS3803G15 4 6
CIInput capacitance VI= 0 V to VDD 1 pF
(1) The lowest supply voltage at which RESET (VOL(max) = 0.2 V, IOL = 50 μA) becomes active. tr(VDD)≥15 μs/V.
(2) To ensure the best stability of the threshold voltage, place a bypass capacitor (ceramic, 0.1-μF) near the supply terminals.
7.6 Timing Requirements
RL= 1 MΩ, CL= 50 pF, TA= –40°C to 125°C (unless otherwise noted)
MIN MAX UNIT
VDD
twPulse duration VIH = 1.05 × VIT, VIL = 0.95 × VIT 5.5 μs
SENSE
7.7 Switching Characteristics
RL= 1 MΩ, CL= 50 pF, TA= –40°C to 125°C (unless otherwise noted)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
VDD to RESET delay
Propagation (delay) time,
tPHL VIH = 1.05 × VIT, VIL = 0.95 × VIT 5 100 μs
high-to-low-level output SENSE to RESET delay
VDD to RESET delay
Propagation (delay) time,
tPLH VIH = 1.05 × VIT, VIL = 0.95 × VIT 5 100 μs
SENSE to RESET delay
low-to-high-level output μA
7.8 Dissipation Ratings
POWER RATING DERATING FACTOR POWER RATING POWER RATING
PACKAGE TA< 25°C ABOVE TA= 25°C TA= 70°C TA= 85°C
DCK 321 mW 2.6 mW/°C 206 mW 167 mW
Copyright © 2003–2015, Texas Instruments Incorporated Submit Documentation Feedback 5
Product Folder Links: TPS3803-01-Q1 TPS3803G15-Q1 TPS3805H33-Q1
‘5‘ TEXAS INSTRUMENTS
VDD or SENSE
VIT + Vhys
VIT
0.8 V
RESET
= Undefined
TPS3803-01-Q1
TPS3803G15-Q1
,
TPS3805H33-Q1
SGLS228C –DECEMBER 2003–REVISED SEPTEMBER 2015
www.ti.com

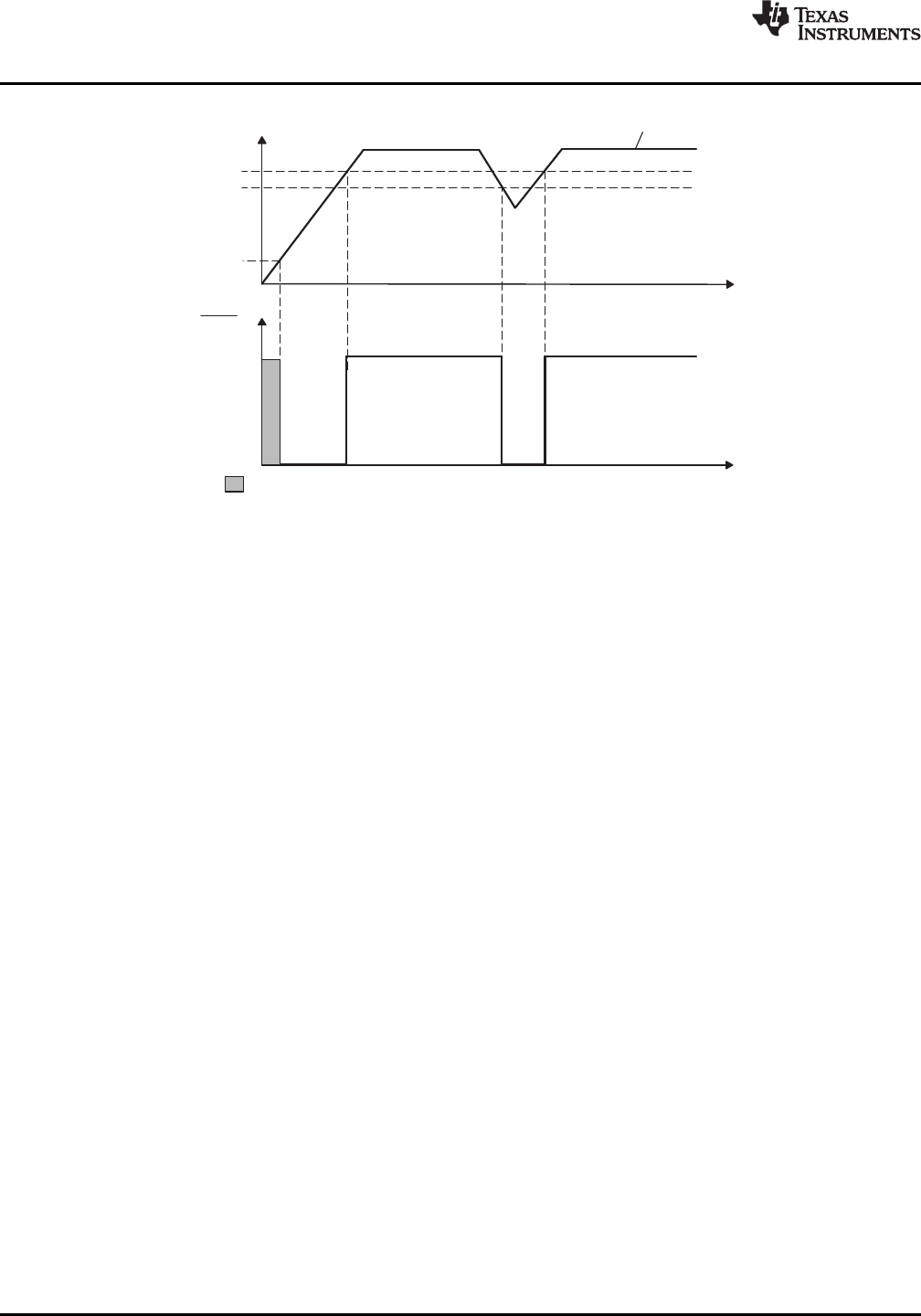

Figure 1. Timing Requirements
6Submit Documentation Feedback Copyright © 2003–2015, Texas Instruments Incorporated
Product Folder Links: TPS3803-01-Q1 TPS3803G15-Q1 TPS3805H33-Q1
l TEXAS INSTRUMENTS \ \ T“ \\ / AH \ \\X fl \XV \\ \
0.7
0.6
0.5
0.4
0 2 4 6 8 10 12
0.8
0.9
1
14 16 18 20
85°C
0°C
25°C
-40 °C
VDD = 6 V
V(SENSE) = Low
0.3
0.2
0.1
0
(Expanded View)
I – Low-Level Output Current – mA
OL
V – Low-Level Output Voltage – V
OL
1.00
0.80
0.60
0.40
0 1 2 3 4 5
1.20
1.40
1.60
I – Low-Level Output Current – mA
OL
V – Low-Level Output Voltage – V
OL
0.20
0
VDD = 1.5 V
V(SENSE) = Low
85°C
0°C
25°C
-40 °C
0.35
0.30
0.25
0.20
0 0.5 1 1.5 2 2.5 3
0.40
0.45
0.50
0.15
0.10
0.05
0
85°C
0°C
25°C
-40 °C
VDD = 1.5 V
V(SENSE) = Low
(Expanded View)
I – Low-Level Output Current – mA
OL
V – Low-Level Output Voltage – V
OL
3
2
1
0
0 0.5 1 1.5 2 2.5 3
4
5
6
3.5 4 4.5 5 5.5 6
SENSE = GND
RESET = Open
85°C
0°C
25°C
-40 °C
I – Supply Current – µA
DD
V – Supply Voltage – V
DD
1.5
1
0.5
0
0 0.5 1 1.5 2 2.5 3
2
2.5
3
3.5 4 4.5 5 5.5 6
SENSE = GND
RESET = Open
85°C
0°C
-40 °C
25°C
I – Supply Current – µA
DD
V – Supply Voltage – V
DD
TPS3803-01-Q1
TPS3803G15-Q1
,
TPS3805H33-Q1
www.ti.com
SGLS228C –DECEMBER 2003–REVISED SEPTEMBER 2015
7.9 Typical Characteristics
Figure 2. TPS3805H33-Q1 Supply Current vs Supply Voltage Figure 3. TPS3803-01-Q1 Supply Current vs Supply Voltage
Figure 4. Low-Level Output Voltage vs Low-Level Output Figure 5. Low-Level Output Voltage vs Low-Level Output
Current Current
Figure 6. Low-Level Output Voltage vs Low-Level Output Figure 7. Low-Level Output Voltage vs Low-Level Output
Current Current
Copyright © 2003–2015, Texas Instruments Incorporated Submit Documentation Feedback 7
Product Folder Links: TPS3803-01-Q1 TPS3803G15-Q1 TPS3805H33-Q1
l TEXAS INSTRUMENTS /// HT
1.0005
1.0000
0.9995
0.9990
-40 -20 0 20 40 60 80
1.0010
1.0015
1.0020
0.9985
0.9980
VDD = 6 V
RESET = 100 kWto VDD
T – Free-Air Temperature at SENSE – °C
A
V – Normalized Input Threshold Voltage V (T )/V (25°C)
IT IT A IT
5.4
5.2
5
4.8
-14 -12 -10 -8 -6 -4
5.6
5.8
6
4.6 -2 0
85°C
0°C
25°C
-40 °C
VDD = 6 V
V(SENSE) = High
(Expanded View)
I – High-Level Output Current – mA
OH
V – High-Level Output Voltage – V
OH
2.75
2.25
2
1.75
-14 -12 -10 -8 -6 -4 -2
3
3.25
3.5
0
1.5
2.5
0°C
25°C
-40 °C
VDD = 3.3 V
V(SENSE) = High
85°C
I – High-Level Output Current – mA
OH
V – High-Level Output Voltage – V
OH
3
2.9
2.8
2.7
-5 -4 -3 -2 -1 0
3.1
3.2
3.3
2.6
2.5
0°C
25°C
-40 °C
VDD = 3.3 V
V(SENSE) = High
85°C
(Expanded View)
I – High-Level Output Current – mA
OH
V – High-Level Output Voltage – V
OH
TPS3803-01-Q1
TPS3803G15-Q1
,
TPS3805H33-Q1
SGLS228C –DECEMBER 2003–REVISED SEPTEMBER 2015
www.ti.com
Typical Characteristics (continued)
Figure 8. TPS3805H33-Q1 High-Level Output Voltage vs Figure 9. TPS3805H33-Q1 High-Level Output Voltage vs
High-Level Output Current High-Level Output Current
Figure 10. TPS3805H33-Q1 High-Level Output Voltage vs Figure 11. TPS3805H33-Q1 High-Level Output Voltage vs
High-Level Output Current High-Level Output Current
Figure 12. TPS3803-01-Q1 Normalized Input Threshold Voltage vs Free-Air Temperature At Sense
8Submit Documentation Feedback Copyright © 2003–2015, Texas Instruments Incorporated
Product Folder Links: TPS3803-01-Q1 TPS3803G15-Q1 TPS3805H33-Q1
‘5‘ TEXAS INSTRUMENTS r—————————————— IIIIL
_
+
R1
R2
Reference
Voltage
of 1.215 V
RESET
VDD
GND
_
+
Reference
Voltage
of 1.226 V
RESET
VDD
GND
SENSE
Device
Supply Voltage
_
+
_
+
R1
R2
VDD
GND
Reference
Voltage
of 1.226 V
SENSE
RESET
TPS3803G15-Q1 TPS3803-01-Q1
TPS3805H33-Q1
TPS3803-01-Q1
TPS3803G15-Q1
,
TPS3805H33-Q1
www.ti.com
SGLS228C –DECEMBER 2003–REVISED SEPTEMBER 2015
8 Detailed Description
8.1 Overview
The TPS380x-Q1 devices are low-current supervisory circuits used to monitor system voltages above 1.226 V.
The devices assert an active low RESET signal when VDD ,SENSE, or both voltages drop below a preset
threshold. The RESET output remains low until the VDD, SENSE, or both voltages return above their thresholds.
The devices are also designed to be immune to short negative transients on the VDD and SENSE pins.
8.2 Functional Block Diagrams
8.3 Feature Description
8.3.1 VDD and SENSE Monitoring
The VDD and SENSE inputs provide a pin at which a system voltage can be monitored. If the voltage on this pin
drops below VIT, RESET is asserted low. The comparator has a built-in hysteresis to ensure smooth RESET
assertions and de-assertions. Refer to the Device Comparison Table to determine the VDD and SENSE voltage
thresholds for each device. The adjustable version TPS3803-01-Q1 can be used to monitor any voltage rail down
to 1.226 V using the circuit shown in Figure 13, where VIT' is the Vin threshold voltage.
Copyright © 2003–2015, Texas Instruments Incorporated Submit Documentation Feedback 9
Product Folder Links: TPS3803-01-Q1 TPS3803G15-Q1 TPS3805H33-Q1
l TEXAS INSTRUMENTS v : (1 + M/Rfl‘llzfi R E ; V or SENSE Duvauun
7
6
5
4
0 0.1 0.2 0.3 0.4 0.5 0.6
8
9
10
0.7 0.8 0.9 1
3
2
1
0
VDD – Threshold Overdrive Voltage – V
t – Minimum Pulse Duration at V – µs
w DD
7
6
5
4
0 0.1 0.2 0.3 0.4 0.5 0.6
8
9
10
0.7 0.8 0.9 1
3
2
1
0
SENSE Threshold Overdrive Voltage – V–
t – Minimum Pulse Duration at SENSE – µs
w
VDD or SENSE
VIT
Overdrive
Voltage
Transient
Duration
VDD
TPS3803-01-Q1
SENSE
_____
RESET
GND
VIN
R1
R2
VIT[= (1 + R1/R2)*1.226
Reset
TPS3803-01-Q1
TPS3803G15-Q1
,
TPS3805H33-Q1
SGLS228C –DECEMBER 2003–REVISED SEPTEMBER 2015
www.ti.com
Feature Description (continued)
Figure 13. Using Adjustable Version
8.3.2 Transient Immunity
The TPS380x-Q1 devices are immune to short negative transients on the VDD and SENSE pins. Sensitivity to
transients is dependent on threshold overdrive as shown in Figure 15 and Figure 16. These graphs show the
duration that the transient is below VIT compared to the magnitude of the voltage drop below VIT, called the
threshold overdrive voltage. Any combination of transient duration and overdrive voltage which lies above the
curves will result in RESET being asserted low. Any transient which lies below the curves will be ignored by the
device.
Figure 14. Overdrive Voltage
Figure 15. Minimum Pulse Duration at VDD vs VDD Figure 16. Minimum Pulse Duration at Sense vs Sense
Threshold Overdrive Voltage Threshold Overdrive Voltage
10 Submit Documentation Feedback Copyright © 2003–2015, Texas Instruments Incorporated
Product Folder Links: TPS3803-01-Q1 TPS3803G15-Q1 TPS3805H33-Q1
l TEXAS INSTRUMENTS
TPS3803-01-Q1
TPS3803G15-Q1
,
TPS3805H33-Q1
www.ti.com
SGLS228C –DECEMBER 2003–REVISED SEPTEMBER 2015
8.4 Device Functional Modes
TPS3803-01-Q1 and TPS3803G15-Q1 monitor only one supply, which is SENSE and VDD respectively. When
that supply is above the VIT threshold, RESET will be high. Otherwise, RESET will be low. TPS3805H33-Q1
monitors both VDD and SENSE. When both VDD and SENSE are above the VIT threshold, RESET will be high.
Otherwise, RESET will be low.
Table 1. Function and Truth
Table
TPS3803-01-Q1
SENSE > VIT RESET
0 L
1 H
Table 2. Function and Truth
Table
TPS3803G15-Q1
VDD > VIT RESET
0 L
1 H
Table 3. Function and Truth Table
TPS3805H33-Q1
VDD > VIT SENSE > VIT RESET
00L
01L
10L
1 1 H
Copyright © 2003–2015, Texas Instruments Incorporated Submit Documentation Feedback 11
Product Folder Links: TPS3803-01-Q1 TPS3803G15-Q1 TPS3805H33-Q1
l TEXAS INSTRUMENTS 15V “'7 '—
VDD
TPS3803G15-Q1
NC
_____
RESET
GND
VDD
RESET
1.5V
50 lQ
GND
Processor
TPS3803-01-Q1
TPS3803G15-Q1
,
TPS3805H33-Q1
SGLS228C –DECEMBER 2003–REVISED SEPTEMBER 2015
www.ti.com
9 Application and Implementation
NOTE
Information in the following applications sections is not part of the TI component
specification, and TI does not warrant its accuracy or completeness. TI’s customers are
responsible for determining suitability of components for their purposes. Customers should
validate and test their design implementation to confirm system functionality.
9.1 Application Information
The TPS380x-Q1 voltage supervisor devices are designed to assert an active-low RESET signal when VDD
and/or SENSE drop below a voltage threshold VIT. The RESET signal remains low until the voltages return
above their respective thresholds. The TPS3803G15-Q1 and TPS3805H33-Q1 are fixed-voltage options, while
the TPS3803-01-Q1 is adjustable and can be used to monitor any voltage above 1.226 V. The TPS3803G15-Q1
and TPS3803-01-Q1 have an open-drain output, requiring an external pull-up on the RESET line.
9.2 Typical Applications
9.2.1 TPS3803G15-Q1
Figure 17. TPS3803G15 Typical Application
9.2.1.1 Design Requirements
When a single 1.5-V supply rail needs to be monitored, TPS3803G15-Q1 should be used. When a single voltage
higher than 1.226 V needs to be monitored, TPS3803-01-Q1 should be used. When a 3.3-V supply and second
supply above 1.226 V needs to be monitored, TPS3805H33-Q1 should be used.
9.2.1.2 Detailed Design Procedure
To monitor a single 1.5-V supply with TPS3803G15-Q1, connect the 1.5-V supply directly to VDD. The RESET
output should be connected to the reset of the microcontroller with a pull-up resistor from the RESET output to
VDD.
To monitor a single supply using TPS3803-01-Q1, connect the supply to VDD with a resistor divider to scale down
the voltage at the SENSE pin. The resistor values must be chosen to satisfy Equation 1:
VIT' = (1 + R1/R2) × 1.226
where
• VIT’ is the VDD threshold voltage. (1)
For example, if TPS3803-01-Q1 should monitor a 2.5-V supply and the desired threshold voltage is 2.2 V, R1
and R2 values could be 24 kΩand 30- kΩrespectively. A 1-nf to 10-nF decoupling capacitor is recommended to
be placed close to the SENSE input.
12 Submit Documentation Feedback Copyright © 2003–2015, Texas Instruments Incorporated
Product Folder Links: TPS3803-01-Q1 TPS3803G15-Q1 TPS3805H33-Q1
l TEXAS INSTRUMENTS \ \ \\ \ T“ \\ / )x\\ \
VDD
_____
RESET
GND
VDD
TPS3803-01-Q1
SENSE
_____
RESET
GND
VIN
R1
R2
Processor
50 lQ
3
2
1
0
0 0.5 1 1.5 2 2.5 3
4
5
6
3.5 4 4.5 5 5.5 6
SENSE = GND
RESET = Open
85°C
0°C
25°C
-40 °C
I – Supply Current – µA
DD
V – Supply Voltage – V
DD
1.5
1
0.5
0
0 0.5 1 1.5 2 2.5 3
2
2.5
3
3.5 4 4.5 5 5.5 6
SENSE = GND
RESET = Open
85°C
0°C
-40 °C
25°C
I – Supply Current – µA
DD
V – Supply Voltage – V
DD
TPS3803-01-Q1
TPS3803G15-Q1
,
TPS3805H33-Q1
www.ti.com
SGLS228C –DECEMBER 2003–REVISED SEPTEMBER 2015
Typical Applications (continued)
To monitor two supplies using TPS3805H33-Q1, connect the 3.3-V supply directly to VDD, and the second supply
through a resistor divider to the SENSE pin. The SENSE pin should have a 1-nf to 10-nF decoupling capacitor
close to the pin.
9.2.1.3 Application Curves
Figure 18. TPS3805H33-Q1 Supply Current vs Supply Figure 19. TPS3803-01-Q1 Supply Current vs Supply
Voltage Voltage
9.2.2 TPS3803-01-Q1
Figure 20. TPS3803-01-Q1 Typical Application
9.2.2.1 Design Requirements
Please refer to Design Requirements for this device's design requirements.
Copyright © 2003–2015, Texas Instruments Incorporated Submit Documentation Feedback 13
Product Folder Links: TPS3803-01-Q1 TPS3803G15-Q1 TPS3805H33-Q1
l TEXAS INSTRUMENTS JW MW I07
VDD
TPS3805H33-Q1
SENSE
_____
RESET
GND
VDD1
RESET
3.3V
GND
Processor
R1
R2
VDD2
VDD2
TPS3803-01-Q1
TPS3803G15-Q1
,
TPS3805H33-Q1
SGLS228C –DECEMBER 2003–REVISED SEPTEMBER 2015
www.ti.com
Typical Applications (continued)
9.2.3 TPS3805H33-Q1
Figure 21. TPS3805H33-Q1 Typical Application
9.2.3.1 Design Requirements
Please refer to Design Requirements for this device's design requirements.
10 Power Supply Recommendations
The TPS380x-Q1 devices are designed to operate from an input supply from 1.3 V to 6 V. TI recommends to
place a 0.1-µF capacitor near the VDD pin.
14 Submit Documentation Feedback Copyright © 2003–2015, Texas Instruments Incorporated
Product Folder Links: TPS3803-01-Q1 TPS3803G15-Q1 TPS3805H33-Q1
l TEXAS INSTRUMENTS +0 WW 0 L , % %T 0 HP fi/VVH
R1 R2
NC
GND
RESET
SENSE
VDD
CVDD
TPS3803-01-Q1 C
R
Denotes GND Via
NC
GND
RESET
NC
VDD
CVDD
TPS3803G15-Q1
R
Denotes GND Via
TPS3803-01-Q1
TPS3803G15-Q1
,
TPS3805H33-Q1
www.ti.com
SGLS228C –DECEMBER 2003–REVISED SEPTEMBER 2015
11 Layout
11.1 Layout Guidelines
TI recommends to place the 0.1-µF decoupling capacitor close to the VDD pin. The VDD trace should be able to
carry 6 µA without a significant drop in voltage. Avoid a long trace from the SENSE pin to the resistor divider.
11.2 Layout Examples

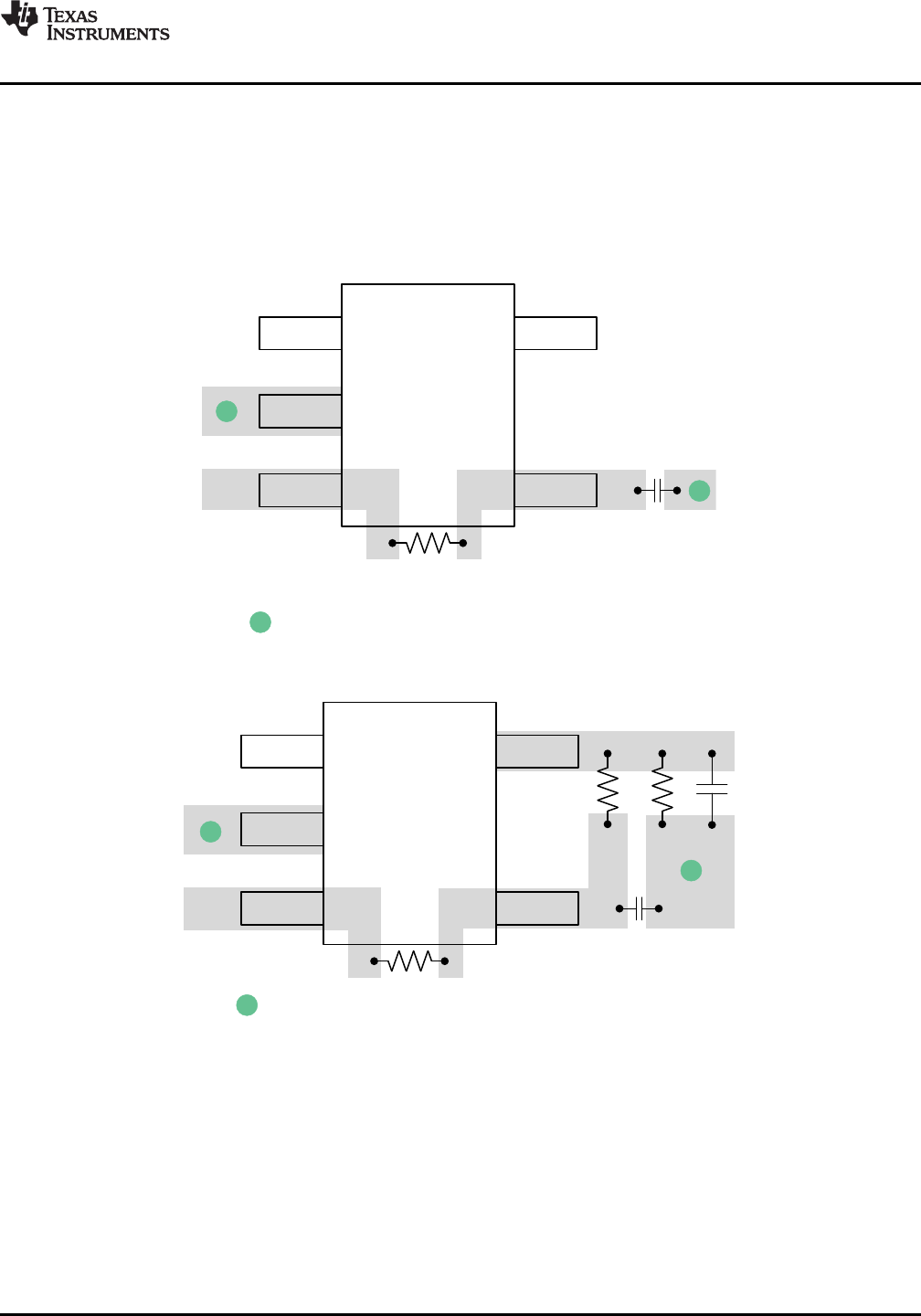

Figure 22. TPS3803G15-Q1 Layout Example
Figure 23. TPS3803-01-Q1 Layout Example
Copyright © 2003–2015, Texas Instruments Incorporated Submit Documentation Feedback 15
Product Folder Links: TPS3803-01-Q1 TPS3803G15-Q1 TPS3805H33-Q1
l TEXAS INSTRUMENTS AHHMN OFWVL- HP
R1
R2
NC
GND
RESET
SENSE
VDD
CVDD
TPS3805H33-Q1 C
Denotes GND Via
TPS3803-01-Q1
TPS3803G15-Q1
,
TPS3805H33-Q1
SGLS228C –DECEMBER 2003–REVISED SEPTEMBER 2015
www.ti.com
Layout Examples (continued)
Figure 24. TPS3805H33-Q1 Layout Example
16 Submit Documentation Feedback Copyright © 2003–2015, Texas Instruments Incorporated
Product Folder Links: TPS3803-01-Q1 TPS3803G15-Q1 TPS3805H33-Q1
T L LLLL LLL
TPS380 3 G 15 DCK R
Reel
Package
Nominal Supply Voltage
Nominal Threshold Voltage
Functionality
Family
Q
Temperature Designator
Q1
Customer Suffix
TPS3803-01-Q1
TPS3803G15-Q1
,
TPS3805H33-Q1
www.ti.com
SGLS228C –DECEMBER 2003–REVISED SEPTEMBER 2015
12 Device and Documentation Support
12.1 Device Support
12.1.1 Device Nomenclature
12.2 Related Links
The table below lists quick access links. Categories include technical documents, support and community
resources, tools and software, and quick access to sample or buy.
Table 4. Related Links
TECHNICAL TOOLS & SUPPORT &
PARTS PRODUCT FOLDER SAMPLE & BUY DOCUMENTS SOFTWARE COMMUNITY
TPS3803-01-Q1 Click here Click here Click here Click here Click here
TPS3803G15-Q1 Click here Click here Click here Click here Click here
TPS3805H33-Q1 Click here Click here Click here Click here Click here
12.3 Community Resources
The following links connect to TI community resources. Linked contents are provided "AS IS" by the respective
contributors. They do not constitute TI specifications and do not necessarily reflect TI's views; see TI's Terms of
Use.
TI E2E™ Online Community TI's Engineer-to-Engineer (E2E) Community. Created to foster collaboration
among engineers. At e2e.ti.com, you can ask questions, share knowledge, explore ideas and help
solve problems with fellow engineers.
Design Support TI's Design Support Quickly find helpful E2E forums along with design support tools and
contact information for technical support.
12.4 Trademarks
E2E is a trademark of Texas Instruments.
All other trademarks are the property of their respective owners.
12.5 Electrostatic Discharge Caution
These devices have limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam
during storage or handling to prevent electrostatic damage to the MOS gates.
12.6 Glossary
SLYZ022 —TI Glossary.
This glossary lists and explains terms, acronyms, and definitions.
Copyright © 2003–2015, Texas Instruments Incorporated Submit Documentation Feedback 17
Product Folder Links: TPS3803-01-Q1 TPS3803G15-Q1 TPS3805H33-Q1
l TEXAS INSTRUMENTS
TPS3803-01-Q1
TPS3803G15-Q1
,
TPS3805H33-Q1
SGLS228C –DECEMBER 2003–REVISED SEPTEMBER 2015
www.ti.com
13 Mechanical, Packaging, and Orderable Information
The following pages include mechanical, packaging, and orderable information. This information is the most
current data available for the designated devices. This data is subject to change without notice and revision of
this document. For browser-based versions of this data sheet, refer to the left-hand navigation.
18 Submit Documentation Feedback Copyright © 2003–2015, Texas Instruments Incorporated
Product Folder Links: TPS3803-01-Q1 TPS3803G15-Q1 TPS3805H33-Q1
I TEXAS INSTRUMENTS Samples Samples Sample: Sample: Samples Samples
PACKAGE OPTION ADDENDUM
www.ti.com 10-Dec-2020
Addendum-Page 1
PACKAGING INFORMATION
Orderable Device Status
(1)
Package Type Package
Drawing Pins Package
Qty Eco Plan
(2)
Lead finish/
Ball material
(6)
MSL Peak Temp
(3)
Op Temp (°C) Device Marking
(4/5)
Samples
2T03-01QDCKRG4Q1 ACTIVE SC70 DCK 5 3000 RoHS & Green NIPDAUAG Level-1-260C-UNLIM -40 to 125 AWJ
2T03G15QDCKRG4Q ACTIVE SC70 DCK 5 3000 RoHS & Green NIPDAUAG Level-1-260C-UNLIM -40 to 125 AXU
2T05H33QDCKRG4Q ACTIVE SC70 DCK 5 3000 RoHS & Green NIPDAU | NIPDAUAG Level-1-260C-UNLIM -40 to 125 AWZ
TPS3803-01QDCKRQ1 ACTIVE SC70 DCK 5 3000 RoHS & Green NIPDAUAG Level-1-260C-UNLIM -40 to 125 AWJ
TPS3803G15QDCKRQ1 ACTIVE SC70 DCK 5 3000 RoHS & Green NIPDAU | NIPDAUAG Level-1-260C-UNLIM -40 to 125 AXU
TPS3805H33QDCKRQ1 ACTIVE SC70 DCK 5 3000 RoHS & Green NIPDAU | NIPDAUAG Level-1-260C-UNLIM -40 to 125 AWZ
(1) The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
(2) RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance
do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may
reference these types of products as "Pb-Free".
RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption.
Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of <=1000ppm threshold. Antimony trioxide based
flame retardants must also meet the <=1000ppm threshold requirement.
(3) MSL, Peak Temp. - The Moisture Sensitivity Level rating according to the JEDEC industry standard classifications, and peak solder temperature.
(4) There may be additional marking, which relates to the logo, the lot trace code information, or the environmental category on the device.
(5) Multiple Device Markings will be inside parentheses. Only one Device Marking contained in parentheses and separated by a "~" will appear on a device. If a line is indented then it is a continuation
of the previous line and the two combined represent the entire Device Marking for that device.
(6) Lead finish/Ball material - Orderable Devices may have multiple material finish options. Finish options are separated by a vertical ruled line. Lead finish/Ball material values may wrap to two
lines if the finish value exceeds the maximum column width.
I TEXAS INSTRUMENTS
PACKAGE OPTION ADDENDUM
www.ti.com 10-Dec-2020
Addendum-Page 2
Important Information and Disclaimer:The information provided on this page represents TI's knowledge and belief as of the date that it is provided. TI bases its knowledge and belief on information
provided by third parties, and makes no representation or warranty as to the accuracy of such information. Efforts are underway to better integrate information from third parties. TI has taken and
continues to take reasonable steps to provide representative and accurate information but may not have conducted destructive testing or chemical analysis on incoming materials and chemicals.
TI and TI suppliers consider certain information to be proprietary, and thus CAS numbers and other limited information may not be available for release.
In no event shall TI's liability arising out of such information exceed the total purchase price of the TI part(s) at issue in this document sold by TI to Customer on an annual basis.
OTHER QUALIFIED VERSIONS OF TPS3803-Q1, TPS3805H33-Q1 :
•Catalog: TPS3803, TPS3805H33
•Enhanced Product: TPS3803-EP, TPS3805H33-EP
NOTE: Qualified Version Definitions:
•Catalog - TI's standard catalog product
•Enhanced Product - Supports Defense, Aerospace and Medical Applications
I TEXAS INSTRUMENTS REEL DIMENSIONS TAPE DIMENSIONS 7 “KO '«PT» Reel Diame|er AD Dimension des‘gned to accommodate the componem wwdlh E0 Dimension damned to eccemmodam the component \ength KO Dimenslun desgned to accommodate the componem thickness 7 w Overen with loe earner cape i p1 Pitch between successwe cavuy eemers f T Reel Width (W1) QUADRANT ASSIGNMENTS FOR PIN 1 ORIENTATION IN TAPE O O O D O O D O Sprockemoles ,,,,,,,,,,, ‘ User Direcllon 0' Feed Pocket Quadrams
TAPE AND REEL INFORMATION
*All dimensions are nominal
Device Package
Type Package
Drawing Pins SPQ Reel
Diameter
(mm)
Reel
Width
W1 (mm)
A0
(mm) B0
(mm) K0
(mm) P1
(mm) W
(mm) Pin1
Quadrant
TPS3803G15QDCKRQ1 SC70 DCK 5 3000 180.0 8.4 2.47 2.3 1.25 4.0 8.0 Q3
PACKAGE MATERIALS INFORMATION
www.ti.com 8-Feb-2018
Pack Materials-Page 1
I TEXAS INSTRUMENTS TAPE AND REEL BOX DIMENSIONS
*All dimensions are nominal
Device Package Type Package Drawing Pins SPQ Length (mm) Width (mm) Height (mm)
TPS3803G15QDCKRQ1 SC70 DCK 5 3000 183.0 183.0 20.0
PACKAGE MATERIALS INFORMATION
www.ti.com 8-Feb-2018
Pack Materials-Page 2
MECHANICAL DATA DCK (R—PDSO—GS) PLASTIC SMALL—OUTLINE PACKAGE E was 5 47 Fl Fl f f 240 \ ,i, w 1,80 1,10 Pm/ \ ‘ $ ‘ . maexArea Wm H 1* MO Um Gauge Mane Seanng Mane fit Scam Mane gig/Em 409555575/8 U‘ /200/ , m m hmeters NO'FS AH \mec' dwmensiur: Umm> FuHs an JFDFC M07763 vunuhcn AA Tm drawmq \s sumsc: 0 change wmu: nome Body mmensmns do nut mc‘ude mom flcsh m aroms'm Mom Has» and pruvuswon W m exceed 015 :2r m INSrRUMEm-s www.1i.com

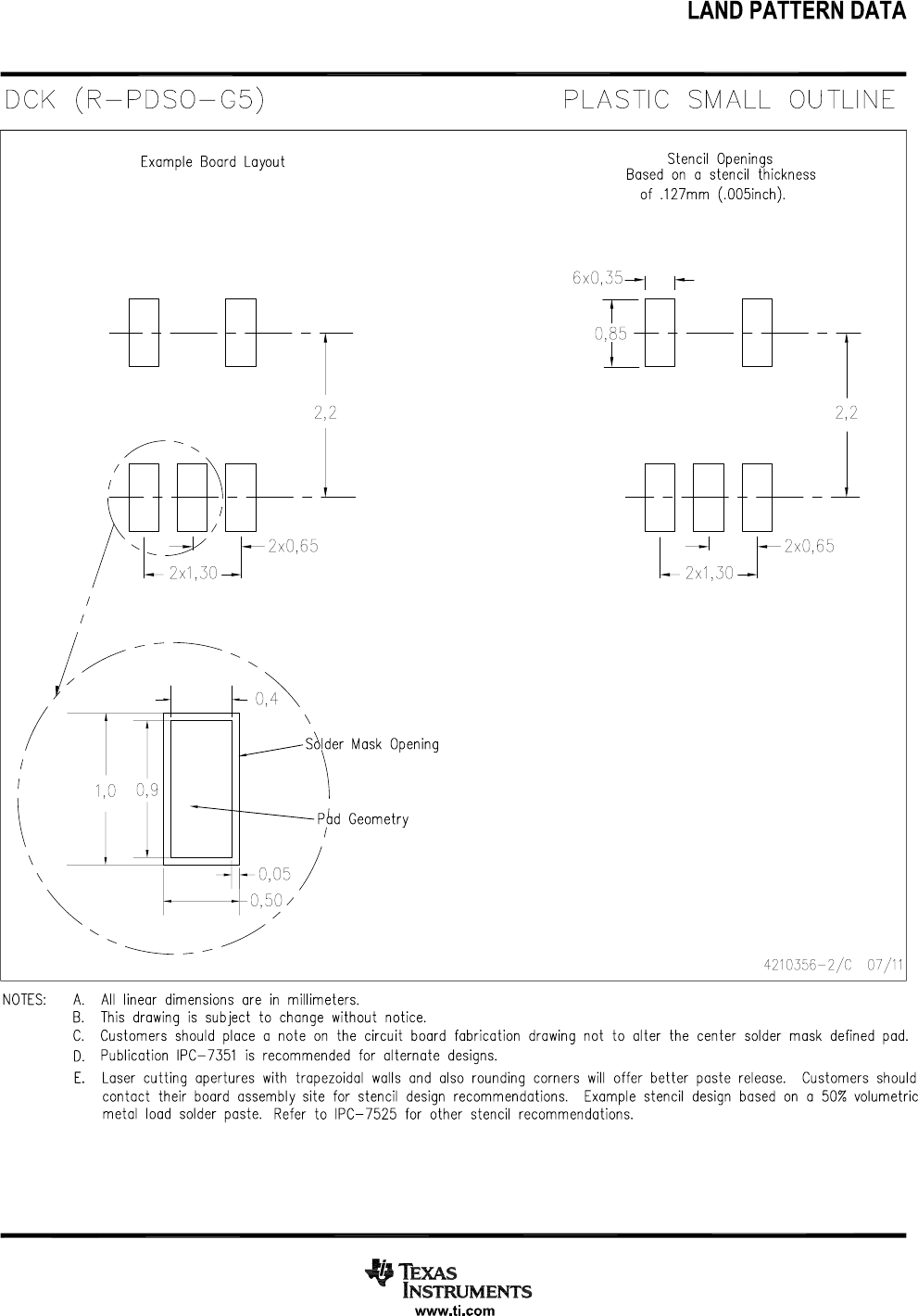

LAND PATTERN DATA DC< (="" 7pjsoic5=""> PLASTC SMALL OU’LME Exc'm‘e Boc'd LuyuM stem Openings Based or a stencfl tn'ckndss uf 127mm (005m) /23\\der Musk Cpen'v‘g d d s W \‘ ‘\“=bd Geometry \ v y \ NOTES- A M \meur dimensmns are m miHWete's a. In: druwv‘q is sweat (a chc'vge mud: 'vuhce c Custume's snodd p‘uce d note 01 me mm: buurd (abr'cahun c'awmg nm :0 mm the ce'fle' smder musk denned Dad, n mundmn many is reco'n'nended (Dr uHernme designs EV Laser cumrq opc'mvcs wnn "apczmda wuHs and mo rouncmq corners wm am bcncr dosxc readscv Cdstomcrs shou‘c can thew Guard asse’na‘y me for Ska design recom’nencnhons EXONP‘S s‘ercfl des‘g’v baSeC on a 50% vo‘umemc \Dud su‘der paste M‘cr m H’C’ bk) Var other S‘cncfl rccowmcwdatnrs. ' hams Q‘ INSTRUMENTS www.li.com
IMPORTANT NOTICE AND DISCLAIMER
TI PROVIDES TECHNICAL AND RELIABILITY DATA (INCLUDING DATASHEETS), DESIGN RESOURCES (INCLUDING REFERENCE
DESIGNS), APPLICATION OR OTHER DESIGN ADVICE, WEB TOOLS, SAFETY INFORMATION, AND OTHER RESOURCES “AS IS”
AND WITH ALL FAULTS, AND DISCLAIMS ALL WARRANTIES, EXPRESS AND IMPLIED, INCLUDING WITHOUT LIMITATION ANY
IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT OF THIRD
PARTY INTELLECTUAL PROPERTY RIGHTS.
These resources are intended for skilled developers designing with TI products. You are solely responsible for (1) selecting the appropriate
TI products for your application, (2) designing, validating and testing your application, and (3) ensuring your application meets applicable
standards, and any other safety, security, or other requirements. These resources are subject to change without notice. TI grants you
permission to use these resources only for development of an application that uses the TI products described in the resource. Other
reproduction and display of these resources is prohibited. No license is granted to any other TI intellectual property right or to any third
party intellectual property right. TI disclaims responsibility for, and you will fully indemnify TI and its representatives against, any claims,
damages, costs, losses, and liabilities arising out of your use of these resources.
TI’s products are provided subject to TI’s Terms of Sale (www.ti.com/legal/termsofsale.html) or other applicable terms available either on
ti.com or provided in conjunction with such TI products. TI’s provision of these resources does not expand or otherwise alter TI’s applicable
warranties or warranty disclaimers for TI products.
Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265
Copyright © 2020, Texas Instruments Incorporated
