TMS320F2802x Microcontrollers
1 Features
• High-efficiency 32-bit CPU (TMS320C28x)
– 60 MHz (16.67-ns cycle time)
– 50 MHz (20-ns cycle time)
– 40 MHz (25-ns cycle time)
– 16 × 16 and 32 × 32 MAC operations
– 16 × 16 dual MAC
– Harvard bus architecture
– Atomic operations
– Fast interrupt response and processing
– Unified memory programming model
– Code-efficient (in C/C++ and Assembly)
• Endianness: Little endian
• Low cost for both device and system:
– Single 3.3-V supply
– No power sequencing requirement
– Integrated power-on and brown-out resets
– Small packaging, as low as 38-pin available
– Low power
– No analog support pins
• Clocking:
– Two internal zero-pin oscillators
– On-chip crystal oscillator and external clock
input
– Watchdog timer module
– Missing clock detection circuitry
• Up to 22 individually programmable, multiplexed
GPIO pins with input filtering
• Peripheral Interrupt Expansion (PIE) block that
supports all peripheral interrupts
• Three 32-bit CPU timers
• Independent 16-bit timer in each Enhanced Pulse
Width Modulator (ePWM)
• On-chip memory
– Flash, SARAM, OTP, Boot ROM available
• Code-security module
• 128-bit security key and lock
– Protects secure memory blocks
– Prevents firmware reverse engineering
• Serial port peripherals
– One Serial Communications Interface (SCI)
Universal Asynchronous Receiver/Transmitter
(UART) module
– One Serial Peripheral Interface (SPI) module
– One Inter-Integrated-Circuit (I2C) module
• Enhanced control peripherals
– ePWM
– High-Resolution PWM (HRPWM)
– Enhanced Capture (eCAP) module
– Analog-to-Digital Converter (ADC)
– On-chip temperature sensor
– Comparator
• Advanced emulation features
– Analysis and breakpoint functions
– Real-time debug through hardware
• Package options

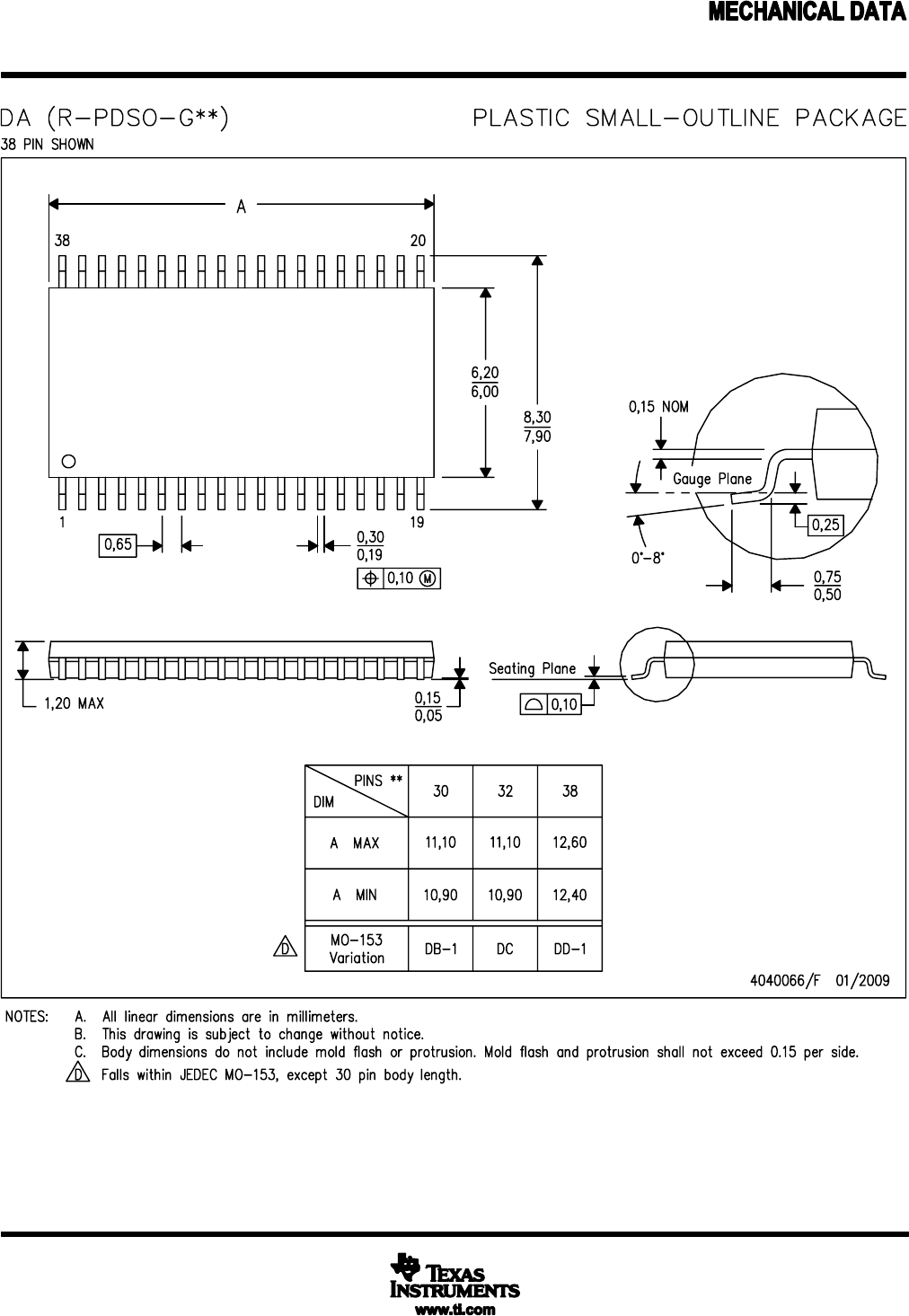

– 38-pin DA Thin Shrink Small-Outline Package
(TSSOP)
– 48-pin PT Low-Profile Quad Flatpack (LQFP)
• Temperature options
– T: –40°C to 105°C
– S: –40°C to 125°C
– Q: –40°C to 125°C
(AEC Q100 qualification for automotive
applications)
2 Applications
•Air conditioner outdoor unit
•Inverter & motor control
•Textile machine
•Micro inverter
•AC drive power stage module
•AC-input BLDC motor drive
•DC-input BLDC motor drive
•Industrial AC-DC
•Three phase UPS
•Merchant DC/DC
•Merchant network & server PSU
•Merchant telecom rectifiers
www.ti.com
TMS320F28027, TMS320F28027-Q1, TMS320F28027F, TMS320F28027F-Q1, TMS320F28026
TMS320F28026-Q1, TMS320F28026F, TMS320F28026F-Q1, TMS320F28023
TMS320F28023-Q1, TMS320F28022, TMS320F28021, TMS320F28020, TMS320F280200
SPRS523P – NOVEMBER 2008 – REVISED FEBRUARY 2021
Copyright © 2021 Texas Instruments Incorporated Submit Document Feedback 1
Product Folder Links: TMS320F28027 TMS320F28027-Q1 TMS320F28027F TMS320F28027F-Q1
TMS320F28026 TMS320F28026-Q1 TMS320F28026F TMS320F28026F-Q1 TMS320F28023 TMS320F28023-
Q1 TMS320F28022 TMS320F28021 TMS320F28020 TMS320F280200
TMS320F28027, TMS320F28027-Q1, TMS320F28027F, TMS320F28027F-Q1, TMS320F28026
TMS320F28026-Q1, TMS320F28026F, TMS320F28026F-Q1, TMS320F28023
TMS320F28023-Q1, TMS320F28022, TMS320F28021, TMS320F28020, TMS320F280200
SPRS523P – NOVEMBER 2008 – REVISED FEBRUARY 2021
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
I TEXAS INSTRUMENTS
3 Description
C2000™ 32-bit microcontrollers are optimized for processing, sensing, and actuation to improve closed-loop
performance in real-time control applications such as industrial motor drives; solar inverters and digital power;
electrical vehicles and transportation; motor control; and sensing and signal processing. The C2000 line includes
the Premium performance MCUs and the Entry performance MCUs.
The F2802x family of microcontrollers provides the power of the C28x core coupled with highly integrated control
peripherals in low pin-count devices. This family is code-compatible with previous C28x-based code, and also
provides a high level of analog integration.
An internal voltage regulator allows for single-rail operation. Enhancements have been made to the HRPWM to
allow for dual-edge control (frequency modulation). Analog comparators with internal 10-bit references have
been added and can be routed directly to control the PWM outputs. The ADC converts from 0 to 3.3-V fixed full-
scale range and supports ratio-metric VREFHI/VREFLO references. The ADC interface has been optimized for low
overhead and latency.
To learn more about the C2000 MCUs, visit the C2000 Overview at www.ti.com/c2000.
Device Information
PART NUMBER(1) PACKAGE BODY SIZE
TMS320F28027PT LQFP (48) 7.0 mm × 7.0 mm
TMS320F28026PT LQFP (48) 7.0 mm × 7.0 mm
TMS320F28023PT LQFP (48) 7.0 mm × 7.0 mm
TMS320F28022PT LQFP (48) 7.0 mm × 7.0 mm
TMS320F28021PT LQFP (48) 7.0 mm × 7.0 mm
TMS320F28020PT LQFP (48) 7.0 mm × 7.0 mm
TMS320F280200PT LQFP (48) 7.0 mm × 7.0 mm
TMS320F28027DA TSSOP (38) 12.5 mm × 6.2 mm
TMS320F28026DA TSSOP (38) 12.5 mm × 6.2 mm
TMS320F28023DA TSSOP (38) 12.5 mm × 6.2 mm
TMS320F28022DA TSSOP (38) 12.5 mm × 6.2 mm
TMS320F28021DA TSSOP (38) 12.5 mm × 6.2 mm
TMS320F28020DA TSSOP (38) 12.5 mm × 6.2 mm
TMS320F280200DA TSSOP (38) 12.5 mm × 6.2 mm
(1) For more information on these devices, see Mechanical, Packaging, and Orderable Information.
TMS320F28027, TMS320F28027-Q1, TMS320F28027F, TMS320F28027F-Q1, TMS320F28026
TMS320F28026-Q1, TMS320F28026F, TMS320F28026F-Q1, TMS320F28023
TMS320F28023-Q1, TMS320F28022, TMS320F28021, TMS320F28020, TMS320F280200
SPRS523P – NOVEMBER 2008 – REVISED FEBRUARY 2021 www.ti.com
2Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: TMS320F28027 TMS320F28027-Q1 TMS320F28027F TMS320F28027F-Q1
TMS320F28026 TMS320F28026-Q1 TMS320F28026F TMS320F28026F-Q1 TMS320F28023 TMS320F28023-
Q1 TMS320F28022 TMS320F28021 TMS320F28020 TMS320F280200
TEXAS INSTRUMENTS comm comm com: | HHHHM++ ¢ | Cnpynghl © 2017, Texas Instrumems Incurpnrmed
4 Functional Block Diagram

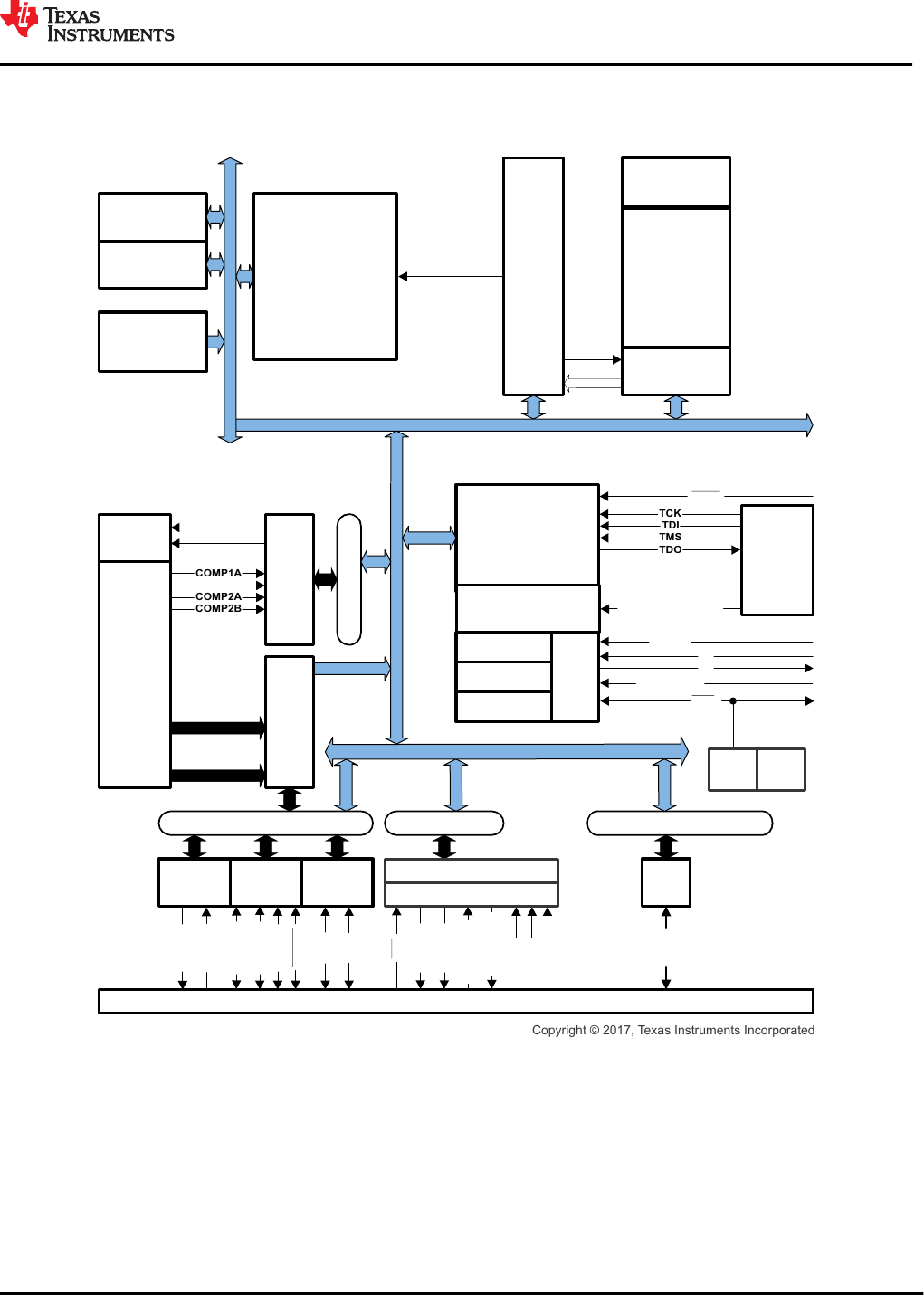

Functional Block Diagram shows the functional block diagram for the device.
