ANALOG DEVICES
Precision Four Degrees of Freedom Sensor
Data Sheet ADIS16305
Rev. A Document Feedback
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other
rights of third parties that may result from its use. Specifications subject to change without notice. No
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Trademarks and registered trademarks are the property of their respective owners.
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106, U.S.A.
Tel: 781.329.4700 ©2010–2014 Analog Devices, Inc. All rights reserved.
Technical Support www.analog.com
FEATURES
Digital gyroscope with range scaling
±75°/sec, ±150°/sec, ±300°/sec settings
Triaxis digital accelerometer: ±3 g
Wide sensor bandwidth: 330 Hz
Autonomous operation and data collection
No external configuration commands required
Start-up time: 180 ms
Sleep mode recovery time: 4 ms
Factory-calibrated sensitivity, bias, and alignment
Calibration temperature range: −40°C to +85°C
SPI-compatible serial interface
Embedded temperature sensor
Programmable operation and control
Automatic and manual bias correction controls
Bartlett window FIR filter length, number of taps
Digital I/O: data-ready, alarm indicator, general-purpose
Alarms for condition monitoring
Sleep mode for power management
DAC output voltage
Enable external sample clock input: up to 1.2 kHz
Single-command self-test
Single-supply operation: 4.75 V to 5.25 V
2000 g shock survivability
Operating temperature range: −40°C to +85°C
APPLICATIONS
Medical instrumentation
Robotics
Platform controls
Navigation
FUNCTIONAL BLOCK DIAGRAM
MEMS
ANGULAR RATE
SENSOR
TEMPERATURE
SENSOR
SIGNAL
CONDITIONING
AND
CONVERSION
CALIBRATION
AND
DIGITAL
PROCESSING
DIGITAL
CONTROL
POWER
MANAGEMENT
OUTPUT
REGISTERS
AND SPI
INTERFACE
A
UX_
ADC AUX_
DAC
RST
CS
SCLK
DIN
DOUT
TRIAXIS MEMS
ACCELERATION
SENSOR
VCC
GND
DIO4
SELF-TEST
ADIS16305
ALARMS
DIO3DIO2DIO1
0
9020-001
Figure 1.
GENERAL DESCRIPTION
The iSensor® ADIS16305 is a complete inertial system that
includes a gyroscope and triaxis accelerometer. Each sensor in
the ADIS16305 combines industry-leading iMEMS® technology
with signal conditioning that optimizes dynamic performance.
The factory calibration characterizes each sensor for sensitivity,
bias, alignment, and linear acceleration (gyro bias). As a result, each
sensor has its own dynamic compensation formulas that provide
accurate sensor measurements over a variety of conditions.
The ADIS16305 provides a simple, cost-effective method for
integrating accurate, multiaxis, inertial sensing into industrial
systems, especially when compared with the complexity and
investment associated with discrete designs. All necessary motion
testing and calibration are part of the production process at the
factory, greatly reducing system integration time. Tight orthogonal
alignment simplifies inertial frame alignment in navigation systems.
An improved SPI interface and register structure provide faster data
collection and configuration control. The ADIS16305 uses a pinout
that is compatible with the ADIS1635x, ADIS1636x, and
ADIS1640x families, when used with an interface flex connector.
This compact module is approximately 23 mm × 31 mm × 8 mm
and provides a standard connector interface, which enables
horizontal or vertical mounting.
OBSOLETE
ADIS16305 Data Sheet
TABLE OF CONTENTS
Features .............................................................................................. 1
Applications ....................................................................................... 1
Functional Block Diagram .............................................................. 1
General Description ......................................................................... 1
Revision History ............................................................................... 2
Specifications ..................................................................................... 3
Timing Specifications .................................................................. 5
Absolute Maximum Ratings ............................................................ 6
ESD Caution .................................................................................. 6
Pin Configuration and Function Descriptions ............................. 7
Typical Performance Characteristics ............................................. 8
Theory of Operation ........................................................................ 9
Basic Operation ............................................................................ 9
Reading Sensor Data .................................................................... 9
Device Configuration .................................................................. 9
Memory Map .............................................................................. 10
Burst Read Data Collection ...................................................... 11
Output Data Registers ............................................................... 11
Orientation Angles ..................................................................... 12
Calibration ................................................................................... 13
Operational Control ................................................................... 13
Input/Output Functions ............................................................ 15
Diagnostics .................................................................................. 16
Product Identification ................................................................ 17
Applications Information .............................................................. 18
Interface Printed Circuit Board (PCB) .................................... 18
Gyroscope Bias Optimization ................................................... 18
Outline Dimensions ....................................................................... 19
Ordering Guide .......................................................................... 19
REVISION HISTORY
6/14—Rev. 0 to Re v. A
Changes to Figure 6 .......................................................................... 7
7/10—Revision 0: Initial Version
Rev. A | Page 2 of 20
OBSOLETE
Data Sheet ADIS16305
SPECIFICATIONS
TA = 25°C, VCC = 5.0 V, angular rate = 0°/sec, dynamic range = ±300°/sec ± 1 g, unless otherwise noted.
Table 1.
Parameter Test Conditions Min Typ Max Unit
GYROSCOPE
Dynamic Range ±300 ±350 °/sec
Initial Sensitivity TA = 25°C, dynamic range = ±300°/sec 0.0495 0.05 0.0505 °/sec/LSB
TA = 25°C, dynamic range = ±150°/sec 0.025 °/sec/LSB
TA = 25°C, dynamic range = ±75°/sec 0.0125 °/sec/LSB
Sensitivity Temperature Coefficient −40°C ≤ TA ≤ +85°C 20 ppm/°C
Misalignment
Reference to z-axis accelerometer, T
A
= 25°C
±0.1
Degrees
Nonlinearity Best-fit straight line 0.1 % of FS
Initial Bias Error TA = 25°C, ±1 σ ±3 °/sec
In-Run Bias Stability TA = 25°C, 1 σ, SMPL_PRD = 0x01 0.006 °/sec
Angular Random Walk TA = 25°C, 1 σ, SMPL_PRD = 0x01 1.85 °/√hr
Bias Temperature Coefficient −40°C ≤ TA ≤ +85°C 0.006 °/sec/°C
Linear Acceleration Effect on Bias Any axis, 1 σ (MSC_CTRL Bit[7] = 1) 0.02 °/sec/g
Voltage Sensitivity VCC = 4.75 V to 5.25 V 0.32 °/sec/V
Output Noise TA = 25°C, ±300°/sec range, no filtering 0.73 °/sec rms
Rate Noise Density TA = 25°C, f = 25 Hz, ±300°/sec, no filtering 0.04 °/sec/√Hz rms
3 dB Bandwidth 330 Hz
Sensor Resonant Frequency
14.5
kHz
Self-Test Change in Output Response ±300°/sec range setting ±696 ±1400 ±2449 LSB
ACCELEROMETERS Each axis
Dynamic Range
±3
±3.6
g
Initial Sensitivity 25°C 0.594 0.6 0.606 mg/LSB
Sensitivity Temperature Coefficient −40°C ≤ TA ≤ +85°C 25 ppm/°C
Misalignment Axis-to-axis, TA = 25°C, Δ = 90° ideal ±0.1 Degrees
Axis-to-frame (package), TA = 25°C ±0.5 Degrees
Nonlinearity Best-fit straight line ±0.3 % of FS
Initial Bias Error TA = 25°C, ±1 σ ±60 mg
In-Run Bias Stability TA = 25°C, 1 σ, SMPL_PRD = 0x01 0.037 mg
Velocity Random Walk TA = 25°C, 1 σ, X axis and Y axis 0.1 m/sec/√hr
TA = 25°C, 1 σ, Z axis 0.16 m/sec/√hr
Bias Temperature Coefficient −40°C ≤ TA ≤ +85°C 0.3 mg/°C
Output Noise
T
A
= 25°C, no filtering, X axis and Y axis
4.25
mg rms
TA = 25°C, no filtering, Z axis 6.5 mg rms
Noise Density TA = 25°C, no filtering, X axis and Y axis 225 µg/√Hz rms
TA = 25°C, no filtering, Z axis 340 µg/√Hz rms
3 dB Bandwidth 330 Hz
Sensor Resonant Frequency 5.5 kHz
Self-Test Change in Output Response
X axis and Y axis
500
1100
1700
LSB
Z axis 90 450 860 LSB
ADC INPUT
Resolution 12 Bits
Integral Nonlinearity ±2 LSB
Differential Nonlinearity ±1 LSB
Offset Error ±4 LSB
Gain Error ±2 LSB
Input Range
0
3.3
V
Input Capacitance During acquisition 20 pF
Rev. A | Page 3 of 20
OBSOLETE
W W
ADIS16305 Data Sheet
Parameter Test Conditions Min Typ Max Unit
DAC OUTPUT 5 kΩ/100 pF to GND
Resolution 12 Bits
Relative Accuracy For Code 101 to Code 4095 ±4 LSB
Differential Nonlinearity ±1 LSB
Offset Error
±5
mV
Gain Error ±0.5 %
Output Range 0 3.3 V
Output Impedance 2 Ω
Output Settling Time 10 µs
LOGIC INPUTS1
Input High Voltage, VINH 2.0 V
Input Low Voltage, VINL 0.8 V
CS signal to wake up from sleep mode 0.55 V
CS Wake-Up Pulse Width 20 µs
Logic 1 Input Current, IINH VIH = 3.3 V ±0.2 ±10 µA
Logic 0 Input Current, IINL VIL = 0 V
All Pins Except RST −40 −60 µA
RST Pin −1 mA
Input Capacitance, C
IN
10
pF
DIGITAL OUTPUTS1
Output High Voltage, VOH ISOURCE = 1.6 mA 2.4 V
Output Low Voltage, V
OL
I
SINK
= 1.6 mA
0.4
V
FLASH MEMORY Endurance2 10,000 Cycles
Data Retention3 TJ = 85°C 20 Years
FUNCTIONAL TIMES4 Time until data is available
Power-On Start-Up Time Normal mode, SMPL_PRD ≤ 0x09 180 ms
Low power mode, SMPL_PRD ≥ 0x0A 250 ms
Reset Recovery Time
Normal mode, SMPL_PRD ≤ 0x09
55
ms
Low power mode, SMPL_PRD ≥ 0x0A 120 ms
Sleep Mode Recovery Time 4 ms
Flash Memory Test Time Normal mode, SMPL_PRD ≤ 0x09 20 ms
Low power mode, SMPL_PRD ≥ 0x0A 90 ms
Automatic Self-Test Time 12 ms
CONVERSION RATE SMPL_PRD = 0x01 to 0xFF 0.413 819.2 SPS
Clock Accuracy ±3 %
Sync Input Clock
1.2
kHz
POWER SUPPLY Operating voltage range, VCC 4.75 5.0 5.25 V
Power Supply Current Low power mode at 25°C 18 mA
Normal mode at 25°C
42
mA
Sleep mode at 25°C 500 µA
1 The digital I/O signals are driven by an internal 3.3 V supply, and the inputs are 5 V tolerant.
2 Endurance is qualified as per JEDEC Standard 22, Method A117, and measured at −40°C, +25°C, +85°C, and +125°C.
3 The retention lifetime equivalent is at a junction temperature (TJ) of 85°C as per JEDEC Standard 22, Method A117. Retention lifetime decreases with junction temperature.
4 These times do not include thermal settling and internal filter response times (330 Hz bandwidth), which may impact overall accuracy.
Rev. A | Page 4 of 20
OBSOLETE
X [Lxxx X _( _L
Data Sheet ADIS16305
TIMING SPECIFICATIONS
TA = 25°C, VCC = 5 V, unless otherwise noted.
Table 2.
Normal Mode
(SMPL_PRD ≤ 0x09)
Low Power Mode
(SMPL_PRD ≥ 0x0A) Burst Read
Parameter Description Min1 Typ Max Min1 Typ Max Min1 Typ Max Unit
fSCLK Serial clock 0.01 2.0 0.01 0.3 0.01 1.0 MHz
tSTALL Stall period between data 9 75 1/fSCLK µs
tREADRATE Read rate 40 100 µs
tCS Chip select to clock edge 48.8 48.8 48.8 ns
DAV
DOUT valid after SCLK edge
100
100
100
ns
tDSU DIN setup time before SCLK rising edge 24.4 24.4 24.4 ns
tDHD DIN hold time after SCLK rising edge 48.8 48.8 48.8 ns
tSCLKR, tSCLKF SCLK rise/fall times (not shown in figures) 5 12.5 5 12.5 5 12.5 ns
tDR, tDF DOUT rise/fall times (not shown in figures) 5 12.5 5 12.5 5 12.5 ns
tSFS CS high after SCLK edge 5 5 5 ns
1
Input sync positive pulse width
5
5
µs
tx Input sync low time 100 100 µs
t2 Input sync to data-ready output 600 600 µs
t3 Input sync period 833 833 µs
1 Guaranteed by design and characterization, but not tested in production.
Timing Diagrams
CS
SCLK
DOUT
DIN
1 2 3 4 5 6 15 16
R/W A5A6 A4 A3 A2 D2
MSB DB14
D1 LSB
DB13 DB12 DB10DB11 DB2 LSBDB1
t
CS
t
SFS
t
DAV
t
DHD
t
DSU
09020-002
Figure 2. SPI Timing and Sequence
CS
SCLK
t
READRATE
t
STALL
09020-003
Figure 3. Stall Time and Data Rate
t3
tX
t2
t1
SYNC
CLOCK (DIO4)
DATA
READY
09020-004
Figure 4. Input Clock Timing Diagram
Rev. A | Page 5 of 20
OBSOLETE
Am ESD [electrosmic charga) sensitiv: davica. Charged devlces and cwcuw boards can dwxchavge wwhcux daemon Mmangh m; pmdun lemmas pakemed or pvopnexavy pvmemon cwwmy, damage may 0((uv Dn dewcas sumened m hm enevgy ESD Therefore, pmpev ESD prezamions mama be Kaken m avmd perfovmarue degvadamm a. loss of functionahty
ADIS16305 Data Sheet
ABSOLUTE MAXIMUM RATINGS
Table 3.
Parameter Rating
Acceleration
Any Axis, Unpowered
2000 g
Any Axis, Powered 2000 g
VCC to GND −0.3 V to +6.0 V
Digital Input Voltage to GND −0.3 V to +5.3 V
Digital Output Voltage to GND −0.3 V to VCC + 0.3 V
Analog Input to GND −0.3 V to +3.6 V
Operating Temperature Range
−40°C to +85°C
Storage Temperature Range −65°C to +125°C1, 2
1 Extended exposure to temperatures outside the specified temperature
range of −40°C to +85°C can adversely affect the accuracy of the factory
calibration. For best accuracy, store the parts within the specified operating
range of −40°C to +85°C.
2 Although the device is capable of withstanding short-term exposure to
150°C, long-term exposure threatens internal mechanical integrity.
Stresses above those listed under Absolute Maximum Ratings
may cause permanent damage to the device. This is a stress
rating only; functional operation of the device at these or any
other conditions above those indicated in the operational
section of this specification is not implied. Exposure to absolute
maximum rating conditions for extended periods may affect
device reliability.
Table 4. Package Characteristics
Package Type θJA θJC Device Weight
24-Lead Module 39.8°C/W 14.2°C/W 6.1 grams (max)
ESD CAUTION
Rev. A | Page 6 of 20
OBSOLETE
fi
Data Sheet ADIS16305
PIN CONFIGURATION AND FUNCTION DESCRIPTIONS
NOTES
1. MATING CONNECTOR: SAMTEC FTSH-112-03
OR EQUIVALENT.
2. DNC = DO NOT CONNECT.
1
DIO3
SCLK
DIN
DIO1
DIO2
VCC
GND
GND
DNC
DNC
AUX_ADC
DNC
DIO4/CLKIN
DOUT
CS
RST
VCC
VCC
GND
DNC
DNC
AUX_DAC
DNC
DNC
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
ADIS16305
TOP VIEW
(Not to Scale)
09020-005

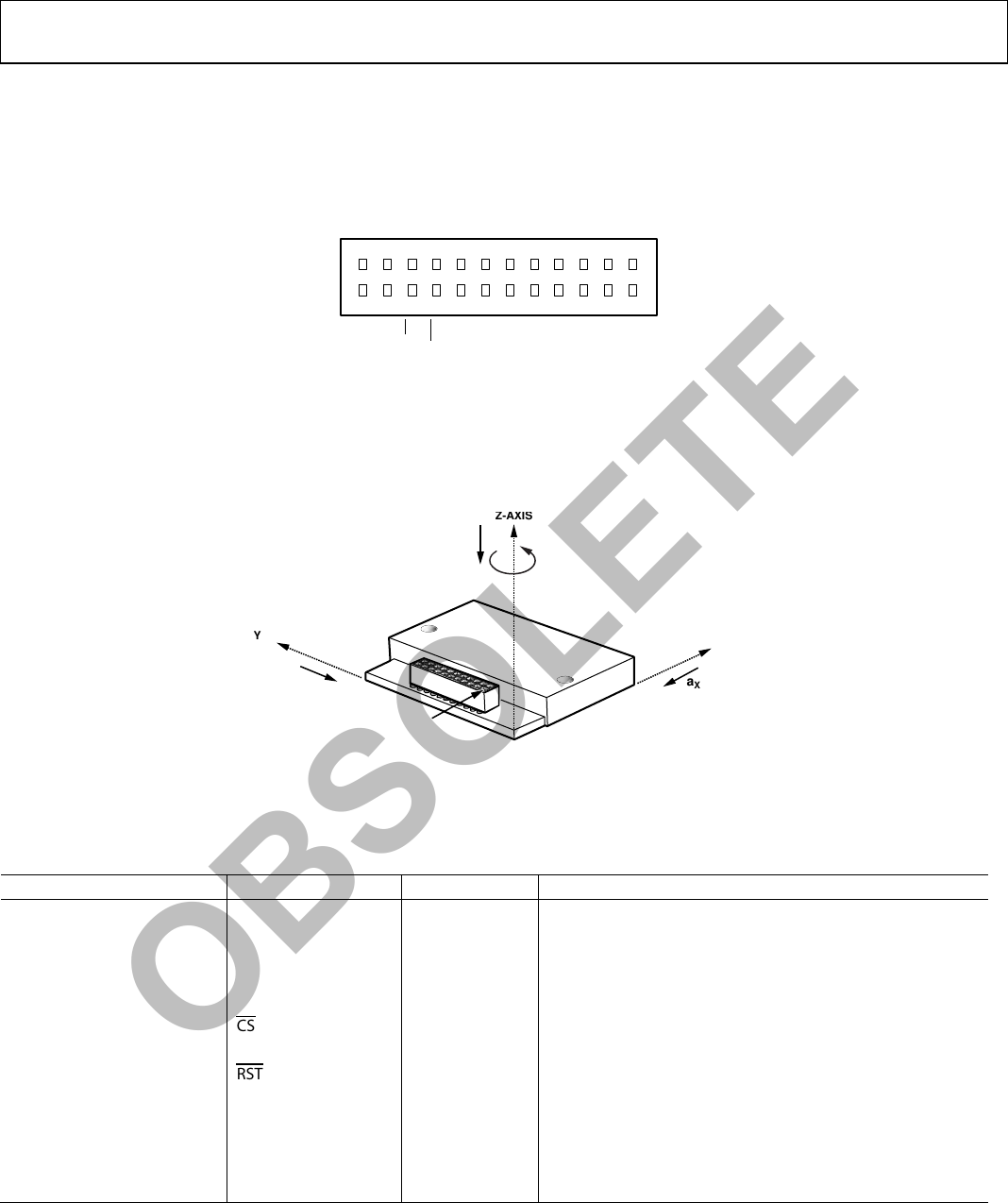

Figure 5. ADIS16305 Pin Configuration
NOTES
1. THE ARROW DIRECTION ASSOCIATED WITH
a
Z
,
a
Y
, AND
g
Z
INDICATES
THE DIRECTION OF MOTION THAT PRODUCES A POSITIVE RESPONSE IN
EACH ACCELEROMETER AND GYROSCOPE OUTPUT REGISTER.
X-AXIS
a
X
Z-AXIS
a
Z
g
Z
a
Y
Y-AXIS
PIN 1
09020-006
Figure 6. Axial Orientation
Table 5. Pin Function Descriptions
Pin No. Mnemonic Type 1 Description
1 DIO3 I/O Configurable Digital Input/Output.
2 DIO4/CLKIN I/O Configurable Digital Input/Output or Sync Clock Input.
3 SCLK I SPI Serial Clock.
4 DOUT O SPI Data Output. Clocks output on SCLK falling edge.
5 DIN I SPI Data Input. Clocks input on SCLK rising edge.
6 CS I SPI Chip Select.
7, 9 DIO1, DIO2 I/O Configurable Digital Input/Output.
8 RST I Reset.
10, 11, 12 VCC S Power Supply.
13, 14, 15 GND S Power Ground.
16, 17, 18, 19, 22, 23, 24 DNC N/A Do Not Connect.
20 AUX_DAC O Auxiliary, 12-Bit DAC Output.
21 AUX_ADC I Auxiliary, 12-Bit ADC Input.
1 I/O is input/output, I is input, O is output, S is supply, and N/A is not applicable.
Rev. A | Page 7 of 20
OBSOLETE
um
ADIS16305 Data Sheet
TYPICAL PERFORMANCE CHARACTERISTICS
0.001
0.01
1
0.1
0.1 110 100 1k 10k
Tau (sec)
ROOT ALLAN VARIANCE (°/sec)
–1σ
MEAN
+1σ
09020-007
Figure 7. Gyroscope Allan Variance
0.00001
0.0001
0.01
0.001
0.1 110 100 1k 10k
Tau (sec)
ROOT ALLAN VARIANCE (g)
X- AND Y-
AXES
Z-AXIS
09020-008
Figure 8. Accelerometer Allan Variance
Rev. A | Page 8 of 20
OBSOLETE
m LINES ARE comma: wum 1ndmdual register read: requus two ofthsse 164m sequel] R T
Data Sheet ADIS16305
THEORY OF OPERATION
BASIC OPERATION
The ADIS16305 is an autonomous sensor system that starts up
after it has a valid power supply voltage and begins producing
inertial measurement data. After each sample cycle, the sensor
data is loaded into the output registers, and DIO1 pulses high,
which provides a new data-ready control signal for driving
system-level interrupt service routines. In a typical system, a
master processor accesses the output data registers through the
SPI interface, using the connection diagram shown in Figure 9.
Table 6 provides a generic functional description for each pin on
the master processor. Table 7 describes the typical master processor
settings for communicating with the ADIS16305.
SYSTEM
PROCESSOR
SPI MASTER
ADIS16305
SPI SLAVE
SCLK
CS
DIN
DOUT
SCLK
SS
MOSI
MISO
5V
IRQ DIO1
VDD
I/O LINES ARE COMPATIBLE WITH
3.3V OR 5V LOGIC LEVELS
10
6
3
5
4
7
11 12
13 14 15
09020-009
Figure 9. Electrical Connection Diagram
Table 6. Generic Master Processor Pin Names and Functions
Pin Name Function
SS Slave select
IRQ Interrupt request
MOSI Master output, slave input
MISO Master input, slave output
SCLK Serial clock
Table 7. Generic Master Processor SPI Settings
Processor Setting Description
Master ADIS16305 is a slave
SCLK Rate ≤ 2 MHz1 Normal mode, SMPL_PRD[7:0] ≤ 0x09
SPI Mode 3 CPOL = 1 (polarity), CHPA = 1 (phase)
MSB First Mode Bit sequence
16-Bit Mode Shift register/data length
1 For burst read, SCLK rate ≤ 1 MHz. For low power mode, SCLK rate ≤ 300 kHz.
The user registers provide addressing for all input/output
operations on the SPI interface. Each 16-bit register has two
7-bit addresses: one for its upper byte and one for its lower byte.
Table 8 lists the lower byte address for each register, and Figure 10
shows the generic bit assignments.
UPPER BYTE
15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
LOWER BYTE
09020-010
Figure 10. Generic Register Bit Assignments
READING SENSOR DATA
Although the ADIS16305 produces data independently, it operates
as an SPI slave device that communicates with system (master)
processors using the 16-bit segments displayed in Figure 11.
Individual register reads require two of these 16-bit sequences. The
first 16-bit sequence provides the read command bit (R/W = 0)
and the target register address (A6 to A0). The second sequence
transmits the register contents (D15 to D0) on the DOUT line.
For example, if DIN = 0x0A00, the contents of XACCL_OUT are
shifted out on the DOUT line during the next 16-bit sequence.
The SPI operates in full-duplex mode, which means that the master
processor can read the output data from DOUT while using the
same SCLK pulses to transmit the next target address on DIN.
DEVICE CONFIGURATION
The user register memory map (see Table 8) identifies configuration
registers with either a W or R/W. Configuration commands also
use the bit sequence shown in Figure 11. If the MSB = 1, the last
eight bits (DC7 to DC0) in the DIN sequence are loaded into the
memory address associated with the address bits (A6 to A0).
For example, if DIN = 0xA11F, 0x1F is loaded into Address 0x21
(XACCL_OFF, upper byte) at the conclusion of the data frame.
The master processor initiates the backup function by setting
GLOB_CMD[3] = 1 (DIN = 0xBE04). This command copies
the user registers into their assigned flash memory locations
and requires the power supply to stay within its normal operating
range for the entire 50 ms process. The FLASH_CNT register
provides a running count of these events for monitoring the
long-term reliability of the flash memory.
R/W R/W
A6 A5 A4 A3 A2 A1 A0 DC7 DC6 DC5 DC4 DC3 DC2 DC1 DC0
D0D1D2D3D4D5D6D7D8D9D10D11D12D13D14D15
NOTES
1. DOUT BITS ARE PRODUCED ONLY WHEN THE PREVIOUS 16-BIT DIN SEQUENCE STARTS WITH R/W = 0.
CS
SCLK
DIN
DOUT
A6 A5
D13D14D15
09020-011
Figure 11. SPI Communication Bit Sequence
Rev. A | Page 9 of 20
OBSOLETE
ADIS16305 Data Sheet
MEMORY MAP
Table 8. User Register Memory Map
Name R/W Flash Backup Address1 Default Register Description Bit Function
FLASH_CNT
R
Yes
0x00
N/A2
Flash memory write count
See Table 28
SUPPLY_OUT R No 0x02 N/A2 Power supply measurement See Table 9
GYRO_OUT R No 0x04 N/A2 Gyroscope output See Table 9
Reserved N/A2 N/A2 0x06 N/A2 Reserved N/A2
Reserved N/A2 N/A2 0x08 N/A2 Reserved N/A2
XACCL_OUT R No 0x0A N/A2 X-axis accelerometer output See Table 9
YACCL_OUT R No 0x0C N/A2 Y-axis accelerometer output See Table 9
ZACCL_OUT R No 0x0E N/A2 Z-axis accelerometer output See Table 9
TEMP_OUT R No 0x10 N/A2 Gyroscope temperature measurement See Table 9
PITCH_OUT R No 0x12 N/A2 Pitch angle output (x-axis) See Table 9
ROLL_OUT R No 0x14 N/A2 Roll angle output (y-axis) See Table 9
AUX_ADC R No 0x16 N/A2 Auxiliary ADC output See Table 9
Reserved N/A2 N/A2 0x18 N/A2 Reserved N/A2
GYRO_OFF R/W Yes 0x1A 0x0000 Gyroscope bias offset factor See Table 16
PITCH_OFF R Yes 0x1C N/A2 Pitch angle offset factor See Table 18
ROLL_OFF R Yes 0x1E N/A2 Roll angle offset factor See Table 18
XACCL_OFF R/W Yes 0x20 0x0000 X-axis acceleration bias offset factor See Table 17
YACCL_OFF
R/W
Yes
0x22
0x0000
Y-axis acceleration bias offset factor
See Table 17
ZACCL_OFF R/W Yes 0x24 0x0000 Z-axis acceleration bias offset factor See Table 17
ALM_MAG1 R/W Yes 0x26 0x0000 Alarm 1 amplitude threshold See Table 30
ALM_MAG2 R/W Yes 0x28 0x0000 Alarm 2 amplitude threshold See Table 30
ALM_SMPL1 R/W Yes 0x2A 0x0000 Alarm 1 sample size See Table 31
ALM_SMPL2 R/W Yes 0x2C 0x0000 Alarm 2 sample size See Table 31
ALM_CTRL R/W Yes 0x2E 0x0000 Alarm control See Table 32
AUX_DAC R/W No 0x30 0x0000 Auxiliary DAC data See Table 25
GPIO_CTRL R/W No 0x32 0x0000 Auxiliary digital input/output control See Table 23
MSC_CTRL R/W Yes 0x34 0x0006 Miscellaneous control: data-ready, self-test See Table 24
SMPL_PRD R/W Yes 0x36 0x0001 Internal sample period (rate) control See Table 20
SENS_AVG
R/W
Yes
0x38
0x0402
Dynamic range and digital filter control
See Table 22
SLP_CNT W No 0x3A 0x0000 Sleep mode control See Table 21
DIAG_STAT R No 0x3C 0x0000 System status See Table 29
GLOB_CMD W N/A2 0x3E 0x0000 System command See Table 19
Reserved N/A2 N/A2 0x40 to 0x51 N/A2 Reserved N/A2
LOT_ID1 R Yes 0x52 N/A2 Lot Identification Code 1 See Table 35
LOT_ID2
R
Yes
0x54
N/A
2
Lot Identification Code 2
See Table 35
PROD_ID R Yes 0x56 0x3FB1 Product identification See Table 35
SERIAL_NUM R Yes 0x58 N/A2 Serial number See Table 35
1 Each register contains two bytes. The address of the lower byte is displayed. The address of the upper byte is equal to the address of the lower byte plus 1.
2 N/A stands for not applicable.
Rev. A | Page 10 of 20
OBSOLETE
Data Sheet ADIS16305

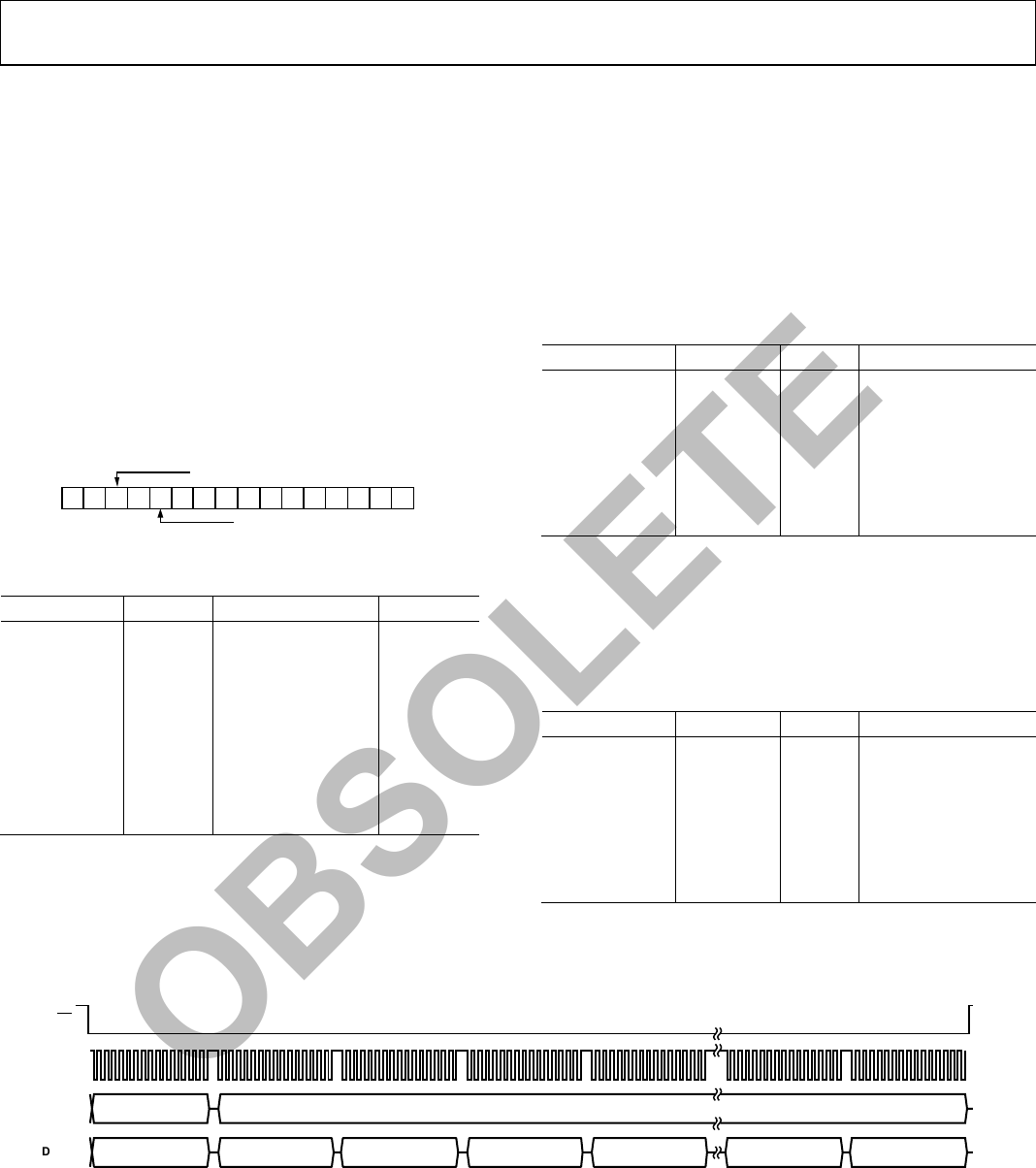

BURST READ DATA COLLECTION
Burst read data collection is a process-efficient method for collecting
data from the ADIS16305. In burst read, all output registers are
clocked out on DOUT, 16 bits at a time, in sequential data cycles
(each separated by one SCLK period). To start a burst read sequence,
set DIN = 0x3E00. The contents of each output register are then
shifted out on DOUT, starting with SUPPLY_OUT and ending with
AUX_ADC (see Figure 13). The addressing sequence shown in
Table 8 determines the order of the outputs in burst read.
OUTPUT DATA REGISTERS
Each output data register uses the format in Figure 12 and Table 9.
Figure 6 shows the positive direction for each inertial sensor. The
ND bit is equal to 1 when the register contains unread data. The
EA bit is high when any error/alarm flag in the DIAG_STAT
register is equal to 1.
MSB FOR 14-BIT OUTPUT
MSB FOR 12-BIT OUTPUT
ND EA
09020-012
Figure 12. Output Register Bit Assignments
Table 9. Output Data Register Formats
Name Address Scale Reference
SUPPLY_OUT 0x02 Power supply Table 13
GYRO_OUT1 0x04 Gyroscope Table 10
XACCL_OUT 0x0A Acceleration (x) Table 11
YACCL_OUT 0x0C Acceleration (y) Table 11
ZACCL_OUT
0x0E
Acceleration (z)
Table 11
TEMP_OUT2 0x10 Temperature Table 14
PITCH_OUT 0x12 Pitch angle Table 12
ROLL_OUT 0x14 Roll angle Table 12
AUX_ADC 0x16 ADC measurement Table 15
1 Assumes that the scaling is set to ±300°/sec. This factor scales with the range.
2 0x0000 = 25°C (±5°C).
Note that the codes in Table 10, Table 11, Table 12, Table 13,
Table 14, and Table 15 assume typical sensitivity values.
Gyroscopes
The gyroscope output register, GYRO_OUT, uses a 14-bit, twos
complement digital format. When using the factory-default range
of ±300°/sec, each LSB translates into 0.05°/sec. Table 10 offers
some examples for translating the digital data into rotation rate
measurements. When the dynamic rage is set to ±150°/sec,
divide the rotation rate numbers in Tabl e 10 by a factor of two.
When the dynamic rage is set to ±75°/sec, divide the rotation
rate numbers in Table 10 by a factor of four.
Table 10. Rotation Rate, Twos Complement Format
Rotation Rate
Decimal
Hex
Binary
+300°/sec +6000 LSB 0x1770 XX01 0111 0111 0000
+0.1°/sec
+2 LSB
0x0002
XX00 0000 0000 0010
+0.05°/sec +1 LSB 0x0001 XX00 0000 0000 0001
0°/sec 0 LSB 0x0000 XX00 0000 0000 0000
−0.05°/sec −1 LSB 0x3FFF XX11 1111 1111 1111
−0.1°/sec −2 LSB 0x3FFE XX11 1111 1111 1110
−300°/sec −6000 LSB 0x2890 XX10 1000 1001 0000
Accelerometers
The accelerometer output registers, XACCL_OUT, YACCL_OUT,
and ZACCL_OUT, use a 14-bit, twos complement digital format.
Table 11 offers some examples for translating the digital data
into linear acceleration measurements
Table 11. Acceleration, Twos Complement Format
Acceleration Decimal Hex Binary
+3.3 g +5500 LSB 0x157C XX01 0101 0111 1100
+1.2 mg +2 LSB 0x0002 XX00 0000 0000 0010
+0.6 mg +1 LSB 0x0001 XX00 0000 0000 0001
0 g 0 LSB 0x0000 XX00 0000 0000 0000
−0.6 mg −1 LSB 0x3FFF XX11 1111 1111 1111
−1.2 mg −2 LSB 0x3FFE XX11 1111 1111 1110
−3.3
g
−5500 LSB
0x2A84
XX10 1010 1000 0100
0x3E00
PREVIOUS
DON’T CARE
SUPPLY_OUT GYRO_OUT ROLL_OUT AUX_ADC
1 2 3 9 10
XACCL_OUT YACCL_OUT
4 5CS
SCLK
DIN
DOUT
09020-013
Figure 13. Burst Read Sequence
Rev. A | Page 11 of 20
OBSOLETE
ADIS16305 Data Sheet
ORIENTATION ANGLES
The ROLL_OUT and PITCH_OUT registers provide a tilt
angle calculation based on the accelerometer measurements.
The zero reference is the point at which the z-axis faces gravity
for a north-east-down (NED) configuration. Table 12 displays
a number of examples for the 13-bit, twos complement digital
format in both of these registers. Figure 14 provides the physical
references and formulas that produce these orientation angles.
Table 12. Orientation Angles, Twos Complement Format
Angle Decimal Hex Binary
+180° +4091 0x0FFB XXX0 1111 1111 1011
+90
+2045
0x07FD
XXX0 0111 1111 1101
+0.088° +2 LSB 0x0002 XXX0 0000 0000 0010
+0.044° +1 LSB 0x0001 XXX0 0000 0000 0001
0° 0 LSB 0x0000 XXX0 0000 0000 0000
−0.044° −1 0x1FFF XXX1 1111 1111 1111
−0.088° −2 0x1FFE XXX1 1111 1111 1110
−90° −2045 0x1803 XXX1 1000 0000 0011
−179.96° −4090 0x1006 XXX1 0000 0000 0110
FRONT VIEW
SIDE VIEW
Z-AXIS
Y-AXIS
Z-AXIS
X-AXIS
φ
ROLL
φ
PITCH
a
Z
a
X
a
Y
a
Z
φ
ROLL
= ROLL_OUT = a TAN
a
Y
a
Z
φ
PITCH
=PITCH_OUT = a TAN
–a
X
a
Y
× SIN (
Φ
ROLL
) +
a
Z
COS (
Φ
ROLL
)
09020-014
Figure 14. Orientation for PITCH_OUT and ROLL_OUT Angles
Power Supply
The SUPPLY_OUT register provides an internal measurement
for the power supply voltage and uses a 12-bit, offset binary
digital format. Table 13 provides several numerical examples
of this format.
Table 13. Power Supply, Offset Binary Format
Supply Voltage Decimal Hex Binary
5.25 V 2171 LSB 0x87B XXXX 1000 0111 1011
5.002418 V 2069 LSB 0x815 XXXX 1000 0001 0101
5 V 2068 LSB 0x814 XXXX 1000 0001 0100
4.997582 V 2067 LSB 0x813 XXXX 1000 0001 0011
4.75 V 1964 LSB 0x7AC XXXX 0111 1010 1100
Internal Temperature
The TEMP_OUT register provides an internal measurement for
temperature and uses 12-bit, twos complement for its digital format.
Table 14 provides several numerical examples of this format.
This is an internal temperature measurement, which can vary
from ambient conditions outside of the package.
Table 14. Temperature, Twos Complement Format
Temperature Decimal Hex Binary
+105°C +588 LSB 0x24C XXXX 0010 0100 1100
+85°C +441 LSB 0x1B9 XXXX 0001 1011 1001
+25.272°C +2 LSB 0x002 XXXX 0000 0000 0010
+25.136°C +1 LSB 0x001 XXXX 0000 0000 0001
+25°C 0 LSB 0x000 XXXX 0000 0000 0000
+24.864°C −1 LSB 0xFFF XXXX 1111 1111 1111
+24.728°C −2 LSB 0xFFE XXXX 1111 1111 1110
−40°C −478 LSB 0xE22 XXXX 1110 0010 0010
Analog Input (ADC)
The AUX_ADC register provides access to the auxiliary ADC
input channel measurements and uses 12-bit, offset binary as its
digital format. The ADC is a 12-bit successive approximation
converter that has an input circuit equivalent to the one shown
in Figure 15. The maximum input is 3.3 V. The ESD protection
diodes can handle 10 mA without causing irreversible damage.
The on resistance (R1) of the switch has a typical value of 100 Ω.
The sampling capacitor, C2, has a typical value of 16 pF.
C2
C1
R1
VCC
D
D
09020-015
Figure 15. Equivalent Analog Input Circuit
(Conversion Phase: Switch Open,
Track Phase: Switch Closed)
Table 15. ADC Measurement, Offset Binary Format
Input Voltage Decimal Hex Binary
3.3 V
4095 LSB
0xFFF
XXXX 1111 1111 1111
1 V 1241 LSB 0x4D9 XXXX 0100 1101 1001
1.6118 mV 2 LSB 0x002 XXXX 0000 0000 0010
805.9 µV 1 LSB 0x001 XXXX 0000 0000 0001
0 V 0 LSB 0x000 XXXX 0000 0000 0000
Rev. A | Page 12 of 20
OBSOLETE
Data Sheet ADIS16305
CALIBRATION
Manual Bias Calibration
The bias offset registers in Table 16 and Table 17 provide a manual
adjustment function for the output of each sensor. For example,
if GYRO_OFF = 0x1FF6 (DIN = 0x9B1F, 0x9AF6), the GYRO_OUT
offset shifts by −10 LSBs, or −0.125°/sec.
Table 16. GYRO_OFF Bit Descriptions
Bits Description (Default = 0x0000)
[15:13] Not used.
[12:0] Data bits. Twos complement, 0.0125°/sec per LSB.
Typical adjustment range = ±50°/sec.
Table 17. XACCL_OFF, YACCL_OFF, ZACCL_OFF
Bit Descriptions
Bits Description (Default = 0x0000)
[15:12] Not used.
[11:0] Data bits. Twos complement, 0.6 mg/LSB. Typical
adjustment range = ±1.22 g.
Frame Alignment
The PITCH_OFF and ROLL_OFF registers (see Table 18) provide
the angular orientation difference between the inertial frame
(internal) and the external frame (package). They follow the same
orientation as PITCH_OUT and ROLL_OUT, as shown in Figure 14.
Table 18. PITCH_OFF, ROLL_OFF Bit Descriptions
Bits Description
[15:10] Not used.
[9:0] Data bits. Twos complement, 0.014°/LSB.
Gyroscope Automatic Bias Null Calibration
Set GLOB_CMD[0] = 1 (DIN = 0xBE01) to execute the automatic
bias null calibration function. This function measures the
gyroscope output register and then loads the gyroscope offset
register with the opposite value to provide a quick bias calibration.
All sensor data is then reset to 0, and the flash memory is updated
automatically within 50 ms (see Table 19).
Gyroscope Precision Automatic Bias Null Calibration
Set GLOB_CMD[4] = 1 (DIN = 0xBE10) to execute the precision
automatic bias null calibration function. This function takes the
sensor offline for 30 sec while it collects a set of data and calculates
more accurate bias correction factors for each gyroscope. After
this function is executed, the newly calculated correction factor
is loaded into the gyroscope offset registers, all sensor data is
reset to 0, and the flash memory is updated automatically within
50 ms (see Table 19).
Restoring Factory Calibration
Set GLOB_CMD[1] = 1 (DIN = 0xBE02) to execute the factory
calibration restore function. This function resets each user calibration
register to 0x0000 (see Table 16 and Table 17), resets all sensor
data to 0, and automatically updates the flash memory within
50 ms (see Table 19).
Linear Acceleration Bias Compensation (Gyroscope)
Set MSC_CTRL[7] = 1 (DIN = 0xB486) to enable correction for
low frequency acceleration influences on gyroscope bias. Note
that the DIN sequence also preserves the factory default condition
for the data-ready function (see Table 24).
OPERATIONAL CONTROL
Global Commands
The GLOB_CMD register provides trigger bits for several useful
functions. Setting the assigned bit to 1 starts each operation,
which returns the bit to 0 after completion. For example, set
GLOB_CMD[7] = 1 (DIN = 0xBE80) to execute a software reset,
which stops the sensor operation and runs the device through
its start-up sequence. This sequence includes loading the control
registers with their respective flash memory locations prior to
producing new data. Reading the GLOB_CMD register
(DIN = 0x3E00) starts the burst read sequence.
Table 19. GLOB_CMD Bit Descriptions
Bit(s) Description
[15:8] Not used
[7] Software reset command
[6:5] Not used
[4]
Precision autonull command
[3] Flash update command
[2] Auxiliary DAC data latch
[1] Factory calibration restore command
[0] Autonull command
Internal Sample Rate
The SMPL_PRD register provides discrete sample rate settings
using the bit assignments in Table 20 and the following equation:
tS = tB × (NS + 1)
For example, when SMPL_PRD[7:0] = 0x0A, the sample rate is
149 SPS.
Table 20. SMPL_PRD Bit Descriptions
Bit(s) Description (Default = 0x0001)
[15:8]
Not used
[7] Time base (tB)
0 = 0.61035 ms, 1 = 18.921 ms
[6:0] Increment setting (NS)
Internal sample period = tS = tB × (NS + 1)
The default sample rate setting of 819.2 SPS provides optimal
performance. For systems that value slower sample rates, keep the
internal sample rate at 819.2 SPS. Use the programmable filter
(SENS_AVG) to reduce the bandwidth, which helps to prevent
aliasing. The data-ready function (MSC_CTRL) can drive an
interrupt routine that uses a counter to help ensure data coherence
at reduced rates.
Rev. A | Page 13 of 20
OBSOLETE
(LAN CS 41f |—. EU *<:h:|->|:|-—
ADIS16305 Data Sheet

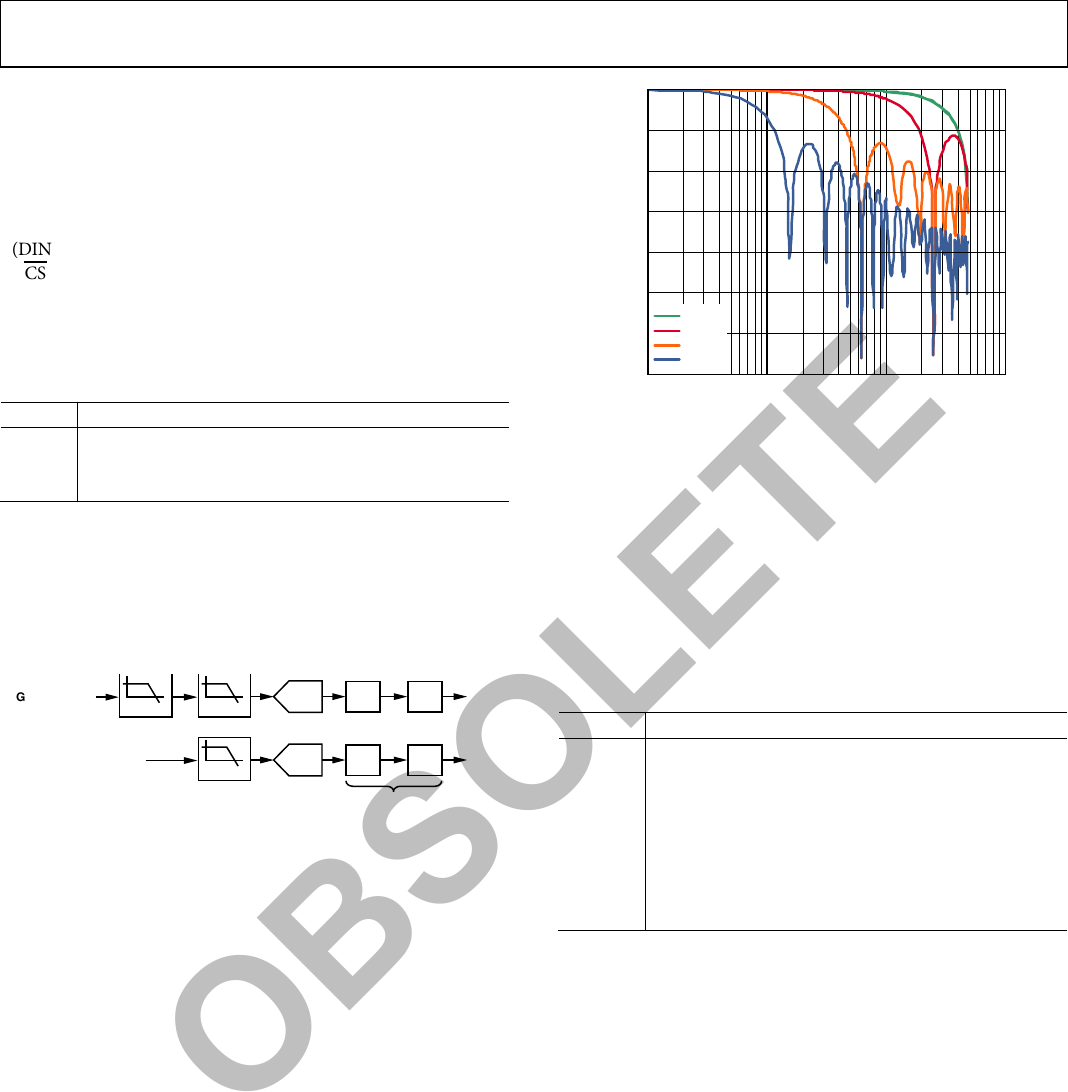

Power Management
Setting SMPL_PRD ≥ 0x0A also sets the sensor to low power
mode. For systems that require lower power dissipation, in-
system characterization helps users to quantify the associated
performance trade-offs. In addition to sensor performance, this
mode affects SPI data rates (see Table 2). Set SLP_CNT[8] = 1
(DIN = 0xBB01) to start the indefinite sleep mode, which requires
a CS assertion (high to low), reset, or power cycle to wake up.
Use SLP_CNT[7:0] to put the device into sleep mode for a specified
period. For example, SLP_CNT[7:0] = 0x64 (DIN = 0xBA64)
puts the ADIS16305 to sleep for 50 sec.
Table 21. SLP_CNT Bit Descriptions
Bit(s) Description
[15:9]
Not used
[8] Indefinite sleep mode; set to 1
[7:0] Programmable sleep time bits, 0.5 sec/LSB
Sensor Bandwidth
The signal chain for each MEMS sensor has several filter stages,
which shape their frequency response. Figure 16 provides a block
diagram for both gyroscope and accelerometer signal paths.
Table 22 provides additional information for digital filter
configuration.
LPF LPF NN
404Hz
FROM
GYROSCOPE
SENSOR 757Hz
LPF N N
FROM
ACCELERATION
SENSOR 330Hz N = 2
m
m = SENS_AVG[2:0]
09020-016
Figure 16. MEMS Analog and Digital Filters
Digital Filtering
The N blocks in Figure 16 are part of the programmable low-
pass filter, which provides additional noise reduction on the
inertial sensor outputs. This filter contains two cascaded averaging
filters that provide a Bartlett window, FIR filter response (see
Figure 17). For example, set SENS_AVG[2:0] = 100 (DIN = 0xB804)
to set each stage to 16 taps. When used with the default sample
rate of 819.2 SPS, this value reduces the sensor bandwidth to
approximately 16 Hz.
0
–20
–40
–60
–80
–100
–120
–140
0.001 0.01 0.1 1
MAGNITUDE (dB)
FREQUENCY (Ratio)
N = 2
N = 4
N = 16
N = 64
09020-017
Figure 17. Bartlett Window, FIR Filter Frequency Response
(Phase Delay = N Samples)
Dynamic Range
The SENS_AVG[10:8] bits provide three dynamic range settings
for this gyroscope. The lower dynamic range settings (±75°/sec and
±150°/sec) limit the minimum filter tap sizes to maintain resolution.
For example, set SENS_AVG[10:8] = 010 (DIN = 0xB902) for
a measurement range of ±150°/sec. Because this setting can
influence the filter settings, program SENS_AVG[10:8] and
then SENS_AVG[2:0] if more filtering is required.
Table 22. SENS_AVG Bit Descriptions
Bit(s) Description
[15:11] Not used
[10:8] Measurement range (sensitivity) selection
100 = ±300°/sec (default condition)
010 = ±150°/sec, filter taps ≥ 4 (Bits[2:0] ≥ 0x02)
001 = ±75°/sec, filter taps ≥ 16 (Bits[2:0] ≥ 0x04)
[7:3] Not used
[2:0] Number of taps in each stage, N = 2M;
maximum setting = 6 (110), N = 26 = 64 taps/stage
Rev. A | Page 14 of 20
OBSOLETE
Data Sheet ADIS16305
INPUT/OUTPUT FUNCTIONS
General-Purpose I/O
DIO1, DIO2, DIO3, and DIO4 are configurable, general-purpose
I/O lines that serve multiple purposes according to the following
control register priority: MSC_CTRL, ALM_CTRL, and
GPIO_CTRL. For example, set GPIO_CTRL = 0x080C
(DIN = 0xB20C, and then 0xB308) to configure DIO1 and
DIO2 as inputs and DIO3 and DIO4 as outputs, with DIO3
set low and DIO4 set high.
In this configuration, read GPIO_CTRL (DIN = 0x3200) to
monitor the digital state of DIO1 and DIO2.
Table 23. GPIO_CTRL Bit Descriptions
Bit(s) Description
[15:12] Not used
[11] General-Purpose I/O Line 4 (DIO4) data level
[10] General-Purpose I/O Line 3 (DIO3) data level
[9]
General-Purpose I/O Line 2 (DIO2) data level
[8] General-Purpose I/O Line 1 (DIO1) data level
[7:4] Not used
[3] General-Purpose I/O Line 4 (DIO4) direction control
(1 = output, 0 = input)
[2] General-Purpose I/O Line 3 (DIO3) direction control
(1 = output, 0 = input)
[1] General-Purpose I/O Line 2 (DIO2) direction control
(1 = output, 0 = input)
[0] General-Purpose I/O Line 1 (DIO1) direction control
(1 = output, 0 = input)
Input Clock Configuration
The input clock function allows for external control over-
sampling in the ADIS16305. Set SMPL_PRD[7:0] = 0x00 (DIN
= 0xB600) to enable this function. See Table 2 and Figure 4 for
timing information.
Data-Ready I/O Indicator
The factory default sets DIO1 as a positive data-ready indicator
signal. The MSC_CTRL[2:0] bits provide configuration options
for changing the default. For example, set MSC_CTRL[2:0] = 100
(DIN = 0xB404) to change the polarity of the data-ready signal
on DIO1 for interrupt inputs that require negative logic inputs
for activation. The pulse width is between 100 µs and 200 µs
over all conditions.
Table 24. MSC_CTRL Bit Descriptions
Bit(s) Description
[15:12] Not used
[11] Memory test (cleared upon completion)
(1 = enabled, 0 = disabled)
[10] Internal self-test enable (cleared upon completion)
(1 = enabled, 0 = disabled)
[9] Manual self-test, negative stimulus
(1 = enabled, 0 = disabled)
[8] Manual self-test, positive stimulus
(1 = enabled, 0 = disabled)
[7]
Linear acceleration bias compensation for gyroscopes
(1 = enabled, 0 = disabled)
[6] Point of percussion alignment, accelerometer
(1 = enabled, 0 = disabled)
[5:3] Not used
[2] Data ready enable
(1 = enabled, 0 = disabled)
[1] Data ready polarity
(1 = active high, 0 = active low)
[0] Data ready line select
(1 = DIO2, 0 = DIO1)
Auxiliary DAC
The 12-bit AUX_DAC line can drive its output to within 5 mV
of the ground reference when it is not sinking current. As the
output approaches 0 V, the linearity begins to degrade (~100 LSB
beginning point). As the sink current increases, the nonlinear
range increases. The DAC latch command moves the values of
the AUX_DAC register into the DAC input register, enabling
both bytes to take effect at the same time.
Table 25. AUX_DAC Bit Descriptions
Bits Description
[15:12] Not used
[11:0] Data bits, scale factor = 0.8059 mV/LSB
Offset binary format, 0 V = 0 LSB
Table 26. Setting AUX_DAC = 1 V
DIN Description
0xB0D9 AUX_DAC[7:0] = 0xD9 (217 LSB).
0xB104 AUX_DAC[15:8] = 0x04 (1024 LSB).
0xBE04
GLOB_CMD[2] = 1.
Move values into the DAC input register, resulting in
a 1 V output level.
Rev. A | Page 15 of 20
OBSOLETE
ADIS16305 Data Sheet
DIAGNOSTICS
Self-Test
The self-test function allows the user to verify the mechanical
integrity of each MEMS sensor. It applies an electrostatic force to
each sensor element, which results in mechanical displacement
that simulates a response to actual motion. Tabl e 1 lists the
expected response for each sensor, which provides pass/fail
criteria. Set MSC_CTRL[10] = 1 (DIN = 0xB504) to run the
internal self-test routine, which exercises all inertial sensors,
measures each response, makes pass/fail decisions, and reports
them to error flags in the DIAG_STAT register. This process takes
35 ms to complete and report the results to DIAG_STAT[5],
DIAG_STAT[10], and DIAG_STAT[15:13]. MSC_CTRL[10]
resets itself to 0 after completing the routine. The MSC_CTRL[9:8]
bits provide manual control over the self-test function for
investigation of potential failures. Tabl e 27 outlines an example
test flow for using this option to verify the gyroscope function.
Table 27. Manual Self-Test Example Sequence
DIN Description
0xB601 SMPL_PRD[7:0] = 0x01, sample rate = 819.2 SPS
0xB904 SENS_AVG[15:8] = 0x04, gyro range = ±300°/sec
0xB802 SENS_AVG[7:0] = 0x02, four-tap averaging filter
Delay = 50 ms
0x0400
Read GYRO_OUT
0xB502 MSC_CTRL[9] = 1, gyroscope negative self-test
Delay = 50 ms
0x0400 Read GYRO_OUT
Determine whether the bias in the gyroscope
output changed according to the self-test
response specified in Table 1
0xB501 MSC_CTRL[9:8] = 01, gyroscope/accelerometer
positive self-test
Delay = 50 ms
0x0400 Read GYRO_OUT
Determine whether the bias in the gyroscope
output changed according to the self-test
response specified in Table 1
0xB500 MSC_CTRL[15:8] = 0x00
While the self-test still functions when the device is in motion,
zero motion typically produces the most reliable results. The
settings in Table 27 are flexible and allow for optimization
around speed and noise influence. For example, using fewer
filtering taps decreases delay times but increases the possibility
of noise influence.
Flash Memory Management
The FLASH_CNT register (see Table 28) provides a tool for
managing the flash memory’s endurance. The FLASH_CNT
register increments every time there is a write to the flash
memory. Figure 18 quantifies the relationship between data
retention and junction temperature.
Table 28. FLASH_CNT Bit Descriptions
Bits Description
[15:0] Binary counter for writing to flash memory
600
450
300
150
030 40
RETENTION (Years)
JUNCTION TEMPERATURE (°C)
55 70 85 100 125 135 150
09020-018
Figure 18. Flash/EE Memory Data Retention
Checksum Test
Set MSC_CTRL[11] = 1 (DIN = 0x9D08) to verify the flash
memory integrity against the factory check sum and read
DIAG_STAT[6] to check the results 20 ms after the command.
Status
The error flags provide indicator functions for common system
level issues. All of the flags are cleared (set to 0) after each
DIAG_STAT register read cycle. If an error condition remains,
the error flag returns to 1 during the next sample cycle. The
DIAG_STAT[1:0] bits do not require a read of this register to
return to 0. If the power supply voltage goes back into range,
these two flags are cleared automatically.
Table 29. DIAG_STAT Bit Descriptions
Bit(s) Description
[15]
Z-axis accelerometer self-test failure (1 = fail, 0 = pass)
[14] Y-axis accelerometer self-test failure (1 = fail, 0 = pass)
[13] X-axis accelerometer self-test failure (1 = fail, 0 = pass)
[12:11] Not used
[10] Gyroscope self-test failure (1 = fail, 0 = pass)
[9] Alarm 2 status (1 = active, 0 = inactive)
[8]
Alarm 1 status (1 = active, 0 = inactive)
[7] Not used
[6] Flash test, checksum flag (1 = fail, 0 = pass)
[5] Self-test diagnostic error flag (1 = fail, 0 = pass)
[4] Sensor overrange (1 = fail, 0 = pass)
[3] SPI communication failure (1 = fail, 0 = pass)1
[2]
Flash update failure (1 = fail, 0 = pass)
[1] Power supply > 5.25 V (1 = power supply > 5.25 V,
0 = power supply ≤ 5.25 V)
[0] Power supply < 4.75 V (1 = power supply < 4.75 V,
0 = power supply ≥ 4.75 V)
1 The SPI error flag in DIAG_STAT[3] goes to 1 when the number of SCLKs is
not equal to an integer multiple of 16.
Rev. A | Page 16 of 20
OBSOLETE
Data Sheet ADIS16305
Alarm Registers
The alarm function provides monitoring for two independent
conditions. The ALM_CTRL register provides control inputs
for trigger source, data filtering (prior to comparison), static
comparison, dynamic rate-of-change comparison, and output
indicator configurations. The ALM_MAGx registers establish
the trigger threshold and polarity configurations. Table 33 gives
an example of how to configure a static alarm. The ALM_SMPLx
registers provide the number of samples to use in the dynamic
rate-of-change configuration. The period equals the number in
the ALM_SMPLx register multiplied by the sample period time,
which is established by the SMPL_PRD register. See Table 34 for
an example of how to configure the sensor for this type of function.
Table 30. ALM_MAG1, ALM_MAG2 Bit Descriptions
Bit(s) Description
[15] Comparison polarity (1 = greater than, 0 = less than)
[14] Not used
[13:0] Data, matches the format of the trigger source
Table 31. ALM_SMPL1, ALM_SMPL2 Bit Descriptions
Bits
Description
[15:8] Not used
[7:0]
Data bits: number of samples (both 0x00 and 0x01 = 1)
Table 32. ALM_CTRL Bit Designations
Bits Value Description
[15:12] Alarm 2 trigger source selection
0000 Disable
0001 Power supply output
0010 Gyroscope output
0011 Not used
0100
Not used
0101 X-axis accelerometer output
0110 Y-axis accelerometer output
0111 Z-axis accelerometer output
1000 Temperature output
1001 Pitch angle output
1010 Roll angle output
1011 Auxiliary ADC measurement
[11:8] Alarm 1 trigger source selection (see Bits[15:12])
[7] Rate of change (ROC) enable for Alarm 2
1 = rate of change, 0 = static level
[6]
Rate of change (ROC) enable for Alarm 1
1 = rate of change, 0 = static level
[5] Not used
[4] Comparison data filter setting1
1 = filtered data, 0 = unfiltered data
[3] Not used
[2]
Alarm output enable (1 = enable, 0 = disable)
[1] Alarm output polarity (1 = high, 0 = low)
[0] Alarm output line select (1 = DIO2, 0 = DIO1)
1 Incline outputs (pitch, roll) always use filtered data in this comparison.
Table 33. Alarm Configuration Example 1
DIN Description
0xAF55, ALM_CTRL = 0x5517
0xAE17 Alarm 1 input = XACCL_OUT
Alarm 2 input = XACCL_OUT
Static level comparison, filtered data
DIO2 output indicator, positive polarity
0xA783, ALM_MAG1 = 0x8341
0xA641
Alarm 1 is true if XACCL_OUT > +0.5 g
0xA93C, ALM_MAG2 = 0x3CBF
0xA8BF Alarm 2 is true if XACCL_OUT < −0.5 g
Table 34. Alarm Configuration Example 2
DIN Description
0xAF76, ALM_CTRL = 0x76C7
0xAEC7 Alarm 1 input = YACCL_OUT
Alarm 2 input = ZACCL_OUT
Rate-of-change comparison, unfiltered data
DIO2 output indicator, positive polarity
0xB601 SMPL_PRD = 0x0001
Sample rate = 819.2 SPS
0xAA08 ALM_SMPL1 = 0x0008
Alarm 1 rate-of-change period = 9.77 ms
0xAC50
ALM_SMPL2 = 0x0050
Alarm 2 rate-of-change period = 97.7 ms
0xA783, ALM_MAG1 = 0x8341
0xA641 Alarm 1 is true when Δ XACCL_OUT > 0.5 g over a
period of 9.77 ms
0xA93C, ALM_MAG2 = 0x3CBF
0xA8BF Alarm 1 is true when Δ XACCL_OUT < −0.5 g over a
period of 97.7 ms
PRODUCT IDENTIFICATION
Table 35 provides a summary of the registers that identify the
product: PROD_ID, which identifies the product type; LOT_ID1
and LOT_ID2, the 32-bit lot identification code; and SERIAL_NUM,
which displays the 12-bit serial number. All four registers are
two bytes in length. When using the SERIAL_NUM value to
calculate the serial number, mask off the upper four bits and
convert the remaining 12 bits to a decimal number.
Table 35. Identification Registers
Register Name Address Description
LOT_ID1
0x52
Lot Identification Code 1
LOT_ID2 0x54 Lot Identification Code 2
PROD_ID 0x56 ADIS16305: 0x3FB1 (16,305)
SERIAL_NUM 0x58 Serial number, 0 to 4095
Rev. A | Page 17 of 20
OBSOLETE
SEE: ESE: SEE: Egg
ADIS16305 Data Sheet
APPLICATIONS INFORMATION
INTERFACE PRINTED CIRCUIT BOARD (PCB)
The ADIS16305/PCBZ includes one ADIS16305ALMZ, one
interface PCB, and one interface flex. This combination simplifies
the process of prototype connections of the ADIS16305AMLZ
with an existing processor system.
J1 and J2 are dual-row, 2 mm (pitch) connectors that work with
a number of ribbon cable systems, including 3M Part Number
152212-0100-GB (ribbon crimp connector) and 3M Part Number
3625/12 (ribbon cable). Figure 19 provides a hole pattern design
for installing the ADIS16305/PCBZ so that the flex fits well in
between the ADIS16305AMLZ and the interface PCB. Figure 20
provides the pin assignments for each connector, and the pin
descriptions match those listed in Tabl e 5. The ADIS16305 does
not require external capacitors for normal operation; therefore,
the interface PCB does not use the C1/C2 pads (not shown in
Figure 19).
INTERFACE PCB
SCF-140379-01
ADIS16305AMLZ
33.77 23.75
12 11
2 1
J1
12 11
2 1
J2
3.30 × 4
2.20 × 2
15.05
30.10
27.00
13.50
09020-019
Figure 19. Physical Diagram for Mounting the ADIS16305/PCBZ
1
2
3
4
5 6
7 8
910
11 12
AUX_ADC
AUX_DAC
DNC
DNC
DIO2
DNC
DNC
DIO1
DIO4
DIO3
GND
J2
GND
2
4
6
8
10
1
3
5
7
9
11 12
RST
CS
GND
GND
VCC
GND
VCC
VCC
DIN
DOUT
SCLK
J1
DNC
09020-020
Figure 20. J1/J2 Pin Assignments for Interface PCB
GYROSCOPE BIAS OPTIMIZATION
The factory calibration addresses initial bias errors along with
temperature-dependent bias behaviors. Installation and certain
environmental conditions can introduce modest bias errors. The
precision autonull command provides a simple predeployment
method for correcting these errors to an accuracy of approximately
0.008°/sec, using an average of 30 sec. Set GLOB_CMD[4] = 1
(DIN = BE10) to start this operation. Averaging the sensor output
data for 100 sec can provide incremental performance gains, as
well. Controlling device rotation, power supply, and temperature
during these averaging times helps to ensure optimal accuracy
during this process. Refer to the AN-1041 Application Note for
more information about optimizing performance.
Rev. A | Page 18 of 20
OBSOLETE
:11 . . 7 , o : HEEEEEEQEEE;
Data Sheet ADIS16305
OUTLINE DIMENSIONS
3.05
DETAIL A
TOP VIEW
END VIEW
31.25
31.00
30.75
13.60
13.50
13.40
23.25
23.00
22.75
9.13
8.88
8.63
8.00 MAX 6.55
6.30
6.05
2.55
2.30
2.05
13.60
13.50
13.40
2.20 THRU HOLE
(2 PLACES)
DETAIL A
15.24
13.97
7.82
1.27 BSC
CONNECTOR PITCH
1.27
0.64
04-06-2010-A
Figure 21. 24-Lead Module with Connector Interface
(ML-24-4)
Dimensions shown in millimeters
ORDERING GUIDE
Model1 Temperature Range Package Description Package Option
ADIS16305AMLZ −40°C to +85°C 24-Lead Module with Connector Interface ML-24-4
ADIS16305/PCBZ Interface Board
1 Z = RoHS Compliant Part.
Rev. A | Page 19 of 20
OBSOLETE
ANALOG DEVICES www.ana|ug.cam
ADIS16305 Data Sheet
NOTES
©2010–2014 Analog Devices, Inc. All rights reserved. Trademarks and
registered trademarks are the property of their respective owners.
D09020-0-6/14(A)
Rev. A | Page 20 of 20
OBSOLETE
