HSD CONNECTORS
HSD CONNECTORS

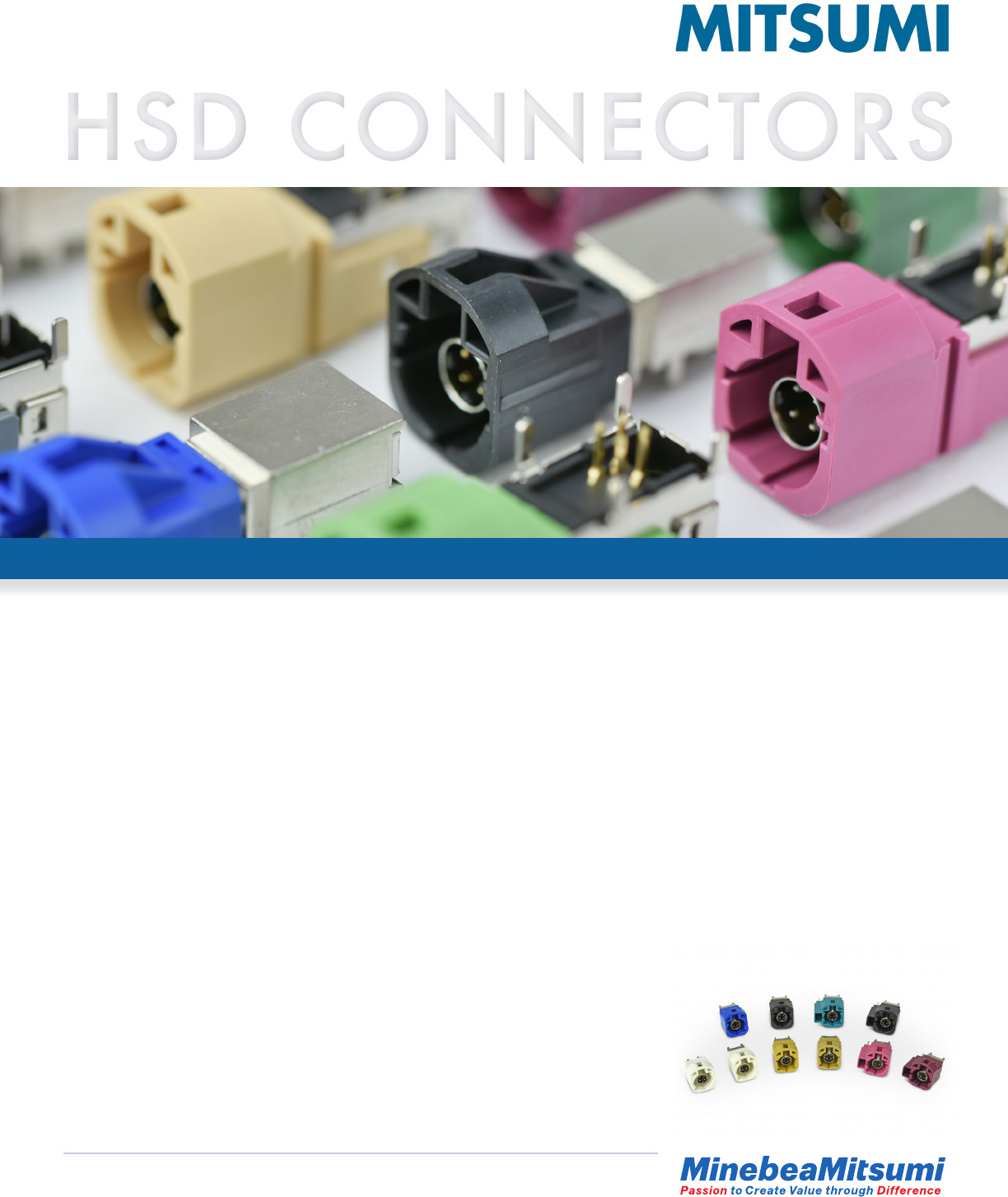

HSD Series Angle Type Connectors
Contact us for immediate design assistance.
Corporate Office • NMB Technologies Corporation
39830 Grand River Avenue, Suite B-1 • Novi, MI 48375 • Tel: 248-919-2250
For more details visit our website at
www.nmbtc.com
Mitsumi HSD Connectors.
Mitsumi’s high performance connectors offer an impedance-controlled interconnect system for High Speed Data (HSD) applications,
and are perfectly suitable for low voltage differential signal (LVDS) transmissions. As part of a fully shielded system, these
connectors can be used with shielded, twisted quad cables, to maintain signal integrity while preventing interference from cross
talk or external sources. Designed to meet the demanding requirements of the automotive market, Mitsumi HSD Connectors are
ideal for LVDS, cameras, USB, and IEEE 1394 (FireWire).
Product Features:
•High Speed Data transmission
including USB2.0, LVDS, Ethernet,
and more
•Multiple variations available (HSD
+2, HSD+4, HSD+8 and HSD Dual)
•Multiple codes available (mating key)
•Color Coding efficiency complies
with Automotive standards
•High PCB retention force
•Pin-in-Paste Compatible
•Scoop proof design– contact pins
protected from damage
•RoHS compliant
•Tape & Reel Packaging - suitable
for automated assembly
•USCAR compliant design
Applications:
•Automotive Electronics and
Displays
•Telecom Industries, e.g. radio
base stations
•Digital Infotainment Electronics
•Digital Symmetrical Networks
•USB 1.0, USB 2.0, USB 3.0
•LVDS
•Ethernet
•IEEE 1394 (FireWire)
•CAN (controller area network)
•MHL ™ (mobile high-definition link)
MITSUMI fl@@fl@@fi@@@@§ my mimw Fusion to Clean Vain. through [Juror-nu MinebeaMitsumi
Contact us for immediate design assistance.
Corporate Office • NMB Technologies Corporation
39830 Grand River Avenue, Suite B-1 • Novi, MI 48375 • Tel: 248-919-2250
For more details visit our website at
www.nmbtc.com
HSD Coding
Shape Coding Color RAI. No.
Normal
AJet Black 9005
BCream White 9001
CSignal Blue 5005
DClaret Violet 4004
ELeaf Green 6002
FNut Brown 8011
ZWater Blue 5021
Reverse
GBlue Grey 7031
HHeather Violet 4003
J Beige 1001
K Curry 1027
LYellow Green 6018
MPastel Orange 2003
O* Light Green 6027
Ordering Information
*Coding O describes as P in How to order.
• Any products mentioned in this catalog are subject to any modification in their appearance and others for improvements without prior notification.
• The details listed here are not a guarantee of the individual products at the time of ordering. When using the products, you will be asked to check their specifications.
