ESP32-CAM WhatsApp Image Alert System
2026-06-12 | By Rinme Tom
License: General Public License Arduino ESP32
Capture and send images to WhatsApp instantly with an ESP32-CAM and cloud connectivity
The ESP32-CAM is one of the most popular development boards for low-cost embedded vision projects. By combining its onboard camera, Wi-Fi connectivity, and a cloud messaging service, it becomes possible to capture images and deliver them directly to WhatsApp in just a few seconds.
In this project, an ESP32-CAM captures a photo whenever a trigger event occurs and automatically sends the image to a WhatsApp recipient. The system demonstrates how embedded devices can move beyond simple sensor reporting and deliver visual information in real time, making it useful for security, monitoring, automation, and IoT notification applications.
How the System Works
The project uses an ESP32-CAM module connected to a push button that acts as the capture trigger. When the button is pressed, the ESP32-CAM activates its camera, captures a JPEG image, and establishes a secure Wi-Fi connection.

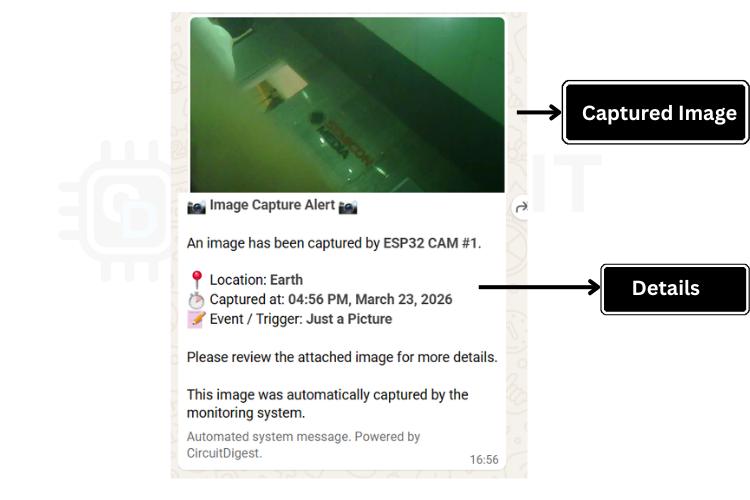

The image is then uploaded to a cloud API using HTTPS. Once received by the cloud service, the image is forwarded to WhatsApp along with event information and a timestamp. Within a few seconds, the user receives a WhatsApp notification containing the captured image.
This workflow demonstrates a complete IoT communication chain:
Event detection
Image capture
Secure network communication
Cloud processing
Instant user notification

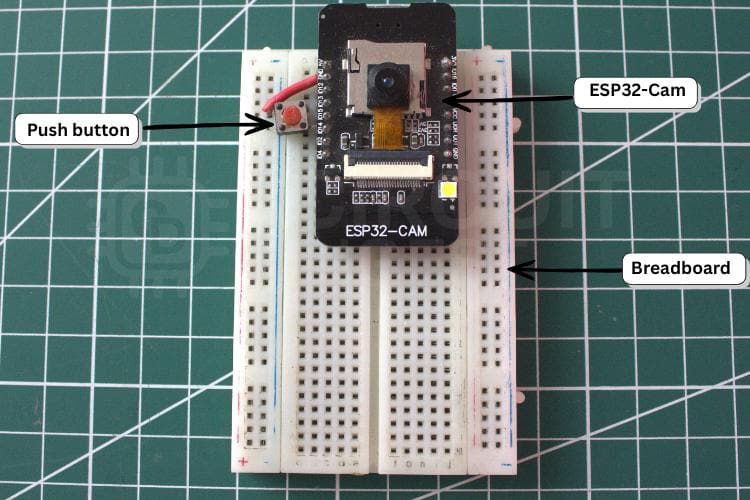

Hardware Requirements
To build the project, you will need:

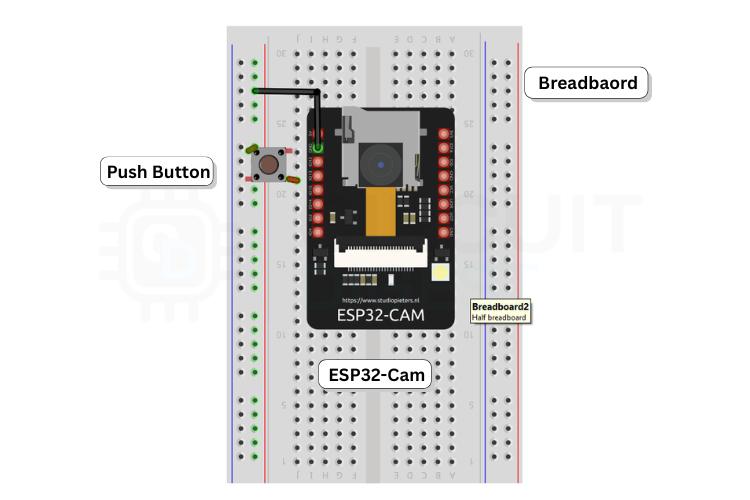

A push button is connected to GPIO 13 and configured using the ESP32's internal pull-up resistor. When pressed, the input transitions low and triggers the image capture sequence.
Software Overview
The firmware performs four primary tasks:
Camera Initialization
The ESP32-CAM is configured to use the onboard OV2640 camera sensor. Depending on available memory, the firmware automatically selects image resolution and frame buffer settings to balance image quality and performance.
Wi-Fi Connectivity
After startup, the board connects to a local Wi-Fi network. Reliable network access is essential because images are transmitted through a secure HTTPS connection.
Image Capture
When the trigger input is detected, the onboard flash LED briefly illuminates the scene before the camera captures a JPEG image. This improves image quality in low-light environments.
WhatsApp Delivery
The captured image is packaged and uploaded through an authenticated API request. The cloud service processes the upload and delivers the image directly to the configured WhatsApp account.
Why This Project Matters
Many IoT notification systems rely solely on text messages or sensor readings. While these alerts provide useful information, they often lack context.
By sending an image along with the notification, users can immediately verify what happened without logging into a dashboard or accessing a separate camera feed. This makes the system significantly more practical for real-world monitoring applications.
Potential Applications
Smart Doorbell
Capture a visitor's image whenever a doorbell button is pressed and receive the photo instantly on WhatsApp.
Security Monitoring
Trigger image capture when an intrusion sensor detects motion and receive visual confirmation in real time.
Industrial Inspection
Monitor restricted areas, equipment, or production lines and receive image-based alerts when specific events occur.
Wildlife Observation
Deploy the system in remote locations to capture and transmit images when activity is detected.
Educational IoT Projects
The project combines embedded programming, image processing, cloud communication, and messaging services into a single build, making it an excellent learning platform.
Design Considerations
For reliable operation, the ESP32-CAM should be powered from a stable 5 V supply. Camera modules can draw significant current during image capture and wireless transmission, and insufficient power is one of the most common causes of instability.
Good Wi-Fi signal strength is also important because image uploads require more bandwidth than typical sensor data transmissions.
Expanding the Project
Once the basic system is operational, the push button can be replaced with other trigger sources, such as:
PIR motion sensors
Door contact switches
IR sensors
Beam-break sensors
Industrial limit switches
Additional enhancements can include cloud logging, image archiving, object detection, or integration with larger home automation systems.
Final Thoughts
This ESP32-CAM WhatsApp message project demonstrates how inexpensive hardware can deliver powerful real-time visual notifications. By combining the ESP32-CAM with secure cloud communication and WhatsApp messaging, you can build a practical monitoring system capable of capturing and sharing images from virtually anywhere with Wi-Fi access.
The design also serves as a strong foundation for more advanced vision-enabled IoT applications, making it a valuable project for both beginners and experienced embedded developers looking to explore connected camera systems.
For complete source code, circuit details, and implementation resources, readers can visit the full project page for additional technical information.
