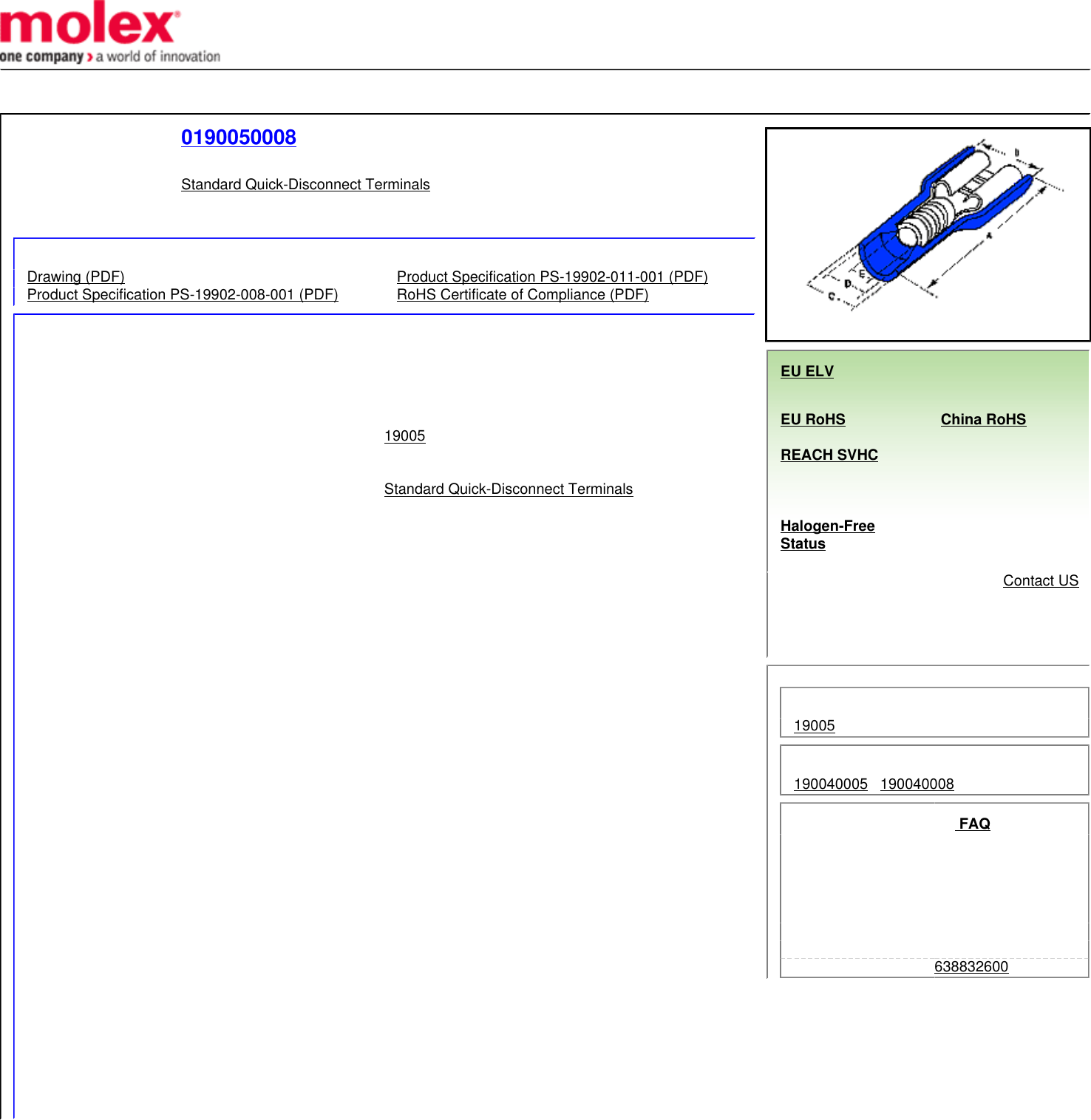

This document was generated on 09/18/2019
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number: 0190050008
Status: Active
Overview: Standard Quick-Disconnect Terminals
Description: InsulKrimp Fully Insulated Coupler, Female, for 14-16 AWG Wire, Continuous Molded
Strip
Documents:
Drawing (PDF) Product Specification PS-19902-011-001 (PDF)
Product Specification PS-19902-008-001 (PDF) RoHS Certificate of Compliance (PDF)
Agency Certification
CSA LR18689
UL E79133
General
Product Family Quick Disconnects
Series 19005
Crimp Quality Equipment Yes
Insulated Fully
Overview Standard Quick-Disconnect Terminals
Product Name InsulKrimp
Type Quick Disconnect
UPC 800753030534
Physical
Barrel Type Closed
Color - Resin Blue
Flammability 94V-2
Gender Female
Glow-Wire Capable Yes
Insulation Nylon (PA)
Lock to Mating Part None
Material - Metal Brass
Material - Plating Mating Tin
Material - Plating Termination Tin
Material - Resin Nylon
Net Weight 1.359/g
Orientation Straight
Packaging Type Reel
Polarized to Mating Part No
Tab Thickness 0.81mm
Tab Width 6.35mm
Temperature Range - Operating -65° to +105°C
Wire Insulation Diameter 4.19mm max.
Wire Size AWG 14, 16
Wire Size mm² 1.30-2.00
Electrical
Voltage - Maximum 600V
Material Info
Engineering Number BB-2263C
Reference - Drawing Numbers
Product Specification PS-19902-008-001, PS-19902-011-001
Sales Drawing SD-19005-001
Series image - Reference only
EU ELV
Not Relevant
EU RoHS China RoHS
Compliant
REACH SVHC
Not Contained Per -
ED/71/2019 (16 July
2019)
Halogen-Free
Status
Low-Halogen
For more information, please visit Contact US
China ROHS Green Image
ELV Not Relevant
RoHS Phthalates Not Contained
Search Parts in this Series
19005 Series
Use With
190040005 , 190040008
Application Tooling | FAQ
Tooling specifications and manuals are
found by selecting the products below.
Crimp Height Specifications are then
contained in the Application Tooling
Specification document.
Global
Description Product #
Mini-Mac Applicator 638832600
