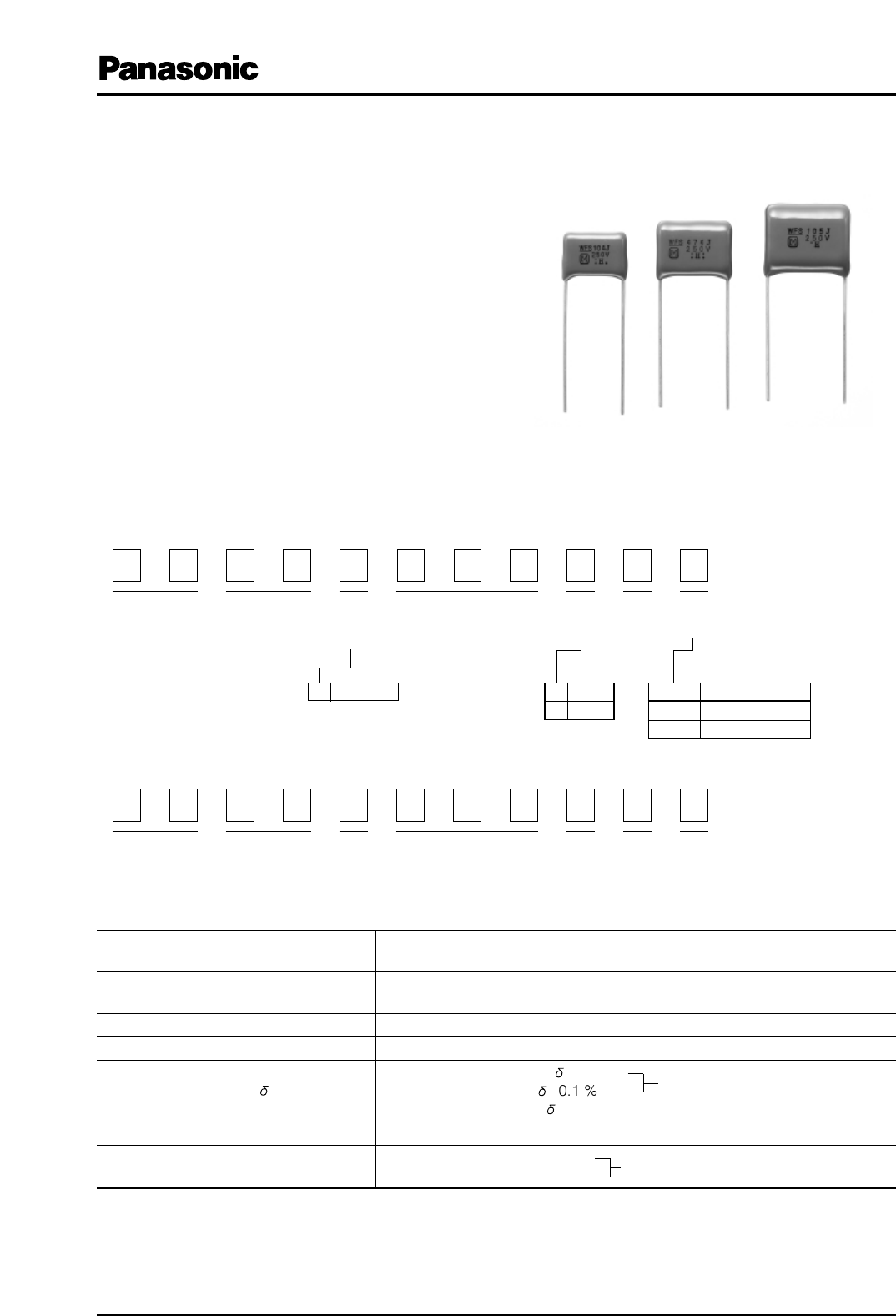

Plastic Film Capacitors
Metallized Polypropylene Film Capacitor
Type: ECWF(S)
Designed for high current and frequency applications.
■Features
•
Low-loss
•
Excellent frequency characteristics
•
Flame reterdant epoxy resin coating
•
RoHS directive compliant
■Recommended Applications
•
High frequency and high current circuits
(TVs, Monitors, Power Supplies, etc.)
■Explanation of Part Numbers
1234567891011
E C W F 2 S
Products code
Dielectric &
construction
Rated
voltage
Cap. Tol.
Suffix SuffixCapacitance
●Explanation of Part Numbers for Odd Size Taping
E C W F 2 R S
Products code
Dielectric &
construction
Rated
voltage
7.5 mm
Crimped lead
Cap. Tol.
SuffixCapacitance
2 250 VDC H±3 %
J±5 %
■Specifications
Category temp. range
(Including temperature-rise on unit surface)
Rated voltage
Capacitance range
Capacitance tolerance
–25 ˚C to +105 ˚C
250 VDC
(Derating of rated voltage by 1.25 %/˚C at more than 85 ˚C)
0.068 µF to 3.3 µF
±3 %(H), ±5 %(J)
Dissipation factor (tan )
0.068 µF to 0.51 µF : tan
<
=
0.05 %
0.56 µF to 3.3 µF : tan
<
=
0.1 % (20˚C, 1 kHz)
0.068 µF to 3.3 µF : tan
<
=
0.2 % (20 ˚C, 10 kHz)
Withstand voltage Between terminals : Rated volt. (VDC)✕150 % 60 s
Insulation resistance (IR) C
<
=
0.33 µF : IR>
=9000 MΩ
C>0.33 µF : IR>
=3000 MΩ. µF (20 ˚C, 100 VDC, 60 s)
❈ In case of applying voltage in alternating current (50 Hz or 60 Hz sine wave) to a capacitor with DC rated voltage,
please refer to the page of “Permissible voltage (R.M.S) in alternating current corresponding to DC rated voltage”.
Suffix
Blank
B
Lead Form
Straight
Crimped lead
Panasonic Ismax Svawgm Cnmped \ead (Sumx ED Lmax Lmax , / \ Mavkmg E Mammy z Tmax nose-005 Cappevrwne
Design, Specifications are subject to change without notice. Ask factory for technical specifications before purchase and/or use.
Whenever a doubt about safety arises from this product, please inform us immediately for technical consultation without fail.
Plastic Film Capacitors
■Dimensions in mm (not to scale)
■Packaging Specifications for Bulk Package
Packing quantity:100 pcs./bag
■Taping Specifications for Automatic lnsertion
●Taping style
●Packaging Specification
❈See the column “Rating, Dimensions & Quantity Box”for packing quantity.
Style
E
Lead Spacing
7.5 mm
●Lead Spacing
✕
..
..Refer to the page of taping specifications.
Type Rated volt. Cap. range
(
µ
F)
Taping style
AD AS B C D E
○
Packing suffix
ECWF(S) 250 VDC 0.068 to 1.5 Ammo R()
S
Panasonic
Design, Specifications are subject to change without notice. Ask factory for technical specifications before purchase and/or use.
Whenever a doubt about safety arises from this product, please inform us immediately for technical consultation without fail.
Plastic Film Capacitors
Suffix for lead crimped
Cap. tol. code
■Rating & Dimensions
●Rated voltage : 250 VDC (150 Vrms, 250 Vo-p) Cap. tolerance : ±3 %(H), ±5 %(J)
Part No.
Cap.
(µF)
Quantity
Ammo
7.5 mm
Dimensions (mm)
Lmax Tmax
ød
Straight
Crimped lead
Straight
Crimped lead
Hmax FS
ECWF2683MS( ) 0.068 15.5 6.0 12.5 17.5 12.5 7.5 0.80
ECWF2753MS( ) 0.075 15.5 6.0 13.0 18.0 12.5 7.5 0.80
ECWF2823MS( ) 0.082 15.5 6.5 13.0 18.0 12.5 7.5 0.80
ECWF2913MS( ) 0.091 15.5 5.5 12.5 17.5 12.5 7.5 0.80
ECWF2104MS( ) 0.10 15.5 6.0 12.5 17.5 12.5 7.5 0.80
ECWF2114MS( ) 0.11 15.5 6.0 13.0 18.0 12.5 7.5 0.80
ECWF2124MS( ) 0.12 15.5 6.5 13.0 18.0 12.5 7.5 0.80
ECWF2134MS( ) 0.13 15.5 6.5 13.5 18.5 12.5 7.5 0.80
ECWF2154MS( ) 0.15 15.5 6.0 12.5 17.5 12.5 7.5 0.80
ECWF2164MS( ) 0.16 15.5 6.0 12.5 17.5 12.5 7.5 0.80
ECWF2184MS( ) 0.18 15.5 6.0 13.0 18.0 12.5 7.5 0.80
ECWF2204MS( ) 0.20 15.5 6.5 13.5 18.5 12.5 7.5 0.80
ECWF2224MS( ) 0.22 15.5 6.5 13.5 18.5 12.5 7.5 0.80
ECWF2244MS( ) 0.24 15.5 7.0 13.5 18.5 12.5 7.5 0.80
ECWF2274MS( ) 0.27 18.0 6.5 13.0 18.0 15.0 10.0 0.80
ECWF2304MS( ) 0.30 18.0 6.5 13.5 18.5 15.0 10.0 0.80
ECWF2334MS( ) 0.33 18.0 7.0 13.5 18.5 15.0 10.0 0.80
ECWF2364MS( ) 0.36 18.0 7.0 14.0 19.0 15.0 10.0 0.80
ECWF2394MS( ) 0.39 18.0 7.5 14.0 19.0 15.0 10.0 0.80
ECWF2434MS( ) 0.43 18.0 7.5 14.5 19.5 15.0 10.0 0.80
ECWF2474MS( ) 0.47 18.0 8.0 15.0 20.0 15.0 10.0 0.80
ECWF2514MS( ) 0.51 18.0 8.5 15.0 20.0 15.0 10.0 0.80
ECWF2564MS( ) 0.56 18.0 8.5 15.5 20.5 15.0 10.0 0.80
ECWF2624MS( ) 0.62 18.0 9.0 16.0 21.0 15.0 10.0 0.80
ECWF2684MS( ) 0.68 18.0 9.5 16.0 21.0 15.0 10.0 0.80
ECWF2754MS( ) 0.75 20.0 9.0 16.0 21.0 17.0 12.5 0.80
ECWF2824MS( ) 0.82 20.0 9.5 16.0 21.0 17.0 12.5 0.80
ECWF2914MS( ) 0.91 20.0 10.0 16.5 21.5 17.0 12.5 0.80
ECWF2105MS( ) 1.0 20.0 10.5 17.0 22.0 17.0 12.5 0.80
ECWF2115MS( ) 1.1 20.0 11.0 17.5 22.5 17.0 12.5 0.80
ECWF2125MS( ) 1.2 20.0 11.0 18.0 23.0 17.0 12.5 0.80
ECWF2135MS( ) 1.3 23.0 10.5 17.0 22.0 20.0 12.5 0.80
ECWF2155MS( ) 1.5 23.0 11.0 18.0 23.0 20.0 12.5 0.80
ECWF2165MS( ) 1.6 23.0 11.5 18.0 23.0 20.0 12.5 0.80
ECWF2185MS( ) 1.8 23.0 12.0 19.5 24.5 20.0 12.5 0.80
ECWF2205MS( ) 2.0 23.0 12.5 20.0 25.0 20.0 12.5 0.80
ECWF2225MS( ) 2.2 23.0 14.0 20.5 25.5 20.0 12.5 0.80
ECWF2245MS( ) 2.4 23.0 14.5 21.0 26.0 20.0 12.5 0.80
ECWF2275MS( ) 2.7 28.0 12.5 20.0 25.0 25.0 15.0 0.80
ECWF2305MS( ) 3.0 28.0 14.0 20.5 25.5 25.0 15.0 0.80
ECWF2335MS( ) 3.3 28.0 14.5 21.5 26.5 25.0 15.0 0.80
300
—
500
400
500
600
