LM2775-Q1 Switched Capacitor 5-V Boost Converter
1 Features
• Qualified for automotive applications
• AEC-Q100 qualified with the following results
– Device temperature grade 1: –40°C to +125°C
ambient operating temperature range
• 2.7-V to 5.5-V input range
• Fixed 5-V output
• 200-mA output current
• Inductor-less solution: only requires 3 small
ceramic capacitors
• Shutdown disconnects load from VIN
• Current limit and thermal protection
• 2-MHz switching frequency
• PFM operation during light load currents (PFM pin
tied high)
2 Applications
•Power for CAN transceiver
•Millimeter wave radar
•ADAS camera power supply
3 Description
The LM2775-Q1 is a regulated switched-capacitor
doubler that produces a low-noise output voltage.
The LM2775-Q1 can supply up to 200 mA of output
current over a 3.1-V to 5.5-V input range, as well
as up to 125 mA of output current when the input
voltage is as low as 2.7 V. The LM2775-Q1 provides
a cost-optimized 5V, 200mA supply for powering
CAN transceivers and other loads, boosting from a
regulated 3.3-V system rail. It can be used as a post-
boost in automotive systems that do not use a wide
input voltage pre-boost or cold crank. At low output
currents, the LM2775-Q1 can reduce its quiescent
current by operating in a pulse frequency modulation
(PFM) mode. PFM mode can be enabled or disabled
by driving the PFM pin to high or low. Additionally,
when the device is in shutdown, the user can chose
to have the output voltage pulled to GND or left in a
high impedance state by setting the OUTDIS pin high
or low.
The LM2775-Q1 has been placed in TI's 8-pin WSON,
a package with excellent thermal properties that
keeps the part from overheating under almost all rated
operating conditions.

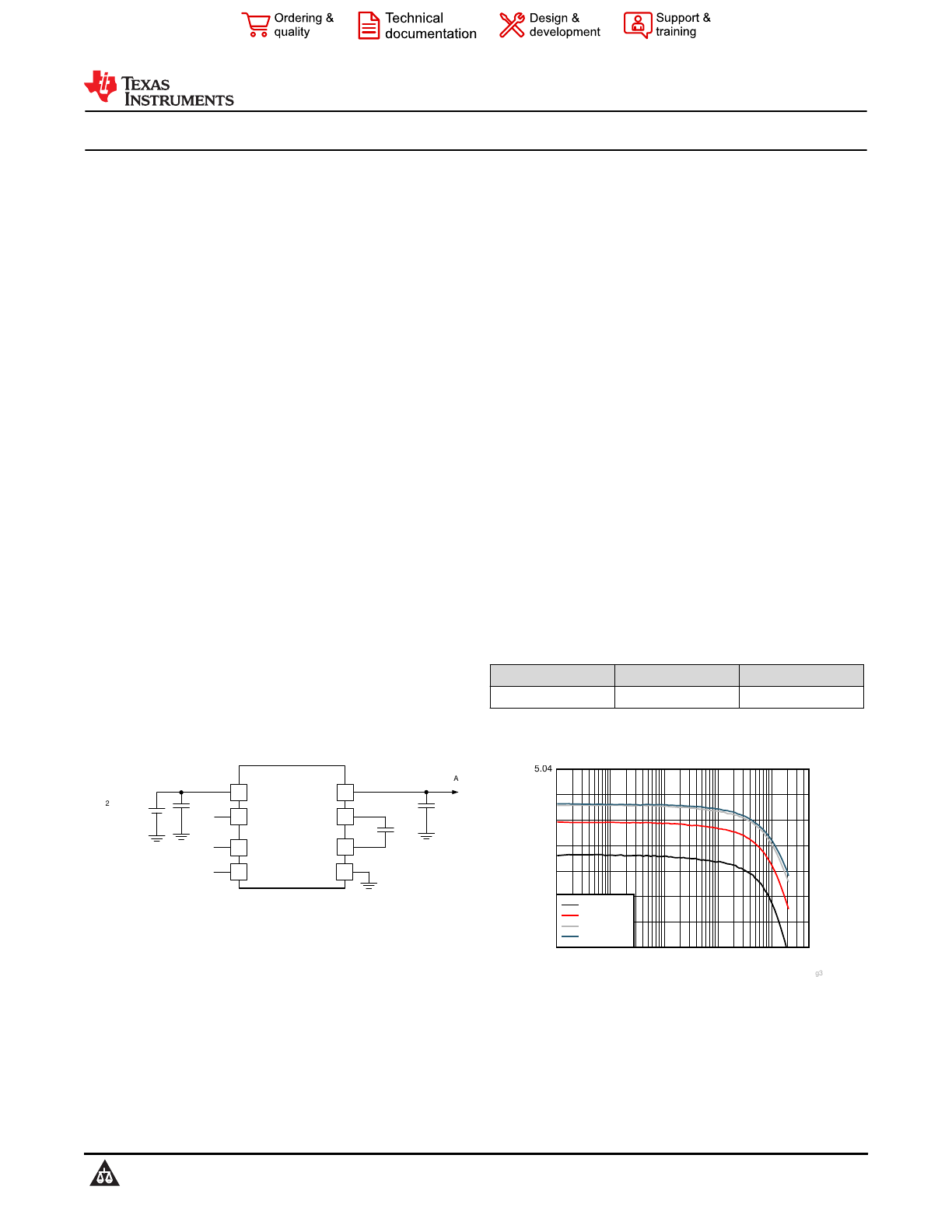

Device Information(1)
PART NUMBER PACKAGE BODY SIZE (NOM)
LM2775-Q1 WSON (8) 2.00 mm × 2.00 mm
(1) For all available packages, see the orderable addendum at
the end of the data sheet.

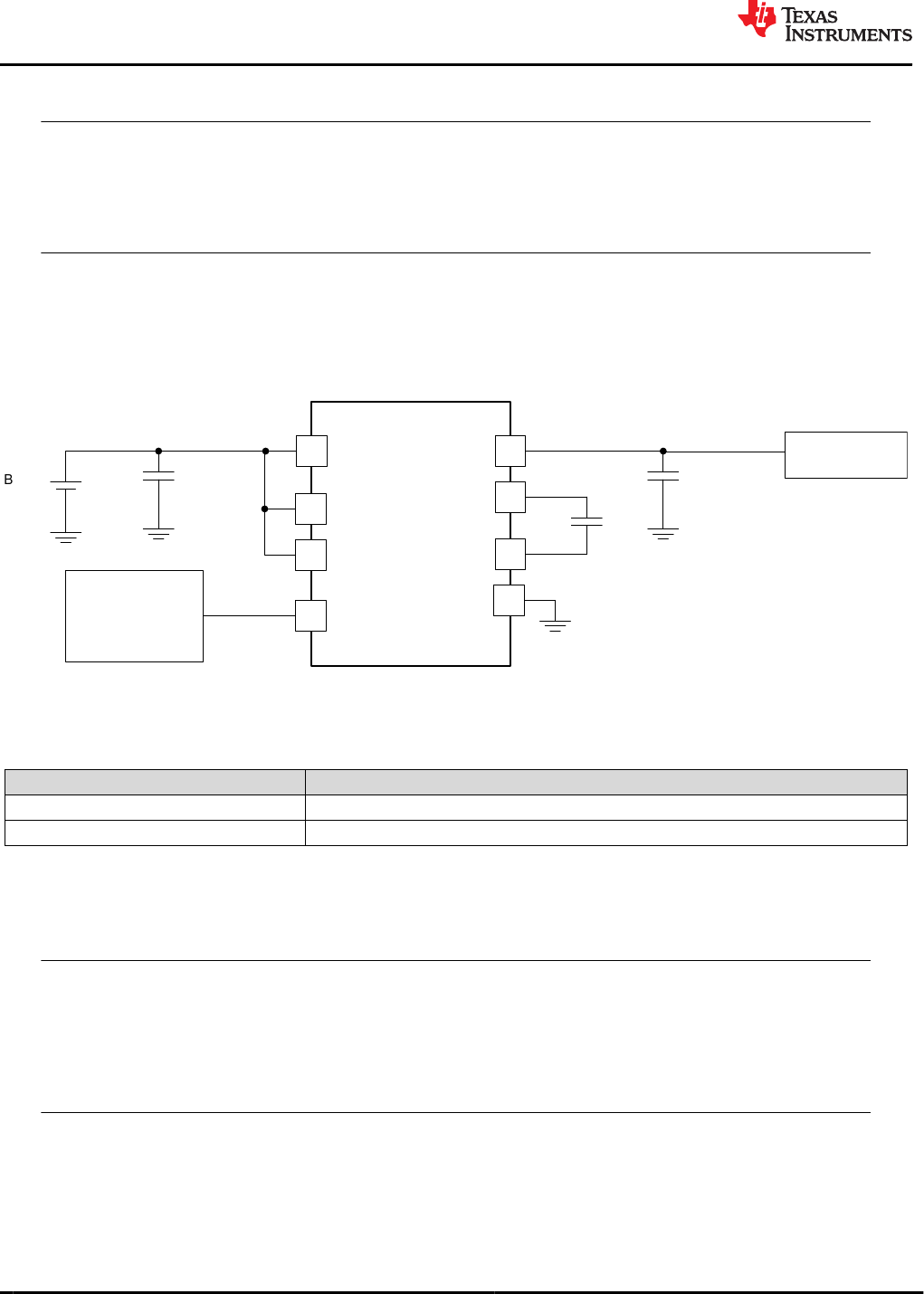

VIN
EN
LM2775-Q1
GND
VOUT
C1+
C1-
2.2 PF2.2 PF
PFM
OUTDIS
1 PF
5 V @ up to 200 mA
2.7 V to 5.5 V
Copyright © 2017, Texas Instruments Incorporated
Typical Application Circuit
IOUT (A)
VOUT (V)
1E-5 0.0001 0.001 0.01 0.05 0.2 0.5
4.9
4.92
4.94
4.96
4.98
5
5.02
5.04
Fig3
TJ=-40qC
TJ=+25qC
TJ=+85qC
TJ=+125qC
Load Regulation
www.ti.com
LM2775-Q1
SNVSAH6C – JUNE 2018 – REVISED MAY 2021
Copyright © 2021 Texas Instruments Incorporated Submit Document Feedback 1
Product Folder Links: LM2775-Q1
LM2775-Q1
SNVSAH6C – JUNE 2018 – REVISED MAY 2021
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
I TEXAS INSTRUMENTS
Table of Contents
1 Features............................................................................1
2 Applications..................................................................... 1
3 Description.......................................................................1
4 Revision History.............................................................. 2
5 Pin Configuration and Functions...................................3
6 Specifications.................................................................. 4
6.1 Absolute Maximum Ratings........................................ 4
6.2 ESD Ratings............................................................... 4
6.3 Recommended Operating Conditions.........................4
6.4 Thermal Information....................................................4
6.5 Electrical Characteristics.............................................5
6.6 Switching Characteristics............................................5
6.7 Typical Characteristics................................................ 6
7 Detailed Description........................................................9
7.1 Overview..................................................................... 9
7.2 Functional Block Diagram........................................... 9
7.3 Feature Description.....................................................9
7.4 Device Functional Modes..........................................11
8 Application and Implementation.................................. 12
8.1 Application Information............................................. 12
8.2 Typical Application.................................................... 12
9 Power Supply Recommendations................................17
10 Layout...........................................................................18
10.1 Layout Guidelines................................................... 18
10.2 Layout Example...................................................... 18
11 Device and Documentation Support..........................19
11.1 Receiving Notification of Documentation Updates.. 19
11.2 Support Resources................................................. 19
11.3 Trademarks............................................................. 19
11.4 Electrostatic Discharge Caution.............................. 19
11.5 Glossary.................................................................. 19
12 Mechanical, Packaging, and Orderable
Information.................................................................... 20
4 Revision History
NOTE: Page numbers for previous revisions may differ from page numbers in the current version.
Changes from Revision B (November 2019) to Revision C (May 2021) Page
• Updated the numbering format for tables, figures and cross-references throughout the document. .................1
• Corrected application..........................................................................................................................................1
Changes from Revision A (September 2018) to Revision B (November 2019) Page
• Changed Load Regulation graph........................................................................................................................1
• Changed Abs Max Ratings TJ-MAX 'Max' temp from 125 to 150......................................................................... 4
• Added IOUT spec to Section 6.3 table................................................................................................................. 4
• Changed maximum ambient temp range from 85 to 125°C in the 'Condition statement of Section 6.5 table.... 5
• Added Thermal shutdown spec to Electrical Characteristics table .................................................................... 5
• Changed TA to TJ= 25°C in Conditions statement of Section 6.7 section...........................................................6
• Updated Typical Characteristics graphs ............................................................................................................ 6
• Updated Application Curve Figure 8-4 .............................................................................................................16
Changes from Revision * (June 2018) to Revision A (September 2018) Page
• Deleted Advance Information Banner. Data sheet is Production Data. ............................................................. 1
LM2775-Q1
SNVSAH6C – JUNE 2018 – REVISED MAY 2021 www.ti.com
2Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: LM2775-Q1
I TEXAS INSTRUMENTS
5 Pin Configuration and Functions
1
4
2
3
8
5
7
6
THERMAL PAD

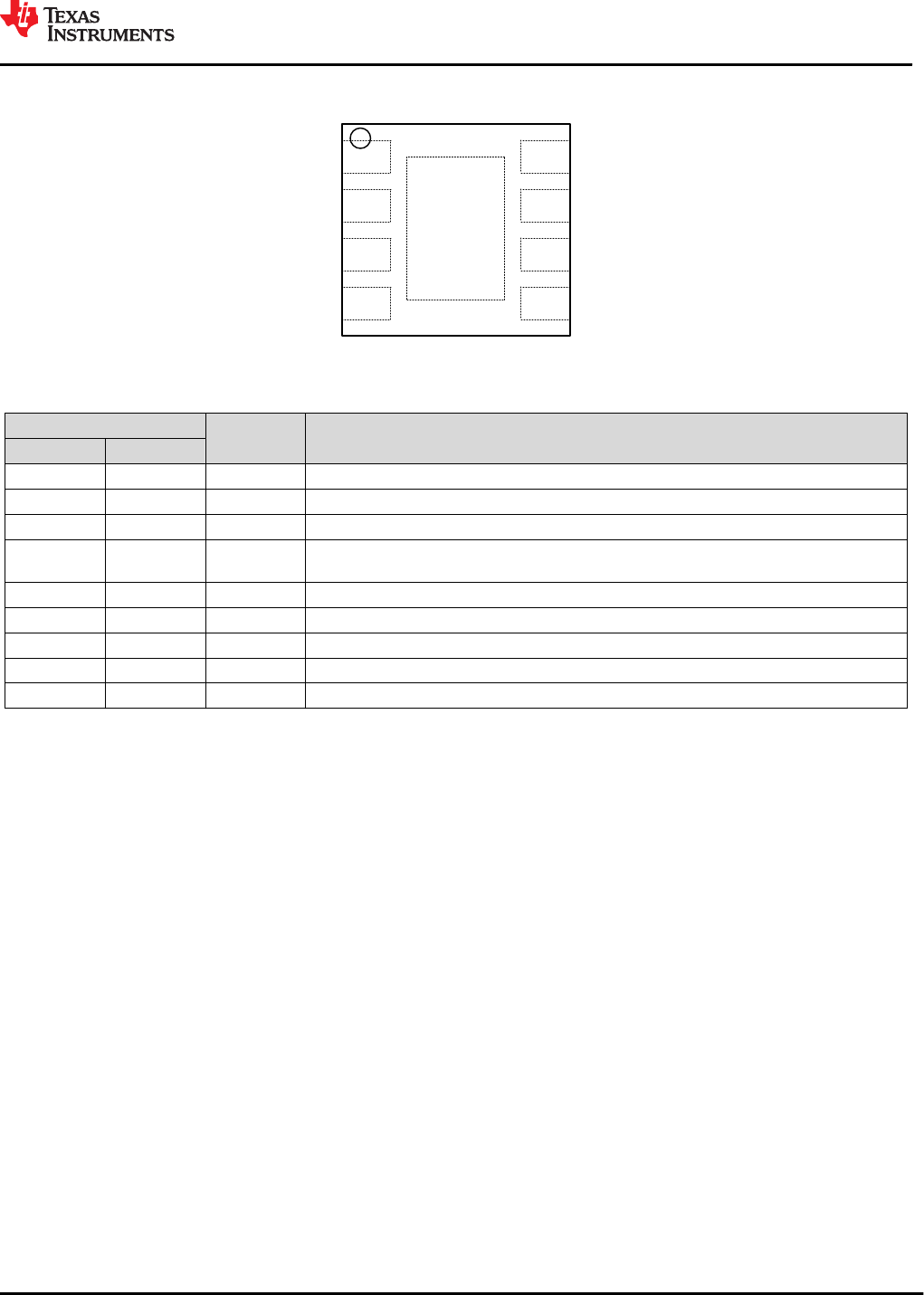

Figure 5-1. 8-Pin WSON with Thermal Pad DSG Package (Top View)
Table 5-1. Pin Functions
PIN I/O DESCRIPTION
NO. NAME
1 PFM I PFM mode enable. Allow or disallow PFM operation. 1 = PFM enabled, 0 = PFM disabled
2 C1– P Flying capacitor pin
3 C1+ P Flying capacitor pin
4 OUTDIS I Output disconnect option. 1 = Active output discharge during shutdown, 0 = High impedance
output without pull-down during shutdown.
5 EN I Chip enable. 1 = Enabled, 0 = Disabled
6 VOUT O Charge pump output
7 VIN P Input voltage
8 GND G Ground
Thermal Pad GND GND Connect to GND
www.ti.com
LM2775-Q1
SNVSAH6C – JUNE 2018 – REVISED MAY 2021
Copyright © 2021 Texas Instruments Incorporated Submit Document Feedback 3
Product Folder Links: LM2775-Q1
TEXAS INSTRUMENTS
6 Specifications
6.1 Absolute Maximum Ratings
over operating free-air temperature range (unless otherwise noted)(1)
MIN MAX UNIT
VIN, VOUT –0.3 6 V
EN, OUTDIS, PFM –0.3 VIN + 0.3 with 6 V Max V
Continuous power dissipation Internally Limited °C
Junction temperature (TJ-MAX)(2) 150 °C
Storage temperature, Tstg –65 150 °C
(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress
ratings only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under
Recommended Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device
reliability.
(2) High junction temperature degrade operating lifetimes. Operating lifetime is de-rated for juction temperatures greater than 125°C
6.2 ESD Ratings
VALUE UNIT
V(ESD) Electrostatic discharge Human-body model (HBM), per AEC Q100-002(1) ±2000 V
Charged-device model (CDM), per AEC Q100-011 ±750
(1) AEC Q100-002 indicates that HBM stressing shall be in accordance with the ANSI/ESDA/JEDEC JS-001 specification.
6.3 Recommended Operating Conditions
over operating free-air temperature range (unless otherwise noted)
MIN NOM MAX UNIT
VIN 2.7 5.5 V
Junction temperature (TJ ) –40 125 °C
IOUT 200(1) mA
(1) Maximum output current is specified when TJ<TTSD.
6.4 Thermal Information
THERMAL METRIC(1)
LM2775-Q1
UNITDSG (WSON)
8 PINS
RθJA Junction-to-ambient thermal resistance 71.6 °C/W
RθJC(top) Junction-to-case (top) thermal resistance 95.0 °C/W
RθJB Junction-to-board thermal resistance 41.5 °C/W
ψJT Junction-to-top characterization parameter 3.2 °C/W
ψJB Junction-to-board characterization parameter 41.8 °C/W
RθJC(bot) Junction-to-case (bottom) thermal resistance 12.8 °C/W
(1) For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application
report, SPRA953.
LM2775-Q1
SNVSAH6C – JUNE 2018 – REVISED MAY 2021 www.ti.com
4Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: LM2775-Q1
TEXAS INSTRUMENTS TJ \N w our
6.5 Electrical Characteristics
Typical limits tested at TJ = 25°C. Minimum and maximum limits apply over the full operating ambient temperature range
(−40°C ≤ TJ ≤ +125°C). VIN = 3.6 V, CIN = COUT = 2.2 µF, C1 = 1 µF
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
VOUT Output voltage regulation IOUT = 180 mA 4.8 5 5.2 V
IQQuiescent current IOUT = 0 mA, PFM = ‘1’ 75 150 µA
IOUT = 0 mA, PFM = ‘0’ 5 mA
ISD Shutdown current EN = '0' 0.7 3 µA
IOUTDIS Output discharge current OUTDIS = '1' 500 µA
ICL Input current limit 600 mA
VIL Input logic low: EN, OUTDIS, PFM 0 0.4 V
VIH Input logic high: EN, OUTDIS, PFM 1.2 VIN V
UVLO Undervoltage lockout VIN falling 2.4 V
VIN rising 2.6
TTSD Thermal shutdown threshold TJ rising 150 °C
Thermal shutdown hysteresis TJ falling below TTSD 20 °C
6.6 Switching Characteristics
over operating free-air temperature range (unless otherwise noted)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
ƒSW Switching frequency 1.7 2 2.3 MHz
www.ti.com
LM2775-Q1
SNVSAH6C – JUNE 2018 – REVISED MAY 2021
Copyright © 2021 Texas Instruments Incorporated Submit Document Feedback 5
Product Folder Links: LM2775-Q1
TEXAS INSTRUMENTS 504 5 z a 555

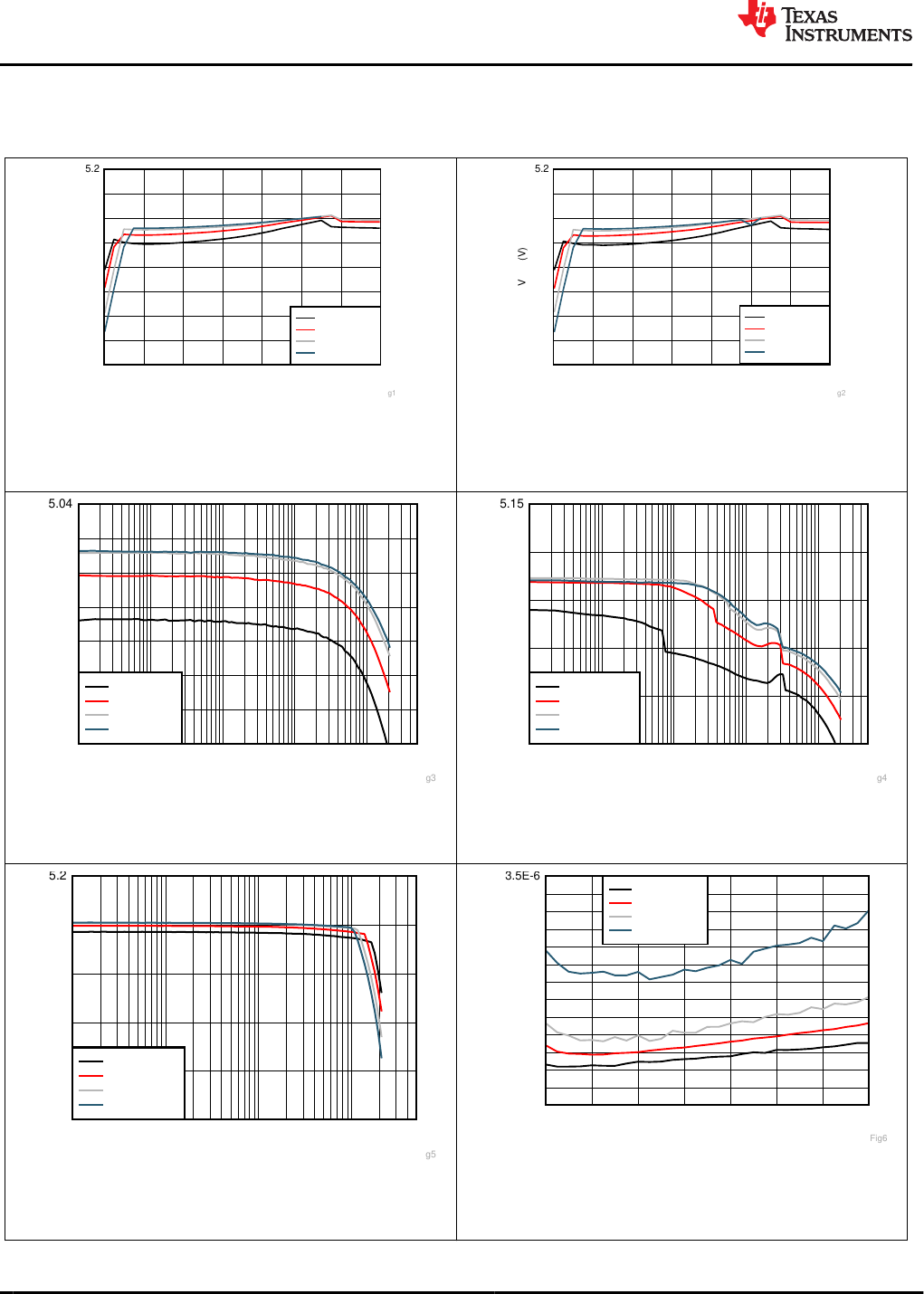

6.7 Typical Characteristics
TJ = 25°C, VIN = 3.6 V, CIN = COUT = 10 µF (10-V 0402 case), C1 = 1 µF (10-V 0402 case), VEN = VIN .
VIN (V)
VOUT (V)
2.7 3.1 3.5 3.9 4.3 4.7 5.1 5.5
4.4
4.5
4.6
4.7
4.8
4.9
5
5.1
5.2
Fig1
TJ = -40qC
TJ = +25qC
TJ = +85qC
TJ = +125qC
ILOAD = 200 mA PFM = '0'
Figure 6-1. PWM Output Regulation
VIN (V)
VOUT (V)
2.7 3.1 3.5 3.9 4.3 4.7 5.1 5.5
4.4
4.5
4.6
4.7
4.8
4.9
5
5.1
5.2
Fig2
TJ = -40qC
TJ = +25qC
TJ = +85qC
TJ = +125qC
ILOAD = 200 mA PFM = '1'
Figure 6-2. PFM Output Regulation
IOUT (A)
VOUT (V)
1E-5 0.0001 0.001 0.01 0.05 0.2 0.5
4.9
4.92
4.94
4.96
4.98
5
5.02
5.04
Fig3
TJ=-40qC
TJ=+25qC
TJ=+85qC
TJ=+125qC
VIN = 3.3 V PFM = '0'
Figure 6-3. Load Regulation
IOUT (A)
VOUT (V)
1E-5 0.0001 0.001 0.01 0.05 0.2 0.5
4.9
4.95
5
5.05
5.1
5.15
Fig4
TJ = -40qC
TJ = +25qC
TJ = +85qC
TJ = +125qC
VIN = 3.3 V PFM = '1'
Figure 6-4. Load Regulation
IOUT (A)
VOUT (V)
0.0001 0.001 0.01 0.02 0.05 0.1 0.2 0.5
4.2
4.4
4.6
4.8
5
5.2
Fig5
TJ = -40qC
TJ = +25qC
TJ = +85qC
TJ = +125qC
VIN = 2.7 V PFM = '0'

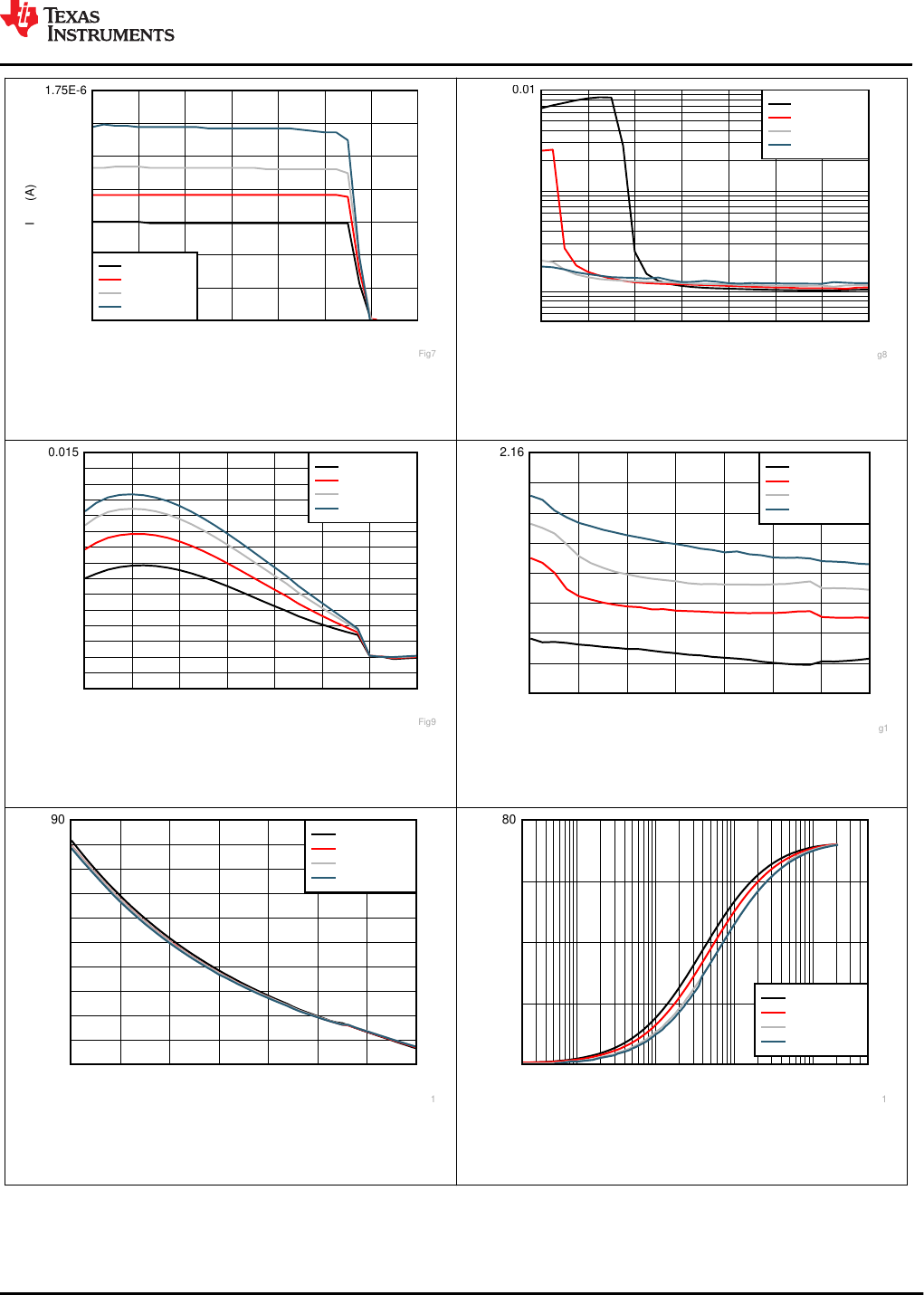

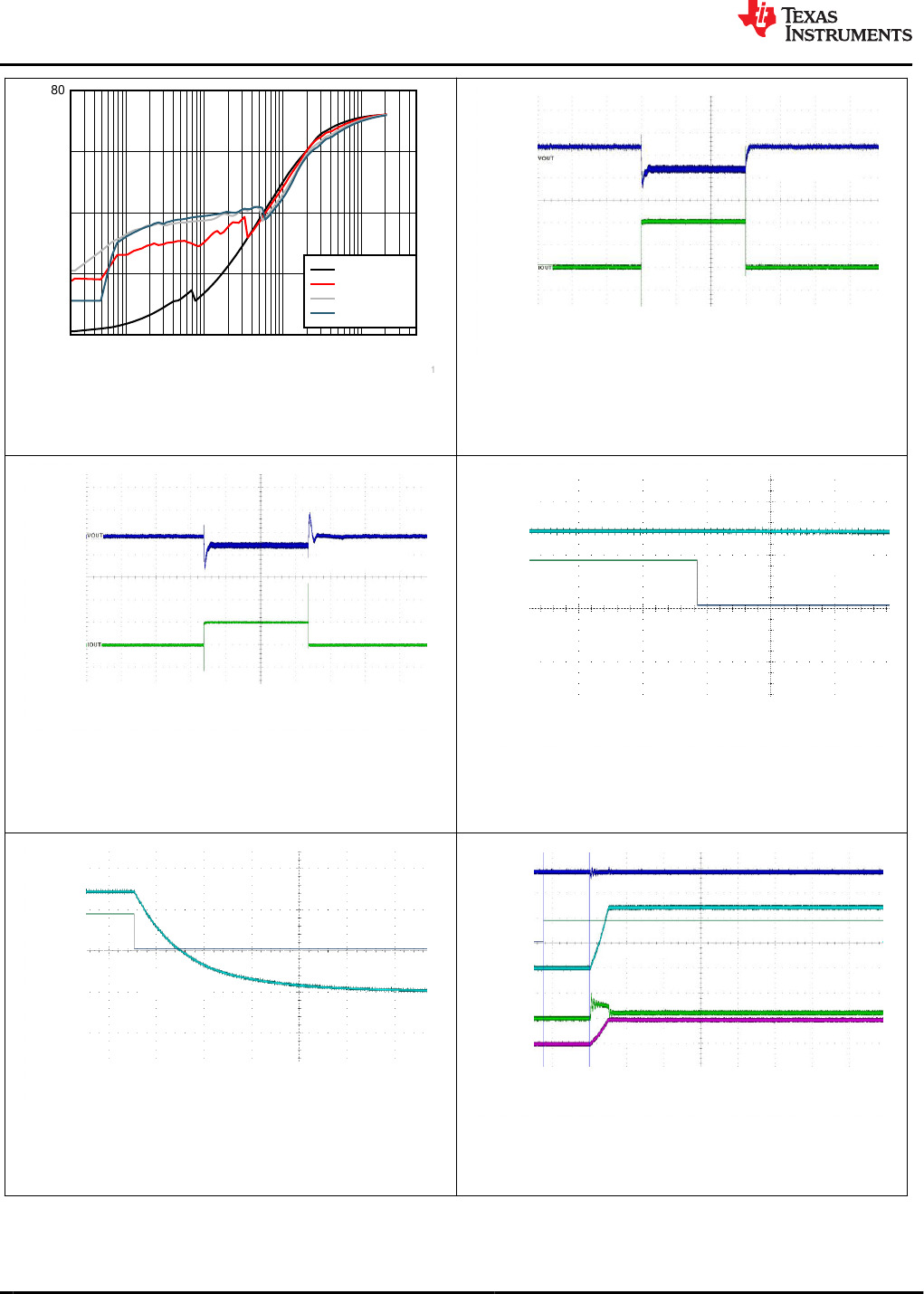

Figure 6-5. Load Regulation
VIN (V)
ISD (A)
2.7 3.1 3.5 3.9 4.3 4.7 5.1 5.5
2.5E-7
5E-7
7.5E-7
1E-6
1.25E-6
1.5E-6
1.75E-6
2E-6
2.25E-6
2.5E-6
2.75E-6
3E-6
3.25E-6
3.5E-6

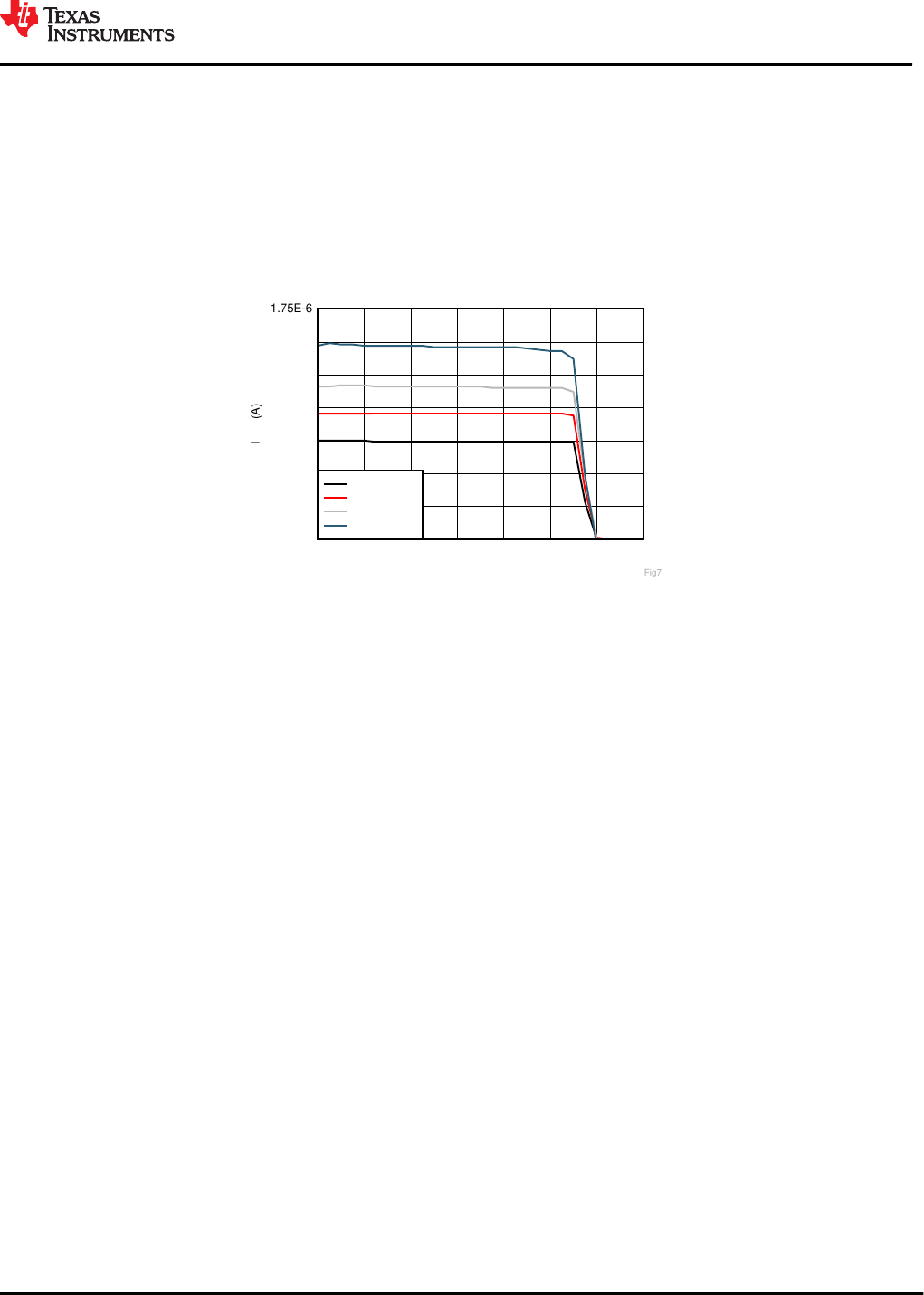

Fig6
TJ = -40qC
TJ = +25qC
TJ = +85qC
TJ = +125qC
EN = '0'
Figure 6-6. Shutdown Current
LM2775-Q1
SNVSAH6C – JUNE 2018 – REVISED MAY 2021 www.ti.com
6Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: LM2775-Q1
l TEXAS INSTRUMENTS ‘ 7595 um ems ao \\ \\ \
EN = '0' OUTDIS = '0'
Figure 6-7. Output Leakage Current
VIN (V)
IQ (A)
2.7 3.1 3.5 3.9 4.3 4.7 5.1 5.5
5E-5
7E-5
0.0001
0.0002
0.0003
0.0005
0.0007
0.001
0.002
0.003
0.005
0.007
0.01
Fig8
TJ = -40qC
TJ = +25qC
TJ = +85qC
TJ = +125qC
ILOAD = 0 mA PFM = '1'
Figure 6-8. PFM Quiescent Current
VIN (V)
IQ (A)
2.7 3.1 3.5 3.9 4.3 4.7 5.1 5.5
0
0.001
0.002
0.003
0.004
0.005
0.006
0.007
0.008
0.009
0.01
0.011
0.012
0.013
0.014
0.015
Fig9
TJ = -40qC
TJ = +25qC
TJ = +85qC
TJ = +125qC
ILOAD = 0 mA PFM = '0'
Figure 6-9. PWM Quiescent Current
VIN (V)
fSW (MHz)
2.7 3.1 3.5 3.9 4.3 4.7 5.1 5.5
2
2.02
2.04
2.06
2.08
2.1
2.12
2.14
2.16
Fig1
TJ = -40qC
TJ = +25qC
TJ = +85qC
TJ = +125qC
Figure 6-10. Switching Frequency
VIN (V)
Efficiency (%)
2.7 3.1 3.5 3.9 4.3 4.7 5.1 5.5
40
45
50
55
60
65
70
75
80
85
90
Fig1
TJ = -40qC
TJ = +25qC
TJ = +85qC
TJ = +125qC
ILOAD = 100 mA PFM = '0'
Figure 6-11. Efficiency vs Input Voltage
IOUT (A)
Efficiency (%)
2E-5 0.0001 0.001 0.01 0.05 0.2 0.5
0
20
40
60
80
Fig1
TJ = -40qC
TJ = +25qC
TJ = +85qC
TJ = +125qC
VIN = 3.3 V PFM = '0'
Figure 6-12. Efficiency vs Load Current
www.ti.com
LM2775-Q1
SNVSAH6C – JUNE 2018 – REVISED MAY 2021
Copyright © 2021 Texas Instruments Incorporated Submit Document Feedback 7
Product Folder Links: LM2775-Q1
I TEXAS INSTRUMENTS an \\ H \ \ll
IOUT (A)
Efficiency (%)
2E-5 0.0001 0.001 0.01 0.05 0.2 0.5
0
20
40
60
80
Fig1
TJ = -40qC
TJ = +25qC
TJ = +85qC
TJ = +125qC
VIN = 3.3 V PFM = '1'
Figure 6-13. Efficiency vs Load Current
Time (200 Ps / DIV)
ILOAD (100 mA/DIV)
VOUT (100 mV/DIV)
+5 V Offset
VIN = 3.6 V ILOAD = 1 mA to 100 mA PFM = '1'
Figure 6-14. PFM Load Step
Time (200 Ps / DIV)
ILOAD (100 mA/DIV)
VOUT (100 mV/DIV)
+5 V Offset
VIN = 3.6 V ILOAD = 1 mA to 100 mA PFM = '0'
Figure 6-15. PWM Load Step
Time (10 ms / DIV)
EN
VOUT (2 V/DIV)
VIN = 3.6 V OUTDIS = '0'
Figure 6-16. Output Discharge Disabled
Time (20 ms / DIV)
EN
VOUT (2 V/DIV)
VIN = 3.6 V OUTDIS = '1'
Figure 6-17. Output Discharge Enabled
Time (200 Ps / DIV)
VOUT (2 V/DIV)
IIN (1 A/DIV)
IOUT (100 mA/DIV)
VIN (2 V/DIV)
EN
VIN = 3.6 V ILOAD = 100 mA
Figure 6-18. Start-Up into a Load
LM2775-Q1
SNVSAH6C – JUNE 2018 – REVISED MAY 2021 www.ti.com
8Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: LM2775-Q1
MENTS
7 Detailed Description
7.1 Overview
The LM2775-Q1 is a regulated switched capacitor doubler that, by combining the principles of switched-
capacitor voltage boost and linear regulation, generates a regulated output from an extended Li-Ion input voltage
range. A two-phase non-overlapping clock generated internally controls the operation of the doubler. During the
charge phase (φ1), the flying capacitor (C1) is connected between the input and ground through internal pass
transistor switches and is charged to the input voltage. In the pump phase that follows (φ2), the flying capacitor
is connected between the input and output through similar switches. Stacked atop the input, the charge of the
flying capacitor boosts the output voltage and supplies the load current.
A traditional switched capacitor doubler operating in this manner uses switches with very low on-resistance to
generate an output voltage that is 2× the input voltage. Regulation is achieved by modulating the current of the
two switches connected to the VIN pin (one switch in each phase).

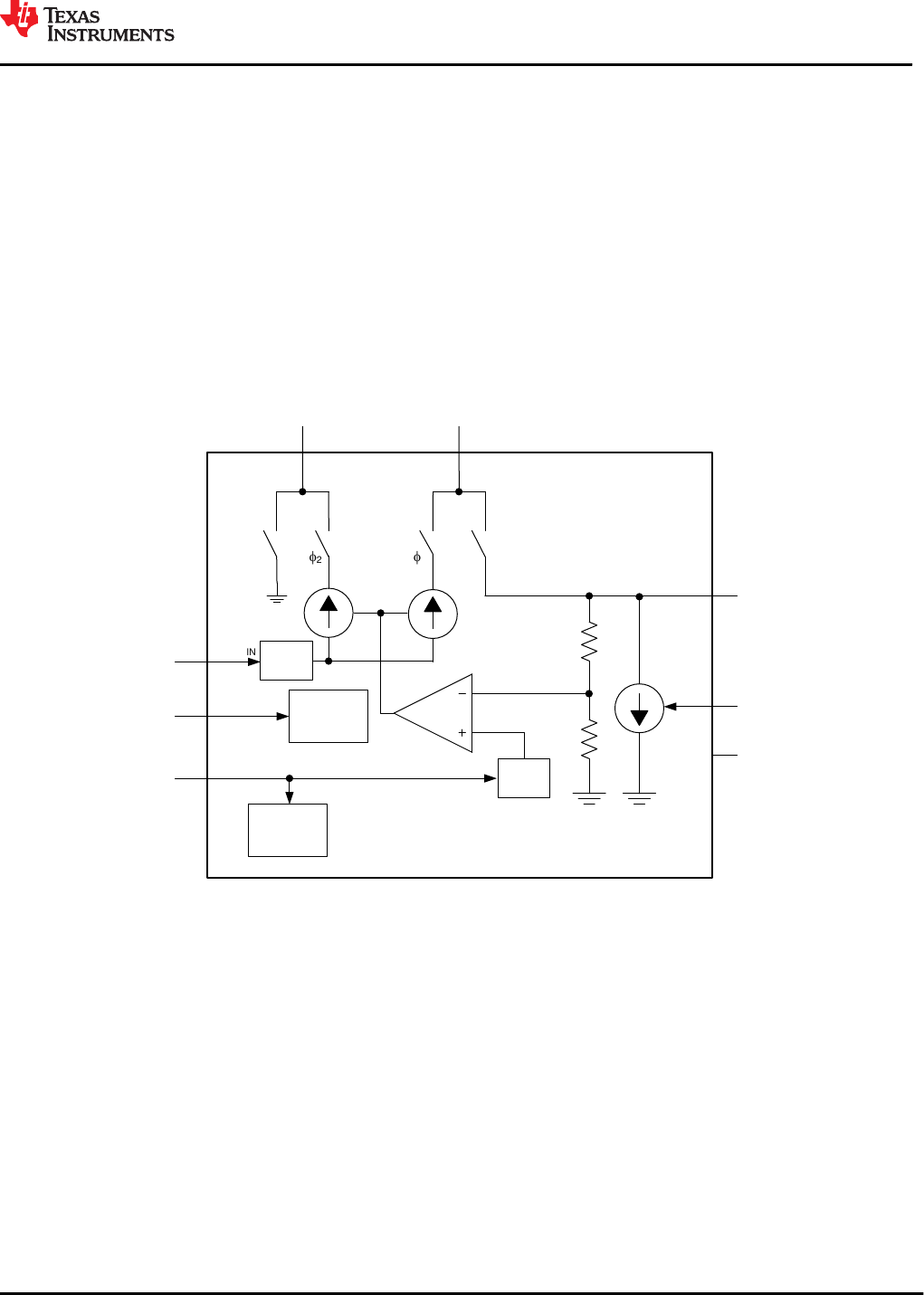

7.2 Functional Block Diagram
I2I1I2
I1
S2 S4S1 S3
1.2-V
Ref.
2-MHz
Osc.
OCL
OCL =
Current Limit
VIN
VOUT
C1- C1+
EN
LM2775-Q1
GND
PFM EN
PFM
OUTDIS
Copyright © 2017, Texas Instruments Incorporated
7.3 Feature Description
7.3.1 Pre-Regulation
The very low input current ripple of the LM2775-Q1, resulting from internal pre-regulation, adds minimal noise to
the input line. The core of the device is very similar to that of a basic switched capacitor doubler: it is composed
of four switches and a flying capacitor (external). Regulation is achieved by controlling the current through the
two switches connected to the VIN pin (one switch in each phase). The regulation is done before the voltage
doubling, giving rise to the term "pre-regulation". It is pre-regulation that eliminates most of the input current
ripple that is a typical and undesirable characteristic of a many switched capacitor converters.
7.3.2 Input Current Limit
The LM2775-Q1 contains current limit circuitry that protects the device in the event of excessive input current
and/or output shorts to ground. The input current is limited to 600 mA (typical) when the output is shorted directly
to ground. When the device is current limiting, power dissipation in the device is likely to be quite high. In this
event, thermal cycling should be expected.
www.ti.com
LM2775-Q1
SNVSAH6C – JUNE 2018 – REVISED MAY 2021
Copyright © 2021 Texas Instruments Incorporated Submit Document Feedback 9
Product Folder Links: LM2775-Q1
I TEXAS INSTRUMENTS
7.3.3 PFM Mode
To minimize quiescent current during light load operation, the LM2775-Q1 provides a PFM operation option
(selectable via the PFM pin. '1' = PFM allowed, '0' = Fixed frequency). By allowing the charge pump to only
switch when the VOUT voltage decays to a typical 5.05 V, the quiescent current drawn from the power source
is minimized. The frequency of pulsed operation is not limited and can drop into the sub-1-kHz range when
unloaded. As the load increases, the frequency of pulsing increases.
When PFM mode is disabled, the device operates in a constant frequency mode. In this mode, the quiescent
current remains at normal levels even when the load current is decreased. The main advantages of fixed
frequency operation include a lower output voltage ripple level due to the constant switching and a predictable
switching frequency that stays at 2 MHz which can be important in noise sensitive applications.
7.3.4 Output Discharge
The LM2775-Q1 provides two different output discharge modes upon entering a shutdown state (EN pin =
'0') after running in the on state (EN = '1'). The first mode is high impendance mode (OUTDIS = '0'). In this
mode, the output remains high even when the EN pin is driven low. This enables use in applications where the
LM2775-Q1 output might be tied to a system rail that has another power source connected (USBOTG). When
OUTDIS = 0, the output of the device draws a minimal current from the output supply (1.6 µA typical).
In Discharge Mode (OUTDIS pin = '1'), the LM2775-Q1 actively pulls down on the output of the device until the
output voltage reaches GND. In this mode, the current drawn from the output is approximately 450 µA.
7.3.5 Thermal Shutdown
The LM2775-Q1 implements a thermal shutdown mechanism to protect the device from damage due to
overheating. When the junction temperature rises to 150°C (typical), the part switches into shutdown mode.
The device releases thermal shutdown when the junction temperature of the part is reduced to 130°C (typical).
Thermal shutdown is most often triggered by self-heating, which occurs when there is excessive power
dissipation in the device and/or insufficient thermal dissipation. LM2775-Q1 power dissipation increases with
increased output current and input voltage. When self-heating brings on thermal shutdown, thermal cycling is
the typical result. Thermal cycling is the repeating process where the part self-heats, enters thermal shutdown
(where internal power dissipation is practically zero), cools, turns on, and then heats up again to the thermal
shutdown threshold. Thermal cycling is recognized by a pulsing output voltage and can be stopped be reducing
the internal power dissipation (reduce input voltage and/or output current) or the ambient temperature. If
thermal cycling occurs under desired operating conditions, thermal dissipation performance must be improved
to accommodate the power dissipation of the LM2775-Q1. The WSON package is designed to have excellent
thermal properties that, when soldered to a PCB designed to aid thermal dissipation, allows the device to
operate under very demanding power dissipation conditions.
7.3.6 Undervoltage Lockout
The LM2775-Q1 has an internal comparator that monitors the voltage at VIN and forces the device into
shutdown if the input voltage drops to 2.4 V. If the input voltage rises above 2.6 V, the LM2775-Q1 resumes
normal operation
LM2775-Q1
SNVSAH6C – JUNE 2018 – REVISED MAY 2021 www.ti.com
10 Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: LM2775-Q1
I TEXAS INSTRUMENTS
7.4 Device Functional Modes
7.4.1 Shutdown
The LM2775-Q1 enters Shutdown Mode if one of the two conditions are met.
• If VIN is removed or allowed to sag to ground, the device enters shutdown.
• If the EN pin is driven low when VIN is within the normal operating range.
In Shutdown, the LM2775-Q1 typically draws less than 1 µA from the supply. Depending on the state of the
OUTDIS pin, the output is pulled low when entering shutdown (OUTDIS = '1'), or it remains near the final output
voltage with the output in a low leakage state (OUTDIS = '0').
7.4.2 Boost Mode
The LM2775-Q1 is in Boost Mode if VIN is within the normal operating range, and the EN pin is driven high.
Depending on the state of the PFM pin, the device either regulates the output via a PFM burst mode (PFM = '1')
or via a constant switching mode (PFM = '0').
www.ti.com
LM2775-Q1
SNVSAH6C – JUNE 2018 – REVISED MAY 2021
Copyright © 2021 Texas Instruments Incorporated Submit Document Feedback 11
Product Folder Links: LM2775-Q1
I TEXAS INSTRUMENTS
8 Application and Implementation
Note
Information in the following applications sections is not part of the TI component specification,
and TI does not warrant its accuracy or completeness. TI’s customers are responsible for
determining suitability of components for their purposes, as well as validating and testing their design
implementation to confirm system functionality.
8.1 Application Information
The LM2775-Q1 can create a 5-V system rail capable of delivering up to 200 mA of output current to the load.
The 2-MHz switched capacitor boost allows for the use of small value discrete external components.
8.2 Typical Application
VIN
EN
LM2775-Q1
GND
VOUT
C1+
C1-
10 PF 10 PF
PFM
OUTDIS
1 PF
Battery
Controller
System
5V @ 200mA
Copyright © 2017, Texas Instruments Incorporated
Figure 8-1. Typical LM2775-Q1 Configuration
8.2.1 Design Requirements
DESIGN PARAMETER EXAMPLE VALUE
Input voltage range 2.7 V to 5.5 V
Output current range 0 mA to 200 mA (Max. current will depend on VIN)
8.2.2 Detailed Design Procedure
8.2.2.1 Output Current Capability
The LM2775-Q1 provides 200 mA of output current when the input voltage is within 3.1 V to 5.5 V.
Note
Understanding relevant application issues is recommended and a thorough analysis of the application
circuit should be performed when using the part outside operating ratings and/or specifications to
ensure satisfactory circuit performance in the application. Special care should be paid to power
dissipation and thermal effects. These parameters can have a dramatic impact on high-current
applications, especially when the input voltage is high. (see the Section 8.2.2.3 section).

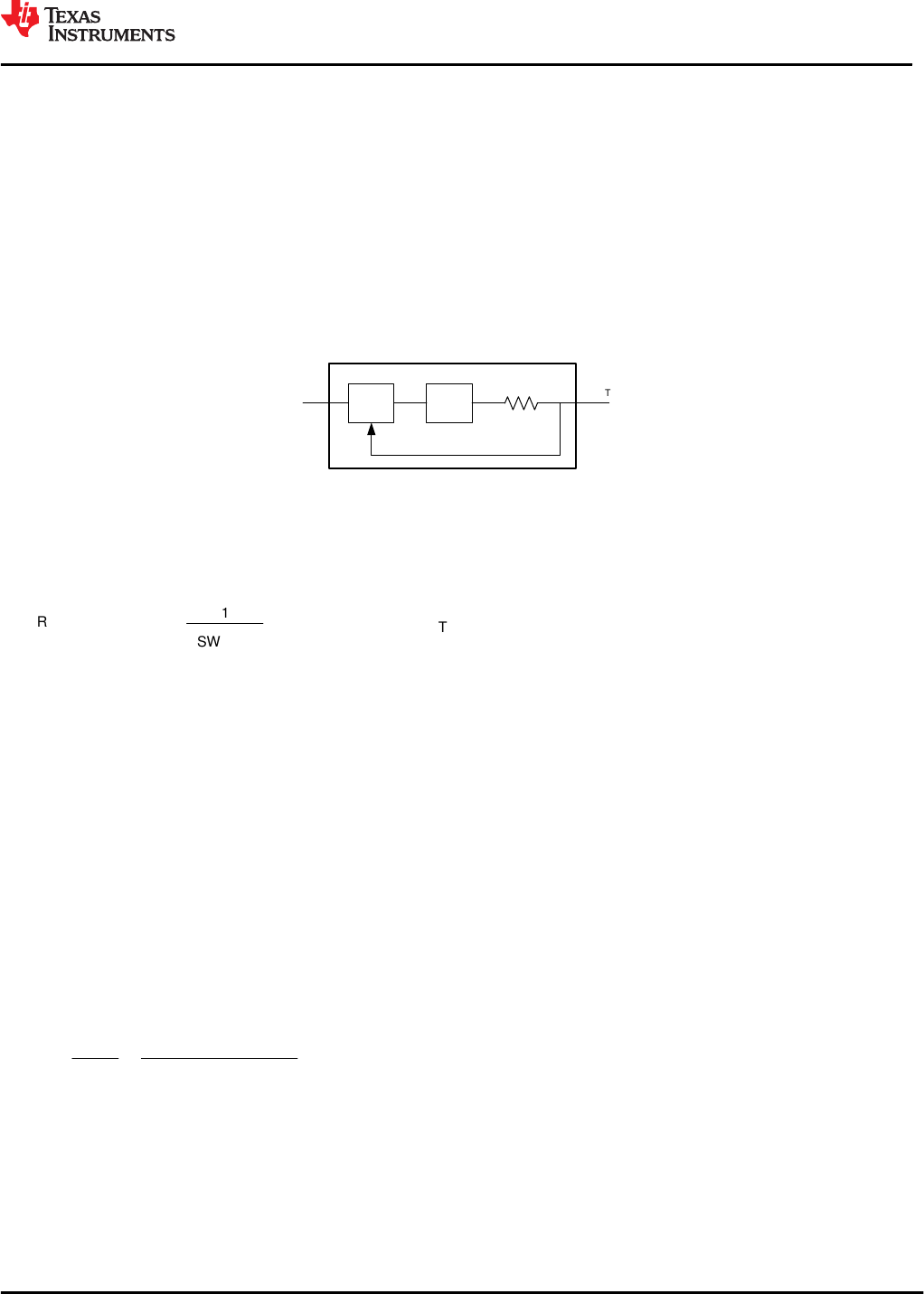

The schematic of Figure 8-2 is a simplified model of the LM2775-Q1 that is useful for evaluating output current
capability. The model shows a linear pre-regulation block (Reg), a voltage doubler (2×), and an output resistance
(ROUT). Output resistance models the output voltage droop that is inherent to switched capacitor converters. The
output resistance of the device is 3.5 Ω (typical) and is approximately equal to twice the resistance of the four
LM2775-Q1 switches. When the output voltage is in regulation, the regulator in the model controls the voltage
V' to keep the output voltage equal to 5 V ± 4%. With increased output current, the voltage drop across ROUT
LM2775-Q1
SNVSAH6C – JUNE 2018 – REVISED MAY 2021 www.ti.com
12 Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: LM2775-Q1
TEXAS INSTRUMENTS SW
increases. To prevent droop in output voltage, the voltage drop across the regulator is reduced, V' increases,
and VOUT remains at 5 V. When the output current increases to the point that there is zero voltage drop across
the regulator, V' equals the input voltage, and the output voltage is near the edge of regulation. Additional output
current causes the output voltage to fall out of regulation, and the LM2775-Q1 operation is similar to a basic
open-loop doubler. As in a voltage doubler, increase in output current results in output voltage drop proportional
to the output resistance of the doubler. The out-of-regulation LM2775-Q1 output voltage can be approximated
by:
VOUT = 2 × VIN – IOUT × ROUT (1)
Again, Equation 1 only applies at low input voltage and high output current where the LM2775-Q1 is not
regulating. See Output Current vs. Output Voltage curves in the Section 6.7 section for more details.
Reg 2×
V ' 2×V '
ROUT
VIN VOUT
LM2775-Q1
Output Resistance Model
Figure 8-2. LM2775-Q1 Output Resistance Model
A more complete calculation of output resistance takes into account the effects of switching frequency, flying
capacitance, and capacitor equivalent series resistance (ESR) (see Equation 2).
COUTC1
1
SW
SWOUT ESR
ESR4
CF
1
R2R
˜
u
˜
(2)
Switch resistance component (3 Ω typical) dominates the output resistance equation of the LM2775-Q1. With
a 2-MHz typical switching frequency, the 1/(F×C) component of the output resistance contributes only 0.5 Ω
to the total output resistance. Increasing the flying capacitance only provides minimal improvement to the total
output current capability of the LM2775-Q1. In some applications it may be desirable to reduce the value of the
flying capacitor below 1 µF to reduce solution size and/or cost, but this should be done with care so that output
resistance does not increase to the point that undesired output voltage droop results. If ceramic capacitors are
used, ESR will be a negligible factor in the total output resistance, as the ESR of quality ceramic capacitors is
typically much less than 100 mΩ.
8.2.2.2 Efficiency
Charge-pump efficiency is derived in Equation 3 and Equation 4 (supply current and other losses are neglected
for simplicity):
IIN = G × IOUT E = (VOUT × IOUT) ÷ (VIN × IIN) = VOUT ÷ (G × VIN)(3)
If one includes the quiescent current drawn by the LM2775-Q1 to operate, the following can be derived :
)II2(V
IV
P
P
E
QOUTIN
OUTOUT
IN
OUT
˜u
u
(4)
In Equation 3, G represents the charge pump gain. Efficiency is at its highest as G × VIN approaches VOUT. For
the LM2775-Q1 device, G = 2.
8.2.2.3 Power Dissipation
LM2775-Q1 power dissipation (PD) is calculated simply by subtracting output power from input power:
PD = PIN – POUT = [VIN × (2 × IOUT + IQ)] – [VOUT × IOUT](5)
www.ti.com
LM2775-Q1
SNVSAH6C – JUNE 2018 – REVISED MAY 2021
Copyright © 2021 Texas Instruments Incorporated Submit Document Feedback 13
Product Folder Links: LM2775-Q1
I TEXAS INSTRUMENTS LM2775701 “F
Power dissipation increases with increased input voltage and output current, up to 1.35 W at the ends of the
operating ratings (VIN = 5.5 V, IOUT = 200 mA). Internal power dissipation self-heats the device. Dissipating
this amount power/heat so the LM2775-Q1 does not overheat is a demanding thermal requirement for a small
surface-mount package. When soldered to a PCB with layout conducive to power dissipation, the excellent
thermal properties of the WSON package enable this power to be dissipated from the LM2775-Q1 with little or no
derating, even when the circuit is placed in elevated ambient temperatures.

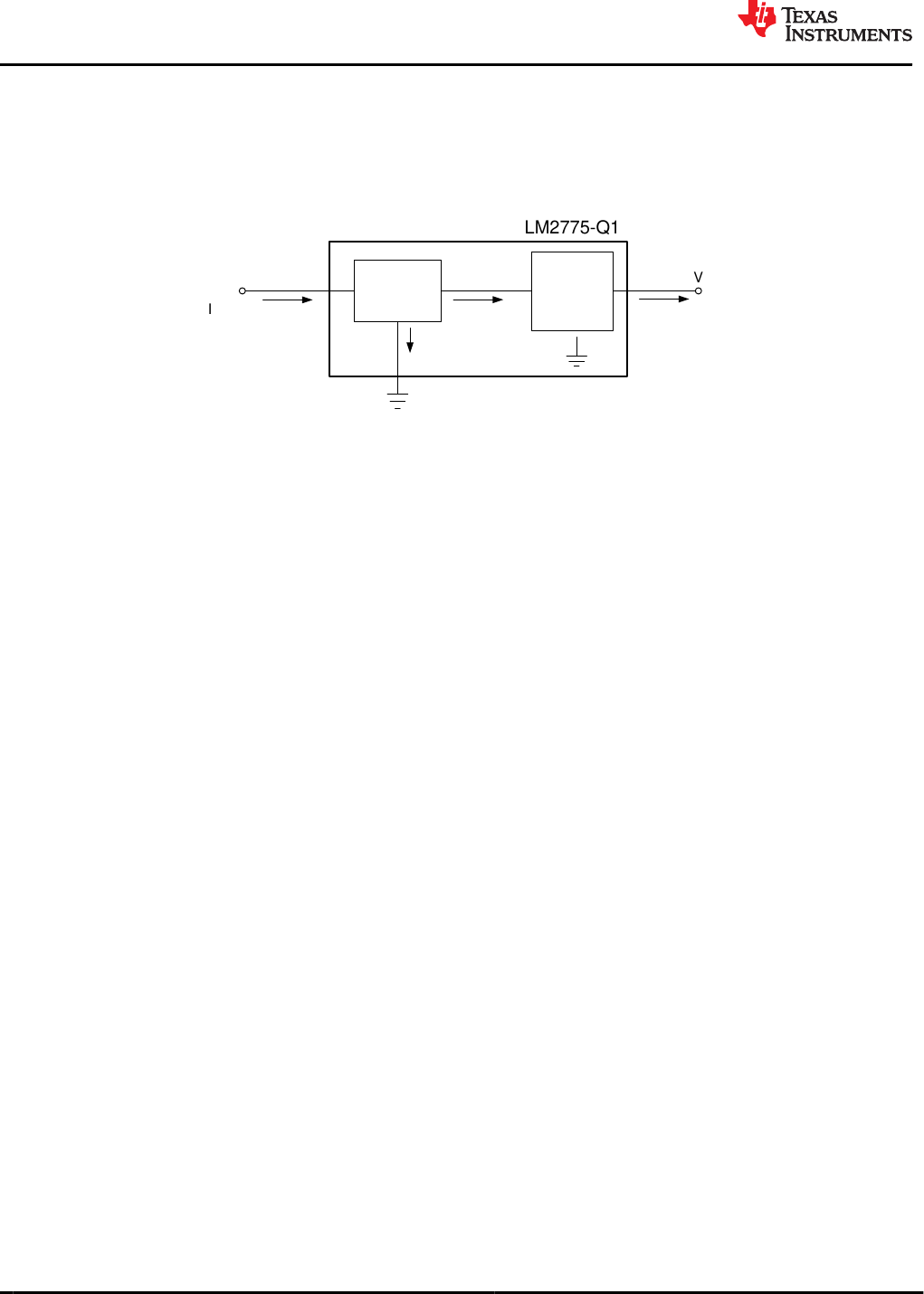

VOUT = 5 VVIN
LM2775-Q1
Switched-
Capacitor
Doubler
Ideal
Linear
Regulator
(IQ = 0)
V ' # 2 × VIN
I ' = IOUT
IIN = (2 × IOUT) + IQIOUT
IQ
Power Model
Copyright © 2017, Texas Instruments Incorporated
Figure 8-3. Power Model
8.2.2.4 Recommended Capacitor Types
The LM2775-Q1 requires 3 external capacitors for proper operation. Surface-mount multi-layer ceramic
capacitors are recommended. These capacitors are small, inexpensive, and have very low ESR (≤ 15 mΩ
typical). Tantalum capacitors, OS-CON capacitors, and aluminum electrolytic capacitors generally are not
recommended for use with the device due to their high ESR compared to ceramic capacitors.
For most applications, ceramic capacitors with an X7R or X5R temperature characteristic are preferred for use
with the LM2775-Q1. These capacitors have tight capacitance tolerance (as good as ±10%) and hold their value
over temperature (X7R: ±15% over –55°C to 125°C; X5R: ±15% over –55°C to 85°C).
Capacitors with a Y5V or Z5U temperature characteristic are generally not recommended for use with the
LM2775-Q1. These types of capacitors typically have wide capacitance tolerance (80% to 20%) and vary
significantly over temperature (Y5V: 22%, –82% over –30°C to 85°C range; Z5U: 22%, –56% over 10°C to 85°C
range). Under some conditions, a 1-µF-rated Y5V or Z5U capacitor could have a capacitance as low as 0.1 µF.
Such detrimental deviation is likely to cause Y5V and Z5U capacitors to fail to meet the minimum capacitance
requirements of the LM2775-Q1.
Net capacitance of a ceramic capacitor decreases with increased DC bias. This degradation can result in lower
capacitance than expected on the input and/or output, resulting in higher ripple voltages and currents. Using
capacitors at DC-bias voltages significantly below the capacitor voltage rating usually minimizes DC-bias effects.
Consult capacitor manufacturers for information on capacitor DC-bias characteristics.
Capacitance characteristics can vary quite dramatically with different application conditions, capacitor types, and
capacitor manufacturers. It is strongly recommended that the LM2775-Q1 circuit be thoroughly evaluated early in
the design-in process with the mass-production capacitors of choice. This helps ensure that any such variability
in capacitance does not negatively impact circuit performance.
The voltage rating of the output capacitor should be 10 V or more. All other capacitors should have a voltage
rating at or above the maximum input voltage of the application.
8.2.2.5 Output Capacitor and Output Voltage Ripple
The output capacitor in the LM2775-Q1 circuit (COUT) directly impacts the magnitude of output voltage ripple.
Other prominent factors also affecting output voltage ripple include input voltage, output current, and flying
capacitance. One important generalization can be made: increasing (decreasing) the output capacitance results
in a proportional decrease (increase) in output voltage ripple. A simple approximation of output ripple is
determined by calculating the amount of voltage droop that occurs when the output of the LM2775-Q1 is not
being driven. This occurs during the charge phase (φ1). During this time, the load is driven solely by the charge
LM2775-Q1
SNVSAH6C – JUNE 2018 – REVISED MAY 2021 www.ti.com
14 Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: LM2775-Q1
I TEXAS INSTRUMENTS
on the output capacitor. The magnitude of the ripple thus follows the basic discharge equation for a capacitor (I =
C × dV/dt), where discharge time is one-half the switching period, or 0.5/FSW (see Equation 6).
SWOUT
OUT
PeakPeak F
5.0
C
I
RIPPLE u=
-
(6)
A more thorough and accurate examination of factors that affect ripple requires including effects of phase
non-overlap times and output capacitor ESR. In order for the LM2775-Q1 to operate properly, the two phases
of operation must never coincide. (If this were to happen all switches would be closed simultaneously, shorting
input, output, and ground). Thus, non-overlap time is built into the clocks that control the phases. Because the
output is not being driven during the non-overlap time, this time should be accounted for in calculating ripple.
Actual output capacitor discharge time is approximately 60% of a switching period, or 0.6/FSW (see Equation 7).
COUTOUT
SWOUT
OUT
PeakPeak ESRI2
F
6.0
C
I
RIPPLE uu
¸
¸
¹
·
¨
¨
©
§u
(7)
Note
In typical high-current applications, a 10-µF, 10-V low-ESR ceramic output capacitor is recommended.
Different output capacitance values can be used to reduce ripple, shrink the solution size, and/or
cut the cost of the solution. But changing the output capacitor may also require changing the
flying capacitor and/or input capacitor to maintain good overall circuit performance. If a small
output capacitor is used and PFM mode is enabled, the output ripple can become large during the
transition between PFM mode and constant switching. To prevent toggling, a 2-µF capacitance is
recommended. For example, a 10-µF, 10-V output capacitor in a 0402 case size will typically only
have 2-µF capacitance when biased to 5 V.
High ESR in the output capacitor increases output voltage ripple. If a ceramic capacitor is used at the output, this
is usually not a concern because the ESR of a ceramic capacitor is typically very low and has only a minimal
impact on ripple magnitudes. If a different capacitor type with higher ESR is used (tantalum, for example), the
ESR could result in high ripple. To eliminate this effect, the net output ESR can be significantly reduced by
placing a low-ESR ceramic capacitor in parallel with the primary output capacitor. The low ESR of the ceramic
capacitor is in parallel with the higher ESR, resulting in a low net ESR based on the principles of parallel
resistance reduction.
8.2.2.6 Input Capacitor and Input Voltage Ripple
The input capacitor (CIN) is a reservoir of charge that aids a quick transfer of charge from the supply to the
flying capacitor during the charge phase of operation. The input capacitor helps to keep the input voltage from
drooping at the start of the charge phase when the flying capacitor is connected to the input. It also filters noise
on the input pin, keeping this noise out of sensitive internal analog circuitry that is biased off the input line.
Much like the relationship between the output capacitance and output voltage ripple, input capacitance has a
dominant and first-order effect on input ripple magnitude. Increasing (decreasing) the input capacitance results
in a proportional decrease (increase) in input voltage ripple. Input voltage, output current, and flying capacitance
also affect input ripple levels to some degree.
In typical high-current applications, a 10-µF low-ESR ceramic capacitor is recommended on the input. Different
input capacitance values can be used to reduce ripple, shrink the solution size, and/or cut the cost of the
solution. But changing the input capacitor may also require changing the flying capacitor and/or output capacitor
to maintain good overall circuit performance.
8.2.2.7 Flying Capacitor
The flying capacitor (C1) transfers charge from the input to the output. Flying capacitance can impact both output
current capability and ripple magnitudes. If flying capacitance is too small, the LM2775-Q1 may not be able to
regulate the output voltage when load currents are high. On the other hand, if the flying capacitance is too large,
www.ti.com
LM2775-Q1
SNVSAH6C – JUNE 2018 – REVISED MAY 2021
Copyright © 2021 Texas Instruments Incorporated Submit Document Feedback 15
Product Folder Links: LM2775-Q1
TEXAS INSTRUMENTS 5m
the flying capacitor might overwhelm the input and output capacitors, resulting in increased input and output
ripple.
In typical high-current applications, 1-µF low-ESR ceramic capacitors are recommended for the flying capacitor.
Polarized capacitors (tantalum, aluminum electrolytic, etc.) must not be used for the flying capacitor, as they
could become reverse-biased during LM2775-Q1 operation.

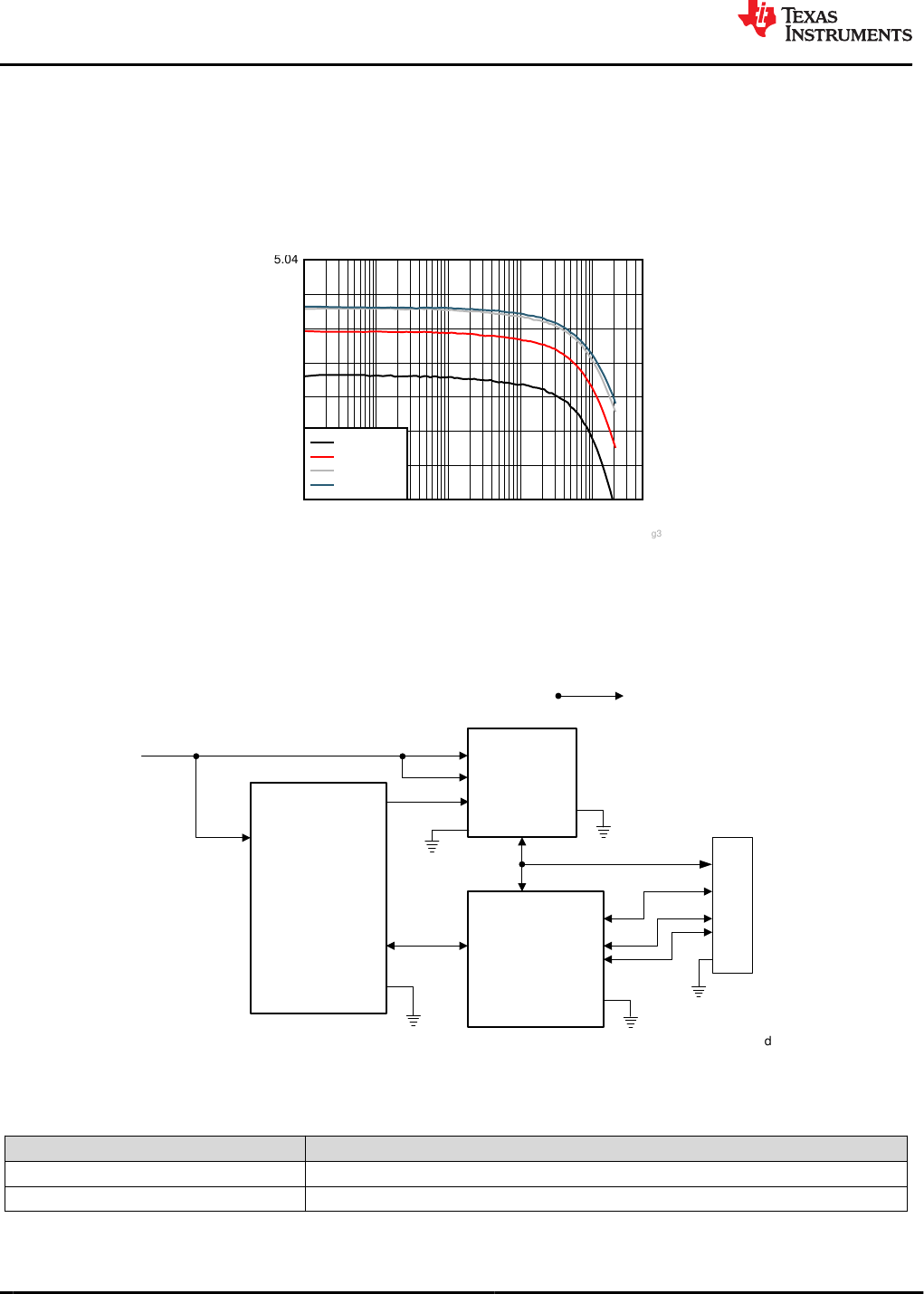

8.2.3 Application Curve
IOUT (A)
VOUT (V)
1E-5 0.0001 0.001 0.01 0.05 0.2 0.5
4.9
4.92
4.94
4.96
4.98
5
5.02
5.04
Fig3
TJ=-40qC
TJ=+25qC
TJ=+85qC
TJ=+125qC
VIN = 3.3 V PFM = '0'
Figure 8-4. Load Regulation
8.2.4 USB OTG / Mobile HDMI Power Supply
USB OTG
Transceiver
LM2775-Q1
(Host Mode
VBUS Power)
Dual Role
Application
Processor
EN
VBAT (System Voltage)
VOUT / VBUS (5 V)
ID
D+
D-
GND
VBUS
USB Connector
OUTDIS
PFM
Copyright © 2017, Texas Instruments Incorporated
Figure 8-5. USB OTG Configuration
8.2.4.1 Design Requirements
DESIGN PARAMETER EXAMPLE VALUE
Input voltage range 2.7 V to 5.5 V
Output current range 0 mA to 200 mA (Max. current will depend on VIN)
LM2775-Q1
SNVSAH6C – JUNE 2018 – REVISED MAY 2021 www.ti.com
16 Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: LM2775-Q1
TEXAS INSTRUMENTS ‘ 7595 (A)
8.2.4.2 Detailed Design Procedure
The 5-V output mode is normally used for the USB OTG / Mobile HDMI application. Therefore, the LM2775-Q1
can be enabled/disabled by applying a logic signal on only the EN pin while grounding the OUTDIS pin.
Depending on the USB/HDMI mode of the application, the LM2775-Q1 can be enabled to drive the power bus
line (Host), or disabled to put its output in high impedance allowing an external supply to drive the bus line
(Slave). In addition to the high impedance-backdrive protection, the output current limit protection is 250 mA
(typical), well within the USB OTG and HDMI requirements.
8.2.4.3 Application Curve
EN = '0' OUTDIS = '0'
Figure 8-6. Output Leakage Current High Z
9 Power Supply Recommendations
The LM2775-Q1 is designed to operate from an input voltage supply range between 2.7 V and 5.5 V. This input
supply must be well regulated and capable to supply the required input current. If the input supply is located far
from the device additional bulk capacitance may be required in addition to the ceramic bypass capacitors.
www.ti.com
LM2775-Q1
SNVSAH6C – JUNE 2018 – REVISED MAY 2021
Copyright © 2021 Texas Instruments Incorporated Submit Document Feedback 17
Product Folder Links: LM2775-Q1
I TEXAS INSTRUMENTS
10 Layout
10.1 Layout Guidelines
Proper board layout helps to ensure optimal performance of the LM2775-Q1 circuit. The following guidelines are
recommended:
• Place capacitors as close as possible to the LM2775-Q1, preferably on the same side of the board as the
device.
• Use short, wide traces to connect the external capacitors to the device to minimize trace resistance and
inductance.
• Use a low resistance connection between ground and the GND pin of the LM2775-Q1. Using wide traces
and/or multiple vias to connect GND to a ground plane on the board is most advantageous.

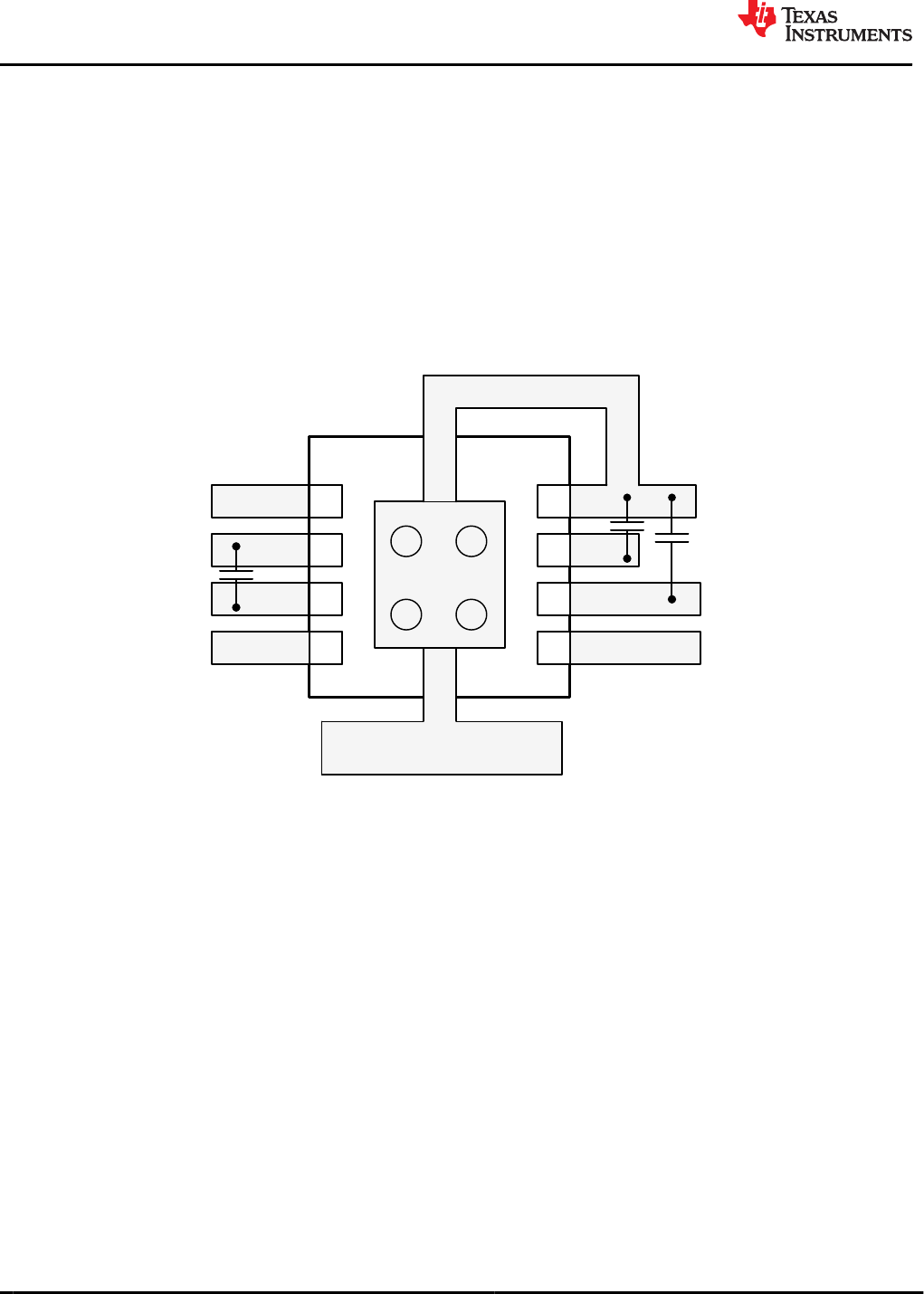

10.2 Layout Example
THERMAL PAD
LM2775-Q1
PFM
C1-
C1+
OUTDIS
GND
VIN
VOUT
EN
CONNECT TO GND PLANE
CONNECT TO GND PLANE
Figure 10-1. Example LM2775-Q1 Layout
LM2775-Q1
SNVSAH6C – JUNE 2018 – REVISED MAY 2021 www.ti.com
18 Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: LM2775-Q1
I TEXAS INSTRUMENTS Am
11 Device and Documentation Support
11.1 Receiving Notification of Documentation Updates
To receive notification of documentation updates, navigate to the device product folder on ti.com. Click on
Subscribe to updates to register and receive a weekly digest of any product information that has changed. For
change details, review the revision history included in any revised document.
11.2 Support Resources
TI E2E™ support forums are an engineer's go-to source for fast, verified answers and design help — straight
from the experts. Search existing answers or ask your own question to get the quick design help you need.
Linked content is provided "AS IS" by the respective contributors. They do not constitute TI specifications and do
not necessarily reflect TI's views; see TI's Terms of Use.
11.3 Trademarks
TI E2E™ is a trademark of Texas Instruments.
All trademarks are the property of their respective owners.
11.4 Electrostatic Discharge Caution
This integrated circuit can be damaged by ESD. Texas Instruments recommends that all integrated circuits be handled
with appropriate precautions. Failure to observe proper handling and installation procedures can cause damage.
ESD damage can range from subtle performance degradation to complete device failure. Precision integrated circuits may
be more susceptible to damage because very small parametric changes could cause the device not to meet its published
specifications.
11.5 Glossary
TI Glossary This glossary lists and explains terms, acronyms, and definitions.
www.ti.com
LM2775-Q1
SNVSAH6C – JUNE 2018 – REVISED MAY 2021
Copyright © 2021 Texas Instruments Incorporated Submit Document Feedback 19
Product Folder Links: LM2775-Q1
I TEXAS INSTRUMENTS
12 Mechanical, Packaging, and Orderable Information
The following pages include mechanical, packaging, and orderable information. This information is the most
current data available for the designated devices. This data is subject to change without notice and revision of
this document. For browser-based versions of this data sheet, refer to the left-hand navigation.
LM2775-Q1
SNVSAH6C – JUNE 2018 – REVISED MAY 2021 www.ti.com
20 Submit Document Feedback Copyright © 2021 Texas Instruments Incorporated
Product Folder Links: LM2775-Q1
I TEXAS INSTRUMENTS Sample: Sample:
PACKAGE OPTION ADDENDUM
www.ti.com 10-Dec-2020
Addendum-Page 1
PACKAGING INFORMATION
Orderable Device Status
(1)
Package Type Package
Drawing Pins Package
Qty Eco Plan
(2)
Lead finish/
Ball material
(6)
MSL Peak Temp
(3)
Op Temp (°C) Device Marking
(4/5)
Samples
LM2775QDSGRQ1 ACTIVE WSON DSG 8 3000 RoHS & Green NIPDAU Level-2-260C-1 YEAR -40 to 125 1R1H
LM2775QDSGTQ1 ACTIVE WSON DSG 8 250 RoHS & Green NIPDAU Level-2-260C-1 YEAR -40 to 125 1R1H
(1) The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
(2) RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance
do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may
reference these types of products as "Pb-Free".
RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption.
Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of <=1000ppm threshold. Antimony trioxide based
flame retardants must also meet the <=1000ppm threshold requirement.
(3) MSL, Peak Temp. - The Moisture Sensitivity Level rating according to the JEDEC industry standard classifications, and peak solder temperature.
(4) There may be additional marking, which relates to the logo, the lot trace code information, or the environmental category on the device.
(5) Multiple Device Markings will be inside parentheses. Only one Device Marking contained in parentheses and separated by a "~" will appear on a device. If a line is indented then it is a continuation
of the previous line and the two combined represent the entire Device Marking for that device.
(6) Lead finish/Ball material - Orderable Devices may have multiple material finish options. Finish options are separated by a vertical ruled line. Lead finish/Ball material values may wrap to two
lines if the finish value exceeds the maximum column width.
Important Information and Disclaimer:The information provided on this page represents TI's knowledge and belief as of the date that it is provided. TI bases its knowledge and belief on information
provided by third parties, and makes no representation or warranty as to the accuracy of such information. Efforts are underway to better integrate information from third parties. TI has taken and
continues to take reasonable steps to provide representative and accurate information but may not have conducted destructive testing or chemical analysis on incoming materials and chemicals.
TI and TI suppliers consider certain information to be proprietary, and thus CAS numbers and other limited information may not be available for release.
In no event shall TI's liability arising out of such information exceed the total purchase price of the TI part(s) at issue in this document sold by TI to Customer on an annual basis.
I TEXAS INSTRUMENTS
PACKAGE OPTION ADDENDUM
www.ti.com 10-Dec-2020
Addendum-Page 2
OTHER QUALIFIED VERSIONS OF LM2775-Q1 :
•Catalog: LM2775
NOTE: Qualified Version Definitions:
•Catalog - TI's standard catalog product

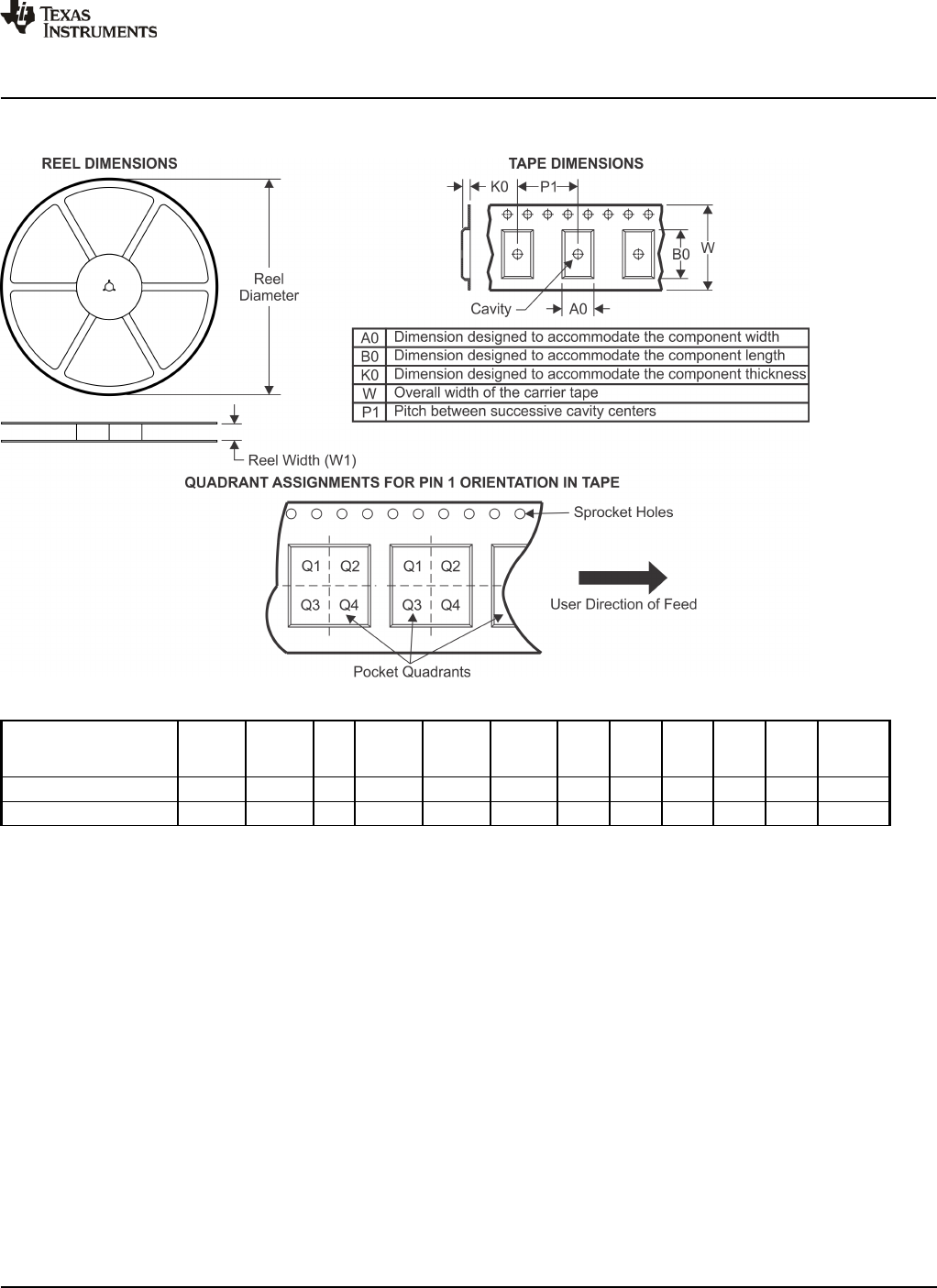

I TEXAS INSTRUMENTS REEL DIMENSIONS TAPE DIMENSIONS 7 “K0 '«m» Reel Diame|er AD Dimension deswgned to accommodate the componem wwdlh E0 Dimension desxgned to accommodate the componenl \ength KO Dimenslun deswgned to accommodate the componem thickness 7 w OveraH wwdm loe earner cape i p1 Pitch between successwe cavuy cemers f T Reel Width (W1) QUADRANT ASSIGNMENTS FOR PIN 1 ORIENTATION IN TAPE O O O D O O D O Sprockemoles ,,,,,,,,,,, ‘ User Direcllon 0' Feed Pockel Quadrams
TAPE AND REEL INFORMATION
*All dimensions are nominal
Device Package
Type Package
Drawing Pins SPQ Reel
Diameter
(mm)
Reel
Width
W1 (mm)
A0
(mm) B0
(mm) K0
(mm) P1
(mm) W
(mm) Pin1
Quadrant
LM2775QDSGRQ1 WSON DSG 8 3000 180.0 8.4 2.3 2.3 1.15 4.0 8.0 Q2
LM2775QDSGTQ1 WSON DSG 8 250 180.0 8.4 2.3 2.3 1.15 4.0 8.0 Q2
PACKAGE MATERIALS INFORMATION
www.ti.com 29-Jun-2020
Pack Materials-Page 1

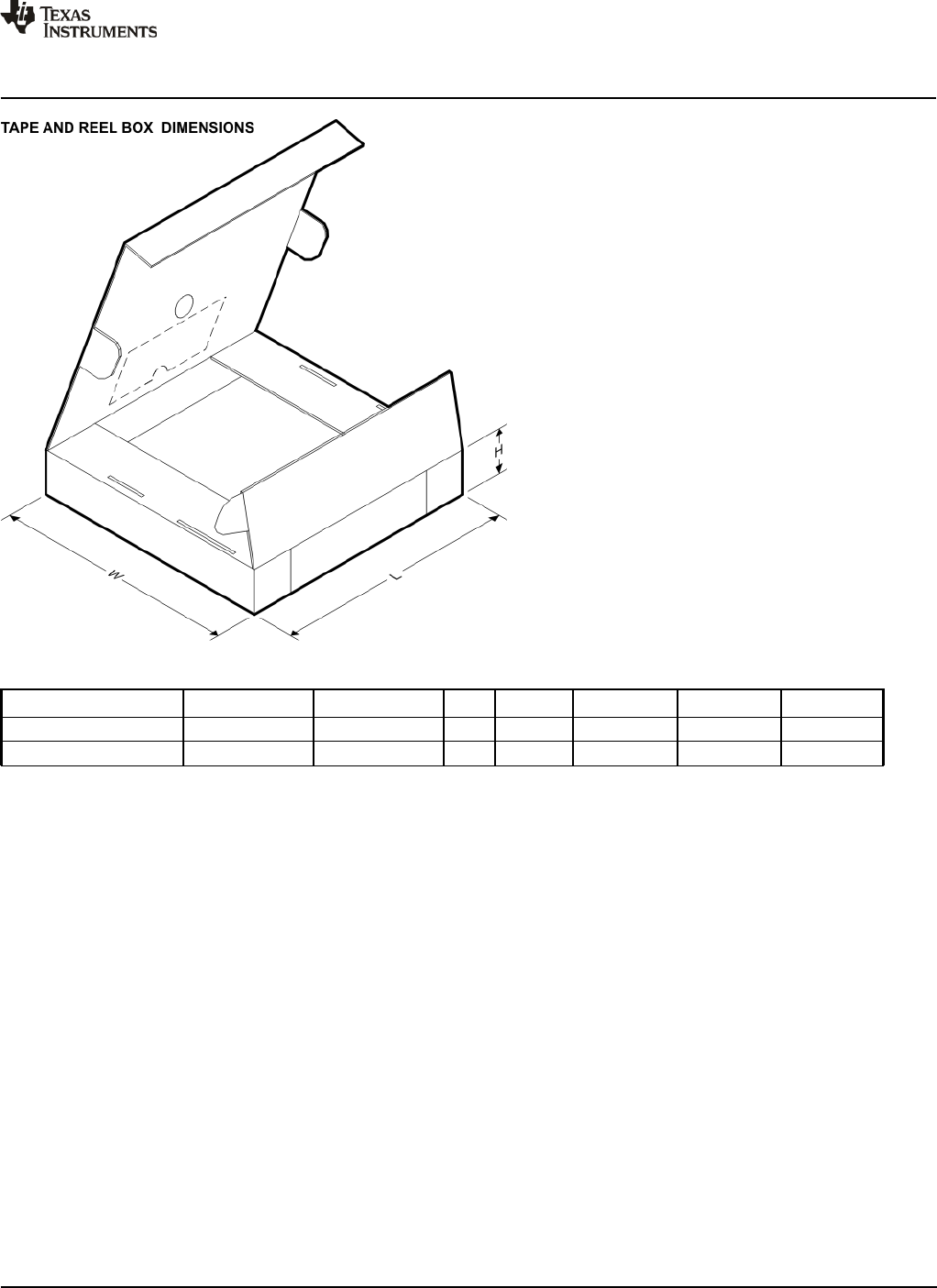

I TEXAS INSTRUMENTS TAPE AND REEL BOX DIMENSIONS
*All dimensions are nominal
Device Package Type Package Drawing Pins SPQ Length (mm) Width (mm) Height (mm)
LM2775QDSGRQ1 WSON DSG 8 3000 210.0 185.0 35.0
LM2775QDSGTQ1 WSON DSG 8 250 210.0 185.0 35.0
PACKAGE MATERIALS INFORMATION
www.ti.com 29-Jun-2020
Pack Materials-Page 2
www.ti.com

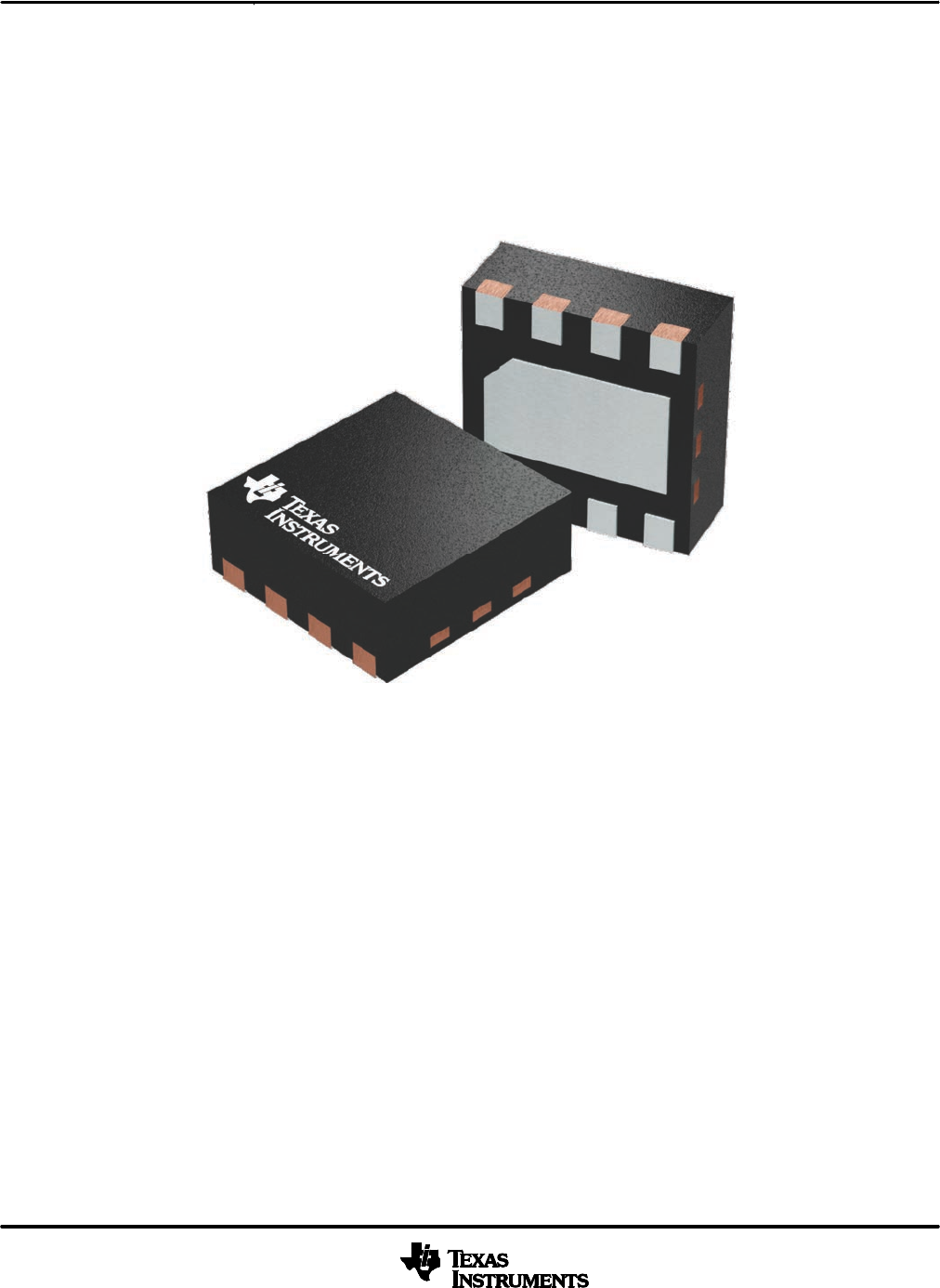

GENERIC PACKAGE VIEW
This image is a representation of the package family, actual package may vary.
Refer to the product data sheet for package details.
WSON - 0.8 mm max heightDSG 8
PLASTIC SMALL OUTLINE - NO LEAD
2 x 2, 0.5 mm pitch
4224783/A
www.ti.com

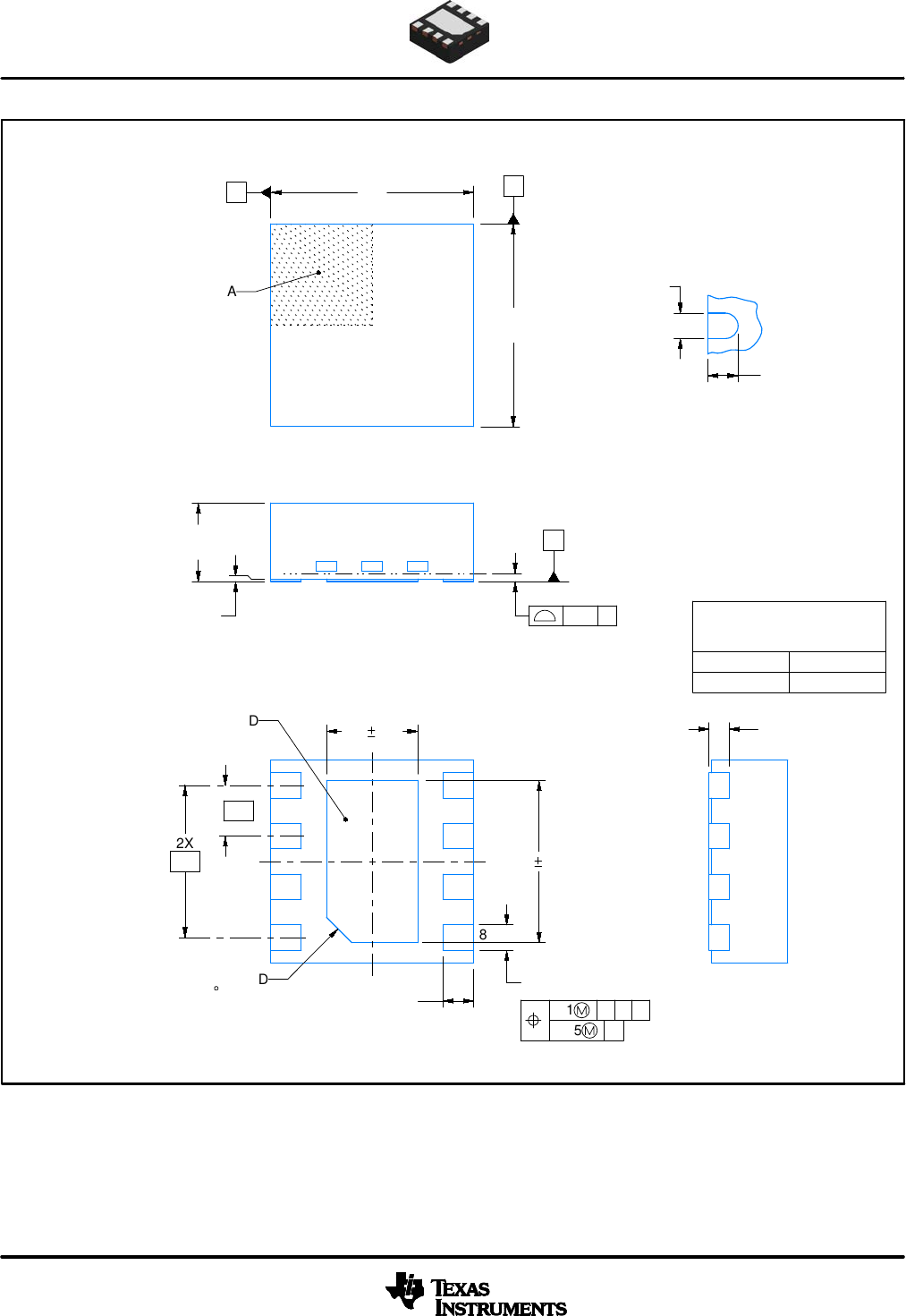

PACKAGE OUTLINE
C
8X 0.32
0.18
1.6 0.1
2X
1.5
0.9 0.1
6X 0.5
8X 0.4
0.2
0.05
0.00
0.8
0.7
A2.1
1.9 B
2.1
1.9
0.32
0.18
0.4
0.2
(DIM A) TYP
WSON - 0.8 mm max heightDSG0008A
PLASTIC SMALL OUTLINE - NO LEAD
4218900/E 08/2022
SIDE WALL
METAL THICKNESS
DIM A
OPTION 1 OPTION 2
0.1 0.2
PIN 1 INDEX AREA
SEATING PLANE
0.08 C
1
45
8
X 0.25)(45PIN 1 ID
0.1 C A B
0.05 C
THERMAL PAD
EXPOSED
9
NOTES:
1. All linear dimensions are in millimeters. Any dimensions in parenthesis are for reference only. Dimensioning and tolerancing
per ASME Y14.5M.
2. This drawing is subject to change without notice.
3. The package thermal pad must be soldered to the printed circuit board for thermal and mechanical performance.
SCALE 5.500
ALTERNATIVE TERMINAL SHAPE
TYPICAL
www.ti.com

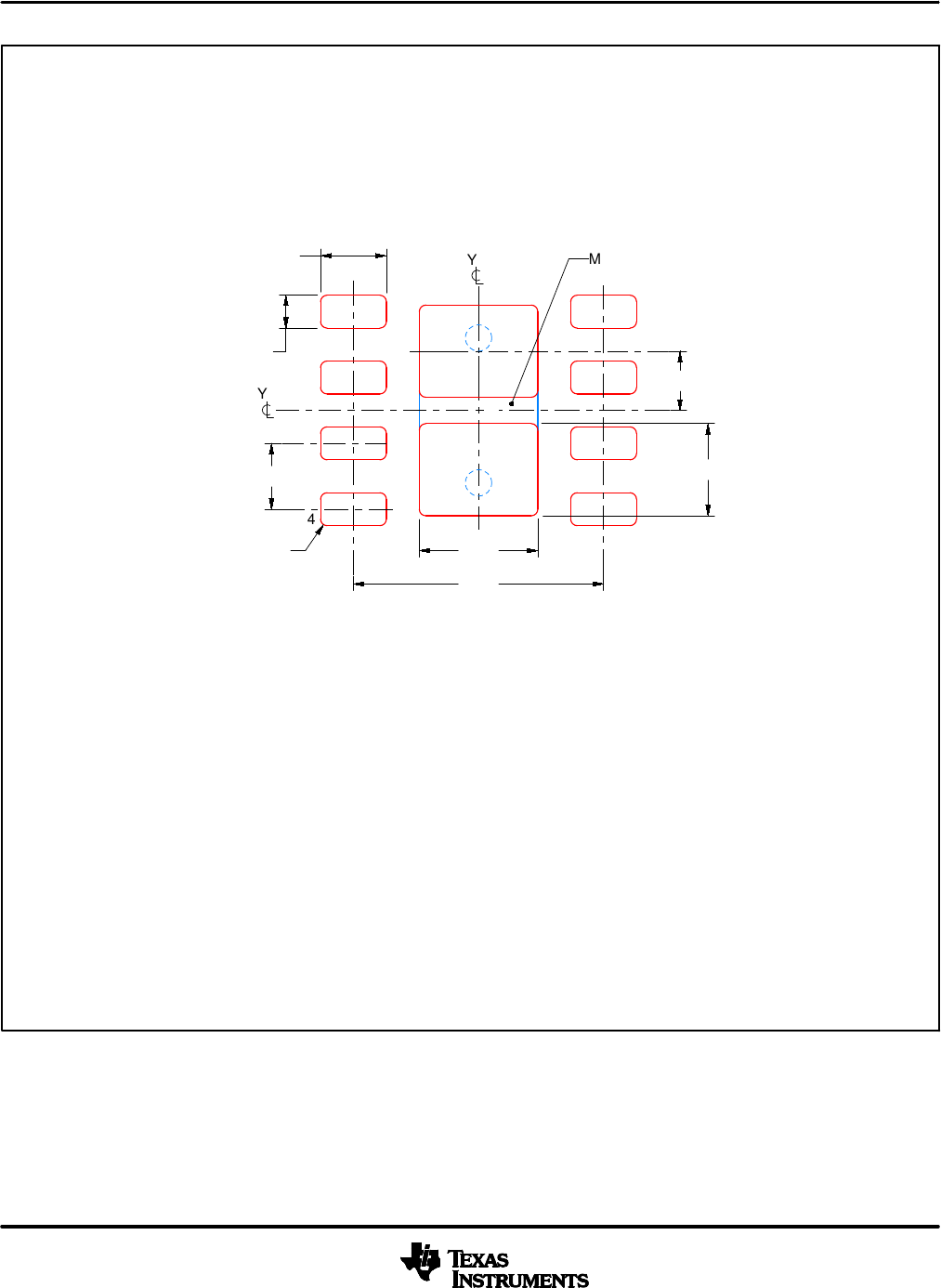

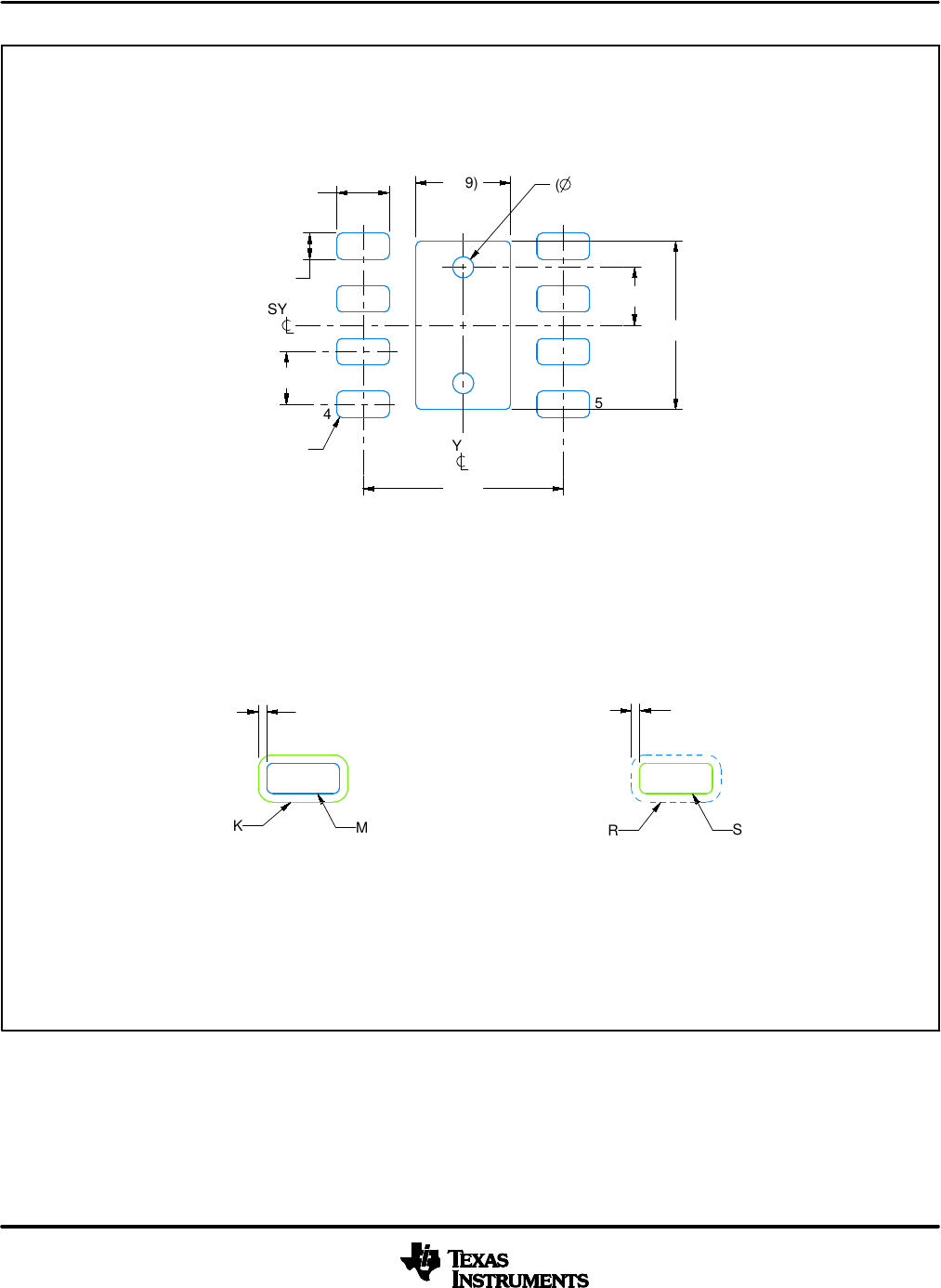

EXAMPLE BOARD LAYOUT
0.07 MIN
ALL AROUND
0.07 MAX
ALL AROUND
8X (0.25)
(1.6)
(1.9)
6X (0.5)
(0.9) ( 0.2) VIA
TYP
(0.55)
8X (0.5)
(R0.05) TYP
WSON - 0.8 mm max heightDSG0008A
PLASTIC SMALL OUTLINE - NO LEAD
4218900/E 08/2022
SYMM
1
45
8
LAND PATTERN EXAMPLE
SCALE:20X
SYMM 9
NOTES: (continued)
4. This package is designed to be soldered to a thermal pad on the board. For more information, see Texas Instruments literature
number SLUA271 (www.ti.com/lit/slua271).
5. Vias are optional depending on application, refer to device data sheet. If any vias are implemented, refer to their locations shown
on this view. It is recommended that vias under paste be filled, plugged or tented.
SOLDER MASK
OPENING
SOLDER MASK
METAL UNDER
SOLDER MASK
DEFINED
METAL
SOLDER MASK
OPENING
SOLDER MASK DETAILS
NON SOLDER MASK
DEFINED
(PREFERRED)
www.ti.com
EXAMPLE STENCIL DESIGN
(R0.05) TYP
8X (0.25)
8X (0.5)
(0.9)
(0.7)
(1.9)
(0.45)
6X (0.5)
WSON - 0.8 mm max heightDSG0008A
PLASTIC SMALL OUTLINE - NO LEAD
4218900/E 08/2022
NOTES: (continued)
6. Laser cutting apertures with trapezoidal walls and rounded corners may offer better paste release. IPC-7525 may have alternate
design recommendations.
SOLDER PASTE EXAMPLE
BASED ON 0.125 mm THICK STENCIL
EXPOSED PAD 9:
87% PRINTED SOLDER COVERAGE BY AREA UNDER PACKAGE
SCALE:25X
SYMM
1
45
8
METAL
SYMM 9
IMPORTANT NOTICE AND DISCLAIMER
TI PROVIDES TECHNICAL AND RELIABILITY DATA (INCLUDING DATA SHEETS), DESIGN RESOURCES (INCLUDING REFERENCE
DESIGNS), APPLICATION OR OTHER DESIGN ADVICE, WEB TOOLS, SAFETY INFORMATION, AND OTHER RESOURCES “AS IS”
AND WITH ALL FAULTS, AND DISCLAIMS ALL WARRANTIES, EXPRESS AND IMPLIED, INCLUDING WITHOUT LIMITATION ANY
IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT OF THIRD
PARTY INTELLECTUAL PROPERTY RIGHTS.
These resources are intended for skilled developers designing with TI products. You are solely responsible for (1) selecting the appropriate
TI products for your application, (2) designing, validating and testing your application, and (3) ensuring your application meets applicable
standards, and any other safety, security, regulatory or other requirements.
These resources are subject to change without notice. TI grants you permission to use these resources only for development of an
application that uses the TI products described in the resource. Other reproduction and display of these resources is prohibited. No license
is granted to any other TI intellectual property right or to any third party intellectual property right. TI disclaims responsibility for, and you
will fully indemnify TI and its representatives against, any claims, damages, costs, losses, and liabilities arising out of your use of these
resources.
TI’s products are provided subject to TI’s Terms of Sale or other applicable terms available either on ti.com or provided in conjunction with
such TI products. TI’s provision of these resources does not expand or otherwise alter TI’s applicable warranties or warranty disclaimers for
TI products.
TI objects to and rejects any additional or different terms you may have proposed. IMPORTANT NOTICE
Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265
Copyright © 2022, Texas Instruments Incorporated
