TPS7A4201
SBVS184A –DECEMBER 2011–REVISED AUGUST 2015
TPS7A4201 28-V Input Voltage, 50-mA Voltage Regulator
1 Features 3 Description
The TPS7A4201 device is a high-voltage-tolerant
1• Wide Input Voltage Range: 7 V to 28 V linear regulator that offers the benefits of a thermally-
• Accuracy: enhanced package (MSOP-8), and is able to
– Nominal: 1% withstand continuous dc or transient input voltages of
up to 28 V.
– Over Line, Load, and Temperature: 2.5%
• Low Quiescent Current: 25 µA The TPS7A4201 is stable with any output
capacitance greater than 4.7 µF and any input
• Quiescent Current at Shutdown: 4.1 µA capacitance greater than 1 µF (over temperature and
• Maximum Output Current: 50 mA tolerance). Therefore, implementations of this device
• CMOS Logic-Level-Compatible Enable Pin require minimal board space because of its
miniaturized packaging (MSOP-8) and a potentially
• Adjustable Output Voltage: ~1.175 V to 26 V small output capacitor. In addition, the TPS7A4201
• Stable with Ceramic Capacitors: offers an enable pin (EN) compatible with standard
– Input Capacitance: ≥1 µF CMOS logic to enable a low-current shutdown mode.
– Output Capacitance: ≥4.7 µF The TPS7A4201 has an internal thermal shutdown
• Dropout Voltage: 290 mV and current limiting to protect the system during fault
conditions. The MSOP-8 packages has an operating
• Built-In Current-Limit and Thermal Shutdown temperature range of TJ= –40°C to +125°C.
Protection
• Package: High Thermal Performance MSOP-8 In addition, the TPS7A4201 is ideal for generating a
PowerPAD™ low-voltage supply from intermediate voltage rails in
telecom and industrial applications; not only it can
• Operating Temperature Range: –40°C to +125°C supply a well-regulated voltage rail, but it can also
withstand and maintain regulation during fast voltage
2 Applications transients. These features translate to simpler and
• Microprocessors, Microcontrollers Powered by more cost-effective electrical surge-protection circuitry
for a wide range of applications.
Industrial Busses with High Voltage Transients
• Industrial Automation Device Information(1)
• Automotive PART NUMBER PACKAGE BODY SIZE (NOM)
• LED Lighting TPS7A4201 MSOP PowerPAD (8) 3.00 mm × 3.00 mm
(1) For all available packages, see the orderable addendum at
the end of the data sheet.

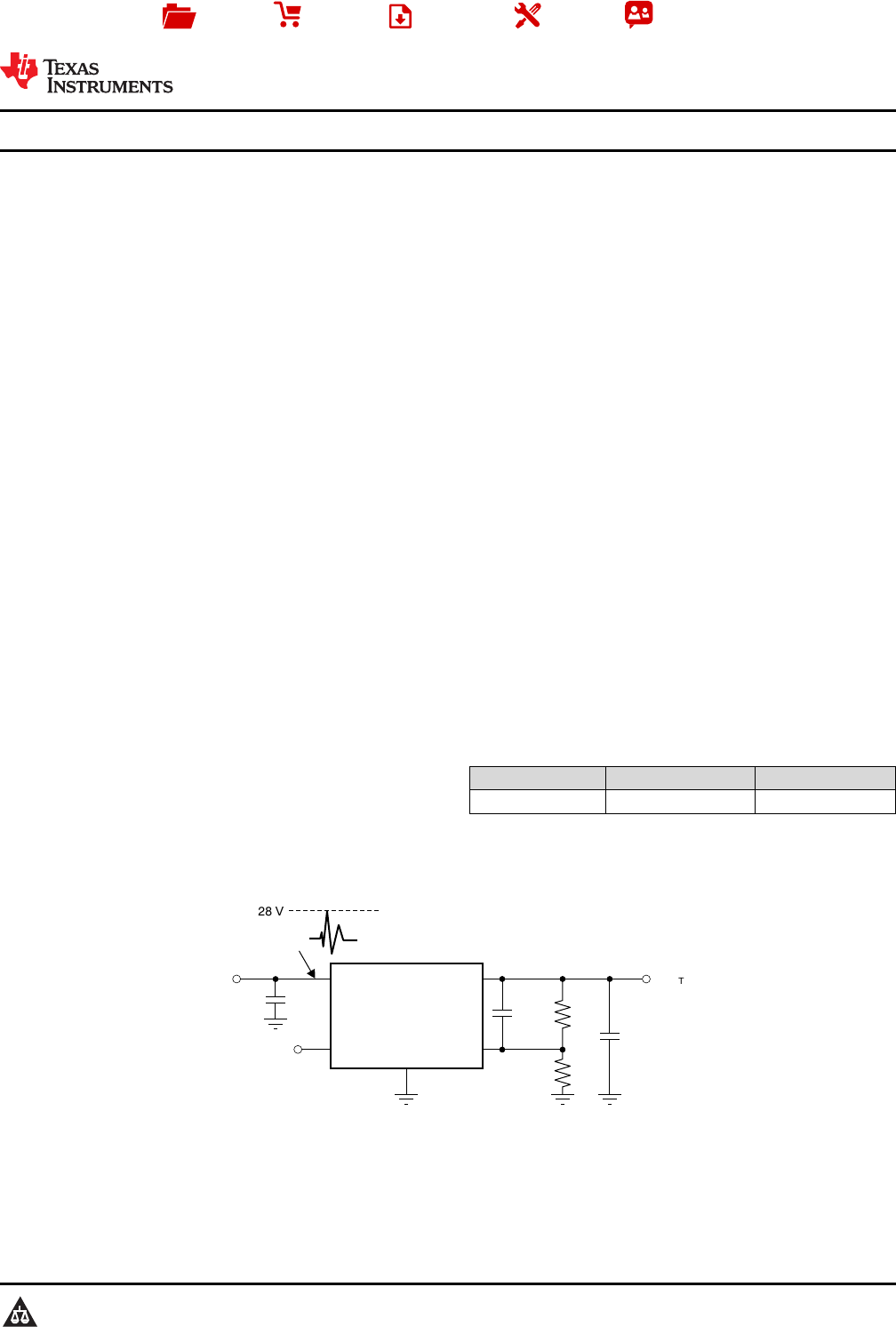

Typical Application
1
An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,
intellectual property matters and other important disclaimers. PRODUCTION DATA.
l TEXAS INSTRUMENTS
TPS7A4201
SBVS184A –DECEMBER 2011–REVISED AUGUST 2015
www.ti.com
Table of Contents
7.4 Device Functional Modes.......................................... 9
1 Features.................................................................. 18 Application and Implementation ........................ 10
2 Applications ........................................................... 18.1 Application Information............................................ 10
3 Description ............................................................. 18.2 Typical Application ................................................. 11
4 Revision History..................................................... 29 Power Supply Recommendations...................... 12
5 Pin Configuration and Functions......................... 310 Layout................................................................... 13
6 Specifications......................................................... 310.1 Layout Guidelines ................................................. 13
6.1 Absolute Maximum Ratings ..................................... 310.2 Layout Example .................................................... 13
6.2 ESD Ratings.............................................................. 410.3 Thermal Considerations........................................ 13
6.3 Recommended Operating Conditions....................... 410.4 Power Dissipation ................................................. 14
6.4 Thermal Information.................................................. 411 Device and Documentation Support ................. 15
6.5 Electrical Characteristics........................................... 511.1 Community Resources.......................................... 15
6.6 Dissipation Ratings ................................................... 511.2 Trademarks........................................................... 15
6.7 Typical Characteristics.............................................. 611.3 Electrostatic Discharge Caution............................ 15
7 Detailed Description.............................................. 811.4 Glossary................................................................ 15
7.1 Overview ................................................................... 812 Mechanical, Packaging, and Orderable
7.2 Functional Block Diagram......................................... 8Information ........................................................... 15
7.3 Feature Description................................................... 8
4 Revision History
NOTE: Page numbers for previous revisions may differ from page numbers in the current version.
Changes from Original (December 2011) to Revision A Page
• Added ESD Ratings table, Feature Description section, Device Functional Modes,Application and Implementation
section, Power Supply Recommendations section, Layout section, Device and Documentation Support section, and
Mechanical, Packaging, and Orderable Information section. ................................................................................................ 1
• Changed maximum recommended operating condition values for VIN, VOUT, and VEN. .................................................. 4
• Changed footnote 2 in Electrical Characteristics table........................................................................................................... 5
• Changed ILIM parameter minimum specifications in Electrical Characteristics table.............................................................. 5
2Submit Documentation Feedback Copyright © 2011–2015, Texas Instruments Incorporated
Product Folder Links: TPS7A4201
l TEXAS INSTRUMENTS HHHH
2
1
3
4
7
8
6
5
FB
NC
GND
OUT
EN
NC
NC
IN
TPS7A4201
www.ti.com
SBVS184A –DECEMBER 2011–REVISED AUGUST 2015
5 Pin Configuration and Functions
DGN Package
8-Pin MSOP
Top View
Pin Functions
PIN I/O DESCRIPTION
NAME NO.
Regulator output. A capacitor greater than 4.7 µF must be tied from this pin to ground to
OUT 1 O assure stability.
This pin is the input to the control-loop error amplifier. It is used to set the output voltage of
FB 2 I the device.
3
NC 6 — Not internally connected. This pin must either be left open or tied to GND.
7
GND 4 — Ground
This pin turns the regulator on or off.
If VEN ≥VEN_HI the regulator is enabled.
EN 5 I If VEN ≤VEN_LO, the regulator is disabled.
If not used, the EN pin can be connected to IN. Make sure that VEN ≤VIN at all times.
IN 8 I Input supply
Solder to printed circuit board (PCB) to enhance thermal performance.
NOTE: The PowerPAD is internally connected to GND.
PowerPAD — — Although it can be left floating, it is highly recommended to connect the PowerPAD to the
GND plane.
6 Specifications
6.1 Absolute Maximum Ratings
over operating free-air temperature range (unless otherwise noted).(1)
MIN MAX UNIT
IN pin to GND pin –0.3 +30 V
OUT pin to GND pin –0.3 +30 V
OUT pin to IN pin –30 +0.3 V
Voltage FB pin to GND pin –0.3 +2 V
FB pin to IN pin –30 +0.3 V
EN pin to IN pin –30 0.3 V
EN pin to GND pin –0.3 +30 V
Current Peak output Internally limited
Operating junction temperature, TJ–40 +125 °C
Temperature Storage, Tstg –65 +150 °C
(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings
only, and functional operation of the device at these or any other conditions beyond those indicated is not implied. Exposure to absolute-
maximum rated conditions for extended periods may affect device reliability.
Copyright © 2011–2015, Texas Instruments Incorporated Submit Documentation Feedback 3
Product Folder Links: TPS7A4201
l TEXAS INSTRUMENTS
TPS7A4201
SBVS184A –DECEMBER 2011–REVISED AUGUST 2015
www.ti.com
6.2 ESD Ratings
VALUE UNIT
Human body model (HBM), per ANSI/ESDA/JEDEC JS-001(1) ±2500
V(ESD) Electrostatic discharge V
Charged-device model (CDM), per JEDEC specification JESD22- ±500
C101(2)
(1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
(2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.
6.3 Recommended Operating Conditions
over operating junction temperature range (unless otherwise noted)
MIN NOM MAX UNIT
VIN 7 28 V
VOUT 1.161 26 V
VEN 0 28 V
IOUT 0 50 mA
6.4 Thermal Information
TPS7A4201
THERMAL METRIC(1) DGN (MSOP) UNIT
8 PINS
RθJA Junction-to-ambient thermal resistance 66.7 °C/W
RθJC(top) Junction-to-case (top) thermal resistance 54.1 °C/W
RθJB Junction-to-board thermal resistance 38.1 °C/W
ψJT Junction-to-top characterization parameter 2.0 °C/W
ψJB Junction-to-board characterization parameter 37.8 °C/W
RθJC(bot) Junction-to-case (bottom) thermal resistance 15.5 °C/W
(1) For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application
report, SPRA953.
4Submit Documentation Feedback Copyright © 2011–2015, Texas Instruments Incorporated
Product Folder Links: TPS7A4201
l TEXAS INSTRUMENTS
TPS7A4201
www.ti.com
SBVS184A –DECEMBER 2011–REVISED AUGUST 2015
6.5 Electrical Characteristics
At TJ= –40°C to +125°C, VIN = VOUT(NOM) + 2.0 V or VIN = 7.0 V (whichever is greater), VEN = VIN, IOUT = 100 µA, CIN = 1 μF, COUT = 4.7 μF,
and FB tied to OUT, unless otherwise noted.
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
VIN Input voltage range 7.0 28.0 V
VREF Internal reference TJ= +25°C, VFB = VREF, VIN = 9 V, IOUT = 25 mA 1.161 1.173 1.185 V
Output voltage range(1) VIN ≥VOUT(NOM) + 2.0 V VREF 26 V
Nominal accuracy TJ= +25°C, VIN = 9 V, IOUT = 25 mA –1.0 +1.0 %VOUT
VOUT VOUT(NOM) + 2.0 V ≤VIN ≤24 V(2)
Overall accuracy –2.5 +2.5 %VOUT
100 µA ≤IOUT ≤50 mA
ΔVO(ΔVI) Line regulation 7 V ≤VIN ≤28 V 0.03 %VOUT
ΔVO(ΔVL) Load regulation 100 µA ≤IOUT ≤50 mA 0.31 %VOUT
VIN = 17 V, VOUT(NOM) = 18 V, IOUT = 20 mA 290 mV
VDO Dropout voltage VIN = 17 V, VOUT(NOM) = 18 V, IOUT = 50 mA 0.78 1.3 V
VOUT = 90% VOUT(NOM), VIN = 7.0 V, TJ≤+85°C 65 117 200 mA
ILIM Current limit VOUT = 90% VOUT(NOM), VIN = 9.0 V 65 128 200 mA
7 V ≤VIN ≤28 V, IOUT = 0 mA 25 65 μA
IGND Ground current IOUT = 50 mA 25 μA
ISHDN Shutdown supply current VEN = +0.4 V 4.1 20 μA
IFB Feedback current(3) –0.1 0.01 0.1 µA
IEN Enable current 7 V ≤VIN ≤28 V, VIN = VEN 0.02 1.0 μA
VEN_HI Enable high-level voltage 1.5 VIN V
VEN_LO Enable low- level voltage 0 0.4 V
VIN = 12 V, VOUT(NOM) = VREF, COUT = 10 μF, 58 μVRMS
BW = 10 Hz to 100 kHz
VNOISE Output noise voltage VIN = 12 V, VOUT(NOM) = 5 V, COUT = 10 μF, 73 μVRMS
CBYP(4) = 10 nF, BW = 10 Hz to 100 kHz
VIN = 12 V, VOUT(NOM) = 5 V, COUT = 10 μF,
PSRR Power-supply rejection ratio 65 dB
CBYP(4) = 10 nF, f = 100 Hz
Shutdown, temperature increasing +170 °C
TSD Thermal shutdown temperature Reset, temperature decreasing +150 °C
Operating junction temperature
TJ–40 +125 °C
range
(1) To ensure stability at no-load conditions, a current from the feedback resistive network greater than or equal to 10 μA is required.
(2) Maximum input voltage (VIN) is limited to 24 V because of the package power dissipation limitations at full load [P ≈(VIN – VOUT) × IOUT
= (24 V – VREF) × 50 mA ≈1.14 V], given an ambient temperature of +50°C. The device is capable of sourcing steady-state load
currents as high as 60 mA at higher input voltages without damage if the maximum operating junction temperature (TJ) is not exceeded.
The Electrical Characteristics are not characterized for load current (IOUT) exceeding 50 mA.
(3) IFB > 0 flows out of the device.
(4) CBYP refers to a bypass capacitor connected to the FB and OUT pins.
6.6 Dissipation Ratings
DERATING FACTOR TA≤+25°C POWER TA= +70°C POWER TA= +85°C POWER
BOARD PACKAGE RθJA RθJC ABOVE TA= +25°C RATING RATING RATING
High-K(1) DGN 55.9°C/W 8.47°C/W 16.6mW/°C 1.83W 1.08W 0.833W
(1) The JEDEC High-K (2s2p) board design used to derive this data was a 3-inch x 3-inch multilayer board with 2-ounce internal power and
ground planes and 2-ounce copper traces on top and bottom of the board.
Copyright © 2011–2015, Texas Instruments Incorporated Submit Documentation Feedback 5
Product Folder Links: TPS7A4201
l TEXAS INSTRUMENTS
0
10
20
30
40
50
60
70
80
90
100
−40 −25 −10 5 20 35 50 65 80 95 110 125
Temperature (°C)
IFB (nA)
0
10
20
30
40
50
60
70
80
90
100
0 10 20 30 40 50
Output Current (mA)
IGND (µA)
− 40°C
+ 25°C
+ 85°C
+ 105°C
+ 125°C
1.075
1.125
1.175
1.225
1.275
5 10 15 20 25 30
Input Voltage (V)
VFB (V)
−40°C
+25°C
+85°C
+105°C
+125°C
G002
0
20
40
60
80
100
5 10 15 20 25 30
Input Voltage (V)
IQ (µA)
−40°C
+25°C
+85°C
+105°C
+125°C
IOUT = 0 mA
G003
−10
−7.5
−5
−2.5
0
2.5
5
7.5
10
5 10 15 20 25 30
Input Voltage (V)
VOUT(NOM) (%)
−40°C
+25°C
+85°C
+105°C
+125°C
G001
TPS7A4201
SBVS184A –DECEMBER 2011–REVISED AUGUST 2015
www.ti.com

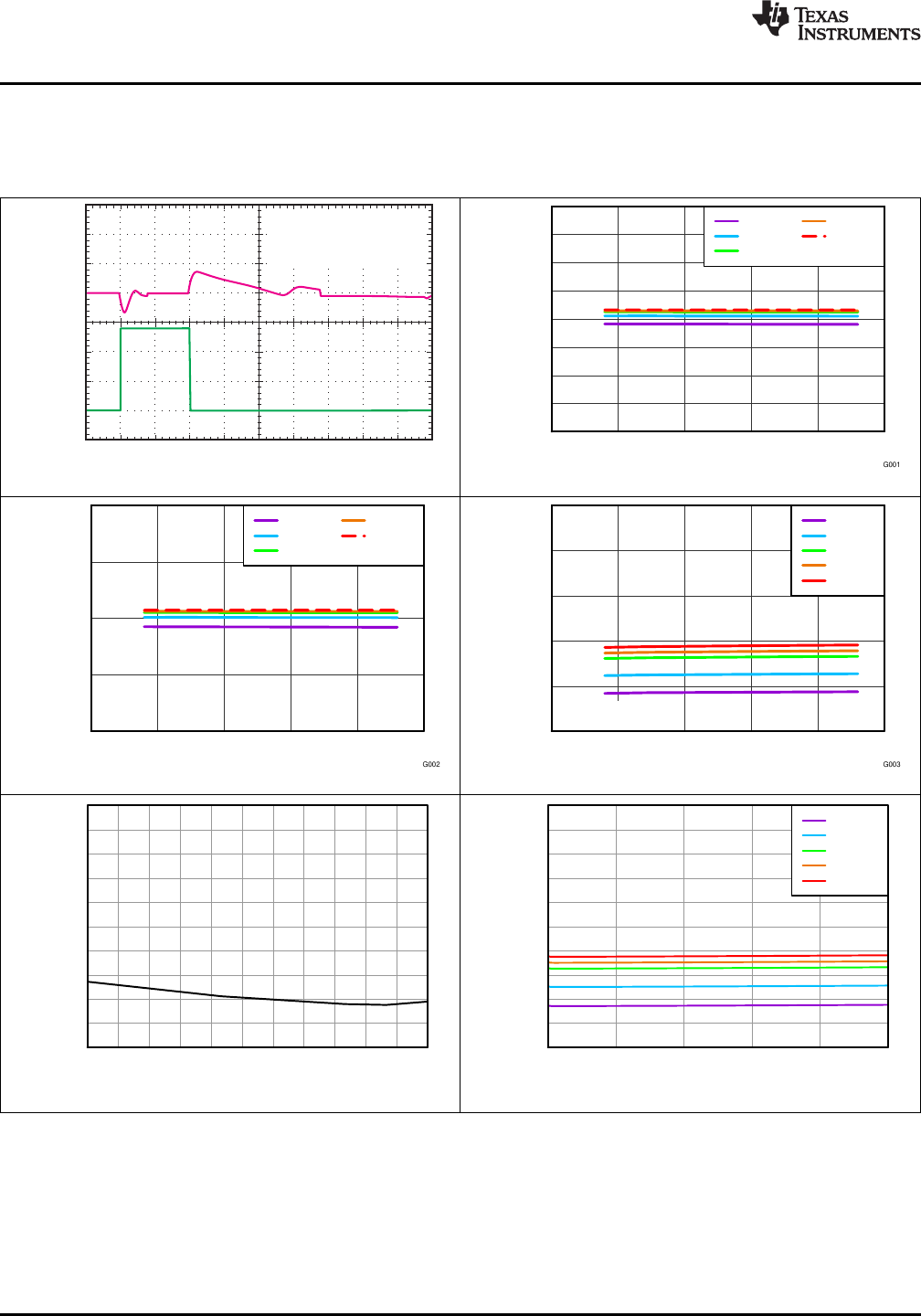

6.7 Typical Characteristics
At TJ= –40°C to +125°C, VIN = VOUT(NOM) + 2.0 V or VIN = 9.0 V (whichever is greater), VEN = VIN, IOUT = 100 µA, CIN = 1 μF,
COUT = 4.7 μF, and FB tied to OUT, unless otherwise noted.
Figure 2. Line Regulation
Figure 1. Load Transient Response
Figure 3. Feedback Voltage Figure 4. Quiescent Current vs Input Voltage
Figure 5. Feedback Current Figure 6. Ground Current
6Submit Documentation Feedback Copyright © 2011–2015, Texas Instruments Incorporated
Product Folder Links: TPS7A4201
l TEXAS INSTRUMENTS 2,5 Tempelahne (”c) 25 200 &\
0
10
20
30
40
50
60
70
80
90
100
10 100 1k 10k 100k 1M 10M
Frequency (Hz)
PSRR (dB)
IOUT = 50mA
IOUT = 100µA
VIN = 12V
VOUT = 5V
COUT = 10µF
CBYP = 10nF
0.001
0.01
0.1
1
10
10 100 1k 10k 100k 1M 10M
Frequency (Hz)
Noise (µV/ Hz)
IOUT = 100µA,VNOISE = 60µVRMS
IOUT = 50mA,VNOISE = 100µVRMS
VIN = 12V
VOUT = VREF
COUT = 10µF
CBYP = 10nF
0
40
80
120
160
200
6 9 12 15 18 21 24
Input Voltage (V)
ICL (mA)
− 40°C
+ 25°C
+ 85°C
+ 105°C
+ 125°C
0
0.25
0.5
0.75
1
1.25
1.5
1.75
2
0 10 20 30 40 50
Output Current (mA)
VDROP (V)
− 40°C
+ 25°C
+ 85°C
+ 105°C
+ 125°C
0
0.5
1
1.5
2
2.5
−40 −25 −10 5 20 35 50 65 80 95 110 125
Vsub (EN_LO)
Vsub (EN_HI)
Temperature (°C)
VEN (V)
TPS7A4201
www.ti.com
SBVS184A –DECEMBER 2011–REVISED AUGUST 2015
Typical Characteristics (continued)
At TJ= –40°C to +125°C, VIN = VOUT(NOM) + 2.0 V or VIN = 9.0 V (whichever is greater), VEN = VIN, IOUT = 100 µA, CIN = 1 μF,
COUT = 4.7 μF, and FB tied to OUT, unless otherwise noted.
Figure 8. Enable Threshold Voltage
Figure 7. Dropout Voltage
Figure 10. Current Limit
Figure 9. Output Spectral Noise Density
Figure 11. Power-Supply Rejection Ratio
Copyright © 2011–2015, Texas Instruments Incorporated Submit Documentation Feedback 7
Product Folder Links: TPS7A4201
l TEXAS INSTRUMENTS ML
UVLO
Thermal
Shutdown
Current
Limit
Enable Error
Amp
IN
EN
OUT
FB
Pass
Device
TPS7A4201
SBVS184A –DECEMBER 2011–REVISED AUGUST 2015
www.ti.com
7 Detailed Description
7.1 Overview
The TPS7A4201 belongs to a new generation of linear regulators that use an innovative BiCMOS process
technology to achieve very high maximum input and output voltages.
This process not only allows the TPS7A4201 to maintain regulation during very fast voltage transients up to 28
V, but it also allows the TPS7A4201 to regulate from a continuous high-voltage input rail. Unlike other regulators
created using bipolar technology, the TPS7A4201 ground current is also constant over its output current range,
resulting in increased efficiency and lower power consumption.
These features, combined with a high thermal performance MSOP-8 PowerPAD package, make this device ideal
for industrial and telecom applications.

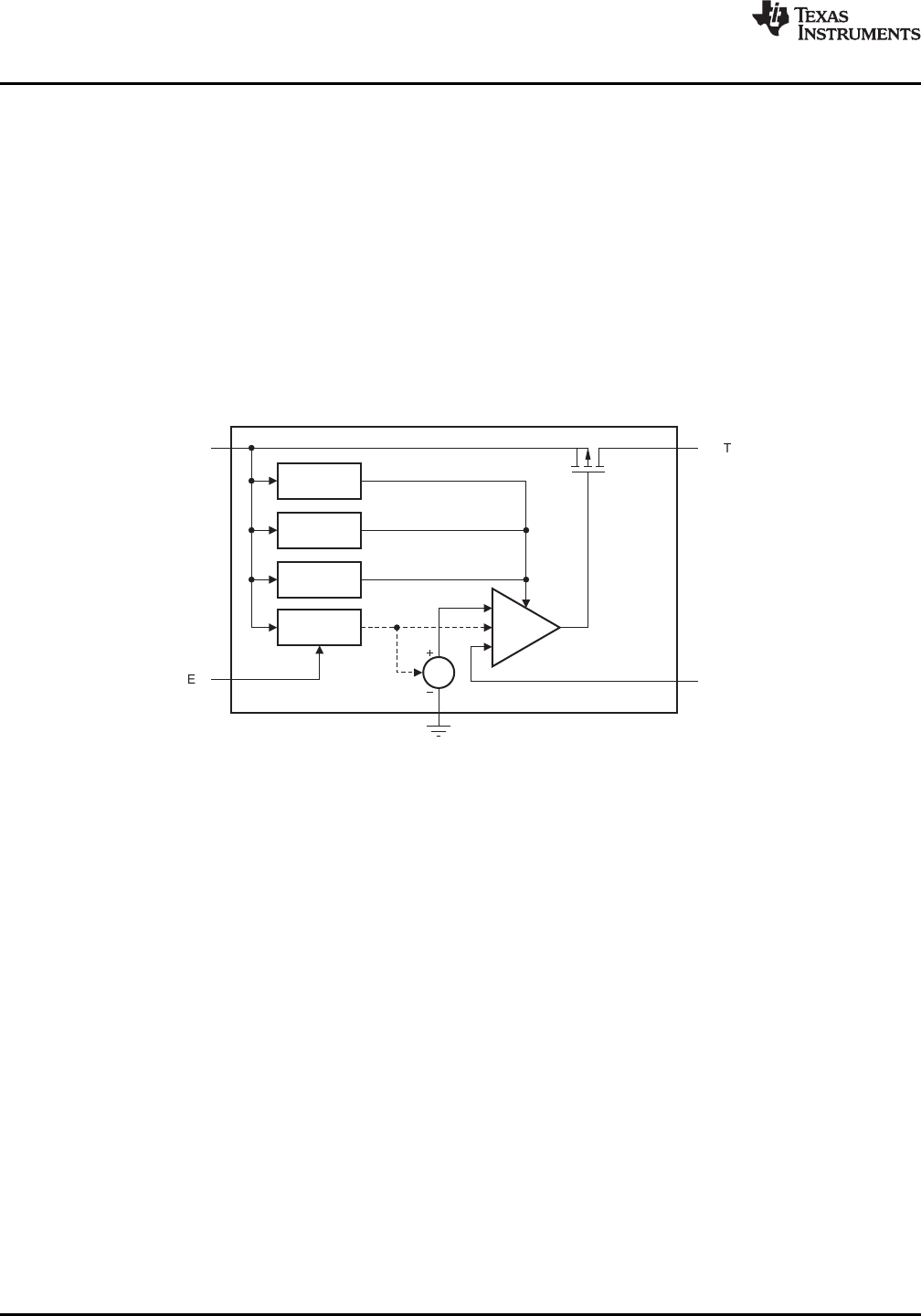

7.2 Functional Block Diagram
7.3 Feature Description
7.3.1 Enable Pin Operation
The TPS7A4201 provides an enable pin (EN) feature that turns on the regulator when VEN > 1.5 V.
7.3.2 Thermal Protection
Thermal protection disables the output when the junction temperature rises to approximately 170°C, allowing the
device to cool. When the junction temperature cools to approximately 150°C, the output circuitry is enabled.
Depending on power dissipation, thermal resistance, and ambient temperature, the thermal protection circuit may
cycle on and off. This cycling limits the dissipation of the regulator, protecting it from damage as a result of
overheating.
Any tendency to activate the thermal protection circuit indicates excessive power dissipation or an inadequate
heatsink. For reliable operation, limit junction temperature to a maximum of 125°C. To estimate the margin of
safety in a complete design (including heatsink), increase the ambient temperature until the thermal protection is
triggered; use worst-case loads and signal conditions. For good reliability, trigger thermal protection at least 35°C
above the maximum expected ambient condition of your particular application. This configuration produces a
worst-case junction temperature of 125°C at the highest expected ambient temperature and worst-case load.
The internal protection circuitry of the TPS7A4201 device has been designed to protect against overload
conditions. The protection circuitry was not intended to replace proper heatsinking. Continuously running the
TPS7A4201 device into thermal shutdown degrades device reliability.
8Submit Documentation Feedback Copyright © 2011–2015, Texas Instruments Incorporated
Product Folder Links: TPS7A4201
l TEXAS INSTRUMENTS
TPS7A4201
www.ti.com
SBVS184A –DECEMBER 2011–REVISED AUGUST 2015
7.4 Device Functional Modes
7.4.1 Normal Operation
The device regulates to the nominal output voltage under the following conditions:
• The input voltage is at least as high as VIN(min).
• The input voltage is greater than the nominal output voltage added to the dropout voltage.
• The enable voltage has previously exceeded the enable rising threshold voltage and has not decreased
below the enable falling threshold.
• The output current is less than the current limit.
• The device junction temperature is less than the maximum specified junction temperature.
7.4.2 Dropout Operation
If the input voltage is lower than the nominal output voltage plus the specified dropout voltage, but all other
conditions are met for normal operation, the device operates in dropout mode. In this mode of operation, the
output voltage is the same as the input voltage minus the dropout voltage. The transient performance of the
device is significantly degraded because the pass device (as a bipolar junction transistor, or BJT) is in saturation
and no longer controls the current through the LDO. Line or load transients in dropout can result in large output
voltage deviations.
7.4.3 Disabled
The device is disabled under the following conditions:
• The enable voltage is less than the enable falling threshold voltage or has not yet exceeded the enable rising
threshold.
• The device junction temperature is greater than the thermal shutdown temperature.
Table 1 lists the conditions that lead to the different modes of operation.
Table 1. Device Functional Mode Comparison
PARAMETER
OPERATING MODE VIN VEN IOUT TJ
VIN > VOUT(nom) + VDO and
Normal mode VEN > VEN_HI IOUT < ILIM TJ< 125°C
VIN > VIN(min)
Dropout mode VIN(min) < VIN < VOUT(nom) + VDO VEN > VEN_HI — TJ< 125°C
Disabled mode — VEN < VEN_LO — TJ> 170°C
(any true condition disables the device)
Copyright © 2011–2015, Texas Instruments Incorporated Submit Documentation Feedback 9
Product Folder Links: TPS7A4201
l TEXAS INSTRUMENTS T F MW M—H4 1 ( VHEF ) 1 R2
VOUT
VREF
-1
R = R
1 2
VOUT
R + R
1 2
³10 Am, where
Device
OUT
FB
GND
C
10 F
IN
mR1
C
10 nF
BYP
C
10 F
OUT
m
IN
EN
VIN VOUT
R2
TPS7A4201
SBVS184A –DECEMBER 2011–REVISED AUGUST 2015
www.ti.com
8 Application and Implementation
NOTE
Information in the following applications sections is not part of the TI component
specification, and TI does not warrant its accuracy or completeness. TI’s customers are
responsible for determining suitability of components for their purposes. Customers should
validate and test their design implementation to confirm system functionality.
8.1 Application Information
8.1.1 Adjustable Operation
The TPS7A4201 has an output voltage range of ~1.175 V to 26 V. The nominal output voltage of the device is
set by two external resistors, as shown in Figure 12.
Figure 12. Adjustable Operation for Maximum AC Performance
R1and R2can be calculated for any output voltage range using the formula shown in Equation 1. To ensure
stability under no-load conditions, this resistive network must provide a current greater than or equal to 10 μA.
(1)
If greater voltage accuracy is required, take into account the output voltage offset contributions because of the
feedback pin current and use 0.1% tolerance resistors.
8.1.2 Transient Voltage Protection
One of the primary applications of the TPS7A4201 is to provide transient voltage protection to sensitive circuitry
that may be damaged in the presence of high-voltage spikes.
This transient voltage protection can be more cost-effective and compact compared to topologies that use a
transient voltage suppression (TVS) block.
10 Submit Documentation Feedback Copyright © 2011–2015, Texas Instruments Incorporated
Product Folder Links: TPS7A4201
‘5‘ TEXAS INSTRUMENTS W/ww «H? (* ‘)
Where: VOUT
R + R
1 2
³10 A, andm
VOUT
VREF
-1R = R
1 2
Device
OUT
FB
GND
C
10 F
IN
mR1
C
10 nF
BYP
C
10 F
OUT
m
IN
EN
VIN VOUT
R2
VEN
TPS7A4201
www.ti.com
SBVS184A –DECEMBER 2011–REVISED AUGUST 2015
8.2 Typical Application
Figure 13. Example Circuit to Maximize Transient Performance
8.2.1 Design Requirements
For this design example, use the following parameters listed in Table 2.
Table 2. Design Parameters
PARAMETER VALUE
VIN 12 V
VOUT 5 V (ideal), 4.981 V (actual)
IOUT 28 mA
Accuracy 5 %
R1, R2 162 kΩ, 49.9 kΩ
8.2.2 Detailed Design Procedure
The maximum value of total feedback resistance can be calculated to be 500 kΩ.Equation 1 was used to
calculate R1 and R2, and standard 1% resistors were selected to keep the accuracy within the 5% allocation. 10-
uF ceramic input and output capacitors were selected, along with a 10-nF bypass capacitor for optimal AC
performance.
8.2.2.1 Capacitor Recommendations
Low equivalent series resistance (ESR) capacitors should be used for the input, output, and bypass capacitors.
Ceramic capacitors with X7R and X5R dielectrics are preferred. These dielectrics offer more stable
characteristics. Ceramic X7R capacitors offer improved over-temperature performance, while ceramic X5R
capacitors are the most cost-effective and are available in higher values.
Note that high ESR capacitors may degrade PSRR.
8.2.2.2 Input and Output Capacitor Requirements
The TPS7A4101 high voltage linear regulator achieves stability with a minimum output capacitance of 4.7 µF and
input capacitance of 1 µF; however, it is highly recommended to use 10-μF output and input capacitors to
maximize ac performance.
8.2.2.3 Bypass Capacitor Requirements
Although a bypass capacitor (CBYP) is not needed to achieve stability, it is highly recommended to use a 10-nF
bypass capacitor to maximize ac performance (including line transient, noise and PSRR).
8.2.2.4 Maximum AC Performance
In order to maximize line transient, noise, and PSRR performance, it is recommended to include 10-μF (or
higher) input and output capacitors, and a 10-nF bypass capacitor; see Figure 12. The solution shown delivers
minimum noise levels of 58 μVRMS and power-supply rejection levels above 36 dB from 10 Hz to 10 MHz.
8.2.2.5 Transient Response
As with any regulator, increasing the size of the output capacitor reduces over/undershoot magnitude but
increases duration of the transient response.
Copyright © 2011–2015, Texas Instruments Incorporated Submit Documentation Feedback 11
Product Folder Links: TPS7A4201
l TEXAS INSTRUMENTS
TPS7A4201
SBVS184A –DECEMBER 2011–REVISED AUGUST 2015
www.ti.com
Note that the presence of the CBYP capacitor may greatly improve the TPS7A4201 line transient response, as
noted in Figure 1.
8.2.3 Application Curves
Figure 14. Load Transient Response
9 Power Supply Recommendations
The input supply for the LDO should not exceed its recommended operating conditions (7 V to 28 V). The input
voltage should provide adequate headroom for the device to have a regulated output. If the input supply is noisy,
additional input capacitors with low ESR can help improve the output noise performance. The input and output
supplies should also be bypassed with 10-µF capacitors located near the input and output pins. There should be
no other components located between these capacitors and the pins.
12 Submit Documentation Feedback Copyright © 2011–2015, Texas Instruments Incorporated
Product Folder Links: TPS7A4201
*9 TEXAS INSTRUMENTS
1
2
3
4
8
7
6
5
OUT
FB
NC
GND
IN
NC
EN
Input GND Plane
Output GND Plane
Vin
Thermal
Pad
Cout
R2
Sense Line
Vout
Cin
R1
NC
TPS7A4201
www.ti.com
SBVS184A –DECEMBER 2011–REVISED AUGUST 2015
10 Layout
10.1 Layout Guidelines
10.1.1 Board Layout Recommendations to Improve PSRR and Noise Performance
To improve AC performance such as PSRR, output noise, and transient response, TI recommends designing the
board with separate ground planes for IN and OUT, with each ground plane connected only at the GND pin of
the device. In addition, the ground connection for the output capacitor should connect directly to the GND pin of
the device.
Equivalent series inductance (ESL) and ESR must be minimized to maximize performance and ensure stability.
Every capacitor (CIN, COUT, CBYP) must be placed as close as possible to the device and on the same side of the
PCB as the regulator itself.
Do not place any of the capacitors on the opposite side of the PCB from where the regulator is installed. The use
of vias and long traces is strongly discouraged because they may impact system performance negatively and
even cause instability.
If possible, and to ensure the maximum performance denoted in this product data sheet, use the same layout
pattern used for the TPS7A4201 evaluation board, available at www.ti.com.
10.2 Layout Example
Figure 15. Recommended Layout Example
10.3 Thermal Considerations
Thermal protection disables the output when the junction temperature rises to approximately 170°C, allowing the
device to cool. When the junction temperature cools to approximately 150°C, the output circuitry is enabled.
Depending on power dissipation, thermal resistance, and ambient temperature, the thermal protection circuit may
cycle ON and OFF. This cycling limits the dissipation of the regulator, protecting it from damage as a result of
overheating.
Copyright © 2011–2015, Texas Instruments Incorporated Submit Documentation Feedback 13
Product Folder Links: TPS7A4201
l TEXAS INSTRUMENTS PD VIN VOUT IOUT
P =(V V )I-
D IN OUT OUT
TPS7A4201
SBVS184A –DECEMBER 2011–REVISED AUGUST 2015
www.ti.com
Thermal Considerations (continued)
Any tendency to activate the thermal protection circuit indicates excessive power dissipation or an inadequate
heatsink. For reliable operation, junction temperature should be limited to a maximum of 125°C. To estimate the
margin of safety in a complete design (including heatsink), increase the ambient temperature until the thermal
protection is triggered; use worst-case loads and signal conditions. For good reliability, thermal protection should
trigger at least 45°C above the maximum expected ambient condition of the particular application. This
configuration produces a worst-case junction temperature of 125°C at the highest expected ambient temperature
and worst-case load.
The internal protection circuitry of the TPS7A4201 has been designed to protect against overload conditions. It
was not intended to replace proper heatsinking. Continuously running the TPS7A4201 device into thermal
shutdown degrades device reliability.
10.4 Power Dissipation
The ability to remove heat from the die is different for each package type, presenting different considerations in
the PCB layout. The PCB area around the device that is free of other components moves the heat from the
device to the ambient air. Using heavier copper increases the effectiveness in removing heat from the device.
The addition of plated through-holes to heat dissipating layers also improves the heatsink effectiveness.
Power dissipation depends on input voltage and load conditions. Power dissipation (PD) is equal to the product of
the output current times the voltage drop across the output pass element, as shown in Equation 2:
(2)
14 Submit Documentation Feedback Copyright © 2011–2015, Texas Instruments Incorporated
Product Folder Links: TPS7A4201
l TEXAS INSTRUMENTS
TPS7A4201
www.ti.com
SBVS184A –DECEMBER 2011–REVISED AUGUST 2015
11 Device and Documentation Support
11.1 Community Resources
The following links connect to TI community resources. Linked contents are provided "AS IS" by the respective
contributors. They do not constitute TI specifications and do not necessarily reflect TI's views; see TI's Terms of
Use.
TI E2E™ Online Community TI's Engineer-to-Engineer (E2E) Community. Created to foster collaboration
among engineers. At e2e.ti.com, you can ask questions, share knowledge, explore ideas and help
solve problems with fellow engineers.
Design Support TI's Design Support Quickly find helpful E2E forums along with design support tools and
contact information for technical support.
11.2 Trademarks
PowerPAD, E2E are trademarks of Texas Instruments.
All other trademarks are the property of their respective owners.
11.3 Electrostatic Discharge Caution
These devices have limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam
during storage or handling to prevent electrostatic damage to the MOS gates.
11.4 Glossary
SLYZ022 —TI Glossary.
This glossary lists and explains terms, acronyms, and definitions.
12 Mechanical, Packaging, and Orderable Information
The following pages include mechanical, packaging, and orderable information. This information is the most
current data available for the designated devices. This data is subject to change without notice and revision of
this document. For browser-based versions of this data sheet, refer to the left-hand navigation.
Copyright © 2011–2015, Texas Instruments Incorporated Submit Documentation Feedback 15
Product Folder Links: TPS7A4201
I TEXAS INSTRUMENTS Sample: Sample:
PACKAGE OPTION ADDENDUM
www.ti.com 10-Dec-2020
Addendum-Page 1
PACKAGING INFORMATION
Orderable Device Status
(1)
Package Type Package
Drawing Pins Package
Qty Eco Plan
(2)
Lead finish/
Ball material
(6)
MSL Peak Temp
(3)
Op Temp (°C) Device Marking
(4/5)
Samples
TPS7A4201DGNR ACTIVE HVSSOP DGN 8 2500 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 SBC
TPS7A4201DGNT ACTIVE HVSSOP DGN 8 250 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 SBC
(1) The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
(2) RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance
do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may
reference these types of products as "Pb-Free".
RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption.
Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of <=1000ppm threshold. Antimony trioxide based
flame retardants must also meet the <=1000ppm threshold requirement.
(3) MSL, Peak Temp. - The Moisture Sensitivity Level rating according to the JEDEC industry standard classifications, and peak solder temperature.
(4) There may be additional marking, which relates to the logo, the lot trace code information, or the environmental category on the device.
(5) Multiple Device Markings will be inside parentheses. Only one Device Marking contained in parentheses and separated by a "~" will appear on a device. If a line is indented then it is a continuation
of the previous line and the two combined represent the entire Device Marking for that device.
(6) Lead finish/Ball material - Orderable Devices may have multiple material finish options. Finish options are separated by a vertical ruled line. Lead finish/Ball material values may wrap to two
lines if the finish value exceeds the maximum column width.
Important Information and Disclaimer:The information provided on this page represents TI's knowledge and belief as of the date that it is provided. TI bases its knowledge and belief on information
provided by third parties, and makes no representation or warranty as to the accuracy of such information. Efforts are underway to better integrate information from third parties. TI has taken and
continues to take reasonable steps to provide representative and accurate information but may not have conducted destructive testing or chemical analysis on incoming materials and chemicals.
TI and TI suppliers consider certain information to be proprietary, and thus CAS numbers and other limited information may not be available for release.
In no event shall TI's liability arising out of such information exceed the total purchase price of the TI part(s) at issue in this document sold by TI to Customer on an annual basis.
I TEXAS INSTRUMENTS
PACKAGE OPTION ADDENDUM
www.ti.com 10-Dec-2020
Addendum-Page 2
I TEXAS INSTRUMENTS REEL DIMENSIONS TAPE DIMENSIONS 7 “K0 '«m» Reel Diame|er AD Dimension deswgned to accommodate the componem wwdlh E0 Dimension desxgned to accommodate the componenl \ength KO Dimenslun deswgned to accommodate the componem thickness 7 w OveraH wwdm loe earner cape i p1 Pitch between successwe cavuy cemers f T Reel Width (W1) QUADRANT ASSIGNMENTS FOR PIN 1 ORIENTATION IN TAPE O O O D O O D O Sprockemoles ,,,,,,,,,,, ‘ User Direcllon 0' Feed Pockel Quadrams
TAPE AND REEL INFORMATION
*All dimensions are nominal
Device Package
Type Package
Drawing Pins SPQ Reel
Diameter
(mm)
Reel
Width
W1 (mm)
A0
(mm) B0
(mm) K0
(mm) P1
(mm) W
(mm) Pin1
Quadrant
TPS7A4201DGNR HVSSOP DGN 8 2500 330.0 12.4 5.3 3.3 1.3 8.0 12.0 Q1
TPS7A4201DGNT HVSSOP DGN 8 250 180.0 12.4 5.3 3.3 1.3 8.0 12.0 Q1
PACKAGE MATERIALS INFORMATION
www.ti.com 5-Jan-2021
Pack Materials-Page 1
I TEXAS INSTRUMENTS TAPE AND REEL BOX DIMENSIONS
*All dimensions are nominal
Device Package Type Package Drawing Pins SPQ Length (mm) Width (mm) Height (mm)
TPS7A4201DGNR HVSSOP DGN 8 2500 346.0 346.0 35.0
TPS7A4201DGNT HVSSOP DGN 8 250 200.0 183.0 25.0
PACKAGE MATERIALS INFORMATION
www.ti.com 5-Jan-2021
Pack Materials-Page 2
www.ti.com
GENERIC PACKAGE VIEW
This image is a representation of the package family, actual package may vary.
Refer to the product data sheet for package details.
PowerPAD VSSOP - 1.1 mm max heightDGN 8
SMALL OUTLINE PACKAGE
3 x 3, 0.65 mm pitch
4225482/A
www.ti.com
PACKAGE OUTLINE
C
6X 0.65
2X
1.95
8X 0.38
0.25
5.05
4.75 TYP
SEATING
PLANE
0.15
0.05
0.25
GAGE PLANE
0 -8
1.1 MAX
0.23
0.13
1.88
1.62
1.98
1.78
B3.1
2.9
NOTE 4
A
3.1
2.9
NOTE 3
0.7
0.4
PowerPAD VSSOP - 1.1 mm max heightDGN0008B
SMALL OUTLINE PACKAGE
4218837/A 11/2019
1
4
5
8
0.13 C A B
PIN 1 INDEX AREA
SEE DETAIL A
0.1 C
NOTES:
1. All linear dimensions are in millimeters. Any dimensions in parenthesis are for reference only. Dimensioning and tolerancing
per ASME Y14.5M.
2. This drawing is subject to change without notice.
3. This dimension does not include mold flash, protrusions, or gate burrs. Mold flash, protrusions, or gate burrs shall not
exceed 0.15 mm per side.
4. This dimension does not include interlead flash. Interlead flash shall not exceed 0.25 mm per side.
5. Reference JEDEC registration MO-187.
PowerPAD is a trademark of Texas Instruments.
TM
A 20
DETAIL A
TYPICAL
SCALE 4.000
EXPOSED THERMAL PAD
1
45
8
9
www.ti.com
EXAMPLE BOARD LAYOUT
0.05 MAX
ALL AROUND 0.05 MIN
ALL AROUND
8X (1.4)
8X (0.45)
6X (0.65)
(4.4)
(R0.05) TYP
(2)
NOTE 9
(3)
NOTE 9
(1.22)
(0.55)
( 0.2) TYP
VIA
(1.88)
(1.98)
PowerPAD VSSOP - 1.1 mm max heightDGN0008B
SMALL OUTLINE PACKAGE
4218837/A 11/2019
NOTES: (continued)
6. Publication IPC-7351 may have alternate designs.
7. Solder mask tolerances between and around signal pads can vary based on board fabrication site.
8. Vias are optional depending on application, refer to device data sheet. If any vias are implemented, refer to their locations shown
on this view. It is recommended that vias under paste be filled, plugged or tented.
9. Size of metal pad may vary due to creepage requirement.
TM
LAND PATTERN EXAMPLE
EXPOSED METAL SHOWN
SCALE: 15X
SYMM
SYMM
1
4
5
8
SOLDER MASK
DEFINED PAD
METAL COVERED
BY SOLDER MASK
SEE DETAILS
9
15.000
METAL
SOLDER MASK
OPENING METAL UNDER
SOLDER MASK SOLDER MASK
OPENING
EXPOSED METAL
EXPOSED METAL
SOLDER MASK DETAILS
NON-SOLDER MASK
DEFINED
(PREFERRED)
SOLDER MASK
DEFINED
www.ti.com
EXAMPLE STENCIL DESIGN
8X (1.4)
8X (0.45)
6X (0.65)
(4.4)
(R0.05) TYP
(1.88)
BASED ON
0.125 THICK
STENCIL
(1.98)
BASED ON
0.125 THICK
STENCIL
PowerPAD VSSOP - 1.1 mm max heightDGN0008B
SMALL OUTLINE PACKAGE
4218837/A 11/2019
1.59 X 1.670.175
1.72 X 1.810.15
1.88 X 1.98 (SHOWN)0.125
2.10 X 2.210.1
SOLDER STENCIL
OPENING
STENCIL
THICKNESS
NOTES: (continued)
10. Laser cutting apertures with trapezoidal walls and rounded corners may offer better paste release. IPC-7525 may have alternate
design recommendations.
11. Board assembly site may have different recommendations for stencil design.
TM
SOLDER PASTE EXAMPLE
EXPOSED PAD 9:
100% PRINTED SOLDER COVERAGE BY AREA
SCALE: 15X
SYMM
SYMM
1
45
8
METAL COVERED
BY SOLDER MASK SEE TABLE FOR
DIFFERENT OPENINGS
FOR OTHER STENCIL
THICKNESSES
IMPORTANT NOTICE AND DISCLAIMER
TI PROVIDES TECHNICAL AND RELIABILITY DATA (INCLUDING DATASHEETS), DESIGN RESOURCES (INCLUDING REFERENCE
DESIGNS), APPLICATION OR OTHER DESIGN ADVICE, WEB TOOLS, SAFETY INFORMATION, AND OTHER RESOURCES “AS IS”
AND WITH ALL FAULTS, AND DISCLAIMS ALL WARRANTIES, EXPRESS AND IMPLIED, INCLUDING WITHOUT LIMITATION ANY
IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT OF THIRD
PARTY INTELLECTUAL PROPERTY RIGHTS.
These resources are intended for skilled developers designing with TI products. You are solely responsible for (1) selecting the appropriate
TI products for your application, (2) designing, validating and testing your application, and (3) ensuring your application meets applicable
standards, and any other safety, security, or other requirements. These resources are subject to change without notice. TI grants you
permission to use these resources only for development of an application that uses the TI products described in the resource. Other
reproduction and display of these resources is prohibited. No license is granted to any other TI intellectual property right or to any third party
intellectual property right. TI disclaims responsibility for, and you will fully indemnify TI and its representatives against, any claims, damages,
costs, losses, and liabilities arising out of your use of these resources.
TI’s products are provided subject to TI’s Terms of Sale (https:www.ti.com/legal/termsofsale.html) or other applicable terms available either
on ti.com or provided in conjunction with such TI products. TI’s provision of these resources does not expand or otherwise alter TI’s
applicable warranties or warranty disclaimers for TI products.IMPORTANT NOTICE
Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265
Copyright © 2021, Texas Instruments Incorporated
