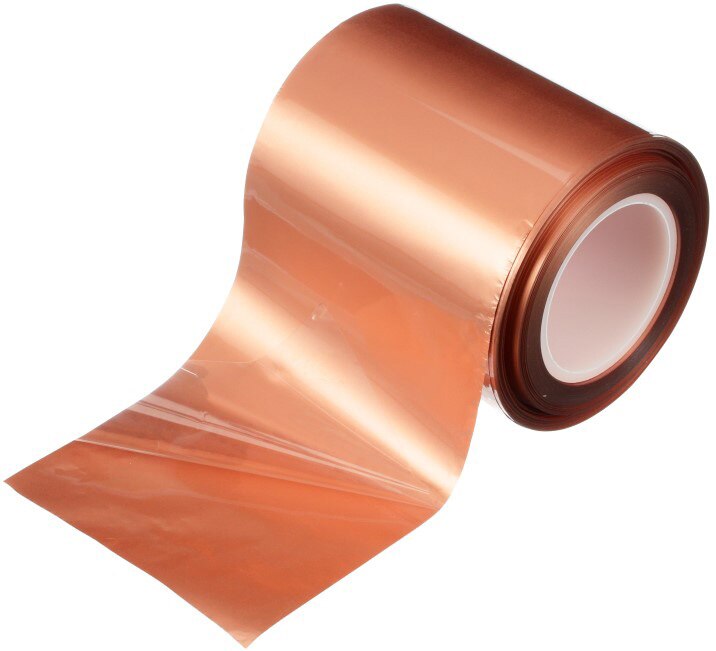

Electrically Conductive Double-Sided Tape 9772 Series
9772 series tape from 3M™ offers excellent performance and reliable contact to small-size grounding areas
3M's electrically conductive double-sided tape 9772 series is an XYZ-axis conductive foil tape that consists of a conductive matrix carrier (copper foil), a conductive acrylic adhesive, and PET release liners on the top and bottom. The tape features excellent performance and reliable contact to small-size grounding areas in a thinner format, 9772-30 (0.030 mm) and 9772-50 (0.050 mm).
The tape 9772 series provide XYZ-axis-based conductivity, with high XY-axis electrical resistance compared to other standard double-sided conductive tapes. The conductive acrylic-based adhesive provides high adhesion for a thin double-sided tape. The tape also offers excellent conformability, good EMI shielding in the bond line gap, and electrical contact to small size areas, making it a reliable double-sided tape for challenging EMI design applications.
- Thin, high-strength polyester film meets low caliper requirements, which will not interfere with most machinery processes
- XYZ-axis conductive through the adhesive
- Excellent XY-axis electrical resistance
- Thin tape with good adhesion
- Conformable and bonds quickly
- Good EMI shielding in the bond line gap
- Improved electrical contact to small size areas
- Good handling and workability
- Low PIM
- Splicing EMI shield and gasket attachment
- Flex circuit to flex circuit interconnection
- Camera module grounding
- Electrostatic discharge (ESD)
- PCB/flex/chassis grounding
- Sensor grounding
- FPC grounding
- Medium-pitch flexible circuits and PCBs
- Heat spreading
Electrically Conductive Double-Sided Tape 9772 Series
| Image | Manufacturer Part Number | Description | Available Quantity | Price | View Details | |
|---|---|---|---|---|---|---|
 |  | 9772-30-25MMX10M | RF EMI SHLDING TAPE 10M X 0.984" | 0 - Immediate | $28.97 | View Details |
| | 9772-50-25MMX10M | RF EMI SHLDING TAPE 10M X 0.984" | 0 - Immediate | $34.10 | View Details |
| | 9772-30-100MMX10M | RF EMI SHLDING TAPE 10M X 3.937" | 7 - Immediate | $86.58 | View Details |
| | 9772-50-100MMX10M | RF EMI SHLDING TAPE 10M X 3.937" | 15 - Immediate | $110.58 | View Details |
| | 9772-30-500MMX30M | RF EMI SHLD TAPE 98.425'X19.685" | 0 - Immediate | $847.61 | View Details |
| | 9772-50-500MMX30M | RF EMI SHLD TAPE 98.425'X19.685" | 0 - Immediate | $1,046.22 | View Details |
| | 9772-50-500MMX100M | RF EMI SHIELD TAPE 100MX19.685" | 0 - Immediate | $2,634.48 | View Details |
