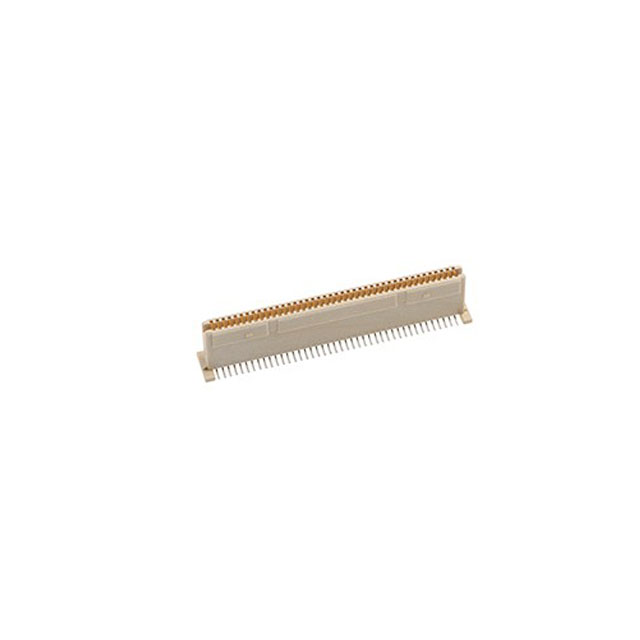

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
0717410001 | |
|---|---|
DigiKey Part Number | WM23538-ND |
Manufacturer | |
Manufacturer Product Number | 0717410001 |
Description | CONN PLUG 84POS SMD GOLD |
Manufacturer Standard Lead Time | 14 Weeks |
Customer Reference | |
Detailed Description | 84 Position Connector Plug, Center Strip Contacts Surface Mount Gold |
Datasheet | Datasheet |
EDA/CAD Models | 0717410001 Models |
Product Attributes
Type | Description | Select All |
|---|---|---|
Category | ||
Manufacturer | Molex | |
Series | ||
Packaging | Tube | |
Part Status | Active | |
Connector Type | Plug, Center Strip Contacts | |
Number of Positions | 84 | |
Pitch | 0.039" (1.00mm) | |
Number of Rows | 2 | |
Mounting Type | Surface Mount | |
Features | Board Guide | |
Contact Finish | Gold | |
Contact Finish Thickness | 10.0µin (0.25µm) | |
Mated Stacking Heights | 10mm, 12mm, 15mm | |
Height Above Board | 0.327" (8.30mm) | |
Base Product Number |
In-Stock: 325
Check for Additional Incoming Stock
Quantity
All prices are in CHF
Tube
| Quantity | Unit Price | Ext Price |
|---|---|---|
| 1 | Fr.6.66000 | Fr.6.66 |
| 11 | Fr.5.62818 | Fr.61.91 |
| 33 | Fr.5.20788 | Fr.171.86 |
| 55 | Fr.5.02345 | Fr.276.29 |
| 110 | Fr.4.78364 | Fr.526.20 |
| 253 | Fr.4.51071 | Fr.1,141.21 |
| 506 | Fr.4.29555 | Fr.2,173.55 |
| 1,001 | Fr.4.09389 | Fr.4,097.98 |
| Unit Price without VAT: | Fr.6.66000 |
|---|---|
| Unit Price with VAT: | Fr.7.19946 |
Mating ProductsSee All
9 Items
