Name: IHLE4040DDER1R0M5A
Brand: Vishay Dale
SKU: 541-2325-2-ND
Price: 1.27558 CHF
Availability: InStock

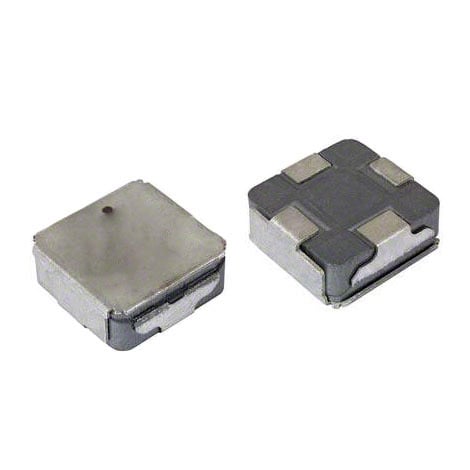

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

IHLE4040DDER1R0M5A
DigiKey Part Number	541-2325-2-ND - Tape & Reel (TR) 541-2325-1-ND - Cut Tape (CT) 541-2325-6-ND - Digi-Reel®
Manufacturer	Vishay Dale
Manufacturer Product Number	IHLE4040DDER1R0M5A
Description	FIXED IND 1UH 23.5A 3.07MOHM SMD
Manufacturer Standard Lead Time	22 Weeks
Customer Reference
Detailed Description	1 µH Shielded Wirewound Inductor 23.5 A 3.07mOhm Max 4-SMD
Datasheet	Datasheet
EDA/CAD Models	IHLE4040DDER1R0M5A Models

Product Attributes

Type	Description	Select All
Category	Inductors, Coils, Chokes Fixed Inductors
Mfr	Vishay Dale
Series	IHLE-4040DD-5A
Packaging	Tape & Reel (TR) Cut Tape (CT) Digi-Reel®
Part Status	Active
Type	Wirewound
Material - Core	-
Inductance	1 µH
Tolerance	±20%
Current Rating (Amps)	23.5 A
Current - Saturation (Isat)	24A
Shielding	Shielded
DC Resistance (DCR)	3.07mOhm Max
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	AEC-Q200
Operating Temperature	-55°C ~ 155°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	4-SMD
Supplier Device Package	-
Size / Dimension	0.426" L x 0.426" W (10.82mm x 10.82mm)
Height - Seated (Max)	0.169" (4.30mm)

Product Questions and Answers

See what engineers are asking, ask your own questions, or help out a member of the DigiKey engineering community

In-Stock: 333

Check for Additional Incoming Stock

Quantity

All prices are in CHF

Cut Tape (CT) & Digi-Reel®

* All Digi-Reel orders will add a Fr.7.00 reeling fee.

Tape & Reel (TR)
