ULN2003V12
SLRS060C –MAY 2012–REVISED NOVEMBER 2016
ULN2003V12 7-Channel Relay and Inductive Load Sink Driver
1
1 Features
1• 7-Channel High Current Sink Drivers
• Supports Up to 20-V Output Pullup Voltage
• Low Output VOL of 0.6 V (Typical) With:
– 100-mA (Typical) Current Sink per Channel at
3.3-V Logic Input(1)
– 140-mA (Typical) Current Sink per Channel at
5-V Logic Input(1)
• Compatible to 3.3-V and 5-V Microcontrollers and
Logic Interface
• Internal Free-Wheeling Diodes for Inductive Kick-
Back Protection
• Input Pulldown Resistors Allows Tri-Stating the
Input Driver
• Input RC-Snubber to Eliminate Spurious
Operation in Noisy Environment
• Low Input and Output Leakage Currents
• ESD Protection Exceeds JESD 22:
– 2-kV HBM, 500-V CDM
(1) Total current sink may be limited by the internal junction
temperature, absolute maximum current levels, and so forth
(see Electrical Characteristics for details).
2 Applications
• Relay and Inductive Load Driver
• White Goods
• Factory and Home Automation
• Lamp and LED Displays
• Logic Level Shifter
3 Description
The ULN2003V12 device is a low-power upgrade of
TI’s popular ULN2003 family of 7-channel Darlington
transistor array. The ULN2003V12 sink driver
features 7 low-output impedance drivers that
minimize on-chip power dissipation. When driving a
typical 12-V relay coil, a ULN2003V12 can dissipate
up to 12 times lower power than an equivalent
ULN2003A. The ULN2003V12 driver is pin-to-pin
compatible with ULN2003 family of devices.
The ULN2003V12 supports 3.3-V to 5-V CMOS logic
input interface thus making it compatible to a wide
range of microcontrollers and other logic interfaces.
The ULN2003V12 also supports other logic input
levels, like TTL or 1.8 V. Each output of the
ULN2003V12 features an internal free-wheeling diode
connected in a common-cathode configuration at the
COM pin.
The ULN2003V12 provides flexibility of increasing
current sink capability through combining several
adjacent channels in parallel. Under typical conditions
the ULN2003V12 can support up to 1 A of load
current when all 7-channels are connected in parallel.
Device Information(1)
PART NUMBER PACKAGE BODY SIZE (NOM)
ULN2003V12D SOIC (16) 9.90 mm × 3.91 mm
ULN2003V12PW TSSOP (16) 5.00 mm × 4.40 mm
(1) For all available packages, see the orderable addendum at
the end of the data sheet.
Functional Diagram
l TEXAS INSTRUMENTS
2
ULN2003V12
SLRS060C –MAY 2012–REVISED NOVEMBER 2016
www.ti.com
Product Folder Links: ULN2003V12
Submit Documentation Feedback Copyright © 2012–2016, Texas Instruments Incorporated
Table of Contents
1 Features.................................................................. 1
2 Applications ........................................................... 1
3 Description ............................................................. 1
4 Revision History..................................................... 2
5 Pin Configuration and Functions......................... 3
6 Specifications......................................................... 4
6.1 Absolute Maximum Ratings ...................................... 4
6.2 ESD Ratings ............................................................ 4
6.3 Recommended Operating Conditions....................... 4
6.4 Thermal Information.................................................. 4
6.5 Electrical Characteristics........................................... 5
6.6 Typical Characteristics.............................................. 5
7 Detailed Description.............................................. 6
7.1 Overview ................................................................... 6
7.2 Functional Diagram................................................... 6
7.3 Feature Description .................................................. 6
7.4 Device Functional Modes.......................................... 7
8 Applications and Implementation ........................ 8
8.1 Application Information.............................................. 8
8.2 Typical Applications .................................................. 8
9 Power Supply Recommendations...................... 13
10 Layout................................................................... 13
10.1 Layout Guidelines ................................................. 13
10.2 Layout Example .................................................... 13
10.3 Thermal Considerations........................................ 13
11 Device and Documentation Support ................. 14
11.1 Documentation Support ........................................ 14
11.2 Receiving Notification of Documentation Updates 14
11.3 Community Resources.......................................... 14
11.4 Trademarks........................................................... 14
11.5 Electrostatic Discharge Caution............................ 14
11.6 Glossary................................................................ 14
12 Mechanical, Packaging, and Orderable
Information ........................................................... 14
4 Revision History
NOTE: Page numbers for previous revisions may differ from page numbers in the current version.
Changes from Revision B (November 2012) to Revision C Page
• Added ESD Ratings table, Feature Description section, Device Functional Modes,Application and Implementation
section, Power Supply Recommendations section, Layout section, Device and Documentation Support section, and
Mechanical, Packaging, and Orderable Information section.................................................................................................. 1
• Changed θJA values From: 75°C/W To: 104.8°C/W (D) and From: 95°C/W To: 130.6°C/W (PW) ........................................ 4
• Changed θJC values From: 46°C/W To: 63.7°C/W (D) and From: 49°C/W To: 62.7°C/W (PW)............................................ 4
Changes from Revision A (July 2012) to Revision B Page
• Added Details to Switching Parameters................................................................................................................................. 5
l TEXAS INSTRUMENTS N01 to scale
1IN1 16 OUT1
2IN2 15 OUT2
3IN3 14 OUT3
4IN4 13 OUT4
5IN5 12 OUT5
6IN6 11 OUT6
7IN7 10 OUT7
8GND 9 COM
Not to scale
3
ULN2003V12
www.ti.com
SLRS060C –MAY 2012–REVISED NOVEMBER 2016
Product Folder Links: ULN2003V12
Submit Documentation FeedbackCopyright © 2012–2016, Texas Instruments Incorporated
(1) I = Input and O = Output
5 Pin Configuration and Functions
D and PW Packages
16-Pin SOIC and TSSOP
Top View
Pin Functions
PIN I/O(1) DESCRIPTION
NO. NAME
1 IN1 I Channel 1 input
2 IN2 I Channel 2 input
3 IN3 I Channel 3 input
4 IN4 I Channel 4 input
5 IN5 I Channel 5 input
6 IN6 I Channel 6 input
7 IN7 I Channel 7 input
8 GND — Supply ground
9 COM — Common cathode node for flyback diodes (required for inductive loads)
10 OUT7 O Channel 7 output
11 OUT6 O Channel 6 output
12 OUT5 O Channel 5 output
13 OUT4 O Channel 4 output
14 OUT3 O Channel 3 output
15 OUT2 O Channel 2 output
16 OUT1 O Channel 1 output
l TEXAS INSTRUMENTS
4
ULN2003V12
SLRS060C –MAY 2012–REVISED NOVEMBER 2016
www.ti.com
Product Folder Links: ULN2003V12
Submit Documentation Feedback Copyright © 2012–2016, Texas Instruments Incorporated
(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings
only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended
Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
6 Specifications
6.1 Absolute Maximum Ratings
Specified at TJ= –40°C to 125°C (unless otherwise noted)(1)
MIN MAX UNIT
Pins IN1 – IN7 to GND voltage, VIN –0.3 5.5 V
Pins OUT1 – OUT7 to GND voltage, VOUT 20 V
Pin COM to GND voltage, VCOM 20 V
Maximum GND-pin continuous current, IGND 100ºC < TJ< 125°C 700 mA
TJ< 100°C 1 A
Operating virtual junction temperature, TJ–55 150 °C
Storage temperature, Tstg –55 150 °C
(1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.
(2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.
6.2 ESD Ratings
VALUE UNIT
V(ESD) Electrostatic discharge Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001(1) ±2000 V
Charged-device model (CDM), per JEDEC specification JESD22-C101(2) ±500
(1) See Absolute Maximum Ratings for TJdependent absolute maximum GND-pin current.
6.3 Recommended Operating Conditions
over operating free-air temperature range (unless otherwise noted)
MIN MAX UNIT
VOUT Channel off-state output pullup voltage 16 V
VCOM COM pin voltage 16 V
IOUT(ON)(1) Per channel continuous sink current VINx = 3.3 V 100(1) mA
VINx = 5 V 140(1)
TJOperating junction temperature –40 125 ºC
(1) For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application
report.
6.4 Thermal Information
THERMAL METRIC(1)
ULN2003V12
UNITD (SOIC) PW (TSSOP)
16 PINS 16 PINS
RθJA Junction-to-ambient thermal resistance 104.8 130.6 °C/W
RθJC(top) Junction-to-case (top) thermal resistance 63.7 62.7 °C/W
RθJB Junction-to-board thermal resistance 62.3 76.1 °C/W
ψJT Junction-to-top characterization parameter 27.1 15.9 °C/W
ψJB Junction-to-board characterization parameter 62.1 75.5 °C/W
l TEXAS INSTRUMENTS Jun 1 a 2’” CIB 200 7,777,, 7, ,7, i / g “5 :«m-encea 'a>I3UT= : 15D 7 7 7 7 7 7 7 7 7 777777 7 2 f ‘ 9 M 10B FEOC'W‘QHUE‘GF'ZXDUT=HQ'-ei / 5D 02 / u n 1 2 3 A 5 o 1 2 3 J 5 5 W V» Wm :
5
ULN2003V12
www.ti.com
SLRS060C –MAY 2012–REVISED NOVEMBER 2016
Product Folder Links: ULN2003V12
Submit Documentation FeedbackCopyright © 2012–2016, Texas Instruments Incorporated
(1) The typical continuous current rating is limited by VOL= 0.6 V. Whereas, absolute maximum operating continuous current may be limited
by the Thermal performance parameters listed in the Thermal Information and other reliability parameters listed in Recommended
Operating Conditions.
(2) See Absolute Maximum Ratings for TJdependent absolute maximum GND-pin current.
(3) Rise and fall propagation delays, tPHL and tPLH, are measured between 50% values of the input and the corresponding output signal
amplitude transition.
(4) Specified by design only. Validated during qualification. Not measured in production testing.
(5) Not rated for continuous current operation. For higher reliability, use an external freewheeling diode for inductive loads resulting in more
than specified maximum free-wheeling. Diode peak current across various temperature conditions.
6.5 Electrical Characteristics
Typical values are at TJ= 25°C, minimum and maximum values over the recommended junction temperature range
TJ= –40°C to 125°C, and over recommended operating conditions (unless otherwise noted)
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
INPUTS IN1 THROUGH IN7 PARAMETERS
VI(ON) IN1–IN7 logic high input voltage Vpullup = 3.3 V, Rpullup = 1 kΩ, IOUTX = 3.2 mA 1.65 V
VI(OFF) IN1–IN7 logic low input voltage Vpullup = 3.3 V, Rpullup = 1 kΩ, IOUTX < 20 µA 0.6
II(ON) IN1–IN7 ON state input current Vpullup = 12 V, VINx= 3.3 V 12 25 µA
II(OFF) IN1–IN7 OFF state input leakage Vpullup = 12 V, VINx= 0 V 250 nA
OUTPUTS OUT1 THROUGH OUT7 PARAMETERS
VOL(VCE-SAT) OUT1–OUT7 low-level output voltage
VINX = 3.3 V, IOUTX = 20 mA 0.12 0.15
V
VINX = 3.3 V, IOUTX = 100 mA 0.6 0.75
VINX = 5 V, IOUTX = 20 mA 0.09 0.11
VINX = 5 V, IOUTX = 140 mA 0.6 0.75
IOUT(ON) OUT1–OUT7 ON-state continuous current
at VOUTX = 0.6 V(1)(2) VINX = 3.3 V, VOUTX = 0.6 V 80 100 mA
VINX = 5 V, VOUTX = 0.6 V 95 140
IOUT(OFF)(ICEX) OUT1–OUT7 OFF-state leakage current VINX = 0 V, VOUTX = VCOM = 16 V 0.5 µA
SWITCHING PARAMETERS(3)(4)
tPHL OUT1–OUT7 logic high propagation delay VINX = 3.3 V, Vpullup = 12 V, Rpullup = 1 kΩ50 70 ns
tPLH OUT1–OUT7 logic low propagation delay VINX = 3.3V, Vpullup = 12 V, Rpullup = 1 kΩ121 140 ns
tCHANNEL Channel-to-channel delay Over recommended operating conditions and with
same test conditions on channels. 15 50 ns
RPD IN1–IN7 input pulldown resistance 210 300 390 kΩ
ζIN1–IN7 input filter time constant 9 ns
COUT OUT1–OUT7 output capacitance VINX = 3.3 V, VOUTX = 0.4 V 15 pF
FREE-WHEELING DIODE PARAMETERS(4)(5)
VF Forward voltage drop IF-peak = 140 mA, VF = VOUTx – VCOM 1.2 V
IF-peak Diode peak forward current 140 mA
6.6 Typical Characteristics
TA= 25ºC
Figure 1. Load Current, 1-Channel at VOL = 0.6 V Figure 2. Load Current, 7-Channels in Parallel at VOL = 0.6 V
‘5‘ TEXAS INSTRUMENTS
IN
ESD ESD
OUT
RIN=3kQ
Pull-down
300kQ
CIN= 9pF
COM
NFET
RC Filter/Snubber
Copyright © 2016, Texas Instruments Incorporated
14
13
12
11
10
9
16
15
3
4
5
6
7
8
1
2
IN1
IN2
IN3
IN4
IN5
IN6
IN7
GND COM
OUT1
OUT2
OUT3
OUT4
OUT5
OUT6
OUT7
6
ULN2003V12
SLRS060C –MAY 2012–REVISED NOVEMBER 2016
www.ti.com
Product Folder Links: ULN2003V12
Submit Documentation Feedback Copyright © 2012–2016, Texas Instruments Incorporated
7 Detailed Description
7.1 Overview
The ULN2003V12 device is a seven channel low-side NMOS driver capable of driving 100-mA Load with 3-V
input drive voltage through each channel. This device can drive relays, LEDs, or resistive loads up to 16 V. The
ULN2003V12 supports 3.3-V to 5-V CMOS logic input interface, thus making it compatible to a wide range of
microcontrollers and other logic interfaces. The ULN2003V12 features an improved input interface that minimizes
the input DC current drawn from the external drivers. The ULN2003V12 features an input RC snubber that
greatly improves its performance in noisy operating conditions. The ULN2003V12 channel inputs feature an
internal input pulldown resistor, thus allowing input logic to be tri-stated. The ULN2003V12 may also support
other logic input levels (for example, TTL and 1.8 V).
7.2 Functional Diagram
7.3 Feature Description
As shown in Figure 3, each output of the ULN2003V12 features an internal free-wheeling diode connected in a
common-cathode configuration at the COM pin. The ULN2003V12 provides flexibility of increasing current sink
capability through combining several adjacent channels in parallel. Under typical conditions, the ULN2003V12
can support up to 1 A of load current when all 7-channels are connected in parallel. The ULN2003V12 can also
be used in a variety of other applications requiring a sink driver.
Figure 3. Channel Block Diagram
l TEXAS INSTRUMENTS
7
ULN2003V12
www.ti.com
SLRS060C –MAY 2012–REVISED NOVEMBER 2016
Product Folder Links: ULN2003V12
Submit Documentation FeedbackCopyright © 2012–2016, Texas Instruments Incorporated
Feature Description (continued)
7.3.1 TTL and Other Logic Inputs
ULN2003V12 input interface is specified for standard 3-V and 5-V CMOS logic interface. However, ULN2003V12
input interface may support other logic input levels as well. See Figure 1 and Figure 2 to establish VOL and the
corresponding typical load current levels for various input voltage ranges. See Applications and Implementation
for an implementation to drive 1.8-V relays using ULN2003V12.
7.3.2 Input RC Snubber
ULN2003V12 features an input RC snubber that helps prevent spurious switching in noisy environment. Connect
an external 1-kΩto 5-kΩresistor in series with the input to further enhance ULN2003V12’s noise tolerance.
7.3.3 High-impedance Input Drivers
ULN2003V12 features a 300-kΩinput pulldown resistor. The presence of this resistor allows the input drivers to
be tri-stated. When a high-impedance driver is connected to a channel input the ULN2003V12 detects the
channel input as a low level input and remains in the OFF position. The input RC snubber helps improve noise
tolerance when input drivers are in the high-impedance state.
7.4 Device Functional Modes
Table 1 lists the functional modes for this device.
(1) L = Low-level (GND), H= High-level, Z= High-impedance
Table 1. ULN2003V12 Function Table(1)
INPUT (IN1 TO IN7) OUTPUT (OUT1 TO OUT7)
L Z
H L
Z Z
l TEXAS INSTRUMENTS
8
ULN2003V12
SLRS060C –MAY 2012–REVISED NOVEMBER 2016
www.ti.com
Product Folder Links: ULN2003V12
Submit Documentation Feedback Copyright © 2012–2016, Texas Instruments Incorporated
8 Applications and Implementation
NOTE
Information in the following applications sections is not part of the TI component
specification, and TI does not warrant its accuracy or completeness. TI’s customers are
responsible for determining suitability of components for their purposes. Customers should
validate and test their design implementation to confirm system functionality.
8.1 Application Information
Peripheral drivers such as the ULN2003V12 are primarily used in the following applications:
• Stepper Motor Driving
• Relay and Solenoid Driving
• LED Driving
• Logic Level Shifting
Peripheral Drivers are not limited to one specific application at a time, but can be used for all of these
applications simultaneously. For example, one device could enable driving one stepper motor, driving one relay,
driving an LED, and shifting a 3.3-V logic signal to a 12-V logic signal at the same time.
8.2 Typical Applications
8.2.1 Unipolar Stepper Motor Driver
The Figure 4 shows an implementation of ULN2003V12 for driving a unipolar stepper motor.
Figure 4. ULN2003V12 as a Stepper Motor Driver
l TEXAS INSTRUMENTS W M a 2H 40 SD an we 12m 1m mm» W
IN1
IN2
IN3
IN4
IN5
IN6
IN7
GND COM
OUT1
OUT2
OUT3
OUT4
OUT5
OUT6
OUT7
Logic Inputs
1.8 V to 5 V
VCC1
Typically can be left floating for Level-Shifting applications
If a supply is connected, it must be the most positive supply
VCC2 VCC3
Level Shifted
Outputs
Rpullup
ULN2003V12
Maximum Recommended VCC = 16 V
Copyright © 2016, Texas Instruments Incorporated
9
ULN2003V12
www.ti.com
SLRS060C –MAY 2012–REVISED NOVEMBER 2016
Product Folder Links: ULN2003V12
Submit Documentation FeedbackCopyright © 2012–2016, Texas Instruments Incorporated
Typical Applications (continued)
8.2.1.1 Design Requirements
The unconnected input channels can be used for other functions. When an input pin is left open, the internal 300-
kΩpulldown resistor pulls the respective input pin to GND potential. For higher noise immunity use an external
short across an unconnected input and GND pins. See Stepper Motor Driving with Peripheral Drivers (SLVA767)
for additional information regarding stepper motor driving.
8.2.1.2 Application Curves
Figure 5. Freewheeling Diode VF vs IF
8.2.2 Inverting Logic Level Shifter
To use ULN2003V12 as an open-drain inverting logic level shifter, configure the device as shown in Figure 6.
The device input and output logic levels can also be set independently. When using different channel input and
output logic voltages, connect the ULN2003V12 COM pin to the maximum voltage.
Figure 6. ULN2003V12 as Inverting Logic Level Shifter
‘5‘ TEXAS INSTRUMENTS
10
ULN2003V12
SLRS060C –MAY 2012–REVISED NOVEMBER 2016
www.ti.com
Product Folder Links: ULN2003V12
Submit Documentation Feedback Copyright © 2012–2016, Texas Instruments Incorporated
Typical Applications (continued)
8.2.2.1 Design Requirements
ULN2003V12 can be used in digital applications requiring logic level shifting up to 16 V at the output side.
Because the device pulls the output transistor low when input is high, this configuration is useful for applications
requiring inverting logic with the level shifting operation.
8.2.2.2 Detailed Design Procedure
To operate in level shifting operation, timing and propagation delay must be kept in mind. Depending on the
pullup resistors at the output ULN2003V12 exhibits different propagation delays. The choice of pullup resistor is
dependent on the drive required at the output. The device can pull output to ground with the output transistor, but
to transition from low to high output resistor plays a critical role. If high drive at output is required, use Equation 1
to calculate a lower resistance.
RPullup = OUT1_VSUP / IDrive (1)
For example, a drive of 5 mA is required at the output for 1.8-V to 5-V translation application.
RPullup = OUT1_VSUP / IDrive = 5 / 0.005 =1k (2)
8.2.3 Maximum Supply Selector
The Figure 7 implements a maximum supply selector along with a 4-channel logic level shifter using a single
ULN20003V12.
Figure 7. ULN2003V12 as a Maximum Supply Selector
8.2.3.1 Design Requirements
This setup configures ULN2003V12’s channel clamp diodes OUT5 to OUT7 in a diode-OR configuration and thus
the maximum supply among V1, V2, and V3becomes available at the COM pin. The maximum supply is then
used as a pullup voltage for level shifters. Limit the net GND pin current to less than 100-mA DC to ensure
reliability of the conducting diode. The unconnected inputs IN5 to IN7 are pulled to GND potential through
300-kΩinternal pulldown resistor.
‘5‘ TEXAS INSTRUMENTS é. \\
IN1
IN2
IN3
IN4
IN5
IN6
IN7
GND COM
OUT1
OUT2
OUT3
OUT4
OUT5
OUT6
OUT7
ULN2003V12
VSUP
VIN (up to 5.5 V)
VSUP
Maximum Recommended VSUP = 16 V
OUT7
OUT7
IREF R1 = (VIN-VOUT7)/IREF
R1
Copyright © 2016, Texas Instruments Incorporated
11
ULN2003V12
www.ti.com
SLRS060C –MAY 2012–REVISED NOVEMBER 2016
Product Folder Links: ULN2003V12
Submit Documentation FeedbackCopyright © 2012–2016, Texas Instruments Incorporated
Typical Applications (continued)
8.2.4 Constant Current LED Driver
When configured as per Figure 8, the ULN2003V12 outputs OUT1 to OUT6 act as independent constant current
sources.
Figure 8. ULN2003V12 as a Constant Current Driver
8.2.4.1 Design Requirements
The current flowing through the resistor R1 is mirrored on all other channels. To increase the current sourcing
connect several output channels in parallel. To ensure best current mirroring, set voltage drop across connected
load such that VOUTx matches VOUT7.
‘5‘ TEXAS INSTRUMENTS
IN1
IN2
IN3
IN4
IN5
IN6
IN7
GND COM
OUT1
OUT2
OUT3
OUT4
OUT5
OUT6
OUT7
Logic Inputs
1.8 V to 5 V
VSUP
ULN2003V12
Maximum Recommended VSUP = 16 V
VSUP
A
B
C
Copyright © 2016, Texas Instruments Incorporated
12
ULN2003V12
SLRS060C –MAY 2012–REVISED NOVEMBER 2016
www.ti.com
Product Folder Links: ULN2003V12
Submit Documentation Feedback Copyright © 2012–2016, Texas Instruments Incorporated
Typical Applications (continued)
8.2.5 NOR Logic Driver
Figure 9 shows a NOR Logic driver implementation using the ULN2003V12 device.
Figure 9. ULN2003V12 as a NOR driver
8.2.5.1 Design Requirements
The output channels sharing a common pullup resistor implement a logic NOR of the respective channel inputs.
Node A is controlled by inputs IN1 and IN2 as described in Table 2 (Positive Logic Function: A = IN1+IN2). Node
B is controlled by inputs IN3 and IN4 as described in Table 3 (Positive Logic Function: B = IN3+IN4). Node C is
controlled by inputs IN5, IN6, and IN7 as described in Table 4 (Positive Logic Function C = IN5+IN6+IN7).
Table 2. Output A Function Table
IN1 IN2 A
L L H
X H L
H X L
Table 3. Output B Function Table
IN3 IN4 B
L L H
X H L
H X L
Table 4. Output C Function Table
IN5 IN6 IN7 C LED
L L L H OFF
X X H L ON
X H X L ON
H X X L ON
l TEXAS INSTRUMENTS % GND Gawain-lawn)- 16 15 14 13 12 11 10 1%
( )
J(MAX) A
(MAX) JA
T T
PD -
=q
N
D OLi Li
i 1
P V I
=
= ´
å
0.1 F
GND
IN7
IN6
IN5
IN4
IN3
IN2
IN1
OUT7
OUT6
OUT5
OUT4
OUT3
OUT2
OUT1
COM
13
ULN2003V12
www.ti.com
SLRS060C –MAY 2012–REVISED NOVEMBER 2016
Product Folder Links: ULN2003V12
Submit Documentation FeedbackCopyright © 2012–2016, Texas Instruments Incorporated
9 Power Supply Recommendations
The COM pin is the power supply pin of this device to power the gate drive circuitry. Although not required, TI
recommends putting a bypass capacitor of 0.1 µF across the COM pin and GND pin.
10 Layout
10.1 Layout Guidelines
Thin traces can be used on the input due to the low current logic that is typically used to drive ULN2003V12.
Take care to separate the input channels as much as possible, as to eliminate cross-talk. TI recommends thick
traces for the output to drive high currents that may be required. Wire thickness can be determined by the trace
material's current density and desired drive current. Because all of the channels currents return to a common
ground, it is best to size that trace width to be very wide. Some applications require up to 1 A.
10.2 Layout Example
10.3 Thermal Considerations
10.3.1 On-chip Power Dissipation
Use Equation 3 to calculate ULN2003V12 on-chip power dissipation PD.
where
• N is the number of channels active together
• VOLi is the OUTipin voltage for the load current ILi (3)
10.3.2 Thermal Reliability
TI recommends limiting the ULN2003V12 IC’s die junction temperature to less than 125°C. The IC junction
temperature is directly proportional to the on-chip power dissipation. Use Equation 4 to calculate the maximum
allowable on-chip power dissipation for a target IC junction temperature.
where
• TJ(MAX) is the target maximum junction temperature
• TAis the operating ambient temperature
•θJA is the package junction to ambient thermal resistance (4)
l TEXAS INSTRUMENTS
14
ULN2003V12
SLRS060C –MAY 2012–REVISED NOVEMBER 2016
www.ti.com
Product Folder Links: ULN2003V12
Submit Documentation Feedback Copyright © 2012–2016, Texas Instruments Incorporated
11 Device and Documentation Support
11.1 Documentation Support
For related documentation see the following:
Stepper Motor Driving with Peripheral Drivers (SLVA767)
11.2 Receiving Notification of Documentation Updates
To receive notification of documentation updates, navigate to the device product folder on ti.com. In the upper
right corner, click on Alert me to register and receive a weekly digest of any product information that has
changed. For change details, review the revision history included in any revised document.
11.3 Community Resources
The following links connect to TI community resources. Linked contents are provided "AS IS" by the respective
contributors. They do not constitute TI specifications and do not necessarily reflect TI's views; see TI's Terms of
Use.
TI E2E™ Online Community TI's Engineer-to-Engineer (E2E) Community. Created to foster collaboration
among engineers. At e2e.ti.com, you can ask questions, share knowledge, explore ideas and help
solve problems with fellow engineers.
Design Support TI's Design Support Quickly find helpful E2E forums along with design support tools and
contact information for technical support.
11.4 Trademarks
E2E is a trademark of Texas Instruments.
All other trademarks are the property of their respective owners.
11.5 Electrostatic Discharge Caution
These devices have limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam
during storage or handling to prevent electrostatic damage to the MOS gates.
11.6 Glossary
SLYZ022 —TI Glossary.
This glossary lists and explains terms, acronyms, and definitions.
12 Mechanical, Packaging, and Orderable Information
The following pages include mechanical, packaging, and orderable information. This information is the most
current data available for the designated devices. This data is subject to change without notice and revision of
this document. For browser-based versions of this data sheet, refer to the left-hand navigation.
I TEXAS INSTRUMENTS Sample: Sample:
PACKAGE OPTION ADDENDUM
www.ti.com 10-Dec-2020
Addendum-Page 1
PACKAGING INFORMATION
Orderable Device Status
(1)
Package Type Package
Drawing Pins Package
Qty Eco Plan
(2)
Lead finish/
Ball material
(6)
MSL Peak Temp
(3)
Op Temp (°C) Device Marking
(4/5)
Samples
ULN2003V12DR ACTIVE SOIC D 16 2500 RoHS & Green SN Level-1-260C-UNLIM -40 to 125 U2003V12
ULN2003V12PWR ACTIVE TSSOP PW 16 2000 RoHS & Green SN Level-1-260C-UNLIM -40 to 125 U2003V12
(1) The marketing status values are defined as follows:
ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.
PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.
(2) RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance
do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may
reference these types of products as "Pb-Free".
RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption.
Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of <=1000ppm threshold. Antimony trioxide based
flame retardants must also meet the <=1000ppm threshold requirement.
(3) MSL, Peak Temp. - The Moisture Sensitivity Level rating according to the JEDEC industry standard classifications, and peak solder temperature.
(4) There may be additional marking, which relates to the logo, the lot trace code information, or the environmental category on the device.
(5) Multiple Device Markings will be inside parentheses. Only one Device Marking contained in parentheses and separated by a "~" will appear on a device. If a line is indented then it is a continuation
of the previous line and the two combined represent the entire Device Marking for that device.
(6) Lead finish/Ball material - Orderable Devices may have multiple material finish options. Finish options are separated by a vertical ruled line. Lead finish/Ball material values may wrap to two
lines if the finish value exceeds the maximum column width.
Important Information and Disclaimer:The information provided on this page represents TI's knowledge and belief as of the date that it is provided. TI bases its knowledge and belief on information
provided by third parties, and makes no representation or warranty as to the accuracy of such information. Efforts are underway to better integrate information from third parties. TI has taken and
continues to take reasonable steps to provide representative and accurate information but may not have conducted destructive testing or chemical analysis on incoming materials and chemicals.
TI and TI suppliers consider certain information to be proprietary, and thus CAS numbers and other limited information may not be available for release.
In no event shall TI's liability arising out of such information exceed the total purchase price of the TI part(s) at issue in this document sold by TI to Customer on an annual basis.
I TEXAS INSTRUMENTS
PACKAGE OPTION ADDENDUM
www.ti.com 10-Dec-2020
Addendum-Page 2
I TEXAS INSTRUMENTS REEL DIMENSIONS TAPE DIMENSIONS 7 “K0 '«m» Reel Diame|er AD Dimension deswgned to accommodate the componem wwdlh E0 Dimension desxgned to accommodate the componenl \ength KO Dimenslun deswgned to accommodate the componem thickness 7 w OveraH wwdm loe earner cape i p1 Pitch between successwe cavuy cemers f T Reel Width (W1) QUADRANT ASSIGNMENTS FOR PIN 1 ORIENTATION IN TAPE O O O D O O D O Sprockemoles ,,,,,,,,,,, ‘ User Direcllon 0' Feed Pockel Quadrams
TAPE AND REEL INFORMATION
*All dimensions are nominal
Device Package
Type Package
Drawing Pins SPQ Reel
Diameter
(mm)
Reel
Width
W1 (mm)
A0
(mm) B0
(mm) K0
(mm) P1
(mm) W
(mm) Pin1
Quadrant
ULN2003V12DR SOIC D 16 2500 330.0 16.8 6.5 10.3 2.1 8.0 16.0 Q1
ULN2003V12PWR TSSOP PW 16 2000 330.0 12.4 6.9 5.6 1.6 8.0 12.0 Q1
PACKAGE MATERIALS INFORMATION
www.ti.com 17-Jul-2020
Pack Materials-Page 1
I TEXAS INSTRUMENTS TAPE AND REEL BOX DIMENSIONS
*All dimensions are nominal
Device Package Type Package Drawing Pins SPQ Length (mm) Width (mm) Height (mm)
ULN2003V12DR SOIC D 16 2500 364.0 364.0 27.0
ULN2003V12PWR TSSOP PW 16 2000 364.0 364.0 27.0
PACKAGE MATERIALS INFORMATION
www.ti.com 17-Jul-2020
Pack Materials-Page 2

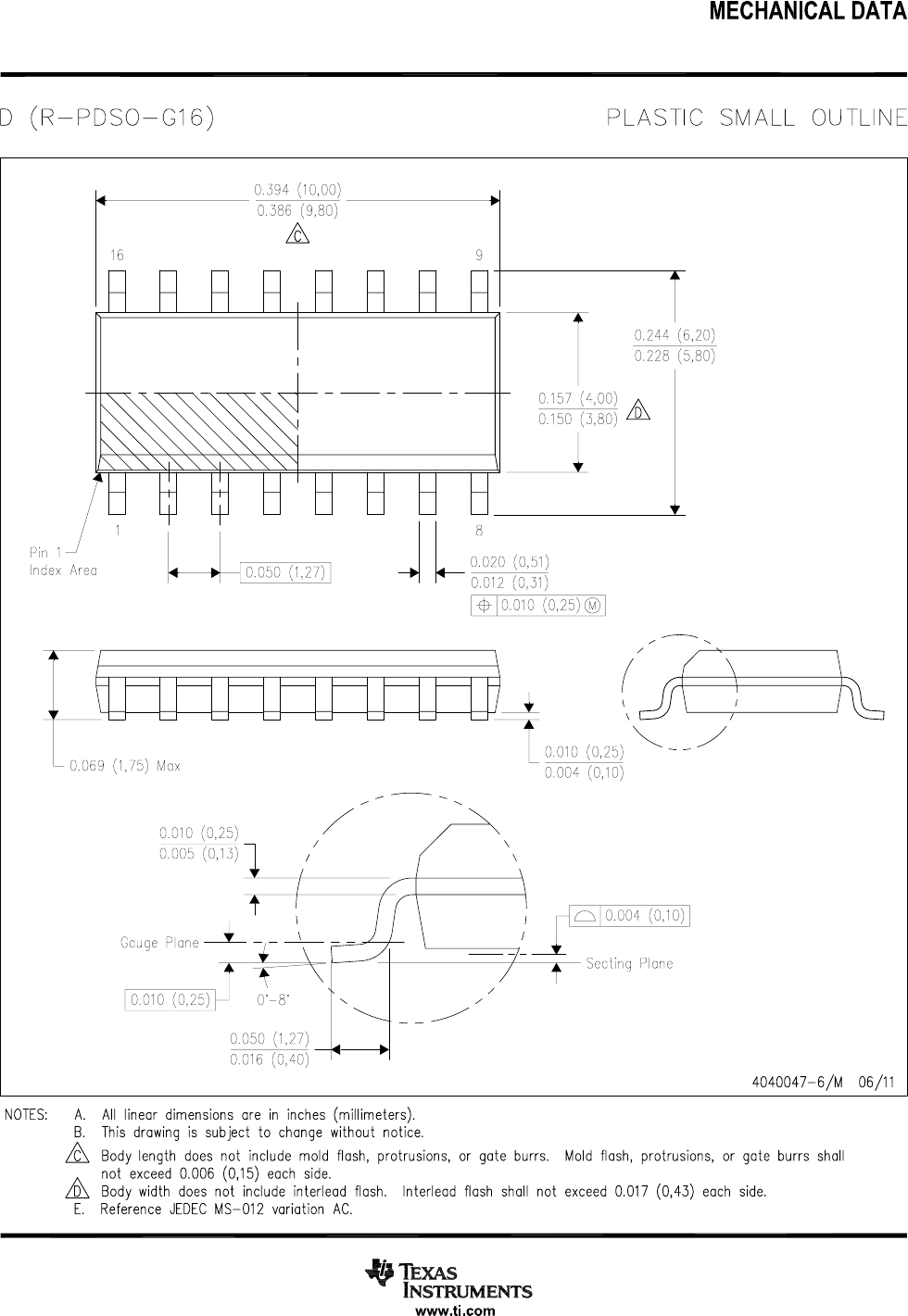

MECHANICAL DATA D ( *"ifi O G if” )LASHC SMALL 0U ¥N¥ 4040047 S/M 06/1‘ NO'ES, A AH Hnec' dimensmrs c'e m 'mc'ves ['nflhmeter5> B Th5 drawer ‘5 subje», ,0 change mm: Home, A Body \cngth docs rm mac mod Hoar, p'omswons, (xv gmc bms Mom mm warmers, or gm buns sha‘ nm exceed 3005 (015) eam swce @ Body mm does 101 meme 11mm fish. E Rdererce JEDEC MS 012 mam Ac, nter‘ec: flash sfu‘ not exceed 0017 (043) each swde {if TEXAS INSTRUMENTS www.1i.com

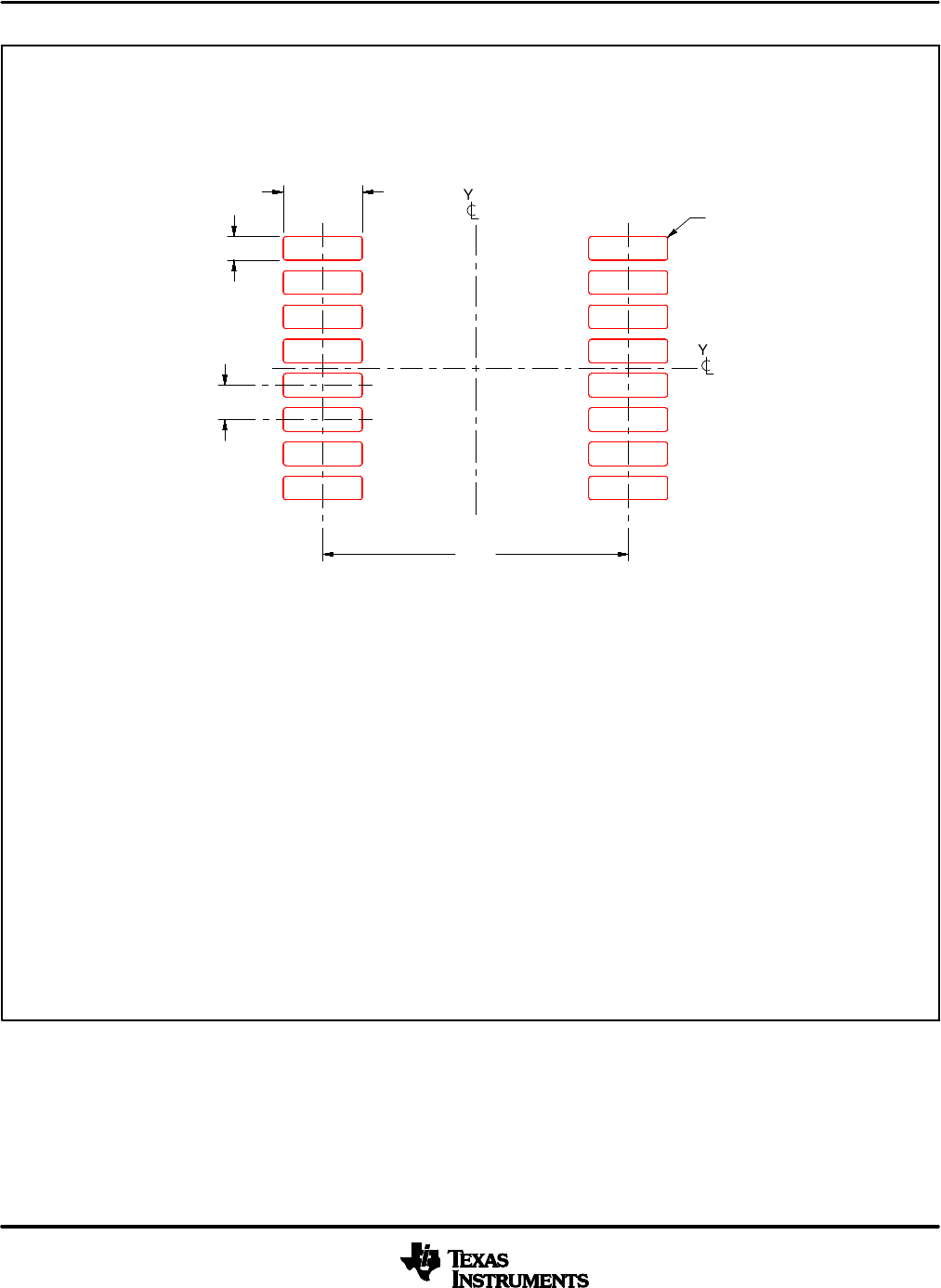

LAND PATTERN DATA D (RiPDSOiGiB) PLASTiC SMALL OUTLINE stencil Openings Example Pod Geometry (See Note c) Non Soidermosk Detirled Pad alir 4x1, 27 i 16X0'55ai ‘+l4xi 27 mwannnaia— i6x}v5°--4Er~Eifl{iEr-Hfl-T @E-HnH-a-a— {downgrade r, Example Snider Mask 0 erlin l /l/ i a i 0 07 It (See Note E) All Around ,' 421i233e4/E oa/iz AH linear dimensions are in millimeters This drawing is subject ta anange without notice. Publication che7351 is recommended tar alternate designs. Laser cutting apertures with trapezoidal wail: and also rounding corners will otter better paste release contact tneir board assembly site ror stencil design recommendations, Rerer to ch—7525 tor otner stencil recommendations Customers shouid contact their board lubrication site tor solder musk toierances between and around Signal pods NOTES: Customers should POE”? r" {I} Tums INSTRUMENTS www.li.com
www.ti.com
PACKAGE OUTLINE
C
14X 0.65
2X
4.55
16X 0.30
0.19
TYP
6.6
6.2
1.2 MAX
0.15
0.05
0.25
GAGE PLANE
-80
B
NOTE 4
4.5
4.3
A
NOTE 3
5.1
4.9
0.75
0.50
(0.15) TYP
TSSOP - 1.2 mm max heightPW0016A
SMALL OUTLINE PACKAGE
4220204/A 02/2017
1
89
16
0.1 C A B
PIN 1 INDEX AREA
SEE DETAIL A
0.1 C
NOTES:
1. All linear dimensions are in millimeters. Any dimensions in parenthesis are for reference only. Dimensioning and tolerancing
per ASME Y14.5M.
2. This drawing is subject to change without notice.
3. This dimension does not include mold flash, protrusions, or gate burrs. Mold flash, protrusions, or gate burrs shall not
exceed 0.15 mm per side.
4. This dimension does not include interlead flash. Interlead flash shall not exceed 0.25 mm per side.
5. Reference JEDEC registration MO-153.
SEATING
PLANE
A 20
DETAIL A
TYPICAL
SCALE 2.500
v¢\‘\‘\‘\+““‘ gimm—LE—urmm M i
www.ti.com
EXAMPLE BOARD LAYOUT
0.05 MAX
ALL AROUND 0.05 MIN
ALL AROUND
16X (1.5)
16X (0.45)
14X (0.65)
(5.8)
(R0.05) TYP
TSSOP - 1.2 mm max heightPW0016A
SMALL OUTLINE PACKAGE
4220204/A 02/2017
NOTES: (continued)
6. Publication IPC-7351 may have alternate designs.
7. Solder mask tolerances between and around signal pads can vary based on board fabrication site.
LAND PATTERN EXAMPLE
EXPOSED METAL SHOWN
SCALE: 10X
SYMM
SYMM
1
89
16
15.000
METAL
SOLDER MASK
OPENING METAL UNDER
SOLDER MASK SOLDER MASK
OPENING
EXPOSED METAL
EXPOSED METAL
SOLDER MASK DETAILS
NON-SOLDER MASK
DEFINED
(PREFERRED)
SOLDER MASK
DEFINED
YL““‘+““‘ fimmamfl J
www.ti.com
EXAMPLE STENCIL DESIGN
16X (1.5)
16X (0.45)
14X (0.65)
(5.8)
(R0.05) TYP
TSSOP - 1.2 mm max heightPW0016A
SMALL OUTLINE PACKAGE
4220204/A 02/2017
NOTES: (continued)
8. Laser cutting apertures with trapezoidal walls and rounded corners may offer better paste release. IPC-7525 may have alternate
design recommendations.
9. Board assembly site may have different recommendations for stencil design.
SOLDER PASTE EXAMPLE
BASED ON 0.125 mm THICK STENCIL
SCALE: 10X
SYMM
SYMM
1
89
16
IMPORTANT NOTICE AND DISCLAIMER
TI PROVIDES TECHNICAL AND RELIABILITY DATA (INCLUDING DATASHEETS), DESIGN RESOURCES (INCLUDING REFERENCE
DESIGNS), APPLICATION OR OTHER DESIGN ADVICE, WEB TOOLS, SAFETY INFORMATION, AND OTHER RESOURCES “AS IS”
AND WITH ALL FAULTS, AND DISCLAIMS ALL WARRANTIES, EXPRESS AND IMPLIED, INCLUDING WITHOUT LIMITATION ANY
IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT OF THIRD
PARTY INTELLECTUAL PROPERTY RIGHTS.
These resources are intended for skilled developers designing with TI products. You are solely responsible for (1) selecting the appropriate
TI products for your application, (2) designing, validating and testing your application, and (3) ensuring your application meets applicable
standards, and any other safety, security, or other requirements. These resources are subject to change without notice. TI grants you
permission to use these resources only for development of an application that uses the TI products described in the resource. Other
reproduction and display of these resources is prohibited. No license is granted to any other TI intellectual property right or to any third
party intellectual property right. TI disclaims responsibility for, and you will fully indemnify TI and its representatives against, any claims,
damages, costs, losses, and liabilities arising out of your use of these resources.
TI’s products are provided subject to TI’s Terms of Sale (www.ti.com/legal/termsofsale.html) or other applicable terms available either on
ti.com or provided in conjunction with such TI products. TI’s provision of these resources does not expand or otherwise alter TI’s applicable
warranties or warranty disclaimers for TI products.
Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265
Copyright © 2020, Texas Instruments Incorporated
