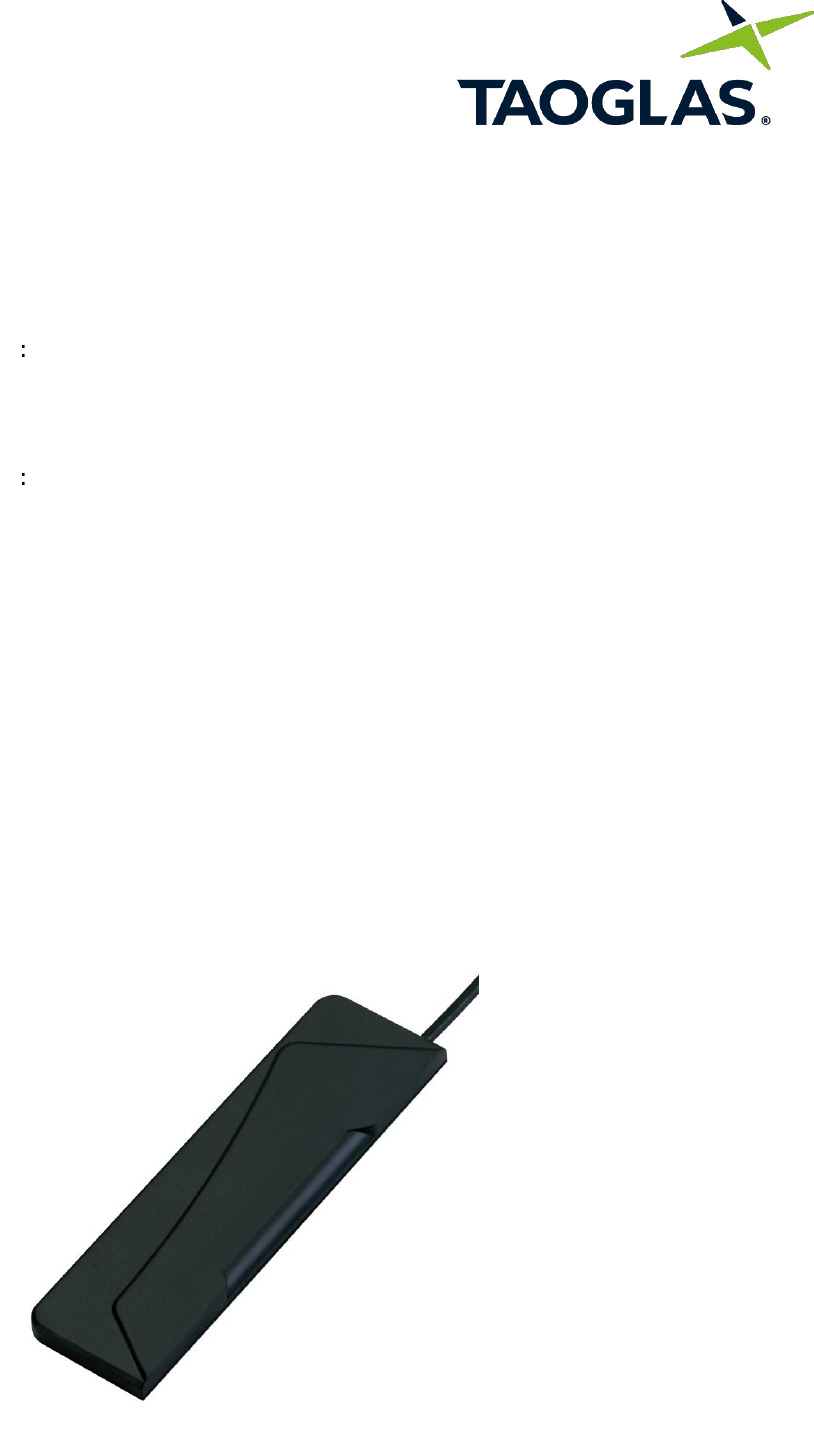

Specification
Part No.
:
GSA.8827R.A.101111
Product Name
:
Phoenix 4G/3G/2G Ultra-wideband I–bar Antenna
for First-Tier Automotive Application
Feature
:
LTE / GSM / CDMA /DCS /PCS / WCDMA / UMTS /
HSDPA / GPRS / EDGE / GPS / Wi-Fi
698MHz to 960MHz, 1575.42MHz,
1710MHz to 2700Mhz
1M RG.174 cable with SMA(M) connector
AntD© Antenna Diagnostic Compatible
Low profile for easy installation
Fully customizable cable length and connector
105mm*30mm*7.7mm
RoHS compliant
A“ TAOGLASQ
SPE-14-8-059/E/WY Page 2 of 11
1. Introduction
The GSA.8827R Phoenix Ultra-Wideband I-Bar antenna is a robust high efficiency
cellular antenna for use with all 4G/3G/2G cellular modules worldwide.
Its slim-line design allows for covert and convenient installation in automotive vehicles,
its omni-directional gain across all bands ensures constant reception and transmission.
GSA.8827R is manufactured and tested in a TS16949 first tier automotive approved
facility, and it has gone through full PPAP design, reliability and quality audits.
The Phoenix finds its application particularly in first-tier automotive application,
aftermarket and telematics. With its unique ultra-wide band dipole design, the Phoenix
has exceptional industry performance characteristics considering its very low profile at
7.7mm and has a compact size of only 105mm*30mm.
This antenna is designed to be mounted on glass or plastic (not on metal). It comes
with strong 3M double-sided adhesive for a permanent and secure fix to your vehicle
interior. The antenna is UV Resistant. Cable lengths and connectors are fully
customizable.
GSA.8827R features Taoglas’ AntD© antenna diagnostic technology. AntD© allows
connected radio products using the latest cellular modules and recommended circuits
from Telit and uBlox to perform diagnostics on the antenna. This includes detection
that the proper antenna is connected and that the connection isn’t shorted or broken.
Contact Taoglas engineering for examples on how to implement AntD© antenna
diagnostics in your product.
A“ TAOGLASQ.
SPE-14-8-059/E/WY Page 3 of 11
2. Specification
ELECTRICAL
Frequency
(MHz)
824~894
1575.42
1920
~2170
2490
~2690
3400
~3600
Free Space Peak Gain (dBi)
Cable length
(meter)
1
2.38
1.28
1.86
1.74
Free Space Average Gain (dBi)
Cable length
(meter)
1
-3.72
-1.75
-2.56
-4.36
Free Space Efficiency (%)
Cable length
(meter)
1
42.47
66.83
55.50
37.03
Impedance
50Ω
Polarization
Linear
Radiation Pattern
Omni
Input Power
50 W
Integrate Resistor
Shunt 15K Ohm to Ground
MECHANICAL
Casing
UV Resistant PC/ABS
Connector
SMA Male (customizable)
ENVIRONMENTAL
Temperature Range
-40°C to 85°C
Humidity
Non-condensing 65°C 95% RH
UL: UL: UL: UL: UL: UL: UL: UL: UL: UL: UL: UL: UL: UL: UL: UL: UL: UL: Uplink 1920 to 1930 1350 (:0 1910 1710 to 1735 1710 (:0 1755 324 to 849 2500 (:0 2570 330 to 915 1749.9 (:0 1734.9 1427.9 (:0 1447.9 699 m 716 777 to 737 733 m 793 704 to 716 315 m 330 330 to 845 332 m 862 1447.9 (:0 1462.9 3410 (:0 3490 UL:2000 re 2020 UL: 16255 to 16605 UL: UL: UL: UL: UL: UL: UL: UL: 1850 to 1915 814 tn 849 807 to 824 703 tn 748 2305 tn 2315 452.5 to 457.5 DL: DL: DL: DL: DL: A“ TAOGLAS. Downlillk 2110 to 2170 1930 tn 1990 1805 to 1880 2110 tn 2155 869 to 894 DL:2620 to 2690 DL: DL: DL: DL: DL: DL: DL: DL: DL: DL: DL: DL: DL: DL: DL: DL: DL: DL: DL: DL: DL: DL: 925 to 960 1344.9 (:0 1379.9 1475.9 (:0 1495.9 729 m 746 746 to 756 753 m 763 734 to 746 (LTE only) 360 m 375 (LET only) 375 to 390 791 m 321 1495.9 (:0 1510.9 3510 m 3590 2130 to 2200 (LTE only) 1525 m 1559 (LTE only) 1930 to 1995 359 m 394 352 to 869 (LTE only) 753 m 303 (LTE only) 717 to 723 (LTE only) 2350 m 2360 (LTE only) 462.5 to 467.5 (LTE only) 1452 - 1496 1850 to 1910 2570 tn 2620 1880 to 1920 2300 tn 2400 2496 to 2690 3400 tn 3600 3600 to 3800 Covered
SPE-14-8-059/E/WY Page 4 of 11
LTE BANDS
Band Number
LTE / LTE-Advanced / WCDMA / HSPA / HSPA+ / TD-SCDMA
Uplink
Downlink
Covered
1
UL: 1920 to 1980
DL: 2110 to 2170
✓
2
UL: 1850 to 1910
DL: 1930 to 1990
✓
3
UL: 1710 to 1785
DL: 1805 to 1880
✓
4
UL: 1710 to 1755
DL: 2110 to 2155
✓
5
UL: 824 to 849
DL: 869 to 894
✓
7
UL: 2500 to 2570
DL:2620 to 2690
✓
8
UL: 880 to 915
DL: 925 to 960
✓
9
UL: 1749.9 to 1784.9
DL: 1844.9 to 1879.9
✓
11
UL: 1427.9 to 1447.9
DL: 1475.9 to 1495.9
12
UL: 699 to 716
DL: 729 to 746
✓
13
UL: 777 to 787
DL: 746 to 756
✓
14
UL: 788 to 798
DL: 758 to 768
✓
17
UL: 704 to 716
DL: 734 to 746 (LTE only)
✓
18
UL: 815 to 830
DL: 860 to 875 (LET only)
✓
19
UL: 830 to 845
DL: 875 to 890
✓
20
UL: 832 to 862
DL: 791 to 821
✓
21
UL: 1447.9 to 1462.9
DL: 1495.9 to 1510.9
22
UL: 3410 to 3490
DL: 3510 to 3590
23
UL:2000 to 2020
DL: 2180 to 2200 (LTE only)
✓
24
UL:1625.5 to 1660.5
DL: 1525 to 1559 (LTE only)
✓
25
UL: 1850 to 1915
DL: 1930 to 1995
✓
26
UL: 814 to 849
DL: 859 to 894
✓
27
UL: 807 to 824
DL: 852 to 869 (LTE only)
✓
28
UL: 703 to 748
DL: 758 to 803 (LTE only)
✓
29
UL: -
DL: 717 to 728 (LTE only)
✓
30
UL: 2305 to 2315
DL: 2350 to 2360 (LTE only)
✓
31
UL: 452.5 to 457.5
DL: 462.5 to 467.5 (LTE only)
32
UL: -
DL: 1452 - 1496
35
1850 to 1910
✓
38
2570 to 2620
✓
39
1880 to 1920
✓
40
2300 to 2400
✓
41
2496 to 2690
✓
42
3400 to 3600
43
3600 to 3800
*Covered bands represent an efficiency greater than 20%
(08) (dB!) TAOGLASG. 10m 15m zmo 25m $00 500 ; m0 1000 1500 2000 2500 M00 --GSAasu 4000 (MHIJ —GSA3323_PQI Gm (Mun
SPE-14-8-059/E/WY Page 5 of 11
3. Antenna Characteristics

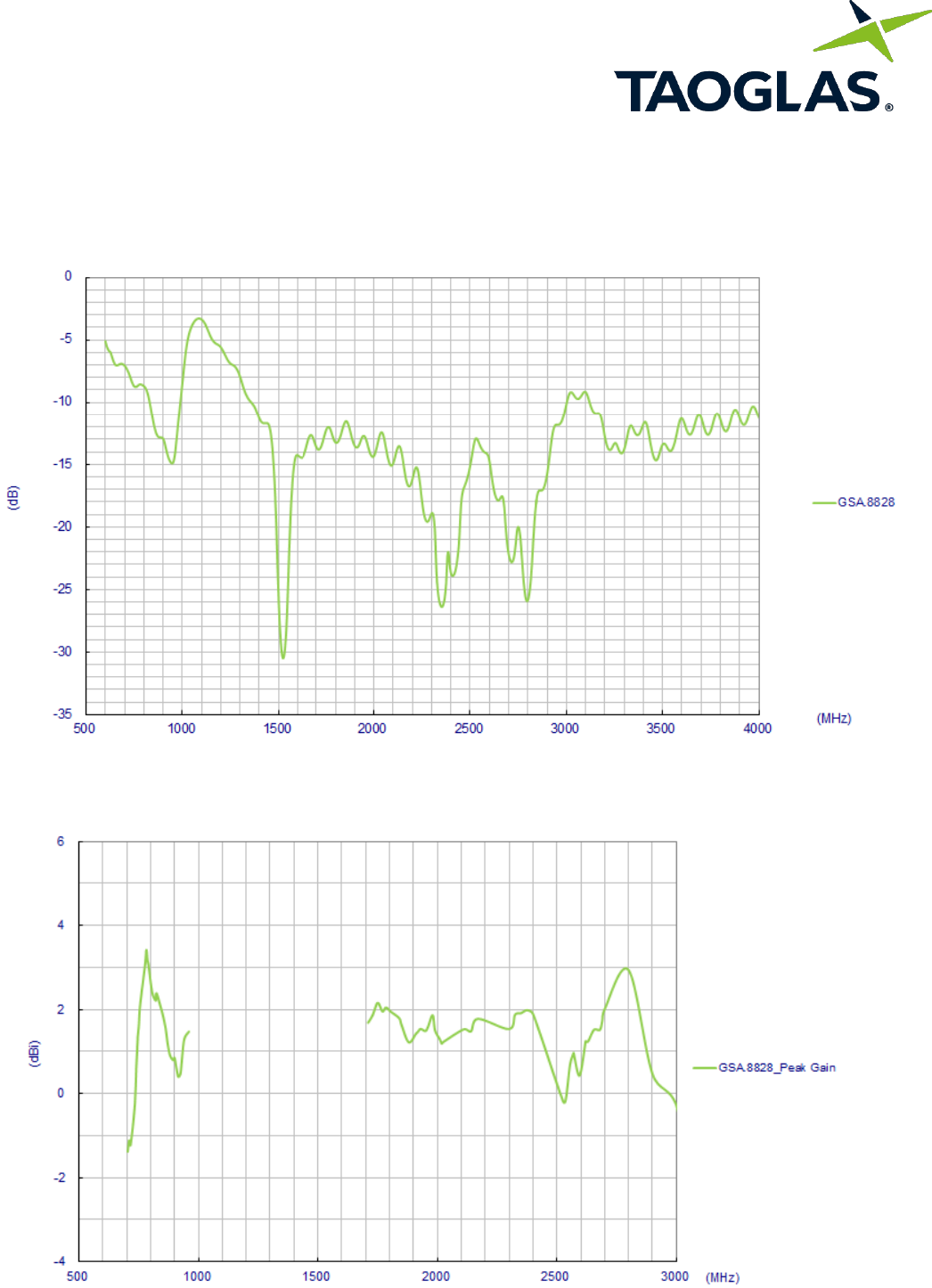

3.1. Return Loss (in free space)
3.2. Peak Gain (in free space)
(9E) TAOGLASG. 0 -2 .4 —GSA832I_ fl Avgaae S em .5 43 _1 o . . . . 500 man 1500 2000 2500 3000 (MHz) 80 60- 50- an —GSA 8828_Eln:ru/ an» 20* 10- 500 1000 I500 2000 2500 3000 (W11)
SPE-14-8-059/E/WY Page 6 of 11
3.3. Average Gain (in free space)
3.4.1 Efficiency (in free space)
\ TAOGLASQ
SPE-14-8-059/E/WY Page 7 of 11
4. Antenna Radiation Patterns
4.1. Antenna setup (Free Space with 1 Meter Cable Length)
Y
X
Z
3w 2/0 ssu «5‘ «5‘ ’sz —7MMHz —751MHz —524MHz —BEUMH: —9SDMHz —171flMHz —1saaMHz —1BSflMHz —2170MHZ TAOGLASQ m m 17‘ En m an —1575MHZ 210 156 153 mam U? m 90 —2300MHZ 2’0 .20 —2soaMHz —257aMHz 7m «W 1 , —27WMH1 mam
SPE-14-8-059/E/WY Page 8 of 11

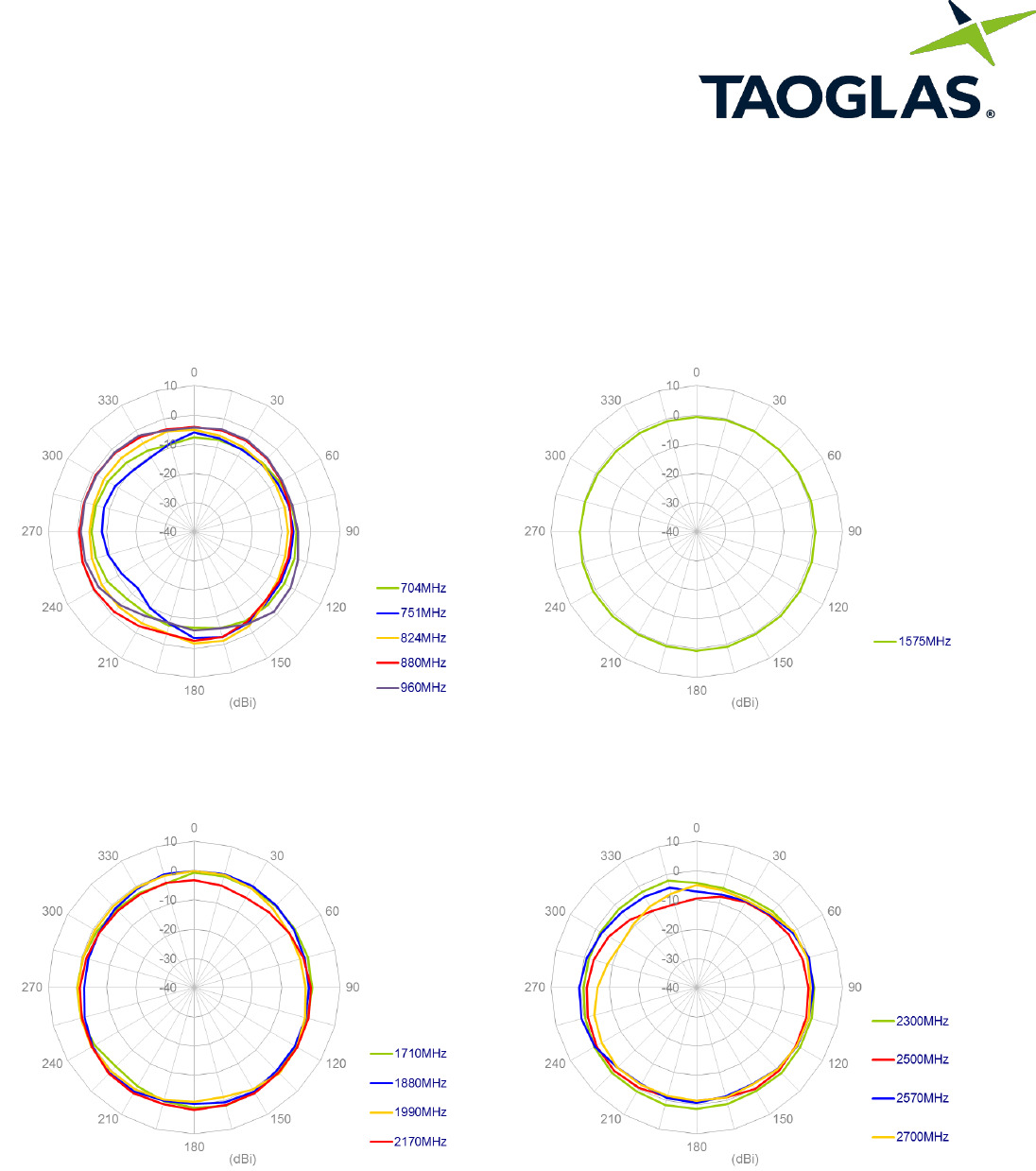

4.2. Radiation patterns
XY Plane
X
Y
X
Y
X
Y
X
Y
240 ‘30 mu u m m a: 0 mm 240 ‘30 mu 1:0 1:0 — 704MHz — 751MHz — 824MHz —EEOMH1 — 960MHz —moMHz —1530MH1 —1990MH1 —217oMHz TAOGLASD :30 Qua tU m m m: m —1575MH2 210 152 use m: , :30 tU m —2aaaMHz W, —2500MHZ —25mMHz 2‘0 ‘53 —27aaMHz use
SPE-14-8-059/E/WY Page 9 of 11
XZ Plane
Z
X
Z
X
Z
X
Z
X
Name Mamial mm ow I Roofing PCOABS Block 1 2 Doubte smea Adheswe 3M 160M Wm. 1 3 u: Lanai Coma Pacer wma l 4 Hem Shrunk Yube PE Black 1 5 mm Labd Coahsd Papal wm- 1 NINE SD06 F‘nlsh QTY comma Type swwwsv Gold I W cm: Tyne RG-m mm 1 S MA(M )ST $420.4 1/4'-36UNS-EB (DOSEN‘GS HEXi ‘F ‘7.— 105“” 1000:60 A“ 'UMDGLASW n 020.7 3 YY 91:5 WFWJ 70:20 172% €96) .....: . Fm I l WW "A"
SPE-14-8-059/E/WY Page 10 of 11
5. Drawing
)( TAOG LASG. mid) 7mm.) i —,—> Coated duplex board ‘ “i r g. E 1% l —>GSA.8827 s n 1PCS/Small PE bag m— m._ : fil-II 10PCS/Big PE bag WI." {a (DP/N: loogrusl- OSPO Orv: SPonI Quaint—urn ZPCS Paperboard Shipping Label ZOOPCS/Canon (400*330‘220mm)
SPE-14-8-059/E/WY Page 11 of 11

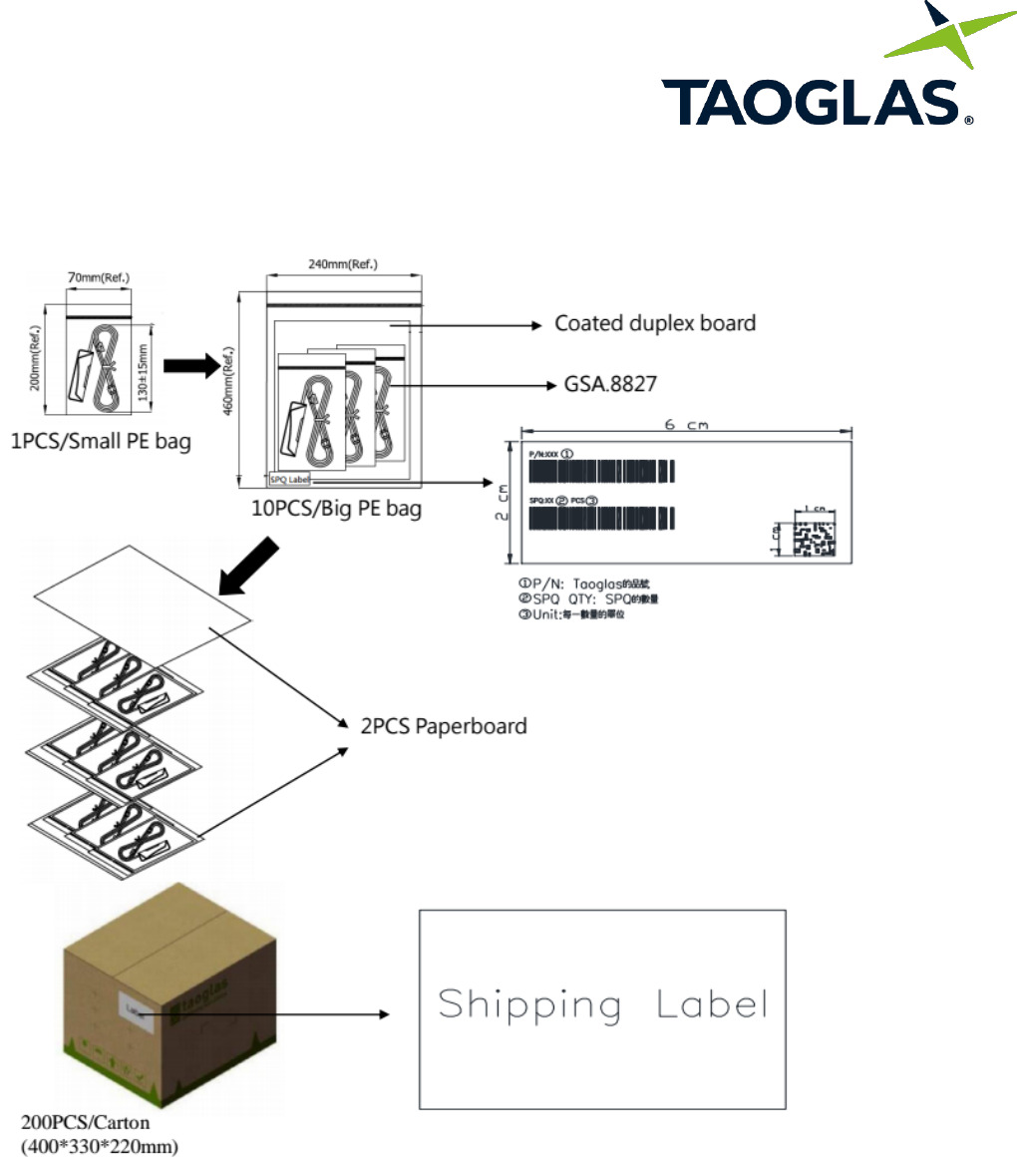

6. Packaging
