1. General description

The LPC112x are a ARM Cortex-M0 based, low-cost 32-bit MCU family, designed for

8/16-bit microcontroller applications, offering performance, low power, simple instruction

set and memory addressing together with reduced code size compared to existing 8/16-bit

architectures.

The LPC112x operate at CPU frequencies of up to 50 MHz.

The peripheral complement of the LPC112x includes 64 kB of flash memory, 8 kB of data

memory, one Fast-mode Plus I2C-bus interface, three RS-485/EIA-485 UARTs, two SSP

interfaces, four general purpose counter/timers, a 12-bit ADC, and up to 38 general

purpose I/O pins.

2. Features and benefits

System:

ARM Cortex-M0 processor, running at frequencies of up to 50 MHz.

ARM Cortex-M0 built-in Nested Vectored Interrupt Controller (NVIC).

Non-Maskable Interrupt (NMI) input selectable from several input sources.

Serial Wire Debug.

System tick timer.

Memory:

64 kB on-chip flash programming memory.

256 byte page erase function.

8 kB SRAM.

In-System Programming (ISP) and In-Application Programming (IAP) via on-chip

bootloader software.

Digital peripherals:

Up to 38 General Purpose I/O (GPIO) pins with configurable pull-up/pull-down

resistors. A configurable open-drain mode is supported.

GPIO pins can be used as edge and level sensitive interrupt sources.

High-current output driver (20 mA) on one pin.

High-current sink drivers (20 mA) on two I2C-bus pins in Fast-mode Plus.

Four general purpose counter/timers with up to six capture inputs and up to 13

match outputs.

Programmable windowed WDT.

Analog peripherals:

12-bit ADC with 2 Msamples/s and eight channels.

LPC112x

32-bit ARM Cortex-M0 microcontroller; 64 kB flash and 8 kB

SRAM; 12-bit ADC

Rev. 1 — 24 February 2015 Product data sheet

Product data sheet Rev. 1. — 24 February 2015 2 of 63

NXP Semiconductors LPC112x

32-bit ARM Cortex-M0 microcontroller

Serial interfaces:

Three UARTs with fractional baud rate generation, internal FIFO, and RS-485

support. One UART with modem control.

Two SSP controllers with FIFO and multi-protocol capabilities.

I2C-bus interface supporting full I2C-bus specification and Fast-mode Plus with a

data rate of 1 Mbit/s with multiple address recognition and monitor mode.

Clock generation:

12 MHz internal RC oscillator trimmed to 1 % accuracy for 25 C  Tamb  +85 C

that can optionally be used as a system clock.

Crystal oscillator with an operating range of 1 MHz to 25 MHz.

Programmable watchdog oscillator with a frequency range of 9.4 kHz to 2.3 MHz.

PLL allows CPU operation up to the maximum CPU rate without the need for a

high-frequency crystal. May be run from the system oscillator or the internal RC

oscillator.

Clock output function with divider that can reflect the system oscillator clock, IRC

clock, CPU clock, and the Watchdog clock.

Power control:

Integrated PMU (Power Management Unit) to minimize power consumption during

Sleep, Deep-sleep, and Deep power-down modes.

Power profiles residing in boot ROM allowing to optimize performance and

minimize power consumption for any given application through one simple function

call.

Three reduced power modes: Sleep, Deep-sleep, and Deep power-down.

Processor wake-up from Deep-sleep mode via a dedicated start logic using up to

13 of the functional pins.

Power-On Reset (POR).

Brownout detect with up to four separate thresholds for interrupt and forced reset.

Unique device serial number for identification.

Single power supply (1.8 V to 3.6 V).

Available as LQFP48 package.

3. Applications

4. Ordering information

eMetering Lighting

Alarm systems White goods

Table 1. Ordering information

Type number Package

Name Description Version

LPC1125JBD48/303 LQFP48 LQFP48: plastic low profile quad flat package; 48 leads; body 7  7 

1.4 mm SOT313-2

LPC1124JBD48/303 LQFP48 LQFP48: plastic low profile quad flat package; 48 leads; body 7  7 

1.4 mm SOT313-2

Product data sheet Rev. 1. — 24 February 2015 3 of 63

NXP Semiconductors LPC112x

32-bit ARM Cortex-M0 microcontroller

4.1 Ordering options

Table 2. Ordering options

Type number Flash Total

SRAM UART

RS-485 I2C/

Fast+ SSP ADC

channels GPIO Package

LPC1125JBD48/303 64 kB 8 kB 3 1 2 8 38 LQFP48

LPC1124JBD48/303 32 kB 8 kB 3 1 2 8 38 LQFP48

Product data sheet Rev. 1. — 24 February 2015 4 of 63

NXP Semiconductors LPC112x

32-bit ARM Cortex-M0 microcontroller

5. Block diagram

6. Pinning information

6.1 Pinning

Fig 1. LPC112x block diagram

aaa-016082

LPC112x

ARM

CORTEX-M0

TEST/DEBUG

INTERFACE

HIGH-SPEED

GPIO

GPIO ports

PIO0/1/2/3

slave

system

bus slave slave slave

FLASH

64 kB

AHB-LITE BUS

12-bit ADCUART0

slave

U0_RXD

U0_TXD

U2_RXD

U2_TXD

CT32B0_MAT[3:0]

CT32B0_CAP0

CT32B1_MAT[3:0]

CT32B1_CAP0

CT16B0_MAT[2:0]

CT16B0_CAP[1:0]

CT16B1_MAT[1:0]

CT16B1_CAP[1:0]

U1_RXD

U1_TXD

AHB TO APB

BRIDGE

SRAM

8 kB

CLOCK

GENERATION

POWER CONTROL,

SYSTEM

FUNCTIONS

XTALOUT

SWD RESET

XTALIN

clocks and controls

ROM

IRC

POR

PMU

SYSTEM CONTROL

IOCON

WWDT

I2C0_SCL

ADC_[8:1]

SSP0_SCK,

SSP0_SSEL,

SSP0_MISO,

SSP0_MOSI

SSP1_SCK,

SSP1_SSEL,

SSP1_MISO,

SSP1_MOSI

I2C0_SDA

I2C

CLKOUT

SSP1

SSP0

UART1

UART2

32-bit COUNTER/TIMER 0

32-bit COUNTER/TIMER 1

16-bit COUNTER/TIMER 0

16-bit COUNTER/TIMER 1

U0_DTR,

U0_DSR,

U0_CTS,

U0_DCD,

U0_RI, U0_RTS

Product data sheet Rev. 1. — 24 February 2015 5 of 63

NXP Semiconductors LPC112x

32-bit ARM Cortex-M0 microcontroller

Fig 2. LQFP48 package

LPC112x

37PIO2_3 24 PIO2_9

38SWDIO/PIO1_3 23 PIO0_7

39PIO1_4/WAKEUP 22 PIO0_6

40VSSA 21 PIO3_5

41VSS 20 PIO2_5

42PIO1_11 19 PIO2_4

43VDDA 18 PIO3_4

44VDD 17 PIO1_9

45PIO1_5 16 PIO0_5

46PIO1_6 15 PIO0_4

47PIO1_7 14 PIO0_3

48PIO3_3 13 PIO2_1

1PIO2_6 36 PIO3_0

2PIO2_0 35 R/PIO1_2

3RESET/PIO0_0 34 VREFN

4PIO0_1 33 VREFP

5VSS 32 R/PIO1_1

6XTALIN 31 R/PIO1_0

7XTALOUT 30 R/PIO0_11

8VDD 29 PIO1_10

9PIO1_8 28 SWCLK/PIO0_10

10PIO0_2 27 PIO0_9

11PIO2_7 26 PIO0_8

12PIO2_8 25 PIO2_2

aaa-016083

Product data sheet Rev. 1. — 24 February 2015 6 of 63

NXP Semiconductors LPC112x

32-bit ARM Cortex-M0 microcontroller

6.2 Pin description

Table 3. Pin description

Symbol

LQFP48

Reset

state

[1]

Start

logic

wake-up

Type Description

RESET/PIO0_0 3 [8] I; PU yes I RESET — External reset input: A LOW-going pulse as

short as 50 ns on this pin resets the device, causing

I/O ports and peripherals to take on their default

states, and processor execution to begin at address 0.

I/O PIO0_0 — General purpose port 0 input/output 0.

PIO0_1 4 [6] I; PU yes I/O PIO0_1 — General purpose port 0 input/output 1. A

LOW level on this pin during reset starts the ISP

command handler.

OCLKOUT — Clock output.

OCT32B0_MAT2 — Match output 2 for 32-bit timer 0.

PIO0_2 10 [6] I; PU yes I/O PIO0_2 — General purpose port 0 input/output 2.

I/O SSP0_SSEL — Slave select for SSP0.

ICT16B0_CAP0 — Capture input 0 for 16-bit timer 0.

IADC_PIN_TRIG0 — ADC pin trigger input 0.

PIO0_3 14 [6] I; PU yes I/O PIO0_3 — General purpose port 0 input/output 3.

-R — Reserved.

IU2_RXD — Receiver input for UART2.

PIO0_4 15 I; IA yes I/O PIO0_4 — General purpose port 0 input/output 4.

I/O I2C0_SCL — I2C-bus, open-drain clock input/output.

High-current sink only if I2C Fast-mode Plus is

selected in the I/O configuration register.

PIO0_5 16 [7] I; IA yes I/O PIO0_5 — General purpose port 0 input/output 5.

I/O I2C0_SDA — I2C-bus, open-drain data input/output.

High-current sink only if I2C Fast-mode Plus is

selected in the I/O configuration register.

PIO0_6 22 [6] I; PU yes I/O PIO0_6 — General purpose port 0 input/output 6.

-R — Reserved.

I/O SSP0_SCK — Serial clock for SSP0.

OU1_TXD — Transmitter output for UART1.

PIO0_7 23 [5] I; PU yes I/O PIO0_7 — General purpose port 0 input/output 7.

High-current output driver.

IU0_CTS — Clear To Send input for UART0.

IADC_PIN_TRIG1 — ADC pin trigger input 1.

IU1_RXD — Receiver input for UART1.

PIO0_8 26 [6] I; PU yes I/O PIO0_8 — General purpose port 0 input/output 8.

I/O SSP0_MISO — Master In Slave Out for SSP0.

OCT16B0_MAT0 — Match output 0 for 16-bit timer 0.

-R — Reserved.

IADC_PIN_TRIG2 — ADC pin trigger input 2.

Product data sheet Rev. 1. — 24 February 2015 7 of 63

NXP Semiconductors LPC112x

32-bit ARM Cortex-M0 microcontroller

PIO0_9 27 [6] I; PU yes I/O PIO0_9 — General purpose port 0 input/output 9.

I/O SSP0_MOSI — Master Out Slave In for SSP0.

OCT16B0_MAT1 — Match output 1 for 16-bit timer 0.

-R — Reserved.

IADC_PIN_TRIG3 — ADC pin trigger input 3.

SWCLK/PIO0_10 28 [6] I; PU yes I/O SWCLK — Serial wire clock.

I/O PIO0_10 — General purpose port 0 input/output 10.

I/O SSP0_SCK — Serial clock for SSP0.

OCT16B0_MAT2 — Match output 2 for 16-bit timer 0.

R/PIO0_11 30 [3] I; PU yes I R — Reserved. Configure for an alternate function in

the IOCON block.

I/O PIO0_11 — General purpose port 0 input/output 11.

AI ADC_7 — A/D converter, input 7.

OCT32B0_MAT3 — Match output 3 for 32-bit timer 0.

R/PIO1_0 31 [3] I; PU yes I R — Reserved. Configure for an alternate function in

the IOCON block.

I/O PIO1_0 — General purpose port 1 input/output 0.

AI ADC_6 — A/D converter, input 6.

ICT32B1_CAP0 — Capture input 0 for 32-bit timer 1.

R/PIO1_1 32 [3] O; PU no O R — Reserved. Configure for an alternate function in

the IOCON block.

I/O PIO1_1 — General purpose port 1 input/output 1.

AI ADC_5 — A/D converter, input 5.

OCT32B1_MAT0 — Match output 0 for 32-bit timer 1.

R/PIO1_2 35 [3] I; PU no I R — Reserved. Configure for an alternate function in

the IOCON block.

I/O PIO1_2 — General purpose port 1 input/output 2.

AI ADC_4 — A/D converter, input 4.

OCT32B1_MAT1 — Match output 1 for 32-bit timer 1.

SWDIO/PIO1_3 38 [3] I; PU no I/O SWDIO — Serial Wire Debug I/O. SWDIO is enabled

by default on this pin.

I/O PIO1_3 — General purpose port 1 input/output 3.

AI ADC_3 — A/D converter, input 3.

OCT32B1_MAT2 — Match output 2 for 32-bit timer 1.

Table 3. Pin description

Symbol

LQFP48

Reset

state

[1]

Start

logic

wake-up

Type Description

Product data sheet Rev. 1. — 24 February 2015 8 of 63

NXP Semiconductors LPC112x

32-bit ARM Cortex-M0 microcontroller

PIO1_4/

WAKEUP 39 [4] I; PU no IO PIO1_4 — General purpose port 1 input/output 4.

General-purpose digital input/output pin. This pin also

serves as the Deep power-down mode wake-up pin

with 20 ns glitch filter. Pull this pin HIGH externally

before entering Deep power-down mode. Pull this pin

LOW to exit Deep power-down mode. A LOW-going

pulse as short as 50 ns wakes up the part.

AI ADC_2 — A/D converter, input 2.

OCT32B1_MAT3 — Match output 3 for 32-bit timer 1.

PIO1_5 45 [6] I; PU no I/O PIO1_5 — General purpose port 1 input/output 5.

OU0_RTS — Request To Send output for UART0.

ICT32B0_CAP0 — Capture input 0 for 32-bit timer 0.

PIO1_6 46 [6] I; PU no I/O PIO1_6 — General purpose port 1 input/output 6.

IU0_RXD — Receiver input for UART0. In ISP mode,

connect to UART.

OCT32B0_MAT0 — Match output 0 for 32-bit timer 0.

PIO1_7 47 [6] I; PU no I/O PIO1_7 — General purpose port 1 input/output 7.

OU0_TXD — Transmitter output for UART0. In ISP

mode, connect to UART.

OCT32B0_MAT1 — Match output 1 for 32-bit timer 0.

PIO1_8 9 [6] I; PU no I/O PIO1_8 — General purpose port 1 input/output 8.

ICT16B1_CAP0 — Capture input 0 for 16-bit timer 1.

-R — Reserved.

OU2_TXD — Transmitter output for U2.

PIO1_9 17 [6] I; PU no I/O PIO1_9 — General purpose port 1 input/output 9.

OCT16B1_MAT0 — Match output 0 for 16-bit timer 1.

I/O SSP1_MOSI — Master Out Slave In for SSP1.I

PIO1_10 29 [3] I; PU no I/O PIO1_10 — General purpose port 1 input/output 10.

AI ADC_8 — A/D converter, input 8.

OCT16B1_MAT1 — Match output 1 for 16-bit timer 1.

I/O SSP1_MISO — Master In Slave Out for SSP1.

PIO1_11 42 [3] I; PU no I/O PIO1_11 — General purpose port 1 input/output 11.

AI ADC_1 — A/D converter, input 1.

ICT32B1_CAP1 — Capture input 1 for 32-bit timer 1.

PIO2_0 2 [6] I; PU no IO PIO2_0 — General purpose port 2 input/output 0.

OU0_DTR — Data Terminal Ready output for UART0.

I/O SSP1_SSEL — Slave Select for SSP1.

IADC_PIN_TRIG4 — ADC pin trigger input 4.

PIO2_1 13 [6] I; PU no I/O PIO2_1 — General purpose port 2 input/output 1.

IU0_DSR — Data Set Ready input for UART0.

I/O SSP1_SCK — Serial clock for SSP1.

Table 3. Pin description

Symbol

LQFP48

Reset

state

[1]

Start

logic

wake-up

Type Description

Product data sheet Rev. 1. — 24 February 2015 9 of 63

NXP Semiconductors LPC112x

32-bit ARM Cortex-M0 microcontroller

PIO2_2 25 [6] I; PU no I/O PIO2_2 — General purpose port 2 input/output 2.

IU0_DCD — Data Carrier Detect input for UART0.

I/O SSP1_MISO — Master In Slave Out for SSP1.

PIO2_3 37 [6] I; PU no I/O PIO2_3 — General purpose port 2 input/output 3.

IU0_RI — Ring Indicator input for UART0.

I/O SSP1_MOSI — Master Out Slave In for SSP1.

PIO2_4 19 [6] I; PU no I/O PIO2_4 — General purpose port 2 input/output 4.

OCT16B1_MAT1 — Match output 1 for 16-bit timer 1.

I/O SSP1_SSEL — Slave Select for SSP1.

PIO2_5 20 [6] I; PU no I/O PIO2_5 — General purpose port 2 input/output 5.

OCT32B0_MAT0 — Match output 0 for 32-bit timer 0.

PIO2_6 1 [6] I; PU no I/O PIO2_6 — General purpose port 2 input/output 6.

OCT32B0_MAT1 — Match output 1 for 32-bit timer 0.

PIO2_7 11 [6] I; PU no I/O PIO2_7 — General purpose port 2 input/output 7.

OCT32B0_MAT2 — Match output 2 for 32-bit timer 0.

IU0_RXD — Receiver input for UART0.

PIO2_8 12 [6] I; PU no I/O PIO2_8 — General purpose port 2 input/output 8.

ICT32B0_MAT3 — Match output 3 for 32-bit timer 0.

OU0_TXD — Transmitter output for UART0.

PIO2_9 24 [6] I; PU no I/O PIO2_9 — General purpose port 2 input/output 9.

ICT32B0_CAP0 — Capture input 0 for 32-bit timer 0.

PIO2_10 - [6] I: PU no I/O PIO2_10 — General purpose port 2 input/output 10.

PIO3_0 36 [6] I; PU no I/O PIO3_0 — General purpose port 3 input/output 0.

OU0_DTR — Data Terminal Ready output for UART0.

OCT16B0_MAT0 — Match output 0 for 16-bit timer 0.

OU0_TXD — Transmitter Output for UART0.

PIO3_2 - [6] I; PU no I/O PIO3_2 — General purpose port 3 input/output 2.

IU0_DCD — Data Carrier Detect input for UART0.

OCT16B0_MAT2 — Match output 2 for 16-bit timer 0.

I/O SSP1_SCK — Serial clock for SSP1.

PIO3_3 48 [6] I; PU no I/O PIO3_3 — General purpose port 3 input/output 3.

IU0_RI — Ring Indicator input for UART0.

ICT16B0_CAP0 — Capture input 0 for 16-bit timer 0.

PIO3_4 18 [6] I; PU no I/O PIO3_4 — General purpose port 3 input/output 4.

ICT16B0_CAP1 — Capture input 1 for 16-bit timer 0.

IU0_RXD — Receiver input for UART0.

PIO3_5 21 [6] I; PU no I/O PIO3_5 — General purpose port 3 input/output 5.

ICT16B1_CAP1 — Capture input 1 for 16-bit timer 1.

OU0_TXD — Transmitter output for UART0.

Table 3. Pin description

Symbol

LQFP48

Reset

state

[1]

Start

logic

wake-up

Type Description

Product data sheet Rev. 1. — 24 February 2015 10 of 63

NXP Semiconductors LPC112x

32-bit ARM Cortex-M0 microcontroller

[1] Pin state at reset for default function: I = Input; AI = Analog Input; O = Output; PU = internal pull-up enabled (pins pulled up to full VDD

level (VDD = 3.3 V)); IA = inactive, no pull-up/down enabled.

[2] When the system oscillator is not used, connect XTALIN and XTALOUT as follows: XTALIN can be left floating or can be grounded

(grounding is preferred to reduce susceptibility to noise). XTALOUT should be left floating.

[3] 5 V tolerant pad providing digital I/O functions with configurable pull-up/pull-down resistors, configurable hysteresis, and analog input.

When configured as a ADC input, digital section of the pad is disabled and the pin is not 5 V tolerant (see Figure 27).

[4] Pad providing digital I/O functions with configurable pull-up/pull-down resistors, configurable hysteresis, and analog input. When

configured as a ADC input, digital section of the pad is disabled (see Figure 27). In deep power-down mode, this pin serves as the

wake-up pin.

[5] High-current output driver. Pad providing digital I/O functions with configurable pull-up/pull-down resistors and configurable hysteresis

(see Figure 27).

[6] Standard digital I/O pin. Pad providing digital I/O functions with configurable pull-up/pull-down resistors and configurable hysteresis (see

Figure 27).

[7] I2C-bus pins compliant with the I2C-bus specification for I2C standard mode, I2C Fast-mode, and I2C Fast-mode Plus. The pin requires

an external pull-up to provide output functionality. When power is switched off, this pin is floating and does not disturb the I2C lines.

Open-drain configuration applies to all functions on this pin.

[8] 5 V tolerant pad. RESET functionality is not available in Deep power-down mode. Use the WAKEUP pin to reset the chip and wake up

from Deep power-down mode. An external pull-up resistor is required on this pin for the Deep power-down mode. See Figure 28 for the

reset pad configuration.

XTALIN 6 [2] - - - Input to the oscillator circuit and internal clock

generator circuits. Input voltage must not exceed

1.8 V.

XTALOUT 7 [2] - - - Output from the oscillator amplifier.

VREFP 33 - - - Positive reference voltage for the ADC.

VREFN 34 - - - Negative reference voltage for the ADC.

VDD 8;

44 - - - 3.3 V supply voltage to the internal regulator and the

external rail.

VDDA 43 - - - Analog supply voltage.

VSSA 40 - - - Analog ground.

VSS 5;

41 - - - Ground.

Table 3. Pin description

Symbol

LQFP48

Reset

state

[1]

Start

logic

wake-up

Type Description

Figure 3

Product data sheet Rev. 1. — 24 February 2015 11 of 63

NXP Semiconductors LPC112x

32-bit ARM Cortex-M0 microcontroller

7. Functional description

7.1 ARM Cortex-M0 processor

The ARM Cortex-M0 is a general purpose, 32-bit microprocessor, which offers high

performance and very low power consumption.

7.2 On-chip flash program memory

The LPC112x contain up to 64 kB of on-chip flash memory.

7.3 On-chip SRAM

The LPC112x contain a total of 8 kB on-chip static RAM memory.

7.4 Memory map

The LPC112x incorporate several distinct memory regions, shown in the following figures.

Figure 3 shows the overall map of the entire address space from the user program

viewpoint following reset. The interrupt vector area supports address remapping.

The AHB peripheral area is 2 MB in size, and is divided to allow for up to 128 peripherals.

The APB peripheral area is 512 kB in size and is divided to allow for up to 32 peripherals.

Each peripheral of either type is allocated 16 kB of space. This allows simplifying the

address decoding for each peripheral.

Product data sheet Rev. 1. — 24 February 2015 12 of 63

NXP Semiconductors LPC112x

32-bit ARM Cortex-M0 microcontroller

7.5 Nested Vectored Interrupt Controller (NVIC)

The Nested Vectored Interrupt Controller (NVIC) is an integral part of the Cortex-M0. The

tight coupling to the CPU allows for low interrupt latency and efficient processing of late

arriving interrupts.

7.5.1 Features

•Controls system exceptions and peripheral interrupts.

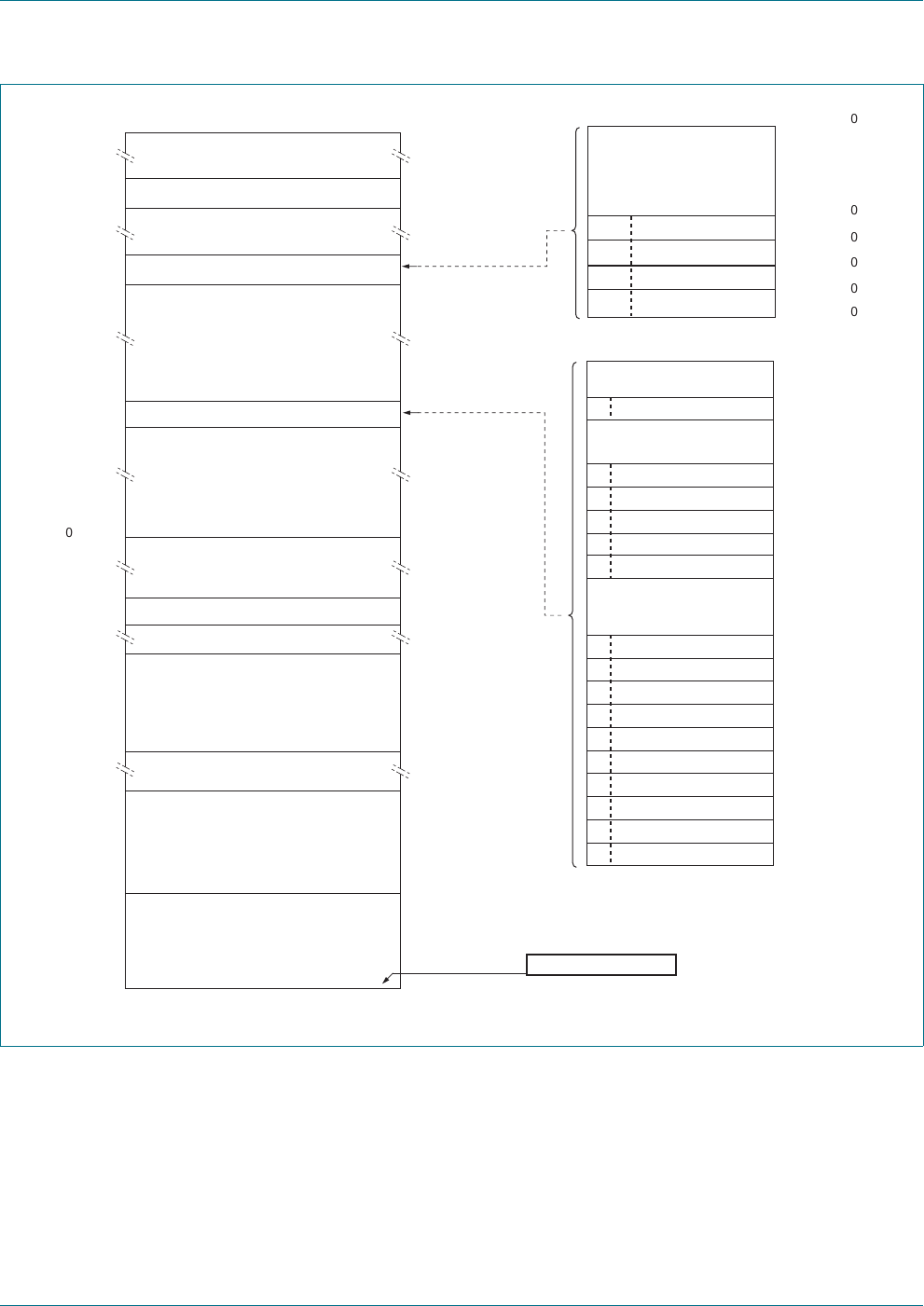

Fig 3. LPC112x memory map

0x5000 0000

0x5001 0000

0x5002 0000

0x5020 0000

AHB peripherals

127-16 reserved

GPIO PIO1

4-7

0x5003 0000

0x5004 0000

GPIO PIO2

GPIO PIO3

8-11

12-15

GPIO PIO0

0-3

APB peripherals

0x4000 4000

0x4000 8000

0x4000 C000

0x4001 0000

0x4001 8000

0x4002 0000

0x4002 8000

0x4003 8000

0x4003 C000

0x4004 0000

0x4004 4000

0x4004 8000

0x4004 C000

0x4005 8000

0x4005 C000

0x4008 0000

0x4002 4000

0x4001 C000

0x4001 4000

0x4000 0000

WWDT

32-bit counter/timer 0

32-bit counter/timer 1

12-bit ADC

UART0

PMU

I2C-bus

13-10 reserved

UART2

UART1

21-19 reserved

31-23 reserved

reserved

0x0000 0000

0 GB

0.5 GB

4 GB

1 GB

0x1000 2000

0x1FFF 0000

0x1FFF 4000

0x2000 0000

0x4000 0000

0x4008 0000

0x5000 0000

0x5020 0000

0xFFFF FFFF

reserved

APB peripherals

AHB peripherals

8 kB SRAM

0x1000 0000

LPC112x

0x0001 0000

16 kB boot ROM

0x0000 0000

0x0000 00C0

active interrupt vectors

aaa-016174

reserved

SSP0

16-bit counter/timer 1

16-bit counter/timer 0

IOCON

system control

22 SSP1

flash controller

0xE000 0000

0xE010 0000

private peripheral bus

0x0000 E000

64 kB on-chip flash

(LPC1125)

32 kB on-chip flash

(LPC1124)

Product data sheet Rev. 1. — 24 February 2015 13 of 63

NXP Semiconductors LPC112x

32-bit ARM Cortex-M0 microcontroller

•On the LPC112x, the NVIC supports 32 vectored interrupts including up to 13 inputs

to the start logic from individual GPIO pins.

•Four programmable interrupt priority levels with hardware priority level masking.

•Software interrupt generation.

7.5.2 Interrupt sources

Each peripheral device has one interrupt line connected to the NVIC but may have several

interrupt flags. Individual interrupt flags may also represent more than one interrupt

source.

Any GPIO pin (total of up to 40 pins) regardless of the selected function, can be

programmed to generate an interrupt on a level, or rising edge or falling edge, or both.

7.6 IOCON block

The IOCON block allows selected pins of the microcontroller to have more than one

function. Configuration registers control the multiplexers to allow connection between the

pin and the on-chip peripherals.

Peripherals should be connected to the appropriate pins prior to being activated and prior

to any related interrupt(s) being enabled. Activity of any enabled peripheral function that is

not mapped to a related pin should be considered undefined.

7.7 Fast general purpose parallel I/O

Device pins that are not connected to a specific peripheral function are controlled by the

GPIO registers. Pins may be dynamically configured as inputs or outputs. Multiple outputs

can be set or cleared in one write operation.

LPC112x use accelerated GPIO functions:

•GPIO registers are a dedicated AHB peripheral so that the fastest possible I/O timing

can be achieved.

•Entire port value can be written in one instruction.

Additionally, any GPIO pin (total of 38 pins) providing a digital function can be

programmed to generate an interrupt on a level, a rising or falling edge, or both.

7.7.1 Features

•Bit level port registers allow a single instruction to set or clear any number of bits in

one write operation.

•Direction control of individual bits.

•All I/O default to inputs with pull-ups enabled after reset with the exception of the

I2C-bus pins PIO0_4 and PIO0_5.

•Pull-up/pull-down resistor configuration can be programmed through the IOCON block

for each GPIO pin (except for pins PIO0_4 and PIO0_5).

•All GPIO pins (except PIO0_4 and PIO0_5) are pulled up to 3.3 V (VDD = 3.3 V) if their

pull-up resistor is enabled in the IOCON block.

•Programmable open-drain mode.

Product data sheet Rev. 1. — 24 February 2015 14 of 63

NXP Semiconductors LPC112x

32-bit ARM Cortex-M0 microcontroller

7.8 UART

The LPC112x contain three UARTs.

Support for RS-485/9-bit mode allows both software address detection and automatic

address detection using 9-bit mode.

The UART includes a fractional baud rate generator. Standard baud rates such as

115200 Bd can be achieved with any crystal frequency above 2 MHz.

7.8.1 Features

•Maximum UART data bit rate of 3.125 MBit/s.

•16 Byte Receive and Transmit FIFOs.

•Register locations conform to 16C550 industry standard.

•Receiver FIFO trigger points at 1 B, 4 B, 8 B, and 14 B.

•Built-in fractional baud rate generator covering wide range of baud rates without a

need for external crystals of particular values.

•FIFO control mechanism that enables software flow control implementation.

•Support for RS-485/9-bit mode.

•Support for modem control.

7.9 SSP controller

The LPC112x contains two SSP controllers.

The SSP controller is capable of operation on a SSP, 4-wire SSI, or Microwire bus. It can

interact with multiple masters and slaves on the bus. Only a single master and a single

slave can communicate on the bus during a given data transfer. The SSP supports full

duplex transfers, with frames of 4 bits to 16 bits of data flowing from the master to the

slave and from the slave to the master. In practice, often only one of these data flows

carries meaningful data.

7.9.1 Features

•Maximum SSP speed of 25 Mbit/s (master) or 4.17 Mbit/s (slave) (in SSP mode).

•Compatible with Motorola SPI, 4-wire Texas Instruments SSI, and National

Semiconductor Microwire buses.

•Synchronous serial communication.

•Master or slave operation.

•8-frame FIFOs for both transmit and receive.

•4-bit to 16-bit frame.

7.10 I2C-bus serial I/O controller

The LPC112x contains one I2C-bus controller.

The I2C-bus is bidirectional for inter-IC control using only two wires: a Serial Clock Line

(SCL) and a Serial DAta line (SDA). Each device is recognized by a unique address and

can operate as either a receiver-only device (e.g., an LCD driver) or a transmitter with the

Product data sheet Rev. 1. — 24 February 2015 15 of 63

NXP Semiconductors LPC112x

32-bit ARM Cortex-M0 microcontroller

capability to both receive and send information (such as memory). Transmitters and/or

receivers can operate in either master or slave mode, depending on whether the chip has

to initiate a data transfer or is only addressed. The I2C is a multi-master bus and can be

controlled by more than one bus master connected to it.

7.10.1 Features

•The I2C-interface is a standard I2C-bus compliant interface with open-drain pins. The

I2C-bus interface also supports Fast-mode Plus with bit rates up to 1 Mbit/s.

•Easy to configure as master, slave, or master/slave.

•Programmable clocks allow versatile rate control.

•Bidirectional data transfer between masters and slaves.

•Multi-master bus (no central master).

•Arbitration between simultaneously transmitting masters without corruption of serial

data on the bus.

•Serial clock synchronization allows devices with different bit rates to communicate via

one serial bus.

•Serial clock synchronization can be used as a handshake mechanism to suspend and

resume serial transfer.

•The I2C-bus can be used for test and diagnostic purposes.

•The I2C-bus controller supports multiple address recognition and a bus monitor mode.

7.11 Analog-to-Digital Converter (ADC)

The ADC supports a resolution of 12 bit and fast conversion rates of up to 2 Msamples/s.

Sequences of analog-to-digital conversions can be triggered by multiple sources. Possible

trigger sources are internal connections to the 16-bit timer match outputs, five external

pins, and the ARM TXEV interrupt.

The ADC includes a hardware threshold compare function with zero-crossing detection.

7.11.1 Features

•12-bit successive approximation analog to digital converter.

•12-bit conversion rate of 2 Msamples/s.

•Input multiplexing among 8 pins.

•Two configurable conversion sequences with independent triggers.

•Optional automatic high/low threshold comparison and zero-crossing detection.

•Power-down mode and low-power operating mode.

•Measurement range VREFN to VREFP (typically 3 V; not to exceed VDDA voltage

level).

•Burst conversion mode for single or multiple inputs.

Product data sheet Rev. 1. — 24 February 2015 16 of 63

NXP Semiconductors LPC112x

32-bit ARM Cortex-M0 microcontroller

7.12 General purpose external event counter/timers

The LPC112x include two 32-bit counter/timers and two 16-bit counter/timers. The

counter/timer is designed to count cycles of the system derived clock. It can optionally

generate interrupts or perform other actions at specified timer values, based on four

match registers. Each counter/timer also includes up to two capture inputs to trap the

timer value when an input signal transitions, optionally generating an interrupt.

7.12.1 Features

•A 32-bit/16-bit timer/counter with a programmable 32-bit/16-bit prescaler.

•Counter or timer operation.

•Up to two capture channels per timer, that can take a snapshot of the timer value

when an input signal transitions. A capture event may also generate an interrupt.

•The timer and prescaler may be configured to be cleared on a designated capture

event. This feature permits easy pulse width measurement by clearing the timer on

the leading edge of an input pulse and capturing the timer value on the trailing edge.

•Four match registers per timer that allow:

–Continuous operation with optional interrupt generation on match.

–Stop timer on match with optional interrupt generation.

–Reset timer on match with optional interrupt generation.

•Up to four external outputs corresponding to match registers, with the following

capabilities:

–Set LOW on match.

–Set HIGH on match.

–Toggle on match.

–Do nothing on match.

7.13 System tick timer

The ARM Cortex-M0 includes a system tick timer (SYSTICK) that is intended to generate

a dedicated SYSTICK exception at a fixed time interval (typically 10 ms).

7.14 Windowed WatchDog Timer

The purpose of the watchdog is to reset the controller if software fails to periodically

service it within a programmable time window.

7.14.1 Features

•Internally resets chip if not periodically reloaded during the programmable time-out

period.

•Optional windowed operation requires reload to occur between a minimum and

maximum time period, both programmable.

•Optional warning interrupt can be generated at a programmable time prior to

watchdog time-out.

•Enabled by software but requires a hardware reset or a watchdog reset/interrupt to be

disabled.

Figure 4

Product data sheet Rev. 1. — 24 February 2015 17 of 63

NXP Semiconductors LPC112x

32-bit ARM Cortex-M0 microcontroller

•Incorrect feed sequence causes reset or interrupt if enabled.

•Flag to indicate watchdog reset.

•Programmable 24-bit timer with internal prescaler.

•Selectable time period from (Tcy(WDCLK) 256 4) to (Tcy(WDCLK) 224 4) in

multiples of Tcy(WDCLK) 4.

•The Watchdog Clock (WDCLK) source can be selected from the IRC or the dedicated

watchdog oscillator (WDO). This gives a wide range of potential timing choices of

watchdog operation under different power conditions.

7.15 Clocking and power control

7.15.1 Crystal oscillators

The LPC112x include three independent oscillators. These are the system oscillator, the

Internal RC oscillator (IRC), and the Watchdog oscillator. Each oscillator can be used for

more than one purpose as required in a particular application.

Following reset, the LPC112x will operate from the Internal RC oscillator until switched by

software. This allows systems to operate without any external crystal and the bootloader

code to operate at a known frequency.

See Figure 4 for an overview of the LPC112x clock generation.

Product data sheet Rev. 1. — 24 February 2015 18 of 63

NXP Semiconductors LPC112x

32-bit ARM Cortex-M0 microcontroller

7.15.1.1 Internal RC oscillator

The IRC may be used as the clock source for the WDT, and/or as the clock that drives the

PLL and subsequently the CPU. The nominal IRC frequency is 12 MHz.

Upon power-up or any chip reset, the LPC112x use the IRC as the clock source. Software

may later switch to one of the other available clock sources.

7.15.1.2 System oscillator

The system oscillator can be used as the clock source for the CPU, with or without using

the PLL.

The system oscillator operates at frequencies of 1 MHz to 25 MHz. This frequency can be

boosted to a higher frequency, up to the maximum CPU operating frequency, by the

system PLL.

Fig 4. LPC112x clock generation block diagram

aaa-016177

IRC oscillator

watchdog oscillator

IRC oscillator

main clock

SSP0 PERIPHERAL

CLOCK DIVIDER

system oscillator sys_pllclkin

sys_pllclkout

SYSTEM PLL

SYSPLLCLKSEL

(system PLL clock select)

CLKOUTUEN

(CLKOUT update enable)

IRC oscillator

system oscillator

watchdog oscillator

IRC oscillator

watchdog oscillator

MAINCLKSEL

(main clock select)

SYSAHBCLKDIV

system clock

AHB clocks

1 to 18

(memories

and peripherals)

SYSAHBCLKCTRL[1:18]

SSP0_PCLK

UART1_PCLK

UART2_PCLK

WDCLK

CLKOUT pin

UART0_PCLK

SSP1_PCLK

WDTUEN

(WDT clock update enable)

SYSTEM CLOCK

DIVIDER

ARM

CORTEX-M0

UART0 PERIPHERAL

CLOCK DIVIDER

SSP1 PERIPHERAL

CLOCK DIVIDER

UART1 PERIPHERAL

CLOCK DIVIDER

UART2 PERIPHERAL

CLOCK DIVIDER

WDT CLOCK

DIVIDER

CLKOUT PIN CLOCK

DIVIDER

Product data sheet Rev. 1. — 24 February 2015 19 of 63

NXP Semiconductors LPC112x

32-bit ARM Cortex-M0 microcontroller

7.15.1.3 Watchdog oscillator

The watchdog oscillator can be used as a clock source that directly drives the CPU, the

watchdog timer, or the CLKOUT pin. The watchdog oscillator nominal frequency is

programmable between 9.4 kHz and 2.3 MHz. The frequency spread over processing and

temperature is 40 %.

7.15.2 System PLL

The PLL accepts an input clock frequency in the range of 10 MHz to 25 MHz. The input

frequency is multiplied up to a high frequency with a Current Controlled Oscillator (CCO).

The multiplier can be an integer value from 1 to 32. The CCO operates in the range of

156 MHz to 320 MHz, so there is an additional divider in the loop to keep the CCO within

its frequency range while the PLL is providing the desired output frequency. The PLL

output frequency must be lower than 100 MHz. The output divider may be set to divide by

2, 4, 8, or 16 to produce the output clock. Since the minimum output divider value is 2, it is

insured that the PLL output has a 50 % duty cycle. The PLL is turned off and bypassed

following a chip reset and may be enabled by software. The program must configure and

activate the PLL, wait for the PLL to lock, and then connect to the PLL as a clock source.

The PLL settling time is 100 s.

7.15.3 Clock output

The LPC112x features a clock output function that routes the IRC oscillator, the system

oscillator, the watchdog oscillator, or the main clock to an output pin.

7.15.4 Wake-up process

The LPC112x begin operation at power-up and when awakened from Deep power-down

mode by using the 12 MHz IRC oscillator as the clock source. This allows chip operation

to resume quickly. If the system oscillator or the PLL is needed by the application,

software will need to enable these features and wait for them to stabilize before they are

used as a clock source.

7.15.5 Power control

The LPC112x support a variety of power control features. There are three special modes

of processor power reduction: Sleep mode, Deep-sleep mode, and Deep power-down

mode. The CPU clock rate may also be controlled as needed by changing clock sources,

reconfiguring PLL values, and/or altering the CPU clock divider value. This allows a

trade-off of power versus processing speed based on application requirements. In

addition, a register is provided for shutting down the clocks to individual on-chip

peripherals, allowing fine tuning of power consumption by eliminating all dynamic power

use in any peripherals that are not required for the application. Selected peripherals have

their own clock divider which provides even better power control.

7.15.5.1 Power profiles

The power consumption in Active and Sleep modes can be optimized for the application

through simple calls to the power profile. The power configuration routine configures the

LPC112x for one of the following power modes:

•Default mode corresponding to power configuration after reset.

•CPU performance mode corresponding to optimized processing capability.

Table 3

Product data sheet Rev. 1. — 24 February 2015 20 of 63

NXP Semiconductors LPC112x

32-bit ARM Cortex-M0 microcontroller

•Efficiency mode corresponding to optimized balance of current consumption and CPU

performance.

•Low-current mode corresponding to lowest power consumption.

In addition, the power profile includes routines to select the optimal PLL settings for a

given system clock and PLL input clock.

7.15.5.2 Sleep mode

When Sleep mode is entered, the clock to the core is stopped. Resumption from the Sleep

mode does not need any special sequence but re-enabling the clock to the ARM core.

In Sleep mode, execution of instructions is suspended until either a reset or interrupt

occurs. Peripheral functions continue operation during Sleep mode and may generate

interrupts to cause the processor to resume execution. Sleep mode eliminates dynamic

power used by the processor itself, memory systems and related controllers, and internal

buses.

7.15.5.3 Deep-sleep mode

In Deep-sleep mode, the chip is in Sleep mode, and in addition all analog blocks are shut

down. As an exception, the user has the option to keep the watchdog oscillator and the

BOD circuit running for self-timed wake-up and BOD protection. Deep-sleep mode allows

for additional power savings.

Up to 13 pins total serve as external wake-up pins to the start logic to wake up the chip

from Deep-sleep mode.

Unless the watchdog oscillator is selected to run in Deep-sleep mode, the clock source

should be switched to IRC before entering Deep-sleep mode, because the IRC can be

switched on and off glitch-free.

7.15.5.4 Deep power-down mode

In Deep power-down mode, power is shut off to the entire chip with the exception of the

WAKEUP pin. The LPC112x can wake up from Deep power-down mode via the WAKEUP

pin.

A LOW-going pulse as short as 50 ns wakes up the part from Deep power-down mode.

When entering Deep power-down mode, an external pull-up resistor is required on the

WAKEUP pin to hold it HIGH. The RESET pin must also be held HIGH to prevent it from

floating while in Deep power-down mode.

7.16 System control

7.16.1 Start logic

The start logic connects external pins to corresponding interrupts in the NVIC. Each pin

shown in Table 3 as input to the start logic has an individual interrupt in the NVIC interrupt

vector table. The start logic pins can serve as external interrupt pins when the chip is

running. In addition, an input signal on the start logic pins can wake up the chip from

Deep-sleep mode when all clocks are shut down.

The start logic must be configured in the system configuration block and in the NVIC

before being used.

Product data sheet Rev. 1. — 24 February 2015 21 of 63

NXP Semiconductors LPC112x

32-bit ARM Cortex-M0 microcontroller

7.16.2 Reset

Reset has four sources on the LPC112x: the RESET pin, the Watchdog reset, Power-On

Reset (POR), and the BrownOut Detection (BOD) circuit. The RESET pin is a Schmitt

trigger input pin. Assertion of chip reset by any source, once the operating voltage attains

a usable level, starts the IRC and initializes the flash controller.

A LOW-going pulse as short as 50 ns resets the part.

When the internal Reset is removed, the processor begins executing at address 0, which

is initially the Reset vector mapped from the boot block. At that point, all of the processor

and peripheral registers have been initialized to predetermined values.

An external pull-up resistor is required on the RESET pin if Deep power-down mode is

used.

7.16.3 Brownout detection

The LPC112x includes up to four levels for monitoring the voltage on the VDD pin. If this

voltage falls below one of the selected levels, the BOD asserts an interrupt signal to the

NVIC. This signal can be enabled for interrupt in the Interrupt Enable Register in the NVIC

in order to cause a CPU interrupt; if not, software can monitor the signal by reading a

dedicated status register. Four threshold levels can be selected to cause a forced reset of

the chip.

7.16.4 Code security (Code Read Protection - CRP)

This feature of the LPC112x allows user to enable different levels of security in the system

so that access to the on-chip flash and use of the Serial Wire Debugger (SWD) and

In-System Programming (ISP) can be restricted. When needed, CRP is invoked by

programming a specific pattern into a dedicated flash location. IAP commands are not

affected by the CRP.

In addition, ISP entry via the PIO0_1 pin can be disabled without enabling CRP. For

details see the LPC111x user manual.

There are three levels of Code Read Protection:

1. CRP1 disables access to the chip via the SWD and allows partial flash update

(excluding flash sector 0) using a limited set of the ISP commands. This mode is

useful when CRP is required and flash field updates are needed but all sectors can

not be erased.

2. CRP2 disables access to the chip via the SWD and only allows full flash erase and

update using a reduced set of the ISP commands.

3. Running an application with level CRP3 selected fully disables any access to the chip

via the SWD pins and the ISP. This mode effectively disables ISP override using

PIO0_1 pin, too. It is up to the user’s application to provide (if needed) flash update

mechanism using IAP calls or call reinvoke ISP command to enable flash update via

the UART.

Product data sheet Rev. 1. — 24 February 2015 22 of 63

NXP Semiconductors LPC112x

32-bit ARM Cortex-M0 microcontroller

In addition to the three CRP levels, sampling of pin PIO0_1 for valid user code can be

disabled. For details see the LPC112x user manual.

7.16.5 APB interface

The APB peripherals are located on one APB bus.

7.16.6 AHBLite

The AHBLite connects the CPU bus of the ARM Cortex-M0 to the flash memory, the main

static RAM, and the Boot ROM.

7.16.7 External interrupt inputs

All GPIO pins can be level or edge sensitive interrupt inputs. In addition, start logic inputs

serve as external interrupts (see Section 7.16.1).

7.17 Emulation and debugging

Debug functions are integrated into the ARM Cortex-M0. Serial wire debug with four

breakpoints and two watchpoints is supported.

CAUTION

If level three Code Read Protection (CRP3) is selected, no future factory testing can be

performed on the device.

Product data sheet Rev. 1. — 24 February 2015 23 of 63

NXP Semiconductors LPC112x

32-bit ARM Cortex-M0 microcontroller

8. Limiting values

[1] The following applies to the limiting values:

a) This product includes circuitry specifically designed for the protection of its internal devices from the damaging effects of excessive

static charge. Nonetheless, it is suggested that conventional precautions be taken to avoid applying greater than the rated

maximum.

b) Parameters are valid over operating temperature range unless otherwise specified. All voltages are with respect to VSS unless

otherwise noted.

c) The limiting values are stress ratings only. Operating the part at these values is not recommended, and proper operation is not

guaranteed. The conditions for functional operation are specified in Table 6.

[2] Maximum/minimum voltage above the maximum operating voltage (see Table 6) and below ground that can be applied for a short time

(< 10 ms) to a device without leading to irrecoverable failure. Failure includes the loss of reliability and shorter lifetime of the device.

[3] See Table 6 for maximum operating voltage.

[4] VDD present or not present. Compliant with the I2C-bus standard. 5.5 V can be applied to this pin when VDD is powered down.

[5] Including voltage on outputs in 3-state mode.

[6] The maximum non-operating storage temperature is different than the temperature for required shelf life which should be determined

based on required shelf lifetime. Please refer to the JEDEC spec (J-STD-033B.1) for further details.

[7] Human body model: equivalent to discharging a 100 pF capacitor through a 1.5 k series resistor.

Table 4. Limiting values

In accordance with the Absolute Maximum Rating System (IEC 60134).[1]

Symbol Parameter Conditions Min Max Unit

VDD supply voltage (core and external rail) [2] 0.5 +4.6 V

VDDA analog supply voltage [2] 0.5 +4.6 V

Vref reference voltage on pin VREFP 0.5 +4.6 V

VIinput voltage 5 V tolerant I/O

pins; only valid

when the VDD

supply voltage is

present

[5][2] 0.5 +5.5 V

5 V tolerant

open-drain pins

PIO0_4 and

PIO0_5

[2][4] 0.5 +5.5 V

VIA analog input voltage pin configured as

analog input

[2]

[3] 0.5 4.6 V

IDD supply current per supply pin - 100 mA

ISS ground current per ground pin - 100 mA

Ilatch I/O latch-up current (0.5VDD) < VI <

(1.5VDD);

Tj < 125 C

- 100 mA

Tstg storage temperature non-operating [6] 65 +150 C

Tj(max) maximum junction temperature - 150 C

Ptot(pack) total power dissipation (per package) based on package

heat transfer, not

device power

consumption

-1.5W

VESD electrostatic discharge voltage human body

model; all pins

[7] +6500 V

Product data sheet Rev. 1. — 24 February 2015 24 of 63

NXP Semiconductors LPC112x

32-bit ARM Cortex-M0 microcontroller

9. Thermal characteristics

The average chip junction temperature, Tj (C), can be calculated using the following

equation:

(1)

•Tamb = ambient temperature (C)

•Rth(j-a) = the package junction-to-ambient thermal resistance (C/W)

•PD = sum of internal and I/O power dissipation

The internal power dissipation is the product of IDD and VDD. The I/O power dissipation of

the I/O pins is often small and many times can be negligible. However it can be significant

in some applications.

Table 5. Thermal resistance value (C/W): ±15 %

LQFP48

ja

JEDEC (4.5 in  4 in)

0 m/s 82.1

1 m/s 73.7

2.5 m/s 68.2

8-layer (4.5 in  3 in)

0 m/s 115.2

1 m/s 94.7

2.5 m/s 86.3

jc 29.6

jb 34.2

TjTamb PDRth j a–

+=

Product data sheet Rev. 1. — 24 February 2015 25 of 63

NXP Semiconductors LPC112x

32-bit ARM Cortex-M0 microcontroller

10. Static characteristics

Table 6. Static characteristics

Tamb =





C to +105



C, unless otherwise specified.

Symbol Parameter Conditions Min Typ[1] Max Unit

VDD supply voltage (core

and external rail) 1.8 3.3 3.6 V

VDDA analog supply voltage 2.4 3.3 3.6 V

Vref reference voltage on pin VREFP 2.4 - VDDA V

Power consumption in low-current mode[11]

IDD supply current Active mode; code

while(1){}

executed from flash

system clock = 1 MHz

VDD = 3.3 V

[2][3][5][6][7] -0.7- mA

system clock = 6 MHz

VDD = 3.3 V

[2][3][5]

[6][7] -1.0- mA

system clock = 12 MHz

VDD = 3.3 V

[2][3][4]

[6][7] -1.5- mA

system clock = 50 MHz

VDD = 3.3 V

[2][3][6]

[7][8] -6.0- mA

Sleep mode;

system clock = 12 MHz

VDD = 3.3 V

[2][3][4]

[6][7] -0.8- mA

system clock = 50 MHz

VDD = 3.3 V

[2][3][4]

[6][7] -2.4- mA

IDD supply current Deep-sleep mode;

VDD = 3.3 V;

Tamb =25C

[2][3][9]

-1.88 A

Tamb =105C--65A

IDD supply current Deep power-down mode;

VDD = 3.3 V;

Tamb =25C

[2][10]

- 220 900 nA

Tamb =105C--3.5A

Standard port pins, RESET

IIL LOW-level input

current VI= 0 V; on-chip pull-up

resistor disabled -0.510

[17] nA

IIH HIGH-level input

current VI=V

DD; on-chip

pull-down resistor

disabled

-0.510

[17] nA

IOZ OFF-state output

current VO=0V; V

O=V

DD;

on-chip pull-up/down

resistors disabled

-0.510

[17] nA

VIinput voltage pin configured to provide

a digital function;

VDD  1.8 V

[12]

[14] 0- 5.0V

0, 0,

Product data sheet Rev. 1. — 24 February 2015 26 of 63

NXP Semiconductors LPC112x

32-bit ARM Cortex-M0 microcontroller

VDD = 0 V 0- 3.6V

VOoutput voltage output active 0 - VDD V

VIH HIGH-level input

voltage 0.7 VDD --V

VIL LOW-level input

voltage - - 0.3VDD V

Vhys hysteresis voltage - 0.4 - V

VOH HIGH-level output

voltage 2.5 V  VDD  3.6 V;

IOH =4 mA VDD  0.4--V

1.8 V  VDD < 2.5 V;

IOH =3 mA VDD  0.4--V

VOL LOW-level output

voltage 2.5 V  VDD  3.6 V;

IOL =4 mA -- 0.4V

1.8 V  VDD < 2.5 V;

IOL =3 mA -- 0.4V

IOH HIGH-level output

current VOH =V

DD 0.4 V;

1.8 V  VDD  3.6 V

3--mA

IOL LOW-level output

current VOL =0.4V

1.8 V  VDD  3.6 V

3--mA

IOHS HIGH-level

short-circuit output

current

VOH =0V [15] -- 45 mA

IOLS LOW-level

short-circuit output

current

VOL =V

DD [15] -- 50mA

Ipd pull-down current VI=5V 10 50 150 A

Ipu pull-up current VI=0V;

2.0 V  VDD  3.6 V

15 50 85 A

1.8 V  VDD < 2.0 V 10 50 85 A

VDD <V

I<5V 0 0 0 A

High-drive output pin (PIO0_7)

IIL LOW-level input

current VI= 0 V; on-chip pull-up

resistor disabled -0.510

[17] nA

IIH HIGH-level input

current VI=V

DD; on-chip

pull-down resistor

disabled

-0.510

[17] nA

IOZ OFF-state output

current VO=0V; V

O=V

DD;

on-chip pull-up/down

resistors disabled

-0.510

[17] nA

VIinput voltage pin configured to provide

a digital function;

VDD  1.8 V

[12]

[14] 0- 5.0V

VDD = 0 V 0 - 3.6 V

VOoutput voltage output active 0 - VDD V

Table 6. Static characteristics …continued

Tamb =





C to +105



C, unless otherwise specified.

Symbol Parameter Conditions Min Typ[1] Max Unit

Product data sheet Rev. 1. — 24 February 2015 27 of 63

NXP Semiconductors LPC112x

32-bit ARM Cortex-M0 microcontroller

VIH HIGH-level input

voltage 0.7VDD --V

VIL LOW-level input

voltage - - 0.3VDD V

Vhys hysteresis voltage 0.4 - - V

VOH HIGH-level output

voltage 2.5 V  VDD  3.6 V;

IOH =20 mA VDD  0.5--V

1.8 V  VDD < 2.5 V;

IOH =12 mA VDD  0.5--V

VOL LOW-level output

voltage 2.5 V  VDD  3.6 V;

IOL =4 mA -- 0.4V

1.8 V  VDD < 2.5 V;

IOL =3 mA -- 0.4V

IOH HIGH-level output

current VOH =V

DD 0.5 V;

2.5 V  VDD  3.6 V 20--mA

1.8 V  VDD < 2.5 V 12--mA

IOL LOW-level output

current VOL =0.4V

2.5 V  VDD  3.6 V

4--mA

1.8 V  VDD < 2.5 V 3--mA

IOLS LOW-level

short-circuit output

current

VOL =V

DD [15] -- 50mA

Ipd pull-down current VI=5V 10 50 150 A

Ipu pull-up current VI=0V

2.0 V  VDD  3.6 V

15 50 85 A

1.8 V  VDD < 2.0 V 10 50 85 A

VDD <V

I<5V 0 0 0 A

I2C-bus pins (PIO0_4 and PIO0_5)

VIH HIGH-level input

voltage 0.7VDD --V

VIL LOW-level input

voltage - - 0.3VDD V

Vhys hysteresis voltage - 0.05VDD -V

IOL LOW-level output

current VOL =0.4V; I

2C-bus pins

configured as standard

mode pins

2.5 V  VDD  3.6 V

3.5--mA

1.8 V  VDD < 2.5 V 3 - -

IOL LOW-level output

current VOL =0.4V; I

2C-bus pins

configured as Fast-mode

Plus pins

2.5 V  VDD  3.6 V

20--mA

1.8 V  VDD < 2.5 V 16 - -

Table 6. Static characteristics …continued

Tamb =





C to +105



C, unless otherwise specified.

Symbol Parameter Conditions Min Typ[1] Max Unit

Product data sheet Rev. 1. — 24 February 2015 28 of 63

NXP Semiconductors LPC112x

32-bit ARM Cortex-M0 microcontroller

ILI input leakage current VI=V

DD [16] -2 4 A

VI=5V - 10 22 A

Oscillator pins

Vi(xtal) crystal input voltage 0.5 1.8 1.95 V

Vo(xtal) crystal output voltage 0.5 1.8 1.95 V

Table 6. Static characteristics …continued

Tamb =





C to +105



C, unless otherwise specified.

Symbol Parameter Conditions Min Typ[1] Max Unit

Product data sheet Rev. 1. — 24 February 2015 29 of 63

NXP Semiconductors LPC112x

32-bit ARM Cortex-M0 microcontroller

[1] Typical ratings are not guaranteed. The values listed are at room temperature (25 C), nominal supply voltages.

[2] Tamb =25C.

[3] IDD measurements were performed with all pins configured as GPIO outputs driven LOW and pull-up resistors disabled.

[4] IRC enabled; system oscillator disabled; system PLL disabled.

[5] System oscillator enabled; IRC disabled; system PLL disabled.

[6] BOD disabled.

[7] All peripherals disabled in the SYSAHBCLKCTRL register. Peripheral clocks to UART and SSP0/1 disabled in system configuration

block.

[8] IRC disabled; system oscillator enabled; system PLL enabled.

[9] All oscillators and analog blocks turned off in the PDSLEEPCFG register; PDSLEEPCFG = 0x0000 18FF.

[10] WAKEUP pin pulled HIGH externally.

[11] Low-current mode PWR_LOW_CURRENT selected when running the set_power routine in the power profiles.

[12] Including voltage on outputs in 3-state mode.

[13] VDD supply voltage must be present.

[14] 3-state outputs go into 3-state mode in Deep power-down mode.

[15] Allowed as long as the current limit does not exceed the maximum current allowed by the device.

[16] To VSS.

[17] Characterized on samples. Not tested in production.

Pin capacitance

Cio input/output

capacitance pins configured for analog

function -- 7.1pF

I2C-bus pins (PIO0_4 and

PIO0_5) - - 2.5 pF

pins configured as GPIO - - 2.8 pF

Table 6. Static characteristics …continued

Tamb =





C to +105



C, unless otherwise specified.

Symbol Parameter Conditions Min Typ[1] Max Unit

Product data sheet Rev. 1. — 24 February 2015 30 of 63

NXP Semiconductors LPC112x

32-bit ARM Cortex-M0 microcontroller

10.1 Power consumption

Power measurements in Active, Sleep, and Deep-sleep modes were performed under the

following conditions (see LPC112x user manual):

•Configure all pins as GPIO with pull-up resistor disabled in the IOCON block.

•Configure GPIO pins as outputs using the GPIOnDIR registers.

•Write 0 to all GPIOnDATA registers to drive the outputs LOW.

Conditions: VDD = 3.3 V; active mode entered executing code

while(1){}

from flash; all

peripherals disabled in the SYSAHBCLKCTRL register (SYSAHBCLKCTRL = 0x1F); all peripheral

clocks disabled; internal pull-up resistors disabled; BOD disabled; low-current mode.

3 MHz - 6 MHz: system oscillator enabled; PLL, IRC disabled.

12 MHz: IRC enabled; system oscillator, PLL disabled.

24 MHz - 48 MHz: IRC disabled; system oscillator, PLL enabled.

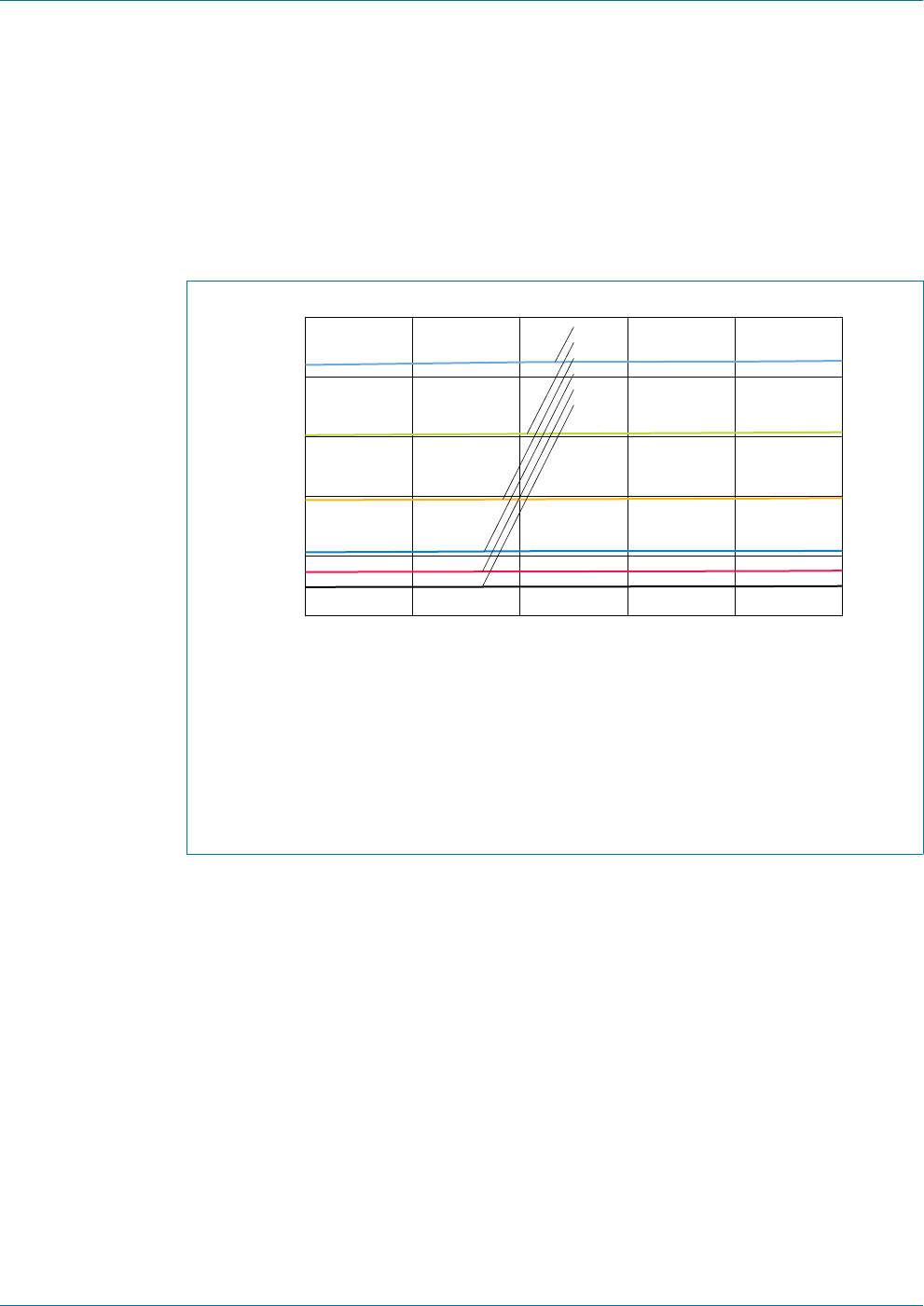

Fig 5. Active mode: Typical supply current IDD versus temperature for different system

clock frequencies

aaa-016554

-40 -10 20 50 80 110

Temperature (°C)

IDD

(mA)

48MHz

36MHz

24MHz

12MHz

6MHz

1MHz

Product data sheet Rev. 1. — 24 February 2015 31 of 63

NXP Semiconductors LPC112x

32-bit ARM Cortex-M0 microcontroller

Conditions: VDD = 3.3 V; sleep mode entered from flash; all peripherals disabled in the

SYSAHBCLKCTRL register (SYSAHBCLKCTRL = 0x1F); all peripheral clocks disabled; internal

pull-up resistors disabled; BOD disabled; low-current mode.

3 MHz - 6 MHz: system oscillator enabled; PLL, IRC disabled.

12 MHz: IRC enabled; system oscillator, PLL disabled.

24 MHz - 48 MHz: IRC disabled; system oscillator, PLL enabled.

Fig 6. Sleep mode: Typical supply current IDD versus temperature for different system

clock frequencies

aaa-016555

-40 -10 20 50 80 110

0.5

1.5

2.5

Temperature (°C)

IDD

(mA)

48MHz

36MHz

24MHz

12MHz

6MHz

1MHz

Product data sheet Rev. 1. — 24 February 2015 32 of 63

NXP Semiconductors LPC112x

32-bit ARM Cortex-M0 microcontroller

10.2 CoreMark data

Remark: All CoreMark data were taken with the Keil uVision v. 5.1.0 tool.

Conditions: BOD disabled; all oscillators and analog blocks disabled in the PDSLEEPCFG register

(PDSLEEPCFG = 0x0000 18FF).

Fig 7. Deep-sleep mode: Typical supply current IDD versus temperature for different

supply voltages VDD

Fig 8. Deep power-down mode: Typical supply current IDD versus temperature for

different supply voltages VDD

DDD

     













7HPSHUDWXUH&

,''''

,''

$$$

999

999

999

DDD

     











7HPSHUDWXUH&

,''''

,''

$$$

999

999

999

Product data sheet Rev. 1. — 24 February 2015 33 of 63

NXP Semiconductors LPC112x

32-bit ARM Cortex-M0 microcontroller

VDD = 3.3 V; T = 25 °C; active mode; typical samples.

Fig 9. CoreMark score for different Power API modes

VDD = 3.3 V; T = 25 °C; active mode; typical samples. System oscillator enabled; main clock

derived from external clock signal; PLL and SYSAHBCLKDIV enabled for frequencies > 20 MHz.

Fig 10. CoreMark current consumption for different power modes using external clock

aaa-016556

010 20 30 40 50

0.4

0.8

1.2

1.6

Frequency (MHz)

CMCMCM

((iterations/s)/MHz)

CPU performanceCPU performanceCPU performance

EfficiencyEfficiencyEfficiency

DefaultDefaultDefault

Low PowerLow PowerLow Power

aaa-016557

010 20 30 40 50

Frequency (MHz)

IDD

(mA)

Default

CPU performance

Efficiency

Low Power

Product data sheet Rev. 1. — 24 February 2015 34 of 63

NXP Semiconductors LPC112x

32-bit ARM Cortex-M0 microcontroller

10.3 Peripheral power consumption

The supply current per peripheral is measured as the difference in supply current between

the peripheral block enabled and the peripheral block disabled in the SYSAHBCLKCFG

and PDRUNCFG (for analog blocks) registers. All other blocks are disabled in both

registers and no code is executed. Measured on a typical sample at Tamb =25 C. Unless

noted otherwise, the system oscillator and PLL are running in both measurements.

The supply currents are shown for system clock frequencies of 12 MHz and 48 MHz.

Table 7. Power consumption for individual analog and digital blocks

Peripheral Typical supply current in

mA Notes

n/a 12 MHz 48 MHz

IRC 0.212 - - System oscillator running; PLL off; independent

of main clock frequency.

System oscillator

at 12 MHz 0.1928 - - IRC running; PLL off; independent of main clock

frequency.

Watchdog

oscillator at

500 kHz/2

0.002 - - System oscillator running; PLL off; independent

of main clock frequency.

BOD 0.051 - - Independent of main clock frequency.

Main PLL - 0.0686 -

ADC - 0.0532 0.2074

CLKOUT - 0.0104 0.0392 Main clock divided by 4 in the CLKOUTDIV

CT16B0 - 0.0266 0.1028

CT16B1 - 0.025 0.0956

CT32B0 - 0.026 0.0998

CT32B1 - 0.0246 0.0956

GPIO - 0.2252 0.8754 GPIO pins configured as outputs and set to

LOW. Direction and pin state are maintained if

the GPIO is disabled in the SYSAHBCLKCFG

IOCON - 0.0324 0.1262

I2C - 0.0384 0.1484

ROM - 0.017 0.0658

SSP0 - 0.0482 0.187

SSP1 - 0.048 0.1862

UART0 - 0.0862 0.334

UART1 - 0.0836 0.3236

UART2 - 0.0818 0.3176

WWDT - 0.039 0.1964 Main clock selected as clock source for the

WDT.

\ \

Product data sheet Rev. 1. — 24 February 2015 35 of 63

NXP Semiconductors LPC112x

32-bit ARM Cortex-M0 microcontroller

10.4 Electrical pin characteristics

Conditions: VDD = 1.8 V; on pin PIO0_7. Conditions: VDD = 3.3 V; on pin PIO0_7.

Fig 11. High-drive output: Typical HIGH-level output voltage VOH versus HIGH-level output current IOH

aaa-013973

0 4 8 12 16 20 24

1.2

1.3

1.4

1.5

1.6

1.7

1.8

(mA)

(V)

-40 C

-40 °C

25 C

25 °C

90 C

90 °C

105 C

105 °C

aaa-013974

020 40 60 80

2.3

2.6

2.9

3.2

3.5

(mA)

(V)

-40 C

-40 °C

25 C

25 °C

90 C

90 °C

105 C

105 °C

Conditions: VDD = 1.8 V; on pins PIO0_4 and PIO0_5. Conditions: VDD = 3.3 V; on pins PIO0_4 and PIO0_5.

Fig 12. I2C-bus pins (high current sink): Typical LOW-level output current IOL versus LOW-level output voltage

VOL

aaa-013964

0 0.1 0.2 0.3 0.4 0.5 0.6

VOL (V)

IOLOL

IOL

(mA)(mA)(mA)

-40 C-40 C-40 °C

25 C25 C25 °C

90 C90 C90 °C

105 C105 C105 °C

aaa-013972

0 0.1 0.2 0.3 0.4 0.5 0.6

VOL (V)

IOLOL

IOL

(mA)(mA)(mA)

-40 C-40 C-40 °C

25 C25 C25 °C

90 C90 C90 °C

105 C105 C105 °C

/ \%

Product data sheet Rev. 1. — 24 February 2015 36 of 63

NXP Semiconductors LPC112x

32-bit ARM Cortex-M0 microcontroller

Conditions: VDD = 1.8 V; standard port pins and

high-drive pin PIO0_7.

Conditions: VDD = 3.3 V; standard port pins and

high-drive pin PIO0_7.

Fig 13. Typical LOW-level output current IOL versus LOW-level output voltage VOL

aaa-013975

0 0.1 0.2 0.3 0.4 0.5 0.6

VOL (V)

IOLOL

IOL

(mA)(mA)(mA)

-40 C-40 C-40 °C

25 C25 C25 °C

90 C90 C90 °C

105 C105 C105 °C

aaa-013976

0 0.1 0.2 0.3 0.4 0.5 0.6

VOL (V)

IOLOL

IOL

(mA)(mA)(mA)

-40 C-40 C-40 °C

25 C25 C25 °C

90 C90 C90 °C

105 C105 C105 °C

Conditions: VDD = 1.8 V; standard port pins. Conditions: VDD = 3.3 V; standard port pins.

Fig 14. Typical HIGH-level output voltage VOH versus HIGH-level output source current IOH

aaa-013977

0 1.5 3 4.5 6

1.2

1.3

1.4

1.5

1.6

1.7

1.8

(mA)

(V)

-40 C

-40 °C

25 C

25 °C

90 C

90 °C

105 C

105 °C

aaa-013978

0 8 16 24

2.3

2.6

2.9

3.2

3.5

(mA)

OHOH

(V)(V)(V)

-40 C-40 C-40 °C

25 C25 C25 °C

90 C90 C90 °C

105 C105 C105 °C

Product data sheet Rev. 1. — 24 February 2015 37 of 63

NXP Semiconductors LPC112x

32-bit ARM Cortex-M0 microcontroller

Conditions: VDD = 1.8 V; standard port pins. Conditions: VDD = 3.3 V; standard port pins.

Fig 15. Typical pull-up current IPU versus input voltage VI

aaa-013979

0 0.7 1.4 2.1 2.8 3.5

-16

-12

-8

-4

VI (V)

Ipupu

Ipu

(uA)(uA)(μA)

-40 C-40 C-40 °C

105 C105 C105 °C

90 C90 C90 °C

25 C25 C25 °C

aaa-013980

0 1 2 3 4 5

-70

-56

-42

-28

-14

VI (V)

Ipu

(uA)

(μA)

105 C

105 °C

-40 C

-40 °C

90 C

90 °C

25 C

25 °C

Conditions: VDD = 1.8 V; standard port pins. Conditions: VDD = 3.3 V; standard port pins.

Fig 16. Typical pull-down current IPD versus input voltage VI

aaa-013981

0 0.7 1.4 2.1 2.8 3.5

VI (V)

Ipupu

Ipd

(uA)(uA)(μA)

-40 C-40 C-40 °C

25 C25 C25 °C

90 C90 C90 °C

105 C105 C105 °C

aaa-013982

0 1 2 3 4 5

VI (V)

Ipdpd

Ipd

(uA)(uA)(μA)

-40 C-40 C-40 °C

25 C25 C25 °C

90 C90 C90 °C

105 C105 C105 °C

Product data sheet Rev. 1. — 24 February 2015 38 of 63

NXP Semiconductors LPC112x

32-bit ARM Cortex-M0 microcontroller

11. Dynamic characteristics

11.1 Flash memory

[1] Number of program/erase cycles.

[2] Programming times are given for writing 256 bytes from RAM to the flash. Data must be written to the flash

in blocks of 256 bytes.

11.2 External clock

[1] Parameters are valid over operating temperature range unless otherwise specified.

[2] Typical ratings are not guaranteed. The values listed are at room temperature (25 C), nominal supply

voltages.

Table 8. Flash characteristics

Tamb =





C to +105



C, unless otherwise specified.

Symbol Parameter Conditions Min Typ Max Unit

Nendu endurance [1] 10000 100000 - cycles

tret retention time powered 10 - - years

unpowered 20 - - years

ter erase time sector or multiple

consecutive

sectors

95 100 105 ms

tprog programming

time

[2] 0.95 1 1.05 ms

Table 9. Dynamic characteristic: external clock

Tamb =





C to +105



C; VDD over specified ranges.[1]

Symbol Parameter Min Typ[2] Max Unit

fosc oscillator frequency 1 - 25 MHz

Tcy(clk) clock cycle time 40 - 1000 ns

tCHCX clock HIGH time Tcy(clk) 0.4--ns

tCLCX clock LOW time Tcy(clk) 0.4--ns

tCLCH clock rise time - - 5 ns

tCHCL clock fall time - - 5 ns

Fig 17. External clock timing (with an amplitude of at least Vi(RMS) = 200 mV)

tCHCL tCLCX

tCHCX

Tcy(clk)

tCLCH

002aaa907

Product data sheet Rev. 1. — 24 February 2015 39 of 63

NXP Semiconductors LPC112x

32-bit ARM Cortex-M0 microcontroller

11.3 Internal oscillators

[1] Parameters are valid over operating temperature range unless otherwise specified.

[2] Typical ratings are not guaranteed. The values listed are for room temperature (25 C), nominal supply

voltages.

[1] Typical ratings are not guaranteed. The values listed are at nominal supply voltages.

[2] The typical frequency spread over processing and temperature (Tamb = 40 C to +105 C) is 40 %.

[3] See the LPC112x user manual.

Table 10. Dynamic characteristics: IRC

Tamb =





C to +105



C; 2.7 V



VDD



3.6 V[1].

Symbol Parameter Conditions Min Typ[2] Max Unit

fosc(RC) internal RC oscilla-

tor frequency

25 C  Tamb  +85 C 12 - 1 % 12 12 + 1 % MHz

40 C  Tamb < 25 C 12 - 2.5 % 12 12 + 1 % MHz

85 C < Tamb  105 C 12 - 1.5 % 12 12 + 1.5 % MHz

Conditions: Frequency values are typical values. 12 MHz  1 % accuracy is guaranteed for

2.7 V  VDD  3.6 V and Tamb =25 C to +85 C. Variations between parts may cause the IRC to

fall outside the 12 MHz  1 % accuracy specification for voltages below 2.7 V.

Fig 18. Typical Internal RC oscillator frequency versus temperature

Table 11. Dynamic characteristics: WatchDog oscillator

Symbol Parameter Conditions Min Typ[1] Max Unit

fosc(int) internal oscillator

frequency DIVSEL = 0x1F, FREQSEL = 0x1

in the WDTOSCCTRL register;

[2][3] -9.4-kHz

DIVSEL = 0x00, FREQSEL = 0xF

in the WDTOSCCTRL register

[2][3] - 2300 - kHz

DDD

     











WHPSHUDWXUH&

0+]0+]0+] 999

999

999

999

Product data sheet Rev. 1. — 24 February 2015 40 of 63

NXP Semiconductors LPC112x

32-bit ARM Cortex-M0 microcontroller

11.4 I/O pins

[1] Applies to standard port pins and RESET pin.

Table 12. Dynamic characteristic: I/O pins[1]

Tamb =





C to +105



C; 3.0 V



VDD



3.6 V.

Symbol Parameter Conditions Min Typ Max Unit

trrise time pin configured

as output 3.0 - 5.0 ns

tffall time pin configured

as output 2.5 - 5.0 ns

Product data sheet Rev. 1. — 24 February 2015 41 of 63

NXP Semiconductors LPC112x

32-bit ARM Cortex-M0 microcontroller

11.5 I2C-bus

[1] See the I2C-bus specification UM10204 for details.

[2] Parameters are valid over operating temperature range unless otherwise specified.

[3] tHD;DAT is the data hold time that is measured from the falling edge of SCL; applies to data in transmission

and the acknowledge.

[4] A device must internally provide a hold time of at least 300 ns for the SDA signal (with respect to the

VIH(min) of the SCL signal) to bridge the undefined region of the falling edge of SCL.

[5] Cb = total capacitance of one bus line in pF.

[6] The maximum tf for the SDA and SCL bus lines is specified at 300 ns. The maximum fall time for the SDA

output stage tf is specified at 250 ns. This allows series protection resistors to be connected in between the

SDA and the SCL pins and the SDA/SCL bus lines without exceeding the maximum specified tf.

[7] In Fast-mode Plus, fall time is specified the same for both output stage and bus timing. If series resistors

are used, designers should allow for this when considering bus timing.

[8] The maximum tHD;DAT could be 3.45 s and 0.9 s for Standard-mode and Fast-mode but must be less than

the maximum of tVD;DAT or tVD;ACK by a transition time (see UM10204). This maximum must only be met if

the device does not stretch the LOW period (tLOW) of the SCL signal. If the clock stretches the SCL, the

data must be valid by the set-up time before it releases the clock.

[9] tSU;DAT is the data set-up time that is measured with respect to the rising edge of SCL; applies to data in

transmission and the acknowledge.

[10] A Fast-mode I2C-bus device can be used in a Standard-mode I2C-bus system but the requirement

tSU;DAT = 250 ns must then be met. This will automatically be the case if the device does not stretch the

LOW period of the SCL signal. If such a device does stretch the LOW period of the SCL signal, it must

output the next data bit to the SDA line tr(max) + tSU;DAT = 1000 + 250 = 1250 ns (according to the

Standard-mode I2C-bus specification) before the SCL line is released. Also the acknowledge timing must

meet this set-up time.

Table 13. Dynamic characteristic: I2C-bus pins[1]

Tamb =





C to +105



C.[2]

Symbol Parameter Conditions Min Max Unit

fSCL SCL clock

frequency Standard-mode 0 100 kHz

Fast-mode 0 400 kHz

Fast-mode Plus 0 1 MHz

tffall time [4][5][6][7] of both SDA and

SCL signals

Standard-mode

- 300 ns

Fast-mode 20 + 0.1  Cb300 ns

Fast-mode Plus - 120 ns

tLOW LOW period of

the SCL clock Standard-mode 4.7 - s

Fast-mode 1.3 - s

Fast-mode Plus 0.5 - s

tHIGH HIGH period of

the SCL clock Standard-mode 4.0 - s

Fast-mode 0.6 - s

Fast-mode Plus 0.26 - s

tHD;DAT data hold time [3][4][8] Standard-mode 0 - s

Fast-mode 0 - s

Fast-mode Plus 0 - s

tSU;DAT data set-up

time

[9][10] Standard-mode 250 - ns

Fast-mode 100 - ns

Fast-mode Plus 50 - ns

Product data sheet Rev. 1. — 24 February 2015 42 of 63

NXP Semiconductors LPC112x

32-bit ARM Cortex-M0 microcontroller

11.6 SSP interfaces

[1] Tcy(clk) = (SSPCLKDIV  (1 + SCR)  CPSDVSR) / fmain. The clock cycle time derived from the SSP bit rate Tcy(clk) is a function of the

main clock frequency fmain, the SSP peripheral clock divider (SSPCLKDIV), the SSP SCR parameter (specified in the SSP0CR0

[2] Tamb = 40 C to 105 C.

[3] Tcy(clk) = 12  Tcy(PCLK).

[4] Tamb = 25 C; for normal voltage supply range: VDD = 3.3 V.

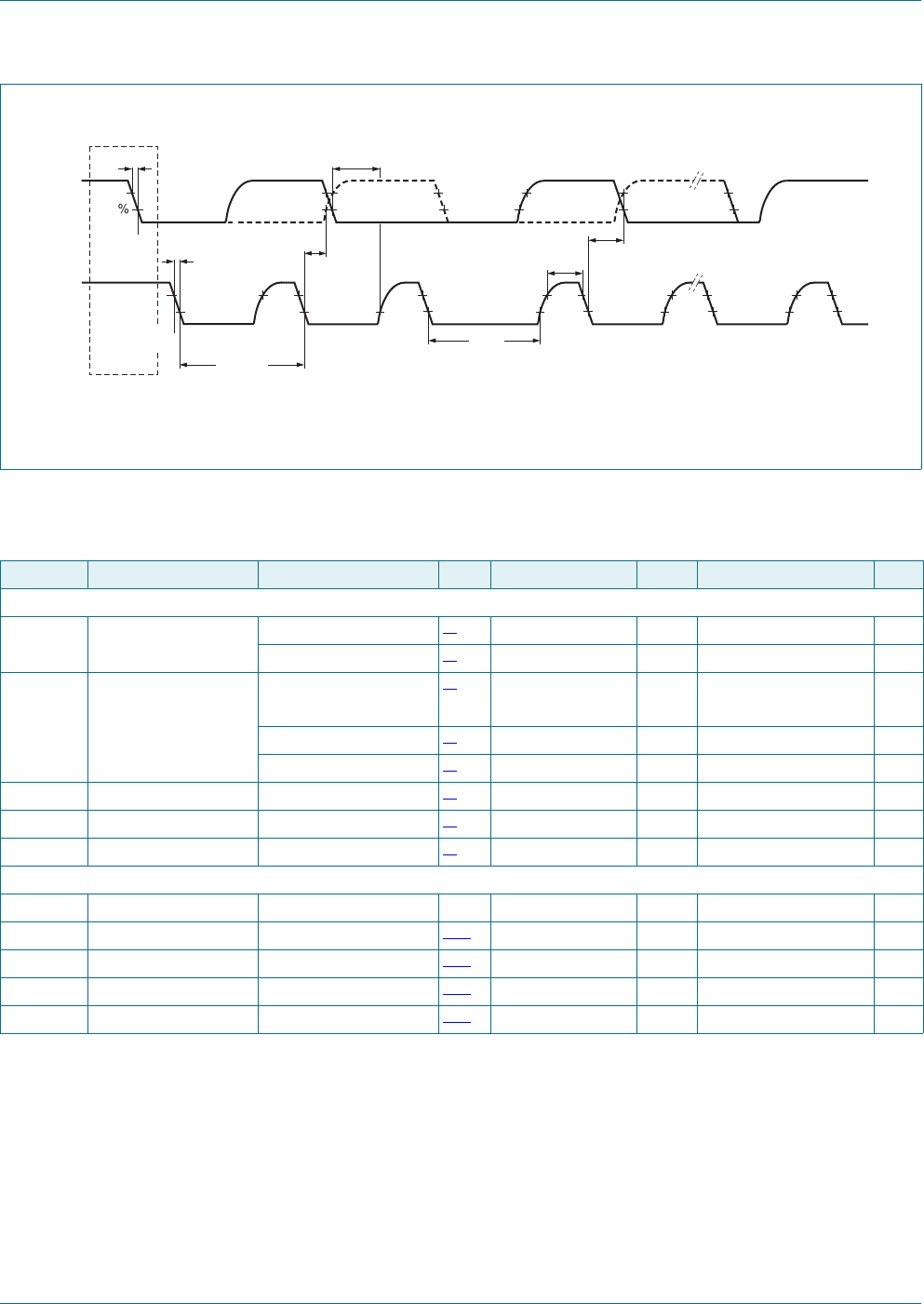

Fig 19. I2C-bus pins clock timing

002aaf425

70 %

30 %

SDA

70 %

30 %

70 %

30 %

70 %

30 %

tHD;DAT

SCL

1 / fSCL

70 %

30 %

70 %

30 %

tVD;DAT

tHIGH

tLOW

tSU;DAT

Table 14. Dynamic characteristics of SSP pins in SPI mode

Symbol Parameter Conditions Min Typ Max Unit

SSP master (in SPI mode)

Tcy(clk) clock cycle time full-duplex mode [1] 50 - - ns

when only transmitting [1] 40 ns

tDS data set-up time in SPI mode

2.4 V  VDD  3.6 V

[2] 20 - - ns

2.0 V  VDD < 2.4 V [2] 25 ns

1.8 V  VDD < 2.0 V [2] 29 - - ns

tDH data hold time in SPI mode [2] 0-- ns

tv(Q) data output valid time in SPI mode [2] --10 ns

th(Q) data output hold time in SPI mode [2] 0-- ns

SSP slave (in SPI mode)

Tcy(PCLK) PCLK cycle time 20 - - ns

tDS data set-up time in SPI mode [3][4] 0-- ns

tDH data hold time in SPI mode [3][4] 3  Tcy(PCLK) + 4 - - ns

tv(Q) data output valid time in SPI mode [3][4] --3  Tcy(PCLK) + 11 ns

th(Q) data output hold time in SPI mode [3][4] --2  Tcy(PCLK) + 5 ns

Product data sheet Rev. 1. — 24 February 2015 43 of 63

NXP Semiconductors LPC112x

32-bit ARM Cortex-M0 microcontroller

Pin names SCK, MISO, and MOSI refer to pins for both SSP peripherals, SSP0 and SSP1.

Fig 20. SSP master timing in SPI mode

SCK (CPOL = 0)

MOSI

MISO

Tcy(clk)

tDS tDH

tv(Q)

DATA VALID DATA VALID

th(Q)

SCK (CPOL = 1)

DATA VALID DATA VALID

MOSI

MISO

tDS tDH

DATA VALID DATA VALID

th(Q)

DATA VALID DATA VALID

tv(Q)

CPHA = 1

CPHA = 0

002aae829

“W W

Product data sheet Rev. 1. — 24 February 2015 44 of 63

NXP Semiconductors LPC112x

32-bit ARM Cortex-M0 microcontroller

Pin names SCK, MISO, and MOSI refer to pins for both SSP peripherals, SSP0 and SSP1.

Fig 21. SSP slave timing in SPI mode

SCK (CPOL = 0)

MOSI

MISO

Tcy(clk)

tDS tDH

tv(Q)

DATA VALID DATA VALID

th(Q)

SCK (CPOL = 1)

DATA VALID DATA VALID

MOSI

MISO

tDS tDH

tv(Q)

DATA VALID DATA VALID

th(Q)

DATA VALID DATA VALID

CPHA = 1

CPHA = 0

002aae830

clerislics,

Product data sheet Rev. 1. — 24 February 2015 45 of 63

NXP Semiconductors LPC112x

32-bit ARM Cortex-M0 microcontroller

12. Analog characteristics

12.1 BOD static characteristics

[1] Interrupt levels are selected by writing the level value to the BOD control register BODCTRL, see LPC111x

user manual.

Table 15. BOD static characteristics[1]

Tamb =25



Symbol Parameter Conditions Min Typ Max Unit

Vth threshold voltage interrupt level 1

assertion - 2.22 - V

de-assertion - 2.35 - V

interrupt level 2

assertion - 2.52 - V

de-assertion - 2.66 - V

interrupt level 3

assertion - 2.80 - V

de-assertion - 2.90 - V

reset level 0

assertion - 1.46 - V

de-assertion - 1.63 - V

reset level 1

assertion - 2.06 - V

de-assertion - 2.15 - V

reset level 2

assertion - 2.35 - V

de-assertion - 2.43 - V

reset level 3

assertion - 2.63 - V

de-assertion - 2.71 - V

Product data sheet Rev. 1. — 24 February 2015 46 of 63

NXP Semiconductors LPC112x

32-bit ARM Cortex-M0 microcontroller

12.2 12-bit ADC

[1] The input resistance of ADC channel 0 is higher than for all other channels.

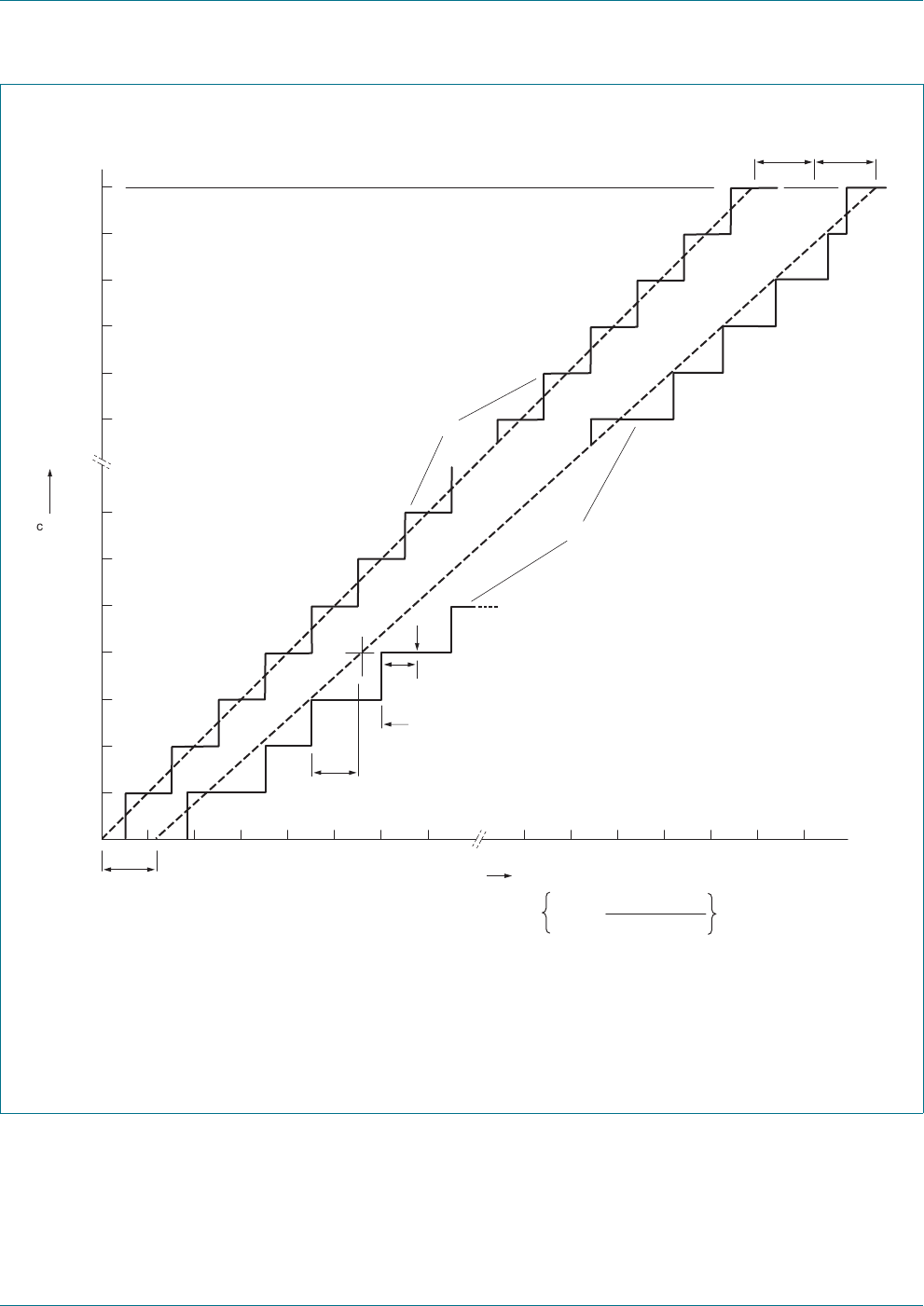

[2] The differential linearity error (ED) is the difference between the actual step width and the ideal step width.

See Figure 22.

[3] The integral non-linearity (EL(adj)) is the peak difference between the center of the steps of the actual and

the ideal transfer curve after appropriate adjustment of gain and offset errors. See Figure 22.

[4] The offset error (EO) is the absolute difference between the straight line which fits the actual curve and the

straight line which fits the ideal curve. See Figure 22.

[5] The full-scale error voltage or gain error (EG) is the difference between the straight line fitting the actual

transfer curve after removing offset error, and the straight line which fits the ideal transfer curve. See

Figure 22.

[6] Tamb = 25 C; maximum sampling frequency fs = 2 Msamples/s and analog input capacitance Cia = 0.32 pF.

[7] Input impedance Zi is inversely proportional to the sampling frequency and the total input capacity including

Cia and Cio: Zi  1 / (fs  Ci). See Table 6 for Cio.

[8] In the ADC TRM register, set VRANGE = 0 (default).

[9] In the ADC TRM register, set VRANGE = 1.

Table 16. 12-bit ADC static characteristics

Tamb =





C to +105



C; VDD = 2.4 V to 3.6 V; VREFP = VDDA; VSSA = 0; VREFN = VSSA.

Symbol Parameter Conditions Min Typ Max Unit

VIA analog input voltage [1] 0V

DDA V

Cia analog input capacitance - 2.5 pF

fclk(ADC) ADC clock frequency VDDA 2.7 V [8] 50 MHz

VDDA 2.4 V [9] 25 MHz

fssampling frequency VDDA 2.7 V [8] - 2 Msamples/s

VDDA 2.4 V [9] - 1 Msamples/s

EDdifferential linearity error [2] -+/- 2- LSB

EL(adj) integral non-linearity [3] -+/- 2- LSB

EOoffset error [4] -+/- 3- LSB

Verr(fs) full-scale error voltage 2 Msamples/s [5] - +/- 0.12 - %

1 Msamples/s +/- 0.07 - %

Ziinput impedance fs = 2 Msamples/s [6][7] 0.1 - M

Product data sheet Rev. 1. — 24 February 2015 47 of 63

NXP Semiconductors LPC112x

32-bit ARM Cortex-M0 microcontroller

(1) Example of an actual transfer curve.

(2) The ideal transfer curve.

(3) Differential linearity error (ED).

(4) Integral non-linearity (EL(adj)).

(5) Center of a step of the actual transfer curve.

Fig 22. 12-bit ADC characteristics

aaa-016908

4095

4094

4093

4092

4091

(2)

(1)

40964090 4091 4092 4093 4094 4095

7123456

4090

(5)

(4)

(3)

1 LSB

(ideal)

code

out

VREFP - VREFN

4096

offset

error

gain

error

offset error

VIA (LSBideal)

1 LSB =

Product data sheet Rev. 1. — 24 February 2015 48 of 63

NXP Semiconductors LPC112x

32-bit ARM Cortex-M0 microcontroller

Fig 23. ADC input impedance

DAC

ADC

Rsw = 5 Ω...25 Ω

R1 = 0.25 kΩ...2.5 kΩ

Cia

ADCn_0

ADCn_[1:11]

aaa-016869

Cio

Table 6 @I H (Figure 24 Table 17 Table 18 Figure 25 Table 17 Figure 25

Product data sheet Rev. 1. — 24 February 2015 49 of 63

NXP Semiconductors LPC112x

32-bit ARM Cortex-M0 microcontroller

13. Application information

13.1 ADC usage notes

The following guidelines show how to increase the performance of the ADC in a noisy

environment beyond the ADC specifications listed in Table 6:

•The ADC input trace must be short and as close as possible to the LPC112x chip.

•The ADC input traces must be shielded from fast switching digital signals and noisy

power supply lines.

•Because the ADC and the digital core share the same power supply, the power supply

line must be adequately filtered.

•To improve the ADC performance in a very noisy environment, put the device in Sleep

mode during the ADC conversion.

13.2 XTAL input

The input voltage to the on-chip oscillators is limited to 1.8 V. If the oscillator is driven by a

clock in slave mode, it is recommended that the input be coupled through a capacitor with

Ci = 100 pF. To limit the input voltage to the specified range, choose an additional

capacitor to ground Cg which attenuates the input voltage by a factor Ci/(Ci + Cg). In slave

mode, a minimum of 200 mV (RMS) is needed.

In slave mode the input clock signal should be coupled by means of a capacitor of 100 pF

(Figure 24), with an amplitude between 200 mV (RMS) and 1000 mV (RMS). This

corresponds to a square wave signal with a signal swing of between 280 mV and 1.4 V.

The XTALOUT pin in this configuration can be left unconnected.

External components and models used in oscillation mode are shown in Figure 25 and in

Table 17 and Table 18. Since the feedback resistance is integrated on chip, only a crystal

and the capacitances CX1 and CX2 need to be connected externally in case of

fundamental mode oscillation (the fundamental frequency is represented by L, CL and

RS). Capacitance CP in Figure 25 represents the parallel package capacitance and should

not be larger than 7 pF. Parameters FOSC, CL, RS and CP are supplied by the crystal

manufacturer (see Table 17).

Fig 24. Slave mode operation of the on-chip oscillator

LPC1xxx

XTALIN

100 pF Cg

002aae788

Product data sheet Rev. 1. — 24 February 2015 50 of 63

NXP Semiconductors LPC112x

32-bit ARM Cortex-M0 microcontroller

13.3 XTAL Printed Circuit Board (PCB) layout guidelines

The crystal should be connected on the PCB as close as possible to the oscillator input

and output pins of the chip. Take care that the load capacitors CX1, CX2, and CX3 in case

of third overtone crystal usage have a common ground plane. The external components

must also be connected to the ground plain. Loops must be made as small as possible in

Fig 25. Oscillator modes and models: oscillation mode of operation and external crystal

model used for CX1/CX2 evaluation

Table 17. Recommended values for CX1/CX2 in oscillation mode (crystal and external

components parameters) low frequency mode

Fundamental oscillation

frequency FOSC

Crystal load

capacitance CL

Maximum crystal

series resistance RS

External load

capacitors CX1, CX2

1 MHz to 5 MHz 10 pF < 300 18 pF, 18 pF

20 pF < 300 39 pF, 39 pF

30 pF < 300 57 pF, 57 pF

5 MHz to 10 MHz 10 pF < 300 18 pF, 18 pF

20 pF < 200 39 pF, 39 pF

30 pF < 100 57 pF, 57 pF

10 MHz to 15 MHz 10 pF < 160 18 pF, 18 pF

20 pF < 60 39 pF, 39 pF

15 MHz to 20 MHz 10 pF < 80 18 pF, 18 pF

Table 18. Recommended values for CX1/CX2 in oscillation mode (crystal and external

components parameters) high frequency mode

Fundamental oscillation

frequency FOSC

Crystal load

capacitance CL

Maximum crystal

series resistance RS

External load

capacitors CX1, CX2

15 MHz to 20 MHz 10 pF < 180 18 pF, 18 pF

20 pF < 100 39 pF, 39 pF

20 MHz to 25 MHz 10 pF < 160 18 pF, 18 pF

20 pF < 80 39 pF, 39 pF

002aaf424

LPC1xxx

XTALIN XTALOUT

CX2

CX1

XTAL

=CLCP

Figure 26

Product data sheet Rev. 1. — 24 February 2015 51 of 63

NXP Semiconductors LPC112x

32-bit ARM Cortex-M0 microcontroller

order to keep the noise coupled in via the PCB as small as possible. Also parasitics

should stay as small as possible. Values of CX1 and CX2 should be chosen smaller

accordingly to the increase in parasitics of the PCB layout.

13.4 Connecting power, clocks, and debug functions

Figure 26 shows the basic board connections used to power the LPC112x and provide

debug capabilities via the serial wire port.

W 47

Product data sheet Rev. 1. — 24 February 2015 52 of 63

NXP Semiconductors LPC112x

32-bit ARM Cortex-M0 microcontroller

(1) See Section 13.2 “XTAL input” for the values of C1 and C2.

(2) Position the decoupling capacitors of 0.1 μF and 0.01 μF as close as possible to the VDD pin. Add one set of decoupling

capacitors to each VDD pin.

(3) Position the decoupling capacitors of 0.1 μF as close as possible to the VREFN and VDD pins. The 10 μF bypass capacitor

filters the power line. Tie VREFP to VDD if the ADC is not used. Tie VREFN to VSS if ADC is not used.

(4) Uses the ARM 10-pin interface for SWD.

(5) When measuring signals of low frequency, use a low-pass filter to remove noise and to improve ADC performance. Also see

Ref. 4.

Fig 26. Power, clock, and debug connections

SWDIO/PIO1_3

SWCLK/PIO0_10

RESET/PIO0_0

VSS

VSSA

PIO0_1

ADC_0

XTALIN

XTALOUT

VDD (2 pins)

VREFP

VREFN

LPC112x

3.3 V

DGND

AGND

Note 4

Note 5

Note 1

DGND

Note 2

Note 3

0.01 μF

0.1 μF

3.3 V

AGND

AGND AGND

10 μF

0.1 μF

ISP select pin

n.c.

SWD connector

3.3 V

~10 kΩ - 100 kΩ

aaa-014718

Table 19 stale, IOCON, IOCON,

Product data sheet Rev. 1. — 24 February 2015 53 of 63

NXP Semiconductors LPC112x

32-bit ARM Cortex-M0 microcontroller

13.5 Termination of unused pins

Table 19 shows how to terminate pins that are not used in the application. In many cases,

unused pins may should be connected externally or configured correctly by software to

minimize the overall power consumption of the part.

Unused pins with GPIO function should be configured as outputs set to LOW with their

internal pull-up disabled. To configure a GPIO pin as output and drive it LOW, select the

GPIO function in the IOCON register, select output in the GPIO DIR register, and write a 0

to the GPIO PORT register for that pin. Disable the pull-up in the pin’s IOCON register.

In addition, it is recommended to configure all GPIO pins that are not bonded out on

smaller packages as outputs driven LOW with their internal pull-up disabled.

[1] I = Input, O = Output, IA = Inactive (no pull-up/pull-down enabled), F = floating, PU = Pull-Up.

13.6 Pin states in different power modes

[1] Default and programmed pin states are retained in sleep, deep-sleep, and power-down modes.

Table 19. Termination of unused pins

Pin Default

state[1] Recommended termination of unused pins

RESET/PIO0_0 I; PU In an application that does not use the RESET pin or its GPIO function, the

termination of this pin depends on whether Deep power-down mode is used:

•Deep power-down used: Connect an external pull-up resistor and keep pin in

default state (input, pull-up enabled) during all other power modes.

•Deep power-down not used and no external pull-up connected: can be left

unconnected if internal pull-up is disabled and pin is driven LOW and

configured as output by software.

all PIOn_m (not

open-drain) I; PU Can be left unconnected if driven LOW and configured as GPIO output with pull-up

disabled by software.

PIOn_m (I2C open-drain) IA Can be left unconnected if driven LOW and configured as GPIO output by software.

VREFP - Tie to VDD.

VREFN - Tie to VSS.

Table 20. Pin states in different power modes

Pin Active Sleep Deep-sleep/Power-

down Deep power-down

PIOn_m pins (not

I2C) As configured in the IOCON[1]. Default: internal pull-up

enabled. Floating.

PIO0_4, PIO0_5

(open-drain

I2C-bus pins)

As configured in the IOCON[1]. Floating.

RESET Reset function enabled. Default: input, internal pull-up

enabled. Reset function disabled; floating; if the part

is in deep power-down mode, the RESET

pin needs an external pull-up to reduce

power consumption.

PIO1_4/

WAKEUP As configured in the IOCON[1]. WAKEUP function inactive. Wake-up function enabled; can be disabled

by software.

Product data sheet Rev. 1. — 24 February 2015 54 of 63

NXP Semiconductors LPC112x

32-bit ARM Cortex-M0 microcontroller

13.7 Standard I/O pad configuration

Figure 27 shows the possible pin modes for standard I/O pins with analog input function:

•Digital output driver.

•Digital input: Pull-up enabled/disabled.

•Digital input: Pull-down enabled/disabled.

•Digital input: Repeater mode enabled/disabled.

•Digital output: Pseudo open-drain mode enable/disabled.

•Analog input.

Fig 27. Standard I/O pad configuration

ESD

strong

pull-up

strong

pull-down

weak

pull-up

weak

pull-down

open-drain enable

output enable

repeater mode

enable

pull-up enable

pull-down enable

data output

data input

analog input

select analog input

002aah159

pin configured

as digital output

driver

pin configured

as digital input

pin configured

as analog input

Product data sheet Rev. 1. — 24 February 2015 55 of 63

NXP Semiconductors LPC112x

32-bit ARM Cortex-M0 microcontroller

13.8 Reset pad configuration

Fig 28. Reset pad configuration

VSS

reset

002aaf274

VDD

Rpu ESD

ESD

20 ns RC

GLITCH FILTER PIN

E© gem—u}

Product data sheet Rev. 1. — 24 February 2015 56 of 63

NXP Semiconductors LPC112x

32-bit ARM Cortex-M0 microcontroller

14. Package outline

Fig 29. LQFP48 package outline

UNIT A

max. A1A2A3bpcE

(1) eH

ELL

pZywv θ

REFERENCES

OUTLINE

VERSION EUROPEAN

PROJECTION ISSUE DATE

IEC JEDEC JEITA

mm 1.6 0.20

0.05 1.45

1.35 0.25 0.27

0.17 0.18

0.12 7.1

6.9 0.5 9.15

8.85 0.95

0.55 7

0.12 0.10.21

DIMENSIONS (mm are the original dimensions)

Note

1. Plastic or metal protrusions of 0.25 mm maximum per side are not included.

0.75

0.45

SOT313-2 MS-026136E05 00-01-19

03-02-25

D(1) (1)(1)

7.1

6.9

9.15

8.85

0.95

0.55

vMB

vMA

36 25

detail X

(A )

0 2.5 5 mm

scale

pin 1 index

LQFP48: plastic low profile quad flat package; 48 leads; body 7 x 7 x 1.4 mm SOT313-2

Product data sheet Rev. 1. — 24 February 2015 57 of 63

NXP Semiconductors LPC112x

32-bit ARM Cortex-M0 microcontroller

15. Soldering

Fig 30. Reflow soldering of the LQFP48 package

SOT313-2

DIMENSIONS in mm

occupied area

Footprint information for reflow soldering of LQFP48 package

AyBy

D2 (8×)D1

(0.125)

Ax Ay Bx By D1 D2 Gx Gy Hx Hy

10.350

0.560 10.350 7.350 7.350

0.500 0.280

1.500 0.500 7.500 7.500 10.650 10.650 sot313-2_fr

solder land

Generic footprint pattern

Refer to the package outline drawing for actual layout

mtpz/lwww.nxp.com/documems/iechnical note/TNOOOOdef

Product data sheet Rev. 1. — 24 February 2015 58 of 63

NXP Semiconductors LPC112x

32-bit ARM Cortex-M0 microcontroller

16. Abbreviations

17. References

[1] User manual UM10839.

[2] Errata sheet ES_LPC112x.

[3] I2C-bus specification UM10204.

[4] Technical note ADC design guidelines:

http://www.nxp.com/documents/technical_note/TN00009.pdf

Table 21. Abbreviations

Acronym Description

ADC Analog-to-Digital Converter

AHB Advanced High-performance Bus

APB Advanced Peripheral Bus

BOD BrownOut Detection

GPIO General Purpose Input/Output

PLL Phase-Locked Loop

RC Resistor-Capacitor

SPI Serial Peripheral Interface

SSI Serial Synchronous Interface

SSP Synchronous Serial Port

TEM Transverse ElectroMagnetic

UART Universal Asynchronous Receiver/Transmitter

Product data sheet Rev. 1. — 24 February 2015 59 of 63

NXP Semiconductors LPC112x

32-bit ARM Cortex-M0 microcontroller

18. Revision history

Table 22. Revision history

Document ID Release date Data sheet status Change notice Supersedes

LPC112x v.1.0 20150224 Product data sheet - -

Product data sheet Rev. 1. — 24 February 2015 60 of 63

NXP Semiconductors LPC112x

32-bit ARM Cortex-M0 microcontroller

19. Legal information

19.1 Data sheet status

[1] Please consult the most recently issued document before initiating or completing a design.

[2] The term ‘short data sheet’ is explained in section “Definitions”.

[3] The product status of device(s) described in this document may have changed since this document was published and may differ in case of multiple devices. The latest product status

information is available on the Internet at URL http://www.nxp.com.

19.2 Definitions

Draft — The document is a draft version only. The content is still under

internal review and subject to formal approval, which may result in

modifications or additions. NXP Semiconductors does not give any

representations or warranties as to the accuracy or completeness of

information included herein and shall have no liability for the consequences of

use of such information.

Short data sheet — A short data sheet is an extract from a full data sheet

with the same product type number(s) and title. A short data sheet is intended

for quick reference only and should not be relied upon to contain detailed and

full information. For detailed and full information see the relevant full data

sheet, which is available on request via the local NXP Semiconductors sales

office. In case of any inconsistency or conflict with the short data sheet, the

full data sheet shall prevail.

Product specification — The information and data provided in a Product

data sheet shall define the specification of the product as agreed between

NXP Semiconductors and its customer, unless NXP Semiconductors and

customer have explicitly agreed otherwise in writing. In no event however,

shall an agreement be valid in which the NXP Semiconductors product is

deemed to offer functions and qualities beyond those described in the

Product data sheet.

19.3 Disclaimers

Limited warranty and liability — Information in this document is believed to

be accurate and reliable. However, NXP Semiconductors does not give any

representations or warranties, expressed or implied, as to the accuracy or

completeness of such information and shall have no liability for the

consequences of use of such information. NXP Semiconductors takes no

responsibility for the content in this document if provided by an information

source outside of NXP Semiconductors.

In no event shall NXP Semiconductors be liable for any indirect, incidental,

punitive, special or consequential damages (including - without limitation - lost

profits, lost savings, business interruption, costs related to the removal or

replacement of any products or rework charges) whether or not such

damages are based on tort (including negligence), warranty, breach of

contract or any other legal theory.

Notwithstanding any damages that customer might incur for any reason

whatsoever, NXP Semiconductors’ aggregate and cumulative liability towards

customer for the products described herein shall be limited in accordance

with the Terms and conditions of commercial sale of NXP Semiconductors.

Right to make changes — NXP Semiconductors reserves the right to make

changes to information published in this document, including without

limitation specifications and product descriptions, at any time and without

notice. This document supersedes and replaces all information supplied prior

to the publication hereof.

Suitability for use — NXP Semiconductors products are not designed,

authorized or warranted to be suitable for use in life support, life-critical or

safety-critical systems or equipment, nor in applications where failure or

malfunction of an NXP Semiconductors product can reasonably be expected

to result in personal injury, death or severe property or environmental

damage. NXP Semiconductors and its suppliers accept no liability for

inclusion and/or use of NXP Semiconductors products in such equipment or

applications and therefore such inclusion and/or use is at the customer’s own

risk.

Applications — Applications that are described herein for any of these

products are for illustrative purposes only. NXP Semiconductors makes no

representation or warranty that such applications will be suitable for the

specified use without further testing or modification.

Customers are responsible for the design and operation of their applications

and products using NXP Semiconductors products, and NXP Semiconductors

accepts no liability for any assistance with applications or customer product

design. It is customer’s sole responsibility to determine whether the NXP

Semiconductors product is suitable and fit for the customer’s applications and

products planned, as well as for the planned application and use of

customer’s third party customer(s). Customers should provide appropriate

design and operating safeguards to minimize the risks associated with their

applications and products.

NXP Semiconductors does not accept any liability related to any default,

damage, costs or problem which is based on any weakness or default in the

customer’s applications or products, or the application or use by customer’s

third party customer(s). Customer is responsible for doing all necessary

testing for the customer’s applications and products using NXP

Semiconductors products in order to avoid a default of the applications and

the products or of the application or use by customer’s third party

customer(s). NXP does not accept any liability in this respect.

Limiting values — Stress above one or more limiting values (as defined in

the Absolute Maximum Ratings System of IEC 60134) will cause permanent

damage to the device. Limiting values are stress ratings only and (proper)

operation of the device at these or any other conditions above those given in

the Recommended operating conditions section (if present) or the

Characteristics sections of this document is not warranted. Constant or

repeated exposure to limiting values will permanently and irreversibly affect

the quality and reliability of the device.

Terms and conditions of commercial sale — NXP Semiconductors

products are sold subject to the general terms and conditions of commercial

sale, as published at http://www.nxp.com/profile/terms, unless otherwise

agreed in a valid written individual agreement. In case an individual

agreement is concluded only the terms and conditions of the respective

agreement shall apply. NXP Semiconductors hereby expressly objects to

applying the customer’s general terms and conditions with regard to the

purchase of NXP Semiconductors products by customer.

No offer to sell or license — Nothing in this document may be interpreted or

construed as an offer to sell products that is open for acceptance or the grant,

conveyance or implication of any license under any copyrights, patents or

other industrial or intellectual property rights.

Document status[1][2] Product status[3] Definition

Objective [short] data sheet Development This document contains data from the objective specification for product development.

Preliminary [short] data sheet Qualification This document contains data from the preliminary specification.

Product [short] data sheet Production This document contains the product specification.

hug :l/www. nxgcom salesaddresses®nx9£0m

Product data sheet Rev. 1. — 24 February 2015 61 of 63

NXP Semiconductors LPC112x

32-bit ARM Cortex-M0 microcontroller

Export control — This document as well as the item(s) described herein

may be subject to export control regulations. Export might require a prior

authorization from competent authorities.

Non-automotive qualified products — Unless this data sheet expressly

states that this specific NXP Semiconductors product is automotive qualified,

the product is not suitable for automotive use. It is neither qualified nor tested

in accordance with automotive testing or application requirements. NXP

Semiconductors accepts no liability for inclusion and/or use of

non-automotive qualified products in automotive equipment or applications.

In the event that customer uses the product for design-in and use in

automotive applications to automotive specifications and standards, customer

(a) shall use the product without NXP Semiconductors’ warranty of the

product for such automotive applications, use and specifications, and (b)

whenever customer uses the product for automotive applications beyond

NXP Semiconductors’ specifications such use shall be solely at customer’s

own risk, and (c) customer fully indemnifies NXP Semiconductors for any

liability, damages or failed product claims resulting from customer design and

use of the product for automotive applications beyond NXP Semiconductors’

standard warranty and NXP Semiconductors’ product specifications.

19.4 Trademarks

Notice: All referenced brands, product names, service names and trademarks

are the property of their respective owners.

I2C-bus — logo is a trademark of NXP Semiconductors N.V.

20. Contact information

For more information, please visit: http://www.nxp.com

For sales office addresses, please send an email to: salesaddresses@nxp.com

Product data sheet Rev. 1. — 24 February 2015 62 of 63

continued >>

NXP Semiconductors LPC112x

32-bit ARM Cortex-M0 microcontroller

21. Contents

1 General description. . . . . . . . . . . . . . . . . . . . . . 1

2 Features and benefits . . . . . . . . . . . . . . . . . . . . 1

3 Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

4 Ordering information. . . . . . . . . . . . . . . . . . . . . 2

4.1 Ordering options . . . . . . . . . . . . . . . . . . . . . . . . 3

5 Block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . 4

6 Pinning information. . . . . . . . . . . . . . . . . . . . . . 4

6.1 Pinning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

6.2 Pin description . . . . . . . . . . . . . . . . . . . . . . . . . 6

7 Functional description . . . . . . . . . . . . . . . . . . 11

7.1 ARM Cortex-M0 processor. . . . . . . . . . . . . . . 11

7.2 On-chip flash program memory . . . . . . . . . . . 11

7.3 On-chip SRAM . . . . . . . . . . . . . . . . . . . . . . . . 11

7.4 Memory map. . . . . . . . . . . . . . . . . . . . . . . . . . 11

7.5 Nested Vectored Interrupt Controller

(NVIC). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

7.5.1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

7.5.2 Interrupt sources. . . . . . . . . . . . . . . . . . . . . . . 13

7.6 IOCON block . . . . . . . . . . . . . . . . . . . . . . . . . 13

7.7 Fast general purpose parallel I/O . . . . . . . . . . 13

7.7.1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

7.8 UART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

7.8.1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

7.9 SSP controller. . . . . . . . . . . . . . . . . . . . . . . . . 14

7.9.1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

7.10 I2C-bus serial I/O controller . . . . . . . . . . . . . . 14

7.10.1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

7.11 Analog-to-Digital Converter

(ADC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

7.11.1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

7.12 General purpose external event

counter/timers. . . . . . . . . . . . . . . . . . . . . . . . . 16

7.12.1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

7.13 System tick timer . . . . . . . . . . . . . . . . . . . . . . 16

7.14 Windowed WatchDog Timer . . . . . . . . . . . . . 16

7.14.1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

7.15 Clocking and power control . . . . . . . . . . . . . . 17

7.15.1 Crystal oscillators . . . . . . . . . . . . . . . . . . . . . . 17

7.15.1.1 Internal RC oscillator . . . . . . . . . . . . . . . . . . . 18

7.15.1.2 System oscillator . . . . . . . . . . . . . . . . . . . . . . 18

7.15.1.3 Watchdog oscillator . . . . . . . . . . . . . . . . . . . . 19

7.15.2 System PLL . . . . . . . . . . . . . . . . . . . . . . . . . . 19

7.15.3 Clock output . . . . . . . . . . . . . . . . . . . . . . . . . . 19

7.15.4 Wake-up process . . . . . . . . . . . . . . . . . . . . . . 19

7.15.5 Power control . . . . . . . . . . . . . . . . . . . . . . . . . 19

7.15.5.1 Power profiles . . . . . . . . . . . . . . . . . . . . . . . . 19

7.15.5.2 Sleep mode . . . . . . . . . . . . . . . . . . . . . . . . . . 20

7.15.5.3 Deep-sleep mode. . . . . . . . . . . . . . . . . . . . . . 20

7.15.5.4 Deep power-down mode . . . . . . . . . . . . . . . . 20

7.16 System control . . . . . . . . . . . . . . . . . . . . . . . . 20

7.16.1 Start logic . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

7.16.2 Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

7.16.3 Brownout detection . . . . . . . . . . . . . . . . . . . . 21

7.16.4 Code security

(Code Read Protection - CRP) . . . . . . . . . . . 21

7.16.5 APB interface. . . . . . . . . . . . . . . . . . . . . . . . . 22

7.16.6 AHBLite . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

7.16.7 External interrupt inputs . . . . . . . . . . . . . . . . . 22

7.17 Emulation and debugging . . . . . . . . . . . . . . . 22

8 Limiting values . . . . . . . . . . . . . . . . . . . . . . . . 23

9 Thermal characteristics . . . . . . . . . . . . . . . . . 24

10 Static characteristics . . . . . . . . . . . . . . . . . . . 25

10.1 Power consumption . . . . . . . . . . . . . . . . . . . 30

10.2 CoreMark data . . . . . . . . . . . . . . . . . . . . . . . . 32

10.3 Peripheral power consumption . . . . . . . . . . . 34

10.4 Electrical pin characteristics. . . . . . . . . . . . . . 35

11 Dynamic characteristics. . . . . . . . . . . . . . . . . 38

11.1 Flash memory . . . . . . . . . . . . . . . . . . . . . . . . 38

11.2 External clock. . . . . . . . . . . . . . . . . . . . . . . . . 38

11.3 Internal oscillators . . . . . . . . . . . . . . . . . . . . . 39

11.4 I/O pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

11.5 I2C-bus. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

11.6 SSP interfaces . . . . . . . . . . . . . . . . . . . . . . . . 42

12 Analog characteristics . . . . . . . . . . . . . . . . . . 45

12.1 BOD static characteristics . . . . . . . . . . . . . . . 45

12.2 12-bit ADC . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

13 Application information . . . . . . . . . . . . . . . . . 49

13.1 ADC usage notes. . . . . . . . . . . . . . . . . . . . . . 49

13.2 XTAL input . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

13.3 XTAL Printed Circuit Board (PCB) layout

guidelines. . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

13.4 Connecting power, clocks, and debug

functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

13.5 Termination of unused pins . . . . . . . . . . . . . . 53

13.6 Pin states in different power modes. . . . . . . . 53

13.7 Standard I/O pad configuration . . . . . . . . . . . 54

13.8 Reset pad configuration. . . . . . . . . . . . . . . . . 55

14 Package outline. . . . . . . . . . . . . . . . . . . . . . . . 56

15 Soldering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

16 Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . 58

17 References. . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

18 Revision history . . . . . . . . . . . . . . . . . . . . . . . 59

NXP Semiconductors LPC112x

32-bit ARM Cortex-M0 microcontroller

For more information, please visit: http://www.nxp.com

For sales office addresses, please send an email to: salesaddresses@nxp.com

Date of release: 24 February 2015

Document identifier: LPC112x

Please be aware that important notices concerning this document and the product(s)

described herein, have been included in section ‘Legal information’.

19 Legal information. . . . . . . . . . . . . . . . . . . . . . . 60

19.1 Data sheet status . . . . . . . . . . . . . . . . . . . . . . 60

19.2 Definitions. . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

19.3 Disclaimers. . . . . . . . . . . . . . . . . . . . . . . . . . . 60

19.4 Trademarks. . . . . . . . . . . . . . . . . . . . . . . . . . . 61

20 Contact information. . . . . . . . . . . . . . . . . . . . . 61

21 Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Datenblatt für LPC112x von NXP USA Inc.

INFORMATION

HILFE

KONTAKT

FOLGEN SIE UNS
