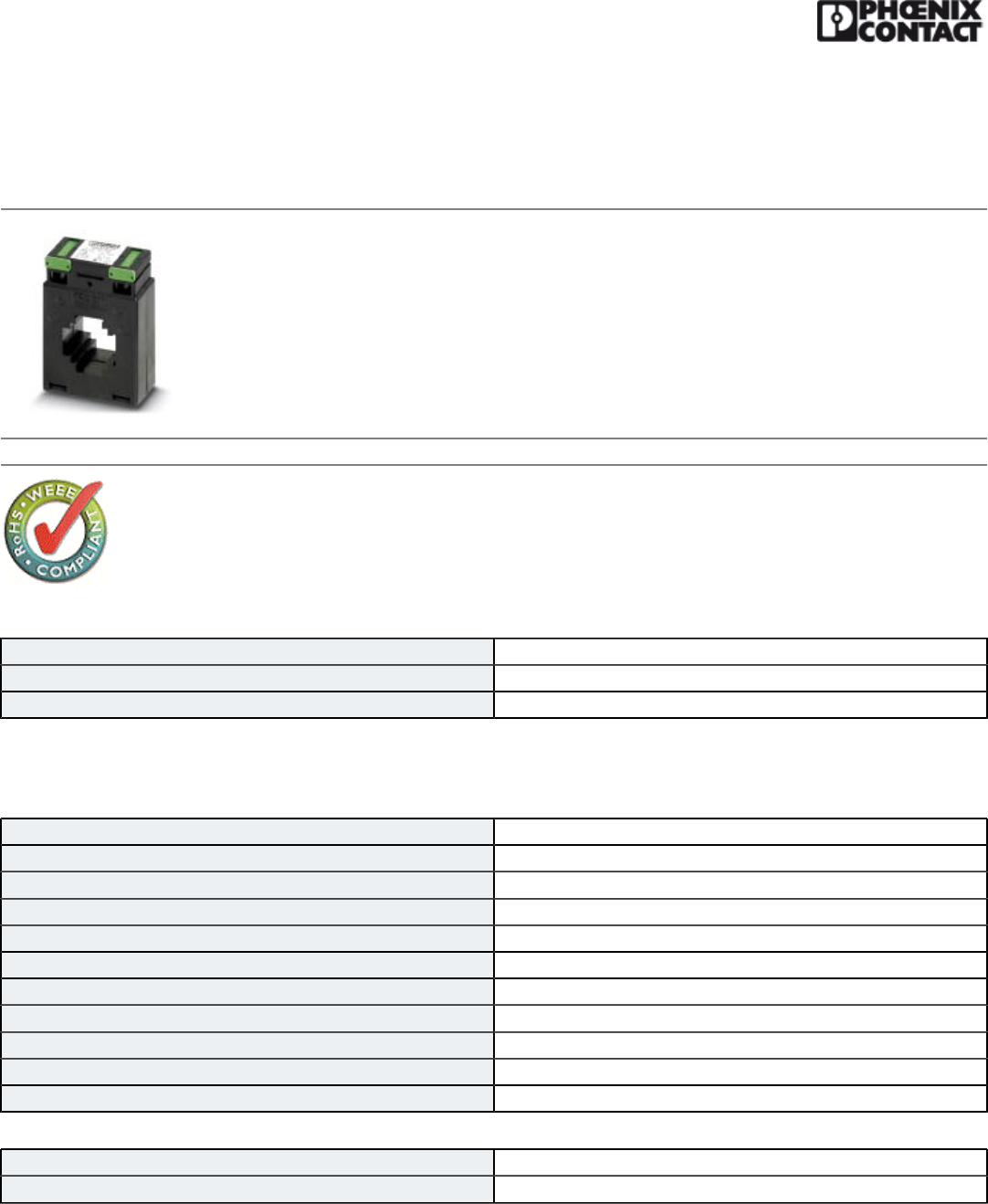

Current transformer-PACT MCR-V2-3015- 60- 200-5A-1-2277857
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Window-type current transformer, 200 A AC primary current; 5 A AC secondary current; accuracy class 1; 7.5 VA
rated power
Key Commercial Data
Packing unit 1 STK
Custom tariff number 85043129
Country of origin Germany
Technical data
Dimensions
Primary round conductor (diameter) 28 mm
Primary round conductor (width) 30 mm
Primary round conductor (height) 15 mm
Primary round conductor (width) 20 mm
Primary round conductor (height) 20 mm
Width 30 mm
Height 80 mm
Depth 60 mm
Width with alternative assembly 60 mm
Height with alternative assembly 80 mm
Depth with alternative assembly 30 mm
Ambient conditions
Ambient temperature (operation) -25 °C ... 40 °C
Ambient temperature (storage/transport) -25 °C ... 40 °C
PHGNIX CON'I'ACI'
https://www.phoenixcontact.com/us/products/2277857
08/29/2016Page2/4
Current transformer-PACT MCR-V2-3015- 60- 200-5A-1-2277857
Technical data
Input data
Thermal rated short-time current Ith = 60 * In
Thermal rated continuous current Id = 1.2 * In
Rated surge current Idyn = 2.5 * Ith
Rated frequency: Standard converter 50 Hz ... 60 Hz
Rated frequency: Calibrated converter 50 Hz
Surge current limitation factor FS 5
Rated power 7.5 VA
Primary rated current Ipn 0 A ... 200 A
Secondary rated current Isn 5 A AC
General
Converter type Plug-on converters
Accuracy class 1
Can be calibrated no
Rated insulation voltage 1 kV (Phase/neutral conductor)
Standards/regulations EN 50178
EN 61869
Color black
Housing material WELLAMID 6600-PA66-GV 20 HWV0CP
Standards and Regulations
Standards/regulations EN 50178
EN 61869

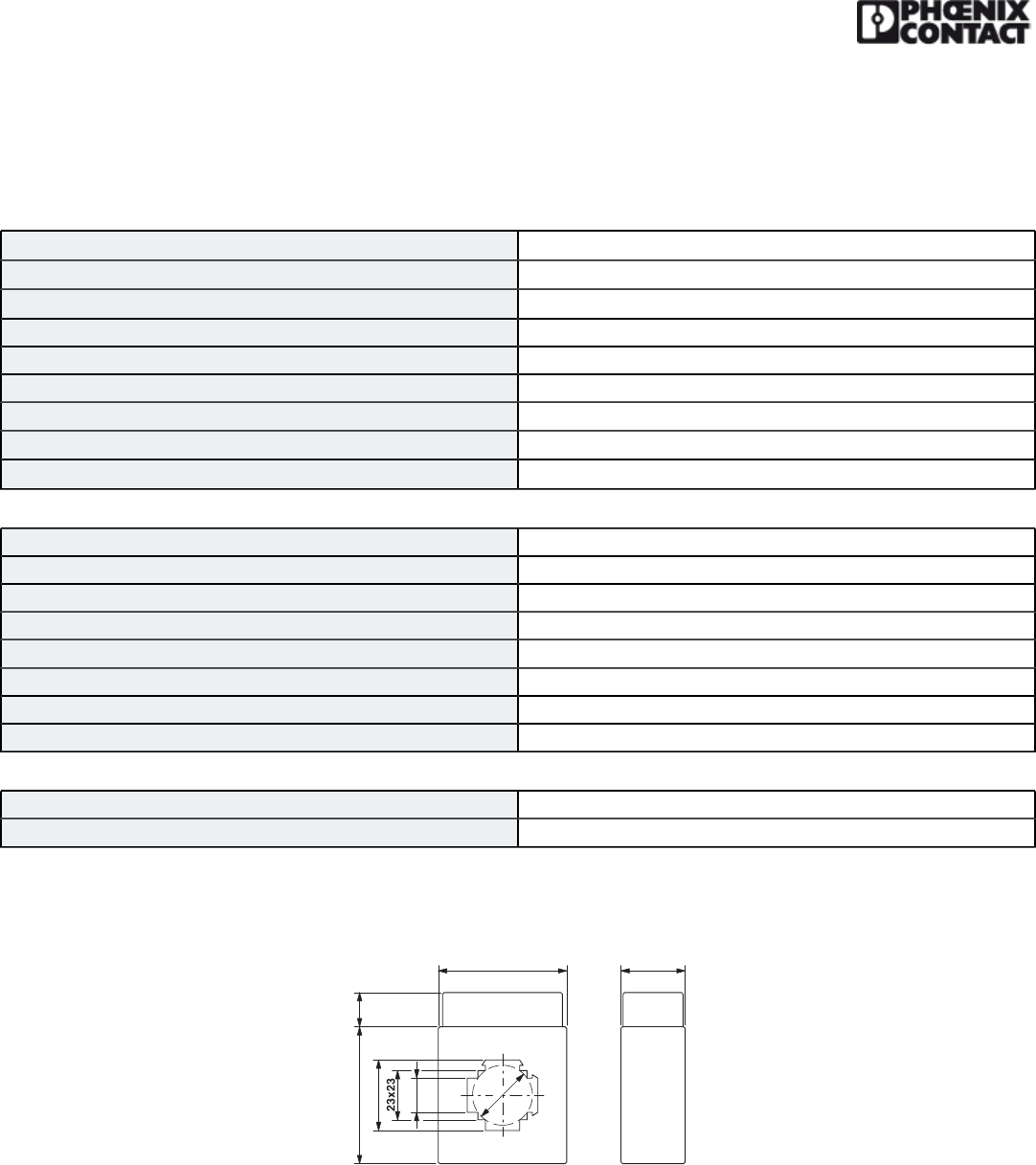

Drawings
Dimensional drawing
30
28
60
16
64
33x16
23x23
16x33
PHGNIX CONTACT
https://www.phoenixcontact.com/us/products/2277857
08/29/2016Page3/4
Current transformer-PACT MCR-V2-3015- 60- 200-5A-1-2277857
Classifications
eCl@ss
eCl@ss 4.0 27210902
eCl@ss 4.1 27210902
eCl@ss 5.0 27210902
eCl@ss 5.1 27210902
eCl@ss 6.0 27210902
eCl@ss 7.0 27210902
eCl@ss 8.0 27210902
eCl@ss 9.0 27210902
ETIM
ETIM 2.0 EC001505
ETIM 3.0 EC001505
ETIM 4.0 EC002048
ETIM 5.0 EC002048
UNSPSC
UNSPSC 6.01 30211501
UNSPSC 7.0901 39121019
UNSPSC 11 39121006
UNSPSC 12.01 39121006
UNSPSC 13.2 39121006
Approvals
Approvals
Approvals
EAC
Ex Approvals
Approval details
EACEAC-Zulassung
t t
https://www.phoenixcontact.com/us/products/2277857
08/29/2016Page4/4
Current transformer-PACT MCR-V2-3015- 60- 200-5A-1-2277857
Accessories
Accessories
Mounting material
Mounting material-PACT-FAST-MNT-W16-L65-2276641
The transformer quick-action mechanism enables the lightning-fast mounting of PACT current transformers on the power
rail. The installation can be completed easily by hand without the use of tools. Fixing pins: 65 mm, holding latches: 16
mm
Mounting material-PACT-FAST-MNT-W16-L40-2276638
The transformer quick-action mechanism enables the lightning-fast mounting of PACT current transformers on the power
rail. The installation can be completed easily by hand without the use of tools. Fixing pins: 40 mm, holding latches: 16
mm
