(DPERICOM‘ EEEEEEEEEEEEEEEEE UUUU [ jjjjjjjjfljjjjjjjj HHHH E E
1www.pericom.com PS8945B.1 03/20/13 All trademarks are property of their respective owners.
Features
4 Differential Channel, 2:1 Mux/DeMux
PCI Express® 2.0 Performance, 5.0Gbps
Pinout optimized for placement between two PCIe slots
Bi-directional operation
Low Bit-to-Bit Skew, 5ps max
Low Crosstalk: -26dB@5 GHz
Low Off Isolation: -20dB@5 GHz
VDD Operating Range: +3.3V
ESD Tolerance: 2kV HBM
Low channel-to-channel skew, 35ps max
Packaging (Pb-free & Green):
42-contact, TQFN (ZH42)
Description
Pericom Semiconductor’s PI3PCIE2415 is an 8 to 4 differential
channel multiplexer/demultiplexer switch. This solution can
switch 2 full PCI Express® 2.0, lanes to one of two locations.
Using a unique design technique, Pericom has been able to
minimize the impedance of the switch such that the attenuation
observed through the switch is negligible. The unique design
technique also offers a layout targeted for PCI Express signals,
which minimizes the channel to channel skew as well as channel
to channel crosstalk as required by the PCI Express specifica-
tion.
Application
Routing of PCIe® 2.0, signals with low signal attenuation.
Block Diagram Pin Description (Top-Side View)
Truth Table
Function SEL
xIy to xOay L
xIy to xOby H
SEL
BI
BI
AI
AI
+
+
–
–
DI
DI
CI
CI
+
+
–
–
BOa
BOa
AOa
AOa
+
+
–
–
BOb
BOb
AOb
AOb
+
+
–
–
DOa
DOa
COa
COa
+
+
–
–
DOb
DOb
COb
COb
+
+
–
–
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
42 41 40 39
18 19 20 21
GND
VDD
GND
VDD
GND
VDD
GND
VDD
GND
AI+
AI-
AOb+
AOb-
BI+
BI-
BOb+
BOb-
VDD
CI+
CI-
COb+
COb-
DI+
DI-
DOb+
DOb-
AOa+
AOa-
GND
GND
VDD
BOa+
BOa-
VDD
SEL
GND
COa+
COa-
VDD
GND
DOa+
DOa-
GND
PI3PCIE2415
3.3V PCI Express® 2.0, 2-Lane, 2:1 Mux/DeMux Switch
13-0009
(DPE/e/CDM“
2www.pericom.com PS8945B.1 03/20/13 All trademarks are property of their respective owners.
PI3PCIE2415
3.3V PCI Express® 2.0, 2-Lane, 2:1 Mux/DeMux Switch
Signal Descriptions
Pin Number Pin Name Type Description
1,
2
AI+,
AI- Differential input
Differential input pair from PCIE signal source. Signal is passed
through to the AOa+, AOa- pin respectively when SEL=0. Signal
is passed through to the AOb+, AOb- pin respectively when SEL
= 1.
37,
36
AOa+,
AOa-
Differential pass-through
input
Differential analog pass-through output. Signal from AI+ and AI-
is passed through AOa+ and AOa- respectively when SEL=0.
3,
4
AOb+,
AOb-
Differential pass-through
input
Differential analog pass-through output. Signal from AI+ and AI-
is passed through AOa+ and AOa- respectively when SEL=1.
5,
6
BI+,
BI- Differential input
Differential input pair from PCIE signal source. Signal is passed
through to the BOa+, BOa- pin respectively when SEL=0. Signal
is passed through to the BOb+, BOb- pin respectively when SEL
= 1.
33,
32
BOa+,
BOa-
Differential pass-through
input
Differential analog pass-through output. Signal from BI+ and BI-
is passed through BOa+ and BOa- respectively when SEL=0.
7,
8
BOb+,
BOb-
Differential pass-through
input
Differential analog pass-through output. Signal from BI+ and BI-
is passed through BOb+ and BOb- respectively when SEL=1.
10,
11
CI+,
CI- Differential input
Differential input pair from PCIE signal source. Signal is passed
through the COa+, COa- pin respectively When SEL=0. Signal is
passed through to the COb+, COb- pin respectively when SEL = 1.
28,
27
COa+,
COa-
Differential pass-through
input
Differential analog pass-through output. Signal from CI+ and CI-
is passed through COa+, COa- pin respectively when SEL = 0.
12,
13
COb+,
COb-
Differential pass-through
input
Differential analog pass-through output. Signal from CI+ and CI-
is passed through COb+, COb- pin respectively when SEL = 1.
14,
15
DI+,
DI- Differential input
Differential input pair from PCIE signal source. Signal is passed
through the DOa+, DOa- pin respectively When SEL=0. Signal is
passed through to the DOb+, DOb- pin respectively when SEL = 1.
24,
23
DOa+,
DOa-
Differential pass-through
input
Differential analog pass-through output. Signal from DI+ and DI-
is passed through DOa+, DOa- pin respectively when SEL = 0.
16,
17
DOb+,
DOb-
Differential pass-through
input
Differential analog pass-through output. Signal from DI+ and DI-
is passed through DOb+, DOb- pin respectively when SEL = 1.
18, 20, 22, 25, 29,
35, 38, 40, 42 GND Ground input Ground
30 SEL 3.6V tolerant low-voltage
single-ended input SEL controls the mux through a flow-through latch.
9, 19, 21, 26, 31,
34, 39, 41 VDD Power supply Power, 3.3V ±10%
13-0009
(DPE/e/CDM“ DD RON CON
3www.pericom.com PS8945B.1 03/20/13 All trademarks are property of their respective owners.
PI3PCIE2415
3.3V PCI Express® 2.0, 2-Lane, 2:1 Mux/DeMux Switch
Recommended Operating Conditions
Symbol Parameter Conditions Min Ty p Max Units
VDD 3.3V Power Supply 3.0 3.3 3.6 V
IDD Total current from VDD
3.3V supply 02.5 mA
TCASE Case temperature range
for operation within spec. -40 85 Celsius
DC Electrical Characteristics (TA = –40°C to +85°C, VDD = 3.3V ± 10%)
Parameter Description Test Conditions Min Typ(1) Max Units
VIH-SEL(2) Input high level, SEL input 2.0 3.6 V
VIL-SEL(2) Input Low Level, SEL input 0 0.8 V
IIN_SEL(2) Input Leakage Current,
SEL input
Measured with input at VIH-SEL max and
VIL-SEL min –10 10 uA
RON
On Resistance VDD = Min., VIN = 1.3V, IIN = 40mA 12 Ohm
CON
On Channel Capacitance VIN = 0, VDD = 3.3V 2.0 pF
Note:
1. Typical values are at VDD = 3.3V, TA = 25°C ambient and maximum loading.
Storage Temperature .........................–65°C to +150°C
Supply Voltage to Ground Potential .............–0.5V to +4.6V
DC Input Voltage ..............................–0.5V to VDD
DC Output Current ..................................120mA
Power Dissipation ......................................0.5W
Maximum Ratings
(Above which useful life may be impaired. For user guidelines, not tested.) Note:
Stresses greater than those listed under MAXI-
MUM RATINGS may cause permanent damage to
the device. This is a stress rating only and func-
tional operation of the device at these or any other
conditions above those indicated in the operational
sections of this specification is not implied. Expo-
sure to absolute maximum rating conditions for
extended periods may affect reliability.
13-0009
(DPERICDM‘ Electrical Characteristics" Electrical Characteristics" Electrical Characteristics" w ".51" m um“ ii IIIJ .i ..
4www.pericom.com PS8945B.1 03/20/13 All trademarks are property of their respective owners.
PI3PCIE2415
3.3V PCI Express® 2.0, 2-Lane, 2:1 Mux/DeMux Switch

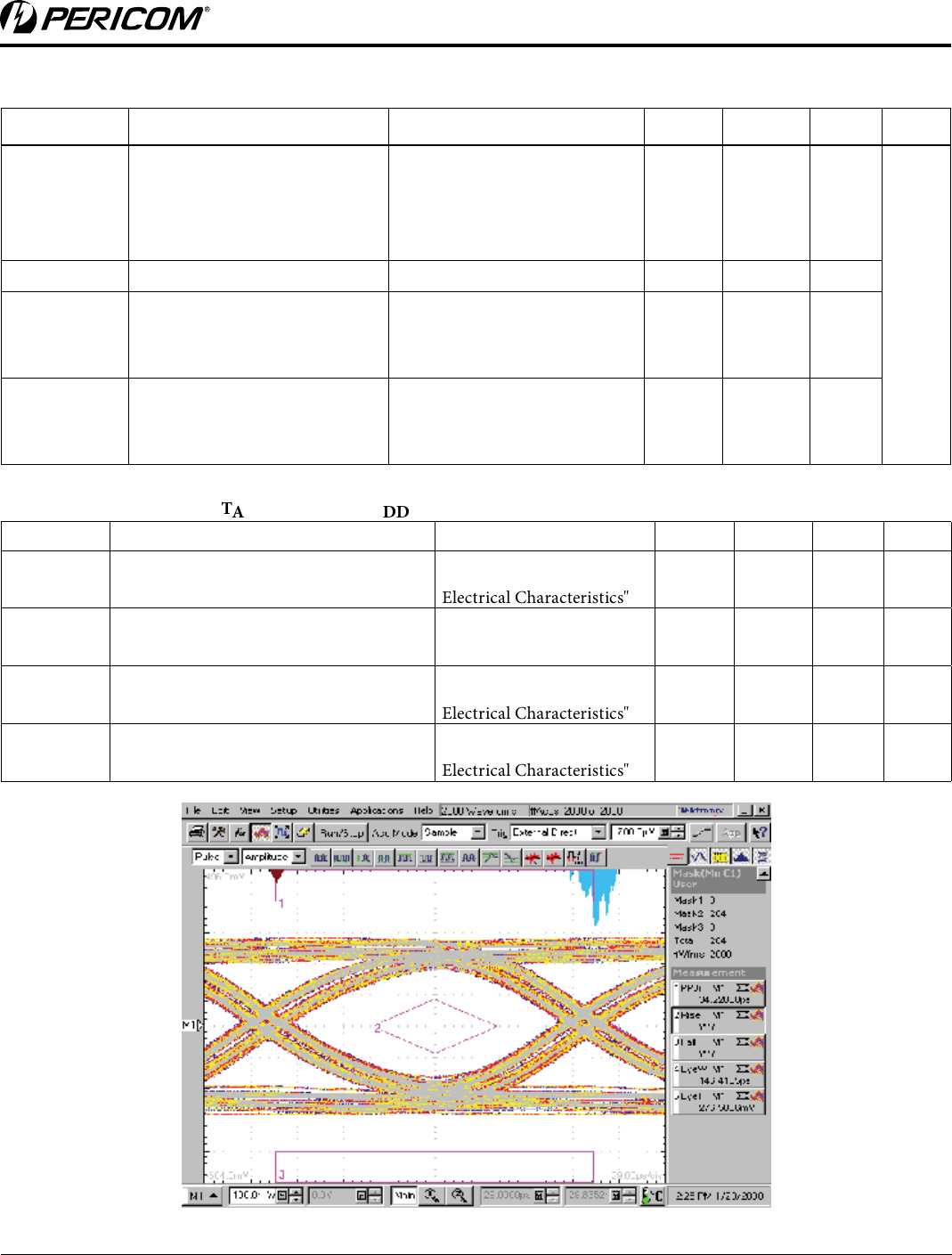

5.0 Gbps Receive Eye Mask -3.5dB WITH the Switch
Dynamic Electrical Characteristics for xI±, xOy±
Parameter Description Test Conditions Min. Ty p.(1) Max. Units
DDIL Differential Insertion Loss
f=1.2GHz
f=2.5GHz
f=5.0GHz
f=7.5GHz
-1.5
-2.0
-5.0
-9.0
dB
DDILOFF Differential Off Isolation f= 0 to 3.0GHz -20.0
DDRL Differential Return Loss
f= 0 to 2.8GHz
f= 2.8 to 5.0GHz
f= 5.0 to 7.5GHz
-14.0
-8.0
-4.0
DDNEXT Near End Crosstalk
f= 0 to 2.5GHz
f= 2.5 to 5.0GHz
f= 5.0 to 7.5GHz
-32.0
-26.0
-20.0
Switching Characteristics (TA= -40º to +85ºC, VDD = 3.3V±10%)
Parameter Description Test Conditions Min. Ty p. Max. Units
tPZH, tPZL Line Enable Time - SEL to xI±, xOy± See "Test Circuit for
Electrical Characteristics"
0.5 12.0 ns
tPHZ, tPLZ Line Disable Time - SEL to xI±, xOy± See "Test Circuit for
Electrical Characteristics" 0.5 12.0 ns
tb-b Bit-to-bit skew within the same differential
pair
See "Test Circuit for
Electrical Characteristics"
7ps
tch-ch Channel-to-channel skew See "Test Circuit for
Electrical Characteristics"
35 ps
13-0009
(DPER/CDM' 1-1. View Chart-.1 Swag: Bairdim 11m 512* Hm. swim Wimhw Heb Ll u| p| Matkaflnffl Mm” zasszenuuequ a __ _l ‘ >1 5525 E 2 , dB 2 a4427 E 2 dB 35139 13 dB 1 W cm SIB“ JUU Dun kHz — Slop 15 noon EH: B Wm Sim LCL 1-1. View Chart-.1 Swag: Bairdim 11m 512* Hm. swim Wimhw Heb yulpl Matkaflnffl Mmfii 81543295027GH2E ___I uuu ‘ 1 zszzaflz , dB 4 2 aaaue E 2 dB 15 an > 549 dB 1o 00 500 ouu ‘ nu mm 1500 2D 00 25 an n [In cm 5131: JUU Dun kHz — Slop 15 Damn EH: Status CH1: —cwm Sim LCL
5www.pericom.com PS8945B.1 03/20/13 All trademarks are property of their respective owners.
PI3PCIE2415
3.3V PCI Express® 2.0, 2-Lane, 2:1 Mux/DeMux Switch
Differential Insertion Loss
Differential Return Loss
13-0009
(DPER/CDM' +1. View Chanrd Swag: Baird'nn Tues and: Hm. 3mm Winrhu Heb I p. p Makeu1al3 MalkfiZ 25000000000 EH1 E __ -l 1 . dB 2 dB r 2 _ v / I ,r M 100 00 cm Sm 300 000 kHz — Slop 15 0000 EH: Slaw 041: E um Sim LCL HI. Viaw L‘hannd Swag: mush. Tue: Suds Marker System wmw Huh Ll u| p| MalkerJ an Malkefl 250000000000Hz E __ _l 000 W“ 0000 um: , dB' 10 00 20 00 )1” 0 00 / 0 00 000 000 10 00 000 0 00 ‘ | 100 00 W cm Slau 300 000 kHz — SIDD 15 0000 EH: I: fl-Po" Sim LEI-
6www.pericom.com PS8945B.1 03/20/13 All trademarks are property of their respective owners.
PI3PCIE2415
3.3V PCI Express® 2.0, 2-Lane, 2:1 Mux/DeMux Switch
Differential Off Isolation
Differential Crosstalk
13-0009
(DPERICDM‘
7www.pericom.com PS8945B.1 03/20/13 All trademarks are property of their respective owners.
PI3PCIE2415
3.3V PCI Express® 2.0, 2-Lane, 2:1 Mux/DeMux Switch
Switching Waveforms
Voltage Waveforms Enable and Disable Times
tPLZ
VDD/2 VDD/2
VDD
VOH
0V
VOL
VDD/2
VDD/2
tPHZ
tPZL
tPZH
Output 1
Output 2
VOL
VOH
SEL
VOL + 0.15V
VOH – 0.15V
R

 






Notes:
1. CL = Load capacitance: includes jig and probe capacitance.
2. RT = Termination resistance: should be equal to ZOUT of the Pulse Generator
3. Output 1 is for an output with internal conditions such that the output is low except when disabled by the output control.
Output 2 is for an output with internal conditions such that the output is high except when disabled by the output control.
4. All input impulses are supplied by generators having the following characteristics: PRR ≤ MHz, ZO = 50Ω, tR ≤ 2.5ns, tF ≤ 2.5ns.
5. The outputs are measured one at a time with one transition per measurement.
+
+



+


+




Diff. Near End Xtalk Test Circuit
+
+





+


Diff. Off Isolation Test Circuit
+
+





Diff. Insertion Loss and Return Test
Circuit
13-0009
(DPE/e/CDM“
8www.pericom.com PS8945B.1 03/20/13 All trademarks are property of their respective owners.
PI3PCIE2415
3.3V PCI Express® 2.0, 2-Lane, 2:1 Mux/DeMux Switch
Differential Inputs/Output Characteristics for PCIe® 2.0 speeds
Symbol Parameter Min Nom Max Units Comments
Tbit Unit Interval 199.94 200.00 200.06 ps Defined by PCIe 2.0 spec.
VRX-Diffp-p
Differential Input Peak-to-
Peak Voltage TBD 1.200 V
VRX-DIFFp-p = 2*|VRX-D+
- VRX-D-|. Applies to IN_S
and RX_IN signals.
TRX-EYE
Minimum Eye Width at
IN_D input pair. TBD Tbit
VCM-AC-pp
AC Peak Common-Mode
Input Voltage 100 mV
VCM-AC-pp = |VRX-D+ +
VRX-D-|/2 - VRX-CM-DC.
VRX-CM-DC = DC(avg) of
|VRX-D++VRX-D-|/2
VCM-AC-pp includes all
frequencies above 30kHz.
ZRX-DIFF-DC
Dc Differential Input
Impedance 80 100 120 W Rx DC Differential Mode
impedance
ZRX-DC DC Input Impedance 40 50 60 W
Required IN_D+ as well as
IN_D- DC impedance (50 W
± 20% tolerance). Includes
mux resistance.
VRX-Bias
Rx input termination volt-
age 02.0 VIntended to limit power-up
stress on PCIe output buffers.
Application Information
13-0009
(DPERICDM‘ *9 0010 ma \ a; /4 PW \ \NDEX AREA US 1m L150 a no REF 084 max a 2051mm 7 Aummkmm my 6) UUUUUUUUUJUUUUUUUU + \ L050 852. J: E E C flflflflflflflflhflflflflflflflf‘r a «0 min as 7551mm nmtomJ W 4 ‘ko za (42x) DEED k} “a D =BIZ! Manx 053[ MK) ? 0 2510.05 DDDDDDDDDDDDDDEED‘V & 6.00 DEED DDDDDDDDDDDDDDD 50 856 368 RECOMMENDED LAND PAWERN (TOP V‘EW) (D PER/CUM mm. 1..., mm
9www.pericom.com PS8945B.1 03/20/13 All trademarks are property of their respective owners.
PI3PCIE2415
3.3V PCI Express® 2.0, 2-Lane, 2:1 Mux/DeMux Switch
Ordering Information
Ordering Code Package Code Package Description
PI3PCIE2415ZHE ZH Pb-free & Green, 42-contact TQFN
Notes:
• Thermal characteristics can be found on the company web site at www.pericom.com/packaging/
• "E" denotes Pb-free and Green
• Adding an "X" at the end of the ordering code denotes tape and reel packaging
Packaging Mechanical: 42-Contact TQFN (ZH)
DATE: 11/14/12
DESCRIPTION: 42-contact Thin Fine Pitch Quad Flat No-Lead (TQFN)
PACKAGE CODE: ZH42
DOCUMENT CONTROL #: PD-2035 REVISION:D
Notes:
1. All dimensions are in millimeters. Angles in degrees.
2. Coplanarity applies to the exposed pad as well as the terminals.
3. Refer JEDEC MO-220.
4. Recommended land pattern is for reference only.
5. Thermal pad soldering area
12-0529
Note: For latest package info, please check: http://www.pericom.com/products/packaging/mechanicals.php
13-0009
