UG122: BGM111 Bluetooth Module Radio

Board User's Guide

A Silicon Labs Wireless Starter Kit for the BGM111 Blue Gecko

Bluetooth® Module is an excellent starting point to get familiar with

the device, and it provides all necessary tools for developing a Sili-

con Labs wireless application.

The Wireless Starter Kit Mainboard contains sensors and peripherals enabling easy

demonstration of some of the BGM111's many capabilities. An on-board J-Link debugger

allows debugging of the attached radio board as well as providing a debug connection

for external hardware.

A plug-in Radio Board contains the reference design for the BGM111 itself, including the

RF section and device-specific hardware.

WSTK MAINBOARD FEATURES

• Ethernet and USB connectivity

• SEGGER J-Link on-board debugger

• Supports debugging the attached radio

board or an external device

• Silicon Labs' Si7021 Relative Humidity and

Temperature sensor

• Ultra low power 128x128 pixel Memory

LCD

• User LEDs / Pushbuttons

• 20-pin 2.54 mm header for expansion

boards

• Breakout pads for direct access to radio

board I/O pins

• Power sources include USB and CR2032

coin cell.

BRD4300A RADIO BOARD FEATURES

• BGM111 Blue Gecko Bluetooth Module

with 256 kB Flash and 32 kB RAM, with

integrated chip antenna, RF matching

network, crystals and decoupling.

EXTENSION BOARD FEATURES

• Accelerometer

• Buttons and LEDs

• Joystick

EXPANSION BOARD FEATURES

• Accelerometer

• Buttons and LEDs

• Joystick

SOFTWARE SUPPORT

• Blue Gecko Bluetooth Software

• Blue Gecko Bluetooth SDK

• Simplicity Studio

• iOS and Android applications

silabs.com | Smart. Connected. Energy-friendly. Rev. 3.00

1. Introduction

The BGM111 Blue Gecko Bluetooth Module itself is featured on a Radio Board that forms a complete reference design, inluding the RF

section and other components.

The BGM111 Radio Board plugs directly into a Wireless Starter Kit Mainboard. The WSTK Mainboard features several tools for easy

evaluation and development of wireless applications. An on-board J-Link debugger enables programming and debugging on the target

device over USB or Ethernet. The Advanced Energy Monitor (AEM) offers real-time current and voltage monitoring. A virtual COM port

interface (VCOM) provides an easy-to-use serial port connection over USB or Ethernet. The Packet Trace Interface (PTI) offers invalua-

ble debug information about transmitted and received packets in wireless links.

All debug functionality, including AEM, VCOM and PTI, can also be used towards external target hardware instead of the attached radio

board.

To further enhance its usability, the WSTK Mainboard contains sensors and peripherals demonstrating some of the BGM111's many

capabilities.

The Wireless Starter Kit for BGM111 includes an add-on board (BRD8006A) that can be connected to the WSTK Mainboard expansion

header. The expansion board contains additional peripherals such as an accelerometer, buttons, LEDs, joystick and a footprint for an

I2C authentication device.

1.1 Radio Boards

A Wireless Starter Kit consists of one or more mainboards and radio boards that plug into the mainboard. Different radio boards are

available. Each featuring different Silicon Labs devices with different operating frequency bands.

Since the mainboard is designed to work with all different radio boards, the actual pin mapping from a device pin to a mainboard feature

is done on the radio board. This means that each radio board has its own pin mapping to the Wireless Starter Kit features such as

buttons, LEDs, the display, the EXP header and the breakout pads. Because this pin mapping is different for every radio board, it is

important that the correct document be consulted which shows the kit features in context of the radio board plugged in.

This document explains how to use the Wireless Starter Kit (Wireless STK) when the BGM111 Bluetooth Module Radio Board

(BRD4300A) is combined with a Wireless STK Mainboard. The combination of these two boards is hereby referred to as a Wireless

Starter Kit (Wireless STK).

UG122: BGM111 Bluetooth Module Radio Board User's Guide

Introduction

silabs.com | Smart. Connected. Energy-friendly. Rev. 3.00 | 1

1.2 Ordering Information

BRD4300A can be obtained as part of SLWSTK6101C Blue Gecko Module Wireless Starter Kit or as a separate radio board,

SLWRB4300A.

Table 1.1. Ordering Information

Part Number Description Contents Notes

SLWSTK6101A Blue Gecko Module Wireless Start-

er Kit

1x BRD4001A Wireless Starter Kit Mainboard

1x BRD4300A BGM111 Bluetooth Module Radio Board

1x BRD8006A Blue Gecko Module Kit Add-on Board

1x CR2032 Lithium battery

1x USB Type A <-> USB Mini-B cable

Obsoleted

SLWSTK6101B Blue Gecko Module Wireless Start-

er Kit

1x BRD4001A Wireless Starter Kit Mainboard

1x BRD4300A BGM111 Bluetooth Module Radio Board

1x BRD4300B BGM113 Bluetooth Module Radio Board

1x BRD8006A Blue Gecko Module Kit Add-on Board

1x CR2032 Lithium battery

1x USB Type A <-> USB Mini-B cable

Obsoleted

SLWSTK6101C Blue Gecko Module Wireless Start-

er Kit

1x BRD4001A Wireless Starter Kit Mainboard

1x BRD4300A BGM111 Bluetooth Module Radio Board

1x BRD4302A BGM121 Bluetooth System-in-Package Radio Board

1x BRD8006A Blue Gecko Module Kit Add-on Board

1x CR2032 Lithium battery

1x USB Type A <-> USB Mini-B cable

SLWRB4300A BGM111 Bluetooth Module Radio

Board

1x BRD4300A BGM111 Bluetooth Module Radio Board

1.3 Getting Started

Detailed instructions for how to get started can be found on the Silicon Labs web pages:

http://www.silabs.com/bluetooth-getstarted

UG122: BGM111 Bluetooth Module Radio Board User's Guide

Introduction

silabs.com | Smart. Connected. Energy-friendly. Rev. 3.00 | 2

Advanced Energy Mannming \ . . . muesczku __ N g. t n sILItuu LABS u mplicity Connector

2. Kit Hardware Overview

The layout of the BGM111 Bluetooth Module Wireless Starter Kit is shown in the figure below.

BGM111

Module

Radio Board

Breakout pads

1.28" Memory-LCD Display

Ultra-low power

128 x 128 pixel resolution

SPI interface

Ethernet RJ-45

J-Link Debugger

Virtual COM port

Packet Trace

Advanced Energy Monitoring

USB mini-B

J-Link Debugger

Virtual COM port

Packet Trace

Advanced Energy Monitoring

Coin Cell Holder

CR2032 Battery

Power Select Switch

BAT / USB / AEM

2x User Push Buttons 2x User LEDs

Simplicity Connector

External targets:

Virtual COM port

Packet Trace

Advanced Energy Monitoring

Debug Connector

ARM Coresight 19-pin

OUT: External targets

IN: External debug probes

Reset Button

Si7021

Relative Temperature &

Humidity Sensor

EXP Header

Expansion board connector

Expansion Board

3-axis Accelerometer

2x Push Buttons

2x LEDs

Analog Joystick

I2C device footprint

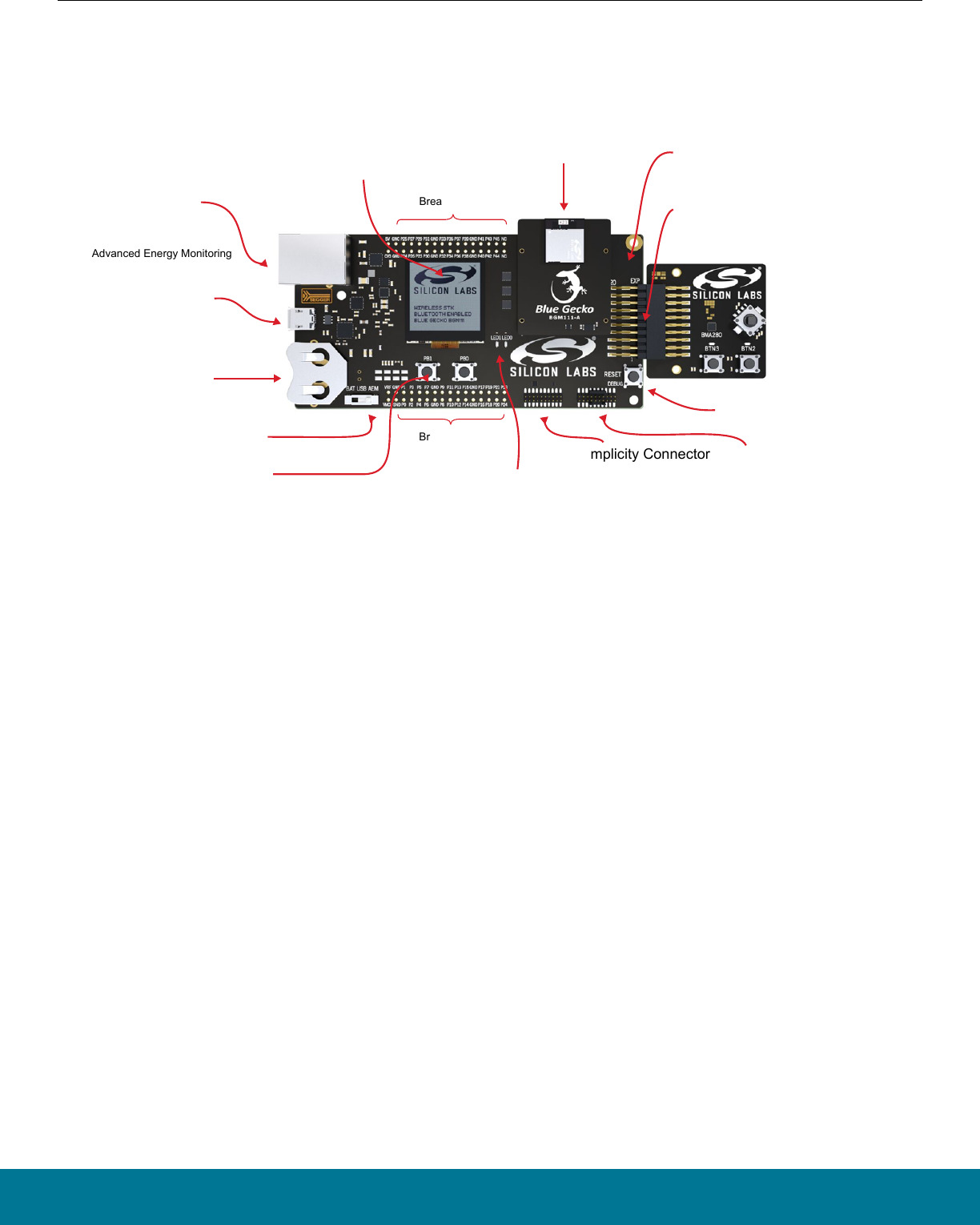

Figure 2.1. Kit Hardware Overview

UG122: BGM111 Bluetooth Module Radio Board User's Guide

Kit Hardware Overview

silabs.com | Smart. Connected. Energy-friendly. Rev. 3.00 | 3

w TKM nbua mm '3: at race lEliiTiI EH [EC] User BLmons Ben/I111 Bluetooth Module & LED:

3. Kit Block Diagram

An overview of the BGM111 Bluetooth Module Wireless Starter Kit is shown in the figure below.

WSTK Mainboard

USB Mini-B

Connector

RJ-45 Ethernet

Connector

Debug

UART

Packet Trace

AEM

Debug

UART

ETM Trace

Packet Trace

AEM

Debug

UART

Packet Trace

AEM

Simplicity

Connector

Debug

Connector

Board

Controller

Multiplexer

OUT

MCU

BGM111

Bluetooth Module

128 x 128 pixel

Memory LCD

I2C

Si7021

Temperature

& Humidity

Sensor

GPIO

EXP

Header

User Buttons

& LEDs

GPIO

Expansion Board Peripherals

Footprint for

I2C Expansion

BGM111

I2C

Accelerometer

BMA280

SPI

Buttons

LEDs

GPIO

Analog

Joystick

ADC input

Figure 3.1. Kit Block Diagram

UG122: BGM111 Bluetooth Module Radio Board User's Guide

Kit Block Diagram

silabs.com | Smart. Connected. Energy-friendly. Rev. 3.00 | 4

“BM/ coco.“ _ o o D D ' ' ' lnlOul Debut SlmP'm'W Header A " Connector :.\ a an on as 00 on on no 00 no no on on be 00 no so on on an on an no

4. Connectors

This chapter gives you an overview of the Wireless STK Mainboard connectivity. The placement of the connectors can be seen in the

figure below.

Simplicity

Connector

In/Out Debug

Header

GND

P25

P24

P27

P26

P29

P28

P31

P30

P33

P32

P35

P34

P37

P36

P39

P38

P41

P40

P43

P42

P45

P44

GND

Radio Board

Connectors

Expansion

Header

GND

VMCU

P11

P10

P13

P12

P15

P14

P17

P16

P19

P18

P21

P20

GND

P23

P22

VRF

3V3

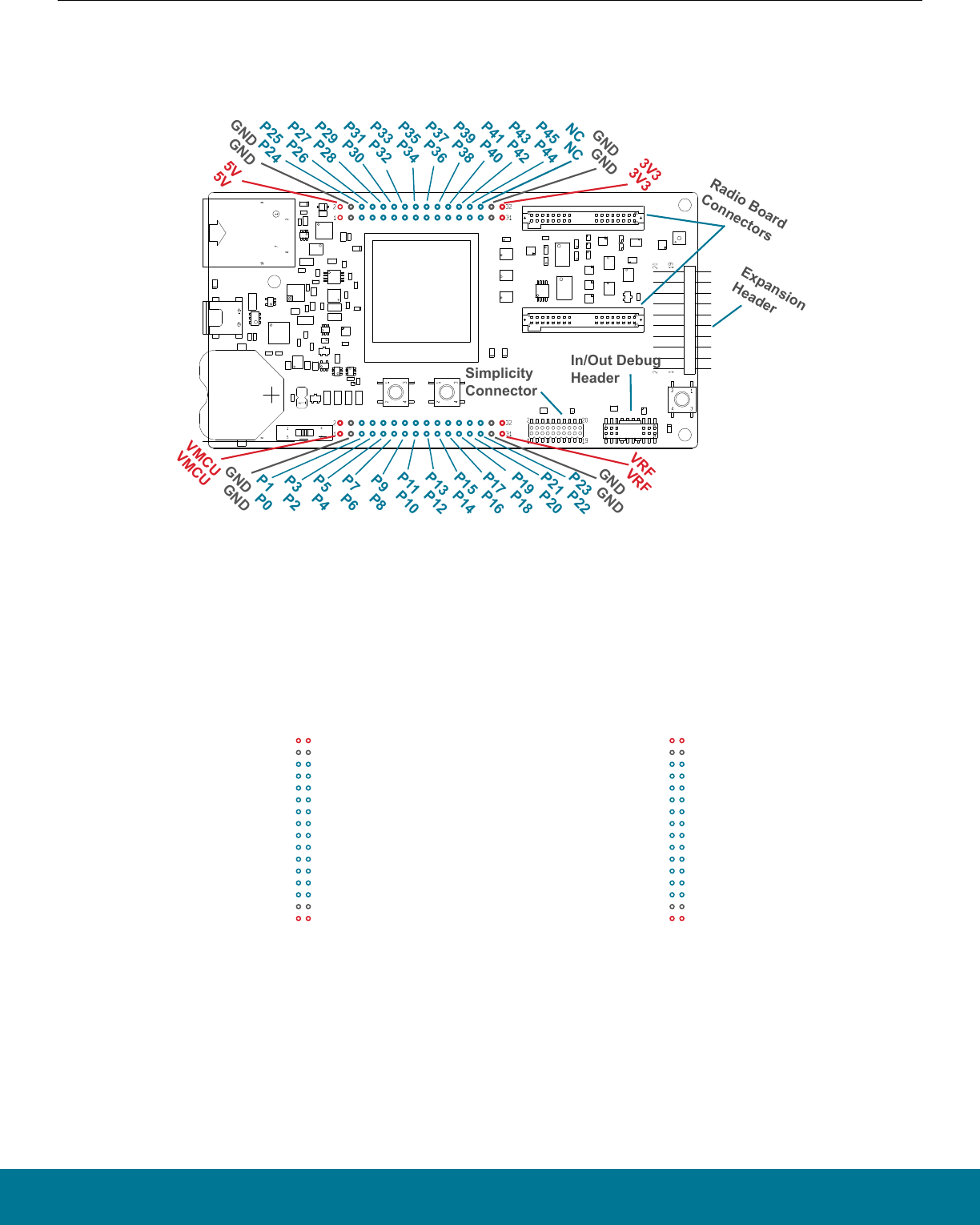

Figure 4.1. Mainboard Connector Layout

4.1 Breakout Pads

Most of the BGM111's pins are routed from the radio board to breakout pads at the top and bottom edges of the Wireless STK Main-

board. A 2.54 mm pitch pin header can be soldered on for easy access to the pins. The figure below shows you how the pins of the

BGM111 maps to the pin numbers printed on the breakout pads. To see the available functions on each, please refer to the BGM111

Data Sheet.

GND

VMCU

P23 / PD15 / DISP_ENABLE

P21 / PD14 / DISP_SCS

P19 / PD13 / DISP_EXTCOMIN

P17 / NC

GND

P15 / NC

P13 / PC10 / I2C_SDA

P11 / PA1 / VCOM_RX

P9 / PA0 / VCOM_TX

P7 / PC9

P5 / PC8 / DISP_SCLK

P3 / PC7

P1 / PC6 / DISP_SI

GNDGND

5V5V

NCNC

P45 / NCNC / P44

P43 / NCNC / P42

P41 / NCNC / P40

3V33V3

P39 / NCNC / P38

P37 / tied high / SENSOR_ENABLENC / P36

P35 / NCNC / P34

P33 / PF7 / BTN1_LED1NC / P32

P31 / PF6 / BTN0_LED0NC / P30

P29 / PF2 / DBG_TDO_SWONC / P28

P27 / PF1 / DBG_TMS_SWDIONC / P26

P25 / PF0 / DBG_TCK_SWCLKNC / P24

GNDGND

VRF

GND

VMCU

PTI_FRAME / PB13 / P22

VCOM_ENABLE / PA5 / P20

PTI_DATA / PA4 / P18

NC / P16

GND

NC / P14

I2C_SCL / PC11 / P12

DBG_TDI / PF3 / P10

PTI_CLK / PB11 / P8

PF5 / P6

PF4 / P4

VCOM_RTS / PA3 / P2

VCOM_CTS / PA2 / P0

VRF

J101 J102

Figure 4.2. Radio Board Pin Mapping on Breakout Pads

UG122: BGM111 Bluetooth Module Radio Board User's Guide

Connectors

silabs.com | Smart. Connected. Energy-friendly. Rev. 3.00 | 5

I I Power I Ground I 20 19 18 : : 17 16 _ _ 15 14 13 12 ' ' 11 74. 14 =1? . . 6 5 A ' ' a 2 ' ' 1 . .

4.2 Expansion Header

On the right hand side of the board an angled 20-pin expansion header is provided to allow connection of peripherals or plugin boards.

The connector contains a number of I/O pins that can be used with most of the BGM111 Blue Gecko's features. Additionally, the VMCU,

3V3 and 5V power rails are also exported.

The connector follows a standard which ensures that commonly used peripherals such as an SPI, a UART and an I2C bus are available

on fixed locations in the connector. The rest of the pins are used for general purpose IO. This allows the definition of expansion boards

that can plug into a number of different Silicon Labs starter kits.

The figure below shows the pin assignment of the expansion header for the BGM111 Wireless Starter Kit. Because of limitations in the

number of available GPIO pins, some of the expansion header pins are shared with kit features.

1516

20 19

VMCU

SPI_MOSI / PC6

SPI_MISO / PC7

SPI_SCK / PC8

SPI_CS / PC9

UART_TX / PA0

UART_RX / PA1

I2C_SDA / PC10

3V3

GND

PA2 / UART_CTS

PA3 / UART_RTS

PF4 / GPIO

PF5 / GPIO

PB11 / GPIO (PTI_CLK)

PF3 / GPIO (DBG_TDI)

PC11 / I2C_SCL

Board ID SDA

Board ID SCL

Reserved (Board Identification)

BGM111 I/O Pin

Figure 4.3. Expansion Header

UG122: BGM111 Bluetooth Module Radio Board User's Guide

Connectors

silabs.com | Smart. Connected. Energy-friendly. Rev. 3.00 | 6

4.2.1 Expansion Header Pin-out

The pin-routing on the BGM111 is very flexible, so most peripherals can be routed to any pin. However, many pins are shared between

the Expansion Header and other functions on the Wireless STK Mainboard. Table 4.1 Expansion Header Pinout on page 7 includes

an overview of the mainboard features that share pins with the Expansion Header.

Table 4.1. Expansion Header Pinout

Pin Connection EXP Header function Shared feature Peripheral mapping

20 3V3 Board controller supply

18 5V Board USB voltage

16 PC10 I2C_SDA SENSOR_I2C_SDA I2C0_SDA #15

14 PA1 UART_RX VCOM_RX USART0_RX #0

12 PA0 UART_TX VCOM_TX USART0_TX #0

10 PC9 SPI_CS USART1_CS #11

8 PC8 SPI_SCLK DISP_SCLK USART1_CLK #11

6 PC7 SPI_MISO USART1_RX #11

4 PC6 SPI_MOSI DISP_MOSI USART1_TX #11

2 VMCU BGM111 voltage domain, included in AEM measurements.

19 BOARD_ID_SDA Connected to Board Controller for identification of add-on boards.

17 BOARD_ID_SCL Connected to Board Controller for identification of add-on boards.

15 PC11 I2C_SCL SENSOR_I2C_SCL I2C0_SCL #15

13 PF3 GPIO DBG_TDI

11 PB11 GPIO PTI_CLK

9 PF5 GPIO

7 PF4 GPIO

5 PA3 UART_RTS VCOM_RTS USART0_CS #0

3 PA2 UART_CTS VCOM_CTS USART0_CLK #0

1 GND Ground

Note: Pin PF3 is used for DBG_TDI in JTAG mode only. When Serial Wire Debugging is used, PF3 can be used for other purposes.

UG122: BGM111 Bluetooth Module Radio Board User's Guide

Connectors

silabs.com | Smart. Connected. Energy-friendly. Rev. 3.00 | 7

\“H‘ m. TTT ‘mw—nnou N H“ J.“ TIT

4.3 Debug Connector

The Debug Connector serves multiple purposes based on the "debug mode" setting which can be configured in Simplicity Studio. When

the debug mode is set to "Debug IN", the debug connector can be used to connect an external debugger to the BGM111 on the radio

board. When set to "Debug OUT", this connector allows the kit to be used as a debugger towards an external target. When set to "De-

bug MCU" (default), the connector is isolated from both the on-board debugger and the radio board target device.

Because this connector is electronically switched between the different operating modes, it can only be used when the Board Controller

is powered (i.e. J-Link USB cable connected). If debug access to the target device is required when the Board Controller is unpowered,

connect directly to the appropriate breakout pins.

The pinout of the connector follows that of the standard ARM Cortex Debug+ETM 19-pin connector. The pinout is described in detail

below. Even though the connector has support for both JTAG and ETM Trace, it does not necessarily mean that the kit or the on-board

target device supports this.

1 2

13 14

15 16

17 18

2019

TMS / SWDIO / C2D

TCK / SWCLK / C2CK

TDO / SWO

TDI / C2Dps

TRACECLK

TRACED0

TRACED1

TRACED2

TRACED3

RESET / C2CKps

GND

VTARGET

Cable Detect

Figure 4.4. Debug Connector

Note: The pinout matches the pinout of an ARM Cortex Debug+ETM connector, but these are not fully compatible as pin 7 is physically

removed from the Cortex Debug+ETM connector. Some cables have a small plug that prevent them from being used when this pin is

present. If this is the case, remove the plug, or use a standard 2x10 1.27 mm straight cable instead.

Table 4.2. Debug Connector Pin Descriptions

Pin number(s) Function Description

1 VTARGET Target voltage on the debugged application.

2 TMS / SDWIO / C2D JTAG test mode select, Serial Wire data or C2 data

4 TCK / SWCLK / C2CK JTAG test clock, Serial Wire clock or C2 clock

6 TDO/SWO JTAG test data out or Serial Wire Output

8 TDI / C2Dps JTAG test data in, or C2D "pin sharing" function

10 RESET / C2CKps Target device reset, or C2CK "pin sharing" function

12 TRACECLK

14 TRACED0

16 TRACED1

18 TRACED2

20 TRACED3

9 Cable detect Connect to ground

11, 13 NC Not connected

3, 5, 15, 17, 19 GND Ground

UG122: BGM111 Bluetooth Module Radio Board User's Guide

Connectors

silabs.com | Smart. Connected. Energy-friendly. Rev. 3.00 | 8

4.4 Simplicity Connector

The Simplicity Connector enables the advanced debugging features, such as the AEM, the Virtual COM port and the Packet Trace In-

terface, to be used towards an external target. The pinout is illustrated in the figure below.

VMCU 1

33V3

GND

Board ID SCL

Board ID SDA

2Virtual COM TX / MOSI

4Virtual COM RX / MISO

6Virtual COM CTS / SCLK

8Virtual COM RTS / CS

10 Packet Trace 0 Sync

12 Packet Trace 0 Data

14 Packet Trace 0 Clock

16 Packet Trace 1 Sync

18 Packet Trace 1 Data

20 Packet Trace 1 Clock

Figure 4.5. Simplicity Connector

Note: Current drawn from the VMCU voltage pin is included in the AEM measurements, while the 3V3 and 5V voltage pins are not. To

monitor the current consumption of an external target with the AEM, unplug the Radio Board from the Wireless STK Mainboard to avoid

that the Radio Board current consumption is added to the measurements.

Table 4.3. Simplicity Connector Pin Descriptions

Pin number(s) Function Description

1 VMCU 3.3 V power rail, monitored by the AEM

3 3V3 3.3 V power rail

5 5V 5 V power rail

2 VCOM_TX_MOSI Virtual COM Tx/MOSI

4 VCOM_RX_MISO Virtual COM Rx/MISO

6 VCOM_CTS_SCLK Virtual COM CTS/SCLK

8 VCOM_RTS_CS Virtual COM RTS/CS

10 PTI0_SYNC Packet Trace 0 Sync

12 PTI0_DATA Packet Trace 0 Data

14 PTI0_CLK Packet Trace 0 Clock

16 PTI1_SYNC Packet Trace 1 Sync

18 PTI1_DATA Packet Trace 1 Data

20 PTI1_CLK Packet Trace 1 Clock

17 EXT_ID_SCL Board ID SCL

19 EXT_ID_SDA Board ID SDA

7, 9, 11, 13, 15 GND Ground

UG122: BGM111 Bluetooth Module Radio Board User's Guide

Connectors

silabs.com | Smart. Connected. Energy-friendly. Rev. 3.00 | 9

an be selected wi

5. Power Supply and Reset

5.1 Radio Board Power Selection

The BGM111 on a Wireless Starter Kit can be powered by one of these sources:

• the debug USB cable;

• a 3 V coin cell battery; or

• a USB regulator on the Radio Board (for devices with USB support only).

The power source for the radio board is selected with the slide switch in the lower left corner of the Wireless STK Mainboard. Figure

5.1 Power Switch on page 10 shows how the different power sources can be selected with the slide switch.

VMCU

AEM

USB

BAT

USB Mini-B

Connector

Advanced

Energy

Monitor

3 V Lithium Battery

(CR2032)

BAT

USB

AEM

LDO

BGM111

5 V 3.3 V

Figure 5.1. Power Switch

With the switch in the AEM position, a low noise 3.3 V LDO on the WSTK Mainboard is used to power the Radio Board. This LDO is

again powered from the debug USB cable. The Advanced Energy Monitor is now also connected in series, allowing accurate high

speed current measurements and energy debugging/profiling.

With the switch in the USB position, radio boards with USB-support can be powered by a regulator on the radio board itself. BRD4300A

does not contain an USB regulator, and setting the switch in the USB postition will cause the BGM111 to be unpowered.

Finally, with the switch in the BAT position, a 20 mm coin cell battery in the CR2032 socket can be used to power the device. With the

switch in this position no current measurements are active. This is the recommended switch position when powering the radio board

with an external power source.

Note: The current sourcing capabilities of a coin cell battery might be too low to supply certain wireless applications.

Note: The Advanced Energy Monitor can only measure the current consumption of the BGM111 when the power selection switch is in

the AEM position.

UG122: BGM111 Bluetooth Module Radio Board User's Guide

Power Supply and Reset

silabs.com | Smart. Connected. Energy-friendly. Rev. 3.00 | 10

5.2 Board Controller Power

The board controller is responsible for important features such as the debugger and the Advanced Energy Monitor, and is powered

exclusively through the USB port in the top left corner of the board. This part of the kit resides on a separate power domain, so a differ-

ent power source can be selected for the target device while retaining debugging functionality. This power domain is also isolated to

prevent current leakage from the target power domain when power to the Board Controller is removed.

The board controller power domain is not influenced by the position of the power switch.

The kit has been carefully designed to keep the board controller and the target power domains isolated from each other as one of them

powers down. This ensures that the target BGM111 device will continue to operate in the USB and BAT modes.

5.3 BGM111 Reset

The BGM111 Bluetooth Module can be reset by a few different sources:

• A user pressing the RESET button.

• The on-board debugger pulling the #RESET pin low.

• An external debugger pulling the #RESET pin low.

In addition to the reset sources mentioned above, a reset to the BGM111 will also be issued during Board Controller boot-up. This

means that removing power to the Board Controller (plugging out the J-Link USB cable) will not generate a reset, but plugging the cable

back in will, as the Board Controller boots up.

UG122: BGM111 Bluetooth Module Radio Board User's Guide

Power Supply and Reset

silabs.com | Smart. Connected. Energy-friendly. Rev. 3.00 | 11

6. Peripherals

The starter kit has a set of peripherals that showcase some of the features of the BGM111.

Be aware that most BGM111 I/O routed to peripherals are also routed to the breakout pads. This must be taken into consideration when

using the breakout pads for your application.

6.1 Push Buttons and LEDs

The kit has two user push buttons marked PB0 and PB1. They are connected directly to the BGM111, and are debounced by RC filters

with a time constant of 1 ms. The buttons are connected to pins PF6 and PF7.

The kit also features two yellow LEDs marked LED0 and LED1, that are controlled by GPIO pins on the BGM111. The LEDs are con-

nected to pins PF6 and PF7 in an active-high configuration.

User Buttons

& LEDs

UIF_BUTTON0_LED0

UIF_BUTTON1_LED1

PF6 (GPIO)

PF7 (GPIO)

BGM111

Figure 6.1. Buttons and LEDs

UG122: BGM111 Bluetooth Module Radio Board User's Guide

Peripherals

silabs.com | Smart. Connected. Energy-friendly. Rev. 3.00 | 12

4 Board Conuoner +> msESCLK Dwspjl msP,scs D‘SPiEXTCOMIN D‘SPiENABLE % 77 SI % 65'? 4, SILIEIJN LABS EXTCOM‘N % 128x128 pixel Memory LCD

6.2 Memory LCD-TFT Display

A 1.28-inch SHARP Memory LCD-TFT is available on the kit to enable interactive applications to be developed. The display has a high

resolution of 128 by 128 pixels, and consumes very little power. It is a reflective monochrome display, so each pixel can only be light or

dark, and no backlight is needed in normal daylight conditions. Data sent to the display is stored in the pixels on the glass, which means

no continous refreshing is required to maintain a static image.

The display interface consists of an SPI-compatible serial interface and some extra control signals. Pixels are not individually addressa-

ble, instead data is sent to the display one line (128 bits) at a time.

The Memory LCD-TFT display is shared with the kit Board Controller, allowing the Board Controller application to display useful infor-

mation when the user application is not using the display. The user application always controls ownership of the display with the

DISP_ENABLE signal:

• DISP_ENABLE = LOW: The Board Controller has control of the display

• DISP_ENABLE = HIGH: The user application (BGM111) has control of the display

Power to the display is sourced from the target application power domain when the BGM111 controls the display, and from the Board

Controller's power domain when the DISP_ENABLE line is low. Data is clocked in on DISP_SI when DISP_CS is high, and the clock is

sent on DISP_SCLK. The maximum supported clock speed is 1.1 MHz.

DISP_COM is the "COM Inversion" line. It must be pulsed periodically to prevent static build-up in the display itself. Please refer to the

display application information for details on driving the display:

http://www.sharpmemorylcd.com/1-28-inch-memory-lcd.html

PC8 (USART_CLK)

PC6 (USART_TX)

PD14 (GPIO)

PD13 (GPIO)

PD15 (GPIO)

BGM111

0: Board Controller controls display

1: BGM111 controls display

Figure 6.2. 128x128 Pixel Memory LCD

UG122: BGM111 Bluetooth Module Radio Board User's Guide

Peripherals

silabs.com | Smart. Connected. Energy-friendly. Rev. 3.00 | 13

6.3 Si7021 Relative Humidity and Temperature Sensor

The Si7021 I2C relative humidity and temperature sensor is a monolithic CMOS IC integrating humidity and temperature sensor ele-

ments, an analog-to-digital converter, signal processing, calibration data, and an I2C Interface. The patented use of industry-standard,

low-K polymeric dielectrics for sensing humidity enables the construction of low-power, monolithic CMOS Sensor ICs with low drift and

hysteresis, and excellent long term stability.

The humidity and temperature sensors are factory-calibrated and the calibration data is stored in the on-chip non-volatile memory. This

ensures that the sensors are fully interchangeable, with no recalibration or software changes required.

The Si7021 is available in a 3x3 mm DFN package and is reflow solderable. It can be used as a hardware- and software-compatible

drop-in upgrade for existing RH/ temperature sensors in 3x3 mm DFN-6 packages, featuring precision sensing over a wider range and

lower power consumption. The optional factory-installed cover offers a low profile, convenient means of protecting the sensor during

assembly (e.g., reflow soldering) and throughout the life of the product, excluding liquids (hydrophobic/oleophobic) and particulates.

The Si7021 offers an accurate, low-power, factory-calibrated digital solution ideal for measuring humidity, dew-point, and temperature,

in applications ranging from HVAC/R and asset tracking to industrial and consumer platforms.

The I2C bus used for the Si7021 is shared with the Expansion Header. The temperature sensor is normally isolated from the I2C line. To

use the sensor, SENSOR_ENABLE (tied high) must be set high. When enabled, the sensor's current consumption is included in the

AEM measurements.

SENSOR_ENABLE

0: I2C lines are isolated, sensor is not powered

1: Sensor is powered and connected

PC11 (I2C0_SCL)

PC10 (I2C0_SDA)

NC (tied high)

SENSOR_I2C_SDA

SENSOR_I2C_SCL

VMCU

VDD

SCL

SDA Temperature

& Humidity

Sensor

BGM111

Si7021

Figure 6.3. Si7021 Relative Humidity and Temperature Sensor

Please refer to the Silicon Labs web pages for more information: http://www.silabs.com/humidity-sensors

UG122: BGM111 Bluetooth Module Radio Board User's Guide

Peripherals

silabs.com | Smart. Connected. Energy-friendly. Rev. 3.00 | 14

6.4 Virtual COM Port

An asynchronous serial connection to the board controller is provided for application data transfer between a host PC and the target

BGM111. This eliminates the need for an external serial port adapter.

VCOM_ENABLE

PA0 (US0_TX#0)

PA1 (US0_RX#0)

PA5 (GPIO)

VCOM_RX

VCOM_TX

Board

Controller

BGM111

USB Host

Isolation & Level Shift

PA2 (US0_CTS#30)

PA3 (US0_RTS#30)

VCOM_CTS

VCOM_RTS

ETH

Figure 6.4. Virtual COM Port Interface

The Virtual COM port consists of a physical UART between the target device and the board controller, and a logical function in the

board controller that makes the serial port available to the host PC over USB or Ethernet. The UART interface consists of four pins and

an enable signal.

Table 6.1. Virtual COM Port Interface Pins

Signal Description

VCOM_TX Transmit data from the BGM111 to the board controller

VCOM_RX Receive data from the board controller to the BGM111

VCOM_CTS Clear to Send hardware flow control input, asserted by the board controller when it is ready to receive more data

VCOM_RTS Request to Send hardware flow control output, asserted by the BGM111 when it is ready to receive more data

VCOM_ENABLE Enables the VCOM interface, allowing data to pass through to the board controller.

The parameters of the serial port, such as baud rate or flow control, can be configured using the admin console. The default settings

depends on which radio board is used with the Wireless STK Mainboard. Please see 11. Device Connectivity for more details.

Note: The VCOM port is only available when the board controller is powered, which requires the J-Link USB cable to be inserted.

UG122: BGM111 Bluetooth Module Radio Board User's Guide

Peripherals

silabs.com | Smart. Connected. Energy-friendly. Rev. 3.00 | 15

7. Board Controller

The Wireless STK Mainboard contains a microcontroller separate from the BGM111 Blue Gecko that is responsible for some of the

advanced kit features provided. This microcontroller is referred to as the "Board Controller", and is not programmable by the user. The

board controller acts as an interface between the host PC and the target device on the radio board, as well as handling some house-

keeping functions on the board.

Some of the kit features actively managed by the board controller are:

• The On-board Debugger, which can flash and debug both on-board and external targets.

• The Advanced Energy Monitor, which provides real-time energy profiling of the user application.

• The Packet Trace Interface , which is used in conjunction with PC software to provide detailed insight into an active radio network.

• The Virtual COM Port and Virtual UART interfaces, which provide ways to transfer application data between the host PC and the

target processor.

• The Admin Console, which provides configuration of the various board features.

Silicon Labs publishes updates to the board controller firmware in form of firmware upgrade packages. These updates may enable new

features or fix issues. See 12.2 Firmware Upgrades for details on firmware upgrade.

7.1 Admin Console

The admin console is a command line interface to the board controller on the kit. It provides functionality for configuring the kit behavior

and retreiving configuration and operational parameters.

■Connecting

The Wireless STK Mainboard must be connected to Ethernet using the Ethernet connector in the top left corner of the mainboard for

the admin console to be available. See ● Ethernet Interface for details on the Ethernet connectivity.

Connect to the Admin Console by opening a telnet connection to the kit's IP address, port number 4902.

When successfully connected, a WSTK> prompt is displayed.

UG122: BGM111 Bluetooth Module Radio Board User's Guide

Board Controller

silabs.com | Smart. Connected. Energy-friendly. Rev. 3.00 | 16

■Built-in Help

The admin console has a built in help system which is accessed by the help command. The help command will print a list of all top

level commands:

WSTK> help

*************** Root commands ****************

aem AEM commands [ calibrate, current, dump, ... ]

boardid Commands for board ID probe. [ list, probe ]

dbg Debug interface status and control [ info, mode,]

dch Datachannel control and info commands [ info ]

discovery Discovery service commands.

net Network commands. [ dnslookup, geoprobe, ip ]

pti Packet trace interface status and control [ config, disable, dump, ... ]

quit Exit from shell

sys System commands [ nickname, reset, scratch, ... ]

target Target commands. [ button, flashwrite, go, ... ]

time Time Service commands [ client, server ]

user User management functions [ login,]

The help command can be used in conjunction with any top level command to get a list of sub-commands with description. For exam-

ple, pti help will print a list of all available sub-commands of pti:

WSTK> pti help

*************** pti commands ****************

config Configure packet trace

disable Disable packet trace

dump Dump PTI packets to the console as they come

enable Enable packet trace

info Packet trace state information

This means that running pti enable will enable packet trace.

■Command Examples

PTI Configuration

pti config 0 efruart 1600000

Configures PTI to use the "EFRUART" mode at 1.6 Mb/s.

Serial Port Configuration

serial config vcom handshake enable

Enables hardware handshake on the VCOM UART connection.

UG122: BGM111 Bluetooth Module Radio Board User's Guide

Board Controller

silabs.com | Smart. Connected. Energy-friendly. Rev. 3.00 | 17

8. Expansion Board

The User Interface Expansion Board included with the BGM111 Wireless STK includes the following features:

• 1x 3-axis accelerometer (Bosch Sensortech BMA280)

• 1x Joystick with 9 measurable positions

• 2x Push buttons and 2x LEDs

The connections between the Expansion Board and the BGM111 are shown in the figure below:

PA1 (GPIO)

BUTTON_LED2 (EXP7)

PF4 (GPIO)

BGM111

BUTTON_LED3 (EXP14) Buttons

& LEDs

Accelerometer

BMA280

Analog

Joystick

JOYSTICK (EXP12)

ACC_MOSI (EXP4)

ACC_MISO (EXP6)

ACC_SCK (EXP8)

ACC_CS (EXP10)

ACC_INT (EXP9)

PA0 (ADC)

PC6 (USART1_TX)

PC7 (USART1_RX)

PC8 (USART1_CLK)

PC9 (USART1_CS)

PF5 (GPIO)

Figure 8.1. User Interface Expansion Board

The following sections contain more detailed information about each feature.

8.1 Accelerometer

Bosch Sensortec BMA280 is a triaxial, low-power, low-g accelerometer sensor with SPI interface. It features 14-bit digital resolution and

allows very low-noise measurement of acceleration in 3 perpendicular axes and can therefore sense tilt, motion, shock and vibration.

Please refer to Bosch Sensortec's product page for a detailed datasheet of this sensor: http://www.bosch-sensortec.com/bst/products/

all_products/bma280

UG122: BGM111 Bluetooth Module Radio Board User's Guide

Expansion Board

silabs.com | Smart. Connected. Energy-friendly. Rev. 3.00 | 18

chU A u \FJOYST‘CK Joystick SW S SE 15k GUAk

8.2 Push Buttons and LEDs

The Expansion Board contains two push buttons (marked BTN2 and BTN3 on the PCB) and two LEDs (LED2 and LED3, not marked

but placed correspondingly above the push button markings). One push button and one LED share the same I/O pin on the BGM111.

The push button is connected to the LED through a transistor, allowing the I/O to be used either as an input (for reading the push button

state) or as an output (to control the LED state on or off).

When configured as an input, "0" indicates that the button is being pressed and "1" that the push button is not being pressed. Likewise,

when configured as an output, "0" will turn the LED on and "1" will turn it off.

Pressing a push button will also light up the corresponding LED because the LED is controlled by the same line (state) regardless of

whether it is the BGM111 or the push button that pulls the line low.

The each button is debounced by an RC filter with a time constant of about 1 ms. Pressing the push button while having the pin config-

ured as an output in high state ("1") will not cause damage, but will cause extra current to flow.

8.3 Joystick

The analog joystick offers 9 measureable positions. This joystick is connected to the BGM111 pin PD4. Each of the joystick output pins

are connected to a different resistor value to create a unique voltage that is measured by the internal ADC on the BGM111. The joystick

output is connected to AD Channel 0 (ADC0). The figure below shows the connection between the joystíck and the BGM111.

PA0 (ADC)

BGM111

PA0 (ADC)_miso

MX25R8035F

8 Mbit

Figure 8.2. User Interface Expansion Board Joystick

The table below lists the expected output voltage from each joystick position.

Table 8.1. Joystick Output Voltage

Position Resistor combinations [kohm] Joystick output voltage [V]1

Center press 0.1 / (0.1 + 10) 0.03 V

Up (N) 60.4 / (60.4 + 10) 2.83 V

Up-Right (NE) {(N // E) / {(N // E) + 10 } = 21.34 / (21.34

+ 10)

2.25 V

Right (E) 33 / (33 + 10) 2.53 V

Down-Right (SE) (S // E) / {(S // E) + 10)} = 7.67 / (7.67 + 10) 1.43 V

Down (S) 10 / (10 + 10) 1.65 V

Down-Left (SW) (S // W) / {(S // W) + 10)} = 6 / (6 + 10) 1.24 V

Left (W) 15 / (15 + 10) 1.98 V

Up-Left (NW) (N // W) / {(N // W) + 10)} = 12.01 / (12.01

+ 10)

1.80 V

Note: 1) Output Voltage is calculated with VMCU of 3.3 V .

UG122: BGM111 Bluetooth Module Radio Board User's Guide

Expansion Board

silabs.com | Smart. Connected. Energy-friendly. Rev. 3.00 | 19

3.3V Power Se‘ect Switch VMCU 2.35 0 Sense Resistor i/ l Current Sense Amp‘iﬁer Multip‘e Gain Stages ii

9. Advanced Energy Monitor

9.1 Introduction

Any embedded developer seeking to make his embedded code spend as little energy as the underlying architecture supports, needs

tools to easily and quickly discover inefficiencies in the running application.

This is what the Simplicity Energy Profiler is designed to do. It will in real-time graph and log current as a function of time while correlat-

ing this to the actual target application code running on the BGM111. There are multiple features in the profiler software that allows for

easy analysis, such as markers and statistics on selected regions of the current graph or aggregate energy usage by different parts of

the application.

9.2 Theory of Operation

The Advanced Energy Monitor (AEM) circuitry on the board is capable of measuring current signals in the range of 0.1 µA to 95 mA,

which is a dynamic range of alomst 120 dB. It can do this while maintaining approximately 10 kHz of current signal bandwidth. This is

accomplished through a combination of a highly capable current sense amplifier, multiple gain stages and signal processing within the

kit's board controller before the current sense signal is read by a host computer for display and/or storage.

The current sense amplifier measures the voltage drop over a small series resistor, and the gain stage further amplifies this voltage with

two different gain settings to obtain two current ranges. The transition between these two ranges occurs around 250 µA.

The current signal is combined with the target processor's Program Counter (PC) sampling by utilizing a feature of the ARM CoreSight

debug architecture. The ITM (Instrumentation Trace Macrocell) block can be programmed to sample the MCU's PC at periodic intervals

(50 kHz) and output these over SWO pin ARM devices. When these two data streams are fused and correlated with the running appli-

cation's memory map, an accurate statistical profile can be built, that shows the energy profile of the running application in real-time.

At kit power-up or on a power-cycle, and automatic AEM calibration is performed. This calibration compensates for any offset errors in

the current sense amplifiers.

BGM111

LDO

Peripherals

AEM

Processing

Figure 9.1. Advanced Energy Monitor

UG122: BGM111 Bluetooth Module Radio Board User's Guide

Advanced Energy Monitor

silabs.com | Smart. Connected. Energy-friendly. Rev. 3.00 | 20

9.3 AEM Accuracy and Performance

The AEM is capable of measuring currents in the range of 0.1 µA to 95 mA. For currents above 250 µA, the AEM is accurate within 0.1

mA. When measuring currents below 250 µA, the accuracy increases to 1 µA. Even though the absolute accuracy is 1 µA in the sub

250 µA range, the AEM is able to detect changes in the current consumption as small as 100 nA.

The AEM current sampling rate is 10 kHz.

Note: The AEM circuitry only works when the kit is powered and the power switch is in the AEM position.

9.4 Usage

The AEM data is collected by the board controller and can be displayed by the Energy Profiler, available through Simplicity Studio. By

using the Energy Profiler, current consumption and voltage can be measured and linked to the actual code running on the BGM111 in

realtime.

UG122: BGM111 Bluetooth Module Radio Board User's Guide

Advanced Energy Monitor

silabs.com | Smart. Connected. Energy-friendly. Rev. 3.00 | 21

10. On-Board Debugger

The Wireless Starter Kit contains an integrated debugger, which can be used to download code and debug the BGM111. In addition to

programming the BGM111 on the kit, the debugger can also be used to program and debug external Silicon Labs EFM32, EFM8,

EZR32 and EFR32 devices.

The debugger supports three different debug interfaces used with Silicon Labs devices:

• Serial Wire Debug, is used with all EFM32, EFR32 and EZR32 devices

• JTAG, which can be used with EFR32 and some EFM32 devices

• C2 Debug, which is used with EFM8 devices

In order for debugging to work properly, make sure you have the appropriate debug interface selected that works with your device. The

debug connector on the board supports all three of these modes.

10.1 Host Interfaces

The Wireless Starter Kit supports connecting to the on-board debugger using either Ethernet or USB.

Many tools support connecting to a debugger using either USB or Ethernet. When connected over USB, the kit is identified by its J-Link

serial number. When connected over Ethernet, the kit is normally identified by its IP address. Some tools also support using the serial

number when connecting over Ethernet, this typically require the computer and the kit to be on the same subnet for the discovery proto-

col (using UDP broadcast packets) to work.

USB Interface

The USB interface is available whenever the USB Mini-B connector on the left hand side of the mainboard is connected to a computer.

Ethernet Interface

The Ethernet interface is available when the mainboard Ethernet connector in the top left corner is connected to a network. Normally,

the kit will receive an IP address from a local DHCP server, and the IP address is printed on the LCD display. If your network does not

have a DHCP server, you need to connect to the kit via USB and set the IP address manually using Simplicity Studio, Simplicity

Commander or J-Link Configurator.

For the Ethernet connectivity to work, the kit must still be powered through the USB Mini-B connector. See 5.2 Board Controller Power

for details.

Serial Number Identification

All Silicon Labs kits have a unique J-Link serial number which identifies the kit to PC applications. This number is 9 digits, and is nor-

mally on the form 44xxxxxxx.

The J-Link serial number is normally printed at the bottom of the kit LCD display.

UG122: BGM111 Bluetooth Module Radio Board User's Guide

On-Board Debugger

silabs.com | Smart. Connected. Energy-friendly. Rev. 3.00 | 22

10.2 Debug Modes

Programming external devices is done by connecting to a target board through the provided Debug IN/OUT Connector, and by setting

the debug mode to [Out]. The same connector can also be used to connect an external debugger to the BGM111 Bluetooth Module on

the kit, by setting debug mode to [In].

Selecting the active debug mode is done with a drop-down menu in the Kit Manager tool in Simplicity Studio.

Debug MCU: In this mode the on-board debugger is connected to the BGM111 on the SLWSTK6101C.

RADIO BOARD

Board

Controller

USB

Host

Computer

DEBUG HEADER

External

Hardware

Figure 10.1. Debug MCU

Debug OUT: In this mode, the on-board debugger can be used to debug a supported Silicon Labs device mounted on a custom board.

Board

Controller

USB

Host

Computer

DEBUG HEADER

External

Hardware

RADIO BOARD

Figure 10.2. Debug OUT

Debug IN: In this mode, the on-board debugger is disconnected, and an external debugger can be connected to debug the BGM111 on

the Wireless Starter Kit.

UG122: BGM111 Bluetooth Module Radio Board User's Guide

On-Board Debugger

silabs.com | Smart. Connected. Energy-friendly. Rev. 3.00 | 23

Board

Controller

USB

Host

Computer

DEBUG HEADER

External Debug Probe

RADIO BOARD

Figure 10.3. Debug IN

Note: For "Debug IN" to work, the board controller on the kit must be powered throught the USB connector.

10.3 Debugging During Battery Operation

When the BGM111 is powered by battery and the J-Link USB is still connected, the on-board debug functionality is available. If the USB

power is disconnected, the Debug In mode will stop working.

If debug access is required when the target is running of another energy source, such as a battery, and the board controller is powered

down, the user should make direct connections to the GPIO used for debugging. This can be done by connecting to the appropriate

pins of the breakout pads. Some Silicon Labs kits provide a dedicated pin header for this purpose.

UG122: BGM111 Bluetooth Module Radio Board User's Guide

On-Board Debugger

silabs.com | Smart. Connected. Energy-friendly. Rev. 3.00 | 24

11. Device Connectivity

The Wireless STK Mainboard provides several convenient ways to communicate with a target application without soldering or using

external hardware.

11.1 Virtual COM Port

When the target device drives the VCOM_ENABLE (PA5) signal high, a communication line to the Board Controller is enabled. The

target can then communicate to the host computer via the Board Controller using USART0, Location 0 (TX pin PA0, RX pin PA1).

When enabling VCOM, the Board Controller makes communication to the host computer possible on the following interfaces:

• Virtual USB serial port using a CDC driver.

• TCP/IP, by connecting to the Wireless STK on port 4901 with a Telnet client.

Note: Only one of these can be used at the same time, meaning that if a socket is connected to port 4901, no data can be sent or

received on the USB COM port.

UG122: BGM111 Bluetooth Module Radio Board User's Guide

Device Connectivity

silabs.com | Smart. Connected. Energy-friendly. Rev. 3.00 | 25

5 mm. i Adapter lnfonnntlon Tm USE Saul Mumbet 440019215 deu Slaw Ki! lnformltion Null- W32 Gil! Gl(kn Sum: Kl Bord In W lav. A03 Sui Mumhn 1W3 Flmvﬂle Vain“ 0199137391 um n lam ﬂange Fm“ My mm mm— MCU lnfonnatlon Name swam mm W [00:31 [*9 um ~ 0 JD mm ID 20 m h 1524 k‘B sum in 125 “3 “w“ ID Wm

12. Kit Manager and Upgrades

The Kit Manager is a program that comes with Simplicity Studio. It can perform various kit and device specific tasks.

12.1 Kit Manager Operation

This utility gives the ability to program the BGM111, upgrade the kit, lock and unlock devices and more. Some of the features will only

work with Silicon Labs kits, while other will work with a generic J-Link debugger connected.

Figure 12.1. Kit Manager

12.2 Firmware Upgrades

Upgrading the kit firmware is done through Simplicity Studio. Simplicity Studio will automatically check for new updates on startup.

You can also use the Kit Manager for manual upgrades. Click the [Browse] button in the [Update Kit] section to select the correct file

ending in ".emz". Then, click the [Install Package] button.

UG122: BGM111 Bluetooth Module Radio Board User's Guide

Kit Manager and Upgrades

silabs.com | Smart. Connected. Energy-friendly. Rev. 3.00 | 26

13. Radio Board Connectors

Radio Boards contain two dual-row, female socket, 0.05" pitch polarized connectors (P/N: SFC-120-T2-L-D-A-K-TR) which provide the

interface to the Wireless Starter Kit Mainboard. The Mainboard has the corresponding male header pin connectors (P/N: TFC-120-02-

F-D-LC-ND).

13.1 Radio Board Connector Pin Mapping

The figure below shows the pin mapping on the connector to the radio pins and their corresponding function on the Wireless Starter Kit

Mainboard.

GND

F9 / PA3 / VCOM_RTS

3V3

NC / P36

P200

Upper Row

NC / P38

NC / P40

NC / P42

NC / P44

DBG_TMS_SWDIO / PF1 / F0

DISP_ENABLE / PD15 / F14

BUTTON0 / PF6 / F12

LED0 / PF6 / F10

VCOM_CTS / PA2 / F8

DBG_RESET / F4

DBG_TDO_SWO / PF2 / F2

DISP_SI / PC6 / F16

VCOM_TX / PA0 / F6

PTI_DATA / PA4 / F20

DISP_EXTCOMIN / PD13 / F18

USB_VBUS

Board ID SCL

GND

Board ID SDA

USB_VREG

F7 / PA1 / VCOM_RX

F5 / PA5 / VCOM_ENABLE

F3 / PF3 / DBG_TDI

F1 / PF0 / DBG_TCK_SWCLK

P45 / NC

P43 / NC

P41 / NC

P39 / NC

P37 / TIED HIGH / SENSOR_ENABLE

F11 / PF7 / LED1

F13 / PF7 / BUTTON1

F15 / PC8 / DISP_SCLK

F17 / PD14 / DISP_SCS

F19 / PB13 / PTI_FRAME

F21 / PB11 / PTI_CLK

GND VMCU_IN

EXP3 / PA2 / P0

P201

Lower Row

EXP5 / PA3 / P2

EXP7 / PF4 / P4

EXP9 / PF5 / P6

GND VRF_IN

P35 / NC

P7 / PC9 / EXP10

P5 / PC8 / EXP8

P3 / PC7 / EXP6

P1 / PC6 / EXP4

P33 / PF7

P31 / PF6

P29 / PF2

P27 / PF1

P25 / PF0

P23 / PD15

P21 / PD14

P19 / PD13

P17 / NC

P15 / NC

P13 / PC10 / EXP16

P11 / PA1 / EXP14

P9 / PA0 / EXP12

NC / P34

NC / P32

NC / P30

NC / P28

NC / P26

NC / P24

PB13 / P22

PA5 / P20

PA4 / P18

NC / P16

NC / P14

EXP15 / PC11 / P12

EXP13 / PF3 / P10

EXP11 / PB11 / P8

Figure 13.1. Radio Board Connectors

UG122: BGM111 Bluetooth Module Radio Board User's Guide

Radio Board Connectors

silabs.com | Smart. Connected. Energy-friendly. Rev. 3.00 | 27

40 mm 24 mm 5mm uuuuuuu uuuuuuu- uuuuuuu uuuuuuuu uuuuuuu- uuuuuuuu 15 mm

14. Mechanical Details

The mechanical layout of BRD4300A BGM111 Blue Gecko Bluetooth Module Radio Board is illustrated in the figures below.

Figure 14.1. BRD4300A Top View

Figure 14.2. BRD4300A Bottom View

UG122: BGM111 Bluetooth Module Radio Board User's Guide

Mechanical Details

silabs.com | Smart. Connected. Energy-friendly. Rev. 3.00 | 28

15. Schematics, Assembly Drawings and BOM

Schematics, assembly drawings and bill of materials (BOM) are available through Simplicity Studio when the kit documentation pack-

age has been installed.

UG122: BGM111 Bluetooth Module Radio Board User's Guide

Schematics, Assembly Drawings and BOM

silabs.com | Smart. Connected. Energy-friendly. Rev. 3.00 | 29

16. Radio Board Revision History and Errata

16.1 Revision History

Radio Board revision is printed on the backside of the BRD4300A Radio Board.

Table 16.1. BRD4300A Revision History

Radio Board Revision Released Description

A03 2016-07-04 Updated BGM111 module revision from V1.1 to V2

A02 2016-03-28 Updated BGM111 module revision from V1 to V1.1.

A01 2015-07-01 Updated BGM111 module to first release version.

A00 2015-05-22 Pre-production series with early version of BGM111. This version does not have

full RF performance.

16.2 Errata

Table 16.2. BRD4300A Errata

Radio Board Revision Problem Description

A01 RF performance. Reduced RF performance.

A00 RF performance RF range reduced due to sub-optimal antenna matching on the BGM111 mod-

ule.

UG122: BGM111 Bluetooth Module Radio Board User's Guide

Radio Board Revision History and Errata

silabs.com | Smart. Connected. Energy-friendly. Rev. 3.00 | 30

(1P) Part: (D) Date. S.nr: (Q) Qty: 1 H|||\||||||||\|\||||\IHHIIIII\Im||\H|||\||||||\|\|||||H||| H|||\|\||

17. Kit Revision History and Errata

The kit revision can be found printed on the kit packaging label, as outlined in the figure below.

SLWSTK6101C

Blue Gecko Module Wireless Starter Kit

124802042

29-09-16

A00

Figure 17.1. Kit Label

17.1 SLWSTK6101A Revision history

Kit Revision Released Description

A01 2015-07-01 Updated BRD4300A from revision A00 to revision A01.

A00 2015-06-17 Initial kit release.

17.2 SLWSTK6101B Revision History

Kit Revision Released Description

A01 2016-07-06 Updated BRD4300A to revision A03.

A00 2016-04-13 Initial kit release. Replaces SLWSTK6101A. Adds BGM113 Bluetooth Module

Radio Board to kit.

17.3 SLWSTK6101C Revision history

Kit Revision Released Description

A00 2016-09-29 Initial kit release. Replaces SLWSTK6101B. Adds BGM121 Bluetooth System-

in-Package Radio Board to kit and removes BGM113 Bluetooth Module Radio

Board.

17.4 SLWRB4300A Revision history

Kit Revision Released Description

A01 2016-08-16 Updated BRD4300A to from revision A02 to revision A03.

A00 2016-02-01 Initial release.

UG122: BGM111 Bluetooth Module Radio Board User's Guide

Kit Revision History and Errata

silabs.com | Smart. Connected. Energy-friendly. Rev. 3.00 | 31

18. Document Revision History

Revision 3.00

2016-10-19

Added sections for ordering information, mechanical drawings and radio board connector pin-out, deprecating the BRD4300A Refer-

ence Manual.

Added kit revision A01 to revision history.

Smart removed from Bluetooth Smart for consistenty.

Simplicity Studio added to front page features.

Revision 2.00

2016-03-28

Updated document to reflect transition to SLWSTK6101B.

Added chapter on EXP board included in kit.

Revision 1.00

2015-09-30

Corrected pinout for buttons/leds and I2C bus.

Revision 0.90

2015-06-30

Initial version.

UG122: BGM111 Bluetooth Module Radio Board User's Guide

Document Revision History

silabs.com | Smart. Connected. Energy-friendly. Rev. 3.00 | 32

Table of Contents

1. Introduction ................................1

1.1 Radio Boards ..............................1

1.2 Ordering Information ...........................2

1.3 Getting Started .............................2

2. Kit Hardware Overview............................3

3. Kit Block Diagram .............................4

4. Connectors ................................5

4.1 Breakout Pads .............................5

4.2 Expansion Header ............................6

4.2.1 Expansion Header Pin-out .........................7

4.3 Debug Connector.............................8

4.4 Simplicity Connector............................9

5. Power Supply and Reset .......................... 10

5.1 Radio Board Power Selection ........................10

5.2 Board Controller Power...........................11

5.3 BGM111 Reset .............................11

6. Peripherals ............................... 12

6.1 Push Buttons and LEDs ..........................12

6.2 Memory LCD-TFT Display..........................13

6.3 Si7021 Relative Humidity and Temperature Sensor .................14

6.4 Virtual COM Port .............................15

7. Board Controller ............................. 16

7.1 Admin Console .............................16

8. Expansion Board ............................. 18

8.1 Accelerometer..............................18

8.2 Push Buttons and LEDs ..........................19

8.3 Joystick ................................19

9. Advanced Energy Monitor ......................... 20

9.1 Introduction...............................20

9.2 Theory of Operation ............................20

9.3 AEM Accuracy and Performance .......................21

9.4 Usage ................................21

10. On-Board Debugger ........................... 22

10.1 Host Interfaces .............................22

10.2 Debug Modes .............................23

Table of Contents 33

10.3 Debugging During Battery Operation ......................24

11. Device Connectivity ........................... 25

11.1 Virtual COM Port ............................25

12. Kit Manager and Upgrades ......................... 26

12.1 Kit Manager Operation ..........................26

12.2 Firmware Upgrades ...........................26

13. Radio Board Connectors ......................... 27

13.1 Radio Board Connector Pin Mapping......................27

14. Mechanical Details ............................ 28

15. Schematics, Assembly Drawings and BOM .................. 29

16. Radio Board Revision History and Errata ................... 30

16.1 Revision History.............................30

16.2 Errata ................................30

17. Kit Revision History and Errata ....................... 31

17.1 SLWSTK6101A Revision history .......................31

17.2 SLWSTK6101B Revision History .......................31

17.3 SLWSTK6101C Revision history .......................31

17.4 SLWRB4300A Revision history........................31

18. Document Revision History ........................ 32

Table of Contents .............................. 33

Table of Contents 34

Q SILICON LABS

http://www.silabs.com

Silicon Laboratories Inc.

400 West Cesar Chavez

Austin, TX 78701

USA

Simplicity Studio

One-click access to MCU and

wireless tools, documentation,

software, source code libraries &

more. Available for Windows,

Mac and Linux!

IoT Portfolio

www.silabs.com/IoT

SW/HW

www.silabs.com/simplicity

Quality

www.silabs.com/quality

Support and Community

community.silabs.com

Disclaimer

Silicon Labs intends to provide customers with the latest, accurate, and in-depth documentation of all peripherals and modules available for system and software implementers using or

intending to use the Silicon Labs products. Characterization data, available modules and peripherals, memory sizes and memory addresses refer to each specific device, and "Typical"

parameters provided can and do vary in different applications. Application examples described herein are for illustrative purposes only. Silicon Labs reserves the right to make changes

without further notice and limitation to product information, specifications, and descriptions herein, and does not give warranties as to the accuracy or completeness of the included

information. Silicon Labs shall have no liability for the consequences of use of the information supplied herein. This document does not imply or express copyright licenses granted

hereunder to design or fabricate any integrated circuits. The products are not designed or authorized to be used within any Life Support System without the specific written consent of

Silicon Labs. A "Life Support System" is any product or system intended to support or sustain life and/or health, which, if it fails, can be reasonably expected to result in significant personal

injury or death. Silicon Labs products are not designed or authorized for military applications. Silicon Labs products shall under no circumstances be used in weapons of mass

destruction including (but not limited to) nuclear, biological or chemical weapons, or missiles capable of delivering such weapons.

Trademark Information

Silicon Laboratories Inc.® , Silicon Laboratories®, Silicon Labs®, SiLabs® and the Silicon Labs logo®, Bluegiga®, Bluegiga Logo®, Clockbuilder®, CMEMS®, DSPLL®, EFM®, EFM32®,

EFR, Ember®, Energy Micro, Energy Micro logo and combinations thereof, "the world’s most energy friendly microcontrollers", Ember®, EZLink®, EZRadio®, EZRadioPRO®,

Gecko®, ISOmodem®, Precision32®, ProSLIC®, Simplicity Studio®, SiPHY®, Telegesis, the Telegesis Logo®, USBXpress® and others are trademarks or registered trademarks of Silicon

Labs. ARM, CORTEX, Cortex-M3 and THUMB are trademarks or registered trademarks of ARM Holdings. Keil is a registered trademark of ARM Limited. All other products or brand

names mentioned herein are trademarks of their respective holders.

Datenblatt für BGM111 Bluetooth Radio Brd User Guide von Silicon Labs

INFORMATION

HILFE

KONTAKT

FOLGEN SIE UNS
