TLV320ADC3140

SBAS993B –MAY 2019–REVISED OCTOBER 2019

TLV320ADC3140 Quad-Channel, 768-kHz, Burr-Brown

Audio ADC

1 Features

1• Multichannel high-performance ADC:

– 4-channel analog microphones or line-in,

– 8-channel digital PDM microphones, or

– Combination of analog and digital microphones

• ADC line and microphone differential input

performance:

– Dynamic range (DR): 106 dB

– THD+N: –98 dB

• ADC channel summing mode, DR performance:

– 109-dB, 2-channel summing

– 112-dB, 4-channel summing

• ADC input voltage:

– Differential, 2-VRMS full-scale inputs

– Single-ended, 1-VRMS full-scale inputs

• ADC sample rate (fS) = 8 kHz to 768 kHz

• Programmable channel settings:

– Channel gain: 0 dB to 42 dB, 1-dB steps

– Digital volume control: –100 dB to 27 dB

– Gain calibration with 0.1-dB resolution

– Phase calibration with 163-ns resolution

• Programmable microphone bias or supply voltage

generation

• Low-latency signal processing filter selection

• Programmable HPF and biquad digital filters

• Automatic gain controller (AGC)

• I2C or SPI controls

• Integrated high-performance audio PLL

• Automatic clock divider setting configurations

• Audio serial data interface:

– Format: TDM, I2S, or left-justified (LJ)

– Word length: 16 bits, 20 bits, 24 bits, or 32 bits

– Master or slave interface

• Single-supply operation: 3.3 V or 1.8 V

• I/O-supply operation: 3.3 V or 1.8 V

• Power consumption for 1.8-V AVDD supply:

– 8.5 mW/channel at 16-kHz sample rate

– 9.2 mW/channel at 48-kHz sample rate

2 Applications

• Microphone array systems

• Voice-activated digital assistants

• Teleconferencing systems

• Security and surveillance systems

3 Description

The TLV320ADC3140 is a Burr-Brown™ high-

performance, audio analog-to-digital converter (ADC)

that supports simultaneous sampling of up to four

analog channels or eight digital channels for the

pulse density modulation (PDM) microphone input.

The device supports line and microphone inputs, and

allows for both single-ended and differential input

configurations. The device integrates programable

channel gain, digital volume control, a programmable

microphone bias voltage, a phase-locked loop (PLL),

a programmable high-pass filter (HPF), biquad filters,

low-latency filter modes, and allows for sample rates

up to 768 kHz. The device supports time-division

multiplexing (TDM), I2S, or left-justified (LJ) audio

formats, and can be controlled with either the I2C or

SPI interface. These integrated high-performance

features, along with the ability to be powered from a

single-supply of 3.3 V or 1.8 V, make the device an

excellent choice for space-constrained audio systems

in far-field microphone recording applications.

The TLV320ADC3140 is specified from –40°C to

+125°C, and is offered in a 24-pin WQFN package.

Device Information(1)

PART NUMBER PACKAGE BODY SIZE (NOM)

TLV320ADC3140 WQFN (24) 4.00 mm × 4.00 mm with

0.5-mm pitch

(1) For all available packages, see the package option addendum

at the end of the data sheet.

Simplified Block Diagram

l TEXAS INSTRUMENTS

TLV320ADC3140

SBAS993B –MAY 2019–REVISED OCTOBER 2019

www.ti.com

Product Folder Links: TLV320ADC3140

Table of Contents

1 Features.................................................................. 1

2 Applications ........................................................... 1

3 Description ............................................................. 1

4 Revision History..................................................... 2

5 Device Comparison Table..................................... 3

6 Pin Configuration and Functions......................... 4

7 Specifications......................................................... 6

7.1 Absolute Maximum Ratings ...................................... 6

7.2 ESD Ratings.............................................................. 6

7.3 Recommended Operating Conditions....................... 6

7.4 Thermal Information.................................................. 7

7.5 Electrical Characteristics........................................... 7

7.6 Timing Requirements: I2C Interface........................ 11

7.7 Switching Characteristics: I2C Interface.................. 11

7.8 Timing Requirements: SPI Interface....................... 12

7.9 Switching Characteristics: SPI Interface................. 12

7.10 Timing Requirements: TDM, I2S or LJ Interface... 12

7.11 Switching Characteristics: TDM, I2S or LJ

Interface ................................................................... 12

7.12 Timing Requirements: PDM Digital Microphone

Interface ................................................................... 13

7.13 Switching Characteristics: PDM Digial Microphone

Interface ................................................................... 13

7.14 Typical Characteristics.......................................... 15

8 Detailed Description............................................ 17

8.1 Overview ................................................................. 17

8.2 Functional Block Diagram....................................... 18

8.3 Feature Description................................................. 18

8.4 Device Functional Modes........................................ 54

8.5 Programming........................................................... 55

8.6 Register Maps......................................................... 59

9 Application and Implementation ...................... 106

9.1 Application Information.......................................... 106

9.2 Typical Applications .............................................. 106

9.3 What to Do and What Not to Do........................... 113

10 Power Supply Recommendations ................... 113

11 Layout................................................................. 114

11.1 Layout Guidelines ............................................... 114

11.2 Layout Example .................................................. 114

12 Device and Documentation Support ............... 115

12.1 Documentation Support ...................................... 115

12.2 Receiving Notification of Documentation

Updates.................................................................. 115

12.3 Community Resources........................................ 115

12.4 Trademarks......................................................... 115

12.5 Electrostatic Discharge Caution.......................... 115

12.6 Glossary.............................................................. 115

13 Mechanical, Packaging, and Orderable

Information ......................................................... 115

4 Revision History

NOTE: Page numbers for previous revisions may differ from page numbers in the current version.

Changes from Revision A (July 2019) to Revision B Page

• Changed document status from advance information to production data ............................................................................. 1

l TEXAS INSTRUMENTS

TLV320ADC3140

www.ti.com

SBAS993B –MAY 2019–REVISED OCTOBER 2019

Product Folder Links: TLV320ADC3140

5 Device Comparison Table

FEATURES TLV320ADC3140 TLV320ADC5140 TLV320ADC6140

Control interface I2C or SPI

Digital audio serial interface TDM, I2S, or left-justified (LJ)

Audio analog channel 4 4 4

Digital PDM channel 8 8 8

Dynamic range enhancer (DRE) Not available Available Available

Dynamic range (DRE disabled) 106 dB 108 dB 113 dB

Dynamic range (DRE enabled) Not available 120 dB 123 dB

Compatibility Pin-to-pin, package, and control registers compatible; drop-in replacements of each other

Package WQFN (RTW), 24-pin, 4.00 mm × 4.00 mm (0.5-mm pitch)

l TEXAS INSTRUMENTS |_| |_| |_| |_| |_| |_|

24 DREG7IN1M_GPO1

1AVDD 18 SDA_SSZ

23 FSYNC8IN2P_GPI2

2AREG 17 SCL_MOSI

22 BCLK9IN2M_GPO2

3VREF 16 ADDR0_SCLK

21 SDOUT10IN3P_GPI3

4AVSS 15 ADDR1_MISO

20 GPIO111IN3M_GPO3

5MICBIAS 14 SHDNZ

19 IOVDD12IN4P_GPI4

6IN1P_GPI1 13 IN4M_GPO4

Not to scale

Thermal Pad (VSS)

TLV320ADC3140

SBAS993B –MAY 2019–REVISED OCTOBER 2019

www.ti.com

Product Folder Links: TLV320ADC3140

6 Pin Configuration and Functions

RTW Package

24-Pin WQFN With Exposed Thermal Pad

Top View

Pin Functions

PIN TYPE DESCRIPTION

NO. NAME

1 AVDD Analog supply Analog power (1.8 V or 3.3 V, nominal)

2 AREG Analog supply Analog on-chip regulator output voltage for analog supply (1.8 V, nominal) or

external analog power (1.8 V, nominal)

3 VREF Analog Analog reference voltage filter output

4 AVSS Analog supply Analog ground. Short this pin directly to the board ground plane.

5 MICBIAS Analog MICBIAS output

6 IN1P_GPI1 Analog input/digital input Analog input 1P pin or general-purpose digital input 1 (multipurpose functions

such as digital microphone data, PLL input clock source, and so forth)

7 IN1M_GPO1 Analog input/digital output Analog input 1M pin or general-purpose digital output 1 (multipurpose functions

such as digital microphone clock, interrupt, and so forth)

8 IN2P_GPI2 Analog input/digital input Analog input 2P pin or general-purpose digital input 2 (multipurpose functions

such as digital microphones data, PLL input clock source, and so forth)

9 IN2M_GPO2 Analog input/digital output Analog input 2M pin or general-purpose digital output 2 (multipurpose functions

such as digital microphone clock, interrupt, and so forth)

10 IN3P_GPI3 Analog input/digital input Analog input 3P pin or general-purpose digital input 3 (multipurpose functions

such as digital microphones data, PLL input clock source, and so forth)

11 IN3M_GPO3 Analog input/digital output Analog input 3M pin or general-purpose digital output 3 (multipurpose functions

such as digital microphone clock, interrupt, and so forth)

12 IN4P_GPI4 Analog input/digital input Analog input 4P pin or general-purpose digital input 4 (multipurpose functions

such as digital microphones data, PLL input clock source, and so forth)

13 IN4M_GPO4 Analog input/digital output Analog input 4M pin or general-purpose digital output 4 (multipurpose functions

such as digital microphone clock, interrupt, and so forth)

14 SHDNZ Digital input Device hardware shutdown and reset (active low)

15 ADDR1_MISO Digital I/O For I2C operation: I2C slave address A1 pin

For SPI operation: SPI slave output pin

l TEXAS INSTRUMENTS

TLV320ADC3140

www.ti.com

SBAS993B –MAY 2019–REVISED OCTOBER 2019

Product Folder Links: TLV320ADC3140

Pin Functions (continued)

PIN TYPE DESCRIPTION

NO. NAME

16 ADDR0_SCLK Digital input For I2C operation: I2C slave address A0 pin

For SPI operation : SPI serial bit clock

17 SCL_MOSI Digital input For I2C operation: clock pin for I2C control bus

For SPI operation: SPI slave input pin

18 SDA_SSZ Digital I/O For I2C operation: data pin for I2C control bus

For SPI operation: SPI slave-select pin

19 IOVDD Digital supply Digital I/O power supply (1.8 V or 3.3 V, nominal)

20 GPIO1 Digital I/O General-purpose digital input/output 1 (multipurpose functions such as digital

microphones clock or data, PLL input clock source, interrupt, and so forth)

21 SDOUT Digital output Audio serial data interface bus output

22 BCLK Digital I/O Audio serial data interface bus bit clock

23 FSYNC Digital I/O Audio serial data interface bus frame synchronization signal

24 DREG Digital supply Digital regulator output voltage for digital core supply (1.5 V, nominal)

Thermal

Pad Thermal Pad

(VSS) Ground supply Thermal pad shorted to internal device ground. Short the thermal pad directly to

the board ground plane.

l TEXAS INSTRUMENTS

TLV320ADC3140

SBAS993B –MAY 2019–REVISED OCTOBER 2019

www.ti.com

Product Folder Links: TLV320ADC3140

(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings

only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended

Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

7 Specifications

7.1 Absolute Maximum Ratings

over the operating ambient temperature range (unless otherwise noted)(1)

MIN MAX UNIT

Supply voltage

AVDD to AVSS –0.3 3.9

VAREG to AVSS –0.3 2.0

IOVDD to VSS (thermal pad) –0.3 3.9

Ground voltage differences AVSS to VSS (thermal pad) –0.3 0.3 V

Analog input voltage Analog input pins voltage to AVSS –0.3 AVDD + 0.3 V

Digital input voltage

Digital input except INxP_GPIx pins voltage to VSS

(thermal pad) –0.3 IOVDD + 0.3

Digital input INxP_GPIx pins voltage to VSS (thermal

pad) –0.3 AVDD + 0.3

Temperature

Operating ambient, TA–40 125

°CJunction, TJ–40 150

Storage, Tstg –65 150

(1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.

(2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.

7.2 ESD Ratings

VALUE UNIT

V(ESD) Electrostatic discharge Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001(1) ±2000 V

Charged-device model (CDM), per JEDEC specification JESD22-C101(2) ±500

(1) AVSS and VSS (thermal pad): all ground pins must be tied together and must not differ in voltage by more than 0.2 V.

7.3 Recommended Operating Conditions

MIN NOM MAX UNIT

POWER

AVDD,

AREG(1)

Analog supply voltage AVDD to AVSS (AREG is generated using onchip regulator) -

AVDD 3.3-V operation 3.0 3.3 3.6

Analog supply voltage AVDD and AREG to AVSS (AREG internal regulator is

shutdown) - AVDD 1.8-V operation 1.7 1.8 1.9

IOVDD IO supply voltage to VSS (thermal pad) - IOVDD 3.3-V operation 3.0 3.3 3.6 V

IO supply voltage to VSS (thermal pad) - IOVDD 1.8-V operation 1.65 1.8 1.95

INPUTS

Analog input pins voltage to AVSS 0 AVDD V

Digital input except INxP_GPIx pins voltage to VSS (thermal pad) 0 IOVDD V

Digital input INxP_GPIx pins voltage to VSS (thermal pad) 0 AVDD V

TEMPERATURE

TAOperating ambient temperature –40 125 °C

OTHERS

GPIOx or GPIx (used as MCLK input) clock frequency 36.864 MHz

SCL and SDA bus capacitance for I2C interface supports standard-mode and fast-

mode 400 pF

SCL and SDA bus capacitance for I2C interface supports fast-mode plus 550

CLDigital output load capacitance 20 50 pF

l TEXAS INSTRUMENTS

TLV320ADC3140

www.ti.com

SBAS993B –MAY 2019–REVISED OCTOBER 2019

Product Folder Links: TLV320ADC3140

(1) For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application

report.

7.4 Thermal Information

THERMAL METRIC(1)

TLV320ADCx140

UNITRTW (WQFN)

24 PINS

RθJA Junction-to-ambient thermal resistance 32.6 °C/W

RθJC(top) Junction-to-case (top) thermal resistance 25.0 °C/W

RθJB Junction-to-board thermal resistance 11.9 °C/W

ψJT Junction-to-top characterization parameter 0.2 °C/W

ψJB Junction-to-board characterization parameter 11.9 °C/W

RθJC(bot) Junction-to-case (bottom) thermal resistance 2.9 °C/W

(1) Ratio of output level with 1-kHz full-scale sine-wave input, to the output level with the AC signal input shorted to ground, measured A-

weighted over a 20-Hz to 20-kHz bandwidth using an audio analyzer.

(2) All performance measurements done with 20-kHz low-pass filter and, where noted, A-weighted filter. Failure to use such a filter may

result in higher THD and lower SNR and dynamic range readings than shown in the Electrical Characteristics. The low-pass filter

removes out-of-band noise, which, although not audible, may affect dynamic specification values.

(3) For best distortion performance, use input AC-coupling capacitors with low-voltage-coefficient.

7.5 Electrical Characteristics

at TA= 25°C, AVDD = 3.3 V, IOVDD = 3.3 V, fIN = 1-kHz sinusoidal signal, fS= 48 kHz, 32-bit audio data, BCLK = 256 × fS,

TDM slave mode, PLL on (unless otherwise noted)

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

ADC CONFIGURATION

AC input impedance

Input pins INxP or INxM, 2.5-kΩinput impedance

selection 2.5

kΩ

Input pins INxP or INxM, 10-kΩinput impedance

selection 10

Input pins INxP or INxM, 20-kΩinput impednace

selection 20

Channel gain range Programmable range with 1-dB steps 0 42 dB

ADC PERFORMANCE FOR LINE/MICROPHONE INPUT RECORDING : AVDD 3.3-V OPERATION

Differential input full-scale

AC signal voltage AC-coupled input 2 VRMS

Single-ended input full-

scale AC signal voltage AC-coupled input 1 VRMS

SNR Signal-to-noise ratio, A-

weighted(1)(2)

IN1 differential input selected and AC signal shorted to

ground, 10-kΩinput impedance selection, 0-dB channel

gain 100 106

IN1 differential input selected and AC signal shorted to

ground, 10-kΩinput impedance selection, 12-dB

channel gain 102

DR Dynamic range, A-

weighted(2)

IN1 differential input selected and –60-dB full-scale AC

signal input, 10-kΩinput impedance selection, 0-dB

channel gain 107

IN1 differential input selected and –72-dB full-scale AC

signal input, 10-kΩinput impedance selection, 12-dB

channel gain 103

THD+N Total harmonic

distortion(2)(3)

IN1 differential input selected and –1-dB full-scale AC

signal input, 10-kΩinput impedance selection, 0-dB

channel gain –98 –80

IN1 differential input selected and –13-dB full-scale AC

signal input, 10-kΩinput impedance selection, 12-dB

channel gain –94

ADC PERFORMANCE FOR LINE/MICROPHONE INPUT RECORDING : AVDD 1.8-V OPERATION

Differential input full-scale

AC signal voltage AC-coupled Input 1 VRMS

Single-ended input full-

scale AC signal voltage AC-coupled Input 0.5 VRMS

SNR Signal-to-noise ratio, A-

weighted(1)(2)

IN1 differential input selected and AC signal shorted to

ground, 10-kΩinput impedance selection, 0-dB channel

gain 100 dB

l TEXAS INSTRUMENTS

TLV320ADC3140

SBAS993B –MAY 2019–REVISED OCTOBER 2019

www.ti.com

Product Folder Links: TLV320ADC3140

Electrical Characteristics (continued)

at TA= 25°C, AVDD = 3.3 V, IOVDD = 3.3 V, fIN = 1-kHz sinusoidal signal, fS= 48 kHz, 32-bit audio data, BCLK = 256 × fS,

TDM slave mode, PLL on (unless otherwise noted)

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

DR Dynamic range, A-

weighted(2)

IN1 differential input selected and –60-dB full-scale AC

signal input, 10-kΩinput impedance selection, 0-dB

channel gain 101 dB

THD+N Total harmonic

distortion(2)(3)

IN1 differential input selected and –2-dB full-scale AC

signal Input, 10-kΩinput impedance selection, 0 dB

channel gain –90 dB

ADC OTHER PARAMETERS

Digital volume control

range Programmable 0.5-dB steps –100 27 dB

Output data sample rate Programmable 7.35 768 kHz

Output data sample word

length Programmable 16 32 Bits

Digital high-pass filter

cutoff frequency First-order IIR filter with programmable coefficients, –3-

dB point (default setting) 12 Hz

Interchannel isolation –1-dB full-scale AC-signal input to non measurement

channel –124 dB

Interchannel gain

mismatch –6-dB full-scale AC-signal input and 0-dB channel gain 0.1 dB

Gain drift 0-dB channel gain, across temperature range 15°C to

35°C –4.4 ppm/°C

Interchannel phase

mismatch 1-kHz sinusoidal signal 0.02 Degrees

Phase drift 1-kHz sinusoidal signal, across temperature range 15°C

to 35°C 0.0005 Degrees/°C

PSRR Power-supply rejection

ratio 100-mVPP, 1-kHz sinusoidal signal on AVDD, differential

input selected, 0-dB channel gain 102 dB

CMRR Common-mode rejection

ratio

Differential microphone input selected, 0-dB channel

gain, 100-mVPP, 1-kHz signal on both pins and measure

level at output 60 dB

MICROPHONE BIAS

MICBIAS noise BW = 20 Hz to 20 kHz, A-weighted, 1-μF capacitor

between MICBIAS and AVSS 1.6 µVRMS

MICBIAS voltage

MICBIAS programmed to VREF and VREF programmed

to either 2.75 V, 2.5 V, or 1.375 V VREF

VMICBIAS programmed to VREF × 1.096 and VREF

programmed to either 2.75 V, 2.5 V, or 1.375 V VREF ×

1.096

Bypass to AVDD with 20-mA load AVDD – 0.2

MICBIAS current drive MICBIAS voltage ≥2.5 V 20 mA

MICBIAS voltage < 2.5 V 10

MICBIAS load regulation MICBIAS programmed to either VREF or VREF ×

1.096, measured up to max load 0.1 0.6 1.8 %

MICBIAS over current

protection threshold 30 mA

DIGITAL I/O

VIL Low-level digital input logic

voltage threshold

All digital pins except INxP_GPIx, SDA and SCL, IOVDD

1.8-V operation –0.3 0.35 ×

IOVDD V

All digital pins except INxP_GPIx, SDA and SCL, IOVDD

3.3-V operation –0.3 0.8

VIH High-level digital input logic

voltage threshold

All digital pins except INxP_GPIx, SDA and SCL, IOVDD

1.8-V operation 0.65 ×

IOVDD IOVDD +

0.3 V

All digital pins except INxP_GPIx, SDA and SCL, IOVDD

3.3-V operation 2IOVDD +

0.3

VOL Low-level digital output

voltage

All digital pins except INxM_GPOx, SDA and SCL, IOL =

–2 mA, IOVDD 1.8-V operation 0.45

All digital pins except INxM_GPOx, SDA and SCL, IOL =

–2 mA, IOVDD 3.3-V operation 0.4

l TEXAS INSTRUMENTS

TLV320ADC3140

www.ti.com

SBAS993B –MAY 2019–REVISED OCTOBER 2019

Product Folder Links: TLV320ADC3140

Electrical Characteristics (continued)

at TA= 25°C, AVDD = 3.3 V, IOVDD = 3.3 V, fIN = 1-kHz sinusoidal signal, fS= 48 kHz, 32-bit audio data, BCLK = 256 × fS,

TDM slave mode, PLL on (unless otherwise noted)

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

VOH High-level digital output

voltage

All digital pins except INxM_GPOx, SDA and SCL, IOH =

2 mA, IOVDD 1.8-V operation IOVDD –

0.45 V

All digital pins except INxM_GPOx, SDA and SCL, IOH =

2 mA, IOVDD 3.3-V operation 2.4

VIL(I2C) Low-level digital input logic

voltage threshold SDA and SCL –0.5 0.3 x IOVDD V

VIH(I2C) High-level digital input logic

voltage threshold SDA and SCL 0.7 x IOVDD IOVDD +

0.5 V

VOL1(I2C) Low-level digital output

voltage SDA, IOL(I2C) = –3 mA, IOVDD > 2 V 0.4 V

VOL2(I2C) Low-level digital output

voltage SDA, IOL(I2C) = –2 mA, IOVDD ≤2 V 0.2 x IOVDD V

IOL(I2C) Low-level digital output

current

SDA, VOL(I2C) = 0.4 V, standard-mode or fast-mode 3 mA

SDA, VOL(I2C) = 0.4 V, fast-mode plus 20

IIH Input logic-high leakage for

digital inputs All digital pins except INxP_GPIx pins, input = IOVDD –5 0.1 5 µA

IIL Input logic-low leakage for

digital inputs All digital pins except INxP_GPIx pins, input = 0 V –5 0.1 5 µA

VIL(GPIx) Low-level digital input logic

voltage threshold

All INxP_GPIx digital pins, AVDD 1.8-V operation –0.3 0.35 ×

AVDD V

All INxP_GPIx digital pins, AVDD 3.3-V operation –0.3 0.8

VIH(GPIx) High-level digital input logic

voltage threshold

All INxP_GPIx digital pins, AVDD 1.8-V operation 0.65 ×

AVDD AVDD + 0.3 V

All INxP_GPIx digital pins, AVDD 3.3-V operation 2 AVDD + 0.3

VOL(GPOx) Low-level digital output

voltage

All INxM_GPOx digital pins, IOL = –2 mA, AVDD 1.8-V

operation 0.45

All INxM_GPOx digital pins, IOL = –2 mA, AVDD 3.3-V

operation 0.4

VOH(GPOx) High-level digital output

voltage

All INxM_GPOx digital pins, IOH = 2 mA, AVDD 1.8-V

operation AVDD –

0.45 V

All INxM_GPOx digital pins, IOH = 2 mA, AVDD 3.3-V

operation 2.4

IIH(GPIx) Input logic-high leakage for

digital inputs All INxP_GPIx digital pins, input = AVDD –5 0.1 5 µA

IIL(GPIx) Input logic-high leakage for

digital inputs All INxP_GPIx digital pins, input = 0 V –5 0.1 5 µA

CIN Input capacitance for

digital inputs All digital pins 5 pF

RPD

Pulldown resistance for

digital I/O pins when

asserted on 20 kΩ

TYPICAL SUPPLY CURRENT CONSUMPTION

IAVDD

Current consumption in

hardware shutdown mode

SHDNZ = 0, AVDD = 3.3 V, internal AREG 0.5

µA

IAVDD SHDNZ = 0, AVDD = 1.8 V, external AREG supply

(AREG shorted to AVDD) 0.5

IIOVDD SHDNZ = 0, all external clocks stopped, IOVDD = 3.3 V 0.1

IIOVDD SHDNZ = 0, all external clocks stopped, IOVDD = 1.8 V 0.1

IAVDD

Current consumption in

sleep mode (software

shutdown mode)

All external clocks stopped, AVDD = 3.3 V, internal

AREG 5

µA

IAVDD All external clocks stopped, AVDD = 1.8 V, external

AREG supply (AREG shorted to AVDD) 5

IIOVDD All external clocks stopped, IOVDD = 3.3 V 0.1

IIOVDD All external clocks stopped, IOVDD = 1.8 V 0.1

l TEXAS INSTRUMENTS

TLV320ADC3140

SBAS993B –MAY 2019–REVISED OCTOBER 2019

www.ti.com

Product Folder Links: TLV320ADC3140

Electrical Characteristics (continued)

at TA= 25°C, AVDD = 3.3 V, IOVDD = 3.3 V, fIN = 1-kHz sinusoidal signal, fS= 48 kHz, 32-bit audio data, BCLK = 256 × fS,

TDM slave mode, PLL on (unless otherwise noted)

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

IAVDD Current consumption with

ADC 2-channel operating

at fS48-kHz, PLL off

and BCLK = 512 × fS

AVDD = 3.3 V, internal AREG 11.3

IAVDD AVDD = 1.8 V, external AREG supply (AREG shorted to

AVDD) 10.7

IIOVDD IOVDD = 3.3 V 0.1

IIOVDD IOVDD = 1.8 V 0.05

IAVDD Current consumption with

ADC 4-channel operating

at fS16-kHz, PLL on and

BCLK = 256 × fS

AVDD = 3.3 V, internal AREG 19.7

IAVDD AVDD = 1.8 V, external AREG supply (AREG shorted to

AVDD) 18.6

IIOVDD IOVDD = 3.3 V 0.05

IIOVDD IOVDD = 1.8 V 0.02

IAVDD Current consumption with

ADC 4-channel operating

at fS48-kHz, PLL on

and BCLK = 256 × fS

AVDD = 3.3 V, internal AREG 21.3

IAVDD AVDD = 1.8 V, external AREG supply (AREG shorted to

AVDD) 20.2

IIOVDD IOVDD = 3.3 V 0.1

IIOVDD IOVDD = 1.8 V 0.05

l TEXAS INSTRUMENTS

TLV320ADC3140

www.ti.com

SBAS993B –MAY 2019–REVISED OCTOBER 2019

Product Folder Links: TLV320ADC3140

7.6 Timing Requirements: I2C Interface

at TA= 25°C, IOVDD = 3.3 V or 1.8 V (unless otherwise noted); see Figure 1 for timing diagram

MIN NOM MAX UNIT

STANDARD-MODE

fSCL SCL clock frequency 0 100 kHz

tHD;STA Hold time (repeated) START condition. After this period, the first clock pulse is

generated. 4μs

tLOW Low period of the SCL clock 4.7 μs

tHIGH High period of the SCL clock 4 μs

tSU;STA Setup time for a repeated START condition 4.7 μs

tHD;DAT Data hold time 0 3.45 μs

tSU;DAT Data setup time 250 ns

trSDA and SCL rise time 1000 ns

tfSDA and SCL fall time 300 ns

tSU;STO Setup time for STOP condition 4 μs

tBUF Bus free time between a STOP and START condition 4.7 μs

FAST-MODE

fSCL SCL clock frequency 0 400 kHz

tHD;STA Hold time (repeated) START condition. After this period, the first clock pulse is

generated. 0.6 μs

tLOW Low period of the SCL clock 1.3 μs

tHIGH High period of the SCL clock 0.6 μs

tSU;STA Setup time for a repeated START condition 0.6 μs

tHD;DAT Data hold time 0 0.9 μs

tSU;DAT Data setup time 100 ns

trSDA and SCL rise time 20 300 ns

tfSDA and SCL fall time 20 ×

(IOVDD /

5.5 V) 300 ns

tSU;STO Setup time for STOP condition 0.6 μs

tBUF Bus free time between a STOP and START condition 1.3 μs

FAST-MODE PLUS

fSCL SCL clock frequency 0 1000 kHz

tHD;STA Hold time (repeated) START condition. After this period, the first clock pulse is

generated. 0.26 μs

tLOW Low period of the SCL clock 0.5 μs

tHIGH High period of the SCL clock 0.26 μs

tSU;STA Setup time for a repeated START condition 0.26 μs

tHD;DAT Data hold time 0 μs

tSU;DAT Data setup time 50 ns

trSDA and SCL rise time 120 ns

tfSDA and SCL fall time 20 ×

(IOVDD /

5.5 V) 120 ns

tSU;STO Setup time for STOP condition 0.26 μs

tBUF Bus free time between a STOP and START condition 0.5 μs

7.7 Switching Characteristics: I2C Interface

at TA= 25°C, IOVDD = 3.3 V or 1.8 V (unless otherwise noted); see Figure 1 for timing diagram

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

td(SDA) SCL to SDA delay

Standard-mode 250 1250

nsFast-mode 250 850

Fast-mode plus 400

l TEXAS INSTRUMENTS

TLV320ADC3140

SBAS993B –MAY 2019–REVISED OCTOBER 2019

www.ti.com

Product Folder Links: TLV320ADC3140

7.8 Timing Requirements: SPI Interface

at TA= 25°C, IOVDD = 3.3 V or 1.8 V and 20-pF load on all outputs (unless otherwise noted); see Figure 2 for timing diagram

MIN NOM MAX UNIT

t(SCLK) SCLK period 40 ns

tH(SCLK) SCLK high pulse duration 18 ns

tL(SCLK) SCLK low pulse duration 18 ns

tLEAD Enable lead time 16 ns

tTRAIL Enable trail time 16 ns

tDSEQ Sequential transfer delay 20 ns

tSU(MOSI) MOSI data setup time 8 ns

tHLD(MOSI) MOSI data hold time 8 ns

tr(SCLK) SCLK rise time 10% - 90% rise time 6 ns

tf(SCLK) SCLK fall time 90% - 10% fall time 6 ns

7.9 Switching Characteristics: SPI Interface

at TA= 25°C, IOVDD = 3.3 V or 1.8 V and 20-pF load on all outputs (unless otherwise noted); see Figure 2 for timing diagram

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

ta(MISO) MISO access time 16 ns

td(MISO) SCLK to MISO delay 50% of SCLK to 50% of MISO 16 ns

tdis(MISO) MISO disable time 20 ns

(1) The BCLK minimum high or low pulse duration must be higher than 25 ns (to meet the timing specifications), if the SDOUT data line is

latched on the opposite BCLK edge polarity than the edge used by the device to transmit SDOUT data.

7.10 Timing Requirements: TDM, I2S or LJ Interface

at TA= 25°C, IOVDD = 3.3 V or 1.8 V and 20-pF load on all outputs (unless otherwise noted); see Figure 3 for timing diagram

MIN NOM MAX UNIT

t(BCLK) BCLK period 40 ns

tH(BCLK) BCLK high pulse duration (1) 18 ns

tL(BCLK) BCLK low pulse duration (1) 18 ns

tSU(FSYNC) FSYNC setup time 8 ns

tHLD(FSYNC) FSYNC hold time 8 ns

tr(BCLK) BCLK rise time 10% - 90% rise time 10 ns

tf(BCLK) BCLK fall time 90% - 10% fall time 10 ns

(1) The BCLK output clock frequency must be lower than 18.5 MHz (to meet the timing specifications), if the SDOUT data line is latched on

the opposite BCLK edge polarity than the edge used by the device to transmit SDOUT data.

7.11 Switching Characteristics: TDM, I2S or LJ Interface

at TA= 25°C, IOVDD = 3.3 V or 1.8 V and 20-pF load on all outputs (unless otherwise noted); see Figure 3 for timing diagram

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

td(SDOUT-BCLK) BCLK to SDOUT delay 50% of BCLK to 50% of SDOUT 18 ns

td(SDOUT-FSYNC)

FSYNC to SDOUT delay in TDM

or LJ mode (for MSB data with

TX_OFFSET = 0)

50% of FSYNC to 50% of

SDOUT 18 ns

f(BCLK) BCLK output clock frequency:

master mode (1) 24.576 MHz

tH(BCLK) BCLK high pulse duration:

master mode 14 ns

tL(BCLK) BCLK low pulse duration: master

mode 14 ns

td(FSYNC) BCLK to FSYNC delay: master

mode 50% of BCLK to 50% of FSYNC 18 ns

tr(BCLK) BCLK rise time: master mode 10% - 90% rise time 8 ns

tf(BCLK) BCLK fall time: master mode 90% - 10% fall time 8 ns

‘5‘ TEXAS INSTRUMENTS

SCLK

SSZ

MISO

MOSI

tLEAD

tDSEQ

t(SCLK)

tH(SCLK)

tL(SCLK)

tf(SCLK) tr(SCLK)

tLAG

tdis(MISO)

tSU(MOSI)

ta(MISO)

td(MISO)

tHLD(MOSI)

MSB IN

MSB OUT BIT6...1 LSB OUT

LSB IN

BIT6...1

STO STA

SDA

SCL

STA STO

tBUF

tHD;STA

tHD;DAT tSU;DAT tSU;STA tSU;STO

tHD;STA

tLOW

tHIGH

td(SDA)

TLV320ADC3140

www.ti.com

SBAS993B –MAY 2019–REVISED OCTOBER 2019

Product Folder Links: TLV320ADC3140

7.12 Timing Requirements: PDM Digital Microphone Interface

at TA= 25°C, IOVDD = 3.3 V or 1.8 V and 20-pF load on all outputs (unless otherwise noted); see Figure 4 for timing diagram

MIN NOM MAX UNIT

tSU(PDMDINx) PDMDINx setup time 30 ns

tHLD(PDMDINx) PDMDINx hold time 0 ns

7.13 Switching Characteristics: PDM Digial Microphone Interface

at TA= 25°C, IOVDD = 3.3 V or 1.8 V and 20-pF load on all outputs (unless otherwise noted); see Figure 4 for timing diagram

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

f(PDMCLK) PDMCLK clock frequency 0.768 6.144 MHz

tH(PDMCLK) PDMCLK high pulse duration 72 ns

tL(PDMCLK) PDMCLK low pulse duration 72 ns

tr(PDMCLK) PDMCLK rise time 10% - 90% rise time 18 ns

tf(PDMCLK) PDMCLK fall time 90% - 10% fall time 18 ns

Figure 1. I2C Interface Timing Diagram

Figure 2. SPI Interface Timing Diagram

‘5‘ TEXAS INSTRUMENTS

PDMCLK

PDMDINx

tSU(PDMDINx) tHLD(PDMDINx) tSU(PDMDINx) tHLD(PDMDINx)

tr(PDMCLK)

tf(PDMCLK)

Falling Edge Captured Rising Edge Captured

tH(PDMCLK) tL(PDMCLK)

t(PDMCLK)

FSYNC

BCLK

tH(BCLK)

tL(BCLK)

tr(BCLK) tf(BCLK)

tSU(FSYNC)

tHLD(FSYNC)

td(SDOUT-FSYNC)

td(SDOUT-BCLK)

SDOUT

t(BCLK)

td(FSYNC)

TLV320ADC3140

SBAS993B –MAY 2019–REVISED OCTOBER 2019

www.ti.com

Product Folder Links: TLV320ADC3140

Figure 3. TDM (With BCLK_POL = 1), I2S, and LJ Interface Timing Diagram

Figure 4. PDM Digital Microphone Interface Timing Diagram

l TEXAS INSTRUMENTS an an an an L L an

Frequency (Hz)

THD+N (dBFS)

20 50 100 500 1000 5000 10000 20000

-130

-120

-110

-100

-90

-80

-70

-60

D104

Channel-1

Channel-2

Channel-3

Channel-4

Channel Gain (dB)

Input Referred Noise (PVRMS)

0 4 8 12 16 20 24 28 32 36 40 44

THD+D105

Channel-1

Channel-2

Channel-3

Channel-4

Input Amplitude (dB)

THD+N (dBFS)

-130 -115 -100 -85 -70 -55 -40 -25 -10 0

-130

-120

-110

-100

-90

-80

-70

-60

THD+D101

Channel-1

Channel-2

Channel-3

Channel-4

Frequency (Hz)

THD+N (dBFS)

20 50 100 500 1000 5000 10000 20000

-130

-120

-110

-100

-90

-80

-70

-60

D103

Channel-1

Channel-2

Channel-3

Channel-4

Input Amplitude (dB)

THD+N (dBFS)

-130 -115 -100 -85 -70 -55 -40 -25 -10 0

-130

-120

-110

-100

-90

-80

-70

-60

THD+D101

Channel-1

Channel-2

Channel-3

Channel-4

Input Amplitude (dB)

THD+N (dBFS)

-130 -115 -100 -85 -70 -55 -40 -25 -10 0

-130

-120

-110

-100

-90

-80

-70

-60

THD+D101

Channel-1

Channel-2

Channel-3

Channel-4

TLV320ADC3140

www.ti.com

SBAS993B –MAY 2019–REVISED OCTOBER 2019

Product Folder Links: TLV320ADC3140

7.14 Typical Characteristics

at TA= 25°C, AVDD = 3.3 V, IOVDD = 3.3 V, fIN = 1-kHz sinusoidal signal, fS= 48 kHz, 32-bit audio data, BCLK = 256 × fS,

TDM slave mode, PLL on, channel gain = 0 dB, and linear phase decimation filter (unless otherwise noted); all performance

measurements are done with a 20-kHz, low-pass filter, and an A-weighted filter

Differential input

Figure 5. THD+N vs Input Amplitude

Single-ended input

Figure 6. THD+N vs Input Amplitude

Differential input with AVDD = 1.8 V and VREF = 1.375 V

Figure 7. THD+N vs Input Amplitude Figure 8. THD+N vs Input Frequency With a –60-dBr Input

Figure 9. THD+N vs Input Frequency With a –1-dBr Input

Differential input

Figure 10. Input-Referred Noise vs Channel Gain

l TEXAS INSTRUMENTS 2n

Frequency (Hz)

Output Amplitude (dBFS)

20 50 100 500 1000 5000 10000 20000

-200

-180

-160

-140

-120

-100

-80

-60

-40

-20

D006

Channel-1

Channel-2

Channel-3

Channel-4

Frequency (Hz)

Output Amplitude (dBFS)

20 50 100 500 1000 5000 10000 20000

-200

-180

-160

-140

-120

-100

-80

-60

-40

-20

D007

Channel-1

Channel-2

Channel-3

Channel-4

Frequency (Hz)

Output Amplitude (dBFS)

20 50 100 500 1000 5000 10000 20000

-200

-180

-160

-140

-120

-100

-80

-60

-40

-20

D005

Channel-1

Channel-2

Channel-3

Channel-4

Frequency (Hz)

PSRR (dB)

20 50 100 500 1000 5000 10000 20000

-130

-120

-110

-100

-90

-80

-70

-60

D106

Channel Gain (dB)

Input Referred Noise (PVRMS)

0 4 8 12 16 20 24 28 32 36 40 44

THD+D105

Channel-1

Channel-2

Channel-3

Channel-4

Frequency (Hz)

Output Amplitude (dBFS)

20 50 100 500 1000 500010000 100000 300000300000

-120

-110

-100

-90

-80

-70

-60

-50

-40

-30

-20

-10

FreqD008

Channel-1

Channel-2

Channel-3

Channel-4

TLV320ADC3140

SBAS993B –MAY 2019–REVISED OCTOBER 2019

www.ti.com

Product Folder Links: TLV320ADC3140

Typical Characteristics (continued)

at TA= 25°C, AVDD = 3.3 V, IOVDD = 3.3 V, fIN = 1-kHz sinusoidal signal, fS= 48 kHz, 32-bit audio data, BCLK = 256 × fS,

TDM slave mode, PLL on, channel gain = 0 dB, and linear phase decimation filter (unless otherwise noted); all performance

measurements are done with a 20-kHz, low-pass filter, and an A-weighted filter

Single-ended input

Figure 11. Input-Referred Noise vs Channel Gain Figure 12. Frequency Response With a –12-dBr Input

Figure 13. Power-Supply Rejection Ratio vs Ripple

Frequency With 100-mVPP Amplitude Figure 14. FFT With Idle Input

Figure 15. FFT With a –60-dBr Input Figure 16. FFT With a –1-dBr Input

l TEXAS INSTRUMENTS

TLV320ADC3140

www.ti.com

SBAS993B –MAY 2019–REVISED OCTOBER 2019

Product Folder Links: TLV320ADC3140

8 Detailed Description

8.1 Overview

The TLV320ADC3140 is a high-performance, low-power, flexible, quad-channel, audio analog-to-digital converter

(ADC) with extensive feature integration. This device is intended for applications in voice-activated systems,

professional microphones, audio conferencing, portable computing, communication, and entertainment

applications. The high dynamic range of the device enables far-field audio recording with high fidelity. This device

integrates a host of features that reduces cost, board space, and power consumption in space-constrained,

battery-powered, consumer, home, and industrial applications.

The TLV320ADC3140 consists of the following blocks:

• Quad-channel, multibit, high-performance delta-sigma (ΔΣ) ADC

• Configurable single-ended or differential audio inputs

• Low-noise, programmable microphone bias output

• Automatic gain controller (AGC)

• Programmable decimation filters with linear-phase or low-latency filter

• Programmable channel gain, volume control, biquad filters for each channel

• Programmable phase and gain calibration with fine resolution for each channel

• Programmable high-pass filter (HPF), and digital channel mixer

• Pulse density modulation (PDM) digital microphone interface with high-performance decimation filter

• Integrated low-jitter phase-locked loop (PLL) supporting a wide range of system clocks

• Integrated digital and analog voltage regulators to support single-supply operation

Communication to the TLV320ADC3140 to configure the control registers is supported using an I2C or SPI

interface. The device supports a highly flexible audio serial interface [time-division multiplexing (TDM), I2S, or

left-justified (LJ)] to transmit audio data seamlessly in the system across devices.

The device can support multiple devices by sharing the common I2C and TDM buses across devices. Moreover,

the device includes a daisy-chain feature and a secondary audio serial output data pin. These features relax the

shared TDM bus timing requirements and board design complexities when operating multiple devices for

applications requiring high audio data bandwidth.

Table 1 lists the reference abbreviations used throughout this document to registers that control the device.

Table 1. Abbreviations for Register References

REFERENCE ABBREVIATION DESCRIPTION EXAMPLE

Page y, register z, bit k Py_Rz_Dk Single data bit. The value of a

single bit in a register. Page 4, register 36, bit 0 = P4_R36_D0

Page y, register z, bits k-m Py_Rz_D[k:m] Range of data bits. A range of

data bits (inclusive). Page 4, register 36, bits 3-0 = P4_R36_D[3:0]

Page y, register z Py_Rz One entire register. All eight

bits in the register as a unit. Page 4, register 36 = P4_R36

Page y, registers z-n Py_Rz-Rn Range of registers. A range of

registers in the same page. Page 4, registers 36, 37, 38 = P4_R36-R38

l TEXAS INSTRUMENTS

PGA ADC

Channel-1 Digital Filters

(Low Latency LPF,

Programmable

Biquads)

and

Automatic Gain

Controller (AGC)

Audio Serial

Interface (TDM,

I2S, LJ)

Audio Clock Generation

PLL

(Input Clock Source -

BCLK, GPIOx, GPIx)

I2C or SPI Control

Interface

BCLK

FSYNC

SDOUT

IN1M_GPO1

IN1P_GPI1

SCL_MOSI

SDA_SSZ

IN2M_GPO2

IN2P_GPI2

IN3M_GPO3

IN3P_GPI3

IN4M_GPO4

IN4P_GPI4

GPIO1

Multifunction Pins

(Digital Microphones

Interface, Interrupt, PLL

Input Clock)

ADDR0_SCLK

ADDR1_MISO

PGA ADC

Channel-2

PGA ADC

Channel-3

PGA ADC

Channel-4

Programmable

Microphone Bias

MICBIAS

8-Channel Digital Microphone Filters

SHDNZ

Regulators, Current Bias

and Voltage Reference

AVSS

AVDD

IOVDD

DREG

VREF

Thermal Pad

(VSS)

AREG

TLV320ADC3140

SBAS993B –MAY 2019–REVISED OCTOBER 2019

www.ti.com

Product Folder Links: TLV320ADC3140

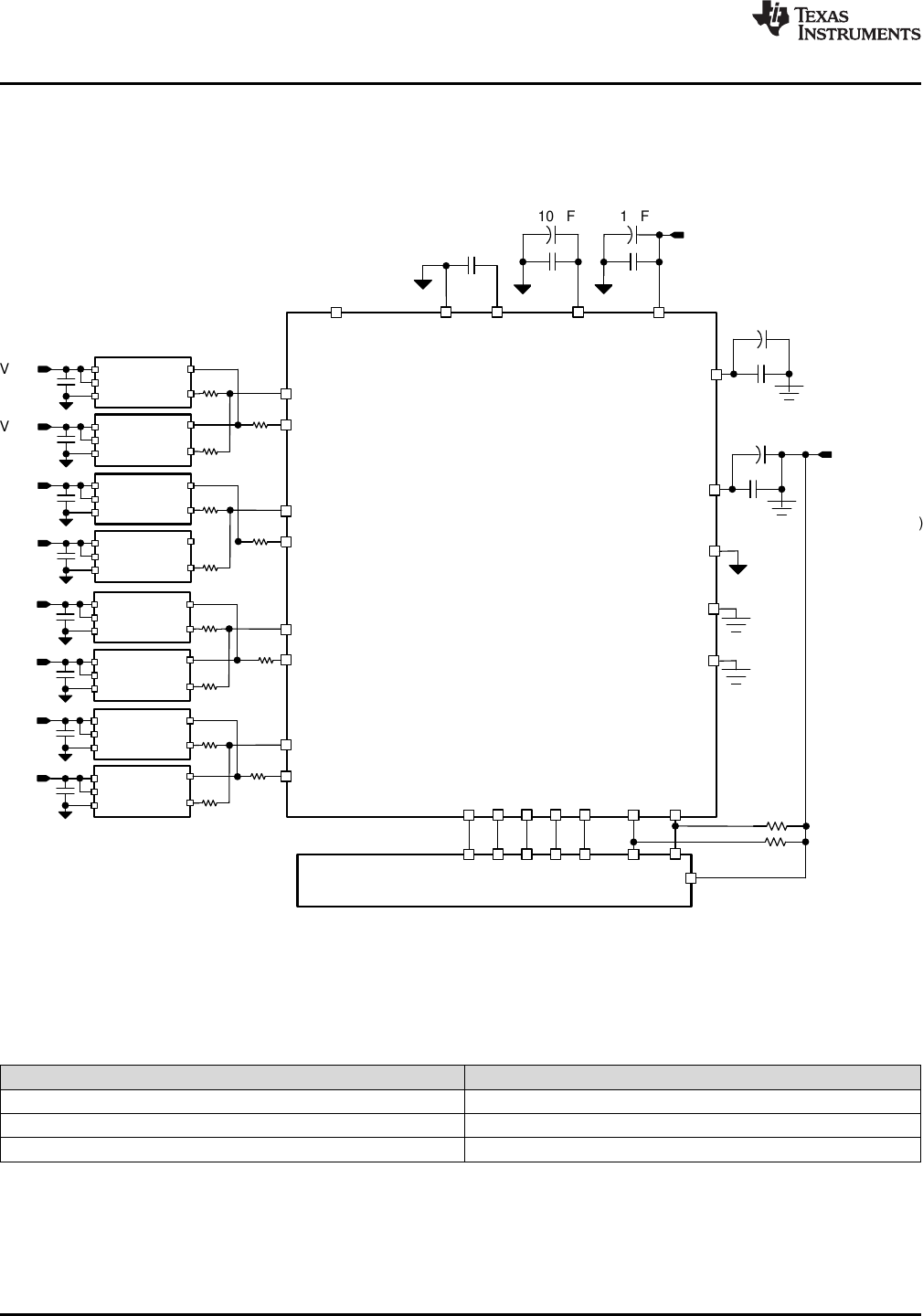

8.2 Functional Block Diagram

8.3 Feature Description

8.3.1 Serial Interfaces

This device has two serial interfaces: control and audio data. The control serial interface is used for device

configuration. The audio data serial interface is used for transmitting audio data to the host device.

8.3.1.1 Control Serial Interfaces

The device contains configuration registers and programmable coefficients that can be set to the desired values

for a specific system and application use. All these registers can be accessed using either I2C or SPI

communication to the device. For more information, see the Programming section.

8.3.1.2 Audio Serial Interfaces

Digital audio data flows between the host processor and the TLV320ADC3140 on the digital audio serial interface

(ASI), or audio bus. This highly flexible ASI bus includes a TDM mode for multichannel operation, support for I2S

or left-justified protocols format, programmable data length options, very flexible master-slave configurability for

bus clock lines and the ability to communicate with multiple devices within a system directly.

l TEXAS INSTRUMENTS

TLV320ADC3140

www.ti.com

SBAS993B –MAY 2019–REVISED OCTOBER 2019

Product Folder Links: TLV320ADC3140

Feature Description (continued)

The bus protocol TDM, I2S, or left-justified (LJ) format can be selected by using the ASI_FORMAT[1:0],

P0_R7_D[7:6] register bits. As shown in Table 2 and Table 3, these modes are all most significant byte (MSB)-

first, pulse code modulation (PCM) data format, with the output channel data word-length programmable as 16,

20, 24, or 32 bits by configuring the ASI_WLEN[1:0], P0_R7_D[5:4] register bits.

Table 2. Audio Serial Interface Format

P0_R7_D[7:6] : ASI_FORMAT[1:0] AUDIO SERIAL INTERFACE FORMAT

00 (default) Time division multiplexing (TDM) mode

01 Inter IC sound (I2S) mode

10 Left-justified (LJ) mode

11 Reserved (do not use this setting)

Table 3. Audio Output Channel Data Word-Length

P0_R7_D[5:4] : ASI_WLEN[1:0] AUDIO OUTPUT CHANNEL DATA WORD-LENGTH

00 Output channel data word-length set to 16 bits

01 Output channel data word-length set to 20 bits

10 Output channel data word-length set to 24 bits

11 (default) Output channel data word-length set to 32 bits

The frame sync pin, FSYNC, is used in this audio bus protocol to define the beginning of a frame and has the

same frequency as the output data sample rates. The bit clock pin, BCLK, is used to clock out the digital audio

data across the serial bus. The number of bit-clock cycles in a frame must accommodate multiple device active

output channels with the programmed data word length.

A frame consists of multiple time-division channel slots (up to 64) to allow all output channel audio data

transmissions to complete on the audio bus by a device or multiple TLV320ADC3140 devices sharing the same

audio bus. The device supports up to eight output channels that can be configured to place their audio data on

bus slot 0 to slot 63. Table 4 lists the output channel slot configuration settings. In I2S and LJ mode, the slots are

divided into two sets, left-channel slots and right-channel slots, as described in the Inter IC Sound (I2S) Interface

and Left-Justified (LJ) Interface sections.

Table 4. Output Channel Slot Assignment Settings

P0_R11_D[5:0] : CH1_SLOT[5:0] OUTPUT CHANNEL 1 SLOT ASSIGNMENT

00 0000 = 0d (default) Slot 0 for TDM or left slot 0 for I2S, LJ.

00 0001 = 1d Slot 1 for TDM or left slot 1 for I2S, LJ.

… …

01 1111 = 31d Slot 31 for TDM or left slot 31 for I2S, LJ.

10 0000 = 32d Slot 32 for TDM or right slot 0 for I2S, LJ.

… …

11 1110 = 62d Slot 62 for TDM or right slot 30 for I2S, LJ.

11 1111 = 63d Slot 63 for TDM or right slot 31 for I2S, LJ.

Similarly, the slot assignment setting for output channel 2 to channel 8 can be done using the CH2_SLOT

(P0_R12) to CH8_SLOT (P0_R18) registers, respectively.

The slot word length is the same as the output channel data word length set for the device. The output channel

data word length must be set to the same value for all TLV320ADC3140 devices if all devices share the same

ASI bus in a system. The maximum number of slots possible for the ASI bus in a system is limited by the

available bus bandwidth, which depends upon the BCLK frequency, output data sample rate used, and the

channel data word length configured.

l TEXAS INSTRUMENTS j’r’Tj’w 7 ,, W ﬂ"T"1:T'T WEEWEEWEEWEWEW %H\EEHHH\EEHHH\EEH\|~4H|\EEHH m m j’r’Tj’w 7 ,, W ﬂ"T"1:T'T WEEWEEWEEWEWEW ﬂzﬂ \ \ \ \ \ ‘3‘ \ \ \ H ‘2‘ \ \ |~—|:|;;D:m <7 m="" m="">

2 1 0

N-1 N-1 N-2 N-3 2 1 0 N-1 N-2 N-3 2 1 0

Slot-0

(Word Length : N)

Slot-1

(Word Length : N)

Slot-2 to Slot-7

(Word Length : N)

2 1 0

N-1

Slot-0

(Word Length : N)

nth Sample (n+1)th Sample

TX_OFFSET = 2 TX_OFFSET = 2

FSYNC

BCLK

SDOUT

N-1 2 1 0

N-2 N-3 N-1 N-2 N-3 2 1 0 N-1 N-2 N-3 2 1 0

Slot-0

(Word Length : N)

Slot-1

(Word Length : N)

Slot-2 to Slot-7

(Word Length : N)

N-1 2 1 0

N-2 N-3

Slot-0

(Word Length : N)

FSYNC

BCLK

SDOUT

nth Sample (n+1)th Sample

TLV320ADC3140

SBAS993B –MAY 2019–REVISED OCTOBER 2019

www.ti.com

Product Folder Links: TLV320ADC3140

The device also includes a feature that offsets the start of the slot data transfer with respect to the frame sync by

up to 31 cycles of the bit clock. Table 5 lists the programmable offset configuration settings.

Table 5. Programmable Offset Settings for the ASI Slot Start

P0_R8_D[4:0] : TX_OFFSET[4:0] PROGRAMMABLE OFFSET SETTING FOR SLOT DATA TRANSMISSION START

0 0000 = 0d (default) The device follows the standard protocol timing without any offset.

0 0001 = 1d Slot start is offset by one BCLK cycle, as compared to standard protocol timing.

For I2S or LJ, the left and right slot start is offset by one BCLK cycle, as compared to

standard protocol timing.

...... ......

1 1110 = 30d Slot start is offset by 30 BCLK cycles, as compared to standard protocol timing.

For I2S or LJ, the left and right slot start is offset by 30 BCLK cycles, as compared to

standard protocol timing.

1 1111 = 31d Slot start is offset by 31 BCLK cycles, as compared to standard protocol timing.

For I2S or LJ, the left and right slot start is offset by 31 BCLK cycles, as compared to

standard protocol timing.

The device also features the ability to invert the polarity of the frame sync pin, FSYNC, used to transfer the audio

data as compared to the default FSYNC polarity used in standard protocol timing. This feature can be set using

the FSYNC_POL, P0_R7_D3 register bit. Similarly, the device can invert the polarity of the bit clock pin, BCLK,

which can be set using the BCLK_POL, P0_R7_D2 register bit.

8.3.1.2.1 Time Division Multiplexed Audio (TDM) Interface

In TDM mode, also known as DSP mode, the rising edge of FSYNC starts the data transfer with the slot 0 data

first. Immediately after the slot 0 data transmission, the remaining slot data are transmitted in order. FSYNC and

each data bit (except the MSB of slot 0 when TX_OFFSET equals 0) is transmitted on the rising edge of BCLK.

Figure 17 to Figure 20 illustrate the protocol timing for TDM operation with various configurations.

Figure 17. TDM Mode Standard Protocol Timing (TX_OFFSET = 0)

Figure 18. TDM Mode Protocol Timing (TX_OFFSET = 2)

l TEXAS INSTRUMENTS j’TTj’T 7 ,, W ﬂ"T"1:T'T WEEWEEWEE EEWEEW 5 \HEEHHH‘EEHHH\EEH‘HHH‘EEHH _><7 m="" n77737:???="" ,="" ,,="" ,,="" h77”???="" 22="" ee="" es="" eewee="" %="" \="" \="" ‘3‘="" \="" \="" \="" \="" \="" ‘3‘="" \="" \="" \="" \="" \="" ‘5‘="" \="" \="" ph="" \="" i="" ‘3‘="" \="" \="" \="" m="" m="">

1 0

N-1 N-2 N-1 N-2 1 0

Left

Slot-0

(Word Length : N)

Left

Slot-2 to Slot-3

(Word Length : N)

1 0

N-1 N-2

FSYNC

BCLK

SDOUT

nth Sample (n+1)th Sample

1 0

N-1 N-1 N-2 1 0

Right

Slot-0

(Word Length : N)

Right

Slot-2 to Slot-3

(Word Length : N)

Left

Slot-0

(Word Length : N)

N-1 2 1 0

N-2 N-3 N-1 N-2 N-3 2 1 0 N-1 N-2 N-3 2 1 0

Slot-0

(Word Length : N)

Slot-1

(Word Length : N)

Slot-2 to Slot-7

(Word Length : N)

N-1 2 1 0

N-2 N-3

Slot-0

(Word Length : N)

FSYNC

BCLK

SDOUT

nth Sample (n+1)th Sample

FSYNC

BCLK

SDOUT 2 1 0

N-1 N-1 N-2 N-3 2 1 0 N-1 N-2 N-3 0 N-1 N-2

Slot-0

(Word Length : N)

Slot-1

(Word Length : N)

Slot-2 to Slot-7

(Word Length : N)

2 1 0

N-1

Slot-0

(Word Length : N)

TX_OFFSET = 2

12 1 0

TLV320ADC3140

www.ti.com

SBAS993B –MAY 2019–REVISED OCTOBER 2019

Product Folder Links: TLV320ADC3140

Figure 19. TDM Mode Protocol Timing (No Idle BCLK Cycles, TX_OFFSET = 2)

Figure 20. TDM Mode Protocol Timing (TX_OFFSET = 0 and BCLK_POL = 1)

For proper operation of the audio bus in TDM mode, the number of bit clocks per frame must be greater than or

equal to the number of active output channels times the programmed word length of the output channel data.

The device supports FSYNC as a pulse with a 1-cycle-wide bit clock, but also supports multiples as well. For a

higher BCLK frequency operation, using TDM mode with a TX_OFFSET value higher than 0 is recommended.

8.3.1.2.2 Inter IC Sound (I2S) Interface

The standard I2S protocol is defined for only two channels: left and right. The device extends the same protocol

timing for multichannel operation. In I2S mode, the MSB of the left slot 0 is transmitted on the falling edge of

BCLK in the second cycle after the falling edge of FSYNC. Immediately after the left slot 0 data transmission, the

remaining left slot data are transmitted in order. The MSB of the right slot 0 is transmitted on the falling edge of

BCLK in the second cycle after the rising edge of FSYNC. Immediately after the right slot 0 data transmission,

the remaining right slot data are transmitted in order. FSYNC and each data bit is transmitted on the falling edge

of BCLK. Figure 21 to Figure 24 illustrate the protocol timing for I2S operation with various configurations.

Figure 21. I2S Mode Standard Protocol Timing (TX_OFFSET = 0)

‘5‘ TEXAS INSTRUMENTS \H\EEHH\32HEHH22HH\EEH\EEHHHH 5 mm mm _ mm mm @ mm mm mm

1 0

N-1 N-2 N-1 N-2 1 0

Left

Slot-0

(Word Length : N)

Left

Slot-2 to Slot-3

(Word Length : N)

1 0

N-1 N-2

FSYNC

BCLK

SDOUT

nth Sample (n+1)th Sample

1 0

N-1 N-1 N-2 1 0

Right

Slot-0

(Word Length : N)

Right

Slot-2 to Slot-3

(Word Length : N)

Left

Slot-0

(Word Length : N)

1 0

N-1 N-2 N-1 N-2 0 N-1

Left

Slot-1 to Slot-3

(Word Length : N)

1 0

N-1 N-2

FSYNC

BCLK

SDOUT

nth Sample (n+1)th Sample

1 0

N-1 0 N-1 1 0

Right

Slot-1 to Slot-3

(Word Length : N)

Left

Slot-0

(Word Length : N)

1 0

0N-1 N-2

1 0

N-1 N-1 N-2 1 0

Left

Slot-0

(Word Length : N)

Left

Slot-2 to Slot-3

(Word Length : N)

1 0

N-1

FSYNC

BCLK

SDOUT

nth Sample (n+1)th Sample

1 0

N-1 N-1 1 0

Right

Slot-0

(Word Length : N)

Right

Slot-2 to Slot-3

(Word Length : N)

Left

Slot-0

(Word Length : N)

TX_OFFSET = 1 TX_OFFSET = 1 TX_OFFSET = 1

TLV320ADC3140

SBAS993B –MAY 2019–REVISED OCTOBER 2019

www.ti.com

Product Folder Links: TLV320ADC3140

Figure 22. I2S Protocol Timing (TX_OFFSET = 1)

Figure 23. I2S Protocol Timing (No Idle BCLK Cycles, TX_OFFSET = 0)

Figure 24. I2S Protocol Timing (TX_OFFSET = 0 and BCLK_POL = 1)

For proper operation of the audio bus in I2S mode, the number of bit clocks per frame must be greater than or

equal to the number of active output channels (including left and right slots) times the programmed word length

of the output channel data. The device FSYNC low pulse must be a number of BCLK cycles wide that is greater

than or equal to the number of active left slots times the data word length configured. Similarly, the FSYNC high

pulse must be a number of BCLK cycles wide that is greater than or equal to the number of active right slots

times the data word length configured.

8.3.1.2.3 Left-Justified (LJ) Interface

The standard LJ protocol is defined for only two channels: left and right. The device extends the same protocol

timing for multichannel operation. In LJ mode, the MSB of the left slot 0 is transmitted in the same BCLK cycle

after the rising edge of FSYNC. Each subsequent data bit is transmitted on the falling edge of BCLK.

Immediately after the left slot 0 data transmission, the remaining left slot data are transmitted in order. The MSB

of the right slot 0 is transmitted in the same BCLK cycle after the falling edge of FSYNC. Each subsequent data

bit is transmitted on the falling edge of BCLK. Immediately after the right slot 0 data transmission, the remaining

right slot data are transmitted in order. FSYNC is transmitted on the falling edge of BCLK. Figure 25 to Figure 28

illustrate the protocol timing for LJ operation with various configurations.

‘5‘ TEXAS INSTRUMENTS Em mm I WEEWEEMEMEWEFWEEWEM EE EEUJEE 22 EM; ELM B s 47% _, —,‘— <7>

1 0

N-1 N-2 N-1 N-2 1 0

Left

Slot-0

(Word Length : N)

Left

Slot-2 to Slot-3

(Word Length : N)

1 0

N-1 N-2

BCLK

SDOUT

nth Sample (n+1)th Sample

1 0

N-1 N-1 N-2 1 0

Right

Slot-0

(Word Length : N)

Right

Slot-2 to Slot-3

(Word Length : N)

Left

Slot-0

(Word Length : N)

FSYNC

TX_OFFSET = 1 TX_OFFSET = 1 TX_OFFSET = 1

1 0

N-1 N-2 N-1 N-2 0 N-1

Left

Slot-1 to Slot-3

(Word Length : N)

1 0

N-1 N-2

BCLK

SDOUT

nth Sample (n+1)th Sample

1 0

N-1 0 N-1 1 0

Right

Slot-1 to Slot-3

(Word Length : N)

Left

Slot-0

(Word Length : N)

1 0

0N-1 N-2

FSYNC

1 0

N-1 N-1 N-2 1 0

Left

Slot-0

(Word Length : N)

Left

Slot-2 to Slot-3

(Word Length : N)

1 0

N-1

BCLK

SDOUT

nth Sample (n+1)th Sample

1 0

N-1 N-1 1 0

Right

Slot-0

(Word Length : N)

Right

Slot-2 to Slot-3

(Word Length : N)

Left

Slot-0

(Word Length : N)

TX_OFFSET = 2 TX_OFFSET = 2 TX_OFFSET = 2

FSYNC

1 0

N-1 N-2 N-1 N-2 1 0

Left

Slot-0

(Word Length : N)

Left

Slot-2 to Slot-3

(Word Length : N)

1 0

N-1 N-2

BCLK

SDOUT

nth Sample (n+1)th Sample

1 0

N-1 N-1 N-2 1 0

Right

Slot-0

(Word Length : N)

Right

Slot-2 to Slot-3

(Word Length : N)

Left

Slot-0

(Word Length : N)

FSYNC

TLV320ADC3140

www.ti.com

SBAS993B –MAY 2019–REVISED OCTOBER 2019

Product Folder Links: TLV320ADC3140

Figure 25. LJ Mode Standard Protocol Timing (TX_OFFSET = 0)

Figure 26. LJ Protocol Timing (TX_OFFSET = 2)

Figure 27. LJ Protocol Timing (No Idle BCLK Cycles, TX_OFFSET = 0)

Figure 28. LJ Protocol Timing (TX_OFFSET = 1 and BCLK_POL = 1)

For proper operation of the audio bus in LJ mode, the number of bit clocks per frame must be greater than or

equal to the number of active output channels (including left and right slots) times the programmed word length

of the output channel data. The device FSYNC high pulse must be a number of BCLK cycles wide that is greater

than or equal to the number of active left slots times the data word length configured. Similarly, the FSYNC low

pulse must be number of BCLK cycles wide that is greater than or equal to the number of active right slots times

the data word length configured. For a higher BCLK frequency operation, using LJ mode with a TX_OFFSET

value higher than 0 is recommended.

‘5‘ TEXAS INSTRUMENTS

TLV320ADCx140

Host Processor

Audio Data Bus ± TDM, I2S, LJ Interface

Control Bus ± I2C Interface

TLV320ADC3140

SBAS993B –MAY 2019–REVISED OCTOBER 2019

www.ti.com

Product Folder Links: TLV320ADC3140

8.3.1.3 Using Multiple Devices With Shared Buses

The device has many supported features and flexible options that can be used in the system to seamlessly

connect multiple TLV320ADC3140 devices by sharing a single common I2C control bus and an audio serial

interface bus. This architecture enables multiple applications to be applied to a system that require a microphone

array for beam-forming operation, audio conferencing, noise cancellation, and so forth. Figure 29 shows a

diagram of multiple TLV320ADC3140 devices in a configuration where the control and audio data buses are

shared.

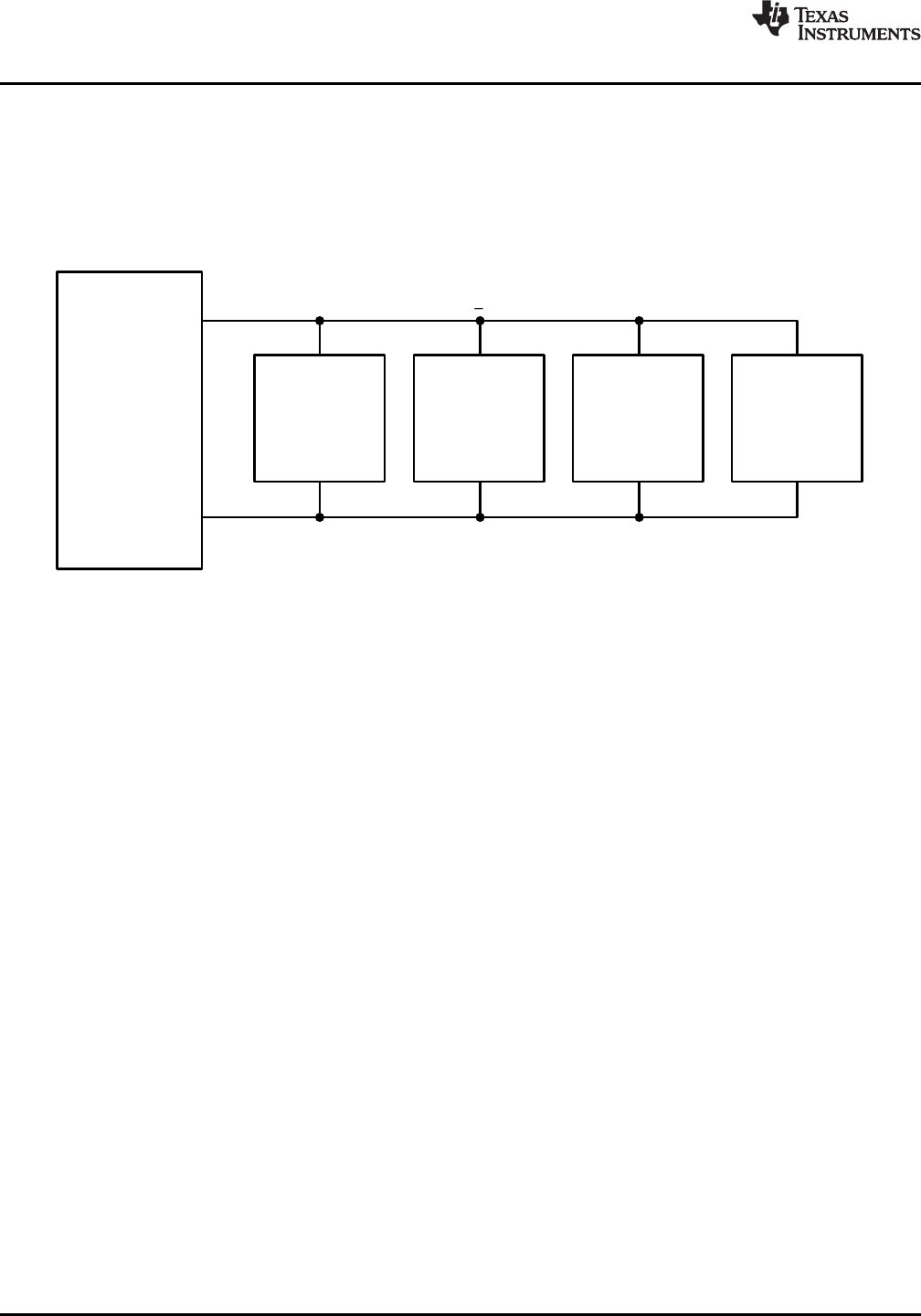

Figure 29. Multiple TLV320ADC3140 Devices With Shared Control and Audio Data Buses

The TLV320ADC3140 consists of the following features to enable seamless connection and interaction of

multiple devices using a shared bus:

• Supports up to four pin-programmable I2C slave addresses

• I2C broadcast simultaneously writes to (or triggers) all TLV320ADC3140 devices

• Supports up to 64 configuration output channel slots for the audio serial interface

• Tri-state feature (with enable and disable) for the unused audio data slots of the device

• Supports a bus-holder feature (with enable and disable) to keep the last driven value on the audio bus

• The GPIO1 or GPOx pin can be configured as a secondary output data lane for the audio serial interface

• The GPIO1 or GPIx pin can be used in a daisy-chain configuration of multiple TLV320ADC3140 devices

• Supports one BCLK cycle data latching timing to relax the timing requirement for the high-speed interface

• Programmable master and slave options for the audio serial interface

• Ability to synchronize the multiple devices for the simultaneous sampling requirement across devices

See the Multiple TLV320ADCx140 Devices With a Shared TDM and I2C Bus application report for further details.

l TEXAS INSTRUMENTS

TLV320ADC3140

www.ti.com

SBAS993B –MAY 2019–REVISED OCTOBER 2019

Product Folder Links: TLV320ADC3140

8.3.2 Phase-Locked Loop (PLL) and Clock Generation

The device has a smart auto-configuration block to generate all necessary internal clocks required for the ADC

modulator and the digital filter engine used for signal processing. This configuration is done by monitoring the

frequency of the FSYNC and BCLK signal on the audio bus.

The device supports the various output data sample rates (of the FSYNC signal frequency) and the BCLK to

FSYNC ratio to configure all clock dividers, including the PLL configuration, internally without host programming.

Table 6 and Table 7 list the supported FSYNC and BCLK frequencies.

Table 6. Supported FSYNC (Multiples or Submultiples of 48 kHz) and BCLK Frequencies

BCLK TO

FSYNC

RATIO

BCLK (MHz)

FSYNC

(8 kHz) FSYNC

(16 kHz) FSYNC

(24 kHz) FSYNC

(32 kHz) FSYNC

(48 kHz) FSYNC

(96 kHz) FSYNC

(192 kHz) FSYNC

(384 kHz) FSYNC

(768 kHz)

16 Reserved 0.256 0.384 0.512 0.768 1.536 3.072 6.144 12.288

24 Reserved 0.384 0.576 0.768 1.152 2.304 4.608 9.216 18.432

32 0.256 0.512 0.768 1.024 1.536 3.072 6.144 12.288 24.576

48 0.384 0.768 1.152 1.536 2.304 4.608 9.216 18.432 Reserved

64 0.512 1.024 1.536 2.048 3.072 6.144 12.288 24.576 Reserved

96 0.768 1.536 2.304 3.072 4.608 9.216 18.432 Reserved Reserved

128 1.024 2.048 3.072 4.096 6.144 12.288 24.576 Reserved Reserved

192 1.536 3.072 4.608 6.144 9.216 18.432 Reserved Reserved Reserved

256 2.048 4.096 6.144 8.192 12.288 24.576 Reserved Reserved Reserved

384 3.072 6.144 9.216 12.288 18.432 Reserved Reserved Reserved Reserved

512 4.096 8.192 12.288 16.384 24.576 Reserved Reserved Reserved Reserved

1024 8.192 16.384 24.576 Reserved Reserved Reserved Reserved Reserved Reserved

2048 16.384 Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved

Table 7. Supported FSYNC (Multiples or Submultiples of 44.1 kHz) and BCLK Frequencies

BCLK TO

FSYNC

RATIO

BCLK (MHz)

FSYNC

(7.35 kHz) FSYNC

(14.7 kHz) FSYNC

(22.05 kHz) FSYNC

(29.4 kHz) FSYNC

(44.1 kHz) FSYNC

(88.2 kHz) FSYNC

(176.4 kHz) FSYNC

(352.8 kHz) FSYNC

(705.6 kHz)

16 Reserved Reserved 0.3528 0.4704 0.7056 1.4112 2.8224 5.6448 11.2896

24 Reserved 0.3528 0.5292 0.7056 1.0584 2.1168 4.2336 8.4672 16.9344

32 Reserved 0.4704 0.7056 0.9408 1.4112 2.8224 5.6448 11.2896 22.5792

48 0.3528 0.7056 1.0584 1.4112 2.1168 4.2336 8.4672 16.9344 Reserved

64 0.4704 0.9408 1.4112 1.8816 2.8224 5.6448 11.2896 22.5792 Reserved

96 0.7056 1.4112 2.1168 2.8224 4.2336 8.4672 16.9344 Reserved Reserved

128 0.9408 1.8816 2.8224 3.7632 5.6448 11.2896 22.5792 Reserved Reserved

192 1.4112 2.8224 4.2336 5.6448 8.4672 16.9344 Reserved Reserved Reserved

256 1.8816 3.7632 5.6448 7.5264 11.2896 22.5792 Reserved Reserved Reserved

384 2.8224 5.6448 8.4672 11.2896 16.9344 Reserved Reserved Reserved Reserved

512 3.7632 7.5264 11.2896 15.0528 22.5792 Reserved Reserved Reserved Reserved

1024 7.5264 15.0528 22.5792 Reserved Reserved Reserved Reserved Reserved Reserved

2048 15.0528 Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved

l TEXAS INSTRUMENTS

TLV320ADC3140

SBAS993B –MAY 2019–REVISED OCTOBER 2019

www.ti.com

Product Folder Links: TLV320ADC3140

The status register ASI_STS, P0_R21, captures the device auto detect result for the FSYNC frequency and the

BCLK to FSYNC ratio. If the device finds any unsupported combinations of FSYNC frequency and BCLK to

FSYNC ratios, the device generates an ASI clock-error interrupt and mutes the record channels accordingly.

The device uses an integrated, low-jitter, phase-locked loop (PLL) to generate internal clocks required for the

ADC modulator and digital filter engine, as well as other control blocks. The device also supports an option to

use BCLK, GPIO1, or the GPIx pin (as MCLK) as the audio clock source without using the PLL to reduce power

consumption. However, the ADC performance may degrade based on jitter from the external clock source, and

some processing features may not be supported if the external audio clock source frequency is not high enough.

Therefore, TI recommends using the PLL for high-performance applications. More details and information on how

to configure and use the device in low-power mode without using the PLL are discussed in the TLV320ADCx140

Operation for Low-Power Critical Applications application report.

The device also supports an audio bus master mode operation using the GPIO1 or GPIx pin (as MCLK) as the

reference input clock source and supports various flexible options and a wide variety of system clocks. More

details and information on master mode configuration and operation are discussed in the Configuring and

Operating the TLV320ADCx140 as an Audio Bus Master application report.

The audio bus clock error detection and auto-detect feature automatically generates all internal clocks, but can

be disabled using the ASI_ERR, P0_R9_D5 and AUTO_CLK_CFG, P0_R19_D6, register bits, respectively. In

the system, this disable feature can be used to support custom clock frequencies that are not covered by the

auto detect scheme. For such application use cases, care must be taken to ensure that the multiple clock

dividers are all configured appropriately. Therefore, TI recommends using the PPC3 GUI for device configuration

settings; for more details see the TLV320ADCx140 Evaluation module user's guide and the PurePath™ console

graphical development suite.

8.3.3 Input Channel Configurations

The device consists of four pairs of analog input pins (INxP and INxM) that can be configured as differential

inputs or single-ended inputs for the recording channel. The device supports simultaneous recording of up to four

channels using the high-performance multichannel ADC. The input source for the analog pins can be from

electret condenser analog microphones, microelectrical-mechanical system (MEMS) analog microphones, or line-

in (auxiliary) inputs from the system board. Additionally, if the application uses digital PDM microphones for the

recording, then the INxP and INxM pins can be reconfigured in the device to support up to eight channels for the

digital microphone recording. Table 8 shows the input source selection for the record channel.

Table 8. Input Source Selection for the Record Channel

P0_R60_D[6:5] : CH1_INSRC[1:0] INPUT CHANNEL 1 RECORD SOURCE SELECTION

00 (default) Analog differential input for channel 1 (this setting is valid only when the GPI1 and GPO1 pin

functions are disabled)

01 Analog single-ended Input for channel 1 (this setting is valid only when the GPI1 and GPO1

pin functions are disabled)

10 Digital PDM input for channel 1 (configure the GPIx and GPOx pin accordingly for PDMDIN1

and PDMCLK)

11 Reserved (do not use this setting)

Similarly, the input source selection setting for input channel 2, channel 3, and channel 4 can be configured

using the CH2_INSRC[1:0] (P0_R65_D[6:5]), CH3_INSRC[1:0] (P0_R70_D[6:5]), and CH4_INSRC[1:0]

(P0_R75_D[6:5]) register bits, respectively.

Typically, voice or audio signal inputs are capacitively coupled (AC-coupled) to the device; however, the device

also supports an option for DC-coupled inputs to save board space. This configuration can be done

independently for each channel by setting the CH1_DC (P0_R60_D4), CH2_DC (P0_R65_D4), CH3_DC

(P0_R70_D4), and CH4_DC (P0_R75_D4) register bits. The INM pin can be directly grounded in DC-coupled

mode (see Figure 30), but the INM pin must be grounded after the AC-coupling capacitor in AC-coupled mode

(see Figure 31) for the single-ended input configuration. For the best dynamic range performance, the differential

AC-coupled input must be used.

l TEXAS INSTRUMENTS 5 4D 5 4| H] ﬁg ﬁ H]

TLV320ADCx140

INxP

INxM

GND

Line or

Microphone

Single-ended

Input

GND

Line or

Microphone

Single-ended

Input

TLV320ADCx140

INxP

INxM

TLV320ADC3140

www.ti.com

SBAS993B –MAY 2019–REVISED OCTOBER 2019

Product Folder Links: TLV320ADC3140

Figure 30. Single-Ended DC-Coupled Input Connection Figure 31. Single-Ended AC-Coupled Input Connection

The device allows for flexibility in choosing the typical input impedance on INxP or INxM from 2.5 kΩ(default),

10 kΩ, and 20 kΩbased on the input source impedance. The higher input impedance results in slightly higher

noise or lower dynamic range. Table 9 lists the configuration register settings for the input impedance for the

record channel.

Table 9. Input Impedance Selection for the Record Channel

P0_R60_D[3:2] : CH1_IMP[1:0] CHANNEL 1 INPUT IMPEDANCE SELECTION

00 (default) Channel 1 input impedance typical value is 2.5 kΩon INxP or INxM

01 Channel 1 input impedance typical value is 10 kΩon INxP or INxM

10 Channel 1 input impedance typical value is 20 kΩon INxP or INxM

11 Reserved (do not use this setting)

Similarly, the input impedance selection setting for input channel 2, channel 3, and channel 4 can be configured

using the CH2_IMP[1:0] (P0_R65_D[3:2]), CH3_IMP[1:0] (P0_R70_D[3:2]), and CH4_IMP[1:0] (P0_R75_D[3:2])

The value of the coupling capacitor in AC-coupled mode must be chosen so that the high-pass filter formed by

the coupling capacitor and the input impedance do not affect the signal content. Before proper recording can

begin, this coupling capacitor must be charged up to the common-mode voltage at power-up. To enable quick

charging, the device has modes to speed up the charging of the coupling capacitor. The default value of the

quick-charge timing is set for a coupling capacitor up to 1 µF. However, if a higher-value capacitor is used in the

system, then the quick-charging timing can be increased by using the INCAP_QCHG (P0_R5_D[5:4]) register

bits. For best distortion performance, use the low-voltage coefficient capacitors for AC coupling. The input

impedance value of 2.5 kΩis not supported for the DC-coupled input.

8.3.4 Reference Voltage

All audio data converters require a DC reference voltage. The TLV320ADC3140 achieves low-noise performance

by internally generating a low-noise reference voltage. This reference voltage is generated using a band-gap

circuit with high PSRR performance. This audio converter reference voltage must be filtered externally using a

minimum 1-µF capacitor connected from the VREF pin to analog ground (AVSS).

The value of this reference voltage can be configured using the P0_R59_D[1:0] register bits and must be set to

an appropriate value based on the desired full-scale input for the device and the AVDD supply voltage available

in the system. The default VREF value is set to 2.75 V, which in turn supports a 2-VRMS differential full-scale

input to the device. The required minimum AVDD voltage for this mode is 3 V. Table 10 lists the various VREF

settings supported along with required AVDD range and the supported full-scale input signal for that

configuration.

Table 10. VREF Programmable Settings

P0_R59_D[1:0] :

ADC_FSCALE[1:0]

VREF OUTPUT

VOLTAGE (Same as

Internal ADC VREF)

DIFFERENTIAL FULL-

SCALE INPUT

SUPPORTED

SINGLE-ENDED FULL-

SCALE INPUT

SUPPORTED AVDD RANGE

REQUIREMENT

00 (default) 2.75 V 2 VRMS 1 VRMS 3 V to 3.6 V

01 2.5 V 1.818 VRMS 0.909 VRMS 2.8 V to 3.6 V

10 1.375 V 1 VRMS 0.5 VRMS 1.7 V to 1.9 V

11 Reserved Reserved Reserved Reserved

l TEXAS INSTRUMENTS

TLV320ADC3140

SBAS993B –MAY 2019–REVISED OCTOBER 2019

www.ti.com

Product Folder Links: TLV320ADC3140

To achieve low-power consumption, this audio reference block is powered down as described in the Sleep Mode

or Software Shutdown section. When exiting sleep mode, the audio reference block is powered up using the

internal fast-charge scheme and the VREF pin settles to its steady-state voltage after the settling time (a function

of the decoupling capacitor on the VREF pin). This time is approximately equal to 3.5 ms when using a 1-μF

decoupling capacitor. If a higher-value decoupling capacitor is used on the VREF pin, the fast-charge setting

must be reconfigured using the VREF_QCHG, P0_R2_D[4:3] register bits, which support options of 3.5 ms

(default), 10 ms, 50 ms, or 100 ms.

8.3.5 Programmable Microphone Bias

The device integrates a built-in, low-noise microphone bias pin that can be used in the system for biasing

electret-condenser microphones or providing the supply to the MEMS analog or digital microphone. The

integrated bias amplifier supports up to 20 mA of load current that can be used for multiple microphones and is

designed to provide a combination of high PSRR, low noise, and programmable bias voltages to allow the

biasing to be fine tuned for specific microphone combinations.

When using this MICBIAS pin for biasing or supplying to multiple microphones, avoid any common impedance on

the board layout for the MICBIAS connection to minimize coupling across microphones. Table 11 shows the

available microphone bias programmable options.

Table 11. MICBIAS Programmable Settings

P0_R59_D[6:4] : MBIAS_VAL[2:0] P0_R59_D[1:0] : ADC_FSCALE[1:0] MICBIAS OUTPUT VOLTAGE

000 (default)

00 (default) 2.75 V (same as the VREF output)

01 2.5 V (same as the VREF output)

10 1.375 V (same as the VREF output)

001

00 (default) 3.014 V (1.096 times the VREF output)

01 2.740 V (1.096 times the VREF output)

10 1.507 V (1.096 times the VREF output)

010 to 101 XX Reserved (do not use these settings)

110 XX Same as AVDD

111 XX Reserved (do not use this setting)

The microphone bias output can be powered on or powered off (default) by configuring the MICBIAS_PDZ,

P0_R117_D7 register bit. Additionally, the device provides an option to configure the GPIO1 or GPIx pin to

directly control the microphone bias output powering on or off. This feature is useful to control the microphone

directly without engaging the host for I2C or SPI communication. The MICBIAS_PDZ, P0_R117_D7 register bit

value is ignored if the GPIO1 or GPIx pin is configured to set the microphone bias on or off.

l TEXAS INSTRUMENTS

PGA

PDM

Interface

Digital Microphone

ADC

Phase

Calibration

Decimation

Filters

HPF Gain

Calibration

Digital

Summer/Mixer

Biquad

Filters

Digital Volume

Control (DVC)

INP

INM

PDMCLK

PDMIN

Other Input Channels Processed Data

after Gain Calibration

Output

Channel

Data to ASI

TLV320ADC3140

www.ti.com

SBAS993B –MAY 2019–REVISED OCTOBER 2019

Product Folder Links: TLV320ADC3140

8.3.6 Signal-Chain Processing

The TLV320ADC3140 signal chain is comprised of very-low-noise, high-performance, and low-power analog

blocks and highly flexible and programmable digital processing blocks. The high performance and flexibility

combined with a compact package makes the TLV320ADC3140 optimized for a variety of end-equipments and

applications that require multichannel audio capture. Figure 32 shows a conceptual block diagram that highlights

the various building blocks used in the signal chain, and how the blocks interact in the signal chain.

Figure 32. Signal-Chain Processing Flowchart

The front-end PGA is very low noise, with a 120-dB dynamic range performance. Along with a low-noise and low-

distortion, multibit, delta-sigma ADC, the front-end PGA enables the TLV320ADC3140 to record a far-field audio

signal with very high fidelity, both in quiet and loud environments. Moreover, the ADC architecture has inherent

antialias filtering with a high rejection of out-of-band frequency noise around multiple modulator frequency

components. Therefore, the device prevents noise from aliasing into the audio band during ADC sampling.

Further on in the signal chain, an integrated, high-performance multistage digital decimation filter sharply cuts off

any out-of-band frequency noise with high stop-band attenuation.

The device also has an integrated programmable biquad filter that allows for custom low-pass, high-pass, or any

other desired frequency shaping. Thus, the overall signal chain architecture removes the requirement to add

external components for antialiasing low-pass filtering, and thus saves drastically on the external system

component cost and board space. See the TLV320ADCx140 Integrated Analog Antialiasing Filter and Flexible

Digital Filter application report for further details.

The signal chain also consists of various highly programmable digital processing blocks such as phase

calibration, gain calibration, high-pass filter, digital summer or mixer, biquad filters, and volume control. The

details on these processing blocks are discussed further in this section. The device also supports up to eight

digital PDM microphone recording channels when the analog record channels are not used. Channels 1 to 4 in

the signal chain block diagram of Figure 32 are as described in this section, however, channels 5 to 8 only

support the digital microphone recording option and do not support the digital summer or mixer option.

The desired input channels for recording can be enabled or disabled by using the IN_CH_EN (P0_R115)

ASI_OUT_EN (P0_R116) register. In general, the device supports simultaneous power-up and power-down of all

active channels for simultaneous recording. However, based on the application needs, if some channels must be

powered-up or powered-down dynamically when the other channel recording is on, then that use case is

supported by setting the DYN_CH_PUPD_EN, P0_R117_D4 register bit to 1'b1.

The device supports an input signal bandwidth up to 80 kHz, which allows the high-frequency non-audio signal to

be recorded by using a 176.4-kHz (or higher) sample rate.

For output sample rates of 48 kHz or lower, the device supports all features for 8-channel recording and various

programmable processing blocks. However, for output sample rates higher than 48 kHz, there are limitations in

the number of simultaneous channel recordings supported and the number of biquad filters and such. See the

TLV320ADCx140 Sampling Rates and Programmable Processing Blocks Supported application report for further

details.

l TEXAS INSTRUMENTS

TLV320ADC3140

SBAS993B –MAY 2019–REVISED OCTOBER 2019

www.ti.com

Product Folder Links: TLV320ADC3140

8.3.6.1 Programmable Channel Gain and Digital Volume Control

The device has an independent programmable channel gain setting for each input channel that can be set to the

appropriate value based on the maximum input signal expected in the system and the ADC VREF setting used

(see the Reference Voltage section), which determines the ADC full-scale signal level.

Configure the desired channel gain setting before powering up the ADC channel and do not change this setting

while the ADC is powered on. The programmable range supported for each channel gain is from 0 dB to 42 dB in

steps of 1 dB. To achieve low-noise performance, the device internal logic first maximizes the gain for the front-

end low-noise analog PGA, which supports a dynamic range of 120 dB, and then applies any residual

programmed channel gain in the digital processing block.

Table 12 shows the programmable options available for the channel gain.

Table 12. Channel Gain Programmable Settings

P0_R61_D[7:2] : CH1_GAIN[5:0] CHANNEL GAIN SETTING FOR INPUT CHANNEL 1

00 0000 = 0d (default) Input channel 1 gain is set to 0 dB

00 0001 = 1d Input channel 1 gain is set to 1 dB

00 0010 = 2d Input channel 1 gain is set to 2 dB

… …

10 1001 = 41d Input channel 1 gain is set to 41 dB

10 1010 = 42d Input channel 1 gain is set to 42 dB

10 1011 to 11 1111 = 43d to 63d Reserved (do not use these settings)

Similarly, the channel gain setting for input channel 2, channel 3, and channel 4 can be configured using the

CH2_GAIN (P0_R66), CH3_GAIN (P0_R71), and CH4_GAIN (P0_R76) register bits, respectively. The channel

gain feature is not available for the digital microphone record path.

The device also has a programmable digital volume control with a range from –100 dB to 27 dB in steps of

0.5 dB with the option to mute the channel recording. The digital volume control value can be changed

dynamically while the ADC channel is powered-up and recording. During volume control changes, the soft ramp-

up or ramp-down volume feature is used internally to avoid any audible artifacts. Soft-stepping can be entirely

disabled using the DISABLE_SOFT_STEP (P0_R108_D4) register bit.

The digital volume control setting is independently available for each output channel, including the digital

microphone record channel. However, the device also supports an option to gang-up the volume control setting

for all channels together using the channel 1 digital volume control setting, regardless if channel 1 is powered up

or powered down. This gang-up can be enabled using the DVOL_GANG (P0_R108_D7) register bit.

Table 13 shows the programmable options available for the digital volume control.

Table 13. Digital Volume Control (DVC) Programmable Settings

P0_R62_D[7:0] : CH1_DVOL[7:0] DVC SETTING FOR OUTPUT CHANNEL 1

0000 0000 = 0d Output channel 1 DVC is set to mute

0000 0001 = 1d Output channel 1 DVC is set to –100 dB

0000 0010 = 2d Output channel 1 DVC is set to –99.5 dB

0000 0011 = 3d Output channel 1 DVC is set to –99 dB

… …

1100 1000 = 200d Output channel 1 DVC is set to –0.5 dB

1100 1001 = 201d (default) Output channel 1 DVC is set to 0 dB

1100 1010 = 202d Output channel 1 DVC is set to 0.5 dB

… …

1111 1101 = 253d Output channel 1 DVC is set to 26 dB

1111 1110 = 254d Output channel 1 DVC is set to 26.5 dB

1111 1111 = 255d Output channel 1 DVC is set to 27 dB

l TEXAS INSTRUMENTS

TLV320ADC3140

www.ti.com

SBAS993B –MAY 2019–REVISED OCTOBER 2019

Product Folder Links: TLV320ADC3140

Similarly, the digital volume control setting for output channel 2 to channel 8 can be configured using the

CH2_DVOL (P0_R67) to CH8_DVOL (P0_R97) register bits, respectively.

The internal digital processing engine soft ramps up the volume from a muted level to the programmed volume

level when the channel is powered up, and the internal digital processing engine soft ramps down the volume

from a programmed volume to mute when the channel is powered down. This soft-stepping of volume is done to

prevent abruptly powering up and powering down the record channel. This feature can also be entirely disabled

using the DISABLE_SOFT_STEP (P0_R108_D4) register bit.

8.3.6.2 Programmable Channel Gain Calibration

Along with the programmable channel gain and digital volume, this device also provides programmable channel

gain calibration. The gain of each channel can be finely calibrated or adjusted in steps of 0.1 dB for a range of

–0.8-dB to 0.7-dB gain error. This adjustment is useful when trying to match the gain across channels resulting

from external components and microphone sensitivity. This feature, in combination with the regular digital volume

control, allows the gains across all channels to be matched for a wide gain error range with a resolution of

0.1 dB. Table 14 shows the programmable options available for the channel gain calibration.

Table 14. Channel Gain Calibration Programmable Settings

P0_R63_D[7:4] : CH1_GCAL[3:0] CHANNEL GAIN CALIBRATION SETTING FOR INPUT CHANNEL 1

0000 = 0d Input channel 1 gain calibration is set to –0.8 dB

0001 = 1d Input channel 1 gain calibration is set to –0.7 dB

… …

1000 = 8d (default) Input channel 1 gain calibration is set to 0 dB

… …

1110 = 14d Input channel 1 gain calibration is set to 0.6 dB

1111 = 15d Input channel 1 gain calibration is set to 0.7 dB

Similarly, the channel gain calibration setting for input channel 2 to channel 8 can be configured using the

CH2_GCAL (P0_R68) to CH8_GCAL (P0_R98) register bits, respectively.

8.3.6.3 Programmable Channel Phase Calibration

In addition to the gain calibration, the phase delay in each channel can be finely calibrated or adjusted in steps of

one modulator clock cycle for a cycle range of 0 to 255 for the phase error. The modulator clock, the same clock

used for ADC_MOD_CLK, is 6.144 MHz (the output data sample rate is multiples or submultiples of 48 kHz) or

5.6448 MHz (the output data sample rate is multiples or submultiples of 44.1 kHz) irrespective of the analog

microphone or digital microphone use case. This feature is very useful for many applications that must match the

phase with fine resolution between each channel, including any phase mismatch across channels resulting from

external components or microphones. Table 15 shows the available programmable options for channel phase

calibration.

Table 15. Channel Phase Calibration Programmable Settings

P0_R64_D[7:0] : CH1_PCAL[7:0] CHANNEL PHASE CALIBRATION SETTING FOR INPUT CHANNEL 1

0000 0000 = 0d (default) Input channel 1 phase calibration with no delay

0000 0001 = 1d Input channel 1 phase calibration delay is set to one cycle of the modulator clock

0000 0010 = 2d Input channel 1 phase calibration delay is set to two cycles of the modulator clock

… …

1111 1110 = 254d Input channel 1 phase calibration delay is set to 254 cycles of the modulator clock

1111 1111 = 255d Input channel 1 phase calibration delay is set to 255 cycles of the modulator clock

Similarly, the channel phase calibration setting for input channel 2 to channel 8 can be configured using the

CH2_PCAL (P0_R69) to CH8_PCAL (P0_R99) register bits, respectively.

The phase calibration feature must not be used when the analog input and PDM input are used together for

simultaneous conversion.

l TEXAS INSTRUMENTS 7 D12

*:V;=

0+0

1VF1

231 F &1VF1

Normalized Frequency (1/fS)

Magnitude (dB)

5E-5 0.0001 0.0005 0.001 0.005 0.01 0.05

-45

-42

-39

-36

-33

-30

-27

-24

-21

-18

-15

-12

-9

-6

-3

D003

HPF -3 dB Cutoff = 0.00025 u fS

HPF -3 dB Cutoff = 0.002 u fS

HPF -3 dB Cutoff = 0.008 u fS

TLV320ADC3140

SBAS993B –MAY 2019–REVISED OCTOBER 2019

www.ti.com

Product Folder Links: TLV320ADC3140

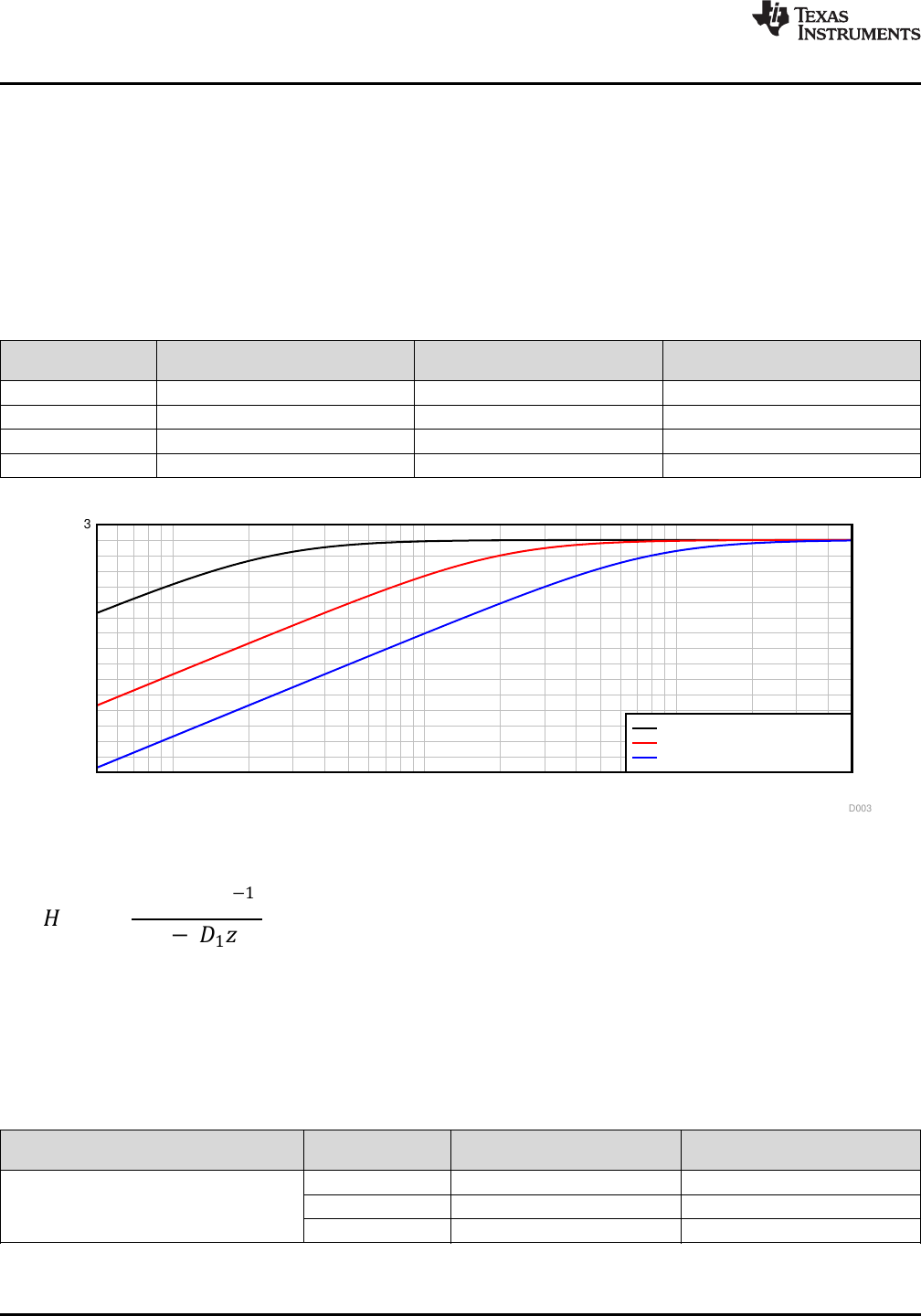

8.3.6.4 Programmable Digital High-Pass Filter

To remove the DC offset component and attenuate the undesired low-frequency noise content in the record data,

the device supports a programmable high-pass filter (HPF). The HPF is not a channel-independent filter setting

but is globally applicable for all ADC channels. This HPF is constructed using the first-order infinite impulse

response (IIR) filter, and is efficient enough to filter out possible DC components of the signal. Table 16 shows

the predefined –3-dB cutoff frequencies available that can be set by using the HPF_SEL[1:0] register bits of

P0_R107. Additionally, to achieve a custom –3-dB cutoff frequency for a specific application, the device also

allows the first-order IIR filter coefficients to be programmed when the HPF_SEL[1:0] register bits are set to

2'b00. Figure 33 illustrates a frequency response plot for the HPF filter.

Table 16. HPF Programmable Settings

P0_R107_D[1:0] :

HPF_SEL[1:0] -3-dB CUTOFF FREQUENCY

SETTING -3-dB CUTOFF FREQUENCY AT

16-kHz SAMPLE RATE -3-dB CUTOFF FREQUENCY AT

48-kHz SAMPLE RATE

00 Programmable 1st-order IIR filter Programmable 1st-order IIR filter Programmable 1st-order IIR filter

01 (default) 0.00025 × fS4 Hz 12 Hz

10 0.002 × fS32 Hz 96 Hz

11 0.008 × fS128 Hz 384 Hz

Figure 33. HPF Filter Frequency Response Plot

Equation 1 gives the transfer function for the first-order programable IIR filter:

(1)

The frequency response for this first-order programmable IIR filter with default coefficients is flat at a gain of 0 dB

(all-pass filter). The host device can override the frequency response by programming the IIR coefficients in

Table 17 to achieve the desired frequency response for high-pass filtering or any other desired filtering. If

HPF_SEL[1:0] are set to 2'b00, the host device must write these coefficients values for the desired frequency

response before powering-up any ADC channel for recording. Table 17 shows the filter coefficients for the first-

order IIR filter.

Table 17. 1st-Order IIR Filter Coefficients

FILTER FILTER

COEFFICIENT DEFAULT COEFFICIENT

VALUE COEFFICIENT REGISTER

MAPPING

Programmable 1st-order IIR filter (can be

allocated to HPF or any other desired filter)

N00x7FFFFFFF P4_R72-R75

N10x00000000 P4_R76-R79

D10x00000000 P4_R80-R83

l TEXAS INSTRUMENTS 7 2012 7022

*:V;=

0+ 20

1VF1+0

2VF2

231 F 2&1VF1F&2VF2

TLV320ADC3140

www.ti.com

SBAS993B –MAY 2019–REVISED OCTOBER 2019

Product Folder Links: TLV320ADC3140

8.3.6.5 Programmable Digital Biquad Filters

The device supports up to 12 programmable digital biquad filters. These highly efficient filters achieve the desired

frequence response. In digital signal processing, a digital biquad filter is a second-order, recursive linear filter

with two poles and two zeros. Equation 2 gives the transfer function of each biquad filter:

(2)

The frequency response for the biquad filter section with default coefficients is flat at a gain of 0 dB (all-pass

filter). The host device can override the frequency response by programming the biquad coefficients to achieve

the desired frequency response for a low-pass, high-pass, or any other desired frequency shaping. The

programmable coefficients for the mixer operation are located in the Programmable Coefficient Registers: Page =

0x02 and Programmable Coefficient Registers: Page = 0x03 sections. If biquad filtering is required, then the host

device must write these coefficients values before powering up any ADC channels for recording. As described in

Table 18, these biquad filters can be allocated for each output channel based on the BIQUAD_CFG[1:0] register

setting of P0_R108. By setting BIQUAD_CFG[1:0] to 2'b00, the biquad filtering for all record channels is disabled

and the host device can choose this setting if no additional filtering is required for the system application. See the

TLV320ADCx140 Programmable Biquad Filter Configuration and Applications application report for further

details.

Table 18. Biquad Filter Allocation to the Record Output Channel

PROGRAMMABLE

BIQUAD FILTER

RECORD OUTPUT CHANNEL ALLOCATION USING P0_R108_D[6:5] REGISTER SETTING

BIQUAD_CFG[1:0] = 2'b01

(1 Biquad per Channel) BIQUAD_CFG[1:0] = 2'b10 (Default)

(2 Biquads per Channel) BIQUAD_CFG[1:0] = 2'b11

(3 Biquads per Channel)

SUPPORTS ALL 8 CHANNELS SUPPORTS UP TO 6 CHANNELS SUPPORTS UP TO 4 CHANNELS

Biquad filter 1 Allocated to output channel 1 Allocated to output channel 1 Allocated to output channel 1

Biquad filter 2 Allocated to output channel 2 Allocated to output channel 2 Allocated to output channel 2

Biquad filter 3 Allocated to output channel 3 Allocated to output channel 3 Allocated to output channel 3

Biquad filter 4 Allocated to output channel 4 Allocated to output channel 4 Allocated to output channel 4

Biquad filter 5 Not used Allocated to output channel 1 Allocated to output channel 1

Biquad filter 6 Not used Allocated to output channel 2 Allocated to output channel 2

Biquad filter 7 Not used Allocated to output channel 3 Allocated to output channel 3

Biquad filter 8 Not used Allocated to output channel 4 Allocated to output channel 4

Biquad filter 9 Allocated to output channel 5 Allocated to output channel 5 Allocated to output channel 1

Biquad filter 10 Allocated to output channel 6 Allocated to output channel 6 Allocated to output channel 2

Biquad filter 11 Allocated to output channel 7 Allocated to output channel 5 Allocated to output channel 3

Biquad filter 12 Allocated to output channel 8 Allocated to output channel 6 Allocated to output channel 4

Table 19 shows the biquad filter coefficients mapping to the register space.

Table 19. Biquad Filter Coefficients Register Mapping

PROGRAMMABLE BIQUAD

FILTER BIQUAD FILTER COEFFICIENTS

Biquad filter 1 P2_R8-R27 Biquad filter 7 P3_R8-R27

Biquad filter 2 P2_R28-R47 Biquad filter 8 P3_R28-R47

Biquad filter 3 P2_R48-R67 Biquad filter 9 P3_R48-R67

Biquad filter 4 P2_R68-R87 Biquad filter 10 P3_R68-R87

Biquad filter 5 P2_R88-R107 Biquad filter 11 P3_R88-R107

Biquad filter 6 P2_R108-R127 Biquad filter 12 P3_R108-R127

l TEXAS INSTRUMENTS

Input Channel-1

Processed Data

Input Channel-2

Processed Data

Input Channel-3

Processed Data

Input Channel-4

Processed Data

Attenuated by

MIX1_CH1

factor

Attenuated by

MIX1_CH2

factor

Attenuated by

MIX1_CH3

factor

Attenuated by

MIX1_CH4

factor

+Output Channel-1

Routed to Bi-Quad

Filter

TLV320ADC3140

SBAS993B –MAY 2019–REVISED OCTOBER 2019

www.ti.com

Product Folder Links: TLV320ADC3140

8.3.6.6 Programmable Channel Summer and Digital Mixer

For applications that require an even higher SNR than that supported for each channel, the device digital

summing mode can be used. In this mode, the digital record data are summed up across the channel with an

equal weightage factor, which helps in reducing the effective record noise. Table 20 lists the configuration

settings available for channel summing mode.

Table 20. Channel Summing Mode Programmable Settings

P0_R107_D[3:2] : CH_SUM[2:0] CHANNEL SUMMING MODE FOR INPUT CHANNELS SNR AND DYNAMIC RANGE

BOOST

00 (Default) Channel summing mode is disabled Not applicable

Output channel 1 = (input channel 1 + input channel 2) / 2

Around 3-dB boost in SNR and

dynamic range

Output channel 2 = (input channel 1 + input channel 2) / 2

Output channel 3 = (input channel 3 + input channel 4) / 2

Output channel 4 = (input channel 3 + input channel 4) / 2

Output channel 5 = (input channel 5 + input channel 6) / 2

Output channel 6 = (input channel 5 + input channel 6) / 2

Output channel 1 = (input channel 1 + input channel 2 + input

channel 3 + input channel 4) / 4

Around 6-dB boost in SNR and

dynamic range

Output channel 2 = (input channel 1 + input channel 2 + input

channel 3 + input channel 4) / 4

Output channel 3 = (input channel 1 + input channel 2 + input

channel 3 + input channel 4) / 4

Output channel 4 = (input channel 1 + input channel 2 + input

channel 3 + input channel 4) / 4

11 Reserved (do not use this setting) Not applicable

The device additionally supports a fully programmable mixer feature that can mix the various input channels with

their custom programmable scale factor to generate the final output channels. The programmable mixer feature

is available only if CH_SUM[2:0] is set to 2'b00. The mixer function is only supported for input channel 1 to

channel 4. Figure 34 shows a block diagram that describes the mixer 1 operation to generate output channel 1.

The programmable coefficients for the mixer operation are located in the Programmable Coefficient Registers:

Page = 0x04 section.

Figure 34. Programmable Digital Mixer Block Diagram

A similar mixer operation is performed by mixer 2, mixer 3, and mixer 4 to generate output channel 2, channel 3,

and channel 4, respectively.

l TEXAS INSTRUMENTS

Normalized Frequency (1/fS)

Magnitude (dB)

0 0.4 0.8 1.2 1.6 2 2.4 2.8 3.2 3.6 4

-110

-100

-90

-80

-70

-60

-50

-40

-30

-20

-10

D001

Normalized Frequency (1/fS)

Magnitude (dB)

0 0.05 0.1 0.15 0.2 0.25 0.3 0.35 0.4 0.45 0.5

-0.5

-0.4

-0.3

-0.2

-0.1

0.1

0.2

0.3

0.4

0.5

D001

TLV320ADC3140

www.ti.com

SBAS993B –MAY 2019–REVISED OCTOBER 2019

Product Folder Links: TLV320ADC3140

8.3.6.7 Configurable Digital Decimation Filters

The device record channel includes a high dynamic range, built-in digital decimation filter to process the

oversampled data from the multibit delta-sigma (ΔΣ) modulator to generate digital data at the same Nyquist

sampling rate as the FSYNC rate. As illustrated in Figure 32, this decimation filter can also be used for

processing the oversampled PDM stream from the digital microphone. The decimation filter can be chosen from

three different types, depending on the required frequency response, group delay, and phase linearity

requirements for the target application. The selection of the decimation filter option can be done by configuring

the DECI_FILT, P0_R107_D[5:4] register bits. Table 21 shows the configuration register setting for the

decimation filter mode selection for the record channel.

Table 21. Decimation Filter Mode Selection for the Record Channel

P0_R107_D[5:4] : DECI_FILT[1:0] DECIMATION FILTER MODE SELECTION

00 (default) Linear phase filters are used for the decimation

01 Low latency filters are used for the decimation

10 Ultra-low latency filters are used for the decimation

11 Reserved (do not use this setting)

8.3.6.7.1 Linear Phase Filters

The linear phase decimation filters are the default filters set by the device and can be used for all applications

that require a perfect linear phase with zero-phase deviation within the pass-band specification of the filter. The

filter performance specifications and various plots for all supported output sampling rates are listed in this

section.

8.3.6.7.1.1 Sampling Rate: 8 kHz or 7.35 kHz

Figure 35 and Figure 36 respectively show the magnitude response and the pass-band ripple for a decimation

filter with a sampling rate of 8 kHz or 7.35 kHz. Table 22 lists the specifications for a decimation filter with an

8-kHz or 7.35-kHz sampling rate.

Figure 35. Linear Phase Decimation Filter Magnitude

Response Figure 36. Linear Phase Decimation Filter Pass-Band

Ripple

Table 22. Linear Phase Decimation Filter Specifications

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

Pass-band ripple Frequency range is 0 to 0.454 × fS–0.05 0.05 dB

Stop-band attenuation Frequency range is 0.58 × fSto 4 × fS72.7 dB

Frequency range is 4 × fSonwards 81.2

Group delay or latency Frequency range is 0 to 0.454 × fS17.1 1/fS

‘5‘ TEXAS INSTRUMENTS m WWW Warm

Normalized Frequency (1/fS)

Magnitude (dB)

0 0.4 0.8 1.2 1.6 2 2.4 2.8 3.2 3.6 4

-110

-100

-90

-80

-70

-60

-50

-40

-30

-20

-10

D001

Normalized Frequency (1/fS)

Magnitude (dB)

0 0.05 0.1 0.15 0.2 0.25 0.3 0.35 0.4 0.45 0.5

-0.5

-0.4

-0.3

-0.2

-0.1

0.1

0.2

0.3

0.4

0.5

D001

Normalized Frequency (1/fS)

Magnitude (dB)

0 0.4 0.8 1.2 1.6 2 2.4 2.8 3.2 3.6 4

-110

-100

-90

-80

-70

-60

-50

-40

-30

-20

-10

D001

Normalized Frequency (1/fS)

Magnitude (dB)

0 0.05 0.1 0.15 0.2 0.25 0.3 0.35 0.4 0.45 0.5

-0.5

-0.4

-0.3

-0.2

-0.1

0.1

0.2

0.3

0.4

0.5

D001

TLV320ADC3140

SBAS993B –MAY 2019–REVISED OCTOBER 2019

www.ti.com

Product Folder Links: TLV320ADC3140

8.3.6.7.1.2 Sampling Rate: 16 kHz or 14.7 kHz

Figure 37 and Figure 38 respectively show the magnitude response and the pass-band ripple for a decimation

filter with a sampling rate of 16 kHz or 14.7 kHz. Table 23 lists the specifications for a decimation filter with an

16-kHz or 14.7-kHz sampling rate.

Figure 37. Linear Phase Decimation Filter Magnitude

Response Figure 38. Linear Phase Decimation Filter Pass-Band

Ripple

Table 23. Linear Phase Decimation Filter Specifications

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

Pass-band ripple Frequency range is 0 to 0.454 × fS–0.05 0.05 dB

Stop-band attenuation Frequency range is 0.58 × fSto 4 × fS73.3 dB

Frequency range is 4 × fSonwards 95.0

Group delay or latency Frequency range is 0 to 0.454 × fS15.7 1/fS

8.3.6.7.1.3 Sampling Rate: 24 kHz or 22.05 kHz

Figure 39 and Figure 40 respectively show the magnitude response and the pass-band ripple for a decimation

filter with a sampling rate of 24 kHz or 22.05 kHz. Table 24 lists the specifications for a decimation filter with an

24-kHz or 22.05-kHz sampling rate.

Figure 39. Linear Phase Decimation Filter Magnitude

Response Figure 40. Linear Phase Decimation Filter Pass-Band

Ripple

Table 24. Linear Phase Decimation Filter Specifications

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

Pass-band ripple Frequency range is 0 to 0.454 × fS–0.05 0.05 dB

Stop-band attenuation Frequency range is 0.58 × fSto 4 × fS73.0 dB

Frequency range is 4 × fSonwards 96.4

Group delay or latency Frequency range is 0 to 0.454 × fS16.6 1/fS

‘5‘ TEXAS INSTRUMENTS “hm/x {\

Normalized Frequency (1/fS)

Magnitude (dB)

0 0.4 0.8 1.2 1.6 2 2.4 2.8 3.2 3.6 4

-110

-100

-90

-80

-70

-60

-50

-40

-30

-20

-10

D001

Normalized Frequency (1/fS)

Magnitude (dB)

0 0.05 0.1 0.15 0.2 0.25 0.3 0.35 0.4 0.45 0.5

-0.5

-0.4

-0.3

-0.2

-0.1

0.1

0.2

0.3

0.4

0.5

D001

Normalized Frequency (1/fS)

Magnitude (dB)

0 0.4 0.8 1.2 1.6 2 2.4 2.8 3.2 3.6 4

-110

-100

-90

-80

-70

-60

-50

-40

-30

-20

-10

D001

Normalized Frequency (1/fS)

Magnitude (dB)

0 0.05 0.1 0.15 0.2 0.25 0.3 0.35 0.4 0.45 0.5

-0.5

-0.4

-0.3

-0.2

-0.1

0.1

0.2

0.3

0.4

0.5

D001

TLV320ADC3140

www.ti.com

SBAS993B –MAY 2019–REVISED OCTOBER 2019

Product Folder Links: TLV320ADC3140

8.3.6.7.1.4 Sampling Rate: 32 kHz or 29.4 kHz

Figure 41 and Figure 42 respectively show the magnitude response and the pass-band ripple for a decimation

filter with a sampling rate of 32 kHz or 29.4 kHz. Table 25 lists the specifications for a decimation filter with an

32-kHz or 29.4-kHz sampling rate.

Figure 41. Linear Phase Decimation Filter Magnitude

Response Figure 42. Linear Phase Decimation Filter Pass-Band

Ripple

Table 25. Linear Phase Decimation Filter Specifications

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

Pass-band ripple Frequency range is 0 to 0.454 × fS–0.05 0.05 dB

Stop-band attenuation Frequency range is 0.58 × fSto 4 × fS73.7 dB

Frequency range is 4 × fSonwards 107.2

Group delay or latency Frequency range is 0 to 0.454 × fS16.9 1/fS

8.3.6.7.1.5 Sampling Rate: 48 kHz or 44.1 kHz

Figure 43 and Figure 44 respectively show the magnitude response and the pass-band ripple for a decimation

filter with a sampling rate of 48 kHz or 44.1 kHz. Table 26 lists the specifications for a decimation filter with an

48-kHz or 44.1-kHz sampling rate.

Figure 43. Linear Phase Decimation Filter Magnitude

Response Figure 44. Linear Phase Decimation Filter Pass-Band

Ripple

Table 26. Linear Phase Decimation Filter Specifications

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

Pass-band ripple Frequency range is 0 to 0.454 × fS–0.05 0.05 dB

Stop-band attenuation Frequency range is 0.58 × fSto 4 × fS73.8 dB

Frequency range is 4 × fSonwards 98.1

Group delay or latency Frequency range is 0 to 0.454 × fS17.1 1/fS

l TEXAS INSTRUMENTS us

Normalized Frequency (1/fS)

Magnitude (dB)

0 0.4 0.8 1.2 1.6 2 2.4 2.8 3.2 3.6 4

-110

-100

-90

-80

-70

-60

-50

-40

-30

-20

-10

D001

Normalized Frequency (1/fS)

Magnitude (dB)

0 0.05 0.1 0.15 0.2 0.25 0.3 0.35 0.4

-0.5

-0.4

-0.3

-0.2

-0.1

0.1

0.2

0.3

0.4

0.5

D001

Normalized Frequency (1/fS)

Magnitude (dB)

0 0.4 0.8 1.2 1.6 2 2.4 2.8 3.2 3.6 4

-110

-100

-90

-80

-70

-60

-50

-40

-30

-20

-10

D001

Normalized Frequency (1/fS)

Magnitude (dB)

0 0.05 0.1 0.15 0.2 0.25 0.3 0.35 0.4 0.45 0.5

-0.5

-0.4

-0.3

-0.2

-0.1

0.1

0.2

0.3

0.4

0.5

D001

TLV320ADC3140

SBAS993B –MAY 2019–REVISED OCTOBER 2019

www.ti.com

Product Folder Links: TLV320ADC3140

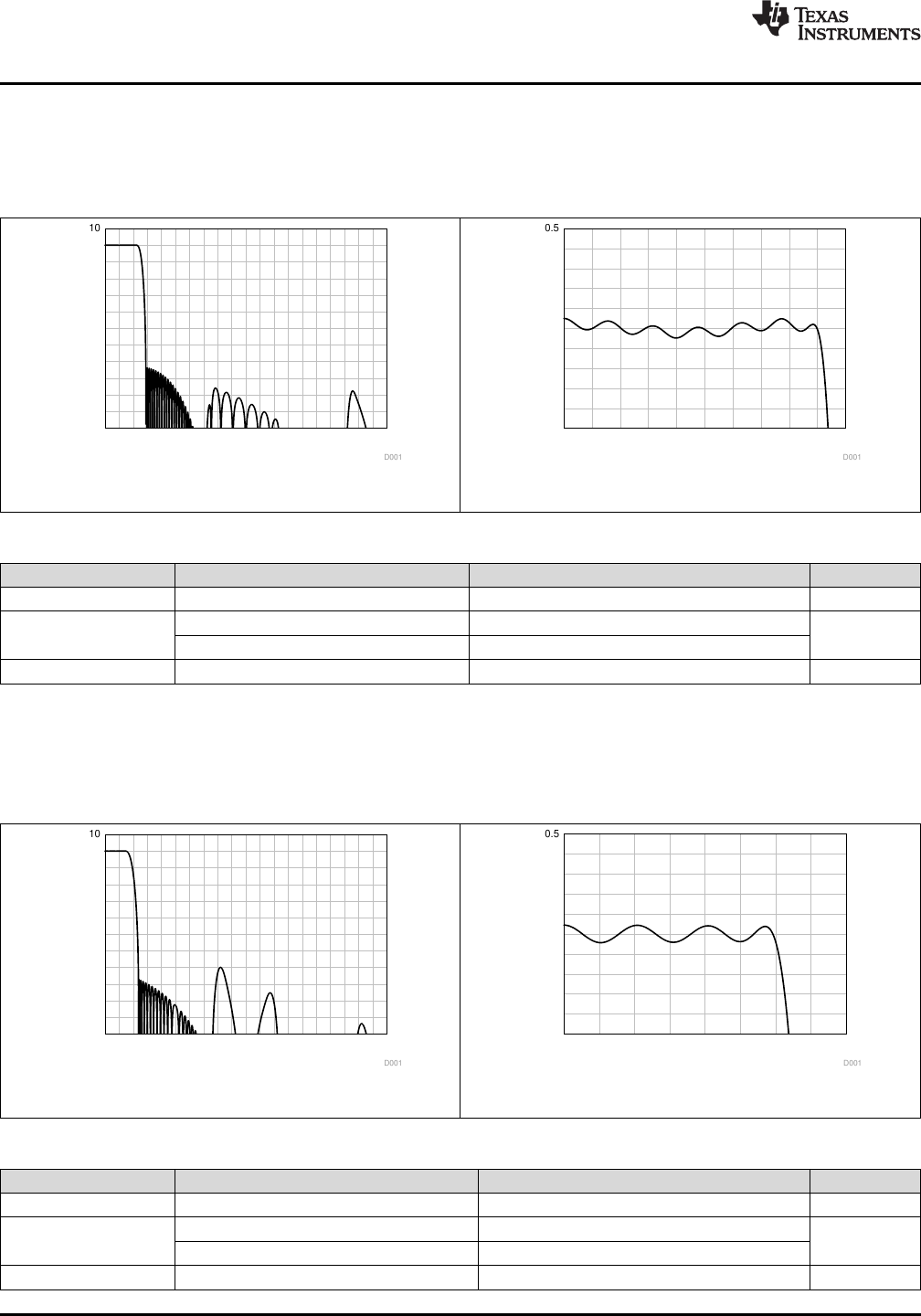

8.3.6.7.1.6 Sampling Rate: 96 kHz or 88.2 kHz

Figure 45 and Figure 46 respectively show the magnitude response and the pass-band ripple for a decimation

filter with a sampling rate of 96 kHz or 88.2 kHz. Table 27 lists the specifications for a decimation filter with an

96-kHz or 88.2-kHz sampling rate.

Figure 45. Linear Phase Decimation Filter Magnitude

Response Figure 46. Linear Phase Decimation Filter Pass-Band

Ripple

Table 27. Linear Phase Decimation Filter Specifications

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

Pass-band ripple Frequency range is 0 to 0.454 × fS–0.05 0.05 dB

Stop-band attenuation Frequency range is 0.58 × fSto 4 × fS73.6 dB

Frequency range is 4 × fSonwards 97.9

Group delay or latency Frequency range is 0 to 0.454 × fS17.1 1/fS

8.3.6.7.1.7 Sampling Rate: 192 kHz or 176.4 kHz

Figure 47 and Figure 48 respectively show the magnitude response and the pass-band ripple for a decimation

filter with a sampling rate of 192 kHz or 176.4 kHz. Table 28 lists the specifications for a decimation filter with an

192-kHz or 176.4-kHz sampling rate.

Figure 47. Linear Phase Decimation Filter Magnitude

Response Figure 48. Linear Phase Decimation Filter Pass-Band

Ripple

Table 28. Linear Phase Decimation Filter Specifications

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

Pass-band ripple Frequency range is 0 to 0.3 × fS–0.05 0.05 dB

Stop-band attenuation Frequency range is 0.473 × fSto 4 × fS70.0 dB

Frequency range is 4 × fSonwards 111.0

Group delay or latency Frequency range is 0 to 0.3 × fS11.9 1/fS

l TEXAS INSTRUMENTS NRA A V\ Anﬂﬂ /\

Normalized Frequency (1/fS)

Magnitude (dB)

0 0.4 0.8 1.2 1.6 2 2.4 2.8 3.2 3.6 4

-110

-100

-90

-80

-70

-60

-50

-40

-30

-20

-10

D001

Normalized Frequency (1/fS)

Magnitude (dB)

0 0.05 0.1 0.15 0.2

-0.5

-0.4

-0.3

-0.2

-0.1

0.1

0.2

0.3

0.4

0.5

D001

Normalized Frequency (1/fS)

Magnitude (dB)

0 0.4 0.8 1.2 1.6 2 2.4 2.8 3.2 3.6 4

-110

-100

-90

-80

-70

-60

-50

-40

-30

-20

-10

D001

Normalized Frequency (1/fS)

Magnitude (dB)

0 0.05 0.1 0.15 0.2 0.25 0.3

-0.5

-0.4

-0.3

-0.2

-0.1

0.1

0.2

0.3

0.4

0.5

D001

TLV320ADC3140

www.ti.com

SBAS993B –MAY 2019–REVISED OCTOBER 2019

Product Folder Links: TLV320ADC3140

8.3.6.7.1.8 Sampling Rate: 384 kHz or 352.8 kHz

Figure 49 and Figure 50 respectively show the magnitude response and the pass-band ripple for a decimation

filter with a sampling rate of 384 kHz or 352.8 kHz. Table 29 lists the specifications for a decimation filter with an

384-kHz or 352.8-kHz sampling rate.

Figure 49. Linear Phase Decimation Filter Magnitude

Response Figure 50. Linear Phase Decimation Filter Pass-Band

Ripple

Table 29. Linear Phase Decimation Filter Specifications

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

Pass-band ripple Frequency range is 0 to 0.212 × fS–0.05 0.05 dB

Stop-band attenuation Frequency range is 0.58 × fSto 4 × fS70.0 dB

Frequency range is 4 × fSonwards 108.8

Group delay or latency Frequency range is 0 to 0.212 × fS7.2 1/fS

8.3.6.7.1.9 Sampling Rate 768 kHz or 705.6 kHz

Figure 51 and Figure 52 respectively show the magnitude response and the pass-band ripple for a decimation

filter with a sampling rate of 768 kHz or 705.6 kHz. Table 30 lists the specifications for a decimation filter with an

768-kHz or 705.6-kHz sampling rate.

Figure 51. Linear Phase Decimation Filter Magnitude

Response Figure 52. Linear Phase Decimation Filter Pass-Band

Ripple

Table 30. Linear Phase Decimation Filter Specifications

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

Pass-band ripple Frequency range is 0 to 0.113 × fS–0.05 0.05 dB

Stop-band attenuation Frequency range is 0.58 × fSto 2 × fS75.0 dB

Frequency range is 2 × fSonwards 88.0

Group Delay or Latency Frequency range is 0 to 0.113 × fS5.9 1/fS

l TEXAS INSTRUMENTS w 05 05 (Mm {\ﬂ (Degve an rmm Lmeav

Normalized Frequency (1/fS)

Magnitude (dB)

0 0.4 0.8 1.2 1.6 2 2.4 2.8 3.2 3.6 4

-110

-100

-90

-80

-70

-60

-50

-40

-30

-20

-10

D002

Normalized Frequency (1/fS)

Magnitude (dB)

Phase Deviation from Linear (Degree)

0 0.05 0.1 0.15 0.2 0.25 0.3 0.35 0.4 0.45 0.5

-0.5 -0.5

-0.4 -0.4

-0.3 -0.3

-0.2 -0.2

-0.1 -0.1

0 0

0.1 0.1

0.2 0.2

0.3 0.3

0.4 0.4

0.5 0.5

D002

Pass-Band Ripple

Phase Deviation

TLV320ADC3140

SBAS993B –MAY 2019–REVISED OCTOBER 2019

www.ti.com

Product Folder Links: TLV320ADC3140

8.3.6.7.2 Low-Latency Filters

For applications where low latency with minimal phase deviation (within the audio band) is critical, the low-

latency decimation filters on the TLV320ADC3140 can be used. The device supports these filters with a group

delay of approximately seven samples with an almost linear phase response within the 0.365 × fSfrequency

band. This section provides the filter performance specifications and various plots for all supported output

sampling rates for the low-latency filters.

8.3.6.7.2.1 Sampling Rate: 16 kHz or 14.7 kHz

Figure 53 shows the magnitude response and Figure 54 shows the pass-band ripple and phase deviation for a

decimation filter with a sampling rate of 16 kHz or 14.7 kHz. Table 31 lists the specifications for a decimation

filter with a 16-kHz or 14.7-kHz sampling rate.

Figure 53. Low-Latency Decimation Filter Magnitude

Response

Figure 54. Low-Latency Decimation Filter Pass-Band

Ripple and Phase Deviation

Table 31. Low-Latency Decimation Filter Specifications

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

Pass-band ripple Frequency range is 0 to 0.451 × fS–0.05 0.05 dB

Stop-band attenuation Frequency range is 0.61 × fSonwards 87.3 dB

Group delay or latency Frequency range is 0 to 0.363 × fS7.6 1/fS

Group delay deviation Frequency range is 0 to 0.363 × fS–0.022 0.022 1/fS

Phase deviation Frequency range is 0 to 0.363 × fS–0.21 0.25 Degrees

{L} TEXAS INSTRUMENTS 05 3239 52; ED; Eﬁsmo WE: 05 ”WM 05 3239 52; ED; Eﬁsmo WE: 05 m A Wm m

Normalized Frequency (1/fS)

Magnitude (dB)

0 0.4 0.8 1.2 1.6 2 2.4 2.8 3.2 3.6 4

-110

-100

-90

-80

-70

-60

-50

-40

-30

-20

-10

D002

Normalized Frequency (1/fS)

Magnitude (dB)

Phase Deviation from Linear (Degree)

0 0.05 0.1 0.15 0.2 0.25 0.3 0.35 0.4 0.45 0.5

-0.5 -0.5

-0.4 -0.4

-0.3 -0.3

-0.2 -0.2

-0.1 -0.1

0 0

0.1 0.1

0.2 0.2

0.3 0.3

0.4 0.4

0.5 0.5

D002

Pass-Band Ripple

Phase Deviation

Normalized Frequency (1/fS)

Magnitude (dB)

0 0.4 0.8 1.2 1.6 2 2.4 2.8 3.2 3.6 4

-110

-100

-90

-80

-70

-60

-50

-40

-30

-20

-10

D002

Normalized Frequency (1/fS)

Magnitude (dB)

Phase Deviation from Linear (Degree)

0 0.05 0.1 0.15 0.2 0.25 0.3 0.35 0.4 0.45 0.5

-0.5 -0.5

-0.4 -0.4

-0.3 -0.3

-0.2 -0.2

-0.1 -0.1

0 0

0.1 0.1

0.2 0.2

0.3 0.3

0.4 0.4

0.5 0.5

D002

Pass-Band Ripple

Phase Deviation

TLV320ADC3140

www.ti.com

SBAS993B –MAY 2019–REVISED OCTOBER 2019

Product Folder Links: TLV320ADC3140

8.3.6.7.2.2 Sampling Rate: 24 kHz or 22.05 kHz

Figure 55 shows the magnitude response and Figure 56 shows the pass-band ripple and phase deviation for a

decimation filter with a sampling rate of 24 kHz or 22.05 kHz. Table 32 lists the specifications for a decimation

filter with a 24-kHz or 22.05-kHz sampling rate.

Figure 55. Low-Latency Decimation Filter Magnitude

Response

Figure 56. Low-Latency Decimation Filter Pass-Band

Ripple and Phase Deviation

Table 32. Low-Latency Decimation Filter Specifications

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

Pass-band ripple Frequency range is 0 to 0.459 × fS–0.01 0.01 dB

Stop-band attenuation Frequency range is 0.6 × fSonwards 87.2 dB

Group delay or latency Frequency range is 0 to 0.365 × fS7.5 1/fS

Group delay deviation Frequency range is 0 to 0.365 × fS–0.026 0.026 1/fS

Phase deviation Frequency range is 0 to 0.365 × fS–0.26 0.30 Degrees

8.3.6.7.2.3 Sampling Rate: 32 kHz or 29.4 kHz

Figure 57 shows the magnitude response and Figure 58 shows the pass-band ripple and phase deviation for a

decimation filter with a sampling rate of 32 kHz or 29.4 kHz. Table 33 lists the specifications for a decimation

filter with a 32-kHz or 29.4-kHz sampling rate.

Figure 57. Low-Latency Decimation Filter Magnitude

Response

Figure 58. Low-Latency Decimation Filter Pass-Band

Ripple and Phase Deviation

{L} TEXAS INSTRUMENTS Ammamov 52; En; Esmgmo 39$ 05 05 Mm w

Normalized Frequency (1/fS)

Magnitude (dB)

0 0.4 0.8 1.2 1.6 2 2.4 2.8 3.2 3.6 4

-110

-100

-90

-80

-70

-60

-50

-40

-30

-20

-10

D002

Normalized Frequency (1/fS)

Magnitude (dB)

Phase Deviation from Linear (Degree)

0 0.05 0.1 0.15 0.2 0.25 0.3 0.35 0.4 0.45 0.5

-0.5 -0.5

-0.4 -0.4

-0.3 -0.3

-0.2 -0.2

-0.1 -0.1

0 0

0.1 0.1

0.2 0.2

0.3 0.3

0.4 0.4

0.5 0.5

D002

Pass-Band Ripple

Phase Deviation

TLV320ADC3140

SBAS993B –MAY 2019–REVISED OCTOBER 2019

www.ti.com

Product Folder Links: TLV320ADC3140

Table 33. Low-Latency Decimation Filter Specifications

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

Pass-band ripple Frequency range is 0 to 0.457 × fS–0.04 0.04 dB

Stop-band attenuation Frequency range is 0.6 × fSonwards 88.3 dB

Group delay or latency Frequency range is 0 to 0.368 × fS8.7 1/fS

Group delay deviation Frequency range is 0 to 0.368 × fS–0.026 0.026 1/fS

Phase deviation Frequency range is 0 to 0.368 × fS–0.26 0.31 Degrees

8.3.6.7.2.4 Sampling Rate: 48 kHz or 44.1 kHz

Figure 59 shows the magnitude response and Figure 60 shows the pass-band ripple and phase deviation for a

decimation filter with a sampling rate of 48 kHz or 44.1 kHz. Table 34 lists the specifications for a decimation

filter with a 48-kHz or 44.1-kHz sampling rate.

Figure 59. Low-Latency Decimation Filter Magnitude

Response

Figure 60. Low-Latency Decimation Filter Pass-Band

Ripple and Phase Deviation

Table 34. Low-Latency Decimation Filter Specifications

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

Pass-band ripple Frequency range is 0 to 0.452 × fS–0.015 0.015 dB

Stop-band attenuation Frequency range is 0.6 × fSonwards 86.4 dB

Group delay or latency Frequency range is 0 to 0.365 × fS7.7 1/fS

Group delay deviation Frequency range is 0 to 0.365 × fS–0.027 0.027 1/fS

Phase deviation Frequency range is 0 to 0.365 × fS–0.25 0.30 Degrees

{L} TEXAS INSTRUMENTS 05 3239 52; ED; Eﬁsmo WE: 05 MM 05 3239 52; ED; Eﬁsmo WE: 05 m MAA m

Normalized Frequency (1/fS)

Magnitude (dB)

0 0.4 0.8 1.2 1.6 2 2.4 2.8 3.2 3.6 4

-110

-100

-90

-80

-70

-60

-50

-40

-30

-20

-10

D002

Normalized Frequency (1/fS)

Magnitude (dB)

Phase Deviation from Linear (Degree)

0 0.05 0.1 0.15 0.2 0.25 0.3 0.35 0.4 0.45 0.5

-0.5 -0.5

-0.4 -0.4

-0.3 -0.3

-0.2 -0.2

-0.1 -0.1

0 0

0.1 0.1

0.2 0.2

0.3 0.3

0.4 0.4

0.5 0.5

D002

Pass-Band Ripple

Phase Deviation

Normalized Frequency (1/fS)

Magnitude (dB)

0 0.4 0.8 1.2 1.6 2 2.4 2.8 3.2 3.6 4

-110

-100

-90

-80

-70

-60

-50

-40

-30

-20

-10

D002

Normalized Frequency (1/fS)

Magnitude (dB)

Phase Deviation from Linear (Degree)

0 0.05 0.1 0.15 0.2 0.25 0.3 0.35 0.4 0.45 0.5

-0.5 -0.5

-0.4 -0.4

-0.3 -0.3

-0.2 -0.2

-0.1 -0.1

0 0

0.1 0.1

0.2 0.2

0.3 0.3

0.4 0.4

0.5 0.5

D002

Pass-Band Ripple

Phase Deviation

TLV320ADC3140

www.ti.com

SBAS993B –MAY 2019–REVISED OCTOBER 2019

Product Folder Links: TLV320ADC3140

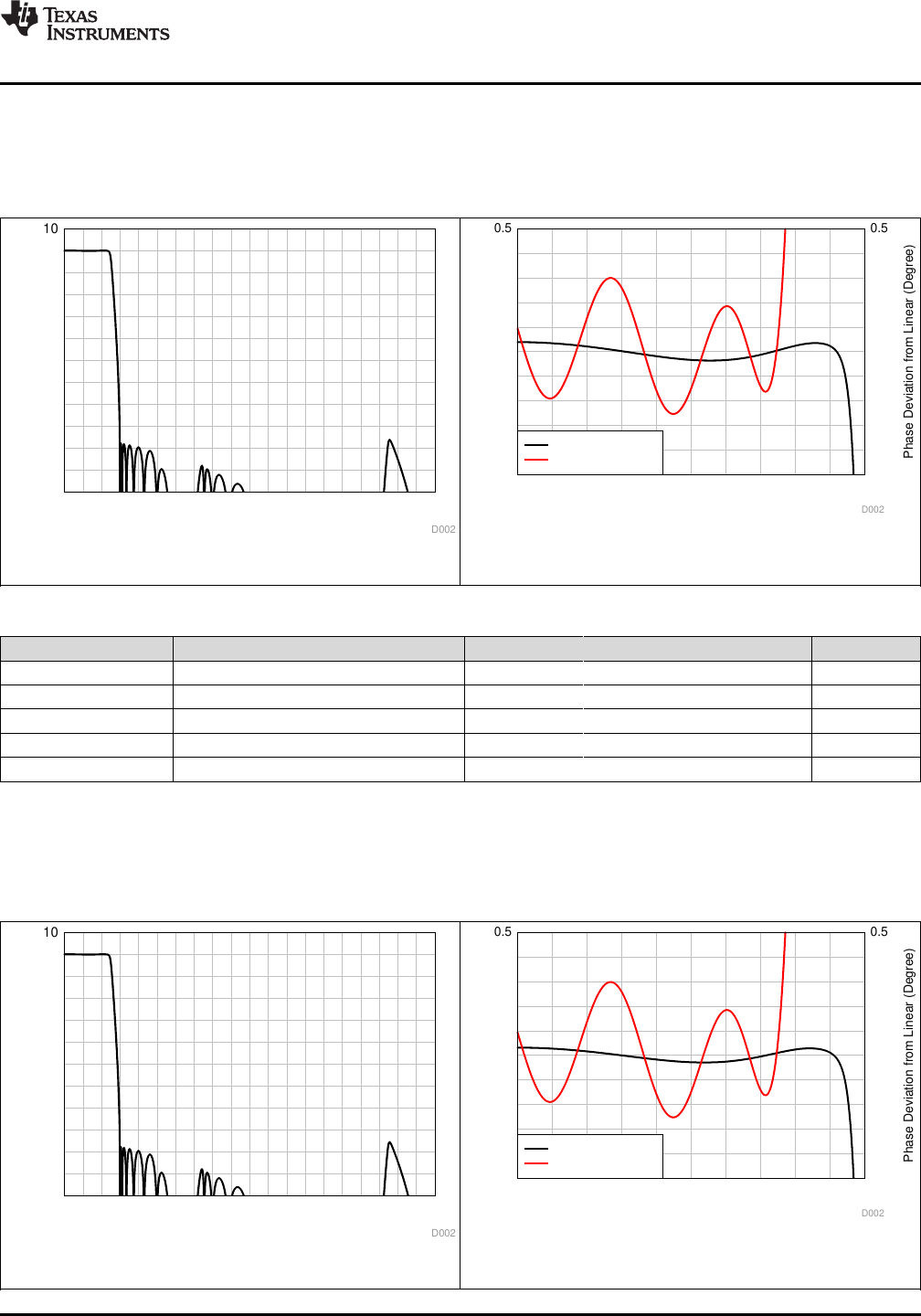

8.3.6.7.2.5 Sampling Rate: 96 kHz or 88.2 kHz

Figure 61 shows the magnitude response and Figure 62 shows the pass-band ripple and phase deviation for a

decimation filter with a sampling rate of 96 kHz or 88.2 kHz. Table 35 lists the specifications for a decimation

filter with a 96-kHz or 88.2-kHz sampling rate.

Figure 61. Low-Latency Decimation Filter Magnitude

Response

Figure 62. Low-Latency Decimation Filter Pass-Band

Ripple and Phase Deviation

Table 35. Low-Latency Decimation Filter Specifications

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

Pass-band ripple Frequency range is 0 to 0.466 × fS–0.04 0.04 dB

Stop-band attenuation Frequency range is 0.6 × fSonwards 86.3 dB

Group delay or latency Frequency range is 0 to 0.365 × fS7.7 1/fS

Group delay deviation Frequency range is 0 to 0.365 × fS–0.027 0.027 1/fS

Phase deviation Frequency range is 0 to 0.365 × fS–0.26 0.30 Degrees

8.3.6.7.2.6 Sampling Rate 192 kHz or 176.4 kHz

Figure 63 shows the magnitude response and Figure 64 shows the pass-band ripple and phase deviation for a

decimation filter with a sampling rate of 192 kHz or 176.4 kHz. Table 36 lists the specifications for a decimation

filter with a 192-kHz or 176.4-kHz sampling rate.

Figure 63. Low-Latency Decimation Filter Magnitude

Response

Figure 64. Low-Latency Decimation Filter Pass-Band

Ripple and Phase Deviation

l TEXAS INSTRUMENTS m 05 25 {Mm {\ﬂ

Normalized Frequency (1/fS)

Magnitude (dB)

0 0.4 0.8 1.2 1.6 2 2.4 2.8 3.2 3.6 4

-110

-100

-90

-80

-70

-60

-50

-40

-30

-20

-10

D003

Normalized Frequency (1/fS)

Magnitude (dB)

Phase Deviation from Linear (Degree)

0 0.05 0.1 0.15 0.2 0.25 0.3 0.35 0.4 0.45 0.5

-0.5 -25

-0.4 -20

-0.3 -15

-0.2 -10

-0.1 -5

0 0

0.1 5

0.2 10

0.3 15

0.4 20

0.5 25

D003

Pass-Band Ripple

Phase Deviation

TLV320ADC3140

SBAS993B –MAY 2019–REVISED OCTOBER 2019

www.ti.com

Product Folder Links: TLV320ADC3140

Table 36. Low-Latency Decimation Filter Specifications

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

Pass-band ripple Frequency range is 0 to 463 × fS–0.03 0.03 dB

Stop-band attenuation Frequency range is 0.6 × fSonwards 85.6 dB

Group delay or latency Frequency range is 0 to 0.365 × fS7.7 1/fS

Group delay deviation Frequency range is 0 to 0.365 × fS–0.027 0.027 1/fS

Phase deviation Frequency range is 0 to 0.365 × fS–0.26 0.30 Degrees

8.3.6.7.3 Ultra-Low-Latency Filters

For applications where ultra-low latency (within the audio band) is critical, the ultra-low-latency decimation filters

on the TLV320ADC3140 can be used. The device supports these filters with a group delay of approximately four

samples with an almost linear phase response within the 0.325 × fSfrequency band. This section provides the

filter performance specifications and various plots for all supported output sampling rates for the ultra-low-latency

filters.

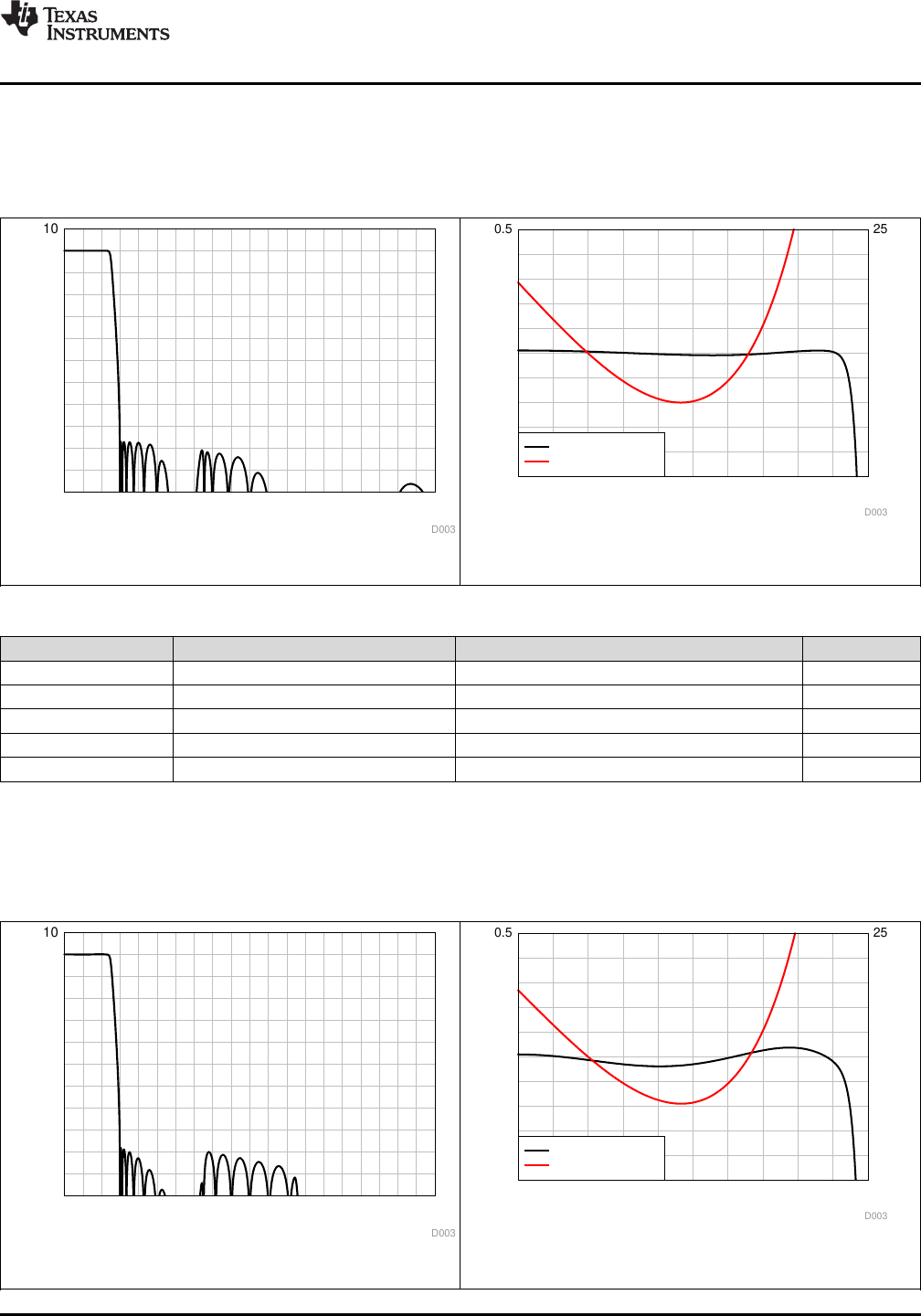

8.3.6.7.3.1 Sampling Rate: 16 kHz or 14.7 kHz

Figure 65 shows the magnitude response and Figure 66 shows the pass-band ripple and phase deviation for a

decimation filter with a sampling rate of 16 kHz or 14.7 kHz. Table 37 lists the specifications for a decimation

filter with a 16-kHz or 14.7-kHz sampling rate.

Figure 65. Ultra-Low-Latency Decimation Filter Magnitude

Response

Figure 66. Ultra-Low-Latency Decimation Filter Pass-Band

Ripple and Phase Deviation

Table 37. Ultra-Low-Latency Decimation Filter Specifications

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

Pass-band ripple Frequency range is 0 to 0.45 × fS–0.05 0.05 dB

Stop-band attenuation Frequency range is 0.6 × fSonwards 87.2 dB

Group delay or latency Frequency range is 0 to 0.325 × fS4.3 1/fS

Group delay deviation Frequency range is 0 to 0.325 × fS–0.512 0.512 1/fS

Phase deviation Frequency range is 0 to 0.325 × fS–10.0 14.2 Degrees

l TEXAS INSTRUMENTS m 05 ”WM 25 m 05 A Wm 25

Normalized Frequency (1/fS)

Magnitude (dB)

0 0.4 0.8 1.2 1.6 2 2.4 2.8 3.2 3.6 4

-110

-100

-90

-80

-70

-60

-50

-40

-30

-20

-10

D003

Normalized Frequency (1/fS)

Magnitude (dB)

Phase Deviation from Linear (Degree)

0 0.05 0.1 0.15 0.2 0.25 0.3 0.35 0.4 0.45 0.5

-0.5 -25

-0.4 -20

-0.3 -15

-0.2 -10

-0.1 -5

0 0

0.1 5

0.2 10

0.3 15

0.4 20

0.5 25

D003

Pass-Band Ripple

Phase Deviation

Normalized Frequency (1/fS)

Magnitude (dB)

0 0.4 0.8 1.2 1.6 2 2.4 2.8 3.2 3.6 4

-110

-100

-90

-80

-70

-60

-50

-40

-30

-20

-10

D003

Normalized Frequency (1/fS)

Magnitude (dB)

Phase Deviation from Linear (Degree)

0 0.05 0.1 0.15 0.2 0.25 0.3 0.35 0.4 0.45 0.5

-0.5 -25

-0.4 -20

-0.3 -15

-0.2 -10

-0.1 -5

0 0

0.1 5

0.2 10

0.3 15

0.4 20

0.5 25

D003

Pass-Band Ripple

Phase Deviation

TLV320ADC3140

www.ti.com

SBAS993B –MAY 2019–REVISED OCTOBER 2019

Product Folder Links: TLV320ADC3140

8.3.6.7.3.2 Sampling Rate: 24 kHz or 22.05 kHz

Figure 67 shows the magnitude response and Figure 68 shows the pass-band ripple and phase deviation for a

decimation filter with a sampling rate of 24 kHz or 22.05 kHz. Table 38 lists the specifications for a decimation

filter with a 24-kHz or 22.05-kHz sampling rate.

Figure 67. Ultra-Low-Latency Decimation Filter Magnitude

Response

Figure 68. Ultra-Low-Latency Decimation Filter Pass-Band

Ripple and Phase Deviation

Table 38. Ultra-Low-Latency Decimation Filter Specifications

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

Pass-band ripple Frequency range is 0 to 0.46 × fS–0.01 0.01 dB

Stop-band attenuation Frequency range is 0.6 × fSonwards 87.1 dB

Group delay or latency Frequency range is 0 to 0.325 × fS4.1 1/fS

Group delay deviation Frequency range is 0 to 0.325 × fS–0.514 0.514 1/fS

Phase deviation Frequency range is 0 to 0.325 × fS–10.0 14.3 Degrees

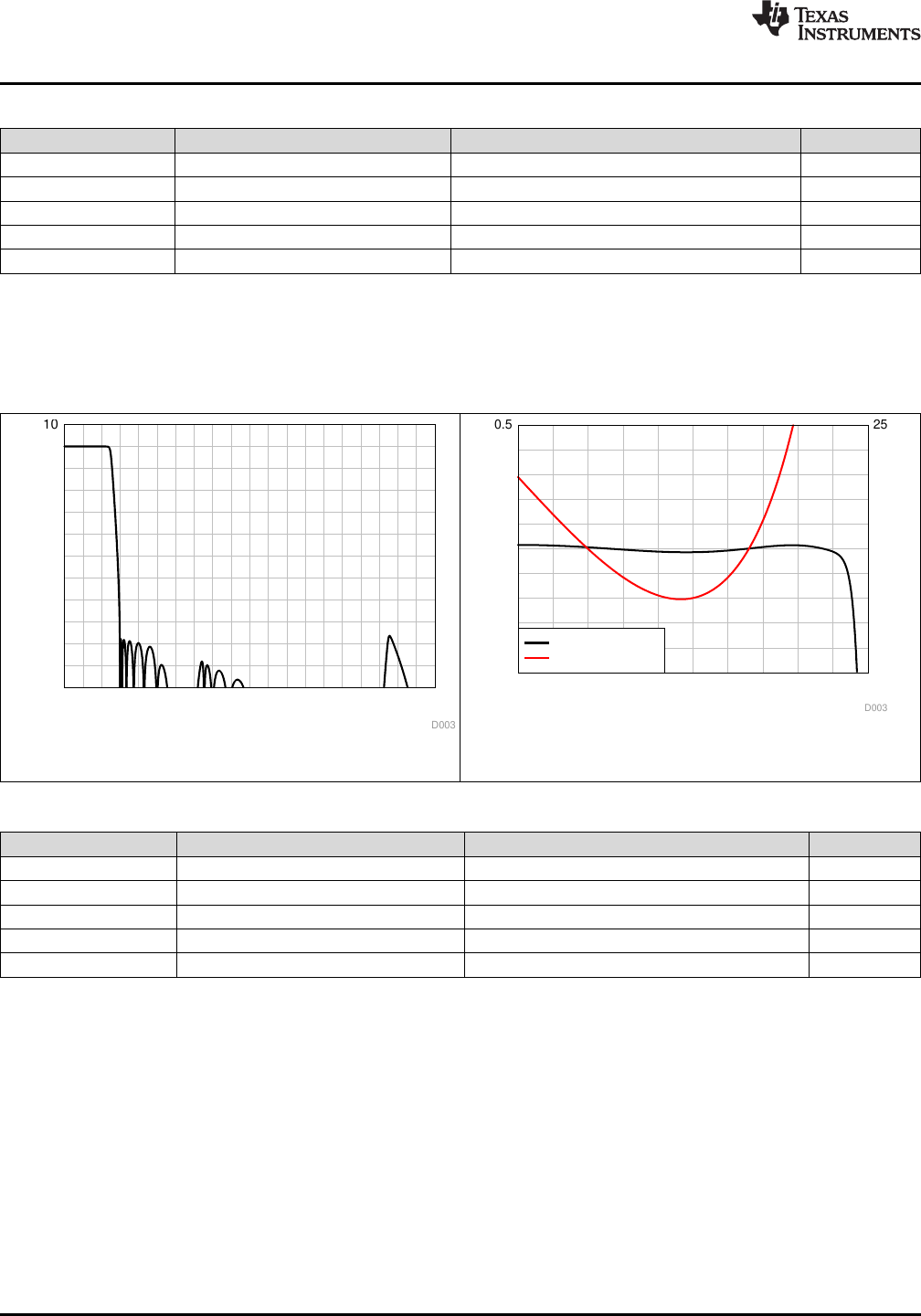

8.3.6.7.3.3 Sampling Rate: 32 kHz or 29.4 kHz

Figure 69 shows the magnitude response and Figure 70 shows the pass-band ripple and phase deviation for a

decimation filter with a sampling rate of 32 kHz or 29.4 kHz. Table 39 lists the specifications for a decimation

filter with an 32-kHz or 29.4-kHz sampling rate.

Figure 69. Ultra-Low-Latency Decimation Filter Magnitude

Response

Figure 70. Ultra-Low-Latency Decimation Filter Pass-Band

Ripple and Phase Deviation

l TEXAS INSTRUMENTS w 05 25 Mm

Normalized Frequency (1/fS)

Magnitude (dB)

0 0.4 0.8 1.2 1.6 2 2.4 2.8 3.2 3.6 4

-110

-100

-90

-80

-70

-60

-50

-40

-30

-20

-10

D003

Normalized Frequency (1/fS)

Magnitude (dB)

Phase Deviation from Linear (Degree)

0 0.05 0.1 0.15 0.2 0.25 0.3 0.35 0.4 0.45 0.5

-0.5 -25

-0.4 -20

-0.3 -15

-0.2 -10

-0.1 -5

0 0

0.1 5

0.2 10

0.3 15

0.4 20

0.5 25

D003

Pass-Band Ripple

Phase Deviation

TLV320ADC3140

SBAS993B –MAY 2019–REVISED OCTOBER 2019

www.ti.com

Product Folder Links: TLV320ADC3140

Table 39. Ultra-Low-Latency Decimation Filter Specifications

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

Pass-band ripple Frequency range is 0 to 0.457 × fS–0.04 0.04 dB

Stop-band attenuation Frequency range is 0.6 × fSonwards 88.3 dB

Group delay or latency Frequency range is 0 to 0.325 × fS5.2 1/fS

Group delay deviation Frequency range is 0 to 0.325 × fS–0.492 0.492 1/fS

Phase deviation Frequency range is 0 to 0.325 × fS–9.5 13.5 Degrees

8.3.6.7.3.4 Sampling Rate: 48 kHz or 44.1 kHz

Figure 71 shows the magnitude response and Figure 72 shows the pass-band ripple and phase deviation for a

decimation filter with a sampling rate of 48 kHz or 44.1 kHz. Table 40 lists the specifications for a decimation

filter with a 48-kHz or 44.1-kHz sampling rate.

Figure 71. Ultra-Low-Latency Decimation Filter Magnitude

Response

Figure 72. Ultra-Low-Latency Decimation Filter Pass-Band

Ripple and Phase Deviation

Table 40. Ultra-Low-Latency Decimation Filter Specifications

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

Pass-band ripple Frequency range is 0 to 0.452 × fS–0.015 0.015 dB

Stop-band attenuation Frequency range is 0.6 × fSonwards 86.4 dB

Group delay or latency Frequency range is 0 to 0.325 × fS4.1 1/fS

Group delay deviation Frequency range is 0 to 0.325 × fS–0.525 0.525 1/fS

Phase deviation Frequency range is 0 to 0.325 × fS–10.3 14.5 Degrees

‘5‘ TEXAS INSTRUMENTS Amway“: 5%; :5: Sign. mmmi o5 MAA Amway“: 5%; :5: Sign. mmmi o5 m MAA m

Normalized Frequency (1/fS)

Magnitude (dB)

0 0.4 0.8 1.2 1.6 2 2.4 2.8 3.2 3.6 4

-110

-100

-90

-80

-70

-60

-50

-40

-30

-20

-10

D003

Normalized Frequency (1/fS)

Magnitude (dB)

Phase Deviation from Linear (Degree)

0 0.05 0.1 0.15 0.2 0.25 0.3 0.35 0.4 0.45 0.5

-0.5 -5

-0.4 -4

-0.3 -3

-0.2 -2

-0.1 -1

0 0

0.1 1

0.2 2

0.3 3

0.4 4

0.5 5

D003

Pass-Band Ripple

Phase Deviation

Normalized Frequency (1/fS)

Magnitude (dB)

0 0.4 0.8 1.2 1.6 2 2.4 2.8 3.2 3.6 4

-110

-100

-90

-80

-70

-60

-50

-40

-30

-20

-10

D003

Normalized Frequency (1/fS)

Magnitude (dB)

Phase Deviation from Linear (Degree)

0 0.05 0.1 0.15 0.2 0.25 0.3 0.35 0.4 0.45 0.5

-0.5 -5

-0.4 -4

-0.3 -3

-0.2 -2

-0.1 -1

0 0

0.1 1

0.2 2

0.3 3

0.4 4

0.5 5

D003

Pass-Band Ripple

Phase Deviation

TLV320ADC3140

www.ti.com

SBAS993B –MAY 2019–REVISED OCTOBER 2019

Product Folder Links: TLV320ADC3140

8.3.6.7.3.5 Sampling Rate: 96 kHz or 88.2 kHz

Figure 73 shows the magnitude response and Figure 74 shows the pass-band ripple and phase deviation for a

decimation filter with a sampling rate of 96 kHz or 88.2 kHz. Table 41 lists the specifications for a decimation

filter with a 96-kHz or 88.2-kHz sampling rate.

Figure 73. Ultra-Low-Latency Decimation Filter Magnitude

Response

Figure 74. Ultra-Low-Latency Decimation Filter Pass-Band

Ripple and Phase Deviation

Table 41. Ultra-Low-Latency Decimation Filter Specifications

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

Pass-band ripple Frequency range is 0 to 0.466 × fS–0.04 0.04 dB

Stop-band attenuation Frequency range is 0.6 × fSonwards 86.3 dB

Group delay or latency Frequency range is 0 to 0.1625 × fS3.7 1/fS

Group delay deviation Frequency range is 0 to 0.1625 × fS–0.091 0.091 1/fS

Phase deviation Frequency range is 0 to 0.1625 × fS–0.86 1.30 Degrees

8.3.6.7.3.6 Sampling Rate 192 kHz or 176.4 kHz

Figure 75 shows the magnitude response and Figure 76 shows the pass-band ripple and phase deviation for a

decimation filter with a sampling rate of 192 kHz or 176.4 kHz. Table 42 lists the specifications for a decimation

filter with a 192-kHz or 176.4-kHz sampling rate.

Figure 75. Ultra-Low-Latency Decimation Filter Magnitude

Response

Figure 76. Ultra-Low-Latency Decimation Filter Pass-Band

Ripple and Phase Deviation

{L} TEXAS INSTRUMENTS Ammamov 52; En; Esmgmo WE: 05 WWW“ : w

Normalized Frequency (1/fS)

Magnitude (dB)

0 0.4 0.8 1.2 1.6 2 2.4 2.8 3.2 3.6 4

-110

-100

-90

-80

-70

-60

-50

-40

-30

-20

-10

D002

Normalized Frequency (1/fS)

Magnitude (dB)

Phase Deviation from Linear (Degree)

0 0.05 0.1 0.15 0.2 0.25

-0.5 -2

-0.4 -1.6

-0.3 -1.2

-0.2 -0.8

-0.1 -0.4

0 0

0.1 0.4

0.2 0.8

0.3 1.2

0.4 1.6

0.5 2

D002

Pass-Band Ripple

Phase Deviation

TLV320ADC3140

SBAS993B –MAY 2019–REVISED OCTOBER 2019

www.ti.com

Product Folder Links: TLV320ADC3140

Table 42. Ultra-Low-Latency Decimation Filter Specifications

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

Pass-band ripple Frequency range is 0 to 0.463 × fS–0.03 0.03 dB

Stop-band attenuation Frequency range is 0.6 × fSonwards 85.6 dB

Group delay or latency Frequency range is 0 to 0.085 × fS3.7 1/fS

Group delay deviation Frequency range is 0 to 0.085 × fS–0.024 0.024 1/fS

Phase deviation Frequency range is 0 to 0.085 × fS–0.12 0.18 Degrees

8.3.6.7.3.7 Sampling Rate 384 kHz or 352.8 kHz

Figure 77 shows the magnitude response and Figure 78 shows the pass-band ripple and phase deviation for a

decimation filter with a sampling rate of 384 kHz or 352.8 kHz. Table 43 lists the specifications for a decimation

filter with a 384-kHz or 352.8-kHz sampling rate.

Figure 77. Ultra-Low-Latency Decimation Filter Magnitude

Response

Figure 78. Ultra-Low-Latency Decimation Filter Pass-Band

Ripple and Phase Deviation

Table 43. Ultra-Low-Latency Decimation Filter Specifications

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

Pass-band ripple Frequency range is 0 to 0.1 × fS–0.04 0.01 dB

Stop-band attenuation Frequency range is 0.56 × fSonwards 70.1 dB

Group delay or latency Frequency range is 0 to 0.157 × fS4.1 1/fS

Group delay deviation Frequency range is 0 to 0.157 × fS–0.18 0.18 1/fS

Phase deviation Frequency range is 0 to 0.157 × fS–0.85 2.07 Degrees

‘5‘ TEXAS INSTRUMENTS WWWWWWWWWWWWNW ° WWWMWWWJWW ,1 ‘

Target

Level

Attack

Time

Decay Time

Input

Signal

Output

Signal

AGC

Gain

TLV320ADC3140

www.ti.com

SBAS993B –MAY 2019–REVISED OCTOBER 2019

Product Folder Links: TLV320ADC3140

8.3.7 Automatic Gain Controller (AGC)

The device includes an automatic gain controller (AGC) for ADC recording. As shown in Figure 79, the AGC can

be used to maintain a nominally constant output level when recording speech. Instead of manually setting the

channel gain in AGC mode, the circuitry automatically adjusts the channel gain when the input signal becomes

overly loud or very weak, such as when a person speaking into a microphone moves closer to or farther from the

microphone. The AGC algorithm has several programmable parameters, including target level, maximum gain

allowed, attack and release (or decay) time constants, and noise thresholds that allow the algorithm to be fine-

tuned for any particular application.

Figure 79. AGC Characteristics

The target level (AGC_LVL) represents the nominal approximate output level at which the AGC attempts to hold

the ADC output signal level. The TLV320ADC3140 allows programming of different target levels, which can be

programmed from –6 dB to –36 dB relative to a full-scale signal, and the AGC_LVL default value is set to

–34 dB. The target level is recommended to be set with enough margin to prevent clipping when loud sounds

occur. Table 44 lists the AGC target level configuration settings.

Table 44. AGC Target Level Programmable Settings

P0_R112_D[7:4] : AGC_LVL[3:0] AGC TARGET LEVEL FOR OUTPUT

0000 The AGC target level is the –6-dB output signal level

0001 The AGC target level is the –8-dB output signal level

0010 The AGC target level is the –10-dB output signal level

… …

1110 (default) The AGC target level is the –34-dB output signal level

1111 The AGC target level is the –36-dB output signal level

l TEXAS INSTRUMENTS

TLV320ADC3140

SBAS993B –MAY 2019–REVISED OCTOBER 2019

www.ti.com

Product Folder Links: TLV320ADC3140

The maximum gain allowed (AGC_MAXGAIN) gives flexibility to the designer to restrict the maximum gain

applied by the AGC. This feature limits the channel gain in situations where environmental noise is greater than

the programmed noise threshold. The AGC_MAXGAIN can be programmed from 3 dB to 42 dB with steps of 3

dB and the default value is set to 24 dB. Table 45 lists the AGC_MAXGAIN configuration settings.

Table 45. AGC Maximum Gain Programmable Settings

P0_R112_D[3:0] : AGC_MAXGAIN[3:0] AGC MAXIMUM GAIN ALLOWED

0000 The AGC maximum gain allowed is 3 dB

0001 The AGC maximum gain allowed is 6 dB

0010 The AGC maximum gain allowed is 9 dB

… …

0111 (default) The AGC maximum gain allowed is 24 dB

… …

1110 The AGC maximum gain allowed is 39 dB

1111 The AGC maximum gain allowed is 42 dB

For further details on the AGC various configurable parameter and application use, see the Using the Automatic

Gain Controller (AGC) in TLV320ADCx140 application report.

l TEXAS INSTRUMENTS van em: 4r 47 4» m n 1m

D1[n] D2[n] D1[n+1] D2[n+1] D1[n+2]

PDMCLK

PDMDINx

Mic-1

Data

Mic-2

Data

(n+1)th Sample

nth Sample

(n+2)th Sample

Mic-1

Data

Mic-2

Data

Mic-1

Data

VDD

Digital

PDM

Microphone

DATA

CLK

GND

VDD

SEL

Digital

PDM

Microphone

DATA

CLK

GND

VDD

SEL

VDD

TLV320ADCx140

IOVDD

VDD

GPIx (PDMDINx)

GPOx (PDMCLK)

GND

TLV320ADC3140

www.ti.com

SBAS993B –MAY 2019–REVISED OCTOBER 2019

Product Folder Links: TLV320ADC3140

8.3.8 Digital PDM Microphone Record Channel

In addition to supporting analog microphones, the device also interfaces to digital pulse-density-modulation

(PDM) microphones and uses high-order and high-performance decimation filters to generate pulse code

modulation (PCM) output data that can be transmitted on the audio serial interface to the host. If analog

microphones are not used in the system, then the analog input pins (INxP and INxM) can be repurposed as the

GPIx and GPOx pins respectively and can be configured for the PDMDINx and PDMCLK clocks for digital PDM

microphone recording. The device supports up to eight digital microphone recording channels.

The device internally generates PCMCLK with a programmable frequency of either 6.144 MHz, 3.072 MHz,

1.536 MHz, or 768 kHz (for output data sample rates in multiples or submultiples of 48 kHz) or 5.6448 MHz,

2.8224 MHz, 1.4112 MHz, or 705.6 kHz (for output data sample rates in multiples or submultiples of 44.1 kHz)

using the PDMCLK_DIV[1:0], P0_R31_D[1:0] register bits. PDMCLK can be routed on the GPOx pin. This clock

can be connected to the external digital microphone device. Figure 80 shows a connection diagram of the digital

PDM microphones.

Figure 80. Digital PDM Microphones Connection Diagram to the TLV320ADC3140

The single-bit output of the external digital microphone device can be connected to the GPIx pin. This single data

line can be shared by two digital microphones to place their data on the opposite edge of PDMCLK. Internally,

the device latches the steady value of the data on the rising edge of PDMCLK or the falling edge of PDMCLK

based on the configuration register bits set in P0_R32_D[7:4]. Figure 81 shows the digital PDM microphone

interface timing diagram.

Figure 81. Digital PDM Microphone Protocol Timing Diagram

When the digital microphone is used for recording, the analog blocks of the respective ADC channel are powered

down and bypassed for power efficiency. Use the CH1_INSRC[1:0] (P0_R60_D[6:5]), CH2_INSRC[1:0]

(P0_R65_D[6:5]), CH3_INSRC[1:0] (P0_R70_D[6:5]), and CH4_INSRC[1:0] (P0_R75_D[6:5]) register bits to

select the analog microphone or digital microphone for channel 1 to channel 4.

l TEXAS INSTRUMENTS

TLV320ADC3140

SBAS993B –MAY 2019–REVISED OCTOBER 2019

www.ti.com

Product Folder Links: TLV320ADC3140

(1) Only the GPIO1 pin is with reference to the IOVDD supply, the other GPOx and GPIx pins are with reference to the AVDD supply and

their primary pin functions are for the PDMCLK or PDMDIN function.

(2) S means the feature mentioned in this row is supported for the respective GPIO1, GPOx, or GPIx pin mentioned in this column.

(3) NS means the feature mentioned in this row is not supported for the respective GPIO1, GPOx, or GPIx pin mentioned in this column.

(4) For the high-speed ASI output, GPIO1 must be used instead of GPOx for the secondary ASI output. GPOx can be used only if the bus

speed requirement is less than 6.144 MHz.

8.3.9 Interrupts, Status, and Digital I/O Pin Multiplexing

Certain events in the device may require host processor intervention and can be used to trigger interrupts to the

host processor. One such event is an audio serial interface (ASI) bus error. The device powers down the record

channels if any faults are detected with the ASI bus error clocks, such as:

• Invalid FSYNC frequency

• Invalid SBCLK to FSYNC ratio

• Long pauses of the SBCLK or FSYNC clocks

When an ASI bus clock error is detected, the device shuts down the record channel as quickly as possible. After

all ASI bus clock errors are resolved, the device volume ramps back to its previous state to recover the record

channel. During an ASI bus clock error, the internal interrupt request (IRQ) interrupt signal asserts low if the

clock error interrupt mask register bit INT_MASK0[7], P0_R51_D7 is set low. The clock fault is also available for

readback in the latched fault status register bit INT_LTCH0, P0_R54, which is a read-only register. Reading the

latched fault status register, INT_LTCH0, clears all latched fault status. The device can be additionally configured

to route the internal IRQ interrupt signal on the GPIO1 or GPOx pins and also can be configured as open-drain

outputs so that these pins can be wire-ANDed to the open-drain interrupt outputs of other devices.

The IRQ interrupt signal can either be configured as active low or active high polarity by setting the INT_POL,

P0_R50_D7 register bit. This signal can also be configured as a single pulse or a series of pulses by

programming the INT_EVENT[1:0], P0_R50_D[6:5] register bits. If the interrupts are configured as a series of

pulses, the events trigger the start of pulses that stop when the latched fault status register is read to determine

the cause of the interrupt.

The device also supports read-only live-status registers to determine if the channels are powered up or down and

if the device is in sleep mode or not. These status registers are located in P0_R118, DEV_STS0 and P0_R119,

DEV_STS1.

The device has a multifunctional GPIO1 pin that can be configured for a desired specific function. Additionally, if

the channel is not used for analog input recording, then the analog input pins for that channel (INxP and INxM)

can be repurposed as multifunction pins (GPIx and GPOx) by configuring the CHx_INSRC[1:0] register bits

located in the CHx_CFG0 register. The maximum number of GPO pins supported by the device is four and the

maximum number of GPI pins are four. Table 46 shows all possible allocations of these multifunctional pins for

the various features.

Table 46. Multifunction Pin Assignments

ROW Pin Function(1) GPIO1 GPO1 GPO2 GPO3 GPO4 GPI1 GPI2 GPI3 GPI4

— — GPIO1_CFG GPO1_CFG GPO2_CFG GPO3_CFG GPO4_CFG GPI1_CFG GPI2_CFG GPI3_CFG GPI4_CFG

— — P0_R33[7:4] P0_R34[7:4] P0_R35[7:4] P0_R36[7:4] P0_R37[7:4] P0_R43[6:4] P0_R43[2:0] P0_R44[6:4] P0_R44[2:0]

APin disabled S(2) S (default) S (default) S (default) S (default) S (default) S (default) S (default) S (default)

BGeneral-purpose output

(GPO) S S S S S NS(3) NS NS NS

CInterrupt output (IRQ) S (default) S S S S NS NS NS NS

DSecondary ASI output

(SDOUT2)(4) S S S S S NS NS NS NS

EPDM clock output (PDMCLK) S S S S S NS NS NS NS

FMiCBIAS on/off input

(BIASEN) S NS NS NS NS NS NS NS NS

GGeneral-purpose input (GPI) S NS NS NS NS S S S S

HMaster clock input (MCLK) S NS NS NS NS S S S S

IASI daisy-chain input (SDIN) S NS NS NS NS S S S S

JPDM data input 1 (PDMDIN1) S NS NS NS NS S S S S

KPDM data input 2 (PDMDIN2) S NS NS NS NS S S S S

LPDM data input 3 (PDMDIN3) S NS NS NS NS S S S S

MPDM data input 4 (PDMDIN4) S NS NS NS NS S S S S

l TEXAS INSTRUMENTS

TLV320ADC3140

www.ti.com

SBAS993B –MAY 2019–REVISED OCTOBER 2019

Product Folder Links: TLV320ADC3140

Each GPOx or GPIOx pin can be independently set for the desired drive configurations setting using the

GPOx_DRV[3:0] or GPIO1_DRV[3:0] register bits. Table 47 lists the drive configuration settings.

Table 47. GPIO or GPOx Pins Drive Configuration Settings

P0_R33_D[3:0] : GPIO1_DRV[3:0] GPIO OUTPUT DRIVE CONFIGURATION SETTINGS FOR GPIO1

000 The GPIO1 pin is set to high impedance (floated)

001 The GPIO1 pin is set to be driven active low or active high

010 (default) The GPIO1 pin is set to be driven active low or weak high (on-chip pullup)

011 The GPIO1 pin is set to be driven active low or Hi-Z (floated)

100 The GPIO1 pin is set to be driven weak low (on-chip pulldown) or active high

101 The GPIO1 pin is set to be driven Hi-Z (floated) or active high

110 and 111 Reserved (do not use these settings)

Similarly, the GPO1 to GPO4 pins can be configured using the GPO1_DRV(P0_R34) to GPO4_DRV(P0_R37)

When configured as a general-purpose output (GPO), the GPIO1 or GPOx pin values can be driven by writing

the GPIO_VAL or GPOx_VAL, P0_R41 registers. The GPIO_MON, P0_R42 register can be used to readback

the status of the GPIO1 pin when configured as a general-purpose input (GPI). Similarly, the GPI_MON, P0_R47

l TEXAS INSTRUMENTS

TLV320ADC3140

SBAS993B –MAY 2019–REVISED OCTOBER 2019

www.ti.com

Product Folder Links: TLV320ADC3140

8.4 Device Functional Modes

8.4.1 Hardware Shutdown

The device enters hardware shutdown mode when the SHDNZ pin is asserted low or the AVDD supply voltage is

not applied to the device. In hardware shutdown mode, the device consumes the minimum quiescent current

from the AVDD supply. All configuration registers and programmable coefficients lose their value in this mode,

and I2C or SPI communication to the device is not supported.

If the SHDNZ pin is asserted low when the device is in active mode, the device ramps down volume on the

record data, powers down the analog and digital blocks, and puts the device into hardware shutdown mode in 25

ms (typical). The device can also be immediately put into hardware shutdown mode from active mode if the

SHDNZ_CFG[1:0], P0_R5_D[3:2], register bits are set to 2'b00. After the SHDNZ pin is asserted low, and after

the device enters hardware shutdown mode, keep the SHDNZ pin low for at least 1 ms before releasing SHDNZ

for further device operation.

Assert the SHDNZ pin high only when the IOVDD supply settles to a steady voltage level. When the SHDNZ pin

goes high, the device sets all configuration registers and programmable coefficients to their default values, and

then enters sleep mode.

8.4.2 Sleep Mode or Software Shutdown

In sleep mode or software shutdown mode, the device consumes very low quiescent current from the AVDD

supply and, at the same time, allows the I2C or SPI communication to wake the device for active operation.

The device can also enter sleep mode when the host device sets the SLEEP_ENZ, P0_R2_D0 bit to 1'b0. If the

SLEEP_ENZ bit is asserted low when the device is in active mode, the device ramps down the volume on the

record data, powers down the analog and digital blocks, and enters sleep mode. However, the device still

continues to retain the last programmed value of the device configuration registers and programmable

coefficients.

In sleep mode, do not perform any I2C or SPI transactions, except for exiting sleep mode in order to enter active

mode. After entering sleep mode, wait at least 10 ms before starting I2C or SPI transactions to exit sleep mode.

While exiting sleep mode, the host device must configure the TLV320ADC3140 to use either an external 1.8-V

AREG supply (default setting) or an on-chip-regulator-generated AREG supply. To configure the AREG supply,

write to AREG_SELECT, bit D7 in the same P0_R2 register.

8.4.3 Active Mode

If the host device exits sleep mode by setting the SLEEP_ENZ bit to 1'b1, the device enters active mode. In

active mode, I2C or SPI transactions can be done to configure and power-up the device for active operation.

After entering active mode, wait at least 1 ms before starting any I2C or SPI transactions in order to allow the

device to complete the internal wake-up sequence.

After configuring all other registers for the target application and system settings, configure the input and output

channel enable registers, P0_R115 (IN_CH_EN) and P0_R116 (ASI_OUT_CH_EN), respectively. Lastly,

configure the device power-up register, P0_R117 (PWR_CFG). All the programmable coefficient values must be

written before powering up the respective channel.

In active mode, the power-up and power-down status of various blocks is monitored by reading the read-only

device status bits located in the P0_R117 (DEV_STS0) and P0_R118 (DEV_STS1) registers.

8.4.4 Software Reset

A software reset can be done any time by asserting the SW_RESET bit, P0_R1_D0, which is a self-clearing bit.

This software reset immediately shuts down the device, and restores all device configuration registers and

programmable coefficients to their default values.

l TEXAS INSTRUMENTS

TLV320ADC3140

www.ti.com

SBAS993B –MAY 2019–REVISED OCTOBER 2019

Product Folder Links: TLV320ADC3140

8.5 Programming

The device contains configuration registers and programmable coefficients that can be set to the desired values

for a specific system and application use. These registers are called device control registers and are each eight

bits in width, mapped using a page scheme.

Each page contains 128 configuration registers. All device configuration registers are stored in page 0, which is

the default page setting at power up and after a software reset. All programmable coefficient registers are located

in page 2, page 3, and page 4. The current page of the device can be switched to a new desired page by using

the PAGE[7:0] bits located in register 0 of every page.

8.5.1 Control Serial Interfaces

The device control registers can be accessed using either I2C or SPI communication to the device.

By monitoring the SDA_SSZ, SCL_MOSI, ADDR0_SCLK, and ADDR1_MISO device pins, which are the

multiplexed pins for the I2C or SPI Interface, the device automatically detects whether the host device is using

I2C or SPI communication to configure the device. For a given end application, the host device must always use

either the I2C or SPI interface, but not both, to configure the device.

8.5.1.1 I2C Control Interface

The device supports the I2C control protocol as a slave device, and is capable of operating in standard mode,

fast mode, and fast mode plus. The I2C control protocol requires a 7-bit slave address. The five most significant

bits (MSBs) of the slave address are fixed at 10011 and cannot be changed. The two least significant bits (LSBs)

are programmable and are controlled by the ADDR0_SCLK and ADDR1_MISO pins. These two pins must

always be either pulled to VSS or IOVDD. If the I2C_BRDCAST_EN (P0_R2_D2) bit is set to 1'b1, then the I2C

slave address is fixed to 1001100 in order to allow simultaneous I2C broadcast communication to all

TLV320ADC3140 devices in the system. Table 48 lists the four possible device addresses resulting from this

configuration.

Table 48. I2C Slave Address Settings

ADDR1_MISO ADDR0_SCLK I2C_BRDCAST_EN (P0_R2_D2) I2C SLAVE ADDRESS

0 0 0 (default) 1001 100

0 1 0 (default) 1001 101

1 0 0 (default) 1001 110

1 1 0 (default) 1001 111

X X 1 1001 100

8.5.1.1.1 General I2C Operation

The I2C bus employs two signals, SDA (data) and SCL (clock), to communicate between integrated circuits in a

system using serial data transmission. The address and data 8-bit bytes are transferred MSB first. In addition,

each byte transferred on the bus is acknowledged by the receiving device with an acknowledge bit. Each transfer

operation begins with the master device driving a start condition on the bus and ends with the master device

driving a stop condition on the bus. The bus uses transitions on the data pin (SDA) while the clock is at logic high

to indicate start and stop conditions. A high-to-low transition on SDA indicates a start, and a low-to-high transition

indicates a stop. Normal data-bit transitions must occur within the low time of the clock period.

The master device drives a start condition followed by the 7-bit slave address and the read/write (R/W) bit to

open communication with another device and then waits for an acknowledgment condition. The slave device

holds SDA low during the acknowledge clock period to indicate acknowledgment. When this occurs, the master

device transmits the next byte of the sequence. Each slave device is addressed by a unique 7-bit slave address

plus the R/W bit (1 byte). All compatible devices share the same signals via a bidirectional bus using a wired-

AND connection.

‘5‘ TEXAS INSTRUMENTS m o :— > 7‘ 27 EL 9' 2: an o m E 2 ,, n 2 a a

A6 A5 A4 A3 A2 A1 A0 R/W ACK A7 A6 A5 A4 A3 A2 A1 A0 ACK D7 D6 D5 D4 D3 D2 D1 D0 ACK

Start

Condition

Stop

Condition

Acknowledge Acknowledge Acknowledge

I2CDeviceAddressand

Read/WriteBit

8-BitDatafor 8-BitDatafor

TLV320ADC3140

SBAS993B –MAY 2019–REVISED OCTOBER 2019

www.ti.com

Product Folder Links: TLV320ADC3140

There is no limit on the number of bytes that can be transmitted between start and stop conditions. When the last

word transfers, the master device generates a stop condition to release the bus. Figure 82 shows a generic data

transfer sequence.

Figure 82. Typical I2C Sequence

In the system, use external pullup resistors for the SDA and SCL signals to set the logic high level for the bus.

The SDA and SCL voltages must not exceed the device supply voltage, IOVDD.

8.5.1.1.2 I2C Single-Byte and Multiple-Byte Transfers

The device I2C interface supports both single-byte and multiple-byte read/write operations for all registers. During

multiple-byte read operations, the device responds with data, a byte at a time, starting at the register assigned,

as long as the master device continues to respond with acknowledges.

The device supports sequential I2C addressing. For write transactions, if a register is issued followed by data for

that register and all the remaining registers that follow, a sequential I2C write transaction takes place. For I2C

sequential write transactions, the register issued then serves as the starting point, and the amount of data

subsequently transmitted, before a stop or start is transmitted, determines how many registers are written.

8.5.1.1.2.1 I2C Single-Byte Write

As shown in Figure 83, a single-byte data write transfer begins with the master device transmitting a start

condition followed by the I2C device address and the read/write bit. The read/write bit determines the direction of

the data transfer. For a write-data transfer, the read/write bit must be set to 0. After receiving the correct I2C

slave address and the read/write bit, the device responds with an acknowledge bit (ACK). Next, the master

device transmits the register byte corresponding to the device internal register address being accessed. After

receiving the register byte, the device again responds with an acknowledge bit (ACK). Then, the master transmits

the byte of data to be written to the specified register. When finished, the slave device responds with an

acknowledge bit (ACK). Finally, the master device transmits a stop condition to complete the single-byte data

write transfer.

Figure 83. I2C Single-Byte Write Transfer

i TEXAS INSTRUMENTS sun Condumn Acknow‘edqe Acknowledge Ac:_/\_\nnw\edge AcknaMe/que A:know\e/_/\_:ge W M9®®0®®®® O@@@ ‘20 name Addvess and mm Dala Byle Other um Bylas Last Dam um 5‘09 Raadmee an Gammon REad’WHle Em neame Bu Wm00800000‘04080408f W FVQ W PH Lv—/ \—v—/ ‘ Reaawme Bu neame Em Cnndman

A6 A0 ACK

Acknowledge

I2CDeviceAddressand

Read/WriteBit

R/WA6 A0 R/W ACK A0 ACK D7 D0 ACK

Start

Condition

Stop

Condition

Acknowledge Acknowledge Acknowledge

LastDataByte

ACK

FirstDataByte

RepeatStart

Condition Not

Acknowledge

I2CDeviceAddressand

Read/WriteBit

A7 A6 A5 D7 D0 ACK

Acknowledge

D7 D0

A6 A5 A0 R/W ACK A7 A6 A5 A4 A0 ACK A6 A5 A0 ACK

Start

Condition

Stop

Condition

Acknowledge Acknowledge Acknowledge

I2CDeviceAddressand

Read/WriteBit

D7 D6 D1 D0 ACK

I2CDeviceAddressand

Read/WriteBit

Not

Acknowledge

R/WA1 A1

RepeatStart

Condition

TLV320ADC3140

www.ti.com

SBAS993B –MAY 2019–REVISED OCTOBER 2019

Product Folder Links: TLV320ADC3140

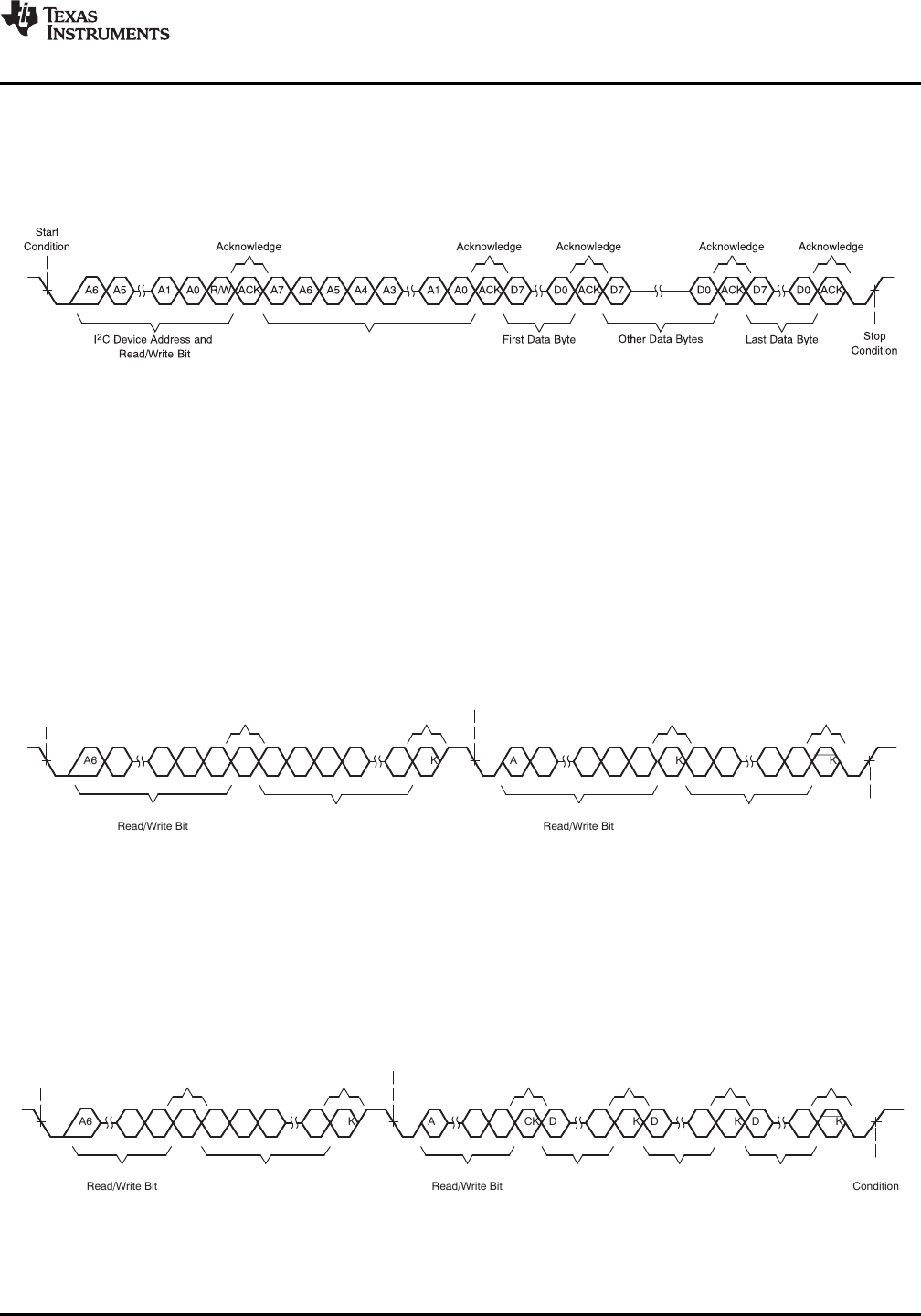

8.5.1.1.2.2 I2C Multiple-Byte Write

As shown in Figure 84, a multiple-byte data write transfer is identical to a single-byte data write transfer except

that multiple data bytes are transmitted by the master device to the slave device. After receiving each data byte,

the device responds with an acknowledge bit (ACK). Finally, the master device transmits a stop condition after

the last data-byte write transfer.

Figure 84. I2C Multiple-Byte Write Transfer

8.5.1.1.2.3 I2C Single-Byte Read

As shown in Figure 85, a single-byte data read transfer begins with the master device transmitting a start

condition followed by the I2C slave address and the read/write bit. For the data read transfer, both a write

followed by a read are done. Initially, a write is done to transfer the address byte of the internal register address

to be read. As a result, the read/write bit is set to 0.

After receiving the slave address and the read/write bit, the device responds with an acknowledge bit (ACK). The

master device then sends the internal register address byte, after which the device issues an acknowledge bit

(ACK). The master device transmits another start condition followed by the slave address and the read/write bit

again. This time, the read/write bit is set to 1, indicating a read transfer. Next, the device transmits the data byte

from the register address being read. After receiving the data byte, the master device transmits a not-

acknowledge (NACK) followed by a stop condition to complete the single-byte data read transfer.

Figure 85. I2C Single-Byte Read Transfer

8.5.1.1.2.4 I2C Multiple-Byte Read

As shown in Figure 86, a multiple-byte data read transfer is identical to a single-byte data read transfer except

that multiple data bytes are transmitted by the device to the master device. With the exception of the last data

byte, the master device responds with an acknowledge bit after receiving each data byte. After receiving the last

data byte, the master device transmits a not-acknowledge (NACK) followed by a stop condition to complete the

data read transfer.

Figure 86. I2C Multiple-Byte Read Transfer

l TEXAS INSTRUMENTS m/M/L —| \ \//| | \l |//| |—

RA(6) RA(5) RA(0) Don’tCare

7-bitRegister Address Read 8-bitRegisterData

SCLK

MOSI

MISO

Hi-Z Hi-Z

D(7) D(6) D(0)

Hi-Z Hi-Z

RA(6) RA(5) RA(0) D(7) D(6) D(0)

7-bitRegister Address Write 8-bitRegisterData

SCLK

MOSI

MISO

Hi-Z Hi-Z

TLV320ADC3140

SBAS993B –MAY 2019–REVISED OCTOBER 2019

www.ti.com

Product Folder Links: TLV320ADC3140

8.5.1.2 SPI Control Interface

The general SPI protocol allows full-duplex, synchronous, serial communication between a host processor (the

master) and peripheral devices (slaves). The SPI master (in this case, the host processor) generates the

synchronizing clock (driven onto SCLK) and initiates transmissions by taking the slave-select pin SSZ from high

to low. The SPI slave devices (such as the TLV320ADC3140) depend on a master to start and synchronize

transmissions. A transmission begins when initiated by an SPI master. The byte from the SPI master begins

shifting in on the slave MOSI pin under the control of the master serial clock (driven onto SCLK). When the byte

shifts in on the MOSI pin, a byte shifts out on the MISO pin to the master shift register.

The TLV320ADC3140 supports a standard SPI control protocol with a clock polarity setting of 0 (typical

microprocessor SPI control bit CPOL = 0) and a clock phase setting of 1 (typical microprocessor SPI control bit

CPHA = 1). The SSZ pin can remain low between transmissions; however, the device only interprets the first

eight bits transmitted after the falling edge of SSZ as a command byte, and the next eight bits as a data byte only

if writing to a register. The device is entirely controlled by registers. Reading and writing these registers is

accomplished by an 8-bit command sent to the MOSI pin prior to the data for that register. Table 49 shows the

command structure. The first seven bits specify the address of the register that is being written or read, from 0 to

127 (decimal). The command word ends with an R/W bit, which specifies the direction of data flow on the serial

bus.

In the case of a register write, set the R/W bit to 0. A second byte of data is sent to the MOSI pin and contains

the data to be written to the register. A register read is accomplished in a similar fashion. The 8-bit command

word sends the 7-bit register address, followed by the R/W bit equal to 1 to signify a register read. The 8-bit

frame. The device supports sequential SPI addressing for a multiple-byte data write/read transfer until the SSZ

pin is pulled high. A multiple-byte data write or read transfer is identical to a single-byte data write or read

transfer, respectively, until all data byte transfers complete. The host device must keep the SSZ pin low during all

data byte transfers. Figure 87 shows the single-byte write transfer and Figure 88 shows the single-byte read

transfer.

Table 49. SPI Command Word

BIT 7 BIT 6 BIT 5 BIT 4 BIT 3 BIT 2 BIT 1 BIT 0

ADDR(6) ADDR(5) ADDR(4) ADDR(3) ADDR(2) ADDR(1) ADDR(0) R/WZ

Figure 87. SPI Single-Byte Write Transfer

Figure 88. SPI Single-Byte Read Transfer

l TEXAS INSTRUMENTS

TLV320ADC3140

www.ti.com

SBAS993B –MAY 2019–REVISED OCTOBER 2019

Product Folder Links: TLV320ADC3140

8.6 Register Maps

This section describes the control registers for the device in detail. All these registers are eight bits in width and

allocated to device configuration and programmable coefficients settings. These registers are mapped internally

using a page scheme that can be controlled using either I2C or SPI communication to the device. Each page

contains 128 bytes of registers. All device configuration registers are stored in page 0, which is the default page

setting at power up (and after a software reset). All programmable coefficient registers are located in page 2,

page 3, and page 4. The device current page can be switch to a new desired page by using the PAGE[7:0] bits

located in register 0 of every page.

Do not read from or write to reserved pages or reserved registers. Write only default values for the reserved bits

in the valid registers.

The procedure for register access across pages is:

• Select page N (write data Nto register 0 regardless of the current page number)

• Read or write data from or to valid registers in page N

• Select the new page M (write data Mto register 0 regardless of the current page number)

• Read or write data from or to valid registers in page M

• Repeat as needed

8.6.1 Device Configuration Registers

This section describes the device configuration registers for page 0.

Table 50. Register Summary Table, Page = 0x00

ADDRESS REGISTER DESCRIPTION SECTION

0x00 PAGE_CFG Device page register PAGE_CFG Register (P0_R0)

0x01 SW_RESET Software reset register SW_RESET Register (P0_R1)

0x02 SLEEP_CFG Sleep mode register SLEEP_CFG Register (P0_R2)

0x05 SHDN_CFG Shutdown configuration register SHDN_CFG Register (P0_R5)

0x07 ASI_CFG0 ASI configuration register 0 ASI_CFG0 Register (P0_R7)

0x08 ASI_CFG1 ASI configuration register 1 ASI_CFG1 Register (P0_R8)

0x09 ASI_CFG2 ASI configuration register 2 ASI_CFG2 Register (P0_R9)

0x0B ASI_CH1 Channel 1 ASI slot configuration register ASI_CH1 Register (P0_R11)

0x0C ASI_CH2 Channel 2 ASI slot configuration register ASI_CH2 Register (P0_R12)

0x0D ASI_CH3 Channel 3 ASI slot configuration register ASI_CH3 Register (P0_R13)

0x0E ASI_CH4 Channel 4 ASI slot configuration register ASI_CH4 Register (P0_R14)

0x0F ASI_CH5 Channel 5 ASI slot configuration register ASI_CH5 Register (P0_R15)

0x10 ASI_CH6 Channel 6 ASI slot configuration register ASI_CH6 Register (P0_R16)

0x11 ASI_CH7 Channel 7 ASI slot configuration register ASI_CH7 Register (P0_R17)

0x12 ASI_CH8 Channel 8 ASI slot configuration register ASI_CH8 Register (P0_R18)

0x13 MST_CFG0 ASI master mode configuration register 0 MST_CFG0 Register (P0_R19)

0x14 MST_CFG1 ASI master mode configuration register 1 MST_CFG1 Register (P0_R20)

0x15 ASI_STS ASI bus clock monitor status register ASI_STS Register (P0_R21)

0x16 CLK_SRC Clock source configuration register 0 CLK_SRC Register (P0_R22)

0x1F PDMCLK_CFG PDM clock generation configuration register PDMCLK_CFG Register (P0_R31)

0x20 PDMIN_CFG PDM DINx sampling edge register PDMIN_CFG Register (P0_R32)

0x21 GPIO_CFG0 GPIO configuration register 0 GPIO_CFG0 Register (P0_R33)

0x22 GPO_CFG0 GPO configuration register 0 GPO_CFG0 Register (P0_R34)

0x23 GPO_CFG1 GPO configuration register 1 GPO_CFG1 Register (P0_R35)

0x24 GPO_CFG2 GPO configuration register 2 GPO_CFG2 Register (P0_R36)

0x25 GPO_CFG3 GPO configuration register 3 GPO_CFG3 Register (P0_R37)

0x29 GPO_VAL GPIO, GPO output value register GPO_VAL Register (P0_R41)

0x2A GPIO_MON GPIO monitor value register GPIO_MON Register (P0_R42)

0x2B GPI_CFG0 GPI configuration register 0 GPI_CFG0 Register (P0_R43)

0x2C GPI_CFG1 GPI configuration register 1 GPI_CFG1 Register (P0_R44)

l TEXAS INSTRUMENTS

TLV320ADC3140

SBAS993B –MAY 2019–REVISED OCTOBER 2019

www.ti.com

Product Folder Links: TLV320ADC3140

Table 50. Register Summary Table, Page = 0x00 (continued)

ADDRESS REGISTER DESCRIPTION SECTION

0x2F GPI_MON GPI monitor value register GPI_MON Register (P0_R47)

0x32 INT_CFG Interrupt configuration register INT_CFG Register (P0_R50)

0x33 INT_MASK0 Interrupt mask register 0 INT_MASK0 Register (P0_R51)

0x36 INT_LTCH0 Latched interrupt readback register 0 INT_LTCH0 Register (P0_R54)

0x3B BIAS_CFG Bias and ADC configuration register BIAS_CFG Register (P0_R59)

0x3C CH1_CFG0 Channel 1 configuration register 0 CH1_CFG0 Register (P0_R60)

0x3D CH1_CFG1 Channel 1 configuration register 1 CH1_CFG1 Register (P0_R61)

0x3E CH1_CFG2 Channel 1 configuration register 2 CH1_CFG2 Register (P0_R62)

0x3F CH1_CFG3 Channel 1 configuration register 3 CH1_CFG3 Register (P0_R63)

0x40 CH1_CFG4 Channel 1 configuration register 4 CH1_CFG4 Register (P0_R64)

0x41 CH2_CFG0 Channel 2 configuration register 0 CH2_CFG0 Register (P0_R65)

0x42 CH2_CFG1 Channel 2 configuration register 1 CH2_CFG1 Register (P0_R66)

0x43 CH2_CFG2 Channel 2 configuration register 2 CH2_CFG2 Register (P0_R67)

0x44 CH2_CFG3 Channel 2 configuration register 3 CH2_CFG3 Register (P0_R68)

0x45 CH2_CFG4 Channel 2 configuration register 4 CH2_CFG4 Register (P0_R69)

0x46 CH3_CFG0 Channel 3 configuration register 0 CH3_CFG0 Register (P0_R70)

0x47 CH3_CFG1 Channel 3 configuration register 1 CH3_CFG1 Register (P0_R71)

0x48 CH3_CFG2 Channel 3 configuration register 2 CH3_CFG2 Register (P0_R72)

0x49 CH3_CFG3 Channel 3 configuration register 3 CH3_CFG3 Register (P0_R73)

0x4A CH3_CFG4 Channel 3 configuration register 4 CH3_CFG4 Register (P0_R74)

0x4B CH4_CFG0 Channel 4 configuration register 0 CH4_CFG0 Register (P0_R75)

0x4C CH4_CFG1 Channel 4 configuration register 1 CH4_CFG1 Register (P0_R76)

0x4D CH4_CFG2 Channel 4 configuration register 2 CH4_CFG2 Register (P0_R77)

0x4E CH4_CFG3 Channel 4 configuration register 3 CH4_CFG3 Register (P0_R78)

0x4F CH4_CFG4 Channel 4 configuration register 4 CH4_CFG4 Register (P0_R79)

0x52 CH5_CFG2 Channel 5 (PDM only) configuration register 2 CH5_CFG2 Register (P0_R82)

0x53 CH5_CFG3 Channel 5 (PDM only) configuration register 3 CH5_CFG3 Register (P0_R83)

0x54 CH5_CFG4 Channel 5 (PDM only) configuration register 4 CH5_CFG4 Register (P0_R84)

0x57 CH6_CFG2 Channel 6 (PDM only) configuration register 2 CH6_CFG2 Register (P0_R87)

0x58 CH6_CFG3 Channel 6 (PDM only) configuration register 3 CH6_CFG3 Register (P0_R88)

0x59 CH6_CFG4 Channel 6 (PDM only) configuration register 4 CH6_CFG4 Register (P0_R89)

0x5C CH7_CFG2 Channel 7 (PDM only) configuration register 2 CH7_CFG2 Register (P0_R92)

0x5D CH7_CFG3 Channel 7 (PDM only) configuration register 3 CH7_CFG3 Register (P0_R93)

0x5E CH7_CFG4 Channel 7 (PDM only) configuration register 4 CH7_CFG4 Register (P0_R94)

0x61 CH8_CFG2 Channel 8 (PDM only) configuration register 2 CH8_CFG2 Register (P0_R97)

0x62 CH8_CFG3 Channel 8 (PDM only) configuration register 3 CH8_CFG3 Register (P0_R98)

0x63 CH8_CFG4 Channel 8 (PDM only) configuration register 4 CH8_CFG4 Register (P0_R99)

0x6B DSP_CFG0 DSP configuration register 0 DSP_CFG0 Register (P0_R107)

0x6C DSP_CFG1 DSP configuration register 1 DSP_CFG1 Register (P0_R108)

0x70 AGC_CFG0 AGC configuration register 0 AGC_CFG0 Register (P0_R112)

0x73 IN_CH_EN Input channel enable configuration register IN_CH_EN Register (P0_R115)

0x74 ASI_OUT_CH_EN ASI output channel enable configuration register ASI_OUT_CH_EN Register (P0_R116)

0x75 PWR_CFG Power up configuration register PWR_CFG Register (P0_R117)

0x76 DEV_STS0 Device status value register 0 DEV_STS0 Register (P0_R118)

0x77 DEV_STS1 Device status value register 1 DEV_STS1 Register (P0_R119)

0x7E I2C_CKSUM I2C checksum register I2C_CKSUM Register (P0_R126)

l TEXAS INSTRUMENTS

TLV320ADC3140

www.ti.com

SBAS993B –MAY 2019–REVISED OCTOBER 2019

Product Folder Links: TLV320ADC3140

Table 51 lists the access codes used for the TLV320ADC3140 registers.

Table 51. TLV320ADC3140 Access Type Codes

Access Type Code Description

Read Type

R R Read

R-W R/W Read or write

Write Type

W W Write

Reset or Default Value

-nValue after reset or the default value

8.6.1.1 Register Descriptions

8.6.1.1.1 PAGE_CFG Register (page = 0x00, address = 0x00) [reset = 0h]

The device memory map is divided into pages. This register sets the page.

Figure 89. PAGE_CFG Register

76543210

PAGE[7:0]

R/W-0h

Table 52. PAGE_CFG Register Field Descriptions

Bit Field Type Reset Description

7-0 PAGE[7:0] R/W 0h These bits set the device page.

0d = Page 0

1d = Page 1

...

255d = Page 255

8.6.1.1.2 SW_RESET Register (page = 0x00, address = 0x01) [reset = 0h]

This register is the software reset register. Asserting a software reset places all register values in their default

power-on-reset (POR) state.

Figure 90. SW_RESET Register

76543210

Reserved SW_RESET

R-0h R/W-0h

Table 53. SW_RESET Register Field Descriptions

Bit Field Type Reset Description

7-1 Reserved R 0h Reserved

0 SW_RESET R/W 0h Software reset. This bit is self clearing.

0d = Do not reset

1d = Reset

l TEXAS INSTRUMENTS

TLV320ADC3140

SBAS993B –MAY 2019–REVISED OCTOBER 2019

www.ti.com

Product Folder Links: TLV320ADC3140

8.6.1.1.3 SLEEP_CFG Register (page = 0x00, address = 0x02) [reset = 0h]

This register configures the regulator, VREF quick charge, I2C broadcast and sleep mode.

Figure 91. SLEEP_CFG Register

76543210

AREG_

SELECT Reserved VREF_QCHG[1:0] I2C_BRDCAST

_EN Reserved SLEEP_ENZ

R/W-0h R/W-0h R/W-0h R/W-0h R-0h R/W-0h

Table 54. SLEEP_CFG Register Field Descriptions

Bit Field Type Reset Description

7 AREG_SELECT R/W 0h The analog supply selection from either the internal regulator supply or the

external AREG supply.

0d = External 1.8-V AREG supply (use this setting when AVDD is 1.8 V and

short AREG with AVDD)

1d = Internally generated 1.8-V AREG supply using an on-chip regulator (use

this setting when AVDD is 3.3 V)

6-5 Reserved R/W 0h Reserved

4-3 VREF_QCHG[1:0] R/W 0h The duration of the quick-charge for the VREF external capacitor is set using

an internal series impedance of 200 Ω.

0d = VREF quick-charge duration of 3.5 ms (typical)

1d = VREF quick-charge duration of 10 ms (typical)

2d = VREF quick-charge duration of 50 ms (typical)

3d = VREF quick-charge duration of 100 ms (typical)

2 I2C_BRDCAST_EN R/W 0h I2C broadcast addressing setting.

0d = I2C broadcast mode disabled; the I2C slave address is determined based

on the ADDR pins

1d = I2C broadcast mode enabled; the I2C slave address is fixed at 1001 100

1 Reserved R 0h Reserved

0 SLEEP_ENZ R/W 0h Sleep mode setting.

0d = Device is in sleep mode

1d = Device is not in sleep mode

8.6.1.1.4 SHDN_CFG Register (page = 0x00, address = 0x05) [reset = 5h]

This register configures the device shutdown

Figure 92. SHDN_CFG Register

76543210

Reserved INCAP_QCHG[1:0] SHDNZ_CFG[1:0] DREG_KA_TIME[1:0]

R-0h R/W-0h R/W-1h R/W-1h

Table 55. SHDN_CFG Register Field Descriptions

Bit Field Type Reset Description

7-6 Reserved R 0h Reserved

5-4 INCAP_QCHG[1:0] R/W 0h The duratiion of the quick-charge for the external AC-coupling capacitor is set

using an internal series impedance of 800 Ω.

0d = INxP, INxM quick-charge duration of 2.5 ms (typical)

1d = INxP, INxM quick-charge duration of 12.5 ms (typical)

2d = INxP, INxM quick-charge duration of 25 ms (typical)

3d = INxP, INxM quick-charge duration of 50 ms (typical)

3-2 SHDNZ_CFG[1:0] R/W 1h Shutdown configuration.

0d = DREG is powered down immediately after SHDNZ asserts

1d = DREG remains active to enable a clean shut down until a time-out is

reached; after the time-out period, DREG is forced to power off

2d = DREG remains active until the device cleanly shuts down

3d = Reserved

l TEXAS INSTRUMENTS

TLV320ADC3140

www.ti.com

SBAS993B –MAY 2019–REVISED OCTOBER 2019

Product Folder Links: TLV320ADC3140

Table 55. SHDN_CFG Register Field Descriptions (continued)

Bit Field Type Reset Description

1-0 DREG_KA_TIME[1:0] R/W 1h These bits set how long DREG remains active after SHDNZ asserts.

0d = DREG remains active for 30 ms (typical)

1d = DREG remains active for 25 ms (typical)

2d = DREG remains active for 10 ms (typical)

3d = DREG remains active for 5 ms (typical)

8.6.1.1.5 ASI_CFG0 Register (page = 0x00, address = 0x07) [reset = 30h]

This register is the ASI configuration register 0.

Figure 93. ASI_CFG0 Register

76543210

ASI_FORMAT[1:0] ASI_WLEN[1:0] FSYNC_POL BCLK_POL TX_EDGE TX_FILL

R/W-0h R/W-3h R/W-0h R/W-0h R/W-0h R/W-0h

Table 56. ASI_CFG0 Register Field Descriptions

Bit Field Type Reset Description

7-6 ASI_FORMAT[1:0] R/W 0h ASI protocol format.

0d = TDM mode

1d = I2S mode

2d = LJ (left-justified) mode

3d = Reserved

5-4 ASI_WLEN[1:0] R/W 3h ASI word or slot length.

0d = 16 bits

1d = 20 bits

2d = 24 bits

3d = 32 bits

3 FSYNC_POL R/W 0h ASI FSYNC polarity.

0d = Default polarity as per standard protocol

1d = Inverted polarity with respect to standard protocol

2 BCLK_POL R/W 0h ASI BCLK polarity.

0d = Default polarity as per standard protocol

1d = Inverted polarity with respect to standard protocol

1 TX_EDGE R/W 0h ASI data output (on the primary and secondary data pin) transmit edge.

0d = Default edge as per the protocol configuration setting in bit 2

(BCLK_POL)

1d = Inverted following edge (half cycle delay) with respect to the default edge

setting

0 TX_FILL R/W 0h ASI data output (on the primary and secondary data pin) for any unused

cycles

0d = Always transmit 0 for unused cycles

1d = Always use Hi-Z for unused cycles

8.6.1.1.6 ASI_CFG1 Register (page = 0x00, address = 0x08) [reset = 0h]

This register is the ASI configuration register 1.

Figure 94. ASI_CFG1 Register

76543210

TX_LSB TX_KEEPER[1:0] TX_OFFSET[4:0]

R/W-0h R/W-0h R/W-0h

l TEXAS INSTRUMENTS

TLV320ADC3140

SBAS993B –MAY 2019–REVISED OCTOBER 2019

www.ti.com

Product Folder Links: TLV320ADC3140

Table 57. ASI_CFG1 Register Field Descriptions

Bit Field Type Reset Description

7 TX_LSB R/W 0h ASI data output (on the primary and secondary data pin) for LSB

transmissions.

0d = Transmit the LSB for a full cycle

1d = Transmit the LSB for the first half cycle and Hi-Z for the second half

cycle

6-5 TX_KEEPER[1:0] R/W 0h ASI data output (on the primary and secondary data pin) bus keeper.

0d = Bus keeper is always disabled

1d = Bus keeper is always enabled

2d = Bus keeper is enabled during LSB transmissions only for one cycle

3d = Bus keeper is enabled during LSB transmissions only for one and half

cycles

4-0 TX_OFFSET[4:0] R/W 0h ASI data MSB slot 0 offset (on the primary and secondary data pin).

0d = ASI data MSB location has no offset and is as per standard protocol

1d = ASI data MSB location (TDM mode is slot 0 or I2S, LJ mode is the left

and right slot 0) offset of one BCLK cycle with respect to standard protocol

2d = ASI data MSB location (TDM mode is slot 0 or I2S, LJ mode is the left

and right slot 0) offset of two BCLK cycles with respect to standard protocol

3d to 30d = ASI data MSB location (TDM mode is slot 0 or I2S, LJ mode is the

left and right slot 0) offset assigned as per configuration

31d = ASI data MSB location (TDM mode is slot 0 or I2S, LJ mode is the left

and right slot 0) offset of 31 BCLK cycles with respect to standard protocol

8.6.1.1.7 ASI_CFG2 Register (page = 0x00, address = 0x09) [reset = 0h]

This register is the ASI configuration register 2.

Figure 95. ASI_CFG2 Register

76543210

ASI_DAISY Reserved ASI_ERR ASI_ERR_

RCOV Reserved

R/W-0h R-0h R/W-0h R/W-0h R-0h

Table 58. ASI_CFG2 Register Field Descriptions

Bit Field Type Reset Description

7 ASI_DAISY R/W 0h ASI daisy chain connection.

0d = All devices are connected in the common ASI bus

1d = All devices are daisy-chained for the ASI bus

6 Reserved R 0h Reserved

5 ASI_ERR R/W 0h ASI bus error detection.

0d = Enable bus error detection

1d = Disable bus error detection

4 ASI_ERR_RCOV R/W 0h ASI bus error auto resume.

0d = Enable auto resume after bus error recovery

1d = Disable auto resume after bus error recovery and remain powered down

until the host configures the device

3-0 Reserved R 0h Reserved

8.6.1.1.8 ASI_CH1 Register (page = 0x00, address = 0x0B) [reset = 0h]

This register is the ASI slot configuration register for channel 1.

Figure 96. ASI_CH1 Register

76543210

Reserved CH1_OUTPUT CH1_SLOT[5:0]

R-0h R/W-0h R/W-0h

l TEXAS INSTRUMENTS

TLV320ADC3140

www.ti.com

SBAS993B –MAY 2019–REVISED OCTOBER 2019

Product Folder Links: TLV320ADC3140

Table 59. ASI_CH1 Register Field Descriptions

Bit Field Type Reset Description

7 Reserved R 0h Reserved

6 CH1_OUTPUT R/W 0h Channel 1 output line.

0d = Channel 1 output is on the ASI primary output pin (SDOUT)

1d = Channel 1 output is on the ASI secondary output pin (GPIO1 or GPOx)

5-0 CH1_SLOT[5:0] R/W 0h Channel 1 slot assignment.

0d = TDM is slot 0 or I2S, LJ is left slot 0

1d = TDM is slot 1 or I2S, LJ is left slot 1

2d to 30d = Slot assigned as per configuration

31d = TDM is slot 31 or I2S, LJ is left slot 31

32d = TDM is slot 32 or I2S, LJ is right slot 0

33d = TDM is slot 33 or I2S, LJ is right slot 1

34d to 62d = Slot assigned as per configuration

63d = TDM is slot 63 or I2S, LJ is right slot 31

8.6.1.1.9 ASI_CH2 Register (page = 0x00, address = 0x0C) [reset = 1h]

This register is the ASI slot configuration register for channel 2.

Figure 97. ASI_CH2 Register

76543210

Reserved CH2_OUTPUT CH2_SLOT[5:0]

R-0h R/W-0h R/W-1h

Table 60. ASI_CH2 Register Field Descriptions

Bit Field Type Reset Description

7 Reserved R 0h Reserved

6 CH2_OUTPUT R/W 0h Channel 2 output line.

0d = Channel 2 output is on the ASI primary output pin (SDOUT)

1d = Channel 2 output is on the ASI secondary output pin (GPIO1 or GPOx)

5-0 CH2_SLOT[5:0] R/W 1h Channel 2 slot assignment.

0d = TDM is slot 0 or I2S, LJ is left slot 0

1d = TDM is slot 1 or I2S, LJ is left slot 1

2d to 30d = Slot assigned as per configuration

31d = TDM is slot 31 or I2S, LJ is left slot 31

32d = TDM is slot 32 or I2S, LJ is right slot 0

33d = TDM is slot 33 or I2S, LJ is right slot 1

34d to 62d = Slot assigned as per configuration

63d = TDM is slot 63 or I2S, LJ is right slot 31

8.6.1.1.10 ASI_CH3 Register (page = 0x00, address = 0x0D) [reset = 2h]

This register is the ASI slot configuration register for channel 3.

Figure 98. ASI_CH3 Register

76543210

Reserved CH3_OUTPUT CH3_SLOT[5:0]

R-0h R/W-0h R/W-2h

Table 61. ASI_CH3 Register Field Descriptions

Bit Field Type Reset Description

7 Reserved R 0h Reserved

6 CH3_OUTPUT R/W 0h Channel 3 output line.

0d = Channel 3 output is on the ASI primary output pin (SDOUT)

1d = Channel 3 output is on the ASI secondary output pin (GPIO1 or GPOx)

l TEXAS INSTRUMENTS

TLV320ADC3140

SBAS993B –MAY 2019–REVISED OCTOBER 2019

www.ti.com

Product Folder Links: TLV320ADC3140

Table 61. ASI_CH3 Register Field Descriptions (continued)

Bit Field Type Reset Description

5-0 CH3_SLOT[5:0] R/W 2h Channel 3 slot assignment.

0d = TDM is slot 0 or I2S, LJ is left slot 0

1d = TDM is slot 1 or I2S, LJ is left slot 1

2d to 30d = Slot assigned as per configuration

31d = TDM is slot 31 or I2S, LJ is left slot 31

32d = TDM is slot 32 or I2S, LJ is right slot 0

33d = TDM is slot 33 or I2S, LJ is right slot 1

34d to 62d = Slot assigned as per configuration

63d = TDM is slot 63 or I2S, LJ is right slot 31

8.6.1.1.11 ASI_CH4 Register (page = 0x00, address = 0x0E) [reset = 3h]

This register is the ASI slot configuration register for channel 4.

Figure 99. ASI_CH4 Register

76543210

Reserved CH4_OUTPUT CH4_SLOT[5:0]

R-0h R/W-0h R/W-3h

Table 62. ASI_CH4 Register Field Descriptions

Bit Field Type Reset Description

7 Reserved R 0h Reserved

6 CH4_OUTPUT R/W 0h Channel 4 output line.

0d = Channel 4 output is on the ASI primary output pin (SDOUT)

1d = Channel 4 output is on the ASI secondary output pin (GPIO1 or GPOx)

5-0 CH4_SLOT[5:0] R/W 3h Channel 4 slot assignment.

0d = TDM is slot 0 or I2S, LJ is left slot 0

1d = TDM is slot 1 or I2S, LJ is left slot 1

2d to 30d = Slot assigned as per configuration

31d = TDM is slot 31 or I2S, LJ is left slot 31

32d = TDM is slot 32 or I2S, LJ is right slot 0

33d = TDM is slot 33 or I2S, LJ is right slot 1

34d to 62d = Slot assigned as per configuration

63d = TDM is slot 63 or I2S, LJ is right slot 31

8.6.1.1.12 ASI_CH5 Register (page = 0x00, address = 0x0F) [reset = 4h]

This register is the ASI slot configuration register for channel 5.

Figure 100. ASI_CH5 Register

76543210

Reserved CH5_OUTPUT CH5_SLOT[5:0]

R-0h R/W-0h R/W-4h

Table 63. ASI_CH5 Register Field Descriptions

Bit Field Type Reset Description

7 Reserved R 0h Reserved

6 CH5_OUTPUT R/W 0h Channel 5 output line.

0d = Channel 5 output is on the ASI primary output pin (SDOUT)

1d = Channel 5 output is on the ASI secondary output pin (GPIO1 or GPOx)

l TEXAS INSTRUMENTS

TLV320ADC3140

www.ti.com

SBAS993B –MAY 2019–REVISED OCTOBER 2019

Product Folder Links: TLV320ADC3140

Table 63. ASI_CH5 Register Field Descriptions (continued)

Bit Field Type Reset Description

5-0 CH5_SLOT[5:0] R/W 4h Channel 5 slot assignment.

0d = TDM is slot 0 or I2S, LJ is left slot 0

1d = TDM is slot 1 or I2S, LJ is left slot 1

2d to 30d = Slot assigned as per configuration

31d = TDM is slot 31 or I2S, LJ is left slot 31

32d = TDM is slot 32 or I2S, LJ is right slot 0

33d = TDM is slot 33 or I2S, LJ is right slot 1

34d to 62d = Slot assigned as per configuration

63d = TDM is slot 63 or I2S, LJ is right slot 31

8.6.1.1.13 ASI_CH6 Register (page = 0x00, address = 0x10) [reset = 5h]

This register is the ASI slot configuration register for channel 6.

Figure 101. ASI_CH6 Register

76543210

Reserved CH6_OUTPUT CH6_SLOT[5:0]

R-0h R/W-0h R/W-5h

Table 64. ASI_CH6 Register Field Descriptions

Bit Field Type Reset Description

7 Reserved R 0h Reserved

6 CH6_OUTPUT R/W 0h Channel 6 output line.

0d = Channel 6 output is on the ASI primary output pin (SDOUT)

1d = Channel 6 output is on the ASI secondary output pin (GPIO1 or GPOx)

5-0 CH6_SLOT[5:0] R/W 5h Channel 6 slot assignment.

0d = TDM is slot 0 or I2S, LJ is left slot 0

1d = TDM is slot 1 or I2S, LJ is left slot 1

2d to 30d = Slot assigned as per configuration

31d = TDM is slot 31 or I2S, LJ is left slot 31

32d = TDM is slot 32 or I2S, LJ is right slot 0

33d = TDM is slot 33 or I2S, LJ is right slot 1

34d to 62d = Slot assigned as per configuration

63d = TDM is slot 63 or I2S, LJ is right slot 31

8.6.1.1.14 ASI_CH7 Register (page = 0x00, address = 0x11) [reset = 6h]

This register is the ASI slot configuration register for channel 7.

Figure 102. ASI_CH7 Register

76543210

Reserved CH7_OUTPUT CH7_SLOT[5:0]

R-0h R/W-0h R/W-6h

Table 65. ASI_CH7 Register Field Descriptions

Bit Field Type Reset Description

7 Reserved R 0h Reserved

6 CH7_OUTPUT R/W 0h Channel 7 output line.

0d = Channel 7 output is on the ASI primary output pin (SDOUT)

1d = Channel 7 output is on the ASI secondary output pin (GPIO1 or GPOx)

l TEXAS INSTRUMENTS

TLV320ADC3140

SBAS993B –MAY 2019–REVISED OCTOBER 2019

www.ti.com

Product Folder Links: TLV320ADC3140

Table 65. ASI_CH7 Register Field Descriptions (continued)

Bit Field Type Reset Description

5-0 CH7_SLOT[5:0] R/W 6h Channel 7 slot assignment.

0d = TDM is slot 0 or I2S, LJ is left slot 0

1d = TDM is slot 1 or I2S, LJ is left slot 1

2d to 30d = Slot assigned as per configuration

31d = TDM is slot 31 or I2S, LJ is left slot 31

32d = TDM is slot 32 or I2S, LJ is right slot 0

33d = TDM is slot 33 or I2S, LJ is right slot 1

34d to 62d = Slot assigned as per configuration

63d = TDM is slot 63 or I2S, LJ is right slot 31

8.6.1.1.15 ASI_CH8 Register (page = 0x00, address = 0x12) [reset = 7h]

This register is the ASI slot configuration register for channel 8.

Figure 103. ASI_CH8 Register

76543210

Reserved CH8_OUTPUT CH8_SLOT[5:0]

R-0h R/W-0h R/W-7h

Table 66. ASI_CH8 Register Field Descriptions

Bit Field Type Reset Description

7 Reserved R 0h Reserved

6 CH8_OUTPUT R/W 0h Channel 8 output line.

0d = Channel 8 output is on the ASI primary output pin (SDOUT)

1d = Channel 8 output is on the ASI secondary output pin (GPIO1 or GPOx)

5-0 CH8_SLOT[5:0] R/W 7h Channel 8 slot assignment.

0d = TDM is slot 0 or I2S, LJ is left slot 0

1d = TDM is slot 1 or I2S, LJ is left slot 1

2d to 30d = Slot assigned as per configuration

31d = TDM is slot 31 or I2S, LJ is left slot 31

32d = TDM is slot 32 or I2S, LJ is right slot 0

33d = TDM is slot 33 or I2S, LJ is right slot 1

34d to 62d = Slot assigned as per configuration

63d = TDM is slot 63 or I2S, LJ is right slot 31

8.6.1.1.16 MST_CFG0 Register (page = 0x00, address = 0x13) [reset = 2h]

This register is the ASI master mode configuration register 0.

Figure 104. MST_CFG0 Register

76543210

MST_SLV_

CFG AUTO_CLK_

CFG AUTO_MODE_

PLL_DIS BCLK_FSYNC_

GATE FS_MODE MCLK_FREQ_SEL[2:0]

R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-2h

Table 67. MST_CFG0 Register Field Descriptions

Bit Field Type Reset Description

7 MST_SLV_CFG R/W 0h ASI master or slave configuration register setting.

0d = Device is in slave mode (both BCLK and FSYNC are inputs to the

device)

1d = Device is in master mode (both BCLK and FSYNC are generated from

the device)

6 AUTO_CLK_CFG R/W 0h Automatic clock configuration setting.

0d = Auto clock configuration is enabled (all internal clock divider and PLL

configurations are auto derived)

1d = Auto clock configuration is disabled (custom mode and device GUI must

be used for the device configuration settings)

l TEXAS INSTRUMENTS

TLV320ADC3140

www.ti.com

SBAS993B –MAY 2019–REVISED OCTOBER 2019

Product Folder Links: TLV320ADC3140

Table 67. MST_CFG0 Register Field Descriptions (continued)

Bit Field Type Reset Description

5 AUTO_MODE_PLL_DIS R/W 0h Automatic mode PLL setting.

0d = PLL is enabled in auto clock configuration

1d = PLL is disabled in auto clock configuration

4 BCLK_FSYNC_GATE R/W 0h BCLK and FSYNC clock gate (valid when the device is in master mode).

0d = Do not gate BCLK and FSYNC

1d = Force gate BCLK and FSYNC when being transmitted from the device in

master mode

3 FS_MODE R/W 0h Sample rate setting (valid when the device is in master mode).

0d = fSis a multiple (or submultiple) of 48 kHz

1d = fSis a multiple (or submultiple) of 44.1 kHz

2-0 MCLK_FREQ_SEL[2:0] R/W 2h These bits select the MCLK (GPIO or GPIx) frequency for the PLL source

clock input (valid when the device is in master mode and

MCLK_FREQ_SEL_MODE = 0).

0d = 12 MHz

1d = 12.288 MHz

2d = 13 MHz

3d = 16 MHz

4d = 19.2 MHz

5d = 19.68 MHz

6d = 24 MHz

7d = 24.576 MHz

8.6.1.1.17 MST_CFG1 Register (page = 0x00, address = 0x14) [reset = 48h]

This register is the ASI master mode configuration register 1.

Figure 105. MST_CFG1 Register

76543210

FS_RATE[3:0] FS_BCLK_RATIO[3:0]

R/W-4h R/W-8h

Table 68. MST_CFG1 Register Field Descriptions

Bit Field Type Reset Description

7-4 FS_RATE[3:0] R/W 4h Programmed sample rate of the ASI bus (not used when the device is

configured in slave mode auto clock configuration).

0d = 7.35 kHz or 8 kHz

1d = 14.7 kHz or 16 kHz

2d = 22.05 kHz or 24 kHz

3d = 29.4 kHz or 32 kHz

4d = 44.1 kHz or 48 kHz

5d = 88.2 kHz or 96 kHz

6d = 176.4 kHz or 192 kHz

7d = 352.8 kHz or 384 kHz

8d = 705.6 kHz or 768 kHz

9d to 15d = Reserved

3-0 FS_BCLK_RATIO[3:0] R/W 8h Programmed BCLK to FSYNC frequency ratio of the ASI bus (not used when

the device is configured in slave mode auto clock configuration).

0d = Ratio of 16

1d = Ratio of 24

2d = Ratio of 32

3d = Ratio of 48

4d = Ratio of 64

5d = Ratio of 96

6d = Ratio of 128

7d = Ratio of 192

8d = Ratio of 256

9d = Ratio of 384

10d = Ratio of 512

11d = Ratio of 1024

12d = Ratio of 2048

13d to 15d = Reserved

l TEXAS INSTRUMENTS —

TLV320ADC3140

SBAS993B –MAY 2019–REVISED OCTOBER 2019

www.ti.com

Product Folder Links: TLV320ADC3140

8.6.1.1.18 ASI_STS Register (page = 0x00, address = 0x15) [reset = FFh]

This register s the ASI bus clock monitor status register

Figure 106. ASI_STS Register

76543210

FS_RATE_STS[3:0] FS_RATIO_STS[3:0]

R-Fh R-Fh

Table 69. ASI_STS Register Field Descriptions

Bit Field Type Reset Description

7-4 FS_RATE_STS[3:0] R Fh Detected sample rate of the ASI bus.

0d = 7.35 kHz or 8 kHz

1d = 14.7 kHz or 16 kHz

2d = 22.05 kHz or 24 kHz

3d = 29.4 kHz or 32 kHz

4d = 44.1 kHz or 48 kHz

5d = 88.2 kHz or 96 kHz

6d = 176.4 kHz or 192 kHz

7d = 352.8 kHz or 384 kHz

8d = 705.6 kHz or 768 kHz

9d to 14d = Reserved

15d = Invalid sample rate

3-0 FS_RATIO_STS[3:0] R Fh Detected BCLK to FSYNC frequency ratio of the ASI bus.

0d = Ratio of 16

1d = Ratio of 24

2d = Ratio of 32

3d = Ratio of 48

4d = Ratio of 64

5d = Ratio of 96

6d = Ratio of 128

7d = Ratio of 192

8d = Ratio of 256

9d = Ratio of 384

10d = Ratio of 512

11d = Ratio of 1024

12d = Ratio of 2048

13d to 14d = Reserved

15d = Invalid ratio

8.6.1.1.19 CLK_SRC Register (page = 0x00, address = 0x16) [reset = 10h]

This register is the clock source configuration register.

Figure 107. CLK_SRC Register

76543210

DIS_PLL_SLV_

CLK_SRC MCLK_FREQ_

SEL_MODE MCLK_RATIO_SEL[2:0] Reserved

R/W-0h R/W-0h R/W-2h R-0h

Table 70. CLK_SRC Register Field Descriptions

Bit Field Type Reset Description

7 DIS_PLL_SLV_CLK_SRC R/W 0h Audio root clock source setting when the device is configured with the PLL

disabled in the auto clock configuration for slave mode

(AUTO_MODE_PLL_DIS = 1).

0d = BCLK is used as the audio root clock source

1d = MCLK (GPIO or GPIx) is used as the audio root clock source (the MCLK

to FSYNC ratio is as per MCLK_RATIO_SEL setting)

6 MCLK_FREQ_SEL_MOD

ER/W 0h Master mode MCLK (GPIO or GPIx) frequency selection mode (valid when

the device is in auto clock configuration).

0d = MCLK frequency is based on the MCLK_FREQ_SEL (P0_R19)

configuration

1d = MCLK frequency is specified as a multiple of FSYNC in the

MCLK_RATIO_SEL (P0_R22) configuration

l TEXAS INSTRUMENTS

TLV320ADC3140

www.ti.com

SBAS993B –MAY 2019–REVISED OCTOBER 2019

Product Folder Links: TLV320ADC3140

Table 70. CLK_SRC Register Field Descriptions (continued)

Bit Field Type Reset Description

5-3 MCLK_RATIO_SEL[2:0] R/W 2h These bits select the MCLK (GPIO or GPIx) to FSYNC ratio for master mode

or when MCLK is used as the audio root clock source in slave mode.

0d = Ratio of 64

1d = Ratio of 256

2d = Ratio of 384

3d = Ratio of 512

4d = Ratio of 768

5d = Ratio of 1024

6d = Ratio of 1536

7d = Ratio of 2304

2-0 Reserved R 0h Reserved

8.6.1.1.20 PDMCLK_CFG Register (page = 0x00, address = 0x1F) [reset = 40h]

This register is the PDM clock generation configuration register.

Figure 108. PDMCLK_CFG Register

76543210

Reserved PDMCLK_DIV[1:0]

R/W-10h R/W-0h

Table 71. PDMCLK_CFG Register Field Descriptions

Bit Field Type Reset Description

7-3 Reserved R/W 10h Reserved

1-0 PDMCLK_DIV[1:0] R/W 0h PDMCLK divider value.

0d = PDMCLK is 2.8224 MHz or 3.072 MHz

1d = PDMCLK is 1.4112 MHz or 1.536 MHz

2d = PDMCLK is 705.6 kHz or 768 kHz

3d = PDMCLK is 5.6448 MHz or 6.144 MHz

8.6.1.1.21 PDMIN_CFG Register (page = 0x00, address = 0x20) [reset = 0h]

This register is the PDM DINx sampling edge configuration register.

Figure 109. PDMIN_CFG Register

76543210

PDMDIN1_

EDGE PDMDIN2_

EDGE PDMDIN3_

EDGE PDMDIN4_

EDGE Reserved

R/W-0h R/W-0h R/W-0h R/W-0h R-0h

Table 72. PDMIN_CFG Register Field Descriptions

Bit Field Type Reset Description

7 PDMDIN1_EDGE R/W 0h PDMCLK latching edge used for channel 1 and channel 2 data.

0d = Channel 1 data are latched on the negative edge, channel 2 data are

latched on the positive edge

1d = Channel 1 data are latched on the positive edge, channel 2 data are

latched on the negative edge

6 PDMDIN2_EDGE R/W 0h PDMCLK latching edge used for channel 3 and channel 4 data.

0d = Channel 3 data are latched on the negative edge, channel 4 data are

latched on the positive edge

1d = Channel 3 data are latched on the positive edge, channel 4 data are

latched on the negative edge

5 PDMDIN3_EDGE R/W 0h PDMCLK latching edge used for channel 5 and channel 6 data.

0d = Channel 5 data are latched on the negative edge, channel 6 data are

latched on the positive edge

1d = Channel 5 data are latched on the positive edge, channel 6 data are

latched on the negative edge

l TEXAS INSTRUMENTS

TLV320ADC3140

SBAS993B –MAY 2019–REVISED OCTOBER 2019

www.ti.com

Product Folder Links: TLV320ADC3140

Table 72. PDMIN_CFG Register Field Descriptions (continued)

Bit Field Type Reset Description

4 PDMDIN4_EDGE R/W 0h PDMCLK latching edge used for channel 7 and channel 8 data.

0d = Channel 7 data are latched on the negative edge, channel 8 data are

latched on the positive edge

1d = Channel 7 data are latched on the positive edge, channel 8 data are

latched on the negative edge

3-0 Reserved R 0h Reserved

8.6.1.1.22 GPIO_CFG0 Register (page = 0x00, address = 0x21) [reset = 22h]

This register is the GPIO configuration register 0.

Figure 110. GPIO_CFG0 Register

76543210

GPIO1_CFG[3:0] Reserved GPIO1_DRV[2:0]

R/W-2h R-0h R/W-2h

Table 73. GPIO_CFG0 Register Field Descriptions

Bit Field Type Reset Description

7-4 GPIO1_CFG[3:0] R/W 2h GPIO1 configuration.

0d = GPIO1 is disabled

1d = GPIO1 is configured as a general-purpose output (GPO)

2d = GPIO1 is configured as a device interrupt output (IRQ)

3d = GPIO1 is configured as a secondary ASI output (SDOUT2)

4d = GPIO1 is configured as a PDM clock output (PDMCLK)

5d to 7d = Reserved

8d = GPIO1 is configured as an input to control when MICBIAS turns on or off

(MICBIAS_EN)

9d = GPIO1 is configured as a general-purpose input (GPI)

10d = GPIO1 is configured as a master clock input (MCLK)

11d = GPIO1 is configured as an ASI input for daisy-chain (SDIN)

12d = GPIO1 is configured as a PDM data input for channel 1 and channel 2

(PDMDIN1)

13d = GPIO1 is configured as a PDM data input for channel 3 and channel 4

(PDMDIN2)

14d = GPIO1 is configured as a PDM data input for channel 5 and channel 6

(PDMDIN3)

15d = GPIO1 is configured as a PDM data input for channel 7 and channel 8

(PDMDIN4)

3 Reserved R 0h Reserved

2-0 GPIO1_DRV[2:0] R/W 2h GPIO1 output drive configuration (not used when GPIO1 is configured as

SDOUT2).

0d = Hi-Z output

1d = Drive active low and active high

2d = Drive active low and weak high

3d = Drive active low and Hi-Z

4d = Drive weak low and active high

5d = Drive Hi-Z and active high

6d to 7d = Reserved

8.6.1.1.23 GPO_CFG0 Register (page = 0x00, address = 0x22) [reset = 0h]

This registeris the GPO configuration register 0.

Figure 111. GPO_CFG0 Register

76543210

GPO1_CFG[3:0] Reserved GPO1_DRV[2:0]

R/W-0h R-0h R/W-0h

l TEXAS INSTRUMENTS

TLV320ADC3140

www.ti.com

SBAS993B –MAY 2019–REVISED OCTOBER 2019

Product Folder Links: TLV320ADC3140

Table 74. GPO_CFG0 Register Field Descriptions

Bit Field Type Reset Description

7-4 GPO1_CFG[3:0] R/W 0h IN1M_GPO1 (GPO1) configuration.

0d = GPO1 is disabled

1d = GPO1 is configured as a general-purpose output (GPO)

2d = GPO1 is configured as a device interrupt output (IRQ)

3d = GPO1 is configured as a secondary ASI output (SDOUT2)

4d = GPO1 is configured as a PDM clock output (PDMCLK)

5d to 15d = Reserved

3 Reserved R 0h Reserved

2-0 GPO1_DRV[2:0] R/W 0h IN1M_GPO1 (GPO1) output drive configuration (not used when GPO1 is

configured as SDOUT2).

0d = Hi-Z output

1d = Drive active low and active high

2d = Drive active low and weak high

3d = Drive active low and Hi-Z

4d = Drive weak low and active high

5d = Drive Hi-Z and active high

6d to 7d = Reserved

8.6.1.1.24 GPO_CFG1 Register (page = 0x00, address = 0x23) [reset = 0h]

This registeris the GPO configuration register 1.

Figure 112. GPO_CFG1 Register

76543210

GPO2_CFG[3:0] Reserved GPO2_DRV[2:0]

R/W-0h R-0h R/W-0h

Table 75. GPO_CFG1 Register Field Descriptions

Bit Field Type Reset Description

7-4 GPO2_CFG[3:0] R/W 0h IN2M_GPO2 (GPO2) configuration.

0d = GPO2 is disabled

1d = GPO2 is configured as a general-purpose output (GPO)

2d = GPO2 is configured as a device interrupt output (IRQ)

3d = GPO2 is configured as a secondary ASI output (SDOUT2)

4d = GPO2 is configured as a PDM clock output (PDMCLK)

5d to 15d = Reserved

3 Reserved R 0h Reserved

2-0 GPO2_DRV[2:0] R/W 0h IN2M_GPO2 (GPO2) output drive configuration (not used when GPO2 is

configured as SDOUT2).

0d = Hi-Z output

1d = Drive active low and active high

2d = Drive active low and weak high

3d = Drive active low and Hi-Z

4d = Drive weak low and active high

5d = Drive Hi-Z and active high

6d to 7d = Reserved

8.6.1.1.25 GPO_CFG2 Register (page = 0x00, address = 0x24) [reset = 0h]

This registeris the GPO configuration register 2.

Figure 113. GPO_CFG2 Register

76543210

GPO3_CFG[3:0] Reserved GPO3_DRV[2:0]

R/W-0h R-0h R/W-0h

l TEXAS INSTRUMENTS

TLV320ADC3140

SBAS993B –MAY 2019–REVISED OCTOBER 2019

www.ti.com

Product Folder Links: TLV320ADC3140

Table 76. GPO_CFG2 Register Field Descriptions

Bit Field Type Reset Description

7-4 GPO3_CFG[3:0] R/W 0h IN3M_GPO3 (GPO3) configuration.

0d = GPO3 is disabled

1d = GPO3 is configured as a general-purpose output (GPO)

2d = GPO3 is configured as a device interrupt output (IRQ)

3d = GPO3 is configured as a secondary ASI output (SDOUT2)

4d = GPO3 is configured as a PDM clock output (PDMCLK)

5d to 15d = Reserved

3 Reserved R 0h Reserved

2-0 GPO3_DRV[2:0] R/W 0h IN3M_GPO3 (GPO3) output drive configuration (not used when GPO3 is

configured as SDOUT2).

0d = Hi-Z output

1d = Drive active low and active high

2d = Drive active low and weak high

3d = Drive active low and Hi-Z

4d = Drive weak low and active high

5d = Drive Hi-Z and active high

6d to 7d = Reserved

8.6.1.1.26 GPO_CFG3 Register (page = 0x00, address = 0x25) [reset = 0h]

This registeris the GPO configuration register 3.

Figure 114. GPO_CFG3 Register

76543210

GPO4_CFG[3:0] Reserved GPO4_DRV[2:0]

R/W-0h R-0h R/W-0h

Table 77. GPO_CFG3 Register Field Descriptions

Bit Field Type Reset Description

7-4 GPO4_CFG[3:0] R/W 0h IN4M_GPO4 (GPO4) configuration.

0d = GPO4 is disabled

1d = GPO4 is configured as a general-purpose output (GPO)

2d = GPO4 is configured as a device interrupt output (IRQ)

3d = GPO4 is configured as a secondary ASI output (SDOUT2)

4d = GPO4 is configured as a PDM clock output (PDMCLK)

5d to 15d = Reserved

3 Reserved R 0h Reserved

2-0 GPO4_DRV[2:0] R/W 0h IN4M_GPO4 (GPO4) output drive configuration (not used when GPO4 is

configured as SDOUT2).

0d = Hi-Z output

1d = Drive active low and active high

2d = Drive active low and weak high

3d = Drive active low and Hi-Z

4d = Drive weak low and active high

5d = Drive Hi-Z and active high

6d to 7d = Reserved

8.6.1.1.27 GPO_VAL Register (page = 0x00, address = 0x29) [reset = 0h]

This register is the GPIO and GPO output value register.

Figure 115. GPO_VAL Register

76543210

GPIO1_VAL GPO1_VAL GPO2_VAL GPO3_VAL GPO4_VAL Reserved

R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R-0h

l TEXAS INSTRUMENTS

TLV320ADC3140

www.ti.com

SBAS993B –MAY 2019–REVISED OCTOBER 2019

Product Folder Links: TLV320ADC3140

Table 78. GPO_VAL Register Field Descriptions

Bit Field Type Reset Description

7 GPIO1_VAL R/W 0h GPIO1 output value when configured as a GPO.

0d = Drive the output with a value of 0

1d = Drive the output with a value of 1

6 GPO1_VAL R/W 0h GPO1 output value when configured as a GPO.

0d = Drive the output with a value of 0

1d = Drive the output with a value of 1

5 GPO2_VAL R/W 0h GPO2 output value when configured as a GPO.

0d = Drive the output with a value of 0

1d = Drive the output with a value of 1

4 GPO3_VAL R/W 0h GPO3 output value when configured as a GPO.

0d = Drive the output with a value of 0

1d = Drive the output with a value of 1

3 GPO4_VAL R/W 0h GPO4 output value when configured as a GPO.

0d = Drive the output with a value of 0

1d = Drive the output with a value of 1

2-0 Reserved R 0h Reserved

8.6.1.1.28 GPIO_MON Register (page = 0x00, address = 0x2A) [reset = 0h]

This register is the GPIO monitor value register.

Figure 116. GPIO_MON Register

76543210

GPIO1_MON Reserved

R-0h R-0h

Table 79. GPIO_MON Register Field Descriptions

Bit Field Type Reset Description

7 GPIO1_MON R 0h GPIO1 monitor value when configured as a GPI.

0d = Input monitor value 0

1d = Input monitor value 1

6-0 Reserved R 0h Reserved

8.6.1.1.29 GPI_CFG0 Register (page = 0x00, address = 0x2B) [reset = 0h]

This register is the GPI configuration register 0.

Figure 117. GPI_CFG0 Register

76543210

Reserved GPI1_CFG[2:0] Reserved GPI2_CFG[2:0]

R-0h R/W-0h R-0h R/W-0h

l TEXAS INSTRUMENTS

TLV320ADC3140

SBAS993B –MAY 2019–REVISED OCTOBER 2019

www.ti.com

Product Folder Links: TLV320ADC3140

Table 80. GPI_CFG0 Register Field Descriptions

Bit Field Type Reset Description

7 Reserved R 0h Reserved

6-4 GPI1_CFG[2:0] R/W 0h IN1P_GPI1 (GPI1) configuration.

0d = GPI1 is disabled

1d = GPI1 is configured as a general-purpose input (GPI)

2d = GPI1 is configured as a master clock input (MCLK)

3d = GPI1 is configured as an ASI input for daisy-chain (SDIN)

4d = GPI1 is configured as a PDM data input for channel 1 and channel 2

(PDMDIN1)

5d = GPI1 is configured as a PDM data input for channel 3 and channel 4

(PDMDIN2)

6d = GPI1 is configured as a PDM data input for channel 5 and channel 6

(PDMDIN3)

7d = GPI1 is configured as a PDM data input for channel 7 and channel 8

(PDMDIN4)

3 Reserved R 0h Reserved

2-0 GPI2_CFG[2:0] R/W 0h IN2P_GPI2 (GPI2) configuration.

0d = GPI2 is disabled

1d = GPI2 is configured as a general-purpose input (GPI)

2d = GPI2 is configured as a master clock input (MCLK)

3d = GPI2 is configured as an ASI input for daisy-chain (SDIN)

4d = GPI2 is configured as a PDM data input for channel 1 and channel 2

(PDMDIN1)

5d = GPI2 is configured as a PDM data input for channel 3 and channel 4

(PDMDIN2)

6d = GPI2 is configured as a PDM data input for channel 5 and channel 6

(PDMDIN3)

7d = GPI2 is configured as a PDM data input for channel 7 and channel 8

(PDMDIN4)

8.6.1.1.30 GPI_CFG1 Register (page = 0x00, address = 0x2C) [reset = 0h]

This register is the GPI configuration register 1.

Figure 118. GPI_CFG1 Register

76543210

Reserved GPI3_CFG[2:0] Reserved GPI4_CFG[2:0]

R-0h R/W-0h R-0h R/W-0h

Table 81. GPI_CFG1 Register Field Descriptions

Bit Field Type Reset Description

7 Reserved R 0h Reserved

6-4 GPI3_CFG[2:0] R/W 0h IN3P_GPI3 (GPI3) configuration.

0d = GPI3 is disabled

1d = GPI3 is configured as a general-purpose input (GPI)

2d = GPI3 is configured as a master clock input (MCLK)

3d = GPI3 is configured as an ASI input for daisy-chain (SDIN)

4d = GPI3 is configured as a PDM data input for channel 1 and channel 2

(PDMDIN1)

5d = GPI3 is configured as a PDM data input for channel 3 and channel 4

(PDMDIN2)

6d = GPI3 is configured as a PDM data input for channel 5 and channel 6

(PDMDIN3)

7d = GPI3 is configured as a PDM data input for channel 7 and channel 8

(PDMDIN4)

3 Reserved R 0h Reserved

l TEXAS INSTRUMENTS

TLV320ADC3140

www.ti.com

SBAS993B –MAY 2019–REVISED OCTOBER 2019

Product Folder Links: TLV320ADC3140

Table 81. GPI_CFG1 Register Field Descriptions (continued)

Bit Field Type Reset Description

2-0 GPI4_CFG[2:0] R/W 0h IN4P_GPI4 (GPI4) configuration.

0d = GPI4 is disabled

1d = GPI4 is configured as a general-purpose input (GPI)

2d = GPI4 is configured as a master clock input (MCLK)

3d = GPI4 is configured as an ASI input for daisy-chain (SDIN)

4d = GPI4 is configured as a PDM data input for channel 1 and channel 2

(PDMDIN1)

5d = GPI4 is configured as a PDM data input for channel 3 and channel 4

(PDMDIN2)

6d = GPI4 is configured as a PDM data input for channel 5 and channel 6

(PDMDIN3)

7d = GPI4 is configured as a PDM data input for channel 7 and channel 8

(PDMDIN4)

8.6.1.1.31 GPI_MON Register (page = 0x00, address = 0x2F) [reset = 0h]

This regiser is the GPI monitor value register.

Figure 119. GPI_MON Register

76543210

GPI1_MON GPI2_MON GPI3_MON GPI4_MON Reserved

R-0h R-0h R-0h R-0h R-0h

Table 82. GPI_MON Register Field Descriptions

Bit Field Type Reset Description

7 GPI1_MON R 0h GPI1 monitor value when configured as a GPI.

0d = Input monitor value 0

1d = Input monitor value 1

6 GPI2_MON R 0h GPI2 monitor value when configured as a GPI.

0d = Input monitor value 0

1d = Input monitor value 1

5 GPI3_MON R 0h GPI3 monitor value when configured as a GPI.

0d = Input monitor value 0

1d = Input monitor value 1

4 GPI4_MON R 0h GPI4 monitor value when configured as a GPI.

0d = Input monitor value 0

1d = Input monitor value 1

3-0 Reserved R 0h Reserved

8.6.1.1.32 INT_CFG Register (page = 0x00, address = 0x32) [reset = 0h]

This regiser is the interrupt configuration register.

Figure 120. INT_CFG Register

76543210

INT_POL INT_EVENT[1:0] Reserved LTCH_READ_

CFG Reserved

R/W-0h R/W-0h R-0h R/W-0h R-0h

Table 83. INT_CFG Register Field Descriptions

Bit Field Type Reset Description

7 INT_POL R/W 0h Interrupt polarity.

0b = Active low (IRQZ)

1b = Active high (IRQ)

l TEXAS INSTRUMENTS

TLV320ADC3140

SBAS993B –MAY 2019–REVISED OCTOBER 2019

www.ti.com

Product Folder Links: TLV320ADC3140

Table 83. INT_CFG Register Field Descriptions (continued)

Bit Field Type Reset Description

6-5 INT_EVENT[1:0] R/W 0h Interrupt event configuration.

0d = INT asserts on any unmasked latched interrupts event

1d = Reserved

2d = INT asserts for 2 ms (typical) for every 4-ms (typical) duration on any

unmasked latched interrupts event

3d = INT asserts for 2 ms (typical) one time on each pulse for any unmasked

interrupts event

4-3 Reserved R 0h Reserved

2 LTCH_READ_CFG R/W 0h Interrupt latch registers readback configuration.

0b = All interrupts can be read through the LTCH registers

1b = Only unmasked interrupts can be read through the LTCH registers

1-0 Reserved R 0h Reserved

8.6.1.1.33 INT_MASK0 Register (page = 0x00, address = 0x33) [reset = FFh]

This register is the interrupt masks register 0.

Figure 121. INT_MASK0 Register

76543210

INT_MASK0[7] INT_MASK0[6] Reserved

R/W-1h R/W-1h R/W-3Fh

Table 84. INT_MASK0 Register Field Descriptions

Bit Field Type Reset Description

7 INT_MASK0[7] R/W 1h ASI clock error mask.

0b = Do not mask

1b = Mask

6 INT_MASK0[6] R/W 1h PLL Lock interrupt mask.

0b = Do not mask

1b = Mask

5-0 Reserved R/W 3Fh Reserved

8.6.1.1.34 INT_LTCH0 Register (page = 0x00, address = 0x36) [reset = 0h]

This register is the latched Interrupt readback register 0.

Figure 122. INT_LTCH0 Register

76543210

INT_LTCH0[7] INT_LTCH0[6] Reserved

R-0h R-0h R-0h

Table 85. INT_LTCH0 Register Field Descriptions

Bit Field Type Reset Description

7 INT_LTCH0[7] R 0h Interrupt caused by an ASI bus clock error (self-clearing bit).

0b = No interrupt

1b = Interrupt

6 INT_LTCH0[6] R 0h Interrupt caused by PLL LOCK (self-clearing bit).

0b = No interrupt

1b = Interrupt

5-0 Reserved R 0h Reserved

l TEXAS INSTRUMENTS

TLV320ADC3140

www.ti.com

SBAS993B –MAY 2019–REVISED OCTOBER 2019

Product Folder Links: TLV320ADC3140

8.6.1.1.35 BIAS_CFG Register (page = 0x00, address = 0x3B) [reset = 0h]

This register is the bias and ADC configuration register

Figure 123. BIAS_CFG Register

76543210

Reserved MBIAS_VAL[2:0] Reserved ADC_FSCALE[1:0]

R-0h R/W-0h R-0h R/W-0h

Table 86. BIAS_CFG Register Field Descriptions

Bit Field Type Reset Description

7 Reserved R 0h Reserved

6-4 MBIAS_VAL[2:0] R/W 0h MICBIAS value.

0d = Microphone bias is set to VREF (2.750 V, 2.500 V, or 1.375 V)

1d = Microphone bias is set to VREF × 1.096 (3.014 V, 2.740 V, or 1.507 V)

2d to 5d = Reserved

6d = Microphone bias is set to AVDD

3-2 Reserved R 0h Reserved

1-0 ADC_FSCALE[1:0] R/W 0h ADC full-scale setting (configure this setting based on the AVDD supply

minimum voltage used).

0d = VREF is set to 2.75 V to support 2 VRMS for the differential input or 1

VRMS for the single-ended input

1d = VREF is set to 2.5 V to support 1.818 VRMS for the differential input or

0.909 VRMS for the single-ended input

2d = VREF is set to 1.375 V to support 1 VRMS for the differential input or 0.5

VRMS for the single-ended input

3d = Reserved

8.6.1.1.36 CH1_CFG0 Register (page = 0x00, address = 0x3C) [reset = 0h]

This register is configuration register 0 for channel 1.

Figure 124. CH1_CFG0 Register

76543210

CH1_INTYP CH1_INSRC[1:0] CH1_DC CH1_IMP[1:0] Reserved CH1_AGCEN

R/W-0h R/W-0h R/W-0h R/W-0h R-0h R/W-0h

Table 87. CH1_CFG0 Register Field Descriptions

Bit Field Type Reset Description

7 CH1_INTYP R/W 0h Channel 1 input type.

0d = Microphone input

1d = Line input

6-5 CH1_INSRC[1:0] R/W 0h Channel 1 input configuration.

0d = Analog differential input (the GPI1 and GPO1 pin functions must be

disabled)

1d = Analog single-ended input (the GPI1 and GPO1 pin functions must be

disabled)

2d = Digital microphone PDM input (configure the GPO and GPI pins

accordingly for PDMDIN1 and PDMCLK)

3d = Reserved

4 CH1_DC R/W 0h Channel 1 input coupling (applicable for the analog input).

0d = AC-coupled input

1d = DC-coupled input

3-2 CH1_IMP[1:0] R/W 0h Channel 1 input impedance (applicable for the analog input).

0d = Typical 2.5-kΩinput impedance

1d = Typical 10-kΩinput impedance

2d = Typical 20-kΩinput impedance

3d = Reserved

1 Reserved R 0h Reserved

% TEXAS INSTRUMENTS

TLV320ADC3140

SBAS993B –MAY 2019–REVISED OCTOBER 2019

www.ti.com

Product Folder Links: TLV320ADC3140

Table 87. CH1_CFG0 Register Field Descriptions (continued)

Bit Field Type Reset Description

0 CH1_AGCEN R/W 0h Channel 1 automatic gain controller (AGC) setting.

0d = AGC disabled

1d = AGC enabled based on the configuration of bit 3 in register 108

(P0_R108)

8.6.1.1.37 CH1_CFG1 Register (page = 0x00, address = 0x3D) [reset = 0h]

This register is configuration register 1 for channel 1.

Figure 125. CH1_CFG1 Register

76543210

CH1_GAIN[5:0] Reserved

R/W-0h R-0h

Table 88. CH1_CFG1 Register Field Descriptions

Bit Field Type Reset Description

7-2 CH1_GAIN[5:0] R/W 0h Channel 1 gain.

0d = Channel gain is set to 0 dB

1d = Channel gain is set to 1 dB

2d = Channel gain is set to 2 dB

3d to 41d = Channel gain is set as per configuration

42d = Channel gain is set to 42 dB

43d to 63d = Reserved

1-0 Reserved R 0h Reserved

8.6.1.1.38 CH1_CFG2 Register (page = 0x00, address = 0x3E) [reset = C9h]

This register is configuration register 2 for channel 1.

Figure 126. CH1_CFG2 Register

76543210

CH1_DVOL[7:0]

R/W-C9h

Table 89. CH1_CFG2 Register Field Descriptions

Bit Field Type Reset Description

7-0 CH1_DVOL[7:0] R/W C9h Channel 1 digital volume control.

0d = Digital volume is muted

1d = Digital volume control is set to –100 dB

2d = Digital volume control is set to –99.5 dB

3d to 200d = Digital volume control is set as per configuration

201d = Digital volume control is set to 0 dB

202d = Digital volume control is set to 0.5 dB

203d to 253d = Digital volume control is set as per configuration

254d = Digital volume control is set to 26.5 dB

255d = Digital volume control is set to 27 dB

8.6.1.1.39 CH1_CFG3 Register (page = 0x00, address = 0x3F) [reset = 80h]

This register is configuration register 3 for channel 1.

Figure 127. CH1_CFG3 Register

76543210

CH1_GCAL[3:0] Reserved

R/W-8h R-0h

l TEXAS INSTRUMENTS

TLV320ADC3140

www.ti.com

SBAS993B –MAY 2019–REVISED OCTOBER 2019

Product Folder Links: TLV320ADC3140

Table 90. CH1_CFG3 Register Field Descriptions

Bit Field Type Reset Description

7-4 CH1_GCAL[3:0] R/W 8h Channel 1 gain calibration.

0d = Gain calibration is set to –0.8 dB

1d = Gain calibration is set to –0.7 dB

2d = Gain calibration is set to –0.6 dB

3d to 7d = Gain calibration is set as per configuration

8d = Gain calibration is set to 0 dB

9d = Gain calibration is set to 0.1 dB

10d to 13d = Gain calibration is set as per configuration

14d = Gain calibration is set to 0.6 dB

15d = Gain calibration is set to 0.7 dB

3-0 Reserved R 0h Reserved

8.6.1.1.40 CH1_CFG4 Register (page = 0x00, address = 0x40) [reset = 0h]

This register is configuration register 4 for channel 1.

Figure 128. CH1_CFG4 Register

76543210

CH1_PCAL[7:0]

R/W-0h

Table 91. CH1_CFG4 Register Field Descriptions

Bit Field Type Reset Description

7-0 CH1_PCAL[7:0] R/W 0h Channel 1 phase calibration with modulator clock resolution.

0d = No phase calibration

1d = Phase calibration delay is set to one cycle of the modulator clock

2d = Phase calibration delay is set to two cycles of the modulator clock

3d to 254d = Phase calibration delay as per configuration

255d = Phase calibration delay is set to 255 cycles of the modulator clock

8.6.1.1.41 CH2_CFG0 Register (page = 0x00, address = 0x41) [reset = 0h]

This register is configuration register 0 for channel 2.

Figure 129. CH2_CFG0 Register

76543210

CH2_INTYP CH2_INSRC[1:0] CH2_DC CH2_IMP[1:0] Reserved CH2_AGCEN

R/W-0h R/W-0h R/W-0h R/W-0h R-0h R/W-0h

Table 92. CH2_CFG0 Register Field Descriptions

Bit Field Type Reset Description

7 CH2_INTYP R/W 0h Channel 2 input type.

0d = Microphone input

1d = Line input

6-5 CH2_INSRC[1:0] R/W 0h Channel 2 input configuration.

0d = Analog differential input (the GPI2 and GPO2 pin functions must be

disabled)

1d = Analog single-ended input (the GPI2 and GPO2 pin functions must be

disabled)

2d = Digital microphone PDM input (configure the GPO and GPI pins

accordingly for PDMDIN1 and PDMCLK)

3d = Reserved

4 CH2_DC R/W 0h Channel 2 input coupling (applicable for the analog input).

0d = AC-coupled input

1d = DC-coupled input

l TEXAS INSTRUMENTS

TLV320ADC3140

SBAS993B –MAY 2019–REVISED OCTOBER 2019

www.ti.com

Product Folder Links: TLV320ADC3140

Table 92. CH2_CFG0 Register Field Descriptions (continued)

Bit Field Type Reset Description

3-2 CH2_IMP[1:0] R/W 0h Channel 2 input impedance (applicable for the analog input).

0d = Typical 2.5-kΩinput impedance

1d = Typical 10-kΩinput impedance

2d = Typical 20-kΩinput impedance

3d = Reserved

1 Reserved R 0h Reserved

0 CH2_AGCEN R/W 0h Channel 2 automatic gain controller (AGC) setting.

0d = AGC disabled

1d = AGC enabled based on the configuration of bit 3 in register 108

(P0_R108)

8.6.1.1.42 CH2_CFG1 Register (page = 0x00, address = 0x42) [reset = 0h]

This register is configuration register 1 for channel 2.

Figure 130. CH2_CFG1 Register

76543210

CH2_GAIN[5:0] Reserved

R/W-0h R-0h

Table 93. CH2_CFG1 Register Field Descriptions

Bit Field Type Reset Description

7-2 CH2_GAIN[5:0] R/W 0h Channel 2 gain.

0d = Channel gain is set to 0 dB

1d = Channel gain is set to 1 dB

2d = Channel gain is set to 2 dB

3d to 41d = Channel gain is set as per configuration

42d = Channel gain is set to 42 dB

43d to 63d = Reserved

1-0 Reserved R 0h Reserved

8.6.1.1.43 CH2_CFG2 Register (page = 0x00, address = 0x43) [reset = C9h]

This register is configuration register 2 for channel 2.

Figure 131. CH2_CFG2 Register

76543210

CH2_DVOL[7:0]

R/W-C9h

Table 94. CH2_CFG2 Register Field Descriptions

Bit Field Type Reset Description

7-0 CH2_DVOL[7:0] R/W C9h Channel 2 digital volume control.

0d = Digital volume is muted

1d = Digital volume control is set to –100 dB

2d = Digital volume control is set to –99.5 dB

3d to 200d = Digital volume control is set as per configuration

201d = Digital volume control is set to 0 dB

202d = Digital volume control is set to 0.5 dB

203d to 253d = Digital volume control is set as per configuration

254d = Digital volume control is set to 26.5 dB

255d = Digital volume control is set to 27 dB

TLV320ADC3140

www.ti.com

SBAS993B –MAY 2019–REVISED OCTOBER 2019

Product Folder Links: TLV320ADC3140

8.6.1.1.44 CH2_CFG3 Register (page = 0x00, address = 0x44) [reset = 80h]

This register is configuration register 3 for channel 2.

Figure 132. CH2_CFG3 Register

76543210

CH2_GCAL[3:0] Reserved

R/W-8h R-0h

Table 95. CH2_CFG3 Register Field Descriptions

Bit Field Type Reset Description

7-4 CH2_GCAL[3:0] R/W 8h Channel 2 gain calibration.

0d = Gain calibration is set to –0.8 dB

1d = Gain calibration is set to –0.7 dB

2d = Gain calibration is set to –0.6 dB

3d to 7d = Gain calibration is set as per configuration

8d = Gain calibration is set to 0 dB

9d = Gain calibration is set to 0.1 dB

10d to 13d = Gain calibration is set as per configuration

14d = Gain calibration is set to 0.6 dB

15d = Gain calibration is set to 0.7 dB

3-0 Reserved R 0h Reserved

8.6.1.1.45 CH2_CFG4 Register (page = 0x00, address = 0x45) [reset = 0h]

This register is configuration register 4 for channel 2.

Figure 133. CH2_CFG4 Register

76543210

CH2_PCAL[7:0]

R/W-0h

Table 96. CH2_CFG4 Register Field Descriptions

Bit Field Type Reset Description

7-0 CH2_PCAL[7:0] R/W 0h Channel 2 phase calibration with modulator clock resolution.

0d = No phase calibration

1d = Phase calibration delay is set to one cycle of the modulator clock

2d = Phase calibration delay is set to two cycles of the modulator clock

3d to 254d = Phase calibration delay as per configuration

255d = Phase calibration delay is set to 255 cycles of the modulator clock

8.6.1.1.46 CH3_CFG0 Register (page = 0x00, address = 0x46) [reset = 0h]

This register is configuration register 0 for channel 3.

Figure 134. CH3_CFG0 Register

76543210

CH3_INTYP CH3_INSRC[1:0] CH3_DC CH3_IMP[1:0] Reserved CH3_AGCEN

R/W-0h R/W-0h R/W-0h R/W-0h R-0h R/W-0h

Table 97. CH3_CFG0 Register Field Descriptions

Bit Field Type Reset Description

7 CH3_INTYP R/W 0h Channel 3 input type.

0d = Microphone input

1d = Line input

l TEXAS INSTRUMENTS

TLV320ADC3140

SBAS993B –MAY 2019–REVISED OCTOBER 2019

www.ti.com

Product Folder Links: TLV320ADC3140

Table 97. CH3_CFG0 Register Field Descriptions (continued)

Bit Field Type Reset Description

6-5 CH3_INSRC[1:0] R/W 0h Channel 3 input configuration.

0d = Analog differential input (the GPI3 and GPO3 pin functions must be

disabled)

1d = Analog single-ended input (the GPI3 and GPO3 pin functions must be

disabled)

2d = Digital microphone PDM input (configure the GPO and GPI pins

accordingly for PDMDIN2 and PDMCLK)

3d = Reserved

4 CH3_DC R/W 0h Channel 3 input coupling (applicable for the analog input).

0d = AC-coupled input

1d = DC-coupled input

3-2 CH3_IMP[1:0] R/W 0h Channel 3 input impedance (applicable for the analog input).

0d = Typical 2.5-kΩinput impedance

1d = Typical 10-kΩinput impedance

2d = Typical 20-kΩinput impedance

3d = Reserved

1 Reserved R 0h Reserved

0 CH3_AGCEN R/W 0h Channel 3 automatic gain controller (AGC) setting.

0d = AGC disabled

1d = AGC enabled based on the configuration of bit 3 in register 108

(P0_R108)

8.6.1.1.47 CH3_CFG1 Register (page = 0x00, address = 0x47) [reset = 0h]

This register is configuration register 1 for channel 3.

Figure 135. CH3_CFG1 Register

76543210

CH3_GAIN[5:0] Reserved

R/W-0h R-0h

Table 98. CH3_CFG1 Register Field Descriptions

Bit Field Type Reset Description

7-2 CH3_GAIN[5:0] R/W 0h Channel 3 gain.

0d = Channel gain is set to 0 dB

1d = Channel gain is set to 1 dB

2d = Channel gain is set to 2 dB

3d to 41d = Channel gain is set as per configuration

42d = Channel gain is set to 42 dB

43d to 63d = Reserved

1-0 Reserved R 0h Reserved

8.6.1.1.48 CH3_CFG2 Register (page = 0x00, address = 0x48) [reset = C9h]

This register is configuration register 2 for channel 3.

Figure 136. CH3_CFG2 Register

76543210

CH3_DVOL[7:0]

R/W-C9h

l TEXAS INSTRUMENTS

TLV320ADC3140

www.ti.com

SBAS993B –MAY 2019–REVISED OCTOBER 2019

Product Folder Links: TLV320ADC3140

Table 99. CH3_CFG2 Register Field Descriptions

Bit Field Type Reset Description

7-0 CH3_DVOL[7:0] R/W C9h Channel 3 digital volume control.

0d = Digital volume is muted

1d = Digital volume control is set to –100 dB

2d = Digital volume control is set to –99.5 dB

3d to 200d = Digital volume control is set as per configuration

201d = Digital volume control is set to 0 dB

202d = Digital volume control is set to 0.5 dB

203d to 253d = Digital volume control is set as per configuration

254d = Digital volume control is set to 26.5 dB

255d = Digital volume control is set to 27 dB

8.6.1.1.49 CH3_CFG3 Register (page = 0x00, address = 0x49) [reset = 80h]

This register is configuration register 3 for channel 3.

Figure 137. CH3_CFG3 Register

76543210

CH3_GCAL[3:0] Reserved

R/W-8h R-0h

Table 100. CH3_CFG3 Register Field Descriptions

Bit Field Type Reset Description

7-4 CH3_GCAL[3:0] R/W 8h Channel 3 gain calibration.

0d = Gain calibration is set to –0.8 dB

1d = Gain calibration is set to –0.7 dB

2d = Gain calibration is set to –0.6 dB

3d to 7d = Gain calibration is set as per configuration

8d = Gain calibration is set to 0 dB

9d = Gain calibration is set to 0.1 dB

10d to 13d = Gain calibration is set as per configuration

14d = Gain calibration is set to 0.6 dB

15d = Gain calibration is set to 0.7 dB

3-0 Reserved R 0h Reserved

8.6.1.1.50 CH3_CFG4 Register (page = 0x00, address = 0x4A) [reset = 0h]

This register is configuration register 4 for channel 3.

Figure 138. CH3_CFG4 Register

76543210

CH3_PCAL[7:0]

R/W-0h

Table 101. CH3_CFG4 Register Field Descriptions

Bit Field Type Reset Description

7-0 CH3_PCAL[7:0] R/W 0h Channel 3 phase calibration with modulator clock resolution.

0d = No phase calibration

1d = Phase calibration delay is set to one cycle of the modulator clock

2d = Phase calibration delay is set to two cycles of the modulator clock

3d to 254d = Phase calibration delay as per configuration

255d = Phase calibration delay is set to 255 cycles of the modulator clock

l TEXAS INSTRUMENTS —

TLV320ADC3140

SBAS993B –MAY 2019–REVISED OCTOBER 2019

www.ti.com

Product Folder Links: TLV320ADC3140

8.6.1.1.51 CH4_CFG0 Register (page = 0x00, address = 0x4B) [reset = 0h]

This register is configuration register 0 for channel 4.

Figure 139. CH4_CFG0 Register

76543210

CH4_INTYP CH4_INSRC[1:0] CH4_DC CH4_IMP[1:0] Reserved CH4_AGCEN

R/W-0h R/W-0h R/W-0h R/W-0h R-0h R/W-0h

Table 102. CH4_CFG0 Register Field Descriptions

Bit Field Type Reset Description

7 CH4_INTYP R/W 0h Channel 4 input type.

0d = Microphone input

1d = Line input

6-5 CH4_INSRC[1:0] R/W 0h Channel 4 input configuration.

0d = Analog differential input (the GPI4 and GPO4 pin functions must be

disabled)

1d = Analog single-ended input (the GPI4 and GPO4 pin functions must be

disabled)

2d = Digital microphone PDM input (configure the GPO and GPI pins

accordingly for PDMDIN2 and PDMCLK)

3d = Reserved

4 CH4_DC R/W 0h Channel 4 input coupling (applicable for the analog input).

0d = AC-coupled input

1d = DC-coupled input

3-2 CH4_IMP[1:0] R/W 0h Channel 4 input impedance (applicable for the analog input).

0d = Typical 2.5-kΩinput impedance

1d = Typical 10-kΩinput impedance

2d = Typical 20-kΩinput impedance

3d = Reserved

1 Reserved R 0h Reserved

0 CH4_AGCEN R/W 0h Channel 4 automatic gain controller (AGC) setting.

0d = AGC disabled

1d = AGC enabled based on the configuration of bit 3 in register 108

(P0_R108)

8.6.1.1.52 CH4_CFG1 Register (page = 0x00, address = 0x4C) [reset = 0h]

This register is configuration register 1 for channel 4.

Figure 140. CH4_CFG1 Register

76543210

CH4_GAIN[5:0] Reserved

R/W-0h R-0h

Table 103. CH4_CFG1 Register Field Descriptions

Bit Field Type Reset Description

7-2 CH4_GAIN[5:0] R/W 0h Channel 4 gain.

0d = Channel gain is set to 0 dB

1d = Channel gain is set to 1 dB

2d = Channel gain is set to 2 dB

3d to 41d = Channel gain is set as per configuration

42d = Channel gain is set to 42 dB

43d to 63d = Reserved

1-0 Reserved R 0h Reserved

% TEXAS INSTRUMENTS —

TLV320ADC3140

www.ti.com

SBAS993B –MAY 2019–REVISED OCTOBER 2019

Product Folder Links: TLV320ADC3140

8.6.1.1.53 CH4_CFG2 Register (page = 0x00, address = 0x4D) [reset = C9h]

This register is configuration register 2 for channel 4.

Figure 141. CH4_CFG2 Register

76543210

CH4_DVOL[7:0]

R/W-C9h

Table 104. CH4_CFG2 Register Field Descriptions

Bit Field Type Reset Description

7-0 CH4_DVOL[7:0] R/W C9h Channel 4 digital volume control.

0d = Digital volume is muted

1d = Digital volume control is set to –100 dB

2d = Digital volume control is set to –99.5 dB

3d to 200d = Digital volume control is set as per configuration

201d = Digital volume control is set to 0 dB

202d = Digital volume control is set to 0.5 dB

203d to 253d = Digital volume control is set as per configuration

254d = Digital volume control is set to 26.5 dB

255d = Digital volume control is set to 27 dB

8.6.1.1.54 CH4_CFG3 Register (page = 0x00, address = 0x4E) [reset = 80h]

This register is configuration register 3 for channel 4.

Figure 142. CH4_CFG3 Register

76543210

CH4_GCAL[3:0] Reserved

R/W-8h R-0h

Table 105. CH4_CFG3 Register Field Descriptions

Bit Field Type Reset Description

7-4 CH4_GCAL[3:0] R/W 8h Channel 4 gain calibration.

0d = Gain calibration is set to –0.8 dB

1d = Gain calibration is set to –0.7 dB

2d = Gain calibration is set to –0.6 dB

3d to 7d = Gain calibration is set as per configuration

8d = Gain calibration is set to 0 dB

9d = Gain calibration is set to 0.1 dB

10d to 13d = Gain calibration is set as per configuration

14d = Gain calibration is set to 0.6 dB

15d = Gain calibration is set to 0.7 dB

3-0 Reserved R 0h Reserved

8.6.1.1.55 CH4_CFG4 Register (page = 0x00, address = 0x4F) [reset = 0h]

This register is configuration register 4 for channel 4.

Figure 143. CH4_CFG4 Register

76543210

CH4_PCAL[7:0]

R/W-0h

l TEXAS INSTRUMENTS

TLV320ADC3140

SBAS993B –MAY 2019–REVISED OCTOBER 2019

www.ti.com

Product Folder Links: TLV320ADC3140

Table 106. CH4_CFG4 Register Field Descriptions

Bit Field Type Reset Description

7-0 CH4_PCAL[7:0] R/W 0h Channel 4 phase calibration with modulator clock resolution.

0d = No phase calibration

1d = Phase calibration delay is set to one cycle of the modulator clock

2d = Phase calibration delay is set to two cycles of the modulator clock

3d to 254d = Phase calibration delay as per configuration

255d = Phase calibration delay is set to 255 cycles of the modulator clock

8.6.1.1.56 CH5_CFG2 Register (page = 0x00, address = 0x52) [reset = C9h]

This register is configuration register 2 for Channel 5 (for the digital microphone PDM Input only).

Figure 144. CH5_CFG2 Register

76543210

CH5_DVOL[7:0]

R/W-C9h

Table 107. CH5_CFG2 Register Field Descriptions

Bit Field Type Reset Description

7-0 CH5_DVOL[7:0] R/W C9h Channel 5 digital volume control.

0d = Digital volume is muted

1d = Digital volume control is set to –100 dB

2d = Digital volume control is set to –99.5 dB

3d to 200d = Digital volume control is set as per configuration

201d = Digital volume control is set to 0 dB

202d = Digital volume control is set to 0.5 dB

203d to 253d = Digital volume control is set as per configuration

254d = Digital volume control is set to 26.5 dB

255d = Digital volume control is set to 27 dB

8.6.1.1.57 CH5_CFG3 Register (page = 0x00, address = 0x53) [reset = 80h]

This register is configuration register 3 for Channel 5 (for the digital microphone PDM Input only).

Figure 145. CH5_CFG3 Register

76543210

CH5_GCAL[3:0] Reserved

R/W-8h R-0h

Table 108. CH5_CFG3 Register Field Descriptions

Bit Field Type Reset Description

7-4 CH5_GCAL[3:0] R/W 8h Channel 5 gain calibration.

0d = Gain calibration is set to –0.8 dB

1d = Gain calibration is set to –0.7 dB

2d = Gain calibration is set to –0.6 dB

3d to 7d = Gain calibration is set as per configuration

8d = Gain calibration is set to 0 dB

9d = Gain calibration is set to 0.1 dB

10d to 13d = Gain calibration is set as per configuration

14d = Gain calibration is set to 0.6 dB

15d = Gain calibration is set to 0.7 dB

3-0 Reserved R 0h Reserved

% TEXAS INSTRUMENTS —

TLV320ADC3140

www.ti.com

SBAS993B –MAY 2019–REVISED OCTOBER 2019

Product Folder Links: TLV320ADC3140

8.6.1.1.58 CH5_CFG4 Register (page = 0x00, address = 0x54) [reset = 0h]

This register is configuration register 4 for Channel 5 (for the digital microphone PDM Input only).

Figure 146. CH5_CFG4 Register

76543210

CH5_PCAL[7:0]

R/W-0h

Table 109. CH5_CFG4 Register Field Descriptions

Bit Field Type Reset Description

7-0 CH5_PCAL[7:0] R/W 0h Channel 5 phase calibration with modulator clock resolution.

0d = No phase calibration

1d = Phase calibration delay is set to one cycle of the modulator clock

2d = Phase calibration delay is set to two cycles of the modulator clock

3d to 254d = Phase calibration delay as per configuration

255d = Phase calibration delay is set to 255 cycles of the modulator clock

8.6.1.1.59 CH6_CFG2 Register (page = 0x00, address = 0x57) [reset = C9h]

This register is configuration register 2 for Channel 6 (for the digital microphone PDM Input only).

Figure 147. CH6_CFG2 Register

76543210

CH6_DVOL[7:0]

R/W-C9h

Table 110. CH6_CFG2 Register Field Descriptions

Bit Field Type Reset Description

7-0 CH6_DVOL[7:0] R/W C9h Channel 6 digital volume control.

0d = Digital volume is muted

1d = Digital volume control is set to –100 dB

2d = Digital volume control is set to –99.5 dB

3d to 200d = Digital volume control is set as per configuration

201d = Digital volume control is set to 0 dB

202d = Digital volume control is set to 0.5 dB

203d to 253d = Digital volume control is set as per configuration

254d = Digital volume control is set to 26.5 dB

255d = Digital volume control is set to 27 dB

8.6.1.1.60 CH6_CFG3 Register (page = 0x00, address = 0x58) [reset = 80h]

This register is configuration register 3 for Channel 6 (for the digital microphone PDM Input only).

Figure 148. CH6_CFG3 Register

76543210

CH6_GCAL[3:0] Reserved

R/W-8h R-0h

Table 111. CH6_CFG3 Register Field Descriptions

Bit Field Type Reset Description

7-4 CH6_GCAL[3:0] R/W 8h Channel 6 gain calibration.

0d = Gain calibration is set to –0.8 dB

1d = Gain calibration is set to –0.7 dB

2d = Gain calibration is set to –0.6 dB

3d to 7d = Gain calibration is set as per configuration

8d = Gain calibration is set to 0 dB

9d = Gain calibration is set to 0.1 dB

10d to 13d = Gain calibration is set as per configuration

14d = Gain calibration is set to 0.6 dB

15d = Gain calibration is set to 0.7 dB

% TEXAS INSTRUMENTS

TLV320ADC3140

SBAS993B –MAY 2019–REVISED OCTOBER 2019

www.ti.com

Product Folder Links: TLV320ADC3140

Table 111. CH6_CFG3 Register Field Descriptions (continued)

Bit Field Type Reset Description

3-0 Reserved R 0h Reserved

8.6.1.1.61 CH6_CFG4 Register (page = 0x00, address = 0x59) [reset = 0h]

This register is configuration register 4 for Channel 6 (for the digital microphone PDM Input only).

Figure 149. CH6_CFG4 Register

76543210

CH6_PCAL[7:0]

R/W-0h

Table 112. CH6_CFG4 Register Field Descriptions

Bit Field Type Reset Description

7-0 CH6_PCAL[7:0] R/W 0h Channel 6 phase calibration with modulator clock resolution.

0d = No phase calibration

1d = Phase calibration delay is set to one cycle of the modulator clock

2d = Phase calibration delay is set to two cycles of the modulator clock

3d to 254d = Phase calibration delay as per configuration

255d = Phase calibration delay is set to 255 cycles of the modulator clock

8.6.1.1.62 CH7_CFG2 Register (page = 0x00, address = 0x5C) [reset = C9h]

This register is configuration register 2 for Channel 7 (for the digital microphone PDM Input only).

Figure 150. CH7_CFG2 Register

76543210

CH7_DVOL[7:0]

R/W-C9h

Table 113. CH7_CFG2 Register Field Descriptions

Bit Field Type Reset Description

7-0 CH7_DVOL[7:0] R/W C9h Channel 7 digital volume control.

0d = Digital volume is muted

1d = Digital volume control is set to –100 dB

2d = Digital volume control is set to –99.5 dB

3d to 200d = Digital volume control is set as per configuration

201d = Digital volume control is set to 0 dB

202d = Digital volume control is set to 0.5 dB

203d to 253d = Digital volume control is set as per configuration

254d = Digital volume control is set to 26.5 dB

255d = Digital volume control is set to 27 dB

8.6.1.1.63 CH7_CFG3 Register (page = 0x00, address = 0x5D) [reset = 80h]

This register is configuration register 3 for Channel 7 (for the digital microphone PDM Input only).

Figure 151. CH7_CFG3 Register

76543210

CH7_GCAL[3:0] Reserved

R/W-8h R-0h

l TEXAS INSTRUMENTS

TLV320ADC3140

www.ti.com

SBAS993B –MAY 2019–REVISED OCTOBER 2019

Product Folder Links: TLV320ADC3140

Table 114. CH7_CFG3 Register Field Descriptions

Bit Field Type Reset Description

7-4 CH7_GCAL[3:0] R/W 8h Channel 7 gain calibration.

0d = Gain calibration is set to –0.8 dB

1d = Gain calibration is set to –0.7 dB

2d = Gain calibration is set to –0.6 dB

3d to 7d = Gain calibration is set as per configuration

8d = Gain calibration is set to 0 dB

9d = Gain calibration is set to 0.1 dB

10d to 13d = Gain calibration is set as per configuration

14d = Gain calibration is set to 0.6 dB

15d = Gain calibration is set to 0.7 dB

3-0 Reserved R 0h Reserved

8.6.1.1.64 CH7_CFG4 Register (page = 0x00, address = 0x5E) [reset = 0h]

This register is configuration register 4 for Channel 7 (for the digital microphone PDM Input only).

Figure 152. CH7_CFG4 Register

76543210

CH7_PCAL[7:0]

R/W-0h

Table 115. CH7_CFG4 Register Field Descriptions

Bit Field Type Reset Description

7-0 CH7_PCAL[7:0] R/W 0h Channel 7 phase calibration with modulator clock resolution.

0d = No phase calibration

1d = Phase calibration delay is set to one cycle of the modulator clock

2d = Phase calibration delay is set to two cycles of the modulator clock

3d to 254d = Phase calibration delay as per configuration

255d = Phase calibration delay is set to 255 cycles of the modulator clock

8.6.1.1.65 CH8_CFG2 Register (page = 0x00, address = 0x61) [reset = C9h]

This register is configuration register 2 for Channel 8 (for the digital microphone PDM Input only).

Figure 153. CH8_CFG2 Register

76543210

CH8_DVOL[7:0]

R/W-C9h

Table 116. CH8_CFG2 Register Field Descriptions

Bit Field Type Reset Description

7-0 CH8_DVOL[7:0] R/W C9h Channel 8 digital volume control.

0d = Digital volume is muted

1d = Digital volume control is set to –100 dB

2d = Digital volume control is set to –99.5 dB

3d to 200d = Digital volume control is set as per configuration

201d = Digital volume control is set to 0 dB

202d = Digital volume control is set to 0.5 dB

203d to 253d = Digital volume control is set as per configuration

254d = Digital volume control is set to 26.5 dB

255d = Digital volume control is set to 27 dB

% TEXAS INSTRUMENTS —

TLV320ADC3140

SBAS993B –MAY 2019–REVISED OCTOBER 2019

www.ti.com

Product Folder Links: TLV320ADC3140

8.6.1.1.66 CH8_CFG3 Register (page = 0x00, address = 0x62) [reset = 80h]

This register is configuration register 3 for Channel 8 (for the digital microphone PDM Input only).

Figure 154. CH8_CFG3 Register

76543210

CH8_GCAL[3:0] Reserved

R/W-8h R-0h

Table 117. CH8_CFG3 Register Field Descriptions

Bit Field Type Reset Description

7-4 CH8_GCAL[3:0] R/W 8h Channel 8 gain calibration.

0d = Gain calibration is set to –0.8 dB

1d = Gain calibration is set to –0.7 dB

2d = Gain calibration is set to –0.6 dB

3d to 7d = Gain calibration is set as per configuration

8d = Gain calibration is set to 0 dB

9d = Gain calibration is set to 0.1 dB

10d to 13d = Gain calibration is set as per configuration

14d = Gain calibration is set to 0.6 dB

15d = Gain calibration is set to 0.7 dB

3-0 Reserved R 0h Reserved

8.6.1.1.67 CH8_CFG4 Register (page = 0x00, address = 0x63) [reset = 0h]

This register is configuration register 4 for Channel 8 (for the digital microphone PDM Input only).

Figure 155. CH8_CFG4 Register

76543210

CH8_PCAL[7:0]

R/W-0h

Table 118. CH8_CFG4 Register Field Descriptions

Bit Field Type Reset Description

7-0 CH8_PCAL[7:0] R/W 0h Channel 8 phase calibration with modulator clock resolution.

0d = No phase calibration

1d = Phase calibration delay is set to one cycle of the modulator clock

2d = Phase calibration delay is set to two cycles of the modulator clock

3d to 254d = Phase calibration delay as per configuration

255d = Phase calibration delay is set to 255 cycles of the modulator clock

8.6.1.1.68 DSP_CFG0 Register (page = 0x00, address = 0x6B) [reset = 1h]

This register is the digital signal processor (DSP) configuration register 0.

Figure 156. DSP_CFG0 Register

76543210

Reserved DECI_FILT[1:0] CH_SUM[1:0] HPF_SEL[1:0]

R-0h R/W-0h R/W-0h R/W-1h

Table 119. DSP_CFG0 Register Field Descriptions

Bit Field Type Reset Description

7-6 Reserved R 0h Reserved

5-4 DECI_FILT[1:0] R/W 0h Decimation filter response.

0d = Linear phase

1d = Low latency

2d = Ultra-low latency

3d = Reserved

l TEXAS INSTRUMENTS

TLV320ADC3140

www.ti.com

SBAS993B –MAY 2019–REVISED OCTOBER 2019

Product Folder Links: TLV320ADC3140

Table 119. DSP_CFG0 Register Field Descriptions (continued)

Bit Field Type Reset Description

3-2 CH_SUM[1:0] R/W 0h Channel summation mode for higher SNR

0d = Channel summation mode is disabled

1d = 2-channel summation mode is enabled to generate a (CH1 + CH2) / 2

and a (CH3 + CH4) / 2 output

2d = 4-channel summation mode is enabled to generate a (CH1 + CH2 + CH3

+ CH4) / 4 output

3d = Reserved

1-0 HPF_SEL[1:0] R/W 1h High-pass filter (HPF) selection.

0d = Programmable first-order IIR filter for a custom HPF with default

coefficient values in P4_R72 to P4_R83 set as the all-pass filter

1d = HPF with a cutoff of 0.00025 × fS(12 Hz at fS= 48 kHz) is selected

2d = HPF with a cutoff of 0.002 × fS(96 Hz at fS= 48 kHz) is selected

3d = HPF with a cutoff of 0.008 × fS(384 Hz at fS= 48 kHz) is selected

8.6.1.1.69 DSP_CFG1 Register (page = 0x00, address = 0x6C) [reset = 40h]

This register is the digital signal processor (DSP) configuration register 1.

Figure 157. DSP_CFG1 Register

76543210

DVOL_GANG BIQUAD_CFG[1:0] DISABLE_

SOFT_STEP AGC_SEL Reserved

R/W-0h R/W-2h R/W-0h R/W-0h R/W-0h

Table 120. DSP_CFG1 Register Field Descriptions

Bit Field Type Reset Description

7 DVOL_GANG R/W 0h DVOL control ganged across channels.

0d = Each channel has its own DVOL CTRL settings as programmed in the

CHx_DVOL bits

1d = All active channels must use the channel 1 DVOL setting (CH1_DVOL)

irrespective of whether channel 1 is turned on or not

6-5 BIQUAD_CFG[1:0] R/W 2h Number of biquads per channel configuration.

0d = No biquads per channel; biquads are all disabled

1d = 1 biquad per channel

2d = 2 biquads per channel

3d = 3 biquads per channel

4 DISABLE_SOFT_STEP R/W 0h Soft-stepping disable during DVOL change, mute, and unmute.

0d = Soft-stepping enabled

1d = Soft-stepping disabled

3 AGC_SEL R/W 0h AGC selection when is enabled for any channel.

0d = AGC is not selected

1d = AGC is selected

2-0 Reserved R/W 0h Reserved

8.6.1.1.70 AGC_CFG0 Register (page = 0x00, address = 0x70) [reset = E7h]

This register is the automatic gain controller (AGC) configuration register 0.

Figure 158. AGC_CFG0 Register

76543210

AGC_LVL[3:0] AGC_MAXGAIN[3:0]

R/W-Eh R/W-7h

l TEXAS INSTRUMENTS

TLV320ADC3140

SBAS993B –MAY 2019–REVISED OCTOBER 2019

www.ti.com

Product Folder Links: TLV320ADC3140

Table 121. AGC_CFG0 Register Field Descriptions

Bit Field Type Reset Description

7-4 AGC_LVL[3:0] R/W Eh AGC output signal target level.

0d = Output signal target level is –6 dB

1d = Output signal target level is –8 dB

2d = Output signal target level is –10 dB

3d to 13d = Output signal target level is as per configuration

14d = Output signal target level is –34 dB

15d = Output signal target level is –36 dB

3-0 AGC_MAXGAIN[3:0] R/W 7h AGC maximum gain allowed.

0d = Maximum gain allowed is 3 dB

1d = Maximum gain allowed is 6 dB

2d = Maximum gain allowed is 9 dB

3d to 11d = Maximum gain allowed is as per configuration

12d = Maximum gain allowed is 39 dB

13d = Maximum gain allowed is 42 dB

14d to 15d = Reserved

8.6.1.1.71 IN_CH_EN Register (page = 0x00, address = 0x73) [reset = F0h]

This register is the input channel enable configuration register.

Figure 159. IN_CH_EN Register

76543210

IN_CH1_EN IN_CH2_EN IN_CH3_EN IN_CH4_EN IN_CH5_EN IN_CH6_EN IN_CH7_EN IN_CH8_EN

R/W-1h R/W-1h R/W-1h R/W-1h R/W-0h R/W-0h R/W-0h R/W-0h

Table 122. IN_CH_EN Register Field Descriptions

Bit Field Type Reset Description

7 IN_CH1_EN R/W 1h Input channel 1 enable setting.

0d = Channel 1 is disabled

1d = Channel 1 is enabled

6 IN_CH2_EN R/W 1h Input channel 2 enable setting.

0d = Channel 2 is disabled

1d = Channel 2 is enabled

5 IN_CH3_EN R/W 1h Input channel 3 enable setting.

0d = Channel 3 is disabled

1d = Channel 3 is enabled

4 IN_CH4_EN R/W 1h Input channel 4 enable setting.

0d = Channel 4 is disabled

1d = Channel 4 is enabled

3 IN_CH5_EN R/W 0h Input channel 5 (PDM only) enable setting.

0d = Channel 5 is disabled

1d = Channel 5 is enabled

2 IN_CH6_EN R/W 0h Input channel 6 (PDM only) enable setting.

0d = Channel 6 is disabled

1d = Channel 6 is enabled

1 IN_CH7_EN R/W 0h Input channel 7 (PDM only) enable setting.

0d = Channel 7 is disabled

1d = Channel 7 is enabled

0 IN_CH8_EN R/W 0h Input channel 8 (PDM only) enable setting.

0d = Channel 8 is disabled

1d = Channel 8 is enabled

l TEXAS INSTRUMENTS

TLV320ADC3140

www.ti.com

SBAS993B –MAY 2019–REVISED OCTOBER 2019

Product Folder Links: TLV320ADC3140

8.6.1.1.72 ASI_OUT_CH_EN Register (page = 0x00, address = 0x74) [reset = 0h]

This register is the ASI output channel enable configuration register.

Figure 160. ASI_OUT_CH_EN Register

76543210

ASI_OUT_CH1

_EN ASI_OUT_CH2

_EN ASI_OUT_CH3

_EN ASI_OUT_CH4

_EN ASI_OUT_CH5

_EN ASI_OUT_CH6

_EN ASI_OUT_CH7

_EN ASI_OUT_CH8

_EN

R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h

Table 123. ASI_OUT_CH_EN Register Field Descriptions

Bit Field Type Reset Description

7 ASI_OUT_CH1_EN R/W 0h ASI output channel 1 enable setting.

0d = Channel 1 output slot is in a tri-state condition

1d = Channel 1 output slot is enabled

6 ASI_OUT_CH2_EN R/W 0h ASI output channel 2 enable setting.

0d = Channel 2 output slot is in a tri-state condition

1d = Channel 2 output slot is enabled

5 ASI_OUT_CH3_EN R/W 0h ASI output channel 3 enable setting.

0d = Channel 3 output slot is in a tri-state condition

1d = Channel 3 output slot is enabled

4 ASI_OUT_CH4_EN R/W 0h ASI output channel 4 enable setting.

0d = Channel 4 output slot is in a tri-state condition

1d = Channel 4 output slot is enabled

3 ASI_OUT_CH5_EN R/W 0h ASI output channel 5 enable setting.

0d = Channel 5 output slot is in a tri-state condition

1d = Channel 5 output slot is enabled

2 ASI_OUT_CH6_EN R/W 0h ASI output channel 6 enable setting.

0d = Channel 6 output slot is in a tri-state condition

1d = Channel 6 output slot is enabled

1 ASI_OUT_CH7_EN R/W 0h ASI output channel 7 enable setting.

0d = Channel 7 output slot is in a tri-state condition

1d = Channel 7 output slot is enabled

0 ASI_OUT_CH8_EN R/W 0h ASI output channel 8 enable setting.

0d = Channel 8 output slot is in a tri-state condition

1d = Channel 8 output slot is enabled

8.6.1.1.73 PWR_CFG Register (page = 0x00, address = 0x75) [reset = 0h]

This register is the power-up configuration register.

Figure 161. PWR_CFG Register

76543210

MICBIAS_PDZ ADC_PDZ PLL_PDZ DYN_CH_

PUPD_EN DYN_MAXCH_SEL[1:0] Reserved

R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h R/W-0h

Table 124. PWR_CFG Register Field Descriptions

Bit Field Type Reset Description

7 MICBIAS_PDZ R/W 0h Power control for MICBIAS.

0d = Power down MICBIAS

1d = Power up MICBIAS

6 ADC_PDZ R/W 0h Power control for ADC and PDM channels.

0d = Power down all ADC and PDM channels

1d = Power up all enabled ADC and PDM channels

5 PLL_PDZ R/W 0h Power control for the PLL.

0d = Power down the PLL

1d = Power up the PLL

l TEXAS INSTRUMENTS

TLV320ADC3140

SBAS993B –MAY 2019–REVISED OCTOBER 2019

www.ti.com

Product Folder Links: TLV320ADC3140

Table 124. PWR_CFG Register Field Descriptions (continued)

Bit Field Type Reset Description

4 DYN_CH_PUPD_EN R/W 0h Dynamic channel power-up, power-down enable.

0d = Channel power-up, power-down is not supported if any channel

recording is on

1d = Channel can be powered up or down individually, even if channel

recording is on

3-2 DYN_MAXCH_SEL[1:0] R/W 0h Dynamic mode maximum channel select configuration.

0d = Channel 1 and channel 2 are used with dynamic channel power-up,

power-down feature enabled

1d = Channel 1 to channel 4 are used with dynamic channel power-up,

power-down feature enabled

2d = Channel 1 to channel 6 are used with dynamic channel power-up,

power-down feature enabled

3d = Channel 1 to channel 8 are used with dynamic channel power-up,

power-down feature enabled

1-0 Reserved R/W 0h Reserved

8.6.1.1.74 DEV_STS0 Register (page = 0x00, address = 0x76) [reset = 0h]

This register is the device status value register 0.

Figure 162. DEV_STS0 Register

76543210

CH1_STATUS CH2_STATUS CH3_STATUS CH4_STATUS CH5_STATUS CH6_STATUS CH7_STATUS CH8_STATUS

R-0h R-0h R-0h R-0h R-0h R-0h R-0h R-0h

Table 125. DEV_STS0 Register Field Descriptions

Bit Field Type Reset Description

7 CH1_STATUS R 0h ADC or PDM channel 1 power status.

0d = ADC or PDM channel is powered down

1d = ADC or PDM channel is powered up

6 CH2_STATUS R 0h ADC or PDM channel 2 power status.

0d = ADC or PDM channel is powered down

1d = ADC or PDM channel is powered up

5 CH3_STATUS R 0h ADC or PDM channel 3 power status.

0d = ADC or PDM channel is powered down

1d = ADC or PDM channel is powered up

4 CH4_STATUS R 0h ADC or PDM channel 4 power status.

0d = ADC or PDM channel is powered down

1d = ADC or PDM channel is powered up

3 CH5_STATUS R 0h PDM channel 5 power status.

0d = PDM channel is powered down

1d = PDM channel is powered up

2 CH6_STATUS R 0h PDM channel 6 power status.

0d = PDM channel is powered down

1d = PDM channel is powered up

1 CH7_STATUS R 0h PDM channel 7 power status.

0d = PDM channel is powered down

1d = PDM channel is powered up

0 CH8_STATUS R 0h PDM channel 8 power status.

0d = PDM channel is powered down

1d = PDM channel is powered up

I TEXAS INSTRUMENTS —

TLV320ADC3140

www.ti.com

SBAS993B –MAY 2019–REVISED OCTOBER 2019

Product Folder Links: TLV320ADC3140

8.6.1.1.75 DEV_STS1 Register (page = 0x00, address = 0x77) [reset = 80h]

This register is the device status value register 1.

Figure 163. DEV_STS1 Register

76543210

MODE_STS[2:0] Reserved

R-4h R-0h

Table 126. DEV_STS1 Register Field Descriptions

Bit Field Type Reset Description

7-5 MODE_STS[2:0] R 4h Device mode status.

4d = Device is in sleep mode or software shutdown mode

6d = Device is in active mode with all ADC or PDM channels turned off

7d = Device is in active mode with at least one ADC or PDM channel turned

4-0 Reserved R 0h Reserved

8.6.1.1.76 I2C_CKSUM Register (page = 0x00, address = 0x7E) [reset = 0h]

This register returns the I2C transactions checksum value.

Figure 164. I2C_CKSUM Register

76543210

I2C_CKSUM[7:0]

R/W-0h

Table 127. I2C_CKSUM Register Field Descriptions

Bit Field Type Reset Description

7-0 I2C_CKSUM[7:0] R/W 0h These bits return the I2C transactions checksum value. Writing to this register

resets the checksum to the written value. This register is updated on writes to

other registers on all pages.

l TEXAS INSTRUMENTS

TLV320ADC3140

SBAS993B –MAY 2019–REVISED OCTOBER 2019

www.ti.com

Product Folder Links: TLV320ADC3140

8.6.2 Programmable Coefficient Registers

8.6.2.1 Programmable Coefficient Registers: Page = 0x02

This register page (shown in Table 128) consists of the programmable coefficients for the biquad 1 to biquad 6

filters. To optimize the coefficients register transaction time for page 2, page 3, and page 4, the device also

supports (by default) auto-incremented pages for the I2C and SPI burst writes and reads. After a transaction of

coefficient value.

Table 128. Page 0x02 Programmable Coefficient Registers

ADDRESS REGISTER RESET DESCRIPTION

0x00 PAGE[7:0] 0x00 Device page register

0x08 BQ1_N0_BYT1[7:0] 0x7F Programmable biquad 1, N0 coefficient byte[31:24]

0x09 BQ1_N0_BYT2[7:0] 0xFF Programmable biquad 1, N0 coefficient byte[23:16]

0x0A BQ1_N0_BYT3[7:0] 0xFF Programmable biquad 1, N0 coefficient byte[15:8]

0x0B BQ1_N0_BYT4[7:0] 0xFF Programmable biquad 1, N0 coefficient byte[7:0]

0x0C BQ1_N1_BYT1[7:0] 0x00 Programmable biquad 1, N1 coefficient byte[31:24]

0x0D BQ1_N1_BYT2[7:0] 0x00 Programmable biquad 1, N1 coefficient byte[23:16]

0x0E BQ1_N1_BYT3[7:0] 0x00 Programmable biquad 1, N1 coefficient byte[15:8]

0x0F BQ1_N1_BYT4[7:0] 0x00 Programmable biquad 1, N1 coefficient byte[7:0]

0x10 BQ1_N2_BYT1[7:0] 0x00 Programmable biquad 1, N2 coefficient byte[31:24]

0x11 BQ1_N2_BYT2[7:0] 0x00 Programmable biquad 1, N2 coefficient byte[23:16]

0x12 BQ1_N2_BYT3[7:0] 0x00 Programmable biquad 1, N2 coefficient byte[15:8]

0x13 BQ1_N2_BYT4[7:0] 0x00 Programmable biquad 1, N2 coefficient byte[7:0]

0x14 BQ1_D1_BYT1[7:0] 0x00 Programmable biquad 1, D1 coefficient byte[31:24]

0x15 BQ1_D1_BYT2[7:0] 0x00 Programmable biquad 1, D1 coefficient byte[23:16]

0x16 BQ1_D1_BYT3[7:0] 0x00 Programmable biquad 1, D1 coefficient byte[15:8]

0x17 BQ1_D1_BYT4[7:0] 0x00 Programmable biquad 1, D1 coefficient byte[7:0]

0x18 BQ1_D2_BYT1[7:0] 0x00 Programmable biquad 1, D2 coefficient byte[31:24]

0x19 BQ1_D2_BYT2[7:0] 0x00 Programmable biquad 1, D2 coefficient byte[23:16]

0x1A BQ1_D2_BYT3[7:0] 0x00 Programmable biquad 1, D2 coefficient byte[15:8]

0x1B BQ1_D2_BYT4[7:0] 0x00 Programmable biquad 1, D2 coefficient byte[7:0]

0x1C BQ2_N0_BYT1[7:0] 0x7F Programmable biquad 2, N0 coefficient byte[31:24]

0x1D BQ2_N0_BYT2[7:0] 0xFF Programmable biquad 2, N0 coefficient byte[23:16]

0x1E BQ2_N0_BYT3[7:0] 0xFF Programmable biquad 2, N0 coefficient byte[15:8]

0x1F BQ2_N0_BYT4[7:0] 0xFF Programmable biquad 2, N0 coefficient byte[7:0]

0x20 BQ2_N1_BYT1[7:0] 0x00 Programmable biquad 2, N1 coefficient byte[31:24]

0x21 BQ2_N1_BYT2[7:0] 0x00 Programmable biquad 2, N1 coefficient byte[23:16]

0x22 BQ2_N1_BYT3[7:0] 0x00 Programmable biquad 2, N1 coefficient byte[15:8]

0x23 BQ2_N1_BYT4[7:0] 0x00 Programmable biquad 2, N1 coefficient byte[7:0]

0x24 BQ2_N2_BYT1[7:0] 0x00 Programmable biquad 2, N2 coefficient byte[31:24]

0x25 BQ2_N2_BYT2[7:0] 0x00 Programmable biquad 2, N2 coefficient byte[23:16]

0x26 BQ2_N2_BYT3[7:0] 0x00 Programmable biquad 2, N2 coefficient byte[15:8]

0x27 BQ2_N2_BYT4[7:0] 0x00 Programmable biquad 2, N2 coefficient byte[7:0]

0x28 BQ2_D1_BYT1[7:0] 0x00 Programmable biquad 2, D1 coefficient byte[31:24]

0x29 BQ2_D1_BYT2[7:0] 0x00 Programmable biquad 2, D1 coefficient byte[23:16]

0x2A BQ2_D1_BYT3[7:0] 0x00 Programmable biquad 2, D1 coefficient byte[15:8]

0x2B BQ2_D1_BYT4[7:0] 0x00 Programmable biquad 2, D1 coefficient byte[7:0]

0x2C BQ2_D2_BYT1[7:0] 0x00 Programmable biquad 2, D2 coefficient byte[31:24]

0x2D BQ2_D2_BYT2[7:0] 0x00 Programmable biquad 2, D2 coefficient byte[23:16]

0x2E BQ2_D2_BYT3[7:0] 0x00 Programmable biquad 2, D2 coefficient byte[15:8]

0x2F BQ2_D2_BYT4[7:0] 0x00 Programmable biquad 2, D2 coefficient byte[7:0]

0x30 BQ3_N0_BYT1[7:0] 0x7F Programmable biquad 3, N0 coefficient byte[31:24]

0x31 BQ3_N0_BYT2[7:0] 0xFF Programmable biquad 3, N0 coefficient byte[23:16]

l TEXAS INSTRUMENTS

TLV320ADC3140

www.ti.com

SBAS993B –MAY 2019–REVISED OCTOBER 2019

Product Folder Links: TLV320ADC3140

Table 128. Page 0x02 Programmable Coefficient Registers (continued)

0x32 BQ3_N0_BYT3[7:0] 0xFF Programmable biquad 3, N0 coefficient byte[15:8]

0x33 BQ3_N0_BYT4[7:0] 0xFF Programmable biquad 3, N0 coefficient byte[7:0]

0x34 BQ3_N1_BYT1[7:0] 0x00 Programmable biquad 3, N1 coefficient byte[31:24]

0x35 BQ3_N1_BYT2[7:0] 0x00 Programmable biquad 3, N1 coefficient byte[23:16]

0x36 BQ3_N1_BYT3[7:0] 0x00 Programmable biquad 3, N1 coefficient byte[15:8]

0x37 BQ3_N1_BYT4[7:0] 0x00 Programmable biquad 3, N1 coefficient byte[7:0]

0x38 BQ3_N2_BYT1[7:0] 0x00 Programmable biquad 3, N2 coefficient byte[31:24]

0x39 BQ3_N2_BYT2[7:0] 0x00 Programmable biquad 3, N2 coefficient byte[23:16]

0x3A BQ3_N2_BYT3[7:0] 0x00 Programmable biquad 3, N2 coefficient byte[15:8]

0x3B BQ3_N2_BYT4[7:0] 0x00 Programmable biquad 3, N2 coefficient byte[7:0]

0x3C BQ3_D1_BYT1[7:0] 0x00 Programmable biquad 3, D1 coefficient byte[31:24]

0x3D BQ3_D1_BYT2[7:0] 0x00 Programmable biquad 3, D1 coefficient byte[23:16]

0x3E BQ3_D1_BYT3[7:0] 0x00 Programmable biquad 3, D1 coefficient byte[15:8]

0x3F BQ3_D1_BYT4[7:0] 0x00 Programmable biquad 3, D1 coefficient byte[7:0]

0x40 BQ3_D2_BYT1[7:0] 0x00 Programmable biquad 3, D2 coefficient byte[31:24]

0x41 BQ3_D2_BYT2[7:0] 0x00 Programmable biquad 3, D2 coefficient byte[23:16]

0x42 BQ3_D2_BYT3[7:0] 0x00 Programmable biquad 3, D2 coefficient byte[15:8]

0x43 BQ3_D2_BYT4[7:0] 0x00 Programmable biquad 3, D2 coefficient byte[7:0]

0x44 BQ4_N0_BYT1[7:0] 0x7F Programmable biquad 4, N0 coefficient byte[31:24]

0x45 BQ4_N0_BYT2[7:0] 0xFF Programmable biquad 4, N0 coefficient byte[23:16]

0x46 BQ4_N0_BYT3[7:0] 0xFF Programmable biquad 4, N0 coefficient byte[15:8]

0x47 BQ4_N0_BYT4[7:0] 0xFF Programmable biquad 4, N0 coefficient byte[7:0]

0x48 BQ4_N1_BYT1[7:0] 0x00 Programmable biquad 4, N1 coefficient byte[31:24]

0x49 BQ4_N1_BYT2[7:0] 0x00 Programmable biquad 4, N1 coefficient byte[23:16]

0x4A BQ4_N1_BYT3[7:0] 0x00 Programmable biquad 4, N1 coefficient byte[15:8]

0x4B BQ4_N1_BYT4[7:0] 0x00 Programmable biquad 4, N1 coefficient byte[7:0]

0x4C BQ4_N2_BYT1[7:0] 0x00 Programmable biquad 4, N2 coefficient byte[31:24]

0x4D BQ4_N2_BYT2[7:0] 0x00 Programmable biquad 4, N2 coefficient byte[23:16]

0x4E BQ4_N2_BYT3[7:0] 0x00 Programmable biquad 4, N2 coefficient byte[15:8]

0x4F BQ4_N2_BYT4[7:0] 0x00 Programmable biquad 4, N2 coefficient byte[7:0]

0x50 BQ4_D1_BYT1[7:0] 0x00 Programmable biquad 4, D1 coefficient byte[31:24]

0x51 BQ4_D1_BYT2[7:0] 0x00 Programmable biquad 4, D1 coefficient byte[23:16]

0x52 BQ4_D1_BYT3[7:0] 0x00 Programmable biquad 4, D1 coefficient byte[15:8]

0x53 BQ4_D1_BYT4[7:0] 0x00 Programmable biquad 4, D1 coefficient byte[7:0]

0x54 BQ4_D2_BYT1[7:0] 0x00 Programmable biquad 4, D2 coefficient byte[31:24]

0x55 BQ4_D2_BYT2[7:0] 0x00 Programmable biquad 4, D2 coefficient byte[23:16]

0x56 BQ4_D2_BYT3[7:0] 0x00 Programmable biquad 4, D2 coefficient byte[15:8]

0x57 BQ4_D2_BYT4[7:0] 0x00 Programmable biquad 4, D2 coefficient byte[7:0]

0x58 BQ5_N0_BYT1[7:0] 0x7F Programmable biquad 5, N0 coefficient byte[31:24]

0x59 BQ5_N0_BYT2[7:0] 0xFF Programmable biquad 5, N0 coefficient byte[23:16]

0x5A BQ5_N0_BYT3[7:0] 0xFF Programmable biquad 5, N0 coefficient byte[15:8]

0x5B BQ5_N0_BYT4[7:0] 0xFF Programmable biquad 5, N0 coefficient byte[7:0]

0x5C BQ5_N1_BYT1[7:0] 0x00 Programmable biquad 5, N1 coefficient byte[31:24]

0x5D BQ5_N1_BYT2[7:0] 0x00 Programmable biquad 5, N1 coefficient byte[23:16]

0x5E BQ5_N1_BYT3[7:0] 0x00 Programmable biquad 5, N1 coefficient byte[15:8]

0x5F BQ5_N1_BYT4[7:0] 0x00 Programmable biquad 5, N1 coefficient byte[7:0]

0x60 BQ5_N2_BYT1[7:0] 0x00 Programmable biquad 5, N2 coefficient byte[31:24]

0x61 BQ5_N2_BYT2[7:0] 0x00 Programmable biquad 5, N2 coefficient byte[23:16]

0x62 BQ5_N2_BYT3[7:0] 0x00 Programmable biquad 5, N2 coefficient byte[15:8]

0x63 BQ5_N2_BYT4[7:0] 0x00 Programmable biquad 5, N2 coefficient byte[7:0]

0x64 BQ5_D1_BYT1[7:0] 0x00 Programmable biquad 5, D1 coefficient byte[31:24]

0x65 BQ5_D1_BYT2[7:0] 0x00 Programmable biquad 5, D1 coefficient byte[23:16]

l TEXAS INSTRUMENTS

100

TLV320ADC3140

SBAS993B –MAY 2019–REVISED OCTOBER 2019

www.ti.com

Product Folder Links: TLV320ADC3140

Table 128. Page 0x02 Programmable Coefficient Registers (continued)

0x66 BQ5_D1_BYT3[7:0] 0x00 Programmable biquad 5, D1 coefficient byte[15:8]

0x67 BQ5_D1_BYT4[7:0] 0x00 Programmable biquad 5, D1 coefficient byte[7:0]

0x68 BQ5_D2_BYT1[7:0] 0x00 Programmable biquad 5, D2 coefficient byte[31:24]

0x69 BQ5_D2_BYT2[7:0] 0x00 Programmable biquad 5, D2 coefficient byte[23:16]

0x6A BQ5_D2_BYT3[7:0] 0x00 Programmable biquad 5, D2 coefficient byte[15:8]

0x6B BQ5_D2_BYT4[7:0] 0x00 Programmable biquad 5, D2 coefficient byte[7:0]

0x6C BQ6_N0_BYT1[7:0] 0x7F Programmable biquad 6, N0 coefficient byte[31:24]

0x6D BQ6_N0_BYT2[7:0] 0xFF Programmable biquad 6, N0 coefficient byte[23:16]

0x6E BQ6_N0_BYT3[7:0] 0xFF Programmable biquad 6, N0 coefficient byte[15:8]

0x6F BQ6_N0_BYT4[7:0] 0xFF Programmable biquad 6, N0 coefficient byte[7:0]

0x70 BQ6_N1_BYT1[7:0] 0x00 Programmable biquad 6, N1 coefficient byte[31:24]

0x71 BQ6_N1_BYT2[7:0] 0x00 Programmable biquad 6, N1 coefficient byte[23:16]

0x72 BQ6_N1_BYT3[7:0] 0x00 Programmable biquad 6, N1 coefficient byte[15:8]

0x73 BQ6_N1_BYT4[7:0] 0x00 Programmable biquad 6, N1 coefficient byte[7:0]

0x74 BQ6_N2_BYT1[7:0] 0x00 Programmable biquad 6, N2 coefficient byte[31:24]

0x75 BQ6_N2_BYT2[7:0] 0x00 Programmable biquad 6, N2 coefficient byte[23:16]

0x76 BQ6_N2_BYT3[7:0] 0x00 Programmable biquad 6, N2 coefficient byte[15:8]

0x77 BQ6_N2_BYT4[7:0] 0x00 Programmable biquad 6, N2 coefficient byte[7:0]

0x78 BQ6_D1_BYT1[7:0] 0x00 Programmable biquad 6, D1 coefficient byte[31:24]

0x79 BQ6_D1_BYT2[7:0] 0x00 Programmable biquad 6, D1 coefficient byte[23:16]

0x7A BQ6_D1_BYT3[7:0] 0x00 Programmable biquad 6, D1 coefficient byte[15:8]

0x7B BQ6_D1_BYT4[7:0] 0x00 Programmable biquad 6, D1 coefficient byte[7:0]

0x7C BQ6_D2_BYT1[7:0] 0x00 Programmable biquad 6, D2 coefficient byte[31:24]

0x7D BQ6_D2_BYT2[7:0] 0x00 Programmable biquad 6, D2 coefficient byte[23:16]

0x7E BQ6_D2_BYT3[7:0] 0x00 Programmable biquad 6, D2 coefficient byte[15:8]

0x7F BQ6_D2_BYT4[7:0] 0x00 Programmable biquad 6, D2 coefficient byte[7:0]

l TEXAS INSTRUMENTS

101

TLV320ADC3140

www.ti.com

SBAS993B –MAY 2019–REVISED OCTOBER 2019

Product Folder Links: TLV320ADC3140

8.6.2.2 Programmable Coefficient Registers: Page = 0x03

This register page (shown in Table 129) consists of the programmable coefficients for the biquad 7 to biquad 12

filters. To optimize the coefficients register transaction time for page 2, page 3, and page 4, the device also

supports (by default) auto-incremented pages for the I2C and SPI burst writes and reads. After a transaction of

coefficient value.

Table 129. Page 0x03 Programmable Coefficient Registers

ADDR REGISTER RESET DESCRIPTION

0x00 PAGE[7:0] 0x00 Device page register

0x08 BQ7_N0_BYT1[7:0] 0x7F Programmable biquad 7, N0 coefficient byte[31:24]

0x09 BQ7_N0_BYT2[7:0] 0xFF Programmable biquad 7, N0 coefficient byte[23:16]

0x0A BQ7_N0_BYT3[7:0] 0xFF Programmable biquad 7, N0 coefficient byte[15:8]

0x0B BQ7_N0_BYT4[7:0] 0xFF Programmable biquad 7, N0 coefficient byte[7:0]

0x0C BQ7_N1_BYT1[7:0] 0x00 Programmable biquad 7, N1 coefficient byte[31:24]

0x0D BQ7_N1_BYT2[7:0] 0x00 Programmable biquad 7, N1 coefficient byte[23:16]

0x0E BQ7_N1_BYT3[7:0] 0x00 Programmable biquad 7, N1 coefficient byte[15:8]

0x0F BQ7_N1_BYT4[7:0] 0x00 Programmable biquad 7, N1 coefficient byte[7:0]

0x10 BQ7_N2_BYT1[7:0] 0x00 Programmable biquad 7, N2 coefficient byte[31:24]

0x11 BQ7_N2_BYT2[7:0] 0x00 Programmable biquad 7, N2 coefficient byte[23:16]

0x12 BQ7_N2_BYT3[7:0] 0x00 Programmable biquad 7, N2 coefficient byte[15:8]

0x13 BQ7_N2_BYT4[7:0] 0x00 Programmable biquad 7, N2 coefficient byte[7:0]

0x14 BQ7_D1_BYT1[7:0] 0x00 Programmable biquad 7, D1 coefficient byte[31:24]

0x15 BQ7_D1_BYT2[7:0] 0x00 Programmable biquad 7, D1 coefficient byte[23:16]

0x16 BQ7_D1_BYT3[7:0] 0x00 Programmable biquad 7, D1 coefficient byte[15:8]

0x17 BQ7_D1_BYT4[7:0] 0x00 Programmable biquad 7, D1 coefficient byte[7:0]

0x18 BQ7_D2_BYT1[7:0] 0x00 Programmable biquad 7, D2 coefficient byte[31:24]

0x19 BQ7_D2_BYT2[7:0] 0x00 Programmable biquad 7, D2 coefficient byte[23:16]

0x1A BQ7_D2_BYT3[7:0] 0x00 Programmable biquad 7, D2 coefficient byte[15:8]

0x1B BQ7_D2_BYT4[7:0] 0x00 Programmable biquad 7, D2 coefficient byte[7:0]

0x1C BQ8_N0_BYT1[7:0] 0x7F Programmable biquad 8, N0 coefficient byte[31:24]

0x1D BQ8_N0_BYT2[7:0] 0xFF Programmable biquad 8, N0 coefficient byte[23:16]

0x1E BQ8_N0_BYT3[7:0] 0xFF Programmable biquad 8, N0 coefficient byte[15:8]

0x1F BQ8_N0_BYT4[7:0] 0xFF Programmable biquad 8, N0 coefficient byte[7:0]

0x20 BQ8_N1_BYT1[7:0] 0x00 Programmable biquad 8, N1 coefficient byte[31:24]

0x21 BQ8_N1_BYT2[7:0] 0x00 Programmable biquad 8, N1 coefficient byte[23:16]

0x22 BQ8_N1_BYT3[7:0] 0x00 Programmable biquad 8, N1 coefficient byte[15:8]

0x23 BQ8_N1_BYT4[7:0] 0x00 Programmable biquad 8, N1 coefficient byte[7:0]

0x24 BQ8_N2_BYT1[7:0] 0x00 Programmable biquad 8, N2 coefficient byte[31:24]

0x25 BQ8_N2_BYT2[7:0] 0x00 Programmable biquad 8, N2 coefficient byte[23:16]

0x26 BQ8_N2_BYT3[7:0] 0x00 Programmable biquad 8, N2 coefficient byte[15:8]

0x27 BQ8_N2_BYT4[7:0] 0x00 Programmable biquad 8, N2 coefficient byte[7:0]

0x28 BQ8_D1_BYT1[7:0] 0x00 Programmable biquad 8, D1 coefficient byte[31:24]

0x29 BQ8_D1_BYT2[7:0] 0x00 Programmable biquad 8, D1 coefficient byte[23:16]

0x2A BQ8_D1_BYT3[7:0] 0x00 Programmable biquad 8, D1 coefficient byte[15:8]

0x2B BQ8_D1_BYT4[7:0] 0x00 Programmable biquad 8, D1 coefficient byte[7:0]

0x2C BQ8_D2_BYT1[7:0] 0x00 Programmable biquad 8, D2 coefficient byte[31:24]

0x2D BQ8_D2_BYT2[7:0] 0x00 Programmable biquad 8, D2 coefficient byte[23:16]

0x2E BQ8_D2_BYT3[7:0] 0x00 Programmable biquad 8, D2 coefficient byte[15:8]

0x2F BQ8_D2_BYT4[7:0] 0x00 Programmable biquad 8, D2 coefficient byte[7:0]

0x30 BQ9_N0_BYT1[7:0] 0x7F Programmable biquad 9, N0 coefficient byte[31:24]

0x31 BQ9_N0_BYT2[7:0] 0xFF Programmable biquad 9, N0 coefficient byte[23:16]

0x32 BQ9_N0_BYT3[7:0] 0xFF Programmable biquad 9, N0 coefficient byte[15:8]

l TEXAS INSTRUMENTS

102

TLV320ADC3140

SBAS993B –MAY 2019–REVISED OCTOBER 2019

www.ti.com

Product Folder Links: TLV320ADC3140

Table 129. Page 0x03 Programmable Coefficient Registers (continued)

0x33 BQ9_N0_BYT4[7:0] 0xFF Programmable biquad 9, N0 coefficient byte[7:0]

0x34 BQ9_N1_BYT1[7:0] 0x00 Programmable biquad 9, N1 coefficient byte[31:24]

0x35 BQ9_N1_BYT2[7:0] 0x00 Programmable biquad 9, N1 coefficient byte[23:16]

0x36 BQ9_N1_BYT3[7:0] 0x00 Programmable biquad 9, N1 coefficient byte[15:8]

0x37 BQ9_N1_BYT4[7:0] 0x00 Programmable biquad 9, N1 coefficient byte[7:0]

0x38 BQ9_N2_BYT1[7:0] 0x00 Programmable biquad 9, N2 coefficient byte[31:24]

0x39 BQ9_N2_BYT2[7:0] 0x00 Programmable biquad 9, N2 coefficient byte[23:16]

0x3A BQ9_N2_BYT3[7:0] 0x00 Programmable biquad 9, N2 coefficient byte[15:8]

0x3B BQ9_N2_BYT4[7:0] 0x00 Programmable biquad 9, N2 coefficient byte[7:0]

0x3C BQ9_D1_BYT1[7:0] 0x00 Programmable biquad 9, D1 coefficient byte[31:24]

0x3D BQ9_D1_BYT2[7:0] 0x00 Programmable biquad 9, D1 coefficient byte[23:16]

0x3E BQ9_D1_BYT3[7:0] 0x00 Programmable biquad 9, D1 coefficient byte[15:8]

0x3F BQ9_D1_BYT4[7:0] 0x00 Programmable biquad 9, D1 coefficient byte[7:0]

0x40 BQ9_D2_BYT1[7:0] 0x00 Programmable biquad 9, D2 coefficient byte[31:24]

0x41 BQ9_D2_BYT2[7:0] 0x00 Programmable biquad 9, D2 coefficient byte[23:16]

0x42 BQ9_D2_BYT3[7:0] 0x00 Programmable biquad 9, D2 coefficient byte[15:8]

0x43 BQ9_D2_BYT4[7:0] 0x00 Programmable biquad 9, D2 coefficient byte[7:0]

0x44 BQ10_N0_BYT1[7:0] 0x7F Programmable biquad 10, N0 coefficient byte[31:24]

0x45 BQ10_N0_BYT2[7:0] 0xFF Programmable biquad 10, N0 coefficient byte[23:16]

0x46 BQ10_N0_BYT3[7:0] 0xFF Programmable biquad 10, N0 coefficient byte[15:8]

0x47 BQ10_N0_BYT4[7:0] 0xFF Programmable biquad 10, N0 coefficient byte[7:0]

0x48 BQ10_N1_BYT1[7:0] 0x00 Programmable biquad 10, N1 coefficient byte[31:24]

0x49 BQ10_N1_BYT2[7:0] 0x00 Programmable biquad 10, N1 coefficient byte[23:16]

0x4A BQ10_N1_BYT3[7:0] 0x00 Programmable biquad 10, N1 coefficient byte[15:8]

0x4B BQ10_N1_BYT4[7:0] 0x00 Programmable biquad 10, N1 coefficient byte[7:0]

0x4C BQ10_N2_BYT1[7:0] 0x00 Programmable biquad 10, N2 coefficient byte[31:24]

0x4D BQ10_N2_BYT2[7:0] 0x00 Programmable biquad 10, N2 coefficient byte[23:16]

0x4E BQ10_N2_BYT3[7:0] 0x00 Programmable biquad 10, N2 coefficient byte[15:8]

0x4F BQ10_N2_BYT4[7:0] 0x00 Programmable biquad 10, N2 coefficient byte[7:0]

0x50 BQ10_D1_BYT1[7:0] 0x00 Programmable biquad 10, D1 coefficient byte[31:24]

0x51 BQ10_D1_BYT2[7:0] 0x00 Programmable biquad 10, D1 coefficient byte[23:16]

0x52 BQ10_D1_BYT3[7:0] 0x00 Programmable biquad 10, D1 coefficient byte[15:8]

0x53 BQ10_D1_BYT4[7:0] 0x00 Programmable biquad 10, D1 coefficient byte[7:0]

0x54 BQ10_D2_BYT1[7:0] 0x00 Programmable biquad 10, D2 coefficient byte[31:24]

0x55 BQ10_D2_BYT2[7:0] 0x00 Programmable biquad 10, D2 coefficient byte[23:16]

0x56 BQ10_D2_BYT3[7:0] 0x00 Programmable biquad 10, D2 coefficient byte[15:8]

0x57 BQ10_D2_BYT4[7:0] 0x00 Programmable biquad 10, D2 coefficient byte[7:0]

0x58 BQ11_N0_BYT1[7:0] 0x7F Programmable biquad 11, N0 coefficient byte[31:24]

0x59 BQ11_N0_BYT2[7:0] 0xFF Programmable biquad 11, N0 coefficient byte[23:16]

0x5A BQ11_N0_BYT3[7:0] 0xFF Programmable biquad 11, N0 coefficient byte[15:8]

0x5B BQ11_N0_BYT4[7:0] 0xFF Programmable biquad 11, N0 coefficient byte[7:0]

0x5C BQ11_N1_BYT1[7:0] 0x00 Programmable biquad 11, N1 coefficient byte[31:24]

0x5D BQ11_N1_BYT2[7:0] 0x00 Programmable biquad 11, N1 coefficient byte[23:16]

0x5E BQ11_N1_BYT3[7:0] 0x00 Programmable biquad 11, N1 coefficient byte[15:8]

0x5F BQ11_N1_BYT4[7:0] 0x00 Programmable biquad 11, N1 coefficient byte[7:0]

0x60 BQ11_N2_BYT1[7:0] 0x00 Programmable biquad 11, N2 coefficient byte[31:24]

0x61 BQ11_N2_BYT2[7:0] 0x00 Programmable biquad 11, N2 coefficient byte[23:16]

0x62 BQ11_N2_BYT3[7:0] 0x00 Programmable biquad 11, N2 coefficient byte[15:8]

0x63 BQ11_N2_BYT4[7:0] 0x00 Programmable biquad 11, N2 coefficient byte[7:0]

0x64 BQ11_D1_BYT1[7:0] 0x00 Programmable biquad 11, D1 coefficient byte[31:24]

0x65 BQ11_D1_BYT2[7:0] 0x00 Programmable biquad 11, D1 coefficient byte[23:16]

0x66 BQ11_D1_BYT3[7:0] 0x00 Programmable biquad 11, D1 coefficient byte[15:8]

l TEXAS INSTRUMENTS

103

TLV320ADC3140

www.ti.com

SBAS993B –MAY 2019–REVISED OCTOBER 2019

Product Folder Links: TLV320ADC3140

Table 129. Page 0x03 Programmable Coefficient Registers (continued)

0x67 BQ11_D1_BYT4[7:0] 0x00 Programmable biquad 11, D1 coefficient byte[7:0]

0x68 BQ11_D2_BYT1[7:0] 0x00 Programmable biquad 11, D2 coefficient byte[31:24]

0x69 BQ11_D2_BYT2[7:0] 0x00 Programmable biquad 11, D2 coefficient byte[23:16]

0x6A BQ11_D2_BYT3[7:0] 0x00 Programmable biquad 11, D2 coefficient byte[15:8]

0x6B BQ11_D2_BYT4[7:0] 0x00 Programmable biquad 11, D2 coefficient byte[7:0]

0x6C BQ12_N0_BYT1[7:0] 0x7F Programmable biquad 12, N0 coefficient byte[31:24]

0x6D BQ12_N0_BYT2[7:0] 0xFF Programmable biquad 12, N0 coefficient byte[23:16]

0x6E BQ12_N0_BYT3[7:0] 0xFF Programmable biquad 12, N0 coefficient byte[15:8]

0x6F BQ12_N0_BYT4[7:0] 0xFF Programmable biquad 12, N0 coefficient byte[7:0]

0x70 BQ12_N1_BYT1[7:0] 0x00 Programmable biquad 12, N1 coefficient byte[31:24]

0x71 BQ12_N1_BYT2[7:0] 0x00 Programmable biquad 12, N1 coefficient byte[23:16]

0x72 BQ12_N1_BYT3[7:0] 0x00 Programmable biquad 12, N1 coefficient byte[15:8]

0x73 BQ12_N1_BYT4[7:0] 0x00 Programmable biquad 12, N1 coefficient byte[7:0]

0x74 BQ12_N2_BYT1[7:0] 0x00 Programmable biquad 12, N2 coefficient byte[31:24]

0x75 BQ12_N2_BYT2[7:0] 0x00 Programmable biquad 12, N2 coefficient byte[23:16]

0x76 BQ12_N2_BYT3[7:0] 0x00 Programmable biquad 12, N2 coefficient byte[15:8]

0x77 BQ12_N2_BYT4[7:0] 0x00 Programmable biquad 12, N2 coefficient byte[7:0]

0x78 BQ12_D1_BYT1[7:0] 0x00 Programmable biquad 12, D1 coefficient byte[31:24]

0x79 BQ12_D1_BYT2[7:0] 0x00 Programmable biquad 12, D1 coefficient byte[23:16]

0x7A BQ12_D1_BYT3[7:0] 0x00 Programmable biquad 12, D1 coefficient byte[15:8]

0x7B BQ12_D1_BYT4[7:0] 0x00 Programmable biquad 12, D1 coefficient byte[7:0]

0x7C BQ12_D2_BYT1[7:0] 0x00 Programmable biquad 12, D2 coefficient byte[31:24]

0x7D BQ12_D2_BYT2[7:0] 0x00 Programmable biquad 12, D2 coefficient byte[23:16]

0x7E BQ12_D2_BYT3[7:0] 0x00 Programmable biquad 12, D2 coefficient byte[15:8]

0x7F BQ12_D2_BYT4[7:0] 0x00 Programmable biquad 12, D2 coefficient byte[7:0]

l TEXAS INSTRUMENTS

104

TLV320ADC3140

SBAS993B –MAY 2019–REVISED OCTOBER 2019

www.ti.com

Product Folder Links: TLV320ADC3140

8.6.2.3 Programmable Coefficient Registers: Page = 0x04

This register page (shown in Table 130) consists of the programmable coefficients for mixer 1 to mixer 4 and the

first-order IIR filter.

Table 130. Page 0x04 Programmable Coefficient Registers

ADDR REGISTER RESET DESCRIPTION

0x00 PAGE[7:0] 0x00 Device page register

0x08 MIX1_CH1_BYT1[7:0] 0x7F Digital mixer 1, channel 1 coefficient byte[31:24]

0x09 MIX1_CH1_BYT2[7:0] 0xFF Digital mixer 1, channel 1 coefficient byte[23:16]

0x0A MIX1_CH1_BYT3[7:0] 0xFF Digital mixer 1, channel 1 coefficient byte[15:8]

0x0B MIX1_CH1_BYT4[7:0] 0xFF Digital mixer 1, channel 1 coefficient byte[7:0]

0x0C MIX1_CH2_BYT1[7:0] 0x00 Digital mixer 1, channel 2 coefficient byte[31:24]

0x0D MIX1_CH2_BYT2[7:0] 0x00 Digital mixer 1, channel 2 coefficient byte[23:16]

0x0E MIX1_CH2_BYT3[7:0] 0x00 Digital mixer 1, channel 2 coefficient byte[15:8]

0x0F MIX1_CH2_BYT4[7:0] 0x00 Digital mixer 1, channel 2 coefficient byte[7:0]

0x10 MIX1_CH3_BYT1[7:0] 0x00 Digital mixer 1, channel 3 coefficient byte[31:24]

0x11 MIX1_CH3_BYT2[7:0] 0x00 Digital mixer 1, channel 3 coefficient byte[23:16]

0x12 MIX1_CH3_BYT3[7:0] 0x00 Digital mixer 1, channel 3 coefficient byte[15:8]

0x13 MIX1_CH3_BYT4[7:0] 0x00 Digital mixer 1, channel 3 coefficient byte[7:0]

0x14 MIX1_CH4_BYT1[7:0] 0x00 Digital mixer 1, channel 4 coefficient byte[31:24]

0x15 MIX1_CH4_BYT2[7:0] 0x00 Digital mixer 1, channel 4 coefficient byte[23:16]

0x16 MIX1_CH4_BYT3[7:0] 0x00 Digital mixer 1, channel 4 coefficient byte[15:8]

0x17 MIX1_CH4_BYT4[7:0] 0x00 Digital mixer 1, channel 4 coefficient byte[7:0]

0x18 MIX2_CH1_BYT1[7:0] 0x00 Digital mixer 2, channel 1 coefficient byte[31:24]

0x19 MIX2_CH1_BYT2[7:0] 0x00 Digital mixer 2, channel 1 coefficient byte[23:16]

0x1A MIX2_CH1_BYT3[7:0] 0x00 Digital mixer 2, channel 1 coefficient byte[15:8]

0x1B MIX2_CH1_BYT4[7:0] 0x00 Digital mixer 2, channel 1 coefficient byte[7:0]

0x1C MIX2_CH2_BYT1[7:0] 0x7F Digital mixer 2, channel 2 coefficient byte[31:24]

0x1D MIX2_CH2_BYT2[7:0] 0xFF Digital mixer 2, channel 2 coefficient byte[23:16]

0x1E MIX2_CH2_BYT3[7:0] 0xFF Digital mixer 2, channel 2 coefficient byte[15:8]

0x1F MIX2_CH2_BYT4[7:0] 0xFF Digital mixer 2, channel 2 coefficient byte[7:0]

0x20 MIX2_CH3_BYT1[7:0] 0x00 Digital mixer 2, channel 3 coefficient byte[31:24]

0x21 MIX2_CH3_BYT2[7:0] 0x00 Digital mixer 2, channel 3 coefficient byte[23:16]

0x22 MIX2_CH3_BYT3[7:0] 0x00 Digital mixer 2, channel 3 coefficient byte[15:8]

0x23 MIX2_CH3_BYT4[7:0] 0x00 Digital mixer 2, channel 3 coefficient byte[7:0]

0x24 MIX2_CH4_BYT1[7:0] 0x00 Digital mixer 2, channel 4 coefficient byte[31:24]

0x25 MIX2_CH4_BYT2[7:0] 0x00 Digital mixer 2, channel 4 coefficient byte[23:16]

0x26 MIX2_CH4_BYT3[7:0] 0x00 Digital mixer 2, channel 4 coefficient byte[15:8]

0x27 MIX2_CH4_BYT4[7:0] 0x00 Digital mixer 2, channel 4 coefficient byte[7:0]

0x28 MIX3_CH1_BYT1[7:0] 0x00 Digital mixer 3, channel 1 coefficient byte[31:24]

0x29 MIX3_CH1_BYT2[7:0] 0x00 Digital mixer 3, channel 1 coefficient byte[23:16]

0x2A MIX3_CH1_BYT3[7:0] 0x00 Digital mixer 3, channel 1 coefficient byte[15:8]

0x2B MIX3_CH1_BYT4[7:0] 0x00 Digital mixer 3, channel 1 coefficient byte[7:0]

0x2C MIX3_CH2_BYT1[7:0] 0x00 Digital mixer 3, channel 2 coefficient byte[31:24]

0x2D MIX3_CH2_BYT2[7:0] 0x00 Digital mixer 3, channel 2 coefficient byte[23:16]

0x2E MIX3_CH2_BYT3[7:0] 0x00 Digital mixer 3, channel 2 coefficient byte[15:8]

0x2F MIX3_CH2_BYT4[7:0] 0x00 Digital mixer 3, channel 2 coefficient byte[7:0]

0x30 MIX3_CH3_BYT1[7:0] 0x7F Digital mixer 3, channel 3 coefficient byte[31:24]

0x31 MIX3_CH3_BYT2[7:0] 0xFF Digital mixer 3, channel 3 coefficient byte[23:16]

0x32 MIX3_CH3_BYT3[7:0] 0xFF Digital mixer 3, channel 3 coefficient byte[15:8]

0x33 MIX3_CH3_BYT4[7:0] 0xFF Digital mixer 3, channel 3 coefficient byte[7:0]

0x34 MIX3_CH4_BYT1[7:0] 0x00 Digital mixer 3, channel 4 coefficient byte[31:24]

0x35 MIX3_CH4_BYT2[7:0] 0x00 Digital mixer 3, channel 4 coefficient byte[23:16]

l TEXAS INSTRUMENTS

105

TLV320ADC3140

www.ti.com

SBAS993B –MAY 2019–REVISED OCTOBER 2019

Product Folder Links: TLV320ADC3140

Table 130. Page 0x04 Programmable Coefficient Registers (continued)

0x36 MIX3_CH4_BYT3[7:0] 0x00 Digital mixer 3, channel 4 coefficient byte[15:8]

0x37 MIX3_CH4_BYT4[7:0] 0x00 Digital mixer 3, channel 4 coefficient byte[7:0]

0x38 MIX4_CH1_BYT1[7:0] 0x00 Digital mixer 4, channel 1 coefficient byte[31:24]

0x39 MIX4_CH1_BYT2[7:0] 0x00 Digital mixer 4, channel 1 coefficient byte[23:16]

0x3A MIX4_CH1_BYT3[7:0] 0x00 Digital mixer 4, channel 1 coefficient byte[15:8]

0x3B MIX4_CH1_BYT4[7:0] 0x00 Digital mixer 4, channel 1 coefficient byte[7:0]

0x3C MIX4_CH2_BYT1[7:0] 0x00 Digital mixer 4, channel 2 coefficient byte[31:24]

0x3D MIX4_CH2_BYT2[7:0] 0x00 Digital mixer 4, channel 2 coefficient byte[23:16]

0x3E MIX4_CH2_BYT3[7:0] 0x00 Digital mixer 4, channel 2 coefficient byte[15:8]

0x3F MIX4_CH2_BYT4[7:0] 0x00 Digital mixer 4, channel 2 coefficient byte[7:0]

0x40 MIX4_CH3_BYT1[7:0] 0x00 Digital mixer 4, channel 3 coefficient byte[31:24]

0x41 MIX4_CH3_BYT2[7:0] 0x00 Digital mixer 4, channel 3 coefficient byte[23:16]

0x42 MIX4_CH3_BYT3[7:0] 0x00 Digital mixer 4, channel 3 coefficient byte[15:8]

0x43 MIX4_CH3_BYT4[7:0] 0x00 Digital mixer 4, channel 3 coefficient byte[7:0]

0x44 MIX4_CH4_BYT1[7:0] 0x7F Digital mixer 4, channel 4 coefficient byte[31:24]

0x45 MIX4_CH4_BYT2[7:0] 0xFF Digital mixer 4, channel 4 coefficient byte[23:16]

0x46 MIX4_CH4_BYT3[7:0] 0xFF Digital mixer 4, channel 4 coefficient byte[15:8]

0x47 MIX4_CH4_BYT4[7:0] 0xFF Digital mixer 4, channel 4 coefficient byte[7:0]

0x48 IIR_N0_BYT1[7:0] 0x7F Programmable first-order IIR, N0 coefficient byte[31:24]

0x49 IIR_N0_BYT2[7:0] 0xFF Programmable first-order IIR, N0 coefficient byte[23:16]

0x4A IIR_N0_BYT3[7:0] 0xFF Programmable first-order IIR, N0 coefficient byte[15:8]

0x4B IIR_N0_BYT4[7:0] 0xFF Programmable first-order IIR, N0 coefficient byte[7:0]

0x4C IIR_N1_BYT1[7:0] 0x00 Programmable first-order IIR, N1 coefficient byte[31:24]

0x4D IIR_N1_BYT2[7:0] 0x00 Programmable first-order IIR, N1 coefficient byte[23:16]

0x4E IIR_N1_BYT3[7:0] 0x00 Programmable first-order IIR, N1 coefficient byte[15:8]

0x4F IIR_N1_BYT4[7:0] 0x00 Programmable first-order IIR, N1 coefficient byte[7:0]

0x50 IIR_D1_BYT1[7:0] 0x00 Programmable first-order IIR, D1 coefficient byte[31:24]

0x51 IIR_D1_BYT2[7:0] 0x00 Programmable first-order IIR, D1 coefficient byte[23:16]

0x52 IIR_D1_BYT3[7:0] 0x00 Programmable first-order IIR, D1 coefficient byte[15:8]

0x53 IIR_D1_BYT4[7:0] 0x00 Programmable first-order IIR, D1 coefficient byte[7:0]

1 F

3.3 V

(3.0 V to 3.6 V)

1.8 V

(1.65 V to 1.95 V)

3.3 V

(3.0 V to 3.6

TLV320ADCx140

INP1_GPI1 (INP1)

INM1_GPO1 (INM1)

GND

MICBIAS

AVSS

VREF

GND

1 F

AREG

0.1 F

GND

1 F

GND

10 F

AVDD

1 F

DREG

10 F

GND

0.1 F

INP2_GPI2 (INP2)

INM2_GPO2 (INM2)

INP3_GPI3 (INP3)

INM3_GPO3 (INM3)

INP4_GPI4 (INP4)

INM4_GPO4 (INM4)

Host

Processor

IOVDD

GND

Thermal Pad

(VSS)

GND

ADDR1_MISO

(ADDR1)

GND

ADDR0_SCLK

(ADDR0)

GND

SCL_MOSI

(SCL)

SDA_SSZ

(SDA)

R 

GPIO1

SDOUT

BCLK

FSYNC

SHDNZ

10 F

AMIC1

OUTP

OUTM

VDD

VSS

AMIC2

OUTP

OUTM

VDD

VSS

AMIC3

OUTP

OUTM

VDD

VSS

AMIC4

OUTP

OUTM

VDD

VSS

GND

0.1 F

106

TLV320ADC3140

SBAS993B –MAY 2019–REVISED OCTOBER 2019

www.ti.com

Product Folder Links: TLV320ADC3140

9 Application and Implementation

NOTE

Information in the following applications sections is not part of the TI component

specification, and TI does not warrant its accuracy or completeness. TI’s customers are

responsible for determining suitability of components for their purposes. Customers should

validate and test their design implementation to confirm system functionality.

9.1 Application Information

The TLV320ADC3140 is a multichannel, high-performance audio analog-to-digital converter (ADC) that supports

output sample rates of up to 768 kHz. The device supports either up to four analog microphones or up to eight

digital pulse density modulation (PDM) microphones for simultaneous recording applications.

Communication to the TLV320ADC3140 for configuration of the control registers is supported using an I2C or SPI

interface. The device supports a highly flexible, audio serial interface (TDM, I2S, and LJ) to transmit audio data

seamlessly in the system across devices.

9.2 Typical Applications

9.2.1 Four-Channel Analog Microphone Recording

Figure 165 shows a typical configuration of the TLV320ADC3140 for an application using four analog

microelectrical-mechanical system (MEMS) microphones for simultaneous recording operation with an I2C control

interface and a time-division multiplexing (TDM) audio data slave interface. For best distortion performance, use

input AC-coupling capacitors with a low-voltage coefficient.

Figure 165. Four-Channel Analog Microphone Recording Diagram

l TEXAS INSTRUMENTS

107

TLV320ADC3140

www.ti.com

SBAS993B –MAY 2019–REVISED OCTOBER 2019

Product Folder Links: TLV320ADC3140

Typical Applications (continued)

9.2.1.1 Design Requirements

Table 131 lists the design parameters for this application.

Table 131. Design Parameters

KEY PARAMETER SPECIFICATION

AVDD 3.3 V

AVDD supply current consumption > 23 mA (PLL on, four-channel recording, fS= 48 kHz)

IOVDD 1.8 V or 3.3 V

Maximum MICBIAS current 10 mA (MICBIAS voltage is the same as AVDD)

9.2.1.2 Detailed Design Procedure

This section describes the necessary steps to configure the TLV320ADC3140 for this specific application. The

following steps provide a sequence of items that must be executed in the time between powering the device up

and reading data from the device or transitioning from one mode to another mode of operation.

1. Apply power to the device:

a. Power-up the IOVDD and AVDD power supplies, keeping the SHDNZ pin voltage low

b. The device now goes into hardware shutdown mode (ultra-low-power mode < 1 µA)

2. Transition from hardware shutdown mode to sleep mode (or software shutdown mode):

a. Release SHDNZ only when the IOVDD and AVDD power supplies settle to the steady-state operating

voltage

b. Wait for at least 1 ms to allow the device to initialize the internal registers

c. The device now goes into sleep mode (low-power mode < 10 µA)

3. Transition from sleep mode to active mode whenever required for the recording operation:

a. Wake up the device by writing to P0_R2 to disable sleep mode

b. Wait for at least 1 ms to allow the device to complete the internal wake-up sequence

c. Override default configuration registers or programmable coefficients value as required (this step is

optional)

d. Enable all desired input channels by writing to P0_R115

e. Enable all desired audio serial interface output channels by writing to P0_R116

f. Power-up the ADC, MICBIAS, and PLL by writing to P0_R117

g. Apply FSYNC and BCLK with the desired output sample rates and the BCLK to FSYNC ratio

This specific step can be done at any point in the sequence after step a.

See the Phase-Locked Loop (PLL) and Clock Generation section for supported sample rates and the

BCLK to FSYNC ratio.

h. The device recording data are now sent to the host processor via the TDM audio serial data bus

4. Transition from active mode to sleep mode (again) as required in the system for low-power operation:

a. Enter sleep mode by writing to P0_R2 to enable sleep mode

b. Wait at least 6 ms (when FSYNC = 48 kHz) for the volume to ramp down and for all blocks to power

down

c. Read P0_R119 to check the device shutdown and sleep mode status

d. If the device P0_R119_D7 status bit is 1'b1 then stop FSYNC and BCLK in the system

e. The device now goes into sleep mode (low-power mode < 10 µA) and retains all register values

5. Transition from sleep mode to active mode (again) as required for the recording operation:

a. Wake up the device by writing to P0_R2 to disable sleep mode

b. Wait for at least 1 ms to allow the device to complete the internal wake-up sequence

c. Apply FSYNC and BCLK with the desired output sample rates and the BCLK to FSYNC ratio

d. The device recording data are now sent to the host processor via the TDM audio serial data bus

l TEXAS INSTRUMENTS

108

TLV320ADC3140

SBAS993B –MAY 2019–REVISED OCTOBER 2019

www.ti.com

Product Folder Links: TLV320ADC3140

6. Repeat step 4 and step 5 as required for mode transitions

7. Assert the SHDNZ pin low to enter hardware shutdown mode (again) at any time

8. Follow step 2 onwards to exit hardware shutdown mode (again)

9.2.1.2.1 Example Device Register Configuration Script for EVM Setup

This section provides a typical EVM I2C register control script that shows how to set up the TLV320ADC3140 in a

four-channel analog microphone recording mode with differential inputs.

# Key: w 98 XX YY ==> write to I2C address 0x98, to register 0xXX, data 0xYY

# # ==> comment delimiter

# The following list gives an example sequence of items that must be executed in the time

# between powering the device up and reading data from the device. Note that there are

# other valid sequences depending on which features are used.

# See the TLV320ADC3140EVM user guide for jumper settings and audio connections.

# Differential 4-channel : INP1/INM1 - Ch1, INP2/INM2 - Ch2, INP3/INM3 - Ch3 and INP4/INM4 - Ch4

# FSYNC = 44.1 kHz (Output Data Sample Rate), BCLK = 11.2896 MHz (BCLK/FSYNC = 256)

################################################################

# Power up IOVDD and AVDD power supplies keeping SHDNZ pin voltage LOW

# Wait for IOVDD and AVDD power supplies to settle to steady state operating voltage range.

# Release SHDNZ to HIGH.

# Wait for 1ms.

# Wake-up device by I2C write into P0_R2 using internal AREG

w 98 02 81

# Enable Input Ch-1 to Ch-4 by I2C write into P0_R115

w 98 73 F0

# Enable ASI Output Ch-1 to Ch-4 slots by I2C write into P0_R116

w 98 74 F0

# Power-up ADC, MICBIAS and PLL by I2C write into P0_R117

w 98 75 E0

# Apply FSYNC = 44.1 kHz and BCLK = 11.2896 MHz and

# Start recording data by host on ASI bus with TDM protocol 32-bits channel wordlength

l TEXAS INSTRUMENTS an

Frequency (Hz)

Output Amplitude (dBFS)

20 50 100 500 1000 5000 10000 20000

-200

-180

-160

-140

-120

-100

-80

-60

-40

-20

D211

Channel-1

Channel-2

Channel-3

Channel-4

Input Amplitude (dB)

THD+N (dBFS)

-130 -115 -100 -85 -70 -55 -40 -25 -10 0

-130

-120

-110

-100

-90

-80

-70

-60

THD+D201

Channel-1

Channel-2

Channel-3

Channel-4

109

TLV320ADC3140

www.ti.com

SBAS993B –MAY 2019–REVISED OCTOBER 2019

Product Folder Links: TLV320ADC3140

9.2.1.3 Application Curves

Measurements are done on the EVM by feeding the device analog input signal using audio precision.

Figure 166. FFT With a –60-dBr Input Figure 167. THD+N vs Input Amplitude

W m? 43 "

3.3 V

(3.0 V to 3.6 V)

1.8 V

(1.65 V to 1.95 V)

0.1 F

TLV320ADCx140

DMIC1

DOUT

CLK

VDD

VSS INP1_GPI1 (PDMDIN1)

INM1_GPO1 (PDMCLK)

GND

MICBIAS

Host

Processor

SCL_MOSI

(SCL)

SDA_SSZ

(SDA)

R 

GPIO1

SDOUT

BCLK

FSYNC

SHDNZ

SEL Rterm

Rterm

INP2_GPI2 (PDMDIN2)

INM2_GPO2 (PDMCLK)

Rterm

INP3_GPI13 (PDMDIN3)

INM3_GPO3 (PDMCLK)

INP4_GPI4 (PDMDIN4)

INM4_GPO4 (PDMCLK)

VDD

Rterm

AVSS

VREF

GND

1 F

AREG

GND

10 F

AVDD

1 F

0.1 F

GND

0.1 F

VDD

(3.0 V to 3.6 V)

Thermal Pad

(VSS)

GND

ADDR1_MISO

(ADDR1)

GND

ADDR0_SCLK

(ADDR0)

GND

DREG

GND

IOVDD

GND

10 F

0.1 F

10 F

0.1 FDMIC2

DOUT

CLK

VDD

VSS

GND

SEL

VDD

Rterm

0.1 FDMIC3

DOUT

CLK

VDD

VSS

GND

SEL Rterm

VDD

0.1 FDMIC4

DOUT

CLK

VDD

VSS

GND

SEL

VDD

Rterm

0.1 FDMIC5

DOUT

CLK

VDD

VSS

GND

SEL Rterm

VDD

0.1 FDMIC6

DOUT

CLK

VDD

VSS

GND

SEL

VDD

Rterm

0.1 FDMIC7

DOUT

CLK

VDD

VSS

GND

SEL Rterm

VDD

0.1 FDMIC8

DOUT

CLK

VDD

VSS

GND

SEL

VDD

Rterm

110

TLV320ADC3140

SBAS993B –MAY 2019–REVISED OCTOBER 2019

www.ti.com

Product Folder Links: TLV320ADC3140

9.2.2 Eight-Channel Digital PDM Microphone Recording

Figure 165 shows a typical configuration of the TLV320ADC3140 for an application using eight digital PDM

MEMS microphones with simultaneous recording operation using an I2C control interface and the TDM audio

data slave interface.

Figure 168. Eight-Channel Digital PDM Microphone Recording Diagram

9.2.2.1 Design Requirements

Table 132 lists the design parameters for this application.

Table 132. Design Parameters

KEY PARAMETER SPECIFICATION

AVDD 3.3 V

AVDD supply current consumption > 8 mA (PLL on, eight-channel recording, fS= 48 kHz)

IOVDD 1.8 V or 3.3 V

l TEXAS INSTRUMENTS

111

TLV320ADC3140

www.ti.com

SBAS993B –MAY 2019–REVISED OCTOBER 2019

Product Folder Links: TLV320ADC3140

9.2.2.2 Detailed Design Procedure

This section describes the necessary steps to configure the TLV320ADC3140 for this specific application. The

following steps provide a sequence of items that must be executed in the time between powering the device up

and reading data from the device or transitioning from one mode to another mode of operation.

1. Apply power to the device:

a. Power up the IOVDD and AVDD power supplies, keeping the SHDNZ pin voltage low

b. The device now goes into hardware shutdown mode (ultra-low-power mode < 1 µA)

2. Transition from hardware shutdown mode to sleep mode (or software shutdown mode):

a. Release SHDNZ only when the IOVDD and AVDD power supplies settle to the steady-state operating

voltage

b. Wait for at least 1 ms to allow the device to initialize the internal registers initialization

c. The device now goes into sleep mode (low-power mode < 10 µA)

3. Transition from sleep mode to active mode whenever required for the recording operation:

a. Wake up the device by writing to P0_R2 to disable sleep mode

b. Wait for at least 1 ms to allow the device to complete the internal wake-up sequence

c. Override the default configuration registers or programmable coefficients value as required (this step is

optional)

d. Configure channel 1 to channel 4 (CHx_INSRC) for the digital microphone as the input source for

recording

e. Configure GPO1 to GPO4 (GPOx_CFG) as the PDMCLK output

f. Configure GPI1 to GPI4 (GPI1x_CFG) as PDMDIN1 to PDMDIN4, respectively

g. Enable all desired input channels by writing to P0_R115

h. Enable all desired audio serial interface output channels by writing to P0_R116

i. Power-up the ADC and PLL by writing to P0_R117

j. Apply FSYNC and BCLK with the desired output sample rates and the BCLK to FSYNC ratio

This specific step can be done at any point in the sequence after step a.

See the Phase-Locked Loop (PLL) and Clock Generation section for supported sample rates and the

BCLK to FSYNC ratio.

k. The device recording data is now sent to the host processor using the TDM audio serial data bus

4. Transition from active mode to sleep mode (again) as required in the system for low-power operation:

a. Enter sleep mode by writing to P0_R2 to enable sleep mode

b. Wait at least 6 ms (when FSYNC = 48 kHz) for the volume to ramp down and for all blocks to power

down

c. Read P0_R119 to check the device shutdown and sleep mode status

d. If the device P0_R119_D7 status bit is 1'b1 then stop FSYNC and BCLK in the system

e. The device now goes into sleep mode (low-power mode < 10 µA) and retains all register values

5. Transition from sleep mode to active mode (again) as required for the recording operation:

a. Wake up the device by writing to P0_R2 to disable sleep mode

b. Wait at least 1 ms to allow the device to complete the internal wake-up sequence

c. Apply FSYNC and BCLK with the desired output sample rates and the BCLK to FSYNC ratio

d. The device recording data are now sent to the host processor using the TDM audio serial data bus

6. Repeat step 4 and step 5 as required for mode transitions

7. Assert the SHDNZ pin low to enter hardware shutdown mode (again) at any time

8. Follow step 2 onwards to exit hardware shutdown mode (again)

l TEXAS INSTRUMENTS

112

TLV320ADC3140

SBAS993B –MAY 2019–REVISED OCTOBER 2019

www.ti.com

Product Folder Links: TLV320ADC3140

9.2.2.2.1 Example Device Register Configuration Script for EVM Setup

This section provides a typical EVM I2C register control script that shows how to set up the TLV320ADC3140 in

an eight-channel digital PDM microphone recording mode.

# Key: w 98 XX YY ==> write to I2C address 0x98, to register 0xXX, data 0xYY

# # ==> comment delimiter

# The following list gives an example sequence of items that must be executed in the time

# between powering the device up and reading data from the device. Note that there are

# other valid sequences depending on which features are used.

# See the TLV320ADC3140EVM user guide for jumper settings and audio connections.

# PDM 8-channel : PDMDIN1 - Ch1 and Ch2, PDMDIN2 - Ch3 and Ch4,

# PDMDIN3 - Ch5 and Ch6, PDMDIN4 - Ch7 and Ch8

# FSYNC = 44.1 kHz (Output Data Sample Rate), BCLK = 11.2896 MHz (BCLK/FSYNC = 256)

################################################################

# Power up IOVDD and AVDD power supplies keeping SHDNZ pin voltage LOW

# Wait for IOVDD and AVDD power supplies to settle to steady state operating voltage range.

# Release SHDNZ to HIGH.

# Wait for 1ms.

# Wake-up device by I2C write into P0_R2 using internal AREG

w 98 02 81

# Configure CH1_INSRC as Digital PDM Input by I2C write into P0_R60

w 98 3C 40

# Configure CH2_INSRC as Digital PDM Input by I2C write into P0_R65

w 98 41 40

# Configure CH3_INSRC as Digital PDM Input by I2C write into P0_R70

w 98 46 40

# Configure CH4_INSRC as Digital PDM Input by I2C write into P0_R75

w 98 4B 40

# Configure GPO1 as PDMCLK by I2C write into P0_R34

w 98 22 41

# Configure GPO2 as PDMCLK by I2C write into P0_R35

w 98 23 41

# Configure GPO3 as PDMCLK by I2C write into P0_R36

w 98 24 41

# Configure GPO4 as PDMCLK by I2C write into P0_R37

w 98 25 41

# Configure GPI1 and GPI2 as PDMDIN1 and PDMDIN2 by I2C write into P0_R43

w 98 2B 45

# Configure GPI3 and GPI4 as PDMDIN3 and PDMDIN4 by I2C write into P0_R44

w 98 2C 67

# Enable Input Ch-1 to Ch-8 by I2C write into P0_R115

w 98 73 FF

# Enable ASI Output Ch-1 to Ch-8 slots by I2C write into P0_R116

w 98 74 FF

# Power-up ADC and PLL by I2C write into P0_R117

w 98 75 60

# Apply FSYNC = 44.1 kHz and BCLK = 11.2896 MHz and

# Start recording data by host on ASI bus with TDM protocol 32-bits channel wordlength

l TEXAS INSTRUMENTS

AVDD

IOVDD

SHDNZ

113

TLV320ADC3140

www.ti.com

SBAS993B –MAY 2019–REVISED OCTOBER 2019

Product Folder Links: TLV320ADC3140

9.3 What to Do and What Not to Do

In master mode operation with I2S or LJ format, the device generates FSYNC half a cycle earlier than the normal

protocol timing behavior expected. This timing behavior can still function for most of the system, however for

further details and a suggested workaround for this weakness, see the Configuring and Operating the

TLV320ADCx140 as an Audio Bus Master application report.

The automatic gain controller (AGC) feature has some limitation when using sampling rates lower than 44.1 kHz.

For further details about this limitation, see the Using the Automatic Gain Controller (AGC) in TLV320ADCx140

application report.

10 Power Supply Recommendations

The power-supply sequence between the IOVDD and AVDD rails can be applied in any order. However, keep

the SHDNZ pin low until the IOVDD supply voltage settles to a stable and supported operating voltage range.

After all supplies are stable, set the SHDNZ pin high to initialize the device.

For the supply power-up requirement, t1and t2must be at least 100 µs. For the supply power-down requirement,

t3and t4must be at least 10 ms. This timing (as shown in Figure 169) allows the device to ramp down the

volume on the record data, power down the analog and digital blocks, and put the device into hardware

shutdown mode. The device can also be immediately put into hardware shutdown mode from active mode if

SHDNZ_CFG[1:0] is set to 2'b00 using the P0_R5_D[3:2] bits. In that case, t3and t4are required to be at least

100 µs.

Figure 169. Power-Supply Sequencing Requirement Timing Diagram

Make sure that the supply ramp rate is slower than 1 V/µs and that the wait time between a power-down and a

power-up event is at least 100 ms.

After releasing SHDNZ, or after a software reset, delay any additional I2C or SPI transactions to the device for at

least 2 ms to allow the device to initialize the internal registers. See the Device Functional Modes section for

details on how the device operates in various modes after the device power supplies are settled to the

recommended operating voltage levels.

The TLV320ADC3140 supports a single AVDD supply operation by integrating an on-chip digital regulator,

DREG, and an analog regulator, AREG. However, if the AVDD voltage is less than 1.98 V in the system, then

short the AREG and AVDD pins onboard and do not enable the internal AREG by keeping the AREG_SELECT

bit to 1b'0 (default value) of P0_R2. If the AVDD supply used in the system is higher than 2.7 V, then the host

device can set AREG_SELECT to 1'b1 while exiting sleep mode to allow the device internal regulator to generate

the AREG supply.

l TEXAS INSTRUMENTS Audm ompm mlar'aca mnnecuons Dwgwla‘ oomro‘ swgna‘ oonnemons

AVDD

AREG

VREF

AVSS

MICBIAS

IN1P_GPI1

IN1M_GPO1

IN2P_GPI2

IN2M_GPO2

IN3P_GPI3

IN3M_GPO3

IN4P_GPI4

IN4M_GPO4

SHDNZ

ADD1_MISO

ADD0_SCLK

SCL_MOSI

SDA_SSZ

IOVDD

GPIO1

SDOUT

BCLK

FSYNC

DREG

Audio output interface connections

Digital control signal connections

Audio input signal connections

VSS

114

TLV320ADC3140

SBAS993B –MAY 2019–REVISED OCTOBER 2019

www.ti.com

Product Folder Links: TLV320ADC3140

11 Layout

11.1 Layout Guidelines

Each system design and printed circuit board (PCB) layout is unique. The layout must be carefully reviewed in

the context of a specific PCB design. However, the following guidelines can optimize the device performance:

• Connect the thermal pad to ground. Use a via pattern to connect the device thermal pad, which is the area

directly under the device, to the ground planes. This connection helps dissipate heat from the device.

• The decoupling capacitors for the power supplies must be placed close to the device pins.

• Route the analog differential audio signals differentially on the PCB for better noise immunity. Avoid crossing

digital and analog signals to prevent undesirable crosstalk.

• The device internal voltage references must be filtered using external capacitors. Place the filter capacitors

near the VREF pin for optimal performance.

• Directly tap the MICBIAS pin to avoid common impedance when routing the biasing or supply traces for

multiple microphones to avoid coupling across microphones.

• Directly short the VREF and MICBIAS external capacitors ground terminal to the AVSS pin without using any

vias for this connection trace.

• Place the MICBIAS capacitor (with low equivalent series resistance) close to the device with minimal trace

impedance.

• Use ground planes to provide the lowest impedance for power and signal current between the device and the

decoupling capacitors. Treat the area directly under the device as a central ground area for the device, and

all device grounds must be connected directly to that area.

11.2 Layout Example

Figure 170. Layout Example

l TEXAS INSTRUMENTS

115

TLV320ADC3140

www.ti.com

SBAS993B –MAY 2019–REVISED OCTOBER 2019

Product Folder Links: TLV320ADC3140

12 Device and Documentation Support

12.1 Documentation Support

12.1.1 Related Documentation

For related documentation see the following:

• Texas Instruments, Multiple TLV320ADCx140 Devices With a Shared TDM and I2C Bus application report

• Texas Instruments, Configuring and Operating the TLV320ADCx140 as an Audio Bus Master application

report

• Texas Instruments, TLV320ADCx140 Sampling Rates and Programmable Processing Blocks Supported

application report

• Texas Instruments, TLV320ADCx140 Programmable Biquad Filter Configuration and Applications application

report

• Texas Instruments, TLV320ADCx140 Operation for Low-Power Critical Applications application report

• Texas Instruments, TLV320ADCx140 Power Consumption Matrix Across Various Usage Scenarios

application report

• Texas Instruments, TLV320ADCx140 Integrated Analog Antialiasing Filter and Flexible Digital Filter

application report

• Texas Instruments, Using the Automatic Gain Controller (AGC) in TLV320ADCx140 application report

• Texas Instruments, TLV320ADCx140 Evaluation module user's guide

• Texas Instruments, PurePath™ Console Graphical Development Suite for Audio System Design and

Development

12.2 Receiving Notification of Documentation Updates

To receive notification of documentation updates, navigate to the device product folder on ti.com. In the upper

right corner, click on Alert me to register and receive a weekly digest of any product information that has

changed. For change details, review the revision history included in any revised document.

12.3 Community Resources

TI E2E™ support forums are an engineer's go-to source for fast, verified answers and design help — straight

from the experts. Search existing answers or ask your own question to get the quick design help you need.

Linked content is provided "AS IS" by the respective contributors. They do not constitute TI specifications and do

not necessarily reflect TI's views; see TI's Terms of Use.

12.4 Trademarks

Burr-Brown, PurePath, E2E are trademarks of Texas Instruments.

All other trademarks are the property of their respective owners.

12.5 Electrostatic Discharge Caution

This integrated circuit can be damaged by ESD. Texas Instruments recommends that all integrated circuits be handled with

appropriate precautions. Failure to observe proper handling and installation procedures can cause damage.

ESD damage can range from subtle performance degradation to complete device failure. Precision integrated circuits may be more

susceptible to damage because very small parametric changes could cause the device not to meet its published specifications.

12.6 Glossary

SLYZ022 —TI Glossary.

This glossary lists and explains terms, acronyms, and definitions.

13 Mechanical, Packaging, and Orderable Information

The following pages include mechanical, packaging, and orderable information. This information is the most

current data available for the designated devices. This data is subject to change without notice and revision of

this document. For browser-based versions of this data sheet, refer to the left-hand navigation.

I TEXAS INSTRUMENTS Samples Samples

PACKAGE OPTION ADDENDUM

www.ti.com 28-Sep-2021

Addendum-Page 1

PACKAGING INFORMATION

Orderable Device Status

(1)

Package Type Package

Drawing Pins Package

Qty Eco Plan

(2)

Lead finish/

Ball material

(6)

MSL Peak Temp

(3)

Op Temp (°C) Device Marking

(4/5)

Samples

TLV320ADC3140IRTWR ACTIVE WQFN RTW 24 3000 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 ADC3140

TLV320ADC3140IRTWT ACTIVE WQFN RTW 24 250 RoHS & Green NIPDAU Level-1-260C-UNLIM -40 to 125 ADC3140

(1) The marketing status values are defined as follows:

ACTIVE: Product device recommended for new designs.

LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.

NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.

PREVIEW: Device has been announced but is not in production. Samples may or may not be available.

OBSOLETE: TI has discontinued the production of the device.

(2) RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance

do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may

reference these types of products as "Pb-Free".

RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption.

Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of <=1000ppm threshold. Antimony trioxide based

flame retardants must also meet the <=1000ppm threshold requirement.

(3) MSL, Peak Temp. - The Moisture Sensitivity Level rating according to the JEDEC industry standard classifications, and peak solder temperature.

(4) There may be additional marking, which relates to the logo, the lot trace code information, or the environmental category on the device.

(5) Multiple Device Markings will be inside parentheses. Only one Device Marking contained in parentheses and separated by a "~" will appear on a device. If a line is indented then it is a continuation

of the previous line and the two combined represent the entire Device Marking for that device.

(6) Lead finish/Ball material - Orderable Devices may have multiple material finish options. Finish options are separated by a vertical ruled line. Lead finish/Ball material values may wrap to two

lines if the finish value exceeds the maximum column width.

Important Information and Disclaimer:The information provided on this page represents TI's knowledge and belief as of the date that it is provided. TI bases its knowledge and belief on information

provided by third parties, and makes no representation or warranty as to the accuracy of such information. Efforts are underway to better integrate information from third parties. TI has taken and

continues to take reasonable steps to provide representative and accurate information but may not have conducted destructive testing or chemical analysis on incoming materials and chemicals.

TI and TI suppliers consider certain information to be proprietary, and thus CAS numbers and other limited information may not be available for release.

In no event shall TI's liability arising out of such information exceed the total purchase price of the TI part(s) at issue in this document sold by TI to Customer on an annual basis.

I TEXAS INSTRUMENTS

PACKAGE OPTION ADDENDUM

www.ti.com 28-Sep-2021

Addendum-Page 2

I TEXAS INSTRUMENTS REEL DIMENSIONS TAPE DIMENSIONS 7 “K0 '«m» Reel Diame|er AD Dimension deswgned to accommodate the componem wwdlh E0 Dimension desxgned to accommodate the componenl \ength KO Dimenslun deswgned to accommodate the componem thickness 7 w OveraH wwdm loe earner cape i p1 Pitch between successwe cavuy cemers f T Reel Width (W1) QUADRANT ASSIGNMENTS FOR PIN 1 ORIENTATION IN TAPE O O O D O O D O Sprockemoles ,,,,,,,,,,, ‘ User Direcllon 0' Feed Pockel Quadrams

TAPE AND REEL INFORMATION

*All dimensions are nominal

Device Package

Type Package

Drawing Pins SPQ Reel

Diameter

(mm)

Reel

Width

W1 (mm)

(mm) B0

(mm) K0

(mm) P1

(mm) W

(mm) Pin1

Quadrant

TLV320ADC3140IRTWR WQFN RTW 24 3000 330.0 12.4 4.25 4.25 1.15 8.0 12.0 Q2

TLV320ADC3140IRTWT WQFN RTW 24 250 180.0 12.4 4.25 4.25 1.15 8.0 12.0 Q2

PACKAGE MATERIALS INFORMATION

www.ti.com 7-Nov-2019

Pack Materials-Page 1

I TEXAS INSTRUMENTS TAPE AND REEL BOX DIMENSIONS

*All dimensions are nominal

Device Package Type Package Drawing Pins SPQ Length (mm) Width (mm) Height (mm)

TLV320ADC3140IRTWR WQFN RTW 24 3000 367.0 367.0 35.0

TLV320ADC3140IRTWT WQFN RTW 24 250 210.0 185.0 35.0

PACKAGE MATERIALS INFORMATION

www.ti.com 7-Nov-2019

Pack Materials-Page 2

www.ti.com

GENERIC PACKAGE VIEW

This image is a representation of the package family, actual package may vary.

Refer to the product data sheet for package details.

WQFN - 0.8 mm max heightRTW 24

PLASTIC QUAD FLATPACK - NO LEAD

4 x 4, 0.5 mm pitch

4224801/A

MECHANICAL DATA “El “2125‘ P /\S C TIL/'0 7 /’\TF‘/”\C< \104173‘3="" ‘l="" ’="" a‘="" 4="" 7,="" v="" ‘="" 1="" 16="" ‘="" uvuuwu="" 74="" )="" ‘="" c="" 7="" j="" c="" d="" c="" 3="" 7="" 7="" c="" d="" c="" ‘93="" c12="" ”="" m="" p="" h="" h="" h="" 18="" 15="" ’="" \x="" adtes="" a‘="" wear="" mmensmns="" are="" m="" munmetevs="" dwensmm;="" and="" m‘eroncv‘q="" per="" asme="" mswiwgm="" th5="" druw'nq="" ‘5="" subject="" to="" v="" nqe="" mom="" rohce="" quad="" humck,="" neileccs="" (0»n)="" puc="" ge="" conr'gmuuon="" ’m="" acckagc="" ‘hc'mc‘="" p2:="" rus!="" be="" m="" rad="" m="" m="" bnmd="" w="" wevmm="" and="" mochmmm="" :mﬁovmancn="" see="" the="" adamonm="" hgu’e="" m="" m="" mam="" dam="" area="" mr="" aezms="" rega'qu="" we="" expose:="" 'he’mc‘="" pun="" venues="" and="" mmensmrs="" f="" fo‘s="" www="" vedec="" m07220.="" ucom»="" {if="" texas="" instruments="" www.1i.com="">

THERMAL PAD MECHANICAL DATA RTW (SipWQFNiNM) PLASTlC QUAD FLATPACK NOiLEAD THERMAL INFORMATlON This package incorporates an exposed thermal pad that is designed to be attached directly to an external heatsink. The thermal pad must be soldered directly to the printed circuit board (PCB) After soldering. the PCB can be used as a heatsink. In addition, through the use of thermal vias. the thermal pad can be attached directly to the appropriate copper plane shown in the electrical schematic for the device. or alternatively. can be attached to a special heatsink structure designed into the PCB. This design optimizes the heat transler {rpm the integrated circuit (lC). rar inrarrnatian an the Quad Flatpock Norteaa (OFN) package and its aavantages, rerer to Application Report. orN/son PCB Attacnrnent, Texas instruments Literature Na, SLUAzrl, This document is available at www,ti,com. The exposed thermal pad dimensions for this package are shown in the following illustration PlN ‘l INDlCATOR (OFTlONAL) t n 2_)\y C iExpased Thermal Pad 3 / C 270:0,10 3 + C D C D C l j cl 4— 2,7Oi07l0 —> Bottom View Exposed Thermal Pad Dimensions 4205249i5/P 05/15 NOTES: A. All linear dimensions are in millimeters ' Rams ‘v INSTRUMENTS www.ti.com

LAND PATTERN DATA RTW (S—PWQFN—N24) PLASTIC QUAD FLATPACK NO—LEAD Example Stencil Design Example Board Layout o.i25 Thick Stencil (Note E) Note D U U U U U —_ ~| i~——,20x0 5 l:) c:| ' 24X0,5*i:j (:i ' DOOOG Ll:)4x:1103<:| l:)="" (:i="" d="" c.="" o="" o="" 0="" 3,1="" 4.8="" 7="" 3,15="" 4175="" e)="" cl="" j="" l:)="" 0="" 3,="" k="" c:="" l:)="" (:i="" ””023="" d="" l="" c.="" :i="" r0,ii5\="" _'="" 4*“="" :i="" “\~="" b="" d="" u="" d="" u="" h="" 3,15="" 4»="" 4.75="" (565:="" printed="" solder="" coverage="" by="" area)="" \="" example="" vid="" layout="" design="" ~.="" w:="" layout="" may="" vary="" depending="" on="" layout="" constraints="" -="" \="" example="" solder="" mask="" opening="" (we="" d="" f)="" -="" (note="" r)="" \="" n="" ._="" 2,7="" _.i="" ,="" \="" 9x¢0,3="" r'="" .="" \="" 75$="" 0="" o="" t="" l="" i="" l="" i="" \="" 16="" o="" 0="" 2,7="" i="" 0="" 28="" ,="" pod="" geometry="" 5x09="" \.="" 0,07="" j="" ,/="" (we="" 0)="" o="" o="" 0="" \‘all="" around="" 6x09="" 421ii2073/d="" 05/i5="" notes:="" a.="" all="" linear="" dimensions="" are="" in="" millimeters.="" 3,="" ms="" drawing="" is="" subject="" to="" change="" witnout="" notice,="" cs="" publication="" lpc’7351="" is="" recommended="" tor="" alternate="" designs,="" d.="" this="" package="" is="" designed="" to="" be="" soldered="" to="" a="" thermal="" pad="" on="" the="" board.="" refer="" to="" application="" note,="" quad="" flatipack="" packages,="" texas="" instruments="" literature="" no,="" sluaui,="" and="" also="" the="" product="" data="" sheets="" (or="" speciﬁc="" thermal="" information,="" via="" requirements="" and="" recommended="" board="" layout.="" these="" documents="" are="" ovailable="" ot="" wwwticorn="">, E, Laser cutting apertures with trapeloidal walls and also rounding corners will offer better paste release, Customers should contact their board assembly site lor stencil design recommendations. Reler to lFC 7525 lor stencil design considerations. F. Customers should Contact their board robrication site for recommended solder mosk tolerances and vio tenting recommendations for vios placed in Me thermal and TEXAS INSTRUMENTS www.ti.com *1?

IMPORTANT NOTICE AND DISCLAIMER

TI PROVIDES TECHNICAL AND RELIABILITY DATA (INCLUDING DATA SHEETS), DESIGN RESOURCES (INCLUDING REFERENCE

DESIGNS), APPLICATION OR OTHER DESIGN ADVICE, WEB TOOLS, SAFETY INFORMATION, AND OTHER RESOURCES “AS IS”

AND WITH ALL FAULTS, AND DISCLAIMS ALL WARRANTIES, EXPRESS AND IMPLIED, INCLUDING WITHOUT LIMITATION ANY

IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT OF THIRD

PARTY INTELLECTUAL PROPERTY RIGHTS.

These resources are intended for skilled developers designing with TI products. You are solely responsible for (1) selecting the appropriate

TI products for your application, (2) designing, validating and testing your application, and (3) ensuring your application meets applicable

standards, and any other safety, security, regulatory or other requirements.

These resources are subject to change without notice. TI grants you permission to use these resources only for development of an

application that uses the TI products described in the resource. Other reproduction and display of these resources is prohibited. No license

is granted to any other TI intellectual property right or to any third party intellectual property right. TI disclaims responsibility for, and you

will fully indemnify TI and its representatives against, any claims, damages, costs, losses, and liabilities arising out of your use of these

resources.

TI’s products are provided subject to TI’s Terms of Sale or other applicable terms available either on ti.com or provided in conjunction with

such TI products. TI’s provision of these resources does not expand or otherwise alter TI’s applicable warranties or warranty disclaimers for

TI products.

TI objects to and rejects any additional or different terms you may have proposed. IMPORTANT NOTICE

Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265

Datenblatt für TLV320ADC3140

INFORMATION

HILFE

KONTAKT

FOLGEN SIE UNS
