Datenblatt für DS04-254-SMT

Product Page 30 Model PCB Fumgnm CUI DEVICES umber or
date 12/02/2019
page 1 of 5
cuidevices.com
SERIES: DS04-254-SMT │ DESCRIPTION: DIP SWITCH
FEATURES
• 2.54 mm pitch
• 1~12 pole options
• raised or flat actuator option
• surface mount
• tube or tape & reel packaging
SPECIFICATIONS
parameter conditions/description min typ max units
rated voltage (per pole) switching
non-switching
24
50
Vdc
Vdc
rated current (per pole) switching
non-switching
25
100
mA
mA
withstanding voltage for 1 minute 500 Vac
contact resistance initial
after life test
50
100
mΩ
mΩ
insulation resistance at 500 Vdc 100 MΩ
operating force 1000 g
switch travel 0.9 mm
operating temperature -40 85 °C
storage temperature -40 85 °C
life 2000 cycles
flammability rating UL94V-0
RoHS yes
PART NUMBER KEY
Base Number
DS04 - 254 - X - XX BK - SMT - XX
No. of Poles:
01 07
02 08
03 10
04 12
05
06
Packaging:
“blank” = Tube
TR1 = Tape and Reel
Actuator:
1 = Raised
2 = Flat
Notes: 1. Tape and Reel packaging only available on flat actuator options.
Additional Resources: Product Page | 3D Model | PCB Footprint
Product Page 3D Model PCB Faalgnnl wo/Jo/‘W/JJ N P08 AVA‘L L=PXN+1.00iO.3 m v i JEEEEEE x 1. ? "E" LEE—W Raised Actuator Flat Actuator : o 2 3 m‘ I! if: 5 .; 0‘50 // L g :: B=2 54X N-1 ; 990103 mfl SCHEMAT‘C [F E‘] ql’flt‘] '11 [17’ 7 H o 2 2000((000 [Ll \HI ‘ ‘ : O. E=2.54X N-1
cuidevices.com
CUI Devices │ SERIES: DS04-254-SMT │ DESCRIPTION: DIP SWITCH date 12/02/2019│ page 2 of 5
MECHANICAL DRAWING
This series is constructed of single piece modules where L is the total length, P is the pitch, and N is the number
of poles.
N 01 02 03 04 05 06 07 08 10 12
L 3.54 6.08 8.62 11.16 13.70 16.24 18.78 21.32 26.40 31.48
B -- 2.54 5.08 7.62 10.16 12.70 15.24 17.78 22.86 27.94
units: mm
tolerance:
0.5<X≤3.0: ±0.15 mm
3.0<X≤6.0: ±0.20 mm
6.0<X≤30.0: ±0.25 mm
30.0<X≤120.0: ±0.30 mm
120.0<X≤400.0: ±0.50 mm
X>400.0: ±0.80 mm
unless otherwise noted
ITEM DESCRIPTION MATERIAL PLATING/COLOR
1 housing PBT (UL94V-0) black
2 actuator PBT (UL94V-0) white
3 contact copper alloy gold
4 pins 1,2 copper alloy gold
5 base PBT (UL94V-0) black
6 tape polyimide
Recommended PCB Layout
Top View
Additional Resources: Product Page | 3D Model | PCB Footprint
Product Page 3D Model PCB Faalgnnl SECT‘ONzBiB TV tam 5w *$$$W¢$$$ Em $<§>$$W$$$€¥$i§¢$dir SOOC' m 2H1 3: L 500:: ‘ SECT‘UN'AiA
cuidevices.com
CUI Devices │ SERIES: DS04-254-SMT │ DESCRIPTION: DIP SWITCH date 12/02/2019│ page 3 of 5
Temperature (°C)
Time (sec)
50
100
180
150
200
120 to 150 s
240°C for 20 sec max
260°C max
260
240

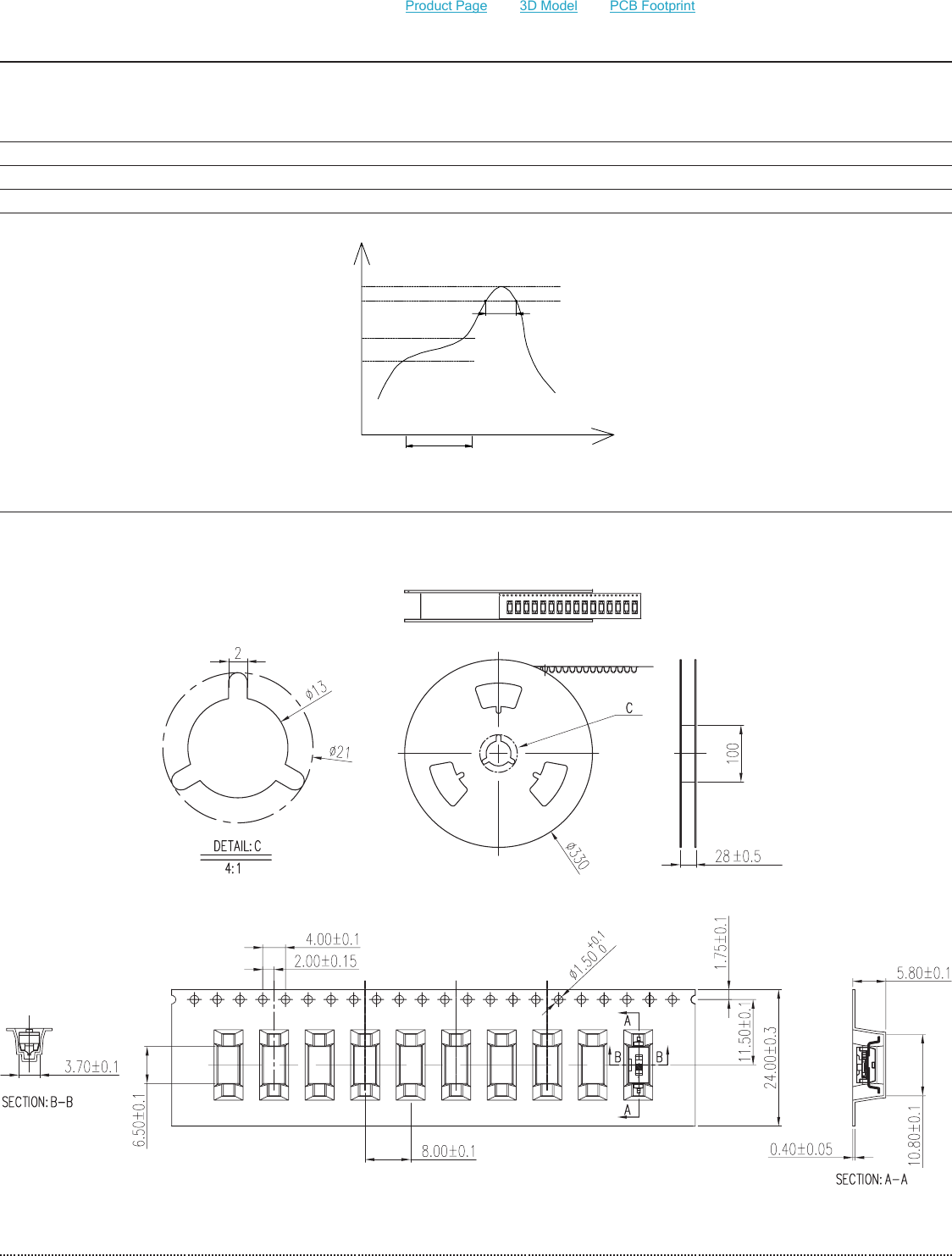

PACKAGING (TAPE & REEL, 1 POLE MODELS)
units: mm
Reel Size: Ø330 mm
Reel QTY: 1500 pcs
SOLDERABILITY
parameter conditions/description min typ max units
hand soldering2for maximum 3 seconds 315 320 325 °C
reflow soldering2240~260 °C (20 seconds max) 260 °C
Notes: 2. Keep in “off” position during soldering.
Additional Resources: Product Page | 3D Model | PCB Footprint
Product Page 3D Model PCB Faalgnnl .. mm‘ A5010 ‘ mm ‘ 5mm urn mlom‘ 430m ‘ w mu H M101 \ w you DUML c L . 4L! W was LQOtEI‘ a; ‘ 2mm $9 -n— momma ‘ ‘ ‘ )$$6$i$$$$$$e$i$6$$iS/$%$$< \="" \="" bi“:="" 1="" ;="" wr="" ~="" t‘f‘:="" :-="" i="" i="" a="" n="" l.="" }="" }="" 4‘4="" sect‘l‘aa’a="" liighh="" s="" 0mm="" ”)9="" a="" mom‘s="" a=""> 7“ ¢®o¢e¢¢®¢¢®¢¢o ®Q¢®®WO 111 111 y4}..®a 111 \\\ ,Cfiej’oeflewae D $$G$$$$$é$$ taamn‘ 3mm AVA
cuidevices.com
CUI Devices │ SERIES: DS04-254-SMT │ DESCRIPTION: DIP SWITCH date 12/02/2019│ page 4 of 5
PACKAGING (TAPE & REEL, 2~12 POLE MODELS)
units: mm
Reel Size: Ø330 mm
Tape Dimensions
#Poles W (mm) WA (mm) WB (mm) E (mm) D (mm) QTY
2 16.00 14.55 6.26 7.50 20 800
3 16.00 14.55 8.92 7.50 20 800
4 24.00 22.25 11.46 11.50 28 800
5 24.00 22.25 14.00 11.50 28 800
6 32.00 28.50 16.54 14.20 36 800
7 32.00 28.50 19.08 14.20 36 800
8 32.00 28.50 21.62 14.20 36 800
10 44.00 40.50 26.70 20.25 48 800
12 44.00 40.50 31.78 20.25 48 800
Poles 2~5
Poles 6~12
Additional Resources: Product Page | 3D Model | PCB Footprint
Product Page 30 Model PCB Fumgnm CUI DEVICES
CUI Devices │ SERIES: DS04-254-SMT │ DESCRIPTION: DIP SWITCH date 12/02/2019│ page 5 of 5
cuidevices.com
CUI Devices offers a one (1) year limited warranty. Complete warranty information is listed on our website.
CUI Devices reserves the right to make changes to the product at any time without notice. Information provided by CUI Devices is believed to be accurate and reliable. However, no
responsibility is assumed by CUI Devices for its use, nor for any infringements of patents or other rights of third parties which may result from its use.
CUI Devices products are not authorized or warranted for use as critical components in equipment that requires an extremely high level of reliability. A critical component is any
component of a life support device or system whose failure to perform can be reasonably expected to cause the failure of the life support device or system, or to affect its safety or
effectiveness.
rev. description date
1.0 initial release 12/02/2019
The revision history provided is for informational purposes only and is believed to be accurate.
REVISION HISTORY
Additional Resources: Product Page | 3D Model | PCB Footprint
