@- Amphenol AORORA Amphenol ICC Q ‘ I“, Ell
Amphenol Information Communications and Commercial Products
www.amphenol-icc.com

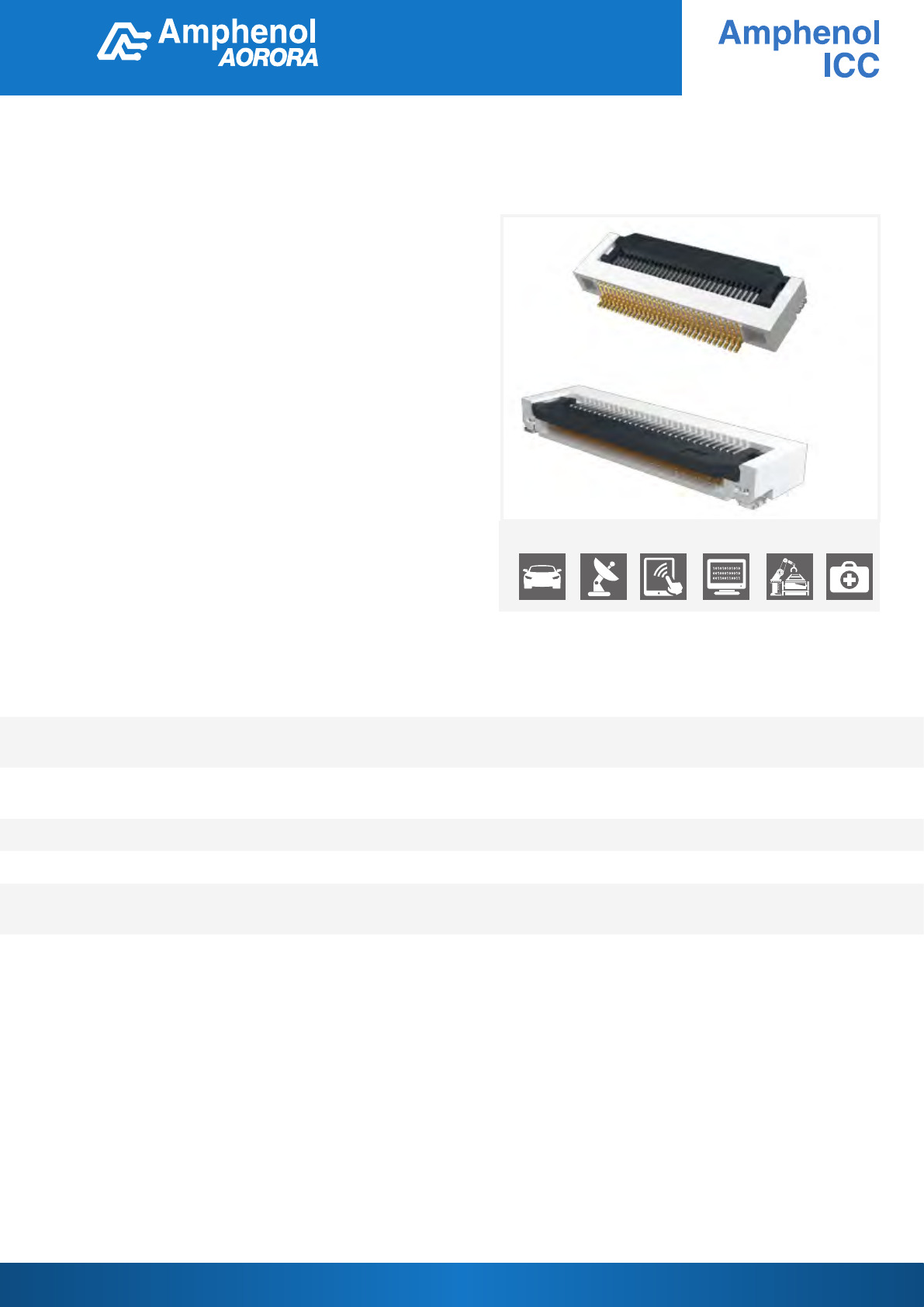

RIGHT ANGLE ZIF FLEX
CONNECTOR
F31L series is a right angle ZIF flex connector with front
flip lock, surface mount termination and double contact
points. It features 2.55mm height and comes in 4 to 80
contacts. This series features a cable thickness of 0.30mm
and provide enhanced durability of 30 mating cycles.
The connectors come with a robust design and prevents
solder and flux wicking. These are ideal for automotive,
data, industrial and medical applications.
TARGET MARKETS
0.50mm Pitch FFC/FPC - F31L Series
§Easy to operate
§Strong FFC/FPC retention force makes it vibration-proof
§Enhanced contact stability
§Ensures high solderability and high durability
FEATURES BENEFITS
§ZIF (Zero Insertion Force) mechanism §Absence of frictional mating wear results in high mating
cycle life
§Front flip locking function §Easy to operate and strong FFC/FPC retention makes it
vibration-proof
§Double contact point §Ensures enhanced contact stability
§Design against solder and flux wicking §Ensures high solderability
§4 to 80 positions available §Comprehensive range to satisfy different customer
requirements
§Lead and halogen-free §Meets environmental, health and safety requirements
ERIE
www.amphenol-icc.com Disclaimer
Please note that the above information is subject to change without notice.
0.50mm Pitch FFC/FPC - F31L Series
MATERIAL
§ Housing: LCP, natural color (UL94V-0)
§ Actuator: PA9T, black color (UL94V-0
§ Contact: Phosphor Bronze,
T=0.20mm,1~3um Ni under plating
§ Anchor-plate: Brass, T=0.20mm, 1~3um
Ni under plating, 2~4um tin plating
§ Mylar: T=0.10mm, thermostable, yellow
color
MECHANICAL PERFORMANCE
§ FFC/FPC Retention Force: 20gf/pin
§ Terminal Retention Force: 100gf/terminal
min.
§ Fixed plate Retention Force: 100gf/plate
min.
§ Durability: 30 mating cycles
ELECTRICAL PERFORMANCE
§ Voltage Rating: 50V AC/DC
§ Current Rating: 0.5A
§ Contact Resistance: 30mΩ max.
§ Insulation Resistance: 500MΩ min.
§ Dielectric Withstanding Voltage: No short
or breakdown after 500V AC, 2mA, 1min.
PACKAGING
§ Tape & Reel
APPROVALS AND CERTIFICATIONS
§ UL file number E106764
§ RoHS compliant
SPECIFICATION
§ Aorora Product Specification: IS.EQC.039
ENVIRONMENTAL
§ Operating Temperature Range: -40°C to +105°C
TARGET MARKETS/APPLICATIONS
Car Multimedia
Car Navigation
Dashboard
PND
Base Station
Power
Switches
Notebook
Tablets
Wearables
Gaming
DSC
LCD & PDP TV
TECHNICAL INFORMATION
Router
Server
ODD
HDD
Sensing element
Monitoring camera
Human Machine Interface
Industrial PC
Robotics
Ultrasonic
Patient Monitor
MRI
CT
Infusion Pump
..__ "W"- ..- "Wm” .. .
www.amphenol-icc.com Disclaimer
Please note that the above information is subject to change without notice.
0.50mm Pitch FFC/FPC - F31L Series
PART NUMBER SELECTOR
F 3 1 L 1 A 7 H 1 1 1 0 X X
Product type
Pitch
3 0.50mm
Product family
F FPC/FFC Connector
1 Reel
Plating
7H Phosphor bronze 0.05μm min. Au (Au Area)
Housing color
A Natural
Housing material
1LCP
Number of positions
1Lead free
F 3 1 L 1 A 7 H 1 1 1 0 X X E X X 0
Product type
Pitch
3 0.50mm
Product family
F FPC/FFC Connector
1 Reel
Plating
7H Phosphor bronze 0.05μm min. Au (Au Area)
Housing color
A Natural
Housing material
1LCP
Number of positions
1Lead free
Housing material
1 With mylar
2 Without mylar
Number of positions
1 Number of positions ≤40
2 Number of positions >40
AORORAF31L0820EA4
