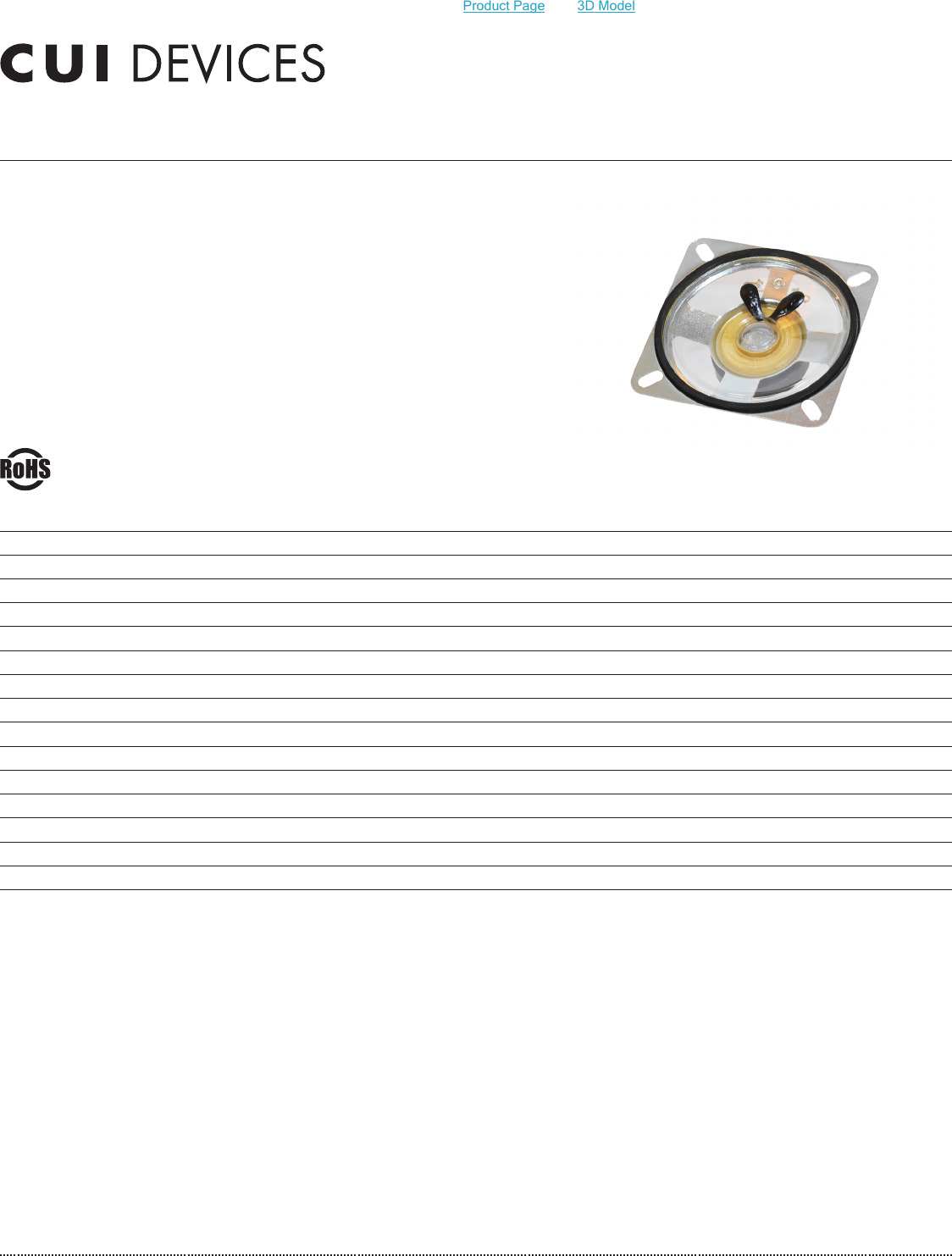

MODEL: GF0666M │ DESCRIPTION: SPEAKER
cuidevices.com
FEATURES
• 66 mm
• square frame
• 0.5 W
• 8 Ω
• ferrite magnet
• mylar cone
SPECIFICATIONS
parameter conditions/description min typ max units
input power 0.5 1.0 W
impedance at 0.8 kHz, 1.0 V 6.8 8 9.2 Ω
resonant frequency (Fo) at 1.0 V 336 420 504 Hz
frequency response Fo 12,000 Hz
sound pressure level at 0.5 W, 50 cm, avg at 1.0, 1.4, 1.7, 2.0 kHz 85 88 91 dB
buzz, rattle, etc. must be normal at sine wave 2.0 V
dimensions 66 x 66 x 20.5 mm
magnet ferrite
cone material mylar
terminal solder eyelets
weight 60.0 g
operating temperature -25 60 °C
hand soldering for maximum 3 seconds 360 380 400 °C
RoHS yes
Additional Resources: Product Page | 3D Model
Product Page 30 Model 10 Hz 2 0 200 500 1 kHz 2 5 10 20
date 03/24/2020 │ page 2 of 3
cuidevices.com
CUI Devices │ MODEL: GF0666M │ DESCRIPTION: SPEAKER

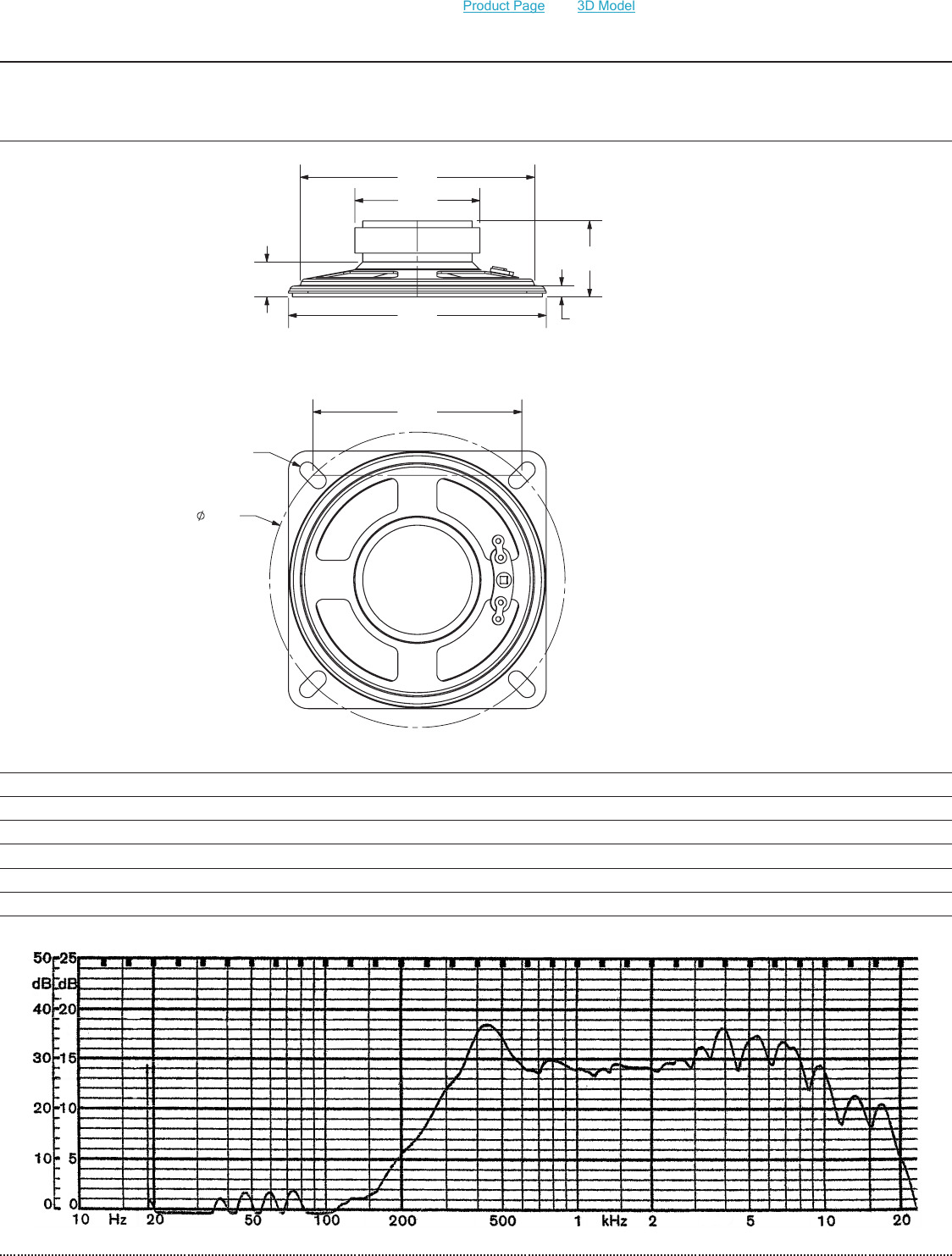

MECHANICAL DRAWING
60.00
53.50
75.00
66.00
32.00
3.00
20.50
9.00
4.0X8.0
(4 PLCS)
+
-
FREQUENCY RESPONSE CURVE
parameter conditions/description
potentiometer range 50 dB
rectifier RMS
lower limit frequency 20 Hz
wr. speed 100 mm/sec
zero level 60 dB
units: mm
tolerance: ±0.5 mm
Additional Resources: Product Page | 3D Model
CUI DEVICES
date 03/24/2020 │ page 3 of 3CUI Devices │ MODEL: GF0666M │ DESCRIPTION: SPEAKER
cuidevices.com
