Datenblatt für 837-024-523-807 Drawing

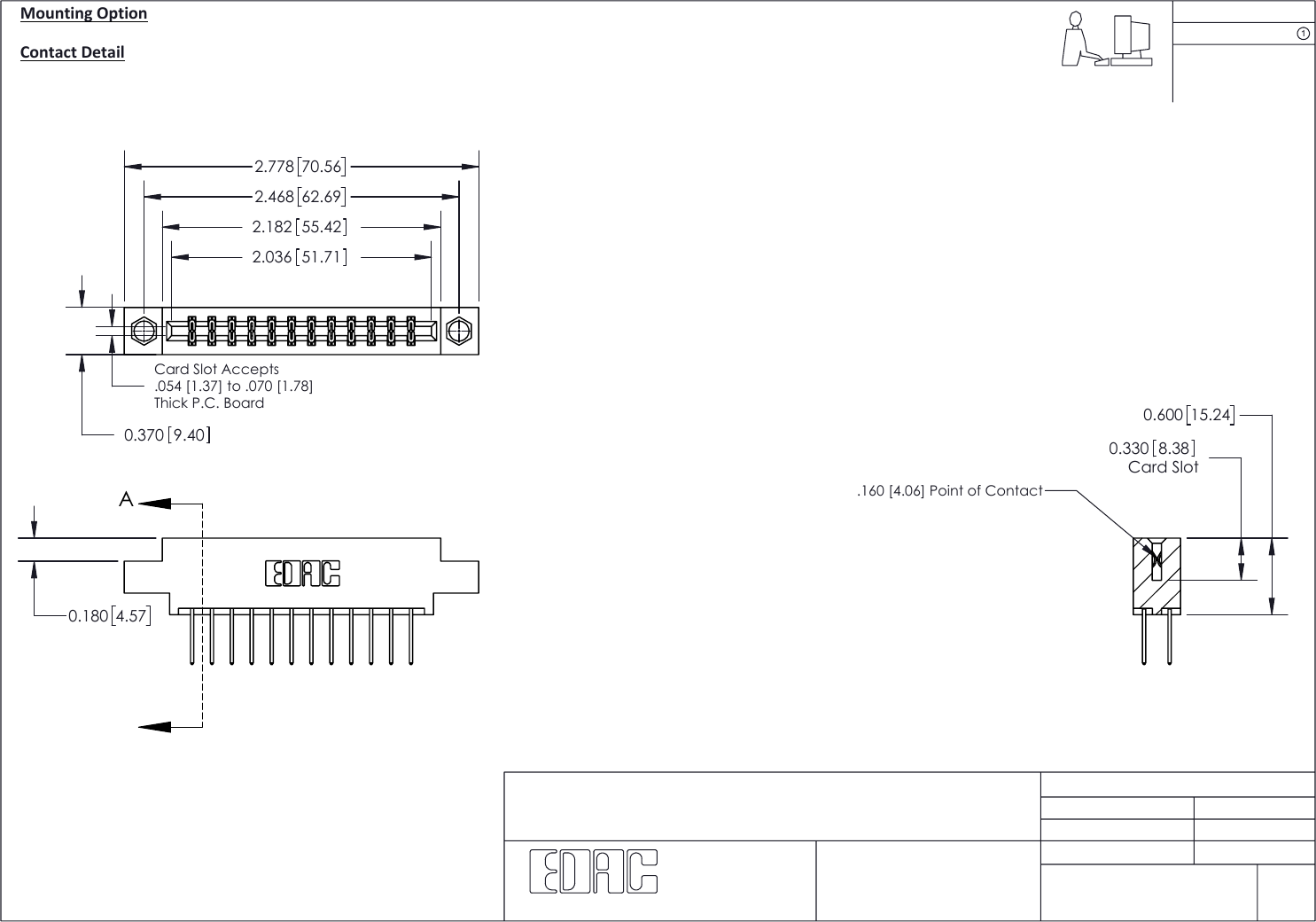

Mounting Ogtion Contact Detail fig 2.778[70.56] 2.468[62.é9] «7 2.102[55.42] 4— [ ] 4— % 2.036 51.71 > T L < cord="" sxm="" accepfis="" .054[1.371="" m="" .070="" [1,78]="" thick="" rc,="" board="" 0.600[15.24]="" 7="" 7="" 0.370="" [9.40]="" o="" 330="" [8="" 38]="" card="" 8‘00="" a="" .150="" [4.05]="" pow="" olcomad=""><—‘ ‘="" emme="" 447*="" 70.180[4.57]=""><—‘ eeee="">
0.180
4.57
A
A
2.182 55.42
2.036 51.71
0.370
9.40
Thick P.C. Board
Card Slot Accepts
.054 [1.37] to .070 [1.78]
2.468 62.69
2.778 70.56
0.330
8.38
Card Slot
0.600 15.24
SECTION A-A
ACAD REFERENCE NO.
TORONTO, ONTARIO
YOUR CONNECTION TO QUALITY & SERVICE
EDAC INC
CANADA
CHECKED:
THESE DRAWINGS AND SPECIFICATIONS
ARE THE PROPERTY OF EDAC INC.,AND
SHALL NOT BE REPRODUCED,OR COPIED
OR USED AS THE BASIS FOR THE
MANUFACTURE OR SALE OF APPARATUS
WITHOUT WRITTEN PERMISSION.
SCALE:
DRAWING NUMBER
DRAWN:
DATE:
ISSUE
SHEET
DATE:
ISSUE NUMBER
ORIGINAL
1
THIS IS A C.A.D. GENERATED DRAWING
DO NOT MAKE MANUAL REVISIONS TO MASTER.
837/887 Series High Temp Card Edge Connector
Part Number: 837-024-523-807
837 ENG MASTER
837 Assembly
1
OF
2
1
J.LEE
OCT. 06/09
NTS
Contact Detail
523-P.C. Tail .025 Sq.(0.64 Sq.) - Tail LG=.390(9.91)
Mounting Option
07-M3-0.5 Metric Threaded Inserts
See Accompanying Page for:
Contact Bend Details
•
.156 [3.96] Contact Spacing x .200 [5.08] Row Spacing
.160 [4.06] Point of Contact
7 0.120[3.05] r 0.245 [622] T .125[3.1a]1o.210[5.33] 00mm Tm]: .045 [1.14] [o .050 [1.52] Between Tm]: o.535[15.13] 0.235[5.97] 7 0.095 [2.41] +7 0.170[4,52] W: lg ‘ 0.535[1s.15] 0.285 [7.24] .125 [3.18] 10 .185 [4.70] Omside Tmls .045 [1.14]1o.050[1.s2] Befiween Tmls L7, 0.200 [5.08] 7 0.050[1.52] 7 L— 0.]5o[3.s1] 7 0.050[1.52] 7 .04 Be! EEEE
Between Tails
.045 [1.14] to .060 [1.52]
0.245
6.22
0.120
3.05
Between Tails
.045 [1.14] to .060 [1.52]
0.095
2.41
0.170
4.32
0.375
9.53
0.165
4.19
Between Tails
.045 [1.14] to .060 [1.52]
0.200
5.08
0.060
1.52
0.635 16.13
0.285
7.24
0.150
3.81
0.635 16.13
0.235
5.97
0.060
1.52
Outside Tails
.125 [3.18] to .210 [5.33]
Outside Tails
.125 [3.18] to .210 [5.33]
Outside Tails
.125 [3.18] to .185 [4.70]
558 Contact Code 559 Contact Code555 Contact Code 556 Contact Code 560 Contact Code
ACAD REFERENCE NO.
TORONTO, ONTARIO
YOUR CONNECTION TO QUALITY & SERVICE
EDAC INC
CANADA
CHECKED:
THESE DRAWINGS AND SPECIFICATIONS
ARE THE PROPERTY OF EDAC INC.,AND
SHALL NOT BE REPRODUCED,OR COPIED
OR USED AS THE BASIS FOR THE
MANUFACTURE OR SALE OF APPARATUS
WITHOUT WRITTEN PERMISSION.
SCALE:
DRAWING NUMBER
DRAWN:
DATE:
ISSUE
SHEET
DATE:
ISSUE NUMBER
ORIGINAL
1
THIS IS A C.A.D. GENERATED DRAWING
DO NOT MAKE MANUAL REVISIONS TO MASTER.
837/887 Series High Temp Card Edge Connector
837 ENG MASTER
837 Assembly
2
OF
2
1
J.LEE
OCT. 06/09
NTS

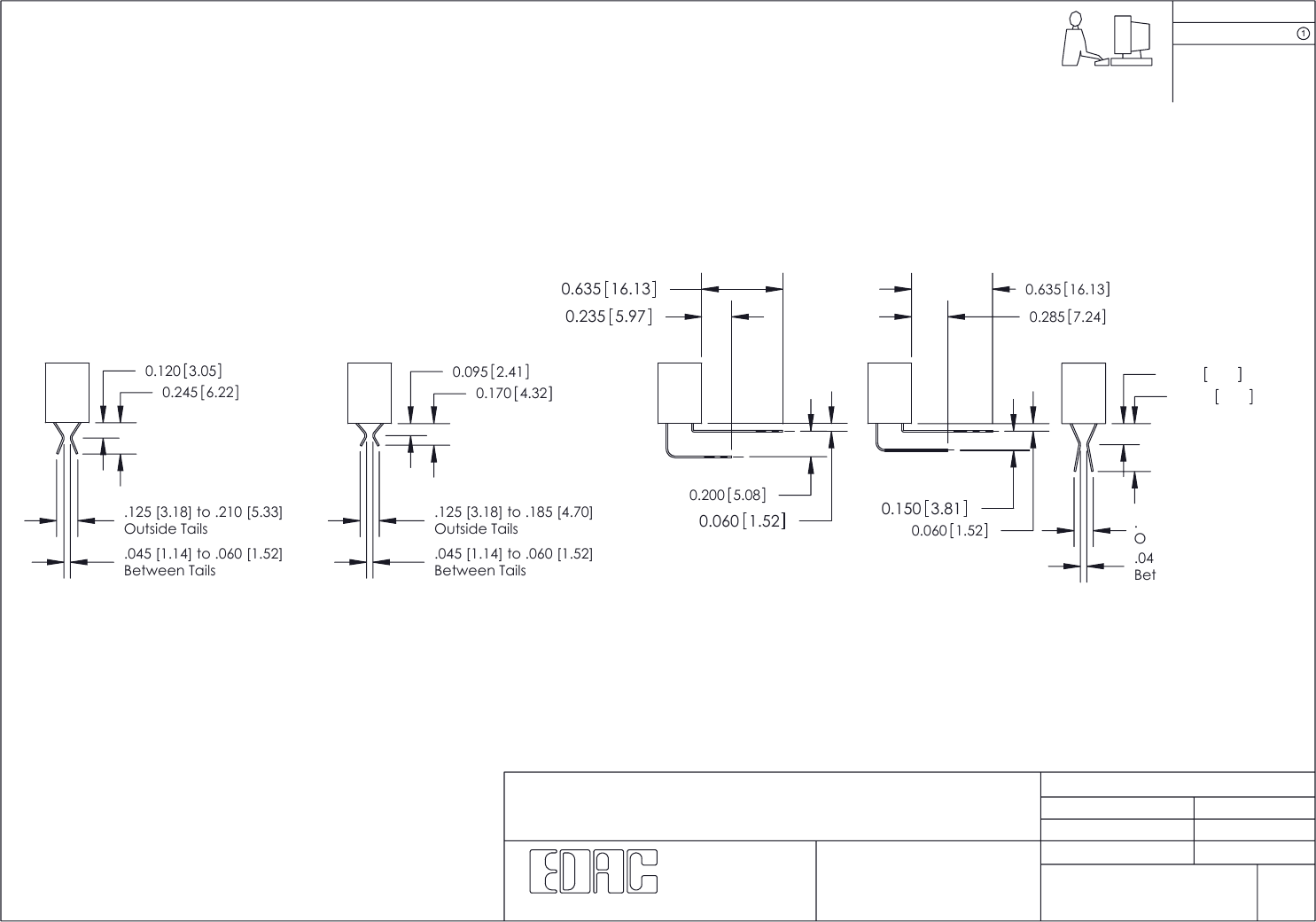

Contact Bend Detail
