NMUX27518E Series Automotive Qualified 6-Ch, 1:2 Multiplexer-Demultiplexer

Nexperia NMUX27518E Series 1:2 multiplexer-demultiplexers can handle both digital and analog signals

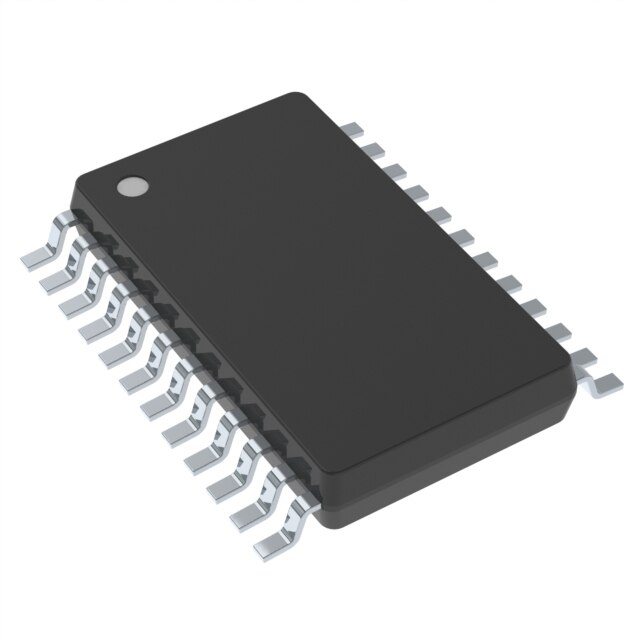

Image of Nexperia NMUX27518E-Q100 Series Multiplexers and Demultiplexers The Nexperia NMUX27518E-Q100 is a bidirectional, 6-channel, 1:2 multiplexer-demultiplexer designed to operate from 1.62 V to 3.6 V. This device can handle both digital and analog signals and can transmit signals up to VCC in either direction. The NMUX27518E has two control pins (S0, S1), each controlling three 1:2 muxes at the same time, and an enable pin (EN) that put all outputs in high-impedance mode. The control pins are compatible with 1.8 V logic thresholds and are backward compatible with 2.5 V and 3.3 V logic thresholds. The NMUX27518-Q100 is a bidirectional, 6-channel, 1:2 multiplexer-demultiplexer designed to operate from 1.08 V to 3.6 V.

Key Features NMUX27518E
  • Wide operating range: 1.62 V to 3.6 V
  • Isolation in power-down mode, VCC = 0 V
  • Low-capacitance switches, 21.5 pF (typical)
  • Bandwidth up to 240 MHz for high-speed rail-to-rail signal handling
  • Crosstalk and isolation OFF-state: -62 dB
  • 1.8 V logic compatible control inputs
  • 3.6 V tolerant control inputs
  • Latch-up performance exceeds 100 mA per JESD 78, Class II
  • ESD protection:
    • HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2 kV
    • CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1.5 kV
    • IEC61000-4-2, level 3, contact discharge on all nYn pins exceeds ±6 kV
  • 24 pins TSSOP24 (7.8 mm x 4.4 mm x 1.1 mm body) and HWQFN24 (4 mm x 4 mm x 0.75 mm body) packages
  • Specified from -40°C to +85°C
Key Features NMUX27518E Q100
  • Automotive product qualification in accordance with AEC-Q100 (Grade 2)
  • Specified from -40°C to +105°C
  • Wide operating range: 1.62 V to 3.6 V
  • Isolation in power-down mode, VCC = 0 V
  • Low-capacitance switches, 21.5 pF (typical)
  • Bandwidth up to 240 MHz for high-speed rail-to-rail signal handling
  • Crosstalk and isolation OFF-state: -62 dB
  • 1.8 V logic compatible control inputs
  • 3.6 V tolerant control inputs
  • Latch-up performance exceeds 100 mA per JESD 78, Class II
  • ESD protection:
    • HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2 kV
    • CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1.5 kV
    • IEC61000-4-2, level 3, contact discharge on all nYn pins exceeds ±6 kV
  • 24 pins TSSOP24 (7.8 mm x 4.4 mm x 1.1 mm body) and HWQFN24 (4 mm x 4 mm x 0.75 mm body) packages
Key Applications NMUX27518E
  • SD-SDIO and MMC two-port MUX
  • PC VGA video MUX-video systems
  • Audio and video signal routing
  • Servers
Key Applications NMUX27518E Q100
  • Electronic control units
  • qSPI memory multiplexing

Automotive Qualified 6-Ch, 1:2 Multiplexer-Demultiplexers

AbbildungHersteller-TeilenummerBeschreibungVerfügbare MengePreisDetails anzeigen
6 CHANNEL SPDT ANALOG SWITCHNMUX27518PWJ6 CHANNEL SPDT ANALOG SWITCH250 - Sofort$1.22Details anzeigen
6 CHANNEL SPDT ANALOG SWITCHNMUX27518PW-Q100J6 CHANNEL SPDT ANALOG SWITCH240 - Sofort$1.38Details anzeigen
6 CHANNEL SPDT ANALOG SWITCHNMUX27518BYHP6 CHANNEL SPDT ANALOG SWITCH40 - Sofort$1.11Details anzeigen
6 CHANNEL SPDT ANALOG SWITCHNMUX27518BY-Q100HP6 CHANNEL SPDT ANALOG SWITCH250 - Sofort$1.26Details anzeigen
6 CHANNEL SPDT ANALOG SWITCHNMUX27518EPWJ6 CHANNEL SPDT ANALOG SWITCH215 - Sofort$1.04Details anzeigen
6 CHANNEL SPDT ANALOG SWITCHNMUX27518EPW-Q100J6 CHANNEL SPDT ANALOG SWITCH250 - Sofort$1.18Details anzeigen
6 CHANNEL SPDT ANALOG SWITCHNMUX27518EBYHP6 CHANNEL SPDT ANALOG SWITCH250 - Sofort$0.94Details anzeigen
6 CHANNEL SPDT ANALOG SWITCHNMUX27518EBY-Q10HP6 CHANNEL SPDT ANALOG SWITCH72 - Sofort$1.07Details anzeigen
