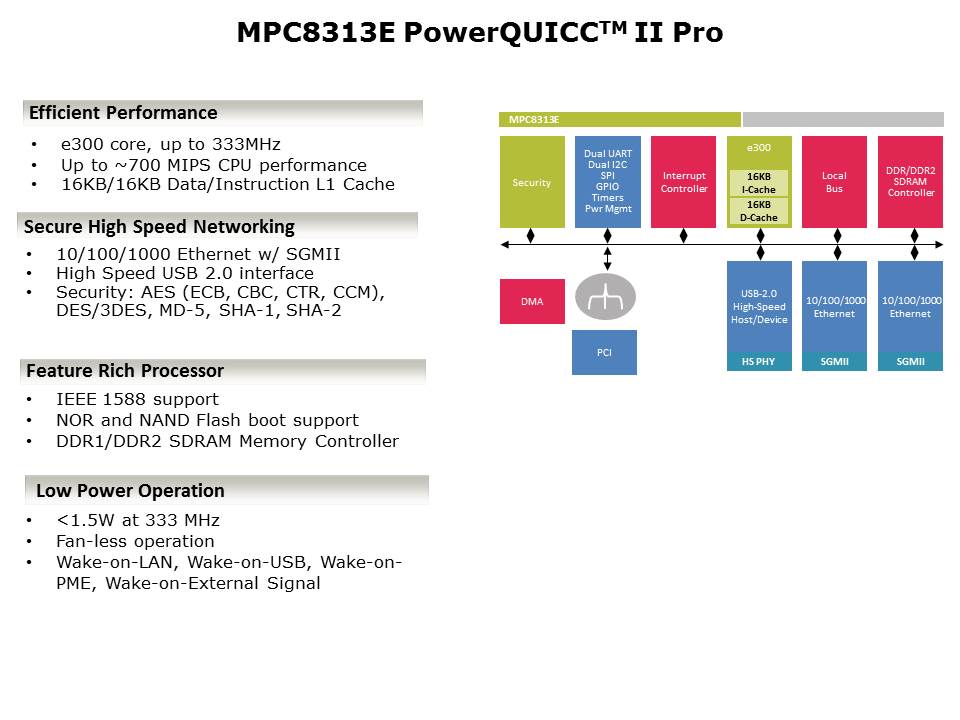

MPC8313E-Slide3

The MPC8313E incorporates a unique configuration of the e300 core supporting up to 333MHz speed with up to around 700 MIPS CPU performance. The L1 instruction and data caches and on-chip memory management units (MMUs) support up to 16KB of memory. Networking in this processor includes two 10/100/1000 Ethernet controllers with SGMII and high speed USB 2.0 interface. The security processing accelerator provides hardware acceleration for the DES, 2DES, Advanced Encryption Standard (AES), Secure Hash Algorithm (SHA)-1 and MD-5 algorithms.

PTM Published on: 2011-10-12
