High Power LED Driving Solutions - ZXLD1350 Slide 19

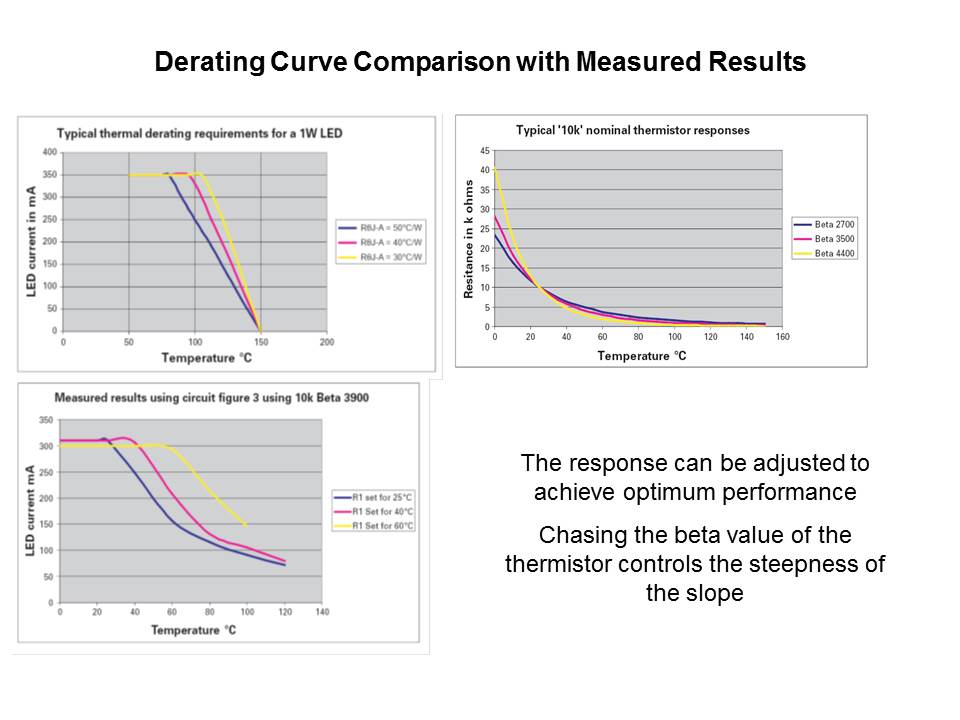

Here are the actual results compared to the typical required response for the transistor buffered thermistor circuit and the response of typical thermistors with different beta values.

PTM Published on: 2011-05-24
