ESD Solutions - ESD Suppressors and Multi-Layer Varistors Slide 25

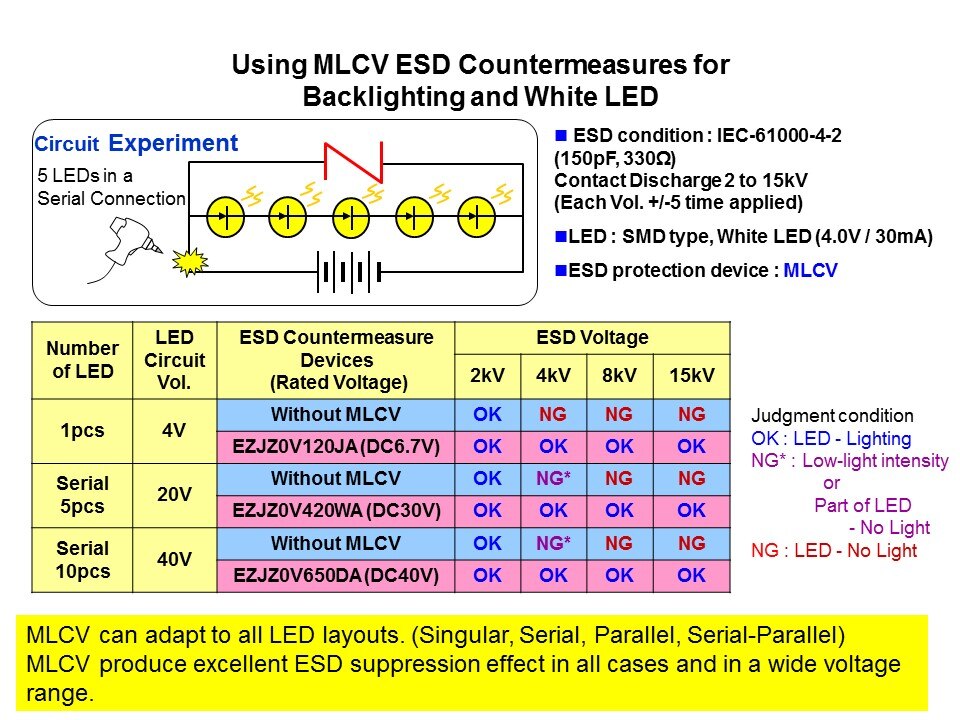

In addition to protecting ICs, multi-layer ceramic varistors can be used to protect LEDs from being damaged or destroyed due to ESD. The table here compares LEDs with and without multi-layer ceramic varistors to protect them. For both a single LED or several in series, the multi-layer ceramic varistors provide the protection and reliability needed for the display.
PTM Published on: 2011-12-19
