LTC4000-Slide6

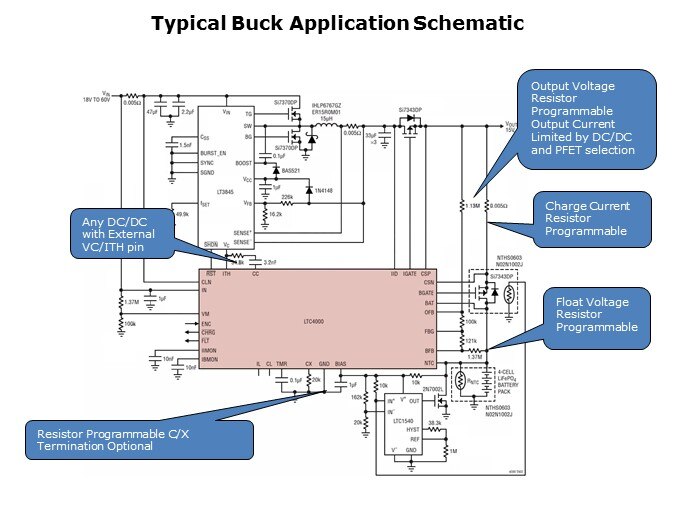

The typical buck converter application schematic shown on this slide highlights some of the key features previously discussed including simple resistor programmability and the easy interface to the external high voltage buck IC.
