CLOCK GENERATORS - SMT

HMC1035LP6GE

v02.0614

HIGH PERFORMANCE, +3.3 V CLOCK GENERATOR

25 - 2500 MHz

Functional Diagram

Features

3.3 V Only, Single Supply Rail Operation

Output Frequency Range: 25 MHz - 2500 MHz

Integer or Fractional-N mode Frequency Translation

Configurable LVDS-compatible or LVPECL type

Differential Outputs

“Power Priority” and“Performance Priority” modes

97 fs RMS Jitter Generation (12 kHz - 20 MHz,

2500 MHz, Typ)

-163 dBc/Hz Phase Noise Floor to Improve ADC/DAC

SNR (maximum output swing levels).

Adjustable PLL Loop BW via External Filter

Output Disable/Mute Control

Lock Detect Signal

Exact Frequency Mode to achieve reference

frequency tuning, and 0 Hz frequency error

40 Lead 6x6 mm SMT Package: 36 mm2

Typical Applications

• 10G/40G/100G Optical Modules, Transponders,

Line Cards

• OTN and SONET/SDH Applications

• Data Converters, Sample Clock Generation

• Cellular/4G Infrastructure

• High Frequency Processor/FPGA Clocks

• Any Frequency Clock Rate Generation

• Low Jitter SAW Oscillator Replacement

• DDS Replacement

• Frequency Translation

• Frequency Margining

Information furnished by Analog Devices is believed to be accurate and reliable. However, no

responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other

rights of third parties that may result from its use. Specifications subject to change without notice. No

license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

Trademarks and registered trademarks are the property of their respective owners.

For price, delivery, and to place orders: Analog Devices, Inc.,

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106

Phone: 781-329-4700 • Order online at www.analog.com

Application Support: Phone: 1-800-ANALOG-D

ANALOG DEVICES Rnﬂs/

For price, delivery and to place orders: Hittite Microwave Corporation, 2 Elizabeth Drive, Chelmsford, MA 01824

Phone: 978-250-3343 Fax: 978-250-3373 Order On-line at www.hittite.com

Application Support: Phone: 978-250-3343 or apps@hittite.com

CLOCK GENERATORS - SMT

HMC1035LP6GE

v02.0614

HIGH PERFORMANCE, +3.3 V CLOCK GENERATOR

25 - 2500 MHz

General Description

The HMC1035LP6GE is a low-noise, wide-band 3.3 V clock generator IC with a fractional-N Phase Locked Loop

(PLL) that features an integrated Voltage Controlled Oscillator (VCO). The device provides differential clock outputs

between 25 MHz and 2500 MHz range. The HMC1035LP6GE features a low noise Phase Detector (PD) and

Delta-Sigma modulator, capable of operating at up to 100 MHz which permits wider loop-bandwidths and excellent

spurious performance.

The HMC1035LP6GE features industry leading phase noise and jitter performance, across the operating range,

that enable it to improve link level jitter performance, Bit-Error-Rates (BER) and eye diagram metrics. The superior

noise floor (<-162 dBc/Hz) makes the HMC1035LP6GE an ideal source for a variety of applications –such as clock

references for high speed data converters, physical layer devices (PHY), serializer/deserializer (SERDES) circuits,

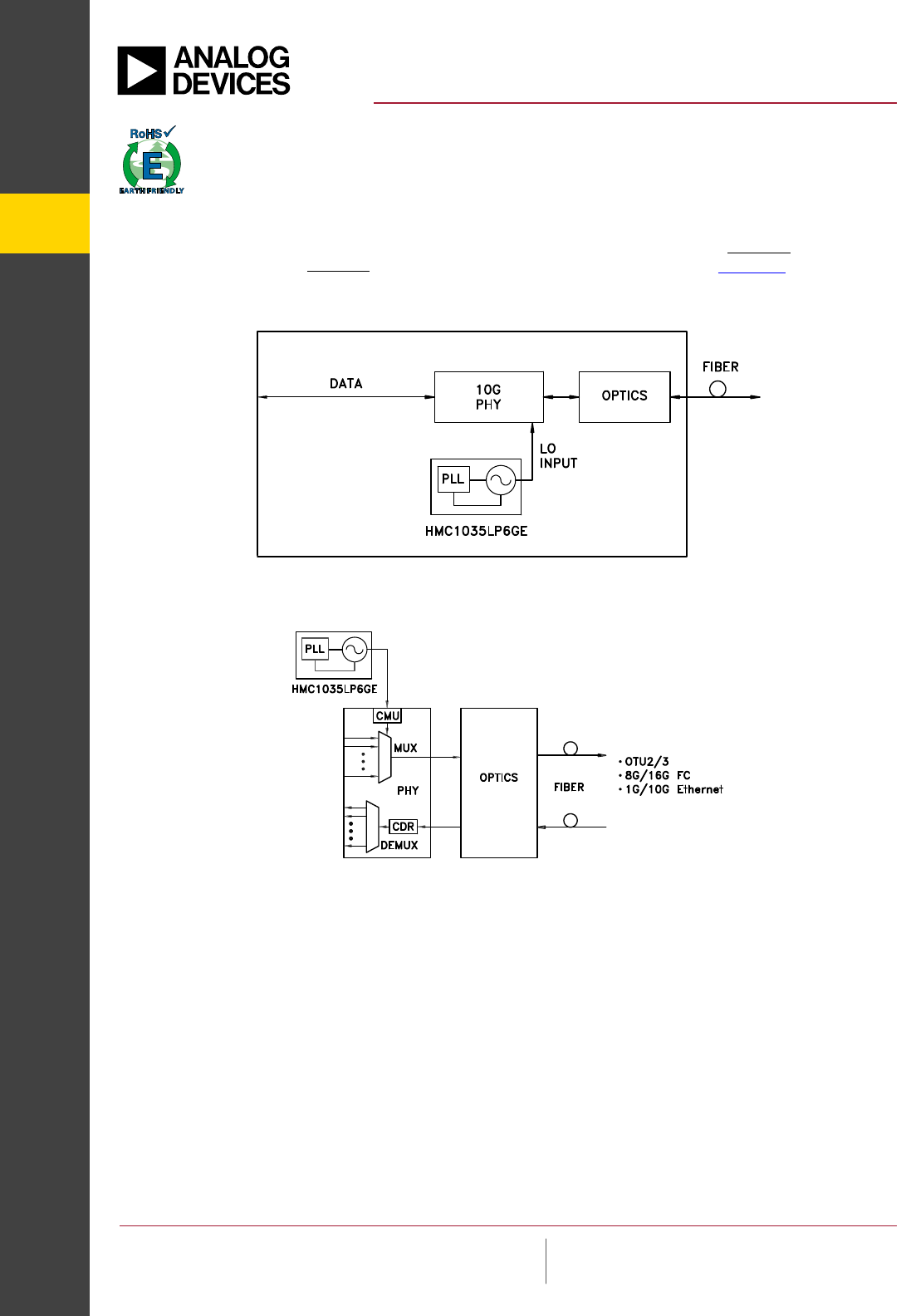

FPGAs and processors. The HMC1035LP6GE can also be used as an LO for 10G/40G/100G optical modules

and transponders, as well as primary reference clock for 10G/40G/100G line cards, and for jitter attenuation and

frequency translation.

The differential output of the HMC1035LP6GE can be set to either External Termination, which could be used for

LVPECL operation, or Internal Termination for operation in an LVDS compatible mode or LVPECL, see Figure 18.

Additionally, an ouput swing adjustment makes the device flexible and compatible with a wide variety of signal level

requirements. The output can be internally terminated to reduce component count and cost or could be terminated

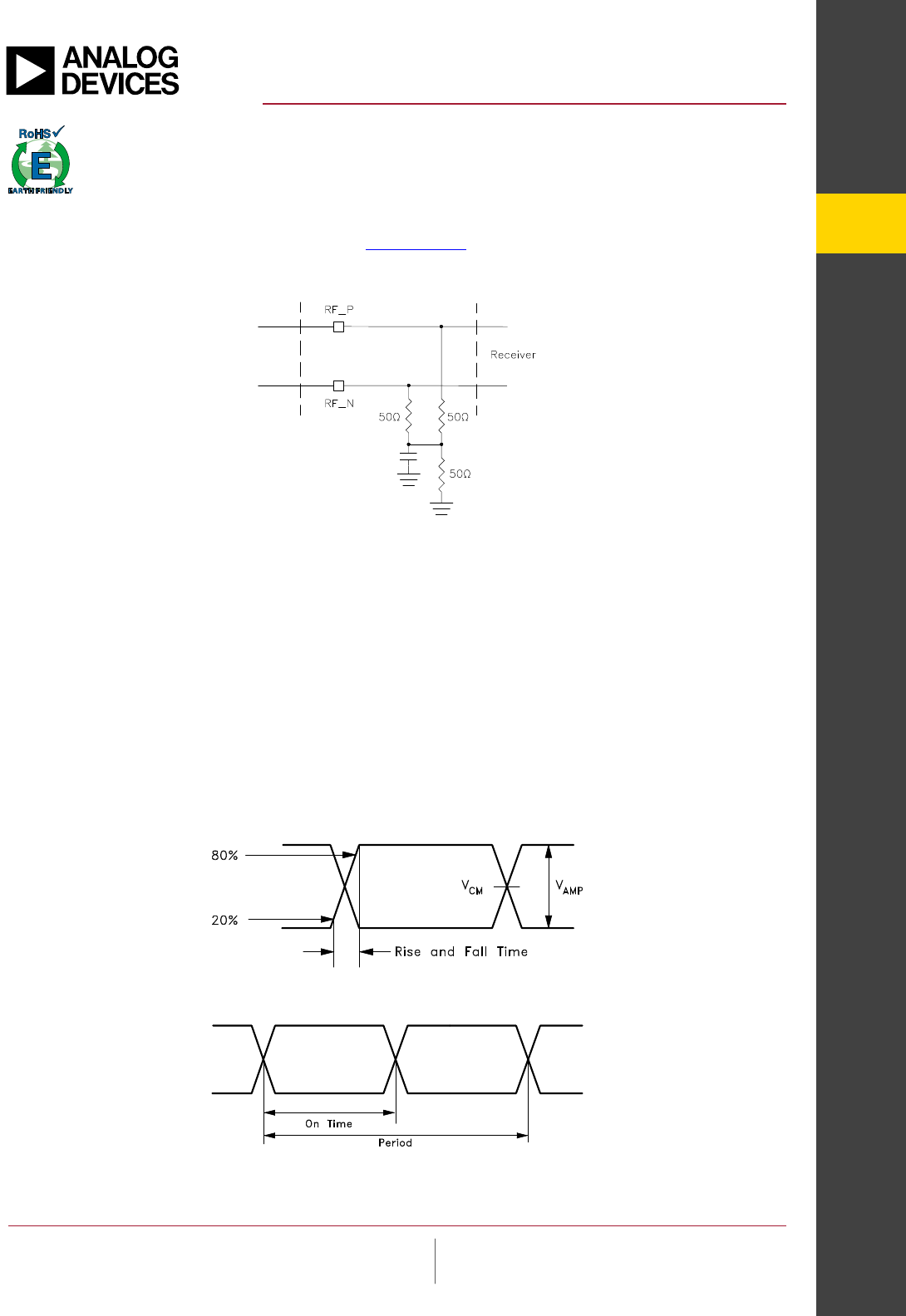

externally using standard LVPECL termination methods such as Figure 21. An Output Mute function allows the user

to shut off the outputs, such as may be required for board testing or debugging. The LVPECL/LVDS, amplitude

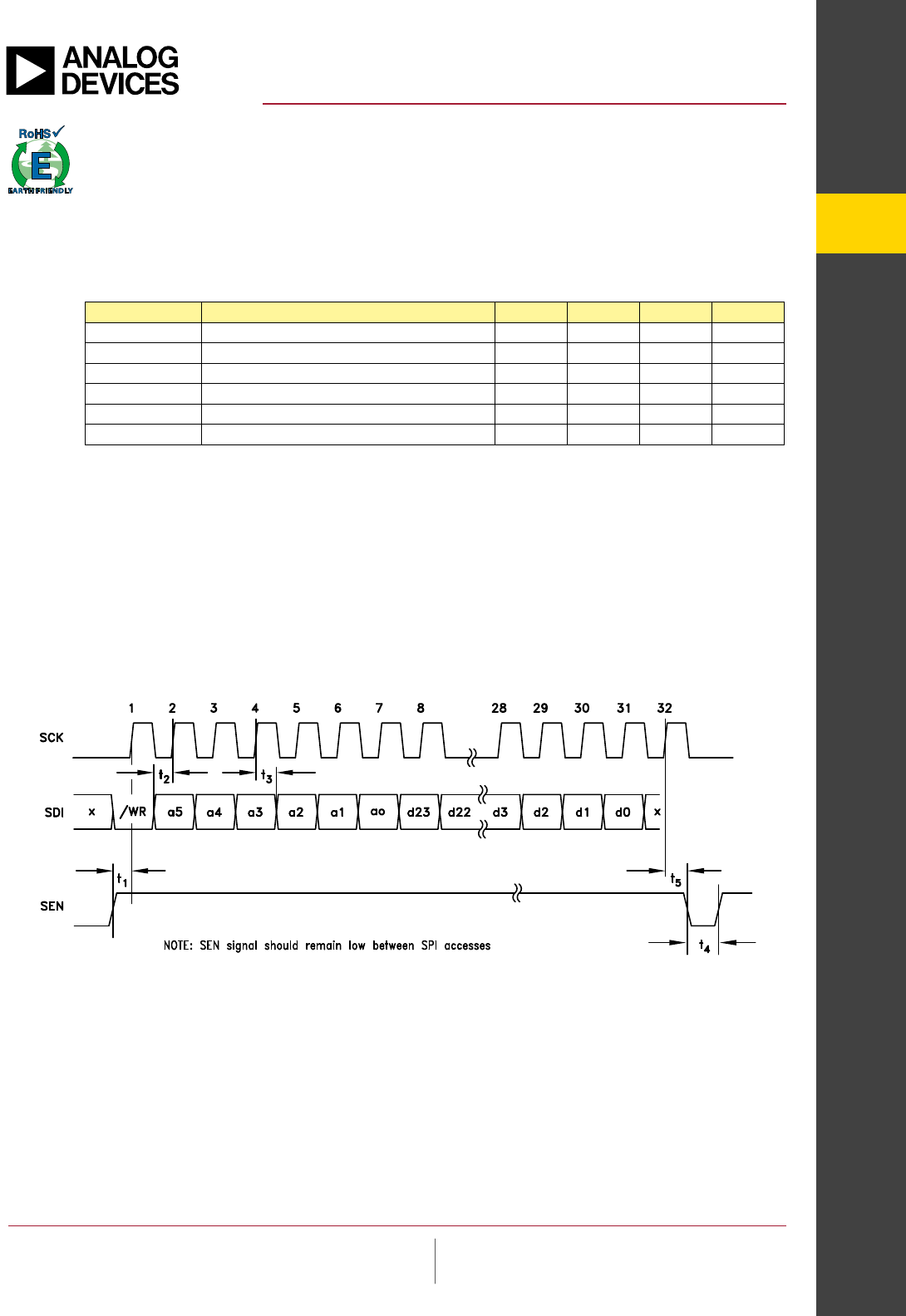

select and Output Mute function are all programmed SPI serial programming

The HMC1035LP6GE is designed to select between a Power Priority or a Performance Priority mode. The Power

Priority setting reduces the current consumption of the part, whereas the Performance Priority setting improves the

Jitter and Phase Noise performance.

The 24 bit Delta-Sigma Modulator further enhances Hittite’s Exact Frequency Mode, which enables users to

generate output frequencies with 0 Hz frequency error in many applications.

Information furnished by Analog Devices is believed to be accurate and reliable. However, no

responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other

rights of third parties that may result from its use. Specifications subject to change without notice. No

license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

Trademarks and registered trademarks are the property of their respective owners.

For price, delivery, and to place orders: Analog Devices, Inc.,

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106

Phone: 781-329-4700 • Order online at www.analog.com

Application Support: Phone: 1-800-ANALOG-D

ANALOG DEVICES Rnﬂs/

For price, delivery and to place orders: Hittite Microwave Corporation, 2 Elizabeth Drive, Chelmsford, MA 01824

Phone: 978-250-3343 Fax: 978-250-3373 Order On-line at www.hittite.com

Application Support: Phone: 978-250-3343 or apps@hittite.com

CLOCK GENERATORS - SMT

HMC1035LP6GE

v02.0614

HIGH PERFORMANCE, +3.3 V CLOCK GENERATOR

25 - 2500 MHz

Electrical Specifications, VPPCP, VDDLS, 3VRVDD, VCC1, VCC2, VCCHF,

VCCPS, VCCPD, = 3.3V Min & Max Specified across Temperature -40 °C to 85 °C

Parameter Condition Min. Typ. Max. Units

OUT_N, OUT_P Output Characteristics

Output Frequency 25 2500 MHz

Differential Output Amplitude

Gain Setting = 0000 690 mVpp

Gain Setting = 0001 780 mVpp

Gain Setting = 0010 900 mVpp

Gain Setting = 0011 980 mVpp

Gain Setting = 0100 1100 mVpp

Gain Setting = 0101 1260 mVpp

Gain Setting = 0110 1400 mVpp

Gain Setting = 0111 1590 mVpp

Gain Setting = 1000 1810 mVpp

Gain Setting = 1001 1980 mVpp

Gain Setting = 1010 2250 mVpp

Gain Setting = 1011 2560 mVpp

Output Common Mode Voltage

LVDS Mode 1.2 mV

LVPECL Mode 2.0 V

Output Rise and Fall Time LVDS mode, Gain = 0001 120 ps

Output Rise and Fall Time LVPECL mode, Gain = 0110 130 ps

Duty Cycle

AC coupled, measured at the 0

V crossing, 622.080 MHz and

2.5 GHz Outputs

49 50 51 %

VCO Output Divider

VCO RF Divider Range 1,2,4,6,8,...,62 162

PLL RF Divider Characteristics

19-Bit N-Divider Range (Integer) Max = 219 - 1 16 524,287

19-Bit N-Divider Range (Fractional) Fractional Nominal Divide Ratio

Varies (-3 / +4) Dynamically Max 20 524,283

CLKIN Input Characteristics

Max Input Frequency2350 MHz

Input Amplitude AC Coupled [1] 0.2 3.3 Vp-p

Input Capacitance 5 pF

Input Slew Rate 157 mV/ns

14 Bit R-Divider Range 16,383

Phase Detector (PD) [2]

PD Frequency Fractional Mode 0.006 100 MHz

PD Frequency Integer Mode 0.006 100 MHz

Charge Pump

Output Current 0.02 2.54 mA

Charge Pump Gain Step Size 20 µA

PD/Charge Pump SSB Phase Noise 50 MHz Ref, Input Referred

1 kHz -143 dBc/Hz

10 kHz Add 1 dB for Fractional -150 dBc/Hz

100 kHz Add 3 dB for Fractional -152 dBc/Hz

Logic Inputs

Vsw Switching threshold for logic

levels 40 50 60 % DVDD

Logic Outputs

VOH Output High Voltage DVDD V

VOL Output Low Voltage 0 V

Output Impedance 100 200 

Maximum Load Current 1.5 mA

Information furnished by Analog Devices is believed to be accurate and reliable. However, no

responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other

rights of third parties that may result from its use. Specifications subject to change without notice. No

license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

Trademarks and registered trademarks are the property of their respective owners.

For price, delivery, and to place orders: Analog Devices, Inc.,

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106

Phone: 781-329-4700 • Order online at www.analog.com

Application Support: Phone: 1-800-ANALOG-D

ANALOG DEVICES Rnﬂs/

For price, delivery and to place orders: Hittite Microwave Corporation, 2 Elizabeth Drive, Chelmsford, MA 01824

Phone: 978-250-3343 Fax: 978-250-3373 Order On-line at www.hittite.com

Application Support: Phone: 978-250-3343 or apps@hittite.com

CLOCK GENERATORS - SMT

HMC1035LP6GE

v02.0614

HIGH PERFORMANCE, +3.3 V CLOCK GENERATOR

25 - 2500 MHz

Parameter Condition Min. Typ. Max. Units

Power Supply Voltages

+ 3.3V Supplies

AVDD, VPPCP,

VDDLS,3VRVDD, DVDD3V,

VCC1, VCC2, VCCHF, VCCPS,

VCCPD

3.15 3.3 3.5 V

Power Supply Currents

+3.3V

LVPECL, Performance Priority

Mode, 2.5 GHz output,

Excluding Load

186 mA

LVPECL Performance Prior-

ity Mode, 2.5 GHz output,

Includes Termination

218 mA

LVPECL Performance Priority

Mode, 622.080 MHz Output,

Includes Termination

237 mA

LVDS, Power Priority Mode,

2.5 GHz Output, Includes

Termination

173 mA

LVDS, Power Priority Mode,

622.080 MHz Output, Includes

Termination

221 mA

Power Down - Crystal Off Reg 01h=0,

Crystal Not Clocked 10 µA

Power Down - Crystal On, 100 MHz Reg 01h=0,

Crystal Clocked 100 MHz 5mA

Power on Reset

Typical Reset Voltage on DVDD 700 mV

Minimum DVDD Voltage for No Reset 1.5 V

Power on Reset Delay 250 µs

Figure of Merit

Floor Integer Mode Normalized to 1 Hz -227 dBc/Hz

Floor Fractional Mode Normalized to 1 Hz -226 dBc/Hz

Flicker (Both Modes) Normalized to 1 Hz -268 dBc/Hz

Phase Jitter RMS, Integer Mode

622.08 MHz Output ,

12 kHz to 20 MHz 107 fs

2.5 GHz Output

12 kHz -20MHz 97 fs

Phase Jitter RMS, Fractional Mode

622.08 MHz Output ,

12 kHz to 20 MHz 125 fs

2.5 GHz Output

12 kHz -20MHz 110 fs

[1] Measurements made are AC coupled into a 100 differential load (Except Phase Noise).

[2] The maximum phase detector frequency can only be achieved if the minumum N value is respected, eg in the case of fractional feedback

mode, the maximum PFD rate = fvco/20 or 100 MHz whichever is less. Operation > 70MHz may require offsett currents to be disabled and

reenabled.

Electrical Specifications (Continued)

Information furnished by Analog Devices is believed to be accurate and reliable. However, no

responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other

rights of third parties that may result from its use. Specifications subject to change without notice. No

license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

Trademarks and registered trademarks are the property of their respective owners.

For price, delivery, and to place orders: Analog Devices, Inc.,

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106

Phone: 781-329-4700 • Order online at www.analog.com

Application Support: Phone: 1-800-ANALOG-D

ANALOG DEVICES Rnﬂs/

For price, delivery and to place orders: Hittite Microwave Corporation, 2 Elizabeth Drive, Chelmsford, MA 01824

Phone: 978-250-3343 Fax: 978-250-3373 Order On-line at www.hittite.com

Application Support: Phone: 978-250-3343 or apps@hittite.com

CLOCK GENERATORS - SMT

HMC1035LP6GE

v02.0614

HIGH PERFORMANCE, +3.3 V CLOCK GENERATOR

25 - 2500 MHz

[1] The PN plot is measured with a 100MHz OCXO followed with a divide by 2, using the Loop Filter in the Loop Filter Configuration Table

[2] The PN plot is measured with 50 MHz Crystal Oscillator (red) versus a 50MHz OCXO (blue).

[3] Jitter is Integrated over a 12kHz to 20MHz Band

-180

-170

-160

-150

-140

-130

-120

-110

-100

1 10 100 1000 10000 100000

625 MHz_LVDS

625 MHz_LVPECL

2500 MHz_LVDS

2500 MHz_LVPECL

OFFSET(KHz)

PHASE NOISE(dBc/Hz)

-180

-170

-160

-150

-140

-130

-120

-110

-100

1 10 100 1000 10000 100000

625 MHz_LVDS

625 MHz_LVPECL

2500 MHz_LVDS

2500 MHz_LVPECL

OFFSET(KHz)

PHASE NOISE(dBc/Hz)

-180

-170

-160

-150

-140

-130

-120

-110

-100

1 10 100 1000 10000 100000

622.08 MHz_LVDS

622.08 MHz_LVPECL

2500 MHz_LVDS

2500 MHz_LVPECL

OFFSET(KHz)

PHASE NOISE(dBc/Hz)

-180

-170

-160

-150

-140

-130

-120

-110

-100

1 10 100 1000 10000 100000

622.08 MHz_LVDS

622.08 MHz_LVPECL

2500 MHz_LVDS

2500 MHz_LVPECL

OFFSET(KHz)

PHASE NOISE(dBc/Hz)

100

120

140

160

LVDS_PWR_PRI

LVDS_PERF_PRI

LVPECL_PWR_PRI

INTEGRATED RMS JITTER (fs)

625

FREQUENCY (MHz)

2500

-180

-160

-140

-120

-100

-80

1 10 100 1000 10000 100000

OCXO

OFFSET(KHz)

PHASE NOISE(dBc/Hz)

Figure 1. Typical Phase Noise, Integer

Mode, Power Priority[1]

Figure 2. Typical Phase Noise, Integer

Mode, Performance Priority[1]

Figure 3. Typical Phase Noise, Fractional

Mode, Power Priority[1]

Figure 4. Typical Phase Noise, Fractional

Mode, Performance Priority[1]

Figure 5. Integer Phase Noise vs Reference

Source[2]

Figure 6. Jitter from Integrated Phase Noise

vs Output Frequency, Integer Mode[2]

Information furnished by Analog Devices is believed to be accurate and reliable. However, no

responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other

rights of third parties that may result from its use. Specifications subject to change without notice. No

license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

Trademarks and registered trademarks are the property of their respective owners.

For price, delivery, and to place orders: Analog Devices, Inc.,

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106

Phone: 781-329-4700 • Order online at www.analog.com

Application Support: Phone: 1-800-ANALOG-D

ANALOG DEVICES Rnﬂs/

For price, delivery and to place orders: Hittite Microwave Corporation, 2 Elizabeth Drive, Chelmsford, MA 01824

Phone: 978-250-3343 Fax: 978-250-3373 Order On-line at www.hittite.com

Application Support: Phone: 978-250-3343 or apps@hittite.com

CLOCK GENERATORS - SMT

HMC1035LP6GE

v02.0614

HIGH PERFORMANCE, +3.3 V CLOCK GENERATOR

25 - 2500 MHz

-200

-150

-100

-50

100

150

200

-50 0 50 100 150 200 250 300

TIME( (uS)

PHASE ERROR (DEGREE)

200

400

600

800

1000

1200

1400

100 1000

LVDS_PWR_PRI

LVDS_PERF_PRI

LVPECL_PWR_PRI

LVPECL_PERF_PRI

FRQUENCY (MHz)

Vppd (mV)

3000

[4] The HMC1035LP6GE has a preloaded register file for a 2GHz Output and time is measured from VCO disable to VCO enable, using the Loop

Filter in the Loop Filter Configuration Table.

[5] The output signal amplitude is measured with HMC1035 AC coupled to a 100 ohm differntial loadinstrument

[6] Measured at 20% to 80% levels.

100

120

140

160

LVDS_PWR_PRI

LVDS_PERF_PRI

LVPECL_PWR_PRI

INTEGRATED RMS JITTER (fs)

2500

622.08

FREQUENCY (MHz)

-50 0 50 100 150 200 250 300

TIME( (uS)

FREQUENCY ERROR (Hz)

2 10

100

120

140

160

LVDS_PWR_PRI

LVDS_PERF_PRI

LVPECL_PWR_PRI

LVPECL_PERF_PRI

RISE TIME (ps)

2500

622.08

FREQUENCY (MHz)

100

120

140

160

LVDS_PWR_PRI

LVDS_PERF_PRI

LVPECL_PWR_PRI

LVPECL_PERF_PRI

FALL TIME (ps)

2500

622.08

FREQUENCY (MHz)

Figure 7. Jitter from Integrated Phase

Noise vs. Frequency, Fractional Mode[3] Figure 8. Lock Time vs. Phase Error[4]

Figure 9. Lock Time vs Frequency Error[4] Figure 10. Output Amplitude vs

Output Frequency[5]

Figure 11. Output Rise Time vs.

Output Frequency[6]

Figure 12. Output Fall Time vs.

Output Frequency

Information furnished by Analog Devices is believed to be accurate and reliable. However, no

responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other

rights of third parties that may result from its use. Specifications subject to change without notice. No

license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

Trademarks and registered trademarks are the property of their respective owners.

For price, delivery, and to place orders: Analog Devices, Inc.,

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106

Phone: 781-329-4700 • Order online at www.analog.com

Application Support: Phone: 1-800-ANALOG-D

ANALOG DEVICES may

For price, delivery and to place orders: Hittite Microwave Corporation, 2 Elizabeth Drive, Chelmsford, MA 01824

Phone: 978-250-3343 Fax: 978-250-3373 Order On-line at www.hittite.com

Application Support: Phone: 978-250-3343 or apps@hittite.com

CLOCK GENERATORS - SMT

HMC1035LP6GE

v02.0614

HIGH PERFORMANCE, +3.3 V CLOCK GENERATOR

25 - 2500 MHz

Loop Filter

BW (kHz)

(pF)

(nF)

(pF)

()

() Loop Filter Design

127 390 10 82 82 750 300 300

75 270 27 200 390 430 390 390

Loop Filter Configuration Table

100

120

140

160

180

200

220

LVDSLOWI

LVDSLOWN

LVPECLLOWI

LVPECLLOWN

IDD(mA)

Fo/16 Fo/4Fo/8 FoFo/2

FREQUENCY

[7] Duty Cycle is measured with the Output AC coupled at the 0 crossing level.

[8] The current is measured at Nominal VCO VDD Supply under Fractional Locked Condition by varying different the output divider ratio.

LVDS_PWR_PRI

LVDS_PERF_PRI

LVPECL_PWR_PRI

LVPECL_PERF_PRI

DUTY CYCLE (%)

2500

622.08

FREQUENCY (MHz)

-1500

-1000

-500

500

1000

1500

00.511.522.53

LVDS PERF PRI

LVDS PWR PRI

LVPECL PERF PRI

LVPECL PWR PRI

TIME (ns)

Vppd (mV)

Figure 13. Output Duty Cycle vs.

Output Frequency[7]

Figure 14. Supply Current vs.

Output Frequency[8]

Figure 15. Output Amplitude vs. Gain

Setting over Temperature

Figure 16. Out Waveform, Performance

Priority and Power Priority in LVDS and

LVPECL Mode

500

1000

1500

2000

2500

3000

0246810

Vppd (mV)

27C

-40C

85C

GAIN SETTING STEP

Information furnished by Analog Devices is believed to be accurate and reliable. However, no

responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other

rights of third parties that may result from its use. Specifications subject to change without notice. No

license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

Trademarks and registered trademarks are the property of their respective owners.

For price, delivery, and to place orders: Analog Devices, Inc.,

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106

Phone: 781-329-4700 • Order online at www.analog.com

Application Support: Phone: 1-800-ANALOG-D

ANALOG DEVICES may TOP VIEW Wm [gag]? 0 H1035 XXXX m .035 E31938] inggggggggggu 0—- Stresses above those \isted underAbsolute Maxwmum min BOTTOM VIEW .012 030 MN w .005 [0,zn]4-‘ r U U U U U U U U U U j — C 30 3 I:\P\N 1 u—u j C 022 u 56 93 g 3 E {m7 [uiu] M, 1b 3 C7 TN :1 3 CT @2 —. :I I: j \5 j C\EXPOSED GROUND PADDLE 21 i3 uusv a: cowmsn m RF/DC GROUND I] D D I] D D D D r: 4 .uos [0,20] Mm LOY NUMBER ~13; [ﬁg] SQUARE, r. 4 vms [we] REF .002 17.00:: 0.05 0.00 sEmNc rw:

For price, delivery and to place orders: Hittite Microwave Corporation, 2 Elizabeth Drive, Chelmsford, MA 01824

Phone: 978-250-3343 Fax: 978-250-3373 Order On-line at www.hittite.com

Application Support: Phone: 978-250-3343 or apps@hittite.com

CLOCK GENERATORS - SMT

HMC1035LP6GE

v02.0614

HIGH PERFORMANCE, +3.3 V CLOCK GENERATOR

25 - 2500 MHz

Outline Drawing

NOTES:

1. PACKAGE BODY MATERIAL: LOW STRESS INJECTION MOLDED PLASTIC SILICA AND

SILICON IMPREGNATED.

2. LEAD AND GROUND PADDLE MATERIAL: COPPER ALLOY.

3. LEAD AND GROUND PADDLE PLATING: 100% MATTE TIN.

4. DIMENSIONS ARE IN INCHES [MILLIMETERS].

5. LEAD SPACING TOLERANCE IS NON-CUMULATIVE.

6. PAD BURR LENGTH SHALL BE 0.15mm MAX. PAD BURR HEIGHT SHALL BE 0.25mm MAX.

7. PACKAGE WARP SHALL NOT EXCEED 0.05mm.

8. ALL GROUND LEADS AND GROUND PADDLE MUST BE SOLDERED TO PCB RF GROUND.

9. REFER TO HITTITE APPLICATION NOTE FOR SUGGESTED PCB LAND PATTERN.

Absolute Maximum Ratings

AVDD, VPPCP, VDDLS, 3VRVDD,

DVDD3V, VCC1, VCC2, VCCHF,

VCCPS, VCCPD

-0.3V to +3.6V

Operating Temperature -40°C to +85°C

Storage Temperature -65°C to 150°C

Maximum Junction Temperature 125 °C

Thermal Resistance (RTH)

(junction to ground paddle) 10 °C/W

Reflow Soldering

Peak Temperature 260°C

Time at Peak Temperature 40 sec

ESD Sensitivity (HBM) Class 1B

Stresses above those listed under Absolute Maximum

Ratings may cause permanent damage to the device.

This is a stress rating only; functional operation of the

device at these or any other conditions above those

indicated in the operational section of this specification

is not implied. Exposure to absolute maximum rating

conditions for extended periods may affect device

reliability.

Part Number Package Body Material Lead Finish MSL Rating Package Marking [1]

HMC1035LP6GE RoHS-compliant Low Stress Injection Molded Plastic 100% matte Sn MSL1 H1035

XXXX

[1] 4-Digit lot number XXXX

Package Information

Information furnished by Analog Devices is believed to be accurate and reliable. However, no

responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other

rights of third parties that may result from its use. Specifications subject to change without notice. No

license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

Trademarks and registered trademarks are the property of their respective owners.

For price, delivery, and to place orders: Analog Devices, Inc.,

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106

Phone: 781-329-4700 • Order online at www.analog.com

Application Support: Phone: 1-800-ANALOG-D

ANALOG DEVICES Rnﬂs/

For price, delivery and to place orders: Hittite Microwave Corporation, 2 Elizabeth Drive, Chelmsford, MA 01824

Phone: 978-250-3343 Fax: 978-250-3373 Order On-line at www.hittite.com

Application Support: Phone: 978-250-3343 or apps@hittite.com

CLOCK GENERATORS - SMT

HMC1035LP6GE

v02.0614

HIGH PERFORMANCE, +3.3 V CLOCK GENERATOR

25 - 2500 MHz

Pin Descriptions

Pin Number Function Description

1AVDD 3.3 VDC Power Supply for Analog Circuitry

2, 5, 6, 8, 9,

11 - 14, 18 - 22, 24,

26, 34, 37, 38

NC The pins are not connected internally; however, all data shown herein

was measured with these pins connected to RF/DC ground externally.

3VPPCP 3.3V Power Supply for Charge Pump Analog Section

4CP Charge Pump Output

7VDDLS 3.3V Power Supply for the Charge Pump Digital Section

10 3VRVDD Reference Supply

15 XREFP Reference Oscillator Input

16 DVDD3V 3.3V DC Power Supply for Digital (CMOS) Circuitry

17 CEN Chip Enable. Connect to logic high for normal operation.

23 VTUNE VCO Varactor. Tuning Port Input.

25 VCC2 3.3V VCO Analog Supply 2

27 VCC1 3.3V VCO Analog Supply 1

28 OUT_N Negative Output Signal (Differential)

29 OUT_P Positive Output Signal (Differential)

30 SEN PLL Serial Port Enable (CMOS) Logic Input

31 SDI PLL Serial Port Data (CMOS) Logic Input

32 SCK PLL Serial Port Clock (CMOS) Logic Input

33 LD/SDO Lock Detect, or Serial Data, or General Purpose (CMOS) Logic Output (GPO)

35 VCCHF 3.3 V DC Power Supply for Analog Circuitry

36 VCCPS 3.3 V DC Power Supply for Analog Prescaler

39 VCCPD 3.3 V DC Power Supply for Phase Detector

40 BIAS

External bypass decoupling for precision bias circuits.

Note: 1.920V ±20mV reference voltage (BIAS) is generated internally and cannot

drive an external load. Must be measured with 10G meter such as Agilent 34410A,

normal 10M DVM will read erroneously.

Information furnished by Analog Devices is believed to be accurate and reliable. However, no

responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other

rights of third parties that may result from its use. Specifications subject to change without notice. No

license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

Trademarks and registered trademarks are the property of their respective owners.

For price, delivery, and to place orders: Analog Devices, Inc.,

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106

Phone: 781-329-4700 • Order online at www.analog.com

Application Support: Phone: 1-800-ANALOG-D

ANALOG DEVICES cum? \ \ ,JWMWZ :W, ; .IEIEEIEEE, .

For price, delivery and to place orders: Hittite Microwave Corporation, 2 Elizabeth Drive, Chelmsford, MA 01824

Phone: 978-250-3343 Fax: 978-250-3373 Order On-line at www.hittite.com

Application Support: Phone: 978-250-3343 or apps@hittite.com

CLOCK GENERATORS - SMT

HMC1035LP6GE

v02.0614

HIGH PERFORMANCE, +3.3 V CLOCK GENERATOR

25 - 2500 MHz

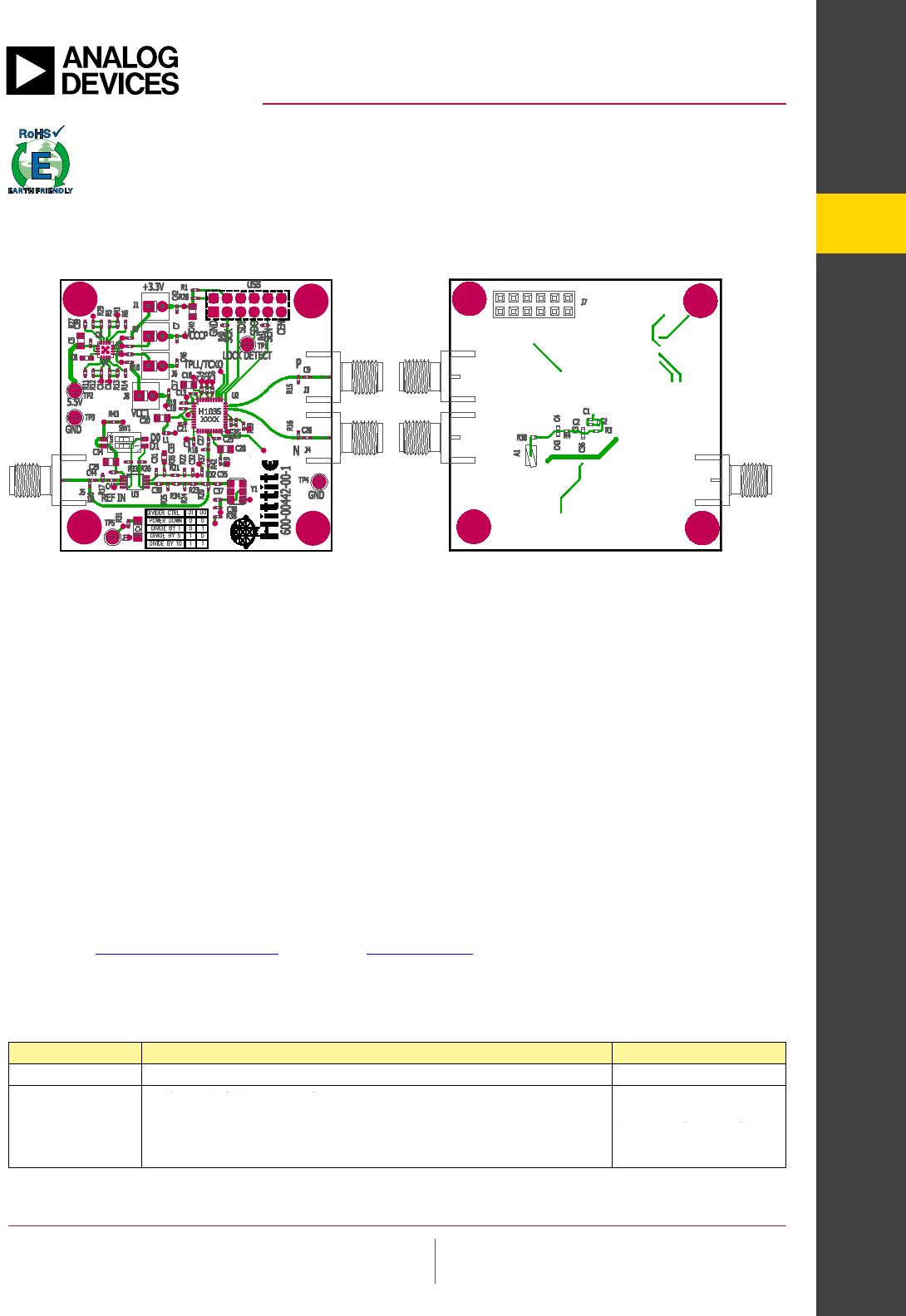

Evaluation PCB Schematic

The circuit board used in the application should use RF circuit design techniques. Signal lines should have 50 Ohm

impedance while the package ground leads and exposed paddle should be connected directly to the ground plane

similar to that shown. A sufficient number of via holes should be used to connect the top and bottom ground planes.

The evaluation circuit board shown is available from Hittite upon request.

The HMC1035 evaluation board and associated software offers the user an easy way to quickly evaluate the

performance and flexibility of the HMC1035. The evaluation board operates off a +5V supply and includes an HMC1060

LDO, which generates a low noise 3.3V source, and a precision PLL which generates a 50MHz clock, which is locked

to an externally supplied 10 MHz reference.

The PLL design is an HMC1031 phase/frequency detector, passive loop filter and a low noise 50 MHz VCXO. The PLL

is normally, or default upon shipping, set to lock on to a 10 MHz reference feed into “REF IN”. A 5MHz input reference

can be used if D1, D0 is reconfigured to “1,1”, or 50 MHz if D1, D0 is reconfigured to “0,1”. The “REF IN” would normally

have a +/-50 ppm tolerance which falls within the VCXO pull range. Although not recommended, the HMC1035 EB

can be operated without supplying an external reference, and the PLL will pull the VCXO to about 49.992 MHz, or

180 ppm low. Alternatively, an external 50 MHz reference can be feed into the HMC1035 evaluation board which

requires removing C44,C35, R32 and J6, the TPLL/TCXO, and placing a 0 Ohm resistor in the R20 and R36 locations.

To view this Evaluation PCB Schematic please visit www.hittite.com and choose HMC1035LP6GE from the

“Search by Part Number” pull down menu to view the product splash page.

Evaluation PCB

Item Contents Part Number

Evaluation PCB Only HMC1035LP6GE Evaluation PCB EVAL01-HMC1035LP6GE

Evaluation Kit

HMC1035LP6GE Evaluation PCB

USB Interface Board

6’ USB A Male to USB B Female Cable

CD ROM (Contains User Manual, Evaluation PCB Schematic, Evaluation Software,

Hittite PLL Design Software)

EKIT01-HMC1035LP6GE

Evaluation Order Information

EVAL01-HMC1035LP6G

EKIT01-HMC1035LP6G

HMC1035LP6G Evaluation PCB

Information furnished by Analog Devices is believed to be accurate and reliable. However, no

responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other

rights of third parties that may result from its use. Specifications subject to change without notice. No

license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

Trademarks and registered trademarks are the property of their respective owners.

For price, delivery, and to place orders: Analog Devices, Inc.,

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106

Phone: 781-329-4700 • Order online at www.analog.com

Application Support: Phone: 1-800-ANALOG-D

ANALOG DEVICES Rnﬂs/ m “14.11 —> mun RFJ’ 0mm cm" 0mm VCO_R-g07[3:0] Inhrnul erminulmn VCOJEIQDHA] Mam. = Clcs-d ‘ Recover vconasp 7 anus/cojeqmpm]

For price, delivery and to place orders: Hittite Microwave Corporation, 2 Elizabeth Drive, Chelmsford, MA 01824

Phone: 978-250-3343 Fax: 978-250-3373 Order On-line at www.hittite.com

Application Support: Phone: 978-250-3343 or apps@hittite.com

CLOCK GENERATORS - SMT

HMC1035LP6GE

v02.0614

HIGH PERFORMANCE, +3.3 V CLOCK GENERATOR

25 - 2500 MHz

HMC1035LP6GE Input Stage

A representative schematic for the HMC1035LP6GE output stage is given in Figure 17 below. The buffer is internally

DC biased with 100 ohm internal termination. For 50 ohm match, an external 100 ohm resistor to ground should be

added, followed by an AC coupling capacitor (impedance < 1 ohm) then to the XREFP pin of the part.

HMC1035LP6GE Output Stage

A representative schematic for the HMC1035LP6GE output stage is given in Figure 18 below. The output is derived

from an emitter which can be internally biased to a current source (the default setting), or the Internal Termination

switch can be opened, VCO_Reg03[4], and external termination used. The internal bias would be used when LVDS

levels are required and the load would normally be a 100 differential load as shown in Figure 19. With the internal bias

set, the HMC1035LP6GE output can also be used to drive 50 ohm single ended loads, see Figures 19 and 20. This

would simplify LVPECL designs and reduce component cost.

Figure 17. Input Stage

Figure 18. Output Stage

Figure 19. AC Coupling into

100 Ohm Differential Load Figure 20. AC Coupling into a 50 Ohm Load

Information furnished by Analog Devices is believed to be accurate and reliable. However, no

responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other

rights of third parties that may result from its use. Specifications subject to change without notice. No

license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

Trademarks and registered trademarks are the property of their respective owners.

For price, delivery, and to place orders: Analog Devices, Inc.,

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106

Phone: 781-329-4700 • Order online at www.analog.com

Application Support: Phone: 1-800-ANALOG-D

ANALOG DEVICES Rnﬂs/ \ «r; \ 4O—El \ \ \ : rrrrrrrr \ \ ﬂ—D . . f i 5’“ 80% 20% 4», ise e

For price, delivery and to place orders: Hittite Microwave Corporation, 2 Elizabeth Drive, Chelmsford, MA 01824

Phone: 978-250-3343 Fax: 978-250-3373 Order On-line at www.hittite.com

Application Support: Phone: 978-250-3343 or apps@hittite.com

CLOCK GENERATORS - SMT

HMC1035LP6GE

v02.0614

HIGH PERFORMANCE, +3.3 V CLOCK GENERATOR

25 - 2500 MHz

Alternatively, the user can disable the internal bias, VCO_Reg 03h[4]=0, and use a standard LVPECL termination

scheme. One of the most common methods is shown in Figure 21, with the resistors being located near the receiver.

AC coupling can be used after the DC biasing resistor network

The outputs can either be DC or AC coupled and the loads may be internal to the receiver or ADC etc - consult the

manufacture for internal biasing and loading requirements. Selecting the AC coupling capacitors is a balance between

impedance loading and rise and fall time versus signal loss and DC level drooping during the logic high and logic low

levels - a low value such as 10 pF can be used for high frequency signals in the GHz range to ensure optimized rise

and fall times, while a 100 nF capacitor can be used to insure low loss and minimal DC drooping when the output is

a low value such as 25 MHz.

Waveform Diagrams

See Figure 22 which shows the definition for rise and fall time as well as VCM and VAMP. Figure 23 shows the Duty

Cycle, which is defined as (On Time/Period) were On Time is positive going/logic high level . Measurements are made

using the Internal Bias Setting.

Figure 22. Rise and Fall Time, VCM VAMP

Figure 23. Duty Cycle

Figure 21. LVPECL Termination

Information furnished by Analog Devices is believed to be accurate and reliable. However, no

responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other

rights of third parties that may result from its use. Specifications subject to change without notice. No

license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

Trademarks and registered trademarks are the property of their respective owners.

For price, delivery, and to place orders: Analog Devices, Inc.,

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106

Phone: 781-329-4700 • Order online at www.analog.com

Application Support: Phone: 1-800-ANALOG-D

ANALOG DEVICES may

For price, delivery and to place orders: Hittite Microwave Corporation, 2 Elizabeth Drive, Chelmsford, MA 01824

Phone: 978-250-3343 Fax: 978-250-3373 Order On-line at www.hittite.com

Application Support: Phone: 978-250-3343 or apps@hittite.com

CLOCK GENERATORS - SMT

HMC1035LP6GE

v02.0614

HIGH PERFORMANCE, +3.3 V CLOCK GENERATOR

25 - 2500 MHz

1.1 SERIAL PORT

1.1.1 Serial Port Modes of Operation

The HMC1035LP6GE serial port interface can operate in two different modes of operation.

a. HMCSPI HMC Mode (HMC Legacy Mode) - Single slave per HMCSPI Bus

b. HMCSPI Open Mode - Up to 8 slaves per HMCSPI Bus.

Both Modes support 5-bits of register address space. HMC Mode can support up to 6 bits of register

address.

manufacturers SPI protocols.

Single User

HMC Mode

Multi-User

Open Mode

READ Chip ID

24-bits Chip ID 24-bits

WRITE Soft Reset,

General Strobes

Read Address [4:0]

Soft reset [5]

General Strobes [23:6]

1.1.2 HMCSPI Protocol Decision after Power-On Reset

On power up both types of modes are active and listening.

A decision to select the desired SPI protocol is made on the first occurrence of SEN or SCLK following a

hard reset, after which the protocol is fixed and only changeable by cycling the power OFF and ON.

a. If a rising edge on SEN is detected first HMC Mode is selected.

b. If a rising edge on SCLK is detected first Open mode is selected.

1.1.3 Serial Port HMC Mode - Single PLL

HMC Mode (Legacy Mode) serial port operation can only address and talk to a single PLL, and is compatible

with most Hittite PLLs and PLLs with Integrated VCOs.

The HMC Mode protocol, shown in Figure 24 and, Figure 25 is designed for a 4 wire interface with a fixed

protocol featuring

a. 1 Read/Write bit

b. 6 Address bits

c. 24 data bits

d. 3 wire for Write only, 4 wire for Read/Write capability

Information furnished by Analog Devices is believed to be accurate and reliable. However, no

responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other

rights of third parties that may result from its use. Specifications subject to change without notice. No

license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

Trademarks and registered trademarks are the property of their respective owners.

For price, delivery, and to place orders: Analog Devices, Inc.,

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106

Phone: 781-329-4700 • Order online at www.analog.com

Application Support: Phone: 1-800-ANALOG-D

ANALOG DEVICES Rnﬂs/ SCK _. .2<_ _—="" .3="" .—="" ‘="" x="" ((="" sdi="" x="" x/wr="" a5="" u4xa§la21alxua="" xd13xd11="" dsxdzkdikdde="" )="" k)="" n="" n="" t,="" sen="" “="" noie:="" sen="" signal="" shamd="" remain="" law="" helwsan="" sh="" accuses="" »="" ‘4=""><7>

For price, delivery and to place orders: Hittite Microwave Corporation, 2 Elizabeth Drive, Chelmsford, MA 01824

Phone: 978-250-3343 Fax: 978-250-3373 Order On-line at www.hittite.com

Application Support: Phone: 978-250-3343 or apps@hittite.com

CLOCK GENERATORS - SMT

HMC1035LP6GE

v02.0614

HIGH PERFORMANCE, +3.3 V CLOCK GENERATOR

25 - 2500 MHz

1.1.3.1 HMC Mode - Serial Port WRITE Operation

AVDD = DVDD = 3.3V ±5%, AGND = DGND = 0V

SPI HMC Mode - Write Timing Characteristics

Parameter Conditions Min. Typ. Max Units

t1SEN to SCLK setup time 8 ns

t2SDI to SCLK setup time 3 ns

t3SCLK to SDI hold time 3 ns

t4SEN low duration 20 ns

t5SCK to SEN fall 10 ns

Max Serial port Clock Speed 50 MHz

A typical HMC Mode WRITE cycle is shown in Figre 24.

a. The Master (host) both asserts SEN (Serial Port Enable) and clears SDI to indicate a WRITE cycle,

followed by a rising edge of SCK.

b. The slave (synthesizer) reads SDI on the 1st rising edge of SCK after SEN. SDI low indi cates a Write

cycle (/WR).

c. Host places the six address bits on the next six falling edges of SCK, MSB first.

d. Slave shifts the address bits in the next six rising edges of SCK (2-7).

e. Host places the 24 data bits on the next 24 falling edges of SCK, MSB first.

f. Slave shifts the data bits on the next 24 rising edges of SCK (8-31).

g. The data is registered into the chip on the 32nd rising edge of SCK.

h. SEN is cleared after a minimum delay of t5. This completes the write cycle.

Figure 24. HMC Mode - Serial Port Timing Diagram Write

1.1.3.2 HMC Mode - Serial Port READ Operation

A typical HMC Mode READ cycle is shown in Figure 25.

a. The Master (host) asserts both SEN (Serial Port Enable) and SDI to indicate a READ cycle, followed

by a rising edge SCLK. Note: The Lock Detect (LD) function is usually multiplexed onto the LD_SDO

pin. It is suggested that LD only be considered valid when SEN is low. In fact LD will not toggle until

the first active data bit toggles on LD_SDO, and will be restored immediately after the trailing edge of

the LSB of serial data out as shown in Figure 25.

b. The slave (HMC1035LP6GE) reads SDI on the 1st rising edge of SCLK after SEN. SDI high initiates

the READ cycle (RD)

Information furnished by Analog Devices is believed to be accurate and reliable. However, no

responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other

rights of third parties that may result from its use. Specifications subject to change without notice. No

license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

Trademarks and registered trademarks are the property of their respective owners.

For price, delivery, and to place orders: Analog Devices, Inc.,

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106

Phone: 781-329-4700 • Order online at www.analog.com

Application Support: Phone: 1-800-ANALOG-D

ANALOG DEVICES Rnﬂs/ mum 12345573 1619503132 scx r; v, v, SDI xyno aslu uZXuIIalluolx ‘ I h . 3? SEN f 5 0‘ «‘3 LD_SDO LD (Lock bum) Xd23ld11 as d2 1 d‘ X :10 X LD )3 NOTE: SEN ﬂgnul :hamd nmurn low [MW-on SPI mum “

For price, delivery and to place orders: Hittite Microwave Corporation, 2 Elizabeth Drive, Chelmsford, MA 01824

Phone: 978-250-3343 Fax: 978-250-3373 Order On-line at www.hittite.com

Application Support: Phone: 978-250-3343 or apps@hittite.com

CLOCK GENERATORS - SMT

HMC1035LP6GE

v02.0614

HIGH PERFORMANCE, +3.3 V CLOCK GENERATOR

25 - 2500 MHz

c. Host places the six address bits on the next six falling edges of SCLK, MSB first.

d. Slave registers the address bits on the next six rising edges of SCLK (2-7).

e. Slave switches from Lock Detect and places the requested 24 data bits on SD_LDO on the next 24

rising edges of SCK (8-31), MSB first .

f. Host registers the data bits on the next 24 falling edges of SCK (8-31).

g. Slave restores Lock Detect on the 32nd rising edge of SCK.

h. De-assertion of SEN completes the cycle

SPI HMC Mode - Read Timing Characteristics

Parameter Conditions Min. Typ. Max Units

t1SEN to SCLK setup time 8 ns

t2SDI to SCLK setup time 3 ns

t3SCLK to SDI hold time 3 ns

t4SEN low duration 20 ns

t5SCLK to SDO delay 8.2ns+0.2ns/pF ns

t6Recovery Time 10 ns

Figure 25. HMC Mode - Serial Port Timing Diagram - READ

1.1.4 Serial Port Open Mode

The Serial Port Open Mode, shown in Figure 26 and Figure 27, features:

a. Compatibility with general serial port protocols that use shift and strobe approach to communication

b. Compatible with Hittite PLL with Integrated VCO solutions, useful to address multiple chips of various

types from a single serial port bus.

The Open Mode protocol has the following general features:

a. 3-bit chip address , can address up to 8 devices connected to the serial bus

b. Wide compatibility with multiple protocols from multiple vendors

c. Simultaneous Write/Read during the SPI cycle

Information furnished by Analog Devices is believed to be accurate and reliable. However, no

responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other

rights of third parties that may result from its use. Specifications subject to change without notice. No

license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

Trademarks and registered trademarks are the property of their respective owners.

For price, delivery, and to place orders: Analog Devices, Inc.,

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106

Phone: 781-329-4700 • Order online at www.analog.com

Application Support: Phone: 1-800-ANALOG-D

ANALOG DEVICES Rnﬂs/ '5 25 26 so 51 32 “<7 d="" *z="" sdi="" x="" 13="" (£22="" :12="" d1="" d0="" r4="" r3="" r0="" u2aa1aao="" x="" n="" u="" sen="" i="">

For price, delivery and to place orders: Hittite Microwave Corporation, 2 Elizabeth Drive, Chelmsford, MA 01824

Phone: 978-250-3343 Fax: 978-250-3373 Order On-line at www.hittite.com

Application Support: Phone: 978-250-3343 or apps@hittite.com

CLOCK GENERATORS - SMT

HMC1035LP6GE

v02.0614

HIGH PERFORMANCE, +3.3 V CLOCK GENERATOR

25 - 2500 MHz

d. 5-bit address space

e. 3 wire for Write Only capability, 4 wire for Read/Write capability

Hittite PLLs with integrated VCOs support Open Mode. Some legacy PLL and microwave PLLs with

integrated VCOs only support HMC Mode. Consult the relevant data sheets for details.

Typical serial port operation can be run with SCLK at speeds up to 50 MHz.

1.1.4.1 Open Mode - Serial Port WRITE Operation

AVDD = DVDD = 3.V ±5%, AGND = DGND = 0V

SPI Open Mode - WRITE Timing Characteristics

Parameter Conditions Min. Typ. Max Units

t1SDI setup time to SCLK Rising Edge 3 ns

t2SCLK Rising Edge to SDI hold time 3 ns

t3SEN low duration 10 ns

t4SEN high duration 10 ns

t5SCLK 32 Rising Edge to SEN Rising Edge 10 ns

t6Recovery Time 20 ns

Max Serial port Clock Speed 50 MHz

A typical WRITE cycle is shown in Figure 26.

a. The Master (host) places 24-bit data, d23:d0, MSB first, on SDI on the first 24 falling edges of SCLK.

b. the slave (HMC1035LP6GE) shifts in data on SDI on the first 24 rising edges of SCLK

c. Master places 5-bit register address to be written to, r4:r0, MSB first, on the next 5 falling edges of SCLK

(25-29)

d. Slave shifts the register bits on the next 5 rising edges of SCLK (25-29).

e. Master places 3-bit chip address, a2:a0, MSB first, on the next 3 falling edges of SCLK (30-32). Hittite

reserves chip address a2:a0 = 000 for all RF PLL with Integrated VCOs.

f. Slave shifts the chip address bits on the next 3 rising edges of SCLK (30-32).

g. Master asserts SEN after the 32nd rising edge of SCLK.

h. Slave registers the SDI data on the rising edge of SEN.

Figure 26. Open Mode - Serial Port Timing Diagram - WRITE

Information furnished by Analog Devices is believed to be accurate and reliable. However, no

responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other

rights of third parties that may result from its use. Specifications subject to change without notice. No

license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

Trademarks and registered trademarks are the property of their respective owners.

For price, delivery, and to place orders: Analog Devices, Inc.,

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106

Phone: 781-329-4700 • Order online at www.analog.com

Application Support: Phone: 1-800-ANALOG-D

ANALOG DEVICES Rnﬂs/

For price, delivery and to place orders: Hittite Microwave Corporation, 2 Elizabeth Drive, Chelmsford, MA 01824

Phone: 978-250-3343 Fax: 978-250-3373 Order On-line at www.hittite.com

Application Support: Phone: 978-250-3343 or apps@hittite.com

CLOCK GENERATORS - SMT

HMC1035LP6GE

v02.0614

HIGH PERFORMANCE, +3.3 V CLOCK GENERATOR

25 - 2500 MHz

1.1.4.2 Open Mode - Serial Port READ Operation

A typical READ cycle is shown in Figure 27.

In general, in Open Mode the LD_SDO line is always active during the WRITE cycle. During any Open

Mode SPI cycle LD_SDO will contain the data from the current address written in Reg 00h[4:0]. If

Reg 00h[4:0] is not changed then the same data will always be present on LD_SDO when an Open Mode

cycle is in progress. If it is desired to READ from a specific address, it is necessary in the first SPI cycle

to write the desired address to Reg 00h[4:0], then in the next SPI cycle the desired data will be available

on LD_SDO.

An example of the Open Mode two cycle procedure to read from any random address is as follows:

a. The Master (host), on the first 24 falling edges of SCLK places 24-bit data, d23:d0, MSB first, on SDI

as shown in Figure 27. d23:d5 should be set to zero. d4:d0 = address of the register to be READ on

the next cycle.

b. the slave (HMC1035LP6GE) shifts in data on SDI on the first 24 rising edges of SCLK

c. Master places 5-bit register address , r4:r0, (the READ ADDRESS register), MSB first, on the next 5

falling edges of SCLK (25-29). r4:r0=00000.

d. Slave shifts the register bits on the next 5 rising edges of SCLK (25-29).

e. Master places 3-bit chip address, a2:a0, MSB first, on the next 3 falling edges of SCLK (30-32)..Chip

address is always 000 for RF PLL with Integrated VCOs.

f. Slave shifts the chip address bits on the next 3 rising edges of SCLK (30-32).

g. Master asserts SEN after the 32nd rising edge of SCLK.

h. Slave registers the SDI data on the rising edge of SEN.

i. Master clears SEN to complete the address transfer of the two part READ cycle.

j. If one does not wish to write data to the chip at the same time as we do the second cycle , then it is

recommended to simply rewrite the same contents on SDI to Register zero on the READ back part of

the cycle.

k. Master places the same SDI data as the previous cycle on the next 32 falling edges of SCLK.

l. Slave (HMC1035LP6GE) shifts the SDI data on the next 32 rising edges of SCLK.

m. Slave places the desired read data (ie. data from the address specified in Reg 00h[7:3] of the first

cycle) on LD_SDO which automatically switches to SDO mode from LD mode, disabling the LD

output.

n. Master asserts SEN after the 32nd rising edge of SCK to complete the cycle and revert back to Lock

Detect on LD_SDO.

SPI Open Mode - Read Timing Characteristics

Parameter Conditions Min. Typ. Max Units

t1SDI setup time to SCLK Rising Edge 3 ns

t2SCLK Rising Edge to SDI hold time 3 ns

t3SEN low duration 10 ns

t4SEN high duration 10 ns

t5SCLK Rising Edge to SDO time 8.2ns+0.2ns/pF ns

t6Recovery TIme 10 ns

t7SCK 32 Rising Edge to SEN Rising Edge 10 ns

Information furnished by Analog Devices is believed to be accurate and reliable. However, no

responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other

rights of third parties that may result from its use. Specifications subject to change without notice. No

license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

Trademarks and registered trademarks are the property of their respective owners.

For price, delivery, and to place orders: Analog Devices, Inc.,

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106

Phone: 781-329-4700 • Order online at www.analog.com

Application Support: Phone: 1-800-ANALOG-D

ANALOG DEVICES Rnﬂs/ FIRST CYCLE 1 1: 19 20 u 25 19 30 31 32 w mammmﬁ 1. 1, '7 ._ 1‘ _— 5m x LeszsITC: do "Ii? nguquIIauE READ Adam: Roglmr Addr-s: = 00000 Chlp Addnu = 000 .11 r:§§:;Ew/6Po xIij’gxIxIxIxIZS ;x_IxIxL:D/GFO szu —e‘%/—I\¥ *3 1. SECOND cch: 52 1 1a 1 a 20 15 14 25 25 19 30 31 1, '7 501 x :12: as d4 d0 r4 r; 10 ul ul an IE LgaJ I—t) 1 I A A LD_SDO LD/GPOIdz! I112: [:1 as I 112 I 111 I r4 E: :10 I 111 I 1:1 IaD Ln/GPo" SEN

For price, delivery and to place orders: Hittite Microwave Corporation, 2 Elizabeth Drive, Chelmsford, MA 01824

Phone: 978-250-3343 Fax: 978-250-3373 Order On-line at www.hittite.com

Application Support: Phone: 978-250-3343 or apps@hittite.com

CLOCK GENERATORS - SMT

HMC1035LP6GE

v02.0614

HIGH PERFORMANCE, +3.3 V CLOCK GENERATOR

25 - 2500 MHz

1.1.4.3 HMCSPI Open Mode READ Operation - 2 Cycles

Figure 27. Serial Port Timing Diagram - READ

For more information on using the GPO pin while in SPI Open Mode please see section 1.15.

Information furnished by Analog Devices is believed to be accurate and reliable. However, no

responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other

rights of third parties that may result from its use. Specifications subject to change without notice. No

license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

Trademarks and registered trademarks are the property of their respective owners.

For price, delivery, and to place orders: Analog Devices, Inc.,

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106

Phone: 781-329-4700 • Order online at www.analog.com

Application Support: Phone: 1-800-ANALOG-D

ANALOG DEVICES Rnﬂs/

For price, delivery and to place orders: Hittite Microwave Corporation, 2 Elizabeth Drive, Chelmsford, MA 01824

Phone: 978-250-3343 Fax: 978-250-3373 Order On-line at www.hittite.com

Application Support: Phone: 978-250-3343 or apps@hittite.com

CLOCK GENERATORS - SMT

HMC1035LP6GE

v02.0614

HIGH PERFORMANCE, +3.3 V CLOCK GENERATOR

25 - 2500 MHz

1.2 Configuration at Start-Up

To configure the PLL after power up, follow the instructions below:

1. Configure the reference divider (write to Reg 02h), if required.

2. Configure the delta-sigma modulator (write to Reg 06h).

• Configuration involves selecting the mode of the delta-sigma modulator (Mode A or Mode B),

selection of the delta-sigma modulator seed value, and configuration of the delta-sigma modulator

clock scheme. It is recommended to use the values found in the Hittite PLL evaluation board

control software register files.

3. Configure the charge pump current and charge pump offset current (write to Reg 09h)

4. Configure the VCO Subsystem (write to Reg 05h, for more information see section 1.3.1, and “VCO

Subsystem Register Map. Detailed writes to the VCO subsystem via PLL Reg 05h at start-up are

available in the Register Setting Files found in the Hittite PLL Evaluation Software received with a

product evaluation kit or downloaded from www.hittite.com.

5. Program the frequency of operation

• Program the integer part (write to Reg 03h)

• Program the fractional part (write to Reg 04h)

6. Configure the VCO output divider, if needed in the VCO subsystem via PLL Reg 05h.

Once the HMC1035LP6GE is configured after startup, in most cases the user only needs to change

frequencies by writing to Reg 03h integer register, Reg 04h fractional register, and Reg 05h to change the

VCO output divider or doubler setting if needed, and possibly adjust the charge pump settings by writing

to Reg 09h

For detailed and most up-to-date start-up configuration please refer to the appropriate Register Setting

Files found in the Hittite PLL Evaluation Software received with a product evaluation kit or downloaded

from www.hittite.com.

1.3 VCO Serial Port Interface (SPI)

The HMC1035LP6GE communicates with the internal VCO subsystem via an internal 16 bit VCO Serial

Port, (e.g. see Figure 25). The internal serial port is used to control the step tuned VCO and other VCO

subsystem functions, such as RF output divider / doubler control and RF buffer enable.

Note that the internal VCO subsystem SPI (VSPI) runs at the rate of the AutoCal FSM clock, TFSM,

where the FSM clock frequency cannot be greater than 50 MHz. The VSPI clock rate is set by

Reg 0Ah[14:13] with a default setting = 1, or XREFP divided by 4.

Writes to the VCO’s control registers are handled indirectly, via writes to Reg 05h of the PLL. A write to PLL

Reg 05h causes the PLL subsystem to forward the packet, MSB first, across its internal serial link to the

VCO subsystem, where it is interpreted.

The VCO serial port has the capability to communicate with multiple subsystems inside the IC. For this

reason each subsystem has a subsystem ID, Reg 05h[2:0].

Each subsystem has multiple registers to control the functions internal to the subsystem, which may be

different from one subsystem to the next. Hence each subsystem has internal register addresses bits

(“Reg 05h”6:3])

Finally the data required to configure each register within the VCO subsystem is contained in Reg 05h[15:7].

Information furnished by Analog Devices is believed to be accurate and reliable. However, no

responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other

rights of third parties that may result from its use. Specifications subject to change without notice. No

license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

Trademarks and registered trademarks are the property of their respective owners.

For price, delivery, and to place orders: Analog Devices, Inc.,

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106

Phone: 781-329-4700 • Order online at www.analog.com

Application Support: Phone: 1-800-ANALOG-D

ANALOG DEVICES may H

For price, delivery and to place orders: Hittite Microwave Corporation, 2 Elizabeth Drive, Chelmsford, MA 01824

Phone: 978-250-3343 Fax: 978-250-3373 Order On-line at www.hittite.com

Application Support: Phone: 978-250-3343 or apps@hittite.com

CLOCK GENERATORS - SMT

HMC1035LP6GE

v02.0614

HIGH PERFORMANCE, +3.3 V CLOCK GENERATOR

25 - 2500 MHz

1.3.1 VSPI Use of Reg05h

The packet data written into, Reg 05h is sub-parsed by logic at the VCO subsystem into the following 3

fields:

1. [2:0] - 3 bits - VCO_ID, target subsystem address = 000b.

2. [6:3] - 4 bits - VCO_REGADDR, the internal register address inside the VCO subsystem.

3. [15:7] - 9- bits- VCO_DATA, data field to write into the VCO register.

For example, to write 0_0011_1110 into register 2 of the VCO subsystem (VCO_ID = ‘000’b), and set the

VCO output divider to divide by 62, the following needs to be written to Reg 05h =’0_0011_1110, 0010, 000’

During AutoCal, the AutoCal controller only updates the data field of Reg 05h. The VCO subsystem register

address (Reg 05h[6:3]) must be set to 0000 for the AutoCal data to be sent to the correct address.

VCO subsystem ID and register address are not modified by the AutoCal state machine. Hence, if a

manual access is done to a VCO Subsystem register the user must reset the register address to zero

before a change of frequency which will re-run AutoCal.

Since every write to Reg 05h will result in a transfer of data to the VCO subsystem, if the VCO

subsystem needs to be reset manually, it is important to make sure that the VCO switch settings are

not changed. Hence the switch settings in Reg 10h[7:0] need to be read first, and then rewritten to

Reg 05h[15:8].

In summary, first read “Reg 10h”, then write to “Reg 05h” as follows:

Reg 10h[7:0] = vv x yyyyy

Reg 05h = vv x yyyyy 0 0000 iii

Reg 05h[2:0] = iii, subsystem ID, 3 bits (000)

Reg 05h[6:3] = 0000, subsystem register address

Reg 05h[7] = 0 , calibration tune voltage off

Reg 05h[12:8] = yyyyy, VCO caps

Reg 05h[13] = x, don’t care

Reg 05h[15:14] = vv, VCO Select

1.0 PLL Register Map

1.1 Reg 00h ID Register (Read Only)

Bit Type Name Width Default Description

[23:0] RO chip_ID 24 A7975 HMC1035LP6GE chip ID

1.2 Reg 00h Open Mode Read Address/RST Strobe Register (Write Only)

Bit Type Name Width Default Description

[4:0] WO Read Address 5 - (WRITE ONLY) Read Address for next cycle - Open Mode

Only

[5] WO Soft Reset 1 - Soft Reset - both SPI modes reset (set to 0 for proper

operation)

[23:6] WO Not Defined 18 - Not Defined (set to 0 for proper operation)

Information furnished by Analog Devices is believed to be accurate and reliable. However, no

responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other

rights of third parties that may result from its use. Specifications subject to change without notice. No

license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

Trademarks and registered trademarks are the property of their respective owners.

For price, delivery, and to place orders: Analog Devices, Inc.,

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106

Phone: 781-329-4700 • Order online at www.analog.com

Application Support: Phone: 1-800-ANALOG-D

ANALOG DEVICES may é? *

For price, delivery and to place orders: Hittite Microwave Corporation, 2 Elizabeth Drive, Chelmsford, MA 01824

Phone: 978-250-3343 Fax: 978-250-3373 Order On-line at www.hittite.com

Application Support: Phone: 978-250-3343 or apps@hittite.com

CLOCK GENERATORS - SMT

HMC1035LP6GE

v02.0614

HIGH PERFORMANCE, +3.3 V CLOCK GENERATOR

25 - 2500 MHz

1.3 Reg 01h RST Register

(Default 000002h)

Bit Type Name Width Default Description

[0] R/W Reserved 1 0 Reserved

[1] R/W Reserved 1 1 Reserved

[2] R/W Reserved 1 0 Reserved

[3] R/W Reserved 1 0 Reserved

[4] R/W Reserved 1 0 Reserved

[5] R/W Reserved 1 0 Reserved

[6] R/W Reserved 1 0 Reserved

[7] R/W Reserved 1 0 Reserved

[8] R/W Reserved 1 0 Reserved

[9] R/W Reserved 1 0 Reserved

1.4 Reg 02h REFDIV Register

(Default 000001h)

Bit Type Name Width Default Description

[13:0] R/W rdiv 14 1

Reference Divider ’R’ Value “

Divider use also requires refBufEn Reg08[3]=1and Divider

min 1d

max 16383d

1.5 Reg 03h Frequency Register - Integer Part

(Default 000019h)

Bit Type Name Width Default Description

[18:0] R/W intg 19 25d

VCO Divider Integer part, used in all modes)

Fractional Mode

min 20d

max 219 -4 = 7FFFCh = 524,284d

Integer Mode

min 16d

max 219-1 = 7FFFFh = 524,287d

1.6 Reg 04h Frequency Register - Fractional Part

(Default 000000h)

Bit Type Name Width Default Description

[23:0] R/W frac 24 0

VCO Divider Fractional part (24-bit unsigned) see

Fractional Frequency Tuning

Used in Fractional Mode only (Nfrac=Reg 04h/224

min 0d

max 224-1

Information furnished by Analog Devices is believed to be accurate and reliable. However, no

responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other

rights of third parties that may result from its use. Specifications subject to change without notice. No

license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

Trademarks and registered trademarks are the property of their respective owners.

For price, delivery, and to place orders: Analog Devices, Inc.,

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106

Phone: 781-329-4700 • Order online at www.analog.com

Application Support: Phone: 1-800-ANALOG-D

ANALOG DEVICES may

For price, delivery and to place orders: Hittite Microwave Corporation, 2 Elizabeth Drive, Chelmsford, MA 01824

Phone: 978-250-3343 Fax: 978-250-3373 Order On-line at www.hittite.com

Application Support: Phone: 978-250-3343 or apps@hittite.com

CLOCK GENERATORS - SMT

HMC1035LP6GE

v02.0614

HIGH PERFORMANCE, +3.3 V CLOCK GENERATOR

25 - 2500 MHz

1.7 Reg 05h VCO SPI Register

(Default 000000h)

Bit Type Name Width Default Description

[2:0] R/W VCO Subsystem_ID, 3 0 Internal VCO Subsystem ID

[6:3] R/W VCO Subsystem register address 4 0 For interfacing with the VCO please see section 1.3.1.

[15:7] R/W VCO Subsystem data 9 0 Data

Note:Reg 05h is a special register used for indirect addressing of the VCO subsystem. Writes to Reg 05h are

automatically forwarded to the VCO subsystem by the VCO SPI state machine controller.

Reg05h is a Read-Write register. However, Reg05h only holds the contents of the last transfer to the VCO subsystem.

Hence it is not possible to read the full contents of the VCO subsystem. Only the content of the last transfer to the

VCO subsystem can be read. Please take note special considerations for AutoCal related to Reg 05h

1.8 Reg 06h SD CFG Register

(Default 200B4Ah)

Bit Type Name Width Default Description

[1:0] R/W seed 2 2

Selects the Seed in Fractional Mode

00: 0 seed

01: lsb seed

02: B29D08h seed

03: 50F1CDh seed

Note; Writes to this register are stored in the

HMC1035LP6GE and are only loaded into the modulator

when a frequency change is executed and if AutoSeed

Reg06h[8] =1

[3:2] R/W Reserved 2 2 Reserved

[6:4] R/W Reserved 3 4 Reserved

[7] R/W frac_bypass 1 0

0: Use Modulator, Required for Fractional Mode,

1: Bypass Modulator, Required for Integer Mode

Note: In bypass fractional modulator output is ignored,

but fractional modulator continues to be clocked if frac_

rstb =1, Can be used to test the isolation of the digital

fractional modulator from the VCO output in integer mode

[8] R/W Reserved 1 1 Reserved

[9] R/W Reserved 1 1 Reserved

[10] R/W Reserved 1 0 Program 1

[11] R/W SD Enable 1 1

0: disable frac core, use for Integer Mode or Integer Mode

with CSP

1: Enable Frac Core, required for Fractional Mode, or

Integer isolation testing

This register controls whether AutoCal starts on an

Integer or a Fractional write

[12] R/W Reserved 1 0 Reserved

[13] R/W Reserved 1 0 Reserved

[15:14] R/W Reserved 2 0 Reserved

[17:16] R/W Reserved 2 0 Reserved

[18] R/W Reserved 1 0 Reserved

[20:19] R/W Reserved 2 0 Reserved

[21] R/W Reserved 1 1 Program 0

[22] R/W Reserved 1 0 Reserved

Information furnished by Analog Devices is believed to be accurate and reliable. However, no

responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other

rights of third parties that may result from its use. Specifications subject to change without notice. No

license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

Trademarks and registered trademarks are the property of their respective owners.

For price, delivery, and to place orders: Analog Devices, Inc.,

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106

Phone: 781-329-4700 • Order online at www.analog.com

Application Support: Phone: 1-800-ANALOG-D

ANALOG DEVICES Rnﬂs/ T = IOns-e LOCK WINDOW LocK WINDOW DETEE’T WINDOW SDNHZ PW —‘| We WITH JI'ITER Iﬂ

For price, delivery and to place orders: Hittite Microwave Corporation, 2 Elizabeth Drive, Chelmsford, MA 01824

Phone: 978-250-3343 Fax: 978-250-3373 Order On-line at www.hittite.com

Application Support: Phone: 978-250-3343 or apps@hittite.com

CLOCK GENERATORS - SMT

HMC1035LP6GE

v02.0614

HIGH PERFORMANCE, +3.3 V CLOCK GENERATOR

25 - 2500 MHz

1.9 Lock Detect:

HMC1035LP6GE features a robust digital lock detect function that provides faster and more accurate lock detect

information compared to conventional analog lock detect schemes, and offers serial port monitoring of lock detect for

visibility into device status from the host controller.

Lock Detect Enable Reg 07h[3]=1 is a global enable for all lock detect functions. The Lock Detect circuit effectively

measures the difference between the arrival of the reference and the divided VCO signals at the Phase Detector. The

arrival time difference must consistently be less than the Lock Detect window length, to declare lock. Either signal may

arrive first, only the difference in arrival times is considered.

wincnt_max in Reg 07h[2:0] defines the number of consecutive counts of the divided VCO that must land inside the

lock detect window to declare lock.

1.9.1 Analog or Digital Lock Detect

Analog Lock Detect

The lock detect window may be generated by either an analog one shot circuit or a digital one shot based upon an in-

ternal timer. Clearing Reg 07h[6]=0 will result in a fixed, analog, nominal 10 ns window, as shown in Figure 28 below.

The analog window cannot be used if the PD rate is above 50 MHz, or if the charge pump offset is too large. If charge

pump offset or PD frequency are changed significantly then the lock detect window may need to be adjusted.

Figure 28. Lock Detect

1.9.2 Digital Lock Detect:

Setting Reg 07h[6]=1 will result in a variable length lock detect window based upon an internal digital timer. The timer

period is set by the number of cycles of the internal LD clock as programmed by Reg 07h[9:7]. The LD clock frequen-

cy is adjustable by Reg 07h[11:10]. The LD clock signal (Ring Osc) can be viewed via the GPO test pins.

Optimal spectral performance in fractional mode requires CP current and CP offset current configuration discussed

in detail in section 1.11 Charge Pump Current Selection. These settings in Reg 09h impact the required LD window

size in fractional mode of operation. To function, the required lock detect window size is provided by (EQ 1).

Information furnished by Analog Devices is believed to be accurate and reliable. However, no

responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other

rights of third parties that may result from its use. Specifications subject to change without notice. No

license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

Trademarks and registered trademarks are the property of their respective owners.

For price, delivery, and to place orders: Analog Devices, Inc.,

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106

Phone: 781-329-4700 • Order online at www.analog.com

Application Support: Phone: 1-800-ANALOG-D

ANALOG DEVICES may

For price, delivery and to place orders: Hittite Microwave Corporation, 2 Elizabeth Drive, Chelmsford, MA 01824

Phone: 978-250-3343 Fax: 978-250-3373 Order On-line at www.hittite.com

Application Support: Phone: 978-250-3343 or apps@hittite.com

CLOCK GENERATORS - SMT

HMC1035LP6GE

v02.0614

HIGH PERFORMANCE, +3.3 V CLOCK GENERATOR

25 - 2500 MHz

( )

( ) ( ) ( ) ( )

( )

2.66 10 sec

LD Window seconds in Fractional Mode

LD Window seconds in Integer Mode

CP Offset

PD CP PD

F Hz I A F Hz

−





+× +





=×

where:

FPD: is the comparison frequency of the Phase Detector

ICP Offset : is the Charge Pump Offset Current Reg 09h[20:14]

ICP: is the full scale current setting of the switching charge pump Reg 09h[6:0], or Reg 09h[13:7]

(EQ 1)

If the result provided by (EQ 1) is equal to 10 ns Analog LD can be used (Reg 07h[6] = 0). Otherwise Digital LD is

necessary Reg 07h[6] = 1.

Table 17 provides the required Reg 07h settings to appropriately program the Digital LD window size. From Table 17,

simply select the closest value in the “Digital LD Window Size” columns to the one calculated in (EQ 1) and program

Reg 07h[11:10] and Reg 07h[9:7] accordingly.

Table 17. Typical Digital Lock Detect Window

LD Timer Speed

Reg07[11:10]

Digital Lock Detect Window Size

Nominal Value (ns)

Fastest 00 6.5 811 17 29 53 100 195

01 78.9 12.8 21 36 68 130 255

10 7.1 9.2 13.3 22 38 72 138 272

Slowest 11 7.6 10.2 15.4 26 47 88 172 338

LD Timer Divide Setting

Reg07[9:7] 000 001 010 011 100 101 110 111

1.9.2.1 Digital Window Configuration Example

Assuming, fractional mode, with a 50 MHz PD and

• Charge Pump gain of 2 mA (Reg 09h[13:7] = 64h, Reg 09h[6:0] = 64h),

• Up Offset (Reg 09h[22:21] = ‘01’b)

• and Offset current magnitude of +400 µA (Reg 09h[20:14] = 50h)

Applying (EQ 1), the required LD window size is:

( )

( ) ( ) ( ) ( )

63 6

0.4 10 1

2.66 10 sec

50 10 2 10 50 10

LD Window seconds 13.33 nsec

Hz x A Hz

−−

−





+× +



×× ×



= =

(EQ 2)

Locating the Table 17 value that is closest to the (EQ 2) result, in this case 13.3 ≈ 13.33. To set the Digital LD window

size, simply program Reg 07h[11:10] = ‘10’b and Reg 07h[9:7] = ‘010’b according to Table 17.

There is always a good solution for the lock detect window for a given operating point. The user should understand

however that one solution does not fit all operating points. As observed from (EQ 1), if charge pump offset or PD

frequency are changed significantly then the lock detect window may need to be adjusted.

Information furnished by Analog Devices is believed to be accurate and reliable. However, no

responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other

rights of third parties that may result from its use. Specifications subject to change without notice. No

license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

Trademarks and registered trademarks are the property of their respective owners.

For price, delivery, and to place orders: Analog Devices, Inc.,

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106

Phone: 781-329-4700 • Order online at www.analog.com

Application Support: Phone: 1-800-ANALOG-D

ANALOG DEVICES Rnﬂs/

For price, delivery and to place orders: Hittite Microwave Corporation, 2 Elizabeth Drive, Chelmsford, MA 01824

Phone: 978-250-3343 Fax: 978-250-3373 Order On-line at www.hittite.com

Application Support: Phone: 978-250-3343 or apps@hittite.com

CLOCK GENERATORS - SMT

HMC1035LP6GE

v02.0614

HIGH PERFORMANCE, +3.3 V CLOCK GENERATOR

25 - 2500 MHz

1.9.3 Declaration of Lock:

The Lock Detect Flag status is always readable in Reg 12h[1], if locked = 1. Lock Detect status is also output to the

LD_SDO pin according to Reg 0Fh[4:0]=1. Again, if locked, LD_SDO will be high. Clearing Reg 0Fh[6]=0 will display

the Lock Detect Flag on LD_SDO except when a serial port read is requested, in which case the pin reverts temporar-

ily to the Serial Data Out pin, and returns to the Lock Detect Flag after the read is completed.

1.9.4 Reg 07h Lock Detect Register

(Default 00014Dh)

Bit Type Name Width Default Description

[2:0] R/W lkd_wincnt_max 35d

lock detect window

sets the number of consecutive counts of divided VCO

that must land inside the Lock Detect Window to declare

LOCK

0: 5

1: 32

2: 96

3: 256

4: 512

5: 2048

6: 8192

7: 65535

[3] R/W Enable Internal Lock Detect 1 1 1: Enabled

[5:4] R/W Reserved 2 0 Reserved

[6] R/W Lock Detect Window type 1 1

Lock Detection Window Timer Selection

1: Digital programmable timer

0: Analog one shot, nominal 10 ns window

[9:7] R/W LD Digital Window duration 3 2

0 Lock Detection - Digital Window Duration

0: 1/2 cycle

1: 1 cycle

2: 2 cycles

3: 4 cycles

4: 8 cycles

5: 16 cycles

6: 32 cycles

7: 64 cycles

[11:10] R/W LD Digital Timer Frequency

Control 2 0 Lock Detect Digital Timer Frequency Control “00” fastest,

“11” slowest

[12] R/W Reserved 1 0 Reserved

[13] R/W Reserved 1 0 Reserved

Information furnished by Analog Devices is believed to be accurate and reliable. However, no

responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other

rights of third parties that may result from its use. Specifications subject to change without notice. No

license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

Trademarks and registered trademarks are the property of their respective owners.

For price, delivery, and to place orders: Analog Devices, Inc.,

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106

Phone: 781-329-4700 • Order online at www.analog.com

Application Support: Phone: 1-800-ANALOG-D

ANALOG DEVICES Rnﬂs/

For price, delivery and to place orders: Hittite Microwave Corporation, 2 Elizabeth Drive, Chelmsford, MA 01824

Phone: 978-250-3343 Fax: 978-250-3373 Order On-line at www.hittite.com

Application Support: Phone: 978-250-3343 or apps@hittite.com

CLOCK GENERATORS - SMT

HMC1035LP6GE

v02.0614

HIGH PERFORMANCE, +3.3 V CLOCK GENERATOR

25 - 2500 MHz

1.10 Reg 08h Analog EN Register

(Default C1BEFFh)

Bit Type Name Width Default Description

[0] R/W Reserved 1 1 Reserved

[1] R/W Reserved 1 1 Reserved

[2] R/W Reserved 1 1 Reserved

[3] R/W Reserved 1 1 Reserved

[4] R/W Reserved 1 1 Reserved

[5] R/W gpo_pad_en 1 1

0 - Pin LD_SDO disabled

1 - and RegFh[7]=1 , Pin LD_SDO is always on required

for use of GPO port

1 - and RegFh[7]=0 SPI LDO_SPI is off if unmatched chip

address is seen on the SPI, allowing a shared SPI with

other compatible parts

[6] R/W Reserved 1 1 Reserved

[7] R/W Reserved 1 1 Reserved

[8] R/W Reserved 1 0 Reserved

[9] R/W Prescaler Clock enable 1 1 Reserved

[10] R/W VCO Buffer and Prescaler

Bias Enable 1 1 VCO Buffer and Prescaler Bias Enable

[11] R/W Reserved 1 1 Reserved

[14:12] R/W Reserved 3 011 Reserved

[17:15] R/W Reserved 3 011 Reserved

[18] R/W Reserved 1 0 Reserved

[19] R/W Reserved 1 0 Reserved

[20] R/W Reserved 1 0 Reserved

[21] R/W High Frequency Reference 1 0 Program to 1 for XTAL > 200 MHz

[22] R/W Reserved 1 1 Reserved

[23] R/W Reserved 1 1 Reserved

1.11 Charge Pump Current Selection

HMC1035LP6GE features provides a charge pump current with programmable gain. This enables the user to refine

and maintain optimal PLL loop bandwidth over a wide range of output frequencies and feedback divide ratios.

A straight forward method for determining the charge pump gain setting for a fixed loop filter (e.g., 127 kHz) and

reference frequency (e.g., 50MHz) is to follow the following equation:

Icp_up = Icp_dn = 1.1mA + (2.3mA – 1.1mA) * (Fvco – 1.5 GHz) / (3 GHz – 1.5 GHz)

Here, charge pump current (Icp) is linearly modified to compensate for the feedback divide ratio (N) as it

scales with VCO output frequency (Fvco).

The charge pump current is set by register configuration (Reg_09h [6:0] and Reg_09h [13:7]).

Charge Pump Phase Offset – Fractional Mode

The HMC1035LP6GE provides a programmable charge pump phase offset feature to aid in minimizing integer

boundary spurs and maintain low in-band phase noise, while the PLL is in Fractional Mode of operation.

Phase offset is achieved by introducing a constant “leakage” current into the loop filter. The amount of leak-

Information furnished by Analog Devices is believed to be accurate and reliable. However, no

responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other

rights of third parties that may result from its use. Specifications subject to change without notice. No

license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

Trademarks and registered trademarks are the property of their respective owners.

For price, delivery, and to place orders: Analog Devices, Inc.,

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106

Phone: 781-329-4700 • Order online at www.analog.com

Application Support: Phone: 1-800-ANALOG-D

ANALOG DEVICES Rnﬂs/

For price, delivery and to place orders: Hittite Microwave Corporation, 2 Elizabeth Drive, Chelmsford, MA 01824

Phone: 978-250-3343 Fax: 978-250-3373 Order On-line at www.hittite.com

Application Support: Phone: 978-250-3343 or apps@hittite.com

CLOCK GENERATORS - SMT

HMC1035LP6GE

v02.0614

HIGH PERFORMANCE, +3.3 V CLOCK GENERATOR

25 - 2500 MHz

age current that is recommended is related to the charge pump gain (Icp) and the PFD comparison frequency

(Fcomp) by the following equation(s):

Tcomp = 1 / Fcomp

I_leak = (2.5x10-9 + 4*Tvco) * Icp / Tcomp

Where:

Tvco: is the RF period at the input of the feedback divider

Icp: is the selected charge pump current

Leakage (I_leak) can be applied with either positive or negative current driven into the loop filter, (“up” or “down”

respectively). Up leakage is recommended for the HMC1035LP6GE.

Leakage magnitude and direction are set through registers Reg_09h [20:14] and Reg_09h [22], respectively.

1.12 Reg 09h Charge Pump Register

(Default 403264h)

Bit Type Name Width Default Description

[6:0] R/W CP DN Gain 7 100d

64h

Charge Pump DN Gain Control 20 µA√step

Affects fractional phase noise and lock detect settings

0d = 0 µA

1d = 20 µA

2d = 40 µA

...

127d = 2.54mA

[13:7] R/W CP UP Gain 7 100d

64h

Charge Pump UP Gain Control 20 µA per step

Affects fractional phase noise and lock detect settings

0d = 0 µA

1d = 20 µA

2d = 40 µA

...

127d = 2.54mA

[20:14] R/W Offset Magnitude 7 0

Charge Pump Offset Control 5 µA/step

Affects fractional phase noise and lock detect settings

0d = 0 µA

1d = 5 µA

2d = 10 µA

...

127d = 635 µA

[21] R/W Offset UP enable 1 0 recommended setting = 1 in Fractional Mode, 0 otherwise

[22] R/W Offset DN enable 1 1 recommended setting = 0

[23] R/W Reserved 1 0 Reserved

Information furnished by Analog Devices is believed to be accurate and reliable. However, no

responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other

rights of third parties that may result from its use. Specifications subject to change without notice. No

license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

Trademarks and registered trademarks are the property of their respective owners.

For price, delivery, and to place orders: Analog Devices, Inc.,

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106

Phone: 781-329-4700 • Order online at www.analog.com

Application Support: Phone: 1-800-ANALOG-D

ANALOG DEVICES Rnﬂs/

For price, delivery and to place orders: Hittite Microwave Corporation, 2 Elizabeth Drive, Chelmsford, MA 01824

Phone: 978-250-3343 Fax: 978-250-3373 Order On-line at www.hittite.com

Application Support: Phone: 978-250-3343 or apps@hittite.com

CLOCK GENERATORS - SMT

HMC1035LP6GE

v02.0614

HIGH PERFORMANCE, +3.3 V CLOCK GENERATOR

25 - 2500 MHz

1.13 Reg 0Ah VCO AutoCal Configuration Register

(Default 002205h)

Bit Type Name Width Default Description

[2:0] R/W Vtune Resolution 3 5

R Divider Cycles

0 - 1

1 - 2

2 - 4

3 - 8

4 - 32

5 - 64

6 - 128 Program this value

7 - 256

[5:3] R/W Reserved 3 0 Reserved

[7:6] R/W Reserved 2 0 Program 01

[9:8] R/W Reserved 2 0 Reserved

[10] R/W Force Curve 1 0 Program 0

[11] R/W Bypass VCO Tuning 1 0 Program 0 for normal operation using VCO auto

calibration

[12] R/W No VSPI Trigger 1 0 Program 0 for normal operation. If 1, serial transfers to

VCO sub-system (via Reg 05h) are disabled

[14:13] R/W FSM/VSPI Clock Select 2 1

Set the AutoCal FSM and VSPI Clock (50 MHz maximum)

0: Input Crystal Reference

1: Input Crystal Reference/4

2: Input Crystal Reference/16

3: Input Crystal Reference/32

[15] R/W Reserved 1 0 Program 0 for normal operation. Program 1 only for BIST

use

[16] R/W Reserved 1 0 Reserved

Information furnished by Analog Devices is believed to be accurate and reliable. However, no

responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other

rights of third parties that may result from its use. Specifications subject to change without notice. No

license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

Trademarks and registered trademarks are the property of their respective owners.

For price, delivery, and to place orders: Analog Devices, Inc.,

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106

Phone: 781-329-4700 • Order online at www.analog.com

Application Support: Phone: 1-800-ANALOG-D

ANALOG DEVICES Rnﬂs/

For price, delivery and to place orders: Hittite Microwave Corporation, 2 Elizabeth Drive, Chelmsford, MA 01824

Phone: 978-250-3343 Fax: 978-250-3373 Order On-line at www.hittite.com

Application Support: Phone: 978-250-3343 or apps@hittite.com

CLOCK GENERATORS - SMT

HMC1035LP6GE

v02.0614

HIGH PERFORMANCE, +3.3 V CLOCK GENERATOR

25 - 2500 MHz

1.14 Reg 0Bh PD Register

(Default 0F8061h)

Bit Type Name Width Default Description

[2:0] R/W PD_del_sel 3 1 Sets PD reset path delay (Recommended setting 001)

[3] R/W Reserved 1 0 Reserved

[4] R/W Reserved 1 0 Reserved

[5] R/W PD_up_en 1 1 Enables the PD UP output

[6] R/W PD_dn_en 1 1 Enables the PD DN output

[8:7] R/W CSP Mode 2 0

Cycle Slip Prevention Mode

Extra current is driven into the loop filter when the phase

error is larger than:

0: Disabled

1: 5.4ns

2: 14.4ns

3: 24.1ns

This delay varies by +- 10% with temperature, and +- 12%

with process.

[9] R/W Force CP UP 1 0 Forces CP UP output on - Use for Test only

[10] R/W Force CP DN 1 0 Forces CP DN output on - Use for Test only

[11] R/W Reservedl 1 0 Reserved

[14:12] R/W Reserved 3 0 Reserved

[16:15] R/W Reserved 2 3 Reserved

[18:17] R/W Reserved 2 3 Reserved

[19] R/W reserved 1 1 Reserved

[21:20] R/W reserved 2 0 Reserved

[23:22] R/W reserved 2 0 Reserved

1.15 Exact Frequency Mode

Hittite’s family of clock generation products have a unique feature called exact frequency mode which allows nearly

arbitrary frequency conversion, or “gear” ratios.

There are 5 registers which control the 3 frequency dividers in the part, and thus the overall frequency translation

ratio:

1) Reference Divider (R) – PLL Register 2 - Takes in up to 350MHz reference, and optionally divides

down to < 100MHz for the PFD comparison rate.

2) VCO N-Divider (NDIV) – Integer (PLL Reg 3) + Fractional section (PLL Reg 4). Accepts values from

16 to 525287 in integer mode, or 20.0 to 242284.0 in fractional mode

3) VCO Output Divider (NOUT) – VCO Register 2.

The output frequency is given by:

Gear Ratio = (1/R) * (NDIV) * (1/NOUT)

Since the PLL supports a fractional division ratio, N can be further broken down into a fraction N = (M/N).

To achieve a certain multiplication ratio, we recommend the following procedure – along with a worked example.

Information furnished by Analog Devices is believed to be accurate and reliable. However, no

responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other

rights of third parties that may result from its use. Specifications subject to change without notice. No

license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

Trademarks and registered trademarks are the property of their respective owners.

For price, delivery, and to place orders: Analog Devices, Inc.,

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106

Phone: 781-329-4700 • Order online at www.analog.com

Application Support: Phone: 1-800-ANALOG-D

ANALOG DEVICES Rnﬂs/

For price, delivery and to place orders: Hittite Microwave Corporation, 2 Elizabeth Drive, Chelmsford, MA 01824

Phone: 978-250-3343 Fax: 978-250-3373 Order On-line at www.hittite.com

Application Support: Phone: 978-250-3343 or apps@hittite.com

CLOCK GENERATORS - SMT

HMC1035LP6GE

v02.0614

HIGH PERFORMANCE, +3.3 V CLOCK GENERATOR

25 - 2500 MHz

Example: Assume we want a multiplication ratio of M/N = 944/255, with an input frequency of

168.04MHzThus fout ~ 622MHz.

1) Calculate NOUT: Determine the fundamental frequency of the VCO, relative to your desired output frequency.

The VCO cores run internally from 1.5 to 3GHz.

a. Since the VCO output divider is only capable of even division ratios, there is a factor of ‘2’ in the

calculation.

b. NOUT = 2*floor(fmax/(2*fout))

eg. NOUT = 2 * floor ( 3G / 2*622M )

NOUT=2 * floor (2.41… )

NOUT = 2 * 2

NOUT = 4

So the VCO will run at ~ 4 * 622 MHz.

2) Calculate RDIV: Determine if the Rdivider needs to be used to keep the PFD rate under its limit, and if so, its

value.

a. The PFD comparison rate can be as high as 100MHz. To avoid a 2 stage locking process, we rec-

ommend running the PFD below 70MHz.

b. R = ceiling ( fpfd_max / freference )

eg. R = ceiling ( 168.04MHz / 70 MHz)

R = ceiling ( 2.4 )

R = 3

So the PFD comparison rate will be 168.04MHz / 3, or ~ 56MHz

3) Calculate NDIV: We have now determined an R and NOUT value which keep the PLL in a valid operating condi-

tion, and we are left to choose the fractional division ratio NDIV which provides the desired gear ratio.

a. Calculate the desired NDIV value (which could be a fraction) , such that your overall gear ratio is

maintained:

i. (M / N)_desired = (1/R) * NDIV * (1/NOUT)

ii. NDIV = (M / N)_desired * R * NOUT

eg. NDIV = (944 / 255 ) * 3 * 4

NDIV = 11328 / 255

b. Reduce the fraction into a integer + fractional portion:

eg. NDIV = 11328 / 255

NDIV = 44 + 108/255 = NINT + (NUM / DEN)

NDIV = ~ 44 + 0.423…

c. Confirm that the minimum divide ratio limit is respected. In fractional mode, the minimum divide ratio

is 20.0, in integer mode it is 16. If NDIV is too low, increase the reference divide ratio (step 2b), and

recalculate. For example, doubling the reference divide ratio R, will double the corresponding NDIV

setting.

eg. In this example, NDIV of ~ 44.4 is > 20.0, so it is accetptable and R of 3 is okay.

4) Calculate the Integer, and approximate Fractional Setpoint to implement NDIV calculated in step 3.

Example

Nint = floor (NDIV)

Nint = 44

Nfrac = ceil(2^24 * (NDIV-Nint))

Nfrac = ceiling(16,777216 * 108/255) = ceiling(7,105,644.424) = 7,105,644 dec

5) Note that the 24-bit quantized NDIV ratio = 44 + (7,105,644 / 16,777,216) has a slight frequency offset of ~2.3Hz

relative to the desired ratio of 44 + 108/255. To eliminate this offset, and generate the exact multiplication ratio the

user desires, set the exact frequency counter (REG0Ch) to the reduced denominator as calculated in step 3b.

Exact Frequency Counter = DEN (from step 3b) eg. Set Register 0Ch = 255 dec.

Information furnished by Analog Devices is believed to be accurate and reliable. However, no

responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other

rights of third parties that may result from its use. Specifications subject to change without notice. No

license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

Trademarks and registered trademarks are the property of their respective owners.

For price, delivery, and to place orders: Analog Devices, Inc.,

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106

Phone: 781-329-4700 • Order online at www.analog.com

Application Support: Phone: 1-800-ANALOG-D

ANALOG DEVICES may W

For price, delivery and to place orders: Hittite Microwave Corporation, 2 Elizabeth Drive, Chelmsford, MA 01824

Phone: 978-250-3343 Fax: 978-250-3373 Order On-line at www.hittite.com

Application Support: Phone: 978-250-3343 or apps@hittite.com

CLOCK GENERATORS - SMT

HMC1035LP6GE

v02.0614

HIGH PERFORMANCE, +3.3 V CLOCK GENERATOR

25 - 2500 MHz

1.15.1 Reg 0Ch Exact Frequency Mode Register

(Default 000000h)

Bit Type Name Width Default Description

[13:0] R/W Number of Channels per Fpd 14 0

Comparison Frequency divided by the Correction Rate,

Must be an integer. Frequencies at exactly the correction

rate will have zero frequency error.

0: Disabled

1: Disabled

2:16383d (3FFFh)

1.16 GPO_LD/SDO Register

HMC1035LP6GE features a GPO (General Purpose Output) that enables users to control and read various states of

the device including PLL and VCO properties.

The HMC1035LP6GE shares the LD_SDO (Lock-Detect/Serial Data Out) pin to perform various functions. It is driv-

en by a tri-state CMOS driver with ~200  Rout. In its default configuration, after power-on-reset, the output driver

is disabled, and only drives during appropriately addressed SPI reads. This allows it to share the output with other

devices on the same bus. To monitor any of the GPO signals, including Lock Detect, set Reg 0Fh[7] = 1 to keep the

SDO driver always on. This stops the LDO driver from tristating and means that the SDO line cannot be shared with

other devices. The signals available on the GPO are selected by changing “GPO Select”, Reg 0Fh[4:0].

1.16.1 Reg 0Fh GPO_LD/SDO Register

(Default 000001h)

Bit Type Name Width Default Description

[4:0] R/W gpo_select 51d

Signal selected here is output to SDO pin when enabled

0: Data from Reg0F[5]

1: Lock Detect Output

2. Lock Detect Trigger

3: Lock Detect Window Output

4: Ring Osc Test

5. Pullup Hard from CSP

6. PullDN hard from CSP

7. Reserved

8: Reference Buffer Output

9: Ref Divider Output

10: VCO divider Output

11. Modulator Clock from VCO divider

12. Auxiliary Clock

13. Aux SPI Clock

14. Aux SPI Enable

15. Aux SPI Data Out

16. PD DN

17. PD UP

18. SD3 Clock Delay

19. SD3 Core Clock

20. AutoStrobe Integer Write

21. Autostrobe Frac Write

22. Autostrobe Aux SPI

23. SPI Latch Enable

24. VCO Divider Sync Reset

25. Seed Load Strobe

26.-29 Not Used

30. SPI Output Buffer En

31. Soft RSTB

[5] R/W GPO Test Data 1 0 1 - GPO Test Data

Information furnished by Analog Devices is believed to be accurate and reliable. However, no

responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other

rights of third parties that may result from its use. Specifications subject to change without notice. No

license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

Trademarks and registered trademarks are the property of their respective owners.

For price, delivery, and to place orders: Analog Devices, Inc.,

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106

Phone: 781-329-4700 • Order online at www.analog.com

Application Support: Phone: 1-800-ANALOG-D

ANALOG DEVICES RnﬂSv/

For price, delivery and to place orders: Hittite Microwave Corporation, 2 Elizabeth Drive, Chelmsford, MA 01824

Phone: 978-250-3343 Fax: 978-250-3373 Order On-line at www.hittite.com

Application Support: Phone: 978-250-3343 or apps@hittite.com

CLOCK GENERATORS - SMT

HMC1035LP6GE

v02.0614

HIGH PERFORMANCE, +3.3 V CLOCK GENERATOR

25 - 2500 MHz

1.16.1 Reg 0Fh GPO_LD/SDO Register

(Default 000001h)

Bit Type Name Width Default Description

[6] R/W Prevent Automux SDO 1 0 1- Outputs GPO data only

0 - Automuxes between SDO and GPO data

[7] R/W LDO Driver Always On 1 0 1- LD_SDO Pin Driver always on

0 - LD_SDO Pin driver only on during SPI read cycle

[8] R/W Disable PFET 1 0 program to 0

[9] R/W Disable NFET 1 0 program to 0

1.17 Reg 10h VCO Tune Register

(Default 000020h)

Bit Type Name Width Default Description

[7:0] RO VCO Switch Setting 832

Read Only Register. Indicates the VCO switch setting

selected by the AutoCal state machine to yield the

nearest free running VCO frequency to the desired

operating frequency. Not valid when Reg10h[8] = 1,

AutoCal Busy. Note if a manual change is done to the

VCO switch settings this register will not indicate the

current VCO switch position.

0 = highest frequency

1 = 2nd highest

...

255 = lowest frequency

Note: VCO subsystems may not use all the MSBs, in

which case the unused bits are don’t care

[8] RO AutoCal Busy 1 0 Busy when AutoCal state machine is searching for the

nearest switch setting to the requested frequency.

1.18 Reg 11h SAR Register

(Default 007FFFh)

Bit Type Name Width Default Description

[18:0] RO SAR Error Mag Counts 19 219-1 SAR Error Magnitude Counts

[19] RO SAR Error Sign 1 0 SAR Error Sign 0=+ve 1=-ve

1.19 Reg 12h GPO2 Register

(Default 000000h)

Bit Type Name Width Default Description

[0] RO GPO 1 0 GPO State

[1] RO Lock Detect 1 0

Lock Detect Status

1 = Locked

0 = Unlocked

1.20 Reg 13h BIST Register

(Default 000000h)

Bit Type Name Width Default Description

[15:0] RO Reserved 19 4697d Reserved

[16] RO Reserved 1 0 Reserved

Information furnished by Analog Devices is believed to be accurate and reliable. However, no

responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other

rights of third parties that may result from its use. Specifications subject to change without notice. No

license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

Trademarks and registered trademarks are the property of their respective owners.

For price, delivery, and to place orders: Analog Devices, Inc.,

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106

Phone: 781-329-4700 • Order online at www.analog.com

Application Support: Phone: 1-800-ANALOG-D

ANALOG DEVICES may

For price, delivery and to place orders: Hittite Microwave Corporation, 2 Elizabeth Drive, Chelmsford, MA 01824

Phone: 978-250-3343 Fax: 978-250-3373 Order On-line at www.hittite.com

Application Support: Phone: 978-250-3343 or apps@hittite.com

CLOCK GENERATORS - SMT

HMC1035LP6GE

v02.0614

HIGH PERFORMANCE, +3.3 V CLOCK GENERATOR

25 - 2500 MHz

2.0 VCO Subsystem Register Map

Please note that the VCO subsystem uses indirect addressing via Reg 05h. For more detailed information

on how to write to the VCO subsystem please see section 1.3 VCO Serial Port Interface (SPI).

2.1 VCO_Reg 00h Tuning

Bit Type Name Width Default Description

[0] WO Cal 1 0 VCO tune voltage is redirected to a temperature

compensated calibration voltage

[8:1] WO CAPS 816

VCO sub-band selection.

0 - max frequency

1111 1111 - min fre q uen c y.

Not all sub-bands are used on the various products.

2.2 VCO_Reg 01h Enables

Bit Type Name Width Default Description

[0] WO Master Enable VCO Subsystem 1 1 0 - All VCO subsystem blocks Off

[1] WO VCO Enable 1 1 Enables VCOs

[2] WO PLL Buffer Enable 1 1 Enables PLL Buffer to N Divider

[3] WO IO Master Enable 1 1 Enables output stage and the Output Divider. It does not

enable/disable the VCO.

[4] WO Spare 1 1 don’t care

[5] WO Output Stage Enable 1 1 Output Stage Enable

[7:6] WO Reserved 2 11 Reserved

[8] WO don’t care 1 1 don’t care

For example, to disable the output stage of the VCO subsystem of the HMC1035LP6GE, bit 5 in VCO_Reg 01h

needs to be cleared. If the other bits are left unchanged, then ‘1 1101 1111’ needs to be written into VCO_Reg 01h.

The VCO subsystem register is accessed via a write to PLL subsystemReg 05h = ‘1 1101 1111 0001 000’ = EF88h

Reg 05h[2:0] = 000; VCO subsystem ID 0

Reg 05h[6:3] = 0001; VCO subsystem register address

Reg 05h[7] = 1; Master enable

Reg 05h[8] = 1; VCO enable

Reg 05h[9] = 1; PLL Buffer enable

Reg 05h[10] = 1; IO Master enable

Reg 05h[11] = 1; Reserved

Reg 05h[12] = 0; Disable the output stage

Reg 05h[14:13] = ‘01’b

Reg 05h[15] = 1; don’t care

2.3 VCO_Reg 02h Biases

Bit Type Name Width Default Description

[5:0] WO RF Divide ratio 6 1

0 - Mute

1 - Fo

2 - Fo/2

3 - invalid, defaults to 2

4 - Fo/4

5 - invalid, defaults to 4

6 - Fo/6

...

60 - Fo/60

61 - invalid, defaults to 60

62 - Fo/62

> 62 - invalid, defaults to 62

[7:6] WO Reserved 2 0 Reserved

[8] WO Don’t Care 1 0 Don’t Care

Information furnished by Analog Devices is believed to be accurate and reliable. However, no

responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other

rights of third parties that may result from its use. Specifications subject to change without notice. No

license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

Trademarks and registered trademarks are the property of their respective owners.

For price, delivery, and to place orders: Analog Devices, Inc.,

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106

Phone: 781-329-4700 • Order online at www.analog.com

Application Support: Phone: 1-800-ANALOG-D

ANALOG DEVICES Rnﬂs/

For price, delivery and to place orders: Hittite Microwave Corporation, 2 Elizabeth Drive, Chelmsford, MA 01824

Phone: 978-250-3343 Fax: 978-250-3373 Order On-line at www.hittite.com

Application Support: Phone: 978-250-3343 or apps@hittite.com

CLOCK GENERATORS - SMT

HMC1035LP6GE

v02.0614

HIGH PERFORMANCE, +3.3 V CLOCK GENERATOR

25 - 2500 MHz

For example, to write 0_0011_1110 into VCO_Reg 03h VCO subsystem (VCO_ID = ‘000’b), and set the VCO output

divider to divide by 62, the following needs to be written to Reg 05h =’0_0011_1110, 0010, 000’ b.

Reg 05h[2:0] = 00; subsystem ID 0

Reg 05h[6:3] = 0010; VCO register address 2d

Reg 05h[16:7] = 0_0011_1110; Divide by 62

HMC1035LP6GE Power versus Performance Priority Modes:

The HMC1035LP6GE is designed with 2 major configuration options: Power Priority and Performance Priority. The

Power Priority setting reduces the current consumption of the part, whereas the Performance Priority setting improves

the Jitter and Phase Noise performance. The settings are selected via the appropriate SPI registers, VCO_Reg 03h

[1:0].

The “Power Priority Mode” is used in order to reduce the current consumption from 237 mA to 173 mA, such as may

be required in power sensitive applications, where the lowest phase noise performance may not be critical. The Power

Priority mode does not cause a reduction on the output signal power, but it degrades the phase noise, and thus jitter,

performance.

In order to realize the best phase noise and jitter performance, the HMC1035LP6GE should be operated in the

“Performance Priority Mode”. By invoking this mode, the phase noise will improve or decrease by 10 dB resulting in

a -163 dBc/Hz floor. The “Performance Priority Mode” is optimal in driving the sample clock inputs of ADC/DAC’s and

high speed SERDES reference clock inputs where jitter performance is of utmost importance.

The Power versus Performance Priority mode is set by the VCO_Reg03h bits [1:0] and the default condition is Power

Priority Mode, bit set to a logic 1.

2.4 VCO_Reg 03h Config

Bit Type Name Width Default Description

[1:0] WO Power- Performance Priroirty 2 2

Selects output noise floor performance level at a cost of

increased current consumption

01: Power Priority

Lowest Current Consumption

11: Performance Priority

Best Phase Noise

Other states (00 and 10) not supported.

[2] WO RF_P output enable 1 0

Logic 1 enables the output on RF_P pin.

Required for differential operation, or single-ended

output on RF_P pin.

[3] WO RF_N output enable 1 0

Logic 1 enables the output on RF_N pin.

Required for differential operation, or single-ended

output on RF_N pin.

[4] WO Internal Termination Enable 1 1

Logic 1 enables the internal bias termination, is used for

LVDS level outputs.

Set to logic 0 for external termination

[5] WO Increase Internal Output

Resistance 1 0 Logic 1 increases internal output termination by ~ 15 

on each pin (RF_N and RF_P)

[6] WO Reserved 1 0 Reserved

[8:7] WO Mute Mode 2 1

Defines when the Mute Function is enabled (the output

is muted):

•00: Mute enabled when divide ratio (VCO_Reg

02h[5:0] = 0

•01: During VCO Calibration (

•10: During VCO Calibration or when Lock Detect/

GPO output is off (For more information see section

GPO_LD/SDO Register

•11: Mute always On.

Information furnished by Analog Devices is believed to be accurate and reliable. However, no

responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other

rights of third parties that may result from its use. Specifications subject to change without notice. No

license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

Trademarks and registered trademarks are the property of their respective owners.

For price, delivery, and to place orders: Analog Devices, Inc.,

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106

Phone: 781-329-4700 • Order online at www.analog.com

Application Support: Phone: 1-800-ANALOG-D

ANALOG DEVICES may

For price, delivery and to place orders: Hittite Microwave Corporation, 2 Elizabeth Drive, Chelmsford, MA 01824

Phone: 978-250-3343 Fax: 978-250-3373 Order On-line at www.hittite.com

Application Support: Phone: 978-250-3343 or apps@hittite.com

CLOCK GENERATORS - SMT

HMC1035LP6GE

v02.0614

HIGH PERFORMANCE, +3.3 V CLOCK GENERATOR

25 - 2500 MHz

2.5 VCO_Reg 04h Cal/Bias

Specified performance is only guaranteed with the required settings in this table. Other settings are not

supported.

Bit Type Name Width Default Description

[0] WO Reserved 1 1 Reserved

[1] WO Reserved 1 0 Reserved

[2] WO Reserved 1 0 Reserved

[4:3] WO Reserved 2 1 Reserved

[6:5] WO Reserved 2 2 Reserved

[8:7] WO Reserved 2 1 Reserved

2.6 VCO_Reg05h CF_Cal

Bit Type Name Width Default Description

[1:0] WO Reserved 2 2 Reserved

[3:2] WO Reserved 2 2 Reserved

[5:4] WO Reserved 2 2 Reserved

[7:6] WO Reserved 2 2 Reserved

[8] WO Reserved 1 0 Reserved

2.7 VCO_Reg06h MSB Cal

Bit Type Name Width Default Description

[1:0] WO Reserved 2 3 Reserved

[3:2] WO Reserved 2 3 Reserved

[5:4] WO Reserved 2 3 Reserved

[7:6] WO Reserved 2 3 Reserved

[8] WO Reserved 1 0 Reserved

2.8 VCO_Reg 07h MSB Cal

Bit Type Name Width Default Description

[3:0] WO Output Stage Gain Control 40001

0000 -> Output = 690 mV

0001 -> Output = 780 mV

0010 -> Output = 900 mV

0011 -> Output = 980 mV

0100 -> Output = 1100 mV

0101 -> Output = 1260 mV

0110 -> Output = 1400 mV

0111 -> Output = 1590 mV

1000 -> Output = 1810 mV

1001 -> Output = 1980 mV

1010 -> Output = 2250 mV

1011 -> Output = 2560 mV

1100 -> Invalid

1110 -> Invalid

1111 -> Invalid

[4] WO Reserved 1 1 Reserved

[6:5] WO Reserved 2 3 Program 00

[7] WO Reserved 1 1 Reserved

[8] WO Reserved 1 0 Reserved

Note: All Reserved bits should be programmed to default conditions unless noted otherwise in the Description column

Information furnished by Analog Devices is believed to be accurate and reliable. However, no

responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other

rights of third parties that may result from its use. Specifications subject to change without notice. No

license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

Trademarks and registered trademarks are the property of their respective owners.

For price, delivery, and to place orders: Analog Devices, Inc.,

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106

Phone: 781-329-4700 • Order online at www.analog.com

Application Support: Phone: 1-800-ANALOG-D

ANALOG DEVICES Rnﬂs/ uuuuuuuu V m: V; v w ‘7

For price, delivery and to place orders: Hittite Microwave Corporation, 2 Elizabeth Drive, Chelmsford, MA 01824

Phone: 978-250-3343 Fax: 978-250-3373 Order On-line at www.hittite.com

Application Support: Phone: 978-250-3343 or apps@hittite.com

CLOCK GENERATORS - SMT

HMC1035LP6GE

v02.0614

HIGH PERFORMANCE, +3.3 V CLOCK GENERATOR

25 - 2500 MHz

HMC1035LP6GE Application Information

The HMC1035LP6GE features a flexible Output Frequency Range (25 MHz to 2500 MHz), industry leading phase noise

and phase jitter performance, excellent noise floor (<-162 dBc/Hz), and a high level of integration. HMC1035LP6GE

is ideal as a high frequency, low jitter processor clock, a clock source for high-frequency data converters or as a

reference oscillator for Physical Layer Devices (PHY).

The HMC1035LP6GE can also be used as an LO for 10G/40G/100G optical modules and transponders, as a reference

clock for 10G/40G/100G line cards, and for jitter attenuation and frequency translation. Synchronous Ethernet, SONET/

SDH, and OTN applications often require jitter attenuation and frequency translation on the recovered line clock.

Figure 29. HMC1035LP6GE in a typical transmit chain

Information furnished by Analog Devices is believed to be accurate and reliable. However, no

responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other

rights of third parties that may result from its use. Specifications subject to change without notice. No

license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

Trademarks and registered trademarks are the property of their respective owners.

For price, delivery, and to place orders: Analog Devices, Inc.,

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106

Phone: 781-329-4700 • Order online at www.analog.com

Application Support: Phone: 1-800-ANALOG-D

ANALOG DEVICES Rnﬂs/ FIBER DATA 10‘? OPTICS 0 Lo INPUT HMOIossLPsGE HMEIOSSLPSGE—l cw MUX 0 ~o1uz/s oPncs ~BG/WB FC FHV FIBER - IG/‘UG Emcmd cm, __0_ DEMUX

For price, delivery and to place orders: Hittite Microwave Corporation, 2 Elizabeth Drive, Chelmsford, MA 01824

Phone: 978-250-3343 Fax: 978-250-3373 Order On-line at www.hittite.com

Application Support: Phone: 978-250-3343 or apps@hittite.com

CLOCK GENERATORS - SMT

HMC1035LP6GE

v02.0614

HIGH PERFORMANCE, +3.3 V CLOCK GENERATOR

25 - 2500 MHz

HMC1035LP6GE Application Information

The HMC1035LP6GE can also be used as an LO for 10G optical modules and transponders (Figure 30), as a reference

clock for 1G/10G line cards (Figure 31), and for jitter attenuation and frequency translation (Figure 32).

Synchronous Ethernet, SONET/SDH, and OTN applications often require jitter attenuation and frequency translation on

the recovered line clock.

Figure 30. HMC1035LP6GE used as a local oscillator (LO) for 10G modules/transponders

Figure 31. HMC1035LP6GE used as a reference clock for 1G/10G line cards

Information furnished by Analog Devices is believed to be accurate and reliable. However, no

responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other

rights of third parties that may result from its use. Specifications subject to change without notice. No

license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

Trademarks and registered trademarks are the property of their respective owners.

For price, delivery, and to place orders: Analog Devices, Inc.,

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106

Phone: 781-329-4700 • Order online at www.analog.com

Application Support: Phone: 1-800-ANALOG-D

ANALOG DEVICES Rnﬂs/ To System Timing Card a other PHYS O owes FIBER 0 mean TransmTf ! Line Clock ‘— Noisy Recovered Line Clock L (DC 7 550 MHz) a FLL 61597 LPF , FLL , HMC1035LPGGE 5° “”2 VCXO

For price, delivery and to place orders: Hittite Microwave Corporation, 2 Elizabeth Drive, Chelmsford, MA 01824

Phone: 978-250-3343 Fax: 978-250-3373 Order On-line at www.hittite.com

Application Support: Phone: 978-250-3343 or apps@hittite.com

CLOCK GENERATORS - SMT

HMC1035LP6GE

v02.0614

HIGH PERFORMANCE, +3.3 V CLOCK GENERATOR

25 - 2500 MHz

HMC1035LP6GE Application Information

Figure 32. HMC1035LP6GE used in a jitter attenuation application for Synchronous Ethernet & Line Timing

Information furnished by Analog Devices is believed to be accurate and reliable. However, no

responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other

rights of third parties that may result from its use. Specifications subject to change without notice. No

license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

Trademarks and registered trademarks are the property of their respective owners.

For price, delivery, and to place orders: Analog Devices, Inc.,

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106

Phone: 781-329-4700 • Order online at www.analog.com

Application Support: Phone: 1-800-ANALOG-D

ANALOG DEVICES may

For price, delivery and to place orders: Hittite Microwave Corporation, 2 Elizabeth Drive, Chelmsford, MA 01824

Phone: 978-250-3343 Fax: 978-250-3373 Order On-line at www.hittite.com

Application Support: Phone: 978-250-3343 or apps@hittite.com

CLOCK GENERATORS - SMT

HMC1035LP6GE

v02.0614

HIGH PERFORMANCE, +3.3 V CLOCK GENERATOR

25 - 2500 MHz

Line and Reference Clock Rate

OTN Line Rates (Gbps) Typical Reference Clock Rates (MHz)

OTU2 10.709 669.31 167. 3 3

OTU2e 11.0 95 693.44 173.36

OTU1e 11.0 49 690.56 172.64

OTU2f 11.317 707.31 176.83

OTU1f 11. 27 704.38 176.09

OTU3 43.018 2688.63 672.16

OTU4 111. 8 09 1747.0 2

OTU4v 127.15 6 1986.82

SONET/SDH

STS-192/STM-64 9.95328 622.08 155.52

STS-768/STM-256 39.81312 2488.32 622.08

Ethernet

10GE LAN 10.3125 156.25

10GE WAN 9.95328 622.08 155.52

XAUI (4 x 3.125G) 3.125 156.25

40GE (4 x 10G) 10.3125 156.25

100GE (4 x 25G) 25.78125 805.66 156.25

Fibre Channel (FC)

10GFC 10.52 164.38

16GFC 14.025 212.5

32GFC 28.5 425

Information furnished by Analog Devices is believed to be accurate and reliable. However, no

responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other

rights of third parties that may result from its use. Specifications subject to change without notice. No

license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

Trademarks and registered trademarks are the property of their respective owners.

For price, delivery, and to place orders: Analog Devices, Inc.,

One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106

Phone: 781-329-4700 • Order online at www.analog.com

Application Support: Phone: 1-800-ANALOG-D

Scheda tecnica HMC1035LP6GE di Analog Devices Inc.

INFORMAZIONI

GUIDA

CONTATTI

SEGUICI
