TPS2375x IEEE 802.3at PoE Interface With Flyback DC-DC Controller

1 Features

1• IEEE 802.3at Classification With Status Flag

• High Efficiency Solutions Over Wide Load Range

• Powers Up to 25.5 W PDs

• Robust 100 V, 0.5 ΩHotswap MOSFET

• Synchronous Rectifier Disable Signal

• PowerPAD™ TSSOP Packages

• Complete PoE Interface Plus DC-DC Controller

• Adapter ORing Support

• Programmable Frequency

• TPS23752 Supports Ultra-Low Power Sleep

Modes

• –40°C to 125°C Junction Temperature Range

2 Applications

• IEEE 802.3at-Compliant Devices

• Video and VoIP Telephones

• Multiband Access Points

• Security Cameras

• Pico-Base Stations

3 Description

The TPS23751 is a 16-pin integrated circuit that

combines a Power-over-Ethernet (PoE) powered

device (PD) interface and a current-mode DC-DC

controller optimized specifically for applications

requiring high efficiency over a wide load range.

The PoE interface implements type-2 hardware

classification per IEEE 802.3at. It also includes an

auxiliary power detect (APD) input and a disable

function (DEN). A 0.5-Ω, 100-V pass MOSFET

minimizes heat dissipation and maximizes power

utilization.

The DC-DC controller features internal soft-start, a

bootstrap startup current source, current-mode

control with slope compensation, blanking, and

current limiting. Efficiency is enhanced at light loads

by disabling synchronous rectification and entering

variable frequency operation (VFO).

The TPS23752 is a 20-pin extended version of the

TPS23751 with the addition of a Sleep Mode feature.

Sleep Mode disables the converter to minimize power

consumption while still generating the Maintain Power

Signature (MPS) required by IEEE802.3at.

Device Information(1)

PART NUMBER PACKAGE BODY SIZE (NOM)

TPS23751 TSSOP (16) 5.00 mm × 4.40 mm

TPS23752 TSSOP (20) 6.50 mm × 4.40 mm

(1) For all available packages, see the orderable addendum at

the end of the data sheet.

Figure 1. Typical Application Circuit

l TEXAS INSTRUMENTS

TPS23751

TPS23752

SLVSB97E –JULY 2012–REVISED JANUARY 2018

www.ti.com

Product Folder Links: TPS23751 TPS23752

Table of Contents

1 Features.................................................................. 1

2 Applications ........................................................... 1

3 Description ............................................................. 1

4 Revision History..................................................... 2

5 Pin Configuration and Functions......................... 3

6 Specifications......................................................... 4

6.1 Absolute Maximum Ratings ...................................... 4

6.2 ESD Ratings.............................................................. 4

6.3 ESD Ratings: Surge.................................................. 4

6.4 Recommended Operating Conditions....................... 5

6.5 Thermal Information.................................................. 5

6.6 Electric Characteristics - Controller Section.............. 6

6.7 Electrical Characteristics - Sleep Mode (TPS23752

Only)........................................................................... 8

6.8 Electrical Characteristics - PoE Interface Section .... 9

6.9 Typical Characteristics............................................ 11

7 Detailed Description............................................ 14

7.1 Overview ................................................................. 14

7.2 Functional Block Diagrams ..................................... 15

7.3 Feature Description................................................. 17

7.4 Device Functional Modes........................................ 19

8 Application and Implementation ........................ 32

8.1 Application Information............................................ 32

8.2 Typical Application ................................................. 32

9 Power Supply Recommendations...................... 39

10 Layout................................................................... 39

10.1 Layout Guidelines ................................................. 39

10.2 Layout Example ................................................... 39

11 Device and Documentation Support ................. 40

11.1 Documentation Support ........................................ 40

11.2 Community Resources.......................................... 40

11.3 Trademarks........................................................... 40

11.4 Electrostatic Discharge Caution............................ 40

11.5 Glossary................................................................ 40

12 Mechanical, Packaging, and Orderable

Information ........................................................... 40

4 Revision History

NOTE: Page numbers for previous revisions may differ from page numbers in the current version.

Changes from Revision D (November 2015) to Revision E Page

• Changed data sheet title to TPS2375x IEEE 802.3at PoE Interface With Flyback DC-DC Controller ................................. 1

Changes from Revision C (January 2014) to Revision D Page

• Added ESD Ratings table, Feature Description section, Device Functional Modes,Application and Implementation

section, Power Supply Recommendations section, Layout section, Device and Documentation Support section, and

Mechanical, Packaging, and Orderable Information section.................................................................................................. 1

Changes from Revision B (July 2013) to Revision C Page

• Changed the T2P startup delay MAX value From: 0 ms To: 7 ms......................................................................................... 9

Changes from Revision A (August 2012) to Revision B Page

• Added "THERMAL SHUTDOWN" to the CONTROLLER SECTION ..................................................................................... 7

• Added text to the VCPin Description: "The Sleep Mode output voltage is high enough to drive..." .................................... 19

• Added text to the Sleep Mode Operation (TPS23752 only) " For more information regarding ..." ...................................... 19

Changes from Original (July 2012) to Revision A Page

• Changed from PRODUCT PREVIEW to PRODUCTION DATA ............................................................................................ 1

*9 TEXAS INSTRUMENTS

VDD

DEN

CLS

APD

T2P

SRD

CTL

LED

WAKE

VSS

Thermal

Pad

RTN

ARTN

GATE

SRT

MODE

SLPb

VDD

DEN

CLS

APD

T2P

SRD

CTL

VSS

Thermal

Pad

RTN

ARTN

GATE

SRT

TPS23751

TPS23752

www.ti.com

SLVSB97E –JULY 2012–REVISED JANUARY 2018

Product Folder Links: TPS23751 TPS23752

5 Pin Configuration and Functions

PWP Package

16-Pin TSSOP

Top View

PWP Package

20-Pin TSSOP

Top View

Pin Functions

NAME PIN I/O DESCRIPTION

TPS23751 TPS23752

VDD 1 1 I Connect to positive PoE input power rail. Bypass with 0.1 µF to VSS.

DEN 2 2 I/O Connect 24.9 kΩto VDD for detection. Pull to VSS to disable pass MOSFET.

CLS 3 3 I/O Connect resistor from CLS to VSS to program classification current.

APD 4 4 I Raise 1.5 V above ARTN to disable pass MOSFET and force T2P active.

RT 5 5 I Connect a resistor from RT to ARTN to set switching frequency.

T2P 6 6 O Active low indicates type-2 PSE connected or APD active.

SRD 7 7 O Disable external synchronous rectifiers in VFO Mode.

CTL 8 8 I Control loop input to PWM

LED — 9 O Open-drain drive for external LED controlled by SLPb, MODE, and WAKE.

WAKE — 10 I/O Pull WAKE low to re-enable the DC-DC converter from Sleep Mode.

SLPb — 11 I Pull low during normal operation to enter Sleep Mode.

MODE — 12 I Enables pulsed MPS when entering Sleep Mode. Control LED in normal operation.

SRT 9 13 I Set the threshold of PWM to VFO transition

VB10 14 O 5 V bias supply. Bypass with a minimum of 0.1 µF to ARTN.

CS 11 15 I/O Current sense input. Connect to ARTN-referenced current sense resistor.

VC12 16 I/O DC-DC converter bias voltage. Bypass with 0.47 µF or more to ARTN directly at pin.

GATE 13 17 O Gate driver output for DC-DC converter switching MOSFET.

ARTN 14 18 PWR DC-DC converter analog return. Connect to RTN.

RTN 15 19 O Drain of PoE pass MOSFET. Connect to ARTN.

VSS 16 20 PWR Connect to negative power rail derived from PoE source.

Pad — Always connect PowerPAD™ to VSS. A large fill area is required to assist in heat dissipation.

l TEXAS INSTRUMENTS

TPS23751

TPS23752

SLVSB97E –JULY 2012–REVISED JANUARY 2018

www.ti.com

Product Folder Links: TPS23751 TPS23752

(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings

only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended

Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

(2) ARTN must be connected to RTN.

(3) With IRTN = 0.

(4) Do not apply voltages to these pins.

(5) SOA limited to RTN = 80 V at 1.2 A.

6 Specifications

6.1 Absolute Maximum Ratings

over operating free-air temperature range (unless otherwise noted)(1)(2)

MIN MAX UNIT

Voltage

DEN, VDD –0.3 100

ARTN(2), RTN(3) –0.6 100

CLS(4) –0.3 6.5

[CTL, MODE, RT, SLPb, SRT, VB(4), WAKE] to ARTN –0.3 6.5

CS to ARTN –0.3 VB

[LED, APD SRD, T2P, VC] to ARTN –0.3 18

GATE(4) to ARTN –0.3 VC + 0.3

Current, sinking

RTN(5) Internally limited

LED 15

T2P, SRD 5

DEN 1

Current, sourcing

CLS 65

mAVCInternally limited

VBInternally limited

Current, average sourcing or

sinking GATE 25 mARMS

TJMAX Internally limited °C

(1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.

(2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.

6.2 ESD Ratings

VALUE UNIT

V(ESD) Electrostatic

discharge

Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001(1) 2000 V

Charged-device model (CDM), per JEDEC specification JESD22-C101(2) 500

(1) ESD per EN61000-4-2. A power supply containing the TPS23751 or TPS23752 was subjected to the highest test levels in the standard.

Refer to the ESD section.

6.3 ESD Ratings: Surge

VALUE UNIT

V(ESD) Electrostatic discharge System level at RJ-45 (1) Contact 8000 V

Air 15000

l TEXAS INSTRUMENTS

TPS23751

TPS23752

www.ti.com

SLVSB97E –JULY 2012–REVISED JANUARY 2018

Product Folder Links: TPS23751 TPS23752

(1) ARTN tied to RTN

(2) Do not apply voltage supply to these pins.

(3) This is minimum current-limit value. Viable systems will be designed for maximum currents below this value with reasonable margin.

IEEE 802.3at permits 600mA continuous loading.

6.4 Recommended Operating Conditions(1)

over operating free-air temperature range (unless otherwise noted)

MIN NOM MAX UNIT

Input voltage

ARTN, RTN, VDD 0 57

[LED, APD ,SRD, T2P, VC] to ARTN 0 18

[CTL,CS, MODE, SLPb, SRT, WAKE] to ARTN 0 VB

SRT to ARTN 0.5 1.5

Sinking current

RTN 1.2 A

SRD, T2P 2 mA

LED 10

Sourcing current VB(2) 5 mA

Continuous RTN current (TJ≤125°C)(3) 825 mA

Resistance RCLS(2) 60 Ω

RWAKE 392 kΩ

Capacitance VB(2) 0.08 µF

Junction temperature –40 125 °C

(1) For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application

report (SPRA953).

6.5 Thermal Information

THERMAL METRIC(1)

TPS23751 TPS23752

UNITPWP (TSSOP) PWP (TSSOP)

16 PINS 20 PINS

RθJA Junction-to-ambient thermal resistance 39.5 38.5 °C/W

RθJC(top) Junction-to-case (top) thermal resistance 25.9 23.8 °C/W

RθJB Junction-to-board thermal resistance 21.1 25.6 °C/W

ψJT Junction-to-top characterization parameter 0.7 0.7 °C/W

ψJB Junction-to-board characterization parameter 20.8 20.3 °C/W

RθJC(bot) Junction-to-case (bottom) thermal resistance 2.0 1.6 °C/W

l TEXAS INSTRUMENTS

TPS23751

TPS23752

SLVSB97E –JULY 2012–REVISED JANUARY 2018

www.ti.com

Product Folder Links: TPS23751 TPS23752

(1) Parameters provided for reference only, and do not constitute part of TI published specifications for purposes of TI product warranty.

6.6 Electric Characteristics - Controller Section

Unless otherwise noted, 40 V ≤VDD ≤57 V; VCTL = VMODE = VSLPb = VB; VSRT = 0.5 V; VAPD = VCS = VARTN = VRTN; CLS, GATE,

LED, SRD, T2P open; RWAKE = 392 kΩ; RDEN = 24.9 kΩ; RT= 34 kΩ; CVB = CVC = 0.1 µF;

–40 ≤TJ≤125°C. Typical values are at 25°C. All voltages referred to VSS.

VC= 12 V, VDEN = VVSS, VARTN = VRTN = VSS

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

VC(GATE DRIVE SUPPLY)

Output voltage; TPS23752 only VVDD = 48 V, Sleep mode 12 12.8 13.8 V

IVC_ST Startup source current VVDD = 48 V, VC= 0 V 1.1 1.5 2.1 mA

VVDD = 10.9 V, VC= 8.6 V 0.9 1.3 1.8

IVC_OP Operating current VVC = 12 V, VCTL = VB0.9 1.8 3.0 mA

tST Bootstrap start up time, CVC = 22 µF VVDD = 48 V, measure time from VVC (0) →VCUV 103 155 203 ms

VCUV UVLO threshold VVC rising until VSRD ↓8.6 8.9 9.2 V

VCUVH Hysteresis 3 3.2 3.4 V

VB(BIAS SUPPLY)

Output voltage 7.5 V ≤VVC ≤18 V, 0 ≤IVB ≤5 mA 4.75 5.00 5.25 V

APD (AUXILIARY POWER DETECT)

VAPDEN APD threshold voltage VAPD ↑, measure with respect to ARTN 1.43 1.50 1.57 V

VAPDH Hysteresis 0.28 0.30 0.32 V

Leakage current VAPD = 18 V 10 µA

RT (OSCILLATOR)

FSW Switching frequency in PWM mode RT= 34.0 kΩ. Measure at GATE 226 251 276 kHz

FVFO Switching frequency in VFO mode VCTL = 1.75 V, RT= 34.0 kΩ. Measure at GATE 105 135 165 kHz

DMAX Maximum duty cycle VCTL = VB, Measure at GATE 75% 80% 85%

CTL (CONTROL – PWM INPUT)

VCTL_VFO VCTL at PWM/VFO transition point

VSRT = 0.5 V VCTL ↓until VSRD↑1.90 2.00 2.10 V

Hysteresis (1) 35 mV

VSRT = 1.0 V VCTL ↓until VSRD↑2.15 2.25 2.35 V

Hysteresis (1) 40.50 mV

TSSD Internal soft start delay time VCTL = 3.5 V, measure from switching start to VCSMAX 1.87 3.01 5.09 ms

Input resistance 70 105 145 kΩ

VZF Zero frequency threshold (ZF) VCTL ↓until GATE stops switching 1.40 1.50 1.60 V

VZDC Zero duty cycle (ZDC) threshold (VFO disabled) VSRT = VARTN, VCTL ↓until GATE stops switching 1.55 1.75 1.95 V

Gain, VCS to VCTL(1) 5.0 V/V

CS (CURRENT SENSE)

VCSMAX Maximum threshold voltage VCS↑until VGATE ↓0.22 0.25 0.28 V

VCS_VFO Peak VCS in VFO mode

1.60 V ≤VCTL ≤1.90 V, VSRT = 0.5 V, VCS ↑until

VGATE↓40 50 60 mV

1.85 V ≤VCTL ≤2.15 V, VSRT = 1.0 V, VCS↑until VGATE

↓85 100 115 mV

VPK Internal slope compensation voltage, see Figure 2 D = DMAX 32 40 50 mV

ICS_RAMP Ramp component of ICS D = DMAX 12 16 25 µA

ICSDC DC component of ICS 1 2 3 µA

DSLOPE_ST Slope compensation ramp start relative to switching

period. Refer to Figure 2 30% 34% 39%

t1Turn off delay VCS = 0.3 V, measure tprf50–50, see Figure 3 50 90 ns

tBLNK Blanking period 100 150 200 ns

Off state pulldown resistance 290 500 Ω

l TEXAS INSTRUMENTS

TPS23751

TPS23752

www.ti.com

SLVSB97E –JULY 2012–REVISED JANUARY 2018

Product Folder Links: TPS23751 TPS23752

Electric Characteristics - Controller Section (continued)

Unless otherwise noted, 40 V ≤VDD ≤57 V; VCTL = VMODE = VSLPb = VB; VSRT = 0.5 V; VAPD = VCS = VARTN = VRTN; CLS, GATE,

LED, SRD, T2P open; RWAKE = 392 kΩ; RDEN = 24.9 kΩ; RT= 34 kΩ; CVB = CVC = 0.1 µF;

–40 ≤TJ≤125°C. Typical values are at 25°C. All voltages referred to VSS.

VC= 12 V, VDEN = VVSS, VARTN = VRTN = VSS

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

GATE (GATE DRIVER)

Peak source current GATE high, pulsed measurement 0.35 0.60 1.00 A

Peak sink current GATE low, pulsed measurement 0.70 1.00 1.40 A

Rise time (1) tprr10–90, CGATE = 1 nF; see Figure 4 40 ns

Fall time (1) tpff90–10, CGATE = 1 nF; see Figure 4 27 ns

Pull-up resistance 20 Ω

Pull-down resistance 10 Ω

SRD (SYNCHRONOUS RECTIFIER DISABLE)

Output low voltage ISRD = 2 mA sinking 0.25 0.45 V

Leakage current VCTL = 1.75 V, VSRD = 18 V 10 µA

SRT (SYNCHRONOUS RECTIFIER THRESHOLD)

Leakage current 0 V ≤VSRT ≤5 V 1 µA

THERMAL SHUTDOWN

Shutdown TJrising 135 145 155 °C

Hysteresis(1) 20 °C

l TEXAS INSTRUMENTS

TPS23751

TPS23752

SLVSB97E –JULY 2012–REVISED JANUARY 2018

www.ti.com

Product Folder Links: TPS23751 TPS23752

(1) Parameters provided for reference only, and do not constitute part of TI published specifications for purposes of TI product warranty.

6.7 Electrical Characteristics - Sleep Mode (TPS23752 Only)

Unless otherwise noted, 40 V ≤VDD ≤57 V; VCTL = VMODE = VSLPb = VB; VSRT = 0.5 V; VAPD = VCS = VARTN = VRTN; CLS, GATE,

LED, SRD, T2P open; RWAKE = 392 kΩ; RDEN = 24.9 kΩ; RT= 34 kΩ; CVB = CVC = 0.1 µF;

–40 ≤TJ≤125°C. Typical values are at 25°C. All voltages referred to VSS.

VDD = 48 V, VAPD = VARTN = VRTN = VVSS, VVC = 13 V

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

SLPb

SLPb threshold VSLPb falling until ILED↑1.10 1.66 2.10 V

Input pullup current 4 5.7 8 µA

MODE

MODE threshold MODE falling unti ILED ↑1.10 1.66 2.10 V

MODE hysteresis (1) 1.6 V

Input pullup current 4 5.7 8 µA

WAKE

Output voltage Sleep mode 2.43 2.50 2.57 V

RWKPLUP Pull-up resistance 3.95 5.33 6.88 kΩ

LED

Output low voltage SLPb ↓, ILED = 10 mA 0.60 0.90 1.50 V

Leakage current VLED = 18 V 10 µA

SLEEP SUPPLY CURRENT

Sleep supply current when

APD is enabled VAPD = 2 V; SLPb ↓, measure IVDD 0.5 1 mA

MPS supply current

Pulsed mode: VMODE = 0 V; SLPb ↓,

Measure IVDD 0≤ILED ≤10 mA 10.0 10.6 11.5 mApk

DC mode: VMODE = VB, then SLPb ↓,

Measure IVDD 0≤ILED ≤10 mA 10.0 10.6 11.5 mA

MPS pulsed mode duty

cycle

MPS pulsed current duty cycle 28.80% 28.88% 28.95%

MPS pulsed current ON time 75 87.5 ms

MPS pulsed current OFF time 215 250 ms

l TEXAS INSTRUMENTS

TPS23751

TPS23752

www.ti.com

SLVSB97E –JULY 2012–REVISED JANUARY 2018

Product Folder Links: TPS23751 TPS23752

6.8 Electrical Characteristics - PoE Interface Section

Unless otherwise noted, 40 V ≤VDD ≤57 V; VCTL = VMODE = VSLPb = VB; VSRT = 0.5 V; VAPD = VCS = VARTN = VRTN; CLS, GATE,

LED, SRD, T2P open; RWAKE = 392 kΩ; RDEN = 24.9 kΩ; RT= 34 kΩ; CVB = CVC = 0.1 µF;

–40 ≤TJ≤125°C. Typical values are at 25°C. All voltages referred to VSS.

Unless otherwise noted, VVC = VAPD = VCS = VARTN = VRTN.

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

DEN (DETECTION AND ENABLE)

Bias current DEN open, IVDD + IDEN + IRTN, VVDD = 10.1 V, not in

mark 3 5 12 µA

DEN leakage current VDEN = VVDD = 57 V 0.1 5 µA

Detection current IVDD + IDEN + IRTN, VVDD = 1.4 V 53.8 56.5 58.3 µA

IVDD + IDEN + IRTN, VVDD = 10.1 V 395 410 417

VPD_DIS Disable threshold DEN falling 3 3.6 5 V

Hysteresis 50 113 200 mV

CLS (CLASSIFICATION)

ICLS Classification current

13 V ≤VVDD ≤21 V, Measure IVDD + IDEN + IRTN

RCLS = 1270 Ω1.80 2.17 2.60

RCLS = 243 Ω9.90 10.60 11.20

RCLS = 137 Ω17.60 18.60 19.40

RCLS = 90.9 Ω26.50 27.90 29.30

RCLS = 63.4 Ω38.00 39.90 42.00

VCL_ON

VCL_H Class lower threshold VVDD rising, VCLS ↑11.9 12.5 13 V

Hysteresis 1.4 1.6 1.7 V

VCU_OFF

VCU_H Class upper threshold VVDD rising, VCLS ↓21 22 23 V

Hysteresis 0.50 0.75 0.90 V

VMSR Mark reset threshold VVDD falling 3 3.9 5 V

Mark state resistance 2-point measurement at 5 V and 10.1 V 6 9.1 12 kΩ

Leakage current VVDD = 57 V, VCLS = 0 V, measure ICLS 1 µA

RTN (PASS DEVICE)

rDS(on) On resistance VVC = VAPD = VARTN = VCS = VVDD 0.20 0.45 0.75 Ω

Current limit VVC = VAPD = VARTN = VCS = VVDD, VRTN =1.5 V,

Measure IRTN 0.85 1.00 1.20 A

Inrush current VVC = VAPD = VARTN = VCS = VDD, VRTN = 2 V, VDD =

20 V →48 V 100 140 180 mA

Inrush termination Percentage of inrush current 80% 90% 99%

Foldback threshold VRTN ↑11.0 12.3 13.6 V

Foldback deglitch time VRTN rising to when current limit changes to inrush

current limit 500 800 1500 µs

Input bias current VVDD = VRTN = 30 V, Measure IRTN 30 µA

RTN leakage current VRTN = VVDD = 100 V, VDEN = VVSS 50 µA

T2P (TYPE 2 PSE INDICATION)

VT2P Output low voltage IT2P = 2 mA, after 2-event classification and softstart

is complete,

VVC = 12 V, VCTL = 3 V, VARTN = VVSS

0.26 0.60 V

tT2P T2P startup delay VCTL = 3 V, VAPD = 2 V, Measure from switching start

to VT2P ↓2 4.3 7 ms

Leakage current VT2P = 18 V, VARTN = VVSS 10 µA

PoE – PD UVLO

VUVLO_R UVLO rising threshold 36.3 38.1 40 V

UVLO falling threshold 30.5 32.0 33.6

SUPPLY CURRENT

Operating current Measure IVDD, VVDD = 48 V, 40 V ≤VVDD ≤57 V 210 500 µA

l TEXAS INSTRUMENTS 0 Time

VGATE

90% 90%

10%

Time

10%

tprr10-90 tpff90-10

50%

VCS

Time

50%

VGATE

Time

tprf50-50

DSLOPE_ST

DMAX

VSLOPE

Voltage added to

current sense

Time normalized to

one switching cycle

VSLOPE = VPK / (DMAX ± DSLOPE_ST)

0,0

VPK

TPS23751

TPS23752

SLVSB97E –JULY 2012–REVISED JANUARY 2018

www.ti.com

Product Folder Links: TPS23751 TPS23752

Electrical Characteristics - PoE Interface Section (continued)

Unless otherwise noted, 40 V ≤VDD ≤57 V; VCTL = VMODE = VSLPb = VB; VSRT = 0.5 V; VAPD = VCS = VARTN = VRTN; CLS, GATE,

LED, SRD, T2P open; RWAKE = 392 kΩ; RDEN = 24.9 kΩ; RT= 34 kΩ; CVB = CVC = 0.1 µF;

–40 ≤TJ≤125°C. Typical values are at 25°C. All voltages referred to VSS.

Unless otherwise noted, VVC = VAPD = VCS = VARTN = VRTN.

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

(1) Parameters provided for reference only, and do not constitute part of TI published specifications for purposes of TI product warranty.

Off-state current ARTN and VVC open, VVDD = 30 V, Measure IVDD 300 µA

THERMAL SHUTDOWN

Shutdown TJrising 135 145 155 °C

Hysteresis (1) 20 °C

Figure 2. Current Mode Compensation Ramp

Figure 3. Time Delay from VCS to VGATE

Figure 4. Rise Time and Fall Time of VGATE

l TEXAS INSTRUMENTS so am on w mm

14.5

15.5

16.5

17.5

−40 −20 0 20 40 60 80 100 120

Temperature (°C)

ICS_RAMP Current (µA)

G005

12.4

12.6

12.8

13.2

13.4

13.6

−40 −20 0 20 40 60 80 100 120

Temperature (°C)

VC Voltage in Sleep Mode (V)

G006

100

110

120

130

140

150

0.5 0.7 0.9 1.1 1.3 1.5

VSRT (V)

CS VFO Peak Voltage (mV)

TA = 25°C

G003

0.2

1.2

2.2

3.2

4.2

5.2

6.2

9 10 11 12 13 14 15 16 17 18

VC (V)

VC Operating Current (mA)

RT = 16.9 kΩ

RT = 34 kΩ

RT = 169 kΩ

TA = 25°C

G004

100

150

200

250

300

350

400

450

24 29 34 39 44 49 54 57

VDD (V)

IDD, Supply Current (µA)

TA = −40°C

TA = 25°C

TA = 125°C

G001

0 2 4 6 8 10

VDD (V)

DEN Blas Current (µA)

TA = −40°C

TA = 25°C

TA = 125°C

G002

TPS23751

TPS23752

www.ti.com

SLVSB97E –JULY 2012–REVISED JANUARY 2018

Product Folder Links: TPS23751 TPS23752

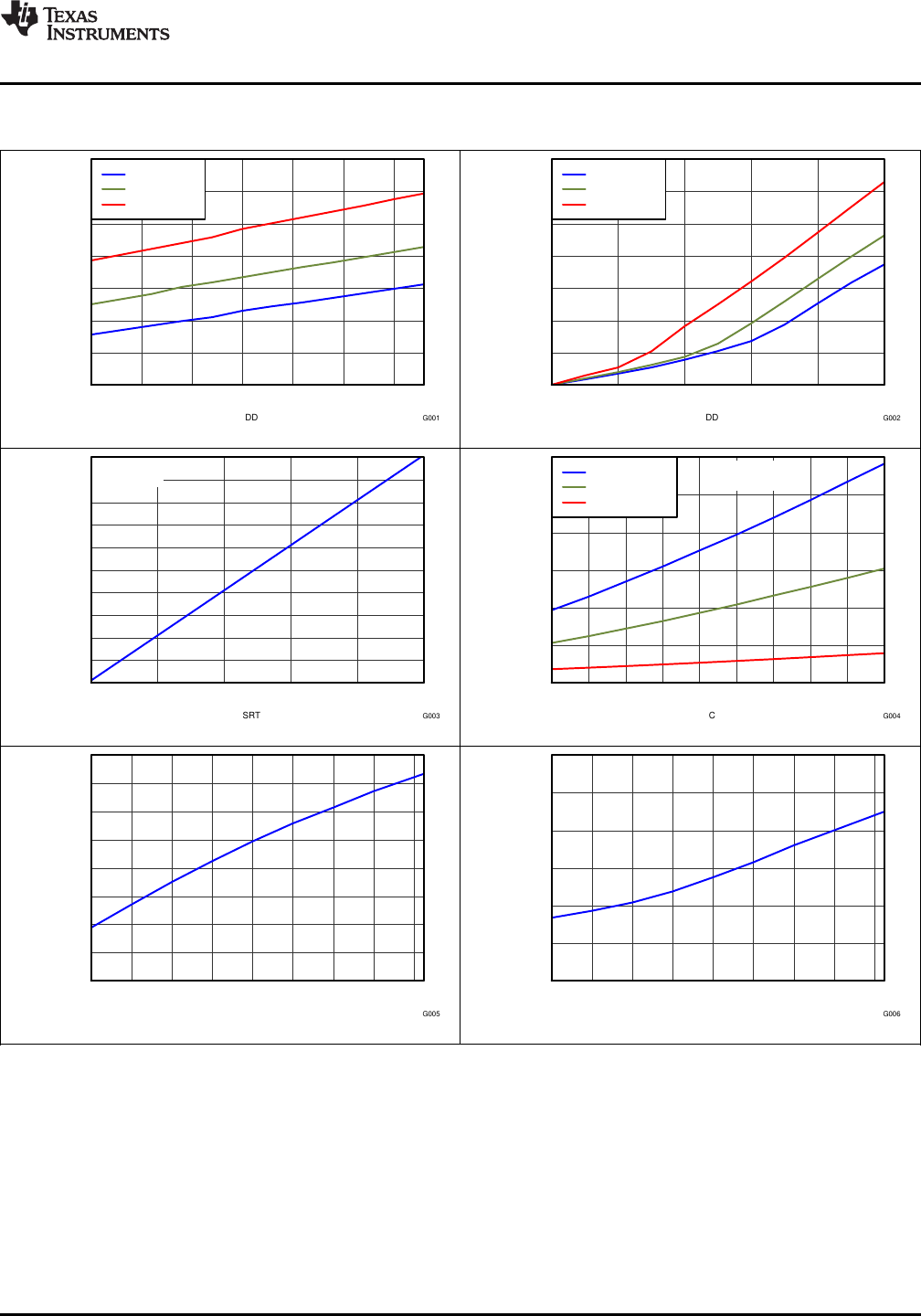

6.9 Typical Characteristics

Figure 5. Supply Current vs Supply Voltage Figure 6. DEN BIas Current vs Supply Voltage

Figure 7. CS VFO Peak Voltage vs SRT Voltage Figure 8. VC Operating Current vs VC Voltage

Figure 9. CS Ramp Current vs Temperature Figure 10. VC Voltage in Sleep Mode vs Temperature

l TEXAS INSTRUMENTS no mm m m Gm; RY (9 mm cn mm mm

100

150

200

250

1.5 1.6 1.7 1.8 1.9 2

VCTL (V)

VFO Frequency (kHz)

SRT = 0.5 V

RT = 34 kΩ

TJ = 25°C

G011

120

130

140

150

160

170

180

−40 −20 0 20 40 60 80 100 120

Temperature (°C)

Blanking Period (ns)

G012

100

150

200

250

300

350

400

450

500

−40 −20 0 20 40 60 80 100 120

Temperature (°C)

Switching Frequency (kHz)

RT = 16.9 kΩ

RT = 34 kΩ

RT = 169 kΩ

G009

100

200

300

400

500

600

700

800

900

1000

5 30 55 80 105 125

Programmable Conductance, 106/RT (Ω−1)

Switching Frequency (kHz)

Actual

Ideal

G010

1.18

1.2

1.22

1.24

1.26

1.28

1.3

12 16 20 24 28 32 36 40 44 48

VDD (V)

VC Bootstrap Current Source (mA)

TA = −40°C

TA = 25°C

TA = 125°C

VC = 8.6 V

G007

2.1

2.2

2.3

2.4

2.5

2.6

0.5 0.75 1 1.25 1.5

VSRT (V)

CTL PWM/VFO Threshold (V)

TA = 25°C

G008

TPS23751

TPS23752

SLVSB97E –JULY 2012–REVISED JANUARY 2018

www.ti.com

Product Folder Links: TPS23751 TPS23752

Typical Characteristics (continued)

Figure 11. VC Bootstrap Current Source vs Supply Voltage Figure 12. CTL PWM/VFO Threshold vs SRT Voltage

Figure 13. Switching Frequency vs Temperature Figure 14. Switching Frequency vs Programmable

Conductance

Figure 15. VFO Frequency vs CTL Voltage Figure 16. Blanking Period vs Temperature

l TEXAS INSTRUMENTS LED my: on

10.4

10.45

10.5

10.55

10.6

10.65

10.7

10.75

10.8

10.85

10.9

39 44 49 54

VDD (V)

MPS Supply Current (mA)

TA = −40°C

TA = 25°C

TA = 125°C

G015

0.2

0.25

0.3

0.35

0.4

0.45

0.5

0.55

0.6

0.65

0.7

−40 −20 0 20 40 60 80 100 120

Temperature (°C)

rDS(on) (Ω)

G013

10.35

10.4

10.45

10.5

10.55

10.6

10.65

10.7

10.75

10.8

0 2 4 6 8 10

ILED (mA)

MPS Supply Current (mA)

TA = −40°C

TA = 25°C

TA = 125°C

G014

TPS23751

TPS23752

www.ti.com

SLVSB97E –JULY 2012–REVISED JANUARY 2018

Product Folder Links: TPS23751 TPS23752

Typical Characteristics (continued)

Figure 17. rDS(on) vs Temperature Figure 18. MPS Supply Current vs LED Current

Figure 19. MPS Supply Current vs Supply Voltage

l TEXAS INSTRUMENTS

TPS23751

TPS23752

SLVSB97E –JULY 2012–REVISED JANUARY 2018

www.ti.com

Product Folder Links: TPS23751 TPS23752

7 Detailed Description

7.1 Overview

The TPS23751 and TPS23572 devices have a PoE that contains all of the features needed to implement an

IEEE802.3at type-2 powered device (PD) such as Detection, Classification, Type 2 Hardware Classification, and

140-mA inrush current mode DC-DC controller optimized specifically for isolated converters.

The TPS23751 and TPS23752 devices integrate a low 0.5-Ωinternal switch to allow for up to 0.85 A of

continuous current through the PD during normal operation.

The TPS23751 and TPS23752 devices contain several protection features such as thermal shutdown, current

limit foldback, and a robust 100-V internal switch.

l TEXAS INSTRUMENTS Hi TE

Control

OSTD

SLEEP

CONV.OFF

CONV.ON

Regulator

VOSC

VDD

Oscillator

D Q

CLR

GATE

VOSC

80kŸ

20kŸ

ARTN

VCS,VFO

0.35 V

VZDC,VFO

VFO

Soft Start

0.35 V

0.25 V

Reference

0.25 V

VFO

Reference

Generator T2P Logic

VFO

COMP

VFO. OFF

PWM

COMP

VFO

ILIMIT

COMP

ZDC COMP

CTL

VFO

VFO. OFF

VCS,VFO

VZDC,VFO

VFO

Soft Start

Complete

ARTN

SRD

CTL

APD

ISLOPE

Blanking

Circuit

GATE

RSLOPE

Voltage Regulator

(TPS23752 only)

SLEEP

T2P

SRT

TPS23751

TPS23752

www.ti.com

SLVSB97E –JULY 2012–REVISED JANUARY 2018

Product Folder Links: TPS23751 TPS23752

7.2 Functional Block Diagrams

Figure 20. DC-DC Controller

MENTS it"

SLPb

MPS

MODE

RWKPLUP

Oscillator

Sleep

Frequency

Divider

Soft Start

Complete Sleep

MPS

WAKE

Sleep

APD

MPS +

Sleep

VREF

LED

ARTN

Sleep Sleep

Iref

MPS

Regulator

CLR

CLK

CLR

CLK

CLR

CLK

12V &

10V

22V &

21.25V

38.1V &

32V

VDD

Inrush limit

threshold

Current limit

threshold

VSS RTN

CLS

APD

VSS DEN

800Ps

2.5V

REG.

Detection

Comp.

1.5V &

1.2V

Hotswap

MOSFET

Class

Comp.

Mark

Comp.

APD

Comp.

12V

UVLO

Comp.

OTSD

IRTN sense,1 if < 90% of inrush and current limit

1 = inrush

Signals referenced to VSS unless otherwise noted

Class

Comp.

5V &

0 = current limit

Inrush latch

ARTN

800Ps

IRTN sense

RTN

Type 2

State Eng.

Mark Comp Output

UVLO Comp Output t2

VSS

High if over

temperauture

CONV.OFF

TPS23751

TPS23752

SLVSB97E –JULY 2012–REVISED JANUARY 2018

www.ti.com

Product Folder Links: TPS23751 TPS23752

Functional Block Diagrams (continued)

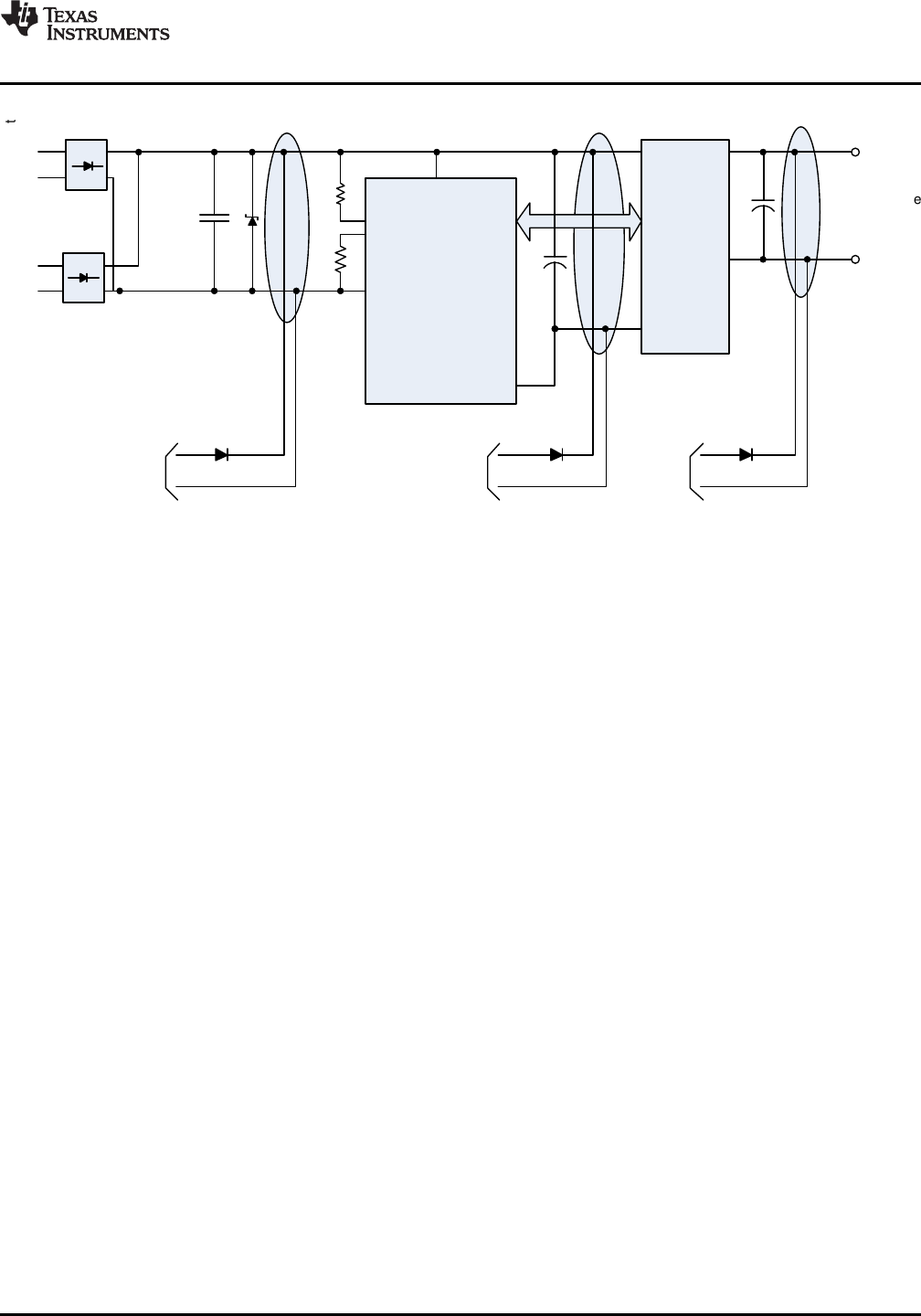

Figure 21. PoE

Figure 22. Sleep Mode Functionality (TPS23752 Only)

l TEXAS INSTRUMENTS

TPS23751

TPS23752

www.ti.com

SLVSB97E –JULY 2012–REVISED JANUARY 2018

Product Folder Links: TPS23751 TPS23752

7.3 Feature Description

7.3.1 Pin Description

The following descriptions refer to the functional block diagrams.

APD: (Auxiliary Power Detect): The APD pin is used in applications that may draw power either from the

Ethernet cable or from an auxiliary power source. A voltage of more than about 1.5 V on the APD pin relative to

RTN turns off the internal pass MOSFET, disables the CLS output, and enables the T2P output. A resistor

divider (RAPD1 – RAPD2 in Figure 32) provides system-level ESD protection for the APD pin, discharges leakage

from the blocking diode (DAin Figure 32), and provides input voltage supervision to ensure that switch-over to

the auxiliary voltage source does not occur at excessively low voltages. If not used, connect APD to ARTN.

When the TPS23752 operates in Sleep Mode, holding APD higher than its rising threshold, VAPDEN, disables the

maintain power signature (MPS).

ARTN: The ARTN pin is the local ground return for the DC-DC controller. Connections to the ARTN pin should

return to a local ground plane beneath the DC-DC converter primary circuitry. For most applications, this ground

plane should also connect to RTN.

CLS: An external resistor (RCLS in Figure 32) connected between the CLS pin and VSS provides a classification

signature to the PSE. The controller places a voltage of approximately 2.5 V across the external resistor

whenever the voltage differential between VDD and VSS lies between about 10.9 V and 22 V. The current drawn

by this resistor, combined with the internal current drain of the controller and any leakage through the internal

pass MOSFET, creates the classification current. Table 1 lists the external resistor values required for each of

the PD power ranges defined by IEEE802.3at. The maximum average power drawn by the PD, including all

losses within the DC-DC converter as well as power supplied to the downstream load, should not exceed the

maximum power indicated in Table 1. Holding APD high disables the classification signature.

High-power PSEs may perform two classification cycles if Class 4 is presented on the first cycle.

Table 1. Class Resistor Selection

CLASS MINIMUM POWER

at PD (W) MAXIMUM POWER

at PD (W) RESISTOR

RCLS (Ω)

0 0.44 12.95 1270

1 0.44 3.84 243

2 3.84 6.49 137

3 6.49 12.95 90.9

4 12.95 25.5 63.4

CS (Current Sense): The CS pin serves as the current sense input for the DC-DC controller. The CS pin senses

the voltage at the high side of the current sense resistor (RCS in Figure 32). This voltage drives the current limit

comparator and the PWM comparator (see Block Diagram of DC-DC controller). A leading-edge blanking circuit

prevents MOSFET turn-on transients from falsely triggering either of these comparators. During the off time, and

also during the blanking time that immediately follows, the CS pin is pulled to ARTN through an internal pulldown

resistor.

The current limit comparator terminates the on-time portion of the switching cycle as soon as VCS exceeds

approximately 250 mV and the leading edge blanking interval has expired. If the converter is not in current limit,

then either the PWM comparator or the maximum duty cycle limiting circuit terminates the on time.

An internal slope compensation circuit generates a current that imposes a voltage ramp at the positive input of

the PWM comparator to suppress sub-harmonic oscillations. This current flows out of the CS pin. If desired, the

magnitude of the slope compensation can be increased by the addition of an external resistor in series with the

CS pin. The beginning of the slope compensation ramp is delayed to provide a smoother transition from PWM to

VFO mode, as shown in Figure 2. Slope compensation, including that generated by any external resistance, is

disabled in VFO mode.

l TEXAS INSTRUMENTS Hz

8.5 10 Hz

´ W

¦ =

TPS23751

TPS23752

SLVSB97E –JULY 2012–REVISED JANUARY 2018

www.ti.com

Product Folder Links: TPS23751 TPS23752

CTL (Control): The CTL pin receives the control voltage from the external error amplifier. Typically this error

amplifier consists of a TL431 shunt regulator driving an optocoupler, but other configurations are possible. The

voltage differential between CTL and ARTN regulates power flow through the DC-DC converter. The voltage

VCTL_VFO set by the SRT pin represents the boundary between PWM and VFO mode. In the PWM mode of

operation, the CTL voltage determines the threshold at which the PWM comparator terminates the on-time

interval. During VFO mode, the inductor peak current is fixed and the CTL voltage varies the switching

frequency. During PWM mode the switching frequency is fixed and the CTL voltage varies the duty cycle.

DEN (Detection and Enable): The DEN pin implements two separate functions. A resistor (RDEN in Figure 32)

connected between VDD and DEN generates a detection signature whenever the voltage differential between VDD

and VSS lies between approximately 1.4 and 10.9 V. Beyond this range, the controller disconnects this resistor to

save power. For applications that wish to comply with the requirements of IEEE802.3at, the external resistance

should equal 24.9 kΩ.

If the resistance connected between VDD and DEN is divided into two roughly equal portions, then the application

circuit can disable the PD by grounding the tap point between the two resistances. This action simultaneously

spoils the detection signature and thereby signals the PSE that the PD no longer requires power.

GATE: The gate drive pin drives the main switching MOSFET of the DC-DC converter. The internal gate driver

circuitry draws power from VCand returns it to ARTN. GATE is held low whenever the converter is disabled.

LED (TPS23752 only): The LED pin drives an external status LED. Connect the LED and its series current-

limiting resistor from VCto the LED pin. While in Sleep Mode, the controller pulls the LED pin to ARTN. The LED

pin is also pulled low during normal operation after the soft start is complete whenever the MODE pin is low. The

LED pin should draw as little current as possible to help minimize the power consumed by the PD in Sleep

Mode. If a status LED is not required, leave this pin open.

MODE (TPS23752 only): The MODE pin in combination with the SLPb pin sets the type of MPS (DC or pulsed)

during Sleep Mode. Holding this pin high when the SLPb pin transitions low causes the TPS23752 to generate a

DC MPS by drawing a total of 10.6 mA (typical) from the Ethernet cable. Holding this pin low when the SLPb pin

transitions low causes the TPS23752 to generate a pulsed MPS. Either MPS ensures that the PSE does not

disconnect power from the PD while it is asleep. An MPS is not generated if the APD pin is held high (> 1.5 V).

During normal operation, pulling MODE low causes the LED pin to pull low.

RT (Timing Resistor): A timing resistor (RTin Figure 32) connected between this pin and ARTN sets the PWM

switching frequency fSW according to Figure 32.

(1)

The switching frequency remains constant during PWM operation, but decreases as VCTL falls below VCTL_VFO.

RT is a high impedance pin. Keep the connections short and isolate them from potential noise sources.

RTN: The RTN pin provides the negative power return path for the converter. Once VDD exceeds the UVLO

threshold (VUVLO_R), the internal pass MOSFET pulls RTN to VSS. Inrush limiting prevents the RTN current from

exceeding about 140 mA until the bulk capacitance (CIN in Figure 32) is fully charged. Inrush ends and the

converter begins operating when the RTN current drops below about 125 mA. The RTN current is subsequently

limited to about 1 A. If RTN ever exceeds about 12 V, then the controller returns to inrush limiting.

RTN should be connected to ARTN for most applications.

SLPb: (TPS23752 only): The SLPb pin controls entry into Sleep Mode. A falling-edge transition applied to this

pin during normal operation initiates Sleep Mode. This mode of operation disables converter switching, increases

the current limit of the internal VCregulator, and pulls the LED output low. Cycling VDD or pulling the WAKE pin

low terminates the Sleep Mode and restores normal operation.

SRD (Synchronous Rectifier Disable): This open-drain output pulls to ARTN whenever the DC-DC converter is

enabled, inrush and soft start are complete, and the voltage at the CTL pin exceeds the threshold VCTL_VFO set

by the SRT pin. A low voltage on the SRD pin signals the synchronous rectifier to begin operation. If the CTL pin

voltage drops below VCTL_VFO, then the SRD output goes high impedance to disable the synchronous rectifier.

This action ensures that the synchronous rectifier does not operate during VFO mode.

l TEXAS INSTRUMENTS

TPS23751

TPS23752

www.ti.com

SLVSB97E –JULY 2012–REVISED JANUARY 2018

Product Folder Links: TPS23751 TPS23752

SRT (Synchronous Rectifier Threshold): The SRT pin sets the thresholds VCTL_VFO and VCS_VFO, at which the DC-

DC converter switches between PWM and VFO. The application circuit normally uses a resistor divider (RSRT1 –

RSRT2 in Figure 32) to generate a voltage of 0.5 to 1.5 V at the SRT pin. When the voltage on the CTL pin

exceeds VCTL_VFO, the converter operates in PWM mode and the SRD pin is pulled low to enable the

synchronous rectifier. When the voltage on CTL falls below VCTL_VFO, the converter operates in VFO and the

SRD pin goes high impedance to disable the synchronous rectifier. Tying SRT to ARTN disables the VFO mode.

T2P (Type-2 PSE Indicator): The controller pulls this pin to ARTN whenever type-2 hardware classification has

been observed; or the APD pin is pulled high, after the internal T2P delay is complete, and VCTL ≤4 V. Once T2P

is valid, VCTL has no effect on the status of T2P. The T2P output will return to a high-impedance state if the part

enters thermal shutdown, the pass MOSFET enters inrush limiting, or if a type-2 PSE was not detected and the

voltage on APD drops below its threshold. The circuitry that watches for type-2 hardware classification latches its

result when the V(VDD-VSS) voltage differential rises above the upper classification threshold. This circuit resets

when the V(VDD-VSS) voltage differential drops below the mark threshold. The T2P pin can be left unconnected if it

is not used.

VB(Bias Voltage): The VBpin is the output of an internal 5 V regulator fed from VC. A ceramic bypass capacitor

with a minimum capacitance of no less than 80 nF must connect from VBto ARTN. VBmay be used to bias the

feedback optocoupler. For the TPS23752, VBmay also bias pullups for SLPb and MODE.

VC(Controller Voltage): The VCpin connects to the auxiliary bias supply for the DC-DC controller. The MOSFET

gate driver draws current directly from VC. VBis regulated down from VCto provide power for the rest of the

internal control circuitry. A startup current source from VDD to VCcontrolled by a comparator with hysteresis

implements the converter bootstrap startup. VCmust receive power from an auxiliary source, such as an auxiliary

winding on the flyback transformer, to sustain normal operation after startup. A low-ESR bypass capacitor, such

as a ceramic capacitor, must connect from VCto ARTN to supply the gate drive current required to drive the

external switching MOSFET.

The TPS23752 regulates VCto 12.8 V while in Sleep Mode to regulate the brightness of the Sleep-Mode LED.

The Sleep Mode output voltage is high enough to drive at least three LED’s in series when additional brightness

is required. This reduces the required value of RLED and associated power consumption for a given LED bias

current.

VDD:The VDD pin connects to the positive side of the input supply. The VDD pin provides operating power to the

PD controller, allows this circuit to monitor the input line voltage, and serves as the source for DC-DC startup

current. In the TPS23752, it also supplies the LED and MPS current during Sleep-Mode operation

VSS:The VSS pin connects to the negative rail of the input supply. It serves as a local ground for the PD control

circuitry. The PowerPAD™ must connect to VSS to ensure proper operation.

WAKE (TPS23752 only): The WAKE pin performs several functions. During Sleep Mode, it outputs a current-

limited 2.5 V. Pushing the external pushbutton (SWAKE in Figure 32) during Sleep Mode connects the WAKE pin

to optocoupler, OPTO6. An internal current comparator detects this excess current drawn by OPTO6 and re-

enables the DC-DC converter out of Sleep Mode. The WAKE pin now connects back to the internal pullup

resistor (RWKPLUP in the Sleep Mode block diagram) to provide bias current for OPTO6. The optocoupler alerts

the system controller that the button has been pressed during sleep operation. Circuit board routing should

protect WAKE from noise sources on the board.

7.4 Device Functional Modes

7.4.1 PoE Overview

The following text is intended as an aid in understanding the operation of the TPS23751 and TPS23752 but not

as a substitute for the IEEE 802.3at standard. The IEEE 802.3at standard is an update to IEEE 802.3-2008

clause 33 (PoE), adding high-power options and enhanced classification. Generally speaking, a device compliant

to IEEE 802.3-2008 is referred to as a type 1 device, and devices with high power and enhanced classification

are referred to as type 2 devices. Standards change and should always be referenced when making design

decisions.

‘5‘ TEXAS INSTRUMENTS

4237

3020.514.510.12.7

Detection Lower Limit

Detection Upper Limit

Classification Lower Limit

Classification Upper Limit

Must Turn Off by - Voltage Falling

Lower Limit -Operating Range

Must Turn On by- Voltage Rising

Maximum Input Voltage

Detect Classify Shut-

down

PI Voltage (V)

Lower Limit - 13W Op.

Mark

Class-Mark Transition

250s Transient

6.9

Normal Operation

IEEE 802.3-2008

IEEE 802.3at

Normal Operation

T2 Reset Range

42.5

TPS23751

TPS23752

SLVSB97E –JULY 2012–REVISED JANUARY 2018

www.ti.com

Product Folder Links: TPS23751 TPS23752

Device Functional Modes (continued)

The IEEE 802.3at standard defines a method of safely powering a PD (powered device) over a cable by power

sourcing equipment (PSE), and then removing power if a PD is disconnected. The process proceeds through an

idle state and three operational states of detection, classification, and operation. The PSE leaves the cable

unpowered (idle state) while it periodically looks to see if something has been plugged in; this operation is

referred to as detection. The low power levels used during detection are unlikely to damage devices not designed

for PoE. If a valid PD signature is present, the PSE may inquire how much power the PD requires; this operation

is referred to as classification. The PSE may then power the PD if it has adequate capacity.

Type 2 PSEs are required to do type 1 hardware classification plus a (new) data-layer classification, or an

enhanced type 2 hardware classification. Type 1 PSEs are not required to do hardware or data link layer (DLL)

classification. A type 2 PD must do type 2 hardware classification as well as DLL classification. The PD may

return the default, 13W current-encoded class, or one of four other choices. DLL classification occurs after

power-on and the Ethernet data link has been established.

Once started, the PD must present a Maintain Power Signature (MPS) to assure the PSE that it is still present.

The PSE monitors its output for a valid MPS and turns the port off if it loses the MPS. Loss of the MPS returns

the PSE to the idle state. Figure 23 shows the operational states as a function of PD input voltage. The upper

half is for IEEE 802.3-2008, and the lower half shows specific differences for IEEE 802.3at. The dashed lines in

the lower half indicate these states are the same (e.g., Detect and Class) for both.

Figure 23. Threshold Voltages

l TEXAS INSTRUMENTS

TPS23751

TPS23752

www.ti.com

SLVSB97E –JULY 2012–REVISED JANUARY 2018

Product Folder Links: TPS23751 TPS23752

Device Functional Modes (continued)

The PD input, typically an RJ-45 eight-lead connector, is referred to as the power interface (PI). PD input

requirements differ from PSE output requirements to account for voltage drops and operating margin. The

standard allots the maximum loss to the cable regardless of the actual installation to simplify implementation.

IEEE 802.3-2008 was designed to run over infrastructure including ISO/IEC 11801 class C (CAT3 per TIA/EIA-

568) that may have had AWG 26 conductors. IEEE 802.3at type 2 cabling power loss allotments and voltage

drops have been adjusted for 12.5 Ωpower loops per ISO/IEC11801 class D (CAT5 or higher per TIA/EIA-568,

typically AWG 24 conductors). Table 2 shows key operational limits broken out for the two revisions of the

standard.

Table 2. Comparison of Operational Limits

Standard Power Loop

Resistance

(max)

PSE Output

Power (min)

PSE Static

Output

Voltage (min)

PD Input

Power (max)

Static PD Input Voltage

Power ≤12.95W Power > 12.95W

IEEE802.3at-2008

802.3at (Type 1) 20 Ω15.4W 44 V 12.95W 37 V – 57 V N/A

802.3at (Type 2) 12.5Ω30W 50 V 25.5W 37 V – 57 V 42.5 V – 57 V

The PSE can apply voltage either between the RX and TX pairs (pins 1 - 2 and 3 - 6 for 10baseT or 100baseT),

or between the two spare pairs (4 - 5 and 7 - 8). Power application to the same pin combinations in 1000baseT

systems is recognized in IEEE 802.3at. 1000baseT systems can handle data on all pairs, eliminating the spare

pair terminology. The PSE may only apply voltage to one set of pairs at a time. The PD uses input diode bridges

to accept power from any of the possible PSE configurations. The voltage drops associated with the input

bridges create a difference between the standard limits at the PI and the TPS23751 and TPS23752

specifications.

A compliant type 2 PD has power management requirements not present with a type 1 PD. These requirements

include the following:

1. Must interpret type 2 hardware classification,

2. Must present hardware class 4,

3. Must implement DLL negotiation,

4. Must behave like a type 1 PD during inrush and startup,

5. Must not draw more than 13W for 80ms after the PSE applies operating voltage (power-up),

6. Must not draw more than 13W if it has not received a type 2 hardware classification or received permission

through DLL,

7. Must meet various operating and transient templates, and

8. Optionally monitor for the presence or absence of an adapter (assume high power).

As a result of these requirements, the PD must be able to dynamically control its loading, and monitor T2P for

changes. In cases where the design needs to know specifically if an adapter is plugged in and operational, the

adapter should be individually monitored, typically with an optocoupler.

7.4.1.1 Threshold Voltages

The TPS23751 and TPS23752 have a number of internal comparators with hysteresis for stable switching

between the various states. Figure 24 relates the parameters in the Electrical Characteristics section to the PoE

states. The mode labeled Idle between Classification and Operation implies that the DEN, CLS, and RTN pins

are all high impedance. The state labeled Mark, which is drawn in dashed lines, is part of the new type 2

hardware class state machine.

l TEXAS INSTRUMENTS x.-.-- .--

Time: 50ms/div

10V/div

100mA/div

IPI

Inrush

Converter Starts

Class Mark

Detect

V(RTN-VSS)

V(VDD-VSS)

VUVLO_R

Detection

Classification

PD Powered

Idle

VCL_ON VCU_OFF

VDD-VSS

Mark

VMSR

Functional State

Type 2

Type 1

VUVLO_H

VCU_H

VCL_H

TPS23751

TPS23752

SLVSB97E –JULY 2012–REVISED JANUARY 2018

www.ti.com

Product Folder Links: TPS23751 TPS23752

NOTE: Variable names refer to Electrical Characteristic table parameters

Figure 24. Threshold Voltages

7.4.1.2 PoE Startup Sequence

The waveforms of Figure 25 demonstrate detection, classification, and startup from a PSE with type 2 hardware

classification. The key waveforms shown are V(VDD-VSS), V(RTN-VSS), and IPI. IEEE 802.3at requires a minimum of

two detection levels, two class and mark cycles, and startup from the second mark event. VRTN to VSS falls as the

TPS23751 or TPS23752 charges CIN following application of full voltage. Subsequently, the converter starts up,

drawing current as seen in the IPI waveform.

Figure 25. Startup

l TEXAS INSTRUMENTS

TPS23751

TPS23752

www.ti.com

SLVSB97E –JULY 2012–REVISED JANUARY 2018

Product Folder Links: TPS23751 TPS23752

7.4.1.3 Detection

The TPS23751 or TPS23752 pulls DEN to VSS whenever V(VDD-VSS) is below the lower classification threshold.

When the input voltage rises above VCL-ON, the DEN pin goes to an open-drain condition to conserve power.

While in detection, RTN is high impedance, and almost all the internal circuits are disabled. An RDEN of 24.9 kΩ

(±1%), presents the correct signature. It may be a small, low-power resistor since it only sees a stress of about 5

mW. A valid PD detection signature is an incremental resistance ( ΔV/ΔI ) between 23.75 kΩand 26.25 kΩat the

PI.

The detection resistance seen by the PSE at the PI is the result of the input bridge resistance in series with the

parallel combination of RDEN and internal VDD loading. The incremental resistance of the input diode bridge may

be hundreds of ohms at the very low currents drawn when 2.7 V is applied to the PI. The input bridge resistance

is partially compensated by the TPS23751 or TPS23752 effective resistance during detection.

The type 2 hardware classification protocol of IEEE 802.3at specifies that a type 2 PSE drops its output voltage

into the detection range during the classification sequence. The PD is required to have an incorrect detection

signature in this condition, which is referred to as a mark event (see Figure 25). After the first mark event, the

TPS23751 or TPS23752 presents a signature less than 12 kΩuntil it has experienced a V(VDD-VSS) voltage below

the mark reset threshold (VMSR). This operation is explained more fully in the Hardware Classification section.

7.4.1.4 Hardware Classification

Hardware classification allows a PSE to determine the power requirements of a PD before powering, and helps

with power management once power is applied. Type 2 hardware classification permits high power PSEs and

PDs to determine whether the connected device can support high-power operation. A type 2 PD presents class 4

in hardware to indicate that it is a high-power device. A type 1 PSE treats a class 4 device like a class 0 device,

allotting 13 W if it chooses to power the PD. A PD that receives a 2-event class understands that it is powered

from a high-power PSE and it may draw up to 25.5 W immediately after the 80 ms startup period completes. A

type 2 PD that does not receive a 2-event hardware classification may choose to not start, or must start in a 13

W condition and request more power through the DLL after startup. The standard requires a type 2 PD to

indicate that it is underpowered if this occurs. Startup of a high-power PD under 13 W implicitly requires some

form of powering down sections of the application circuits.

The maximum power entries in Table 1 determine the class the PD must advertise. The PSE may disconnect a

PD if it draws more than its stated Class power, which may be the hardware class or a lower DLL-derived power

level. The standard permits the PD to draw limited current peaks that increase the instantaneous power above

the Table 1 limit, however the average power requirement always applies.

The TPS23751 and TPS23752 implement two-event classification. Selecting an RCLS of 63.4 Ωprovides a valid

type 2 signature. A TPS23751 or TPS23752 may be used as a compatible type 1 device simply by programming

class 0–3 per Table 1. DLL communication is implemented by the Ethernet communication system in the PD and

is not implemented by the TPS23751 or TPS23752.

The TPS23751 and TPS23752 disable classification above VCU_OFF to avoid excessive power dissipation. CLS

voltage is turned off during PD thermal limiting or when DEN is active. The CLS output is inherently current

limited, but should not be shorted to VSS for long periods of time.

Figure 26 shows how classification works for the TPS23751 and TPS23752. Transition from state-to-state occurs

when comparator thresholds are crossed (see Figure 23 and Figure 24). These comparators have hysteresis,

which adds inherent memory to the machine. Operation begins at idle (unpowered by PSE) and proceeds with

increasing voltage from left to right. A 2-event classification follows the (heavy lined) path towards the bottom,

ending up with a latched type 2 decode along the lower branch that is highlighted. This state results in a low T2P

during normal operation. Once the valid path to type 2 PSE detection is broken, the input voltage must transition

below the mark reset threshold to start anew.

l TEXAS INSTRUMENTS

Mark Class

Between

Ranges

Operating

T2P

Open-Drain

Operating

T2P Low

Between

Ranges

UVLO

Rising

UVLO

Falling

UVLO

Falling

TYPE 2 PSE

Hardware Class

Class

TYPE 1 PSE

Hardware Class

Between

Ranges

PoE Startup Sequence

Mark

Reset

Idle Class

Mark Class

Between

Ranges UVLO

Rising

Detect

TPS23751

TPS23752

SLVSB97E –JULY 2012–REVISED JANUARY 2018

www.ti.com

Product Folder Links: TPS23751 TPS23752

Figure 26. Two-Event Class Internal States

7.4.1.5 Inrush and Startup

IEEE 802.3at has a startup current and time limitation, providing type 2 PSE compatibility for type 1 PDs. A type

2 PSE limits output current to between 400 mA and 450 mA for up to 75 ms after power-up (applying “48 V” to

the PI) in order to mirror type 1 PSE functionality. The type 2 PSE supports higher output current after 75 ms.

The TPS23751 and TPS23752 implement a 140 mA inrush current, which is compatible with all PSE types. A

high-power PD must limit its converter startup peak current. The operational current cannot exceed 400 mA for a

period of 80 ms or longer. The TPS23751 and TPS23752 internal soft-start permits control of the converter

startup, however the application circuits must assure that their power draw does not cause the PD to exceed the

current and time limitation. This requirement implicitly requires some form of powering down sections of the

application circuits. T2P becomes valid within tT2P after switching starts, or if an adapter is plugged in while the

PD is operating from a PSE.

7.4.1.6 Maintain Power Signature

The MPS is an electrical signature presented by the PD to assure the PSE that it is still present after operating

voltage is applied. A valid MPS consists of a minimum dc current of 10 mA (or a 10 mA pulsed current for at

least 75 ms every 325 ms) and an ac impedance lower than 26.3 kΩin parallel with 0.05 μF. The ac impedance

is usually accomplished by the minimum operating CIN requirement of 5 μF. When DEN is used to force the

hotswap switch off, the dc MPS is not met. A PSE that monitors the dc MPS removes power from the PD when

this occurs. A PSE that monitors only the ac MPS may remove power from the PD. Additional TPS23752 MPS

features are supported as described in the Sleep Mode section.

7.4.1.7 Startup and Converter Operation

The internal PoE UVLO (Under Voltage Lock Out) circuit holds the hotswap switch off before the PSE provides

full voltage to the PD. This prevents the converter circuits from loading the PoE input during detection and

classification. The converter circuits discharge CIN, Cvc, and Cvb while the PD is unpowered. Thus V(VDD-RTN) is a

small voltage just after applying full voltage to the PD, as seen in Figure 25. The PSE drives the PI voltage to the

operating range once the PSE has decided to power up the PD. When VVDD rises above the UVLO turn-on

threshold (VUVLO-R, approximately 38 V) with RTN high, the TPS23751 and TPS23752 enable the hotswap

MOSFET with approximately 140 mA (inrush) current limit as seen in Figure 27. Converter switching is disabled

while CIN charges and VRTN falls from VVDD to nearly VVSS, however the converter startup circuit is allowed to

charge CVC (the bootstrap startup capacitor). Converter switching is allowed if the PD is not in inrush, OTSD is

not active, and the VCUVLO permits it. Once the inrush current falls about 10% below the inrush current limit,

the PD current limit switches to the operational level (approximately 1000 mA). Continuing the startup sequence

l TEXAS INSTRUMENTS ll p-

Time: 20ms/div

5V/div

100mA/div IPI

Inrush Converter Starts

V(VDD-RTN)

PI Powered

V(VC-RTN)

Type 2 PSE

Type 1 PSE

T2P @ OUTPUT

OUTPUT VOLTAGE

50V/div

5V/div

TPS23751

TPS23752

www.ti.com

SLVSB97E –JULY 2012–REVISED JANUARY 2018

Product Folder Links: TPS23751 TPS23752

shown in Figure 27, VVC continues to rise until the startup threshold (VCUV approximately 8.9 V) is exceeded,

turning the startup source off and enabling switching. The VBregulator is always active, powering the internal

converter circuits as VVC rises. There is a slight delay between the removal of charge current and the start of

switching as the softstart ramp sweeps above the VZDC threshold. VVC falls as it powers both the internal circuits

and the switching MOSFET gates. If the converter control bias output rises to support VVC before it falls to VCUV –

VCUVH (approximately 5.7 V), a successful startup occurs. In Figure 27, T2P is active if a type 2 PSE is plugged

in.

Figure 27. Power Up and Start

If VVDD- VVSS drops below the lower PoE UVLO (VUVLO-R - VUVLO-H, approximately 32 V), the hotswap MOSFET is

turned off, but the converter still runs. The converter stops if VVC falls below the converter UVLO (VCUV – VCUVH,

approximately 5.7 V), the hotswap is in inrush current limit, 0% duty cycle is demanded by VCTL (VCTL < VZDC,

approximately 1.75 V), or the converter is in thermal shutdown.

7.4.1.8 PD Hotswap Operation

IEEE 802.3at has taken a new approach to PSE output limiting. A type 2 PSE must meet an output current

versus time template with specified minimum and maximum sourcing boundaries. The peak output current may

be as high as 50 A for 10 μs or 1.75 A for 75 ms. This makes robust protection of the PD device even more

important than it was in IEEE 802.3-2008.

The internal hotswap MOSFET is protected against output faults and input voltage steps with a current limit and

deglitched (time-delay filtered) foldback. An overload on the pass MOSFET engages the current limit, with VRTN-

VVSS rising as a result. If VRTN rises above approximately 12 V for longer than approximately 800 μs, the current

limit reverts to the inrush value, and turns the converter off. The 800 μs deglitch feature prevents momentary

transients from causing a PD reset, provided that recovery lies within the bounds of the hotswap and PSE

protection. Figure 28 shows an example of recovery from a 16 V PSE rising voltage step. The hotswap MOSFET

goes into current limit, overshooting to a relatively low current, recovers to approximately 1000 mA full current

limit and charges the input capacitor while the converter continues to run. The MOSFET did not go into foldback

because VRTN-VVSS was below 12 V after the 800 μs deglitch.

l TEXAS INSTRUMENTS

Time: 200s/div

10V/div

500mA/div

IPI

16-V Input Step

Recovery from PI Dropout

V(VDD-VSS)

CIN Completes Charge

While Converter Operates

V(RTN-VSS)

VRTN < 12V @ 800s

20V/div

TPS23751

TPS23752

SLVSB97E –JULY 2012–REVISED JANUARY 2018

www.ti.com

Product Folder Links: TPS23751 TPS23752

Figure 28. Response to Output Short Circuit

The PD control has a thermal sensor that protects the internal hotswap MOSFET. Conditions like startup or

operation into a VDD-to-RTN short cause high power dissipation in the MOSFET. An over-temperature shutdown

(OTSD) turns off the hotswap MOSFET and class regulator, which are restarted after the device cools. The

hotswap MOSFET is re-enabled with the inrush current limit when exiting from an over-temperature event.

Pulling DEN to VSS during powered operation causes the internal hotswap MOSFET to turn off. The hotswap

switch is forced off under the following conditions:

1. VAPD above VAPDEN (approximately 1.5 V)

2. V(DEN –VSS) < VPD_DIS when VVDD– VVSS is in the operational range,

3. PD OTSD is active, or

4. V(DEN –VSS) < PoE UVLO falling threshold (approximately 32 V).

7.4.2 Sleep Mode Operation (TPS23752 only)

These features implement a Sleep Mode, permitting power savings at night (or some other system-driven

criteria) by turning the active load circuits off while maintaining enough functionality for the PD to respond to a

local power-up request.

The Sleep Mode is initiated by command of a local device controller (microprocessor) when the SLPb input is

driven low. Sleep Mode is latched by this event, the converter is disabled, VDD regulates VCto 12.8 V, and the

LED output is active. The LED output sinks current to light an LED biased from the VCpin with RLED as shown in

Figure 32. LED can alert a local user that Sleep Mode is active. The TPS23752 signals the PSE that it wants to

remain powered during sleep by drawing enough current to satisfy the IEEE 802.3at DC MPS requirements. If

MODE was low when SLPb fell, a pulsed VDD current-draw scheme is implemented; otherwise a DC current is

drawn. The input current consists of the TPS23752 bias currents and the LED sink current, assuming no

additional loading on VCor VB. The MPS current draw is inhibited when APD is active. A local pushbutton switch

l TEXAS INSTRUMENTS

TPS23751

TPS23752

www.ti.com

SLVSB97E –JULY 2012–REVISED JANUARY 2018

Product Folder Links: TPS23751 TPS23752

(SWAKE in Figure 32) is monitored by the WAKE pin and the latched sleep state exits when the button is pressed.

The button is connected to ARTN through an optocoupler LED (OPTO6 in Figure 32) that alerts the device

controller the button was pushed during normal operation. The MODE pin also has a second function, serving to

activate the LED output when driven low during normal converter operation. For more information regarding the

TPS23752 Sleep Mode Feature, see TPS23752 Maintain Power Signature Operation In Sleep Mode (SLVA588).

7.4.2.1 Converter Controller Features

The TPS23751 and TPS23752 DC-DC controller implements typical current-mode control as well as variable

frequency operation for light load efficiency optimization as shown in the Functional Block Diagram. Features

include programmable oscillator, over-current, PWM, VFO, and ZDC comparators, current-sense blanker,

softstart, and gate driver. In addition, an internal slope-compensation ramp generator, thermal shutdown, and

startup current source with control are provided.

The TPS23751 and TPS23752 are targeted at high efficiency, current mode, synchronous, flyback converters

incorporating an external error amplifier. In PWM mode, the external error amplifier and optocoupler drives the

CTL pin to demand current from the PWM. The internal current sense to control (CS to CTL pin) gain is 5 V/V.

VFO mode can be enabled using a voltage divider on the SRT pin. The TPS23751 and TPS23752 enter VFO

mode when VCTL falls below VSRT/2 + 1.75 V.

7.4.2.2 PWM and VFO Operation; CTL, SRT, and SRD Pin Relationships to Output Load Current

As the TPS23751 and TPS23752 transition from PWM to VFO mode with decreasing output load current, several

things happen to help reduce the light load losses of the DC-DC converter. A summary is shown in Table 3.

Table 3. Comparison of PWM and VFO Modes

MODE SWITCHING FREQUENCY INDUCTOR Peak CURRENT SYNCHRONOUS RECTIFIER

(control with SRD pin) INTERNAL SLOPE

COMPENSATION

PWM Constant; set by RTVariable, set by VCTL Enabled (SRD = LOW) Enabled

VFO Variable; set by VCTL Constant, clamped by VSRT Disabled (SRD = OPEN) Disabled

The state of the SRD pin depends on the internal operating mode (PWM or VFO) and is used to enable or

disable the synchronous rectifier. In addition to disabling the synchronous rectifier, the TPS23751 and TPS23752

reduce the switching frequency in VFO mode to maintain output regulation.

Synchronous rectification provides an efficiency advantage over a standard diode rectifier at medium to heavy

loads, but not at lighter loads. The SRD feature can provide a means to recover the light load losses by disabling

the synchronous rectifier and allowing the standard diode rectifier to take over as illustrated in Figure 29 by the

VFO/PWM mode efficiency curve.

MENTS it" / Ill I

Load Current (A)

0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9

Efficiency (%)

VFO/PWM Mode

PWM Mode Only

TPS23751

TPS23752

SLVSB97E –JULY 2012–REVISED JANUARY 2018

www.ti.com

Product Folder Links: TPS23751 TPS23752

Figure 29. TPS23751 and TPS23752 Light Load Efficiency versus Mode

Figure 30 illustrates operation through the VFO to PWM to VFO transitions. As load current increases, so does

VCTL. When VCTL exceeds the rising threshold, the TPS23751 and TPS23752 transition from VFO to PWM mode,

and SRD goes low. The converter now operates with fixed frequency and current demand set by VCTL. As load

current decreases, so does VCTL. When VCTL decays below the falling threshold, the TPS23751 and TPS23752

transition from PWM to VFO mode, and SRD goes high. The converter now operates with variable frequency set

by VCTL, and fixed current demand set by VSRT.

‘5‘ TEXAS INSTRUMENTS

Time: 5ms/div

10V/div

500mV/div

1A/div

ILOAD

VSRD

VCTL

VFO

Mode

VFO

Mode PWM Mode

Natural Hysteresis

TPS23751

TPS23752

www.ti.com

SLVSB97E –JULY 2012–REVISED JANUARY 2018

Product Folder Links: TPS23751 TPS23752

Figure 30. Converter Mode Transition

There is a natural load current hysteresis for ILOAD which can be seen in Figure 30 between the transition points.

For increasing ILOAD, the transition current is slightly higher than for decreasing ILOAD. This condition is due

partially to CTL pin hysteresis (approximately 35mV) and partially due to CTL pin operating point versus mode.

VCTL is slightly higher in PWM mode than in VFO mode for given output load at or near the transition point.

7.4.2.3 Bootstrap Topology

The internal startup current source (IVC_ST) and control logic implement a bootstrap-type startup as discussed in

the Startup and Converter Operation section. The startup current source charges CVC from VDD when the

converter is disabled (either by the PD control or the VCcontrol) to store enough energy to start the converter.

Steady-state operating power must come from a converter (bias winding) output or other source. Loading on VC

and VBmust be minimal while CVC charges, otherwise the converter may never start. The optocoupler does not

load VBwhen the converter is off for most situations, however care should be taken in ORing topologies where

the output is powered when PoE is off.

The converter shuts off when VCfalls below its lower UVLO. This can happen when power is removed from the

PD, or during a fault on a converter output rail. When one output is shorted, all the output voltages fall including

the one that powers VC. The control circuit discharges VCuntil it hits the lower UVLO and turns off. A restart is

initiated as described in the Startup and Converter Operation section if the converter turns off and there is

sufficient VDD voltage. This type of operation is sometimes referred to as hiccup mode which provides robust

output short protection by providing time-average heating reduction of the output rectifier.

Below VCUV, the bootstrap control logic disables most of the converter controller circuits except the VBregulator

and internal reference. GATE is low when the converter is disabled.

The bootstrap source provides reliable startup from widely varying input voltages, and eliminates the continual

power loss of external resistors. The startup current source does not charge above the maximum recommended

VVC if the converter is disabled and there is sufficient VDD to charge higher.

l TEXAS INSTRUMENTS

TPS23751

TPS23752

SLVSB97E –JULY 2012–REVISED JANUARY 2018

www.ti.com

Product Folder Links: TPS23751 TPS23752

7.4.2.4 Current Slope Compensation and Current Limit

Current-mode control requires addition of a compensation ramp to the sensed inductive (transformer or inductor)

current for stability at duty cycles near and over 50%. The TPS23751 and TPS23752 have a maximum duty

cycle limit of 80%, permitting the design of wide input-range converters with lower voltage stress on the output

rectifiers. While the maximum duty cycle is 80%, converters may be designed that run at duty cycles well below

this for a narrower, 36 V to 57 V PI range. The TPS23751 and TPS23752 provide fixed internal slope

compensation which suffices for most applications.

The TPS23751 and TPS23752 provide internal, frequency independent, slope compensation (VPK = 40 mV at

DMAX) starting from DSLOPE_ST to the PWM comparator input for current-mode control-loop stability. This voltage is

not applied to the current-limit comparator whose threshold is 0.25 V (VCSMAX). If the provided slope is not

sufficient, the effective slope may be increased by addition of RSper Figure 33. The additional slope voltage is

provided by (ICS_RAMP × RS). There is also a small dc offset caused by the ICSDC (approximately 2.0 μA) current.

The peak current limit does not have duty cycle dependency unless RSis used which is easier designing the

current limit to a fixed value. See the Current Slope Compensation section for more information.

The internal comparators monitoring CS are isolated from the CS pin by the blanking circuits while GATE is low,

and for a short time (blanking period) just after GATE switches high. A 500 Ω(max) equivalent pulldown resistor

on CS is applied while GATE is low.

7.4.2.5 RT

The RT pin programs the (free-running) oscillator frequency of the TPS23751 and TPS23752 in PWM mode. The

internal oscillator sets the maximum duty cycle at 80% and controls the slope-compensation ramp circuit. In VFO

mode, the RT pin is driven by VCTL.

7.4.2.6 T2P, Startup and Power Management

T2P (type 2 PSE) is an active-low multifunction pin that indicates if

[(PSE = Type_2) + (VAPD > 1.5 V) + (VCTL < 4 V) × (PD current limit ≠Inrush)].

The term with VCTL prevents an optocoupler connected to the secondary-side from loading VCbefore the

converter is started. The APD term allows the PD to operate from an adapter at high-power if a type 2 PSE is not

present, assuming the adapter has sufficient capacity. Applications must monitor the state of T2P to detect power

source transitions. Transitions could occur when a local power supply is added or dropped or when a PSE is

enabled on the far end. The PD may be required to adjust the load appropriately. The usage of T2P is

demonstrated in Figure 32.

In order for a type 2 PD to operate at less than 13 W the first 80 ms after power application, the various delays

must be estimated and used by the application controller to meet the requirement. The bootup time of many

applications processors may be long enough to eliminate the need to do any timing. Figure 27 illustrates the T2P

delay after the converter starts.

7.4.2.7 Thermal Shutdown

The DC-DC controller has an OTSD that can be triggered by heat sources including the VBregulator, GATE

driver, bootstrap current source, and bias currents. The controller OTSD turns off VB, the GATE driver, and

forces the VCcontrol into an under-voltage state.

7.4.2.8 Adapter ORing

Many PoE-capable devices are designed to operate from either a wall adapter or PoE power. A local power

solution adds cost and complexity, but allows a product to be used if PoE is not available in a particular

installation. While most applications only require that the PD operate when both sources are present, the

TPS23751 and TPS23752 supports forced operation from either of the power sources. Figure 31 illustrates three

options for diode ORing external power into a PD. Only one option would be used in any particular design.

Option 1 applies power to the TPS23751 and TPS23752 PoE input, option 2 applies power between the

TPS23751 and TPS23752 PoE section and the power circuit, and option 3 applies power to the output side of

the converter. Each of these options has advantages and disadvantages. Many of the basic ORing configurations

and much of the discussion contained in the application note Advanced Adapter ORing Solutions using the

TPS23753 (SLVA306), apply to the TPS23751 and TPS23752.

WWW

TPS23751/2

RDEN

RCLS

From Ethernet

Transformers

VDD

VSS

CLS

DEN

RTN

Power

Circuit

Adapter

Option 3

Adapter

Option 2

Adapter

Option 1

VPOE

Low Voltage

Output

From Spare Pairs

or Transformers

TPS23751

TPS23752

www.ti.com

SLVSB97E –JULY 2012–REVISED JANUARY 2018

Product Folder Links: TPS23751 TPS23752

Figure 31. ORing Configurations

The IEEE standards require that the Ethernet cable be isolated from ground and all other system potentials. The

adapter must meet a minimum 1500 Vac dielectric withstand test between the output and all other connections

for ORing options 1 and 2. The adapter only needs this isolation for option 3 if it is not provided by the converter.

Adapter ORing diodes are shown for all the options to protect against a reverse voltage adapter, a short on the

adapter input pins, or damage to a low-voltage adapter. ORing is sometimes accomplished with a MOSFET in

option 3.

7.4.2.9 Using DEN to Disable PoE

The DEN pin may be used to turn the PoE hotswap switch off by pulling it to VSS while in the operational state, or

to prevent detection when in the idle state. A low voltage on DEN forces the hotswap MOSFET off during normal

operation.

7.4.2.10 ORing Challenges

Preference of one power source presents a number of challenges. Combinations of adapter output voltage

(nominal and tolerance), power insertion point, and which source is preferred determine solution complexity.

Several factors adding to the complexity are the natural high-voltage selection of diode ORing (the simplest

method of combining sources), the current limit implicit in the PSE, and PD inrush and protection circuits

(necessary for operation and reliability). Creating simple and seamless solutions is difficult, if not impossible, for

many of the combinations. However, the TPS23751 and TPS23752 offer several built-in features that simplify

some combinations.

Several examples demonstrate the limitations inherent in ORing solutions. Diode ORing a 48 V adapter with PoE

(option 1) presents the problem that either source may have the higher voltage. A blocking switch would be

required to assure that one source dominates. A second example combines a 12 V adapter with PoE using

option 2. The converter draws approximately four times the current at 12 V from the adapter than it does from

PoE at 48 V. Transition from adapter power to PoE may demand more current than can be supplied by the PSE.

The converter must be turned off while the CIN capacitance charges, with a subsequent converter restart at the

higher voltage and lower input current. A third example involves the loss of the MPS when running from the

adapter, causing the PSE to remove power from the PD. If ac power is then lost, the PD stops operating until the

PSE detects and powers the PD.

l TEXAS INSTRUMENTS

TPS23752

P 2/2

WAKE

LED SLPb

MODE

RSL

RMODE

SLPb

MODE

SWAKE

RPB

RLED

Sleep Mode

Processor Control Interface

RWAKE

RSLN

RMPS

OPTO4

OPTO5

OPTO6

TPS23752

P 1/2

RCS

DVC1

GATE

CVC

CTL

58V

0.1uF

RDEN

From Ethernet

Pairs 1,2

VSS

CIN

From Ethernet

Pairs 3,4

CLS

DEN

T2P

RCLS

Type 2 PSE

Indicator

CVB

RFBU

RFBL

TLV431

ROB

CIZ

VOUT

PAD

VDD

SRD

RT2P

RAPD2

RAPD1

Adapter

RSRT1

APD

RSRT2

COUT

CIO

RCTL

CCTL

RSRD

RVC

DOUT

VOUT

SRT

ARTN

OPTO2

OPTO1

OPTO3 OPTO3

VOUT

PBb

RTN

TPS23751

TPS23752

SLVSB97E –JULY 2012–REVISED JANUARY 2018

www.ti.com

Product Folder Links: TPS23751 TPS23752

8 Application and Implementation

NOTE

Information in the following applications sections is not part of the TI component

specification, and TI does not warrant its accuracy or completeness. TI’s customers are

responsible for determining suitability of components for their purposes. Customers should

validate and test their design implementation to confirm system functionality.

8.1 Application Information

The TPS23751 and TPS23752 support power supply topologies that require a single PWM gate drive with

current-mode control. Figure 32 provides an example of a synchronous rectifier flyback converter.

8.2 Typical Application

Figure 32. TPS23752 Application Circuit

8.2.1 Design Requirements

Selecting a converter topology along with a design procedure is beyond the scope of this applications section.

Examples to help in programming the TPS23751 and TPS23752 are shown below. Additional special topics are

included to explain the ORing capabilities, frequency dithering, and other design considerations. For more

specific converter design examples refer to the following application notes:

• Designing with the TPS23753 Powered Device and Power Supply Controller, SLVA305

• Advanced Adapter ORing Solutions using the TPS23753, SLVA306

• TPS23751EVM-104 EVM: Evaluation Module for TPS23751, SLVU754

• TPS23752EVM-145 EVM: Evaluation Module for TPS23752, SLVU753

l TEXAS INSTRUMENTS

TPS23751

TPS23752

www.ti.com

SLVSB97E –JULY 2012–REVISED JANUARY 2018

Product Folder Links: TPS23751 TPS23752

Typical Application (continued)

8.2.2 Detailed Design Procedure

8.2.2.1 Input Bridges and Schottky Diodes

Using Schottky diodes instead of PN junction diodes for the PoE input bridges reduces the power dissipation in

these devices by about 30%. There are, however, some things to consider when using them.

The IEEE standard specifies a maximum backfeed voltage of 2.8 V. A 100-kΩresistor is placed between the

unpowered pairs and the voltage is measured across the resistor. Schottky diodes often have a higher reverse

leakage current than PN diodes, making this a harder requirement to meet. To compensate, use conservative

design for diode operating temperature, select lower-leakage devices where possible, and match leakage and

temperatures by using packaged bridges.

Schottky diode leakage currents and lower dynamic resistances can impact the detection signature. Setting

reasonable expectations for the temperature range over which the detection signature is accurate is the simplest

solution. Increasing RDEN slightly may also help meet the requirement.

Schottky diodes have proven less robust to the stresses of ESD transients than PN junction diodes. After

exposure to ESD, Schottky diodes may become shorted or leak. Care must be taken to provide adequate

protection in line with the exposure levels. This protection may be as simple as ferrite beads and capacitors.

As a general recommendation, use 1 A or 2 A, 100-V rated discrete or bridge diodes for the input rectifiers.

8.2.2.2 Protection, D1

A TVS, D1, across the rectified PoE voltage per Figure 32 must be used. A SMAJ58A, or equivalent, is

recommended for general indoor applications. Adequate capacitive filtering or a TVS must limit input transient

voltage to within the absolute maximum ratings. Outdoor transient levels or special applications require additional

protection.

8.2.2.3 Capacitor, C1

The IEEE 802.3at standard specifies an input bypass capacitor (from VDD to VSS) of 0.05 μF to 0.12 μF. Typically

a 0.1 μF, 100 V, 10% ceramic capacitor is used.

8.2.2.4 Detection Resistor, RDEN

The IEEE 802.3at standard specifies a detection signature resistance, RDEN between 23.75 kΩand 26.25 kΩ, or

25 kΩ±5%. A resistor of 24.9 kΩ±1% is recommended for RDEN.

8.2.2.5 Classification Resistor, RCLS

Connect a resistor from CLS to VSS to program the classification current according to the IEEE 802.3at standard.

The class power assigned should correspond to the maximum average power drawn by the PD during operation.

Select RCLS according to Table 1. For a high power design, choose class 4 and RCLS = 63.4 Ω.

8.2.2.6 APD Pin Divider Network, RAPD1, RAPD2

The APD pin can be used to disable the TPS23751 and TPS23752 internal hotswap MOSFET, giving the

adapter source priority over the PoE. For an example calculation, see literature number SLVA306.

8.2.2.7 Setting the PWM-VFO Threshold using the SRT pin

The TPS23751 and TPS23752 internally compares modified voltages at the SRT and CTL pins to determine the

operating mode. The designer should consider the light load operating point (considering the value of VCTL)

where synchronous rectifier (M2 in Figure 32) gate drive and switching losses nearly match conduction losses of

the rectifier diode (DOUT in Figure 32). Typically, the designer characterizes circuit efficiency, output load, and

control pin (VCTL) voltage and then select the transition point. Both VFO →PWM (occurs at higher load current

due to natural hysteresis) and PWM →VFO (occurs at slightly lower load current) transitions should be

considered when choosing the VSRT setpoint. As an example:

1. Assume that the desired efficiency transition threshold occurs at 18% of full load and VCTL = 2.0 V

l TEXAS INSTRUMENTS Transition to VFO mode when VC SRT= X CTL’ = X ’ R R vS 9 9 R sw R 2.0 V £1 Q

RCS

GATE

RTN

ARTN

RVFF

VDD

( )

SLOPE _ D

MAX SLOPE _ ST

SCS _ RAMP

MAX SLOPE _ ST

V (mV)

V (mV) D D

R ( ) 1000

I ( A)

D D

W = ´

9 9

8.5 10 8.5 10

R 34000

(Hz) 250000

´ W ´ W

= = = W

SRT1 SRT

SRT2

B SRT

R V 100 k 0.5 V

R 11.1 k

V V 5 V 0.5 V

´W ´

= = = W

- -

CTL

SRT CTL

Transition to VFO mode when V 2.0 V

V 2 V 3.5 V 2 2.0 V 3.5 V 0.5 V

= ´ - = ´ - =

TPS23751

TPS23752

SLVSB97E –JULY 2012–REVISED JANUARY 2018

www.ti.com

Product Folder Links: TPS23751 TPS23752

Typical Application (continued)

2. Determine where to set VSRT.

(2)

3. Set VSRT using a voltage divider from VBto ARTN as shown in Figure 32.

4. Choose RSRT1 = 100 kΩand then calculate RSRT2 as follows:

(3)

5. Select 11 kΩfor RSRT2.

8.2.2.8 Setting Frequency (RT)

The converter switching frequency in PWM mode is set by connecting resistor, RTfrom the RT pin to ARTN (see

Figure 32). The frequency may be set as high as 1 MHz with some loss in programming accuracy as well as

converter efficiency. As an example:

1. Assume a desired switching frequency (fSW) of 250 kHz.

2. Compute RT:

(4)

3. Select 34 kΩfor RT.

8.2.2.9 Current Slope Compensation

The TPS23751 and TPS23752 provide a fixed internal compensation ramp that suffices for most applications. RS

(see Figure 33) may be used if the internally provided slope compensation is not enough. Most current-mode

control papers and application notes define the slope values in terms of VPP/TS(peak ramp voltage / switching

period). Assuming that the desired slope, VSLOPE_D (in mV/period), as shown in Figure 2, is based on the full

period, compute RSper the following equation where VPK and ICS_RAMP are from the electrical characteristics

table with voltages in mV and current in μA.

(5)

Figure 33. Additional Slope Compensation

CSmay be required if the presence of RScauses increased noise, due to adjacent signals like the gate drive, to

appear at the CSpin.

l TEXAS INSTRUMENTS PG PG PG '0 IT T C S TS (

( ) ( )

VC1 VC2 CUVH

RECHARGE

VC _ ST

C C V 10 F 0.47 F 3.2 V

T 22.3ms

I 1.5mA

+ ´ m + m ´

= = =

( )

VC1 VC2 CUV

VC _ ST

C C V 10.47 F 8.9 V

T 62.1ms

I 1.5mA

+ ´ m ´

= = =

SSD TOTAL

VC1 VC2

CUVH

T I 3.01ms 6.9mA

C C 6.49μF

V 3.2 V

´´

+ = = =

GATE

DRIVE

TOTAL DRIVE VC _ OP

P61.2mW

I 5.1mA

V 12 V

I I I 5.1mA 1.8mA 6.9mA

= = =

= + = + =

GATE

P 12 V 250kHz 17 nC 61.2mW

= ´ ´ ´ =

GATE C SW GATE

P V Q

æ ö

= ´ ¦ ´ ´

ç ÷

è ø

TPS23751

TPS23752

www.ti.com

SLVSB97E –JULY 2012–REVISED JANUARY 2018

Product Folder Links: TPS23751 TPS23752

Typical Application (continued)

8.2.2.10 Voltage Feed-Forward Compensation

Voltage feed-forward compensation can provide additional benefits including a flatter output fold-back current

limit characteristic (versus input voltage), and a reduction of voltage stress on the primary switching MOSFET at

high line and output overload. Voltage feed-forward can simply be applied by adding a resistor, RVFF between

VDD and CS as shown in Figure 33. The current through RVFF and RSprovides a small dc offset on the CS pin

which reduces the output fold back current limit.

A simple way to choose RVFF is to first determine the natural circuit output fold back current at minimum line input

voltage. For example, if the circuit requirements are to deliver a regulated 5 V output at 5 A from a 24 V dc

adapter, then low line input could be as low as 21.6 V including tolerance. RVFF must be set large enough to

allow the required current to be delivered prior to output voltage fold back. Natural circuit output fold back current

and primary MOSFET voltage stress should also be characterized at high line in order to assess the

improvement provided by the addition of RVFF.

For a given SRT setpoint, the addition of RVFF reduces the output current at which the VFO to PWM (and PWM

to VFO) transition occurs. This requires that the designer increase VSRT to account for the reduction due to RVFF.

8.2.2.11 Estimating Bias Supply Requirements and Cvc

The bias supply (VC) power requirements determine CVC sizing and hiccup frequency during a fault. The first step

is to determine the power and current requirements of the power supply control circuitry, then select CVC. The

following example assumes that control current draw is constant with voltage with no loading by the feedback

and T2P optocouplers to simplify the process:

1. Let VQG be the gate voltage swing that the MOSFET QGis rated to (often 10 V).

(6)

Compute gate drive power if VCis 12 V and QGATE is 17 nC

(7)

This equation illustrates why MOSFET QGshould be an important consideration in selecting the switching

MOSFETs.

2. Estimate the required bias current at some intermediate voltage during the CVC discharge. For the TPS23751

and TPS23752, 12 V provides a reasonable estimate. Add the operating bias current to the gate drive

current.

(8)

3. Compute the required CVC based on startup within the typical softstart delay of 3.01 ms.

(9)

4. Choose a 10 μF electrolytic and 0.47 μF ceramic capacitor each rated for 16 V (minimum). Compute the

initial time to start the converter when operating from PoE. Using a typical bootstrap current of 1.5 mA,

compute the time to startup.

(10)

5. Compute the fault duty cycle and hiccup frequency

(11)

l TEXAS INSTRUMENTS TOTAL TD D‘SCHARGE + RECHARGE 1 D‘SCHARGE + RECHARGE ARTN TPSZS751/2 % HZ

OUT T2P OUT

T2P OUT

V V 5 0.4

I 0.46 mA

R 10000

= = =

T2P From

TPS23751/2

RT2P RT2P-OUT

VOUT

VT2P-OUT

VT2P Low

Indicates

Type 2

IT2P-OUT

IT2P

DVC1

CVC

ARTN

RVC

VCT1

Bias WInding

DISCHARGE RECHARGE

Hiccup Freque 1 1

F 37Hz

T T 4.9ms 22.3

ncy : ms

= = =

+ +

DISCHARGE

DISCHARGE RECHARGE

T4.9ms

Duty Cycle : D 18.0%

T T 4.9ms 22.3ms

= = =

+ +

( ) ( )

VC1 VC2 CUVH

DISCHARGE

TOTAL

C C V 10 F 0.47 F 3.2 V

T 4.9 ms

I 6.9 mA

+ ´ m + m ´

= = =

TPS23751

TPS23752

SLVSB97E –JULY 2012–REVISED JANUARY 2018

www.ti.com

Product Folder Links: TPS23751 TPS23752

Typical Application (continued)

(12)

(13)

(14)

8.2.2.12 Switching Transformer Considerations and RVC

Care in design of the transformer and VCbias circuit is required to obtain hiccup overload protection. Leading-

edge voltage overshoot on the bias winding may cause VCto peak-charge, preventing the expected tracking with

output voltage. Some method of controlling overshoot is usually required. The method may be as simple as a

series resistor, or an R-C filter in front of DVC1. Good transformer bias-to-output-winding coupling results in

reduced overshoot and better voltage tracking.

Figure 34. VCPin Interface

RVC as shown in Figure 34 helps to reduce peak charging from the bias winding. Reduced peak charging

becomes especially important when tuning hiccup mode operation during output overload. Typical values for RVC

are between 10 Ωand 100 Ω.

8.2.2.13 T2P Pin Interface

The T2P pin is an active-low, open-drain output which indicates that a high power source is available. An

optocoupler can interface the T2P pin to circuitry on the secondary side of the converter. A high-gain optocoupler

and a high-impedance (for example, CMOS) receiver are recommended. Design of the T2P optocoupler interface

can be accomplished as follows:

Figure 35. T2P Interface

1. As shown in Figure 35, let VC= 12 V, VOUT =5V,RT2P-OUT = 10 kΩ, VT2P = 260 mV, VT2P-OUT = 400 mV.

(15)

2. The optocoupler current transfer ratio, CTR, is not needed to determine RT2P. A device with a minimum CTR

of 100% at 1 mA LED bias current, IT2P, is selected. Note that in practice, CTR varies with temperature, LED

bias current, and aging. These variations may require some iteration using the CTR-versus- IDIODE curve on

the optocoupler data sheet.

TEXAS INSTRUMENTS 0. Seed a 10.7 km resistor.

RFBU

RFBL

TLV431

ROB

CIZ

RSS

CSS

DSS

From Regulated

Output Voltage

T2P-OUT

T2P-MIN T2P

C T2P FWLED

T2P

a. The approximate forward voltage of the optocoupler diode, V , is 1.1 V from the data sheet.

FWLED

I0.46mA

I 0.46mA, Select I 1mA

CTR 1.00

V V V 12 V 0.

= = = =

- - -

= = 26 V 1.1V 10.6k

1mA

c. Select a 10.7 k resistor.

-= W

TPS23751

TPS23752

www.ti.com

SLVSB97E –JULY 2012–REVISED JANUARY 2018

Product Folder Links: TPS23751 TPS23752

Typical Application (continued)

(16)

8.2.2.14 Softstart

Converters require a softstart on the voltage error amplifier to prevent output overshoot on startup. Figure 36

shows a common implementation of a secondary-side softstart that works with the typical TL431 error amplifier.

The softstart components consist of DSS, RSS, and CSS. They serve to control the output rate-of-rise by pulling

VCTL down as CSS charges through ROB, the optocoupler, and DSS. This has the added advantage that the TL431

output and CIZ are preset to the proper value as the output voltage reaches the regulated value, preventing

voltage overshoot due to the error amplifier recovery. The secondary-side error amplifier does not become active

until there is sufficient voltage on the secondary. The TPS23751 and TPS23752 provide a primary-side softstart

which persists long enough (approximately 3ms) for secondary side voltage-loop softstart to take over. The

primary-side current-loop softstart controls the switching MOSFET peak current by applying a slowly rising ramp

voltage to a second PWM control input. The PWM is controlled by the lower of the softstart ramp or the CTL-

derived current demand. The actual output voltage rise time is usually much shorter than the internal softstart

period. Initially the internal softstart ramp limits the maximum current demand as a function of time. The current

limit, secondary-side softstart, or output regulation assume control of the PWM before the internal softstart period

is over.

Figure 36. Error Amplifier Soft Start

8.2.2.15 Special Switching MOSFET Considerations

Special care must be used in selecting the converter switching MOSFET. The TPS23751 and TPS23752

minimum switching MOSFET VGATE is approximately 5.5 V, which is due to the VClower threshold. This condition

occurs during an output overload, or towards the end of a (failed) bootstrap startup. The MOSFET must be able

to carry the anticipated peak fault current at this gate voltage.

8.2.2.16 ESD

ESD requirements for a unit that incorporates the TPS23751 or TPS23752 have a much broader scope and

operational implications than are used in TI testing. Unit-level requirements should not be confused with

reference design testing that only validates the ruggedness of the TPS23751 and TPS23752.

l TEXAS INSTRUMENTS

Time: 50ms/div

10V/div

100mA/div

IPI

Inrush

Converter Starts

Class Mark

Detect

V(RTN-VSS)

V(VDD-VSS)

Time: 20ms/div

5V/div

100mA/div IPI

Inrush Converter Starts

V(VDD-RTN)

PI Powered

V(VC-RTN)

Type 2 PSE

Type 1 PSE

T2P @ OUTPUT

OUTPUT VOLTAGE

50V/div

5V/div

TPS23751

TPS23752

SLVSB97E –JULY 2012–REVISED JANUARY 2018

www.ti.com

Product Folder Links: TPS23751 TPS23752

Typical Application (continued)

8.2.2.17 Thermal Considerations and OTSD

Sources of nearby local PCB heating should be considered during the thermal design. Typical calculations

assume that the TPS23751 and TPS23752 are the only heat sources contributing to the PCB temperature rise. It

is possible for a normally operating TPS23751 or TPS23752 device to experience an OTSD event if it is

excessively heated by a nearby device.

8.2.3 Application Curves

Figure 37. Startup Figure 38. Power Up and Start

l TEXAS INSTRUMENTS mz 7* mozu N W5 E j / - m n x 3‘ I" M II 1’ 7‘ ‘ ,. N '5' \JI a.» ll, : ‘ n5 m If I. E n 7 n2 “ H n In 1 u » E H,” + /_ 11:7 176 m! i / i m ‘ m ism 3 m7 “—/ J me In _ ‘ _ mu ‘1 “ + mo 1 us no n no ( m U2 : cm g - ‘ m {229 ‘- m - 1724 ’ 09‘! 7 _ W5 <, u="" 1="" u:="" “5="" g="" a="" ,="" (="" ,="" [="" x,="" ,="" \ch="" 9n="" ms="" has="" ip17="" ml="" \\="" 2="" e="" g="" e="" in="" |="" gr="">

TPS23751

TPS23752

www.ti.com

SLVSB97E –JULY 2012–REVISED JANUARY 2018

Product Folder Links: TPS23751 TPS23752

9 Power Supply Recommendations

The TPS23751 and TPS23752 converter should be designed such that the input voltage of the converter is

capable of operating within the IEEE802.3at recommended input voltage as shown in Table 3 and the minimum

operating voltage of the adapter if applicable.

10 Layout

10.1 Layout Guidelines

Printed-circuit-board layout recommendations are provided in the evaluation module (EVM) documentation

available for these devices.

10.2 Layout Example

Figure 39. TPS23751EVM-104 EVM Parts Placement and Example Layout

l TEXAS INSTRUMENTS Am

TPS23751

TPS23752

SLVSB97E –JULY 2012–REVISED JANUARY 2018

www.ti.com

Product Folder Links: TPS23751 TPS23752

11 Device and Documentation Support

11.1 Documentation Support

11.1.1 Related Documentation

TPS23752 Maintain Power Signature Operation in Sleep Mode, SLVA588

Lightning Surge Considerations for PoE Powered Devices, SLUA736

IEEE 802.3-2005 PoE Interface and Isolated Converter Controller with Enhanced ESD Ride-Through, SLVA306

High Power/High Efficiency PoE Interface and DC/DC Controller, SLUA469

11.1.2 Related Links

The table below lists quick access links. Categories include technical documents, support and community

resources, tools and software, and quick access to sample or buy.

Table 4. Related Links

PARTS PRODUCT FOLDER SAMPLE & BUY TECHNICAL

DOCUMENTS TOOLS &

SOFTWARE SUPPORT &

COMMUNITY

TPS23751 Click here Click here Click here Click here Click here

TPS23752 Click here Click here Click here Click here Click here

11.2 Community Resources

The following links connect to TI community resources. Linked contents are provided "AS IS" by the respective

contributors. They do not constitute TI specifications and do not necessarily reflect TI's views; see TI's Terms of

Use.

TI E2E™ Online Community TI's Engineer-to-Engineer (E2E) Community. Created to foster collaboration

among engineers. At e2e.ti.com, you can ask questions, share knowledge, explore ideas and help

solve problems with fellow engineers.

Design Support TI's Design Support Quickly find helpful E2E forums along with design support tools and

contact information for technical support.

11.3 Trademarks

PowerPAD, E2E are trademarks of Texas Instruments.

All other trademarks are the property of their respective owners.

11.4 Electrostatic Discharge Caution

These devices have limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam

during storage or handling to prevent electrostatic damage to the MOS gates.

11.5 Glossary

SLYZ022 —TI Glossary.

This glossary lists and explains terms, acronyms, and definitions.

12 Mechanical, Packaging, and Orderable Information

The following pages include mechanical, packaging, and orderable information. This information is the most

current data available for the designated devices. This data is subject to change without notice and revision of

this document. For browser-based versions of this data sheet, refer to the left-hand navigation.

I TEXAS INSTRUMENTS

PACKAGE OPTION ADDENDUM

www.ti.com 10-Dec-2020

Addendum-Page 1

PACKAGING INFORMATION

Orderable Device Status

(1)

Package Type Package

Drawing Pins Package

Qty Eco Plan

(2)

Lead finish/

Ball material

(6)

MSL Peak Temp

(3)

Op Temp (°C) Device Marking

(4/5)

Samples

TPS23751PWP ACTIVE HTSSOP PWP 16 90 RoHS & Green NIPDAU Level-2-260C-1 YEAR -40 to 85 23751

TPS23751PWPR ACTIVE HTSSOP PWP 16 2000 RoHS & Green NIPDAU Level-2-260C-1 YEAR -40 to 85 23751

TPS23752PWP ACTIVE HTSSOP PWP 20 70 RoHS & Green NIPDAU Level-2-260C-1 YEAR -40 to 85 TPS23752

TPS23752PWPR ACTIVE HTSSOP PWP 20 2000 RoHS & Green NIPDAU Level-2-260C-1 YEAR -40 to 85 TPS23752

(1) The marketing status values are defined as follows:

ACTIVE: Product device recommended for new designs.

LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.

NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.

PREVIEW: Device has been announced but is not in production. Samples may or may not be available.

OBSOLETE: TI has discontinued the production of the device.

(2) RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance

do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may

reference these types of products as "Pb-Free".

RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption.

Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of <=1000ppm threshold. Antimony trioxide based

flame retardants must also meet the <=1000ppm threshold requirement.

(3) MSL, Peak Temp. - The Moisture Sensitivity Level rating according to the JEDEC industry standard classifications, and peak solder temperature.

(4) There may be additional marking, which relates to the logo, the lot trace code information, or the environmental category on the device.

(5) Multiple Device Markings will be inside parentheses. Only one Device Marking contained in parentheses and separated by a "~" will appear on a device. If a line is indented then it is a continuation

of the previous line and the two combined represent the entire Device Marking for that device.

(6) Lead finish/Ball material - Orderable Devices may have multiple material finish options. Finish options are separated by a vertical ruled line. Lead finish/Ball material values may wrap to two

lines if the finish value exceeds the maximum column width.

Important Information and Disclaimer:The information provided on this page represents TI's knowledge and belief as of the date that it is provided. TI bases its knowledge and belief on information

provided by third parties, and makes no representation or warranty as to the accuracy of such information. Efforts are underway to better integrate information from third parties. TI has taken and

I TEXAS INSTRUMENTS

PACKAGE OPTION ADDENDUM

www.ti.com 10-Dec-2020

Addendum-Page 2

continues to take reasonable steps to provide representative and accurate information but may not have conducted destructive testing or chemical analysis on incoming materials and chemicals.

TI and TI suppliers consider certain information to be proprietary, and thus CAS numbers and other limited information may not be available for release.

In no event shall TI's liability arising out of such information exceed the total purchase price of the TI part(s) at issue in this document sold by TI to Customer on an annual basis.

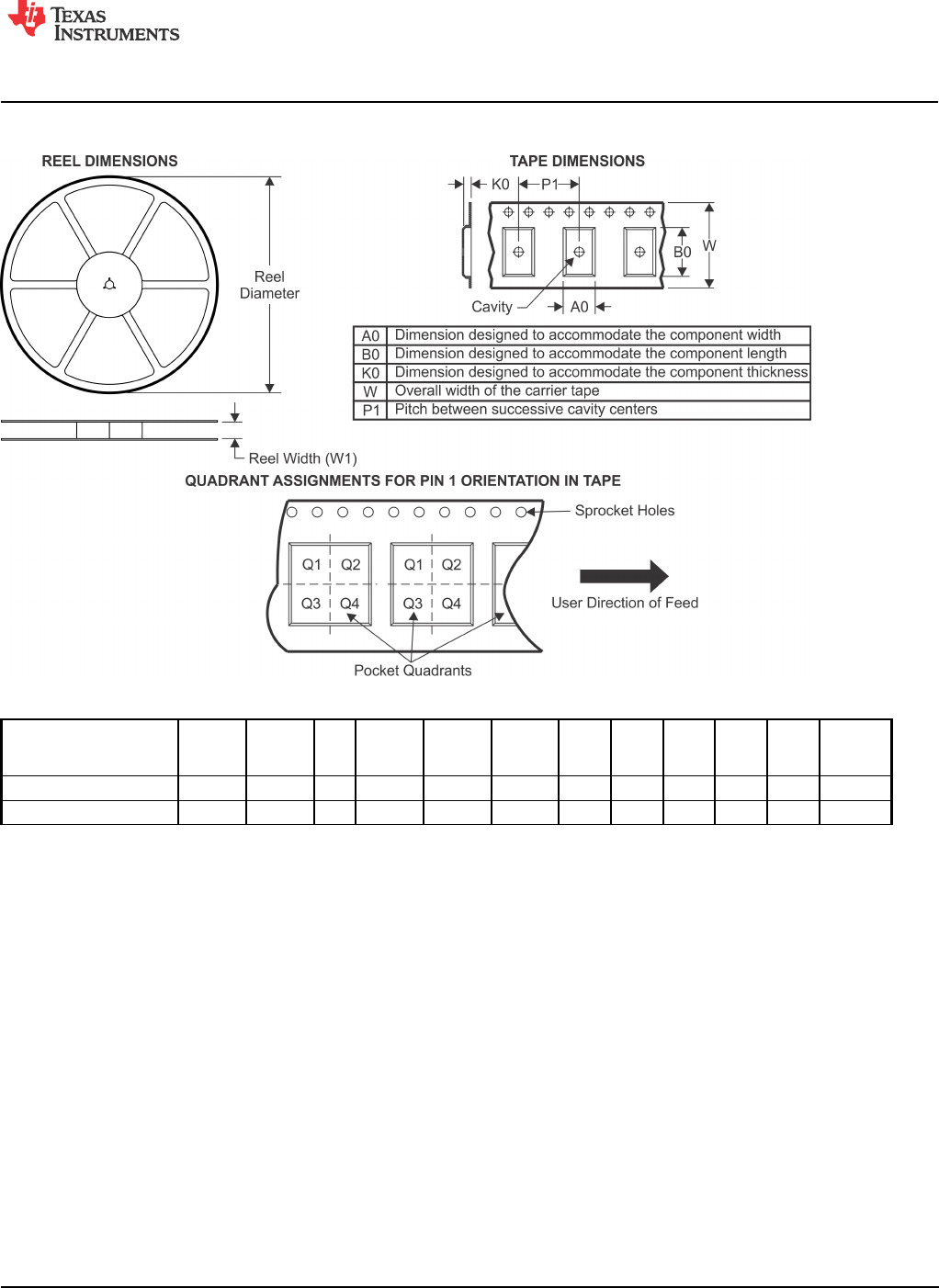

l TEXAS INSTRUMENTS REEL DIMENSIONS TAPE DIMENSIONS ’ I+K0 '«PI» Reel Diame|er AD Dimension deSIgned Io accommodate me componem wIdIh E0 Dimension deSIgned Io eecommodaIe me componenI Iengm KO Dlmenslun desIgned to accommodate me componem Ihlckness 7 w OvereII wmm OHhe earner cape i p1 Pitch between successwe cavIIy cemers f T Reel Width (W1) QUADRANT ASSIGNMENTS FOR PIN 1 ORIENTATION IN TAPE O O O D O O D O SprockeIHoles ,,,,,,,,,,, ‘ User Direcllon 0' Feed Pockel Quadrams

TAPE AND REEL INFORMATION

*All dimensions are nominal

Device Package

Type Package

Drawing Pins SPQ Reel

Diameter

(mm)

Reel

Width

W1 (mm)

(mm) B0

(mm) K0

(mm) P1

(mm) W

(mm) Pin1

Quadrant

TPS23751PWPR HTSSOP PWP 16 2000 330.0 12.4 6.9 5.6 1.6 8.0 12.0 Q1

TPS23752PWPR HTSSOP PWP 20 2000 330.0 16.4 6.95 7.1 1.6 8.0 16.0 Q1

PACKAGE MATERIALS INFORMATION

www.ti.com 5-Jan-2022

Pack Materials-Page 1

l TEXAS INSTRUMENTS TAPE AND REEL BOX DIMENSIONS

*All dimensions are nominal

Device Package Type Package Drawing Pins SPQ Length (mm) Width (mm) Height (mm)

TPS23751PWPR HTSSOP PWP 16 2000 350.0 350.0 43.0

TPS23752PWPR HTSSOP PWP 20 2000 350.0 350.0 43.0

PACKAGE MATERIALS INFORMATION

www.ti.com 5-Jan-2022

Pack Materials-Page 2

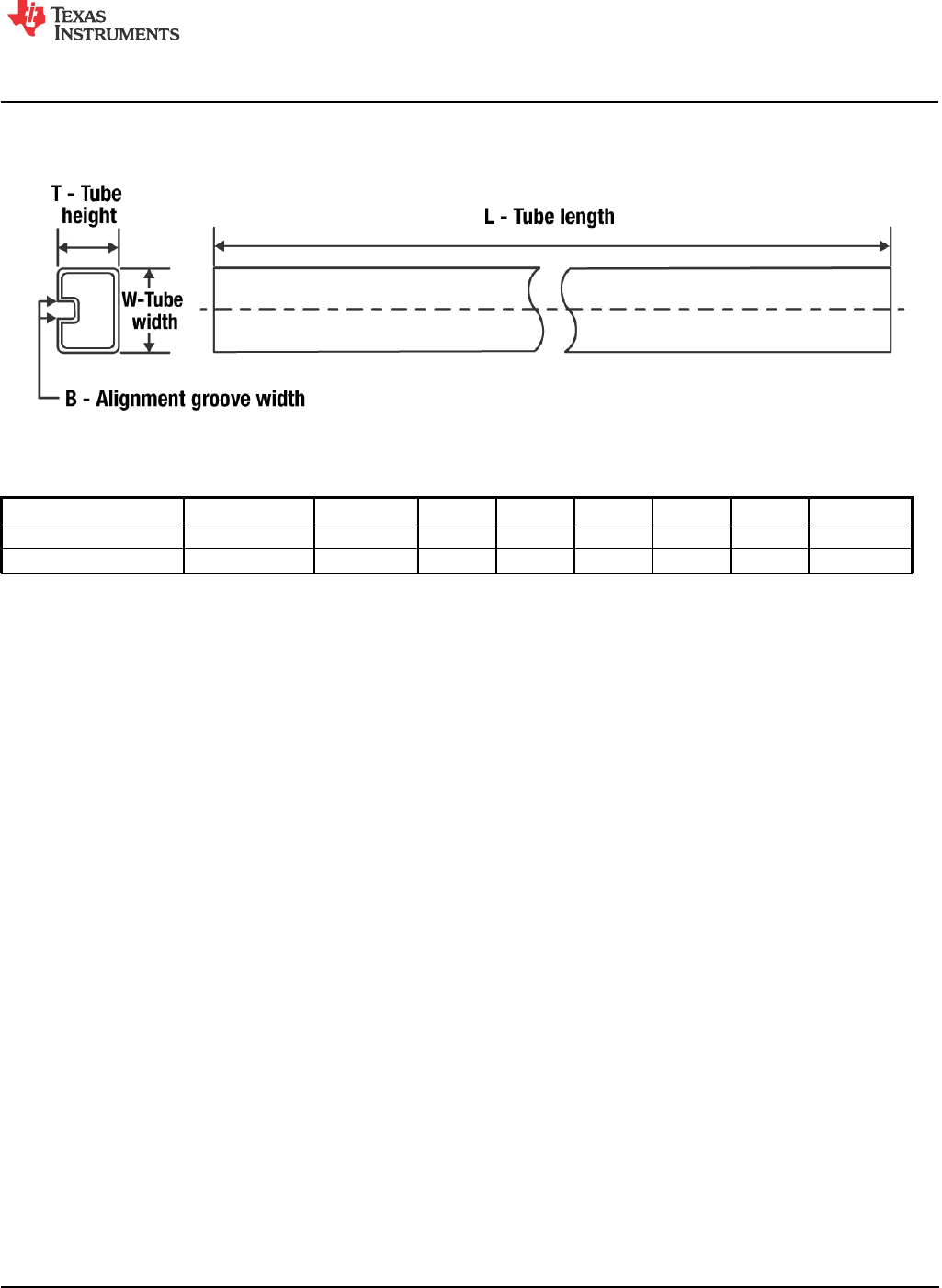

l TEXAS INSTRUMENTS T - Tube height| L - Tube length l ,g + w-Tuhe _______________ _ ______________ width 47 — B - Alignment groove width

TUBE

*All dimensions are nominal

Device Package Name Package Type Pins SPQ L (mm) W (mm) T (µm) B (mm)

TPS23751PWP PWP HTSSOP 16 90 530 10.2 3600 3.5

TPS23752PWP PWP HTSSOP 20 70 530 10.2 3600 3.5

PACKAGE MATERIALS INFORMATION

www.ti.com 5-Jan-2022

Pack Materials-Page 3

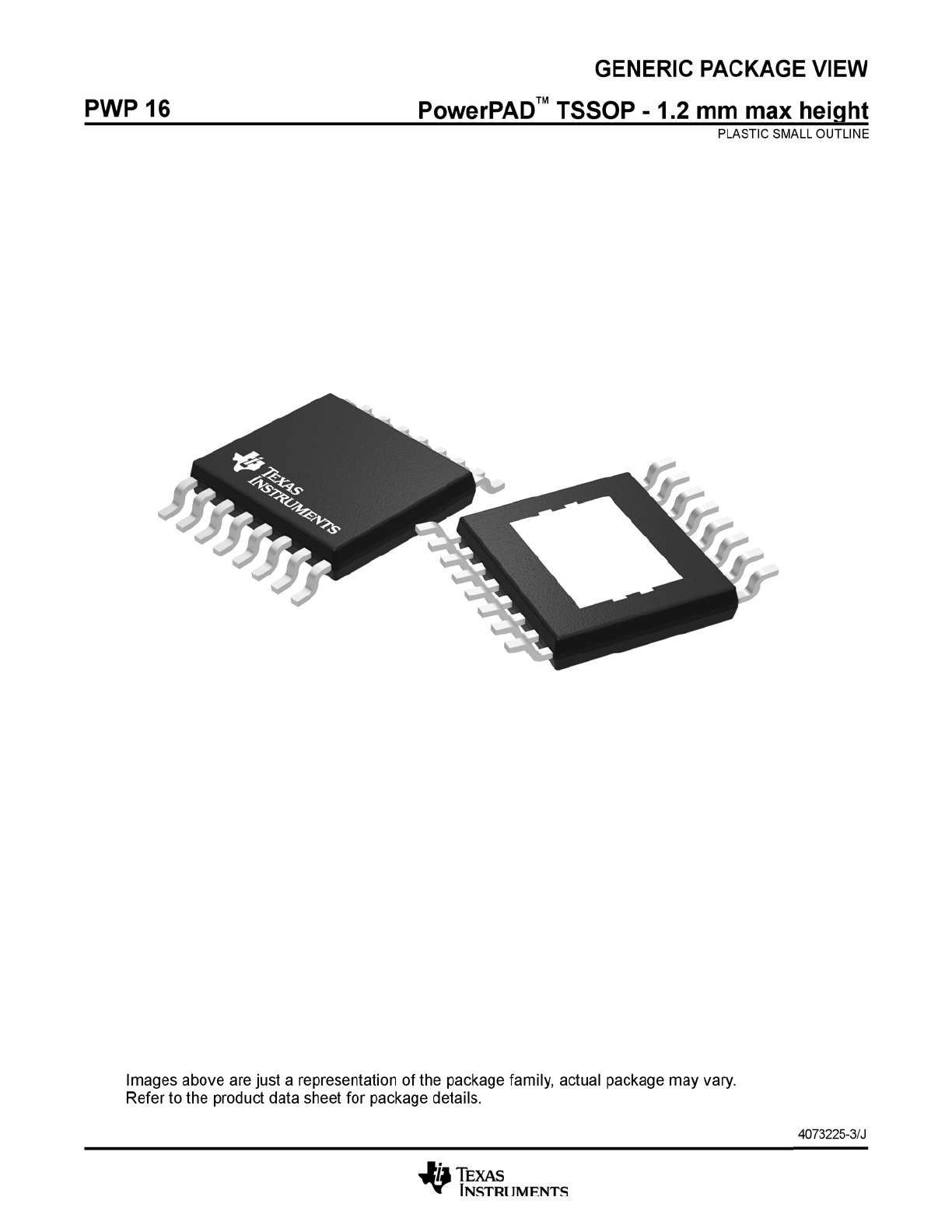

GENERIC PACKAGE VIEW PWP 16 PowerPAD” TSSOP - 1.2 mm max height PLASTIC SMALL OUTLINE Images above are jusl a represenlalion of the package family, aclual package may vary Refel lo the product dala sheel for package details. 40732253.] I TEXAS INSTRI IMFNTS

www.ti.com

PACKAGE OUTLINE

14X 0.65

4.55

16X 0.30

0.19

TYP

6.6

6.2

0.15

0.05

0.25

GAGE PLANE

-80

1.2 MAX

3.55

2.68

2.46

1.75

B4.5

4.3

NOTE 3

5.1

4.9

0.75

0.50

(0.15) TYP

PowerPAD TSSOP - 1.2 mm max heightPWP0016J

SMALL OUTLINE PACKAGE

4223595/A 03/2017

0.1 C A B

PIN 1 INDEX

AREA

SEE DETAIL A

0.1 C

NOTES:

1. All linear dimensions are in millimeters. Any dimensions in parenthesis are for reference only. Dimensioning and tolerancing

per ASME Y14.5M.

2. This drawing is subject to change without notice.

3. This dimension does not include mold flash, protrusions, or gate burrs. Mold flash, protrusions, or gate burrs shall not

exceed 0.15 mm per side.

4. Reference JEDEC registration MO-153.

SEATING

PLANE

PowerPAD is a trademark of Texas Instruments.

A 20

DETAIL A

TYPICAL

SCALE 2.500

THERMAL

PAD

www.ti.com

EXAMPLE BOARD LAYOUT

0.05 MAX

ALL AROUND 0.05 MIN

ALL AROUND

16X (1.5)

16X (0.45)

14X (0.65)

(5.8)

(R0.05) TYP

(3.4)

NOTE 8

(5)

NOTE 8

(1.35) TYP

(0.65)

(1.3) TYP

( 0.2) TYP

VIA

(2.46)

(3.55)

PowerPAD TSSOP - 1.2 mm max heightPWP0016J

SMALL OUTLINE PACKAGE

4223595/A 03/2017

NOTES: (continued)

5. Publication IPC-7351 may have alternate designs.

6. Solder mask tolerances between and around signal pads can vary based on board fabrication site.

7. This package is designed to be soldered to a thermal pad on the board. For more information, see Texas Instruments literature

numbers SLMA002 (www.ti.com/lit/slma002) and SLMA004 (www.ti.com/lit/slma004).

8. Size of metal pad may vary due to creepage requirement.

9. Vias are optional depending on application, refer to device data sheet. It is recommended that vias under paste be filled, plugged

or tented.

SEE DETAILS

LAND PATTERN EXAMPLE

EXPOSED METAL SHOWN

SCALE: 10X

SYMM

METAL COVERED

BY SOLDER MASK

SOLDER MASK

DEFINED PAD

15.000

METAL

SOLDER MASK

OPENING METAL UNDER

SOLDER MASK SOLDER MASK

OPENING

EXPOSED METAL

SOLDER MASK DETAILS

NON-SOLDER MASK

DEFINED SOLDER MASK

DEFINED

‘U‘+L‘ , nlﬂvi Egg... g

www.ti.com

EXAMPLE STENCIL DESIGN

16X (1.5)

16X (0.45)

14X (0.65)

(5.8)

(R0.05) TYP

(3.55)

BASED ON

0.125 THICK

STENCIL

(2.46)

BASED ON

0.125 THICK

STENCIL

PowerPAD TSSOP - 1.2 mm max heightPWP0016J

SMALL OUTLINE PACKAGE

4223595/A 03/2017

2.08 X 3.000.175

2.25 X 3.240.15

2.46 X 3.55 (SHOWN)0.125

2.75 X 3.970.1

SOLDER STENCIL

OPENING

STENCIL

THICKNESS

NOTES: (continued)

10. Laser cutting apertures with trapezoidal walls and rounded corners may offer better paste release. IPC-7525 may have alternate

design recommendations.

11. Board assembly site may have different recommendations for stencil design.

SOLDER PASTE EXAMPLE

BASED ON 0.125 mm THICK STENCIL

SCALE: 10X

SYMM

METAL COVERED

BY SOLDER MASK

SEE TABLE FOR

DIFFERENT OPENINGS

FOR OTHER STENCIL

THICKNESSES

MECHANICAL DATA M 1“ AST‘C WAN OUT N’ NOTES, com» AH Hnec' d'vnensmrs c'e m m'hmekers Tm drawer ‘5 subje», ,0 change wnrau: name, Body dimensmns do nut mm mm ﬂcsh m aroms‘ms Mam am an: Drotrns'an she“ no: exceed ms pe' side ”‘3 pomagc \s CCS‘QHCd to be SO‘GL‘YQG to a “WWW pad on the boom Refer k) cchmm‘ HHcf, ’owc'Pad Tr'eurtu Erhuncec Fucmge‘ Texts \nst'mreuts Utemlue No S VAUOZ my Wow-um)" veguvcmg vecovrmenced buuvd \uyuLl Th5 duumen: Es uvu ub‘e u: wwwL r <‘vttu www="" uto'vv=""> See me accmonm hqure 'v the Jmmﬂ Dam Swee! ‘nr cams reqmdwg Me exaosed Mer'mﬂ pad features and mmensmns Fc‘s wwtmr JEDEC M0 153 PawevPAD is a trademalk 0! Texas \nurumems. {I} TEXAS INSTRUMENTS www.ti.com

THERMAL PAD MECHANICAL DATA PWP (RmPDSOmGZO) F’owerPADTM SMALL PLASTIC OUTLiNE THERMAL iNFORMATiON This PowerPAD‘“ package incorporates an exposed thermal pad that is designed to be attached to a printed circuit board (PCB). The thermal pad must he soldered directly to the Peer After soldering. the PCB can be used as a heatsink. in addition, through the use of thermal vias. the thermal pad can be attached directly to the appropriate copper plane shown in the electrical schematic for the device. or alternatively, can be attached to a special heatsink structure designed into the PCB. This design optimizes the heat transfer from the integrated circuit (IC). For additional information on the PowerPAD package and how to take advantage of its heat dissipating abilities. refer to Technical Brief, PowerPAD Thermally Enhanced Package. Texas instruments Literature Not SLMAOUZ and Application Brief PowerPAD Made Easy, Texas instruments Literature Na, SLMAOUIL Both documents are avaiinbie at www.ti.corn. The expased thermal pad dimensions for this package are shown in the following illustration iiiiiiiiii 1.15 MAX W p; a a FE LBJ—L HHiHHHHiHIHU 7 Exposed Thermal Pad Top View Exposed Thermui Pod Dimensions 4206332715/1‘0 01/15 NOTE: A. Ali iineur dimensions are in miliimeters A Exposed tie strap features may not be present. inIrPAD is a tndomark olT-xas instrumlnts {5i TEXAS INSTRUMENTS com

LAND PATTERN DATA PWP (R—PDSO—GZO) PowerPADW PLASTlC SMALL OUTLINE Example Board Layout Stencil Openln s_ Via pattern and copper pad size Based on a slencl‘t Ickness may vary dependlng on layout constraints 0' -tZ7mm (-005Inch)- Reference table below tor other l“”“5'“ae‘°we’ W“ W'” solder stencil thicknesses enhance t rmal performance (See Note D) ,3 4>T l—il8x0,65 20x0.25—— ‘— -—HHTHHHHTH 5.6 2,4 3.4 (See Note E) Y 2.4 _l x l 3.7 Solder: Mask Example Solder Mask _—|:| H :| H H H H [ H H as upper - <52:"l2tepé‘,dal l8x0.65»l="" l6="" 1/="" example="" i="" non="" saldermask="" defined="" pad="" '="" ‘/="" \‘\.="" example="" solder="" mask="" opening="" (see="" nme="" f)="" center="" power="" pud="" solder="" stencil="" opening="" stencil="" thickness="" x="" y="" 0.1mm="" 3.9="" 2.7="" 0.127rnrn="" 3.7="" 2.4="" pad="" geometry="" 0.152mm="" 3.5="" 2.2="" o="" 07="" 0.178mm="" 3.3="" 2.1="" 4207609s8/w="" 09/15="" notes:="" all="" llnear="" dimensions="" are="" ln="" millimeters="" thls="" drawing="" is="" subject="" to="" change="" without="" notice.="" customers="" should="" place="" a="" note="" on="" the="" circuit="" board="" raan'calian="" drawing="" not="" ta="" alter="" the="" center="" solder="" musk="" deﬁned="" pad.="" this="" package="" is="" deslgned="" to="" be="" soldered="" to="" a="" lnennal="" pad="" on="" the="" baard,="" reler="" to="" technical="" brier,="" powerpod="" thermally="" enhanced="" package.="" texas="" instruments="" literature="" no.="" slmaooz,="" slmaom,="" and="" also="" the="" product="" data="" sheets="" (or="" specific="" thermal="" information.="" via="" requirements.="" and="" recommended="" board="" layout.="" these="" documents="" are="" available="" at="" wwwtieam="">. Pablieatlen cherssl is recommended lor alternate deslgns. E. Laser cutting apertures with trapezoidal walls and also rounding corners will offer better paste release. Customers should Contact their board assembly site tor stencil design recommendations. Example stencil design based on a 50% volumetric metal load Solder paste. Reler to |PCi7525 for other stencil recommendations, F. Customers should Contact their board fabrication site for solder mask tolerances between and around signal pads. 539?“? ' TEXAS INSTRUMENTS wwwltlcon

IMPORTANT NOTICE AND DISCLAIMER

TI PROVIDES TECHNICAL AND RELIABILITY DATA (INCLUDING DATA SHEETS), DESIGN RESOURCES (INCLUDING REFERENCE

DESIGNS), APPLICATION OR OTHER DESIGN ADVICE, WEB TOOLS, SAFETY INFORMATION, AND OTHER RESOURCES “AS IS”

AND WITH ALL FAULTS, AND DISCLAIMS ALL WARRANTIES, EXPRESS AND IMPLIED, INCLUDING WITHOUT LIMITATION ANY

IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT OF THIRD

PARTY INTELLECTUAL PROPERTY RIGHTS.

These resources are intended for skilled developers designing with TI products. You are solely responsible for (1) selecting the appropriate

TI products for your application, (2) designing, validating and testing your application, and (3) ensuring your application meets applicable

standards, and any other safety, security, regulatory or other requirements.

These resources are subject to change without notice. TI grants you permission to use these resources only for development of an

application that uses the TI products described in the resource. Other reproduction and display of these resources is prohibited. No license

is granted to any other TI intellectual property right or to any third party intellectual property right. TI disclaims responsibility for, and you

will fully indemnify TI and its representatives against, any claims, damages, costs, losses, and liabilities arising out of your use of these

resources.

TI’s products are provided subject to TI’s Terms of Sale or other applicable terms available either on ti.com or provided in conjunction with

such TI products. TI’s provision of these resources does not expand or otherwise alter TI’s applicable warranties or warranty disclaimers for

TI products.

TI objects to and rejects any additional or different terms you may have proposed. IMPORTANT NOTICE

Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265

Scheda tecnica TPS23751,52 di Texas Instruments

INFORMAZIONI

GUIDA

CONTATTI

SEGUICI
