An IMPORTANT NOTICE at the end of this data sheet addresses availability, warranty, changes, use in safety-critical applications,

intellectual property matters and other important disclaimers. PRODUCTION DATA.

TMS570LS0432, TMS570LS0332

SPNS186C –OCTOBER 2012–REVISED MAY 2018

TMS570LS0x32 16- and 32-Bit RISC Flash Microcontroller

1 Device Overview

1.1 Features

• High-Performance Automotive-Grade

Microcontroller for Safety-Critical Applications

– Dual CPUs Running in Lockstep

– ECC on Flash and RAM Interfaces

– Built-In Self-Test for CPU and On-Chip RAMs

– Error Signaling Module With Error Pin

– Voltage and Clock Monitoring

• ARM®Cortex®-R4 32-Bit RISC CPU

– Efficient 1.66 DMIPS/MHz With 8-Stage Pipeline

– 8-Region Memory Protection Unit (MPU)

– Open Architecture With Third-Party Support

• Operating Conditions

– 80-MHz System Clock

– Core Supply Voltage (VCC): 1.2-V Nominal

– I/O Supply Voltage (VCCIO): 3.3-V Nominal

– ADC Supply Voltage (VCCAD): 3.3-V Nominal

• Integrated Memory

– Up to 384KB of Program Flash With ECC

– 32KB of RAM With ECC

– 16KB of Flash for Emulated EEPROM With

ECC

• Hercules™ Common Platform Architecture

– Consistent Memory Map Across Family

– Real-Time Interrupt (RTI) Timer (OS Timer)

– 96-Channel Vectored Interrupt Module (VIM)

– 2-Channel Cyclic Redundancy Checker (CRC)

• Frequency-Modulated Phase-Locked Loop

(FMPLL) With Built-In Slip Detector

• IEEE 1149.1 JTAG Boundary Scan and ARM

CoreSight™ Components

• Advanced JTAG Security Module (AJSM)

• Multiple Communication Interfaces

– Two CAN Controllers (DCANs)

– DCAN1 - 32 Mailboxes With Parity Protection

– DCAN2 - 16 Mailboxes With Parity Protection

– Compliant to CAN Protocol Version 2.0B

– Multibuffered Serial Peripheral Interface

(MibSPI) Module

– 128 Words With Parity Protection

– Two Standard Serial Peripheral Interface (SPI)

Modules

– UART (SCI) Interface With Local Interconnect

Network (LIN 2.1) Interface Support

• Next Generation High-End Timer (N2HET) Module

– Up to 19 Programmable Pins

– 128-Word Instruction RAM With Parity

Protection

– Includes Hardware Angle Generator

– Dedicated High-End Timer Transfer Unit (HTU)

With MPU

• Enhanced Quadrature Encoder Pulse (eQEP)

Module

– Motor Position Encoder Interface

• 12-Bit Multibuffered Analog-to-Digital Converter

(ADC) Module

– 16 Channels

– 64 Result Buffers With Parity Protection

• Up to 45 General-Purpose Input/Output (GPIO)

Pins

– 8 Dedicated Interrupt-Capable GPIO Pins

• Package

– 100-Pin Quad Flatpack (PZ) [Green]

l TEXAS INSTRUMENTS

TMS570LS0432, TMS570LS0332

SPNS186C –OCTOBER 2012–REVISED MAY 2018

www.ti.com

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

1.2 Applications

• Braking Systems (ABS and ESC)

• Electric Power Steering (EPS)

• Electric Pump Control

• Battery-Management Systems

• Active Driver Assistance Systems

• Aerospace and Avionics

• Railway Communications

• Off-road Vehicles

l TEXAS INSTRUMENTS

TMS570LS0432, TMS570LS0332

www.ti.com

SPNS186C –OCTOBER 2012–REVISED MAY 2018

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

1.3 Description

The TMS570LS0432/0332 device is a high-performance automotive-grade microcontroller for safety

systems. The safety architecture includes dual CPUs in lockstep, CPU and Memory BIST logic, ECC on

both the flash and the data SRAM, parity on peripheral memories, and loopback capability on peripheral

I/Os.

The TMS570LS0432/0332 device integrates the ARM Cortex-R4 CPU. The CPU offers an efficient

1.66DMIPS/MHz, and has configurations that can run up to 80 MHz, providing up to 132 DMIPS. The

device supports the big-endian (BE32) format.

The TMS570LS0432/0332 device has 384KB and 256KB of integrated flash (respectively) and 32KB of

data RAM. Both the flash and RAM have single-bit error correction and double-bit error detection. The

flash memory on this device is a nonvolatile, electrically erasable, and programmable memory

implemented with a 64-bit-wide data bus interface. The flash operates on a 3.3-V supply input (the same

level as I/O supply) for all read, program, and erase operations. When in pipeline mode, the flash operates

with a system clock frequency of 80 MHz. The SRAM supports single-cycle read and write accesses in

byte, halfword, word, and double-word modes throughout the supported frequency range.

The TMS570LS0432/0332 device features peripherals for real-time control-based applications, including a

Next Generation High-End Timer (N2HET) timing coprocessor with up to 19 I/O terminals and a 12-bit

Analog-to-Digital Converter (ADC) supporting 16 inputs in the 100-pin package.

The N2HET is an advanced intelligent timer that provides sophisticated timing functions for real-time

applications. The timer is software-controlled, using a small instruction set, with a specialized timer

micromachine and an attached I/O port. The N2HET can be used for pulse-width-modulated outputs,

capture or compare inputs, or GPIO. The N2HET is especially well suited for applications requiring

multiple sensor information and drive actuators with complex and accurate time pulses. A High-End Timer

Transfer Unit (HTU) can perform DMA-type transactions to transfer N2HET data to or from main memory.

A Memory Protection Unit (MPU) is built into the HTU.

The Enhanced Quadrature Encoder Pulse (eQEP) module is used for direct interface with a linear or

rotary incremental encoder to get position, direction, and speed information from a rotating machine as

used in high-performance motion and position-control systems.

The device has a 12-bit-resolution MibADC with 16 channels and 64 words of parity-protected buffer RAM.

The MibADC channels can be converted individually or can be grouped by software for sequential

conversion sequences. There are three separate groupings. Each sequence can be converted once when

triggered or configured for continuous conversion mode. The MibADC has a 10-bit mode for use when

compatibility with older devices or faster conversion time is desired.

The device has multiple communication interfaces: one MibSPI, two SPIs, one UART/LIN, and two

DCANs. The SPI provides a convenient method of serial high-speed communications between similar

shift-register type devices. The UART/LIN supports the Local Interconnect standard 2.1 and can be used

as a UART in full-duplex mode using the standard Non-Return-to-Zero (NRZ) format. The DCAN supports

the CAN 2.0 (A and B) protocol standard and uses a serial, multimaster communication protocol that

efficiently supports distributed real-time control with robust communication rates of up to 1Mbps. The

DCAN is ideal for applications operating in noisy and harsh environments (for example, automotive and

industrial applications) that require reliable serial communication or multiplexed wiring.

The Frequency-Modulated Phase-Locked Loop (FMPLL) clock module is used to multiply the external

frequency reference to a higher frequency for internal use. The FMPLL provides one of the five possible

clock source inputs to the Global Clock Module (GCM). The GCM manages the mapping between the

available clock sources and the device clock domains.

The device also has an External Clock Prescaler (ECP) module that when enabled, outputs a continuous

external clock on the ECLK pin. The ECLK frequency is a user-programmable ratio of the peripheral

interface clock (VCLK) frequency. This low-frequency output can be monitored externally as an indicator of

the device operating frequency.

l TEXAS INSTRUMENTS

TMS570LS0432, TMS570LS0332

SPNS186C –OCTOBER 2012–REVISED MAY 2018

www.ti.com

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

The Error Signaling Module (ESM) monitors all device errors and determines whether an interrupt is

generated or the external nERROR pin is toggled when a fault is detected. The nERROR pin can be

monitored externally as an indicator of a fault condition in the microcontroller.

The I/O Multiplexing and Control Module (IOMM) allows the configuration of the input/output pins to

support alternate functions. See Table 4-17 for a list of the pins that support multiple functions on this

device.

With integrated safety features and a wide choice of communication and control peripherals, the

TMS570LS0432/0332 device is an ideal solution for real-time control applications with safety-critical

requirements.

(1) For more information, see Section 9,Mechanical Packaging and Orderable Information.

Device Information(1)

PART NUMBER PACKAGE BODY SIZE

TMS570LS0432PZ LQFP (100) 14.00 mm × 14.00 mm

TMS570LS0332PZ LQFP (100) 14.00 mm × 14.00 mm

l TEXAS INSTRUMENTS Cortex-R

ESM

Flash

with ECC

384KB(A)

CRC

2 Channel

Peripheral

Bridge

PCR

N2HET

128 Words

with Parity

SYS

GIO

LIN

MiBSPI1

8 Transfer

Groups

128 Buffers

with Parity

DCAN1

32 Messages

with Parity

nTRST

TMS

TCK

TDI

TDO

nRST

nPORRST

TEST

N2HET[31:28, 26, 24:22, 20:16,

14, 12, 10, 8, 6, 4, 2, 0]

GIOA[7:0]/INT[7:0]

LINRX

LINTX

MIBSPI1SIMO

MIBSPI1SOMI

MIBSPI1CLK

MIBSPI1nCS[3:0]

CAN1RX

CAN1TX

FLTP1

ECLK

DCAN2

16 Messages

with Parity

CAN2RX

CAN2TX

VIM

96 Channel

with Parity

CCM-R4

RTCK

nERROR

MIBSPI1nENA

FLTP2

with ECC

RAM

32KB

Slave I/F

RTI

MiBADC

64 Words

with Parity

ADIN[21, 20, 17, 16, 11:0]

VCCAD / ADREFHI

VSSAD / ADREFLO

ADEVT

SPI2

SPI2SIMO

SPI2SOMI

SPI2CLK

SPI2nCS[0]

STC

LBIST

Debug

Gasket

SCR

DAP

with

ICEPick

HTU

2 Regions

8 DCP

with MPU

BRIDGE

Cortex-R4

with MPU

8 regions

16KB

Flash for

EEPROM

w/ECC

VCCP

Cortex-R4

with MPU

8 regions

OSCIN

OSCOUT

VCCPLL

VSSPLL

Kelvin_GND

OSC

PLL

Clock

Monitor

AJSM

eQEP

DCC

IOMM

eQEPA

eQEPB

eQEPS

eQEPI

SPI3

SPI3SIMO

SPI3SOMI

SPI3CLK

SPI3nCS[3:0]

SPI3nENA

TMS570LS0432, TMS570LS0332

www.ti.com

SPNS186C –OCTOBER 2012–REVISED MAY 2018

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

1.4 Functional Block Diagram

Figure 1-1 shows a functional block diagram of the device.

A. The TMS570LS0332 device only supports 256KB Flash with ECC.

Figure 1-1. Functional Block Diagram

l TEXAS INSTRUMENTS \nowanx a? \

TMS570LS0432, TMS570LS0332

SPNS186C –OCTOBER 2012–REVISED MAY 2018

www.ti.com

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

Table of Contents

1 Device Overview ......................................... 1

1.1 Features .............................................. 1

1.2 Applications........................................... 2

1.3 Description............................................ 3

1.4 Functional Block Diagram ............................ 5

2 Revision History ......................................... 7

3 Device Comparison ..................................... 8

4 Terminal Configuration and Functions ............. 9

4.1 PZ QFP Package Pinout (100-Pin)................... 9

4.2 Terminal Functions ................................. 10

4.3 Output Multiplexing and Control..................... 16

4.4 Special Multiplexed Options......................... 17

5 Specifications .......................................... 18

5.1 Absolute Maximum Ratings......................... 18

5.2 ESD Ratings ........................................ 18

5.3 Power-On Hours (POH)............................. 18

5.4 Recommended Operating Conditions............... 19

5.5 Switching Characteristics Over Recommended

Operating Conditions for Clock Domains ........... 19

5.6 Wait States Required ............................... 20

5.7 Power Consumption ................................ 21

5.8 Thermal Resistance Characteristics for PZ......... 22

5.9 Input/Output Electrical Characteristics .............. 22

5.10 Output Buffer Drive Strengths ...................... 23

5.11 Input Timings........................................ 24

5.12 Output Timings...................................... 25

6 System Information and Electrical

Specifications........................................... 27

6.1 Voltage Monitor Characteristics ..................... 27

6.2 Power Sequencing and Power-On Reset ........... 28

6.3 Warm Reset (nRST)................................. 30

6.4 ARM Cortex-R4 CPU Information................... 31

6.5 Clocks ............................................... 35

6.6 Clock Monitoring .................................... 41

6.7 Glitch Filters......................................... 43

6.8 Device Memory Map ................................ 44

6.9 Flash Memory ....................................... 50

6.10 Flash Program and Erase Timings for Program

Flash ................................................ 52

6.11 Flash Program and Erase Timings for Data Flash.. 52

6.12 Tightly Coupled RAM Interface Module ............. 53

6.13 Parity Protection for Accesses to peripheral RAMs.53

6.14 On-Chip SRAM Initialization and Testing ........... 54

6.15 Vectored Interrupt Manager ......................... 56

6.16 Real-Time Interrupt Module ......................... 58

6.17 Error Signaling Module.............................. 59

6.18 Reset / Abort / Error Sources ....................... 63

6.19 Digital Windowed Watchdog ........................ 64

6.20 Debug Subsystem................................... 65

7 Peripheral Information and Electrical

Specifications........................................... 70

7.1 Peripheral Legend................................... 70

7.2 Multibuffered 12-Bit Analog-to-Digital Converter.... 70

7.3 General-Purpose Input/Output ...................... 78

7.4 Enhanced High-End Timer (N2HET)................ 79

7.5 Controller Area Network (DCAN).................... 82

7.6 Local Interconnect Network Interface (LIN) ......... 83

7.7 Multibuffered / Standard Serial Peripheral Interface 84

7.8 Enhanced Quadrature Encoder (eQEP) ............ 94

8 Device and Documentation Support ............... 96

8.1 Device Support...................................... 96

8.2 Documentation Support ............................. 99

8.3 Related Links........................................ 99

8.4 Community Resources.............................. 99

8.5 Trademarks.......................................... 99

8.6 Electrostatic Discharge Caution..................... 99

8.7 Glossary............................................. 99

8.8 Device Identification Code Register ............... 100

8.9 Die Identification Registers ....................... 100

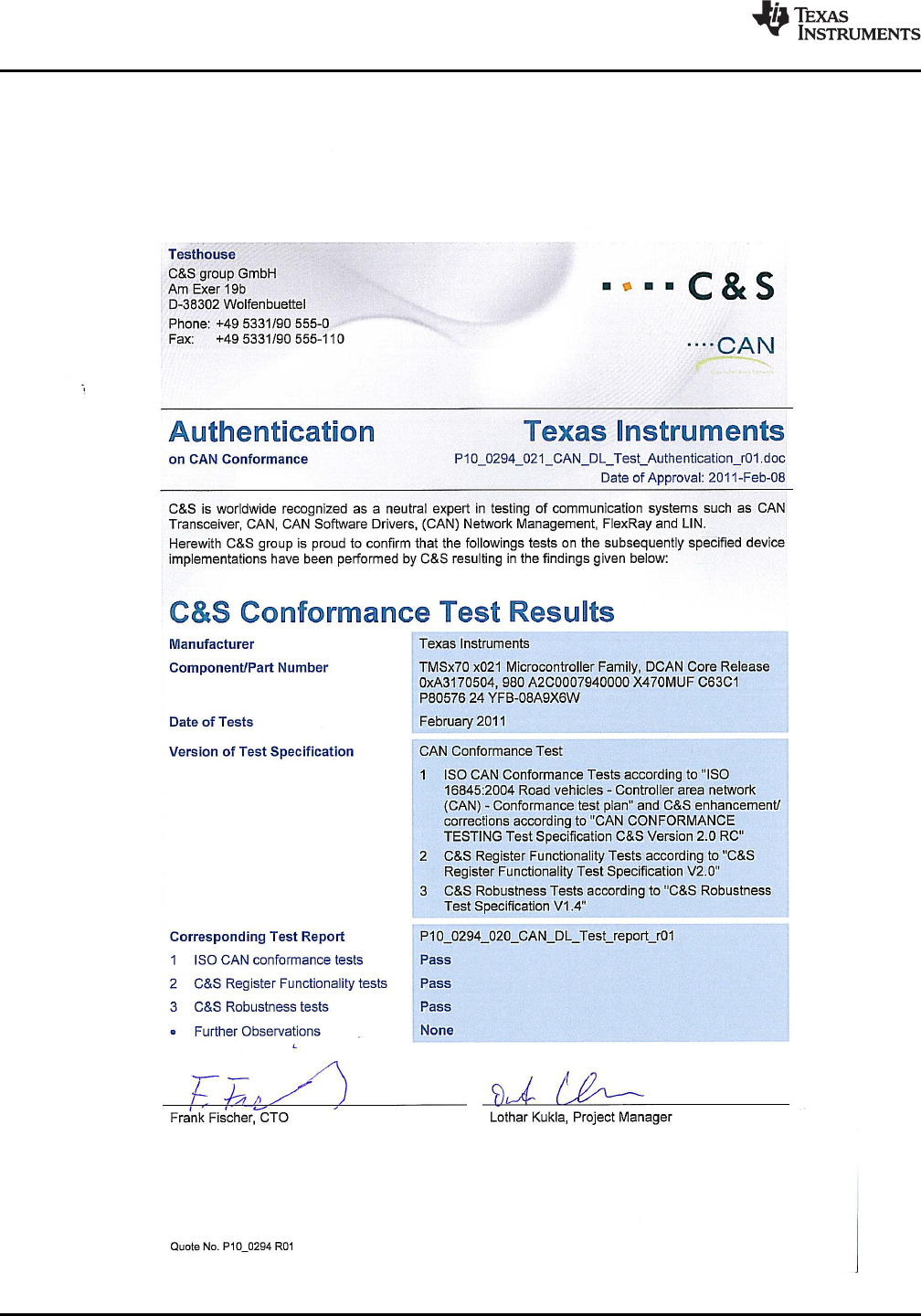

8.10 Module Certifications............................... 101

9 Mechanical Packaging and Orderable

Addendum.............................................. 106

9.1 Packaging Information ............................. 106

l TEXAS INSTRUMENTS

TMS570LS0432, TMS570LS0332

www.ti.com

SPNS186C –OCTOBER 2012–REVISED MAY 2018

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

2 Revision History

Scope: Applicable updates to the Hercules™ TMS570 MCU device family, specifically relating to the

TMS570LS0432 devices, which are now in the production data (PD) stage of development have been

incorporated.

Changes from June 30, 2015 to May 31, 2018 (from B Revision (June 2015) to C Revision) Page

•Section 5.1 (Absolute Maximum Ratings): Updated/Changed Supply voltage, VCCAD MAX value from "3.6" to

"4.6" V ................................................................................................................................ 18

•Section 5.7 (Power Consumption): Clarified the conditions for the 3.3V current requirements when programming

or erasing flash ...................................................................................................................... 21

•Section 6.20.6 (Advanced JTAG Security Module): Updated AJSM description............................................ 68

•Section 8.8 (Device Identification Code Register): Added the address of the Device ID register....................... 100

l TEXAS INSTRUMENTS

TMS570LS0432, TMS570LS0332

SPNS186C –OCTOBER 2012–REVISED MAY 2018

www.ti.com

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

(1) For additional device variants, see www.ti.com/tms570

(2) This table reflects the maximum configuration for each peripheral. Some functions are multiplexed and not all pins are available at the

same time.

(3) Superset device

(4) Total number of pins that can be used as general-purpose input or output when not used as part of a peripheral.

3 Device Comparison

Table 3-1 lists the features of the TMS570LS0432/0332 devices.

Table 3-1. TMS570LS0432/0332 Device Comparison(1)(2)

FEATURES DEVICES

Generic Part

Number TMS570LS1227ZWT(3) TMS570LS0714ZWT TMS570LS0714PGE TMS570LS0714PZ TMS570LS0432PZ(3) TMS570LS0332PZ TMS570LS0232PZ

Package 337 BGA 337 BGA 144 QFP 100 QFP 100 QFP 100 QFP 100 QFP

CPU ARM Cortex-R4F ARM Cortex-R4F ARM Cortex-R4F ARM Cortex-R4F ARM Cortex-R4 ARM Cortex-R4 ARM Cortex-R4

Frequency (MHz) 180 180 160 100 80 80 80

Flash (KB) 1280 768 768 768 384 256 128

RAM (KB) 192 128 128 128 32 32 32

Data Flash

[EEPROM] (KB) 64 64 64 64 16 16 16

EMAC 10/100 – – – – – –

FlexRay 2-ch – – – – – –

CAN 3 3 3 2 2 2 2

MibADC

12-bit (Ch) 2 (24ch) 2 (24ch) 2 (24ch) 2 (16ch) 1 (16ch) 1 (16ch) 1 (16ch)

N2HET (Ch) 2 (44) 2 (44) 2 (40) 2 (21) 1 (19) 1 (19) 1 (19)

ePWM Channels 14 14 14 8 – – –

eCAP Channels 6 6 6 4 0 0 0

eQEP Channels 2 2 2 1 1 1 1

MibSPI (CS) 3 (6 + 6 + 4) 3 (6 + 6 + 4) 3 (5 + 6 + 4) 2 (5 + 1) 1 (4) 1 (4) 1 (4)

SPI (CS) 2 (2 + 1) 2 (2 + 1) 1 (1) 1 (1) 2 2 2

SCI (LIN) 2 (1 with LIN) 2 (1 with LIN) 2 (1 with LIN) 1 (with LIN) 1 (with LIN) 1 (with LIN) 1 (with LIN)

I2C 1 1 1 – – – –

GPIO (INT)(4) 101 (with 16

interrupt capable) 101 (with 16

interrupt capable) 64 (with 10

interrupt capable) 45 (with 9

interrupt capable) 45 (with 8

interrupt capable) 45 (with 9

interrupt capable) 45 (with 8

interrupt capable)

EMIF 16-bit data – – – – – –

ETM (Trace) – – – – – – –

RTP/DMM – – – – – – –

Operating

Temperature –40ºC to 125ºC –40ºC to 125ºC –40ºC to 125ºC –40ºC to 125ºC –40ºC to 125ºC –40ºC to 125ºC –40ºC to 125ºC

Core Supply (V) 1.14 V – 1.32 V 1.14 V – 1.32 V 1.14 V – 1.32 V 1.14 V – 1.32 V 1.14 V – 1.32 V 1.14 V – 1.32 V 1.14 V – 1.32 V

I/O Supply (V) 3.0 V – 3.6 V 3.0 V – 3.6 V 3.0 V – 3.6 V 3.0 V – 3.6 V 3.0 V – 3.6 V 3.0 V – 3.6 V 3.0 V – 3.6 V

l TEXAS INSTRUMENTS

MIBSPI1nCS[1]

VCCP

LINRX

VCCIO

ECLK

RTCK

N2HET[6]

MIBSPI1nCS[2]

VCCIO

VSS

VCC

nPORRST

VCC

VSS

SPI3nENA

ADIN[21]

TCK

SPI3nCS[0]

MIBSPI1nCS[3]

ADIN[0]

ADIN[7]

ADIN[20]

VSSAD/ADREFLO

ADIN[9]

VCCAD/ADREFHI

ADIN[1]

ADIN[10]

VSS

VCC

CAN2RX

CAN2TX

VCC

VSS

nERROR

nRST

TDO

TDI

nTRST

VSS

LINTX

SPI3CLK

ADIN[2]

ADIN[3]

ADIN[4]

ADIN[5]

ADIN[6]

ADEVT

VSS

CAN1TX

CAN1RX

MIBSPI1SOMI

MIBSPI1C LK

MIBSPI1nENA

SPI2SOMI

SPI2SIMO

SPI2CLK

MIBSPI1nCS[0]

TMS

VCC

MIBSPI1SIMO

VCCIO

GIOA[3]

VSS

VCCIO

GIOA[1]

TEST

SPI2nCS[0]

GIOA[7]

VSS

KELVIN_GN D

OSCIN

VC C

GIOA[6]

GIOA[5]

GIOA[2]

FLTP2

FLTP 1

GIOA[0]

GIOA[4]

OSCOUT

100

VSS

VC C

VSS

SPI3SOMI

SPI3SIMO

ADIN[16]

ADIN[17]

ADIN[11]

ADIN[8]

N2HET[4]

N2HET[2]

N2HET[0]

N2HET[022]

N2HET[024]

N2HET[8]

N2HET[10]

N2HET[8]

N2HET[14]

N2HET[12]

N2HET[16]

N2HET[18]

TMS570LS0432, TMS570LS0332

www.ti.com

SPNS186C –OCTOBER 2012–REVISED MAY 2018

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

4 Terminal Configuration and Functions

4.1 PZ QFP Package Pinout (100-Pin)

Figure 4-1 shows the 100-pin PZ QFP package pinout.

Figure 4-1. PZ QFP Package Pinout (100-Pin)

Note: Pins can have multiplexed functions. Only the default function is depicted in Figure 4-1.

l TEXAS INSTRUMENTS

TMS570LS0432, TMS570LS0332

SPNS186C –OCTOBER 2012–REVISED MAY 2018

www.ti.com

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

4.2 Terminal Functions

Table 4-1 through Table 4-16 identify the external signal names, the associated pin numbers along with

the mechanical package designator, the pin type (Input, Output, I/O, Power, or Ground), whether the pin

has any internal pullup/pulldown, whether the pin can be configured as a GPIO, and a functional pin

description.

NOTE

In the Terminal Functions table below, the "Reset Pull State" is the state of the pull applied to

the terminal while nPORRST is low and immediately after nPORRST goes High. The default

pull direction may change when software configures the pin for an alternate function. The

"Pull Type" is the type of pull asserted when the signal name in bold is enabled for the given

terminal by the IOMM control registers.

All I/O signals except nRST are configured as inputs while nPORRST is low and immediately

after nPORRST goes High. While nPORRST is low, the input buffers are disabled, and the

output buffers are disabled with the default pulls enabled.

All output-only signals have the output buffer disabled and the default pull enabled while

nPORRST is low, and are configured as outputs with the pulls disabled immediately after

nPORRST goes High.

4.2.1 High-End Timer (N2HET)

Table 4-1. High-End Timer (N2HET)

TERMINAL SIGNAL

TYPE RESET

PULL

STATE

PULL TYPE DESCRIPTION

SIGNAL NAME 100

N2HET[0] 19 I/O Pulldown Programmable,

20 µA Timer input capture or output compare. The

N2HET applicable terminals can be programmed

as general-purpose input/output (GPIO).

Each terminal has a suppression filter with a

programmable duration.

N2HET[2] 22

N2HET[4] 25

N2HET[6] 26

N2HET[8] 74

N2HET[10] 83

N2HET[12] 89

N2HET[14] 90

N2HET[16] 97

MIBSPI1nCS[1]/EQEPS/

N2HET[17] 93

N2HET[18] 98

MIBSPI1nCS[2]/N2HET[20]/

N2HET[19] 27

MIBSPI1nCS[2]/N2HET[20]/

N2HET[19] 27

N2HET[22] 11

N2HET[24] 64

MIBSPI1nCS[3]/N2HET[26] 39

ADEVT/N2HET[28] 58

GIOA[7]/N2HET[29] 18

MIBSPI1nENA/N2HET[23]/

N2HET[30] 68

GIOA[6]/SPI2nCS[1]/N2HET[31] 12

l TEXAS INSTRUMENTS

TMS570LS0432, TMS570LS0332

www.ti.com

SPNS186C –OCTOBER 2012–REVISED MAY 2018

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

4.2.2 Enhanced Quadrature Encoder Pulse Modules (eQEP)

Table 4-2. Enhanced Quadrature Encoder Pulse Modules (eQEP)

TERMINAL SIGNAL

TYPE RESET

PULL

STATE

PULL TYPE DESCRIPTION

SIGNAL NAME 100

SPI3CLK/EQEPA 36 Input Pullup Fixed 20 µA Enhanced QEP Input A

SPI3nENA/EQEPB 37 Input Enhanced QEP Input B

SPI3nCS[0]/EQEPI 38 I/O Enhanced QEP Index

MIBSPI1nCS[1]/EQEPS/N2HET

[17] 93 I/O Enhanced QEP Strobe

4.2.3 General-Purpose Input/Output (GPIO)

Table 4-3. General-Purpose Input/Output (GPIO)

TERMINAL SIGNAL

TYPE RESET

PULL

STATE

PULL TYPE DESCRIPTION

SIGNAL NAME 100

GIOA[0]/SPI3nCS[3] 1 I/O Pulldown Programmable,

20 µA General-purpose input/output

All GPIO terminals can generate interrupts to the

CPU on rising/falling/both edges.

GIOA[1]/SPI3nCS[2] 2

GIOA[2]/SPI3nCS[1] 5

GIOA[3]/SPI2nCS[3] 8

GIOA[4]/SPI2nCS[2] 9

GIOA[5]/EXTCLKIN 10

GIOA[6]/SPI2nCS[1]/N2HET[31] 12

GIOA[7]/N2HET[29] 18

4.2.4 Controller Area Network Interface Modules (DCAN1, DCAN2)

Table 4-4. Controller Area Network Interface Modules (DCAN1, DCAN2)

TERMINAL SIGNAL

TYPE RESET

PULL

STATE

PULL TYPE DESCRIPTION

SIGNAL NAME 100

CAN1RX 63 I/O Pullup Programmable,

20 µA CAN1 Receive, or general-purpose I/O (GPIO)

CAN1TX 62 CAN1 Transmit, or GPIO

CAN2RX 92 CAN2 Receive, or GPIO

CAN2TX 91 CAN2 Transmit, or GPIO

l TEXAS INSTRUMENTS

TMS570LS0432, TMS570LS0332

SPNS186C –OCTOBER 2012–REVISED MAY 2018

www.ti.com

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

4.2.5 Multibuffered Serial Peripheral Interface (MibSPI1)

Table 4-5. Multibuffered Serial Peripheral Interface (MibSPI1)

TERMINAL SIGNAL

TYPE RESET

PULL

STATE

PULL TYPE DESCRIPTION

SIGNAL NAME 100

MIBSPI1CLK 67 I/O Pullup Programmable,

20 µA MibSPI1 Serial Clock, or GPIO

MIBSPI1nCS[0] 73 MibSPI1 Chip Select, or GPIO

MIBSPI1nCS[1]/EQEPS/N2HET

[17] 93

MIBSPI1nCS[2]/N2HET[20]/N2

HET[19] 27

MIBSPI1nCS[3]/N2HET[26] 39

MIBSPI1nENA/N2HET[23]/N2H

ET[30] 68 MibSPI1 Enable, or GPIO

MIBSPI1SIMO 65 MibSPI1 Slave-In-Master-Out, or GPIO

MIBSPI1SOMI 66 MibSPI1 Slave-Out-Master-In, or GPIO

4.2.6 Standard Serial Peripheral Interface (SPI2)

Table 4-6. Standard Serial Peripheral Interface (SPI2)

TERMINAL SIGNAL

TYPE RESET

PULL

STATE

PULL TYPE DESCRIPTION

SIGNAL NAME 100

SPI2CLK 71 I/O Pullup Programmable,

20 µA SPI2 Serial Clock, or GPIO

SPI2nCS[0] 23 SPI2 Chip Select, or GPIO

GIOA[6]/SPI2nCS[1]/N2HET[31] 12

GIOA[4]/SPI2nCS[2] 9

GIOA[3]/SPI2nCS[3] 8

SPI2SIMO 70 SPI2 Slave-In-Master-Out, or GPIO

SPI2SOMI 69 SPI2 Slave-Out-Master-In, or GPIO

The drive strengths for the SPI2CLK, SPI2SIMO, and SPI2SOMI signals are selected individually by configuring the respective SRS bits of

the SPIPC9 register fo SPI2.

SRS = 0 for 8-mA drive (fast). This is the default mode as the SRS bits in the SPIPC9 register default to 0.

SRS = 1 for 2-mA drive (slow)

SPI3CLK/EQEPA 36 I/O Pullup Programmable,

20 µA SPI3 Serial Clock, or GPIO

SPI3nCS[0]/EQEPI 38 SPI3 Chip Select, or GPIO

GIOA[2]/SPI3nCS[1] 5

GIOA[1]/SPI3nCS[2] 2

GIOA[0]/SPI3nCS[3] 1

SPI3nENA/EQEPB 37 SPI3 Enable, or GPIO

SPI3SIMO 35 SPI3 Slave-In-Master-Out, or GPIO

SPI3SOMI 34 SPI3 Slave-Out-Master-In, or GPIO

4.2.7 Local Interconnect Network Controller (LIN)

Table 4-7. Local Interconnect Network Controller (LIN)

TERMINAL SIGNAL

TYPE RESET

PULL

STATE

PULL TYPE DESCRIPTION

SIGNAL NAME 100

LINRX 94 I/O Pullup Programmable,

20 µA LIN Receive, or GPIO

LINTX 95 LIN Transmit, or GPIO

l TEXAS INSTRUMENTS

TMS570LS0432, TMS570LS0332

www.ti.com

SPNS186C –OCTOBER 2012–REVISED MAY 2018

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

4.2.8 Multibuffered Analog-to-Digital Converter (MibADC)

Table 4-8. Multibuffered Analog-to-Digital Converter (MibADC)

TERMINAL SIGNAL TYPE RESET

PULL

STATE

PULL TYPE DESCRIPTION

SIGNAL NAME 100

ADEVT/N2HET[28] 58 I/O Pullup Programmable,

20 µA ADC event trigger or GPIO

ADIN[0] 42 Input N/A None Analog inputs

ADIN[1] 49

ADIN[2] 51

ADIN[3] 52

ADIN[4] 54

ADIN[5] 55

ADIN[6] 56

ADIN[7] 43

ADIN[8] 57

ADIN[9] 48

ADIN[10] 50

ADIN[11] 53

ADIN[16] 40

ADIN[17] 41

ADIN[20] 44

ADIN[21] 45

VCCAD/ADREFHI 46 Input/Power N/A None ADC high reference level/ADC operating supply

VSSAD/ADREFLO 47 Input/Ground N/A None ADC low reference level/ADC supply ground

4.2.9 System Module

Table 4-9. System Module

TERMINAL SIGNAL

TYPE RESET

PULL

STATE

PULL TYPE DESCRIPTION

SIGNAL NAME 100

ECLK 84 I/O Pulldown Programmable,

20 µA External prescaled clock output, or GPIO.

GIOA[5]/EXTCLKIN 10 Input Pulldown 20 µA External Clock In

nPORRST 31 Input Pulldown 100 µA Power-on reset, cold reset External power supply

monitor circuitry must drive nPORRST low when

any of the supplies to the microcontroller fall out

of the specified range. This terminal has a glitch

filter.

nRST 81 I/O Pullup 100 µA The external circuitry can assert a system reset

by driving nRST low. To ensure that an external

reset is not arbitrarily generated, TI recommends

that an external pullup resistor is connected to

this terminal. This terminal has a glitch filter.

l TEXAS INSTRUMENTS

TMS570LS0432, TMS570LS0332

SPNS186C –OCTOBER 2012–REVISED MAY 2018

www.ti.com

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

4.2.10 Error Signaling Module (ESM)

Table 4-10. Error Signaling Module (ESM)

TERMINAL SIGNAL

TYPE RESET

PULL

STATE

PULL TYPE DESCRIPTION

SIGNAL NAME 100

nERROR 82 I/O Pulldown 20 µA ESM error signal. Indicates error of high severity.

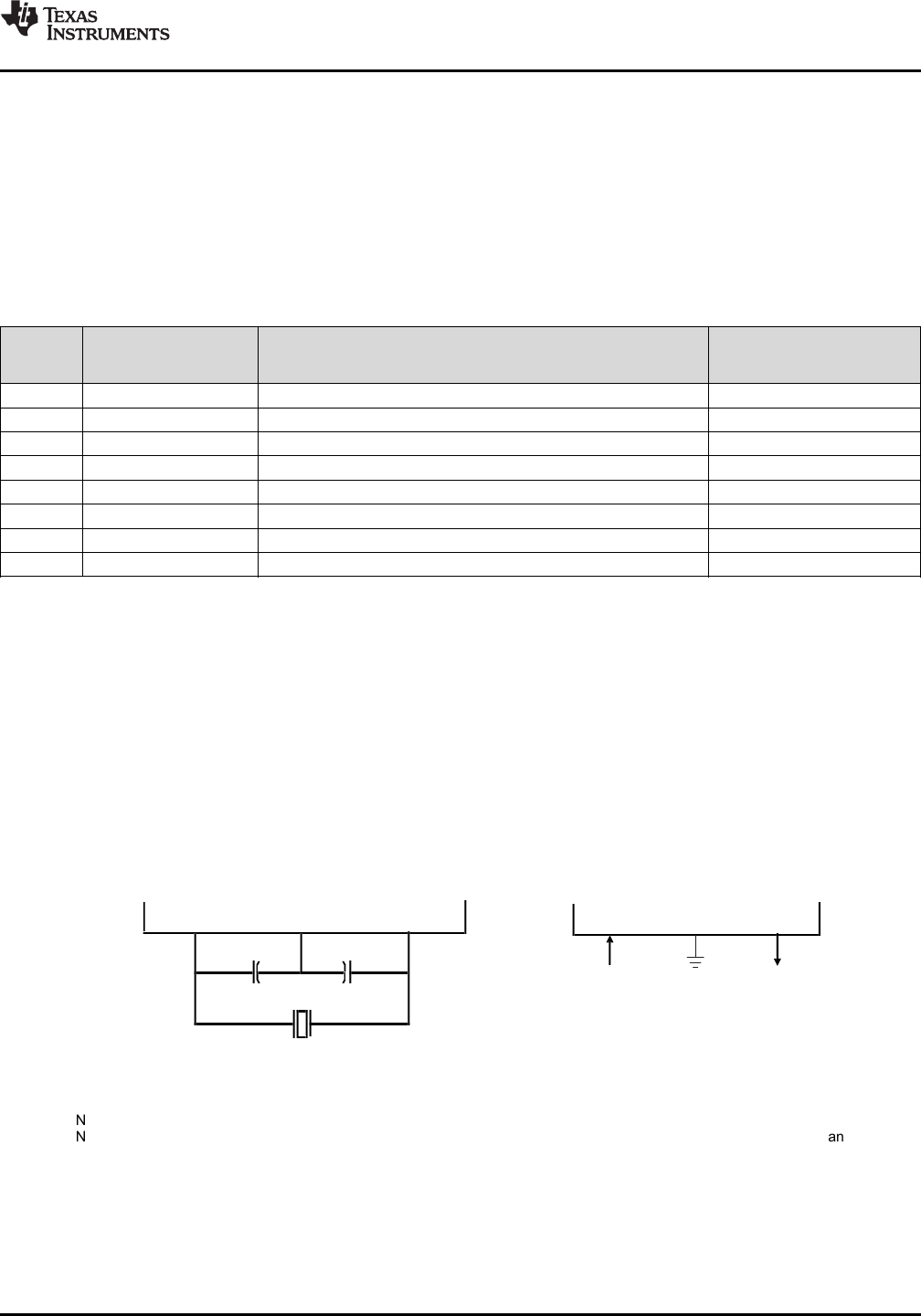

4.2.11 Main Oscillator

Table 4-11. Main Oscillator

TERMINAL SIGNAL

TYPE RESET

PULL

STATE

PULL TYPE DESCRIPTION

SIGNAL NAME 100

OSCIN 14 Input N/A None From external crystal/resonator, or external clock

input

OSCOUT 16 Output N/A None To external crystal/resonator

KELVIN_GND 15 Input N/A None Dedicated ground for oscillator

4.2.12 Test/Debug Interface

Table 4-12. Test/Debug Interface

TERMINAL SIGNAL

TYPE RESET

PULL

STATE

PULL TYPE DESCRIPTION

SIGNAL NAME 100

nTRST 76 Input Pulldown Fixed, 100 µA JTAG test hardware reset

RTCK 80 Output N/A None JTAG return test clock

TCK 79 Input Pulldown Fixed, 100 µA JTAG test clock

TDI 77 I/O Pullup Fixed, 100 µA JTAG test data in

TDO 78 Output Fixed,

100-µA

Pulldown

None JTAG test data out

TMS 75 I/O Pullup Fixed, 100 µA JTAG test select

TEST 24 I/O Pulldown Fixed, 100 µA Test enable. This terminal must be connected to

ground directly or through a pulldown resistor.

4.2.13 Flash

Table 4-13. Flash

TERMINAL SIGNAL

TYPE RESET

PULL

STATE

PULL TYPE DESCRIPTION

SIGNAL NAME 100

FLTP1 3 Input N/A None Flash test pins. For proper operation this terminal

must connect only to a test pad or not be

connected at all [no connect (NC)].

The test pad must not be exposed in the final

product where it might be subjected to an ESD

event.

FLTP2 4 Input N/A None

VCCP 96 3.3-V

Power N/A None Flash external pump voltage (3.3 V). This

terminal is required for both flash read and flash

program and erase operations.

l TEXAS INSTRUMENTS

TMS570LS0432, TMS570LS0332

www.ti.com

SPNS186C –OCTOBER 2012–REVISED MAY 2018

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

4.2.14 Core Supply

Table 4-14. Core Supply

TERMINAL SIGNAL

TYPE RESET

PULL

STATE

PULL TYPE DESCRIPTION

SIGNAL NAME 100

VCC 13 1.2-V

Power N/A None Digital logic and RAM supply

VCC 21

VCC 30

VCC 32

VCC 61

VCC 88

VCC 99

4.2.15 I/O Supply

Table 4-15. I/O Supply

TERMINAL SIGNAL

TYPE RESET

PULL

STATE

PULL TYPE DESCRIPTION

SIGNAL NAME 100

VCCIO 6 3.3-V

Power N/A None I/O supply

VCCIO 28

VCCIO 60

VCCIO 85

4.2.16 Core and I/O Supply Ground Reference

Table 4-16. Core and I/O Supply Ground Reference

TERMINAL SIGNAL

TYPE RESET

PULL

STATE

PULL TYPE DESCRIPTION

SIGNAL NAME 100

VSS 7 Ground N/A None Device Ground Reference. This is a single

ground reference for all supplies except for the

ADC supply.

VSS 17

VSS 20

VSS 29

VSS 33

VSS 59

VSS 72

VSS 86

VSS 87

VSS 100

l TEXAS INSTRUMENTS

TMS570LS0432, TMS570LS0332

SPNS186C –OCTOBER 2012–REVISED MAY 2018

www.ti.com

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

4.3 Output Multiplexing and Control

Output multiplexing will be used in the device. The multiplexing is used to allow development of additional

package and feature combinations as well as to maintain pinout compatibility with the marketing device

family.

In all cases indicated as multiplexed, the output buffers are multiplexed.

4.3.1 Notes on Output Multiplexing

Table 4-17 shows the output signal multiplexing and control signals for selecting the desired functionality

for each pin.

• The pins default to the signal defined by the DEFAULT FUNCTION column in Table 4-17

• The CONTROL 1, CONTROL 2, and CONTROL 3 columns indicate the multiplexing control register and the bit

that must be set in order to select the corresponding functionality to be output on any particular pin.

For example, consider the multiplexing on pin 18, shown in Table 4-18 .

Table 4-17. Output Mux Options

100 PZ PIN DEFAULT

FUNCTION CONTROL 1 OPTION2 CONTROL 2 OPTION 3 CONTROL 3

1 GIOA[0] PINMMR0[8] SPI3nCS[3] PINMMR0[9] – –

2 GIOA[1] PINMMR1[0] SPI3nCS[2] PINMMR1[1] – –

5 GIOA[2] PINMMR1[8] SPI3nCS[1] PINMMR1[9] – –

8 GIOA[3] PINMMR1[16] SPI2nCS[3] PINMMR1[17] – –

9 GIOA[4] PINMMR1[24] SPI2nCS[2] PINMMR1[25] – –

10 GIOA[5] PINMMR2[0] EXTCLKIN PINMMR2[1] – –

12 GIOA[6] PINMMR2[8] SPI2nCS[1] PINMMR2[9] N2HET[31] PINMMR2[10]

18 GIOA[7] PINMMR2[16] N2HET[29] PINMMR2[17] – –

93 MIBSPI1nCS[1] PINMMR6[8] EQEPS PINMMR6[9] N2HET[17] PINMMR6[10]

27 MIBSPI1nCS[2] PINMMR3[0] N2HET[20] PINMMR3[1] N2HET[19] PINMMR3[2]

39 MIBSPI1nCS[3] PINMMR4[8] N2HET[26] PINMMR4[9] – –

68 MIBSPI1nENA PINMMR5[8] N2HET[23] PINMMR5[9] N2HET[30] PINMMR5[10]

36 SPI3CLK PINMMR3[16] EQEPA PINMMR3[17] – –

38 SPI3nCS[0] PINMMR4[0] EQEPI PINMMR4[1] – –

37 SPI3nENA PINMMR3[24] EQEPB PINMMR3[25] – –

58 ADEVT PINMMR4[16] N2HET[28] PINMMR4[17] – –

Table 4-18. Muxing Example

100 PZ PIN DEFAULT

FUNCTION CONTROL 1 OPTION2 CONTROL 2 OPTION 3 CONTROL 3

18 GIOA[7] PINMMR2[16] N2HET[29] PINMMR2[17] – –

• When GIOA[7] is configured as an output pin in the GPIO module control register, then the programmed output

level appears on pin 18 by default. The PINMMR2[16] bit is set by default to indicate that the GIOA[7] signal is

selected to be output.

• If the application must output the N2HET[29] signal on pin 18, it must clear PINMMR2[16] and set PINMMR2[17].

• The pin is connected as input to both the GPIO and N2HET modules. That is, there is no input multiplexing on this

pin.

l TEXAS INSTRUMENTS

TMS570LS0432, TMS570LS0332

www.ti.com

SPNS186C –OCTOBER 2012–REVISED MAY 2018

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

4.3.2 General Rules for Multiplexing Control Registers

• The PINMMR control registers can only be written in privileged mode. A write in a nonprivileged mode will

generate an error response.

• If the application writes all 0s to any PINMMR control register, then the default functions are selected for the

affected pins.

• Each byte in a PINMMR control register is used to select the functionality for a given pin. If the application sets

more than 1 bit within a byte for any pin, then the default function is selected for this pin.

• Some bits within the PINMMR registers could be associated with internal pads that are not brought out in the 100-

pin package. As a result, bits marked reserved should not be written as 1.

4.4 Special Multiplexed Options

Special controls are implemented to affect particular functions on this microcontroller. These controls are

described in this section.

4.4.1 Filtering for eQEP Inputs

4.4.1.1 eQEPA Input

• When PINMMR8[0] = 1, the eQEPA input is double-synchronized using VCLK.

• When PINMMR8[0] = 0 and PINMMR8[1] = 1, the eQEPA input is double-synchronized and then qualified through

a fixed 6-bit counter using VCLK.

• PINMMR8[0] = 0 and PINMMR8[1] = 0 is an illegal combination and behavior defaults to PINMMR8[0] = 1.

4.4.1.2 eQEPB Input

• When PINMMR8[8] = 1, the eQEPB input is double-synchronized using VCLK.

• When PINMMR8[8] = 0 and PINMMR8[9] = 1, the eQEPB input is double-synchronized and then qualified through

a fixed 6-bit counter using VCLK.

• PINMMR8[8] = 0 and PINMMR8[9] = 0 is an illegal combination and behavior defaults to PINMMR8[8] = 1.

4.4.1.3 eQEPI Input

• When PINMMR8[16] = 1, the eQEPI input is double-synchronized using VCLK.

• When PINMMR8[16] = 0 and PINMMR8[17] = 1, the eQEPI input is double-synchronized and then qualified

through a fixed 6-bit counter using VCLK.

• PINMMR8[16] = 0 and PINMMR8[17] = 0 is an illegal combination and behavior defaults to PINMMR8[16] = 1.

4.4.1.4 eQEPS Input

• When PINMMR8[24] = 1, the eQEPS input is double-synchronized using VCLK.

• When PINMMR8[24] = 0 and PINMMR8[25] = 1, the eQEPS input is double-synchronized and then qualified

through a fixed 6-bit counter using VCLK.

• PINMMR8[24] = 0 and PINMMR8[25] = 0 is an illegal combination and behavior defaults to PINMMR8[24] = 1.

4.4.2 N2HET PIN_nDISABLE Input Port

• When PINMMR9[0] = 1, GIOA[5] is connected directly to N2HET PIN_nDISABLE input of the N2HET module.

• When PINMMR9[0] = 0 and PINMMR9[1] = 1, EQEPERR is inverted and double-synchronized using VCLK before

connecting directly to the N2HET PIN_nDISABLE input of the N2HET module.

• PINMMR9[0] = 0 and PINMMR9[1] = 0 is an illegal combination and behavior defaults to PINMMR9[0] = 1.

l TEXAS INSTRUMENTS

TMS570LS0432, TMS570LS0332

SPNS186C –OCTOBER 2012–REVISED MAY 2018

www.ti.com

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings

only, and functional operation of the device at these or any other conditions beyond those indicated under Recommended Operating

Conditions is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

(2) Maximum-rated conditions for extended periods may affect device reliability. All voltage values are with respect to their associated

grounds.

5 Specifications

5.1 Absolute Maximum Ratings(1)

Over Operating Free-Air Temperature Range

MIN MAX UNIT

Supply voltage

VCC(2) –0.3 1.43

VVCCIO, VCCP(2) –0.3 4.6

VCCAD –0.3 4.6

Input voltage All input pins –0.3 4.6 V

ADC input pins –0.3 4.6

Input clamp current

IIK (VI< 0 or VI> VCCIO)

All pins, except ADIN[21:20,17:16,11:0] –20 20

mAIIK (VI< 0 or VI> VCCAD)

ADIN[21:20,17:16,11:0] –10 10

Total –40 40

Operating free-air

temperature, TA–40 125 °C

Operating junction

temperature, TJ–40 150 °C

Latch-up performance I-test, All I/O pins –100 100 mA

Storage temperature, Tstg –65 150 °C

(1) AEC Q100-002 indicates HBM stressing is done in accordance with the ANSI/ESDA/JEDEC JS‑001 specification.

5.2 ESD Ratings

VALUE UNIT

V(ESD) Electrostatic discharge (ESD)

performance:

Human Body Model (HBM), per AEC Q100-002(1) ±2 kV

Charged Device Model (CDM),

per AEC Q100-011

All pins except corner pins ±500 V

Corner pins (1, 25, 26, 50, 51, 75,

76, 100) ±750 V

(1) This information is provided solely for your convenience and does not extend or modify the warranty provided under TI's standard terms

and conditions for TI semiconductor products.

(2) To avoid significant degradation, the device power-on hours (POH) must be limited to those specified in this table. To convert to

equivalent POH for a specific temperature profile, see the Calculating Equivalent Power-on-Hours for Hercules Safety MCUs Application

Report (SPNA207).

5.3 Power-On Hours (POH)(1)(2)

NOMINAL CORE VOLTAGE (VCC)JUNCTION

TEMPERATURE (Tj) LIFETIME POH

1.2 105ºC 100K

l TEXAS INSTRUMENTS

TMS570LS0432, TMS570LS0332

www.ti.com

SPNS186C –OCTOBER 2012–REVISED MAY 2018

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

(1) All voltages are with respect to VSS, except VCCAD, which is with respect to VSSAD

(2) Reliability data is based upon a temperature profile that is equivalent to 100,000 power-on hours at 105°C junction temperature.

5.4 Recommended Operating Conditions(1)

MIN NOM MAX UNIT

VCC Digital logic supply voltage (Core) 1.14 1.2 1.32 V

VCCIO Digital logic supply voltage (I/O) 3 3.3 3.6 V

VCCAD / VADREFHI MibADC supply voltage / A-to-D high-voltage reference source 3 3.3 3.6 V

VCCP Flash pump supply voltage 3 3.3 3.6 V

VSS Digital logic supply ground 0 V

VSSAD / VADREFLO MibADC supply ground / A-to-D low-voltage reference source –0.1 0.1 V

VSLEW Maximum positive slew rate for VCCIO, VCCAD and VCCP supplies 1 V/µs

TAOperating free-air temperature –40 125 °C

TJOperating junction temperature(2) –40 150 °C

5.5 Switching Characteristics Over Recommended Operating Conditions for Clock Domains

Table 5-1. Clock Domains Timing Specifications

PARAMETER CONDITIONS MIN MAX UNIT

fHCLK HCLK - System clock frequency 80 MHz

fGCLK GCLK - CPU clock frequency (ratio fGCLK : fHCLK =

1:1) fHCLK MHz

fVCLK VCLK - Primary peripheral clock frequency 80 MHz

fVCLK2 VCLK2 - Secondary peripheral clock frequency 80 MHz

fVCLKA1 VCLKA1 - Primary asynchronous peripheral clock

frequency 80 MHz

fRTICLK RTICLK - clock frequency fVCLK MHz

l TEXAS INSTRUMENTS nun: arm e um mum

ASWSTEN

Flash Address Wait States

EEPROM Emulation Memory Wait States (Bank 7)

0MHz

80MHz

EWAIT

Main Memory Data Wait States (Bank 0)

RWAIT

0MHz 80MHz

0 1

45MHz

0MHz

80MHz

1 3

67MHz50MHz

TMS570LS0432, TMS570LS0332

SPNS186C –OCTOBER 2012–REVISED MAY 2018

www.ti.com

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

5.6 Wait States Required

The TCM RAM can support program and data fetches at full CPU speed without any address or data wait

states required. There are no registers which need to be programmed for RAM wait states.

The TCM flash can support zero address and data wait states up to a CPU speed of 45 MHz in

nonpipelined mode.The flash supports a maximum CPU clock speed of 80 MHz in pipelined mode with no

address wait states and one data wait state.

The proper wait states should be set in the register fields Address Setup Wait State Enable (ASWSTEN

0xFFF87000[4]), Random Wait states (RWAIT 0xFFF87000[11:8]), and Emulation Wait states (EWAIT

0xFFF872B8[19:16]) as shown in Figure 5-1.

Figure 5-1. Wait States Scheme

The flash wrapper defaults to nonpipelined mode with address wait states disabled, ASWSTEN=0; the

main memory random-read data wait state, RWAIT=1; and the emulation memory random-read wait

states, EWAIT=1.

l TEXAS INSTRUMENTS

TMS570LS0432, TMS570LS0332

www.ti.com

SPNS186C –OCTOBER 2012–REVISED MAY 2018

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

(1) The maximum ICC, value can be derated

• linearly with voltage

• by 0.76 mA/MHz for lower operating frequency when fHCLK= fVCLK

• for lower junction temperature by the equation below where TJK is the junction temperature in Kelvin and the result is in milliamperes.

60 - 0.001 e0.026 TJK

(2) The maximum ICC, value can be derated

• linearly with voltage

• for lower junction temperature by the equation below where TJK is the junction temperature in Kelvin and the result is in milliamperes.

60 - 0.001 e0.026 TJK

(3) LBIST and PBIST currents are for a short duration, typically less than 10 ms. They are usually ignored for thermal calculations for the

device and the voltage regulator

5.7 Power Consumption

Over Recommended Operating Conditions

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

ICC

VCC digital supply current (operating mode) fHCLK = 80 MHz

fVCLK = 80 MHz, Flash in

pipelined mode, VCCmax

135(1)

VCC digital supply current (LBIST mode) LBIST clock rate = 45 MHz 145(2)(3)

VCC digital supply current (PBIST mode) PBIST ROM clock frequency

= 80 MHz 135 (2)(3)

ICCREFHI +

ICCAD +

ICCIO +

ICCP

Sum of Flash, IO and ADC 3.3V supply currents

VADREFHI = VADREFHImax

VCCAD = VCCADmax

VCCIO = VCCIOmax, No Load

on output pins

VCCP = VCCPmax, Reading

from flash

VADREFHI = VADREFHImax

VCCAD = VCCADmax

VCCIO = VCCIOmax, No Load

on output pins

VCCP = VCCPmax, Reading

from one bank of flash while

programming or erasing

another bank

l TEXAS INSTRUMENTS

TMS570LS0432, TMS570LS0332

SPNS186C –OCTOBER 2012–REVISED MAY 2018

www.ti.com

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

5.8 Thermal Resistance Characteristics for PZ

Table 5-2 shows the thermal resistance characteristics for the PQFP - PZ mechanical packages.

Table 5-2. Thermal Resistance Characteristics

(S-PQFP Package) [PZ]

PARAMETER °C/W

RθJA 48

RθJC 5

(1) Source currents (out of the device) are negative while sink currents (into the device) are positive.

(2) This does not apply to the nPORRST pin.

5.9 Input/Output Electrical Characteristics(1)

Over Recommended Operating Conditions

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

Vhys Input hysteresis All inputs 180 mV

VIL Low-level input voltage All inputs(2) –0.3 0.8 V

VIH High-level input voltage All inputs(2) 2 VCCIO + 0.3 V

VOL Low-level output voltage

IOL = IOLmax 0.2 VCCIO

IOL = 50 µA,

standard output

mode 0.2

VOH High-level output voltage

IOH = IOHmax 0.8 VCCIO

IOH = 50 µA,

standard output

mode VCCIO - 0.3

IIC Input clamp current (I/O pins) VI< VSSIO - 0.3 or VI

> VCCIO + 0.3 –3.5 3.5 mA

IIInput current (I/O pins)

IIH 20-µA pulldown VI= VCCIO 5 40

µA

IIH 100-µA pulldown VI= VCCIO 40 195

IIL 20-µA pullup VI= VSS –40 –5

IIL 100-µA pullup VI= VSS –195 –40

All other pins No pullup or

pulldown –1 1

CIInput capacitance 2 pF

COOutput capacitance 3 pF

l TEXAS INSTRUMENTS

TMS570LS0432, TMS570LS0332

www.ti.com

SPNS186C –OCTOBER 2012–REVISED MAY 2018

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

5.10 Output Buffer Drive Strengths

Table 5-3. Output Buffer Drive Strengths

LOW-LEVEL OUTPUT CURRENT,

IOL for VI=VOLmax

HIGH-LEVEL OUTPUT CURRENT,

IOH for VI=VOHmin

SIGNALS

8 mA

EQEPI, EQEPS,

TMS, TDI, TDO, RTCK,

nERROR

4 mA

TEST,

MIBSPI1SIMO, MIBSPI1SOMI, MIBSPI1CLK, SPI3CLK, SPI3SIMO, SPI3SOMI,

nRST

2 mA zero-dominant

AD1EVT,

CAN1RX, CAN1TX, CAN2RX, CAN2TX,

GIOA[0-7],

LINRX, LINTX,

MIBSPI1nCS[0-3], MIBSPI1nENA

N2HET[0], N2HET[2], N2HET[4], N2HET[6], N2HET[8], N2HET[10], N2HET[12], N2HET[14],

N2HET[16], N2HET[18], N2HET[22], N2HET[24],

SPI2nCS[0-3], SPI3nENA, SPI3nCS[0]

selectable 8 mA/ 2 mA

ECLK,

SPI2CLK, SPI2SIMO, SPI2SOMI

The default output buffer drive strength is 8 mA for these signals.

(1) Either SPI2PC9[11] or SPI2PC9[24] can change the output strength of the SPI2SOMI pin. In case of a 32-bit write where these 2 bits

differ, SPI2PC9[11] determines the drive strength.

Table 5-4. Selectable 8 mA/ 2 mA Control

SIGNAL CONTROL BIT ADDRESS 8 mA 2 mA

ECLK SYSPC10[0] 0xFFFF FF78 0 1

SPI2CLK SPI2PC9[9] 0xFFF7 F668 0 1

SPI2SIMO SPI2PC9[10] 0xFFF7 F668 0 1

SPI2SOMI SPI2PC9[11](1) 0xFFF7 F668 0 1

l TEXAS INSTRUMENTS

VCCIO

VIH VIH

VIL 0

Input

tpw

VIL

TMS570LS0432, TMS570LS0332

SPNS186C –OCTOBER 2012–REVISED MAY 2018

www.ti.com

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

(1) tc(VCLK) = peripheral VBUS clock cycle time = 1 / f(VCLK)

(2) The timing shown in Figure 5-2 is only valid for pin used in GIO mode.

5.11 Input Timings

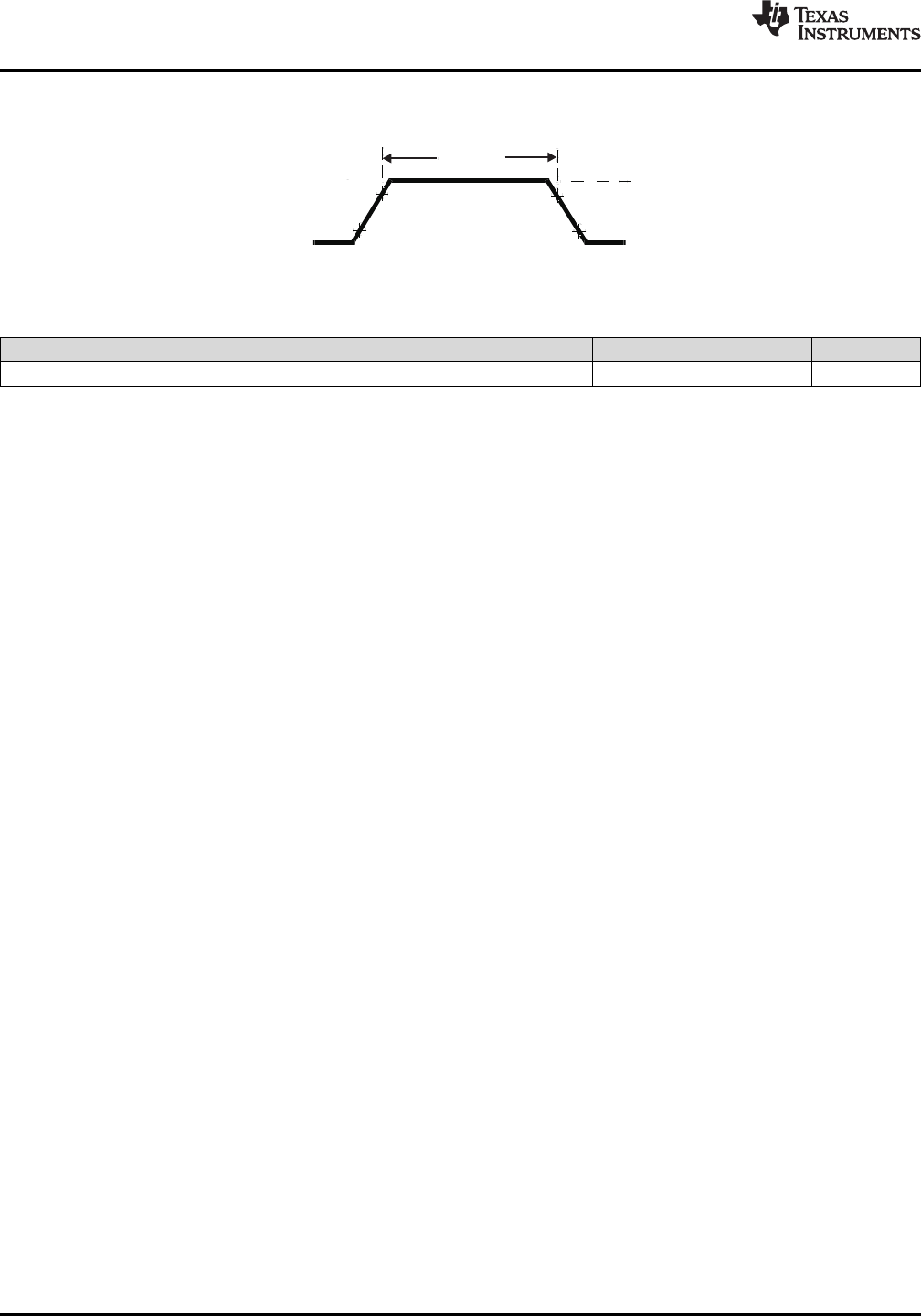

Figure 5-2. TTL-Level Inputs

Table 5-5. Timing Requirements for Inputs(1)

MIN MAX UNIT

tpw Input minimum pulse width tc(VCLK) + 10(2) ns

l TEXAS INSTRUMENTS

TMS570LS0432, TMS570LS0332

www.ti.com

SPNS186C –OCTOBER 2012–REVISED MAY 2018

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

5.12 Output Timings

Table 5-6. Switching Characteristics for Output Timings versus Load Capacitance (CL)

PARAMETER MIN MAX UNIT

Rise time, tr

8-mA pins

CL = 15 pF 2.5

CL = 50 pF 4

CL = 100 pF 7.2

CL = 150 pF 12.5

Fall time, tf

CL = 15 pF 2.5

CL = 50 pF 4

CL = 100 pF 7.2

CL = 150 pF 12.5

Rise time, tr

4-mA pins

CL = 15 pF 5.6

CL = 50 pF 10.4

CL = 100 pF 16.8

CL = 150 pF 23.2

Fall time, tf

CL = 15 pF 5.6

CL= 50 pF 10.4

CL = 100 pF 16.8

CL = 150 pF 23.2

Rise time, tr

2-mA-z pins

CL = 15 pF 8

CL = 50 pF 15

CL = 100 pF 23

CL = 150 pF 33

Fall time, tf

CL = 15 pF 8

CL = 50 pF 15

CL = 100 pF 23

CL = 150 pF 33

Rise time, tr

Selectable 8-mA/ 2-mA-z

pins

8-mA mode

CL = 15 pF 2.5

CL = 50 pF 4

CL = 100 pF 7.2

CL = 150 pF 12.5

Fall time, tf

CL = 15 pF 2.5

CL = 50 pF 4

CL = 100 pF 7.2

CL = 150 pF 12.5

Rise time, tr

2-mA-z mode

CL = 15 pF 8

CL = 50 pF 15

CL = 100 pF 23

CL = 150 pF 33

Fall time, tf

CL = 15 pF 8

CL = 50 pF 15

CL = 100 pF 23

CL = 150 pF 33

l TEXAS INSTRUMENTS

VCCIO

VOH VOH

VOL VOL 0

Output

TMS570LS0432, TMS570LS0332

SPNS186C –OCTOBER 2012–REVISED MAY 2018

www.ti.com

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

(1) This specification does not account for any output buffer drive strength differences or any external capacitive loading differences. Check

Table 5-3 for output buffer drive strength information on each signal.

Figure 5-3. CMOS-Level Outputs

Table 5-7. Timing Requirements for Outputs(1)

PARAMETER MIN MAX UNIT

td(parallel_out)

Delay between low-to-high, or high-to-low transition of general-purpose output

signals that can be configured by an application in parallel, for example, all signals in

a GIOA port, or all N2HET signals. 5 ns

l TEXAS INSTRUMENTS

TMS570LS0432, TMS570LS0332

www.ti.com

SPNS186C –OCTOBER 2012–REVISED MAY 2018

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

6 System Information and Electrical Specifications

6.1 Voltage Monitor Characteristics

A voltage monitor is implemented on this device. The purpose of this voltage monitor is to eliminate the

requirement for a specific sequence when powering up the core and I/O voltage supplies.

6.1.1 Important Considerations

• The voltage monitor does not eliminate the need of a voltage supervisor circuit to ensure that the

device is held in reset when the voltage supplies are out of range.

• The voltage monitor only monitors the core supply (VCC) and the I/O supply (VCCIO). The other

supplies are not monitored by the VMON. For example, if the VCCAD or VCCP are supplied from a

source different from that for VCCIO, then there is no internal voltage monitor for the VCCAD and

VCCP supplies.

6.1.2 Voltage Monitor Operation

The voltage monitor generates the Power Good MCU signal (PGMCU) as well as the I/Os Power Good

I/O signal (PGIO) on the device. During power up or power down, the PGMCU and PGIO are driven low

when the core or I/O supplies are lower than the specified minimum monitoring thresholds. The PGIO and

PGMCU being low isolates the core logic as well as the I/O controls during the power up or power down of

the supplies. This allows the core and I/O supplies to be powered up or down in any order.

When the voltage monitor detects a low voltage on the I/O supply, it will assert a power-on reset. When

the voltage monitor detects an out-of-range voltage on the core supply, it asynchronously makes all output

pins high impedance, and asserts a power-on reset. The voltage monitor is disabled when the device

enters a low power mode.

The VMON also incorporates a glitch filter for the nPORRST input. Refer to Section 6.2.3.1 for the timing

information on this glitch filter.

Table 6-1. Voltage Monitoring Specifications

PARAMETER MIN TYP MAX UNIT

VMON Voltage monitoring

thresholds

VCC low - VCC level below this

threshold is detected as too low. 0.75 0.9 1.13

VCC high - VCC level above this

threshold is detected as too high. 1.40 1.7 2.1

VCCIO low - VCCIO level below

this threshold is detected as too

low. 1.85 2.4 2.9

6.1.3 Supply Filtering

The VMON has the capability to filter glitches on the VCC and VCCIO supplies.

Table 6-2 shows the characteristics of the supply filtering. Glitches in the supply larger than the maximum

specification cannot be filtered.

Table 6-2. VMON Supply Glitch Filtering Capability

PARAMETER MIN MAX UNIT

Width of glitch on VCC that can be filtered 250 1000 ns

Width of glitch on VCCIO that can be filtered 250 1000 ns

l TEXAS INSTRUMENTS

TMS570LS0432, TMS570LS0332

SPNS186C –OCTOBER 2012–REVISED MAY 2018

www.ti.com

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

6.2 Power Sequencing and Power-On Reset

6.2.1 Power-Up Sequence

There is no timing dependency between the ramp of the VCCIO and the VCC supply voltage. The power-

up sequence starts with the I/O voltage rising above the minimum I/O supply threshold, (for more details,

see Table 6-4), core voltage rising above the minimum core supply threshold, and the release of power-on

reset. The high-frequency oscillator will start up first and its amplitude will grow to an acceptable level. The

oscillator start-up time is dependent on the type of oscillator and is provided by the oscillator vendor. The

different supplies to the device can be powered up in any order.

During power up, the device goes through the sequential phases listed in Table 6-3.

Table 6-3. Power-Up Phases

Oscillator start-up and validity check 1032 oscillator cycles

eFuse autoload 1160 oscillator cycles

Flash pump power up 688 oscillator cycles

Flash bank power up 617 oscillator cycles

Total 3497 oscillator cycles

The CPU reset is released at the end of this sequence and fetches the first instruction from address

0x00000000.

*9 TEXAS INSTRUMENTS

3.3 V VCCIOPORH

1.2 V VCCPORH

VCCIOPORL

V (1.2 V)

V / V (3.3 V)

CCIO CCP

nPORRST

VCCPORL

VIL(PORRST)

V / V

CCIO CCP

VCC

VCCPORL

VIL(PORRST)

VIL VIL VIL

VCCIOPORH

VCCPORH

VCCIOPORL

Note: There is no timing dependency between the ramp of the V and the V supply voltage; this is just an example.

CCIO CC

TMS570LS0432, TMS570LS0332

www.ti.com

SPNS186C –OCTOBER 2012–REVISED MAY 2018

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

6.2.2 Power-Down Sequence

The different supplies to the device can be powered down in any order.

6.2.3 Power-On Reset: nPORRST

This reset must be asserted by an external circuitry whenever the I/O or core supplies are outside the

recommended range. This signal has a glitch filter on it. It also has an internal pulldown.

6.2.3.1 nPORRST Electrical and Timing Requirements

Table 6-4. Electrical Requirements for nPORRST

NO. PARAMETER MIN MAX UNIT

VCCPORL VCC low supply level when nPORRST must be active during power

up 0.5 V

VCCPORH VCC high supply level when nPORRST must remain active during

power up and become active during power down 1.14 V

VCCIOPORL VCCIO / VCCP low supply level when nPORRST must be active

during power up 1.1 V

VCCIOPORH VCCIO / VCCP high supply level when nPORRST must remain active

during power up and become active during power down 3.0 V

VIL(PORRST) Low-level input voltage of nPORRST VCCIO > 2.5 V 0.2 * VCCIO V

Low-level input voltage of nPORRST VCCIO < 2.5 V 0.5 V

3 tsu(PORRST) Setup time, nPORRST active before VCCIO and VCCP > VCCIOPORL

during power up 0 ms

6 th(PORRST) Hold time, nPORRST active after VCC > VCCPORH 1 ms

7 tsu(PORRST) Setup time, nPORRST active before VCC < VCCPORH during power

down 2 µs

8 th(PORRST) Hold time, nPORRST active after VCCIO and VCCP > VCCIOPORH 1 ms

9 th(PORRST) Hold time, nPORRST active after VCC < VCCPORL 0 ms

tf(nPORRST)

Filter time nPORRST pin;

Pulses less than MIN will be filtered out, pulses greater than MAX

will generate a reset. 475 2000 ns

Figure 6-1. nPORRST Timing Diagram

l TEXAS INSTRUMENTS

TMS570LS0432, TMS570LS0332

SPNS186C –OCTOBER 2012–REVISED MAY 2018

www.ti.com

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

6.3 Warm Reset (nRST)

This is a bidirectional reset signal. The internal circuitry drives the signal low on detecting any device reset

condition. An external circuit can assert a device reset by forcing the signal low. On this terminal, the

output buffer is implemented as an open drain (drives low only). To ensure an external reset is not

arbitrarily generated, TI recommends that an external pullup resistor is connected to this terminal.

This terminal has a glitch filter. It also has an internal pullup

6.3.1 Causes of Warm Reset

Table 6-5. Causes of Warm Reset

DEVICE EVENT SYSTEM STATUS FLAG

Power-up reset Exception Status Register, bit 15

Oscillator fail Global Status Register, bit 0

PLL slip Global Status Register, bits 8 and 9

Watchdog exception / Debugger reset Exception Status Register, bit 13

CPU Reset (driven by the CPU STC) Exception Status Register, bit 5

Software reset Exception Status Register, bit 4

External reset Exception Status Register, bit 3

(1) Assumes the oscillator has started up and stabilized before nPORRST is released.

6.3.2 nRST Timing Requirements

Table 6-6. nRST Timing Requirements

MIN MAX UNIT

tv(RST) Valid time, nRST active after nPORRST inactive 2256tc(OSC)(1) ns

Valid time, nRST active (all other system reset conditions) 32tc(VCLK)

tf(nRST)

Filter time nRST pin;

Pulses less than MIN will be filtered out, pulses greater than MAX will

generate a reset 475 2000 ns

l TEXAS INSTRUMENTS

North Flip West

TMS570LS0432, TMS570LS0332

www.ti.com

SPNS186C –OCTOBER 2012–REVISED MAY 2018

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

6.4 ARM Cortex-R4 CPU Information

6.4.1 Summary of ARM Cortex-R4 CPU Features

The features of the ARM Cortex-R4 CPU include:

• An integer unit with integral Embedded ICE-RT logic.

• High-speed Advanced Microprocessor Bus Architecture (AMBA) Advanced eXtensible Interfaces (AXI)

for Level two (L2) master and slave interfaces.

• Dynamic branch prediction with a global history buffer, and a 4-entry return stack

• Low interrupt latency.

• Nonmaskable interrupt.

• A Harvard Level one (L1) memory system with:

– Tightly Coupled Memory (TCM) interfaces with support for error correction or parity checking

memories

– ARMv7-R architecture Memory Protection Unit (MPU) with 8 regions

• Dual core logic for fault detection in safety-critical applications.

• An L2 memory interface:

– Single 64-bit master AXI interface

– 64-bit slave AXI interface to TCM RAM blocks

• A debug interface to a CoreSight Debug Access Port (DAP).

• Six Hardware Breakpoints

• Two Watchpoints

• A Perfomance Monitoring Unit (PMU)

• A Vectored Interrupt Controller (VIC) port.

For more information on the ARM Cortex-R4 CPU, see www.arm.com.

6.4.2 ARM Cortex-R4 CPU Features Enabled by Software

The following CPU features are disabled on reset and must be enabled by the application if required.

• ECC On Tightly Coupled Memory (TCM) Accesses

• Hardware Vectored Interrupt (VIC) Port

• Memory Protection Unit (MPU)

6.4.3 Dual Core Implementation

The device has two Cortex-R4 cores, where the output signals of both CPUs are compared in the CCM-

R4 unit. To avoid common mode impacts the signals of the CPUs to be compared are delayed by 2 clock

cycles as shown in Figure 6-3.

The CPUs have a diverse CPU placement given by following requirements:

• Different orientation; for example, CPU1 = "north" orientation, CPU2 = "flip west" orientation

• Dedicated guard ring for each CPU

Figure 6-2. Dual - CPU Orientation

‘5‘ TEXAS INSTRUMENTS

CPU 1 CPU 2

2cycledelay

CCM-R4

compare

CPU1CLK

CPU2CLK

compare

error

Input+Control

Output+Control

TMS570LS0432, TMS570LS0332

SPNS186C –OCTOBER 2012–REVISED MAY 2018

www.ti.com

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

6.4.4 Duplicate clock tree after GCLK

The CPU clock domain is split into two clock trees, one for each CPU, with the clock of the 2nd CPU

running at the same frequency and in phase to the clock of CPU1. See Figure 6-3.

6.4.5 ARM Cortex-R4 CPU Compare Module (CCM) for Safety

This device has two ARM Cortex-R4 CPU cores, where the output signals of both CPUs are compared in

the CCM-R4 unit. To avoid common mode impacts the signals of the CPUs to be compared are delayed in

a different way as shown in Figure 6-3.

Figure 6-3. Dual Core Implementation

To avoid an erroneous CCM-R4 compare error, the application software must initialize the registers of

both CPUs before the registers are used, including function calls where the register values are pushed

onto the stack.

6.4.6 CPU Self-Test

The CPU STC (Self-Test Controller) is used to test the two Cortex-R4 CPU Cores using the Deterministic

Logic BIST Controller as the test engine.

The main features of the self-test controller are:

• Ability to divide the complete test run into independent test intervals

• Capable of running the complete test or running a few intervals at a time

• Ability to continue from the last executed interval (test set) or to restart from the beginning (first test

set)

• Complete isolation of the self-tested CPU core from the rest of the system during the self-test run

• Ability to capture the failure interval number

• Timeout counter for the CPU self-test run as a fail-safe feature

l TEXAS INSTRUMENTS

TMS570LS0432, TMS570LS0332

www.ti.com

SPNS186C –OCTOBER 2012–REVISED MAY 2018

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

6.4.6.1 Application Sequence for CPU Self-Test

1. Configure clock domain frequencies.

2. Select the number of test intervals to be run.

3. Configure the timeout period for the self-test run.

4. Save the CPU state if required

5. Enable self-test.

6. Wait for CPU reset.

7. In the reset handler, read CPU self-test status to identify any failures.

8. Retrieve CPU state if required.

For more information, see the TMS570LS04x/03x 16/32-Bit RISC Flash Microcontroller Technical

Reference Manual (SPNU517).

6.4.6.2 CPU Self-Test Clock Configuration

The maximum clock rate for the self-test is 45 MHz. The STCCLK is divided down from the CPU clock,

when necessary. This divider is configured by the STCCLKDIV register at address 0xFFFFE108.

6.4.6.3 CPU Self-Test Coverage

Table 6-7 shows CPU test coverage achieved for each self-test interval. It also lists the cumulative test

cycles. The test time can be calculated by multiplying the number of test cycles with the STC clock period.

Table 6-7. CPU Self-Test Coverage

INTERVALS TEST COVERAGE, % TEST CYCLES

000

1 60.06 1365

2 68.71 2730

3 73.35 4095

4 76.57 5460

5 78.7 6825

6 80.4 8190

7 81.76 9555

8 82.94 10920

9 83.84 12285

10 84.58 13650

11 85.31 15015

12 85.9 16380

13 86.59 17745

14 87.17 19110

15 87.67 20475

16 88.11 21840

17 88.53 23205

18 88.93 24570

19 89.26 25935

20 89.56 27300

21 89.86 28665

22 90.1 30030

23 90.36 31395

24 90.62 32760

l TEXAS INSTRUMENTS

TMS570LS0432, TMS570LS0332

SPNS186C –OCTOBER 2012–REVISED MAY 2018

www.ti.com

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

Table 6-7. CPU Self-Test Coverage (continued)

INTERVALS TEST COVERAGE, % TEST CYCLES

25 90.86 34125

26 91.06 35490

l TEXAS INSTRUMENTS u ll]!

OSCIN OSCOUT

(see Note A)

Crystal

(a)

OSCOUT

(b)

Note A: The values of C1 and C2 should be provided by the resonator/crystal vendor.

Note B: Kelvin_GND should not be connected to any other GND when used with a crystal; however,

may be tied to VSS.

when used with an

external clock source, Kelvin_GND

Kelvin_GND

(see Note B)

Kelvin_GND

(see Note B)

OSCIN

External

(toggling 0 V to 3.3 V)

Clock Signal

VSS

TMS570LS0432, TMS570LS0332

www.ti.com

SPNS186C –OCTOBER 2012–REVISED MAY 2018

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

6.5 Clocks

6.5.1 Clock Sources

The table below lists the available clock sources on the device. Each of the clock sources can be enabled

or disabled using the CSDISx registers in the system module. The clock source number in the table

corresponds to the control bit in the CSDISx register for that clock source.

The table also shows the default state of each clock source.

Table 6-8. Available Clock Sources

CLOCK

SOURCE

NO. NAME DESCRIPTION DEFAULT STATE

0 OSCIN Main Oscillator Enabled

1 PLL1 Output From PLL1 Disabled

2 Reserved Reserved Disabled

3 EXTCLKIN1 External Clock Input #1 Disabled

4 CLK80K Low-Frequency Output of Internal Reference Oscillator Enabled

5 CLK10M High-Frequency Output of Internal Reference Oscillator Enabled

6 Reserved Reserved Disabled

7 Reserved Reserved Disabled

6.5.1.1 Main Oscillator

The oscillator is enabled by connecting the appropriate fundamental resonator/crystal and load capacitors

across the external OSCIN and OSCOUT pins as shown in Figure 6-4. The oscillator is a single stage

inverter held in bias by an integrated bias resistor. This resistor is disabled during leakage test

measurement and low power modes.

TI strongly encourages each customer to submit samples of the device to the resonator/crystal

vendors for validation. The vendors are equipped to determine what load capacitors will best tune

their resonator/crystal to the microcontroller device for optimum start-up and operation over

temperature/voltage extremes.

An external oscillator source can be used by connecting a 3.3 V clock signal to the OSCIN pin and leaving

the OSCOUT pin unconnected (open) as shown in Figure 6-4.

Figure 6-4. Recommended Crystal/Clock Connection

l TEXAS INSTRUMENTS Ems EN ¢ +$$+ ++ 4 nPORRST

BIAS_EN

Low-Power

Oscillator

LFEN

LF_TRIM

HFEN

HF_TRIM

CLK80K

CLK10M

CLK10M_VALID

nPORRST

TMS570LS0432, TMS570LS0332

SPNS186C –OCTOBER 2012–REVISED MAY 2018

www.ti.com

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

6.5.1.1.1 Timing Requirements for Main Oscillator

Table 6-9. Timing Requirements for Main Oscillator

PARAMETER MIN TYP MAX UNIT

tc(OSC) Cycle time, OSCIN (when using a sine-wave input) 50 200 ns

tc(OSC_SQR) Cycle time, OSCIN, (when input to the OSCIN is a square

wave ) 50 200 ns

tw(OSCIL) Pulse duration, OSCIN low (when input to the OSCIN is a

square wave) 15 ns

tw(OSCIH) Pulse duration, OSCIN high (when input to the OSCIN is a

square wave) 15 ns

6.5.1.2 Low-Power Oscillator

The Low-Power Oscillator (LPO) is comprised of two oscillators — HF LPO and LF LPO.

6.5.1.2.1 Features

The main features of the LPO are:

• Supplies a clock at extremely low power for power-saving modes. This is connected as clock source #

4 of the Global Clock Module.

• Supplies a high-frequency clock for nontiming-critical systems. This is connected as clock source # 5

of the Global Clock Module.

• Provides a comparison clock for the crystal oscillator failure detection circuit.

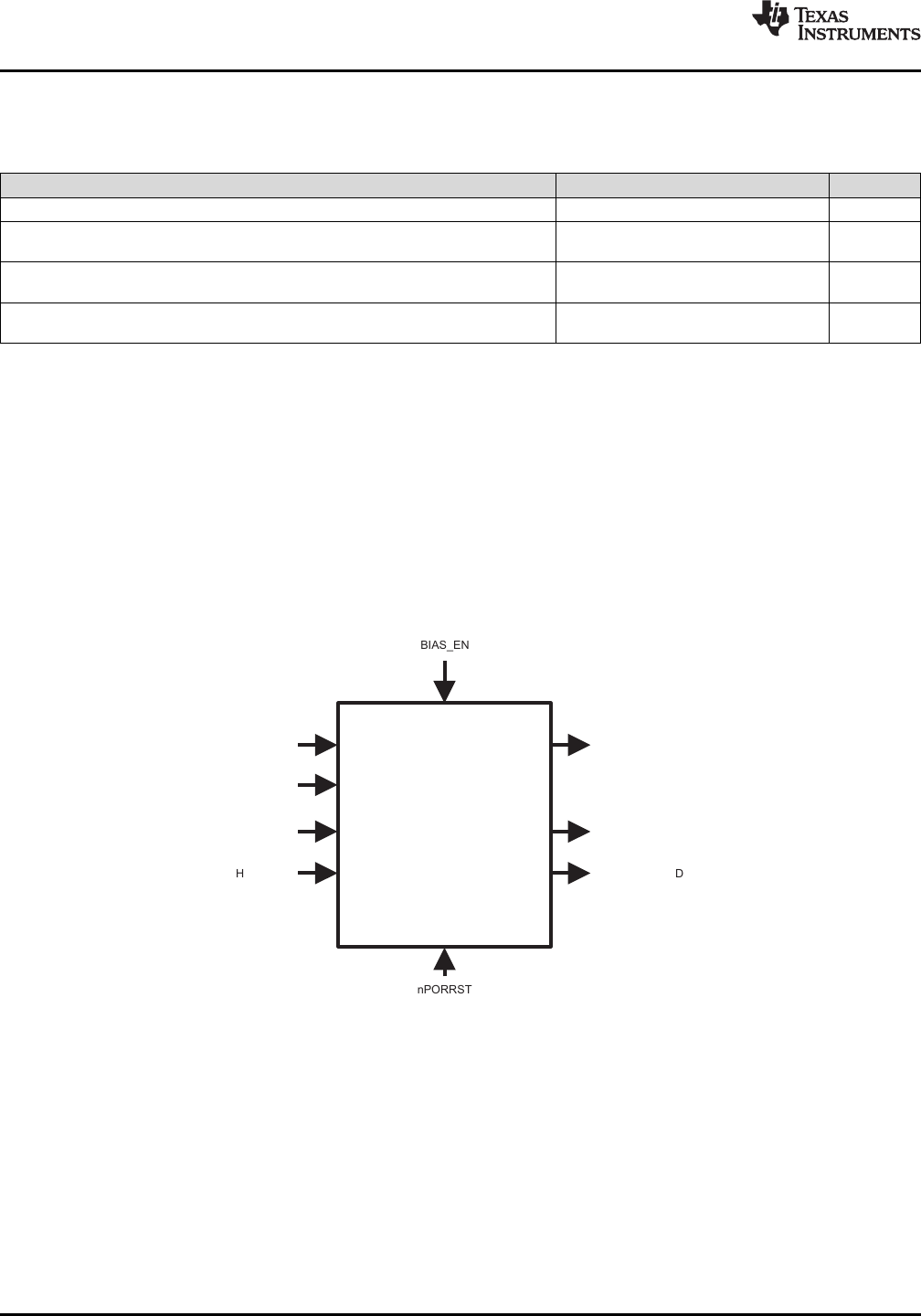

Figure 6-5. LPO Block Diagram

l TEXAS INSTRUMENTS

/NR

/1 to /64

OSCIN

PLL

INTCLK /OD

/1 to /8

VCOCLK /R

/1 to /32

post_ODCLK

/NF

/1 to /256

PLLCLK

fPLLCLK = (fOSCIN / NR) * NF / (OD * R)

TMS570LS0432, TMS570LS0332

www.ti.com

SPNS186C –OCTOBER 2012–REVISED MAY 2018

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

Figure 6-5 shows a block diagram of the internal reference oscillator. This is an LPO and provides two

clock sources: one nominally 80 kHz and one nominally 10 MHz.

6.5.1.2.2 LPO Electrical and Timing Specifications

Table 6-10. LPO Specifications

PARAMETER MIN TYP MAX UNIT

Clock Detection

Oscillator fail frequency - lower threshold, using

untrimmed LPO output 1.375 2.4 4.875

MHz

Oscillator fail frequency - higher threshold, using

untrimmed LPO output 22 38.4 78

LPO - HF oscillator

(fHFLPO)

Untrimmed frequency 5.5 9 19.5 MHz

Trimmed frequency 8 9.6 11 MHz

Start-up time from STANDBY (LPO BIAS_EN High for

at least 900 µs) 10 µs

Cold start-up time 900 µs

LPO - LF oscillator

(fLFLPO)

Untrimmed frequency 36 85 180 kHz

Start-up time from STANDBY (LPO BIAS_EN High for

at least 900 µs) 100 µs

Cold start-up time 2000 µs

6.5.1.3 Phase Locked Loop (PLL) Clock Modules

The PLL is used to multiply the input frequency to some higher frequency.

The main features of the PLL are:

• Frequency modulation can be optionally superimposed on the synthesized frequency of PLL.

• Configurable frequency multipliers and dividers.

• Built-in PLL Slip monitoring circuit.

• Option to reset the device on a PLL slip detection.

6.5.1.3.1 Block Diagram

Figure 6-6 shows a high-level block diagram of the PLL macro on this microcontroller.

Figure 6-6. PLL Block Diagram

6.5.1.3.2 PLL Timing Specifications

Table 6-11. PLL Timing Specifications

PARAMETER MIN MAX UNIT

fINTCLK PLL1 Reference Clock frequency 1 20 MHz

fpost_ODCLK Post-ODCLK – PLL1 Post-divider input clock frequency 400 MHz

fVCOCLK VCOCLK – PLL1 Output Divider (OD) input clock frequency 150 550 MHz

l TEXAS INSTRUMENTS

TMS570LS0432, TMS570LS0332

SPNS186C –OCTOBER 2012–REVISED MAY 2018

www.ti.com

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

6.5.2 Clock Domains

6.5.2.1 Clock Domain Descriptions

Table 6-12 lists the device clock domains and their default clock sources. The table also shows the

system module control register that is used to select an available clock source for each clock domain.

Table 6-12. Clock Domain Descriptions

CLOCK DOMAIN

NAME DEFAULT CLOCK

SOURCE

CLOCK SOURCE

SELECTION

HCLK OSCIN GHVSRC • Is disabled through the CDDISx registers bit 1

GCLK OSCIN GHVSRC

• Always the same frequency as HCLK

• In phase with HCLK

• Is disabled separately from HCLK through the CDDISx registers

bit 0

• Can be divided by 1 up to 8 when running CPU self-test

(LBIST) using the CLKDIV field of the STCCLKDIV register at

address 0xFFFFE108

GCLK2 OSCIN GHVSRC

• Always the same frequency as GCLK

• 2 cycles delayed from GCLK

• Is disabled along with GCLK

• Gets divided by the same divider setting as that for GCLK when

running CPU self-test (LBIST)

VCLK OSCIN GHVSRC

• Divided down from HCLK

• Can be HCLK/1, HCLK/2, ... or HCLK/16

• Is disabled separately from HCLK through the CDDISx registers

bit 2

• Can be disabled separately for eQEP using CDDISx registers

bit 9

VCLK2 OSCIN GHVSRC

• Divided down from HCLK

• Can be HCLK/1, HCLK/2, ... or HCLK/16

• Frequency must be an integer multiple of VCLK frequency

• Is disabled separately from HCLK through the CDDISx registers

bit 3

VCLKA1 VCLK VCLKASRC • Defaults to VCLK as the source

• Frequency can be as fast as HCLK frequency

• Is disabled through the CDDISx registers bit 4

RTICLK VCLK RCLKSRC

• Defaults to VCLK as the source

• If a clock source other than VCLK is selected for RTICLK, then

the RTICLK frequency must be less than or equal to VCLK/3

– Application can ensure this by programming the RTI1DIV

field of the RCLKSRC register, if necessary

• Is disabled through the CDDISx registers bit 6

/1,2 ...1024

Phase_seg1

CAN Baud Rate

DCAN1, 2

AVCLK1 VCLK

Prop_seg Phase_

seg2

/1,2 ...256

SPI

Baud Rate

SPIx,MibSPIx

/2,3 ...224

LIN

Baud Rate

LIN

ADCLK

MibADC

/1,2 ...32

ECLK

External Clock

/1,2

...65536

VCLK2

HET TU

HRP

/1 ...64

N2HET

High

Resolution Loop

Clock

LRP

/20...27

VCLK2

Low Power

Oscillator

*The frequency at this node must not

exceed the maximum HCLK frequency

FMzPLL

80 kHz

10 MHz

OSCIN

GCM

/1 ...64 X1 ...256 /1 ...8 /1 ...32

GCLK,GCLK2 (to CPU)

HCLK (to SYSTEM)

VCLK (to System and

Peripheral Modules)

VCLK (to N2HET)

/1 ...16

AVCLK1 (to DCAN1, 2)

VCLK

/1,2,4, or 8

RTICLK (to RTI+DWWD)

EXTCLKIN 3

eQEP

CDDISx.9

TMS570LS0432, TMS570LS0332

www.ti.com

SPNS186C –OCTOBER 2012–REVISED MAY 2018

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

6.5.2.2 Mapping of Clock Domains to Device Modules

Each clock domain has a dedicated functionality as shown in the figure below.

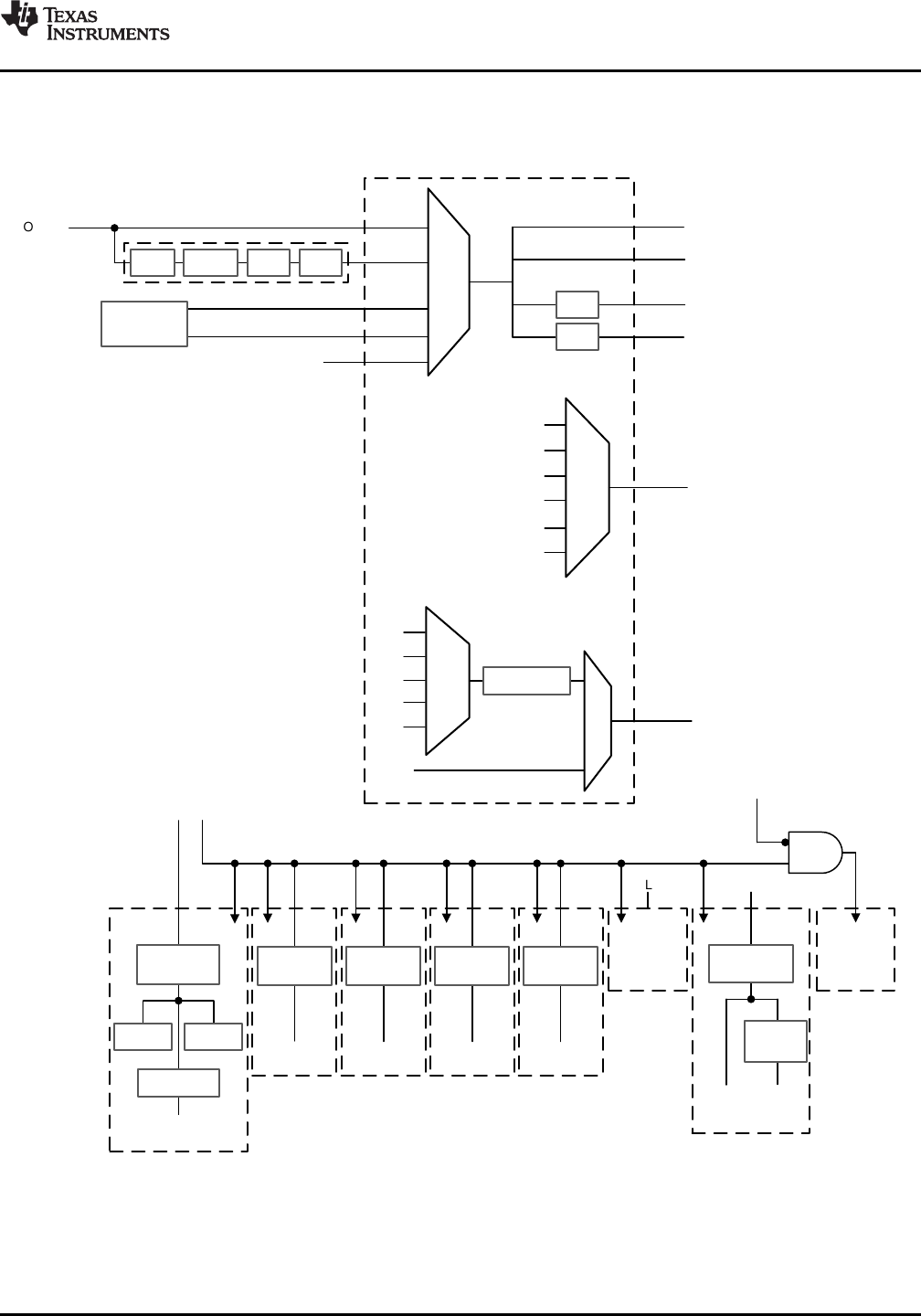

Figure 6-7. Device Clock Domains

l TEXAS INSTRUMENTS

TMS570LS0432, TMS570LS0332

SPNS186C –OCTOBER 2012–REVISED MAY 2018

www.ti.com

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

6.5.3 Clock Test Mode

The TMS570 platform architecture defines a special mode that allows various clock signals to be brought

out on to the ECLK pin and N2HET[2] device outputs. This mode is called the Clock Test mode. It is very

useful for debugging purposes and can be configured through the CLKTEST register in the system

module.

Table 6-13. Clock Test Mode Options

CLKTEST[3-0] SIGNAL ON ECLK CLKTEST[11-8] SIGNAL ON N2HET[2]

0000 Oscillator 0000 Oscillator Valid Status

0001 Main PLL free-running clock output

(PLLCLK) 0001 Main PLL Valid status

0010 Reserved 0010 Reserved

0011 Reserved 0011 Reserved

0100 CLK80K 0100 Reserved

0101 CLK10M 0101 CLK10M Valid status

0110 Reserved 0110 Reserved

0111 Reserved 0111 Reserved

1000 GCLK 1000 CLK80K

1001 RTI Base 1001 Oscillator Valid status

1010 Reserved 1010 Oscillator Valid status

1011 VCLKA1 1011 Oscillator Valid status

1100 Reserved 1100 Oscillator Valid status

1101 Reserved 1101 Oscillator Valid status

1110 Reserved 1110 Oscillator Valid status

1111 Flash HD Pump Oscillator 1111 Oscillator Valid status

TEXAS INSTRUMENTS | | | | l | | I > 1.375 4.875 22 78 1

f[MHz]

1.375 4.875 22 78

fail lower

threshold pass upper

threshold fail

TMS570LS0432, TMS570LS0332

www.ti.com

SPNS186C –OCTOBER 2012–REVISED MAY 2018

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

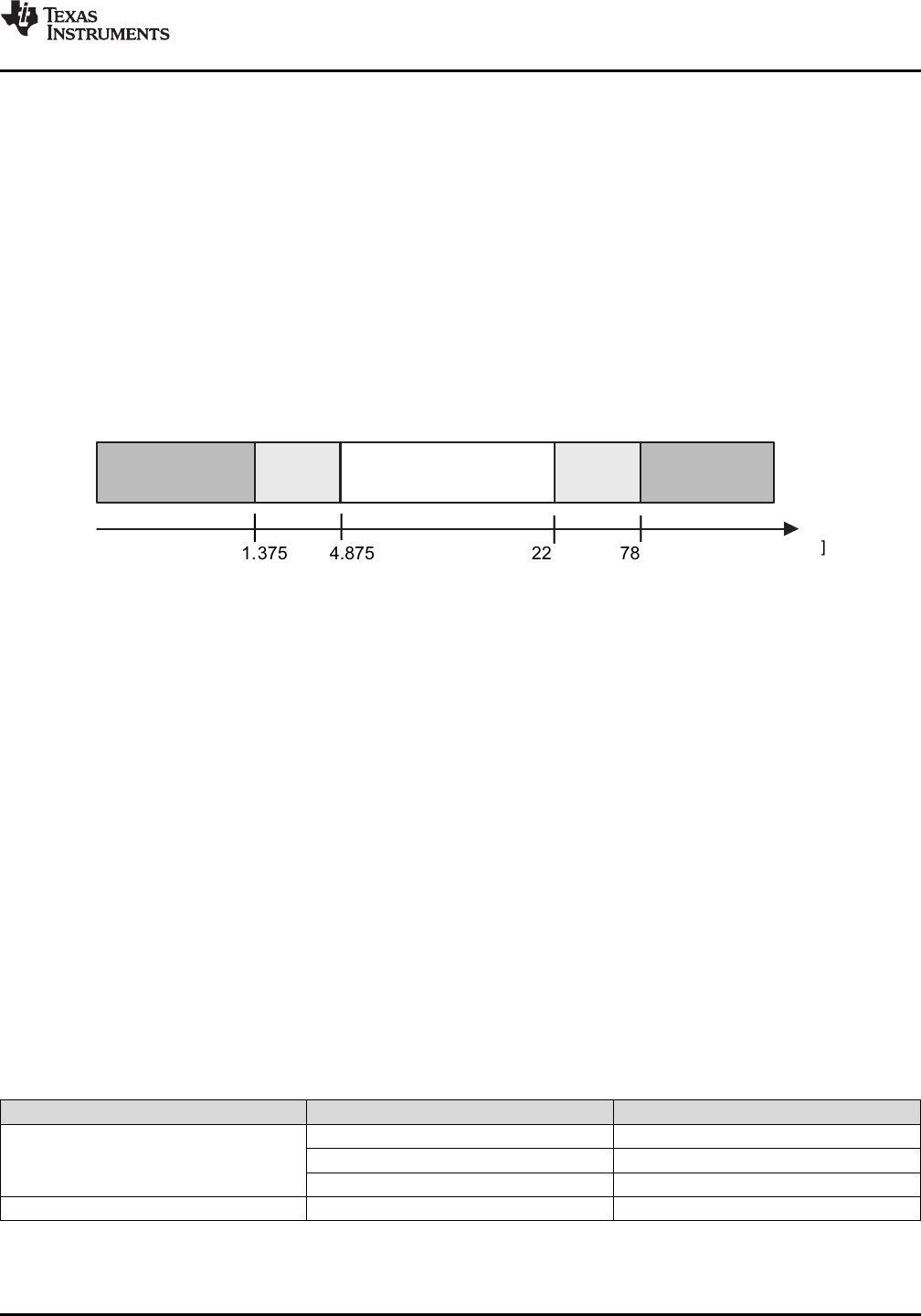

6.6 Clock Monitoring

The LPO Clock Detect (LPOCLKDET) module consists of a clock monitor (CLKDET) and an internal low-

power oscillator (LPO).

The LPO provides two different clock sources – a low frequency (LFLPO) and a high frequency (HFLPO).

The CLKDET is a supervisor circuit for an externally supplied clock signal (OSCIN). In case the OSCIN

frequency falls out of a frequency window, the CLKDET flags this condition in the global status register

(GLBSTAT bit 0: OSC FAIL) and switches all clock domains sourced by OSCIN to the HFLPO clock (limp

mode clock).

The valid OSCIN frequency range is defined as: fHFLPO / 4 < fOSCIN < fHFLPO * 4.

6.6.1 Clock Monitor Timings

For more information on LPO and Clock detection, refer to Table 6-10.

Figure 6-8. LPO and Clock Detection, Untrimmed HFLPO

6.6.2 External Clock (ECLK) Output Functionality

The ECLK pin can be configured to output a prescaled clock signal indicative of an internal device clock.

This output can be externally monitored as a safety diagnostic.

6.6.3 Dual Clock Comparator

The Dual Clock Comparator (DCC) module determines the accuracy of selectable clock sources by

counting the pulses of two independent clock sources (counter 0 and counter 1). If one clock is out of

spec, an error signal is generated. For example, the DCC can be configured to use CLK10M as the

reference clock (for counter 0) and VCLK as the "clock under test" (for counter 1). This configuration

allows the DCC to monitor the PLL output clock when VCLK is using the PLL output as its source.

6.6.3.1 Features

• Takes two different clock sources as input to two independent counter blocks.

• One of the clock sources is the known-good, or reference clock; the second clock source is the "clock under test."

• Each counter block is programmable with initial, or seed values.

• The counter blocks start counting down from their seed values at the same time; a mismatch from the expected

frequency for the clock under test generates an error signal which is used to interrupt the CPU.

6.6.3.2 Mapping of DCC Clock Source Inputs

Table 6-14. DCC Counter 0 Clock Sources

TEST MODE CLOCK SOURCE [3:0] CLOCK NAME

Others Oscillator (OSCIN)

0x5 High-frequency LPO

0xA Test clock (TCK)

1 X VCLK

l TEXAS INSTRUMENTS

TMS570LS0432, TMS570LS0332

SPNS186C –OCTOBER 2012–REVISED MAY 2018

www.ti.com

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

Table 6-15. DCC Counter 1 Clock Sources

TEST MODE KEY [3:0] CLOCK SOURCE [3:0] CLOCK NAME

Others – N2HET[31]

0x0 Main PLL free-running clock

output

0x1 n/a

0x2 Low-frequency LPO

0xA 0x3 High-frequency LPO

0x4 Flash HD pump oscillator

0x5 EXTCLKIN

0x6 n/a

0x7 Ring oscillator

0x8 - 0xF VCLK

1 X X HCLK

l TEXAS INSTRUMENTS

TMS570LS0432, TMS570LS0332

www.ti.com

SPNS186C –OCTOBER 2012–REVISED MAY 2018

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

(1) The glitch filter design on the nPORRST signal is designed such that no size pulse will reset any part of the microcontroller (flash pump,

I/O pins, and so forth) without also generating a valid reset signal to the CPU.

6.7 Glitch Filters

A glitch filter is present on the following signals.

Table 6-16. Glitch Filter Timing Specifications

PIN PARAMETER MIN MAX UNIT

nPORRST tf(nPORRST)

Filter time nPORRST pin;

pulses less than MIN will be filtered out, pulses greater than

MAX will generate a reset(1)

475 2000

nRST tf(nRST)

Filter time nRST pin;

pulses less than MIN will be filtered out, pulses greater than

MAX will generate a reset

475 2000

TEST tf(TEST)

Filter time TEST pin;

pulses less than MIN will be filtered out, pulses greater than

MAX will pass through

475 2000

l TEXAS INSTRUMENTS

Flash(384KB)

RAM(32KB)

0x00000000

0x0005FFFF

0x08000000

0x08007FFF

CRC

0xFE000000

Peripherals -Frame1

0xFF000000

0xFFF7FFFF

SYSTEMModules

0xFFF80000

0xFFFFFFFF

0xF0000000

RAM-ECC

0x08400000

0x08407FFF

RESERVED

Flash(384KB)(MirroredImage)

0x20000000

0x2005FFFF

RESERVED

0xF07FFFFF

RESERVED

FlashModuleBus2Interface

(FlashECC,OTP andEEPROMaccesses)

Peripherals-Frame2

0xFC000000

0xFCFFFFFF

RESERVED

TMS570LS0432, TMS570LS0332

SPNS186C –OCTOBER 2012–REVISED MAY 2018

www.ti.com

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

6.8 Device Memory Map

6.8.1 Memory Map Diagram

Figure 6-9 shows the device memory map.

Figure 6-9. TMS570LS0432 Memory Map

l TEXAS INSTRUMENTS

Flash(256KB)

RAM(32KB)

0x00000000

0x0003FFFF

0x08000000

0x08007FFF

CRC

0xFE000000

Peripherals -Frame1

0xFF000000

0xFFF7FFFF

SYSTEMModules

0xFFF80000

0xFFFFFFFF

0xF0000000

RAM-ECC

0x08400000

0x08407FFF

RESERVED

Flash(256KB)(MirroredImage)

0x20000000

0x2003FFFF

RESERVED

0xF07FFFFF

RESERVED

FlashModuleBus2Interface

(FlashECC,OTP andEEPROMaccesses)

Peripherals-Frame2

0xFC000000

0xFCFFFFFF

RESERVED

TMS570LS0432, TMS570LS0332

www.ti.com

SPNS186C –OCTOBER 2012–REVISED MAY 2018

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

Figure 6-10. TMS570LS0332 Memory Map

The Flash memory in all configurations is mirrored to support ECC logic testing. The base address of the

mirrored Flash image is 0x2000 0000.

l TEXAS INSTRUMENTS

TMS570LS0432, TMS570LS0332

SPNS186C –OCTOBER 2012–REVISED MAY 2018

www.ti.com

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

(1) The TMS570LS0332 device has only 256KB of flash.

6.8.2 Memory Map Table

See Figure 1-1 for a block diagram showing the device interconnects.

Table 6-17. Device Memory Map

MODULE NAME FRAME CHIP

SELECT

ADDRESS RANGE FRAME

SIZE ACTUAL

SIZE

RESPONSE FOR ACCESS TO

UNIMPLEMENTED LOCATIONS IN

FRAME

START END

Memories tightly coupled to the ARM Cortex-R4 CPU

TCM Flash CS0 0x0000_0000 0x00FF_FFFF 16MB 384KB(1)

Abort

TCM RAM + RAM

ECC CSRAM0 0x0800_0000 0x0BFF_3FFF 64MB 32KB

Mirrored Flash Flash mirror

frame 0x2000_0000 0x20FF_FFFF 16MB 384KB(1)

Flash Module Bus2 Interface

Customer OTP,

TCM Flash Banks 0xF000_0000 0xF000_07FF

64KB

2KB

Abort

Customer OTP,

EEPROM Bank 0xF000_E000 0xF000_E3FF 1KB

Customer

OTP–ECC, TCM

Flash Banks 0xF004_0000 0xF004_00FF

8KB

256B

Customer

OTP–ECC,

EEPROM Bank 0xF004_1C00 0xF004_1C7F 128B

TI OTP, TCM

Flash Banks 0xF008_0000 0xF008_07FF

64KB

2KB

TI OTP, EEPROM

Bank 0xF008_E000 0xF008_E3FF 1KB

TI OTP–ECC,

TCM Flash Banks 0xF00C_0000 0xF00C_00FF

8KB

256B

TI OTP–ECC,

EEPROM Bank 0xF00C_1C00 0xF00C_1C7F 128B

EEPROM

Bank–ECC 0xF010_0000 0xF010_07FF 256KB 2KB

EEPROM Bank 0xF020_0000 0xF020_3FFF 2MB 16KB

Flash Data Space

ECC 0xF040_0000 0xF040_DFFF 1MB 48KB

Cyclic Redundancy Checker (CRC) Module Registers

CRC CRC frame 0xFE00_0000 0xFEFF_FFFF 16MB 512B Accesses above 0x200 generate abort.

Peripheral Memories

MIBSPI1 RAM PCS[7] 0xFF0E_0000 0xFF0F_FFFF 128KB 2KB Abort for accesses above 2KB

DCAN2 RAM PCS[14] 0xFF1C_0000 0xFF1D_FFFF 128KB 2KB

Wrap around for accesses to

unimplemented address offsets lower

than 0x7FF. Abort generated for

accesses beyond offset 0x800.

DCAN1 RAM PCS[15] 0xFF1E_0000 0xFF1F_FFFF 128KB 2KB

Wrap around for accesses to

unimplemented address offsets lower

than 0x7FF. Abort generated for

accesses beyond offset 0x800.

MIBADC RAM

PCS[31] 0xFF3E_0000 0xFF3F_FFFF 128KB

8KB Wrap around for accesses to

unimplemented address offsets lower

than 0x1FFF.

MIBADC Look-Up

Table 384 bytes

Look-up table for ADC wrapper. Starts

at offset 0x2000 ans ends at 0x217F.

Wrap around for accesses between

offsets 0x180 and 0x3FFF. Aborts

generated for accesses beyond 0x4000

l TEXAS INSTRUMENTS

TMS570LS0432, TMS570LS0332

www.ti.com

SPNS186C –OCTOBER 2012–REVISED MAY 2018

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

Table 6-17. Device Memory Map (continued)

MODULE NAME FRAME CHIP

SELECT

ADDRESS RANGE FRAME

SIZE ACTUAL

SIZE

RESPONSE FOR ACCESS TO

UNIMPLEMENTED LOCATIONS IN

FRAME

START END

N2HET RAM PCS[35] 0xFF46_0000 0xFF47_FFFF 128KB 16KB

Wrap around for accesses to

unimplemented address offsets lower

than 0x3FFF. Abort generated for

accesses beyond 0x3FFF.

HTU RAM PCS[39] 0xFF4E_0000 0xFF4F_FFFF 128KB 1KB Abort

Debug Components

CoreSight Debug

ROM CSCS0 0xFFA0_0000 0xFFA0_0FFF 4KB 4KB Reads return zeros, writes have no

effect

Cortex-R4 Debug CSCS1 0xFFA0_1000 0xFFA0_1FFF 4KB 4KB Reads return zeros, writes have no

effect

Peripheral Control Registers

HTU PS[22] 0xFFF7_A400 0xFFF7_A4FF 256B 256B Reads return zeros, writes have no

effect

N2HET PS[17] 0xFFF7_B800 0xFFF7_B8FF 256B 256B Reads return zeros, writes have no

effect

GIO PS[16] 0xFFF7_BC00 0xFFF7_BCFF 256B 256B Reads return zeros, writes have no

effect

MIBADC PS[15] 0xFFF7_C000 0xFFF7_C1FF 512B 512B Reads return zeros, writes have no

effect

DCAN1 PS[8] 0xFFF7_DC00 0xFFF7_DDFF 512B 512B Reads return zeros, writes have no

effect

DCAN2 PS[8] 0xFFF7_DE00 0xFFF7_DFFF 512B 512B Reads return zeros, writes have no

effect

LIN PS[6] 0xFFF7_E400 0xFFF7_E4FF 256B 256B Reads return zeros, writes have no

effect

MibSPI1 PS[2] 0xFFF7_F400 0xFFF7_F5FF 512B 512B Reads return zeros, writes have no

effect

SPI2 PS[2] 0xFFF7_F600 0xFFF7_F7FF 512B 512B Reads return zeros, writes have no

effect

SPI3 PS[1] 0xFFF7_F800 0xFFF7_F9FF 512B 512B Reads return zeros, writes have no

effect

EQEP PS[25] 0xFFF7_9900 0xFFF7_99FF 256B 256B Reads return zeros, writes have no

effect

EQEP (Mirrored) PS2[25] 0xFCF7_9900 0xFCF7_99FF 256B 256B Reads return zeros, writes have no

effect

System Modules Control Registers and Memories

VIM RAM PPCS2 0xFFF8_2000 0xFFF8_2FFF 4KB 1KB

Wrap around for accesses to

unimplemented address offsets lower

than 0x3FF. Accesses beyond 0x3FF

will be ignored.

Flash Wrapper PPCS7 0xFFF8_7000 0xFFF8_7FFF 4KB 4KB Abort

eFuse Farm

Controller PPCS12 0xFFF8_C000 0xFFF8_CFFF 4KB 4KB Abort

PCR registers PPS0 0xFFFF_E000 0xFFFF_E0FF 256B 256B Reads return zeros, writes have no

effect

System Module -

Frame 2 (see

device TRM) PPS0 0xFFFF_E100 0xFFFF_E1FF 256B 256B Reads return zeros, writes have no

effect

PBIST PPS1 0xFFFF_E400 0xFFFF_E5FF 512B 512B Reads return zeros, writes have no

effect

STC PPS1 0xFFFF_E600 0xFFFF_E6FF 256B 256B Reads return zeros, writes have no

effect

IOMM

Multiplexing

control module PPS2 0xFFFF_EA00 0xFFFF_EBFF 512B 512B Generates address error interrupt if

enabled.

l TEXAS INSTRUMENTS

TMS570LS0432, TMS570LS0332

SPNS186C –OCTOBER 2012–REVISED MAY 2018

www.ti.com

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

Table 6-17. Device Memory Map (continued)

MODULE NAME FRAME CHIP

SELECT

ADDRESS RANGE FRAME

SIZE ACTUAL

SIZE

RESPONSE FOR ACCESS TO

UNIMPLEMENTED LOCATIONS IN

FRAME

START END

DCC PPS3 0xFFFF_EC00 0xFFFF_ECFF 256B 256B Reads return zeros, writes have no

effect

ESM PPS5 0xFFFF_F500 0xFFFF_F5FF 256B 256B Reads return zeros, writes have no

effect

CCMR4 PPS5 0xFFFF_F600 0xFFFF_F6FF 256B 256B Reads return zeros, writes have no

effect

RAM ECC even PPS6 0xFFFF_F800 0xFFFF_F8FF 256B 256B Reads return zeros, writes have no

effect

RAM ECC odd PPS6 0xFFFF_F900 0xFFFF_F9FF 256B 256B Reads return zeros, writes have no

effect

RTI + DWWD PPS7 0xFFFF_FC00 0xFFFF_FCFF 256B 256B Reads return zeros, writes have no

effect

VIM Parity PPS7 0xFFFF_FD00 0xFFFF_FDFF 256B 256B Reads return zeros, writes have no

effect

VIM PPS7 0xFFFF_FE00 0xFFFF_FEFF 256B 256B Reads return zeros, writes have no

effect

System Module -

Frame 1 (see

device TRM) PPS7 0xFFFF_FF00 0xFFFF_FFFF 256B 256B Reads return zeros, writes have no

effect

l TEXAS INSTRUMENTS

TMS570LS0432, TMS570LS0332

www.ti.com

SPNS186C –OCTOBER 2012–REVISED MAY 2018

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

6.8.3 Master/Slave Access Privileges

The table below lists the access permissions for each bus master on the device. A bus master is a module

that can initiate a read or a write transaction on the device.

Each slave module on the main interconnect is listed in the table. A "Yes" indicates that the module listed

in the "MASTERS" column can access that slave module.

Table 6-18. Master / Slave Access Matrix

MASTERS ACCESS MODE

SLAVES ON MAIN SCR

Flash Module Bus2

Interface:

OTP, ECC, EEPROM

Bank

Non-CPU Accesses

to Program Flash

and CPU Data RAM CRC

Peripheral Control

Registers, All

Peripheral

Memories, And All

System Module

Control Registers

And Memories

CPU READ User/Privilege Yes Yes Yes Yes

CPU WRITE User/Privilege No Yes Yes Yes

HTU Privilege No Yes Yes Yes

l TEXAS INSTRUMENTS

TMS570LS0432, TMS570LS0332

SPNS186C –OCTOBER 2012–REVISED MAY 2018

www.ti.com

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

(1) This Flash bank is 144-bit wide with ECC support.

(2) Sector 14 is not accessible or included in the TMS570LS0332 configuration.

(3) Flash bank7 is an FLEE bank and can be programmed while executing code from flash bank0. It is 72-bit wide with ECC support.

(4) Code execution is not allowed from flash bank7.

6.9 Flash Memory

6.9.1 Flash Memory Configuration

Flash Bank: A separate block of logic consisting of 1 to 16 sectors. Each flash bank normally has a

customer-OTP and a TI-OTP area. These flash sectors share input/output buffers, data paths, sense

amplifiers, and control logic.

Flash Sector: A contiguous region of flash memory which must be erased simultaneously due to physical

construction constraints.

Flash Pump: A charge pump which generates all the voltages required for reading, programming, or

erasing the flash banks.

Flash Module: Interface circuitry required between the host CPU and the flash banks and pump module.

Table 6-19. Flash Memory Banks and Sectors

MEMORY ARRAYS (or BANKS) SECTOR

NO. SEGMENT LOW ADDRESS HIGH ADDRESS

BANK0 (384KB)(1)

0 8KB 0x0000_0000 0x0000_1FFF

1 8KB 0x0000_2000 0x0000_3FFF

2 8KB 0x0000_4000 0x0000_5FFF

3 8KB 0x0000_6000 0x0000_7FFF

4 8KB 0x0000_8000 0x0000_9FFF

5 8KB 0x0000_A000 0x0000_BFFF

6 8KB 0x0000_C000 0x0000_DFFF

7 8KB 0x0000_E000 0x0000_FFFF

8 8KB 0x0001_0000 0x0001_1FFF

9 8KB 0x0001_2000 0x0001_3FFF

10 8KB 0x0001_4000 0x0001_5FFF

11 8KB 0x0001_6000 0x0001_7FFF

12 32KB 0x0001_8000 0x0001_FFFF

13 128KB 0x0002_0000 0x0003_FFFF

14(2) 128KB 0x0004_0000 0x0005_FFFF

BANK7 (16KB) for EEPROM emulation(3)(4)

0 4KB 0xF020_0000 0xF020_0FFF

1 4KB 0xF020_1000 0xF020_1FFF

2 4KB 0xF020_2000 0xF020_2FFF

3 4KB 0xF020_3000 0xF020_3FFF

l TEXAS INSTRUMENTS

TMS570LS0432, TMS570LS0332

www.ti.com

SPNS186C –OCTOBER 2012–REVISED MAY 2018

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

6.9.2 Main Features of Flash Module

• Support for multiple flash banks for program and/or data storage

• Simultaneous read access on a bank while performing program or erase operation on any other bank

• Integrated state machines to automate flash erase and program operations

• Software interface for flash program and erase operations

• Pipelined mode operation to improve instruction access interface bandwidth

• Support for Single Error Correction Double Error Detection (SECDED) block inside Cortex-R4 CPU

– Error address is captured for host system debugging

• Support for a rich set of diagnostic features

6.9.3 ECC Protection for Flash Accesses

All accesses to the program flash memory are protected by Single Error Correction Double Error Detection

(SECDED) logic embedded inside the CPU. The flash module provides 8 bits of ECC code for 64 bits of

instructions or data fetched from the flash memory. The CPU calculates the expected ECC code based on

the 64 bits received and compares it with the ECC code returned by the flash module. A single-bit error is

corrected and flagged by the CPU, while a multibit error is only flagged. The CPU signals an ECC error

through its Event bus. This signaling mechanism is not enabled by default and must be enabled by setting

the "X" bit of the Performance Monitor Control Register, c9.

MRC p15,#0,r1,c9,c12,#0 ;Enabling Event monitor states

ORR r1, r1, #0x00000010

MCR p15,#0,r1,c9,c12,#0 ;Set 4th bit (‘X’) of PMNC register

MRC p15,#0,r1,c9,c12,#0

The application must also explicitly enable the CPU's ECC checking for accesses on the CPU's ATCM

and BTCM interfaces. These are connected to the program flash and data RAM respectively. ECC

checking for these interfaces can be done by setting the B1TCMPCEN, B0TCMPCEN and ATCMPCEN

bits of the System Control coprocessor's Auxiliary Control Register, c1.

MRC p15, #0, r1, c1, c0, #1

ORR r1, r1, #0x0e000000 ;Enable ECC checking for ATCM and BTCMs

DMB

MCR p15, #0, r1, c1, c0, #1

6.9.4 Flash Access Speeds

For information on flash memory access speeds and the relevant wait states required, see Section 5.6.

l TEXAS INSTRUMENTS

TMS570LS0432, TMS570LS0332

SPNS186C –OCTOBER 2012–REVISED MAY 2018

www.ti.com

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

(1) This programming time includes overhead of state machine, but does not include data transfer time. The programming time assumes

programming 144 bits at a time at the maximum specified operating frequency.

(2) During bank erase, the selected sectors are erased simultaneously. The time to erase the bank is specified as equal to the time to erase

a sector.

6.10 Flash Program and Erase Timings for Program Flash

Table 6-20. Timing Specifications for Program Flash

PARAMETER MIN NOM MAX UNIT

tprog (144bit) Wide Word (144 bit) programming time 40 300 µs

tprog (Total) 384KByte programming time(1) -40°C to 125°C 4

0°C to 60°C, for first

25 cycles 1 2

terase Sector/Bank erase time(2) -40°C to 125°C 0.30 4 s

0°C to 60°C, for first

25 cycles 16 100 ms

twec Write/erase cycles with 15 year Data Retention

requirement -40°C to 125°C 1000 cycles

(1) This programming time includes overhead of state machine, but does not include data transfer time. The programming time assumes

programming 72 bits at a time at the maximum specified operating frequency.

(2) During bank erase, the selected sectors are erased simultaneously. The time to erase the bank is specified as equal to the time to erase

a sector.

6.11 Flash Program and Erase Timings for Data Flash

Table 6-21. Timing Specifications for Data Flash

PARAMETER MIN NOM MAX UNIT

tprog (72 bit) Wide Word (72 bit) programming time 47 300 µs

tprog (Total) 16KB programming time(1) –40°C to 125°C 330

0°C to 60°C, for first

25 cycles 100 165

terase Sector/Bank erase time(2) –40°C to 125°C 0.200 8 s

0°C to 60°C, for first

25 cycles 14 100 ms

twec Write/erase cycles with 15 year Data Retention

requirement –40°C to 125°C 100000 cycles

l TEXAS INSTRUMENTS VBUSP l/F PMT VF EH ﬁll VBUSP l/F PMT VF w

EVEN Address

TCM BUS

ODD Address

TCM BUS

64 Bit data bus

Upper 32 bits data &

4 ECC bits

Lower 32 bits data &

4 ECC bits

36 Bit

wide

RAM

36 Bit

wide

RAM

36 Bit

wide

RAM

36 Bit

wide

RAM

36 Bit

wide

RAM

36 Bit

wide

RAM

Upper 32 bits data &

4 ECC bits

Lower 32 bits data &

4 ECC bits

36 Bit

wide

RAM

36 Bit

wide

RAM

36 Bit

wide

RAM

36 Bit

wide

RAM

36 Bit

wide

RAM

36 Bit

wide

RAM

TCRAM

Interface 1

PMT I/FVBUSP I/F

Cortex-R4

TCM

TCRAM

Interface 2

PMT I/FVBUSP I/F

TMS570LS0432, TMS570LS0332

www.ti.com

SPNS186C –OCTOBER 2012–REVISED MAY 2018

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

6.12 Tightly Coupled RAM Interface Module

Figure 6-11 illustrates the connection of the Tightly Coupled RAM (TCRAM) to the Cortex-R4 CPU.

Figure 6-11. TCRAM Block Diagram

6.12.1 Features

The features of the Tightly Coupled RAM (TCRAM) module are:

• Acts as slave to the BTCM interface of the Cortex-R4 CPU

• Supports CPU's internal ECC scheme by providing 64-bit data and 8-bit ECC code

• Monitors CPU Event Bus and generates single-bit or multibit error interrupts

• Stores addresses for single-bit and multibit errors

• Provides CPU address bus integrity checking by supporting parity checking on the address bus

• Performs redundant address decoding for the RAM bank chip select and ECC select generation logic

• Provides enhanced safety for the RAM addressing by implementing two 36-bit wide byte-interleaved RAM banks

and generating independent RAM access control signals to the two banks

• Supports auto-initialization of the RAM banks along with the ECC bits

• No support for bit-wise RAM accesses

6.12.2 TCRAMW ECC Support

The TCRAMW passes on the ECC code for each data read by the Cortex-R4 CPU from the RAM. It also

stores the CPU's ECC port contents in the ECC RAM when the CPU does a write to the RAM. The

TCRAMW monitors the CPU's event bus and provides registers for indicating single-bit and multibit errors

and also for identifying the address that caused the single-bit or multibit error. The event signaling and the

ECC checking for the RAM accesses must be enabled inside the CPU.

For more information see the device Technical Reference Manual.

6.13 Parity Protection for Accesses to peripheral RAMs

Accesses to some peripheral RAMs are protected by odd/even parity checking. During a read access the

parity is calculated based on the data read from the peripheral RAM and compared with the good parity

value stored in the parity RAM for that peripheral. If any word fails the parity check, the module generates

a parity error signal that is mapped to the Error Signaling Module. The module also captures the

peripheral RAM address that caused the parity error.

l TEXAS INSTRUMENTS

TMS570LS0432, TMS570LS0332

SPNS186C –OCTOBER 2012–REVISED MAY 2018

www.ti.com

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

(1) There are several memory testing algorithms stored in the PBIST ROM. However, TI recommends the March13N algorithm for

application testing.

The parity protection for peripheral RAMs is not enabled by default and must be enabled by the

application. Each individual peripheral contains control registers to enable the parity protection for

accesses to its RAM.

NOTE

The CPU read access gets the actual data from the peripheral. The application can choose

to generate an interrupt whenever a peripheral RAM parity error is detected.

6.14 On-Chip SRAM Initialization and Testing

6.14.1 On-Chip SRAM Self-Test Using PBIST

6.14.1.1 Features

• Extensive instruction set to support various memory test algorithms

• ROM-based algorithms allow the application to run TI production-level memory tests

• Independent testing of all on-chip SRAM

6.14.1.2 PBIST RAM Groups

Table 6-22. PBIST RAM Grouping

MEMORY RAM GROUP TEST CLOCK MEM TYPE

TEST PATTERN (ALGORITHM)

TRIPLE READ

SLOW READ TRIPLE READ

FAST READ

MARCH 13N(1)

TWO PORT

(CYCLES)

MARCH 13N(1)

SINGLE PORT

(CYCLES)

ALGO MASK

0x1 ALGO MASK

0x2 ALGO MASK

0x4 ALGO MASK

0x8

PBIST_ROM 1 ROM CLK ROM X X

STC_ROM 2 ROM CLK ROM X X

DCAN1 3 VCLK Dual Port 12720

DCAN2 4 VCLK Dual Port 6480

RAM 6 HCLK Single Port 133160

MIBSPI1 7 VCLK Dual Port 33440

VIM 10 VCLK Dual Port 12560

MIBADC 11 VCLK Dual Port 4200

N2HET1 13 VCLK Dual Port 25440

HTU1 14 VCLK Dual Port 6480

The PBIST ROM clock can be divided down from HCLK. The divider is selected by programming the

ROM_DIV field of the Memory Self-Test Global Control Register (MSTGCR) at address 0xFFFFFF58.

l TEXAS INSTRUMENTS

TMS570LS0432, TMS570LS0332

www.ti.com

SPNS186C –OCTOBER 2012–REVISED MAY 2018

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

(1) Unassigned register bits are reserved.

(2) The MibSPI1 module performs an initialization of the transmit and receive RAMs as soon as the module is brought out of reset using the

SPI Global Control Register 0 (SPIGCR0). This is independent of whether the application chooses to initialize the MibSPI1 RAMs using

the system module auto-initialization method.

6.14.2 On-Chip SRAM Auto Initialization

This microcontroller allows some of the on-chip memories to be initialized through the Memory Hardware

Initialization mechanism in the System module. This hardware mechanism allows an application to

program the memory arrays with error detection capability to a known state based on their error detection

scheme (odd/even parity or ECC).

The MINITGCR register enables the memory initialization sequence, and the MSINENA register selects

the memories that are to be initialized.

For more information on these registers refer to the device Technical Reference Manual.

The mapping of the different on-chip memories to the specific bits of the MSINENA registers is shown in

Table 6-23.

Table 6-23. Memory Initialization

CONNECTING MODULE ADDRESS RANGE MSINENA REGISTER

BIT NO.(1)

BASE ADDRESS ENDING ADDRESS

RAM 0x08000000 0x08007FFF 0

MIBSPI1 RAM 0xFF0E0000 0xFF0FFFFF 7(2)

DCAN2 RAM 0xFF1C0000 0xFF1DFFFF 6

DCAN1 RAM 0xFF1E0000 0xFF1FFFFF 5

MIBADC RAM 0xFF3E0000 0xFF3FFFFF 8

N2HET RAM 0xFF460000 0xFF47FFFF 3

HTU RAM 0xFF4E0000 0xFF4FFFFF 4

VIM RAM 0xFFF82000 0xFFF82FFF 2

l TEXAS INSTRUMENTS

TMS570LS0432, TMS570LS0332

SPNS186C –OCTOBER 2012–REVISED MAY 2018

www.ti.com

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

6.15 Vectored Interrupt Manager

The vectored interrupt manager (VIM) provides hardware assistance for prioritizing and controlling the

many interrupt sources present on this device. Interrupts are caused by events outside of the normal flow

of program execution. Normally, these events require a timely response from the central processing unit

(CPU); therefore, when an interrupt occurs, the CPU switches execution from the normal program flow to

an interrupt service routine (ISR).

6.15.1 VIM Features

The VIM module has the following features:

• Supports 96 interrupt channels.

– Provides programmable priority and enable for interrupt request lines.

• Provides a direct hardware dispatch mechanism for fastest IRQ dispatch.

• Provides two software dispatch mechanisms when the CPU VIC port is not used.

– Index interrupt

– Register vectored interrupt

• Parity protected vector interrupt table against soft errors.

6.15.2 Interrupt Request Assignments

Table 6-24. Interrupt Request Assignments

MODULES INTERRUPT SOURCES DEFAULT VIM

INTERRUPT

CHANNEL

ESM ESM High level interrupt (NMI) 0

Reserved Reserved 1

RTI RTI compare interrupt 0 2

RTI RTI compare interrupt 1 3

RTI RTI compare interrupt 2 4

RTI RTI compare interrupt 3 5

RTI RTI overflow interrupt 0 6

RTI RTI overflow interrupt 1 7

Reserved Reserved 8

GIO GIO interrupt A 9

N2HET N2HET level 0 interrupt 10

HTU HTU level 0 interrupt 11

MIBSPI1 MIBSPI1 level 0 interrupt 12

LIN LIN level 0 interrupt 13

MIBADC MIBADC event group interrupt 14

MIBADC MIBADC sw group 1 interrupt 15

DCAN1 DCAN1 level 0 interrupt 16

SPI2 SPI2 level 0 interrupt 17

Reserved Reserved 18

Reserved Reserved 19

ESM ESM Low level interrupt 20

SYSTEM Software interrupt (SSI) 21

CPU PMU interrupt 22

GIO GIO interrupt B 23

N2HET N2HET level 1 interrupt 24

HTU HTU level 1 interrupt 25

l TEXAS INSTRUMENTS

TMS570LS0432, TMS570LS0332

www.ti.com

SPNS186C –OCTOBER 2012–REVISED MAY 2018

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

Table 6-24. Interrupt Request Assignments (continued)

MODULES INTERRUPT SOURCES DEFAULT VIM

INTERRUPT

CHANNEL

MIBSPI1 MIBSPI1 level 1 interrupt 26

LIN LIN level 1 interrupt 27

MIBADC MIBADC sw group 2 interrupt 28

DCAN1 DCAN1 level 1 interrupt 29

SPI2 SPI2 level 1 interrupt 30

MIBADC MIBADC magnitude compare interrupt 31

Reserved Reserved 32-34

DCAN2 DCAN2 level 0 interrupt 35

Reserved Reserved 36

SPI3 SPI3 level 0 interrupt 37

SPI3 SPI3 level 1 interrupt 38

Reserved Reserved 39-41

DCAN2 DCAN2 level 1 interrupt 42

Reserved Reserved 43-60

FMC FSM_DONE interrupt 61

Reserved Reserved 62-79

HWAG HWA_INT_REQ_H 80

Reserved Reserved 81

DCC DCC done interrupt 82

Reserved Reserved 83

eQEPINTn eQEP Interrupt 84

PBIST PBIST Done Interrupt 85

Reserved Reserved 86-87

HWAG HWA_INT_REQ_L 88

Reserved Reserved 89-95

NOTE

Address location 0x00000000 in the VIM RAM is reserved for the phantom interrupt ISR

entry; therefore only request channels 0..94 can be used and are offset by 1 address in the

VIM RAM.

l TEXAS INSTRUMENTS ll

310

310

RTICLK

310

310

310

External

control

CAP eventsource0

CAP eventsource1

Upcounter

Capture

upcounter

Compare

upcounter

Freerunningcounter

Capture

RTIFRCx

freerunningcounter

RTICAFRCx

OVLINTx

RTICPUCx

RTIUCx

RTICAUCx

ToCompare

Unit

TMS570LS0432, TMS570LS0332

SPNS186C –OCTOBER 2012–REVISED MAY 2018

www.ti.com

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

6.16 Real-Time Interrupt Module

The real-time interrupt (RTI) module provides timer functionality for operating systems and for

benchmarking code. The RTI module can incorporate several counters that define the timebases needed

for scheduling an operating system.

The timers also allow you to benchmark certain areas of code by reading the values of the counters at the

beginning and the end of the desired code range and calculating the difference between the values.

6.16.1 Features

The RTI module has the following features:

• Two independent 64 bit counter blocks

• Four configurable compares for generating operating system ticks. Each event can be driven by either

counter block 0 or counter block 1.

• Fast enabling/disabling of events

• Two time-stamp (capture) functions for system or peripheral interrupts, one for each counter block

6.16.2 Block Diagrams

Figure 6-12 shows a high-level block diagram for one of the two 64-bit counter blocks inside the RTI

module. Both the counter blocks are identical.

Figure 6-12. Counter Block Diagram

! TEXAS INSTRUMENTS 4—94—

310

Compare

control

INTy

Compare

Update

compare

Fromcounter

block0

Fromcounter

block1

RTIUDCPy

RTICOMPy

310

TMS570LS0432, TMS570LS0332

www.ti.com

SPNS186C –OCTOBER 2012–REVISED MAY 2018

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

Figure 6-13 shows a typical high-level block diagram for one of the four compares inside the RTI module.

Each of the four compares are identical.

Figure 6-13. Compare Block Diagram

6.16.3 Clock Source Options

The RTI module uses the RTICLK clock domain for generating the RTI time bases.

The application can select the clock source for the RTICLK by configuring the RCLKSRC register in the

System module at address 0xFFFFFF50. The default source for RTICLK is VCLK.

For more information, on the clock sources see Table 6-8 and Table 6-12.

6.17 Error Signaling Module

The Error Signaling Module (ESM) manages the various error conditions on the TMS570 microcontroller.

The error condition is handled based on a fixed severity level assigned to it. Any severe error condition

can be configured to drive a low level on a dedicated device terminal called nERROR. This can be used

as an indicator to an external monitor circuit to put the system into a safe state.

6.17.1 Features

The features of the Error Signaling Module are:

• 128 interrupt/error channels are supported, divided into 3 different groups

– 64 channels with maskable interrupt and configurable error pin behavior

– 32 error channels with nonmaskable interrupt and predefined error pin behavior

– 32 channels with predefined error pin behavior only

• Error pin to signal severe device failure

• Configurable timebase for error signal

• Error forcing capability

6.17.2 ESM Channel Assignments

The Error Signaling Module (ESM) integrates all the device error conditions and groups them in the order

of severity. Group1 is used for errors of the lowest severity while Group3 is used for errors of the highest

severity. The device response to each error is determined by the severity group it is connected to.

Table 6-26 shows the channel assignment for each group.

l TEXAS INSTRUMENTS

TMS570LS0432, TMS570LS0332

SPNS186C –OCTOBER 2012–REVISED MAY 2018

www.ti.com

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

Table 6-25. ESM Groups

ERROR GROUP INTERRUPT CHARACTERISTICS INFLUENCE ON

ERROR PIN

Group1 Maskable, low or high priority Configurable

Group2 Nonmaskable, high priority Fixed

Group3 No interrupt generated Fixed

Table 6-26. ESM Channel Assignments

ERROR SOURCES GROUP CHANNELS

Reserved Group1 0

Reserved Group1 1

Reserved Group1 2

Reserved Group1 3

Reserved Group1 4

Reserved Group1 5

FMC - correctable error: bus1 and bus2 interfaces (does not include accesses to

EEPROM bank) Group1 6

N2HET - parity Group1 7

HTU - parity Group1 8

HTU - MPU Group1 9

PLL - Slip Group1 10

Clock Monitor - interrupt Group1 11

Reserved Group1 12

Reserved Group1 13

Reserved Group1 14

VIM RAM - parity Group1 15

Reserved Group1 16

MibSPI1 - parity Group1 17

Reserved Group1 18

MibADC - parity Group1 19

Reserved Group1 20

DCAN1 - parity Group1 21

Reserved Group1 22

DCAN2 - parity Group1 23

Reserved Group1 24

Reserved Group1 25

RAM even bank (B0TCM) - correctable error Group1 26

CPU - self-test Group1 27

RAM odd bank (B1TCM) - correctable error Group1 28

Reserved Group1 29

DCC - error Group1 30

CCM-R4 - self-test Group1 31

Reserved Group1 32

Reserved Group1 33

Reserved Group1 34

FMC - correctable error (EEPROM bank access) Group1 35

FMC - uncorrectable error (EEPROM bank access) Group1 36

IOMM - Mux configuration error Group1 37

Reserved Group1 38

l TEXAS INSTRUMENTS

TMS570LS0432, TMS570LS0332

www.ti.com

SPNS186C –OCTOBER 2012–REVISED MAY 2018

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

Table 6-26. ESM Channel Assignments (continued)

ERROR SOURCES GROUP CHANNELS

Reserved Group1 39

eFuse farm – this error signal is generated whenever any bit in the eFuse farm

error status register is set. The application can choose to generate and interrupt

whenever this bit is set in order to service any eFuse farm error condition. Group1 40

eFuse farm - self test error. It is not necessary to generate a separate interrupt

when this bit gets set. Group1 41

Reserved Group1 42

Reserved Group1 43

Reserved Group1 44

Reserved Group1 45

Reserved Group1 46

Reserved Group1 47

Reserved Group1 48

Reserved Group1 49

Reserved Group1 50

Reserved Group1 51

Reserved Group1 52

Reserved Group1 53

Reserved Group1 54

Reserved Group1 55

Reserved Group1 56

Reserved Group1 57

Reserved Group1 58

Reserved Group1 59

Reserved Group1 60

Reserved Group1 61

Reserved Group1 62

Reserved Group1 63

Reserved Group2 0

Reserved Group2 1

CCMR4 - compare Group2 2

Reserved Group2 3

FMC - uncorrectable error (address parity on bus1 accesses) Group2 4

Reserved Group2 5

RAM even bank (B0TCM) - uncorrectable error Group2 6

Reserved Group2 7

RAM odd bank (B1TCM) - uncorrectable error Group2 8

Reserved Group2 9

RAM even bank (B0TCM) - address bus parity error Group2 10

Reserved Group2 11

RAM odd bank (B1TCM) - address bus parity error Group2 12

Reserved Group2 13

Reserved Group2 14

Reserved Group2 15

TCM - ECC live lock detect Group2 16

Reserved Group2 17

Reserved Group2 18

Reserved Group2 19

l TEXAS INSTRUMENTS

TMS570LS0432, TMS570LS0332

SPNS186C –OCTOBER 2012–REVISED MAY 2018

www.ti.com

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

Table 6-26. ESM Channel Assignments (continued)

ERROR SOURCES GROUP CHANNELS

Reserved Group2 20

Reserved Group2 21

Reserved Group2 22

Reserved Group2 23

RTI_WWD_NMI Group2 24

Reserved Group2 25

Reserved Group2 26

Reserved Group2 27

Reserved Group2 28

Reserved Group2 29

Reserved Group2 30

Reserved Group2 31

Reserved Group3 0

eFuse Farm - autoload error Group3 1

Reserved Group3 2

RAM even bank (B0TCM) - ECC uncorrectable error Group3 3

Reserved Group3 4

RAM odd bank (B1TCM) - ECC uncorrectable error Group3 5

Reserved Group3 6

FMC - uncorrectable error: bus1 and bus2 interfaces (does not include address

parity error and errors on accesses to EEPROM bank) Group3 7

Reserved Group3 8

Reserved Group3 9

Reserved Group3 10

Reserved Group3 11

Reserved Group3 12

Reserved Group3 13

Reserved Group3 14

Reserved Group3 15

Reserved Group3 16

Reserved Group3 17

Reserved Group3 18

Reserved Group3 19

Reserved Group3 20

Reserved Group3 21

Reserved Group3 22

Reserved Group3 23

Reserved Group3 24

Reserved Group3 25

Reserved Group3 26

Reserved Group3 27

Reserved Group3 28

Reserved Group3 29

Reserved Group3 30

Reserved Group3 31

l TEXAS INSTRUMENTS

TMS570LS0432, TMS570LS0332

www.ti.com

SPNS186C –OCTOBER 2012–REVISED MAY 2018

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

(1) The Undefined Instruction TRAP is NOT detectable outside the CPU. The trap is taken only if the instruction reaches the execute stage

of the CPU.

6.18 Reset / Abort / Error Sources

Table 6-27. Reset/Abort/Error Sources

ERROR SOURCE SYSTEM MODE ERROR RESPONSE ESM HOOKUP

GROUP.CHANNEL

CPU TRANSACTIONS

Precise write error (NCNB/Strongly Ordered) User/Privilege Precise Abort (CPU) n/a

Precise read error (NCB/Device or Normal) User/Privilege Precise Abort (CPU) n/a

Imprecise write error (NCB/Device or Normal) User/Privilege Imprecise Abort (CPU) n/a

Illegal instruction User/Privilege Undefined Instruction Trap

(CPU)(1) n/a

MPU access violation User/Privilege Abort (CPU) n/a

SRAM

B0 TCM (even) ECC single error (correctable) User/Privilege ESM 1.26

B0 TCM (even) ECC double error (noncorrectable) User/Privilege Abort (CPU), ESM →

nERROR 3.3

B0 TCM (even) uncorrectable error (that is, redundant

address decode) User/Privilege ESM →NMI →nERROR 2.6

B0 TCM (even) address bus parity error User/Privilege ESM →NMI →nERROR 2.10

B1 TCM (odd) ECC single error (correctable) User/Privilege ESM 1.28

B1 TCM (odd) ECC double error (noncorrectable) User/Privilege Abort (CPU), ESM →

nERROR 3.5

B1 TCM (odd) uncorrectable error (that is, redundant

address decode) User/Privilege ESM →NMI →nERROR 2.8

B1 TCM (odd) address bus parity error User/Privilege ESM →NMI →nERROR 2.12

FLASH WITH CPU BASED ECC

FMC correctable error - Bus1 and Bus2 interfaces (does

not include accesses to EEPROM bank) User/Privilege ESM 1.6

FMC uncorrectable error - Bus1 accesses

(does not include address parity error) User/Privilege Abort (CPU), ESM →

nERROR 3.7

FMC uncorrectable error - Bus2 accesses

(does not include address parity error and EEPROM bank

accesses) User/Privilege ESM →nERROR 3.7

FMC uncorrectable error - address parity error on Bus1

accesses User/Privilege ESM →NMI →nERROR 2.4

FMC correctable error - Accesses to EEPROM bank User/Privilege ESM 1.35

FMC uncorrectable error - Accesses to EEPROM bank User/Privilege ESM 1.36

HIGH-END TIMER TRANSFER UNIT (HTU)

NCNB (Strongly Ordered) transaction with slave error

response User/Privilege Interrupt →VIM n/a

External imprecise error (Illegal transaction with ok

response) User/Privilege Interrupt →VIM n/a

Memory access permission violation User/Privilege ESM 1.9

Memory parity error User/Privilege ESM 1.8

N2HET

Memory parity error User/Privilege ESM 1.7

MIBSPI

MibSPI1 memory parity error User/Privilege ESM 1.17

MIBADC

MibADC Memory parity error User/Privilege ESM 1.19

DCAN

DCAN1 memory parity error User/Privilege ESM 1.21

l TEXAS INSTRUMENTS

TMS570LS0432, TMS570LS0332

SPNS186C –OCTOBER 2012–REVISED MAY 2018

www.ti.com

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

Table 6-27. Reset/Abort/Error Sources (continued)

ERROR SOURCE SYSTEM MODE ERROR RESPONSE ESM HOOKUP

GROUP.CHANNEL

(2) Oscillator fail/PLL slip can be configured in the system register (SYS.PLLCTL1) to generate a reset.

DCAN2 memory parity error User/Privilege ESM 1.23

PLL

PLL slip error User/Privilege ESM 1.10

CLOCK MONITOR

Clock monitor interrupt User/Privilege ESM 1.11

DCC

DCC error User/Privilege ESM 1.30

CCM-R4

Self test failure User/Privilege ESM 1.31

Compare failure User/Privilege ESM →NMI →nERROR 2.2

VIM

Memory parity error User/Privilege ESM 1.15

VOLTAGE MONITOR

VMON out of voltage range n/a Reset n/a

CPU SELF-TEST (LBIST)

CPU Self-test (LBIST) error User/Privilege ESM 1.27

PIN MULTIPLEXING CONTROL

Mux configuration error User/Privilege ESM 1.37

eFuse CONTROLLER

eFuse Controller Autoload error User/Privilege ESM →nERROR 3.1

eFuse Controller - Any bit set in the error status register User/Privilege ESM 1.40

eFuse Controller self-test error User/Privilege ESM 1.41

WINDOWED WATCHDOG

WWD Nonmaskable Interrupt exception n/a ESM => NMI => nERROR 2.24

ERRORS REFLECTED IN THE SYSESR REGISTER

Power-Up Reset n/a Reset n/a

Oscillator fail / PLL slip(2) n/a Reset n/a

Watchdog exception n/a Reset n/a

CPU Reset (driven by the CPU STC) n/a Reset n/a

Software Reset n/a Reset n/a

External Reset n/a Reset n/a

6.19 Digital Windowed Watchdog

This device includes a digital windowed watchdog (DWWD) module that protects against runaway code

execution.

The DWWD module allows the application to configure the time window within which the DWWD module

expects the application to service the watchdog. A watchdog violation occurs if the application services the

watchdog outside of this window, or fails to service the watchdog at all. The application can choose to

generate a system reset or a nonmaskable interrupt to the CPU in case of a watchdog violation.

The watchdog is disabled by default and must be enabled by the application. Once enabled, the watchdog

can only be disabled upon a system reset.

l TEXAS INSTRUMENTS _. P —> —> R <— —=""> .— —> —> —>

TRST

TMS

TCK

TDI

TDO

RTCK

ICEPICK_C

Boundary Scan

BSR/BSDL

Boundary Scan

Interface

Secondary TAP 0 DAP

Debug APB

Debug

ROM1

APB Slave

Cortex-R4

Test TAP 0

eFuse Farm

Secondary TAP 2 AJSM

TMS570LS0432, TMS570LS0332

www.ti.com

SPNS186C –OCTOBER 2012–REVISED MAY 2018

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

6.20 Debug Subsystem

6.20.1 Block Diagram

The device contains an ICEPICK module to allow JTAG access to the scan chains (see Figure 6-14).

Figure 6-14. Debug Subsystem Block Diagram

6.20.2 Debug Components Memory Map

Table 6-28. Debug Components Memory Map

MODULE NAME FRAME CHIP

SELECT

FRAME ADDRESS RANGE FRAME

SIZE ACTUAL

SIZE RESPONSE FOR ACCESS TO

UNIMPLEMENTED LOCATIONS IN FRAME

START END

CoreSight Debug

ROM CSCS0 0xFFA0_0000 0xFFA0_0FFF 4KB 4KB Reads return zeros, writes have no effect

Cortex-R4 Debug CSCS1 0xFFA0_1000 0xFFA0_1FFF 4KB 4KB Reads return zeros, writes have no effect

6.20.3 JTAG Identification Code

The JTAG ID code for this device is the same as the device ICEPick Identification Code.

Table 6-29. JTAG Identification Code

SILICON REVISION IDENTIFICATION CODE

Initial Silicon 0x0B97102F

Revision A 0x1B97102F

Revision B 0x2B97102F

l TEXAS INSTRUMENTS

TMS570LS0432, TMS570LS0332

SPNS186C –OCTOBER 2012–REVISED MAY 2018

www.ti.com

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

6.20.4 Debug ROM

The Debug ROM stores the location of the components on the Debug APB bus:

Table 6-30. Debug ROM table

ADDRESS DESCRIPTION VALUE

0x000 Pointer to Cortex-R4 0x0000 1003

0x001 Reserved 0x0000 2002

0x002 Reserved 0x0000 3002

0x003 Reserved 0x0000 4002

0x004 End of table 0x0000 0000

l TEXAS INSTRUMENTS vywvwvywvw 9'9 _ ,v,v,."vw,mw. ”gopuoggvp,” gmo¢u¢¢¢pu¢¢o A“..A.Au ‘ P4 3 1 \ Fig” \ \ \ \

TMS

TDI

TDO

RTCK

TCK

TMS570LS0432, TMS570LS0332

www.ti.com

SPNS186C –OCTOBER 2012–REVISED MAY 2018

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

(1) Timings for TDO are specified for a maximum of 50 pF load on TDO

6.20.5 JTAG Scan Interface Timings

Table 6-31. JTAG Scan Interface Timing(1)

NO. PARAMETER MIN MAX UNIT

fTCK TCK frequency (at HCLKmax) 12 MHz

fRTCK RTCK frequency (at TCKmax and HCLKmax) 10 MHz

1 td(TCK -RTCK) Delay time, TCK to RTCK 24 ns

2 tsu(TDI/TMS - RTCKr) Setup time, TDI, TMS before RTCK rise (RTCKr) 26 ns

3 th(RTCKr -TDI/TMS) Hold time, TDI, TMS after RTCKr 0 ns

4 th(RTCKr -TDO) Hold time, TDO after RTCKf 0 ns

5 td(TCKf -TDO) Delay time, TDO valid after RTCK fall (RTCKf) 12 ns

Figure 6-15. JTAG Timing

l TEXAS INSTRUMENTS Flash Module Output G (example only)

H L H L H L L H

. . .

128-Bit Comparator

H L L H H L L H

UNLOCK

Flash Module Output

OTP Contents

Unlock By Scan

Internal Tie-Offs

(example only)

(example)

LH H L L

Internal Tie-Offs

(example only)

L H H

TMS570LS0432, TMS570LS0332

SPNS186C –OCTOBER 2012–REVISED MAY 2018

www.ti.com

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

6.20.6 Advanced JTAG Security Module

This device includes an Advanced JTAG Security Module (AJSM), which lets the user limit JTAG access

to the device after programming.

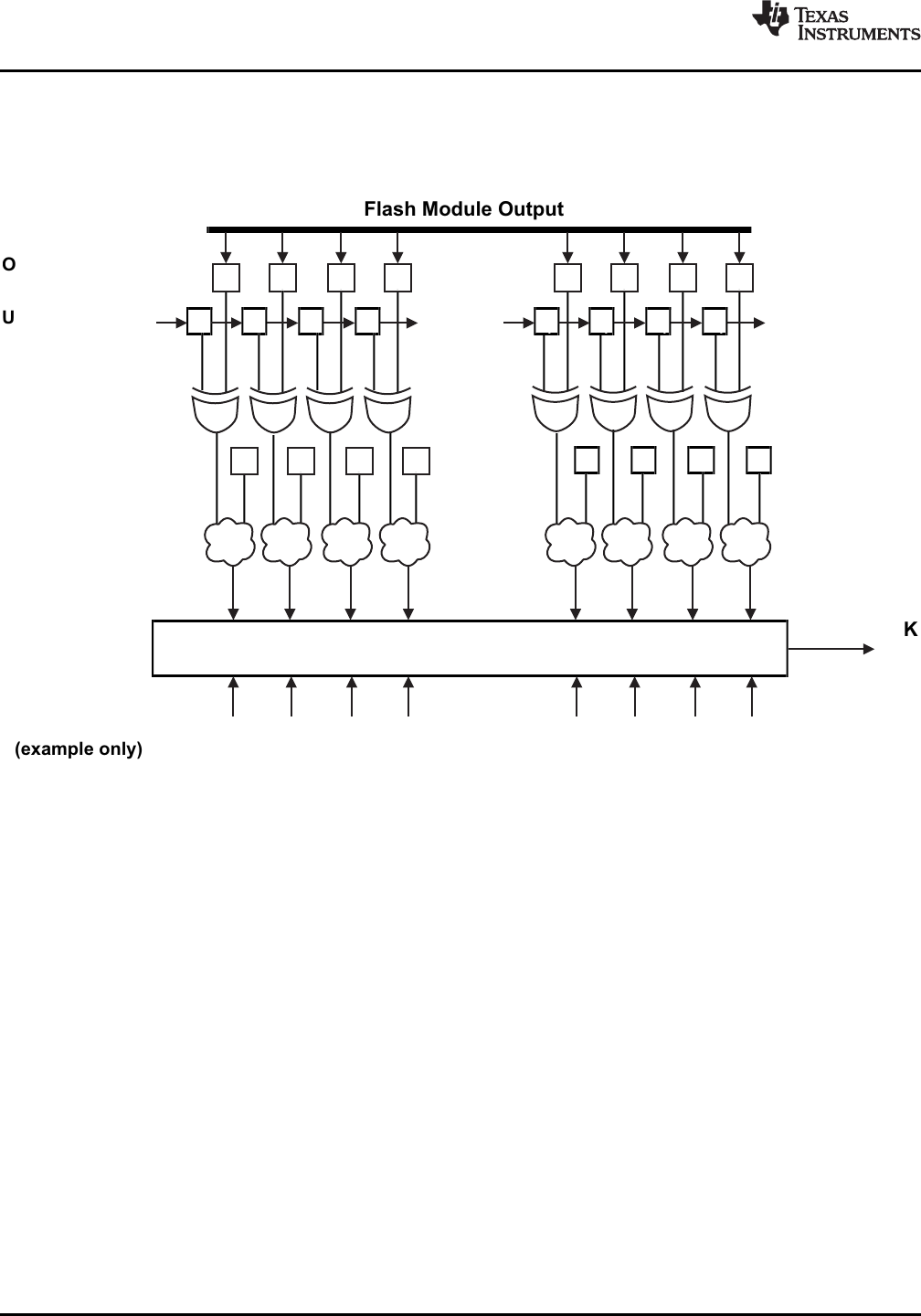

Figure 6-16. AJSM Unlock

The device is unlocked by default by virtue of a 128-bit visible unlock code programmed in the One-Time

Programmable (OTP) address 0xF000 0000.The OTP contents are XOR-ed with the contents of the

Unlock-By-Scan register. The outputs of these XOR gates are again combined with a set of secret internal

tie-offs. The output of this combinational logic is compared against a secret, hard-wired, 128-bit value. A

match asserts the UNLOCK signal, so that the device is now unlocked.

A user can lock the device by changing bits in the visible unlock code from 1 to 0. Changing a 0 to 1 is not

possible because the visible unlock code is stored in the OTP flash region. Also, changing all the 128 bits

to zeros is not a valid condition and will permanently lock the device.

Once locked, a user can unlock the device by scanning an appropriate value into the Unlock-By-Scan

AJSM TAP. The value to be scanned is such that the XOR of the OTP contents and the contents of the

Unlock-By-Scan register results in the original visible unlock code.

The Unlock-By-Scan register is reset only by asserting power-on reset (nPORRST).

A locked device only permits JTAG accesses to the AJSM scan chain through the Secondary TAP 2 of the

ICEPick module. All other secondary TAPs, test TAPs, and the boundary scan interface are not accessible

in this state.

l TEXAS INSTRUMENTS

TRST

TMS

TCK

TDI

TDO

RTCK

IC E PICK

Boundary

BSDL

Boundary Scan Interface Scan

Device Pins (conceptual)

TDI

TDO

TMS570LS0432, TMS570LS0332

www.ti.com

SPNS186C –OCTOBER 2012–REVISED MAY 2018

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

6.20.7 Boundary Scan Chain

The device supports BSDL-compliant boundary scan for testing pin-to-pin compatibility. The boundary

scan chain is connected to the Boundary Scan Interface of the ICEPICK module.

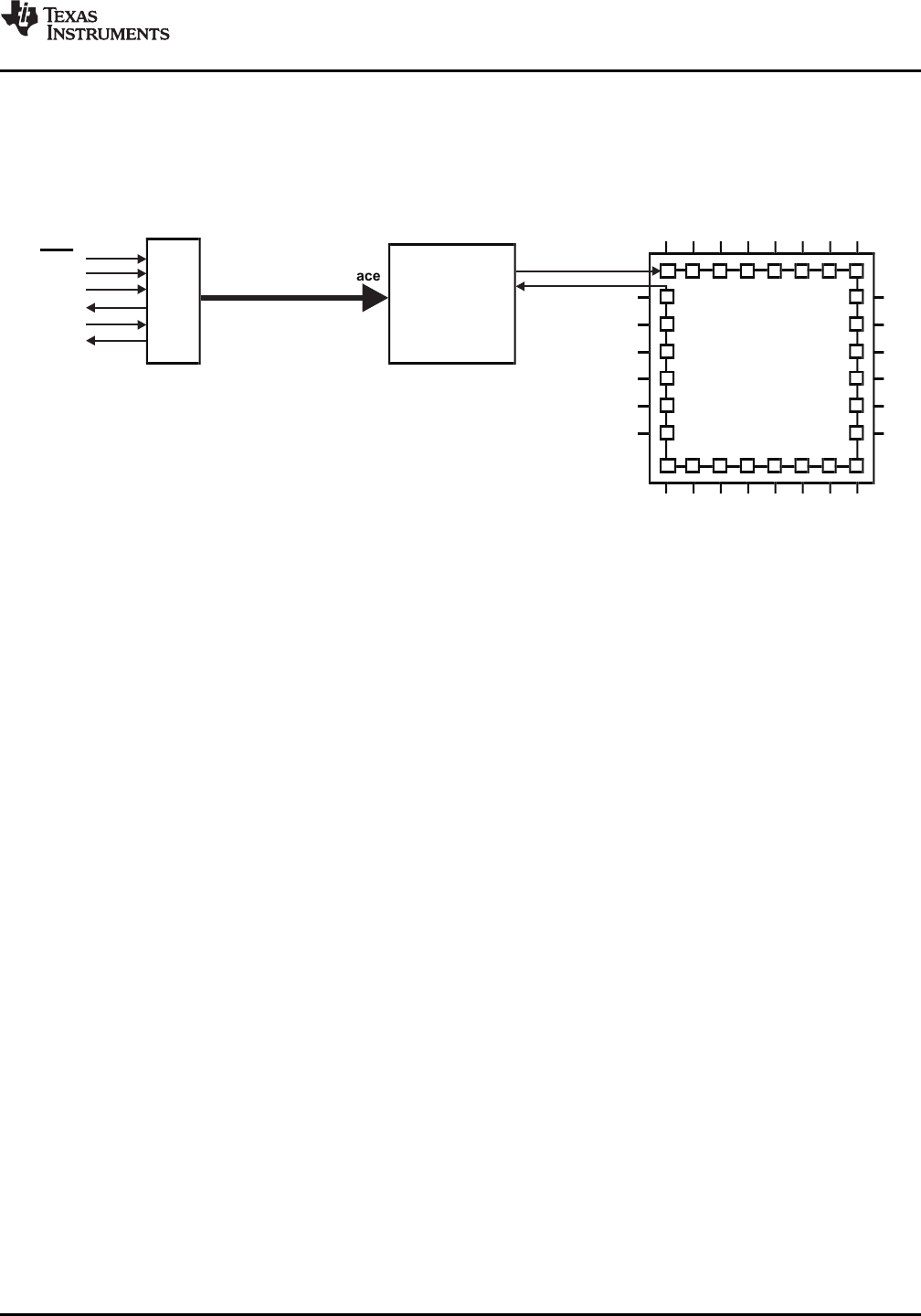

Figure 6-17. Boundary Scan Implementation (Conceptual Diagram)

Data is serially shifted into all boundary-scan buffers through TDI, and out through TDO.

l TEXAS INSTRUMENTS

TMS570LS0432, TMS570LS0332

SPNS186C –OCTOBER 2012–REVISED MAY 2018

www.ti.com

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

7 Peripheral Information and Electrical Specifications

7.1 Peripheral Legend

Table 7-1. Peripheral Legend

ABBREVIATION FULL NAME

MibADC Multibuffered Analog-to-Digital Converter

CCM-R4 CPU Compare Module – Cortex-R4

CRC Cyclic Redundancy Check

DCAN Controller Area Network

DCC Dual Clock Comparator

ESM Error Signaling Module

GIO General-Purpose Input/Output

HTU High-End Timer Transfer Unit

LIN Local Interconnect Network

MibSPI Multibuffered Serial Peripheral Interface

N2HET Platform High-End Timer

RTI Real-Time Interrupt Module

SCI Serial Communications Interface

SPI Serial Peripheral Interface

VIM Vectored Interrupt Manager

eQEP Enhanced Quadrature Encoder Pulse

7.2 Multibuffered 12-Bit Analog-to-Digital Converter

The multibuffered A-to-D converter (MibADC) has a separate power bus for its analog circuitry that

enhances the A-to-D performance by preventing digital switching noise on the logic circuitry which could

be present on VSS and VCC from coupling into the A-to-D analog stage. All A-to-D specifications are given

with respect to ADREFLO unless otherwise noted.

Table 7-2. MibADC Overview

DESCRIPTION VALUE

Resolution 12 bits

Monotonic Assured

Output conversion code 00h to FFFh [00 for VAI ≤ADREFLO; FFF for VAI ≥ADREFHI]

7.2.1 Features

• 12-bit resolution

• ADREFHI and ADREFLO pins (high and low reference voltages)

• Total Sample/Hold/Convert time: 600 ns Typical Minimum at 30 MHz ADCLK

• One memory region per conversion group is available (event, group 1, group 2)

• Allocation of channels to conversion groups is completely programmable

• Memory regions are serviced by interrupt

• Programmable interrupt threshold counter is available for each group

• Programmable magnitude threshold interrupt for each group for any one channel

• Option to read either 8-, or 10-, or 12-bit values from memory regions

• Single or continuous conversion modes

• Embedded self-test

• Embedded calibration logic

• Enhanced power-down mode

– Optional feature to automatically power down ADC core when no conversion is in progress

l TEXAS INSTRUMENTS

TMS570LS0432, TMS570LS0332

www.ti.com

SPNS186C –OCTOBER 2012–REVISED MAY 2018

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

• External event pin (ADEVT) programmable as general-purpose I/O

7.2.2 Event Trigger Options

The ADC module supports three conversion groups: Event Group, Group1, and Group2. Each of these

three groups can be configured to be hardware event-triggered. In that case, the application can select

from among eight event sources to be the trigger for the conversions of a group.

7.2.2.1 MIBADC Event Trigger Hookup

Table 7-3. MIBADC Event Trigger Hookup

EVENT NUMBER SOURCE SELECT BITS

For G1, G2, or EVENT

(G1SRC[2:0], G2SRC[2:0], or EVSRC[2:0]) TRIGGER

1 000 ADEVT

2 001 N2HET[8]

3 010 N2HET[10]

4 011 RTI compare 0 interrupt

5 100 N2HET[12]

6 101 N2HET[14]

7 110 N2HET[17]

8 111 N2HET[19]

NOTE

For ADEVT, N2HET trigger sources, the connection to the MibADC module trigger input is

made from the output side of the input buffer. This way, a trigger condition can be generated

either by configuring the function as output onto the pad, or by driving the function from an

external trigger source as input. If the mux controller module is used to select different

functionality instead of ADEVT or N2HET[x], care must be taken to disable these signals

from triggering conversions; there is no multiplexing on input connections.

NOTE

For the RTI compare 0 interrupt source, the connection is made directly from the output of

the RTI module. That is, the interrupt condition can be used as a trigger source even if the

actual interrupt is not signaled to the CPU.

l TEXAS INSTRUMENTS

VS1

On-State

Leakage

Off-State

Leakages

VS2

VS24

23*IAIL

IAIL

Rext

Pin Smux Rmux

Pin Smux Rmux Ssamp Rsamp

Csamp

Cext IAIL

IAIL IAIL

IAIL

Cmux

Cext

TMS570LS0432, TMS570LS0332

SPNS186C –OCTOBER 2012–REVISED MAY 2018

www.ti.com

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

7.2.3 ADC Electrical and Timing Specifications

Table 7-4. MibADC Recommended Operating Conditions

PARAMETER MIN MAX UNIT

ADREFHI A-to-D high-voltage reference source ADREFLO VCCAD V

ADREFLO A-to-D low-voltage reference source VSSAD ADREFHI V

VAI Analog input voltage ADREFLO ADREFHI V

IAIC Analog input clamp current

(VAI < VSSAD – 0.3 or VAI > VCCAD + 0.3) –2 2 mA

(1) 1 LSB = (ADREFHI – ADREFLO)/ 2nwhere n = 10 in 10-bit mode and 12 in 12-bit mode

(2) See Section 5.7.

Table 7-5. MibADC Electrical Characteristics Over Full Ranges of Recommended Operating Conditions(1)

PARAMETER DESCRIPTION/CONDITIONS MIN TYP MAX UNIT

Rmux Analog input mux on-

resistance See Figure 7-1 95 250 Ω

Rsamp ADC sample switch on-

resistance See Figure 7-1 60 250 Ω

Cmux Input mux capacitance See Figure 7-1 7 16 pF

Csamp ADC sample capacitance See Figure 7-1 8 13 pF

IAIL Analog off-state input

leakage current VCCAD = 3.6 V MAX

VSSAD < VIN < VSSAD + 100 mV –300 –1 200

VSSAD + 100 mV < VIN < VCCAD -

200 mV –200 –0.3 200

VCCAD - 200 mV < VIN < VCCAD –200 1 500

IAOSB Analog on-state input bias VCCAD = 3.6 V MAX

VSSAD < VIN < VSSAD + 100 mV –8 2

µA

VSSAD + 100 mV < VIN < VCCAD -

200 mV –4 2

VCCAD - 200 mV < VIN < VCCAD –4 12

IADREFHI ADREFHI input current ADREFHI = VCCAD, ADREFLO = VSSAD 3 mA

ICCAD Static supply current Normal operating mode (2) mA

ADC core in power-down mode 5 µA

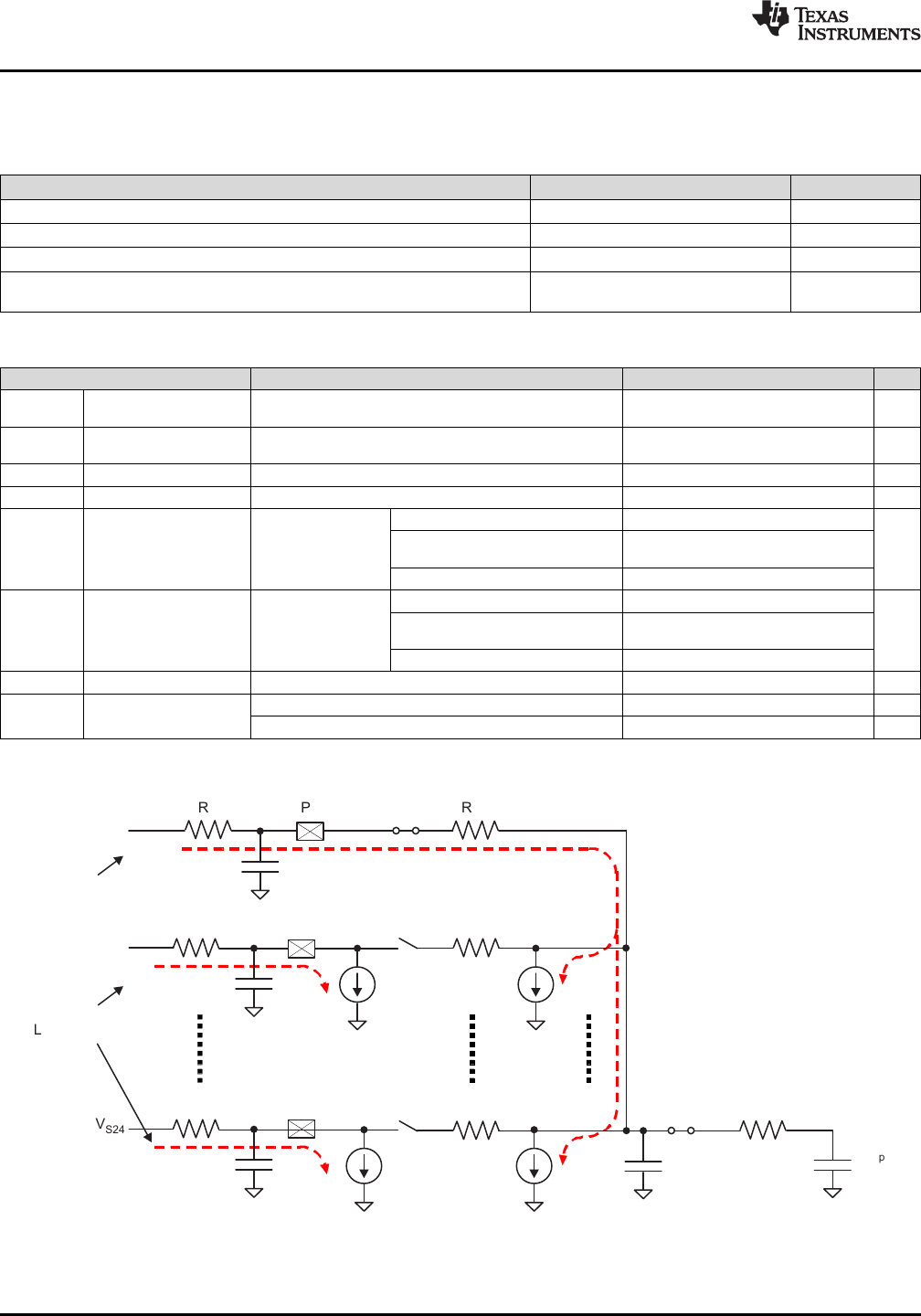

Figure 7-1. MibADC Input Equivalent Circuit

l TEXAS INSTRUMENTS

TMS570LS0432, TMS570LS0332

www.ti.com

SPNS186C –OCTOBER 2012–REVISED MAY 2018

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

(1) The MibADC clock is the ADCLK, generated by dividing down the VCLK by a prescale factor defined by the ADCLOCKCR register bits

4:0.

(2) The sample and hold time for the ADC conversions is defined by the ADCLK frequency and the AD<GP>SAMP register for each

conversion group. The sample time must be determined by accounting for the external impedance connected to the input channel as

well as the internal impedance of the ADC.

(3) This is the minimum sample/hold and conversion time that can be achieved. These parameters are dependent on many factors for

example, the prescale settings.

Table 7-6. MibADC Timing Specifications

PARAMETER MIN NOM MAX UNIT

tc(ADCLK)(1) Cycle time, MibADC clock 33 ns

td(SH)(2) Delay time, sample and hold time 200 ns

td(PU-ADV) Delay time from ADC power on until first input can be

sampled 1 µs

12-BIT MODE

td(C) Delay time, conversion time 400 ns

td(SHC)(3) Delay time, total sample/hold and conversion time 600 ns

10-BIT MODE

td(C) Delay time, conversion time 330 ns

td(SHC)(3) Delay time, total sample/hold and conversion time 530 ns

l TEXAS INSTRUMENTS

TMS570LS0432, TMS570LS0332

SPNS186C –OCTOBER 2012–REVISED MAY 2018

www.ti.com

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

(1) 1 LSB = (ADREFHI – ADREFLO)/ 2nwhere n = 10 in 10-bit mode and 12 in 12-bit mode

Table 7-7. MibADC Operating Characteristics Over Full Ranges of Recommended Operating Conditions

PARAMETER DESCRIPTION/CONDITIONS MIN TYP MAX UNIT

Conversion range

over which

specified

accuracy is

maintained

ADREFHI - ADREFLO 3 3.6 V

ZSET Offset Error Difference between the first ideal

transition (from code 000h to 001h) and

the actual transition

10-bit mode

With ADC

Calibration 1

LSB(1)

Without ADC

Calibration 2

12-bit mode

With ADC

Calibration 2

Without ADC

Calibration 4

FSET Gain Error Difference between the last ideal

transition (from code FFEh to FFFh)

and the actual transition minus offset.

10-bit mode 2 LSB

12-bit mode 3

EDNL Differential

nonlinearity error

Difference between the actual step

width and the ideal value.

(See Figure 7-2)

10-bit mode ± 1.5 LSB

12-bit mode ± 2

EINL Integral

nonlinearity error

Maximum deviation from the best

straight line through the MibADC.

MibADC transfer characteristics,

excluding the quantization error.

(See Figure 7-3)

10-bit mode ± 2

LSB

12-bit mode ± 2

ETOT Total unadjusted

error

Maximum value of the difference

between an analog value and the ideal

midstep value. (See Figure 7-4)

10-bit mode

With ADC

Calibration ± 2

LSB

Without ADC

Calibration ± 4

12-bit mode

With ADC

Calibration ± 4

Without ADC

Calibration ± 7

*9 TEXAS INSTRUMENTS DREFLO DREFH‘

Differential Linearity

Error (–½ LSB)

1 LSB

Differential Linearity

Error (–½ LSB)

0 ... 110

0 ... 101

0 ... 100

0 ... 011

0 ... 010

0 ... 001

0 ... 000

01 2 345

Digital Output Code

Analog Input Value (LSB)

NOTE A: 1 LSB = (AD – AD )/

REFHI REFLO 2 where n=10 in 10-bit mode and 12 in 12-bit mode

TMS570LS0432, TMS570LS0332

www.ti.com

SPNS186C –OCTOBER 2012–REVISED MAY 2018

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

7.2.4 Performance (Accuracy) Specifications

7.2.4.1 MibADC Nonlinearity Errors

The differential nonlinearity error shown in Figure 7-2 (sometimes referred to as differential linearity) is the

difference between an actual step width and the ideal value of 1 LSB.

Figure 7-2. Differential Nonlinearity (DNL) Error

*9 TEXAS INSTRUMENTS REFLO DREFH‘

0 ... 111

0 ... 101

0 ... 100

0 ... 011

0 ... 010

0 ... 001

0 ... 000

01 2 345

Digital Output Code

Analog Input Value (LSB)

0 ... 110

At Transition

011/100

(–½ LSB)

At Transition

001/010 (–1/4 LSB)

Actual

Transition

Ideal

Transition

End-Point Lin. Error

NOTE A: 1 LSB = (AD – AD )/

REFHI REFLO 2 where n=10 in 10-bit mode and 12 in 12-bit mode

TMS570LS0432, TMS570LS0332

SPNS186C –OCTOBER 2012–REVISED MAY 2018

www.ti.com

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

The integral nonlinearity error shown in Figure 7-3 (sometimes referred to as linearity error) is the

deviation of the values on the actual transfer function from a straight line.

Figure 7-3. Integral Nonlinearity (INL) Error

‘5‘ TEXAS INSTRUMENTS amo DREFH‘

0 ... 111

0 ... 101

0 ... 100

0 ... 011

0 ... 010

0 ... 001

0 ... 000

01 2 345

Digital Output Code

Analog Input Value (LSB)

0 ... 110

Total Error

At Step

0 ... 001 (1/2 LSB)

Total Error

At Step 0 ... 101

(–1 1/4 LSB)

NOTE A: 1 LSB = (AD – AD )/

REFHI REFLO 2 where n=10 in 10-bit mode and 12 in 12-bit mode

TMS570LS0432, TMS570LS0332

www.ti.com

SPNS186C –OCTOBER 2012–REVISED MAY 2018

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

7.2.4.2 MibADC Total Error

The absolute accuracy or total error of an MibADC as shown in Figure 7-4 is the maximum value of the

difference between an analog value and the ideal midstep value.

Figure 7-4. Absolute Accuracy (Total) Error

l TEXAS INSTRUMENTS

TMS570LS0432, TMS570LS0332

SPNS186C –OCTOBER 2012–REVISED MAY 2018

www.ti.com

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

7.3 General-Purpose Input/Output

The GPIO module on this device supports one port GIOA. The I/O pins are bidirectional and bit-

programmable. GIOA supports external interrupt capability.

7.3.1 Features

The GPIO module has the following features:

• Each I/O pin can be configured as:

– Input

– Output

– Open Drain

• The interrupts have the following characteristics:

– Programmable interrupt detection either on both edges or on a single edge (set in GIOINTDET)

– Programmable edge-detection polarity, either rising or falling edge (set in GIOPOL register)

– Individual interrupt flags (set in GIOFLG register)

– Individual interrupt enables, set and cleared through GIOENASET and GIOENACLR registers

respectively

– Programmable interrupt priority, set through GIOLVLSET and GIOLVLCLR registers

• Internal pullup/pulldown allows unused I/O pins to be left unconnected

For information on input and output timings see Section 5.11 and Section 5.12

‘5‘ TEXAS INSTRUMENTS

N2HETx

TMS570LS0432, TMS570LS0332

www.ti.com

SPNS186C –OCTOBER 2012–REVISED MAY 2018

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

7.4 Enhanced High-End Timer (N2HET)

The N2HET is an advanced intelligent timer that provides sophisticated timing functions for real-time

applications. The timer is software-controlled, using a reduced instruction set, with a specialized timer

micromachine and an attached I/O port. The N2HET can be used for pulse width modulated outputs,

capture or compare inputs, or general-purpose I/O.. It is especially well suited for applications requiring

multiple sensor information and drive actuators with complex and accurate time pulses.

7.4.1 Features

The N2HET module has the following features:

• Programmable timer for input and output timing functions

• Reduced instruction set (30 instructions) for dedicated time and angle functions

• 128 words of instruction RAM protected by parity

• User defined number of 25-bit virtual counters for timer, event counters and angle counters

• 7-bit hardware counters for each pin allow up to 32-bit resolution in conjunction with the 25-bit virtual

counters

• Up to 19 pins usable for input signal measurements or output signal generation

• Programmable suppression filter for each input pin with adjustable limiting frequency

• Low CPU overhead and interrupt load

• Efficient data transfer to or from the CPU memory with dedicated High-End-Timer Transfer Unit (HTU)

• Diagnostic capabilities with different loopback mechanisms and pin status readback functionality

7.4.2 N2HET RAM Organization

The timer RAM uses 4 RAM banks, where each bank has two port access capability. This means that one

RAM address may be written while another address is read. The RAM words are 96-bits wide, which are

split into three 32-bit fields (program, control, and data).

7.4.3 Input Timing Specifications

The N2HET instructions PCNT and WCAP impose some timing constraints on the input signals.

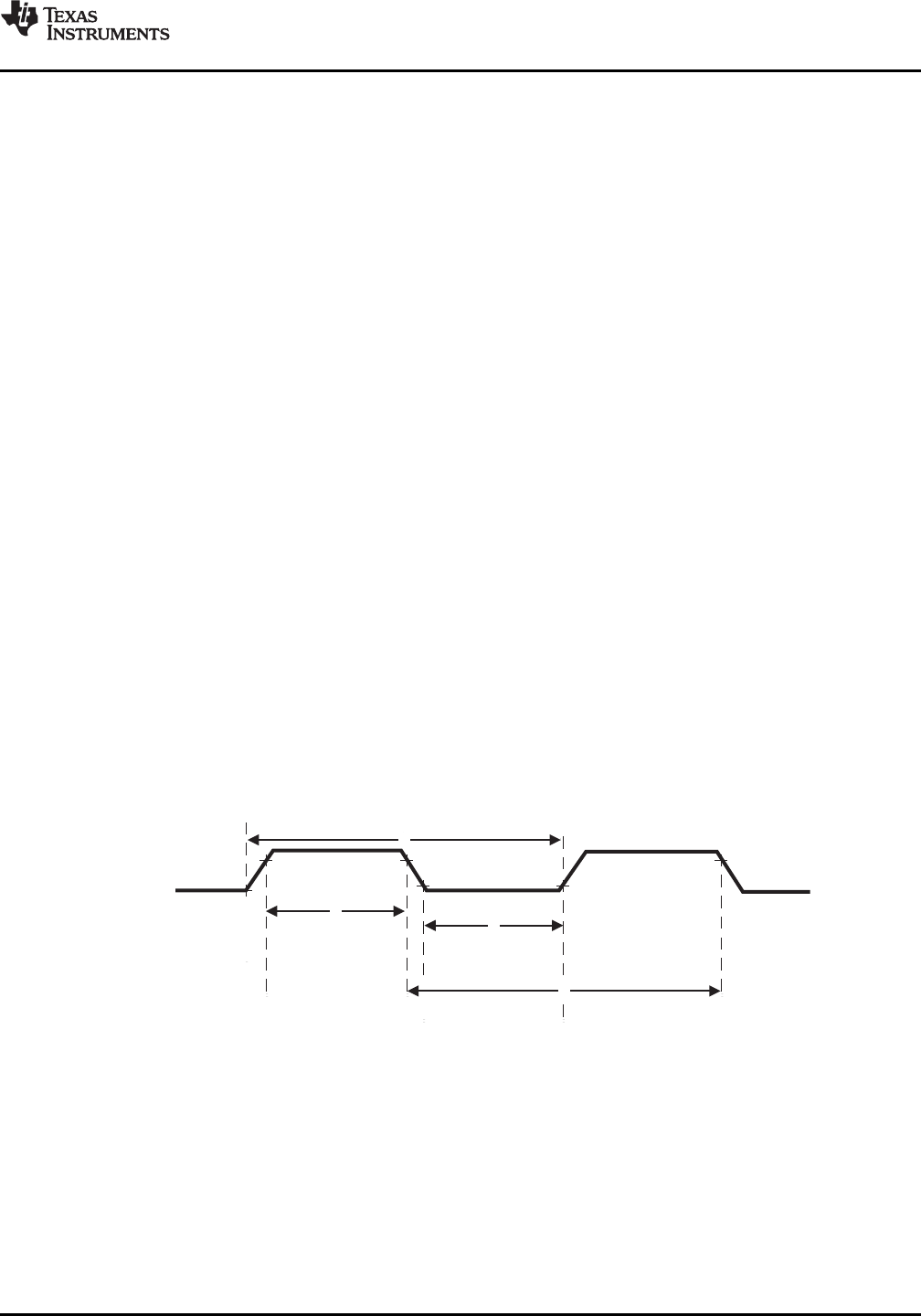

Figure 7-5. N2HET Input Capture Timings

l TEXAS INSTRUMENTS

TMS570LS0432, TMS570LS0332

SPNS186C –OCTOBER 2012–REVISED MAY 2018

www.ti.com

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

(1) hr = High-resolution prescaler, configured using the HRPFC field of the Prescale Factor Register (HETPFR).

(2) lr = Loop-resolution prescaler, configured using the LFPRC field of the Prescale Factor Register (HETPFR).

Table 7-8. Dynamic Characteristics for the N2HET Input Capture Functionality

PARAMETER MIN(1) (2) MAX(1) (2) UNIT

1Input signal period, PCNT or WCAP for rising edge

to rising edge (hr)(lr) tc(VCLK2) + 2 225(hr)(lr)tc(VCLK2) - 2 ns

2Input signal period, PCNT or WCAP for falling edge

to falling edge (hr) (lr) tc(VCLK2) + 2 225 (hr)(lr) tc(VCLK2) - 2 ns

3Input signal high phase, PCNT or WCAP for rising

edge to falling edge 2(hr) tc(VCLK2) + 2 225 (hr)(lr) tc(VCLK2) - 2 ns

4Input signal low phase, PCNT or WCAP for falling

edge to rising edge 2(hr) tc(VCLK2) + 2 225 (hr)(lr) tc(VCLK2) - 2 ns

7.4.4 N2HET Checking

7.4.4.1 Output Monitoring using Dual Clock Comparator (DCC)

N2HET[31] is connected as a clock source for counter 1 in DCC1. This allows the application to measure

the frequency of the pulse-width modulated (PWM) signal on N2HET[31].

N2HET[31] can be configured to be an internal-only channel. That is, the connection to the DCC module is

made directly from the output of the N2HET module (from the input of the output buffer).

For more information on DCC, see Section 6.6.3.

7.4.5 Disabling N2HET Outputs

Some applications require the N2HET outputs to be disabled under some fault condition. The N2HET

module provides this capability through the "Pin Disable" input signal. This signal, when driven low,

causes the N2HET outputs identified by a programmable register (HETPINDIS) to be tri-stated.

For more details on the "N2HET Pin Disable" feature, see the device-specific Technical Reference Manual

listed in Section 8.2.1.

GIOA[5] and EQEPERR are connected to the "Pin Disable" input for N2HET. In the case of GIOA[5]

connection, this connection is made from the output of the input buffer. In the case of EQEPERR, the

EQEPERR output signal is asserted in the event of a phase error. This signal is inverted and double-

synchronized to VCLK2 for input into the N2HET PIN_nDISABLE port.

The PIN_nDISABLE port input source is selectable between the GIOA[5] and EQEPERR sources. This is

achieved through the PINMMR9[1:0] bits.

l TEXAS INSTRUMENTS

TMS570LS0432, TMS570LS0332

www.ti.com

SPNS186C –OCTOBER 2012–REVISED MAY 2018

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

7.4.6 High-End Timer Transfer Unit (N2HET)

A High-End Timer Transfer Unit (N2HET) can perform DMA type transactions to transfer N2HET data to or

from main memory. A Memory Protection Unit (MPU) is built into the N2HET.

7.4.6.1 Features

• CPU independent

• Master Port to access system memory

• 8 control packets supporting dual buffer configuration

• Control packet information is stored in RAM protected by parity

• Event synchronization (N2HET transfer requests)

• Supports 32- or 64-bit transactions

• Addressing modes for N2HET address (8 byte or 16 byte) and system memory address (fixed, 32-bit or 64-bit)

• One shot, circular, and auto switch buffer transfer modes

• Request lost detection

7.4.6.2 Trigger Connections

Table 7-9. N2HET Request Line Connection

MODULES REQUEST SOURCE HTU REQUEST

N2HET HTUREQ[0] HTU DCP[0]

N2HET HTUREQ[1] HTU DCP[1]

N2HET HTUREQ[2] HTU DCP[2]

N2HET HTUREQ[3] HTU DCP[3]

N2HET HTUREQ[4] HTU DCP[4]

N2HET HTUREQ[5] HTU DCP[5]

N2HET HTUREQ[6] HTU DCP[6]

N2HET HTUREQ[7] HTU DCP[7]

l TEXAS INSTRUMENTS

TMS570LS0432, TMS570LS0332

SPNS186C –OCTOBER 2012–REVISED MAY 2018

www.ti.com

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

7.5 Controller Area Network (DCAN)

The DCAN supports the CAN 2.0B protocol standard and uses a serial, multimaster communication

protocol that efficiently supports distributed real-time control with robust communication rates of up to

1 Mbps. The DCAN is ideal for applications operating in noisy and harsh environments (for example,

automotive and industrial fields) that require reliable serial communication or multiplexed wiring.

7.5.1 Features

Features of the DCAN module include:

• Supports CAN protocol version 2.0 part A, B

• Bit rates up to 1 Mbps

• The CAN kernel can be clocked by the oscillator for baud-rate generation.

• 32 and 16 mailboxes on DCAN1 and DCAN2, respectively

• Individual identifier mask for each message object

• Programmable FIFO mode for message objects

• Programmable loop-back modes for self-test operation

• Automatic bus on after Bus-Off state by a programmable 32-bit timer

• Message RAM protected by parity

• Direct access to Message RAM during test mode

• CAN RX / TX pins configurable as general-purpose I/O pins

• Message RAM Auto Initialization

For more information on the DCAN, see the device-specific Technical Reference Manual listed in

Section 8.2.1.

7.5.2 Electrical and Timing Specifications

(1) These values do not include rise/fall times of the output buffer.

Table 7-10. Dynamic Characteristics for the DCANx TX and RX pins

PARAMETER MIN MAX UNIT

td(CANnTX) Delay time, transmit shift register to CANnTX pin(1) 15 ns

td(CANnRX) Delay time, CANnRX pin to receive shift register 5 ns

TMS570LS0432, TMS570LS0332

www.ti.com

SPNS186C –OCTOBER 2012–REVISED MAY 2018

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

7.6 Local Interconnect Network Interface (LIN)

The SCI/LIN module can be programmed to work either as an SCI or as a LIN. The core of the module is

an SCI. The SCI’s hardware features are augmented to achieve LIN compatibility.

The SCI module is a universal asynchronous receiver-transmitter that implements the standard nonreturn

to zero format. The SCI can be used to communicate, for example, through an RS-232 port or over a K-

line.

The LIN standard is based on the SCI (UART) serial data link format. The communication concept is

single-master/multiple-slave with a message identification for multicast transmission between any network

nodes.

7.6.1 LIN Features

The following are features of the LIN module:

• Compatible to LIN 1.3, 2.0 and 2.1 protocols

• Multibuffered receive and transmit units

• Identification masks for message filtering

• Automatic Master Header Generation

– Programmable Synch Break Field

– Synch Field

– Identifier Field

• Slave Automatic Synchronization

– Synch break detection

– Optional baudrate update

– Synchronization Validation

• 231 programmable transmission rates with 7 fractional bits

• Error detection

• 2 Interrupt lines with priority encoding

l TEXAS INSTRUMENTS

TMS570LS0432, TMS570LS0332

SPNS186C –OCTOBER 2012–REVISED MAY 2018

www.ti.com

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

7.7 Multibuffered / Standard Serial Peripheral Interface

The MibSPI is a high-speed synchronous serial input/output port that allows a serial bit stream of

programmed length (2 to 16 bits) to be shifted in and out of the device at a programmed bit-transfer rate.

Typical applications for the SPI include interfacing to external peripherals, such as I/Os, memories, display

drivers, and ADCs.

7.7.1 Features

Both Standard and MibSPI modules have the following features:

• 16-bit shift register

• Receive buffer register

• 11-bit baud clock generator

• SPICLK can be internally generated (master mode) or received from an external clock source (slave

mode)

• Each word transferred can have a unique format

• SPI I/Os not used in the communication can be used as digital input/output signals

Table 7-11. MibSPI/SPI Default Configurations

MibSPIx/SPIx I/Os

MibSPI1 MIBSPI1SIMO[0], MIBSPI1SOMI[0], MIBSPI1CLK, MIBSPI1nCS[3:0], MIBSPI1nENA

SPI2 SPI2SIMO, SPI2SOMI, SPI2CLK, SPI2nCS[0]

SPI3 SPI3SIMO, SPI3SOMI, SPI3CLK, SPI3nENA, SPI3nCS[0]

7.7.2 MibSPI Transmit and Receive RAM Organization

The Multibuffer RAM is comprised of 128 buffers. Each entry in the Multibuffer RAM consists of four parts:

a 16-bit transmit field, a 16-bit receive field, a 16-bit control field, and a 16-bit status field. The Multibuffer

RAM can be partitioned into multiple transfer group with variable number of buffers each.

7.7.3 MibSPI Transmit Trigger Events

Each of the transfer groups can be configured individually. For each of the transfer groups a trigger event

and a trigger source can be chosen. A trigger event can be, for example, a rising edge or a permanent low

level at a selectable trigger source. Up to 15 trigger sources are available which can be used by each

transfer group. These trigger options are listed in Table 7-12.

l TEXAS INSTRUMENTS

TMS570LS0432, TMS570LS0332

www.ti.com

SPNS186C –OCTOBER 2012–REVISED MAY 2018

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

7.7.3.1 MIBSPI1 Event Trigger Hookup

Table 7-12. MIBSPI1 Event Trigger Hookup

EVENT NO. TGxCTRL TRIGSRC[3:0] TRIGGER

Disabled 0000 No trigger source

EVENT0 0001 GIOA[0]

EVENT1 0010 GIOA[1]

EVENT2 0011 GIOA[2]

EVENT3 0100 GIOA[3]

EVENT4 0101 GIOA[4]

EVENT5 0110 GIOA[5]

EVENT6 0111 GIOA[6]

EVENT7 1000 GIOA[7]

EVENT8 1001 N2HET[8]

EVENT9 1010 N2HET[10]

EVENT10 1011 N2HET[12]

EVENT11 1100 N2HET[14]

EVENT12 1101 N2HET[16]

EVENT13 1110 N2HET[18]

EVENT14 1111 Internal Tick counter

NOTE

For N2HET trigger sources, the connection to the MibSPI1 module trigger input is made from

the input side of the output buffer (at the N2HET module boundary). This way, a trigger

condition can be generated even if the N2HET signal is not selected to be output on the pad.

NOTE

For GIOx trigger sources, the connection to the MibSPI1 module trigger input is made from

the output side of the input buffer. This way, a trigger condition can be generated either by

selecting the GIOx pin as an output pin, or by driving the GIOx pin from an external trigger

source.

l TEXAS INSTRUMENTS

TMS570LS0432, TMS570LS0332

SPNS186C –OCTOBER 2012–REVISED MAY 2018

www.ti.com

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

(1) The MASTER bit (SPIGCR1.0) is set and the CLOCK PHASE bit (SPIFMTx.16) is cleared.

(2) tc(VCLK) = interface clock cycle time = 1 / f(VCLK)

(3) For rise and fall timings, see Table 5-6.

(4) When the SPI is in Master mode, the following must be true:

For PS values from 1 to 255: tc(SPC)M ≥(PS +1)tc(VCLK) ≥40 ns, where PS is the prescale value set in the SPIFMTx.[15:8] register bits.

For PS values of 0: tc(SPC)M = 2tc(VCLK) ≥40 ns.

The external load on the SPICLK pin must be less than 60 pF.

(5) The active edge of the SPICLK signal referenced is controlled by the CLOCK POLARITY bit (SPIFMTx.17).

(6) C2TDELAY and T2CDELAY is programmed in the SPIDELAY register

7.7.4 MibSPI/SPI Master Mode I/O Timing Specifications

Table 7-13. SPI Master Mode External Timing Parameters (CLOCK PHASE = 0, SPICLK = output, SPISIMO

= output, and SPISOMI = input)(1)(2)(3)

NO. PARAMETER MIN MAX UNIT

1 tc(SPC)M Cycle time, SPICLK(4) 40 256tc(VCLK) ns

2(5) tw(SPCH)M Pulse duration, SPICLK high (clock polarity =

0) 0.5tc(SPC)M – tr(SPC)M – 3 0.5tc(SPC)M + 3

tw(SPCL)M Pulse duration, SPICLK low (clock polarity =

1) 0.5tc(SPC)M – tf(SPC)M – 3 0.5tc(SPC)M + 3

3(5) tw(SPCL)M Pulse duration, SPICLK low (clock polarity =

0) 0.5tc(SPC)M – tf(SPC)M – 3 0.5tc(SPC)M + 3

tw(SPCH)M Pulse duration, SPICLK high (clock polarity =

1) 0.5tc(SPC)M – tr(SPC)M – 3 0.5tc(SPC)M + 3

4(5) td(SPCH-SIMO)M Delay time, SPISIMO valid before SPICLK

low (clock polarity = 0) 0.5tc(SPC)M – 6

td(SPCL-SIMO)M Delay time, SPISIMO valid before SPICLK

high (clock polarity = 1) 0.5tc(SPC)M – 6

5(5) tv(SPCL-SIMO)M Valid time, SPISIMO data valid after SPICLK

low (clock polarity = 0) 0.5tc(SPC)M – tf(SPC) – 4

tv(SPCH-SIMO)M Valid time, SPISIMO data valid after SPICLK

high (clock polarity = 1) 0.5tc(SPC)M – tr(SPC) – 4

6(5) tsu(SOMI-SPCL)M Setup time, SPISOMI before SPICLK low

(clock polarity = 0) tf(SPC) + 2.2

tsu(SOMI-SPCH)M Setup time, SPISOMI before SPICLK high

(clock polarity = 1) tr(SPC) + 2.2

7(5) th(SPCL-SOMI)M Hold time, SPISOMI data valid after SPICLK

low (clock polarity = 0) 10

th(SPCH-SOMI)M Hold time, SPISOMI data valid after SPICLK

high (clock polarity = 1) 10

8(6) tC2TDELAY

Setup time CS active until

SPICLK high (clock

polarity = 0)

CSHOLD = 0 C2TDELAY*tc(VCLK) + 2*tc(VCLK) -

tf(SPICS) + tr(SPC) – 7 (C2TDELAY+2) * tc(VCLK) - tf(SPICS) +

tr(SPC) + 5.5 ns

CSHOLD = 1 C2TDELAY*tc(VCLK) + 3*tc(VCLK) -

tf(SPICS) + tr(SPC) – 7 (C2TDELAY+3) * tc(VCLK) - tf(SPICS) +

tr(SPC) + 5.5

Setup time CS active until

SPICLK low (clock polarity

= 1)

CSHOLD = 0 C2TDELAY*tc(VCLK) + 2*tc(VCLK) -

tf(SPICS) + tf(SPC) – 7 (C2TDELAY+2) * tc(VCLK) - tf(SPICS) +

tf(SPC) + 5.5 ns

CSHOLD = 1 C2TDELAY*tc(VCLK) + 3*tc(VCLK) -

tf(SPICS) + tf(SPC) – 7 (C2TDELAY+3) * tc(VCLK) - tf(SPICS) +

tf(SPC) + 5.5

9(6) tT2CDELAY

Hold time SPICLK low until CS inactive

(clock polarity = 0) 0.5*tc(SPC)M + T2CDELAY*tc(VCLK) +

tc(VCLK) - tf(SPC) + tr(SPICS) - 7 0.5*tc(SPC)M + T2CDELAY*tc(VCLK) +

tc(VCLK) - tf(SPC) + tr(SPICS) + 11 ns

Hold time SPICLK high until CS inactive

(clock polarity = 1) 0.5*tc(SPC)M + T2CDELAY*tc(VCLK) +

tc(VCLK) - tr(SPC) + tr(SPICS) - 7 0.5*tc(SPC)M + T2CDELAY*tc(VCLK) +

tc(VCLK) - tr(SPC) + tr(SPICS) + 11 ns

10 tSPIENA SPIENAn Sample point (C2TDELAY+1) * tc(VCLK) - tf(SPICS) –

29 (C2TDELAY+1)*tc(VCLK) ns

11 tSPIENAW SPIENAn Sample point from write to buffer (C2TDELAY+2)*tc(VCLK) ns

l TEXAS INSTRUMENTS VVVVVVVV quoonOYoquofo' AAAA v.vvv..vvv.vvv o0'o‘o’o’o’o’o‘o’o’o’o’o‘o’o‘o 'O'O'O'Ozﬁvo'OVVzﬁ'O' OA03AOAOAOAAAO’J .666

SPICLK

(clock polarity=0)

SPISIMO

SPICSn

Master Out Data Is Valid

SPICLK

(clock polarity=1)

SPIENAn

Write to buffer

SPISOMI

SPISIMO

SPICLK

(clock polarity = 1)

SPICLK

(clock polarity = 0)

Master In Data

Must Be Valid

Master Out Data Is Valid

TMS570LS0432, TMS570LS0332

www.ti.com

SPNS186C –OCTOBER 2012–REVISED MAY 2018

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

Figure 7-6. SPI Master Mode External Timing (CLOCK PHASE = 0)

Figure 7-7. SPI Master Mode Chip Select Timing (CLOCK PHASE = 0)

l TEXAS INSTRUMENTS

TMS570LS0432, TMS570LS0332

SPNS186C –OCTOBER 2012–REVISED MAY 2018

www.ti.com

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

(1) The MASTER bit (SPIGCR1.0) is set and the CLOCK PHASE bit (SPIFMTx.16) is set.

(2) tc(VCLK) = interface clock cycle time = 1 / f(VCLK)

(3) For rise and fall timings, see the Table 5-6.

(4) When the SPI is in Master mode, the following must be true:

For PS values from 1 to 255: tc(SPC)M ≥(PS +1)tc(VCLK) ≥40 ns, where PS is the prescale value set in the SPIFMTx.[15:8] register bits.

For PS values of 0: tc(SPC)M = 2tc(VCLK) ≥40 ns.

The external load on the SPICLK pin must be less than 60 pF.

(5) The active edge of the SPICLK signal referenced is controlled by the CLOCK POLARITY bit (SPIFMTx.17).

(6) C2TDELAY and T2CDELAY is programmed in the SPIDELAY register

Table 7-14. SPI Master Mode External Timing Parameters (CLOCK PHASE = 1, SPICLK = output, SPISIMO

= output, and SPISOMI = input)(1)(2)(3)

NO. PARAMETER MIN MAX UNIT

1 tc(SPC)M Cycle time, SPICLK (4) 40 256tc(VCLK) ns

2(5) tw(SPCH)M Pulse duration, SPICLK high (clock polarity

= 0) 0.5tc(SPC)M – tr(SPC)M – 3 0.5tc(SPC)M + 3

tw(SPCL)M Pulse duration, SPICLK low (clock polarity

= 1) 0.5tc(SPC)M – tf(SPC)M – 3 0.5tc(SPC)M + 3

3(5) tw(SPCL)M Pulse duration, SPICLK low (clock polarity

= 0) 0.5tc(SPC)M – tf(SPC)M – 3 0.5tc(SPC)M + 3

tw(SPCH)M Pulse duration, SPICLK high (clock polarity

= 1) 0.5tc(SPC)M – tr(SPC)M – 3 0.5tc(SPC)M + 3

4(5) tv(SIMO-SPCH)M Valid time, SPICLK high after SPISIMO

data valid (clock polarity = 0) 0.5tc(SPC)M – 6

tv(SIMO-SPCL)M Valid time, SPICLK low after SPISIMO data

valid (clock polarity = 1) 0.5tc(SPC)M – 6

5(5) tv(SPCH-SIMO)M Valid time, SPISIMO data valid after

SPICLK high (clock polarity = 0) 0.5tc(SPC)M – tr(SPC) – 4

tv(SPCL-SIMO)M Valid time, SPISIMO data valid after

SPICLK low (clock polarity = 1) 0.5tc(SPC)M – tf(SPC) – 4

6(5) tsu(SOMI-SPCH)M Setup time, SPISOMI before SPICLK high

(clock polarity = 0) tr(SPC) + 2.2

tsu(SOMI-SPCL)M Setup time, SPISOMI before SPICLK low

(clock polarity = 1) tf(SPC) + 2.2

7(5) tv(SPCH-SOMI)M Valid time, SPISOMI data valid after

SPICLK high (clock polarity = 0) 10

tv(SPCL-SOMI)M Valid time, SPISOMI data valid after

SPICLK low (clock polarity = 1) 10

8(6) tC2TDELAY

Setup time CS active until

SPICLK high (clock polarity

= 0)

CSHOLD = 0 0.5*tc(SPC)M +

(C2TDELAY+2) * tc(VCLK) -

tf(SPICS) + tr(SPC) – 7

0.5*tc(SPC)M +

(C2TDELAY+2) * tc(VCLK) -

tf(SPICS) + tr(SPC) + 5.5 ns

CSHOLD = 1 0.5*tc(SPC)M +

(C2TDELAY+3) * tc(VCLK) -

tf(SPICS) + tr(SPC) – 7

0.5*tc(SPC)M +

(C2TDELAY+3) * tc(VCLK) -

tf(SPICS) + tr(SPC) + 5.5

Setup time CS active until

SPICLK low (clock polarity

= 1)

CSHOLD = 0 0.5*tc(SPC)M +

(C2TDELAY+2) * tc(VCLK) -

tf(SPICS) + tf(SPC) – 7

0.5*tc(SPC)M +

(C2TDELAY+2) * tc(VCLK) -

tf(SPICS) + tf(SPC) + 5.5 ns

CSHOLD = 1 0.5*tc(SPC)M +

(C2TDELAY+3) * tc(VCLK) -

tf(SPICS) + tf(SPC) – 7

0.5*tc(SPC)M +

(C2TDELAY+3) * tc(VCLK) -

tf(SPICS) + tf(SPC) + 5.5

9(6) tT2CDELAY

Hold time SPICLK low until CS inactive

(clock polarity = 0)

T2CDELAY*tc(VCLK) +

tc(VCLK) - tf(SPC) + tr(SPICS) -

T2CDELAY*tc(VCLK) +

tc(VCLK) - tf(SPC) + tr(SPICS) +

11 ns

Hold time SPICLK high until CS inactive

(clock polarity = 1)

T2CDELAY*tc(VCLK) +

tc(VCLK) - tr(SPC) + tr(SPICS) -

T2CDELAY*tc(VCLK) +

tc(VCLK) - tr(SPC) + tr(SPICS) +

11 ns

10 tSPIENA SPIENAn Sample Point (C2TDELAY+1)* tc(VCLK) -

tf(SPICS) – 29 (C2TDELAY+1)*tc(VCLK) ns

11 tSPIENAW SPIENAn Sample point from write to buffer (C2TDELAY+2)*tc(VCLK) ns

l TEXAS INSTRUMENTS 'OVVVV'OVVVVV'O ”ofofloﬁofofo?03.9

SPICLK

(clock polarity=0)

SPISIMO

SPICSn

Master Out Data Is Valid

SPICLK

(clock polarity=1)

SPIENAn

Write to buffer

SPISOMI

SPISIMO

SPICLK

(clock polarity = 1)

SPICLK

(clock polarity = 0)

Data Valid

Master In Data

Must Be Valid

Master Out Data Is Valid

TMS570LS0432, TMS570LS0332

www.ti.com

SPNS186C –OCTOBER 2012–REVISED MAY 2018

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

Figure 7-8. SPI Master Mode External Timing (CLOCK PHASE = 1)

Figure 7-9. SPI Master Mode Chip Select Timing (CLOCK PHASE = 1)

l TEXAS INSTRUMENTS

TMS570LS0432, TMS570LS0332

SPNS186C –OCTOBER 2012–REVISED MAY 2018

www.ti.com

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

(1) The MASTER bit (SPIGCR1.0) is cleared and the CLOCK PHASE bit (SPIFMTx.16) is cleared.

(2) If the SPI is in slave mode, the following must be true: tc(SPC)S ≥(PS + 1) tc(VCLK), where PS = prescale value set in SPIFMTx.[15:8].

(3) For rise and fall timings, see Table 5-6.

(4) tc(VCLK) = interface clock cycle time = 1 /f(VCLK)

(5) When the SPI is in Slave mode, the following must be true:

For PS values from 1 to 255: tc(SPC)S ≥(PS +1)tc(VCLK) ≥40 ns, where PS is the prescale value set in the SPIFMTx.[15:8] register bits.

For PS values of 0: tc(SPC)S = 2tc(VCLK) ≥40 ns.

(6) The active edge of the SPICLK signal referenced is controlled by the CLOCK POLARITY bit (SPIFMTx.17).

7.7.5 SPI Slave Mode I/O Timings

Table 7-15. SPI Slave Mode External Timing Parameters (CLOCK PHASE = 0, SPICLK = input, SPISIMO =

input, and SPISOMI = output)(1)(2)(3)(4)

NO. PARAMETER MIN MAX UNIT

1 tc(SPC)S Cycle time, SPICLK(5) 40 ns

2(6) tw(SPCH)S Pulse duration, SPICLK high (clock polarity = 0) 14 ns

tw(SPCL)S Pulse duration, SPICLK low (clock polarity = 1) 14

3(6) tw(SPCL)S Pulse duration, SPICLK low (clock polarity = 0) 14 ns

tw(SPCH)S Pulse duration, SPICLK high (clock polarity = 1) 14

4(6) td(SPCH-SOMI)S Delay time, SPISOMI valid after SPICLK high (clock polarity = 0) trf(SOMI) + 20 ns

td(SPCL-SOMI)S Delay time, SPISOMI valid after SPICLK low (clock polarity = 1) trf(SOMI) + 20

5(6) th(SPCH-SOMI)S Hold time, SPISOMI data valid after SPICLK high (clock polarity

=0) 2

th(SPCL-SOMI)S Hold time, SPISOMI data valid after SPICLK low (clock polarity

=1) 2

6(6) tsu(SIMO-SPCL)S Setup time, SPISIMO before SPICLK low (clock polarity = 0) 4 ns

tsu(SIMO-SPCH)S Setup time, SPISIMO before SPICLK high (clock polarity = 1) 4

7(6) th(SPCL-SIMO)S Hold time, SPISIMO data valid after SPICLK low (clock polarity

= 0) 2

th(SPCH-SIMO)S Hold time, SPISIMO data valid after S PICLK high (clock polarity

= 1) 2

td(SPCL-SENAH)S Delay time, SPIENAn high after last SPICLK low (clock polarity

= 0) 1.5tc(VCLK) 2.5tc(VCLK)+tr(ENA

n)+ 22 ns

td(SPCH-SENAH)S Delay time, SPIENAn high after last SPICLK high (clock polarity

= 1) 1.5tc(VCLK) 2.5tc(VCLK)+

tr(ENAn) + 22

9 td(SCSL-SENAL)S Delay time, SPIENAn low after SPICSn low (if new data has

been written to the SPI buffer) tf(ENAn) tc(VCLK)+tf(ENAn)+

27 ns

l TEXAS INSTRUMENTS 'o'o'o'o'o'o'o'o'o'o'o'o fofofofofofofofofofofofo’ W'Wo'o'o'o'o'o'o'o'o‘o‘. ’o3”of.fofofofofofofofofofo‘

SPICLK

(clock polarity=0)

SPICSn

SPICLK

(clock polarity=1)

SPIENAn

SPISOMI

SPICLK

(clockpolarity=1)

SPICLK

(clockpolarity=0)

SPISIMOData

MustBeValid

SPISOMIDataIsValid

666

SPISIMO

TMS570LS0432, TMS570LS0332

www.ti.com

SPNS186C –OCTOBER 2012–REVISED MAY 2018

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

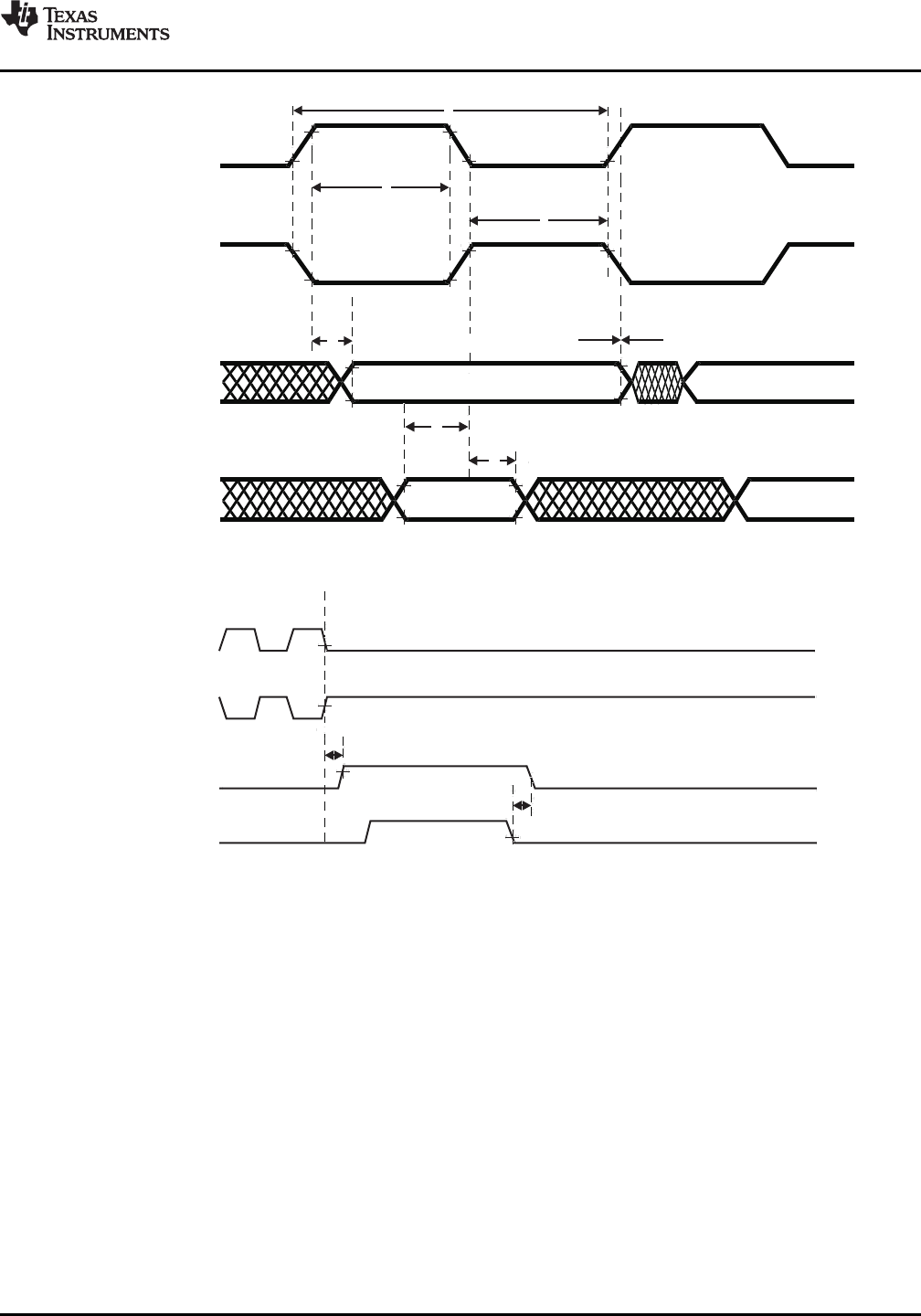

Figure 7-10. SPI Slave Mode External Timing (CLOCK PHASE = 0)

Figure 7-11. SPI Slave Mode Enable Timing (CLOCK PHASE = 0)

l TEXAS INSTRUMENTS

TMS570LS0432, TMS570LS0332

SPNS186C –OCTOBER 2012–REVISED MAY 2018

www.ti.com

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

(1) The MASTER bit (SPIGCR1.0) is cleared and the CLOCK PHASE bit (SPIFMTx.16) is set.

(2) If the SPI is in slave mode, the following must be true: tc(SPC)S ≤(PS + 1) tc(VCLK), where PS = prescale value set in SPIFMTx.[15:8].

(3) For rise and fall timings, see Table 5-6.

(4) tc(VCLK) = interface clock cycle time = 1 /f(VCLK)

(5) When the SPI is in Slave mode, the following must be true:

For PS values from 1 to 255: tc(SPC)S ≥(PS +1)tc(VCLK) ≥40 ns, where PS is the prescale value set in the SPIFMTx.[15:8] register bits.

For PS values of 0: tc(SPC)S = 2tc(VCLK) ≥40 ns.

(6) The active edge of the SPICLK signal referenced is controlled by the CLOCK POLARITY bit (SPIFMTx.17).

Table 7-16. SPI Slave Mode External Timing Parameters (CLOCK PHASE = 1, SPICLK = input, SPISIMO =

input, and SPISOMI = output)(1)(2)(3)(4)

NO. PARAMETER MIN MAX UNIT

1 tc(SPC)S Cycle time, SPICLK(5) 40 ns

2(6) tw(SPCH)S Pulse duration, SPICLK high (clock polarity = 0) 14 ns

tw(SPCL)S Pulse duration, SPICLK low (clock polarity = 1) 14

3(6) tw(SPCL)S Pulse duration, SPICLK low (clock polarity = 0) 14 ns

tw(SPCH)S Pulse duration, SPICLK high (clock polarity = 1) 14

4(6)

td(SOMI-SPCL)S Dealy time, SPISOMI data valid after SPICLK low (clock

polarity = 0) trf(SOMI) + 20

td(SOMI-SPCH)S Delay time, SPISOMI data valid after SPICLK high (clock

polarity = 1) trf(SOMI) + 20

5(6) th(SPCL-SOMI)S Hold time, SPISOMI data valid after SPICLK high (clock

polarity =0) 2

th(SPCH-SOMI)S Hold time, SPISOMI data valid after SPICLK low (clock polarity

=1) 2

6(6) tsu(SIMO-SPCH)S Setup time, SPISIMO before SPICLK high (clock polarity = 0) 4 ns

tsu(SIMO-SPCL)S Setup time, SPISIMO before SPICLK low (clock polarity = 1) 4

7(6) tv(SPCH-SIMO)S High time, SPISIMO data valid after SPICLK high (clock

polarity = 0) 2

tv(SPCL-SIMO)S High time, SPISIMO data valid after SPICLK low (clock polarity

= 1) 2

td(SPCH-SENAH)S Delay time, SPIENAn high after last SPICLK high (clock

polarity = 0) 1.5tc(VCLK) 2.5tc(VCLK)+tr(ENAn) + 22

td(SPCL-SENAH)S Delay time, SPIENAn high after last SPICLK low (clock polarity

= 1) 1.5tc(VCLK) 2.5tc(VCLK)+tr(ENAn) + 22

9 td(SCSL-SENAL)S Delay time, SPIENAn low after SPICSn low (if new data has

been written to the SPI buffer) tf(ENAn) tc(VCLK)+tf(ENAn)+ 27 ns

10 td(SCSL-SOMI)S Delay time, SOMI valid after SPICSn low (if new data has been

written to the SPI buffer) tc(VCLK) 2tc(VCLK)+trf(SOMI)+ 28 ns

l TEXAS INSTRUMENTS ‘ 0:4— —> ‘ ‘ W W ‘ ‘ :4— —N ‘ 1 “— 4‘ 'o'o'o'o'o'o'o'o'o'o'o'o oV0'o'o'o'o'o‘o‘o‘o'o'o‘o" fofofofofofofofofofofofo’ ‘o3M039féﬁofofoﬁfofofo'

SPISOMI Slave Out Data Is Valid

SPICLK

(clock polarity=0)

SPICSn

SPICLK

(clock polarity=1)

SPIENAn

SPISIMO

SPISOMI

SPISIMO Data

Must Be Valid

SPISOMI Data Is Valid

666

SPICLK

(clock polarity = 1)

SPICLK

(clock polarity = 0)

TMS570LS0432, TMS570LS0332

www.ti.com

SPNS186C –OCTOBER 2012–REVISED MAY 2018

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

Figure 7-12. SPI Slave Mode External Timing (CLOCK PHASE = 1)

Figure 7-13. SPI Slave Mode Enable Timing (CLOCK PHASE = 1)

l TEXAS INSTRUMENTS EOEP‘NTn

EQEPA

VIM EQEPINTn

EQEP

Module

I/O

MUX

CTRL

EQEPENCLK

EQEPIO

EQEPI

VBUSP Interface

VCLK

EQEPB

EQEPIOE

EQEPSO

EQEPS

EQEPSOE

NHETnDIS_SEL

EQEP

CLK

GATE

CDDISx.9

VCLK

ACK

CLKSTOP_REQ

SYS_nRST

NHET

VCLK2

nDIS

GIOA[5]

EQEPERR

nEQEPERR

_SYNC

TMS570LS0432, TMS570LS0332

SPNS186C –OCTOBER 2012–REVISED MAY 2018

www.ti.com

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

7.8 Enhanced Quadrature Encoder (eQEP)

Figure 7-14 shows the eQEP module interconnections on the device.

Figure 7-14. eQEP Module Interconnections

7.8.1 Clock Enable Control for eQEPx Modules

The device level control of the eQEP clock is accomplished through the enable/disable of the VCLK clock

domain for eQEP only. This is realized using bit 9 of the CLKDDIS register. The eQEP clock source is

enabled by default.

7.8.2 Using eQEPx Phase Error

The eQEP module sets the EQEPERR signal output whenever a phase error is detected in its inputs

EQEPxA and EQEPxB. This error signal from both the eQEP modules is input to the connection selection

multiplexor. As shown in Figure 7-14, the output of this selection multiplexor is inverted and connected to

the N2HET module. This connection allows the application to define the response to a phase error

indicated by the eQEP modules.

7.8.3 Input Connections to eQEPx Modules

The input connections to each of the eQEP modules can be selected between a double-VCLK-

synchronized input or a double-VCLK-synchronized and filtered input, as shown in Table 7-17.

Table 7-17. Device-Level Input Synchronization

INPUT SIGNAL CONTROL FOR DOUBLE-SYNCHRONIZED

CONNECTION TO eQEPx CONTROL FOR DOUBLE-SYNCHRONIZED

AND FILTERED CONNECTION TO eQEPx

eQEPA PINMMR8[0] = 1 PINMMR8[0] = 0 and PINMMR8[1] = 1

eQEPB PINMMR8[8] = 1 PINMMR8[8] = 0 and PINMMR8[9] = 1

eQEPI PINMMR8[16] = 1 PINMMR8[16] = 0 and PINMMR8[17] = 1

eQEPS PINMMR8[24] = 1 PINMMR8[24] = 0 and PINMMR8[25] = 1

l TEXAS INSTRUMENTS

TMS570LS0432, TMS570LS0332

www.ti.com

SPNS186C –OCTOBER 2012–REVISED MAY 2018

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

7.8.4 Enhanced Quadrature Encoder Pulse (eQEPx) Timing

Table 7-18. eQEPx Timing Requirements

PARAMETER TEST CONDITIONS MIN MAX UNIT

tw(QEPP) QEP input period Synchronous 2 tc(VCLK) cycles

Synchronous, with input filter 2 tc(VCLK) + filter width cycles

tw(INDEXH) QEP Index Input High Time Synchronous 2 tc(VCLK) cycles

Synchronous, with input filter 2 tc(VCLK) + filter width cycles

tw(INDEXL) QEP Index Input Low Time Synchronous 2 tc(VCLK) cycles

Synchronous, with input filter 2 tc(VCLK) + filter width cycles

tw(STROBH

)QEP Strobe Input High Time Synchronous 2 tc(VCLK) cycles

Synchronous, with input filter 2 tc(VCLK) + filter width cycles

tw(STROBL

)QEP Strobe Input Low Time Synchronous 2 tc(VCLK) cycles

Synchronous, with input filter 2 tc(VCLK) + filter width cycles

Table 7-19. eQEPx Switching Characteristics

PARAMETER MIN MAX UNIT

td(CNTR)xin Delay time, external clock to counter increment 4 tc(VCLK) cycles

td(PCS-OUT)QEP Delay time, QEP input edge to position compare sync output 6 tc(VCLK) cycles

l TEXAS INSTRUMENTS

TMS570LS0432, TMS570LS0332

SPNS186C –OCTOBER 2012–REVISED MAY 2018

www.ti.com

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

8 Device and Documentation Support

8.1 Device Support

8.1.1 Development Support

Texas Instruments (TI) offers an extensive line of development tools for the Hercules™ Safety generation

of MCUs, including tools to evaluate the performance of the processors, generate code, develop algorithm

implementations, and fully integrate and debug software and hardware modules.

The following products support development of Hercules™-based applications:

Software Development Tools

• Code Composer Studio™ Integrated Development Environment (IDE)

– C/C++ Compiler

– Code generation tools

– Assembler/Linker

– Cycle Accurate Simulator

• Application algorithms

• Sample applications code

Hardware Development Tools

• Development and evaluation boards

• JTAG-based emulators - XDS100™v2, XDS200, XDS560™ v2 emulator

• Flash programming tools

• Power supply

• Documentation and cables

8.1.1.1 Getting Started

This section gives a brief overview of the steps to take when first developing for a TMS570 MCU device.

For more detail on each of these steps, see the following:

•Initialization of the TMS570LS043x, TMS570LS033x and RM42L432 Hercules ARM Cortex-R4

Microcontrollers (SPNA163)

•Compatibility Considerations: Migrating FromTMS570LS31x/21x or TMS570LS12x/11x to

TMS570LS04x/03x Safety Microcontrollers (SPNA175)

l TEXAS INSTRUMENTS

TMS570LS0432, TMS570LS0332

www.ti.com

SPNS186C –OCTOBER 2012–REVISED MAY 2018

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

8.1.2 Device Nomenclature

To designate the stages in the product development cycle, TI assigns prefixes to the part numbers of all

devices. Each commercial family member has one of three prefixes: TMX, TMP, or TMS. These prefixes

represent evolutionary stages of product development from engineering prototypes (TMX) through fully

qualified production devices (TMS).

Device development evolutionary flow:

TMX Experimental device that is not necessarily representative of the final device's electrical

specifications.

TMP Final silicon die that conforms to the device's electrical specifications but has not completed

quality and reliability verification.

TMS Fully-qualified production device.

TMX and TMP devices are shipped against the following disclaimer:

"Developmental product is intended for internal evaluation purposes."

TMS devices have been characterized fully, and the quality and reliability of the device have been

demonstrated fully. TI's standard warranty applies.

Predictions show that prototype devices (TMX or TMP) have a greater failure rate than the standard

production devices. Texas Instruments recommends that these devices not be used in any production

system because their expected end-use failure rate still is undefined. Only qualified production devices are

to be used.

l TEXAS INSTRUMENTS R : Tape and Ree‘

Prefix: TM

TMS = Fully Qualified

TMP = Prototype

TMX = Samples

Core Technology:

570 = Cortex R4

Architecture:

LS = Lockstep CPUs

(not included in orderable part #)

Flash Memory Size:

RAM MemorySize:

3 = 32KB

Peripheral Set:

Die Revision:

Package Type:

PZ = 100-Pin Package

Temperature Range:

Quality Designator:

Q1 = Automotive

Shipping Options:

R = Tape and Reel

Full Part # TMS 570 LS 04 3 2 B PZ Q Q1 R

Orderable Part # TMS 570 04 3 2 B PZ Q Q1 R

Core Technology:

570 = Cortex-R4

Architecture:

Flash Memory Size:

04 = 384KB

03 = 256KB

RAM MemorySize:

Peripheral Set:

Die Revision:

Blank = Initial Die

A = Die Revision A

B = Die Revision B

Package Type:

Temperature Range:

Q = –40 to 125 C

ooC

Quality Designator:

Shipping Options:

Prefix: TM

TMS570LS0432, TMS570LS0332

SPNS186C –OCTOBER 2012–REVISED MAY 2018

www.ti.com

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

Figure 8-1 illustrates the numbering and symbol nomenclature for the TMS570LS0432/0332.

Figure 8-1. Device Numbering Conventions

l TEXAS INSTRUMENTS

TMS570LS0432, TMS570LS0332

www.ti.com

SPNS186C –OCTOBER 2012–REVISED MAY 2018

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

8.2 Documentation Support

8.2.1 Related Documentation from Texas Instruments

The following documents describe the TMS570LS0432/0332 microcontroller.

SPNU517 TMS570LS04x/03x 16/32-Bit RISC Flash Microcontroller Technical Reference Manual

details the integration, the environment, the functional description, and the programming

models for each peripheral and subsystem in the device.

SPNZ197 TMS570LS0x32 Microcontroller Silicon Revision A, Silicon Errata describes the usage

notes and known exceptions to the functional specifications for the device silicon revision(s).

SPNZ226 TMS570LS0x32 Microcontroller Silicon Revision B, Silicon Errata describes the usage

notes and known exceptions to the functional specifications for the device silicon revision(s).

SPNA207 Calculating Equivalent Power-on-Hours for Hercules™ Safety MCUs details how to use

the spreadsheet to calculate the aging effect of temperature on Texas Instruments Hercules

Safety MCUs.

8.3 Related Links

The table below lists quick access links. Categories include technical documents, support and community

resources, tools and software, and quick access to sample or buy.

Table 8-1. Related Links

PARTS PRODUCT FOLDER SAMPLE & BUY TECHNICAL

DOCUMENTS TOOLS &

SOFTWARE SUPPORT &

COMMUNITY

TMS570LS0432 Click here Click here Click here Click here Click here

TMS570LS0332 Click here Click here Click here Click here Click here

8.4 Community Resources

The following links connect to TI community resources. Linked contents are provided "AS IS" by the

respective contributors. They do not constitute TI specifications and do not necessarily reflect TI's views;

see TI's Terms of Use.

TI E2E™ Online Community The TI engineer-to-engineer (E2E) community was created to foster

collaboration among engineers. At e2e.ti.com, you can ask questions, share knowledge,

explore ideas and help solve problems with fellow engineers.

TI Embedded Processors Wiki Established to help developers get started with Embedded Processors

from Texas Instruments and to foster innovation and growth of general knowledge about the

hardware and software surrounding these devices.

8.5 Trademarks

Hercules, Code Composer Studio, XDS100, XDS560, E2E are trademarks of Texas Instruments.

CoreSight is a trademark of ARM Limited.

ARM, Cortex are registered trademarks of ARM Limited (or its subsidiaries) in the EU and/or elsewhere.

All other trademarks are the property of their respective owners.

8.6 Electrostatic Discharge Caution

This integrated circuit can be damaged by ESD. Texas Instruments recommends that all integrated circuits be handled with

appropriate precautions. Failure to observe proper handling and installation procedures can cause damage.

ESD damage can range from subtle performance degradation to complete device failure. Precision integrated circuits may be more

susceptible to damage because very small parametric changes could cause the device not to meet its published specifications.

8.7 Glossary

TI Glossary This glossary lists and explains terms, acronyms, and definitions.

8.8 Device Identification Code Register

l TEXAS INSTRUMENTS

100

TMS570LS0432, TMS570LS0332

SPNS186C –OCTOBER 2012–REVISED MAY 2018

www.ti.com

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

The device identification code register at address 0xFFFFFFF0 identifies several aspects of the device

including the silicon version. The details of the device identification code register are shown in Table 8-2.

The device identification code register value for this device is:

• Rev 0 = 0x8048AD05

• Rev A = 0x8048AD0D

• Rev B = 0x8048AD15

Figure 8-2. Device ID Bit Allocation Register

31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16

CP-15 UNIQUE ID TECH

R-1 R-00000000100100 R-0

15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0

TECH I/O

VOLT

AGE

PERIPH

PARITY FLASH ECC RAM

ECC VERSION 1 0 1

R-101 R-0 R-1 R-10 R-1 R-00001 R-1 R-0 R-1

LEGEND: R/W = Read/Write; R = Read only; -n= value after reset

Table 8-2. Device ID Bit Allocation Register Field Descriptions

BIT FIELD VALUE DESCRIPTION

31 CP15 Indicates the presence of coprocessor 15

1 CP15 present

30-17 UNIQUE ID 100100 Silicon version (revision) bits.

This bit field holds a unique number for a dedicated device configuration (die).

16-13 TECH Process technology on which the device is manufactured.

0101 F021

12 I/O VOLTAGE I/O voltage of the device.

0 I/O are 3.3v

11 PERIPHERAL

PARITY Peripheral Parity

1 Parity on peripheral memories

10-9 FLASH ECC Flash ECC

10 Program memory with ECC

8 RAM ECC Indicates if RAM memory ECC is present.

1 ECC implemented

7-3 REVISION 0 Revision of the Device.

2-0 FAMILY ID 101 The platform family ID is always 0b101

8.9 Die Identification Registers

The two die ID registers at addresses 0xFFFFFF7C and 0xFFFFFF80 form a 64-bit die id with the

information as shown in Table 8-3.

Table 8-3. Die-ID Registers

ITEM NO. OF BITS BIT LOCATION

X Coord. on Wafer 12 0xFFFFFF7C[11:0]

Y Coord. on Wafer 12 0xFFFFFF7C[23:12]

Wafer # 8 0xFFFFFF7C[31:24]

Lot # 24 0xFFFFFF80[23:0]

Reserved 8 0xFFFFFF80[31:24]

l TEXAS INSTRUMENTS

101

TMS570LS0432, TMS570LS0332

www.ti.com

SPNS186C –OCTOBER 2012–REVISED MAY 2018

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

8.10 Module Certifications

The following communications modules have received certification of adherence to a standard.

l TEXAS INSTRUMENTS Tesdmuse cats group GmbH AmExer19D . ‘ u u c 8‘ S 3-38302 Wolfenbuenal Phone: +49 5331190 555—0 Fax, +A9 5331/90 556-110 Authentication Texas Instruments on CAN conlonnance F1D_0294_021_CAN_DL_Test_AuthEntlcatlonJM doc Date of Approval: 2011—Feb-08 one is worldwide recognized as a neutral expert in testing or communication systems suoti as CAN Transceiver‘ cm CAN Software Drivers, (CAN) NeMmrk Management. FlexRey and LIN. Harewitn cos group is proud to conﬁrm that the followings tests on tire subsequently specmed devroe implementations nave been performed by cas resulting in tire tindings given oeloiin C&S Conformance Test Results Manufacturer Teas Instruments Component/Fart Number TMSX7D x021 Ml’cmmnh’oller Famlly. DEAN Core Releale WINSM. QED A260007940000 X470MUF 05301 Paos75 24 YFE-uBAQXsW Date onsets February 2011 Version or Test Speclflcaﬂon CAN conformance Test 1 iso CAN Conformance Tests according to "ISO 16345:2004 Road vehicles - Controller area network (CAN) ~ conformance test plan" and cos ennancemeni/ corrections according to "CAN CONFORMANCE TESTING Test Speciﬁcation 6&3 Version 2.0 RC" 2 cas Register Functionality Tests according to 'ms Register Functionality Test Specmoation v2 u" 3 cats Robustness Tests according to "(2&5 Robustness Test Speclﬂcahun v1.4" Corresponding Test Report F'1U,0294_020_CAN_DL_Tesl_repart_rﬂ1 1 ISO CAN conformance tests P353 2 CES Register Funainnality tests Pass 3 6&3 Robustness tests Pass - Further Observations None I e r ﬂ M /,&\/~ Frank Fischsr‘ CTO Lolhar Kukla, Prolect Manager Quote No 1:103:94 Rm

102

TMS570LS0432, TMS570LS0332

SPNS186C –OCTOBER 2012–REVISED MAY 2018

www.ti.com

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

8.10.1 DCAN Certification

Figure 8-3. DCAN Certification

l TEXAS INSTRUMENTS r'hr Test Summary lor ((IDAkks are. Warmer warm: rusr In by ems emu aocoidim nw ISO/IE6 nuts The uwwmalmn isvs‘dinvmhul mnmndx sum Inmounnm LIN 2.1 Conformance Test - Master Client / Manu/acrur Impiemerrzarrnn Under Test’ Part Number Revision Tesr Sample Marking’ 16:59am Perrorrrrsd Tssls' Speciﬁcalian Hererences Result / Slams. Version / Dale: Dawmsnt Number: ihr Pie/arenas. Texls lnslrumems Aulnmolive Appiicaiidns 12500 TI Bouievard 752w DALLAS, TEXAS UNITED STATES OF AMERICA Miaocomrollur TMssmLsaI 37 LIN Masrer Mode sw 2m GVOSVGIJHILLIN TMX570LS Si 37 CZWTOGI VFC-ZAAQSzW GIadianr 337 SN» 56 rev B LIN OSI Layer 2 e Dara Llnk Layer Node Conﬁguration] Nelwork Managemenl LIN Coniormanee TeeI Specific n. Inner-zoos Iothe LIN Specmcation Package Revision 2 i ,ZAVNOVVZDOB The device has passed Ihe lest 10 i 13-May-2013 TestSummaryiDLLZLMasIeLZOIZII3071305137TM557DL87VI oddc 20m 130 This IesI summary don'I represent a compIeIe IesI report according the LIN consonium II mnlams 7 pages and shaIl nor be reproduced excepr In luH without written approval 0! Ihe IhrTesI Cenler All periormsd lesI resuIls cuneems the abuve menlIonsd IuT revision unly. ermbH AIrpun Emllevald a 2m D mas Rhainmﬂnsler Tel ‘ as ( U) 722548075ru Fax, as In I 722948475“ Bank Vulksbsnk Bum Geschéllsmhlar ng Halzberg Karim 1375209 Gerichlssland Brim BLZ 5529mm) Handeisreg Bade" Baden HRBsusaH usTrIdrNr 0977221429 eMari imaQihrde Imamal w m. d8

103

TMS570LS0432, TMS570LS0332

www.ti.com

SPNS186C –OCTOBER 2012–REVISED MAY 2018

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

8.10.2 LIN Certifications

8.10.2.1 LIN Master Mode

Figure 8-4. LIN Certification - Master Mode

l TEXAS INSTRUMENTS r'hr Test Summary «IDAkkS Damn: Akkldmnmnmdk o P| 172m 01 m Acclsﬂnsd new no or were GmoH accoldllw Din some noes Yne acclsﬂlhllnn rmrracrarnear memnnsﬂueanmecellimle LIN 2.1 Conformance Test- Slave Chen! / Manufacturer: Implementation Under Test: Havlslull: Test Sample Marklng: Tesi Board: Performed Tests: Speciﬁcallon References: Fiasull/ Stalus.‘ Version / Dare: Documenl Number: ill! Hatersnce: Texas Inslrumems Automotive Applicauons 12500 Tl Boulevard 75243 DALLAS, TEXAS UNITED STATES OF AMERICA MicroconIrolIer TM5570LS3137 LIN Slave Mode - Fixed Baud Rate Mode sw: 2013-05-3LIHFLLIN TMX570LS al a7 czwmol YFCVZAAQSZW Gladiator 337 SM: 53 rev. 3 LIN DSI Layer 2 — Dara Link Layer Nude Conﬁguration / Nerwork Management LIN Conlolmance Tesl Speciﬁcation. 10-Oct-2008 lorlhe LIN Speciﬁcation Package Revislcn 24 , 24-Nov-2006 The device has passedlhs last. 1,0/13-May-2013 Test SummalyiDLLZLSIaveiFIXedizﬂlzl I 307‘ SOSI 37TM3570L57V| Bedoc 20121130 TIIIs IesI summary don't represem a complete lest repon according Ine LIN consonium, II contalns l5 pages and snail not be reproduced excepI in lvll wIIhouI wrlIten approval cl me n» Tes| CenIer. All perlorlned Les! resles concelns Ihe above mentloned IUT revision only llrr GmbH Almort Boulevard 5 210 D 77535 Rhemmunster TEL: +49 (0 ) 7229-1554750 Fax. +49 (0 ) 7229-1847541 Bank: volksbenk Buhl Geschaftsfuhrer: Jorg Holzherq ' 1375209 Germhtsstand: Buhl 5291400 HandelsrngBadeanaden HRBQUEBH usT-Id-Nr,DE177221429 eMarl: Inflehmje Internet: wwwmnde

104

TMS570LS0432, TMS570LS0332

SPNS186C –OCTOBER 2012–REVISED MAY 2018

www.ti.com

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

8.10.2.2 LIN Slave Mode - Fixed Baud Rate

Figure 8-5. LIN Certification - Slave Mode - Fixed Baud Rate

l TEXAS INSTRUMENTS t'hr ' «IDAkkS Damn: Akkrdmnmnmdk mutmslmwimnﬁww o vi 1720) 01 m Accredited rest no Dy DMKS amen accoidinq urn tsetse noes rr! armament." isvihdturiihesl methonsﬂaleanmecenimle Test Summary LIN 2.1 Conformance Test- Slave Chan! /Manulacmrsr: Texas Instruments Automotive Appircatrons 12500 Ti Bouievard 75243 DALLAS, TEXAS UNITED STATES OF AMERICA Implementation Under Test: Microcontmller TM5570LS3137 LIN Slave Mode - Adaptive Baud Rate Mode Hewsron: SW: 201 3-05-317IHR7LIN Test Setup/e Marking: TMX570LS m7 czwmot YFCVZAAQSZW Test Board: Gladiator 337 SM: 53 rev. 3 Pertarmed Tests.- LIN ost Layer 2 — Dala Link Layer Nude Conﬁguration / Network Management Speciﬁcatrorr Hetererrces: LIN Conlolmance Test Spec ilication. 10-Oct-2008 tortne LiN Speciﬁcation Package Revision 24 , 24-Nov-2006 Hesuit/ Status: Tire device has passedlhe test. Version/Dare: 1,0/13-May-2013 Document Number: Test Surnrnaryimtzt,SiaveiAdaptiTLTMss7oLsg30513,Vt.o.doc iltr Heterence: 2m 2t t 30 Thls test summary don‘t represent a complete test report according the LIN consortium It contarns l5 pages and snaii not be reproduced except in MI wrttrout written approvai at the im Test Center. Ail perlormed test resuits concerns the above mentioned IUT revision only llrr GmbH Bank: voiksbank Buhl Geschaﬁsfuhrer: Jorg Hoizherq Airport Boulevard 5 210 ' 1375209 Ger-entsstand: Buhi D 77535 Rhernrnunster 5291400 Handelsregxsadenrﬁaden HRBQUEBH Tet: +49 (0)7229-18475»0 HST-Id-Nr.DEl77221429 eMari: Inflehmje Fax. +49 (0 ) 7229-1847541 1nternet:www,rnr,oe

105

TMS570LS0432, TMS570LS0332

www.ti.com

SPNS186C –OCTOBER 2012–REVISED MAY 2018

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

8.10.2.3 LIN Slave Mode - Adaptive Baud Rate

Figure 8-6. LIN Certification - Slave Mode - Adaptive Baud Rate

l TEXAS INSTRUMENTS

106

TMS570LS0432, TMS570LS0332

SPNS186C –OCTOBER 2012–REVISED MAY 2018

www.ti.com

Submit Documentation Feedback

Product Folder Links: TMS570LS0432 TMS570LS0332

9 Mechanical Packaging and Orderable Addendum

9.1 Packaging Information

The following pages include mechanical packaging and orderable information. This information is the most

current data available for the designated devices. This data is subject to change without notice and

revision of this document. For browser-based versions of this data sheet, refer to the left-hand navigation.

I TEXAS INSTRUMENTS Samples Samples Samples

PACKAGE OPTION ADDENDUM

www.ti.com 10-Dec-2020

Addendum-Page 1

PACKAGING INFORMATION

Orderable Device Status

(1)

Package Type Package

Drawing Pins Package

Qty Eco Plan

(2)

Lead finish/

Ball material

(6)

MSL Peak Temp

(3)

Op Temp (°C) Device Marking

(4/5)

Samples

TMS5700332BPZQQ1 ACTIVE LQFP PZ 100 90 RoHS & Green NIPDAU Level-3-260C-168 HR -40 to 125 TMS570LS

0332BPZQQ1

TMS5700432BPZQQ1 ACTIVE LQFP PZ 100 90 RoHS & Green NIPDAU Level-3-260C-168 HR -40 to 125 TMS570LS

0432BPZQQ1

TMS5700432BPZQQ1R ACTIVE LQFP PZ 100 1000 RoHS & Green NIPDAU Level-3-260C-168 HR -40 to 125 TMS570LS

0432BPZQQ1

(1) The marketing status values are defined as follows:

ACTIVE: Product device recommended for new designs.

LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.

NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.

PREVIEW: Device has been announced but is not in production. Samples may or may not be available.

OBSOLETE: TI has discontinued the production of the device.

(2) RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance

do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may

reference these types of products as "Pb-Free".

RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption.

Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of <=1000ppm threshold. Antimony trioxide based

flame retardants must also meet the <=1000ppm threshold requirement.

(3) MSL, Peak Temp. - The Moisture Sensitivity Level rating according to the JEDEC industry standard classifications, and peak solder temperature.

(4) There may be additional marking, which relates to the logo, the lot trace code information, or the environmental category on the device.

(5) Multiple Device Markings will be inside parentheses. Only one Device Marking contained in parentheses and separated by a "~" will appear on a device. If a line is indented then it is a continuation

of the previous line and the two combined represent the entire Device Marking for that device.

(6) Lead finish/Ball material - Orderable Devices may have multiple material finish options. Finish options are separated by a vertical ruled line. Lead finish/Ball material values may wrap to two

lines if the finish value exceeds the maximum column width.

Important Information and Disclaimer:The information provided on this page represents TI's knowledge and belief as of the date that it is provided. TI bases its knowledge and belief on information

provided by third parties, and makes no representation or warranty as to the accuracy of such information. Efforts are underway to better integrate information from third parties. TI has taken and

continues to take reasonable steps to provide representative and accurate information but may not have conducted destructive testing or chemical analysis on incoming materials and chemicals.

TI and TI suppliers consider certain information to be proprietary, and thus CAS numbers and other limited information may not be available for release.

I TEXAS INSTRUMENTS

PACKAGE OPTION ADDENDUM

www.ti.com 10-Dec-2020

Addendum-Page 2

In no event shall TI's liability arising out of such information exceed the total purchase price of the TI part(s) at issue in this document sold by TI to Customer on an annual basis.

Hr WW— 76 100 25 P 12,00TVP 44 %:§g so % so , E 1,35 J W Sea 7 1,60 MAX {5‘ TEXAS INSTRUMENTS POST OFFICE BOX 655303 - DALLAS TEXAS

MECHANICAL DATA

MTQF013A – OCTOBER 1994 – REVISED DECEMBER 1996

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

PZ (S-PQFP-G100) PLASTIC QUAD FLATPACK

4040149/B 11/96

26 0,13 NOM

Gage Plane

0,25

0,45

0,75

0,05 MIN

0,27

12,00 TYP

0,17

100

15,80

16,20

13,80

1,35

1,45

1,60 MAX

14,20

0°–7°

Seating Plane

0,08

0,50 M

0,08

NOTES: A. All linear dimensions are in millimeters.

B. This drawing is subject to change without notice.

C. Falls within JEDEC MS-026

IMPORTANT NOTICE AND DISCLAIMER

TI PROVIDES TECHNICAL AND RELIABILITY DATA (INCLUDING DATASHEETS), DESIGN RESOURCES (INCLUDING REFERENCE

DESIGNS), APPLICATION OR OTHER DESIGN ADVICE, WEB TOOLS, SAFETY INFORMATION, AND OTHER RESOURCES “AS IS”

AND WITH ALL FAULTS, AND DISCLAIMS ALL WARRANTIES, EXPRESS AND IMPLIED, INCLUDING WITHOUT LIMITATION ANY

IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT OF THIRD

PARTY INTELLECTUAL PROPERTY RIGHTS.

These resources are intended for skilled developers designing with TI products. You are solely responsible for (1) selecting the appropriate

TI products for your application, (2) designing, validating and testing your application, and (3) ensuring your application meets applicable

standards, and any other safety, security, or other requirements. These resources are subject to change without notice. TI grants you

permission to use these resources only for development of an application that uses the TI products described in the resource. Other

reproduction and display of these resources is prohibited. No license is granted to any other TI intellectual property right or to any third party

intellectual property right. TI disclaims responsibility for, and you will fully indemnify TI and its representatives against, any claims, damages,

costs, losses, and liabilities arising out of your use of these resources.

TI’s products are provided subject to TI’s Terms of Sale (https:www.ti.com/legal/termsofsale.html) or other applicable terms available either

on ti.com or provided in conjunction with such TI products. TI’s provision of these resources does not expand or otherwise alter TI’s

applicable warranties or warranty disclaimers for TI products.IMPORTANT NOTICE

Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265

Scheda tecnica TMS5700332APZQQ1 di Texas Instruments

INFORMAZIONI

GUIDA

CONTATTI

SEGUICI
