‘7” who u. 5...... D POWER INDUCTO SM H H H H:H H:| TAIYD YUDEN 2019
hq_i_smd_NR_e-E07R01
SMD POWER INDUCTORS (NR SERIES H TYPE/ S TYPE/ V TYPE)
AEC-Q200 Grade 3 (we conduct the evaluation at the test condition of Grade 3.)
*Operating environment Temp:-40～85℃
REFLOW
AEC-Q200
■PART NUMBER *Operating Temp. : -40～125℃（Including self-generated heat）
N R S 4 0 1 8 T △ 1 0 0 M D G V V △＝Blank space
① ② ③ ④ ⑤ ⑥ ⑦
①Series name
Code Series name
NRH
Coating resin specification
NRS
NRV
②Dimensions（L×W×H）
Code Dimensions（L×W×H）［mm］
2010 2.0×2.0×1.0
2012 2.0×2.0×1.2
2410 2.4×2.4×1.0
2412 2.4×2.4×1.2
3010 3.0×3.0×1.0
3012 3.0×3.0×1.2
3015 3.0×3.0×1.5
4010 4.0×4.0×1.0
4012 4.0×4.0×1.2
4018 4.0×4.0×1.8
5010 4.9×4.9×1.0
5012 4.9×4.9×1.2
5014 4.9×4.9×1.4
5020 4.9×4.9×2.0
5024 4.9×4.9×2.4
5030 4.9×4.9×3.0
5040 4.9×4.9×4.0
6010 6.0×6.0×1.0
6012 6.0×6.0×1.2
6014 6.0×6.0×1.4
6020 6.0×6.0×2.0
6028 6.0×6.0×2.8
6045 6.0×6.0×4.5
8030 8.0×8.0×3.0
8040 8.0×8.0×4.0
③Packaging
Code Packaging
T△ Taping
④Nominal inductance
Code
（example） Nominal inductance［μH］
2R2 2.2
100 10
101 100
※R＝Decimal point
⑤Inductance tolerance
Code Inductance tolerance
M ±20％
N ±30％
⑥Special code
⑦Internal code
Code Internal code
V Inductor for Industrial and Automotive
INDUCTORS POWER INDUCTORS
▶Thiscatalogcontainsthetypicalspecificationonlyduetothelimitationofspace.Whenyouconsiderthepurchaseofourproducts,pleasecheckourproductspecificationsheets.
Fordetailsofeachproduct(characteristicsgraph,reliabilityinformation,precautionsforuse,andsoon),seeourwebsite(http://www.ty-top.com/).
SMD POWER INDUCTORS(NR SERIES H TYPE/S TYPE/V TYPE)
REFLOW
44
19
AEC-Q200
hq_i_smd_NR_e-E07R01
■STANDARD EXTERNAL DIMENSIONS / STANDARD QUANTITY
Recommended Land Patterns
W
LH
e
e
f
B
AA
C
Type A B C
NRV2010 0.65 1.35 2.0
NRV2012, NRS2012
NRH2410 0.7 1.45 2.0
NRH2412
NRH3010
0.8 2.2 2.7
NRH3012, NRV3012
NRS3015
NRS4010
1.2 2.8 3.7
NRS4012
NRS4018
NRS8030 1.8 5.6 7.5
NRS8040
Unit：mm
Type L W H e f Standard quantity
[pcs] Taping
NRV2010 2.0±0.1
(0.079±0.004)
2.0±0.1
(0.079±0.004)
1.0 max
（0.039 max）
0.5±0.2
（0.020±0.008）
1.25±0.2
（0.050±0.008） 2500
NRV2012
NRS2012
2.0±0.1
(0.079±0.004)
2.0±0.1
(0.079±0.004)
1.2 max
（0.047 max）
0.5±0.2
（0.020±0.008）
1.25±0.2
（0.050±0.008） 2500
NRH2410 2.4±0.1
(0.095±0.00)
2.4±0.1
(0.095±0.004)
1.0 max
（0.039 max）
0.6±0.2
（0.024±0.008）
1.45±0.2
（0.057±0.008） 2500
NRH2412 2.4±0.1
(0.095±0.004)
2.4±0.1
(0.095±0.004)
1.2 max
（0.047 max）
0.6±0.2
（0.024±0.008）
1.45±0.2
（0.057±0.008） 2500
NRH3010 3.0±0.1
（0.118±0.004）
3.0±0.1
（0.118±0.004）
1.0 max
（0.039 max）
0.9±0.2
（0.035±0.008）
1.9±0.2
（0.075±0.008） 2000
NRH3012
NRV3012
3.0±0.1
（0.118±0.004）
3.0±0.1
（0.118±0.004）
1.2 max
（0.047 max）
0.9±0.2
（0.035±0.008）
1.9±0.2
（0.075±0.008） 2000
NRS3015 3.0±0.1
（0.118±0.004）
3.0±0.1
（0.118±0.004）
1.5 max
（0.059 max）
0.9±0.2
（0.035±0.008）
1.9±0.2
（0.075±0.008） 2000
NRS4010 4.0±0.2
（0.158±0.008）
4.0±0.2
（0.158±0.008）
1.0 max
（0.039 max）
1.1±0.2
（0.043±0.008）
2.5±0.2
（0.098±0.008） 5000
NRS4012 4.0±0.2
（0.158±0.008）
4.0±0.2
（0.158±0.008）
1.2 max
（0.047 max）
1.1±0.2
（0.043±0.008）
2.5±0.2
（0.098±0.008） 4500
NRS4018 4.0±0.2
（0.158±0.008）
4.0±0.2
（0.158±0.008）
1.8 max
（0.071 max）
1.1±0.2
（0.043±0.008）
2.5±0.2
（0.098±0.008） 3500
NRS8030 8.0±0.2
（0.315±0.008）
8.0±0.2
（0.315±0.008）
3.0 max
（0.118 max）
1.60±0.3
（0.063±0.012）
5.6±0.3
（0.22±0.012） 1000
NRS8040 8.0±0.2
（0.315±0.008）
8.0±0.2
（0.315±0.008）
*1） 4.2 max
（0.165 max）
*2） 4.0 max
（0.158 max）
1.60±0.3
（0.063±0.012）
5.6±0.3
（0.22±0.012） 1000
*1） 0R9～6R8 type, *2） 100～101type Unit：mm（inch）
INDUCTORS POWER INDUCTORS
▶Thiscatalogcontainsthetypicalspecificationonlyduetothelimitationofspace.Whenyouconsiderthepurchaseofourproducts,pleasecheckourproductspecificationsheets.
Fordetailsofeachproduct(characteristicsgraph,reliabilityinformation,precautionsforuse,andsoon),seeourwebsite(http://www.ty-top.com/).
45
19
TAIYC) YUDEN 201B
hq_i_smd_NR_e-E07R01

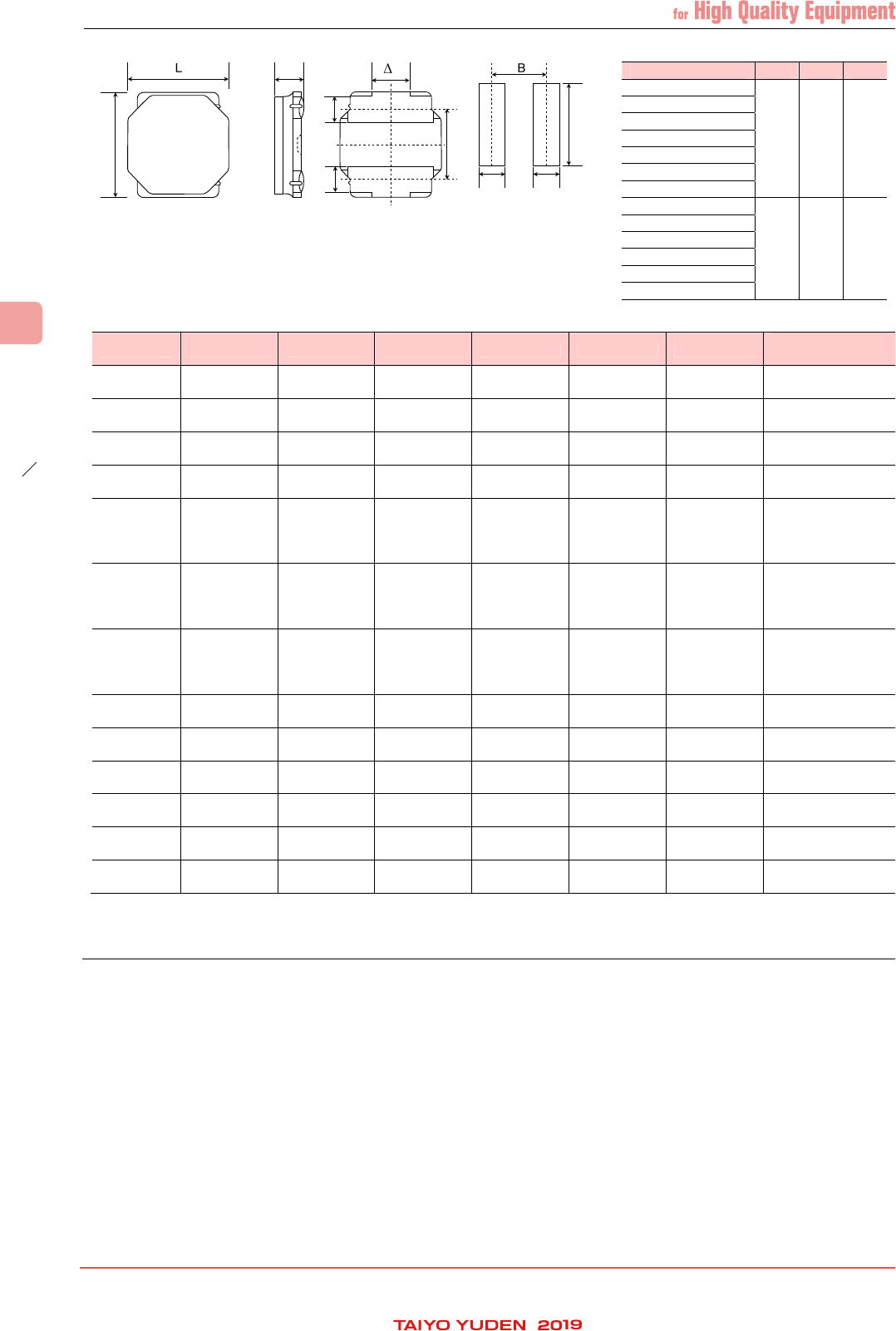

Recommended Land Patterns
e
e
f
W
L
H
Δ
I
AA
C
Type A B C
NRS5010
1.5 3.6 4.0
NRS5012
NRS5014
NRS5020
NRS5024
NRS5030
NRS5040
NRS6010
1.6 4.7 5.7
NRS6012
NRS6014
NRS6020
NRS6028
NRS6045
Unit：mm
Type L W H e f ΔI Standard quantity
[pcs] Taping
NRS5010 4.9±0.2
（0.193±0.008）
4.9±0.2
（0.193±0.008）
1.0 max
（0.039 max）
1.2±0.2
（0.047±0.008）
3.3±0.2
（0.130±0.008）
1.3typ
（0.051typ） 1000
NRS5012 4.9±0.2
（0.193±0.008）
4.9±0.2
（0.193±0.008）
1.2 max
（0.047 max）
1.2±0.2
（0.047±0.008）
3.3±0.2
（0.130±0.008）
1.3typ
（0.051typ） 1000
NRS5014 4.9±0.2
（0.193±0.008）
4.9±0.2
（0.193±0.008）
1.4 max
（0.055 max）
1.2±0.2
（0.047±0.008）
3.3±0.2
（0.130±0.008）
1.3typ
（0.051typ） 1000
NRS5020 4.9±0.2
（0.193±0.008）
4.9±0.2
（0.193±0.008）
2.0 max
（0.079 max）
1.2±0.2
（0.047±0.008）
3.3±0.2
（0.130±0.008）
1.3typ
（0.051typ） 800
NRS5024 4.9±0.2
（0.193±0.008）
4.9±0.2
（0.193±0.008）
*3) 2.5 max
（0.098 max）
*4) 2.4 max
(0.095 max)
1.2±0.2
（0.047±0.008）
3.3±0.2
（0.130±0.008）
1.3typ
（0.051typ）
2500
NRS5030 4.9±0.2
（0.193±0.008）
4.9±0.2
（0.193±0.008）
*5) 3.1 max
（0.122 max）
*6) 3.0 max
(0.118 max)
1.2±0.2
（0.047±0.008）
3.3±0.2
（0.130±0.008）
1.3typ
（0.051typ） 500
NRS5040 4.9±0.2
（0.193±0.008）
4.9±0.2
（0.193±0.008）
*7） 4.1 max
（0.161 max）
*8） 4.0 max
（0.158 max）
1.2±0.2
（0.047±0.008）
3.3±0.2
（0.130±0.008）
1.3typ
（0.051typ） 1500
NRS6010 6.0±0.2
（0.236±0.008）
6.0±0.2
（0.236±0.008）
1.0 max
（0.039 max）
1.35±0.2
（0.053±0.008）
4.0±0.2
（0.158±0.008）
2.3typ
（0.091typ） 1000
NRS6012 6.0±0.2
（0.236±0.008）
6.0±0.2
（0.236±0.008）
1.2 max
（0.047 max）
1.35±0.2
（0.053±0.008）
4.0±0.2
（0.158±0.008）
2.3typ
（0.091typ） 1000
NRS6014 6.0±0.2
（0.236±0.008）
6.0±0.2
（0.236±0.008）
1.4 max
（0.055 max）
1.35±0.2
（0.053±0.008）
4.0±0.2
（0.158±0.008）
2.3typ
（0.091typ） 1000
NRS6020 6.0±0.2
（0.236±0.008）
6.0±0.2
（0.236±0.008）
2.0 max
（0.079 max）
1.35±0.2
（0.053±0.008）
4.0±0.2
（0.158±0.008）
2.3typ
（0.091typ） 2500
NRS6028 6.0±0.2
（0.236±0.008）
6.0±0.2
（0.236±0.008）
2.8 max
（0.110 max）
1.35±0.2
（0.053±0.008）
4.0±0.2
（0.158±0.008）
2.3typ
（0.091typ） 2000
NRS6045 6.0±0.2
（0.236±0.008）
6.0±0.2
（0.236±0.008）
4.5 max
（0.177 max）
1.35±0.2
（0.053±0.008）
4.0±0.2
（0.158±0.008）
2.3typ
（0.091typ） 1500
*3) 1R0～1R5 type, *4) 2R2～330 type Unit：mm（inch）
*5) R47～100 type, *6) 150～470 type
*7） 1R5～100 type, *8） 150～470 type
INDUCTORS POWER INDUCTORS
▶Thiscatalogcontainsthetypicalspecificationonlyduetothelimitationofspace.Whenyouconsiderthepurchaseofourproducts,pleasecheckourproductspecificationsheets.
Fordetailsofeachproduct(characteristicsgraph,reliabilityinformation,precautionsforuse,andsoon),seeourwebsite(http://www.ty-top.com/).
46
19
M TAIYC) YUDEN 2019
■PART NUMBER
・ All the SMD Power Inductors of the catalog lineup are RoHS compliant.
Note)
　・ The exchange of individual specifications is necessary depending on the application and circuit condition. Please contact Taiyo Yuden sales channels.
　・ *1: Automotive (AEC-Q200 Qualified) products for BODY & CHASSIS, and INFOTAINMENT. Please check ”Automotive Application Guide” for further details before using the products.
　　＜　　　　　　　　　：AEC-Q200 qualified＞
　　　　　All the SMD Power Inductors of　*1 marks are tested based on the test conditions and methods defined in AEC-Q200 by family item.
　 　Please consult with TAIYO YUDEN’s official sales channel for the details of the product specification and AEC-Q200 test results, etc.,
　　 and please review and　approve TAIYO YUDEN's product specification before ordering.
・ *2: Industrial　products and Medical products
●NRV2010 type
Saturation current
Idc1
Temperature rise current
Idc2
NRV2010T R47N GFV 0.47 ±30％ - 0.052 2,100 2,000 100 *1, *2
NRV2010T R68N GFV 0.68 ±30％ - 0.060 1,850 1,850 100 *1, *2
NRV2010T 1R0N GFV 1.0 ±30％ - 0.080 1,550 1,600 100 *1, *2
NRV2010T 1R5M GFV 1.5 ±20％ - 0.100 1,350 1,450 100 *1, *2
NRV2010T 2R2M GFV 2.2 ±20％ - 0.175 1,100 1,100 100 *1, *2
NRV2010T 3R3M GFV 3.3 ±20％ - 0.250 880 1,000 100 *1, *2
NRV2010T 4R7M GFV 4.7 ±20％ - 0.320 760 820 100 *1, *2
●NRV2012 type
Saturation current
Idc1
Temperature rise current
Idc2
NRV2012T 1R0N GFV 1.0 ±30％ - 0.073 2,200 1,650 100 *1, *2
NRV2012T 1R5N GFV 1.5 ±30％ - 0.100 1,800 1,400 100 *1, *2
NRV2012T 2R2M GFV 2.2 ±20％ - 0.129 1,600 1,200 100 *1, *2
NRV2012T 3R3M GFV 3.3 ±20％ - 0.227 1,250 900 100 *1, *2
NRV2012T 4R7M GFV 4.7 ±20％ - 0.325 1,100 750 100 *1, *2
●NRS2012 Shielded type
Saturation current
Idc1
Temperature rise current
Idc2
NRS2012T 1R0N GJV 1.0 ±30％ - 0.070 1,900 1,700 100 *1, *2
NRS2012T 1R5N GJV 1.5 ±30％ - 0.090 1,650 1,500 100 *1, *2
NRS2012T 2R2M GJV 2.2 ±20％ - 0.107 1,350 1,370 100 *1, *2
NRS2012T 3R3M GJV 3.3 ±20％ - 0.190 1,000 1,020 100 *1, *2
NRS2012T 4R7M GJV 4.7 ±20％ - 0.241 900 910 100 *1, *2
●NRH2410 Shielded type
Saturation current
Idc1
Temperature rise current
Idc2
NRH2410T R68NN 4V 0.68 ±30％ 120 0.060 2,200 1,570 100 *1, *2
NRH2410T 1R0NN 4V 1.0 ±30％ 106 0.070 1,800 1,410 100 *1, *2
NRH2410T 1R5MN V 1.5 ±20％ 94 0.110 1,550 1,160 100 *1, *2
NRH2410T 2R2MN V 2.2 ±20％ 77 0.150 1,290 970 100 *1, *2
NRH2410T 3R3MN V 3.3 ±20％ 56 0.220 1,000 770 100 *1, *2
NRH2410T 4R7MN V 4.7 ±20％ 50 0.290 880 670 100 *1, *2
NRH2410T 6R8MN V 6.8 ±20％ 43 0.410 750 570 100 *1, *2
NRH2410T 100MN V 10 ±20％ 32 0.690 550 450 100 *1, *2
NRH2410T 150MN V 15 ±20％ 27 1.02 470 370 100 *1, *2
NRH2410T 220MN V 22 ±20％ 22 1.47 390 300 100 *1, *2
●NRH2412 Shielded type
Saturation current
Idc1
Temperature rise current
Idc2
NRH2412T R47NNGJV 0.47 ±30％ 180 0.050 2,900 2,100 100 *1, *2
NRH2412T 1R0NNGHV 1.0 ±30％ 101 0.077 2,350 1,300 100 *1, *2
NRH2412T 1R5NNGHV 1.5 ±30％ 89 0.100 2,100 1,150 100 *1, *2
NRH2412T 2R2MNGHV 2.2 ±20％ 72 0.140 1,700 1,000 100 *1, *2
NRH2412T 3R3MNGHV 3.3 ±20％ 56 0.225 1,400 750 100 *1, *2
NRH2412T 4R7MNGHV 4.7 ±20％ 45 0.300 1,150 650 100 *1, *2
NRH2412T 6R8MNGHV 6.8 ±20％ 34 0.420 950 550 100 *1, *2
NRH2412T 100MNGHV 10 ±20％ 29 0.600 810 450 100 *1, *2
※） The saturation current value (Idc1) is the DC current value having inductance decrease down to 30%. (at 20℃)
※） The temperature rise current value（Idc2) is the DC current value having temperature increase up to 40℃. (at 20℃)
※） The rated current is the DC current value that satisfies both of current value saturation current value and temperature rise current value.
Part number Nominal inductance
［μH］ Inductance tolerance
Self-resonant
frequency
［MHz］（min.）
DC Resistance
［Ω］（±20％）
Rated current　※）　［mA］ Measuring
frequency［kHz］ Note
Part number Nominal inductance
［μH］ Inductance tolerance
Self-resonant
frequency
［MHz］（min.）
DC Resistance
［Ω］（±20％）
Rated current　※）　［mA］ Measuring
frequency［kHz］ Note
Part number Nominal inductance
［μH］ Inductance tolerance
Self-resonant
frequency
［MHz］（min.）
DC Resistance
［Ω］（±20％）
Rated current　※）　［mA］ Measuring
frequency［kHz］ Note
Part number Nominal inductance
［μH］ Inductance tolerance
Self-resonant
frequency
［MHz］（min.）
DC Resistance
［Ω］（±20％）
Rated current　※）　［mA］ Measuring
frequency［kHz］ Note
Part number Nominal inductance
［μH］ Inductance tolerance
Self-resonant
frequency
［MHz］（min.）
DC Resistance
［Ω］（±20％）
Rated current　※）　［mA］ Measuring
frequency［kHz］ Note
AEC-Q200
hq_i_smd_NR_e-E07R01
INDUCTORS POWER INDUCTORS
▶Thiscatalogcontainsthetypicalspecificationonlyduetothelimitationofspace.Whenyouconsiderthepurchaseofourproducts,pleasecheckourproductspecificationsheets.
Fordetailsofeachproduct(characteristicsgraph,reliabilityinformation,precautionsforuse,andsoon),seeourwebsite(http://www.ty-top.com/).
47
19
TAIYC) YUDEN 2019
■PART NUMBER
●NRH3010 Shielded type
Saturation current
Idc1
Temperature rise current
Idc2
NRH3010T 1R2NN V 1.2 ±30％ 120 0.065 1,700 1,480 100 *1, *2
NRH3010T 1R5NN V 1.5 ±30％ 99 0.075 1,440 1,370 100 *1, *2
NRH3010T 2R2MN V 2.2 ±20％ 86 0.083 1,300 1,300 100 *1, *2
NRH3010T 3R3MN V 3.3 ±20％ 64 0.130 1,000 1,030 100 *1, *2
NRH3010T 4R7MN V 4.7 ±20％ 50 0.170 850 900 100 *1, *2
NRH3010T 6R8MN V 6.8 ±20％ 44 0.250 700 745 100 *1, *2
NRH3010T 100MN V 10 ±20％ 34 0.350 600 620 100 *1, *2
NRH3010T 150MN V 15 ±20％ 25 0.550 450 480 100 *1, *2
NRH3010T 220MN V 22 ±20％ 22 0.770 380 410 100 *1, *2
NRH3010T 470MN V 47 ±20％ 17 2.05 250 285 100 *1, *2
●NRH3012 Shielded type
Saturation current
Idc1
Temperature rise current
Idc2
NRH3012T R47NN V 0.47 ±30％ 160 0.033 2,600 1,900 100 *1, *2
NRH3012T 1R0NN V 1.0 ±30％ 111 0.048 2,200 1,710 100 *1, *2
NRH3012T 1R5NN V 1.5 ±30％ 95 0.055 1,700 1,600 100 *1, *2
NRH3012T 2R2MN V 2.2 ±20％ 78 0.075 1,500 1,370 100 *1, *2
NRH3012T 3R3MN V 3.3 ±20％ 61 0.100 1,200 1,210 100 *1, *2
NRH3012T 4R7MN V 4.7 ±20％ 50 0.130 1,000 1,060 100 *1, *2
NRH3012T 6R8MN V 6.8 ±20％ 43 0.190 850 890 100 *1, *2
NRH3012T 100MN V 10 ±20％ 32 0.270 730 720 100 *1, *2
NRH3012T 150MN V 15 ±20％ 26 0.450 530 570 100 *1, *2
NRH3012T 220MN V 22 ±20％ 22 0.630 500 500 100 *1, *2
●NRV3012 Shielded type
Saturation current
Idc1
Temperature rise current
Idc2
NRV3012T 1R0N V 1.0 ±30％ 110 0.065 2,500 1,600 100 *1, *2
NRV3012T 1R5N V 1.5 ±30％ 92 0.075 2,100 1,400 100 *1, *2
NRV3012T 2R2M V 2.2 ±20％ 70 0.120 1,800 1,100 100 *1, *2
NRV3012T 3R3M V 3.3 ±20％ 55 0.150 1,600 1,000 100 *1, *2
NRV3012T 4R7M V 4.7 ±20％ 48 0.190 1,250 850 100 *1, *2
NRV3012T 6R8M V 6.8 ±20％ 40 0.300 950 650 100 *1, *2
NRV3012T 100M V 10 ±20％ 32 0.470 800 550 100 *1, *2
●NRS3015 Shielded type
Saturation current
Idc1
Temperature rise current
Idc2
NRS3015T 1R0NNGHV 1.0 ±30％ 100 0.030 2,100 2,100 100 *1, *2
NRS3015T 1R5NNGHV 1.5 ±30％ 87 0.038 1,800 1,820 100 *1, *2
NRS3015T 2R2MNGHV 2.2 ±20％ 64 0.058 1,480 1,500 100 *1, *2
NRS3015T 3R3MNGHV 3.3 ±20％ 49 0.078 1,210 1,230 100 *1, *2
NRS3015T 4R7MNGHV 4.7 ±20％ 40 0.120 1,020 1,040 100 *1, *2
NRS3015T 6R8MNGHV 6.8 ±20％ 36 0.160 870 880 100 *1, *2
NRS3015T 100MNGHV 10 ±20％ 28 0.220 700 710 100 *1, *2
NRS3015T 220MNGHV 22 ±20％ 20 0.520 470 470 100 *1, *2
●NRS4010 Shielded type
Saturation current
Idc1
Temperature rise current
Idc2
NRS4010T 1R0NDGGV 1.0 ±30％ 116 0.056 2,000 1,900 100 *1, *2
NRS4010T 2R2MDGGV 2.2 ±20％ 73 0.085 1,200 1,500 100 *1, *2
NRS4010T 3R3MDGGV 3.3 ±20％ 58 0.100 1,100 1,400 100 *1, *2
NRS4010T 4R7MDGGV 4.7 ±20％ 47 0.140 950 1,200 100 *1, *2
NRS4010T 6R8MDGGV 6.8 ±20％ 38 0.200 800 1,000 100 *1, *2
NRS4010T 100MDGGV 10 ±20％ 31 0.300 620 750 100 *1, *2
NRS4010T 150MDGGV 15 ±20％ 24 0.430 540 600 100 *1, *2
NRS4010T 220MDGGV 22 ±20％ 19 0.570 450 500 100 *1, *2
●NRS4012 Shielded type
Saturation current
Idc1
Temperature rise current
Idc2
NRS4012T 1R0NDGGV 1.0 ±30％ 100 0.042 2,800 2,200 100 *1, *2
NRS4012T 2R2MDGJV 2.2 ±20％ 70 0.060 1,650 1,900 100 *1, *2
NRS4012T 3R3MDGJV 3.3 ±20％ 60 0.070 1,400 1,700 100 *1, *2
NRS4012T 4R7MDGJV 4.7 ±20％ 45 0.095 1,200 1,500 100 *1, *2
NRS4012T 6R8MDGJV 6.8 ±20％ 35 0.125 900 1,300 100 *1, *2
NRS4012T 100MDGJV 10 ±20％ 30 0.170 800 1,100 100 *1, *2
NRS4012T 150MDGJV 15 ±20％ 24 0.260 650 750 100 *1, *2
NRS4012T 220MDGJV 22 ±20％ 18 0.400 500 620 100 *1, *2
※） The saturation current value (Idc1) is the DC current value having inductance decrease down to 30%. (at 20℃)
※） The temperature rise current value（Idc2) is the DC current value having temperature increase up to 40℃. (at 20℃)
※） The rated current is the DC current value that satisfies both of current value saturation current value and temperature rise current value.
Part number Nominal inductance
［μH］ Inductance tolerance
Self-resonant
frequency
［MHz］（min.）
DC Resistance
［Ω］（±20％）
Rated current　※）　［mA］ Measuring
frequency［kHz］ Note
Part number Nominal inductance
［μH］ Inductance tolerance
Self-resonant
frequency
［MHz］（min.）
DC Resistance
［Ω］（±20％）
Rated current　※）　［mA］ Measuring
frequency［kHz］ Note
Part number Nominal inductance
［μH］ Inductance tolerance
Self-resonant
frequency
［MHz］（min.）
DC Resistance
［Ω］（±20％）
Rated current　※）　［mA］ Measuring
frequency［kHz］ Note
Part number Nominal inductance
［μH］ Inductance tolerance
Self-resonant
frequency
［MHz］（min.）
DC Resistance
［Ω］（±20％）
Rated current　※）　［mA］ Measuring
frequency［kHz］ Note
Part number Nominal inductance
［μH］ Inductance tolerance
Self-resonant
frequency
［MHz］（min.）
DC Resistance
［Ω］（±20％）
Rated current　※）　［mA］ Measuring
frequency［kHz］ Note
Part number Nominal inductance
［μH］ Inductance tolerance
Self-resonant
frequency
［MHz］（min.）
DC Resistance
［Ω］（±20％）
Rated current　※）　［mA］ Measuring
frequency［kHz］ Note
hq_i_smd_NR_e-E07R01
INDUCTORS POWER INDUCTORS
▶Thiscatalogcontainsthetypicalspecificationonlyduetothelimitationofspace.Whenyouconsiderthepurchaseofourproducts,pleasecheckourproductspecificationsheets.
Fordetailsofeachproduct(characteristicsgraph,reliabilityinformation,precautionsforuse,andsoon),seeourwebsite(http://www.ty-top.com/).
48
19
TAIYC) YUDEN 2019
■PART NUMBER
●NRS4018 Shielded type
Saturation current
Idc1
Temperature rise current
Idc2
NRS4018T 1R0NDGJV 1.0 ±30％ 90 0.027 4,000 3,200 100 *1, *2
NRS4018T 1R5NDGJV 1.5 ±30％ 75 0.037 3,300 2,400 100 *1, *2
NRS4018T 2R2MDGJV 2.2 ±20％ 60 0.042 3,000 2,200 100 *1, *2
NRS4018T 3R3MDGJV 3.3 ±20％ 45 0.055 2,300 2,000 100 *1, *2
NRS4018T 4R7MDGJV 4.7 ±20％ 35 0.070 2,000 1,700 100 *1, *2
NRS4018T 6R8MDGJV 6.8 ±20％ 30 0.098 1,600 1,450 100 *1, *2
NRS4018T 100MDGJV 10 ±20％ 25 0.150 1,300 1,200 100 *1, *2
NRS4018T 150MDGJV 15 ±20％ 18 0.210 1,100 850 100 *1, *2
NRS4018T 220MDGJV 22 ±20％ 15 0.290 900 720 100 *1, *2
NRS4018T 330MDGJV 33 ±20％ 12 0.460 700 550 100 *1, *2
NRS4018T 470MDGJV 47 ±20％ 10 0.650 600 440 100 *1, *2
NRS4018T 680MDGJV 68 ±20％ 8.3 1.00 520 320 100 *1, *2
NRS4018T 101MDGJV 100 ±20％ 6.5 1.45 420 280 100 *1, *2
NRS4018T 151MDGJV 150 ±20％ 5.5 2.30 340 220 100 *1, *2
NRS4018T 221MDGJV 220 ±20％ 4.0 3.80 275 170 100 *1, *2
●NRS5010 type
Saturation current
Idc1
Temperature rise current
Idc2
NRS5010T 1R0NMGFV 1.0 ±30％ 95 0.070 2,350 1,750 100 *1, *2
NRS5010T 2R2NMGFV 2.2 ±30％ 65 0.105 1,500 1,400 100 *1, *2
NRS5010T 3R3MMGFV 3.3 ±20％ 42 0.125 1,400 1,250 100 *1, *2
NRS5010T 4R7MMGFV 4.7 ±20％ 37 0.145 1,200 1,150 100 *1, *2
NRS5010T 6R8MMGFV 6.8 ±20％ 33 0.185 1,000 1,000 100 *1, *2
NRS5010T 100MMGFV 10 ±20％ 23 0.250 850 900 100 *1, *2
NRS5010T 150MMGFV 15 ±20％ 19 0.400 680 650 100 *1, *2
NRS5010T 220MMGFV 22 ±20％ 15 0.600 550 450 100 *1, *2
●NRS5012 type
Saturation current
Idc1
Temperature rise current
Idc2
NRS5012T 1R0NMGFV 1.0 ±30％ 100 0.053 4,500 2,300 100 *1, *2
NRS5012T 1R5NMGFV 1.5 ±30％ 86 0.070 3,800 2,200 100 *1, *2
NRS5012T 2R2MMGFV 2.2 ±20％ 70 0.085 3,100 2,000 100 *1, *2
NRS5012T 3R3MMGFV 3.3 ±20％ 48 0.160 2,400 1,450 100 *1, *2
NRS5012T 4R7MMGFV 4.7 ±20％ 40 0.180 2,200 1,400 100 *1, *2
NRS5012T 6R8MMGFV 6.8 ±20％ 36 0.260 1,700 1,100 100 *1, *2
NRS5012T 100MMGFV 10 ±20％ 26 0.420 1,400 850 100 *1, *2
NRS5012T 150MMGFV 15 ±20％ 22 0.670 1,200 640 100 *1, *2
●NRS5014 Shielded type
Saturation current
Idc1
Temperature rise current
Idc2
NRS5014T R47NMGGV 0.47 ±30％ 185 0.025 5,800 3,300 100 *1, *2
NRS5014T 1R2NMGGV 1.2 ±30％ 86 0.045 3,800 2,400 100 *1, *2
NRS5014T 2R2NMGGV 2.2 ±30％ 56 0.065 2,800 2,000 100 *1, *2
NRS5014T 3R3NMGGV 3.3 ±30％ 48 0.080 2,350 1,700 100 *1, *2
NRS5014T 4R7NMGGV 4.7 ±30％ 41 0.100 2,050 1,400 100 *1, *2
NRS5014T 6R8MMGGV 6.8 ±20％ 33 0.150 1,600 1,200 100 *1, *2
NRS5014T 100MMGGV 10 ±20％ 27 0.200 1,400 1,050 100 *1, *2
NRS5014T 150MMGGV 15 ±20％ 20 0.320 1,100 650 100 *1, *2
NRS5014T 220MMGGV 22 ±20％ 16 0.450 900 550 100 *1, *2
●NRS5020 Shielded type
Saturation current
Idc1
Temperature rise current
Idc2
NRS5020T R47NMGJV 0.47 ±30％ 230 0.012 6,100 5,000 100 *1, *2
NRS5020T 1R0NMGJV 1.0 ±30％ 81 0.021 4,000 3,600 100 *1, *2
NRS5020T 1R5NMGJV 1.5 ±30％ 68 0.026 3,350 3,200 100 *1, *2
NRS5020T 2R2NMGJV 2.2 ±30％ 57 0.035 2,900 2,900 100 *1, *2
NRS5020T 3R3NMGJV 3.3 ±30％ 46 0.048 2,400 2,400 100 *1, *2
NRS5020T 4R7MMGJV 4.7 ±20％ 37 0.060 2,000 2,000 100 *1, *2
NRS5020T 6R8MMGJV 6.8 ±20％ 30 0.090 1,600 1,650 100 *1, *2
NRS5020T 100MMGJV 10 ±20％ 24 0.120 1,300 1,450 100 *1, *2
NRS5020T 150MMGJV 15 ±20％ 20 0.165 1,100 1,200 100 *1, *2
NRS5020T 220MMGJV 22 ±20％ 17 0.260 900 1,000 100 *1, *2
NRS5020T 470MMGJV 47 ±20％ 12 0.435 630 560 100 *1, *2
NRS5020T 101MMGJV 100 ±20％ 7 0.850 420 400 100 *1, *2
※） The saturation current value (Idc1) is the DC current value having inductance decrease down to 30%. (at 20℃)
※） The temperature rise current value（Idc2) is the DC current value having temperature increase up to 40℃. (at 20℃)
※） The rated current is the DC current value that satisfies both of current value saturation current value and temperature rise current value.
Part number Nominal inductance
［μH］ Inductance tolerance
Self-resonant
frequency
［MHz］（min.）
DC Resistance
［Ω］（±20％）
Rated current　※）　［mA］ Measuring
frequency［kHz］ Note
Part number Nominal inductance
［μH］ Inductance tolerance
Self-resonant
frequency
［MHz］（min.）
DC Resistance
［Ω］（±20％）
Rated current　※）　［mA］ Measuring
frequency［kHz］ Note
Part number Nominal inductance
［μH］ Inductance tolerance
Self-resonant
frequency
［MHz］（min.）
DC Resistance
［Ω］（±20％）
Rated current　※）　［mA］ Measuring
frequency［kHz］ Note
Part number Nominal inductance
［μH］ Inductance tolerance
Self-resonant
frequency
［MHz］（min.）
DC Resistance
［Ω］（±20％）
Rated current　※）　［mA］ Measuring
frequency［kHz］ Note
Part number Nominal inductance
［μH］ Inductance tolerance
Self-resonant
frequency
［MHz］（min.）
DC Resistance
［Ω］（±20％）
Rated current　※）　［mA］ Measuring
frequency［kHz］ Note
hq_i_smd_NR_e-E07R01
INDUCTORS POWER INDUCTORS
▶Thiscatalogcontainsthetypicalspecificationonlyduetothelimitationofspace.Whenyouconsiderthepurchaseofourproducts,pleasecheckourproductspecificationsheets.
Fordetailsofeachproduct(characteristicsgraph,reliabilityinformation,precautionsforuse,andsoon),seeourwebsite(http://www.ty-top.com/).
49
19
TAIYC) YUDEN 2019
■PART NUMBER
●NRS5024 Shielded type
Saturation current
Idc1
Temperature rise current
Idc2
NRS5024T 1R0NMGJV 1.0 ±30％ 85 0.016 5,800 4,400 100 *1, *2
NRS5024T 1R5NMGJV 1.5 ±30％ 67 0.022 5,200 3,600 100 *1, *2
NRS5024T 2R2NMGJV 2.2 ±30％ 51 0.029 4,100 3,100 100 *1, *2
NRS5024T 3R3NMGJV 3.3 ±30％ 41 0.043 3,100 2,400 100 *1, *2
NRS5024T 4R7MMGJV 4.7 ±20％ 37 0.055 2,700 2,000 100 *1, *2
NRS5024T 6R8MMGJV 6.8 ±20％ 28 0.080 2,200 1,600 100 *1, *2
NRS5024T 100MMGJV 10 ±20％ 21 0.125 1,700 1,200 100 *1, *2
NRS5024T 150MMGJV 15 ±20％ 18 0.170 1,400 1,000 100 *1, *2
NRS5024T 220MMGJV 22 ±20％ 15 0.230 1,200 820 100 *1, *2
NRS5024T 330MMGJV 33 ±20％ 11 0.370 1,000 630 100 *1, *2
●NRS5030 Shielded type
Saturation current
Idc1
Temperature rise current
Idc2
NRS5030T R47NMGJV 0.47 ±30％ 185 0.010 9,000 5,000 100 *1, *2
NRS5030T 1R0NMGJV 1.0 ±30％ 110 0.015 6,600 4,000 100 *1, *2
NRS5030T 2R2NMGJV 2.2 ±30％ 46 0.023 4,200 3,500 100 *1, *2
NRS5030T 3R3MMGJV 3.3 ±20％ 36 0.030 3,600 3,000 100 *1, *2
NRS5030T 4R7MMGJV 4.7 ±20％ 31 0.035 3,100 2,600 100 *1, *2
NRS5030T 6R8MMGJV 6.8 ±20％ 22 0.052 2,500 2,300 100 *1, *2
NRS5030T 100MMGJV 10 ±20％ 20 0.070 2,100 1,700 100 *1, *2
NRS5030T 150MMGJV 15 ±20％ 14 0.125 1,600 1,400 100 *1, *2
NRS5030T 220MMGJV 22 ±20％ 13 0.180 1,400 1,050 100 *1, *2
NRS5030T 330MMGJV 33 ±20％ 10 0.225 1,150 800 100 *1, *2
NRS5030T 470MMGJV 47 ±20％ 9 0.325 950 700 100 *1, *2
●NRS5040 Shielded type
Saturation current
Idc1
Temperature rise current
Idc2
NRS5040T 1R5NMGJV 1.5 ±30％ 60 0.017 6,400 4,500 100 *1, *2
NRS5040T 2R2NMGJV 2.2 ±30％ 42 0.022 5,000 3,700 100 *1, *2
NRS5040T 3R3NMGJV 3.3 ±30％ 32 0.027 4,000 3,300 100 *1, *2
NRS5040T 4R7NMGKV 4.7 ±30％ 28 0.029 3,300 3,100 100 *1, *2
NRS5040T 6R8MMGJV 6.8 ±20％ 21 0.049 2,800 2,400 100 *1, *2
NRS5040T 100MMGJV 10 ±20％ 18 0.056 2,300 2,100 100 *1, *2
NRS5040T 150MMGJV 15 ±20％ 13 0.080 2,000 1,800 100 *1, *2
NRS5040T 220MMGKV 22 ±20％ 9 0.126 1,500 1,400 100 *1, *2
NRS5040T 330MMGJV 33 ±20％ 7 0.180 1,300 1,200 100 *1, *2
NRS5040T 470MMGJV 47 ±20％ 6 0.310 1,100 900 100 *1, *2
●NRS6010 type
Saturation current
Idc1
Temperature rise current
Idc2
NRS6010T 1R5MMGFV 1.5 ±20％ 77 0.090 2,400 1,900 100 *1, *2
NRS6010T 2R2MMGFV 2.2 ±20％ 56 0.110 1,900 1,700 100 *1, *2
NRS6010T 3R3MMGFV 3.3 ±20％ 42 0.135 1,600 1,500 100 *1, *2
NRS6010T 4R7MMGFV 4.7 ±20％ 36 0.165 1,300 1,400 100 *1, *2
NRS6010T 6R8MMGFV 6.8 ±20％ 30 0.220 1,200 1,200 100 *1, *2
NRS6010T 100MMGFV 10 ±20％ 25 0.270 1,000 1,100 100 *1, *2
NRS6010T 220MMGFV 22 ±20％ 12 0.580 650 700 100 *1, *2
●NRS6012 Shielded type
Saturation current
Idc1
Temperature rise current
Idc2
NRS6012T 1R0NMGJV 1.0 ±30％ 95 0.050 3,000 2,400 100 *1, *2
NRS6012T 1R5NMGGV 1.5 ±30％ 69 0.067 2,600 2,100 100 *1, *2
NRS6012T 2R5NMGGV 2.5 ±30％ 45 0.090 2,100 1,800 100 *1, *2
NRS6012T 3R3NMGGV 3.3 ±30％ 42 0.105 1,800 1,700 100 *1, *2
NRS6012T 4R7MMGGV 4.7 ±20％ 36 0.125 1,600 1,550 100 *1, *2
NRS6012T 5R3MMGJV 5.3 ±20％ 34 0.125 1,500 1,550 100 *1, *2
NRS6012T 6R8MMGJV 6.8 ±20％ 30 0.165 1,300 1,350 100 *1, *2
NRS6012T 100MMGJV 10 ±20％ 22 0.200 1,000 1,200 100 *1, *2
NRS6012T 150MMGJV 15 ±20％ 18 0.295 800 800 100 *1, *2
NRS6012T 220MMGJV 22 ±20％ 12 0.465 760 650 100 *1, *2
NRS6012T 330MMGJV 33 ±20％ 8 0.580 590 550 100 *1, *2
NRS6012T 470MMGJV 47 ±20％ 6 0.965 520 460 100 *1, *2
NRS6012T 680MMGJV 68 ±20％ 3 1.16 440 410 100 *1, *2
NRS6012T 101MMGJV 100 ±20％ 1 1.67 350 320 100 *1, *2
※） The saturation current value (Idc1) is the DC current value having inductance decrease down to 30%. (at 20℃)
※） The temperature rise current value（Idc2) is the DC current value having temperature increase up to 40℃. (at 20℃)
※） The rated current is the DC current value that satisfies both of current value saturation current value and temperature rise current value.
Part number Nominal inductance
［μH］ Inductance tolerance
Self-resonant
frequency
［MHz］（min.）
DC Resistance
［Ω］（±20％）
Rated current　※）　［mA］ Measuring
frequency［kHz］ Note
Part number Nominal inductance
［μH］ Inductance tolerance
Self-resonant
frequency
［MHz］（min.）
DC Resistance
［Ω］（±30％）
Rated current　※）　［mA］ Measuring
frequency［kHz］ Note
Part number Nominal inductance
［μH］ Inductance tolerance
Self-resonant
frequency
［MHz］（min.）
DC Resistance
［Ω］（±30％）
Rated current　※）　［mA］ Measuring
frequency［kHz］ Note
Part number Nominal inductance
［μH］ Inductance tolerance
Self-resonant
frequency
［MHz］（min.）
DC Resistance
［Ω］（±20％）
Rated current　※）　［mA］ Measuring
frequency［kHz］ Note
Part number Nominal inductance
［μH］ Inductance tolerance
Self-resonant
frequency
［MHz］（min.）
DC Resistance
［Ω］（±20％）
Rated current　※）　［mA］ Measuring
frequency［kHz］ Note
hq_i_smd_NR_e-E07R01
INDUCTORS POWER INDUCTORS
▶Thiscatalogcontainsthetypicalspecificationonlyduetothelimitationofspace.Whenyouconsiderthepurchaseofourproducts,pleasecheckourproductspecificationsheets.
Fordetailsofeachproduct(characteristicsgraph,reliabilityinformation,precautionsforuse,andsoon),seeourwebsite(http://www.ty-top.com/).
50
19
TAIYC) YUDEN 2019
■PART NUMBER
●NRS6014 Shielded type
Saturation current
Idc1
Temperature rise current
Idc2
NRS6014T 1R2NMGGV 1.2 ±30％ 77 0.042 4,000 2,750 100 *1, *2
NRS6014T 2R2NMGGV 2.2 ±30％ 61 0.055 3,000 2,300 100 *1, *2
NRS6014T 3R3NMGGV 3.3 ±30％ 41 0.075 2,500 2,000 100 *1, *2
NRS6014T 4R7MMGGV 4.7 ±20％ 36 0.090 2,000 1,900 100 *1, *2
NRS6014T 6R8MMGGV 6.8 ±20％ 30 0.115 1,700 1,650 100 *1, *2
NRS6014T 100MMGGV 10 ±20％ 24 0.140 1,400 1,400 100 *1, *2
NRS6014T 150MMGGV 15 ±20％ 20 0.210 1,150 1,200 100 *1, *2
NRS6014T 220MMGGV 22 ±20％ 16 0.300 950 1,000 100 *1, *2
●NRS6020 Shielded type
Saturation current
Idc1
Temperature rise current
Idc2
NRS6020T 0R8NMGGV 0.8 ±30％ 110 0.020 6,400 4,100 100 *1, *2
NRS6020T 1R5NMGJV 1.5 ±30％ 93 0.026 4,300 3,600 100 *1, *2
NRS6020T 2R2NMGJV 2.2 ±30％ 73 0.034 3,200 2,900 100 *1, *2
NRS6020T 3R3NMGJV 3.3 ±30％ 55 0.040 2,800 2,750 100 *1, *2
NRS6020T 4R7NMGJV 4.7 ±30％ 43 0.058 2,400 2,150 100 *1, *2
NRS6020T 6R8NMGJV 6.8 ±30％ 30 0.085 2,000 1,800 100 *1, *2
NRS6020T 100MMGGV 10 ±20％ 18 0.125 1,900 1,500 100 *1, *2
NRS6020T 220MMGGV 22 ±20％ 11 0.290 1,250 950 100 *1, *2
●NRS6028 Shielded type
Saturation current
Idc1
Temperature rise current
Idc2
NRS6028T 0R9NMGJV 0.9 ±30％ 90 0.013 6,700 4,600 100 *1, *2
NRS6028T 1R5NMGJV 1.5 ±30％ 78 0.016 5,100 4,200 100 *1, *2
NRS6028T 2R2NMGJV 2.2 ±30％ 68 0.020 4,200 3,700 100 *1, *2
NRS6028T 3R0NMGJV 3.0 ±30％ 55 0.023 3,600 3,400 100 *1, *2
NRS6028T 4R7MMGKV 4.7 ±20％ 39 0.031 2,700 3,000 100 *1, *2
NRS6028T 6R8MMGJV 6.8 ±20％ 25 0.043 2,600 2,500 100 *1, *2
NRS6028T 100MMGKV 10 ±20％ 20 0.065 1,900 1,900 100 *1, *2
NRS6028T 150MMGJV 15 ±20％ 17 0.095 1,600 1,800 100 *1, *2
NRS6028T 220MMGJV 22 ±20％ 12 0.135 1,300 1,400 100 *1, *2
NRS6028T 330MMGJV 33 ±20％ 10 0.220 1,100 1,100 100 *1, *2
NRS6028T 470MMGJV 47 ±20％ 8 0.300 1,000 920 100 *1, *2
NRS6028T 680MMGJV 68 ±20％ 5 0.420 800 770 100 *1, *2
NRS6028T 101MMGJV 100 ±20％ 3 0.600 650 660 100 *1, *2
●NRS6045 Shielded type
Saturation current
Idc1
Temperature rise current
Idc2
NRS6045T 1R0NMGKV 1.0 ±30％ 110 0.014 9,800 4,500 100 *1, *2
NRS6045T 1R3NMGKV 1.3 ±30％ 95 0.016 8,200 4,200 100 *1, *2
NRS6045T 1R8NMGKV 1.8 ±30％ 80 0.019 7,200 3,900 100 *1, *2
NRS6045T 2R3NMGKV 2.3 ±30％ 60 0.022 6,400 3,600 100 *1, *2
NRS6045T 3R0NMGKV 3.0 ±30％ 45 0.024 5,600 3,300 100 *1, *2
NRS6045T 4R5MMGKV 4.5 ±20％ 25 0.030 4,400 3,100 100 *1, *2
NRS6045T 6R3MMGKV 6.3 ±20％ 15 0.036 3,600 3,000 100 *1, *2
NRS6045T 100MMGKV 10 ±20％ 12 0.046 3,100 2,400 100 *1, *2
NRS6045T 150MMGKV 15 ±20％ 10 0.070 2,500 1,900 100 *1, *2
NRS6045T 220MMGKV 22 ±20％ 7 0.107 2,000 1,600 100 *1, *2
NRS6045T 330MMGKV 33 ±20％ 6 0.141 1,650 1,400 100 *1, *2
NRS6045T 470MMGKV 47 ±20％ 5 0.211 1,400 1,150 100 *1, *2
NRS6045T 680MMGKV 68 ±20％ 4 0.304 1,100 950 100 *1, *2
NRS6045T 101MMGKV 100 ±20％ 3 0.466 900 750 100 *1, *2
●NRS8030 Shielded type
Saturation current
Idc1
Temperature rise current
Idc2
NRS8030T 1R0NJGJV 1.0 ±30％ 120 0.009 7,800 6,200 100 *1, *2
NRS8030T 1R5NJGJV 1.5 ±30％ 80 0.012 6,200 5,300 100 *1, *2
NRS8030T 2R2NJGJV 2.2 ±30％ 60 0.015 4,900 4,800 100 *1, *2
NRS8030T 3R3MJGJV 3.3 ±20％ 50 0.019 4,200 4,300 100 *1, *2
NRS8030T 4R7MJGJV 4.7 ±20％ 40 0.022 3,600 4,000 100 *1, *2
NRS8030T 6R8MJGJV 6.8 ±20％ 32 0.029 3,000 3,400 100 *1, *2
NRS8030T 100MJGJV 10 ±20％ 27 0.033 2,400 3,000 100 *1, *2
NRS8030T 150MJGJV 15 ±20％ 20 0.060 2,000 2,200 100 *1, *2
NRS8030T 220MJGJV 22 ±20％ 16 0.070 1,750 1,900 100 *1, *2
NRS8030T 330MJGJV 33 ±20％ 13 0.120 1,300 1,500 100 *1, *2
NRS8030T 470MJGJV 47 ±20％ 11 0.170 1,100 1,300 100 *1, *2
※） The saturation current value (Idc1) is the DC current value having inductance decrease down to 30%. (at 20℃)
※） The temperature rise current value（Idc2) is the DC current value having temperature increase up to 40℃. (at 20℃)
※） The rated current is the DC current value that satisfies both of current value saturation current value and temperature rise current value.
Part number Nominal inductance
［μH］ Inductance tolerance
Self-resonant
frequency
［MHz］（min.）
DC Resistance
［Ω］（±20％）
Rated current　※）　［mA］ Measuring
frequency［kHz］ Note
Part number Nominal inductance
［μH］ Inductance tolerance
Self-resonant
frequency
［MHz］（min.）
DC Resistance
［Ω］（±20％）
Rated current　※）　［mA］ Measuring
frequency［kHz］ Note
Part number Nominal inductance
［μH］ Inductance tolerance
Self-resonant
frequency
［MHz］（min.）
DC Resistance
［Ω］（±30％）
Rated current　※）　［mA］ Measuring
frequency［kHz］ Note
Part number Nominal inductance
［μH］ Inductance tolerance
Self-resonant
frequency
［MHz］（min.）
DC Resistance
［Ω］（±30％）
Rated current　※）　［mA］ Measuring
frequency［kHz］ Note
Part number Nominal inductance
［μH］ Inductance tolerance
Self-resonant
frequency
［MHz］（min.）
DC Resistance
［Ω］（±30％）
Rated current　※）　［mA］ Measuring
frequency［kHz］ Note
hq_i_smd_NR_e-E07R01
INDUCTORS POWER INDUCTORS
▶Thiscatalogcontainsthetypicalspecificationonlyduetothelimitationofspace.Whenyouconsiderthepurchaseofourproducts,pleasecheckourproductspecificationsheets.
Fordetailsofeachproduct(characteristicsgraph,reliabilityinformation,precautionsforuse,andsoon),seeourwebsite(http://www.ty-top.com/).
51
19
TAIYC) YUDEN 201B
■PART NUMBER
●NRS8040 Shielded type
Saturation current
Idc1
Temperature rise current
Idc2
NRS8040T 0R9NJGJV 0.9 ±30％ 85 0.006 13,000 7,800 100 *1, *2
NRS8040T 1R4NJGJV 1.4 ±30％ 63 0.007 10,000 7,000 100 *1, *2
NRS8040T 2R0NJGJV 2.0 ±30％ 50 0.009 8,100 6,300 100 *1, *2
NRS8040T 3R6NJGJV 3.6 ±30％ 34 0.015 6,400 4,900 100 *1, *2
NRS8040T 4R7NJGJV 4.7 ±30％ 30 0.018 5,400 4,100 100 *1, *2
NRS8040T 6R8NJGJV 6.8 ±30％ 24 0.025 4,400 3,700 100 *1, *2
NRS8040T 100MJGJV 10 ±20％ 22 0.034 3,800 3,100 100 *1, *2
NRS8040T 150MJGJV 15 ±20％ 16 0.050 2,900 2,400 100 *1, *2
NRS8040T 220MJGJV 22 ±20％ 13 0.066 2,400 2,200 100 *1, *2
NRS8040T 330MJGKV 33 ±20％ 12 0.100 2,000 1,700 100 *1, *2
NRS8040T 470MJGKV 47 ±20％ 8 0.140 1,500 1,500 100 *1, *2
NRS8040T 101MJGKV 100 ±20％ 6 0.280 1,100 1,000 100 *1, *2
※） The saturation current value (Idc1) is the DC current value having inductance decrease down to 30%. (at 20℃)
※） The temperature rise current value（Idc2) is the DC current value having temperature increase up to 40℃. (at 20℃)
※） The rated current is the DC current value that satisfies both of current value saturation current value and temperature rise current value.
Measuring
frequency［kHz］ NotePart number Nominal inductance
［μH］ Inductance tolerance
Self-resonant
frequency
［MHz］（min.）
DC Resistance
［Ω］（±30％）
Rated current　※）　［mA］
hq_i_smd_NR_e-E07R01
INDUCTORS POWER INDUCTORS
▶Thiscatalogcontainsthetypicalspecificationonlyduetothelimitationofspace.Whenyouconsiderthepurchaseofourproducts,pleasecheckourproductspecificationsheets.
Fordetailsofeachproduct(characteristicsgraph,reliabilityinformation,precautionsforuse,andsoon),seeourwebsite(http://www.ty-top.com/).
52
19
Max/3m 2 type ‘3 E % NR53015 type NHSAm 0 type NR54012 NHsaota type 5 E Z _% 5 e _% i i i i e e e ; NR55010 type NHssm 2 type NRSSUM type NRssozu _% «3 e 1% 5 5 i i E :2" e NR55024 type NRSSUSG type Nassuao type NHseom type i e z z z" 5 2 % a TAIYC) YUDEN 201B
INDUCTORS POWER INDUCTORS
▶Thiscatalogcontainsthetypicalspecificationonlyduetothelimitationofspace.Whenyouconsiderthepurchaseofourproducts,pleasecheckourproductspecificationsheets.
Fordetailsofeachproduct(characteristicsgraph,reliabilityinformation,precautionsforuse,andsoon),seeourwebsite(http://www.ty-top.com/).
■ Derating of Rated Current
●NR series H type/S type/V type
Derating of current is necessary for NR-series H type/S type/V type depending on ambient temperature.
Please refer to the chart shown below for appropriate derating of current.
53
19
-40 -20 0 20 40 60 80 100 120 14
0
120
100
80
60
40
20
0
Ambient Temperature (℃)
Ratio to rated current
(%)
NRS5010 type
Idc1
Idc2
-40 -20 0 20 40 60 80 100 120 14
0
120
100
80
60
40
20
0
Ambient Temperature (℃)
Ratio to rated current
(%)
NRS5024 type
Idc1
Idc2
-40 -20 0 20 40 60 80 100 120 14
0
120
100
80
60
40
20
0
Ambient Temperature (℃)
Ratio to rated current (%)
NRS5012 type
Idc1
Idc2
-40 -20 0 20 40 60 80 100 120 14
0
120
100
80
60
40
20
0
Ambient Temperature (℃)
Ratio to rated current (%)
NRS5030 type
Idc1
Idc2
-40 -20 0 20 40 60 80 100 120 14
0
120
100
80
60
40
20
0
Ambient Temperature (℃)
Ratio to rated current (%)
NRS5014 type
Idc1
Idc2
-40 -20 0 20 40 60 80 100 120 14
0
120
100
80
60
40
20
0
Ambient Temperature (
℃
)
Ratio to rated current
(%)
NRS5020 type
Idc1
Idc2
-40 -20 0 20 40 60 80 100 120 140
120
100
80
60
40
20
0
Ambient Temperature (
℃
)
Ratio to rated current (%)
NRH2410 type
Idc1
Idc2
-40 -20 0 20 40 60 80 100 120 140
120
100
80
60
40
20
0
Ambient Temperature (
℃
)
Ratio to rated current (%)
NRV2010 type
Idc1
Idc2
-40 -20 0 20 40 60 80 100 120 140
120
100
80
60
40
20
0
Ambient Temperature (℃)
Ratio to rated current (%)
NRH2412 type
Idc1
Idc2
-40 -20 0 20 40 60 80 100 120 140
120
100
80
60
40
20
0
Ambient Temperature (
℃
)
Ratio to rated current
(%)
NRV2012 type
Idc1
Idc2
-40 -20 0 20 40 60 80 100 120 140
120
100
80
60
40
20
0
Ambient Temperature (
℃
)
Ratio to rated current
(%)
NRH3010 type
Idc1
Idc2
-40 -20 0 20 40 60 80 100 120 140
120
100
80
60
40
20
0
Ambient Temperature (℃)
Ratio to rated current (%)
NRS2012 type
Idc1
Idc2
-40 -20 0 20 40 60 80 100 120 140
120
100
80
60
40
20
0
Ambient Temperature (℃)
Ratio to rated current (%)
NRH3012 type
Idc1
Idc2
-40 -20 0 20 40 60 80 100 120 14
0
120
100
80
60
40
20
0
Ambient Temperature (℃)
Ratio to rated current
(%)
NRS3015 type
Idc1
Idc2
-40 -20 0 20 40 60 80 100 120 14
0
120
100
80
60
40
20
0
Ambient Temperature (℃)
Ratio to rated current
(%)
NRV3012 type
Idc1
Idc2
-40 -20 0 20 40 60 80 100 120 14
0
120
100
80
60
40
20
0
Ambient Temperature (℃)
Ratio to rated current (%)
NRS4010 type
Idc1
Idc2
-40 -20 0 20 40 60 80 100 120 14
0
120
100
80
60
40
20
0
Ambient Temperature (℃)
Ratio to rated current (%)
NRS4012 type
Idc1
Idc2
-40 -20 0 20 40 60 80 100 120 14
0
120
100
80
60
40
20
0
Ambient Temperature (℃)
Ratio to rated current
(%)
NRS4018 type
Idc1
Idc2
-40 -20 0 20 40 60 80 100 120 14
0
120
100
80
60
40
20
0
Ambient Temperature (℃)
Ratio to rated current (%)
NRS5040 type
Idc1
Idc2
-40 -20 0 20 40 60 80 100 120 14
0
120
100
80
60
40
20
0
Ambient Temperature (℃)
Ratio to rated current
(%)
NRS6010 type
Idc1
Idc2
fur High Quality Equipment mm m mad mm mm m mm mm NRSGOIQ NHsems «ype mm mam.“ mm mum". NHSSm A We NRSSUZU type :3 NHsBoao type NRSBMU mm m mm mm NHSGUQB «we Rmmm vmdcunem TAIYD YUDEN 2015
INDUCTORS POWER INDUCTORS
▶Thiscatalogcontainsthetypicalspecificationonlyduetothelimitationofspace.Whenyouconsiderthepurchaseofourproducts,pleasecheckourproductspecificationsheets.
Fordetailsofeachproduct(characteristicsgraph,reliabilityinformation,precautionsforuse,andsoon),seeourwebsite(http://www.ty-top.com/).
■ Derating of Rated Current
●NR series H type/S type/V type
Derating of current is necessary for NR-series H type/S type/V type depending on ambient temperature.
Please refer to the chart shown below for appropriate derating of current.
54
19

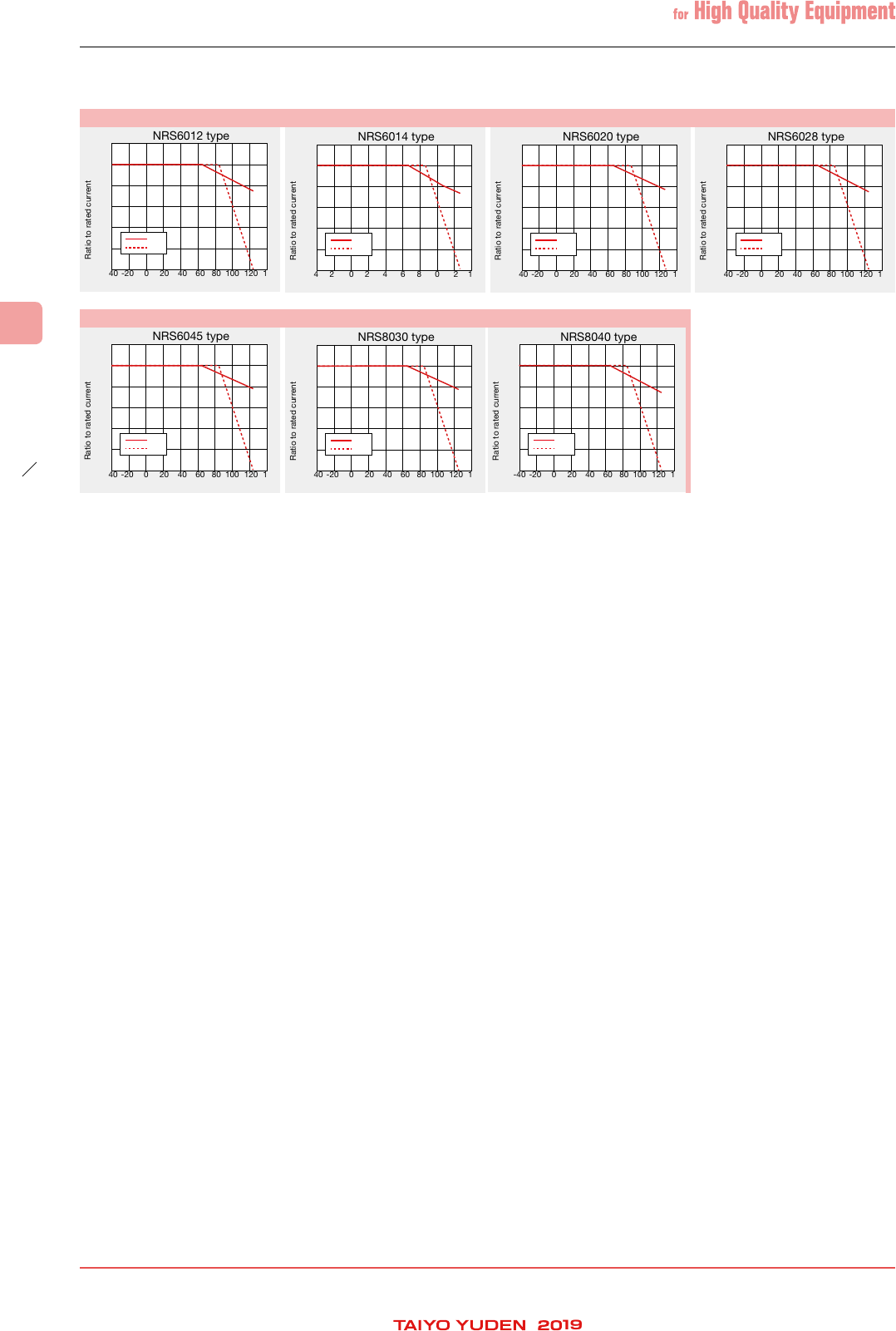

-40 -20 0 20 40 60 80 100 120 14
0
120
100
80
60
40
20
0
Ambient Temperature (℃)
Ratio to rated current (%)
NRS8040 type
Idc1
Idc2
-40 -20 0 20 40 60 80 100 120 14
0
120
100
80
60
40
20
0
Ambient Temperature (℃)
Ratio to rated current (%)
NRS6012 type
Idc1
Idc2
-40 -20 0 20 40 60 80 100 120 14
0
120
100
80
60
40
20
0
Ambient Temperature (℃)
Ratio to rated current (%)
NRS6014 type
Idc1
Idc2
-40 -20 0 20 40 60 80 100 120 14
0
120
100
80
60
40
20
0
Ambient Temperature (℃)
Ratio to rated current
(%)
NRS6020 type
Idc1
Idc2
-40 -20 0 20 40 60 80 100 120 14
0
120
100
80
60
40
20
0
Ambient Temperature (℃)
Ratio to rated current (%)
NRS6028 type
Idc1
Idc2
-40 -20 0 20 40 60 80 100 120 14
0
120
100
80
60
40
20
0
Ambient Temperature (℃)
Ratio to rated current (%)
NRS6045 type
Idc1
Idc2
-40 -20 0 20 40 60 80 100 120 14
0
120
100
80
60
40
20
0
Ambient Temperature (℃)
Ratio to rated current (%)
NRS8030 type
Idc1
Idc2
OOOOOO H U TAIYD YUDEN
▶ This catalog contains the typical specification only due to the limitation of space. When you consider the purchase of our products, please check our specification.
For details of each product (characteristics graph, reliability information, precautions for use, and so on), see our Web site (http://www.ty-top.com/) .
i_smd_NR_pack_e-E07R01
SMD POWER INDUCTORS (NR SERIES/NR SERIES H TYPE/M TYPE/S TYPE/V TYPE)
■PACKAGING
①Minimum Quantity
Type Standard Quantity [pcs]
Tape ＆ Reel
NRV2010 2500
NRS2012
NRV2012 2500
NRH2410 2500
NRH2412 2500
NR 3010
NRH3010 2000
NR 3012
NRH3012
NRV3012
2000
NR 3015
NRS3015 2000
NR 4010
NRS4010 5000
NR 4012
NRS4012 4500
NR 4018
NRS4018 3500
Type Standard Quantity [pcs]
Tape ＆ Reel
NRS5010 1000
NRS5012 1000
NRS5014 1000
NRS5020 800
NRS5024 2500
NRS5030 500
NR 5040
NRS5040 1500
NRS6010 1000
NR 6012
NRS6012 1000
NRS6014 1000
NR 6020
NRS6020 2500
NR 6028
NRS6028 2000
NR 6045
NRM6045
NRS6045
1500
NRS8030 1000
NR 8040
NRS8040 1000
②Tape Material
●Embossed Tape
Top tape
Base tape
Sprocket hole
Chip cavity
Chip
Chip Filled

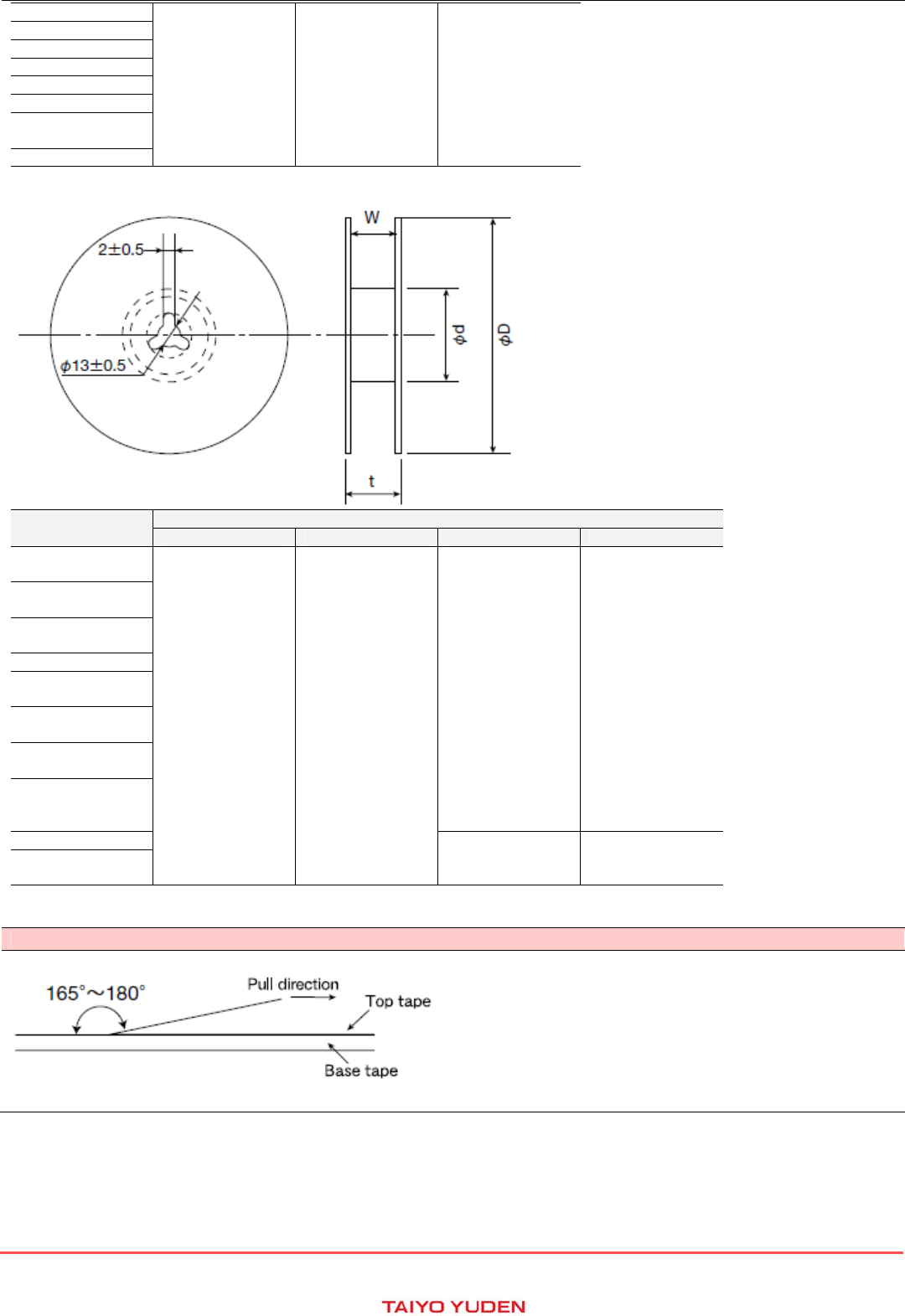

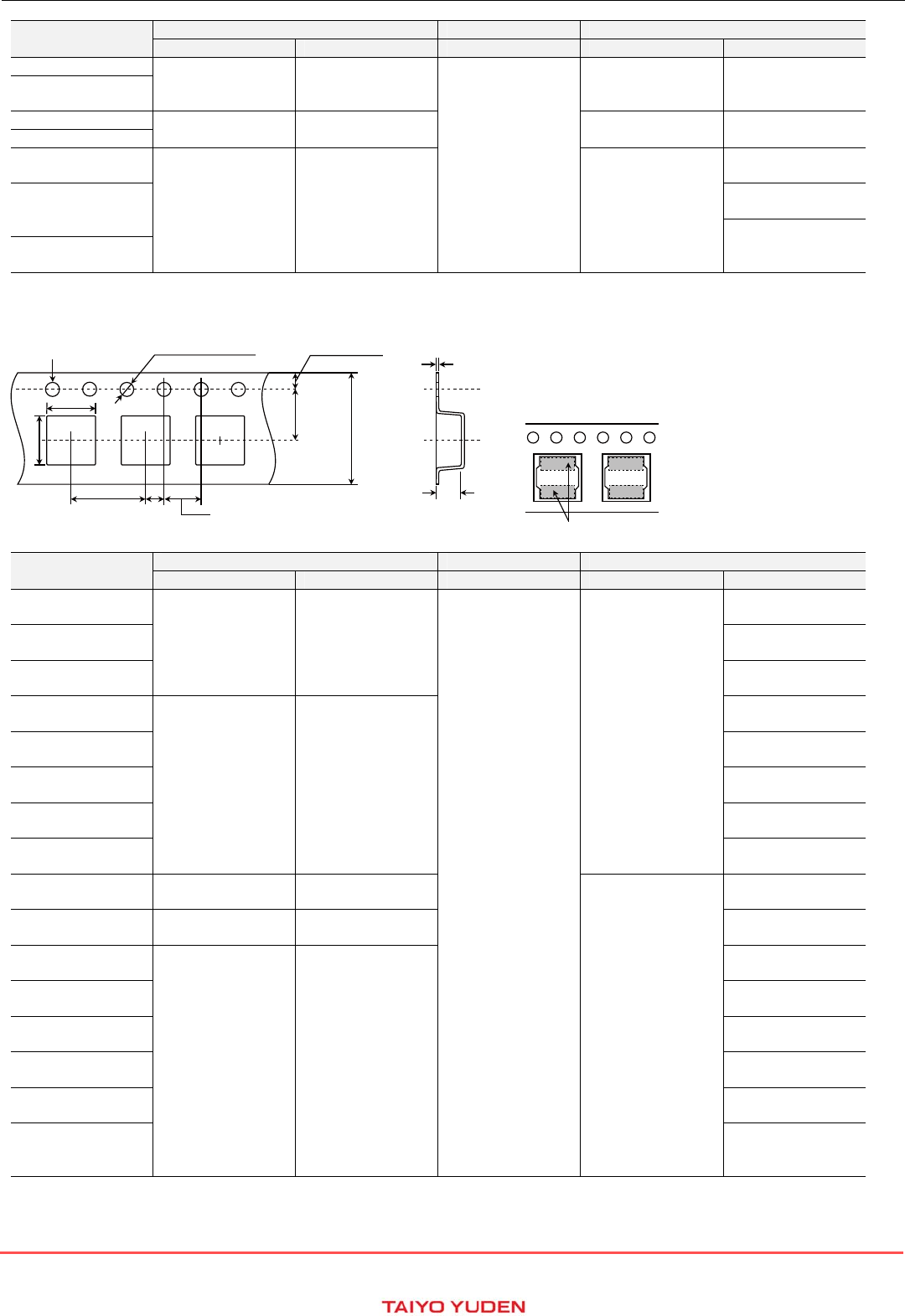

③Taping dimensions
●Embossed tape 8mm wide (0.315 inches wide)
F
2.0±0.05
(
0.079
±
0.002)
4.0±0.1
(0.157±0.004)
1.75
±
0.1
(0.069±0.004）
3.5±0.1
(0.138±0.004)
8.0±0.2
(0.315±0.008)
φ1.
5
＋
0.1/
－
0
(φ0.059＋0.004/-0)Sprocket hole
A
B
T
K
Electrode（bottom view）
41 1:5??? YYYYYYYYYY
▶ This catalog contains the typical specification only due to the limitation of space. When you consider the purchase of our products, please check our specification.
For details of each product (characteristics graph, reliability information, precautions for use, and so on), see our Web site (http://www.ty-top.com/) .
i_smd_NR_pack_e-E07R01
Type Chip cavity Insertion pitch Tape thickness
A B F T K
NRV2010 2.2±0.1
（0.102±0.004）
2.2±0.1
（0.102±0.004）
4.0±0.1
（0.157±0.004）
0.25±0.05
（0.009±0.002）
1.3±0.1
（0.051±0.004）
NRS2012
NRV2012
NRH2410 2.6±0.1
（0.087±0.004）
2.6±0.1
（0.102±0.004）
0.25±0.05
（0.009±0.002）
1.3±0.1
（0.051±0.004）
NRH2412
NR 3010
NRH3010
3.2±0.1
（0.126±0.004）
3.2±0.1
（0.126±0.004）
0.3±0.05
（0.012±0.002）
1.4±0.1
（0.055±0.004）
NR 3012
NRH3012
NRV3012
1.6±0.1
（0.063±0.004）
1.9±0.1
（0.075±0.004）
NR 3015
NRS3015
Unit：mm（inch）
●Embossed tape 12mm wide (0.47 inches wide)
T
K
F2.0±0.1
(0.079±0.004)
4.0±0.1
(0.157±0.004)
1.75±0.1
(0.069±0.004）
5.5±0.1
(0.217±0.004)
12.0±0.3
(0.472±0.012)
φ1.5＋0.1/－0
(φ0.059＋0.004/-0)
Sprocket hole
A
B
Electrode（bottom view）
Type Chip cavity Insertion pitch Tape thickness
A B F T K
NR 4010
NRS4010
4.3±0.1
（0.169±0.004）
4.3±0.1
（0.169±0.004）
8.0±0.1
（0.315±0.004）
0.3±0.1
（0.012±0.004）
1.4±0.1
（0.055±0.004）
NR 4012
NRS4012
1.6±0.1
（0.063±0.004）
NR 4018
NRS4018
2.1±0.1
（0.083±0.004）
NRS5010
5.25±0.1
（0.207±0.004）
5.25±0.1
（0.207±0.004）
1.4±0.1
（0.055±0.004）
NRS5012 1.4±0.1
（0.055±0.004）
NRS5014 1.6±0.1
（0.063±0.004）
NRS5020 2.3±0.1
（0.091±0.004）
NRS5024 2.7±0.1
（0.106±0.004）
NRS5030 5.15±0.1
（0.203±0.004）
5.15±0.1
（0.203±0.004）
0.4±0.1
（0.016±0.004）
3.2±0.1
（0.126±0.004）
NR 5040
NRS5040
5.15±0.1
（0.203±0.004）
5.15±0.1
（0.203±0.004）
4.2±0.1
（0.165±0.004）
NRS6010
6.3±0.1
（0.248±0.004）
6.3±0.1
（0.248±0.004）
1.4±0.1
（0.055±0.004）
NR 6012
NRS6012
1.6±0.1
（0.063±0.004）
NRS6014 1.6±0.1
（0.063±0.004）
NR 6020
NRS6020
2.3±0.1
（0.090±0.004）
NR 6028
NRS6028
3.1±0.1
（0.122±0.004）
NR 6045
NRM6045
NRS6045
4.7±0.1
（0.185±0.004）
Unit：mm（inch）
Blank parfiuns Chip cavity Blank partials Leader 0030 CO F a DMWWDJDDEH "DZ-oowjj 160nm orlec ‘ 100mm ormote (6.3 inches or move) (3.94 ilches or more) 400mm or more % (15.3 mm or more) Drection of lane feed u 9 2.5 or less (0.098incha or less) OD s TAIYO YUDEN
▶ This catalog contains the typical specification only due to the limitation of space. When you consider the purchase of our products, please check our specification.
For details of each product (characteristics graph, reliability information, precautions for use, and so on), see our Web site (http://www.ty-top.com/) .
i_smd_NR_pack_e-E07R01
●Embossed tape 16mm wide (0.63 inches wide)
F2.0±0.1
(0.079±0.004)
4.0±0.1
(0.157±0.004)
1.75±0.1
(0.069±0.004）
7.5±0.1
(0.295±0.004)
16.0±0.3
(0.630±0.012)
φ1.5±0.1
(φ0.059±0.004）
Sprocket hole
A
B
T
K
Electrode（bottom view）
Type Chip cavity Insertion pitch Tape thickness
A B F T K
NRS8030 8.3±0.1
（0.327±0.004）
8.3±0.1
（0.327±0.004）
12.0±0.1
（0.472±0.004）
0.5±0.1
（0.020±0.004）
3.4±0.1
（0.134±0.004）
NR 8040
NRS8040
4.5±0.1
（0.177±0.004）
Unit：mm（inch）
④Leader and Blank portion
●NR, NRH, NRS, NRV
⑤Reel size
Type Reel size (Reference values)
φD φd W
NRV2010
180±0.5
（7.087±0.019）
60±1.0
（2.36±0.04）
10.0±1.5
（0.394±0.059）
NRS2012
NRV2012
NRH2410
NRH2412
NR 3010
NRH3010
NR 3012
NRH3012
NRV3012
NR 3015
NRS3015
@D I a a PM gimme" 165 N180 W” —> Top tape —\7 Base ‘aDe TANG YUDEN
▶ This catalog contains the typical specification only due to the limitation of space. When you consider the purchase of our products, please check our specification.
For details of each product (characteristics graph, reliability information, precautions for use, and so on), see our Web site (http://www.ty-top.com/) .
i_smd_NR_pack_e-E07R01
NRS5010
180±3.0
（7.087±0.118）
60±2.0
（2.36±0.08）
14.0±1.5
（0.551±0.059）
NRS5012
NRS5014
NRS5020
NRS5030
NRS6010
NR 6012
NRS6012
NRS6014
Unit：mm（inch）
Type Reel size (Reference values)
φD φd t（max.） W
NR 4010
NRS4010
330±3.0
（12.99±0.118）
80±2.0
（3.15±0.078）
18.5
（0.72）
13.5±1.0
（0.531±0.04）
NR 4012
NRS4012
NR 4018
NRS4018
NRS5024
NR 5040
NRS5040
NR 6020
NRS6020
NR 6028
NRS6028
NR 6045
NRM6045
NRS6045
NRS8030 22.5
（0.89）
17.5±1.0
（0.689±0.04）
NR 8040
NRS8040
Unit：mm（inch）
⑥Top Tape Strength
The top tape requires a peel-off force of 0.1 to 1.3N in the direction of the arrow as illustrated below.
TAIYO YUDEN
▶ This catalog contains the typical specification only due to the limitation of space. When you consider the purchase of our products, please check our specification.
For details of each product (characteristics graph, reliability information, precautions for use, and so on), see our Web site (http://www.ty-top.com/) .
hq_i_smd_NR_reli_e-E06R01
SMD POWER INDUCTORS （NR□ SERIES）
■RELIABILITY DATA
1. Operating Temperature Range
Specified Value NRV20/30Type,NRH24/30Type
NRS20/30/40/50/60/80Type －40～＋125℃（Including self-generated heat）
Test Methods and
Remarks Including self-generated heat
2. Storage Temperature Range
Specified Value NRV20/30Type,NRH24/30Type
NRS20/30/40/50/60/80Type －40～＋85℃
Test Methods and
Remarks －5 to 40℃ for the product with taping.
3. Rated current
Specified Value NRV20/30Type,NRH24/30Type
NRS20/30/40/50/60/80Type Within the specified tolerance
4. Inductance
Specified Value NRV20/30Type,NRH24/30Type
NRS20/30/40/50/60/80Type Within the specified tolerance
Test Methods and
Remarks
Measuring equipment : LCR Meter （HP 4285A or equivalent）
Measuring frequency : 100kHz, 1V
5. DC Resistance
Specified Value NRV20/30Type,NRH24/30Type
NRS20/30/40/50/60/80Type Within the specified tolerance
Test Methods and
Remarks Measuring equipment : DC ohmmeter （HIOKI 3227 or equivalent）
6. Self resonance frequency
Specified Value
NRV30Type,NRH24/30Type
NRS30/40/50/60/80Type Within the specified tolerance
NRV20,NRS20 －
Test Methods and
Remarks
NRV30,NRH24/30,NRS30/40/50/60/80Type
Measuring equipment : Impedance analyzer/material analyzer（HP4291A or equivalent HP4191A, 4192A or equivalent）
7. Temperature characteristic
Specified Value NRV20/30Type,NRH24/30Type
NRS20/30/40/50/60/80Type Inductance change : Within ±20%
Test Methods and
Remarks
NRV20/30, NRH24/30, NRS20/30/40/50/60/80 Type, :
Measurement of inductance shall be taken at temperature range within －40℃～＋85℃.
With reference to inductance value at ＋20℃., change rate shall be calculated.
Change of maximum inductance deviation in step 1 to 5
Step Temperature（℃）
1 20
2 Minimum operating temperature
3 20 (Standard temperature)
4 Maximum operating temperature
5 20
Force Rod 20 1o, 7 nzan ¢ i Boald w—m— 1sn Sample ‘ .5+2mm 45+2mm 4—» R5 D $10N‘55 TAIYO YUDEN
▶ This catalog contains the typical specification only due to the limitation of space. When you consider the purchase of our products, please check our specification.
For details of each product (characteristics graph, reliability information, precautions for use, and so on), see our Web site (http://www.ty-top.com/) .
hq_i_smd_NR_reli_e-E06R01
8. Resistance to flexure of substrate
Specified Value NRV20/30Type,NRH24/30Type
NRS20/30/40/50/60/80Type No damage
Test Methods and
Remarks
The test samples shall be soldered to the test board by the reflow. As illustrated below, apply force in the direction of the arrow indicating
until deflection of the test board reaches to 2 mm.
Test board size : 100×40×1.0
Test board material : glass epoxy-resin
Solder cream thickness : 0.10mm ( NRS20/30, NRH24/30, NRV20/30Type)
: 0.15mm ( NRS40/50/60/80Type)
Land dimension
A
A B
C
Type A B C
NRS20, NRV20 0.65 0.7 2.0
NRH24 0.7 0.75 2.0
NRV30,NRH30,NRS30 0.8 1.4 2.7
NRS40 1.2 1.6 3.7
NRS50 1.5 2.1 4.0
NRS60 1.6 3.1 5.7
NRS80 1.8 3.8 7.5
9. Insulation resistance : between wires
Specified Value NRV20/30Type,NRH24/30Type
NRS20/30/40/50/60/80Type －
10. Insulation resistance : between wire and core
Specified Value NRV20/30Type,NRH24/30Type
NRS20/30/40/50/60/80Type －
11. Withstanding voltage : between wire and core
Specified Value NRV20/30Type,NRH24/30Type
NRS20/30/40/50/60/80Type －
12. Adhesion of terminal electrode
Specified Value NRV20/30Type,NRH24/30Type
NRS20/30/40/50/60/80Type Shall not come off PC board
Test Methods and
Remarks
The test samples shall be soldered to the test board by the reflow.
Applied force : 10N to X and Y directions.
Duration : 5s.
Solder cream thickness : 0.10mm（NRV20/30Tyｐｅ,NRH24/30type,NRS20/30Type）
: 0.15mm（NRS40/50/60/80Type）
13. Resistance to vibration
Specified Value NRV20/30Type,NRH24/30Type
NRS20/30/40/50/60/80Type
Inductance change : Within ±10%
No significant abnormality in appearance.
Test Methods and
Remarks
The test samples shall be soldered to the test board by the reflow.
Then it shall be submitted to below test conditions.
Frequency Range 10～55Hz
Total Amplitude 1.5mm (May not exceed acceleration 196m/s2)
Sweeping Method 10Hz to 55Hz to 10Hz for 1min.
Time
X
For 2 hours on each X, Y, and Z axis. Y
Z
Recovery : At least 2hrs of recovery under the standard condition after the test, followed by the measurement within 48hrs.
TAIYO YUDEN
▶ This catalog contains the typical specification only due to the limitation of space. When you consider the purchase of our products, please check our specification.
For details of each product (characteristics graph, reliability information, precautions for use, and so on), see our Web site (http://www.ty-top.com/) .
hq_i_smd_NR_reli_e-E06R01
14. Solderability
Specified Value NRV20/30Type,NRH24/30Type
NRS20/30/40/50/60/80Type At least 90％ of surface of terminal electrode is covered by new solder.
Test Methods and
Remarks
The test samples shall be dipped in flux, and then immersed in molten solder as shown in below table.
Flux : Methanol solution containing rosin 25%.
Solder Temperature 245±5℃
Time 5±1.0 sec.
※Immersion depth : All sides of mounting terminal shall be immersed.
15. Resistance to soldering heat
Specified Value NRV20/30Type,NRH24/30Type
NRS20/30/40/50/60/80Type
Inductance change : Within ±10%
No significant abnormality in appearance.
Test Methods and
Remarks
The test sample shall be exposed to reflow oven at 230±5℃ for 40 seconds, with peak temperature at 260±5℃ for 5 seconds, 2 times.
Test board material : glass epoxy-resin
Test board thickness : 1.0mm
16. Thermal shock
Specified Value NRV20/30Type,NRH24/30Type
NRS20/30/40/50/60/80Type
Inductance change : Within ±10%
No significant abnormality in appearance.
Test Methods and
Remarks
The test samples shall be soldered to the test board by the reflow. The test samples shall be placed at specified temperature for specified
time by step 1 to step 4 as shown in below table in sequence. The temperature cycle shall be repeated 1000 cycles.
Conditions of 1 cycle
Step Temperature (℃) Duration (min)
1 －40±3 30±3
2 Room temperature Within 3
3 ＋85±2 30±3
4 Room temperature Within 3
17. Damp heat
Specified Value NRV20/30Type,NRH24/30Type
NRS20/30/40/50/60/80Type
Inductance change : Within ±10%
No significant abnormality in appearance.
Test Methods and
Remarks
The test samples shall be soldered to the test board by the reflow.
The test samples shall be placed in thermostatic oven set at specified temperature and humidity as shown in below table.
Temperature 60±2℃
Humidity 90～95%RH
Time 1000＋24/－0 hour
18. Loading under damp heat
Specified Value NRV20/30Type,NRH24/30Type
NRS20/30/40/50/60/80Type
Inductance change : Within ±10%
No significant abnormality in appearance.
Test Methods and
Remarks
The test samples shall be soldered to the test board by the reflow.
The test samples shall be placed in thermostatic oven set at specified temperature and humidity and applied the rated current
continuously as shown in below table.
Temperature 60±2℃
Humidity 90～95％RH
Applied current Rated current
Time 1000＋24/－0 hour
19. Low temperature life test
Specified Value NRV20/30Type,NRH24/30Type
NRS20/30/40/50/60/80Type
Inductance change : Within ±10%
No significant abnormality in appearance.
Test Methods and
Remarks
The test samples shall be soldered to the test board by the reflow. After that, the test samples shall be placed at test conditions as shown
in below table.
Temperature －40±2℃
Time 1000＋24/－0 hour
TAIYO YUDEN
▶ This catalog contains the typical specification only due to the limitation of space. When you consider the purchase of our products, please check our specification.
For details of each product (characteristics graph, reliability information, precautions for use, and so on), see our Web site (http://www.ty-top.com/) .
hq_i_smd_NR_reli_e-E06R01
20. High temperature life test
Specified Value NRV20/30Type,NRH24/30Type
NRS20/30/40/50/60/80Type －
21. Loading at high temperature life test
Specified Value NRV20/30Type,NRH24/30Type
NRS20/30/40/50/60/80Type
Inductance change : Within ±10%
No significant abnormality in appearance.
Test Methods and
Remarks
The test samples shall be soldered to the test board by the reflow soldering.
Temperature 85±2℃
Applied current Rated current
Time 1000＋24/－0 hour
22. Standard condition
Specified Value NRV20/30Type,NRH24/30Type
NRS20/30/40/50/60/80Type
Standard test condition :
Unless otherwise specified, temperature is 20±15℃ and 65±20％of
relative humidity.
When there is any question concerning measurement result: In order to
provide correlation data, the test shall be condition of 20±2℃ of
temperature, 65±5% relative humidity.
Inductance is in accordance with our measured value.
TAIYO YUDEN
▶ This catalog contains the typical specification only due to the limitation of space. When you consider the purchase of our products, please check our specification.
For details of each product (characteristics graph, reliability information, precautions for use, and so on), see our Web site (http://www.ty-top.com/)
hq_i_smd_NR_NS_EST_prec_e-E07R01
SMD POWER INDUCTORS （NR, NS, ES SERIES）
■PRECAUTIONS
1. Circuit Design
Precautions
◆Operating environment
1. The products listed in this catalogue are intended for use in general electronic equipment (e.g., AV equipment, OA equipment, home electric
appliances, office equipment, information and communication equipment), general medical equipment, industrial equipment, and automotive
interior applications, etc.
Please be sure to contact TAIYO YUDEN for further information before using the products for any equipment which may directly cause
loss of human life or bodily injury (e.g., specially controlled medical equipment, transportation equipment including, without limitation,
automotive powertrain control system, train control system, and ship control system, traffic signal equipment).
Please do not incorporate our products into any equipment requiring high levels of safety and/or reliability (e.g., aerospace equipment,
aviation equipment, nuclear control equipment, undersea equipment, military equipment, etc.).
2. PCB Design
Precautions
◆Land pattern design
1. Please refer to a recommended land pattern.
2. There is stress, which has been caused by distortion of a PCB, to the inductor. (NRV20/30, NRH24/30, NRS20/30/40/50/60/80,
NRM60 Type)
3. Please consider the arrangement of parts on a PCB. (NRV20/30, NRH24/30, NRS20/30/40/50/60/80, NRM60 Type)
Technical
considerations
◆Land pattern design
Surface Mounting
1. Mounting and soldering conditions should be checked beforehand.
2. Applicable soldering process to this products is reflow soldering only.
3. Please use the recommended land pattern shown as below. Electrical characteristics and the mounting ability of the product are being
considered in the recommended land pattern. If a PCB is designed with other dimensions, defective soldering and stress to a product
may occur due to misalignment. The performance of the product may not be brought out. If an adopted land pattern is different from the
recommended land pattern, stress to the product will increase. It may cause cracks or defective electrical characteristics of the
product. Please conduct validation completely before studying adoption of this product and please judge the pros and cons of adoption
of this product with taking on responsibility. (NR30/40/50/60/80, NRV20/30, NRH24/30, NRS20/30/40/50/60/80, NRM60 Type)
4. As coefficients of thermal expansion between an inductor and a PCB differs, cracks may occur on a ferrite core when thermal stress is
applied to them after mounting an inductor. (Please refer to the drawings below.) Please conduct validation completely before studying
adoption of this product and please judge the pros and cons of adoption of this product with taking on responsibility.
(NRV20/30, NRH24/30, NRS20/30/40/50/60/80, NRM60 Type)
5. SMD inductors should be located to minimize any possible mechanical stresses from board warp or deflection. When splitting the PC
board after mounting inductors and other components, care is required so as not to give any stresses of deflection or twisting to the
board. ( NRV20/30, NRH24/30, NRS20/30/40/50/60/80, NRM60 Type)
A
B
C
D
Electrode
Perforation
Slit
A product tends to undergo stress in order “A>C>B≡D”.
Please consider the layouts of a product to minimize any stresses.
Clack on ferrite core
Solder, electrode
PCB
TAIYO YUDEN
▶ This catalog contains the typical specification only due to the limitation of space. When you consider the purchase of our products, please check our specification.
For details of each product (characteristics graph, reliability information, precautions for use, and so on), see our Web site (http://www.ty-top.com/)
hq_i_smd_NR_NS_EST_prec_e-E07R01
3. Considerations for automatic placement
Precautions
◆Adjustment of mounting machine
1. Excessive impact load should not be imposed on the products when mounting onto the PC boards.
2. Mounting and soldering conditions should be checked beforehand.
Technical
considerations
◆Adjustment of mounting machine
1. When installing products, care should be taken not to apply distortion stress as it may deform the products.
2. Stress may be applied to a product with a warp or a twist in handling of the product. Please conduct validation completely before
studying adoption of this product and please judge the pros and cons of adoption of this product with taking on responsibility.
(NRV20/30, NRH24/30, NRS20/30/40/50/60/80, NRM60 Type)
＜Wrap＞ ＜Twist＞
4. Soldering
Precautions
◆Reflow soldering
1. Please contact any of our offices for a reflow soldering, and refer to the recommended condition specified.
2. The product shall be used reflow soldering only.
3. Please do not add any stress to a product until it returns in normal temperature after reflow soldering.
◆Lead free soldering
1. When using products with lead free soldering, we request to use them after confirming adhesion, temperature of resistance to soldering
heat, soldering etc sufficiently.
◆Recommended conditions for using a soldering iron
・ Put the soldering iron on the land-pattern.
・ Soldering iron's temperature - Below 350℃
・ Duration - 3 seconds or less
・ The soldering iron should not directly touch the inductor.
Technical
considerations
◆Reflow soldering
1. If products are used beyond the range of the recommended conditions, heat stresses may deform the products, and consequently
degrade the reliability of the products.
・ NRV20/30, NRH24/30, NRS20/30/40/50/60/80, NRM60 Type, NS101/125 Type, EST0645/1040/1060 Type
Recommended reflow condition (Pb free solder)
NR, NS Series ES Series
5sec max
Peak：250＋5/－0℃
30±10sec
230℃ min
90±30sec
150～180
Heating Time［sec］
Temperature［℃］
300
200
100
0
5sec max
Peak：245℃
30±10sec
230℃ min
90±30sec
150～180
Heating Time［sec］
Temperature［℃］
300
200
100
0
5. Cleaning
Precautions ◆Cleaning conditions
1. Washing by supersonic waves shall be avoided.
Technical
considerations
◆Cleaning conditions
1. If washed by supersonic waves, the products might be broken.
6. Handling
TAIYD YUDEN
▶ This catalog contains the typical specification only due to the limitation of space. When you consider the purchase of our products, please check our specification.
For details of each product (characteristics graph, reliability information, precautions for use, and so on), see our Web site (http://www.ty-top.com/)
hq_i_smd_NR_NS_EST_prec_e-E07R01
Precautions
◆Handling
1. Keep the product away from all magnets and magnetic objects.
◆Breakaway PC boards (splitting along perforations)
1. When splitting the PC board after mounting product, care should be taken not to give any stresses of deflection or twisting to the board.
2. Board separation should not be done manually, but by using the appropriate devices.
◆Mechanical considerations
1. Please do not give the product any excessive mechanical shocks.
2. Please do not add any shock and power to a product in transportation.
◆Pick-up pressure
1. Please do not push to add any pressure to a winding part. Please do not give any shock and push into a ferrite core exposure part.
◆Packing
1. Please avoid accumulation of a packing box as much as possible.
Technical
considerations
◆Handling
1. There is a case that a characteristic varies with magnetic influence.
◆Breakaway PC boards (splitting along perforations)
1. The position of the product on PCBs shall be carefully considered to minimize the stress caused from splitting of the PCBs.
◆Mechanical considerations
1. There is a case to be damaged by a mechanical shock.
2. There is a case to be broken by the handling in transportation.
◆Pick-up pressure
1. Damage and a characteristic can vary with an excessive shock or stress.
◆Packing
1. If packing boxes are accumulated, that could cause a deformation on packing tapes or a damage on the products.
7. Storage conditions
Precautions
◆Storage
1. To maintain the solderability of terminal electrodes and to keep the packing material in good condition, temperature and humidity in the
storage area should be controlled.
・ Recommended conditions
Ambient temperature : －5～40℃
Humidity : Below 70% RH
・ The ambient temperature must be kept below 30℃. Even under ideal storage conditions, solderability of products electrodes may
decrease as time passes.
For this reason, product should be used within 6 months from the time of delivery.
In case of storage over 6 months, solderability shall be checked before actual usage.
Technical
considerations
◆Storage
1. Under a high temperature and humidity environment, problems such as reduced solderability caused by oxidation of terminal electrodes
and deterioration of taping/packaging materials may take place.
