LPF-60D series
‧
‧
‧
‧
‧

～

℃℃


 



‧
‧
‧
‧
‧
‧
‧
‧
IP67
 
60W Constant Current Mode LED Driver


MW MEAN WELL SPECIFICATION FREQUENCY RANGE EFFICIENCY [Typl AC CURRENT WORKING TEMP WORKING HUMIDITY STORAGE TEMP. HUMIDITY ISOLATION RESISTANCE EMc IMMUNITY DIMENSION PACKING
LPF-60D series
SPECIFICATION
MODEL
OUTPUT
VOLTAGE RANGE Note.5
FREQUENCY RANGE
POWER FACTOR
EFFICIENCY (Typ.)
AC CURRENT
INPUT
INRUSH CURRENT(Typ.)
LEAKAGE CURRENT
EMC IMMUNITY
WORKING TEMP.
WORKING HUMIDITY
STORAGE TEMP., HUMIDITY
TEMP. COEFFICIENT
VIBRATION
MTBF
DIMENSIONOTHERS
NOTE
PACKING
OVER TEMPERATURE
OVER VOLTAGE
47 ~ 63Hz
<0.75mA / 240VAC
Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧60%) ; BS EN/EN61000-3-3,
GB17743 and GB17625.1,EAC TP TC 020
20 ~ 95% RH non-condensing
-40 ~ +80℃, 10 ~ 95% RH
±0.03%/℃ (0 ~ 50℃)
10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
1202.9K hrs min. Telcordia SR-332 (Bellcore) ; 396.7Khrs min. MIL-HDBK-217F (25℃)
ENVIRONMENT
EMC EMISSION Note.8
SAFETY &
EMC
PROTECTION
I/P-O/P:3.75KVAC
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
WITHSTAND VOLTAGE
ISOLATION RESISTANCE
TOTAL HARMONIC DISTORTION
DC VOLTAGE
RATED CURRENT
RATED POWER Note.5
SETUP, RISE TIME Note.6
HOLD UP TIME (Typ.)
CONSTANT CURRENT REGION Note.2
OVER CURRENT
SAFETY STANDARDS Note.8
COLD START 55A(twidth=270 s measured at 50% Ipeak) at 230VACμ ; Per NEMA 410
MAX. No. of PSUs on 16A
CIRCUIT BREAKER 8 units (circuit breaker of type B) / 14 units (circuit breaker of type C) at 230VAC
MAX. CASE TEMP. Tcase=+80℃
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level (surge immunity Line-Line 2KV),EAC TP TC 020
(Please refer to "STATIC CHARACTERISTIC" section)
90 ~ 305VAC 127 ~ 431VDC
℃









℃

℃℃

https://www.meanwell.com/Upload/PDF/LED_EN.pdf
※   ：  ,    https://www.meanwell.com/serviceDisclaimer.aspx
95 ~ 108%
Constant current limiting, recovers automatically after fault condition is removed
PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load
(Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
THD< 20%(@load≧60%/115VC,230VAC; @load≧75%/277VAC)
(Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
Tcase=-40 ~ +80℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
Shut down o/p voltage, re-power on to recover
16ms/230VAC 16ms/115VAC
1000ms, 80ms / 115VAC 500ms, 80ms / 230VAC
Shut down o/p voltage, re-power on to recover
60W Constant Current Mode LED Driver
CURRENT TOLERANCE
CURRENT RIPPLE
±5.0%
5.0% max. @rated current
LPF-60D-12 LPF-60D-15 LPF-60D-20 LPF-60D-24 LPF-60D-30 LPF-60D-36 LPF-60D-42 LPF-60D-48 LPF-60D-54
12V 15V 20V 24V 30V 36V 48V 54V
42V
5A 4A 3A 2.5A 2A 1.67A 1.25A 1.12A
1.43A
60W 60W 60W 60W 60W 60.12W 60W 60.48W
60.06W
7.2 ~12V 9 ~ 15V 12 ~ 20V 14.4 ~ 24V 18 ~ 30V 21.6 ~ 36V 28.8 ~ 48V 32.4 ~ 54V
25.2 ~ 42V
86% 87% 88% 89% 90% 90% 90%90% 90%
0.8A / 115VAC 0.4A / 230VAC 0.32A/277VAC
15 ~ 17V 17.5 ~ 21V 23 ~ 27V 28 ~ 35V 34 ~ 40V 41 ~ 49V 54 ~ 63V
46 ~ 54V 59 ~ 66V
UL8750, CSA C22.2 No. 250.0-08, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384,
EAC TP TC 004 GB19510.1,GB19510.14 approved ; design refer to UL60950-1, IP67,
162.5*43*32mm (L*W*H)
0.45Kg; 32pcs/15.4Kg/0.93CUFT
SHORT CIRCUIT Hiccup mode, recovers automatically after fault condition is removed.
File Name:LPF-60D-SPEC 2021-08-13
MW MEAN WELL
LPF-60D series

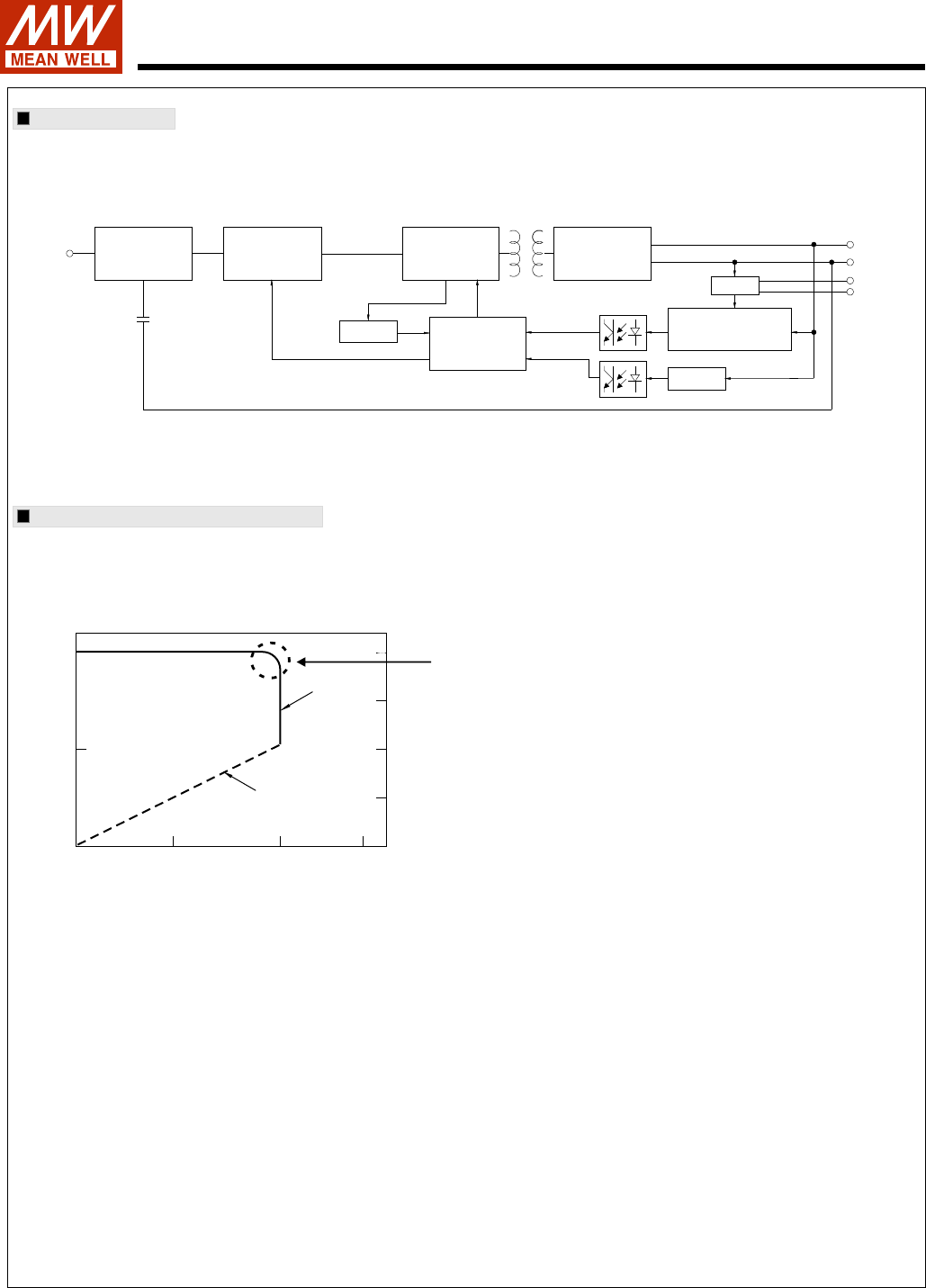

BLOCK DIAGRAM
fosc : 100KHz
DRIVING METHODS OF LED MODULE
60W Constant Current Mode LED Driver
※ This series works in constant current mode to directly drive the LEDs.
Typical output current normalized by rated current (%)
In the constant current region, the highest voltage at the output of the driver
depends on the configuration of the end systems.
Should there be any compatibility issues, please contact MEAN WELL.
100
60
(min.)
Vo(%)
50 100 Io(%)
Constant
Current area
Hiccup
Protection
DIM+
DIM-
DETECTION
PWM & PFC CIRCUIT
O.L.P.
EMI FILTER
RECTIFIERS
POWER
SWITCHING
FILTER
&
RECTIFIERS +V
-V
I/P
CONTROL
O.V.P.
&
O.L.P.
PFC
CIRCUIT
File Name:LPF-60D-SPEC 2021-08-13
MW MEAN WELL 2|:IMEEQ} ‘ g fimfll:a
DIMMING OPERATION
※ 3 in 1 dimming function
LPF-60D series
60W Constant Current Mode LED Driver
◎ Applying additive 1 ~ 10VDC
◎ Applying additive 10V PWM signal (frequency range 100Hz ~ 3KHz):
◎ Applying additive resistance:
+V
-V
DIM+
DIM-
++
+
--
-
“DO NOT connect "DIM- to -V"
Additive Voltage
+V
-V
DIM+
DIM-
++
--
“DO NOT connect "DIM- to -V"
Additive PWM signal
+V
-V
DIM+
DIM-
++
--
“DO NOT connect "DIM- to -V"
Additive Resistance
1V 2V 3V 4V 5V 6V 7V 8V 9V 10V
10%
20%
30%
40%
50%
60%
70%
80%
90%
100%
Output current (%)
10% 20% 30% 40% 50% 60% 70% 80% 90% 100%
10%
20%
30%
40%
50%
60%
70%
80%
90%
100%
Output current (%)
10%
20%
30%
40%
50%
60%
70%
80%
90%
100%
10K/N
Output current (%)
20K/N 30K/N 40K/N 50K/N 60K/N 70K/N 80K/N 90K/N 100K/N
Dimming input: Additive voltage
Duty cycle of additive 10V PWM signal dimming input
(N=driver quantity for synchronized dimming operation)
Dimming input: Additive resistance
‧Output constant current level can be adjusted by applying one of the three methodologies between DIM+ and DIM-:
1 ~ 10VDC, or 10V PWM signal or resistance.
Direct connecting to LEDs is suggested. It is not suitable with additional drivers.‧ to be used
Dimming source current from power supply: 1 0 A (typ.)‧0μ
LPF-60D
AC/N(Blue)
AC/L(Brown) +V(Red)
-V(Black)
DIM+(Blue)
DIM-(White)
File Name:LPF-60D-SPEC 2021-08-13
MW MEAN WELL
Note: In the case of turning the lighting fixture down to 0% brightness, please refer to the configuration as follow, or please contact MEAN WELL
for other options.
Using a switch and relay can turn ON/OFF the lighting fixture.
N L
Relay
Blue
Brown AC/L
AC/N
LPF-60D
DIM+
DIM-
V(-)
V(+)
Blue
White
Black
Red
Switch Adjuster
10K/N~100K/N Ohms resistance
1~10V DC Voltage
10V PWM Signal
LED Lighting Fixture
LPF-60D series
60W Constant Current Mode LED Driver
File Name:LPF-60D-SPEC 2021-08-13
MW MEAN WELL T: Cl
0.84
0.85
0.86
0.87
0.88
0.89
0.9
0.91
0.92
0.93
0.94
0.95
0.96
0.97
0.98
0.99
1
50% 60% 70% 80% 90% 100%
277VAC
230VAC
115VAC
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
10% 20% 30% 40% 50% 60% 70% 80% 90% 100%
277VAC
230VAC
115VAC
(60W)
LPF-60D series
PF
LOAD
OUTPUT LOAD vs TEMPERATURE
STATIC CHARACTERISTIC
TOTAL HARMONIC DISTORTION (THD)
AMBIENT TEMPERATURE,Ta ( )℃
LOAD (%)
INPUT VOLTAGE (V) 60Hz
LOAD (%)
(HORIZONTAL)
POWER FACTOR (PF) CHARACTERISTIC
※De-rating is needed under low input voltage.
EFFICIENCY vs LOAD
LPF-60D series possess superior working efficiency that up to 90% can
be reached in field applications.
※48V Model, Tcase at 70℃※48V Model, Tcase at 70℃
EFFICIENCY(%)
LOAD
THD
LOAD
※Tcase at 70℃
LOAD (%)
(HORIZONTAL)
-40 0-15 15 30 50 65 80
20
40
60
80
100
Tcase ( )℃
60W Constant Current Mode LED Driver
20
40
60
80
100
-30 0 15 3004050-40 60 70
230VAC
Input only
50
-30
230VAC
Input only
90 100 125 135 145 155 165 175 180 200 230 305
100
90
80
70
60
50
40
175
0%
2%
4%
6%
8%
10%
12%
14%
16%
18%
20%
22%
24%
26%
28%
50% 60% 70% 80% 90% 100%
277VAC
230VAC
115VAC
File Name:LPF-60D-SPEC 2021-08-13
MW MEAN WELL
0
20
40
60
80
100
120
20 30 40 50 60 70 80
LPF-60D series
LIFE TIME
Tc a s e )(℃
LIFETIME(Kh)
60W Constant Current Mode LED Driver
File Name:LPF-60D-SPEC 2021-08-13
MW I —ig ::I ‘ * ME,£:1bLflmm:a -I® ‘ ‘ :t:[§flfiw flmfl:§ I " w ‘ :u:[:ggm ‘JWE
MECHANICAL SPECIFICATION
LPF-60D series
CASE NO.: LPF-60B Unit:mm
60W Constant Current Mode LED Driver
tc
‧ : Max. Case Temperature
tc
ψ3.6
3.5
3.5
ψ3.6
3.5
3.5
43
60
13
32
Style 2464 18AWG×2C(+V,-V)
Style 2464 22AWG×2C(DIM+,DIM-)
AC/L(Brown)
AC/N(Blue)
300±20 300±20
162.5
+V(Red)
DIM+(Blue)
-V(Black)
DIM-(White)
File Name:LPF-60D-SPEC 2021-08-13
INSTALLATION MANUAL
Please refer to : http://www.meanwell.com/manual.html
Recommend Mounting Direction
SJOW 17AWG×2C H05RN-F ×2
& 2 1.0mm
