Scheda tecnica CJS Series di Nidec Components Corporation

RoHS compliant CJS1201TB1 +T W [%
CJS
SLIDE SWITCHES (SMD)
※Please refer to the LIST OF PART NUMBERS when placing orders.
● RoHS compliant
● Easy to set slider with line marking
● With neutral detent type lined up to 1 pole 2contacts
switch
● Compatible with most automatic pick & place machinery
● Compact and space saving SMD type
■
FEATURES

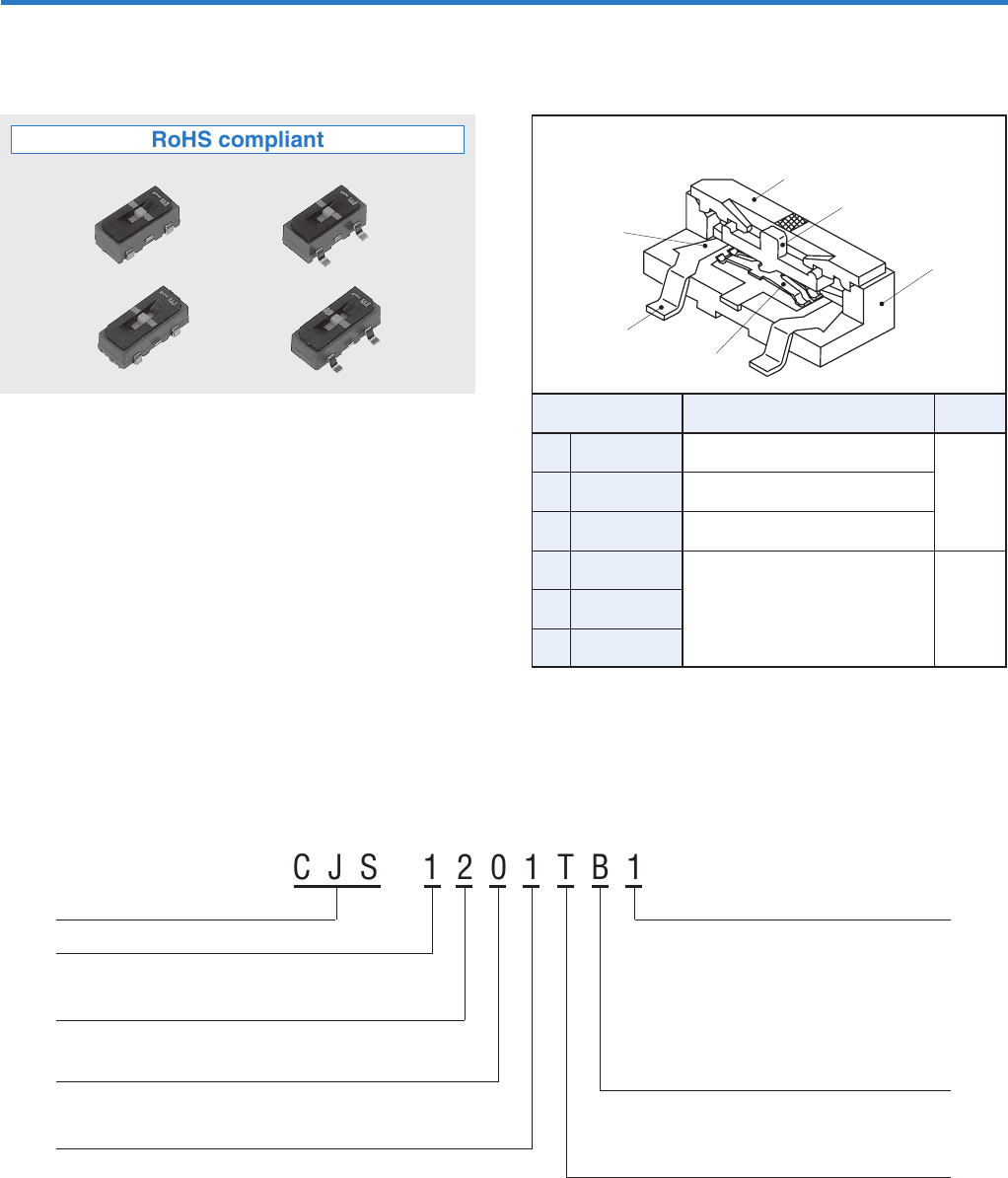

INTERNAL STRUCTURE
Part name
①
②
③
④
⑤
⑥
Cover
Slider
Housing
Slider contact
Fixed contact
Terminal pin
Material
Flammability
UL94V-0
—
Polyphenylenesulphide
Polyamide
Polyphenylenesulphide
Copper alloy, Gold-plated
■
PART NUMBER DESIGNATION
C J S - 1 2 0 1 T B 1
Series name
No. of poles
1
：
1 pole
SPDT : Single Pole Double Throw
No. of contacts
2
：
2 contacts
Setting position
0
：
Top setting
Neutral detent
0
：
Without neutral detent
1
：
With neutral detent
Structure
1：
Non-washable type (Without seal tape)
Standard type
2：
Non-washable type (With seal tape)
Blank : Washable type (With seal tape)
Shape of terminal
A
：
J-hook
B
：
Gull wing
Form of packaging
T
：
Taping (Reel)
Blank
：
plastic bag
①
⑤
⑥
④
②
③
RoHS compliant
Pieces in
package
(　　　　) (　　　　 )
Pieces in
package
(　　　　) (　　　　 ) (　　　　) (　　　　 )
Non-washable type (With seal tape)
CJS
SLIDE SWITCHES (SMD)
No. of
poles
1 2
Top setting
Without
neutral
detent
With
neutral
detent
Taping
CJS-1200TA1 CJS-1200TB1
CJS-1200B1
CJS-1200TA2
CJS-1200A2 CJS-1200B2
CJS-1200TB2
1000pcs./reel
100pcs./pack
CJS-1200A1
Plastic bag
No. of
contacts
Setting
position
Neutral
detent
Without
neutral
detent
With
neutral
detent
Neutral
detent
Form of
packaging
※ Verify the above part numbers when placing orders.
Taping version can be supplied only in reel unit.
Non-washable type (Without seal tape)
Taping
CJS-1201TA1 CJS-1201TB1
CJS-1201B1
CJS-1201TA2
CJS-1201A2
CJS-1201TB2
CJS-1201B2
1000pcs./reel
100pcs./pack
CJS-1201A1
Plastic bag
No. of
poles
1 2
Top setting
Taping
CJS-1200TA CJS-1200TB
CJS-1200B
1000pcs./reel
100pcs./pack
CJS-1200A
Plastic bag
No. of
contacts
Setting
position
Form of
packaging
Washable type (With seal tape)
Taping
CJS-1201TA CJS-1201TB
CJS-1201B
1000pcs./reel
100pcs./pack
CJS-1201A
Plastic bag
■
LIST OF PART NUMBERS
Gull wingJ-hook
Gull wingJ-hook
Gull wingJ-hook
ABAB
A B
CJS
SLIDE SWITCHES (SMD)
■

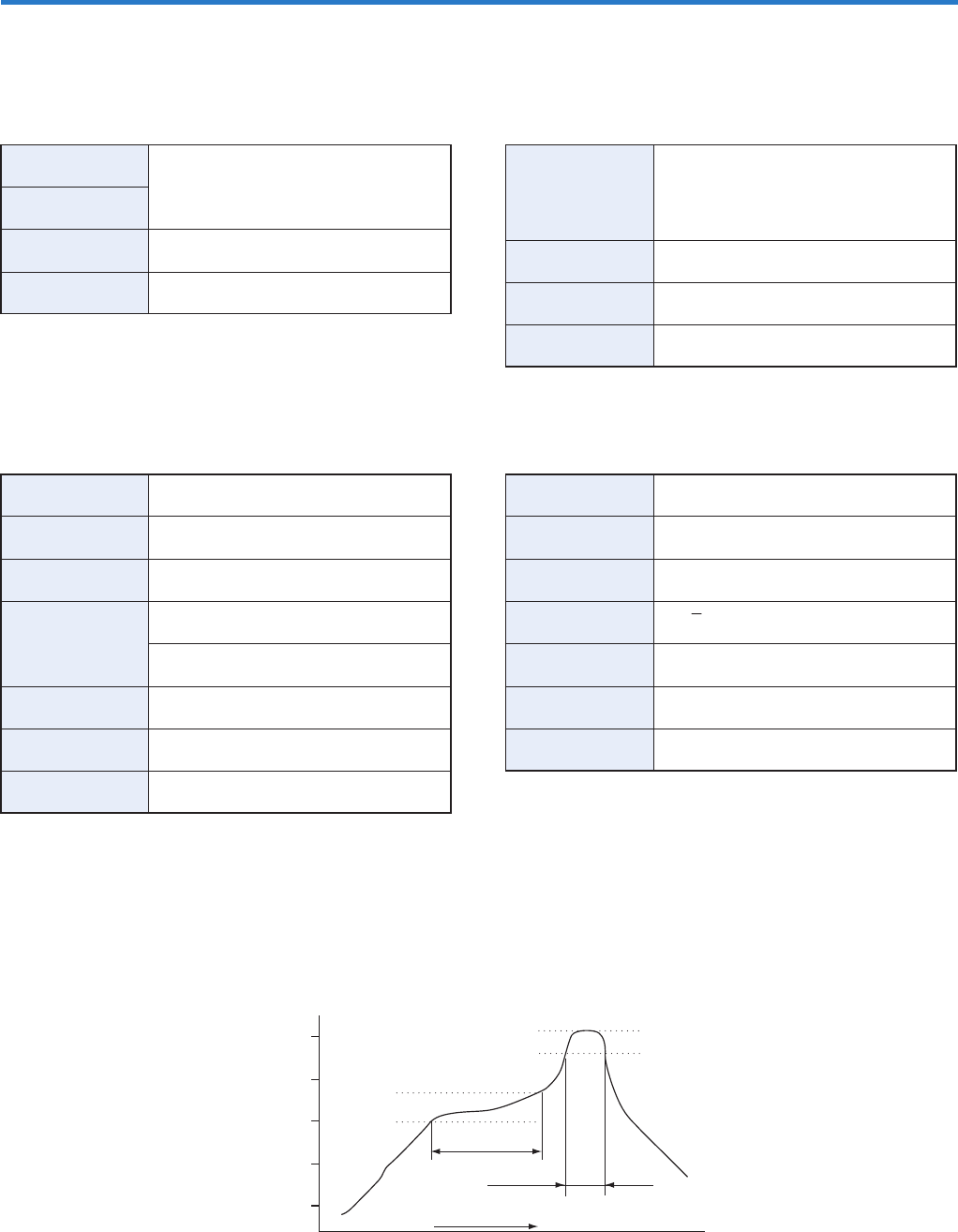

STANDARD SPECIFICATIONS
Operating temp. range
Storage temp. range
Sealing
Net weight
− 40 ~ 85 °C
Washable type available with seal tape
Approx. 0.05g (CJS-1200)
Approx. 0.06g (CJS-1201)
Operating force
Stop strength
Solderability
Soldering heat
Shear (Adhesion)
Substrate bending
Pull-off strength
{ } : Reference only
5.9 N {0.6 kgf} maximum
10 N {1.02 kgf}, 60 s
245 ± 3 °C, 2 ~ 3 s
Reflow：255 °C (Peak temperature)
（Please refer to the profile below）
Manual soldering：350 ± 10 °C, 3 ~ 4 s
5 N {0.51 kgf} 10 s
Width 90 mm, bend 3 mm, 5 s, 1 time
5 N {0.51 kgf} 10 s
■
MECHANICAL CHARACTERISTICS
〈
Reflow profile for soldering heat evaluation
〉
Contact rating
Non-switching
Switching
Minimum
Contact resistance
Insulation resistance
Dielectric strength
DC50 V 100 mA
DC6 V, 100 mA DC24 V, 25 mA
DC20 mV 1 μA
100 m Ω maximum
100 M Ω (DC100 V) minimum
AC250 V, 60 s
Vibration
Shock
Load life
Humidity
High temp. exposure
Low temp. exposure
Thermal shock
(Amplitude) 1.5 mmor (Acceleration) 98 m/s2,
10-500 Hz, 3 directions for 10 cycles each
490 m/s2, 11 ms
6 directions for 3 times each
Continuous load 200 cycles,
DC6 ± 0.5 V, 100 ± 10 mA
−10 ~ 65 °C, Relative humidity 0 ~ 96 %,
24 h for 10 cycles
85 °C, 96 h
−40 °C, 96 h
−40 (0.5 h) ~ 85 °C (0.5 h), 5 cycles
■
ELECTRICAL CHARACTERISTICS
■
ENVIRONMENTAL CHARACTERISTICS
Reflow : two times maximum
Peak : 250
Over 230 ℃
Pre Heating Zone
180 ℃
(℃)
250
200
150
100
50
150 ℃
90 ± 30 s
30 ± 10 s
Soldering Zone
Heating time
Temperature
℃
+5
0
● CJS-1200A1 ● CJS-1200B1
3 – 0.6
5.4
2.5 max.
3.5
0.3
Stroke 0.6
Terminal No.1
Production date code
2 – C 0.5
+0.1
–0.05
2.8
2.5
1.1
Schematic
+0.3
0
0.15 +0.1
–0.05
0.1 0
–0.1
C
②
①③
Schematic
C
②
①③
3 – 0.6
Terminal No.1
Production date code
2 – C 0.5
+0.1
–0.05
0.1 0
–0.1
4.2
2.5
0.4 min. 0.4 min.
0.15 +0.1
–0.05
3.5
Stroke 0.6
2.5 max.
5.4
0.3
● CJS-1201A1 ● CJS-1201B1
3 – 0.6
6
2.5 max.
3.5
0.3
0.60.6
Stroke
Terminal No.1
Production date code
2 – C 0.5
+0.1
–0.05
2.8
2.5
1.1
Schematic
+0.3
0
0.15 +0.1
–0.05
0.1 0
–0.1
C
②
①③
Schematic
C
②
①③
3 – 0.6
Terminal No.1
Production date code
2 – C 0.5
+0.1
–0.05
0.1
0.3
0
–0.1
4.2
2.5
0.4 min. 0.4 min.
0.15 +0.1
–0.05
3.5
Stroke
2.5 max.
6
0.60.6
■
OUTLINE DIMENSIONS Unless otherwise specified, tolerance : ± 0.3 (Unit : mm)
CJS
SLIDE SWITCHES (SMD)
(Unit : mm)
3 - 1
3 - 1
3.5
3.5
1200A□　1201A□1200B□　1201B□
0
0
0.7 1.6
1.6
2.6 1.3
1.3
3 - 1
3 - 1
3.5
3.5
1200A□　1201A□1200B□　1201B□
0
0
0.7 1.6
1.6
2.6 1.3
1.3
■
RECOMMENDED P.C.B. PAD OUTLINE DIMENSIONS
A type B type
Note) The zero point is the center of mounting.
7—H—(F—H—\ o m] e ”we a DOD MDQDQEW \<—>\ ‘ix ED
CJS
SLIDE SWITCHES (SMD)
■
PACKAGING SPECIFICATIONS
<Taping packaging specifications>
● Taping version is packaged in 1000 pcs. per reel.
Orders will be accepted for units of 1000 pcs., i.e., 1000,
2000, 3000 pcs., etc.
● Taping version is boxed with two reels (2000 pcs.).
Maximum number of consecutive missing pieces=2
Leader length and reel dimension are shown in the
diagrams below:
● Embossed tape dimensions ● Reel dimensions (Unit: mm)
(Conforms to JIS C 0806)
40 mm min. 20 pitches min.
400 mm min.
Direction of feed
End Head
Empty
Filled
Empty
Leader
254 ± 2
φ
50 min.
φ
21.4 ± 1
17.4 ± 1
2±0.5
13±0.2
φ
21±0.8
φ
<Bulk pack specifications>
● Boxing of bulk pack in a plastic bag is performed with
100 pcs. (standard 500 pcs.) per box.
Terminal No.1
Direction of feed
(CJS-1200B1)
1.5
8 ± 0.1
4 ± 0.1 2 ± 0.1
0.3 ± 0.1
3
Installation example
1.75 ± 0.17.5 ± 0.1
16
φ
+0.1
0
(Conforms to JIS C 0806)
● CJS-1200TA□, 1200TB□, 1201TA□, 1201TB□ (Unit: mm)
