Scheda tecnica 516-038-000-260 Drawing

——2.000 [50.80] r—‘ 22.25] Q: EEEE
2.000 50.80
0.876 22.25

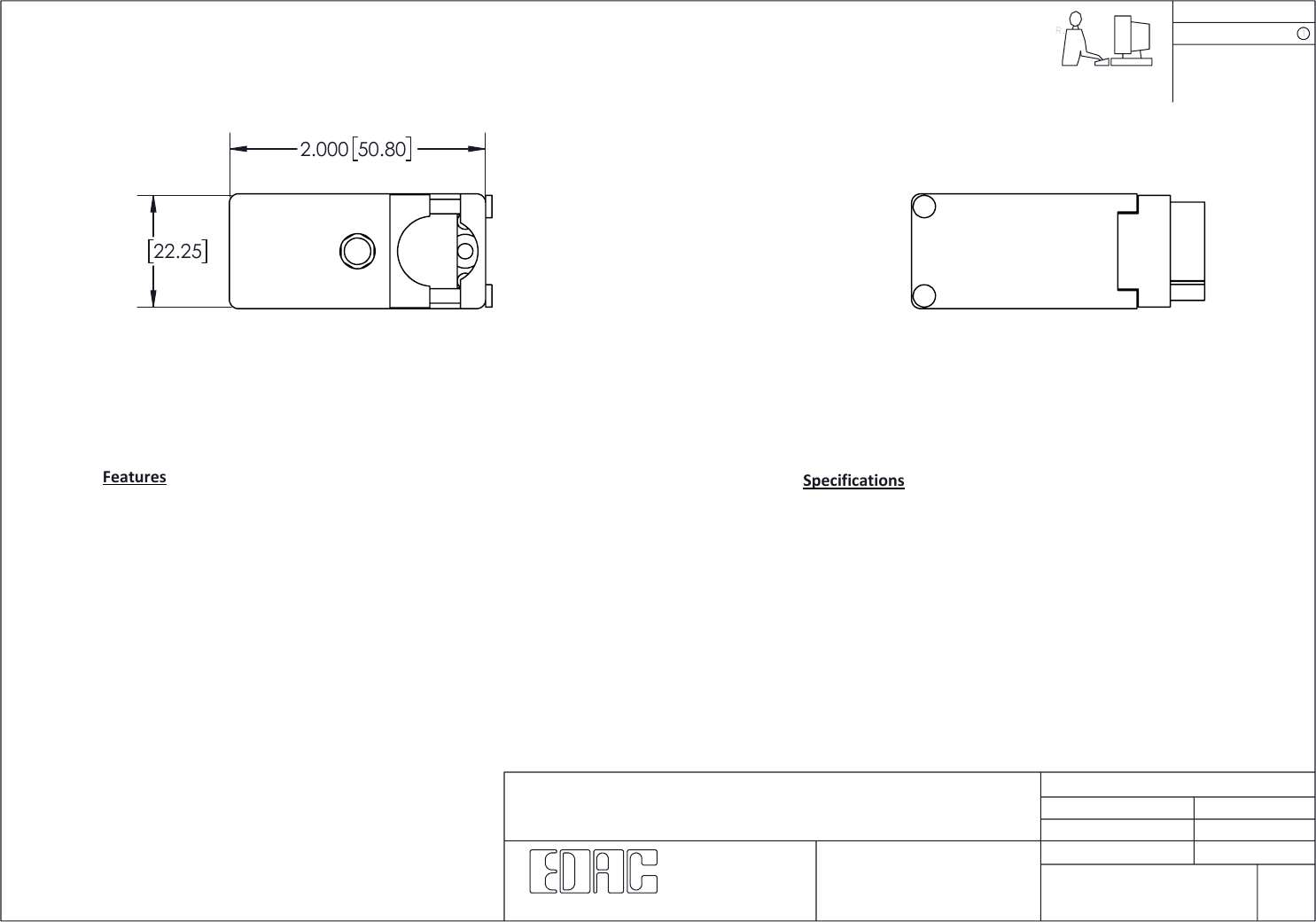

Features
UL Recognized
•
.150 (3.81) Contact Spacing x .130 (3.30) or .150 (3.81) Row Spacing with
•
Staggered Grid
Plug and Receptacle in 20, 38, 56, 90 or 120 Contact Sizes
•
Edacon Hermaphroditic Contact Mating Design
•
Contact Termination Options Include: Crimp, P.C. Tail, Wire Hole and Wire Wrap
•
Mating and Unmating Simplified with use of Actuating Screws
•
Optional Covers with Side or Top Entry Cable Clamp in Plastic or Metal Material
•
Available for All Connector Sizes
Versatile Metal Cover Design Permits Assembly and Disassembly after Cabling is
•
Complete plus Cable Entry Style Flexibility
Actuating Screws, Locknuts, Polarizing Hardware, Covers and Contacts Suitable
•
for either Plug or Receptacle
Polarizing Hardware Adjustable for 288 Mating Combinations
•
Tools Available for Contact Installation, Removal and Crimping and Polarizing
•
Changes
Specifications
Insulator Material: Diallyl Phthalate or Thermo plastic
•
Polyester, UL94V-0, Colour: Green, or Polycarbonate,
Colour: Grey
Contact Material: Phosphor Bronze Alloy CA-510
•
Contact Plating: Gold over Nickel for Entire Contact
•
Cover Material: Polycarbonate, Colour: Green, or Die-
•
Cast Zinc, Finished with Grey Enamel Paint
Current Rating: 8.5 Amperes
•
Contact Resistance: 10 Milliohms Maximum
•
Dielectric Withstanding Voltage: 2000 V AC rms at
•
Sea Level
Insulation Resistance: 5000 Megohms Minimum
•
Operating Temperature: -65 to +125 Degrees C
•
Insertion and Withdrawal Force: 2 to 16 oz (0.56 to
•
4.45 N) per Contact Position
ACAD REFERENCE NO.
TORONTO, ONTARIO
YOUR CONNECTION TO QUALITY & SERVICE
EDAC INC
CANADA
CHECKED:
THESE DRAWINGS AND SPECIFICATIONS
ARE THE PROPERTY OF EDAC INC.,AND
SHALL NOT BE REPRODUCED,OR COPIED
OR USED AS THE BASIS FOR THE
MANUFACTURE OR SALE OF APPARATUS
WITHOUT WRITTEN PERMISSION.
SCALE:
DRAWING NUMBER
DRAWN:
DATE:
ISSUE
SHEET
DATE:
ISSUE NUMBER
ORIGINAL
1
THIS IS A C.A.D. GENERATED DRAWING
DO NOT MAKE MANUAL REVISIONS TO MASTER.
516 Assembly
Part Number: 516-038-000-260
516 Assembly
516 Assembly
1
OF
4
1
J.LEE
JUNE 18, 2009
1:1
Contact Detail:
000-No Contacts Assembled
See Accompanying Pages for:
- PC Tail Layout
- Cutout Panel Details
- Cover Details

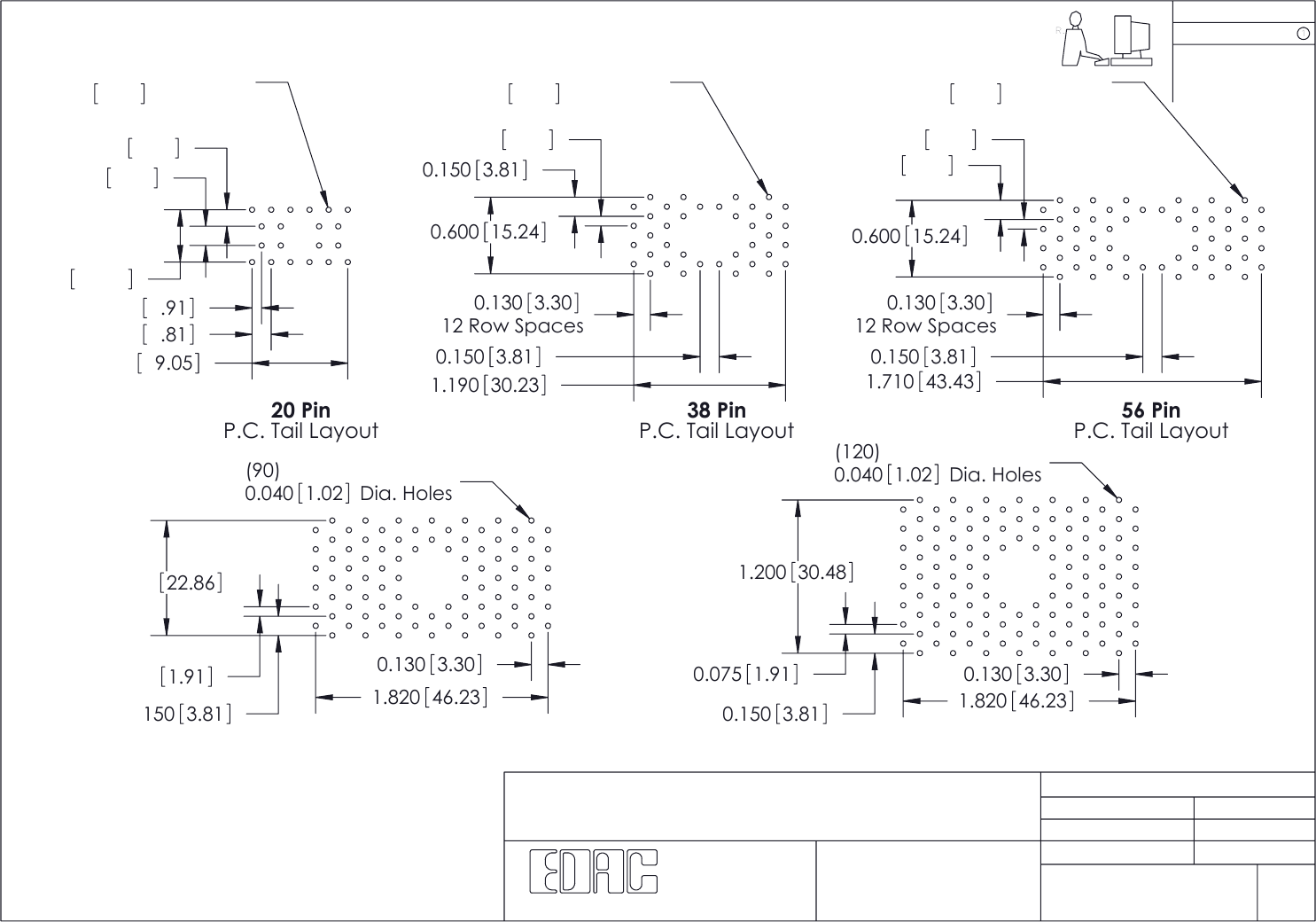

[] [] [] [ 1 i [ 17 [ ] [ ]7 0..150[381] :1 [ Ji :2 07600[1524] f fjo: :0: 0.600[15.24] iTjajo: jogs: [ ]7 i 7a 0 o o i W [ 911 a k o.130[3.30] P o.130[3.30] a l‘ [ .81] 12Row$paces 12Row$paces [ 905] 7 0.150[3.81] 7 0.150[3.81] 7 1_190[30_23] 7 1.710[43.43] 7 20 Pin 38 Pin 56 Pin P.C.Tc1i| Layout P.C.Tc1i| Layout P.C.Toil Layout (120) (90) 0.04o[1.02] 01a. Ho1esx 0.04o[1.02] Dia. Holes\ _—n a a a a a [22.86] 232:2: 2232:: ‘-200[30-48] 050:0: 303.330 [1.91] 7 OBOE-30] % f 0.075[1.91] 7 0..130[330] 71 7 7 1.820 46.23 7 e 4. 150[3.81] 7 [ ] 0.150[3.81] 7 1'820[46'23] EEEE
0.130
3.30
0.750 19.05
0.150
3.81
0.075
1.91
0.150
3.81
0.410 10.41
0.600 15.24
1.190 30.23
0.150
3.81
0.130
3.30
12 Row Spaces
0.150
3.81
0.075
1.91
1.710 43.43
0.150
3.81
0.130
3.30
12 Row Spaces
0.600 15.24
0.150
3.81
0.075
1.91
0.040
Dia. Holes
1.02
(56)
0.040
Dia. Holes
1.02
(38)
0.040
Dia. Holes
1.02
(20)
1.820 46.23
0.900 22.86
0.040
Dia. Holes
1.02
(90)
0.130
3.30
0.150
3.81
0.075
1.91
1.820 46.23
0.130
3.30
1.200 30.48
0.150
3.81
0.075
1.91
0.040
Dia. Holes
1.02
(120)
20 Pin
P.C. Tail Layout
38 Pin
P.C. Tail Layout
56 Pin
P.C. Tail Layout
90 Pin
P.C. Tail Layout
120 Pin
P.C. Tail Layout
ACAD REFERENCE NO.
TORONTO, ONTARIO
YOUR CONNECTION TO QUALITY & SERVICE
EDAC INC
CANADA
CHECKED:
THESE DRAWINGS AND SPECIFICATIONS
ARE THE PROPERTY OF EDAC INC.,AND
SHALL NOT BE REPRODUCED,OR COPIED
OR USED AS THE BASIS FOR THE
MANUFACTURE OR SALE OF APPARATUS
WITHOUT WRITTEN PERMISSION.
SCALE:
DRAWING NUMBER
DRAWN:
DATE:
ISSUE
SHEET
DATE:
ISSUE NUMBER
ORIGINAL
1
THIS IS A C.A.D. GENERATED DRAWING
DO NOT MAKE MANUAL REVISIONS TO MASTER.
516 Assembly

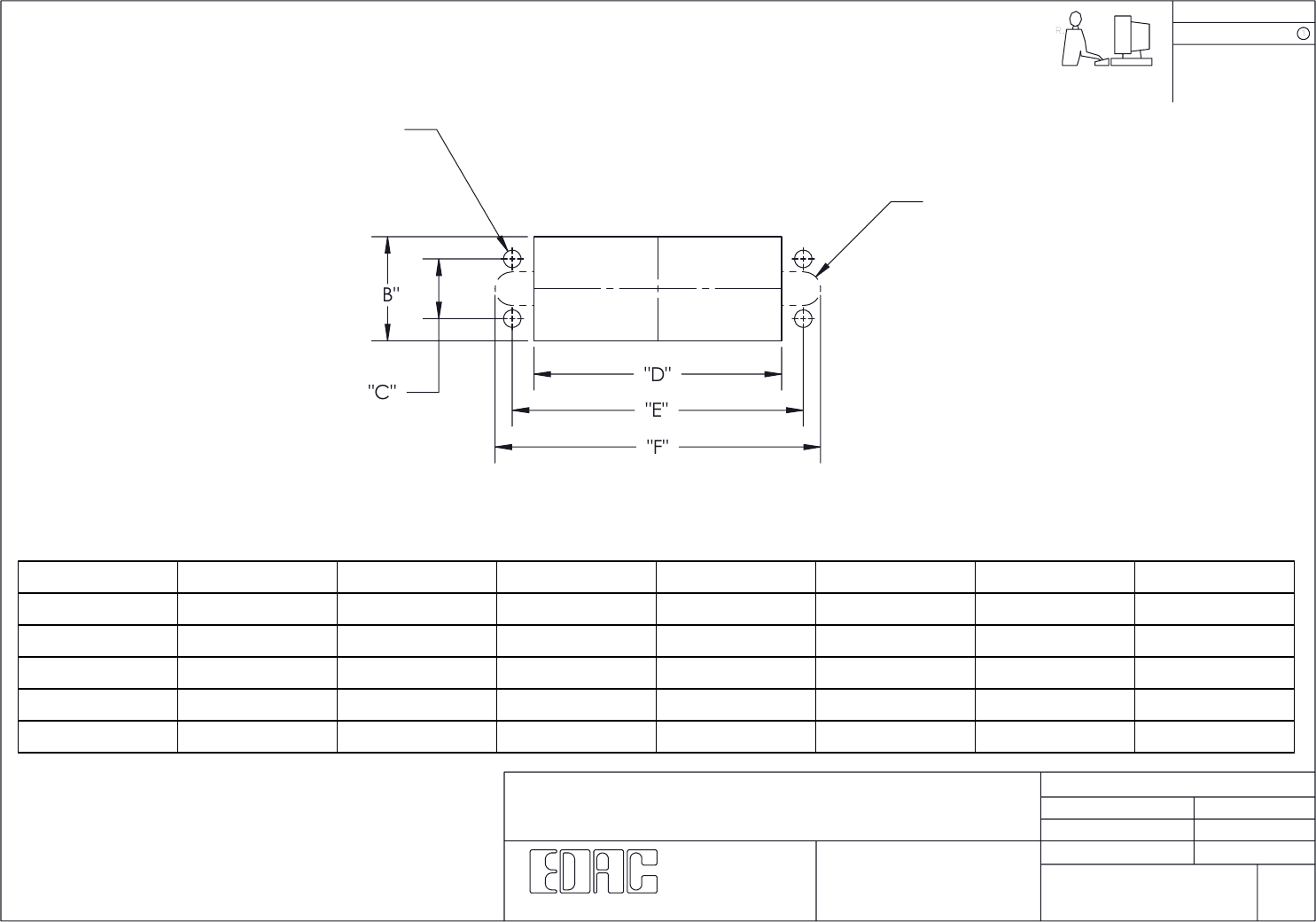

P.C. Tail Layout Details
516 Assembly
516 Assembly
2
OF
4
1
J.LEE
JUNE 18, 2009
1:1
"D"
"B"
"C"
"E"
"A" Dia. Hole
(4)
"F"
Polarizing Hardware
"G" Max.
End Cut-Outs Optional
Provide Access to
Dimension A
Dimension B
Dimension C
Dimension D
Dimension E
Dimension F
Dimension G
20 Pin
0.104 [2.64] 0.640 [16.26] 0.410 [10.41] 0.960 [24.38] 1.126 [28.60] 1.270 [32.26]
R0.130 [R3.30]
38 Pin
0.136 [3.45] 0.816 [20.73] 0.468 [11.89] 1.420 [36.07] 1.688 [42.88] 1.958 [49.73]
R0.130 [R3.30]
56 Pin
0.136 [3.45] 0.816 [20.73] 0.468 [11.89] 1.940 [49.28] 2.280 [57.91] 2.550 [64.77]
R0.130 [R3.30]
90 Pin
0.136 [3.45] 1.120 [28.45] 0.765 [19.43] 2.050 [52.07] 2.282 [57.96] 2.675 [67.95]
R0.130 [R3.30]
120 Pin
0.136 [3.45] 1.420 [36.07] 0.875 [22.23] 2.050 [52.07] 2.375 [60.33] 2.675 [67.95]
R0.130 [R3.30]
ACAD REFERENCE NO.
TORONTO, ONTARIO
YOUR CONNECTION TO QUALITY & SERVICE
EDAC INC
CANADA
CHECKED:
THESE DRAWINGS AND SPECIFICATIONS
ARE THE PROPERTY OF EDAC INC.,AND
SHALL NOT BE REPRODUCED,OR COPIED
OR USED AS THE BASIS FOR THE
MANUFACTURE OR SALE OF APPARATUS
WITHOUT WRITTEN PERMISSION.
SCALE:
DRAWING NUMBER
DRAWN:
DATE:
ISSUE
SHEET
DATE:
ISSUE NUMBER
ORIGINAL
1
THIS IS A C.A.D. GENERATED DRAWING
DO NOT MAKE MANUAL REVISIONS TO MASTER.
516 Assembly
Cut-Out Panel Detail
516 Assembly
516 Assembly
3
OF
4
1
J.LEE
JUNE 18, 2009

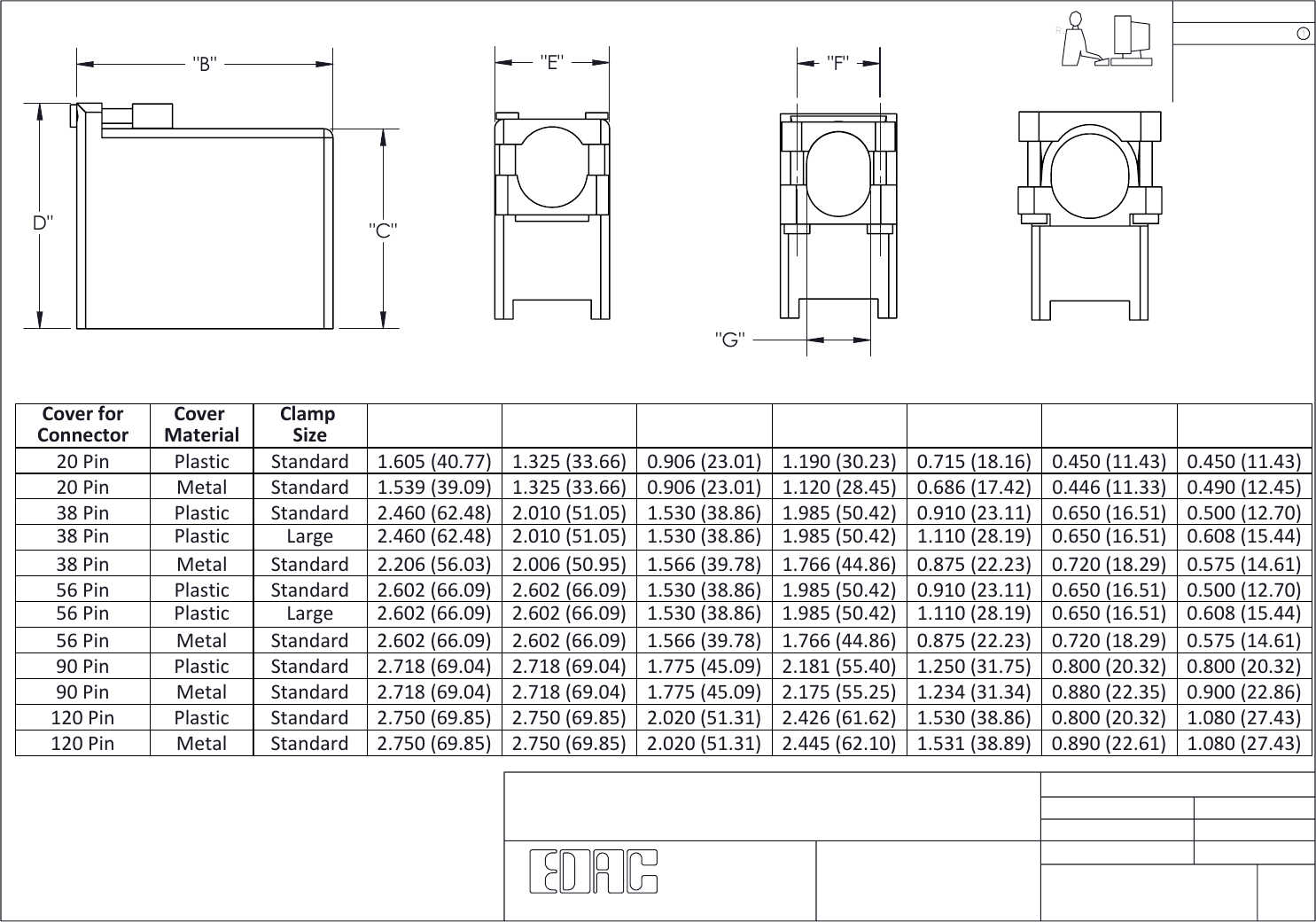

Egg 0 “B" "E“ ‘ "F“ * ”Ta r——fi Jfll VL 77 O V D“ "C" i_, 7 7 Cover for Cover Clamp Connector Material Size 20Pin Plastic Standard 1.605(40.77) 1.325(33.66) 0.906(2301) 1.190(3013) 0.715(18.16) 0.450(11.43) o.450(11.a3) ZOPin Metal Standard 1.539(3909) 1.325(33.66) 0.906(2301) 1.120(28,45) 0.686(17142) 0.446(1133) o.490(12.as) 38Pin Plastic Standard 2.460(62.48) 2.010(51105) 153088.86) 1.9855042) 0.9100311) 0.650(1651) 0.500(1270) 38Pin Plastic Large 2460(6248) 2.010(51105) 153088.86) 1385(5042) 1.110(28119) 0.650(1651) 0608(1544) 38Pin Metal Standard 2206(5603) 2.006(50195) 1.566(3978) 1766(4436) 0.875(22123) 0.720(1819) 0575(14151) 56Pin Plastic Standard 2502(6609) 2.602(66109) 153088.86) 1985(5042) 0.910(23111) 0.650(1631) 0500(1270) 56Pin Plastic Large 1602(6609) 2.602(66109) 1.530(3886) 1385(5042) 1.110(28119) 0.650(1651) 01608(15.44) 56Pin Metal Standard 2602(6609) 2.602(66109) 1566(3978) 1766(4436) 0.875(22123) 0.720(1829) 01575(14.61) 90Pin Plastic Standard 21718(69.04) 2.718(69104) 1.775(4509) 2181(5540) 1.250(31175) 0.800(2032) 0800(2032) 90Pin Metal Standard 21718(69.04) 2.718(69104) 1.775(4509) 2175(5515) 1.234(31134) 0.880(2235) 090092.86) 120Pin Plastic Standard 21750(69.85) 2.750(69.85) 2.020(5131) 21426(61.62) 1.530(38.86) 0.800(2032) 1,080(27.43) 120Pin Metal Standard 21750(69.85) 2.750(69.85) 2.020(5131) 2,445(62.10) 1.531(38.89) 0.890(22.61) 1,080(Z7.43) EEEE
