DRV8805

SLVSAW3D –JULY 2011–REVISED JANUARY 2016

DRV8805 Unipolar Stepper Motor Driver IC

1 Features

1• 4-Channel Protected Low-Side Driver

– Four NMOS FETs With Overcurrent Protection

– Integrated Inductive Clamp Diodes

• Indexer/Translator for Unipolar Stepper Motors

– Simple Step/Direction Interface

– Three Step Modes (2-Phase Full-Step, 1-2-

Phase Half-Step, 1-Phase Wave Drive)

• DW Package: 1.5-A (Single Channel On) /

800-mA (Four Channels On) Maximum Drive

Current per Channel (at 25°C)

• PWP Package: 2-A (Single Channel On) /

1-A (Four Channels On) Maximum Drive Current

per Channel (at 25°C, With Proper PCB

Heatsinking)

• 8.2-V to 60-V Operating Supply Voltage Range

• Thermally Enhanced Surface Mount Package

2 Applications

• Gaming Machines

• General Unipolar Stepper Motor Drivers

3 Description

The DRV8805 provides an integrated solution for

driving unipolar stepper motors. It includes four low-

side drivers with overcurrent protection and provides

built-in diodes to clamp turnoff transients generated

by the motor windings.

Indexer logic to control a unipolar stepper motor

using a simple step/direction interface is also

integrated. Three stepping modes are supported: 2

phase (full-step), 1-2 phase (half-step), and 1-phase

(wave drive).

In the SOIC (DW) package, the DRV8805 can supply

up to 1.5-A (one channel on) or 800-mA (all channels

on) continuous output current per channel, at 25°C. In

the HTSSOP (PWP) package, it can supply up to 2-A

(one channel on) or 1-A (four channels on)

continuous output current per channel, at 25°C with

proper PCB heatsinking.

Internal shutdown functions are provided for

overcurrent protection, short-circuit protection, under

voltage lockout, and overtemperature, and faults are

indicated by a fault output pin.

The DRV8805 is available in a 20-pin thermally-

enhanced SOIC package and a 16-pin HTSSOP

package (Eco-friendly: RoHS & no Sb/Br).

Device Information(1)

PART NUMBER PACKAGE BODY SIZE (NOM)

DRV8805 SOIC (20) 12.80 mm × 7.50 mm

HTSSOP (16) 5.00 mm × 4.40 mm

(1) For all available packages, see the orderable addendum at

the end of the data sheet.

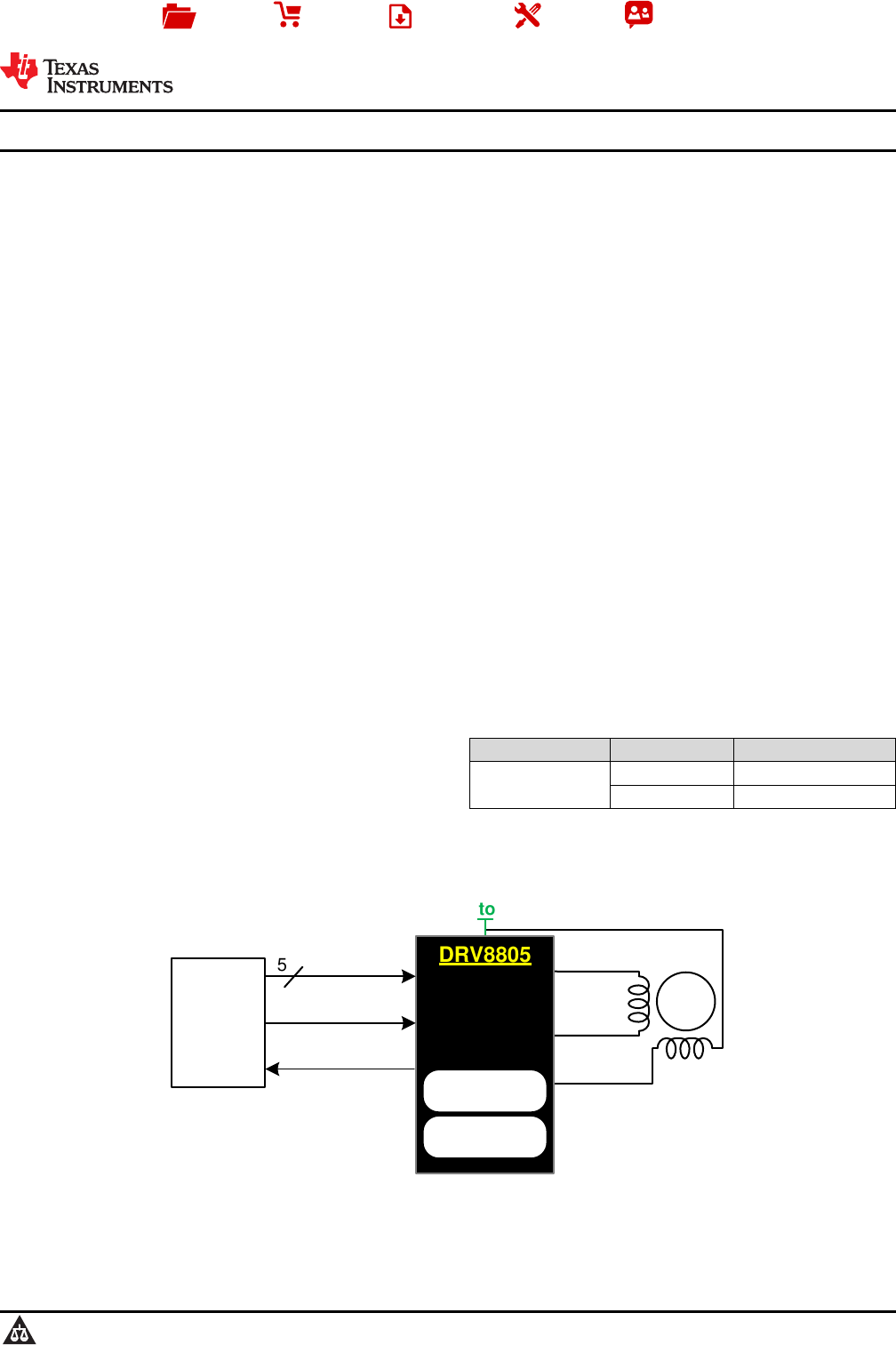

Simplified Schematic

l TEXAS INSTRUMENTS

DRV8805

SLVSAW3D –JULY 2011–REVISED JANUARY 2016

www.ti.com

Product Folder Links: DRV8805

Table of Contents

1 Features.................................................................. 1

2 Applications ........................................................... 1

3 Description ............................................................. 1

4 Revision History..................................................... 2

5 Pin Configuration and Functions......................... 3

6 Specifications......................................................... 4

6.1 Absolute Maximum Ratings ...................................... 4

6.2 ESD Ratings.............................................................. 4

6.3 Recommended Operating Conditions....................... 4

6.4 Thermal Information.................................................. 5

6.5 Electrical Characteristics........................................... 5

6.6 Timing Requirements................................................ 6

6.7 Typical Characteristics.............................................. 7

7 Detailed Description.............................................. 8

7.1 Overview ................................................................... 8

7.2 Functional Block Diagram......................................... 8

7.3 Feature Description................................................... 9

7.4 Device Functional Modes........................................ 10

8 Application and Implementation ........................ 12

8.1 Application Information............................................ 12

8.2 Typical Application .................................................. 12

9 Power Supply Recommendations...................... 14

9.1 Bulk Capacitance .................................................... 14

10 Layout................................................................... 15

10.1 Layout Guidelines ................................................. 15

10.2 Layout Example .................................................... 15

10.3 Thermal Considerations........................................ 15

11 Device and Documentation Support ................. 17

11.1 Documentation Support ....................................... 17

11.2 Trademarks........................................................... 17

11.3 Electrostatic Discharge Caution............................ 17

11.4 Glossary................................................................ 17

12 Mechanical, Packaging, and Orderable

Information ........................................................... 17

4 Revision History

NOTE: Page numbers for previous revisions may differ from page numbers in the current version.

Changes from Revision C (March 2012) to Revision D Page

• Changed Catch Diodes to Clamp Diodes in Features .......................................................................................................... 1

• Added ESD Ratings table, Feature Description section, Device Functional Modes,Application and Implementation

section, Power Supply Recommendations section, Layout section, Device and Documentation Support section, and

Mechanical, Packaging, and Orderable Information section ................................................................................................. 1

• Updated the text in the EXTERNAL COMPONENTS OR CONNECTIONS column for nHOME row .................................. 3

• Updated PARAMETERS, TEST CONDTIONS, MIN, TYP, and MAX values in the nHOME OUTPUT section in the

Electrical Characteristics table ............................................................................................................................................... 5

l TEXAS INSTRUMENTS LT < ult="">

20 nFAULT

nHOME

STEP

DIR

GND

SM0

SM1

RESET

OUT4

nENBL

GND

OUT3

GND

OUT1

OUT2

VCLAMP

16 nFAULT

nHOME

STEP

DIR

GND

SM0

SM1

RESETnENBL

OUT3

OUT4

GND

OUT1

OUT2

VCLAMP

GND

DRV8805

www.ti.com

SLVSAW3D –JULY 2011–REVISED JANUARY 2016

Product Folder Links: DRV8805

5 Pin Configuration and Functions

DW Package

20-Pin Wide SOIC

Top View

PWP Package

16-Pin HTSSOP

Top View

(1) Directions: I = input, O = output, OD = open-drain output

Pin Functions

PIN I/O(1) DESCRIPTION EXTERNAL COMPONENTS

OR CONNECTIONS

NAME SOIC HTSSOP

POWER AND GROUND

GND 5, 6, 7,

14, 15, 16 5, 12,

PPAD — Device ground All pins must be connected to GND.

VM 1 1 — Device power supply Connect to motor supply (8.2 V to 60 V).

CONTROL

DIR 17 13 I Direction input Level controls direction of rotation – internal

pulldown

nENBL 10 8 I Enable input Active low enables outputs – internal pulldown

RESET 11 9 I Reset input Active-high reset input initializes internal

logic – internal pulldown

SM0 13 11 I Step mode Sets step mode – see step modes section for

details – internal pulldowns

SM1 12 10

STEP 18 14 I Step input Rising edge advances motor to next step –

internal pulldown

STATUS

nFAULT 20 16 OD Fault Logic low when in fault condition (overtemp,

overcurrent)

nHOME 19 15 OD Home Logic low when indexer is at home position –

push-pull structure

OUTPUT

OUT1 3 3 O Output 1 Connect to load 1

OUT2 4 4 O Output 2 Connect to load 2

OUT3 8 6 O Output 3 Connect to load 3

OUT4 9 7 O Output 4 Connect to load 4

VCLAMP 2 2 — Output clamp voltage Connect to VM supply, or Zener diode to VM

supply

l TEXAS INSTRUMENTS

DRV8805

SLVSAW3D –JULY 2011–REVISED JANUARY 2016

www.ti.com

Product Folder Links: DRV8805

(1) Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings

only, which do not imply functional operation of the device at these or any other conditions beyond those indicated under Recommended

Operating Conditions. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

(2) All voltage values are with respect to network ground terminal.

6 Specifications

6.1 Absolute Maximum Ratings

over operating free-air temperature range (unless otherwise noted)(1)(2)

MIN MAX UNIT

VM Power supply voltage –0.3 65 V

VOUTx Output voltage –0.3 65 V

VCLAMP Clamp voltage –0.3 65 V

Digital input pin voltage –0.5 7 V

nHOME,

nFAULT Digital output pin voltage –0.5 –0.5 to 7 V

nHOME,

nFAULT Output current 20 mA

Peak clamp diode current 2 A

DC or RMS clamp diode current 1 A

Peak motor drive output current, t < 1 μS Internally limited A

Continuous total power dissipation See Thermal Information

TJOperating virtual junction temperature –40 150 °C

Tstg Storage temperature –60 150 °C

(1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process.

(2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process.

6.2 ESD Ratings

VALUE UNIT

V(ESD) Electrostatic discharge

Human body model (HBM), per ANSI/ESDA/JEDEC JS-001, all pins(1) ±3000

Charged device model (CDM), per JEDEC specification JESD22-C101, all

pins(2) ±1000

(1) VCLAMP is used only to supply the clamp diodes. It is not a power supply input.

(2) Power dissipation and thermal limits must be observed.

6.3 Recommended Operating Conditions

MIN NOM MAX UNIT

VMPower supply voltage 8.2 60 V

VCLAMP Output clamp voltage (1) 0 60 V

IOUT

Continuous output current, single channel on, TA= 25°C, SOIC package(2) 1.5

Continuous output current, four channels on, TA= 25°C, SOIC package(2) 0.8

Continuous output current, single channel on, TA= 25°C, HTSSOP package(2) 2

Continuous output current, four channels on, TA= 25°C, HTSSOP package(2) 1

l TEXAS INSTRUMENTS

DRV8805

www.ti.com

SLVSAW3D –JULY 2011–REVISED JANUARY 2016

Product Folder Links: DRV8805

(1) For more information about traditional and new thermal metrics, see the Semiconductor and IC Package Thermal Metrics application

report, SPRA953.

6.4 Thermal Information

THERMAL METRIC(1)

DRV8805

UNITDW (SOIC) PWP (HTSSOP)

20 PINS 16 PINS

RθJA Junction-to-ambient thermal resistance 67.7 39.6 °C/W

RθJC(top) Junction-to-case (top) thermal resistance 32.9 24.6 °C/W

RθJB Junction-to-board thermal resistance 35.4 20.3 °C/W

ψJT Junction-to-top characterization parameter 8.2 0.7 °C/W

ψJB Junction-to-board characterization parameter 34.9 20.1 °C/W

RθJC(bot) Junction-to-case (bottom) thermal resistance N/A 2.3 °C/W

6.5 Electrical Characteristics

TA= 25°C, over recommended operating conditions (unless otherwise noted)

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

POWER SUPPLIES

IVM VM operating supply current VM= 24 V 1.6 2.1 mA

VUVLO VM undervoltage lockout voltage VMrising 8.2 V

LOGIC-LEVEL INPUTS(SCHMITT TRIGGER INPUTS WITH HYSTERESIS)

VIL Input low voltage 0.6 0.7 V

VIH Input high voltage 2 V

VHYS Input hysteresis 0.45 V

IIL Input low current VIN = 0 –20 20 μA

IIH Input high current VIN = 3.3 V 100 μA

RPD Pulldown resistance 100 kΩ

nFAULT OUTPUT (OPEN-DRAIN OUTPUT)

VOL Output low voltage IO= 5 mA 0.5 V

IOH Output high leakage current VO= 3.3 V 1 μA

nHOME OUTPUT (OPEN-DRAIN OUTPUT WITH WEAK INTERNAL PULLUP)

VOL Output low voltage IO= 5 mA 0.5 V

VOH Output high voltage

IO= 100 µA, VM= 11 V – 60 V, peak 6.5

VIO= 100 μA, VM= 11 V – 60 V, steady state 3.3 4.5 5.6

IO= 100 μA, VM= 8.2 V – 11 V, steady state 2.5

ISRC Output source current VM= 24 V 1 mA

ISNK Output sink current VM= 24 V 5 mA

LOW-SIDE FETS

RDS(ON) FET on resistance VM= 24 V, IO= 700 mA, TJ= 25°C 0.5 Ω

VM= 24 V, IO= 700 mA, TJ= 85°C 0.75 0.8

IOFF Off-state leakage current –50 50 μA

HIGH-SIDE DIODES

VFDiode forward voltage VM= 24 V, IO= 700 mA, TJ= 25°C 1.2 V

IOFF Off-state leakage current VM= 24 V, TJ= 25°C –50 50 μA

OUTPUTS

tRRise time VM= 24 V, IO= 700 mA, Resistive load 50 300 ns

tFFall time VM= 24 V, IO= 700 mA, Resistive load 50 300 ns

l TEXAS INSTRUMENTS ._. 1 _\ /_\ —>F‘— V

STEP

DIR, SMx

nENBL

STEP

OUTx

DRV8805

SLVSAW3D –JULY 2011–REVISED JANUARY 2016

www.ti.com

Product Folder Links: DRV8805

Electrical Characteristics (continued)

TA= 25°C, over recommended operating conditions (unless otherwise noted)

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

(1) Not production tested.

PROTECTION CIRCUITS

IOCP Overcurrent protection trip level 2.3 3.8 A

tOCP Overcurrent protection deglitch time 3.5 µs

tRETRY Overcurrent protection retry time 1.2 ms

tTSD Thermal shutdown temperature Die temperature(1) 150 160 180 °C

(1) Not production tested.

6.6 Timing Requirements

over operating free-air temperature range (unless otherwise noted)(1)

MIN NOM MAX UNIT

1 fSTEP Step frequency 250 kHz

2 tWH(STEP) Pulse duration, STEP high 1.9 µs

3 tWL(STEP) Pulse duration, STEP low 1.9 µs

4 tSU(STEP) Setup time, DIR, SMx to STEP rising 1 µs

5 tH(STEP) Hold time, DIR, SMx to STEP rising 1 µs

6 tOE(ENABLE) Enable time, nENBL to output low 50 ns

7 tPD(L-H) Propagation delay time, STEP to OUTx, low to high 500 ns

8 tPD(H-L) Propagation delay time, STEP to OUTx, high to low 500 ns

— tRESET RESET pulse width 20 µs

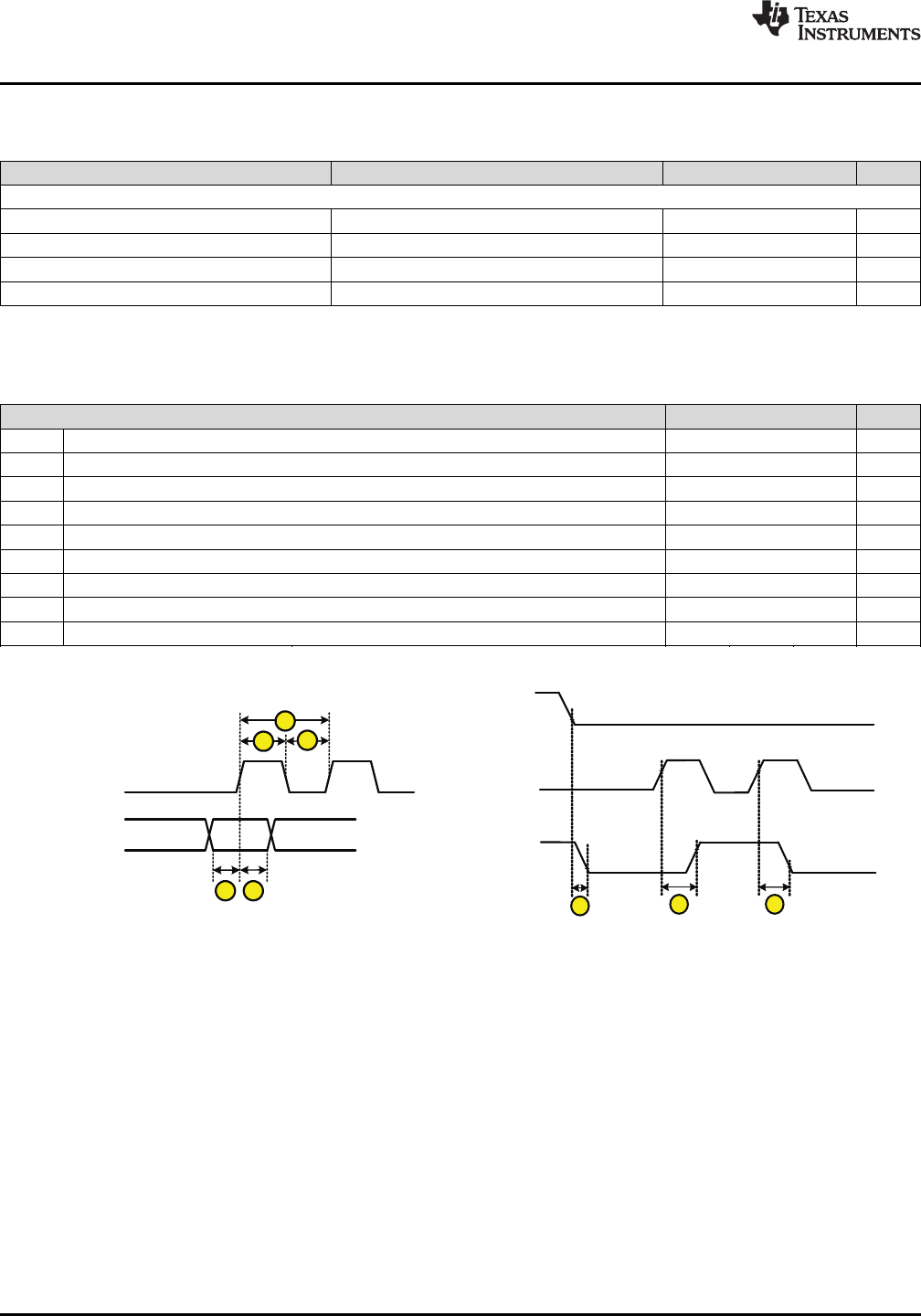

Figure 1. DRV8805 Timing Requirements

l TEXAS INSTRUMENTS

200

300

400

500

600

700

800

900

1000

8 V 60 V

Rdson (mŸ)

Supply Voltage (V)

-40° C 25° C

75° C 125° C

C006

300

400

500

600

700

800

900

-40° C 25° C 75° C 125° C

Rdson (mŸ)

Temperature (ƒC)

8 V

60 V

C005

1.30

1.35

1.40

1.45

1.50

1.55

1.60

1.65

1.70

1.75

1.80

-40° C 25° C 75° C 125° C

Supply Current (mA)

Temperature (ƒC)

8 V 24 V

30 V 60 V

C001

1.30

1.35

1.40

1.45

1.50

1.55

1.60

1.65

1.70

1.75

1.80

8 V 24 V 30 V 60 V

Supply Current (mA)

Supply Voltage (V)

-40° C 25° C

75° C 125° C

C002

DRV8805

www.ti.com

SLVSAW3D –JULY 2011–REVISED JANUARY 2016

Product Folder Links: DRV8805

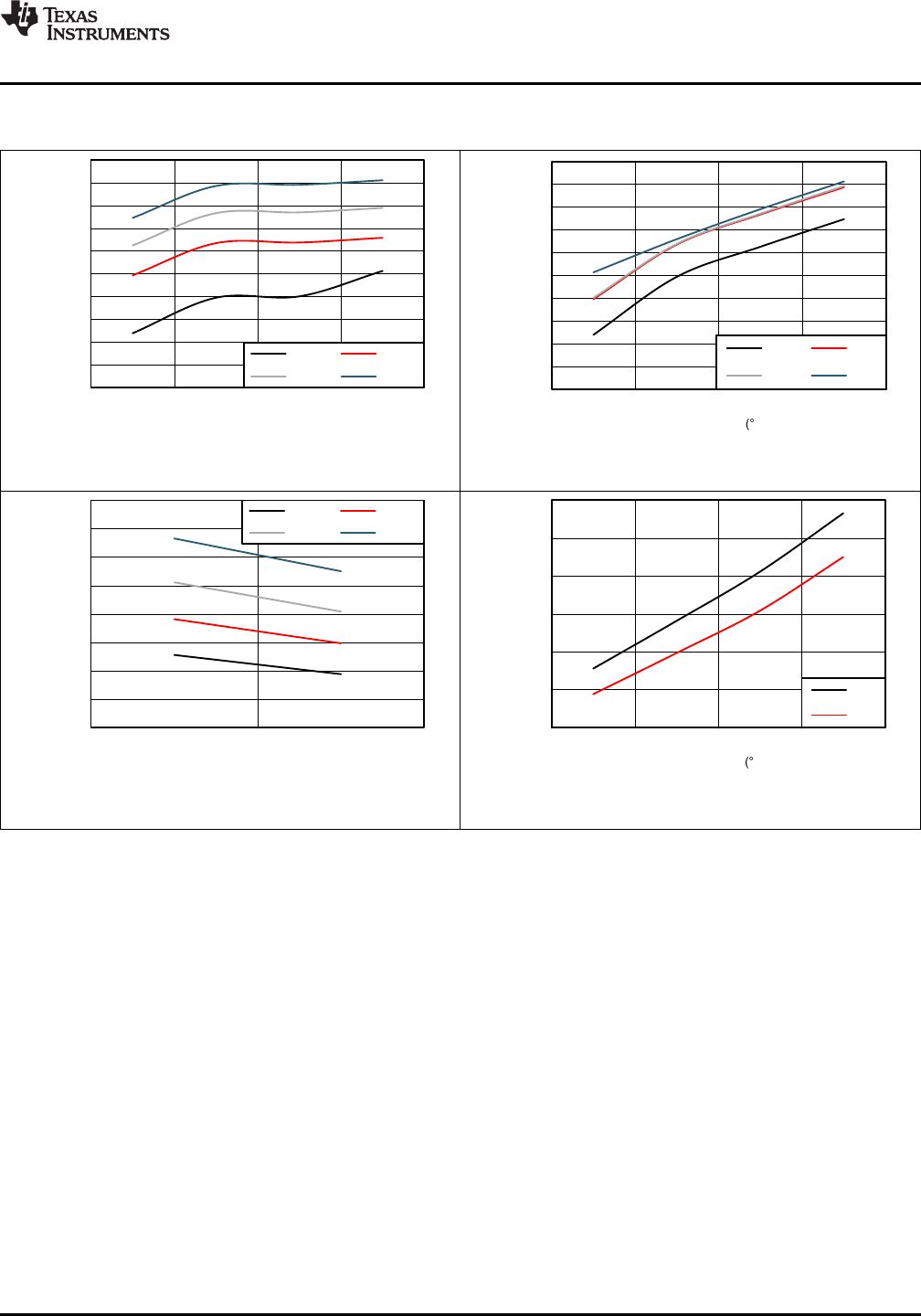

6.7 Typical Characteristics

Figure 2. Supply Current Over VMFigure 3. Supply Current Over Temperature

Figure 4. RDS(ON) Over VMFigure 5. RDS(ON) Over Temperature

‘5‘ TEXAS INSTRUMENTS F1 4 1 L4 F1 L4 F1 L4 F1 L4

OCP

and

Gate

Driver

Control

Logic

Thermal

Shutdown

OCP

and

Gate

Driver

and

OCP

Gate

Driver

OCP

and

Gate

Driver

nENBL

STEP

DIR

SM0

SM1

RESET

nFAULT

nHOME

GND

(Multiple Pins)

Internal

Reference

Regs

UVLO

Int. VCC

LS Gate

Drive VCLAMP

OUT1

OUT2

OUT3

OUT4

Optional

Zener

Winding 1

Winding 2

Winding 3

Winding 4

Unipolar

Stepper

8.2 V-60 V 8.2 V-60 V

DRV8805

SLVSAW3D –JULY 2011–REVISED JANUARY 2016

www.ti.com

Product Folder Links: DRV8805

7 Detailed Description

7.1 Overview

The DRV8805 is an integrated 4-channel unipolar stepper motor driver with a step / direction interface that

controls the low-side driver outputs and allows for simple control schemes. The four low-side driver outputs

consist of four N-channel MOSFETs that have a typical RDS(on) of 500 mΩ. A single motor supply input VM

serves as device power and is internally regulated to power the low-side gate drive. The device outputs can be

disabled by bringing the nENBL pin logic high. This device has several safety features including integrated

overcurrent protection that limits the motor current to a fixed maximum above which the device will shut down.

Thermal shutdown protection enables the device to automatically shut down if the die temperature exceeds a

TTSD limit and will restart once the die reaches a safe temperature. UVLO protection will disable all circuitry in

the device if VM drops below the undervoltage lockout threshold.

7.2 Functional Block Diagram

‘5‘ TEXAS INSTRUMENTS T T w? -~$ w? T

OUT1

OUT2

OUT3

OUT4

Lookup

Table

(Translator)

nENBL

Counter

CLK

RESET

DIR

RESET

STEP

DIR

nHOME

SM0

SM1

DRV8805

www.ti.com

SLVSAW3D –JULY 2011–REVISED JANUARY 2016

Product Folder Links: DRV8805

7.3 Feature Description

7.3.1 Output Drivers

The DRV8805 contains four protected low-side drivers. Each output has an integrated clamp diode connected to

a common pin, VCLAMP.

VCLAMP can be connected to the main power supply voltage, VM. It can also be connected to a Zener or TVS

diode to VM, allowing the switch voltage to exceed the main supply voltage VM. This connection can be beneficial

when driving loads that require very fast current decay, such as unipolar stepper motors.

In all cases, the voltage on the outputs must not be allowed to exceed the maximum output voltage specification.

7.3.2 Indexer Operation

The DRV8805 integrates an indexer to allow motor control with a simple step-and-direction interface. Logically,

the indexer is shown in Figure 6.

Figure 6. Indexer Operation

7.3.3 nENBL and RESET Operation

The nENBL pin enables or disables the output drivers. nENBL must be low to enable the outputs. nENBL does

not affect the operation of the serial interface logic. Note that nENBL has an internal pulldown.

The RESET pin, when driven active high, resets the internal logic. The indexer is reset to the home state. All

inputs are ignored while RESET is active. Note that RESET has an internal pulldown. An internal power-up reset

is also provided, so it is not required to drive RESET at power up.

7.3.4 Protection Circuits

The DRV8805 is fully protected against undervoltage, overcurrent and overtemperature events.

7.3.4.1 Overcurrent Protection (OCP)

An analog current limit circuit on each FET limits the current through the FET by removing the gate drive. If this

analog current limit persists for longer than the tOCP deglitch time (approximately 3.5 µs), the driver will be

disabled and the nFAULT pin will be driven low. The driver will remain disabled for the tRETRY retry time

(approximately 1.2 ms), then the fault will be automatically cleared. The fault will be cleared immediately if either

RESET pin is activated or VMis removed and re-applied.

l TEXAS INSTRUMENTS

DRV8805

SLVSAW3D –JULY 2011–REVISED JANUARY 2016

www.ti.com

Product Folder Links: DRV8805

Feature Description (continued)

7.3.4.2 Thermal Shutdown (TSD)

If the die temperature exceeds safe limits, all output FETs will be disabled and the nFAULT pin will be driven low.

The STEP input will be ignored. Once the die temperature has fallen to a safe level, operation will automatically

resume.

7.3.4.3 Undervoltage Lockout (UVLO)

If at any time the voltage on the VMpin falls below the undervoltage lockout threshold voltage, all circuitry in the

device will be disabled, and internal logic will be reset. Operation will resume when VM rises above the UVLO

threshold.

7.4 Device Functional Modes

7.4.1 Step Modes

The SM0 and SM1 pins select the stepping mode of the translator as shown in Table 1.

Table 1. Step Modes

SM1 SM0 MODE

0 0 2-phase drive (full step)

0 1 1-2 phase drive (half step)

1 0 1-phase excitation (wave drive)

1 1 Reserved

In all modes, during a fault condition, the STEP input will be ignored. See Protection Circuits for more

information.

The sequence of the outputs is shown in Table 2,Table 3, and Table 4.

Table 2. 2-Phase Excitation (Full-Step)

Function Step RESET DIR STEP nHOME OUT1 OUT2 OUT3 OUT4

Reset 1 1 X X 0 ON OFF OFF ON

CW 2 0 1 ↑1 ON ON OFF OFF

CW 3 0 1 ↑1 OFF ON ON OFF

CW 4 0 1 ↑1 OFF OFF ON ON

CW to home 1 0 1 ↑0 ON OFF OFF ON

CCW 4 0 0 ↑1 OFF OFF ON ON

CCW 3 0 0 ↑1 OFF ON ON OFF

CCW 2 0 0 ↑1 ON ON OFF OFF

CCW to home 1 0 0 ↑0 ON OFF OFF ON

Hold X 0 X ↑no chg no chg no chg no chg no chg

l TEXAS INSTRUMENTS

DRV8805

www.ti.com

SLVSAW3D –JULY 2011–REVISED JANUARY 2016

Product Folder Links: DRV8805

Table 3. 1-2-Phase Excitation (Half-Step)

Function Step RESET DIR STEP nHOME OUT1 OUT2 OUT3 OUT4

Reset 1 1 X X 0 ON OFF OFF OFF

CW 2 0 1 ↑1 ON ON OFF OFF

CW 3 0 1 ↑1 OFF ON OFF OFF

CW 4 0 1 ↑1 OFF ON ON OFF

CW 5 0 1 ↑1 OFF OFF ON OFF

CW 6 0 1 ↑1 OFF OFF ON ON

CW 7 0 1 ↑1 OFF OFF OFF ON

CW 8 0 1 ↑1 ON OFF OFF ON

CW to home 1 0 1 ↑0 ON OFF OFF OFF

CCW 8 0 0 ↑1 ON OFF OFF ON

CCW 7 0 0 ↑1 OFF OFF OFF ON

CCW 6 0 0 ↑1 OFF OFF ON ON

CCW 5 0 0 ↑1 OFF OFF ON OFF

CCW 4 0 0 ↑1 OFF ON ON OFF

CCW 3 0 0 ↑1 OFF ON OFF OFF

CCW 2 0 0 ↑1 ON ON OFF OFF

CCW to home 1 0 0 ↑0 ON OFF OFF OFF

Hold X 0 X ↑no chg no chg no chg no chg no chg

Table 4. 1-Phase Excitation (Wave Drive)

Function Step RESET DIR STEP nHOME OUT1 OUT2 OUT3 OUT4

Reset 1 1 X X 0 ON OFF OFF OFF

CW 2 0 1 ↑1 OFF ON OFF OFF

CW 3 0 1 ↑1 OFF OFF ON OFF

CW 4 0 1 ↑1 OFF OFF OFF ON

CW to home 1 0 1 ↑0 ON OFF OFF OFF

CCW 4 0 0 ↑1 OFF OFF OFF ON

CCW 3 0 0 ↑1 OFF OFF ON OFF

CCW 2 0 0 ↑1 OFF ON OFF OFF

CCW to home 1 0 0 ↑0 ON OFF OFF OFF

Hold X 0 X ↑no chg no chg no chg no chg no chg

l TEXAS INSTRUMENTS

VCLAMP

OUT1

OUT2

GND

OUT3

OUT4

nENBL RESET

SM1

SM0

GND

DIR

STEP

nHOME

nFAULT

10 11

DRV8805

0.1µF 100µF

+ ±

DRV8805

SLVSAW3D –JULY 2011–REVISED JANUARY 2016

www.ti.com

Product Folder Links: DRV8805

8 Application and Implementation

NOTE

Information in the following applications sections is not part of the TI component

specification, and TI does not warrant its accuracy or completeness. TI’s customers are

responsible for determining suitability of components for their purposes. Customers should

validate and test their design implementation to confirm system functionality.

8.1 Application Information

The DRV8805 can be used to drive one unipolar stepper motor.

8.2 Typical Application

Figure 7. Typical Application Schematic

8.2.1 Design Requirements

Table 5 lists the design parameters for this design example.

Table 5. Design Parameters

DESIGN PARAMETER REFERENCE EXAMPLE VALUE

Supply Voltage VM24 V

Motor Winding Resistance RL7.4 Ω/phase

Motor Full Step Angle θstep 1.8°/step

Motor Rated Current IRATED 0.75 A

PWM frequency fPWM 31.25 kHz

8.2.2 Detailed Design Procedure

8.2.2.1 Motor Voltage

The motor voltage to use will depend on the ratings of the motor selected and the desired torque. A higher

voltage shortens the current rise time in the coils of the stepper motor allowing the motor to produce a greater

average torque. Using a higher voltage also allows the motor to operate at a faster speed than a lower voltage.

l TEXAS INSTRUMENTS nENEL nEMBL luun /"—' .——.—— lam :SL. -kxn [.\m "ENBL nENEL ___.___., -._-.__ k M . W V“ w y y In.“ lmm :.v"

DRV8805

www.ti.com

SLVSAW3D –JULY 2011–REVISED JANUARY 2016

Product Folder Links: DRV8805

8.2.2.2 Drive Current

The current path is starts from the supply VM, moves through the inductive winding load, and low-side sinking

NMOS power FET. Power dissipation losses in one sink NMOS power FET are shown in the following equation.

P = I2× RDS(on) (1)

The DRV8805 has been measured to be capable of 1.5-A Single Channel or 800-mA Four Channels with the

DW package and 2-A Single Channel or 1-A Four Channels with the PWP package at 25°C on standard FR-4

PCBs. The maximum RMS current will vary based on PCB design and the ambient temperature.

8.2.3 Application Curves

Figure 8. Current Ramp With a 16-Ω, 1-mH,

RLLoad and VM= 8.2 V Figure 9. Current Ramp With a 16-Ω,

1-mH RLLoad and VM= 30 V

Figure 10. OCP With 8.2 V and

OUT1 Shorted to VM

Figure 11. OCP Separated by tRETRY With VM= 8.2 V and

OUT1 Shorted to VM

*9 TEXAS INSTRUMENTS

Motor

Driver

Power Supply Motor Drive System

GND

Local

Bulk Capacitor IC Bypass

Capacitor

Parasitic Wire

Inductance

DRV8805

SLVSAW3D –JULY 2011–REVISED JANUARY 2016

www.ti.com

Product Folder Links: DRV8805

9 Power Supply Recommendations

9.1 Bulk Capacitance

Having appropriate local bulk capacitance is an important factor in motor drive system design. It is generally

beneficial to have more bulk capacitance, while the disadvantages are increased cost and physical size.

The amount of local capacitance needed depends on a variety of factors, including:

• The highest current required by the motor system

• The power supply’s capacitance and ability to source current

• The amount of parasitic inductance between the power supply and motor system

• The acceptable voltage ripple

• The type of motor used (Brushed DC, Brushless DC, Stepper)

• The motor braking method

The inductance between the power supply and motor drive system will limit the rate current can change from the

power supply. If the local bulk capacitance is too small, the system will respond to excessive current demands or

dumps from the motor with a change in voltage. When adequate bulk capacitance is used, the motor voltage

remains stable and high current can be quickly supplied.

The data sheet generally provides a recommended value, but system-level testing is required to determine the

appropriate sized bulk capacitor.

Figure 12. Example Setup of Motor Drive System With External Power Supply

The voltage rating for bulk capacitors should be higher than the operating voltage, to provide margin for cases

when the motor transfers energy to the supply.

*9 TEXAS INSTRUMENTS :: E ==== GOO GOO ==== :H:

VCLAMP

OUT1

OUT2

GND

OUT3

OUT4

nENBL

nFAULT

nHOME

STEP

DIR

GND

SM0

SM1

RESET

DRV8805

www.ti.com

SLVSAW3D –JULY 2011–REVISED JANUARY 2016

Product Folder Links: DRV8805

10 Layout

10.1 Layout Guidelines

The bulk capacitor should be placed to minimize the distance of the high-current path through the motor driver

device. The connecting metal trace widths should be as wide as possible, and numerous vias should be used

when connecting PCB layers. These practices minimize inductance and allow the bulk capacitor to deliver high

current.

• Small-value capacitors should be ceramic, and placed closely to device pins.

• The high-current device outputs should use wide metal traces.

The device thermal pad should be soldered to the PCB top-layer ground plane. Multiple vias should be used to

connect to a large bottom-layer ground plane. The use of large metal planes and multiple vias help dissipate the

I2× RDS(on) heat that is generated in the device.

10.2 Layout Example

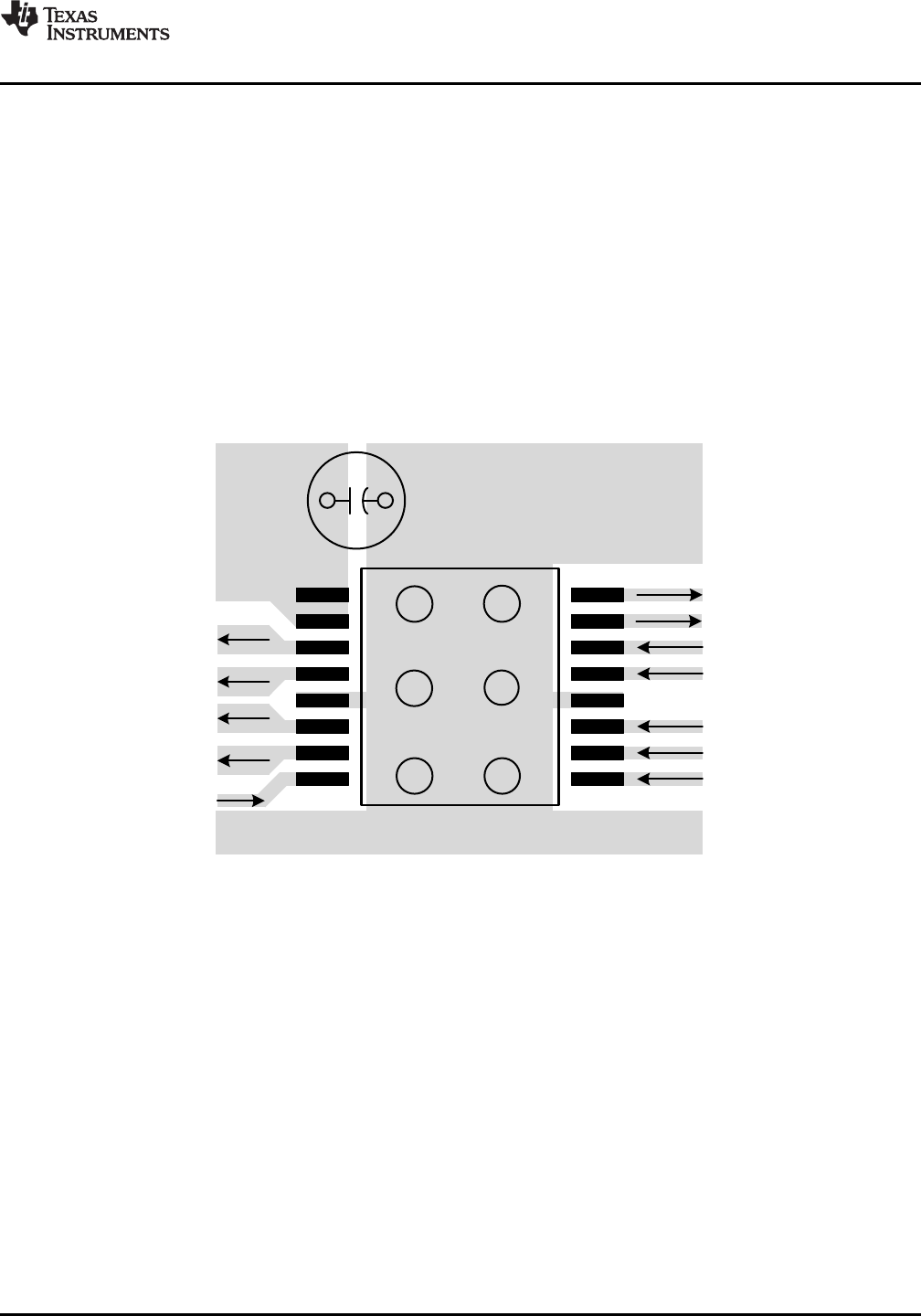

Figure 13. Example Layout Drawing

10.3 Thermal Considerations

The DRV8805 has thermal shutdown (TSD) as described in Thermal Shutdown (TSD). If the die temperature

exceeds approximately 150°C, the device will be disabled until the temperature drops to a safe level.

Any tendency of the device to enter TSD is an indication of either excessive power dissipation, insufficient

heatsinking, or too high an ambient temperature.

l TEXAS INSTRUMENTS

P = RDS(ON) ·(I )

OUT

DRV8805

SLVSAW3D –JULY 2011–REVISED JANUARY 2016

www.ti.com

Product Folder Links: DRV8805

Thermal Considerations (continued)

10.3.1 Power Dissipation

Power dissipation in the DRV8805 is dominated by the power dissipated in the output FET resistance, or RDS(ON).

Average power dissipation of each FET when running a static load can be roughly estimated by Equation 2.

where

• P is the power dissipation of one FET

• RDS(ON) is the resistance of each FET

• IOUT is equal to the average current drawn by the load (2)

Note that at start-up and fault conditions this current is much higher than normal running current; these peak

currents and their duration also must be taken into consideration. When driving more than one load

simultaneously, the power in all active output stages must be summed.

The maximum amount of power that can be dissipated in the device is dependent on ambient temperature and

heatsinking.

Note that RDS(ON) increases with temperature, so as the device heats, the power dissipation increases. This must

be taken into consideration when sizing the heatsink.

10.3.2 Heatsinking

The DRV8805DW package uses a standard SOIC outline, but has the center pins internally fused to the die pad

to more efficiently remove heat from the device. The two center leads on each side of the package should be

connected together to as large a copper area on the PCB as is possible to remove heat from the device. If the

copper area is on the opposite side of the PCB from the device, thermal vias are used to transfer the heat

between top and bottom layers.

In general, the more copper area that can be provided, the more power can be dissipated.

The DRV8805PWP package uses an HTSSOP package with an exposed PowerPAD™. The PowerPAD™

package uses an exposed pad to remove heat from the device. For proper operation, this pad must be thermally

connected to copper on the PCB to dissipate heat. On a multi-layer PCB with a ground plane, this can be

accomplished by adding a number of vias to connect the thermal pad to the ground plane. On PCBs without

internal planes, copper area can be added on either side of the PCB to dissipate heat. If the copper area is on

the opposite side of the PCB from the device, thermal vias are used to transfer the heat between top and bottom

layers.

For details about how to design the PCB, see TI Application Report, PowerPAD™ Thermally Enhanced Package

(SLMA002), and TI Application Brief, PowerPAD Made Easy (SLMA004), available at www.ti.com.

l TEXAS INSTRUMENTS

DRV8805

www.ti.com

SLVSAW3D –JULY 2011–REVISED JANUARY 2016

Product Folder Links: DRV8805

11 Device and Documentation Support

11.1 Documentation Support

11.1.1 Related Documentation

For related documentation see the following:

•PowerPAD™ Thermally Enhanced Package,SLMA002.

•PowerPAD Made Easy,SLMA004.

11.2 Trademarks

PowerPAD is a trademark of Texas Instruments.

All other trademarks are the property of their respective owners.

11.3 Electrostatic Discharge Caution

These devices have limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam

during storage or handling to prevent electrostatic damage to the MOS gates.

11.4 Glossary

SLYZ022 —TI Glossary.

This glossary lists and explains terms, acronyms, and definitions.

12 Mechanical, Packaging, and Orderable Information

The following pages include mechanical, packaging, and orderable information. This information is the most

current data available for the designated devices. This data is subject to change without notice and revision of

this document. For browser-based versions of this data sheet, refer to the left-hand navigation.

I TEXAS INSTRUMENTS

PACKAGE OPTION ADDENDUM

www.ti.com 10-Dec-2020

Addendum-Page 1

PACKAGING INFORMATION

Orderable Device Status

(1)

Package Type Package

Drawing Pins Package

Qty Eco Plan

(2)

Lead finish/

Ball material

(6)

MSL Peak Temp

(3)

Op Temp (°C) Device Marking

(4/5)

Samples

DRV8805DW ACTIVE SOIC DW 20 25 RoHS & Green NIPDAU Level-2-260C-1 YEAR -40 to 125 DRV8805DW

DRV8805DWR ACTIVE SOIC DW 20 2000 RoHS & Green NIPDAU Level-2-260C-1 YEAR -40 to 125 DRV8805DW

DRV8805PWP ACTIVE HTSSOP PWP 16 90 RoHS & Green NIPDAU Level-3-260C-168 HR -40 to 125 DRV8805

DRV8805PWPR ACTIVE HTSSOP PWP 16 2000 RoHS & Green NIPDAU Level-3-260C-168 HR -40 to 125 DRV8805

(1) The marketing status values are defined as follows:

ACTIVE: Product device recommended for new designs.

LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.

NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in a new design.

PREVIEW: Device has been announced but is not in production. Samples may or may not be available.

OBSOLETE: TI has discontinued the production of the device.

(2) RoHS: TI defines "RoHS" to mean semiconductor products that are compliant with the current EU RoHS requirements for all 10 RoHS substances, including the requirement that RoHS substance

do not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered at high temperatures, "RoHS" products are suitable for use in specified lead-free processes. TI may

reference these types of products as "Pb-Free".

RoHS Exempt: TI defines "RoHS Exempt" to mean products that contain lead but are compliant with EU RoHS pursuant to a specific EU RoHS exemption.

Green: TI defines "Green" to mean the content of Chlorine (Cl) and Bromine (Br) based flame retardants meet JS709B low halogen requirements of <=1000ppm threshold. Antimony trioxide based

flame retardants must also meet the <=1000ppm threshold requirement.

(3) MSL, Peak Temp. - The Moisture Sensitivity Level rating according to the JEDEC industry standard classifications, and peak solder temperature.

(4) There may be additional marking, which relates to the logo, the lot trace code information, or the environmental category on the device.

(5) Multiple Device Markings will be inside parentheses. Only one Device Marking contained in parentheses and separated by a "~" will appear on a device. If a line is indented then it is a continuation

of the previous line and the two combined represent the entire Device Marking for that device.

(6) Lead finish/Ball material - Orderable Devices may have multiple material finish options. Finish options are separated by a vertical ruled line. Lead finish/Ball material values may wrap to two

lines if the finish value exceeds the maximum column width.

Important Information and Disclaimer:The information provided on this page represents TI's knowledge and belief as of the date that it is provided. TI bases its knowledge and belief on information

provided by third parties, and makes no representation or warranty as to the accuracy of such information. Efforts are underway to better integrate information from third parties. TI has taken and

I TEXAS INSTRUMENTS

PACKAGE OPTION ADDENDUM

www.ti.com 10-Dec-2020

Addendum-Page 2

continues to take reasonable steps to provide representative and accurate information but may not have conducted destructive testing or chemical analysis on incoming materials and chemicals.

TI and TI suppliers consider certain information to be proprietary, and thus CAS numbers and other limited information may not be available for release.

In no event shall TI's liability arising out of such information exceed the total purchase price of the TI part(s) at issue in this document sold by TI to Customer on an annual basis.

l TEXAS INSTRUMENTS REEL DIMENSIONS TAPE DIMENSIONS ’ I+K0 '«PI» Reel Diame|er AD Dimension deSIgned Io accommodate me componem wIdIh E0 Dimension deSIgned Io eecommodaIe me componenI Iengm KO Dlmenslun desIgned to accommodate me componem Ihlckness 7 w OvereII wmm OHhe earner cape i p1 Pitch between successwe cavIIy cemers f T Reel Width (W1) QUADRANT ASSIGNMENTS FOR PIN 1 ORIENTATION IN TAPE O O O D O O D O SprockeIHoles ,,,,,,,,,,, ‘ User Direcllon 0' Feed Pockel Quadrams

TAPE AND REEL INFORMATION

*All dimensions are nominal

Device Package

Type Package

Drawing Pins SPQ Reel

Diameter

(mm)

Reel

Width

W1 (mm)

(mm) B0

(mm) K0

(mm) P1

(mm) W

(mm) Pin1

Quadrant

DRV8805DWR SOIC DW 20 2000 330.0 24.4 10.8 13.3 2.7 12.0 24.0 Q1

DRV8805PWPR HTSSOP PWP 16 2000 330.0 12.4 6.9 5.6 1.6 8.0 12.0 Q1

PACKAGE MATERIALS INFORMATION

www.ti.com 5-Jan-2022

Pack Materials-Page 1

l TEXAS INSTRUMENTS TAPE AND REEL BOX DIMENSIONS

*All dimensions are nominal

Device Package Type Package Drawing Pins SPQ Length (mm) Width (mm) Height (mm)

DRV8805DWR SOIC DW 20 2000 367.0 367.0 45.0

DRV8805PWPR HTSSOP PWP 16 2000 350.0 350.0 43.0

PACKAGE MATERIALS INFORMATION

www.ti.com 5-Jan-2022

Pack Materials-Page 2

l TEXAS INSTRUMENTS T - Tube height| L - Tube length l ,g + w-Tuhe _______________ _ ______________ width 47 — B - Alignment groove width

TUBE

*All dimensions are nominal

Device Package Name Package Type Pins SPQ L (mm) W (mm) T (µm) B (mm)

DRV8805DW DW SOIC 20 25 507 12.83 5080 6.6

DRV8805PWP PWP HTSSOP 16 90 530 10.2 3600 3.5

PACKAGE MATERIALS INFORMATION

www.ti.com 5-Jan-2022

Pack Materials-Page 3

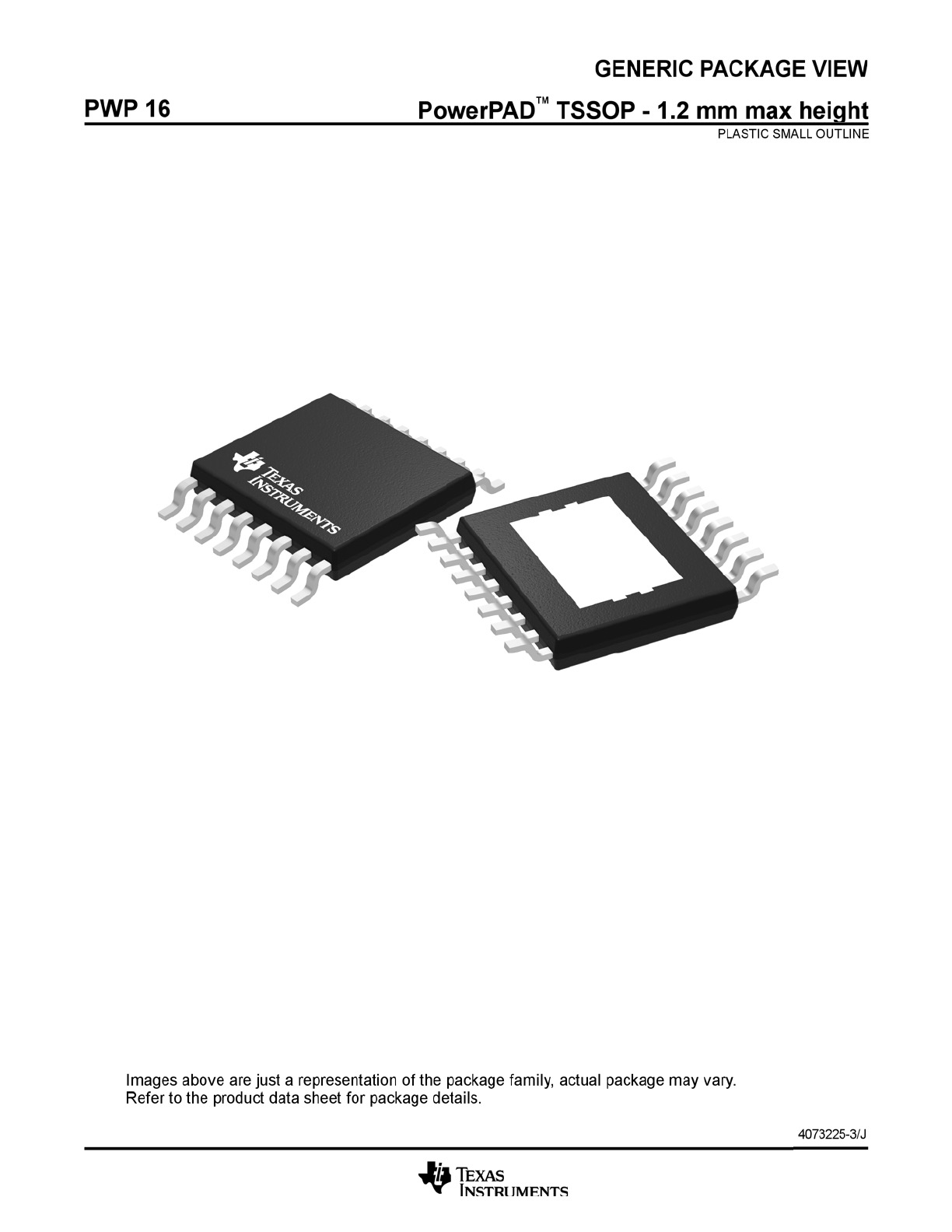

GENERIC PACKAGE VIEW PWP 16 PowerPAD” TSSOP - 1.2 mm max height PLASTIC SMALL OUTLINE Images above are jusl a represenlalion of the package family, aclual package may vary Refel lo the product dala sheel for package details. 40732253.] I TEXAS INSTRI IMFNTS

www.ti.com

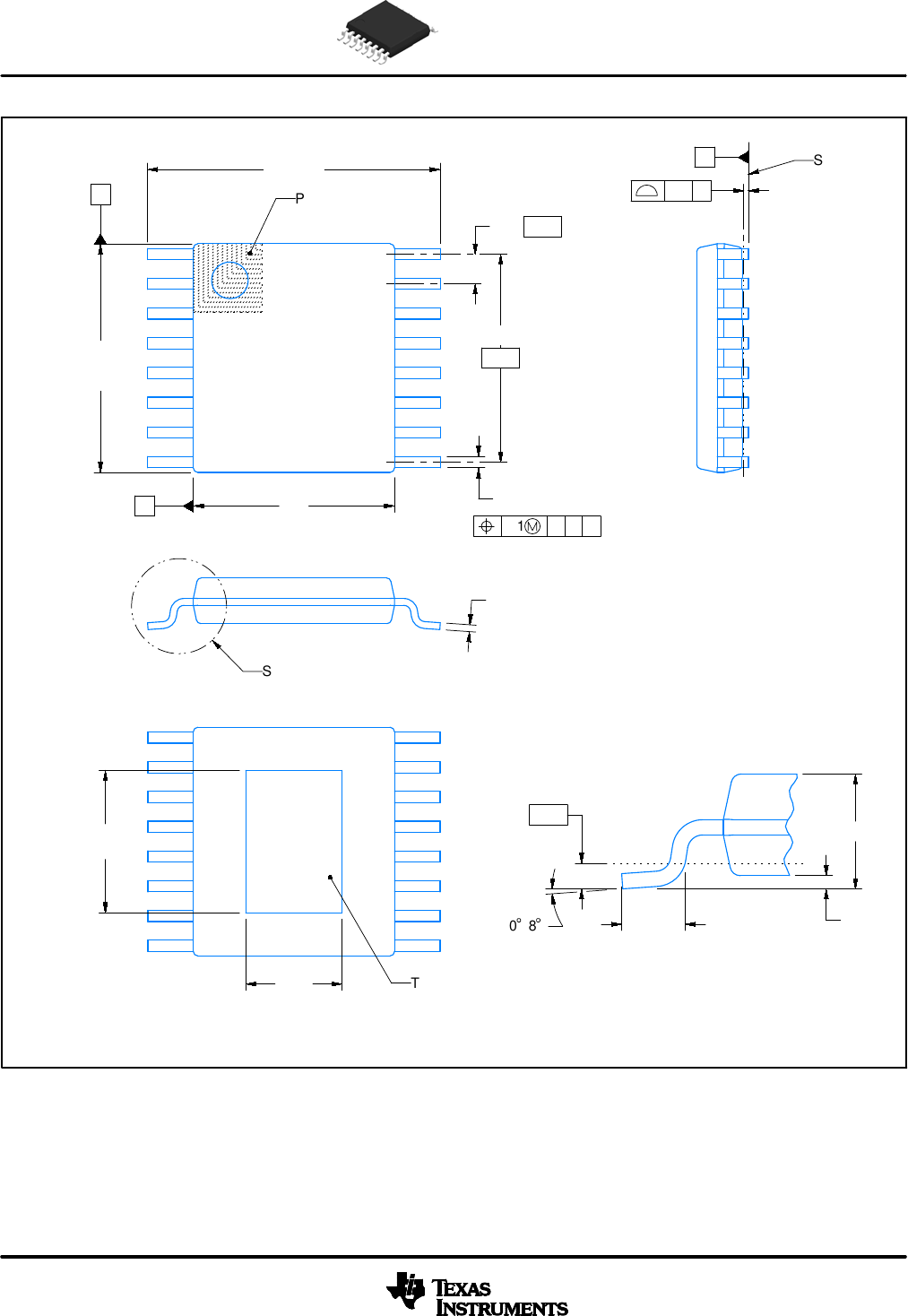

PACKAGE OUTLINE

14X 0.65

4.55

16X 0.30

0.19

TYP

6.6

6.2

0.15

0.05

0.25

GAGE PLANE

-80

1.2 MAX

3.55

2.68

2.46

1.75

B4.5

4.3

NOTE 3

5.1

4.9

0.75

0.50

(0.15) TYP

PowerPAD TSSOP - 1.2 mm max heightPWP0016J

SMALL OUTLINE PACKAGE

4223595/A 03/2017

0.1 C A B

PIN 1 INDEX

AREA

SEE DETAIL A

0.1 C

NOTES:

1. All linear dimensions are in millimeters. Any dimensions in parenthesis are for reference only. Dimensioning and tolerancing

per ASME Y14.5M.

2. This drawing is subject to change without notice.

3. This dimension does not include mold flash, protrusions, or gate burrs. Mold flash, protrusions, or gate burrs shall not

exceed 0.15 mm per side.

4. Reference JEDEC registration MO-153.

SEATING

PLANE

PowerPAD is a trademark of Texas Instruments.

A 20

DETAIL A

TYPICAL

SCALE 2.500

THERMAL

PAD

www.ti.com

EXAMPLE BOARD LAYOUT

0.05 MAX

ALL AROUND 0.05 MIN

ALL AROUND

16X (1.5)

16X (0.45)

14X (0.65)

(5.8)

(R0.05) TYP

(3.4)

NOTE 8

(5)

NOTE 8

(1.35) TYP

(0.65)

(1.3) TYP

( 0.2) TYP

VIA

(2.46)

(3.55)

PowerPAD TSSOP - 1.2 mm max heightPWP0016J

SMALL OUTLINE PACKAGE

4223595/A 03/2017

NOTES: (continued)

5. Publication IPC-7351 may have alternate designs.

6. Solder mask tolerances between and around signal pads can vary based on board fabrication site.

7. This package is designed to be soldered to a thermal pad on the board. For more information, see Texas Instruments literature

numbers SLMA002 (www.ti.com/lit/slma002) and SLMA004 (www.ti.com/lit/slma004).

8. Size of metal pad may vary due to creepage requirement.

9. Vias are optional depending on application, refer to device data sheet. It is recommended that vias under paste be filled, plugged

or tented.

SEE DETAILS

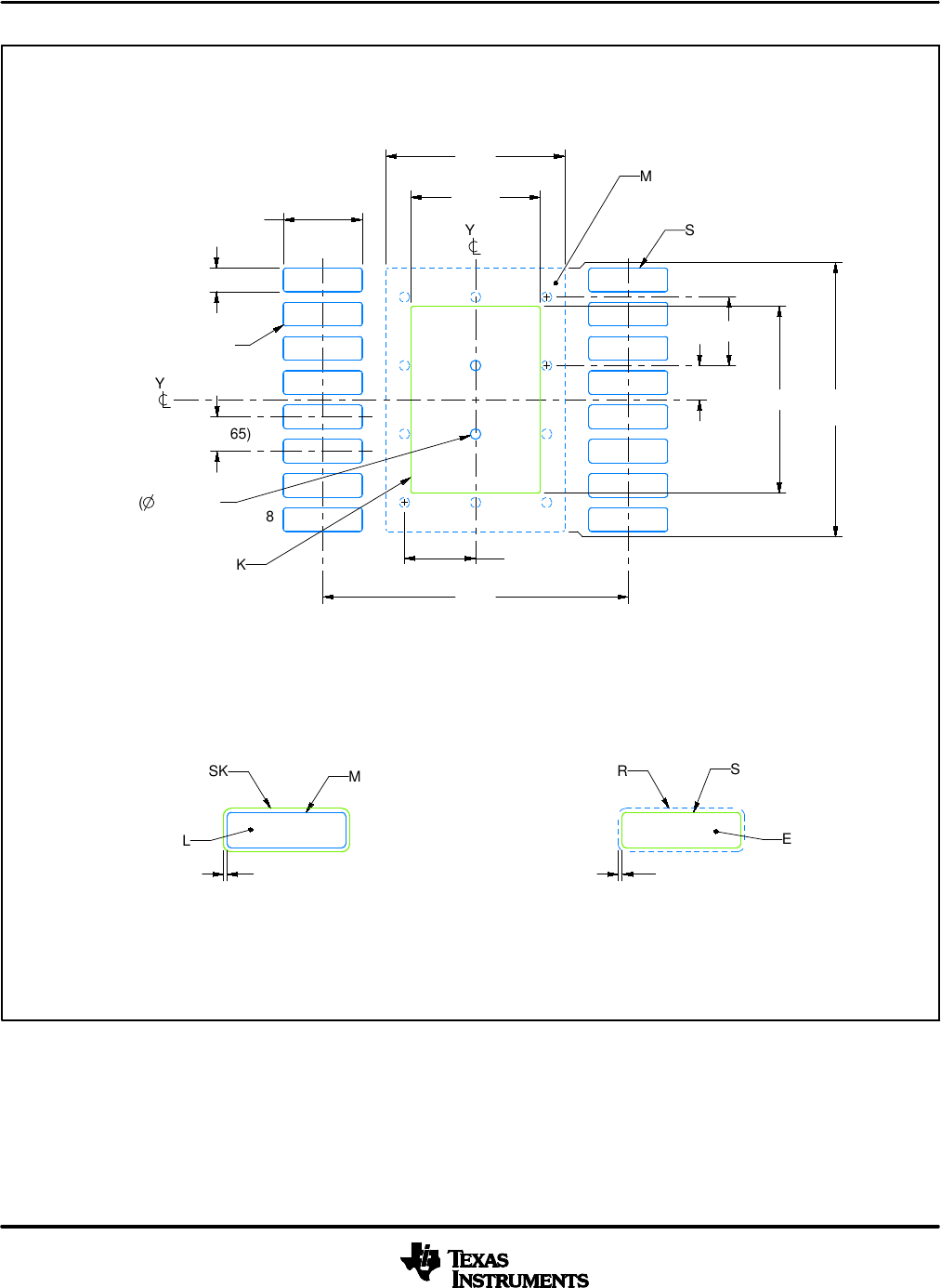

LAND PATTERN EXAMPLE

EXPOSED METAL SHOWN

SCALE: 10X

SYMM

METAL COVERED

BY SOLDER MASK

SOLDER MASK

DEFINED PAD

15.000

METAL

SOLDER MASK

OPENING METAL UNDER

SOLDER MASK SOLDER MASK

OPENING

EXPOSED METAL

SOLDER MASK DETAILS

NON-SOLDER MASK

DEFINED SOLDER MASK

DEFINED

‘U‘+L‘ , nlﬂvi Egg... g

www.ti.com

EXAMPLE STENCIL DESIGN

16X (1.5)

16X (0.45)

14X (0.65)

(5.8)

(R0.05) TYP

(3.55)

BASED ON

0.125 THICK

STENCIL

(2.46)

BASED ON

0.125 THICK

STENCIL

PowerPAD TSSOP - 1.2 mm max heightPWP0016J

SMALL OUTLINE PACKAGE

4223595/A 03/2017

2.08 X 3.000.175

2.25 X 3.240.15

2.46 X 3.55 (SHOWN)0.125

2.75 X 3.970.1

SOLDER STENCIL

OPENING

STENCIL

THICKNESS

NOTES: (continued)

10. Laser cutting apertures with trapezoidal walls and rounded corners may offer better paste release. IPC-7525 may have alternate

design recommendations.

11. Board assembly site may have different recommendations for stencil design.

SOLDER PASTE EXAMPLE

BASED ON 0.125 mm THICK STENCIL

SCALE: 10X

SYMM

METAL COVERED

BY SOLDER MASK

SEE TABLE FOR

DIFFERENT OPENINGS

FOR OTHER STENCIL

THICKNESSES

DW0020A I

www.ti.com

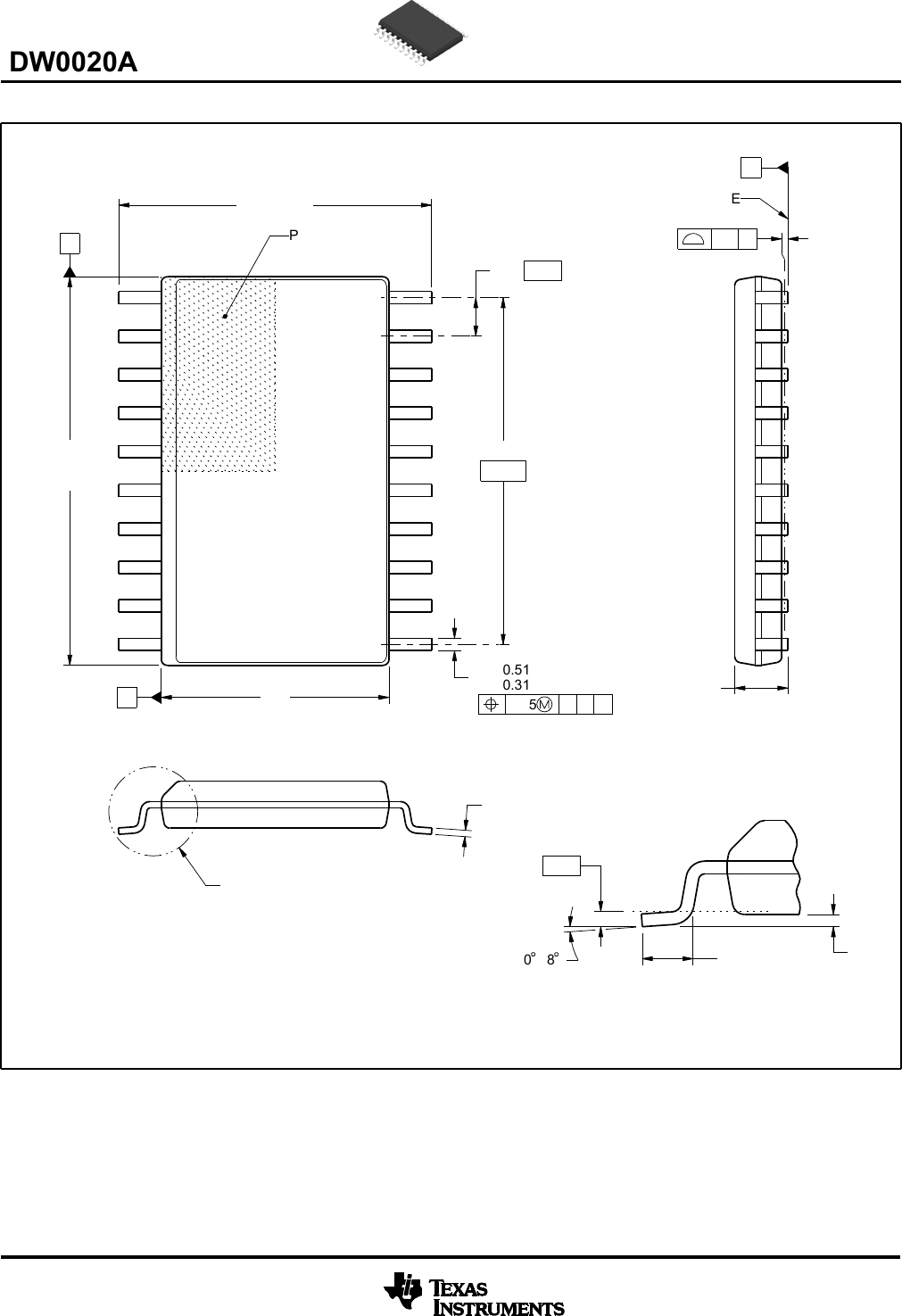

PACKAGE OUTLINE

TYP

10.63

9.97

2.65 MAX

18X 1.27

20X 0.51

0.31

11.43

TYP

0.33

0.10

0 - 8

0.3

0.1

0.25

GAGE PLANE

1.27

0.40

NOTE 3

13.0

12.6

B7.6

7.4

4220724/A 05/2016

SOIC - 2.65 mm max heightDW0020A

SOIC

NOTES:

1. All linear dimensions are in millimeters. Dimensions in parenthesis are for reference only. Dimensioning and tolerancing

per ASME Y14.5M.

2. This drawing is subject to change without notice.

3. This dimension does not include mold flash, protrusions, or gate burrs. Mold flash, protrusions, or gate burrs shall not

exceed 0.15 mm per side.

4. This dimension does not include interlead flash. Interlead flash shall not exceed 0.43 mm per side.

5. Reference JEDEC registration MS-013.

120

0.25 C A B

PIN 1 ID

AREA

NOTE 4

SEATING PLANE

0.1 C

SEE DETAIL A

DETAIL A

TYPICAL

SCALE 1.200

DW0020A

www.ti.com

EXAMPLE BOARD LAYOUT

(9.3)

0.07 MAX

ALL AROUND

0.07 MIN

ALL AROUND

20X (2)

20X (0.6)

18X (1.27)

(R )

TYP

0.05

4220724/A 05/2016

SOIC - 2.65 mm max heightDW0020A

SOIC

SYMM

LAND PATTERN EXAMPLE

SCALE:6X

10 11

NOTES: (continued)

6. Publication IPC-7351 may have alternate designs.

7. Solder mask tolerances between and around signal pads can vary based on board fabrication site.

METAL

SOLDER MASK

OPENING

NON SOLDER MASK

DEFINED

SOLDER MASK DETAILS

SOLDER MASK

OPENING

METAL UNDER

SOLDER MASK

DEFINED

DW0020A $$$$$ﬁﬁﬁiﬁ%

www.ti.com

EXAMPLE STENCIL DESIGN

(9.3)

18X (1.27)

20X (0.6)

20X (2)

4220724/A 05/2016

SOIC - 2.65 mm max heightDW0020A

SOIC

NOTES: (continued)

8. Laser cutting apertures with trapezoidal walls and rounded corners may offer better paste release. IPC-7525 may have alternate

design recommendations.

9. Board assembly site may have different recommendations for stencil design.

SYMM

10 11

SOLDER PASTE EXAMPLE

BASED ON 0.125 mm THICK STENCIL

SCALE:6X

IMPORTANT NOTICE AND DISCLAIMER

TI PROVIDES TECHNICAL AND RELIABILITY DATA (INCLUDING DATA SHEETS), DESIGN RESOURCES (INCLUDING REFERENCE

DESIGNS), APPLICATION OR OTHER DESIGN ADVICE, WEB TOOLS, SAFETY INFORMATION, AND OTHER RESOURCES “AS IS”

AND WITH ALL FAULTS, AND DISCLAIMS ALL WARRANTIES, EXPRESS AND IMPLIED, INCLUDING WITHOUT LIMITATION ANY

IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NON-INFRINGEMENT OF THIRD

PARTY INTELLECTUAL PROPERTY RIGHTS.

These resources are intended for skilled developers designing with TI products. You are solely responsible for (1) selecting the appropriate

TI products for your application, (2) designing, validating and testing your application, and (3) ensuring your application meets applicable

standards, and any other safety, security, regulatory or other requirements.

These resources are subject to change without notice. TI grants you permission to use these resources only for development of an

application that uses the TI products described in the resource. Other reproduction and display of these resources is prohibited. No license

is granted to any other TI intellectual property right or to any third party intellectual property right. TI disclaims responsibility for, and you

will fully indemnify TI and its representatives against, any claims, damages, costs, losses, and liabilities arising out of your use of these

resources.

TI’s products are provided subject to TI’s Terms of Sale or other applicable terms available either on ti.com or provided in conjunction with

such TI products. TI’s provision of these resources does not expand or otherwise alter TI’s applicable warranties or warranty disclaimers for

TI products.

TI objects to and rejects any additional or different terms you may have proposed. IMPORTANT NOTICE

Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265

Scheda tecnica DRV8805 di Texas Instruments

INFORMAZIONI

GUIDA

CONTATTI

SEGUICI
