M12 Push-Pull Inner-Locking Shielded Connectors
HARTING connectors are designed with a push-pull inner-locking mechanism
HARTING M12 push-pull male cable connector with inner-locking mechanism and crimp termination for D-Code 4-pole male straight and X-Code 8-pole male straight standardized according to IEC 61076-2-010.
Technical specifications
- D-Code
- Rated current: 4 A
- Rated voltage: 48 VAC and 60 VDC
- Operating temperature: -40°C to +85°C
- IP rating: IP65/IP67
- Mating cycles: ≥100
- IEC 61076-2-101 and IEC 61076-2-010
- X-Code:
- Transmission: Cat. 6A Class EA up to 500 MHz
- Data rate: 10 Mbit/s to 10 Gbit/s
- Rated current: 0.5 A
Features
- Push-pull inner-locking mechanism
- 360° shielding
- Compact and standardized M12 design
- Reduced installation time
- Enhanced signal integrity
- Space-saving design
- Increased productivity
- Reliable performance
- Optimized use of installation space
Applications
- Ethernet-based communication
- Sensors and actuators
- Industrial robot arms
- Industrial cameras
- Handheld devices
- Machine vision systems
- Control systems
Markets
- Industrial automation
- Transportation
- Industrial networking and infrastructure
- Energy and utilities
- Food and beverage industry
Related content

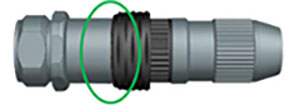

Mated

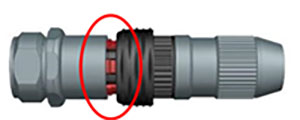

Unmated
M12 Push-Pull Inner-Locking Shielded Connectors
| Immagine | Codice produttore | Descrizione | Tipo di connettore | Tipo | N. di posizioni | Quantità disponibile | Prezzo | Vedi i dettagli | |
|---|---|---|---|---|---|---|---|---|---|
 | 97000001975 | M12-SD-PPI-CC-CRIMP-4P-DCOD-M-ST | Alloggiamento spina | Per pin maschio | 4 | 0 - Immediatamente | $28.99 | Vedi i dettagli | |
| 97000001976 | M12-SD-PPI-CC-CRIMP-8P-XCOD-M-ST | Alloggiamento spina | Per pin maschio | 8 | 0 - Immediatamente | $38.15 | Vedi i dettagli |
Data di pubblicazione: 2025-11-21
